MagyarBreve Análise do Conversível Acer Aspire Switch 12S SW7-272-M3A0
Acer Aspire Switch 12S SW7-272-M3A0 (Aspire Switch Serie)
Processador
Intel Core m3-6Y30 2 x 0.9 - 2.2 GHz, Skylake
Placa gráfica
Intel HD Graphics 515, Análises do: 850 MHz, Dual-Channel, 20.19.15.4331
Memória
4 GB
, DDR3-1600, Dual-Channel, soldered on
Pantalha
12.50 polegadas 16:9, 1920 x 1080 pixel 176 PPI, capacitiva, native pen support, AU Optronics B125HAN01.0, IPS, Brilhante: sim, detachable screen
placa mãe
Intel Skylake-Y Premium PCH
Disco rígido
Lite-On CV1-8B128, 128 GB
, 90 GB livre
peso
1.4 kg, Suprimento de energia: 246 g
Preço
1199 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
AU Optronics B125HAN01.0 tested with X-Rite i1Pro 2
Máximo: 388 cd/m² (Nits) Médio: 377.9 cd/m² Minimum: 14 cd/m²iluminação: 92 %
iluminação com acumulador: 383 cd/m²
Contraste: 1126:1 (Preto: 0.34 cd/m²)
ΔE Color 4.8 | 0.5-29.43 Ø5
ΔE Greyscale 2.8 | 0.57-98 Ø5.3
64% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.63% AdobeRGB 1998 (Argyll 2.2.0 3D)
64% sRGB (Argyll 2.2.0 3D)
43.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.25
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured. | ||
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 18 ms ... rise ↗ and fall ↘ combined | ↗ 4 ms rise |  |
| ↘ 14 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 34 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 25 ms ... rise ↗ and fall ↘ combined | ↗ 10 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms). | ||
| Acer Aspire Switch 12S SW7-272-M3A0 IPS, 1920x1080 | Lenovo IdeaPad Miix 700 IPS, 2160x1440 | HP Elite x2 1012 G1 IPS, 1920x1280 | Samsung Galaxy Tab Pro S W700N sAMOLED, 2160x1440 | Microsoft Surface Pro 4, Core m3 IPS, 2736x1824 | Microsoft Surface Pro 4, Core i5, 128GB IPS, 2736x1824 | Acer Aspire Switch 12 SW5-271-61X7 IPS, 1920x1080 | Acer Aspire Switch Alpha 12 SA5-271-56HM IPS, 2160x1440 | |
|---|---|---|---|---|---|---|---|---|
| Display | 56% | 20% | 54% | 50% | 51% | |||
| Display P3 Coverage | 43.2 | 68.1 58% | 53.8 25% | 67.5 56% | 65 50% | 65.5 52% | ||
| sRGB Coverage | 64 | 97.4 52% | 73.7 15% | 96.6 51% | 96.5 51% | 96.1 50% | ||
| AdobeRGB 1998 Coverage | 44.63 | 70.2 57% | 53.8 21% | 69 55% | 67 50% | 66.9 50% | ||
| Response Times | -5% | -30% | -78% | -79% | -35% | |||
| Response Time Grey 50% / Grey 80% * | 25 ? | 30 ? -20% | 33.2 ? -33% | 46 ? -84% | 46 ? -84% | 20 ? 20% | ||
| Response Time Black / White * | 18 ? | 16 ? 11% | 22.8 ? -27% | 31 ? -72% | 31.2 ? -73% | 34 ? -89% | ||
| PWM Frequency | 200 ? | 50 ? | 50 ? | 1000 ? | ||||
| Screen | -18% | -22% | 120% | 17% | 11% | -15% | -19% | |
| Brightness middle | 383 | 341 -11% | 322 -16% | 363 -5% | 389.2 2% | 413 8% | 385 1% | 345 -10% |
| Brightness | 378 | 318 -16% | 319 -16% | 378 0% | 392 4% | 396 5% | 352 -7% | 328 -13% |
| Brightness Distribution | 92 | 87 -5% | 97 5% | 90 -2% | 92 0% | 87 -5% | 85 -8% | 91 -1% |
| Black Level * | 0.34 | 0.36 -6% | 0.42 -24% | 0.03 91% | 0.27 21% | 0.36 -6% | 0.48 -41% | 0.38 -12% |
| Contrast | 1126 | 947 -16% | 767 -32% | 12100 975% | 1441 28% | 1147 2% | 802 -29% | 908 -19% |
| Colorchecker dE 2000 * | 4.8 | 6 -25% | 6.02 -25% | 4.8 -0% | 3.61 25% | 3.09 36% | 4.3 10% | 8.4 -75% |
| Colorchecker dE 2000 max. * | 8.77 | 10.06 -15% | 6.91 21% | 11.9 -36% | ||||
| Greyscale dE 2000 * | 2.8 | 8.12 -190% | 6.29 -125% | 5.04 -80% | 3.8 -36% | 3.92 -40% | 3.73 -33% | 4.3 -54% |
| Gamma | 2.25 98% | 2.23 99% | 2.4 92% | 2.57 86% | 2.16 102% | 2.3 96% | 2.66 83% | 2.63 84% |
| CCT | 6676 97% | 7011 93% | 7712 84% | 7255 90% | 5969 109% | 7333 89% | 6785 96% | 7368 88% |
| Color Space (Percent of AdobeRGB 1998) | 41 | 63.4 55% | 47.8 17% | 73 78% | 63 54% | 61 49% | 62 51% | |
| Color Space (Percent of sRGB) | 64 | 97.4 52% | 73.2 14% | 97 52% | 97 52% | |||
| Total Average (Program / Settings) | 11% /
-0% | -11% /
-14% | 120% /
120% | -2% /
11% | -6% /
7% | -15% /
-15% | -1% /
-6% |
* ... smaller is better
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
| Geekbench 3 | |
| 32 Bit Single-Core Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| 32 Bit Multi-Core Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| Peacekeeper - --- | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core m3 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
* ... smaller is better
| PCMark 7 Score | 4173 pontos | |
| PCMark 8 Home Score Accelerated v2 | 2536 pontos | |
| PCMark 8 Creative Score Accelerated v2 | 2819 pontos | |
| PCMark 8 Work Score Accelerated v2 | 3596 pontos | |
Ajuda | ||
| PCMark 7 - Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP Elite x2 1012 G1 | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core m3 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| Acer Aspire Switch 12 SW5-271-61X7 | |
Lite-On CV1-8B128
Sequential Read:
445.2 MB/s
Sequential Write:
179.9 MB/s
512K Read:
330.6 MB/s
512K Write:
181.6 MB/s
4K Read:
12.17 MB/s
4K Write:
19.09 MB/s
4K QD32 Read:
137.9 MB/s
4K QD32 Write:
106.5 MB/s
| 3DMark 06 Standard Score | 4968 pontos | |
| 3DMark 11 Performance | 814 pontos | |
| 3DMark Ice Storm Standard Score | 32704 pontos | |
| 3DMark Cloud Gate Standard Score | 3278 pontos | |
| 3DMark Fire Strike Score | 453 pontos | |
Ajuda | ||
| 3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x | |
| HP Elite x2 1012 G1 | |
| Microsoft Surface Pro 4, Core m3 | |
| Lenovo IdeaPad Miix 700 | |
| Acer Aspire Switch 12S SW7-272-M3A0 | |
| baixo | média | alto | ultra | |
| Tomb Raider (2013) | 32.3 | 16.9 | 12.1 | 5.8 |
| BioShock Infinite (2013) | 26 | 13.7 | 11.8 | 3.8 |
| Battlefield 4 (2013) | 17.7 | 12.4 | 8.5 | 2.3 |
| Need for Speed 2016 (2016) | 8.4 | 5.9 |
(±) The average temperature for the upper side under maximal load is 34.4 °C / 94 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 27.4 °C / 81 F, compared to the average of 36.8 °C / 98 F

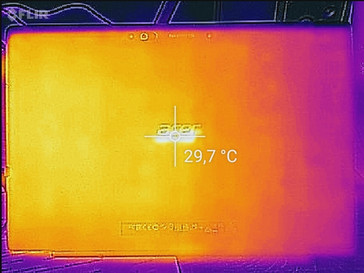

(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.9 °C / 102 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-10.8 °C / -19.4 F).
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 27.4 °C / 81 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.9 °C / 102 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-10.8 °C / -19.4 F).
| Acer Aspire Switch 12S SW7-272-M3A0 6Y30, HD Graphics 515 | Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515 | HP Elite x2 1012 G1 6Y54, HD Graphics 515 | Samsung Galaxy Tab Pro S W700N 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core m3 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | Acer Aspire Switch 12 SW5-271-61X7 5Y10c, HD Graphics 5300 | Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, HD Graphics 520 | |
|---|---|---|---|---|---|---|---|---|
| Heat | -14% | -15% | -35% | -24% | -51% | -16% | -28% | |
| Maximum Upper Side * | 40.2 | 38.6 4% | 39 3% | 42.5 -6% | 43.6 -8% | 52.3 -30% | 43.6 -8% | 46.7 -16% |
| Maximum Bottom * | 27.4 | 40.8 -49% | 41.2 -50% | 44.6 -63% | 45.2 -65% | 51.4 -88% | 43.4 -58% | 51 -86% |
| Idle Upper Side * | 28.6 | 30.4 -6% | 29.5 -3% | 36.6 -28% | 32.4 -13% | 43.2 -51% | 27.5 4% | 29.5 -3% |
| Idle Bottom * | 27.1 | 28 -3% | 29.8 -10% | 38.6 -42% | 29.6 -9% | 36 -33% | 27.6 -2% | 28.6 -6% |
* ... smaller is better
Consumo de energia
| desligado |   0.36 / 1.2 Watt |
| Ocioso |  6.3 / 9.4 / 12.3 Watt |
| Carga |
18.6 / 19 Watt |

| |
| Acer Aspire Switch 12S SW7-272-M3A0 6Y30, HD Graphics 515 | Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515 | HP Elite x2 1012 G1 6Y54, HD Graphics 515 | Samsung Galaxy Tab Pro S W700N 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | Acer Aspire Switch 12 SW5-271-61X7 5Y10c, HD Graphics 5300 | Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, HD Graphics 520 | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -4% | 1% | 28% | 7% | 20% | -19% | |
| Idle Minimum * | 6.3 | 4 37% | 3.7 41% | 3.4 46% | 4.4 30% | 4.1 35% | 7.3 -16% |
| Idle Average * | 9.4 | 8.6 9% | 6.8 28% | 8 15% | 9 4% | 8 15% | 10 -6% |
| Idle Maximum * | 12.3 | 9.3 24% | 7.6 38% | 9 27% | 10.7 13% | 9.3 24% | 10.15 17% |
| Load Average * | 18.6 | 18.6 -0% | 22.5 -21% | 12 35% | 19.6 -5% | 16.3 12% | 25.2 -35% |
| Load Maximum * | 19 | 36.3 -91% | 34.5 -82% | 16.1 15% | 19.9 -5% | 16.8 12% | 29.3 -54% |
* ... smaller is better
| Acer Aspire Switch 12S SW7-272-M3A0 34 Wh | Lenovo IdeaPad Miix 700 41 Wh | HP Elite x2 1012 G1 37 Wh | Samsung Galaxy Tab Pro S W700N 39.5 Wh | Microsoft Surface Pro 4, Core m3 38 Wh | Microsoft Surface Pro 4, Core i5, 128GB 38 Wh | Acer Aspire Switch 12 SW5-271-61X7 37 Wh | Acer Aspire Switch Alpha 12 SA5-271-56HM 37 Wh | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | 33% | 21% | 72% | 29% | 24% | 29% | 8% | |
| Reader / Idle | 530 | 861 62% | 732 38% | 1110 109% | 791 49% | 899 70% | 771 45% | 640 21% |
| H.264 | 337 | 450 34% | 432 28% | 515 53% | 378 12% | 468 39% | ||
| WiFi v1.3 | 343 | 440 28% | 443 29% | 525 53% | 488 42% | 427 24% | 321 -6% | |
| Load | 145 | 157 8% | 130 -10% | 138 -5% | 111 -23% | 112 -23% | ||
| WiFi | 360 |
Pro
+ Tela brilhante com muito contraste
+ Silencioso
+ SSD veloz
+ Dock de teclado
Contra
- Garantia de apenas 12 meses
- Afogamento da CPU e GPU
- Durações médias

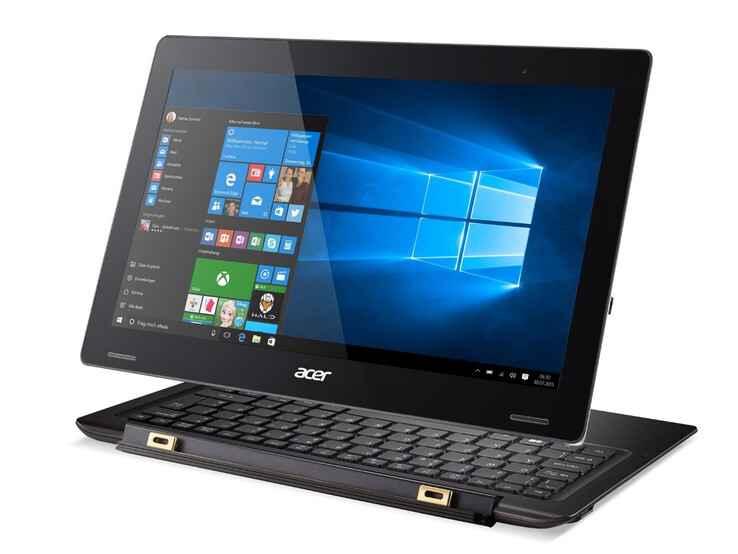

O Acer Switch 12S é um desmontável de 12,5-polegadas. O Switch está equipado com um processador Core-m da geração Skylake, que oferece suficiente desempenho para processar palavras e navegar pela web. O conversível é silencioso, somente esquenta moderadamente e é muito rápido, graças a um SSD veloz. Gostamos da tela, dado que é brilhante com muito contraste e boa estabilidade dos ângulos de visão. Em comparação com a concorrência, a Acer decidiu usar um formato 16:9 em vez do formato 3:2 mais comum. A tela táctil detecta as entradas imediatamente e opcionalmente pode ser operada com um stylus.
O nosso desmontável de teste é vendido por 1200 Euros (~$1330) - muito alto, em nossa opinião. O sistema sofre de muitas desvantagens para a faixa de preços.
Primeiramente, a duração da bateria é apenas média, com a maioria dos concorrentes oferecendo melhores durações da bateria. A Acer poderia ter integrado uma bateria secundaria no dock do teclado. Uma stylus também não está incluída - o muito mais econômico Lenovo Ideapad Miix 700 inclui um dock de teclado e uma caneta. Finalmente, o Switch somente é coberto por um ano de garantia. Considerando que a Acer Alemanha cobre, inclusive os portáteis de gama baixa durante 24 meses, isto não faz sentido algum. Os usuários interessados em um portátil similar ao Switch 12S poder ter uma melhor opção com o Microsoft Surface Pro 4, o Lenovo Ideapad Miix 700 ou o Acer Aspire Switch 12 Alpha. Todos eles são mais atraentes com preço mais baixo.
Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.
Acer Aspire Switch 12S SW7-272-M3A0
-
06/23/2016 v5.1(old)
Sascha Mölck
Convertible - Médio equilibrado
