Breve Análise do Conversível Asus Transformer Book T100HA

Mais do que se vê? A Asus aproveitou as críticas feitas ao seu T100 Chi para criar um sucessor completamente refinado que corrige quase todos seus problemas. Além disso, para melhorar ainda mais, também é 25% mais barato. Será este o matador de Chromebook que a Windows precisa?
Transformer Book T100HA (Transformer Book Serie)
Processador
Intel Atom x5-Z8500 4 x 1.4 - 2.2 GHz, Cherry Trail
Placa gráfica
Intel HD Graphics (Cherry Trail), Análises do: 600 MHz, 10.18.15.4248
Memória
4 GB
, DDR3L 1600 MHz
Pantalha
10.10 polegadas 16:10, 1280 x 800 pixel, Multi-touch de 10-pontos, AUO20D4, IPS, Brilhante: sim
placa mãe
Intel Cherry Trail
Disco rígido
Samsung CGND3R eMMC, 64 GB
Placa de Som
Intel SST Audio Device
Conexões
2 USB 2.0, 1 USB 3.0, 1 HDMI, Conexões Audio: Combinado de 3,5 mm, Card Reader: MicroSD, Sensores: acelerômetro, girômetro, USB-C Gen 1 (bis zu 5 Gbit/s)
Funcionamento em rede
Broadcom 802.11 abgn Wireless SDIO Adapter (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Tamanho
altura x largura x profundidade (em mm): 27 x 276 x 188
Bateria
30 Wh Lítio-Ion
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: Frontal: 2 MP; Traseira: 5 MP
Características adicionais

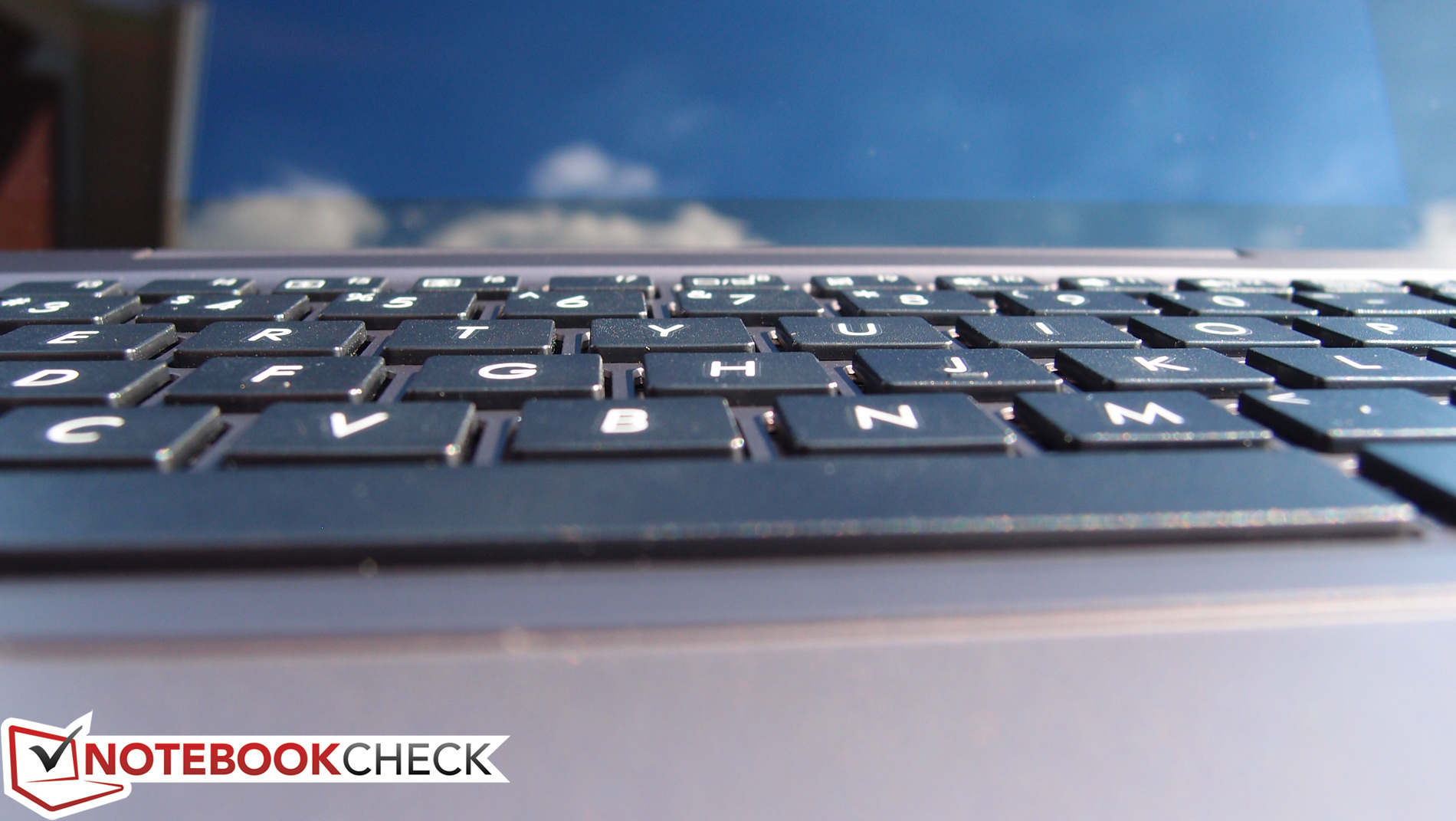

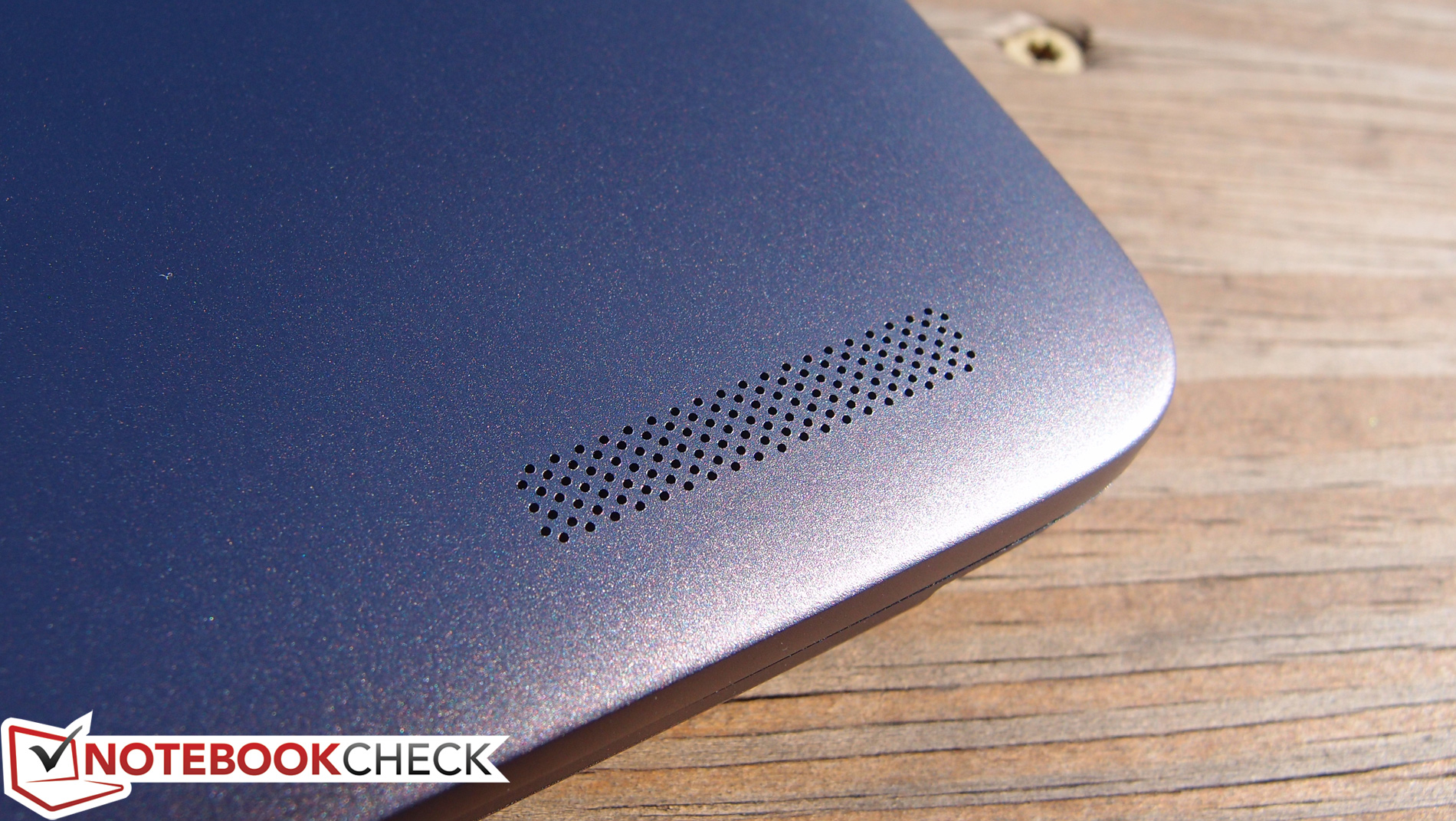

Alto falantes: 2.0, montados no lado inferior, Teclado: Chiclet, Iluminação do Teclado: não, 12 Meses Garantia
peso
1.07 kg, Suprimento de energia: 84 g
Preço
299 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



276 mm 188 mm 27 mm 1.1 kg292 mm 201 mm 9 mm 810 g279.8 mm 176.4 mm 10.75 mm 1.4 kg267 mm 187 mm 8.7 mm 917 g257 mm 175 mm 13 mm 1.1 kg297 mm 210 mm 1 mm 5.7 g
Left: USB 3.1 Type-C port, volume rocker
Left: USB 3.1 Type-C port, volume rocker
Right: microSD card reader, micro-HDMI, micro-USB 2.0, combo audio, full-sized USB 2.0 (below on keyboard base unit)
Right: microSD card reader, micro-HDMI, micro-USB 2.0, combo audio, full-sized USB 2.0 (below on keyboard base unit)
409.8
cd/m²
479.8
cd/m²
472
cd/m²
408.3
cd/m²
480.2
cd/m²
464
cd/m²
433
cd/m²
482.7
cd/m²
461.7
cd/m²
Distribuição do brilho
AUO20D4 tested with X-Rite i1Pro 2
Máximo: 482.7 cd/m² (Nits) Médio: 454.6 cd/m²
iluminação: 85 %
iluminação com acumulador: 480.2 cd/m²
Contraste: 1482:1 (Preto: 0.324 cd/m²)
ΔE Color 3.45 | 0.5-29.43 Ø5
ΔE Greyscale 2.67 | 0.57-98 Ø5.3
84.38% sRGB (Argyll 1.6.3 3D)
47.28% AdobeRGB 1998 (Argyll 1.6.3 3D)
53.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
73% sRGB (Argyll 2.2.0 3D)
52.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
Asus T100CHI-B1-BK
HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Display
-12%
32%
22%
Display P3 Coverage
52.8
45.62
-14%
68.8
30%
63.6
20%
sRGB Coverage
73
65.7
-10%
98.7
35%
88.8
22%
AdobeRGB 1998 Coverage
53.3
47.4
-11%
70.4
32%
65.6
23%
Screen
-54%
-2%
-29%
-30%
Brightness middle
480.2
407.1
-15%
399
-17%
355.3
-26%
386
-20%
Brightness
455
395
-13%
380
-16%
338
-26%
357
-22%
Brightness Distribution
85
90
6%
90
6%
91
7%
84
-1%
Black Level *
0.324
0.736
-127%
0.49
-51%
0.33
-2%
0.4
-23%
Contrast
1482
553
-63%
814
-45%
1077
-27%
965
-35%
Colorchecker dE 2000 *
3.45
6.11
-77%
1.66
52%
4.72
-37%
3.71
-8%
Greyscale dE 2000 *
2.67
6.21
-133%
2.75
-3%
6.53
-145%
5.4
-102%
Gamma
2.34 94%
1.99 111%
2.22 99%
2.17 101%
2.33 94%
CCT
6164 105%
6960 93%
6358 102%
6707 97%
6666 98%
Color Space (Percent of AdobeRGB 1998)
47.28
43.54
-8%
64.4
36%
59.37
26%
Color Space (Percent of sRGB)
84.38
98.8
17%
Colorchecker dE 2000 max. *
3.24
Total Average (Program / Settings)
-33% / -42%
15% / 6%
-4% / -15%
-30% / -30%

* ... smaller is better

CPU-Z CPU
CPU-Z CPU
CPU-Z Caches
CPU-Z Caches
CPU-Z Mainboard
CPU-Z Mainboard

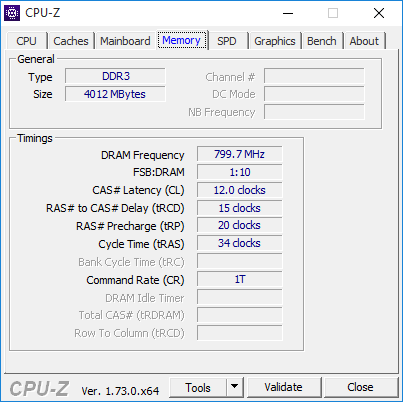

CPU-Z Memory
CPU-Z Memory
CrystalDiskMark 3.0
CrystalDiskMark 3.0
Octane v2
Octane v2
Sunspider
Sunspider
LatencyMon
LatencyMon
Cinebench R10 Shading 64Bit
2545 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
5560 Points
Cinebench R10 Rendering Single CPUs 64Bit
1656 Points
Cinebench R10 Shading 32Bit
2484
Cinebench R10 Rendering Multiple CPUs 32Bit
4107
Cinebench R10 Rendering Single 32Bit
1168
Cinebench R11.5 OpenGL 64Bit
10.83 fps
Cinebench R11.5 CPU Multi 64Bit
1.63 Points
Cinebench R11.5 CPU Single 64Bit
0.43 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
13.21 fps
Cinebench R15 CPU Multi 64Bit
127 Points
Cinebench R15 CPU Single 64Bit
36 Points
Ajuda
Cinebench R10
Shading 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
2545 Points
Microsoft Surface Pro 3
7154 Points +181%
Rendering Multiple CPUs 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
5560 Points
Microsoft Surface Pro 3
10262 Points +85%
Rendering Single CPUs 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
1656 Points
Microsoft Surface Pro 3
5619 Points +239%
Shading 32Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
2484 Points
Asus T100CHI-B1-BK
2157 Points -13%
Microsoft Surface 3
2551 Points +3%
Microsoft Surface Pro 3
4469 Points +80%
Rendering Multiple CPUs 32Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
4107 Points
Asus T100CHI-B1-BK
4065 Points -1%
Microsoft Surface 3
4356 Points +6%
Microsoft Surface Pro 3
7067 Points +72%
Rendering Single 32Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
1168 Points
Asus T100CHI-B1-BK
1165 Points 0%
Microsoft Surface 3
1225 Points +5%
Microsoft Surface Pro 3
3675 Points +215%
Dell Venue 11 Pro 7140
3131 Points +168%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
0.43 Points
Microsoft Surface 3
0.46 Points +7%
Microsoft Surface Pro 3
1.12 Points +160%
Dell Venue 11 Pro 7140
0.94 Points +119%
CPU Multi 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
1.63 Points
Microsoft Surface 3
1.79 Points +10%
Microsoft Surface Pro 3
2.77 Points +70%
Dell Venue 11 Pro 7140
2.01 Points +23%
OpenGL 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
10.83 fps
Microsoft Surface 3
11.71 fps +8%
Microsoft Surface Pro 3
19.48 fps +80%
Dell Venue 11 Pro 7140
20.06 fps +85%
Cinebench R15
CPU Single 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
36 Points
Microsoft Surface 3
38 Points +6%
Dell Venue 11 Pro 7140
83 Points +131%
CPU Multi 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
127 Points
Microsoft Surface 3
134 Points +6%
Dell Venue 11 Pro 7140
190 Points +50%
Ref. Match 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
98 %
Microsoft Surface 3
98 % 0%
Dell Venue 11 Pro 7140
98 % 0%
OpenGL 64Bit (sort by value)
Asus Transformer Book T100HA-C4-GR
13.21 fps
Microsoft Surface 3
14.71 fps +11%
Dell Venue 11 Pro 7140
22.86 fps +73%

Legend


Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500, Intel HD Graphics (Cherry Trail), Samsung CGND3R eMMC

Asus T100CHI-B1-BK Intel Atom Z3775, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G
PCMark 7 Score
2814 pontos
PCMark 8 Home Score Accelerated v2
1697 pontos
PCMark 8 Creative Score Accelerated v2
1798 pontos
PCMark 8 Work Score Accelerated v2
1372 pontos
Ajuda
Samsung CGND3R eMMC
Sequential Read: 139.2 MB/s
Sequential Write: 87.6 MB/s
512K Read: 127.8 MB/s
512K Write: 71.6 MB/s
4K Read: 14.98 MB/s
4K Write: 17.59 MB/s
4K QD32 Read: 33.16 MB/s
4K QD32 Write: 29.03 MB/s
3DMark 06 Standard Score
3330 pontos
3DMark 11 Performance
419 pontos
3DMark Ice Storm Standard Score
18603 pontos
3DMark Cloud Gate Standard Score
1905 pontos
3DMark Fire Strike Score
248 pontos
Ajuda
baixo média alto ultra
StarCraft 2 (2010) 64 18 14 7
BioShock Infinite (2013) 20.46 9.82 8.42 2.59
Carga Máxima
 29.4 °C31.6 °C35.2 °C
 29.2 °C29.4 °C30.6 °C
 29 °C29.2 °C29.6 °C
Máximo: 35.2 °C
Médio: 30.4 °C
33.4 °C31.4 °C28.8 °C
30.2 °C29 °C28.2 °C
28.4 °C28.4 °C27.2 °C
Máximo: 33.4 °C
Médio: 29.4 °C
alimentação elétrica  30.4 °C | Temperatura do quarto 20.5 °C | Raytek Raynger ST
(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35.2 °C / 95 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 33.4 °C / 92 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.7 °C / 78 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.6 °C / 85.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.5 °C / -2.7 F).
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
Asus T100CHI-B1-BK
HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Heat
-13%
-21%
-32%
-28%
Maximum Upper Side *
35.2
40.2
-14%
39.9
-13%
45.2
-28%
46.3
-32%
Maximum Bottom *
33.4
39.8
-19%
41.9
-25%
46.4
-39%
47
-41%
Idle Upper Side *
27.6
30.4
-10%
33.9
-23%
35.2
-28%
30.6
-11%
Idle Bottom *
25.8
28.4
-10%
31.2
-21%
34.4
-33%
33.3
-29%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
24h 20min
WiFi Websurfing
9h 01min
Carga (máximo brilho)
4h 06min
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
Asus T100CHI-B1-BK
HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Battery Runtime
-12%
-31%
-38%
-24%
Reader / Idle
1460
874
-40%
828
-43%
1096
-25%
777
-47%
WiFi v1.3
541
588
9%
437
-19%
Load
246
236
-4%
173
-30%
124
-50%
244
-1%
WiFi
425
504
562
The Asus Transformer Book T100HA-C4-GR
The Asus Transformer Book T100HA-C4-GR

Seis meses atrás, nossa unidade de teste do Asus T100 Chi revelou um legítimo contendor no mercado de conversíveis econômicos com alguns erros importantes. Ou seja, não gostamos do desconfortável requerimento de carregamento individual para a base do teclado (e inicialização atrasada depois da conexão), falta de RAM, armazenamento eMMC pequeno e lento, falta de opções de manutenção, teclado apertado, e a reprodução de cores do painel LCD. O T100HA resolve quase tudo isso, e custa $100 menos — impressionante.

A Asus lança outro golpe na concorrência do Chromebook com um conversível Windows de $299 que faz muitas coisas bem.

A base de teclado e o tablet agora estão conectados via uma porta de dados física (e por isso não é necessário recarregar a base, e não há atrasos na inicialização). 4 GB de RAM foram incluídos em nosso modelo de teste, bem como 64 GB de armazenamento eMMC mais veloz (cerca de 40-50% em média). O painel LCD agora oferece uma respeitável cobertura sRGB de 84%, e uma precisão muito melhor que o T100 Chi. E a seleção de portas sofreu uma atualização significante para incluir uma porta USB 3.1 Type-C e uma porta USB 2.0 de tamanho completo na base do teclado (em vez do micro-USB no modelo anterior).

No entanto, é claro que essa não é toda a história. Embora, em sua maior parte o T100HA apresenta uma melhoria substancial sobre o seu antecessor, há um par de áreas onde piora. Especificamente, o painel LCD sofreu uma redução em sua resolução, de 1900x1200 do T100 Chi para apenas 1280x800, que na melhor das hipóteses é básico para tablets deste tamanho. Em segundo lugar, os alto falantes agora são amis fracos e menores do que ouvimos em qualquer máquina recente. Finalmente, no entanto, e talvez mais importante, a nova base de teclado se sente um pouco mais frágil (e consegue se flexionar inclusive sob pressão moderada de digitação), produzindo um som oco a cada toque. Achamos que o teclado do T100 Chi original era bastante útil, apesar do preço, portanto, é uma decepção.

Mesmo assim, não vamos nos enganar: esta é uma máquina MSRP de $299 — e a esse preço, o pacote é impressionante. Com certeza você poderia pular para o Microsoft Surface 3 e ter mais algumas comodidades, como qualidade de construção superior, uma tela melhor, e potencialmente uma CPU melhor, mas também estaria gastando mais de $200 a mais por esse pacote — e há algumas áreas onde o T100HA é, de fato, melhor, como na seleção de portas. Este é outro golpe grave lançado pela Asus, e é um que deve ter muitos proprietários potenciais de Chromebooks pensando duas vezes sobre sua decisão de compra.

Asus Transformer Book T100HA-C4-GR - 10/15/2015 v4(old)
Steve Schardein

Acabamento
64 / 98 → 65%
Teclado
54%
Mouse
69%
Conectividade
65 / 80 → 81%
Peso
74 / 35-78 → 91%
Bateria
94%
Pantalha
84%
Desempenho do jogos
46 / 68 → 68%
Desempenho da aplicação
54 / 87 → 62%
Temperatura
93%
Ruído
100%
Audio
30 / 91 → 33%
Camera
69 / 85 → 81%
Impressão
+3%
Médio
64%
80%
Convertible - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Conversível Asus Transformer Book T100HA
Steve Schardein, 2015-10-29 (Update: 2015-11- 2)
