Breve Análise do Portátil Schenker XMG P507 (Clevo P651HS-G)

Kaby Lake se encontra com Pascal. Como todos os outros fabricantes de portáteis para jogos, a Schenker Technologies também atualizou seus produtos com a mais recente arquitetura de CPU da Intel. O XMG P507 de 15 polegadas é o primeiro modelo que recebemos, e possui um painel de 120 Hz, bem como a tecnologia G-Sync da Nvidia para uma melhor imagem.
SCHENKER XMG P507 PRO
Processador
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Placa gráfica
NVIDIA GeForce GTX 1070 Mobile - 8 GB VRAM, Análises do: 1480 MHz, Memoría: 4000 MHz, GDDR5, ForceWare 376.20, Optimus
Memória
16 GB

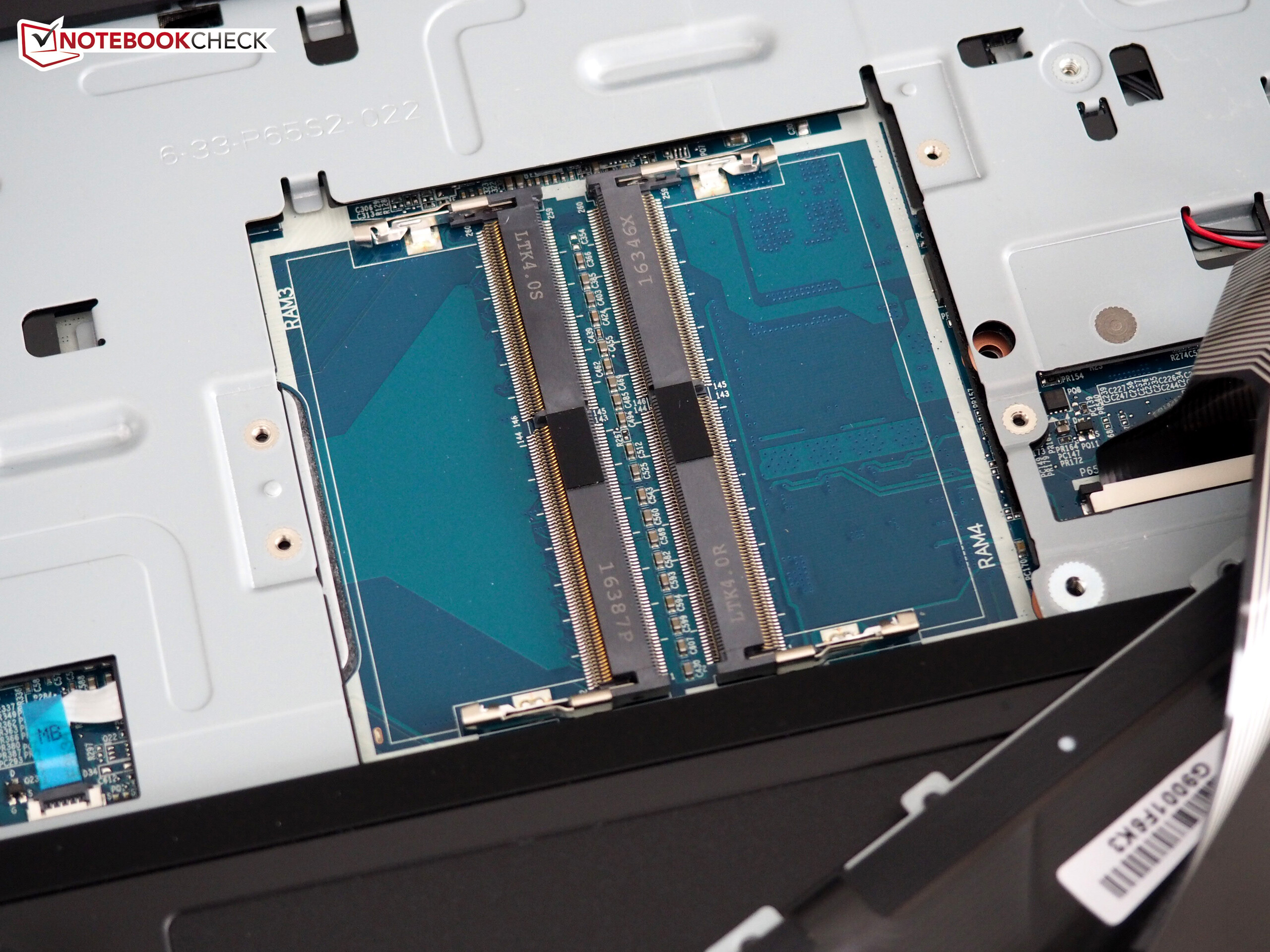

, 2x 8 GB SO-DIMM DDR4-2400, Dual-Channel, 2/4 slots em uso, até 64 GB
Pantalha
15.60 polegadas 16:9, 1920 x 1080 pixel 141 PPI, AUO B156HTN05.2 (AUO52ED), TN LED, Full-HD, 120 Hz, G-Sync, Brilhante: não
placa mãe
Intel HM175
Disco rígido
Samsung SSD 960 Evo 500GB m.2 NVMe, 500 GB

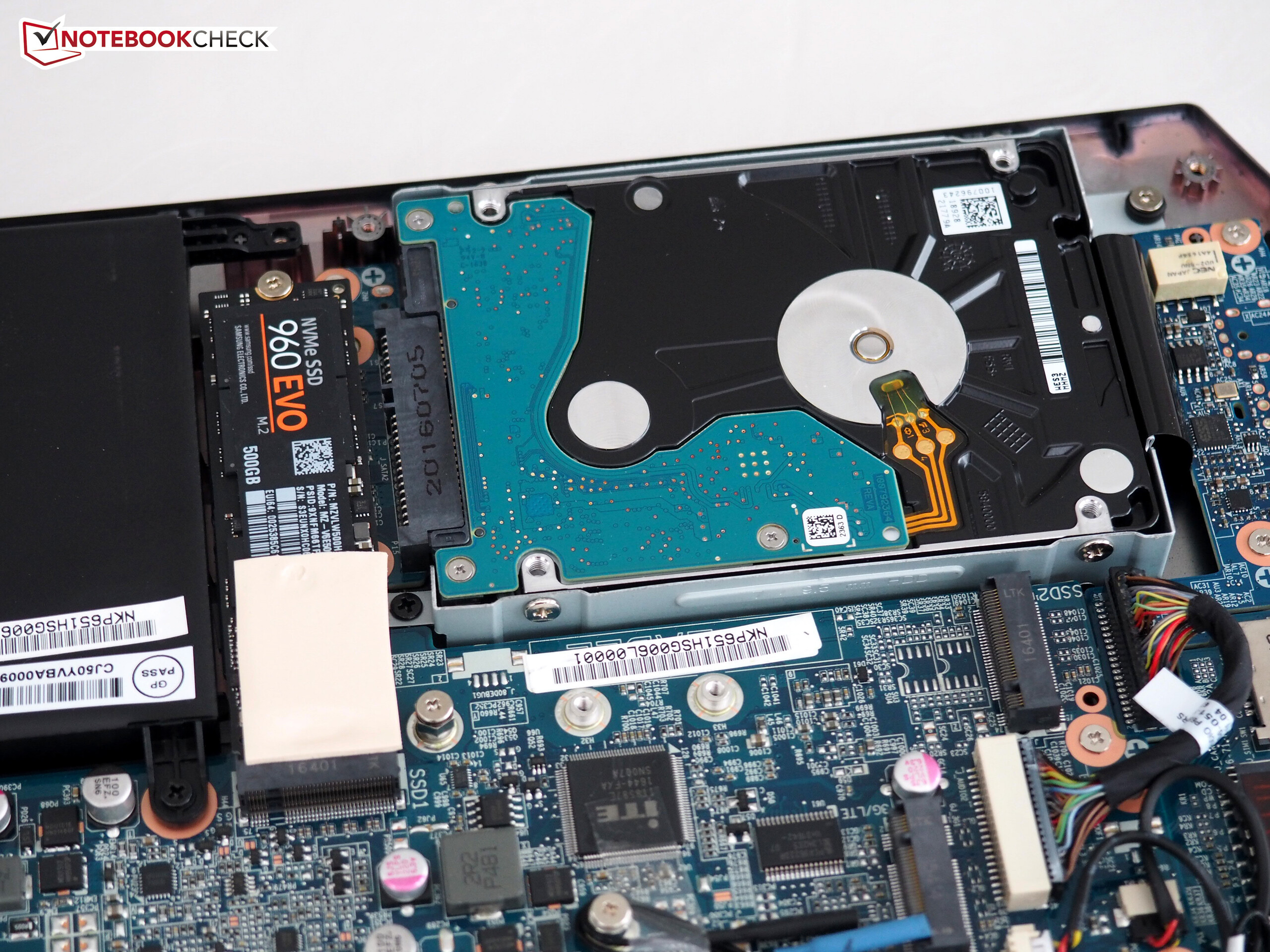

, + Seagate FireCuda ST1000LX015, 1 TB SSHD @5400 rpm. Slots: 2x m.2 2280 SATA (or 1x m.2 2280 PCIe/NVMe) & 2x 2.5"
Placa de Som
Realtek ALC899 @ High Definition Audio-Controller

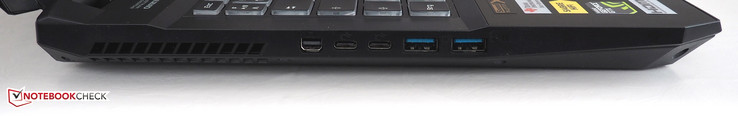

Conexões

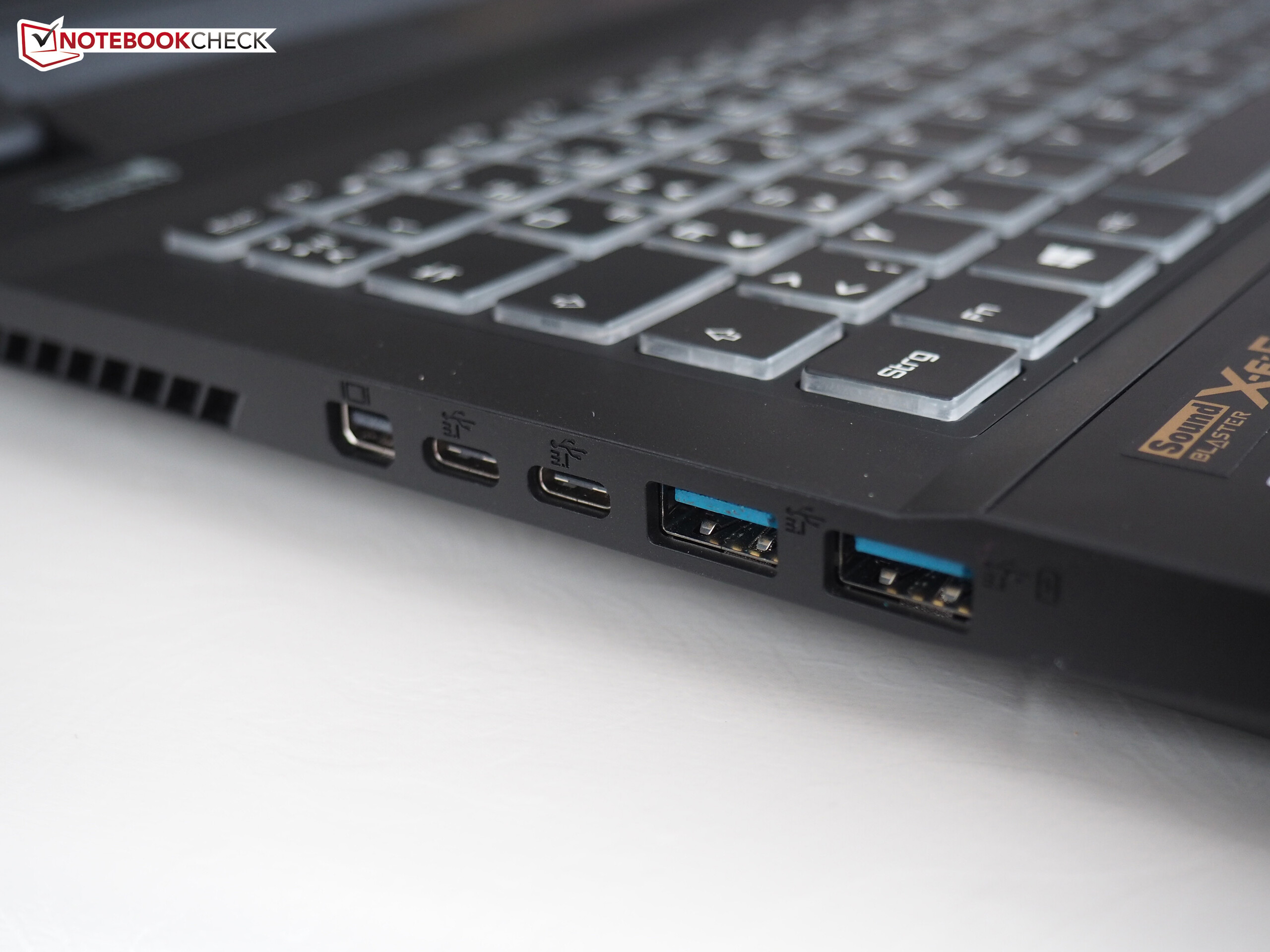

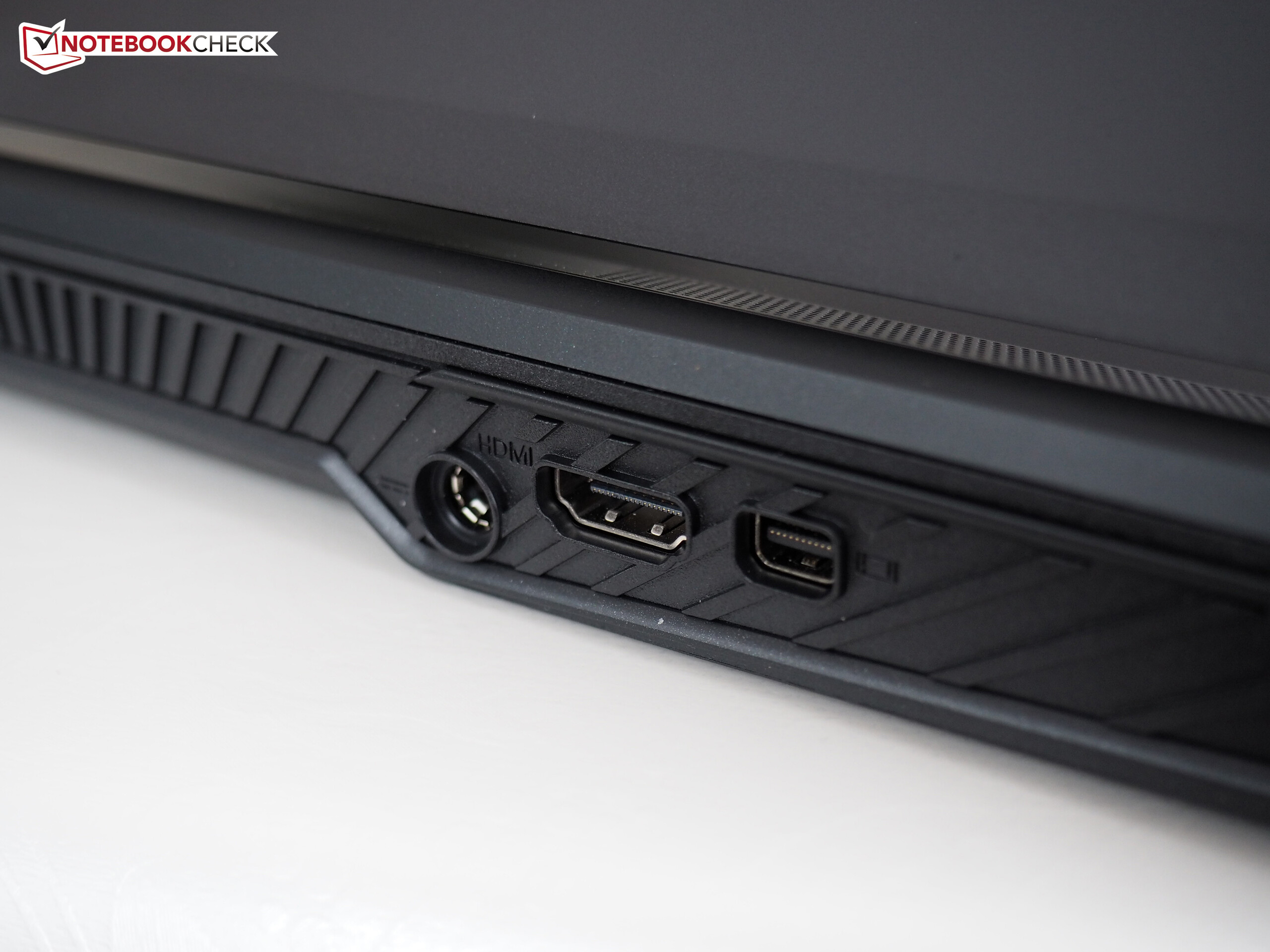

3 USB 3.0, 2 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Conexões Audio: Fones (S/PDIF), microfone, linha de saída, Card Reader: MMC,RSMMC,SD,miniSD,SDHC,SDXC, 1 Leitor de Impressões Digitais, Brightness Sensor, Slot para cartão SIM
Funcionamento em rede
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 29 x 385 x 271
Bateria
60 Wh Lítio-Ion, 4 células
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: Full-HD (2 MP)
Características adicionais
Alto falantes: 2.0 Onkyo (Sound Blaster X-Fi MB5), Teclado: Chiclet, Iluminação do Teclado: sim, 230-Watt power adapter, cleaning cloth, drivers DVD, manual, screws, recovery DVD, XMG sticker, cover cloth, Control Center, 24 Meses Garantia
peso
2.948 kg, Suprimento de energia: 732 g
Preço
2441 EURO
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

390 mm 266 mm 40 mm 2.9 kg390 mm 266 mm 30 mm 2.6 kg385 mm 271 mm 29 mm 2.9 kg385 mm 271 mm 25 mm 2.8 kg380 mm 249 mm 18 mm 1.9 kg297 mm 210 mm 1 mm 5.7 g

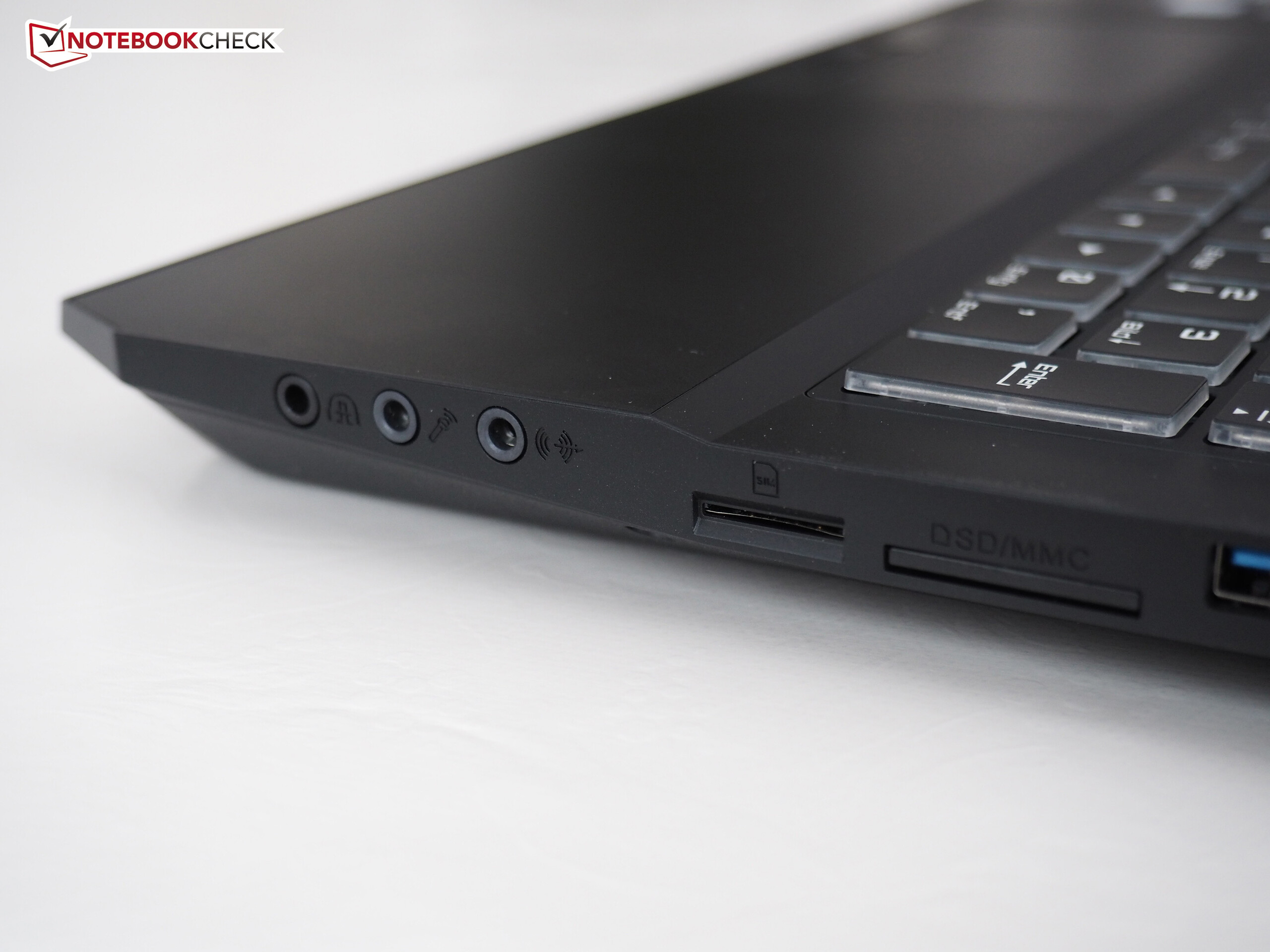

SD Card Reader
average JPG Copy Test (av. of 3 runs)
MSI GT62VR-6RE16H21

140 MB/s +79%
SCHENKER XMG P507 PRO

78 MB/s
SCHENKER XMG P507

77 MB/s -1%
Asus Strix GL502VS-FY032T

74 MB/s -5%
MSI GS63VR-6RF16H22 Stealth Pro

26 MB/s -67%
maximum AS SSD Seq Read Test (1GB)
MSI GT62VR-6RE16H21

190 MB/s +116%
SCHENKER XMG P507 PRO

88 MB/s
SCHENKER XMG P507

86 MB/s -2%
Asus Strix GL502VS-FY032T

84 MB/s -5%
MSI GS63VR-6RF16H22 Stealth Pro

28 MB/s -68%
Networking
iperf3 transmit AX12
SCHENKER XMG P507 PRO
Intel Dual Band Wireless-AC 8265
513 MBit/s
iperf3 receive AX12
SCHENKER XMG P507 PRO
Intel Dual Band Wireless-AC 8265
674 MBit/s
366
cd/m²
366
cd/m²
400
cd/m²
361
cd/m²
357
cd/m²
390
cd/m²
341
cd/m²
340
cd/m²
365
cd/m²
Distribuição do brilho
AUO B156HTN05.2 (AUO52ED) tested with X-Rite i1Pro 2
Máximo: 400 cd/m² (Nits) Médio: 365.1 cd/m² Minimum: 11 cd/m²
iluminação: 85 %
iluminação com acumulador: 357 cd/m²
Contraste: 714:1 (Preto: 0.5 cd/m²)
ΔE Color 9.93 | 0.5-29.43 Ø5
ΔE Greyscale 10.32 | 0.57-98 Ø5.3
89% sRGB (Argyll 1.6.3 3D)
58% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
88.9% sRGB (Argyll 2.2.0 3D)
66.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.11
SCHENKER XMG P507 PRO
AUO B156HTN05.2 (AUO52ED), 1920x1080
SCHENKER XMG P507
LG Philips LP156WF6 (LGD046F), 1920x1080
MSI GT62VR-6RE16H21
LG Philips LP156WF6 (LGD046F), 1920x1080
MSI GS63VR-6RF16H22 Stealth Pro
Samsung 156HL01-104 (SDC324C) , 1920x1080
Asus Strix GL502VS-FY032T
LG Philips LP156WF6-SPB6 (LGD046F), 1920x1080
Display
-5%
-4%
6%
-6%
Display P3 Coverage
66.4
64.5
-3%
64.6
-3%
67.8
2%
64.5
-3%
sRGB Coverage
88.9
83.4
-6%
84.6
-5%
97.4
10%
83.1
-7%
AdobeRGB 1998 Coverage
65.1
61
-6%
61.8
-5%
69.7
7%
60.8
-7%
Response Times
-71%
-63%
-117%
-75%
Response Time Grey 50% / Grey 80% *
24 ?(12, 12)
36 ?(12, 24)
-50%
34 ?(14, 20)
-42%
38 ?(16, 22)
-58%
Response Time Black / White *
12 ?(4, 8)
23 ?(5, 18)
-92%
22 ?(5, 17)
-83%
26 ?(8, 18)
-117%
23 ?(5, 18)
-92%
PWM Frequency
202 ?(100)
Screen
17%
21%
22%
18%
Brightness middle
357
288
-19%
273
-24%
293
-18%
315
-12%
Brightness
365
292
-20%
278
-24%
279
-24%
290
-21%
Brightness Distribution
85
87
2%
88
4%
84
-1%
85
0%
Black Level *
0.5
0.3
40%
0.27
46%
0.33
34%
0.32
36%
Contrast
714
960
34%
1011
42%
888
24%
984
38%
Colorchecker dE 2000 *
9.93
5.1
49%
3.67
63%
3.59
64%
4.88
51%
Colorchecker dE 2000 max. *
14.87
9.44
37%
8.33
44%
5.79
61%
8.88
40%
Greyscale dE 2000 *
10.32
4.43
57%
2.73
74%
3.86
63%
4.17
60%
Gamma
2.11 104%
2.46 89%
2.49 88%
2.53 87%
2.53 87%
CCT
10096 64%
6687 97%
7029 92%
7229 90%
6683 97%
Color Space (Percent of AdobeRGB 1998)
58
55
-5%
55
-5%
63
9%
55
-5%
Color Space (Percent of sRGB)
89
83
-7%
84
-6%
97
9%
83
-7%
Total Average (Program / Settings)
-20% / 1%
-15% / 5%
-30% / 9%
-21% / 1%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

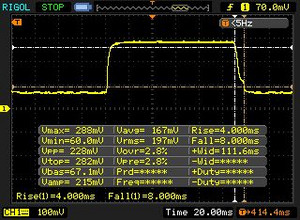

       Response Time Black to White
12 ms ... rise ↗ and fall ↘ combined↗ 4 ms rise
↘ 8 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 26 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
24 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 12 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 29 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (33.8 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18034 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R11.5 CPU Single 64Bit
1.82 Points
Cinebench R11.5 CPU Multi 64Bit
8.16 Points
Cinebench R15 CPU Single 64Bit
161 Points
Cinebench R15 CPU Multi 64Bit
742 Points
Ajuda
Cinebench R15
CPU Single 64Bit
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
161 Points
SCHENKER XMG P507
Intel Core i7-6700HQ
148 Points -8%
Asus Strix GL502VS-FY032T
Intel Core i7-6700HQ
147 Points -9%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
143 Points -11%
MSI GS63VR-6RF16H22 Stealth Pro
Intel Core i7-6700HQ
139 Points -14%
CPU Multi 64Bit
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
742 Points
SCHENKER XMG P507
Intel Core i7-6700HQ
682 Points -8%
Asus Strix GL502VS-FY032T
Intel Core i7-6700HQ
676 Points -9%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
673 Points -9%
MSI GS63VR-6RF16H22 Stealth Pro
Intel Core i7-6700HQ
667 Points -10%
Cinebench R11.5
CPU Single 64Bit
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
1.82 Points
MSI GS63VR-6RF16H22 Stealth Pro
Intel Core i7-6700HQ
1.65 Points -9%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
1.61 Points -12%
SCHENKER XMG P507
Intel Core i7-6700HQ
1.6 Points -12%
Asus Strix GL502VS-FY032T
Intel Core i7-6700HQ
1.56 Points -14%
CPU Multi 64Bit
SCHENKER XMG P507 PRO
Intel Core i7-7700HQ
8.16 Points
SCHENKER XMG P507
Intel Core i7-6700HQ
7.45 Points -9%
MSI GT62VR-6RE16H21
Intel Core i7-6700HQ
7.41 Points -9%
MSI GS63VR-6RF16H22 Stealth Pro
Intel Core i7-6700HQ
7.33 Points -10%
Asus Strix GL502VS-FY032T
Intel Core i7-6700HQ
7.3 Points -11%
PCMark 8 - Home Score Accelerated v2
Asus Strix GL502VS-FY032T
GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1002
4651 Points +8%
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ, Toshiba HG6 THNSNJ256G8NY
4541 Points +5%
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
4320 Points
MSI GS63VR-6RF16H22 Stealth Pro
GeForce GTX 1060 Mobile, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4060 Points -6%
PCMark 7 - Score
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD 960 Evo 500GB m.2 NVMe
6390 Points
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e
6138 Points -4%
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ, Toshiba HG6 THNSNJ256G8NY
5926 Points -7%
MSI GS63VR-6RF16H22 Stealth Pro
GeForce GTX 1060 Mobile, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5321 Points -17%
PCMark 7 Score
6390 pontos
PCMark 8 Home Score Accelerated v2
4320 pontos
PCMark 8 Creative Score Accelerated v2
5412 pontos
PCMark 8 Work Score Accelerated v2
5180 pontos
Ajuda
SCHENKER XMG P507 PRO
Samsung SSD 960 Evo 500GB m.2 NVMe
SCHENKER XMG P507
Samsung SM951 MZVPV256HDGL m.2 PCI-e
MSI GT62VR-6RE16H21
Toshiba HG6 THNSNJ256G8NY
MSI GS63VR-6RF16H22 Stealth Pro
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Asus Strix GL502VS-FY032T
SanDisk SD8SNAT256G1002
AS SSD
-18%
-66%
-75%
Seq Read
2604
1983
-24%
502
-81%
504
-81%
Seq Write
1678
1200
-28%
455.5
-73%
309.9
-82%
4K Read
49.2
50
2%
20.08
-59%
16.31
-67%
4K Write
160.3
144.1
-10%
89.9
-44%
65.5
-59%
Score Total
3629
2566
-29%
915
-75%
598
-84%
Samsung SSD 960 Evo 500GB m.2 NVMe
Sequential Read: 1718 MB/s
Sequential Write: 1635 MB/s
512K Read: 873 MB/s
512K Write: 1216 MB/s
4K Read: 59.1 MB/s
4K Write: 177.5 MB/s
4K QD32 Read: 668 MB/s
4K QD32 Write: 546 MB/s
3DMark - 1920x1080 Fire Strike Graphics
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 Mobile
17066 Points +1%
SCHENKER XMG P507 PRO
NVIDIA GeForce GTX 1070 Mobile
16873 Points
Asus Strix GL502VS-FY032T
NVIDIA GeForce GTX 1070 Mobile
16525 Points -2%
MSI GS63VR-6RF16H22 Stealth Pro
NVIDIA GeForce GTX 1060 Mobile
11730 Points -30%
SCHENKER XMG P507
NVIDIA GeForce GTX 1060 Mobile
11045 Points -35%
3DMark 11 - 1280x720 Performance GPU
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 Mobile
22195 Points +1%
Asus Strix GL502VS-FY032T
NVIDIA GeForce GTX 1070 Mobile
22022 Points 0%
SCHENKER XMG P507 PRO
NVIDIA GeForce GTX 1070 Mobile
21922 Points
MSI GS63VR-6RF16H22 Stealth Pro
NVIDIA GeForce GTX 1060 Mobile
15075 Points -31%
SCHENKER XMG P507
NVIDIA GeForce GTX 1060 Mobile
14222 Points -35%
Unigine Heaven 4.0 - Extreme Preset DX11
SCHENKER XMG P507 PRO
NVIDIA GeForce GTX 1070 Mobile
109.1 fps
MSI GT62VR-6RE16H21
NVIDIA GeForce GTX 1070 Mobile
104.3 fps -4%
SCHENKER XMG P507
NVIDIA GeForce GTX 1060 Mobile
70.8 fps -35%
3DMark 11 Performance
16383 pontos
3DMark Ice Storm Standard Score
91859 pontos
3DMark Cloud Gate Standard Score
24365 pontos
3DMark Fire Strike Score
13129 pontos
Ajuda
XCOM 2
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
41.7 fps
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ
38.5 fps -8%
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ
29.1 fps -30%
1920x1080 High Preset AA:FX AF:8x
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
71.3 fps
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ
58.7 fps -18%
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ
56.1 fps -21%
FIFA 17
1920x1080 Ultra Preset AA:4xMS
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
196 fps
1920x1080 High Preset
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
200 fps
Titanfall 2
1920x1080 Very High (Insane Texture Quality) / Enabled AA:TS AF:16x
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
111 fps
1920x1080 High / Enabled AA:TS AF:8x
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
123 fps
Call of Duty Infinite Warfare
1920x1080 Ultra / On AA:T2X SM
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
112 fps
1920x1080 High / On AA:FX
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
114 fps
Dishonored 2
1920x1080 Ultra Preset AA:TX
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
62.1 fps
1920x1080 High Preset AA:TX
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
85.4 fps
Watch Dogs 2
1920x1080 Ultra Preset
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
55.1 fps
1920x1080 High Preset
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
75.3 fps
baixo média alto ultra
XCOM 2 (2016) 71.3 41.7
FIFA 17 (2016) 200 196
Titanfall 2 (2016) 123 111
Call of Duty Infinite Warfare (2016) 114 112
Dishonored 2 (2016) 85.4 62.1
Watch Dogs 2 (2016) 75.3 55.1

Barulho

Ocioso
33 / 34 / 44 dB
HDD
34 dB
Carga
46 / 52 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 31 dB(A)
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ
MSI GS63VR-6RF16H22 Stealth Pro
GeForce GTX 1060 Mobile, 6700HQ
Asus Strix GL502VS-FY032T
GeForce GTX 1070 Mobile, 6700HQ
Noise
6%
10%
11%
8%
off / environment *
31
30
3%
30
3%
30
3%
30
3%
Idle Minimum *
33
31
6%
32
3%
32
3%
32
3%
Idle Average *
34
32
6%
33
3%
33
3%
33
3%
Idle Maximum *
44
38
14%
34
23%
34
23%
34
23%
Load Average *
46
46
-0%
40
13%
37
20%
39
15%
Load Maximum *
52
49
6%
46
12%
46
12%
51
2%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203630.937.834.731.72542.233.839.437.339.43138.332.236.33535.54031.831.133.128.630.85030.935.937.731.929.16329.341.84127.728.28027.236.537.32640.610025.932.132.925.63312527.130.329.324.328.416028.634.734.225.63020028.630.731.422.530.825028.628.628.221.830.631530.428.625.821.535.340030.127.123.220.83650031.728.122.720.736.463031.928.122.420.13780034.229.421.119.538.5100034.630.920.51939.1125035.233.22019.441160034.833.219.419.441200036.736.219.519.242.1250041.53819.619.543.2315034.533.219.919.64340003029.219.719.938.1500026.725.819.920.333.5630024.123.220.320.531.580002221.520.62128.11000021.721.420.921.425.51250021.821.521.422.223.91600022.321.821.922.824.2SPL46.844.433.532.251.6N54.42.11.77.5median 30median 29.2median 21.1median 20.7median 35.3Delta5.24.23.11.55.1hearing rangehide median Fan NoiseSCHENKER XMG P507 PRO
Carga Máxima
 47.9 °C49.2 °C43.2 °C
 46.3 °C47.1 °C36.6 °C
 31.6 °C29.7 °C30.7 °C
Máximo: 49.2 °C
Médio: 40.3 °C
47.4 °C53.2 °C62 °C
38.6 °C61.1 °C45.1 °C
36 °C36.5 °C28.2 °C
Máximo: 62 °C
Médio: 45.3 °C
alimentação elétrica  51.3 °C | Temperatura do quarto 20 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 40.3 °C / 105 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 49.2 °C / 121 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 62 °C / 144 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.6 °C / 88.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-2.7 °C / -4.9 F).
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ
MSI GS63VR-6RF16H22 Stealth Pro
GeForce GTX 1060 Mobile, 6700HQ
Asus Strix GL502VS-FY032T
GeForce GTX 1070 Mobile, 6700HQ
Heat
6%
13%
12%
8%
Maximum Upper Side *
49.2
49.3
-0%
44
11%
45.3
8%
48
2%
Maximum Bottom *
62
52.7
15%
53.1
14%
62.6
-1%
46.8
25%
Idle Upper Side *
32.4
32.6
-1%
28.8
11%
25.3
22%
33.7
-4%
Idle Bottom *
33
29.5
11%
28.2
15%
27.3
17%
30.5
8%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.736.52537.342.33135404028.6345031.939.66327.741.3802637.810025.635.112524.336.316025.63920022.542.525021.843.131521.55140020.856.150020.761.363020.165.180019.564.810001963.4125019.463.8160019.461.4200019.262.1250019.564.5315019.663.8400019.963.3500020.362.1630020.564.680002163.31000021.459.21250022.258.41600022.855.6SPL32.275.1N1.736.2median 20.7median 61.4Delta1.57.839.943.135.734.630.530.635.33632.334.234.733.132.83329.930.325.933.622.842.723.656.523.559.520.859.719.264.119.465.318.763.818.363.318.264.818.663.318.963.417.863.617.364.517.16317.164.117.269.717.368.717.160.517.255.417.151.417.249.730.376.91.441median 18.3median 63.31.86.1hearing rangehide median Pink NoiseSCHENKER XMG P507 PROAsus Strix GL502VS-FY032T
SCHENKER XMG P507 PRO audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.2% lower than median
(±) | linearity of bass is average (7.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 7% similar, 27% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 45% of all tested devices were better, 7% similar, 48% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Asus Strix GL502VS-FY032T audio analysis

(±) | speaker loudness is average but good (77 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.2% lower than median
(±) | linearity of bass is average (11.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 0.7% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(±) | linearity of highs is average (7.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.8% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 11% similar, 48% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 69% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.2 / 0.6 Watt
Ociosodarkmidlight 14 / 18 / 24 Watt
Carga midlight 87 / 201 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ
MSI GS63VR-6RF16H22 Stealth Pro
GeForce GTX 1060 Mobile, 6700HQ
Asus Strix GL502VS-FY032T
GeForce GTX 1070 Mobile, 6700HQ
Power Consumption
13%
-27%
-9%
-17%
Idle Minimum *
14
11
21%
20
-43%
18
-29%
20
-43%
Idle Average *
18
16
11%
26
-44%
22
-22%
24
-33%
Idle Maximum *
24
21
12%
32
-33%
30
-25%
29
-21%
Load Average *
87
80
8%
100
-15%
77
11%
86
1%
Load Maximum *
201
174
13%
202
-0%
165
18%
183
9%

* ... smaller is better

Tempo de Execução da Bateria
WiFi Websurfing
3h 15min
Big Buck Bunny H.264 1080p
3h 33min
SCHENKER XMG P507 PRO
GeForce GTX 1070 Mobile, i7-7700HQ, 60 Wh
SCHENKER XMG P507
GeForce GTX 1060 Mobile, 6700HQ, 60 Wh
MSI GT62VR-6RE16H21
GeForce GTX 1070 Mobile, 6700HQ, 75.24 Wh
MSI GS63VR-6RF16H22 Stealth Pro
GeForce GTX 1060 Mobile, 6700HQ, 65 Wh
Asus Strix GL502VS-FY032T
GeForce GTX 1070 Mobile, 6700HQ, 62 Wh
Battery Runtime
41%
26%
18%
1%
H.264
213
271
27%
WiFi v1.3
195
274
41%
246
26%
210
8%
196
1%

Pro

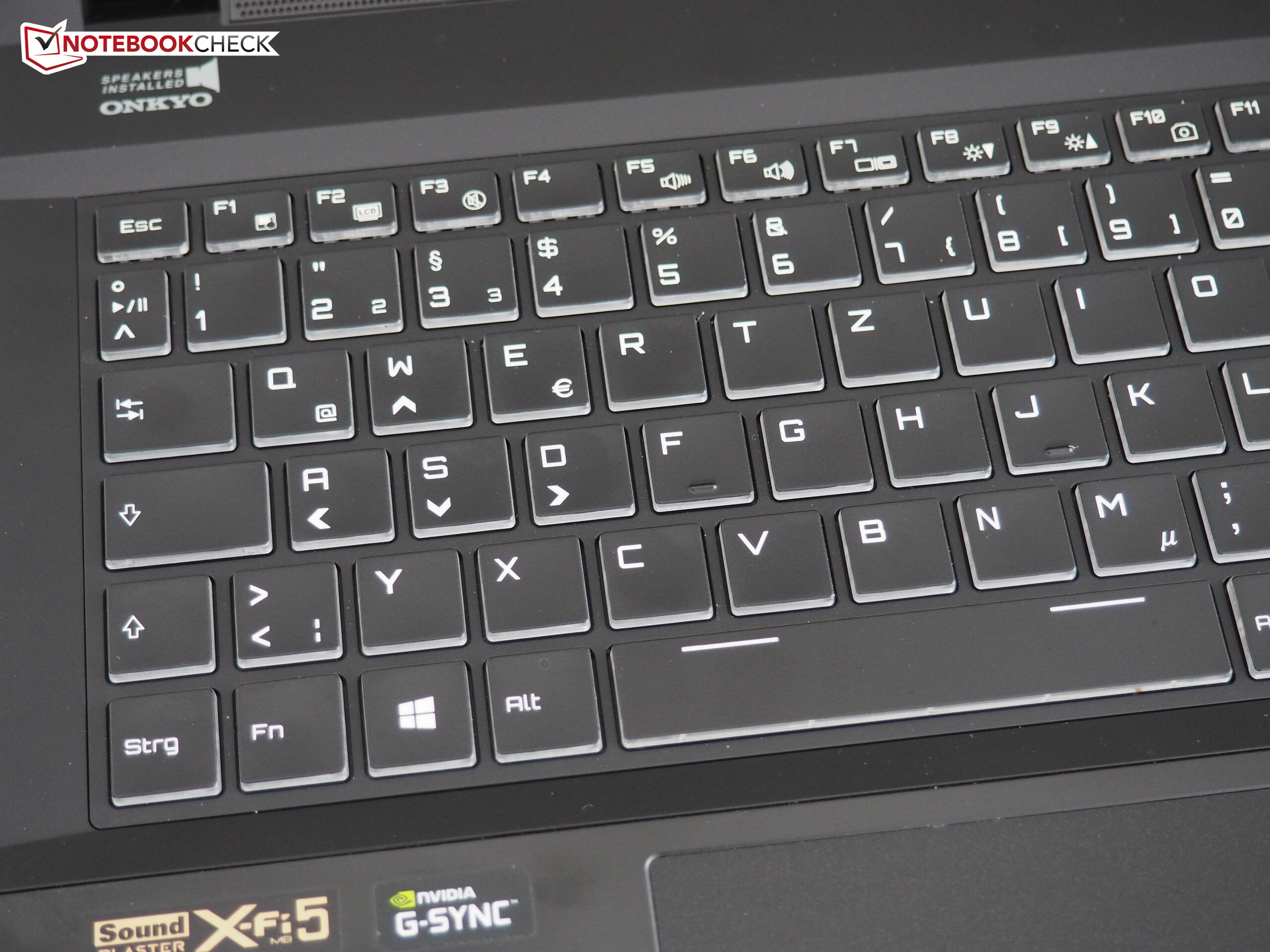

+ Iluminação de teclado RGB
+ Opção entre G-Sync ou Optimus
+ Bastante compacto para um sistema para jogos system
+ Algumas peças da carcaça são de alumínio
+ Até quatro unidades de armazenamento
+ Poderoso centro de controle
+ Muitas portas
+ Configurações individuais
+ Ótimas opções de manutenção
+ DVD de recuperação
+ Design discreto
+ Alto desempenho
+ 120 Hz

Contra

- Pulsação desnecessária durante o modo inativo
- Algumas medições da tela são decepcionantes
- Superfícies sensíveis do chassi
- Barulhento sob uso intenso
- A bateria poderia ser mais poderosa
- Muito bleedind da iluminação de fundo
- Som medíocre
- Sem Thunderbolt 3
In review: XMG P507. Test model courtesy of Schenker Technologies.
In review: XMG P507. Test model courtesy of Schenker Technologies.

O XMG P507 da Schenker Technologies é uma boa opção para os gamers que desejam um portátil poderoso e comparativamente compacto. O aparelho de 15 polegadas não decepciona nas duas seções mais  importantes: componentes e desempenho. Todos os aplicativos rodam fluentemente graças à GeForce GTX 1070.

O fabricante também merece respeito pela combinação de G-Sync e 120 Hz, mas a tela não consegue atender nossas expectativas. Assim como o valor de preto, a precisão das cores, e os ângulos de visão, também que criticar a razão de contraste. Outro problema é o severo bleeding da iluminação de fundo, o controle da ventoinha durante o modo inativo, o alto ruído sob uso intenso e a medíocre duração da bateria. A qualidade do som também poderia ser melhor.

Considerando tudo, o desempenho ainda é suficiente para conseguir uma boa posição em nosso ranking Gaming-Top-10 móvel.

O design do chassi é bastante simples e bem construído, tem uma silhueta comparativamente fina e você pode expandir/atualizar os componentes. Os bons dispositivos de entrada e as diversas portas são outros destaques. NO entanto, é uma pena que as portas USB 3.1 Gen.2 ainda não suportem Thunderbolt 3.

SCHENKER XMG P507 PRO - 01/19/2017 v6(old)
Florian Glaser

Acabamento
80 / 98 → 82%
Teclado
83%
Mouse
78%
Conectividade
71 / 81 → 88%
Peso
57 / 10-66 → 84%
Bateria
71%
Pantalha
80%
Desempenho do jogos
95%
Desempenho da aplicação
95%
Temperatura
82 / 95 → 86%
Ruído
60 / 90 → 67%
Audio
70%
Médio
77%
84%
Gaming - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Schenker XMG P507 (Clevo P651HS-G)
Florian Glaser, 2017-02- 7 (Update: 2017-02-19)
