Breve Análise do Ultrabook Lenovo ThinkPad T460s (Core i7, WQHD)

No caminho da perfeição? O Lenovo T460s é a prova que inclusive um excelente portátil como o T450s pode ser melhorado. Nenhum aparelho da série T4x0s foi nunca tão leve e, ao mesmo tempo, tão potente – mas. em troca, os usuários terão que renunciar à expansividade.
Lenovo ThinkPad T460s-20FA003GGE (ThinkPad T460s Serie)

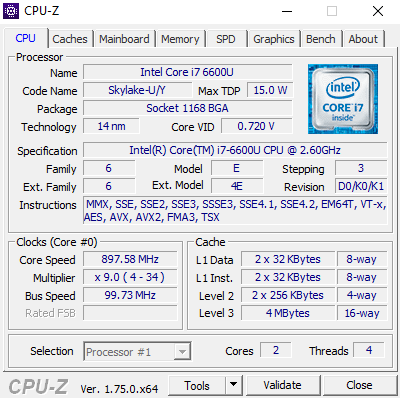

Processador
Intel Core i7-6600U 2 x 2.6 - 3.4 GHz, Skylake

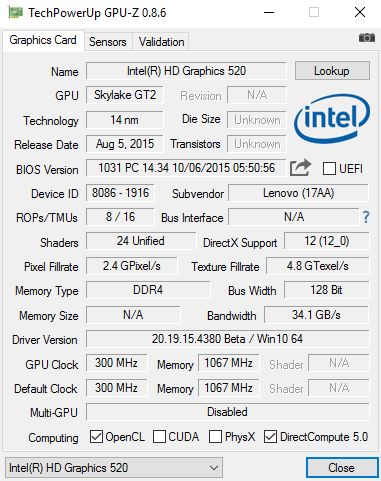

Placa gráfica
Intel HD Graphics 520, Análises do: 1050 MHz, Memoría: 1066 MHz, 20.19.15.4380

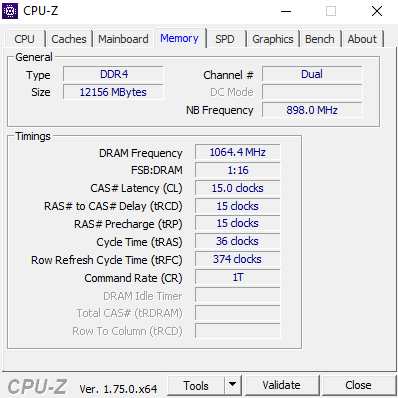

Memória
12 GB

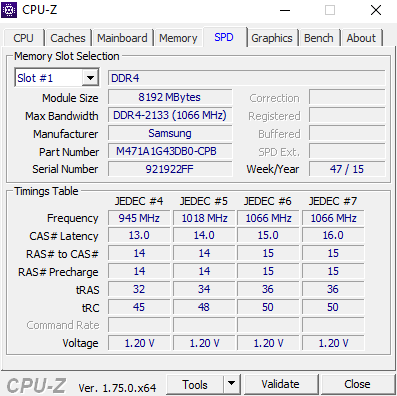

, DDR4-2133, 4 GB integrados + 1 módulo de 8 GB, 1 de 1 slot ocupado

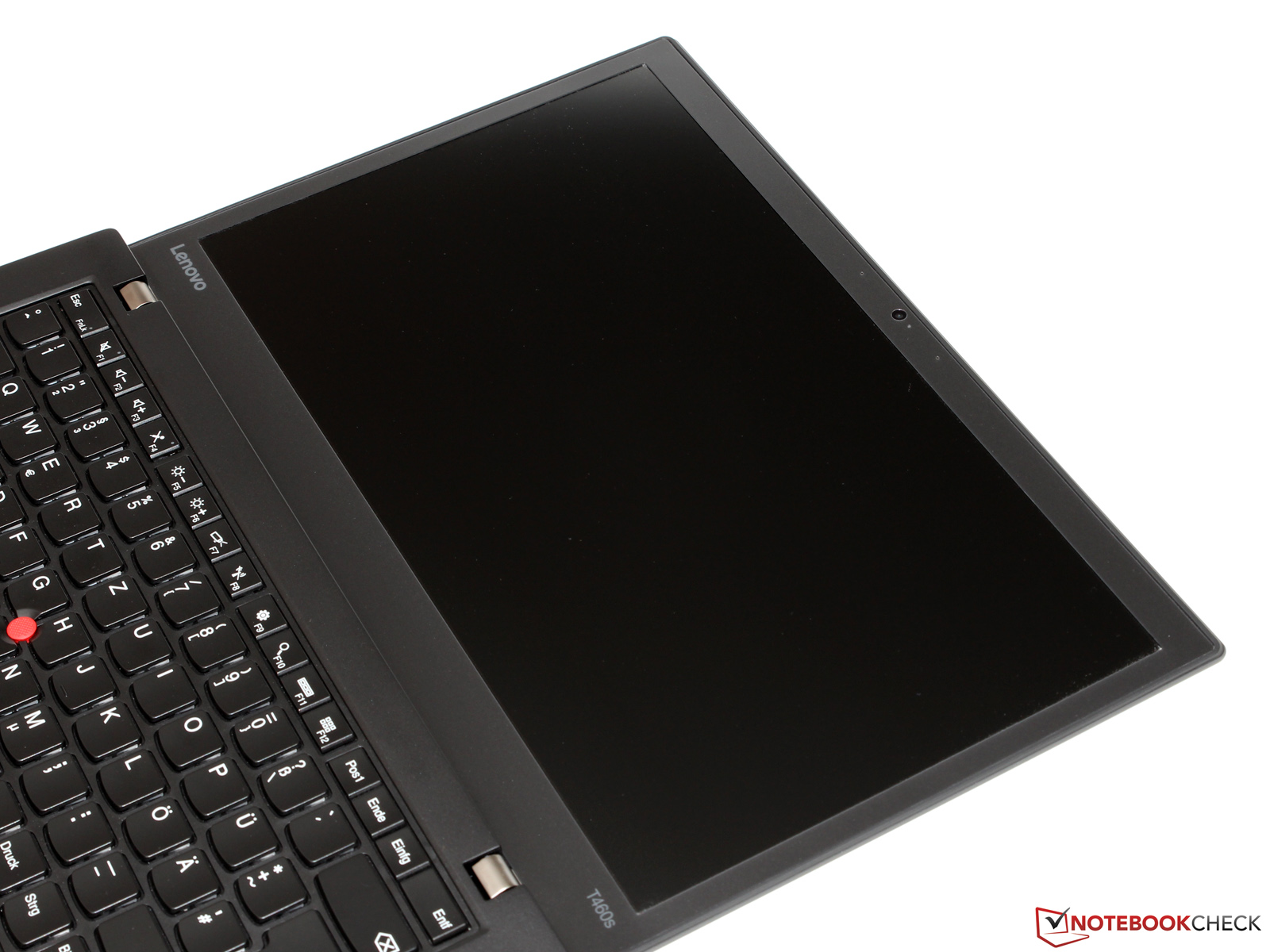

Pantalha
14.00 polegadas 16:9, 2560 x 1440 pixel, VVX14T058J02, IPS-Panel, LED-Backlight, Brilhante: não

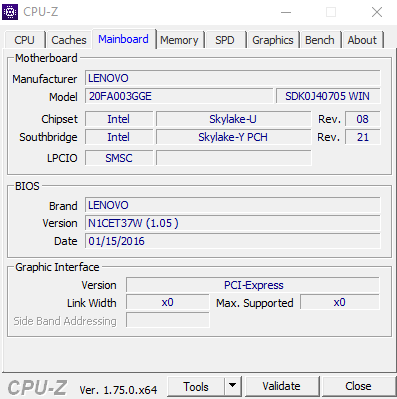

placa mãe
Intel Skylake-U Premium PCH
Disco rígido

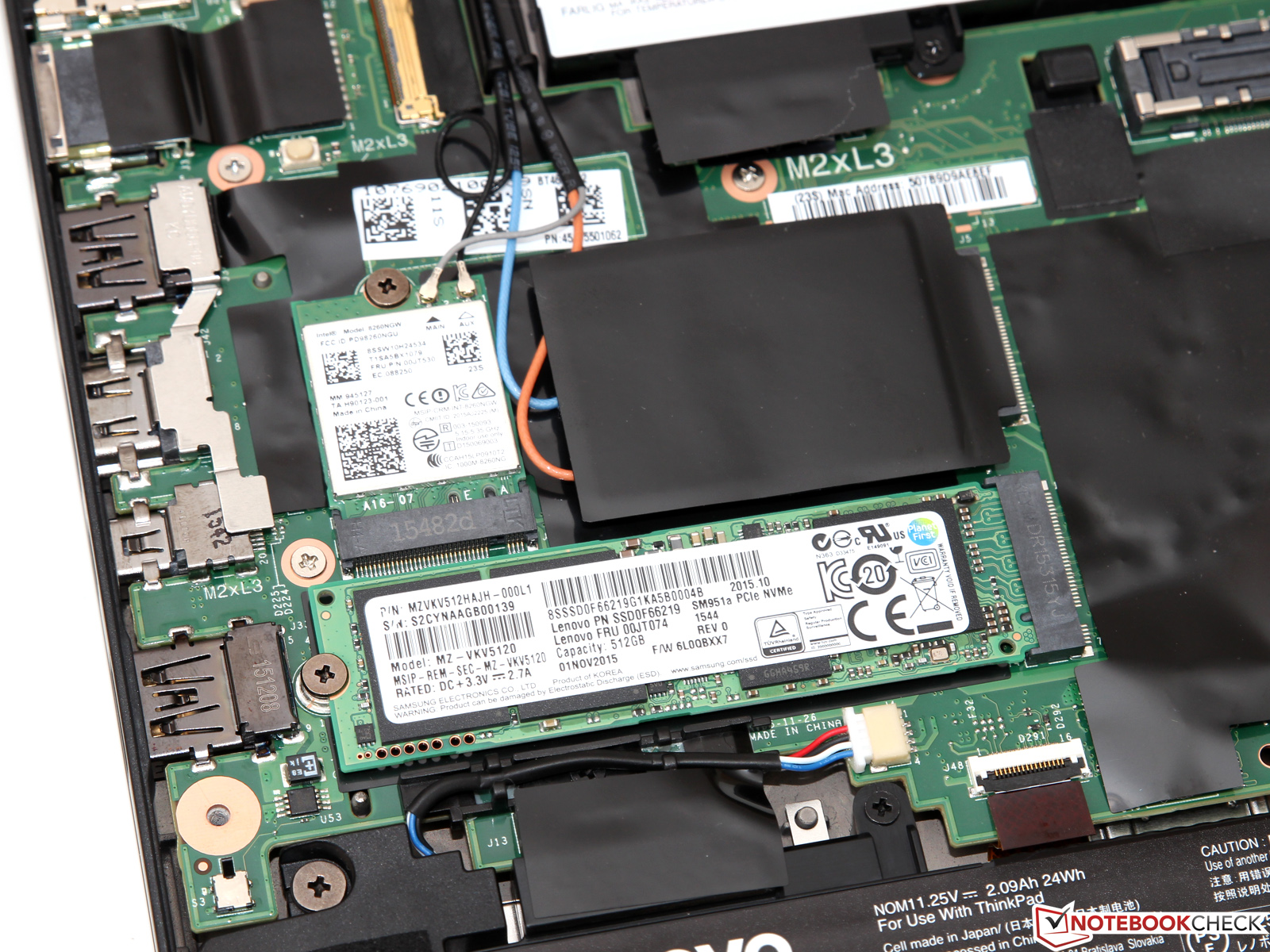

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB
Placa de Som
Intel Skylake-U/Y PCH - High Definition Audio
Conexões
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Porta para fones (conector de 3,5 mm), Card Reader: MMC, SD, SDHC, SDXC, 1 eSata, 1 Leitor de Impressões Digitais, Brightness Sensor
Funcionamento em rede
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, Huawei Mobile Broadband ME906s (UMTS/HSPA/LTE + GNSS), LTE, GPS
Tamanho
altura x largura x profundidade (em mm): 18.8 x 331 x 227

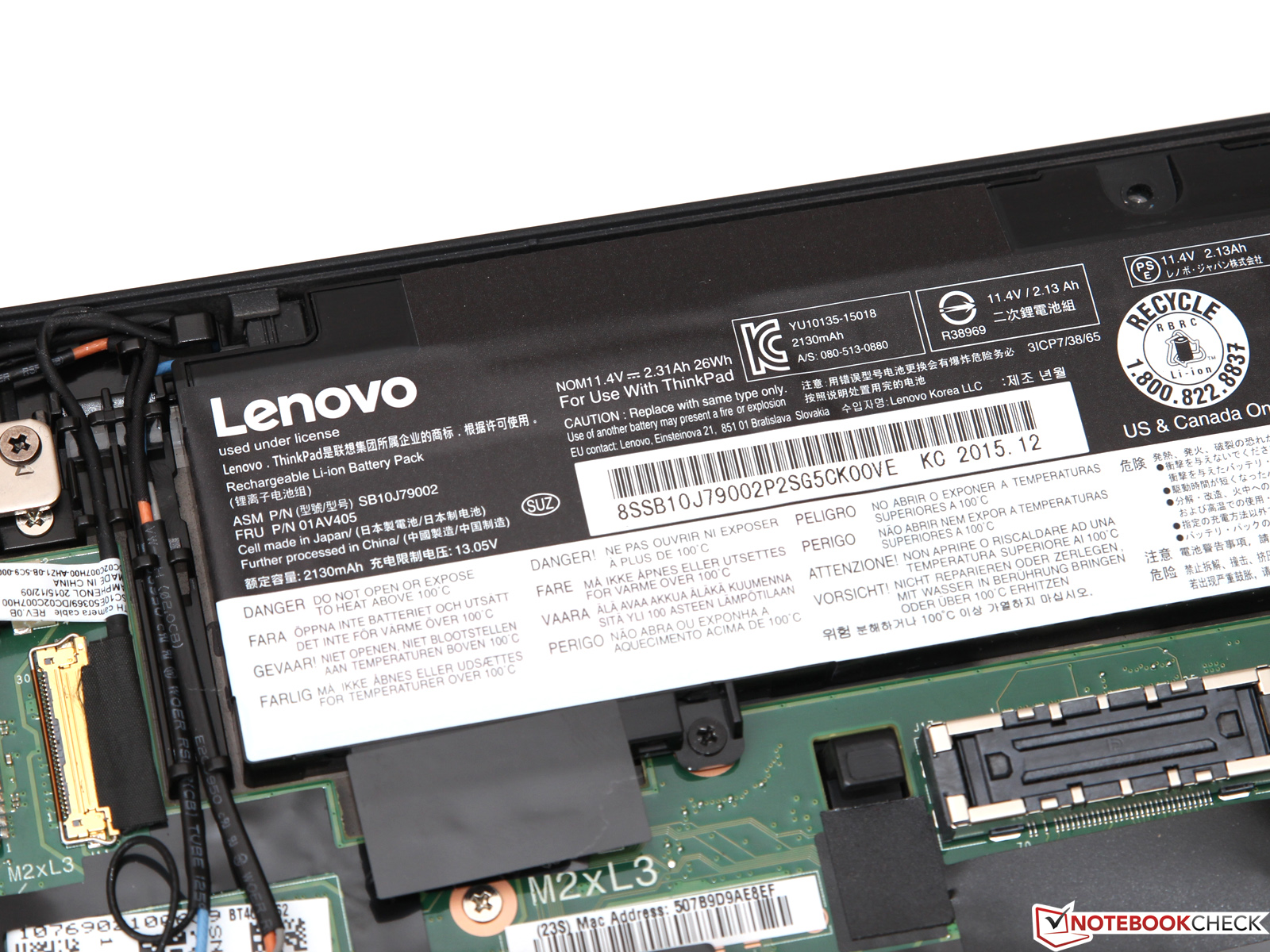

Bateria
49 Wh Lítio-Ion, 23 Wh + 26 Wh (ambas internas)
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p, fixed focus
Características adicionais

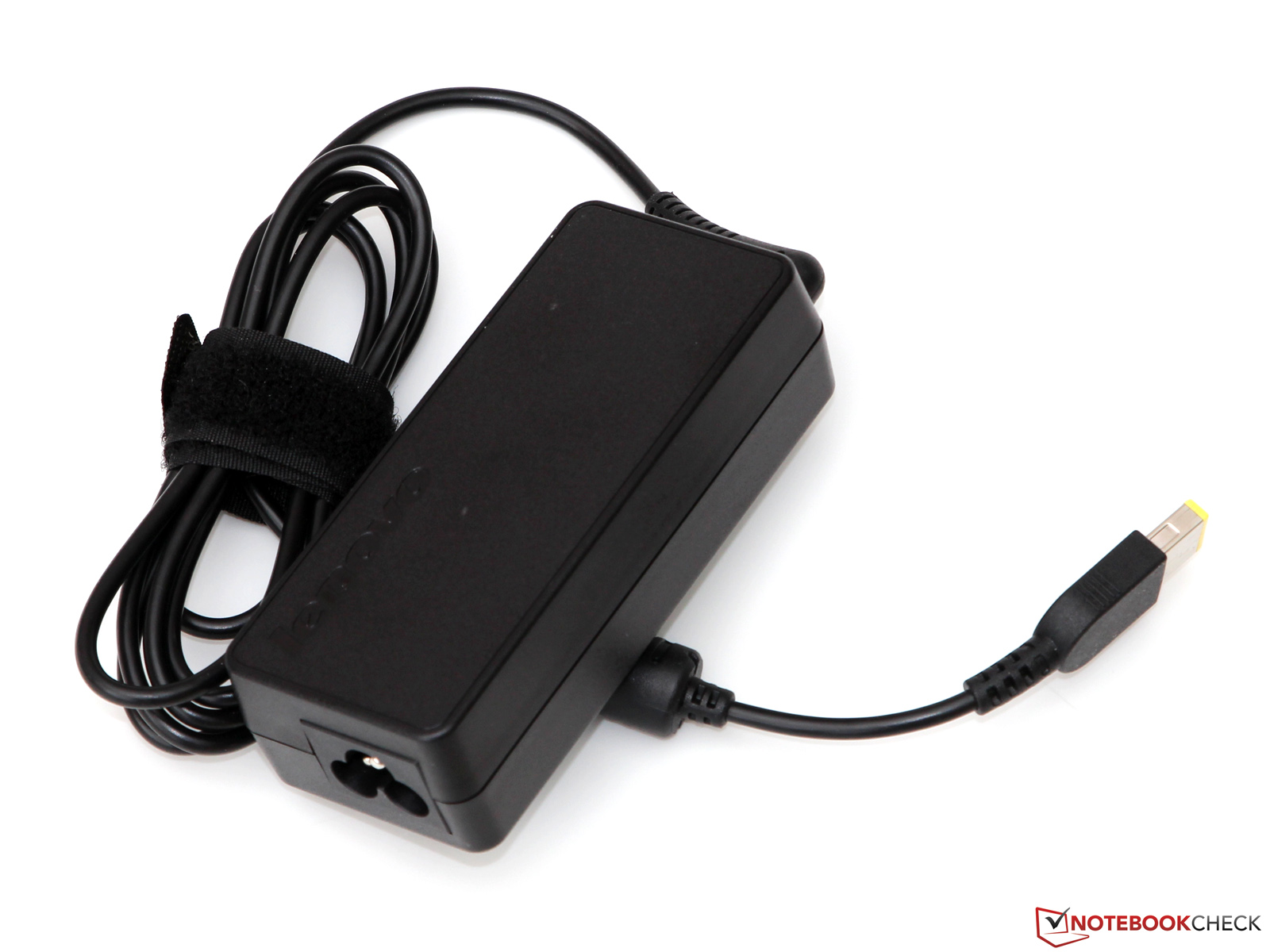

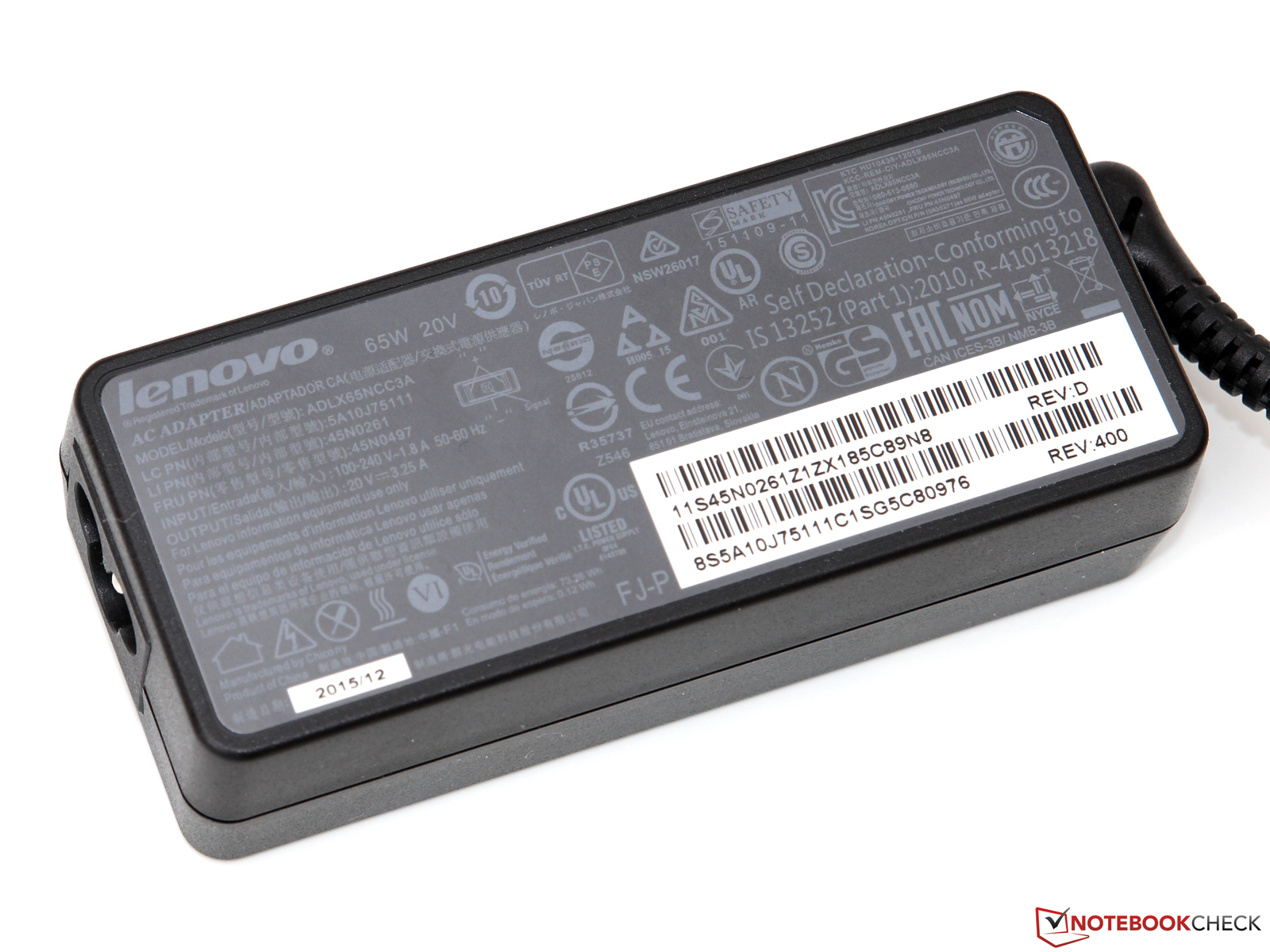

Alto falantes: Stereo (2x 1 W), Teclado: Chiclet, PSU de 65-Watts, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo Companion, 36 Meses Garantia
peso
1.345 kg, Suprimento de energia: 346 g
Preço
2350 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



338 mm 237 mm 18.9 mm 1.6 kg334.9 mm 232 mm 19.4 mm 1.7 kg331 mm 226 mm 20.7 mm 1.6 kg331 mm 227 mm 18.8 mm 1.3 kg325 mm 227 mm 17 mm 1.4 kg297 mm 210 mm 1 mm 5.7 g

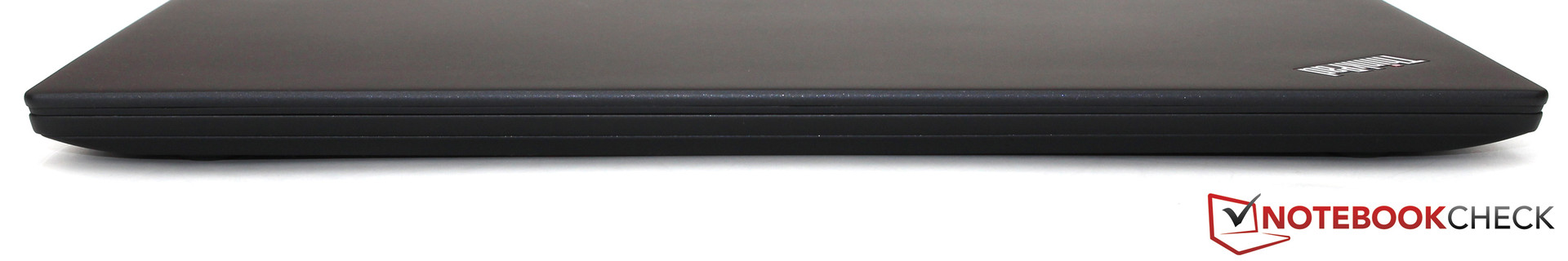

Front: no ports
Front: no ports

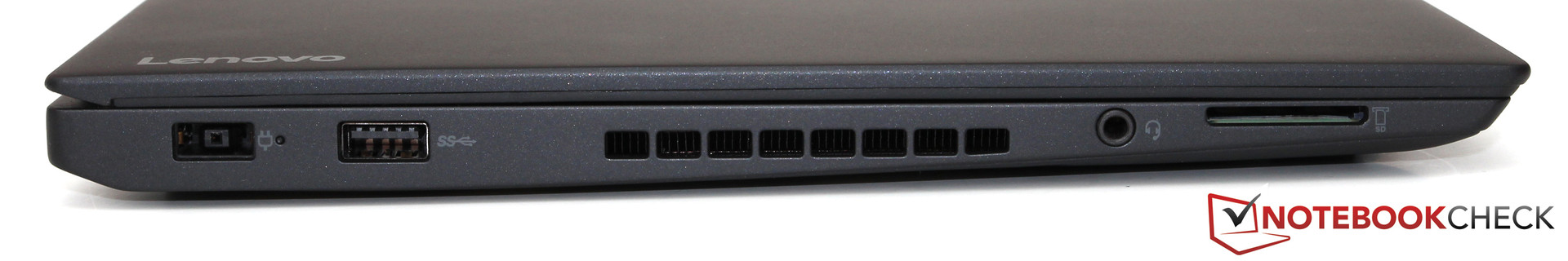

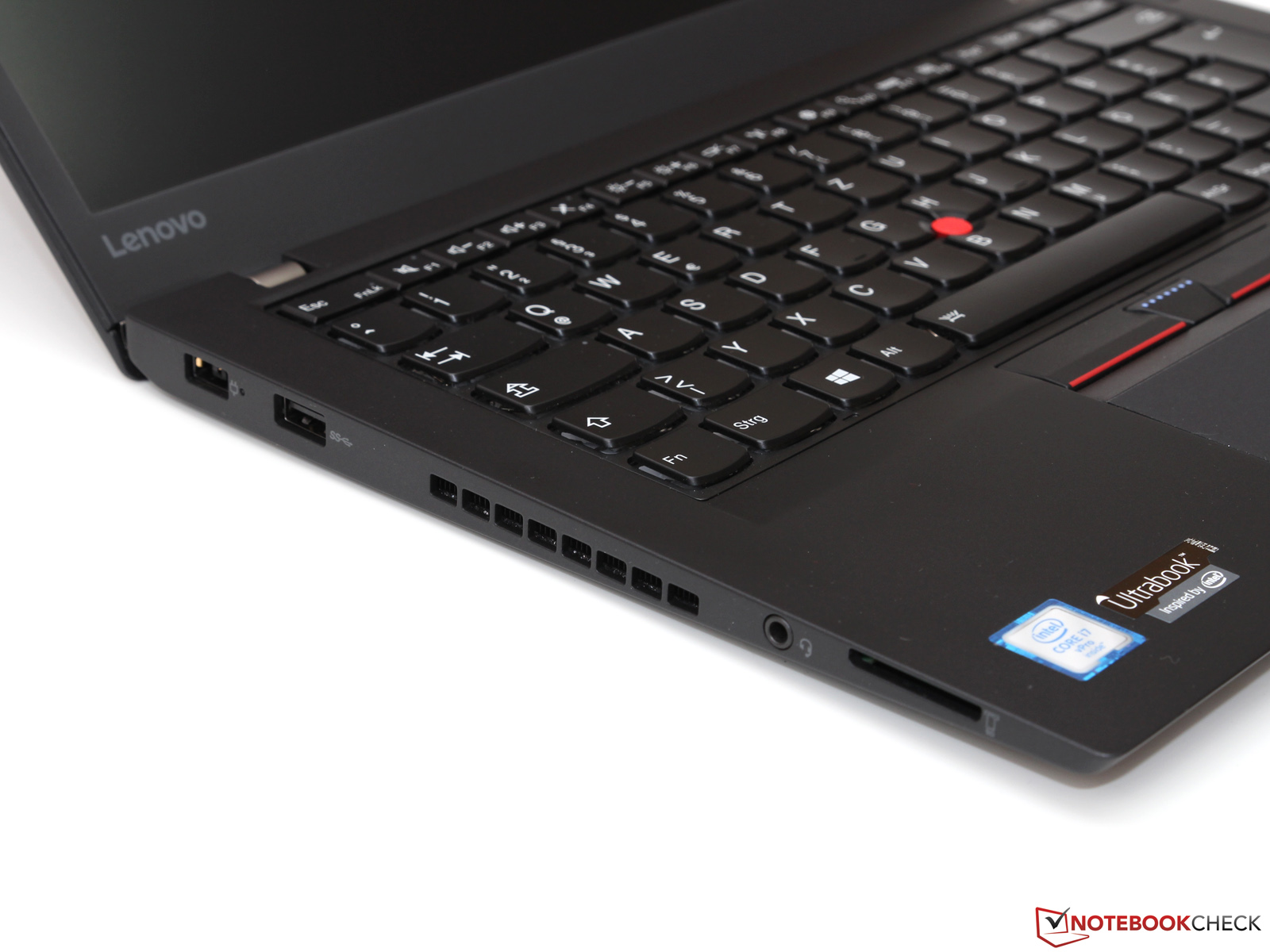

Left: power, USB 3.0, fan exhaust, headset port, card reader
Left: power, USB 3.0, fan exhaust, headset port, card reader
Rear: no ports
Rear: no ports

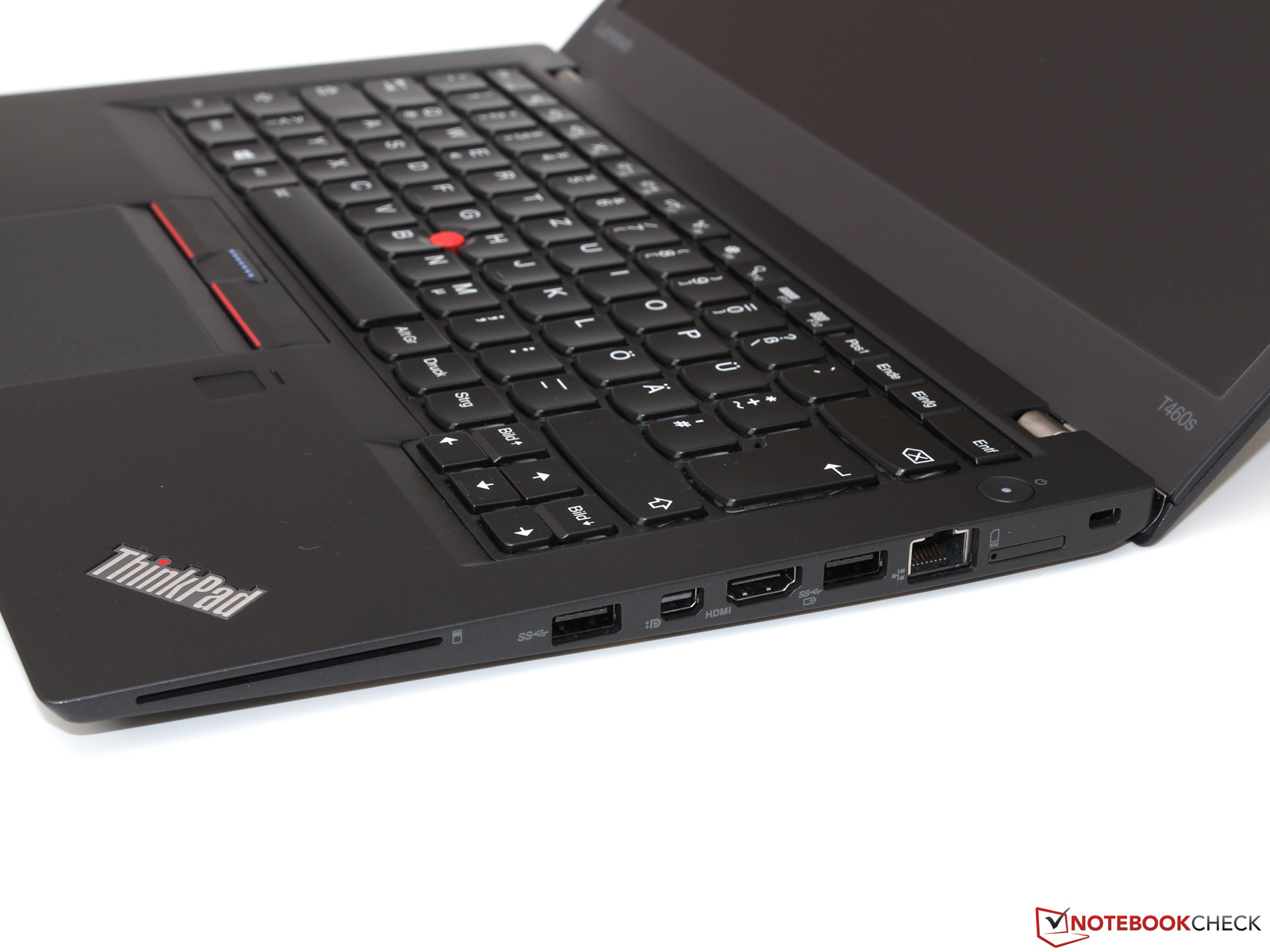

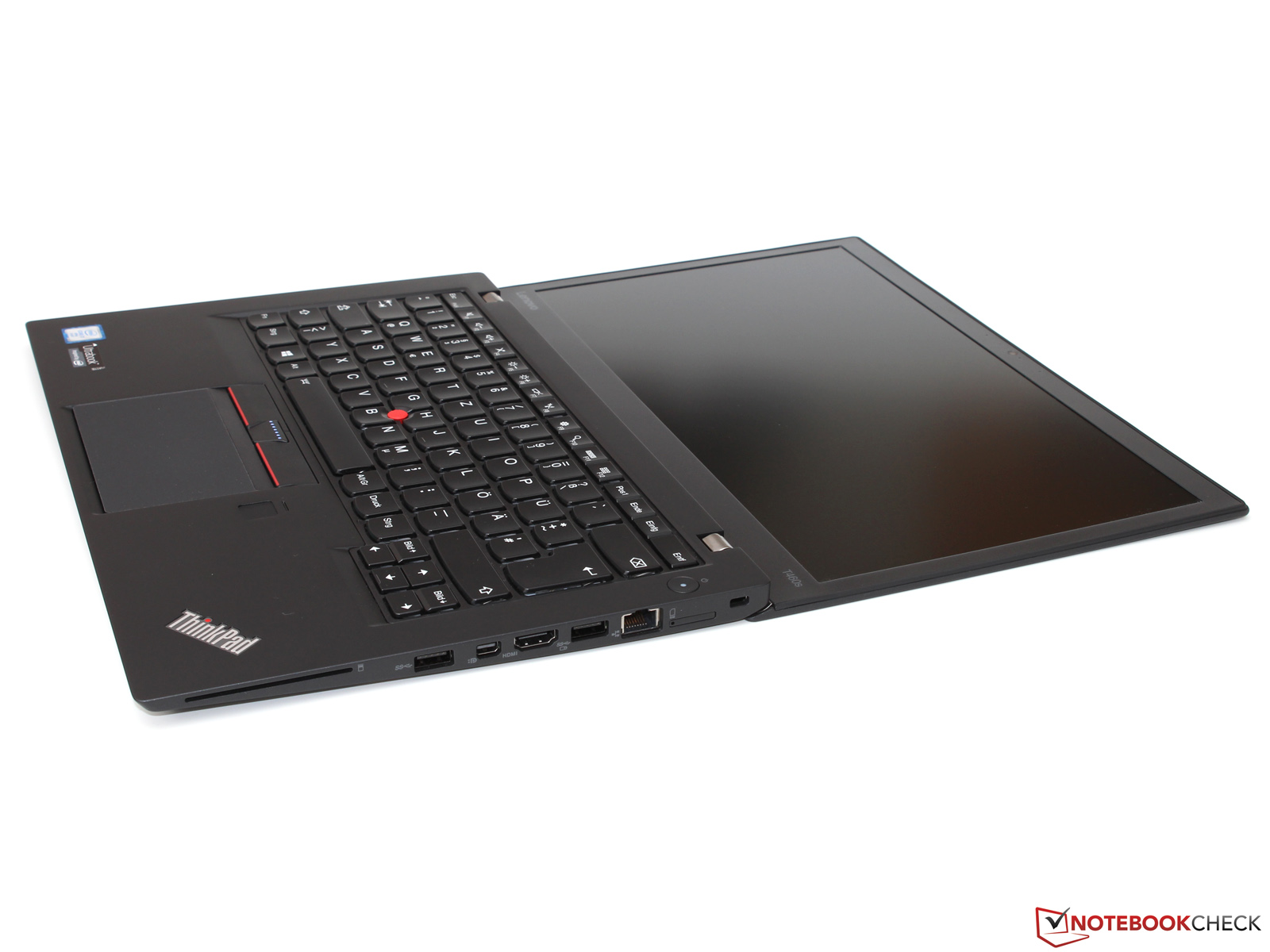

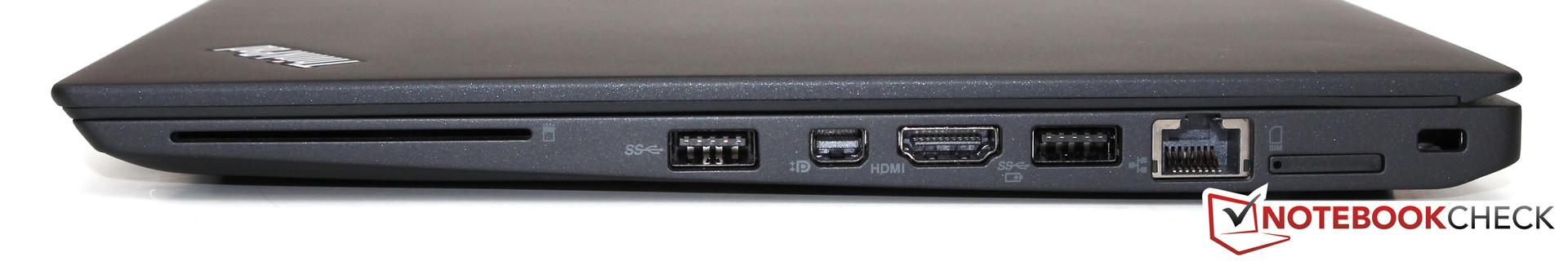

Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock
Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock

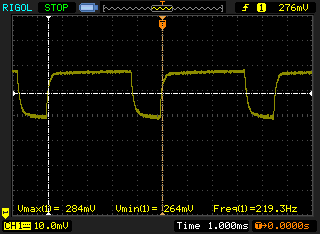

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 220 Hz ≤ 90 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

252
cd/m²
250
cd/m²
246
cd/m²
243
cd/m²
257
cd/m²
255
cd/m²
241
cd/m²
242
cd/m²
248
cd/m²
Distribuição do brilho
VVX14T058J02 tested with X-Rite i1Pro 2
Máximo: 257 cd/m² (Nits) Médio: 248.2 cd/m² Minimum: 3 cd/m²
iluminação: 94 %
iluminação com acumulador: 255 cd/m²
Contraste: 988:1 (Preto: 0.26 cd/m²)
ΔE Color 4.59 | 0.5-29.43 Ø5
ΔE Greyscale 6.38 | 0.57-98 Ø5.3
98% sRGB (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.1% sRGB (Argyll 2.2.0 3D)
68.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.51
Lenovo ThinkPad T460s-20FA003GGE
2.560 x 1.440 IPS-Panel
Lenovo ThinkPad T460s-20F9003SGE
1.920 x 1.080 IPS-Panel
Lenovo ThinkPad T450s-20BWS1UT00
1.920 x 1.080 IPS-Panel
HP EliteBook 840 G3 T9X59ET#ABD
1.920 x 1.080 TN-Panel
Dell Latitude 14 7000 Series E7470
1.920 x 1.080 IPS-Panel
Display
-38%
-11%
-27%
-2%
Display P3 Coverage
68.7
41.65
-39%
64.8
-6%
48.93
-29%
67.2
-2%
sRGB Coverage
98.1
61.6
-37%
83.8
-15%
73.7
-25%
95.9
-2%
AdobeRGB 1998 Coverage
70.4
43.14
-39%
61.2
-13%
50.5
-28%
69.3
-2%
Response Times
-9%
-5%
-14%
Response Time Grey 50% / Grey 80% *
35.6 ?(17.2, 18.4)
42 ?(19.6, 22.4)
-18%
43 ?(20, 23)
-21%
48 ?(15, 33)
-35%
Response Time Black / White *
29.2 ?(14.4, 14.8)
29.2 ?(16, 13.2)
-0%
25 ?(9, 16)
14%
27 ?(7, 20)
8%
PWM Frequency
220 ?(90)
204 ?(90)
-7%
Screen
-20%
6%
-42%
21%
Brightness middle
257
226
-12%
288
12%
366
42%
380
48%
Brightness
248
211
-15%
281
13%
336
35%
354
43%
Brightness Distribution
94
89
-5%
94
0%
87
-7%
81
-14%
Black Level *
0.26
0.22
15%
0.286
-10%
0.65
-150%
0.26
-0%
Contrast
988
1027
4%
1007
2%
563
-43%
1462
48%
Colorchecker dE 2000 *
4.59
6.44
-40%
4.35
5%
10.26
-124%
3.11
32%
Colorchecker dE 2000 max. *
9.72
17.18
-77%
6.73
31%
Greyscale dE 2000 *
6.38
5.87
8%
3.7
42%
11.51
-80%
4.35
32%
Gamma
2.51 88%
2.37 93%
2.68 82%
2.4 92%
2.37 93%
CCT
6238 104%
6856 95%
6076 107%
12725 51%
6771 96%
Color Space (Percent of AdobeRGB 1998)
65
39.58
-39%
54.7
-16%
47
-28%
62
-5%
Color Space (Percent of sRGB)
98
61.15
-38%
74
-24%
96
-2%
Total Average (Program / Settings)
-22% / -22%
-3% / 1%
-25% / -32%
2% / 12%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

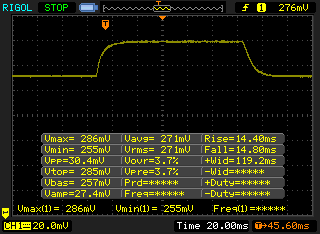

       Response Time Black to White
29.2 ms ... rise ↗ and fall ↘ combined↗ 14.4 ms rise
↘ 14.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 75 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

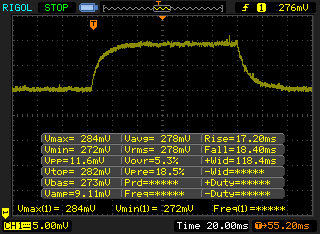

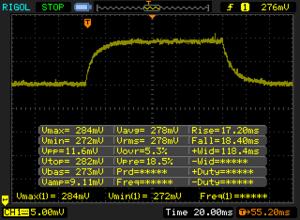

       Response Time 50% Grey to 80% Grey
35.6 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 43 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
145 Points +3%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
142 Points +1%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
141 Points
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
130 Points -8%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
124 Points -12%
Dell Latitude 14 E5470
Intel Core i5-6300U
124 Points -12%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
119 Points -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
116 Points -18%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
113 Points -20%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
111 Points -21%
CPU Multi 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
513 Points +48%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
347 Points
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
334 Points -4%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
322 Points -7%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
319 Points -8%
Dell Latitude 14 E5470
Intel Core i5-6300U
311 Points -10%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
302 Points -13%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
290 Points -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
288 Points -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
255 Points -27%
Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
1.66 Points +6%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
1.61 Points +3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
1.57 Points
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
1.51 Points -4%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
1.45 Points -8%
Dell Latitude 14 E5470
Intel Core i5-6300U
1.42 Points -10%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
1.31 Points -17%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
1.29 Points -18%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
1.28 Points -18%
CPU Multi 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
5.91 Points +54%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
3.83 Points
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
3.58 Points -7%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
3.55 Points -7%
Dell Latitude 14 E5470
Intel Core i5-6300U
3.44 Points -10%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
3.31 Points -14%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
3.23 Points -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
3.18 Points -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
2.77 Points -28%
X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
120.4 fps
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
107.6 fps -11%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
102.4 fps -15%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
98 fps -19%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
86.6 fps -28%
Pass 2
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
22.62 fps
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
20.95 fps -7%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
19.04 fps -16%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
18.72 fps -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
16.19 fps -28%
Cinebench R10 Shading 32Bit
9052
Cinebench R10 Rendering Multiple CPUs 32Bit
11798
Cinebench R10 Rendering Single 32Bit
5264
Cinebench R11.5 OpenGL 64Bit
41.71 fps
Cinebench R11.5 CPU Multi 64Bit
3.83 Points
Cinebench R11.5 CPU Single 64Bit
1.57 Points
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 OpenGL 64Bit
43.93 fps
Cinebench R15 CPU Multi 64Bit
347 Points
Cinebench R15 CPU Single 64Bit
141 Points
Ajuda
Lenovo ThinkPad T460s-20FA003GGE
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo ThinkPad T460s-20F9003SGE
Samsung CM871 MZ7LF192HCGS
Lenovo ThinkPad T450s-20BWS1UT00
Samsung SSD PM871 MZ7LN256HCHP
Lenovo ThinkPad T450s-20BWS03F00
Intel SSD Pro 2500 Series SSDSC2BF360A5L
Dell Latitude 14 7000 Series E7470
Samsung SSD PM851 M.2 2280 256GB
AS SSD
-82%
-50%
-75%
-57%
Seq Read
2039
471
-77%
503
-75%
489.6
-76%
495.5
-76%
Seq Write
1407
163.3
-88%
285.2
-80%
264.5
-81%
283.7
-80%
4K Read
45.41
14.18
-69%
33.27
-27%
22.19
-51%
30.91
-32%
4K Write
114.4
34.38
-70%
84.6
-26%
14.61
-87%
85.1
-26%
4K-64 Read
968
85.4
-91%
380
-61%
210.1
-78%
336.1
-65%
4K-64 Write
366
33.4
-91%
272.3
-26%
83.5
-77%
170
-54%
Score Total
2439
296
-88%
1086
-55%
546
-78%
913
-63%
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Velocidade de Transferência Mínima: 1064 MB/s
Velocidade de Transferência Máxima: 1168 MB/s
Velocidade de Transferência Média: 1162 MB/s
Tempo de Acesso: 0 ms
Índice de Explosão: 254 MB/s
Uso da CPU: 3.9 %
PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3344 Points -6%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
3270 Points -8%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
3231 Points -9%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3128 Points -12%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3088 Points -13%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3024 Points -15%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4338 Points
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3945 Points -9%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3644 Points -16%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
3613 Points -17%
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
4543 Points +2%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
4394 Points -1%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points -4%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
4121 Points -7%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4097 Points -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
4072 Points -8%
PCMark 7 - Score
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
5194 Points 0%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
5190 Points
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4995 Points -4%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
4797 Points -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3002 Points -42%
PCMark 7 Score
5190 pontos
PCMark 8 Home Score Accelerated v2
3542 pontos
PCMark 8 Creative Score Accelerated v2
4338 pontos
PCMark 8 Work Score Accelerated v2
4442 pontos
Ajuda
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U, Intel Iris Graphics 540
2450 Points +73%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2313 Points +63%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
2138 Points +51%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1416 Points
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
1210 Points -15%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
1162 Points -18%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
1156 Points -18%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1117 Points -21%
3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1627 Points +74%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
1497 Points +60%
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U, Intel Iris Graphics 540
1477 Points +58%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
935 Points
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
797 Points -15%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
727 Points -22%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
672 Points -28%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
597 Points -36%
SPECviewperf 12
1900x1060 Catia (catia-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
11.62 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
9.71 fps -16%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
9.69 fps -17%
1900x1060 Creo (creo-01)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.15 fps
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
8.99 fps -11%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.68 fps -34%
1900x1060 Energy (energy-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
0.08 fps +33%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
0.06 fps 0%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
0.06 fps
1900x1060 Maya (maya-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.89 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2.09 fps -81%
1900x1060 Medical (medical-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
5.72 fps +236%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1.7 fps
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1.02 fps -40%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.05 fps 0%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
6.05 fps
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
4.79 fps -21%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
2.95 fps
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
2.47 fps -16%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1.81 fps -39%
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
22.64 fps
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
15.6 fps -31%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
14.65 fps -35%
3DMark 06 Standard Score
9685 pontos
3DMark Vantage P Result
5859 pontos
3DMark 11 Performance
1600 pontos
3DMark Ice Storm Standard Score
58178 pontos
3DMark Cloud Gate Standard Score
6097 pontos
3DMark Fire Strike Score
863 pontos
Ajuda
Tomb Raider
1024x768 Low Preset
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
130.8 fps +57%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
121.4 fps +46%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
86.5 fps +4%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
83.1 fps
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
61.8 fps -26%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
54.7 fps -34%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
48.3 fps -42%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
39.3 fps -53%
1366x768 Normal Preset AA:FX AF:4x
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
66.1 fps +61%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
58.4 fps +42%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
41.1 fps
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
38.5 fps -6%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
30.4 fps -26%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
27.5 fps -33%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
25.5 fps -38%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
21.1 fps -49%
1366x768 High Preset AA:FX AF:8x
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
36.4 fps +42%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
33.2 fps +29%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
27.8 fps +8%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
25.7 fps
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
19.6 fps -24%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
19.3 fps -25%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
16.8 fps -35%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
13.3 fps -48%
baixo média alto ultra
Counter-Strike: GO (2012) 156.3 101 60.9 31.2
Tomb Raider (2013) 83.1 41.1 25.7 10.9
BioShock Infinite (2013) 55.7 29.8 24.5 7.3
Battlefield 4 (2013) 40.4 29.6 18.8 5.9
Sims 4 (2014) 182.6 46.7 21.8 15.6
Rise of the Tomb Raider (2016) 14.1 9.6 5.3
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U, Intel HD Graphics 520
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U, Intel HD Graphics 520
Noise
2%
3%
2%
-7%
-1%
off / environment *
29.2
29.1
-0%
31.2
-7%
31.2
-7%
Idle Minimum *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
31.2
-7%
31.2
-7%
Idle Average *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
32.1
-10%
31.2
-7%
Idle Maximum *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
33.1
-13%
31.2
-7%
Load Average *
33.7
32.3
4%
33.1
2%
34.3
-2%
36.2
-7%
31.9
5%
Load Maximum *
38.5
36.6
5%
34.3
11%
34.8
10%
37.8
2%
31.9
17%

* ... smaller is better

Barulho

Ocioso
29.2 / 29.2 / 29.2 dB
Carga
33.7 / 38.5 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm de distância)   environment noise: 29.2 dB(A)
Inatividade
 27.4 °C27.6 °C27.3 °C
 27.4 °C26.8 °C26.7 °C
 25.5 °C26.2 °C25.8 °C
Máximo: 27.6 °C
Médio: 26.7 °C
26.7 °C27.5 °C27.3 °C
27.4 °C28.7 °C27.2 °C
26.2 °C26.8 °C26.6 °C
Máximo: 28.7 °C
Médio: 27.2 °C
alimentação elétrica  28.3 °C | Temperatura do quarto 20.6 °C | Fluke 62 Max
(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.3 °C / 86.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.6 °C / -4.6 F).
Consumo de energia
desligadodarklight 0.28 / 0.6 Watt
Ociosodarkmidlight 3.8 / 7.1 / 7.8 Watt
Carga midlight 36.3 / 46 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad T460s-20FA003GGE
49 Wh
Lenovo ThinkPad T460s-20F9003SGE
49 Wh
Lenovo ThinkPad T450s-20BWS1UT00
96 Wh
Lenovo ThinkPad T450s-20BWS03F00
48 Wh
Battery Runtime
37%
156%
-1%
Reader / Idle
833
915
10%
1857
123%
774
-7%
H.264
397
534
35%
757
91%
322
-19%
WiFi v1.3
340
395
16%
648
91%
276
-19%
Load
62
116
87%
259
318%
88
42%
WiFi
336
Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
13h 53min
WiFi Websurfing
5h 40min
Big Buck Bunny H.264 1080p
6h 37min
Carga (máximo brilho)
1h 02min

Pro

+ Construção do chassi rígida e extremamente leve

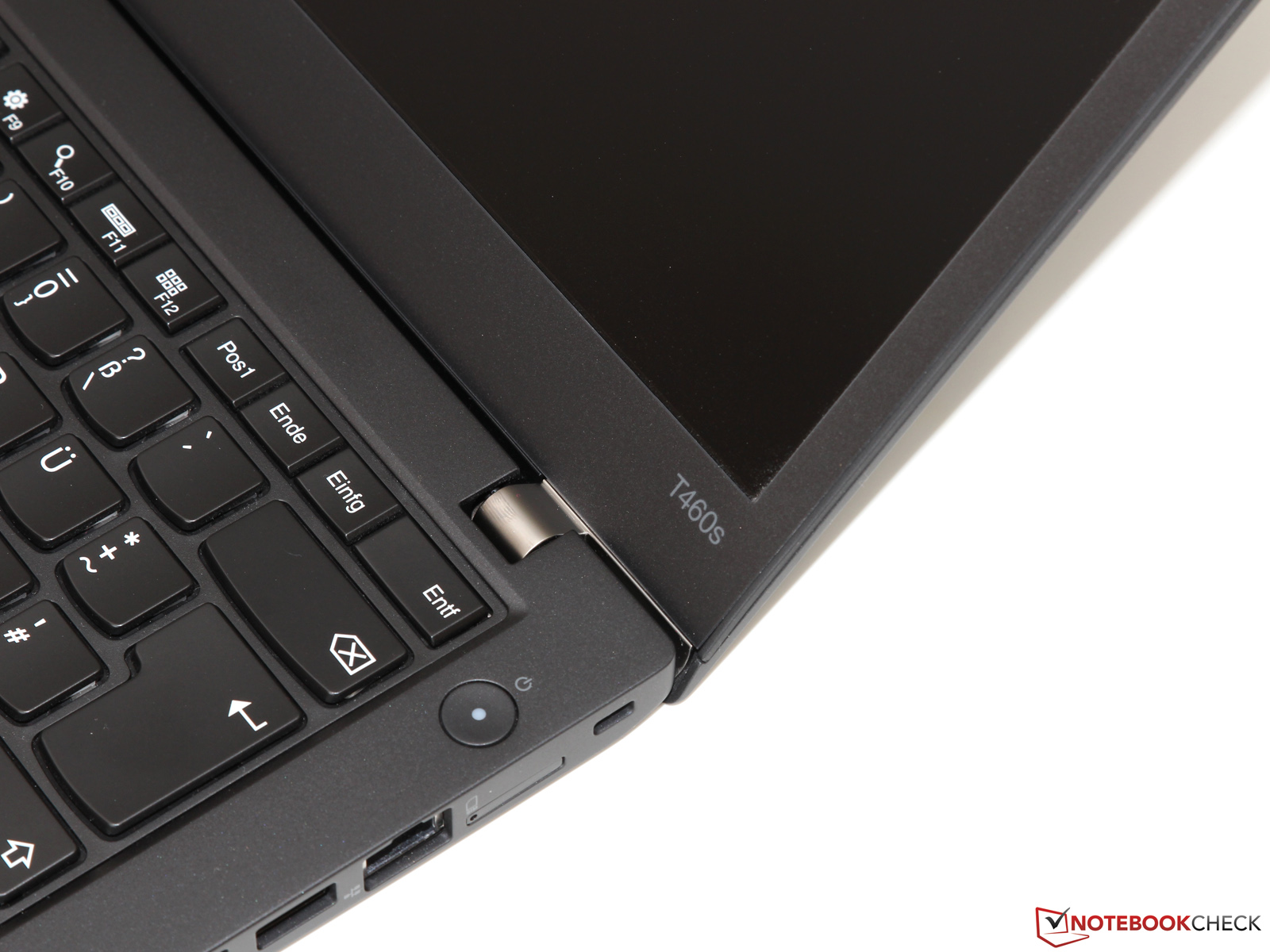

+ Dobradiças da tela flexíveis

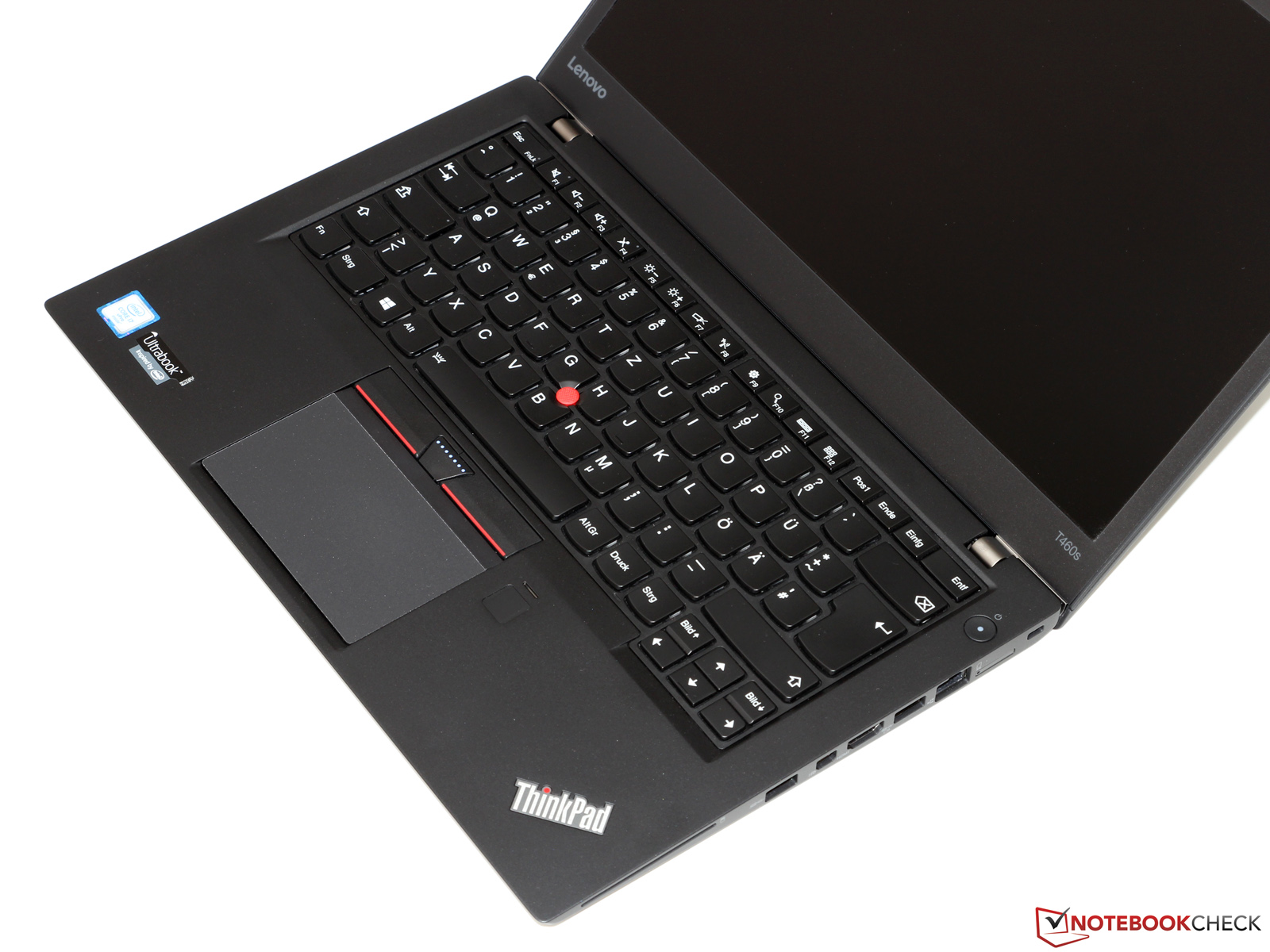

+ Teclado preciso
+ Desempenho veloz do Wi-Fi
+ LTE integrado
+ Tela de alta resolução com amplos ângulos de visão
+ Desempenho muito alto de aplicativos
+ Baixas emissões de ruído e calor
+ Diversos recursos de segurança
+ Boas durações da bateria
+ 3 anos de garantia

Contra

- Expansão limitada
- Sem USB-C
- Iluminação média do painel
- Preço alto

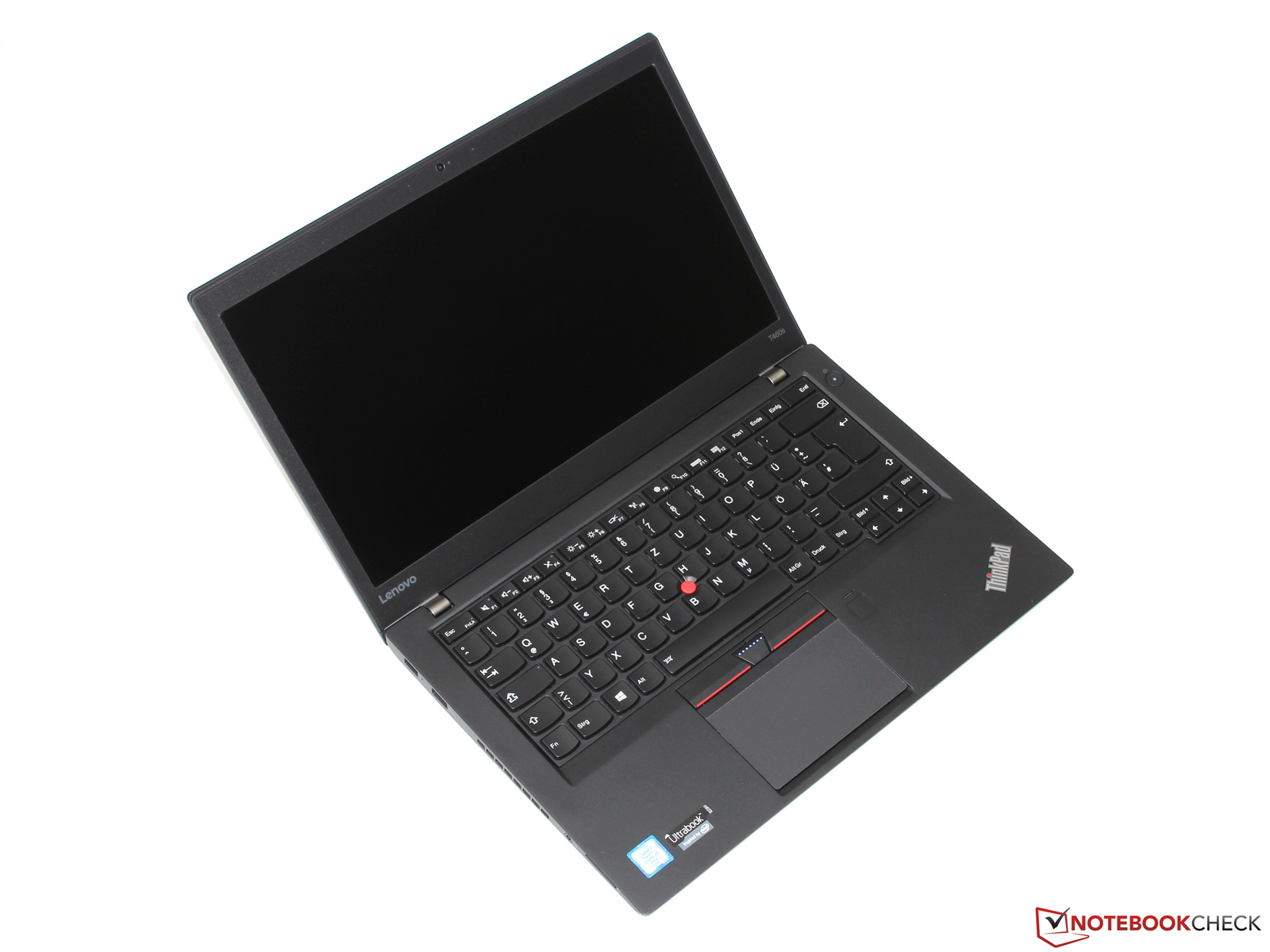

In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.

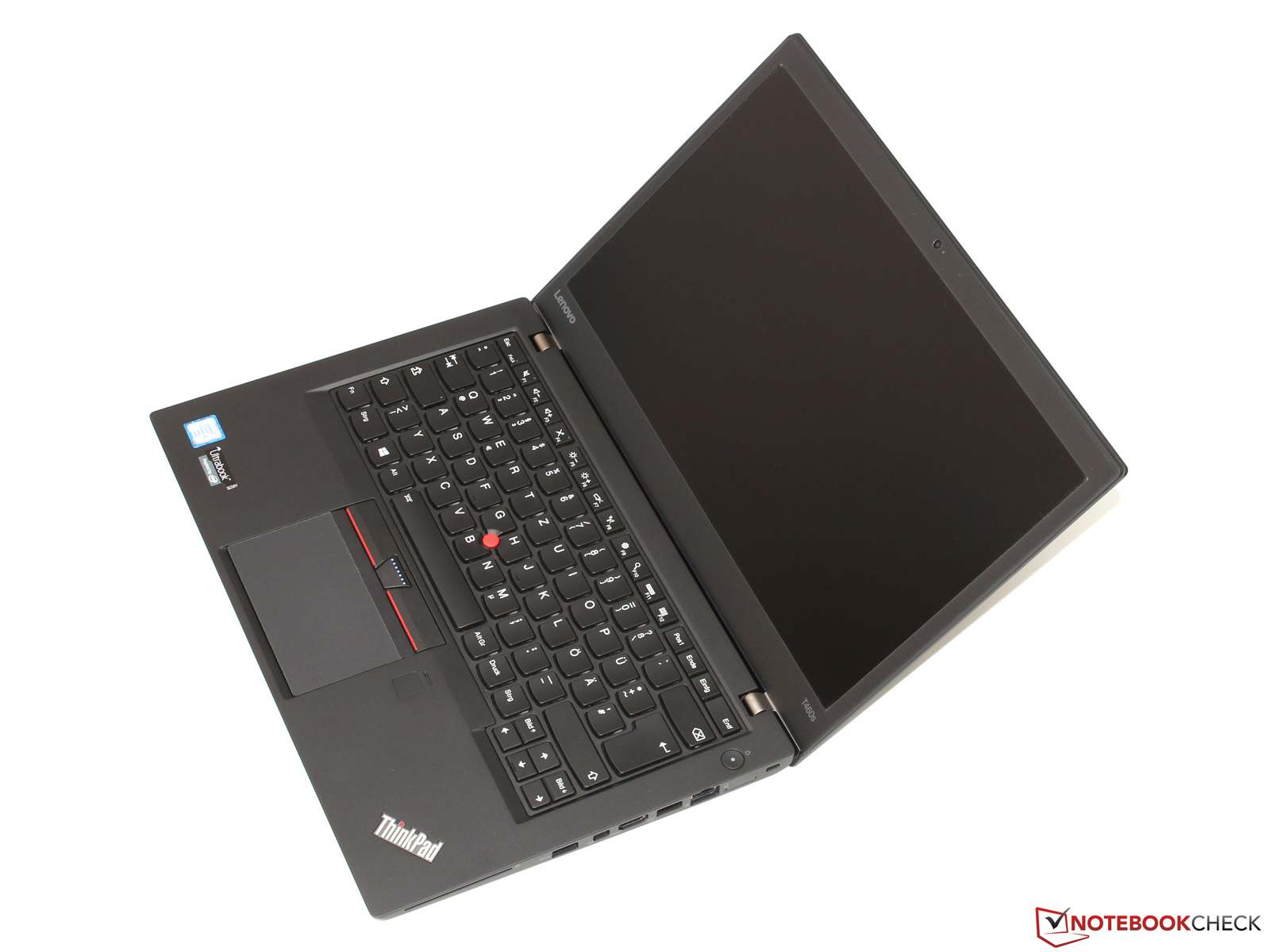

In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.

Depois de cerca de uma semana de testá-lo exaustivamente, podemos dizer que o ThinkPad T460s é mais do que uma enjoada atualização Skylake do antigo T450s – e já é um dos melhores portáteis empresariais em 2016 em nossa opinião.

Embora o design não mudou quase nada, o T460s conta com uma construção completamente nova com um chassi ainda mais fino e leve. Sua qualidade de construção e estabilidade atendem bem as altas expectativas que temos para um portátil com um preço de 1.000 Euros (~$1110). O mesmo se aplica para os dispositivos de entrada: Se estiver procurando um teclado com um bom ponto de pressão, será difícil encontrar uma alternativa melhor hoje em dia. O touchpad/ClickPad pode não estar bem no mesmo nível, mas o desempenho ainda é sólido em combinação com o TrackPoint.

Mais uma vez queremos enfatizar o excelente desempenho dos aplicativos da nossa configuração de gama alta – certamente cara. Sem quaisquer restrições do TDP, o Core i7-6600U consegue resultados de desempenho surpreendentes sem afetar muito o ruído do sistema e a temperatura.
 Combinado com um SSD, que consegue taxas de transferência de até 2 GB/s, bem como 12 GB da veloz memória DDR4, o portátil consegue lidar até mesmo aplicativos complexos com facilidade. A placa de vídeo integrada pode, pelo menos, fornecer taxas de fotogramas aceitáveis em jogos mais antigos e modelos CAD menores.

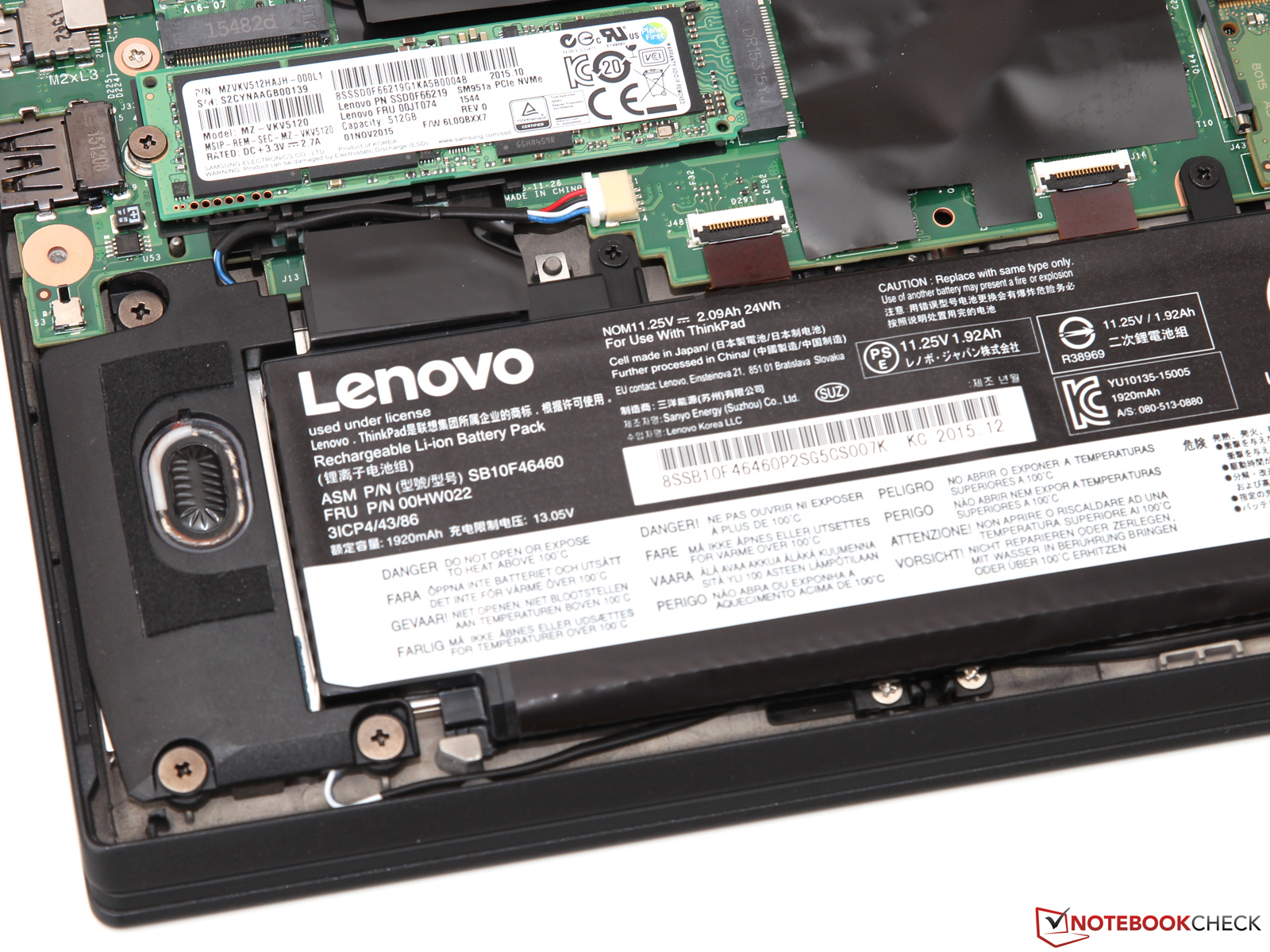

Nossos poucos pontos de crítica estão relacionados principalmente com a construção do novo chassi, que não oferece espaço para uma unidade de2,5-polegadas, nem para uma bateria maior. No entanto, a Lenovo poderia ter implementado uma moderna porta USB-C ou uma tela um pouco mais brilhante – alguns portáteis de consumo se desempenham melhor neste aspecto. No entanto, isto não afeta a excelente impressão geral. Não há motivo pelo qual você não deveria comprar o portátil se você puder e quiser investir os 2.350 Euros (~$2609) e também tiver dado uma olhada nos concorrentes da HP e Dell.

Nota: O modelo de teste da notebooksandmore.de está disponível para nós durante os seguintes 12 meses como um empréstimo de longo prazo. Neste tempo queremos realizar testes de longo termo sobre a qualidade de construção e a duração da bateria, analisar estações externas, e verificar o desempenho com telas 4K, bem como a compatibilidade com Linux. Estamos contentes de receber mais sugestões de testes adicionais!

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Lenovo ThinkPad T460s-20FA003GGE - 03/09/2016 v5(old)
Till Schönborn

Acabamento
93 / 98 → 95%
Teclado
94%
Mouse
87%
Conectividade
74 / 80 → 92%
Peso
71 / 20-67 → 100%
Bateria
87%
Pantalha
87%
Desempenho do jogos
57 / 68 → 84%
Desempenho da aplicação
89 / 92 → 97%
Temperatura
92%
Ruído
95%
Audio
69%
Camera
53 / 85 → 62%
Médio
81%
91%
Office - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Ultrabook Lenovo ThinkPad T460s (Core i7, WQHD)
Till Schönborn, 2016-03-15 (Update: 2016-03-24)
