Breve Análise do Workstation Dell Precision 5510

XPS 15 para pros. O Dell mobile Precision 5510 workstation, uma variante do XPS 15, feito principalmente para satisfazer as necessidades dos usuários profissionais. A principal diferença é, portanto, é a Nvidia Quadro M1000M que mostra suas fortalezas, particularmente no software de engenharia e aplicativos certificados. Examinamos quão bem o Precision 5510 realmente se adapta aos usuários profissionais.
Dell Precision 5510 (Precision 5000 Serie)
Processador
Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake
Placa gráfica
NVIDIA Quadro M1000M - 2048 MB VRAM, Análises do: 993 MHz, Memoría: 1253 MHz, GPU Boost 1072 MHz, Forceware 354.56, Nvidia Optimus mit Intel HD Graphics P530
Memória
16 GB
, DDR4-2133 Micron, 2 slots ocupados com 8 GB cada
Pantalha
15.60 polegadas 16:9, 3840 x 2160 pixel, multitouch, SHP143E, 7PHPT_LQ156D1, IGZO LED, Brilhante: sim
placa mãe
Intel HM170 (Skylake PCH-H)
Disco rígido
SK hynix SC920 512 GB, 512 GB
Placa de Som
Realtek High Definition Audio
Conexões

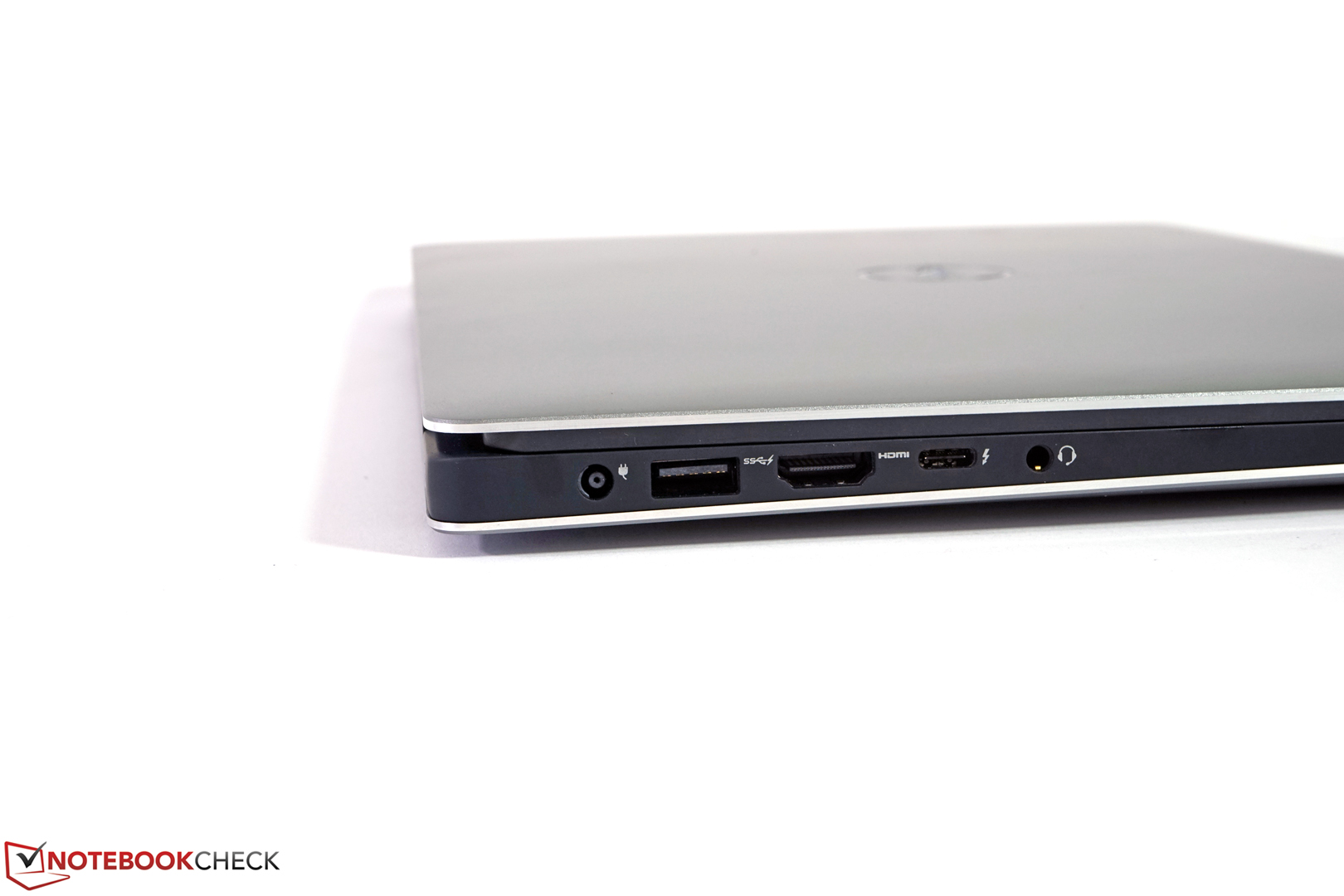

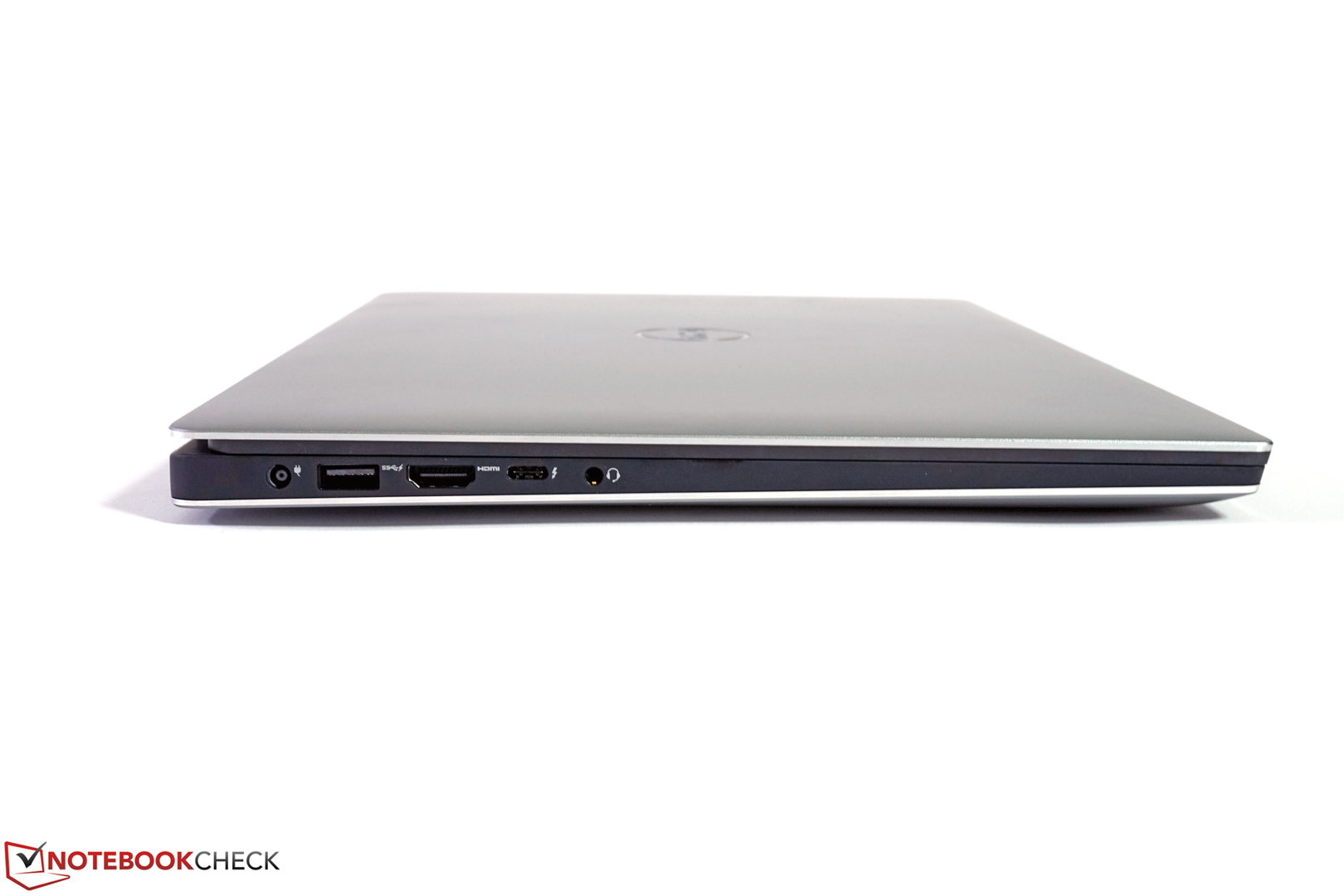

2 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Conexões Audio: Combinado de entrada/saída de áudio, Card Reader: SD, SDXC, SDHC, UHS-11
Funcionamento em rede
Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Tamanho
altura x largura x profundidade (em mm): 11.5 x 357 x 235
Bateria
56 Wh Lítio-Ion
Sistema Operativo
Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)
Camera
Webcam: 720p
Características adicionais
Teclado: chiclet, Iluminação do Teclado: sim, 36 Meses Garantia
peso
2.02 kg, Suprimento de energia: 440 g
Preço
3200 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

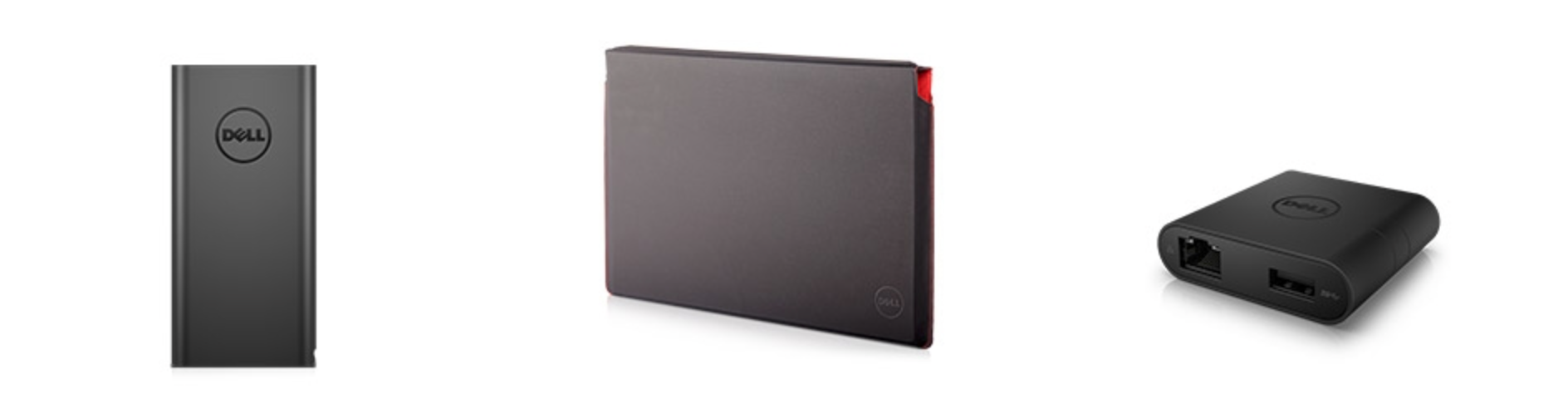

Picture Dell (left to right).: Dell Power Companion (external battery), Dell Premier case, Dell USB Type-C adapter
Picture Dell (left to right).: Dell Power Companion (external battery), Dell Premier case, Dell USB Type-C adapter
377
cd/m²
370
cd/m²
361
cd/m²
344
cd/m²
391
cd/m²
350
cd/m²
339
cd/m²
367
cd/m²
348
cd/m²
Distribuição do brilho
SHP143E, 7PHPT_LQ156D1 tested with X-Rite i1Pro 2
Máximo: 391 cd/m² (Nits) Médio: 360.8 cd/m²
iluminação: 87 %
iluminação com acumulador: 387 cd/m²
Contraste: 978:1 (Preto: 0.4 cd/m²)
ΔE Color 4.85 | 0.5-29.43 Ø5
ΔE Greyscale 4.01 | 0.57-98 Ø5.3
100% sRGB (Argyll 1.6.3 3D)
96% AdobeRGB 1998 (Argyll 1.6.3 3D)
99.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
88.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.18
Cinebench R10 Shading 32Bit
6845
Cinebench R10 Rendering Multiple CPUs 32Bit
21436
Cinebench R10 Rendering Single 32Bit
5367
Cinebench R10 Shading 64Bit
6845 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
28057 Points
Cinebench R10 Rendering Single CPUs 64Bit
6890 Points
Cinebench R11.5 CPU Multi 64Bit
7.93 Points
Cinebench R11.5 OpenGL 64Bit
85.9 fps
Cinebench R11.5 CPU Single 64Bit
1.6 Points
Cinebench R15 CPU Multi 64Bit
732 Points
Cinebench R15 CPU Single 64Bit
142 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
98.1 fps
Ajuda
PCMark Vantage Result
19915 pontos
PCMark 7 Score
5317 pontos
PCMark 8 Home Score Accelerated v2
3941 pontos
PCMark 8 Creative Score Accelerated v2
4429 pontos
PCMark 8 Work Score Accelerated v2
5100 pontos
Ajuda
SK hynix SC920 512 GB
Sequential Read: 474MB/s
Sequential Write: 389MB/s
4K Read: 17.95MB/s
4K Write: 82.2MB/s
4K-64 Read: 327MB/s
4K-64 Write: 257MB/s
Access Time Read: 0.111ms
Access Time Write: 0.74ms
Copy ISO: 387MB/s
Copy Program: 221MB/s
Copy Game: 349MB/s
Score Read: 392Points
Score Write: 378Points
Score Total: 972Points
SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision 5510
41 fps
Fujitsu Celsius H730
23.1 fps -44%
Lenovo ThinkPad W541 20EF000SGE
30.87 fps -25%
HP ZBook 15 G2
26.63 fps -35%
MSI GE62 2QC-468XPL
5.31 fps -87%
1920x1080 Tcvis (sort by value)
Dell Precision 5510
40 fps
Fujitsu Celsius H730
27.3 fps -32%
Lenovo ThinkPad W541 20EF000SGE
34.34 fps -14%
HP ZBook 15 G2
21.43 fps -46%
MSI GE62 2QC-468XPL
1.75 fps -96%
1920x1080 SolidWorks (sort by value)
Dell Precision 5510
51 fps
Fujitsu Celsius H730
38.2 fps -25%
Lenovo ThinkPad W541 20EF000SGE
41.64 fps -18%
HP ZBook 15 G2
56.1 fps +10%
MSI GE62 2QC-468XPL
12.26 fps -76%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision 5510
21 fps
Fujitsu Celsius H730
17.3 fps -18%
Lenovo ThinkPad W541 20EF000SGE
15.96 fps -24%
HP ZBook 15 G2
10.64 fps -49%
MSI GE62 2QC-468XPL
2.52 fps -88%
1920x1080 Maya (sort by value)
Dell Precision 5510
56 fps
Fujitsu Celsius H730
46.6 fps -17%
Lenovo ThinkPad W541 20EF000SGE
52 fps -7%
HP ZBook 15 G2
60.3 fps +8%
MSI GE62 2QC-468XPL
18.87 fps -66%
1920x1080 Lightwave (sort by value)
Dell Precision 5510
54 fps
Fujitsu Celsius H730
50 fps -7%
Lenovo ThinkPad W541 20EF000SGE
47.6 fps -12%
HP ZBook 15 G2
75.8 fps +40%
MSI GE62 2QC-468XPL
21.87 fps -59%
1920x1080 Ensight (sort by value)
Dell Precision 5510
39 fps
Fujitsu Celsius H730
17.4 fps -55%
Lenovo ThinkPad W541 20EF000SGE
24.64 fps -37%
HP ZBook 15 G2
25.07 fps -36%
MSI GE62 2QC-468XPL
35.12 fps -10%
1920x1080 Catia (sort by value)
Dell Precision 5510
54 fps
Fujitsu Celsius H730
34.5 fps -36%
Lenovo ThinkPad W541 20EF000SGE
39.12 fps -28%
HP ZBook 15 G2
35.61 fps -34%
MSI GE62 2QC-468XPL
18.49 fps -66%

Legend


Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI GE62 2QC-468XPL Intel Core i7-5700HQ, NVIDIA GeForce GTX 960M, Samsung SSD PM851 256 GB MZNTE256HMHP
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Dell Precision 5510
62 fps
Fujitsu Celsius H730
32.9 fps -47%
Lenovo ThinkPad W541 20EF000SGE
22.41 fps -64%
HP ZBook 15 G2
39.72 fps -36%
Dell XPS 15 2016 9550
22.03 fps -64%
1900x1060 Siemens NX (snx-02) (sort by value)
Dell Precision 5510
31 fps
Fujitsu Celsius H730
15.5 fps -50%
Lenovo ThinkPad W541 20EF000SGE
21.35 fps -31%
HP ZBook 15 G2
29.69 fps -4%
Dell XPS 15 2016 9550
2.39 fps -92%
1900x1060 Showcase (showcase-01) (sort by value)
Dell Precision 5510
20 fps
Fujitsu Celsius H730
9.1 fps -54%
Lenovo ThinkPad W541 20EF000SGE
11.23 fps -44%
HP ZBook 15 G2
16.36 fps -18%
Dell XPS 15 2016 9550
21.73 fps +9%
1900x1060 Medical (medical-01) (sort by value)
Dell Precision 5510
12 fps
Fujitsu Celsius H730
4.9 fps -59%
Lenovo ThinkPad W541 20EF000SGE
2.16 fps -82%
HP ZBook 15 G2
7.82 fps -35%
Dell XPS 15 2016 9550
12.3 fps +3%
1900x1060 Maya (maya-04) (sort by value)
Dell Precision 5510
30 fps
Fujitsu Celsius H730
14.2 fps -53%
Lenovo ThinkPad W541 20EF000SGE
15.82 fps -47%
HP ZBook 15 G2
24.92 fps -17%
Dell XPS 15 2016 9550
15.37 fps -49%
1900x1060 Energy (energy-01) (sort by value)
Dell Precision 5510
0.69 fps
Fujitsu Celsius H730
0.33 fps -52%
Lenovo ThinkPad W541 20EF000SGE
0.17 fps -75%
HP ZBook 15 G2
0.44 fps -36%
Dell XPS 15 2016 9550
0.74 fps +7%
1900x1060 Creo (creo-01) (sort by value)
Dell Precision 5510
34 fps
Fujitsu Celsius H730
16.2 fps -52%
Lenovo ThinkPad W541 20EF000SGE
19.14 fps -44%
HP ZBook 15 G2
19.64 fps -42%
Dell XPS 15 2016 9550
10.72 fps -68%
1900x1060 Catia (catia-04) (sort by value)
Dell Precision 5510
37 fps
Fujitsu Celsius H730
16.6 fps -55%
Lenovo ThinkPad W541 20EF000SGE
19.6 fps -47%
HP ZBook 15 G2
23.62 fps -36%
Dell XPS 15 2016 9550
15.76 fps -57%

Legend


Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

Dell XPS 15 2016 9550 Intel Core i5-6300HQ, NVIDIA GeForce GTX 960M, WDC WD10SPCX-75KHST0 + LiteON CS1-SP32-11 M.2 2242 32GB
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision 5510
534 Samples/s
Fujitsu Celsius H730
108 Samples/s -80%
HP Z1 G2 G1X47EA
74 Samples/s -86%
Lenovo ThinkPad W541 20EF000SGE
68 Samples/s -87%
HP ZBook 15 G2
375 Samples/s -30%
Entry Workstation AMD FirePro W4100
262 Samples/s -51%
Entry Workstation AMD FirePro W2100
137 Samples/s -74%
Sala GPUs-only (sort by value)
Dell Precision 5510
889 Samples/s
Fujitsu Celsius H730
221 Samples/s -75%
HP Z1 G2 G1X47EA
158 Samples/s -82%
Lenovo ThinkPad W541 20EF000SGE
146 Samples/s -84%
HP ZBook 15 G2
675 Samples/s -24%
Entry Workstation AMD FirePro W4100
478 Samples/s -46%
Entry Workstation AMD FirePro W2100
243 Samples/s -73%
SiSoft Sandra 2016
Image Processing (sort by value)
Dell Precision 5510
127.5 MPix/s
HP Z1 G2 G1X47EA
44.47 MPix/s -65%
Entry Workstation AMD FirePro W2100
37.08 MPix/s -71%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Dell Precision 5510
7.38 GB/s
HP Z1 G2 G1X47EA
1.77 GB/s -76%
Entry Workstation AMD FirePro W2100
0.82 GB/s -89%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Dell Precision 5510
17 KOPT/s
HP Z1 G2 G1X47EA
14.49 KOPT/s -15%
Entry Workstation AMD FirePro W2100
4.07 KOPT/s -76%

Legend


Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

Entry Workstation AMD FirePro W4100 Intel Core i5-4430, AMD FirePro W4100, Intel SSD 320 Series SSDSA2CW120G3

Entry Workstation AMD FirePro W2100 Intel Core i5-4430, AMD FirePro W2100, Intel SSD 320 Series SSDSA2CW120G3
3DMark 06 Standard Score
24573 pontos
3DMark 11 Performance
4648 pontos
3DMark Ice Storm Standard Score
41248 pontos
3DMark Cloud Gate Standard Score
16180 pontos
3DMark Fire Strike Score
3344 pontos
Ajuda
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 5510
43.4 fps
HP Z1 G2 G1X47EA
20.4 fps -53%
Entry Workstation AMD FirePro W4100
16.5 fps -62%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 5510
44.9 fps
HP Z1 G2 G1X47EA
22.5 fps -50%
Entry Workstation AMD FirePro W4100
20.1 fps -55%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Dell Precision 5510
18.7 fps
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Dell Precision 5510
16.2 fps
Entry Workstation AMD FirePro W4100
7.1 fps -56%

Legend


Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Entry Workstation AMD FirePro W4100 Intel Core i5-4430, AMD FirePro W4100, Intel SSD 320 Series SSDSA2CW120G3
baixo média alto ultra4K
Tomb Raider (2013) 279 144 98 43
BioShock Infinite (2013) 195 111 100 38
Metro: Last Light (2013) 83 49 25
GRID 2 (2013) 195 153 136 43
Company of Heroes 2 (2013) 54 48 34 12
Total War: Rome II (2013) 166 126 107 20
Thief (2014) 78 53 45 23
GRID: Autosport (2014) 248 143 82 43
Middle-earth: Shadow of Mordor (2014) 169 131 34 26
Ryse: Son of Rome (2014) 76 52 23 21
F1 2014 (2014) 133 128 123 84
Dirt Rally (2015) 261 115 62 29 20
The Witcher 3 (2015) 54 38 17 11 7
Anno 2205 (2015) 121 65 30 14 12
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5510
7 fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Dell Precision 5510
11 fps
Nexoc G515 II
14.4 fps +31%
Acer Aspire V5-591G-71K2
11.2 fps +2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5510
17 fps
HP Z1 G2 G1X47EA
9 fps -47%
Nexoc G515 II
26.6 fps +56%
Acer Aspire V5-591G-71K2
19.7 fps +16%
1366x768 Medium Graphics & Postprocessing (sort by value)
Dell Precision 5510
38 fps
HP Z1 G2 G1X47EA
18 fps -53%
Nexoc G515 II
50.7 fps +33%
Acer Aspire V5-591G-71K2
37.6 fps -1%
1024x768 Low Graphics & Postprocessing (sort by value)
Dell Precision 5510
54 fps
HP Z1 G2 G1X47EA
26 fps -52%
Acer Aspire V5-591G-71K2
60.9 fps +13%
Dirt Rally
3840x2160 High Preset (sort by value)
Dell Precision 5510
20 fps
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510
29 fps
Nexoc G515 II
33.9 fps +17%
Acer Aspire V5-591G-71K2
24.6 fps -15%
1920x1080 High Preset (sort by value)
Dell Precision 5510
62 fps
HP Z1 G2 G1X47EA
25 fps -60%
Nexoc G515 II
74.8 fps +21%
Acer Aspire V5-591G-71K2
60.2 fps -3%
1366x768 Medium Preset (sort by value)
Dell Precision 5510
115 fps
HP Z1 G2 G1X47EA
60 fps -48%
Acer Aspire V5-591G-71K2
102.9 fps -11%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510
261 fps
HP Z1 G2 G1X47EA
225 fps -14%
Acer Aspire V5-591G-71K2
225.9 fps -13%
Anno 2205
3840x2160 High Preset AA:4x (sort by value)
Dell Precision 5510
12 fps
1920x1080 Ultra High Preset AA:8x (sort by value)
Dell Precision 5510
14 fps
Acer Aspire V5-591G-71K2
8.8 fps -37%
1920x1080 High Preset AA:4x (sort by value)
Dell Precision 5510
30 fps
HP Z1 G2 G1X47EA
14 fps -53%
Acer Aspire V5-591G-71K2
21.9 fps -27%
1366x768 Medium Preset AA:2x (sort by value)
Dell Precision 5510
65 fps
HP Z1 G2 G1X47EA
33 fps -49%
Acer Aspire V5-591G-71K2
48.9 fps -25%
1024x768 Low Preset (sort by value)
Dell Precision 5510
121 fps
HP Z1 G2 G1X47EA
54 fps -55%
Acer Aspire V5-591G-71K2
89.8 fps -26%
Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Dell Precision 5510
25 fps
SCHENKER M505
22.4 fps -10%
1366x768 High (DX11) AF:16x (sort by value)
Dell Precision 5510
49 fps
SCHENKER M505
42.1 fps -14%
1366x768 Medium (DX10) AF:4x (sort by value)
Dell Precision 5510
83 fps
SCHENKER M505
59.2 fps -29%
1024x768 Low (DX10) AF:4x (sort by value)
SCHENKER M505
61 fps
Middle-earth: Shadow of Mordor
1920x1080 Ultra Preset (HD Package) (sort by value)
Dell Precision 5510
26 fps
HP Z1 G2 G1X47EA
16 fps -38%
SCHENKER M505
17 fps -35%
1920x1080 High Preset (sort by value)
Dell Precision 5510
34 fps
HP Z1 G2 G1X47EA
17 fps -50%
SCHENKER M505
27.9 fps -18%
1344x756 Medium Preset (sort by value)
Dell Precision 5510
131 fps
HP Z1 G2 G1X47EA
34 fps -74%
SCHENKER M505
54.1 fps -59%
1280x720 Lowest Preset (sort by value)
Dell Precision 5510
169 fps
HP Z1 G2 G1X47EA
67 fps -60%
SCHENKER M505
85.4 fps -49%
Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Dell Precision 5510
43 fps
Acer Aspire V5-591G-71K2
34.6 fps -20%
SCHENKER M505
33.7 fps -22%
1366x768 High Preset AA:FX AF:8x (sort by value)
Dell Precision 5510
98 fps
Acer Aspire V5-591G-71K2
71.8 fps -27%
SCHENKER M505
71.9 fps -27%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Dell Precision 5510
144 fps
Acer Aspire V5-591G-71K2
130.2 fps -10%
SCHENKER M505
131.4 fps -9%
1024x768 Low Preset (sort by value)
Dell Precision 5510
279 fps
Acer Aspire V5-591G-71K2
272.1 fps -2%
SCHENKER M505
226.7 fps -19%
Ryse: Son of Rome
1920x1080 Very High Texture Res. + High Graphics Quality (Motion Blur & Temporal AA On, Rest Off/Disabled) AF:8x (sort by value)
Dell Precision 5510
21 fps
SCHENKER M505
19.8 fps -6%
1920x1080 High Texture Res. + High Graphics Quality (Rest Off/Disabled) AF:8x (sort by value)
Dell Precision 5510
23 fps
SCHENKER M505
21.1 fps -8%
1366x768 Medium Texture Res. + Normal Graphics Quality (Rest Off/Disabled) AF:4x (sort by value)
Dell Precision 5510
52 fps
SCHENKER M505
42.5 fps -18%
1024x768 Low Texture Res. + Low Graphics Quality (Rest Off/Disabled) AF:2x (sort by value)
Dell Precision 5510
76 fps
SCHENKER M505
52.2 fps -31%
GRID: Autosport
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510
43 fps
HP Z1 G2 G1X47EA
21 fps -51%
Acer Aspire V5-591G-71K2
27.1 fps -37%
SCHENKER M505
35.2 fps -18%
1920x1080 High Preset (sort by value)
Dell Precision 5510
82 fps
HP Z1 G2 G1X47EA
40 fps -51%
Acer Aspire V5-591G-71K2
81.7 fps 0%
SCHENKER M505
63.6 fps -22%
1366x768 Medium Preset (sort by value)
Dell Precision 5510
143 fps
HP Z1 G2 G1X47EA
102 fps -29%
Acer Aspire V5-591G-71K2
123.9 fps -13%
SCHENKER M505
97.6 fps -32%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510
248 fps
HP Z1 G2 G1X47EA
268 fps +8%
Acer Aspire V5-591G-71K2
210 fps -15%
SCHENKER M505
158.6 fps -36%
Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Dell Precision 5510
23 fps
SCHENKER M505
19.3 fps -16%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Dell Precision 5510
45 fps
SCHENKER M505
40.4 fps -10%
1366x768 Normal Preset AA:FX (sort by value)
Dell Precision 5510
53 fps
SCHENKER M505
49.4 fps -7%
1024x768 Very Low Preset (sort by value)
Dell Precision 5510
78 fps
SCHENKER M505
64.1 fps -18%
F1 2014
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510
84 fps
SCHENKER M505
69 fps -18%
1920x1080 High Preset (sort by value)
Dell Precision 5510
123 fps
SCHENKER M505
82 fps -33%
1366x768 Medium Preset (sort by value)
Dell Precision 5510
128 fps
SCHENKER M505
89 fps -30%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510
133 fps
SCHENKER M505
116 fps -13%
Total War: Rome II
1920x1080 Extreme Preset (sort by value)
Dell Precision 5510
20 fps
1366x768 High Preset (sort by value)
Dell Precision 5510
107 fps
1366x768 Medium Preset (sort by value)
Dell Precision 5510
126 fps
1024x768 Low Preset (sort by value)
Dell Precision 5510
166 fps
Company of Heroes 2
1920x1080 Maximum / Higher / High AA:High (sort by value)
Dell Precision 5510
12 fps
1366x768 High AA:Medium (sort by value)
Dell Precision 5510
34 fps
1366x768 Medium AA:Off (sort by value)
Dell Precision 5510
48 fps
1024x768 Minimum / Low / Off AA:Off (sort by value)
Dell Precision 5510
54 fps
GRID 2
1920x1080 Ultra Preset AA:4xMS (sort by value)
Dell Precision 5510
43 fps
1366x768 High Preset AA:2xMS (sort by value)
Dell Precision 5510
136 fps
1366x768 Medium Preset (sort by value)
Dell Precision 5510
153 fps
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510
195 fps
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Dell Precision 5510
38 fps
SCHENKER M505
29.6 fps -22%
1366x768 High Preset (sort by value)
Dell Precision 5510
100 fps
SCHENKER M505
86.1 fps -14%
1366x768 Medium Preset (sort by value)
Dell Precision 5510
111 fps
SCHENKER M505
99.9 fps -10%
1280x720 Very Low Preset (sort by value)
Dell Precision 5510
195 fps
SCHENKER M505
134.4 fps -31%

Barulho

Ocioso
30 / 30 / 30 dB
Carga
42.08 / 46.78 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm de distância)
Carga Máxima
 38.7 °C45.8 °C32.1 °C
 39.5 °C45.6 °C30.6 °C
 30.6 °C31 °C28.7 °C
Máximo: 45.8 °C
Médio: 35.8 °C
33.6 °C46.7 °C38.8 °C
33.5 °C35.7 °C37.5 °C
32.9 °C36.1 °C35 °C
Máximo: 46.7 °C
Médio: 36.6 °C
alimentação elétrica  60.2 °C | Temperatura do quarto 20 °C | Fennel FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 35.8 °C / 96 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 45.8 °C / 114 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 46.7 °C / 116 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.2 °C / -5.8 F).
Consumo de energia
desligadodarklight 0.36 / 1.4 Watt
Ociosodarkmidlight 8.6 / 16.2 / 16.7 Watt
Carga midlight 82.6 / 131.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
7h 08min
Navegar com WLAN
4h 58min
WiFi Websurfing
4h 46min
Big Buck Bunny H.264 1080p
3h 17min
Carga (máximo brilho)
1h 49min

Pro

+ Carcaça
+ Estabilidade
+ Desempenho do sistema
+ Desempenho CAD
+ Conectividade
+ Tela
+ Função multitouch
+ Dispositivos de entrada
+ Ruído de operação baixo
+ Temperatura
+ Posicionamento das interfaces
+ Opções de configuração
+ Garantia de 36 meses

Contra

- Ruído durante uso intenso
- Capacidade apertada da fonte de alimentação
- Afogamento do desempenho no modo de bateria
- Afogamento do desempenho da CPU sob uso intenso
- Dell Premier Color
- Preço

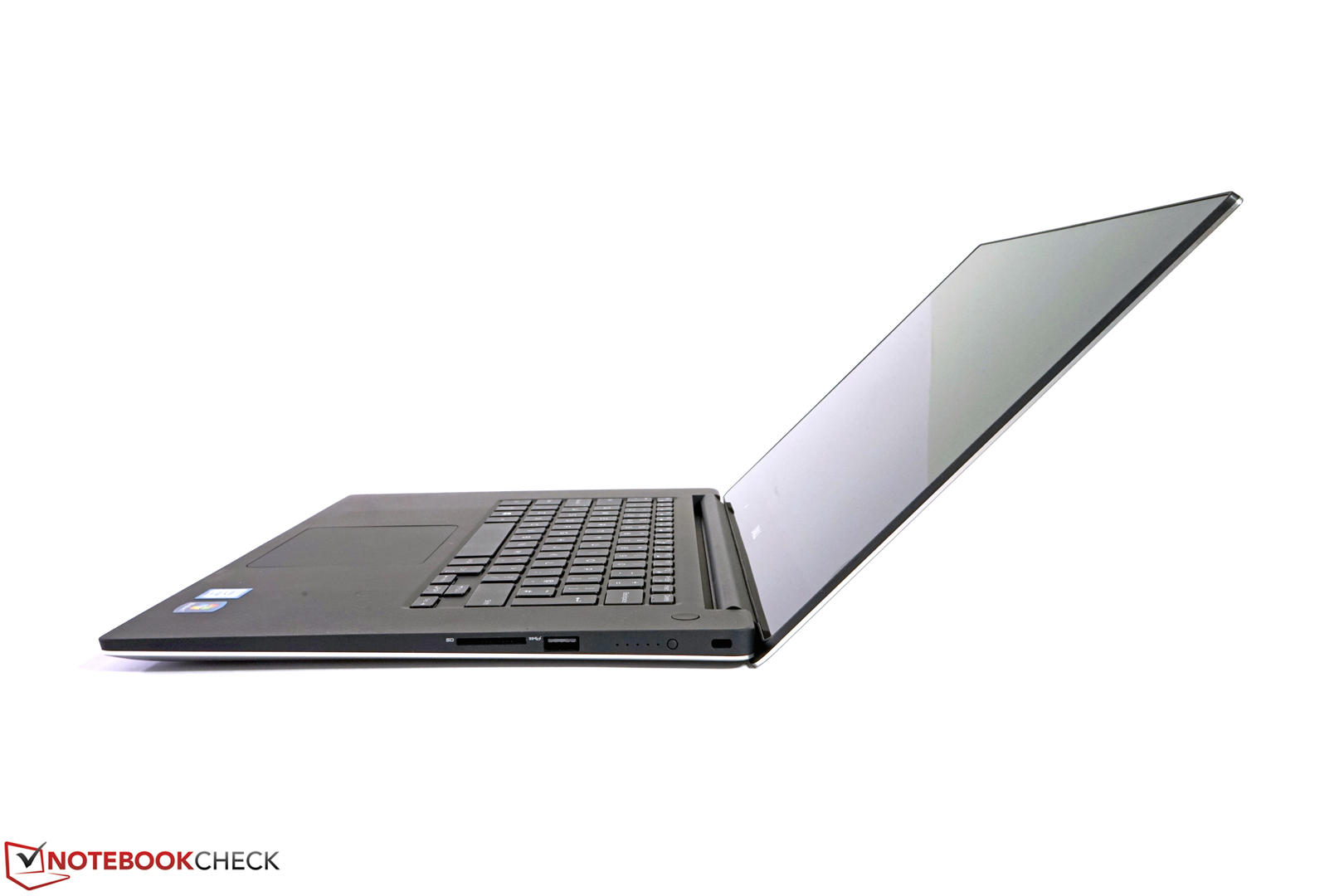

Dell Precision 5510: Slim, light and high-performance
Dell Precision 5510: Slim, light and high-performance

A Dell criou um aparelho de escritório extremamente atraente com o Precision 5510. Além dos recursos que chamam a atenção, que são principalmente devido à construção fina e materiais de alta qualidade, a qualidade de construção e a estabilidade da carcaça também são altamente impressionantes.

No geral, o desempenho do modelo de teste é muito bom, embora as perdas de desempenho tenham que ser aceitas em condições extremas, à diferença de muitos aparelhos similares. No entanto, não detectamos perdas no desempenho em cenários mais realistas, inclusive após longos períodos de uso intenso.

Um destaque significante do Dell Precision 5510 é, sem dúvida, o painel UHD IGZO extremamente bem-sucedido. Sua longa gama de cores, bom contraste, bom brilho e excelente precisão de cores, após a calibração, são cativantes. A única desvantagem é o seu consumo de energia relativamente alto, que é muito responsável pela duração da bateria bastante média.

Apesar de tudo, três a quatro horas e meia de duração de bateria são possíveis com as configurações corretas, dependendo do cenário de uso. Isto, junto com o peso relativamente baixo de 2,02 kg (~4,4 lb), oferece condições móveis acima da média, particularmente na categoria de comparação.

Embora a conectividade não seja ideal para um workstation móvel, ela inclui uma porta versátil na forma de Thunderbolt 3. Ele cobre diversos padrões de transferência importantes de uma só vez, e por isso também pode substitui portas docking proprietárias.

Alguns recursos empresariais foram omitidos neste XPS 15. Um leitor de digitais e leitor SmartCard estão ausentes, assim como um DisplayPort dedicado ou módulo de banda larga móvel.

O comprador recebe um workstation móvel versátil e com um visual muito bom pelo preço relativamente alto de aproximadamente 3200 Euros (~$3512/ configuração de teste). Se é ou não o aparelho ideal para o escritório, normalmente é uma questão de necessidades, demandas e preferências pessoais.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Dell Precision 5510 - 03/17/2016 v5(old)
Tobias Winkler

Acabamento
95 / 98 → 97%
Teclado
88%
Mouse
94%
Conectividade
52 / 81 → 64%
Peso
63 / 10-66 → 95%
Bateria
83%
Pantalha
87%
Desempenho do jogos
92%
Desempenho da aplicação
95%
Temperatura
88 / 95 → 93%
Ruído
84 / 90 → 93%
Audio
69%
Camera
56 / 85 → 66%
Médio
79%
83%
Workstation - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Workstation Dell Precision 5510
Tobias Winkler, 2016-01-24 (Update: 2016-01-29)
