Intel Core i5-540M

Intel 540M

O Intel Core i5-540M é um CPU dual core de alta capacidade para portáteis e apresenta uma freqüência (graças ao Modo Turbo) de 2,66 até 3,33 GHz. Cada núcleo se baseia na micro-arquitetura Nehalem (Westemere). O Hyperthreading permite que o CPU Dual Core suporte 4 threads de uma vez (para um melhor uso do pipeline). Comparado com o mais veloz Core i7-620M, o 540M somente apresenta 3 MB L3 Cache e uma freqüência mais baixa.

Uma característica do novo Core i5-540M é a placa de vídeo integrada chamada GMA HD e controlador de memória. Ambos estão em um molde separado que ainda é fabricada em 45nm enquanto o molde de CPU já é fabricado no novo processo de 32nm.

O desempenho do Core i5-540M é, em média, mais veloz que um Core 2 Duo T9800 de 2,8 GHz e em alguns benchmarks ainda mais veloz que o mais veloz Core 2 Duo T9900 (por exemplo, 3DMark 06 pontuação do CPU). Portanto, o Core i5-540M é um cpu dual core de alta capacidade que deve agüentar todo o trabalho diário e jogos. Somente os CPUs quad core i7 podem ser notavelmente mais velozes em tarefas que requerem quatro ou mais threads (como rendering).

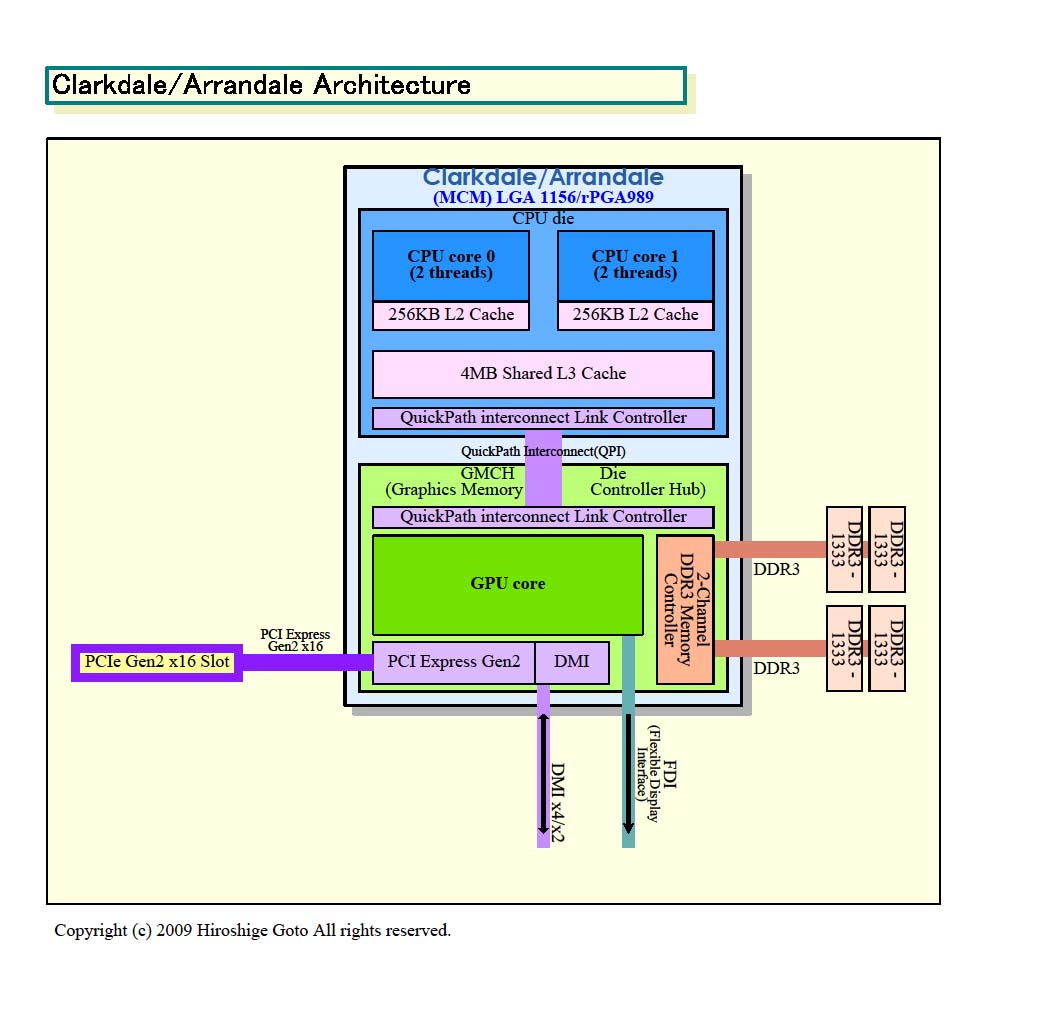

Os núcleos de cpu de 32nm da geração Westmere também pode processar algumas instruções novas para acelerar criptografias AES.

A placa de vídeo integrada Intel Graphics Media Accelerator HD (GMA HD) é conhecida por apresentar uma freqüência de até 500-766 MHz e deve ser claramente mais veloz que a antiga GMA 4500MHD. Uma GeForce 9400M (ION) ainda deve ser um pouco mais veloz (especialmente devido a que as placas da Nvidia e ATI possuem um melhor suporte para controladores que a Intel até agora). De acordo com os rumores, o núcleo GMA também usará o Modo Turbo para regular a freqüência.

O consumo de energia de 35 Watt TDP (máx.) conta para todo o pacote e, portanto, é claramente melhor que o TDP de 35 Watt da série-T Core 2 Duo (somente CPU). Graças ao Turbo Boost, o Core i5 provavelmente usa todo o TDP de 35 Watt sob carga e, portanto, pode usar mais potência que um Core 2 Duo semelhante determinado. Em modo Inativo, o i5 usa claramente menos energia que os CPUs Core 2 Duo.

SérieIntel Core i5
CodinomeArrandale

Serie: Core i5 Arrandale

Intel Core i5-580M2.67 - 3.33 GHz2 / 4 cores3 MB L3
Intel Core i5-560M2.67 - 3.2 GHz2 / 4 cores3 MB L3
Intel Core i5-480M2.67 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-540M « 2.53 - 3.07 GHz2 / 4 cores3 MB L3
Intel Core i5-460M2.53 - 2.8 GHz2 / 4 cores3 MB L3
Intel Core i5-520M2.4 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-450M2.4 - 2.66 GHz2 / 4 cores3 MB L3
Intel Core i5-430M2.26 - 2.53 GHz2 / 4 cores3 MB L3
Intel Core i5-560UM1.33 - 2.13 GHz2 / 4 cores3 MB L3
Intel Core i5-470UM1.33 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-540UM1.2 - 2 GHz2 / 4 cores3 MB L3
Intel Core i5-520UM1.06 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-430UM1.2 - 1.73 GHz2 / 4 cores3 MB L3
Frequência2530 - 3066 MHz
Barramento Frontal2500
Cache de Nível 1128 KB
Cache de Nível 2512 KB
Cache de Nível 33 MB
Número de Núcelos / Subprocessos2 / 4
Consumo de Energia (TDP = Thermal Design Power)35 Watt
Contagem de transistores382+177 Milhão
Tecnologia de Produção32 nm
Tamanho da Matriz81+114 mm2
Tempratura Máx.105 °C
ConectorBGA1288, PGA988
CaracterísticasTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 733MHz,
64 BitSuporte para 64 Bit
Architecturex86
Preço Inicial$257 U.S.
Data do Anúncio01/04/2010
Link do Produto (externo)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 2.16     avg: 2.2     median: 2.2 (3%)     max: 2.29 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 3061     avg: 3141     median: 3132.5 (19%)     max: 3214 pontos
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 6545     avg: 6950     median: 7030.5 (5%)     max: 7211 pontos
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 7844     avg: 8349     median: 8408 (6%)     max: 8600 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 3237     avg: 3785     median: 3938 (5%)     max: 3991 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 569     avg: 740     median: 577 (7%)     max: 1352 s
wPrime 2.10 - wPrime 2.0 32m *
min: 18.1     avg: 18.8     median: 18.5 (4%)     max: 19.9 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 2643     avg: 2814     median: 2826 (6%)     max: 2905 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
15 s (3%)
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 35     avg: 36.2     median: 36 (2%)     max: 37 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 822     avg: 848     median: 850 (4%)     max: 867 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 32820     avg: 34953     median: 33495 (16%)     max: 40000 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 26630     avg: 27546     median: 26815 (21%)     max: 29923 MFLOPS
PCMark 05 - PCMark 05 - Standard
min: 6030     avg: 6499     median: 6498.5 (13%)     max: 6967 Points
Windows 7 Experience Index - Win7 CPU
min: 5.2     avg: 6.4     median: 6.6 (85%)     max: 6.8 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 7801     avg: 7897     median: 7904 (7%)     max: 7994 Points
- Gama de valores benchmark para essa solução gráfica
- Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance
