Breve Análise do Acer Chromebook 14 para o Trabalho (i5 6200U, 8 GB)

Nino Ricchizzi (traduzido por Ricardo Soto), 07/08/2017

O portátil Chrome. No Acer Chromebook 14 para o Trabalho abrange o hardware de um portátil. Como um companheiro de escritório, é um produto bem sucedido. No entanto, os componentes não usam todo seu potencial.

Acer Chromebook 14 CP5-471-53QV
Placa gráfica
Memória
8192 MB
, DDR3 storage, single channel, fixed, soldered in
Pantalha
14 polegadas 16:9, 1920x1080 pixel 157 PPI, IPS, Brilhante: não
Disco rígido
32 GB eMMC Flash, 32 GB
Conexões
3 USB 3.0, 1 HDMI, 1 Kensington Lock, Conexões Audio: áudio combinado, Card Reader: SD
Funcionamento em rede
Intel Dual Band Wireless-AC 7265 (a/b/g/h/n/ac), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 22.4 x 330.9 x 227
Bateria
45 Wh, 3920 mAh Lítio-Polímero, 3 células
Sistema Operativo
Google Chrome OS
Camera
Webcam: 720p
Características adicionais
Alto falantes: Alto-falantes estéreo, Teclado: chiclet, Iluminação do Teclado: sim, 24 Meses Garantia
peso
1.4 kg, Suprimento de energia: 274 g
Preço
420 Euro

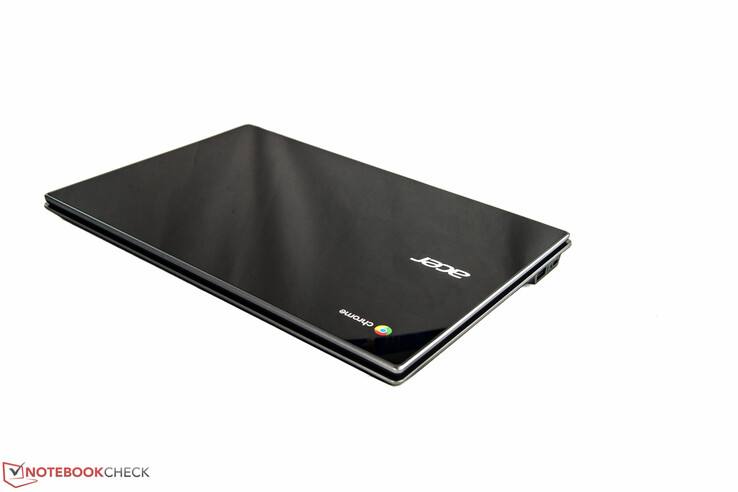

The back is graced by an elegant piano finish.
Left: USB Type-C port (power connection), HDMI port, 1x USB 3.0, audio combo
Left: USB Type-C port (power connection), HDMI port, 1x USB 3.0, audio combo
Right: SD card reader, 1x USB 3.0, Kensington Lock
Right: SD card reader, 1x USB 3.0, Kensington Lock
210
cd/m²
223
cd/m²
229
cd/m²
208
cd/m²
214
cd/m²
205
cd/m²
216
cd/m²
207
cd/m²
210
cd/m²
Distribuição do brilho
X-Rite i1Pro 2
Máximo: 229 cd/m² Médio: 213.6 cd/m² Minimum: 1.1 cd/m²
iluminação: 90 %
iluminação com acumulador: 214 cd/m²
Contraste: 2140:1 (Preto: 0.1 cd/m²)
ΔE Greyscale 3.86 | - Ø
Gamma: 2.42
Acer Chromebook 14 CP5-471-53QV
1920x1080, 14
Lenovo ThinkPad 13 Chromebook
1920x1080, 13.3
HP Chromebook 13 G1 Core m5
3200x1800, 13.3
Acer Chromebook R13 CB5-312T-K0YK
1920x1080, 13.3
Response Times
-16%
-10%
8%
Response Time Grey 50% / Grey 80% *
38 (19, 19)
37.6 (15.2, 22.4)
1%
39.2 (18, 21.2)
-3%
38 (14, 24)
-0%
Response Time Black / White *
27 (16, 11)
36 (5.2, 30.8)
-33%
31.6 (11.6, 20)
-17%
23 (5, 18)
15%
PWM Frequency
1389 (44)
Screen
-110%
-148%
-40%
Brightness
214
261
22%
330
54%
204
-5%
Brightness Distribution
90
92
2%
90
0%
88
-2%
Black Level *
0.1
0.601
-501%
0.804
-704%
0.23
-130%
Contrast
2140
437
-80%
442
-79%
835
-61%
Greyscale DeltaE2000 *
3.86
3.51
9%
4.35
-13%
3.99
-3%
Gamma
2.42 99%
2.17 111%
2.35 102%
2.45 98%
CCT
6276 104%
6476 100%
6269 104%
6380 102%
Colorchecker DeltaE2000 *
4.87
3.75
Total Average (Program / Settings)
-63% / -83%
-79% / -109%
-16% / -27%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 52 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.7 ms).
       Response Time 50% Grey to 80% Grey
38 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.8 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6272 (minimum: 43 - maximum: 142900) Hz was measured.

JetStream 1.1 - 1.1 Total Score
Lenovo ThinkPad 13 Chromebook
173.25 Points ∼100% +22%
HP Chromebook 13 G1 Core m5
164.01 Points ∼95% +15%
Acer Chromebook 14 CP5-471-53QV
142.28 Points ∼82%
Acer Chromebook R13 CB5-312T-K0YK
56.99 Points ∼33% -60%
Sunspider - 1.0 Total Score
Acer Chromebook R13 CB5-312T-K0YK
577.7 ms * ∼100% -94%
Acer Chromebook 14 CP5-471-53QV
298.2 ms * ∼52%
HP Chromebook 13 G1 Core m5
228.8 ms * ∼40% +23%
Lenovo ThinkPad 13 Chromebook
213 ms * ∼37% +29%
Mozilla Kraken 1.1 - Total Score
Acer Chromebook R13 CB5-312T-K0YK
3297.2 ms * ∼100% -166%
Acer Chromebook 14 CP5-471-53QV
1240 ms * ∼38%
HP Chromebook 13 G1 Core m5
1055.9 ms * ∼32% +15%
Lenovo ThinkPad 13 Chromebook
1007 ms * ∼31% +19%
Octane V2 - Total Score
Lenovo ThinkPad 13 Chromebook
29435 Points ∼100% +7%
HP Chromebook 13 G1 Core m5
28478 Points ∼97% +4%
Acer Chromebook 14 CP5-471-53QV
27414 Points ∼93%
Acer Chromebook R13 CB5-312T-K0YK
10139 Points ∼34% -63%
WebXPRT 2015 - Overall Score
Acer Chromebook 14 CP5-471-53QV
373 Points ∼100%
Lenovo ThinkPad 13 Chromebook
359 Points ∼96% -4%
HP Chromebook 13 G1 Core m5
347 Points ∼93% -7%
Acer Chromebook R13 CB5-312T-K0YK
138 Points ∼37% -63%

Legend


Acer Chromebook 14 CP5-471-53QV Intel Core i5-6200U, Intel HD Graphics 520, 32 GB eMMC Flash

Acer Chromebook R13 CB5-312T-K0YK Mediatek MT8173C, PowerVR GX6250, 32 GB eMMC Flash

Lenovo ThinkPad 13 Chromebook Intel Core i5-6300U, Intel HD Graphics 520, 32 GB eMMC Flash

HP Chromebook 13 G1 Core m5 Intel Core m5-6Y57, Intel HD Graphics 515,

* ... smaller is better

Barulho

Ocioso
30.6 / 30.6 / 31.7 dB
Carga
33.1 / 34 dB



30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 30.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.636.537.435.53530.62530.730.632.23328.230.73131.829.331.230.525.431.84031.229.929.436.129.831.25030.129.630.537.728.530.16331.126.931.630.328.931.18029.727.728.530.429.129.710029.527.227.427.428.929.512527.126.926.925.828.427.116025.123.925.8272725.120026.124.125.726.523.826.125023.822.62423.322.723.831523.122.223.824.821.923.14002221.122.422.620.92250021.320.722.322.420.521.363020.520.22121.819.520.580020.719.521.821.918.420.7100020.618.82322.418.220.6125019.618.922.121.417.819.616002018.323.121.9182020001918.124.222.217.819250018.618.224.320.917.818.6315018.217.82019.417.918.2400018.117.819.719.417.918.1500018.317.719.7191818.3630018.317.519.218.91818.3800018.217.31919.117.918.21000018.317.319.11917.818.31250018.317.4191917.718.31600018.717.719.519.717.818.7SPL31.730.83433.230.731.7N1.71.521.91.51.7median 20Acer Chromebook 14 CP5-471-53QVmedian 18.8median 22.3median 21.9median 18median 20Delta2.72.22.32.62.12.735.440.135.435.635.535.629.931.129.929.629.829.629.729.529.735.733.335.730.727.830.726.92726.924.225.324.22424.32425.724.625.721.922.421.922.621.822.62020.32020.22020.219.418.919.418.718.118.717.317.717.31716.81716.616.316.616.216.116.215.915.615.915.715.515.715.415.415.415.31515.315.415.315.415.115.215.11514.91515.114.915.115.21515.229.329.129.31.31.21.3median 17HP Chromebook 13 G1 Core m5median 16.8median 173.63.53.6hearing rangehide median Fan Noise
Carga Máxima
 27.2 °C29.1 °C27.2 °C
 27.3 °C28.7 °C26.6 °C
 24.5 °C24.8 °C24.6 °C
Máximo: 29.1 °C
Médio: 26.7 °C
24.6 °C32 °C29.2 °C
24 °C29.7 °C26.4 °C
24.1 °C24 °C24.2 °C
Máximo: 32 °C
Médio: 26.5 °C
alimentação elétrica  30.9 °C | Temperatura do quarto 23.1 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.73540.72538.928.238.93139.825.439.84041.229.841.25042.828.542.86343.928.943.98044.429.144.410045.828.945.812547.228.447.216049.22749.22005123.8512505422.75431559.221.959.240061.220.961.250063.520.563.563068.419.568.480073.318.473.310007018.27012506717.867160067.21867.2200067.617.867.6250062.717.862.7315067.217.967.240006917.969500062.11862.1630056.81856.8800059.417.959.41000062.317.862.31250065.717.765.71600062.517.862.5SPL7930.779N451.545median 62.5Acer Chromebook 14 CP5-471-53QVmedian 18median 62.5Delta6.22.16.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.442.735.842.73933.33939.532.639.540.631.340.641.829.941.844.131.144.144.328.244.34528.34545.625.345.647.525.647.551.224.951.254.323.554.359.522.959.560.421.860.463.120.963.16619.96672.719.372.771.318.971.363.218.263.261.918.261.963.117.863.165.317.665.366.417.666.467.317.667.370.517.670.563.817.863.865.917.865.964.717.764.764.617.564.665.117.765.179.130.879.146.11.546.1median 63.8Acer Chromebook R13 CB5-312T-K0YKmedian 18.2median 63.83.92.33.9hearing rangehide median Pink Noise
Acer Chromebook 14 CP5-471-53QV audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.4% lower than median
(+) | bass is linear (5.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(±) | linearity of highs is average (9.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 3% similar, 91% worse
» The best had a delta of 11%, average was 20%, worst was 48%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Acer Chromebook R13 CB5-312T-K0YK audio analysis

(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(+) | bass is linear (5.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (5.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 33% similar, 67% worse
» The best had a delta of 12%, average was 17%, worst was 25%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Consumo de energia
desligadodarklight 0.37 / 0.49 Watt
Ociosodarkmidlight 2.7 / 6.2 / 6.7 Watt
Carga midlight 14 / 24 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer Chromebook 14 CP5-471-53QV
6200U, HD Graphics 520, 32 GB eMMC Flash, IPS, 1920x1080, 14
Lenovo ThinkPad 13 Chromebook
6300U, HD Graphics 520, 32 GB eMMC Flash, IPS, 1920x1080, 13.3
HP Chromebook 13 G1 Core m5
6Y57, HD Graphics 515, , , 3200x1800, 13.3
Acer Chromebook R13 CB5-312T-K0YK
MT8173C, PowerVR GX6250, 32 GB eMMC Flash, IPS, 1920x1080, 13.3
Power Consumption
37%
-16%
6%
Idle Minimum *
2.7
0.77
71%
3.7
-37%
3.8
-41%
Idle Average *
6.2
5.11
18%
8.7
-40%
6.2
-0%
Idle Maximum *
6.7
5.88
12%
9.4
-40%
6.6
1%
Load Average *
14
7.43
47%
12
14%
11
21%
Load Maximum *
24
14.73
39%
18
25%
12.7
47%

* ... smaller is better

Tempo de Execução da Bateria
Navegar com WLAN v1.3
9h 00min
Acer Chromebook 14 CP5-471-53QV
6200U, HD Graphics 520, 45 Wh
Lenovo ThinkPad 13 Chromebook
6300U, HD Graphics 520, 42 Wh
HP Chromebook 13 G1 Core m5
6Y57, HD Graphics 515, 45 Wh
Acer Chromebook R13 CB5-312T-K0YK
MT8173C, PowerVR GX6250, 53.9 Wh
Battery Runtime
WiFi Websurfing 1.3
540
536
-1%
404
-25%
773
43%
Battery Runtime
-1%
-25%
43%
Reader / Idle
1249
WiFi v1.3
540
536
-1%
404
-25%
773
43%
Load
170
150
Total Average (Program / Settings)
-1% / -1%
-25% / -25%
43% / 43%

Pro

+ Teclado capaz
+ Baixa temperatura
+ Ventoinha mais silenciosa
+ Muito boa duração da bateria

Contra

- Lento leitor de cartões SD
- Tela escura
- Superfícies sensíveis da carcaça
- Não faz pleno uso do desempenho
- Memória de armazenamento soldada
The Acer Chromebook 14, provided by notebooksbilliger.de
The Acer Chromebook 14, provided by notebooksbilliger.de

"O Chromebook para o trabalho." É assim que a Acer gosta de ver seu novo Chromebook: um dispositivo de escritório para o trabalho diário. Já a primeira vista mostra que o Chromebook cresceu. Em vez de cores lúdicas, é construído com um visual brilhante de acabamento de piano. É lamentável que a superfície seja tão suscetível às impressões digitais. No entanto, para um dispositivo de trabalho, a adequação dos dispositivos de entrada é mais importante. O teclado em particular é adequado inclusive para dias mais longos no escritório. Para ser um dispositivo empresarial real, faltam mais recursos de segurança.

A tela IPS mate é muito sólida em geral. As cores e a escala de cinzas são bem reproduzidas. Infelizmente, falta um pouco de brilho à tela. Fontes de luz direta no escritório ou no exterior podem restringir a operação ou preveni-la completamente.

O equipamento de hardware em particular recebeu nossa atenção. No entanto, não pode aproveitar todo o seu potencial e até mesmo fica atrás dos processadores mais fracos da Intel Core m5 nos benchmarks. Ainda assim, o sistema funciona muito fluentemente e mais rápido do que outros Chromebooks.

O candidato da Acer ganha pontos com seus bons valores de emissão e uma duração de bateria de 9 horas.

O Acer Chromebook 14 para Trabalho é exatamente se supõe que deve ser: um portátil de escritório para o trabalho diário no escritório com suficiente estamina.

Quem quiser mudar completamente para um Chromebook como seu dispositivo principal também deve dar uma olhada no HP Chromebook 13 G1. E o Chromebook Lenovo ThinkPad 13 oferece ainda mais desempenho.

Acer Chromebook 14 CP5-471-53QV - 06/30/2017 v6
Nino Ricchizzi

Acabamento
78 / 98 → 79%
Teclado
75%
Mouse
78%
Conectividade
46 / 80 → 58%
Peso
70 / 67 → 100%
Bateria
91%
Pantalha
89%
Desempenho do jogos
0 / 68 →
Desempenho da aplicação
76 / 92 → 83%
Temperatura
97%
Ruído
93%
Camera
53 / 85 → 62%
Médio
77%
83%
Office - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Acer Chromebook 14 para o Trabalho (i5 6200U, 8 GB)
Nino Ricchizzi, 2017-07- 8 (Update: 2017-07-10)
