Breve Análise do Ultrabook Dell Latitude 14 E7470

Sebastian Jentsch, Tanja Hinum (traduzido por Ricardo Soto), 04/13/2016

Nova referência. Um portátil raramente consegue uma pontuação tão alta. Será que a versão WQHD cara, consegue atender as expectativas mais altas? Para ser sinceros, as durações da bateria são um pouco decepcionantes, mas o teto do aparelho de 14-polegadas será o ponto de referência para o setor empresarial.

Dell Latitude 14 7000 Series E7470 (Latitude E7470 Serie)
Processador
Intel Core i7-6600U
Placa gráfica
Intel HD Graphics 520, Análises do: 1000 MHz, Memoría: 1067 MHz
Memória
8192 MB
, DDR4 SDRAM Single Channel
Pantalha
14 polegadas 16:9, 2560 x 1440 pixel, 10 dedos, AUO B140QAN Dell PN F0WXVV, IPS, Corning Gorilla Glass NBT, Brilhante: sim
placa mãe
Intel Skylake-Y Premium PCH
Disco rígido
Samsung SSD PM851 M.2 2280 256GB, 256 GB
, 6GB/s SATA III
Placa de Som
Intel Skylake-U/Y PCH - High Definition Audio
Conexões

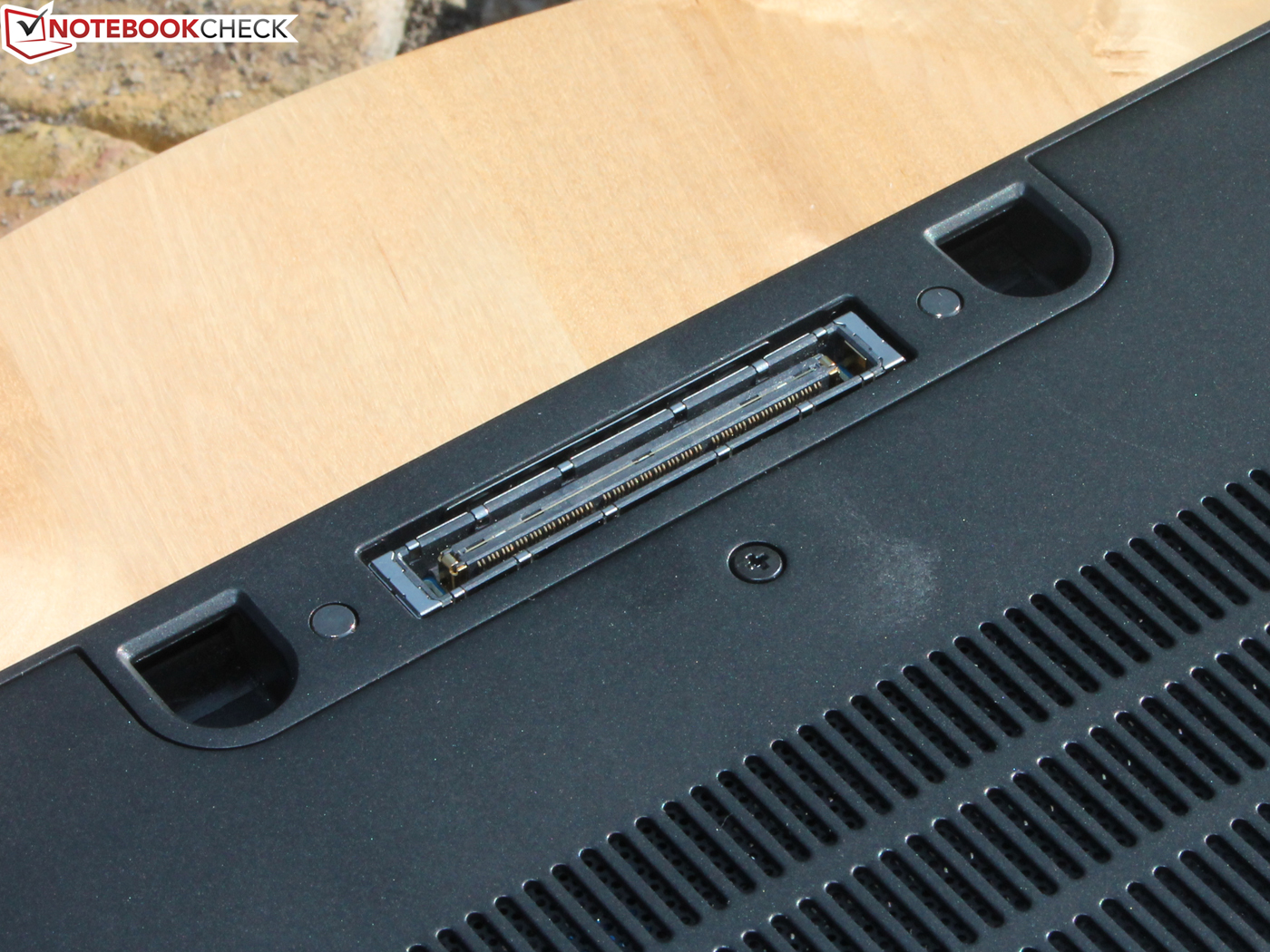

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Microfone e fones combinado, Card Reader: SD 4.0, 1 eSata, 1 Leitor de Impressões Digitais, NFC, Brightness Sensor, SIM-Port, Ethernet RJ45
Funcionamento em rede
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Tamanho
altura x largura x profundidade (em mm): 19.4 x 334.9 x 232
Bateria
55 Wh Lítio-Ion, 4 cells
Sistema Operativo
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: FHD 1920x1080
Primary Camera: 2 MPix
Características adicionais
Alto falantes: Stereo, Teclado: Chiclet, Recovery, Power Manager, Dell Command, Digital Delivery, Services, Protected Workspace, Update, System detect, 12 Meses Garantia
peso
1.737 kg, Suprimento de energia: 296 g
Preço
2300 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



331 mm 226 mm 34 mm 1.8 kg337 mm 232 mm 20.4 mm 1.6 kg338 mm 237 mm 18.9 mm 1.6 kg334.9 mm 232 mm 19.4 mm 1.7 kg338 mm 234 mm 15.9 mm 1.5 kg329 mm 235 mm 21 mm 1.5 kg

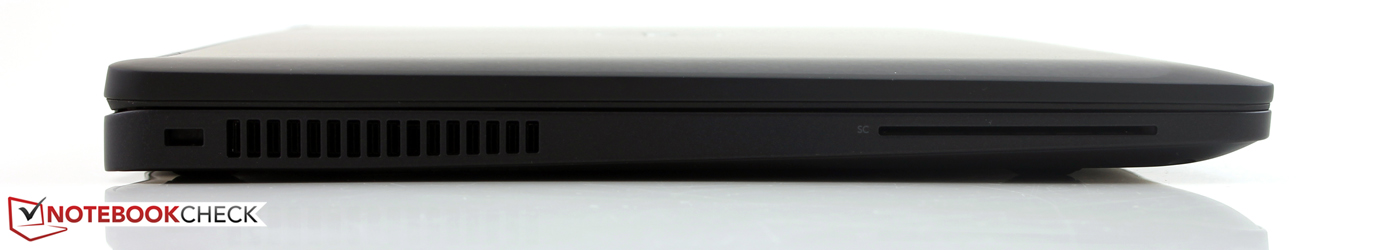

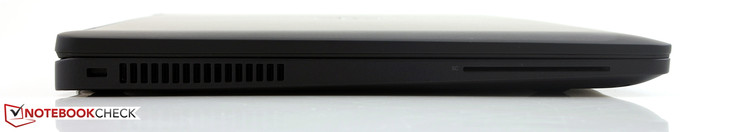

Left: lock slot, SmartCard reader
Left: lock slot, SmartCard reader

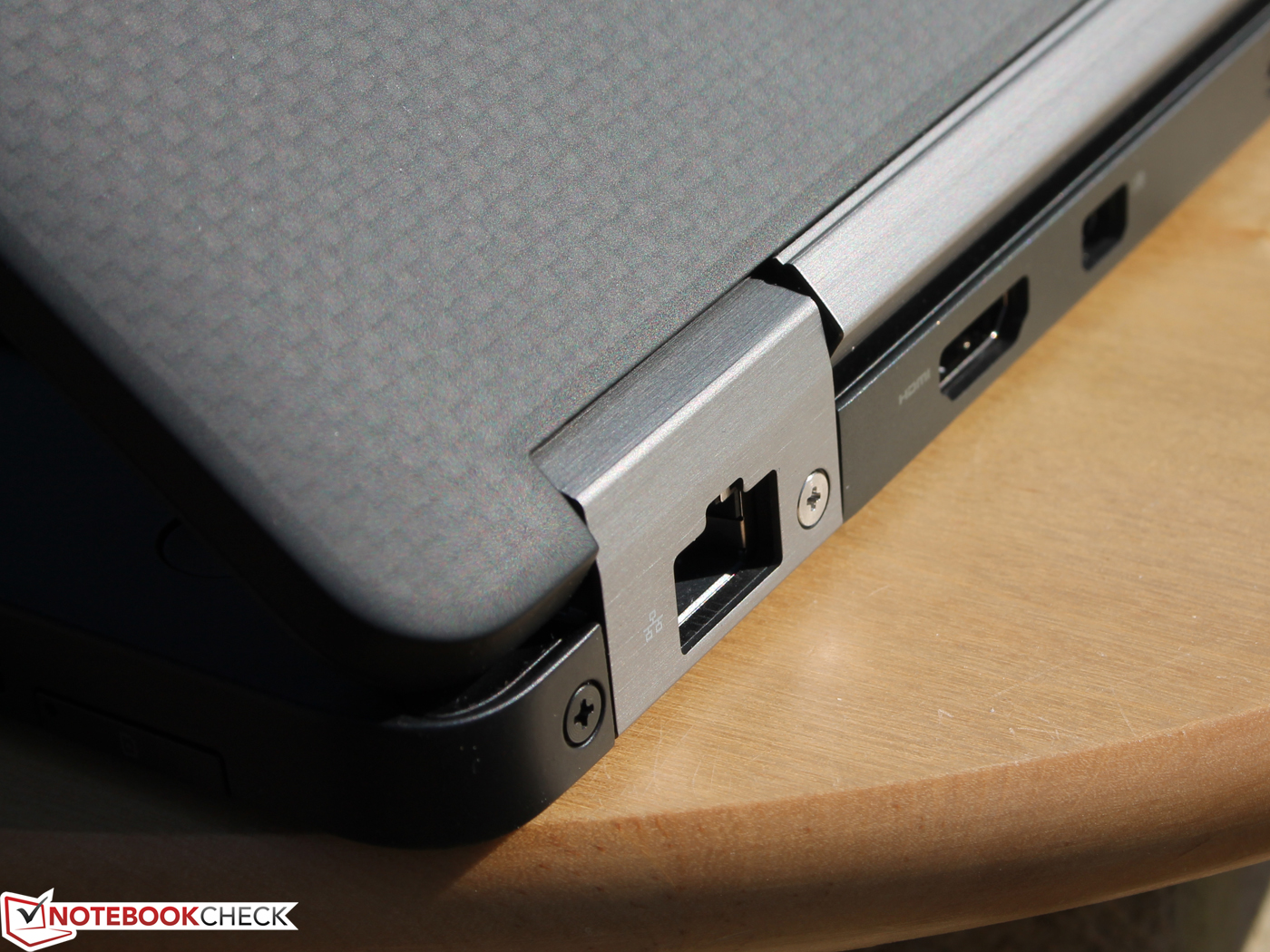

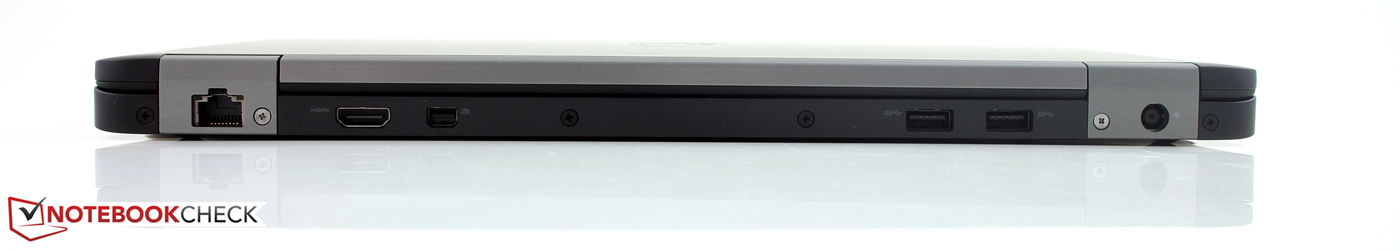

Rear: RJ45 Ethernet, HDMI, DisplayPort, 2x USB 3.0, power
Rear: RJ45 Ethernet, HDMI, DisplayPort, 2x USB 3.0, power

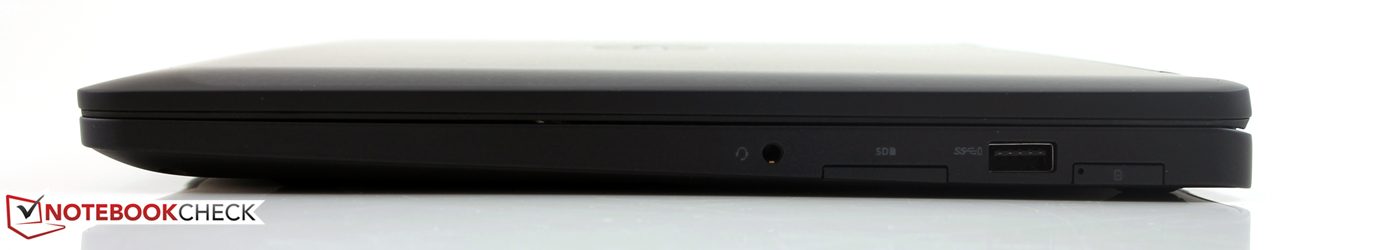

Right: audio combo, SD-card reader, USB 3.0, SIM-slot
Right: audio combo, SD-card reader, USB 3.0, SIM-slot
334
cd/m²
390
cd/m²
361
cd/m²
340
cd/m²
380
cd/m²
365
cd/m²
314
cd/m²
355
cd/m²
347
cd/m²
Distribuição do brilho
AUO B140QAN Dell PN F0WXVV
X-Rite i1Pro 2
Máximo: 390 cd/m² Médio: 354 cd/m² Minimum: 44 cd/m²
iluminação: 81 %
iluminação com acumulador: 380 cd/m²
Contraste: 1462:1 (Preto: 0.26 cd/m²)
ΔE Color 3.11 | 0.6-29.43 Ø6
ΔE Greyscale 4.35 | 0.64-98 Ø6.2
96% sRGB (Argyll 3D) 62% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.37
Dell Latitude 14 7000 Series E7470
FHD IPS Touch
HP EliteBook 840 G3 T9X59ET#ABD
FHD TN
Lenovo ThinkPad T460s-20FA003GGE
WQHD IPS
Lenovo ThinkPad T460s-20F9003SGE
FHD IPS
HP EliteBook Folio 1040 G2
WQHD IPS
Acer TravelMate P645-S-58HK
FHD IPS
Response Times
9%
9%
2%
Response Time Grey 50% / Grey 80% *
48 (15, 33)
43 (20, 23)
10%
35.6 (17.2, 18.4)
26%
42 (19.6, 22.4)
12%
Response Time Black / White *
27 (7, 20)
25 (9, 16)
7%
29.2 (14.4, 14.8)
-8%
29.2 (16, 13.2)
-8%
PWM Frequency
204 (90)
220 (90)
Screen
-73%
-21%
-46%
-11%
-20%
Brightness middle
380
366
-4%
257
-32%
226
-41%
274
-28%
331
-13%
Brightness
354
336
-5%
248
-30%
211
-40%
263
-26%
309
-13%
Brightness Distribution
81
87
7%
94
16%
89
10%
85
5%
82
1%
Black Level *
0.26
0.65
-150%
0.26
-0%
0.22
15%
0.21
19%
0.4
-54%
Contrast
1462
563
-61%
988
-32%
1027
-30%
1305
-11%
828
-43%
Colorchecker DeltaE2000 *
3.11
10.26
-230%
4.59
-48%
6.44
-107%
3.93
-26%
4.07
-31%
Colorchecker DeltaE2000 max. *
6.73
9.72
-44%
17.18
-155%
Greyscale DeltaE2000 *
4.35
11.51
-165%
6.38
-47%
5.87
-35%
5.28
-21%
4.86
-12%
Gamma
2.37 93%
2.4 92%
2.51 88%
2.37 93%
2.49 88%
2.49 88%
CCT
6771 96%
12725 51%
6238 104%
6856 95%
7108 91%
6109 106%
Color Space (Percent of AdobeRGB 1998)
62
47
-24%
65
5%
39.58
-36%
61
-2%
59
-5%
Color Space (Percent of sRGB)
96
74
-23%
98
2%
61.15
-36%
90.6
-6%
Total Average (Program / Settings)
-32% / -58%
-6% / -16%
-22% / -38%
-11% / -11%
-20% / -20%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

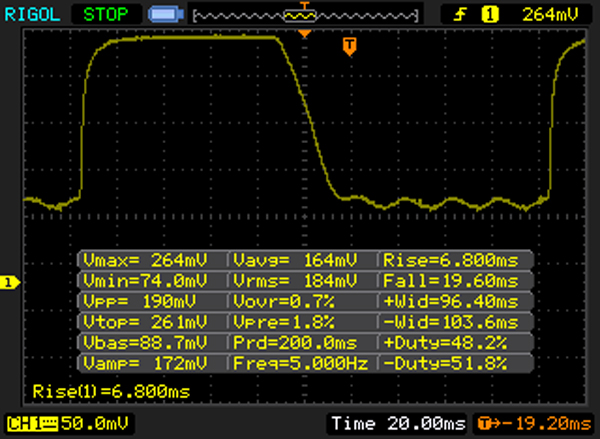

       Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 20 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 54 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.9 ms).

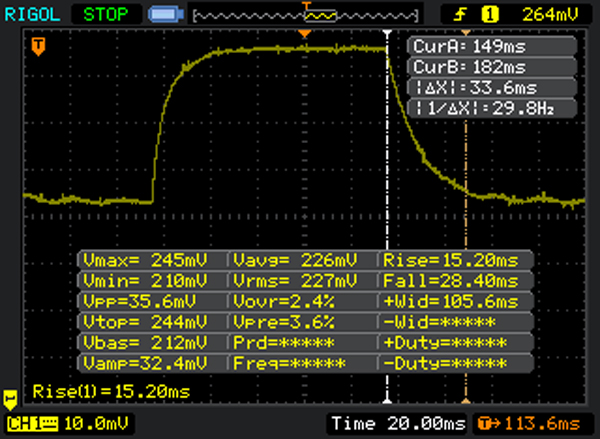

       Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 33 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 77 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.6 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 13634 (minimum: 43 - maximum: 2500000) Hz was measured.

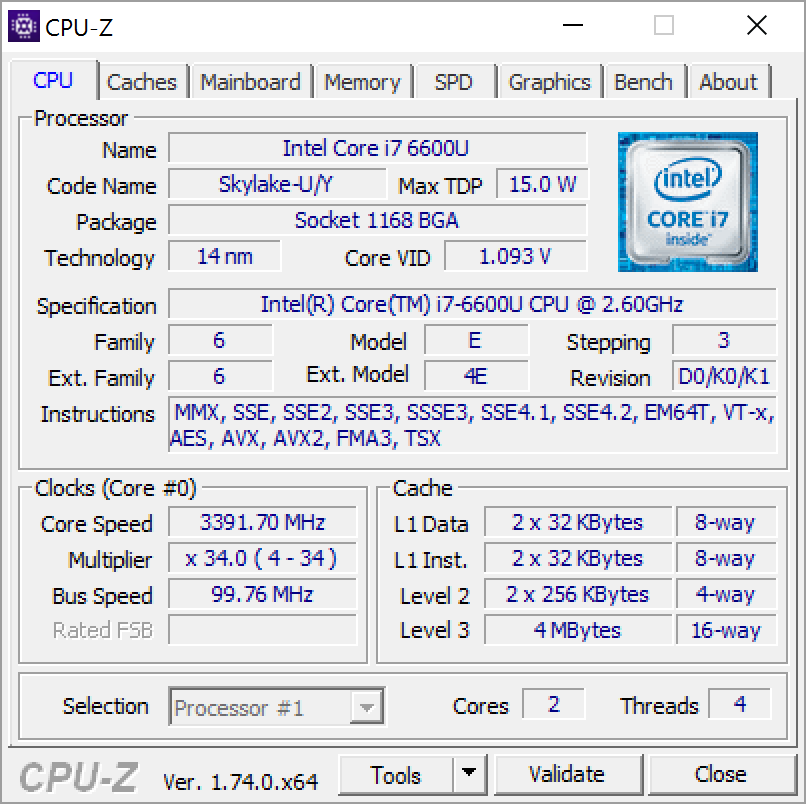

System info: CPU-Z CPU

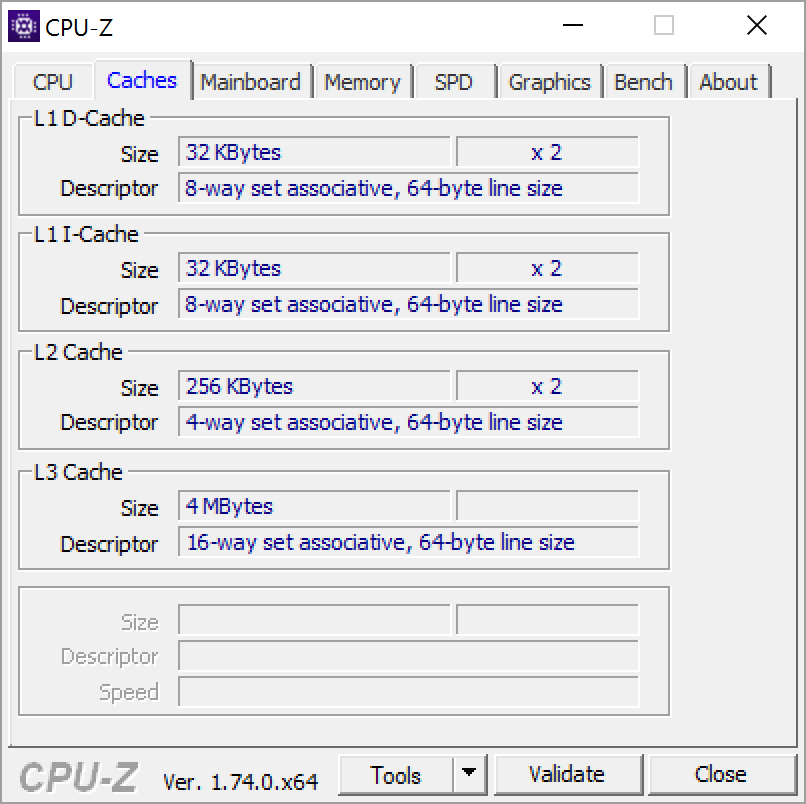

System info: CPU-Z Cache

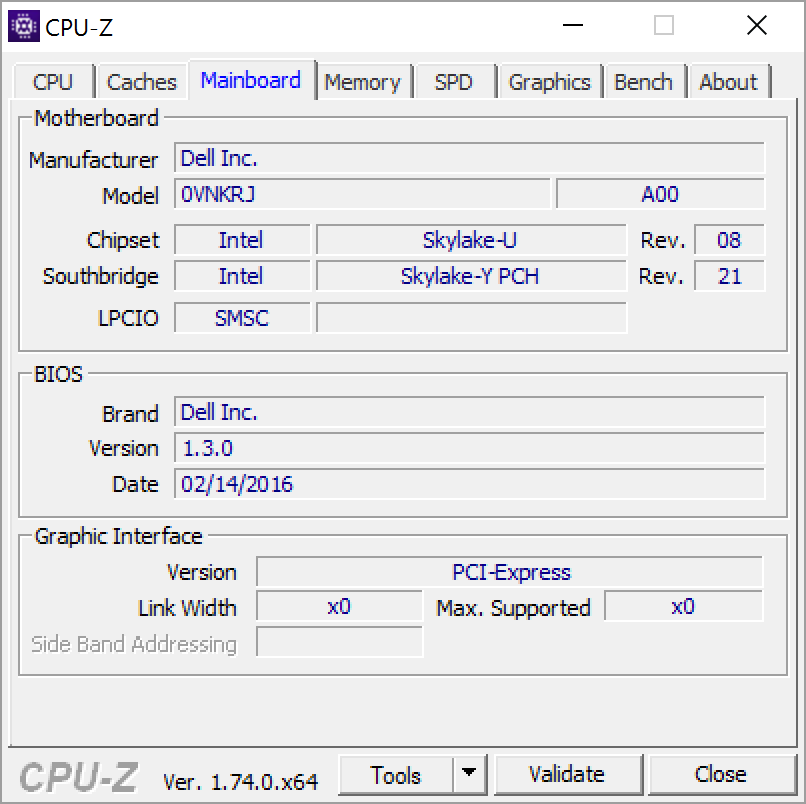

System info: CPU-Z Mainboard

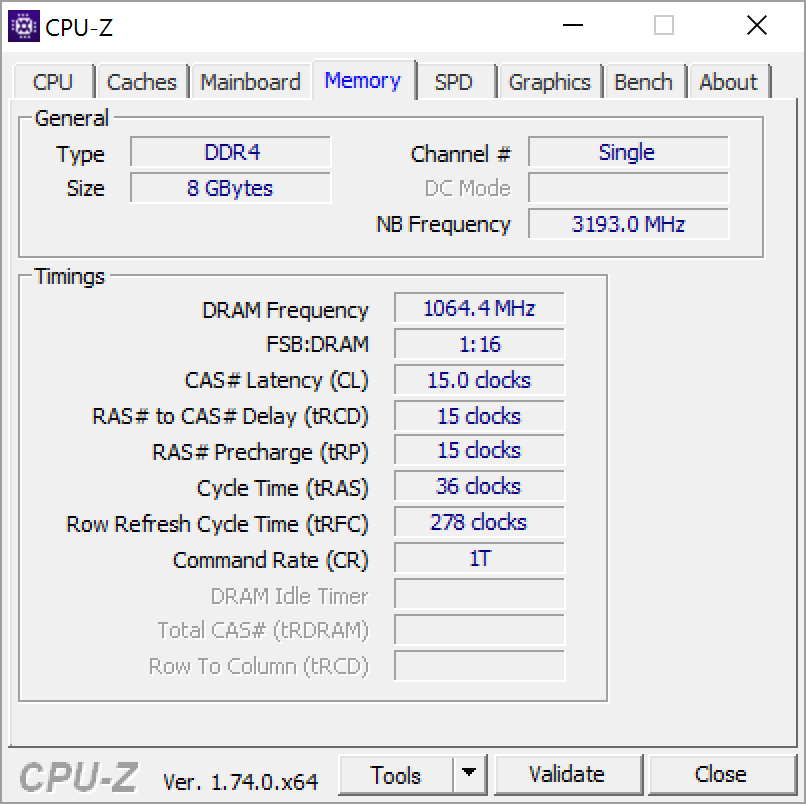

System info: CPU-Z Memory

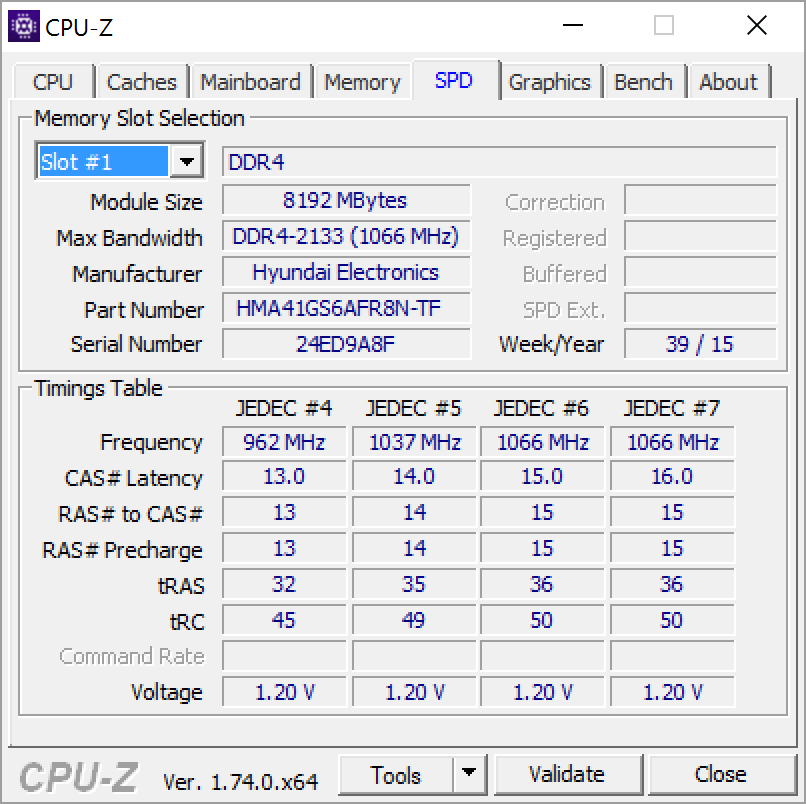

System info: CPU-Z SPD

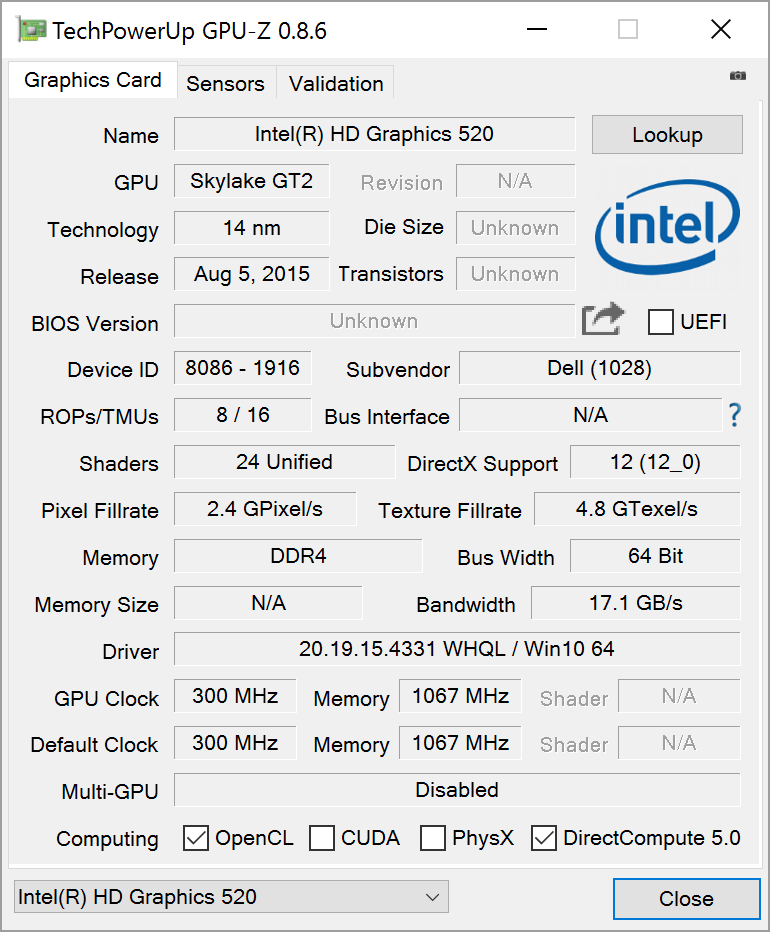

System info: GPU-Z

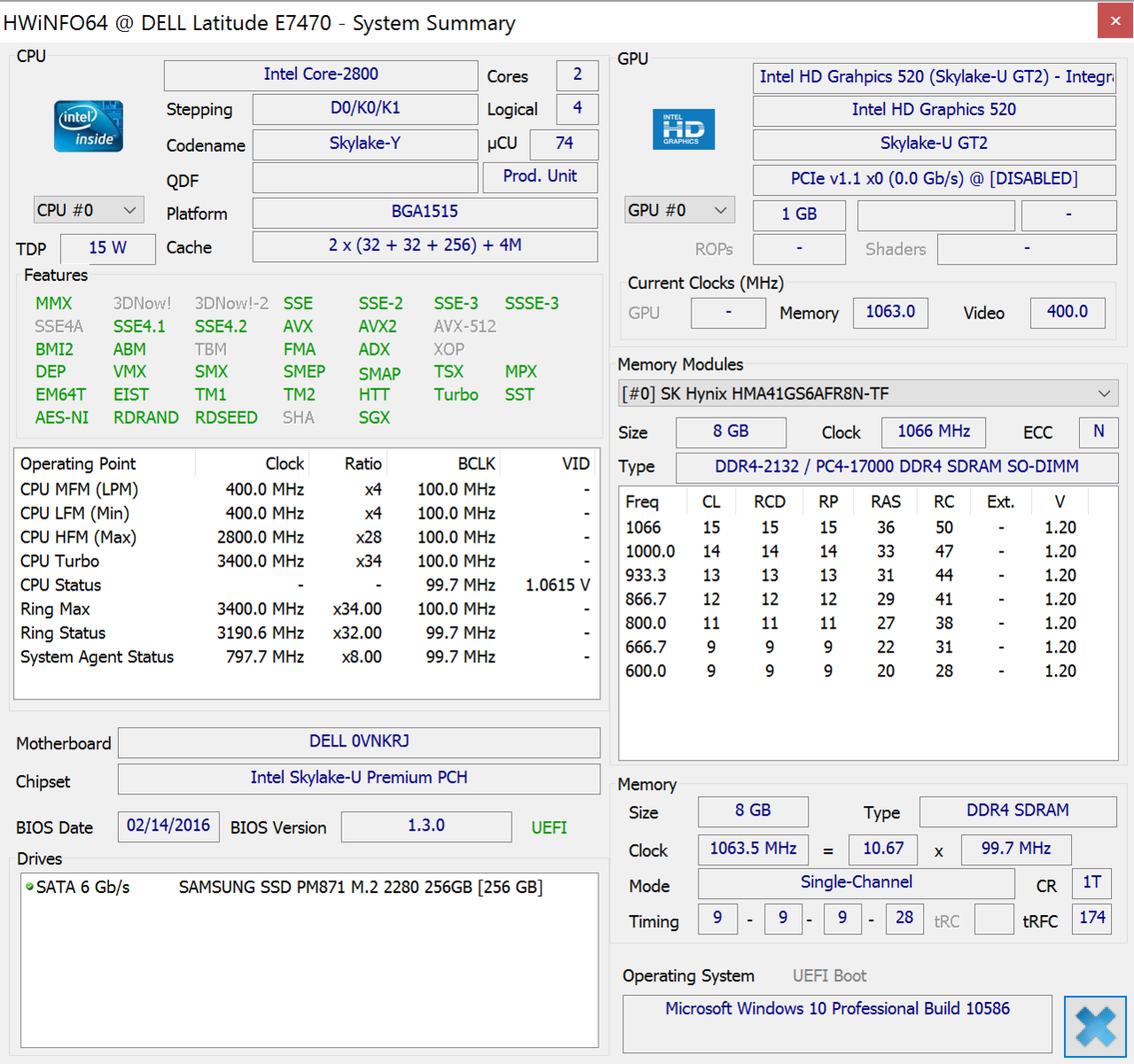

System info: HWinfo summary

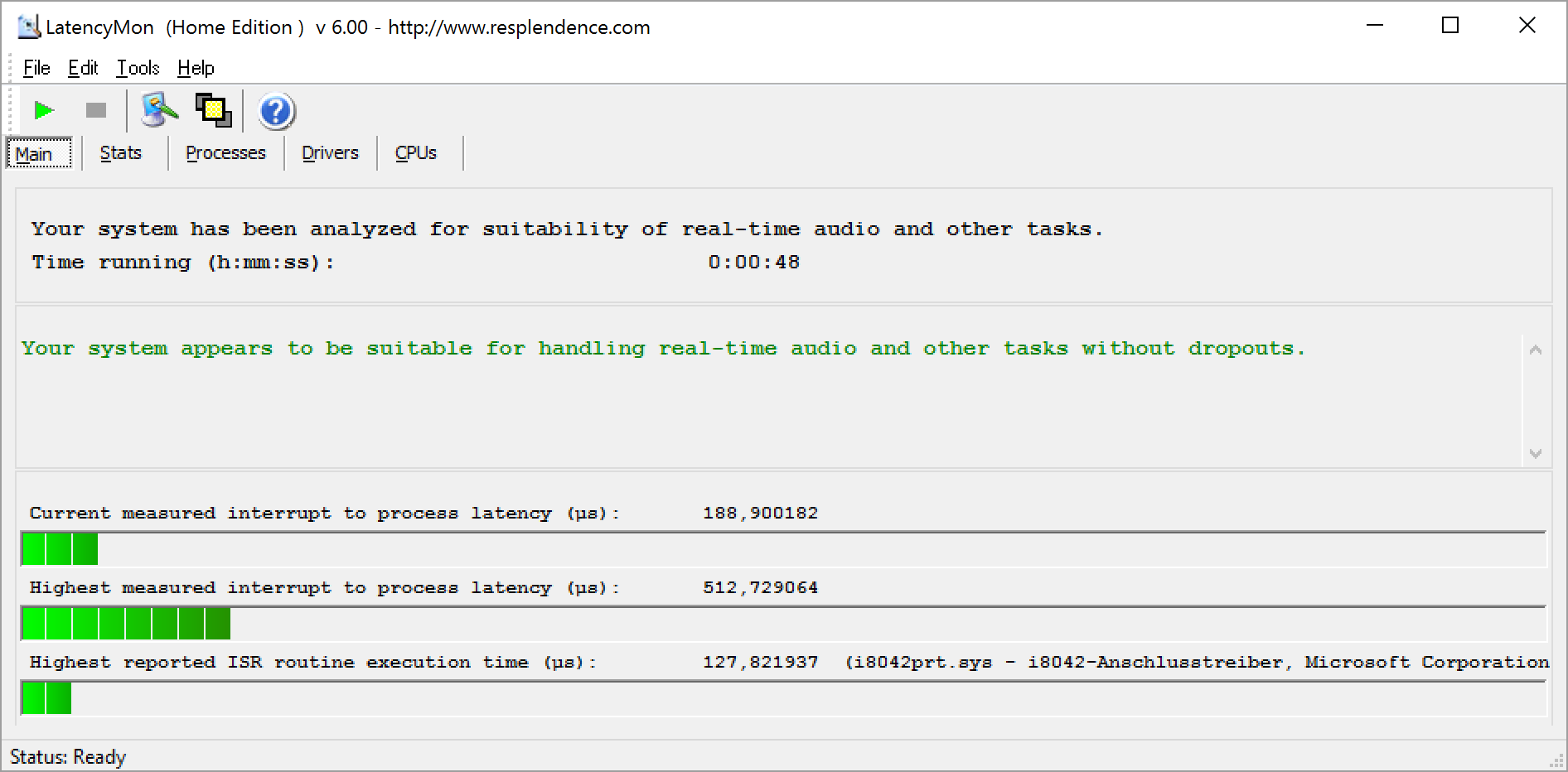

Latency Monitor
Cinebench R15
CPU Single 64Bit (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
142 Points ∼65%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
119 Points ∼55% -16%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
117 Points ∼54% -18%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
141 Points ∼65% -1%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
121 Points ∼56% -15%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
111 Points ∼51% -22%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
91 Points ∼42% -36%
CPU Multi 64Bit (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
334 Points ∼8%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
322 Points ∼7% -4%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
280 Points ∼6% -16%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
347 Points ∼8% +4%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
277 Points ∼6% -17%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
255 Points ∼6% -24%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
250 Points ∼6% -25%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
1.61 Points ∼65%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
1.35 Points ∼55% -16%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
1.57 Points ∼64% -2%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
1.46 Points ∼59% -9%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
1.28 Points ∼52% -20%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
1.04 Points ∼42% -35%
CPU Multi 64Bit (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3.58 Points ∼8%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
3.07 Points ∼7% -14%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3.83 Points ∼9% +7%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3.14 Points ∼7% -12%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
2.77 Points ∼6% -23%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2.5 Points ∼6% -30%
Cinebench R10 Rendering Single 32Bit
3260
Cinebench R11.5 CPU Single 64Bit
1.61 Points
Cinebench R11.5 CPU Multi 64Bit
3.58 Points
Cinebench R11.5 OpenGL 64Bit
35.98 fps
Cinebench R15 CPU Single 64Bit
142 Points
Cinebench R15 CPU Multi 64Bit
334 Points
Cinebench R15 OpenGL 64Bit
37.26 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Ajuda
PCMark 7 - Score (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
5194 Points ∼57%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
4650 Points ∼51% -10%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
5190 Points ∼57% 0%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
5295 Points ∼58% +2%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4995 Points ∼55% -4%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
4046 Points ∼44% -22%
PCMark 8
Work Score Accelerated v2 (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
4543 Points ∼69%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points ∼65% -6%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
4002 Points ∼61% -12%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points ∼67% -2%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4097 Points ∼62% -10%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
3698 Points ∼56% -19%
Home Score Accelerated v2 (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3344 Points ∼55%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
3231 Points ∼53% -3%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
2932 Points ∼48% -12%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points ∼58% +6%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
3100 Points ∼51% -7%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3128 Points ∼51% -6%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
2919 Points ∼48% -13%
PCMark 7 Score
5194 pontos
PCMark 8 Home Score Accelerated v2
3344 pontos
PCMark 8 Work Score Accelerated v2
4543 pontos
Ajuda
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
CrystalDiskMark 3.0
134%
7%
-9%
-2%
-29%
Write 4k QD32
191.7
277
44%
293.2
53%
242.8
27%
265.3
38%
95.74
-50%
Read 4k QD32
400.9
561.3
40%
387.1
-3%
388.5
-3%
393.3
-2%
91.6
-77%
Write 4k
110.9
139.3
26%
99.36
-10%
82.57
-26%
101.2
-9%
66.38
-40%
Read 4k
36.32
51.35
41%
36.72
1%
27.02
-26%
28.4
-22%
28.73
-21%
Write Seq
300.7
1530
409%
302.4
1%
241.4
-20%
264.3
-12%
343.2
14%
Read Seq
518.2
1778
243%
517.2
0%
497.8
-4%
499.9
-4%
506.1
-2%
AS SSD
182%
14%
-5%
-3%
-9%
4K-64 Write
170
366.01
115%
272.25
60%
190.58
12%
182.67
7%
169.17
0%
4K-64 Read
336.08
968.26
188%
379.99
13%
362.03
8%
356.07
6%
194.66
-42%
4K Write
85.05
114.4
35%
84.62
-1%
72.37
-15%
84.42
-1%
58.01
-32%
4K Read
30.91
45.41
47%
33.27
8%
25.24
-18%
25.98
-16%
31.82
3%
Seq Write
283.73
1407.23
396%
285.16
1%
231.6
-18%
250.07
-12%
324.56
14%
Seq Read
495.53
2039.37
312%
502.69
1%
504.62
2%
480.7
-3%
501.68
1%
Total Average (Program / Settings)
158% / 158%
11% / 10%
-7% / -7%
-3% / -3%
-19% / -19%
Samsung SSD PM851 M.2 2280 256GB
Sequential Read: 518.2 MB/s
Sequential Write: 300.7 MB/s
512K Read: 470.8 MB/s
512K Write: 214 MB/s
4K Read: 36.32 MB/s
4K Write: 110.9 MB/s
4K QD32 Read: 400.9 MB/s
4K QD32 Write: 191.7 MB/s
3DMark - 1280x720 Cloud Gate Standard Score (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
5173 Points ∼8%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
5589 Points ∼8% +8%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
5346 Points ∼8% +3%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
6097 Points ∼9% +18%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
6134 Points ∼9% +19%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
4655 Points ∼7% -10%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
5322 Points ∼8% +3%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
5000 Points ∼8% -3%
3DMark 11 - 1280x720 Performance (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
1418 Points ∼4%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1573 Points ∼4% +11%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
1468 Points ∼4% +4%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
1600 Points ∼5% +13%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
2380 Points ∼7% +68%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
1023 Points ∼3% -28%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
1133 Points ∼3% -20%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
1183 Points ∼3% -17%
3DMark 11 Performance
1418 pontos
3DMark Ice Storm Standard Score
39400 pontos
3DMark Cloud Gate Standard Score
5173 pontos
3DMark Fire Strike Score
707 pontos
Ajuda
Battlefield Hardline - 1024x768 Low Graphics Quality (DX11) (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
42 fps ∼21%
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
36.2 fps ∼18% -14%
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
50.1 fps ∼25% +19%
FIFA 16 - 1366x768 High Preset AA:2x MS (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
31.4 fps ∼9%
Star Wars Battlefront - 1024x768 Low Preset (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
26 fps ∼13%
Acer Aspire R14 R5-471T-79GQ
HD Graphics 520, 6500U
34.3 fps ∼17% +32%
baixo média alto ultra
Battlefield Hardline (2015) 42 26 8 fps
FIFA 16 (2015) 48.8 31.4 fps
Star Wars Battlefront (2015) 26 15 fps
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
Noise
-3%
-7%
-1%
-4%
2%
-2%
off / environment *
31.2
31.2
-0%
29.2
6%
Idle Minimum *
31.2
29.1
7%
31.2
-0%
29.2
6%
29.6
5%
29.1
7%
29.6
5%
Idle Average *
31.2
29.1
7%
32.1
-3%
29.2
6%
29.6
5%
29.1
7%
29.6
5%
Idle Maximum *
31.2
30
4%
33.1
-6%
29.2
6%
32.2
-3%
29.1
7%
30.2
3%
Load Average *
31.9
36.4
-14%
36.2
-13%
33.7
-6%
36.4
-14%
33.1
-4%
35.6
-12%
Load Maximum *
31.9
37.8
-18%
37.8
-18%
38.5
-21%
36.4
-14%
34.3
-8%
35.9
-13%

* ... smaller is better

Barulho

Ocioso
31.2 / 31.2 / 31.2 dB
Carga
31.9 / 31.9 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm de distância)   environment noise: 31.2 dB(A)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
Heat
-12%
-1%
-10%
-9%
-27%
-13%
Maximum Upper Side *
38.2
41.6
-9%
37
3%
40.8
-7%
35.9
6%
49.6
-30%
41.6
-9%
Maximum Bottom *
36.5
37.1
-2%
37.1
-2%
40.3
-10%
42.4
-16%
51.9
-42%
41.7
-14%
Idle Upper Side *
25.1
28.7
-14%
25.3
-1%
27.6
-10%
28.5
-14%
29
-16%
30.6
-22%
Idle Bottom *
25.8
31.4
-22%
26.6
-3%
28.7
-11%
29
-12%
30.9
-20%
27.5
-7%

* ... smaller is better

Inatividade
 24.6 °C24.2 °C23.8 °C
 25.1 °C24 °C23.6 °C
 23.4 °C23.6 °C23.3 °C
Máximo: 25.1 °C
Médio: 24 °C
23.8 °C25.1 °C25.2 °C
23.8 °C24.9 °C25.8 °C
23.4 °C24.2 °C24.8 °C
Máximo: 25.8 °C
Médio: 24.6 °C
alimentação elétrica  27 °C | Temperatura do quarto 21.4 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.2 °C / 86 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.2 °C / 101 F, compared to the average of 34 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 36.5 °C / 98 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.1 °C / -0.2 F).
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
Power Consumption
11%
19%
3%
26%
-3%
19%
Idle Minimum *
5.1
4
22%
3.8
25%
3.8
25%
3.2
37%
3.1
39%
3.2
37%
Idle Average *
8.5
7.8
8%
6.3
26%
7.1
16%
6.5
24%
8.6
-1%
6.3
26%
Idle Maximum *
10.1
9
11%
6.8
33%
7.8
23%
7.4
27%
9.6
5%
8.6
15%
Load Average *
35.2
31.6
10%
34.4
2%
36.3
-3%
25.6
27%
35.6
-1%
30.3
14%
Load Maximum *
31
29.6
5%
28.3
9%
46
-48%
26.1
16%
49.4
-59%
30.4
2%

* ... smaller is better

Consumo de energia
desligadodarklight 0.3 / 0.7 Watt
Ociosodarkmidlight 5.1 / 8.5 / 10.1 Watt
Carga midlight 35.2 / 31 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime
WiFi v1.3 (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
346 min ∼65%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
422 min ∼79%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
340 min ∼64%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
453 min ∼85%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
452 min ∼84%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
648 min ∼121%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
535 min ∼100%
Load (sort by value)
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
112 min ∼99%
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
115 min ∼102%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
62 min ∼55%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
146 min ∼129%
HP EliteBook Folio 1040 G2
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
112 min ∼99%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
259 min ∼229%
Acer TravelMate P645-S-58HK
HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
113 min ∼100%
WiFi (sort by value)
Dell Latitude E7450
HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB
459 min ∼100%
Tempo de Execução da Bateria
NBC WiFi Websurfing Battery Test 1.3
5h 46min
Carga (máximo brilho)
1h 52min

Pro

+ Chassi sofisticado
+ Ótimos dispositivos de entrada
+ Variedade de portas
+ Wi-Fi veloz
+ Tela IPS de alta resolução
+ Alto desempenho de aplicativos
+ Baixas emissões
+ Bom microfone
+ Manutenção/atualizações simples

Contra

- Durações de bateria apenas aceitáveis

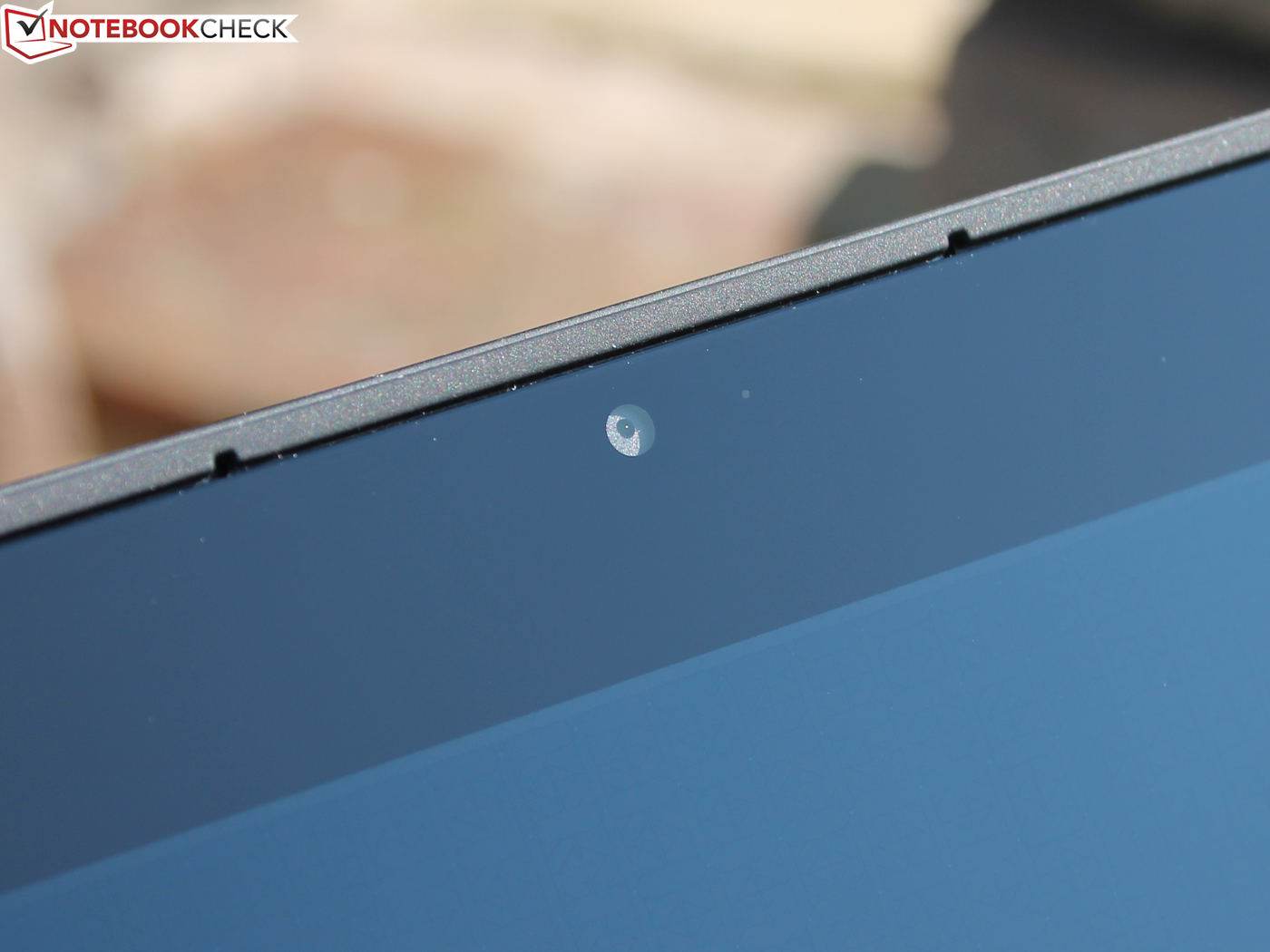

- Webcam medíocre
- Preço alto

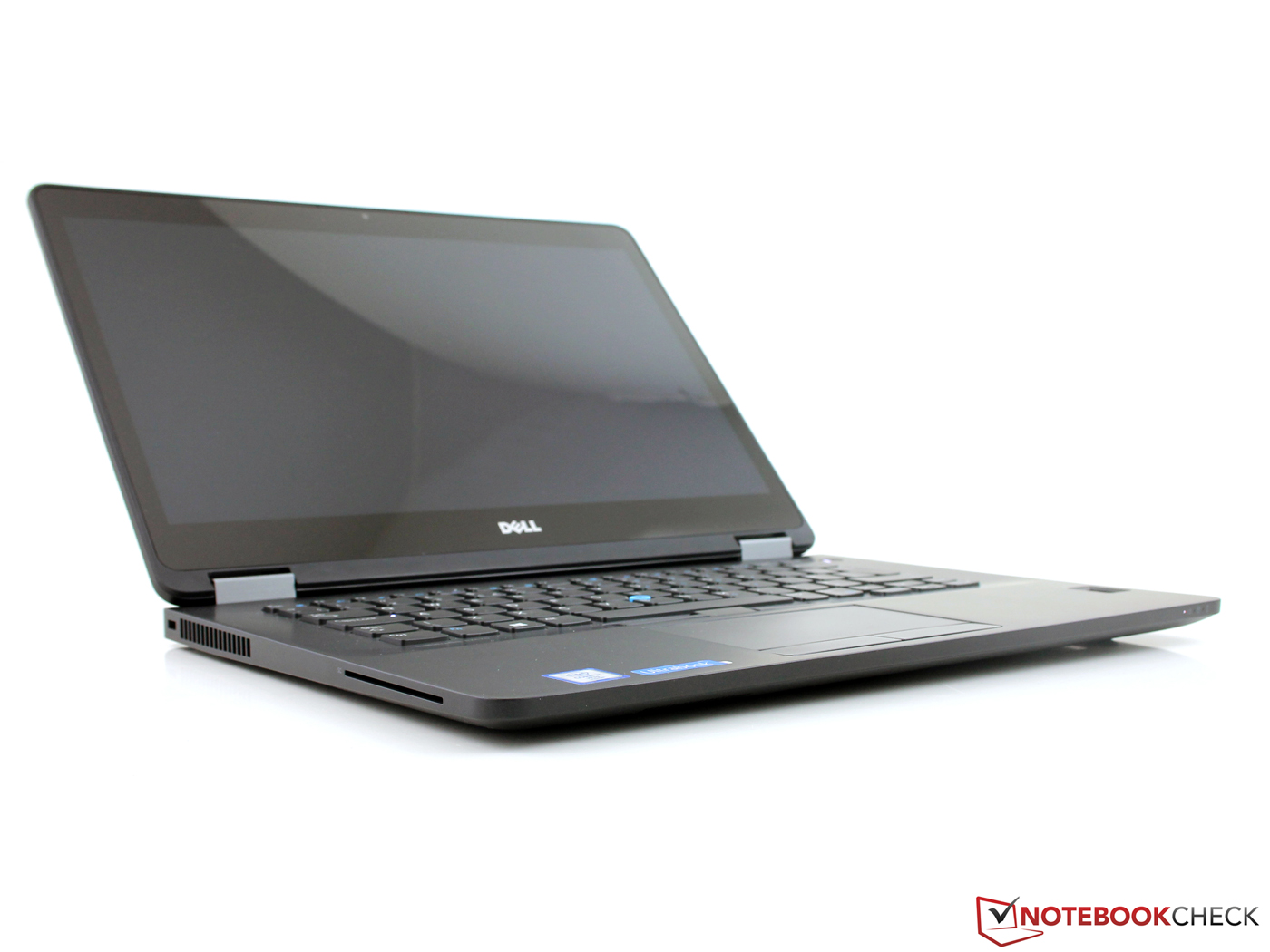

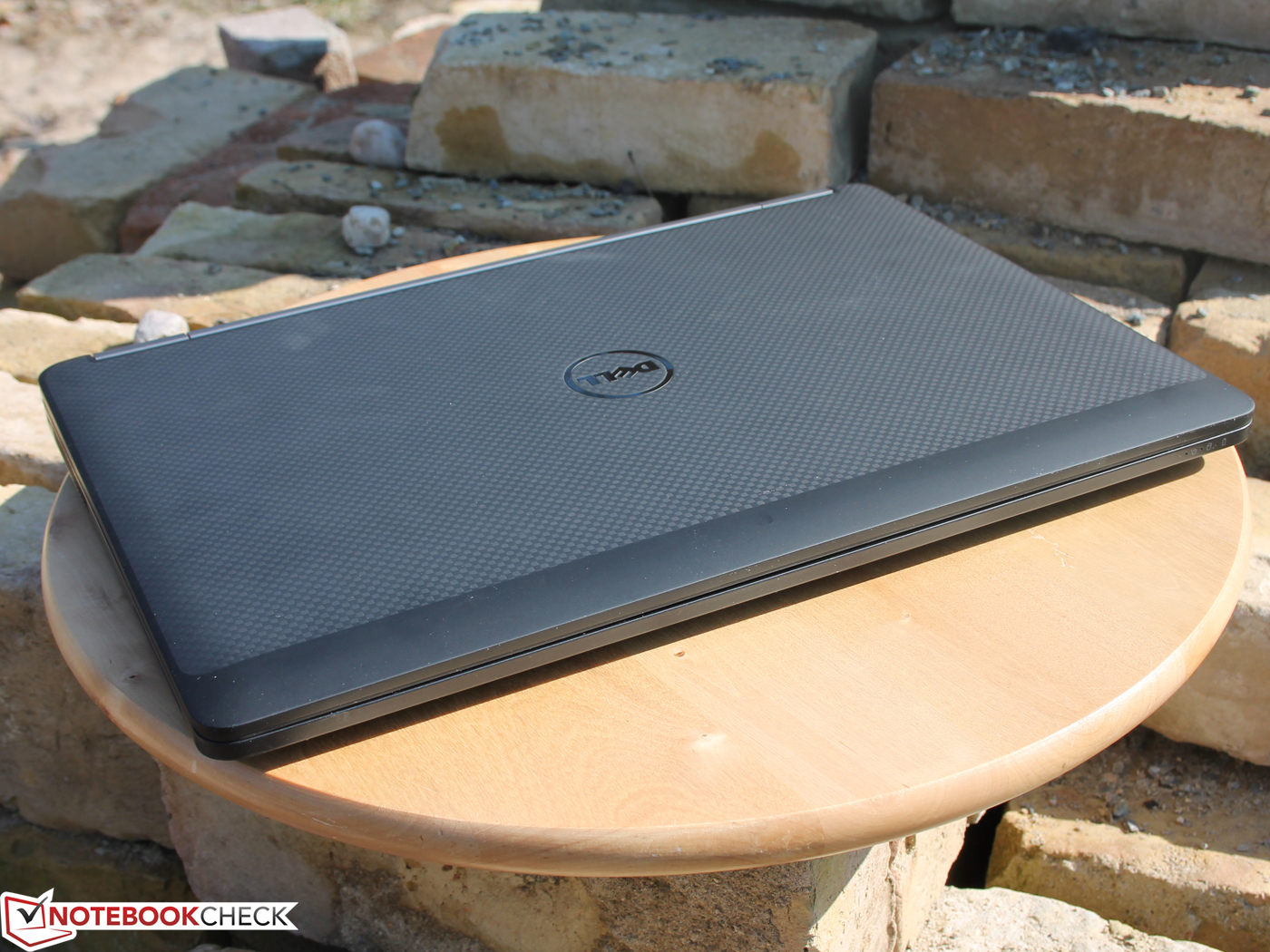

In review: Dell Latitude E7470. Test model courtesy of Dell Germany

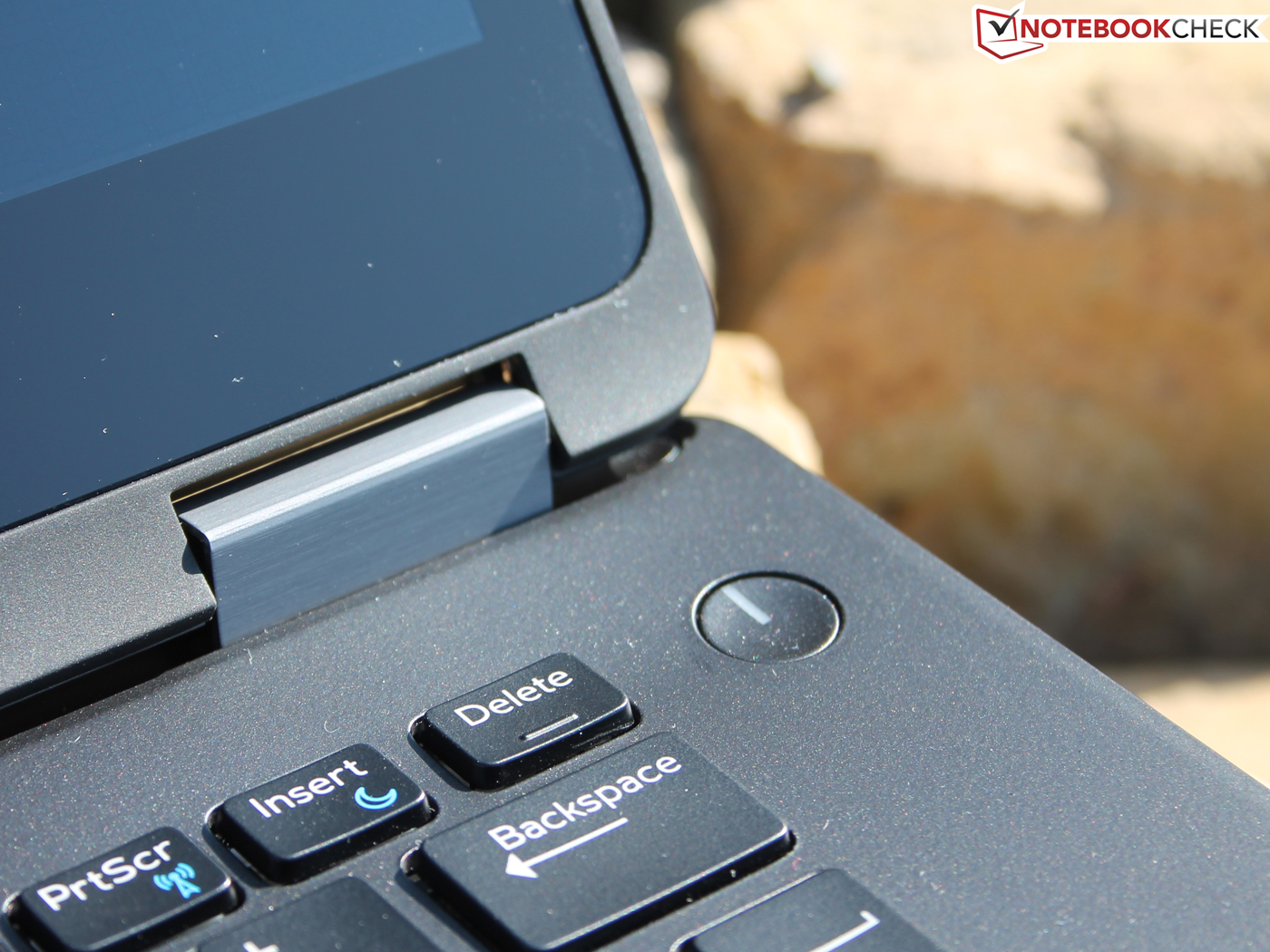

In review: Dell Latitude E7470. Test model courtesy of Dell Germany

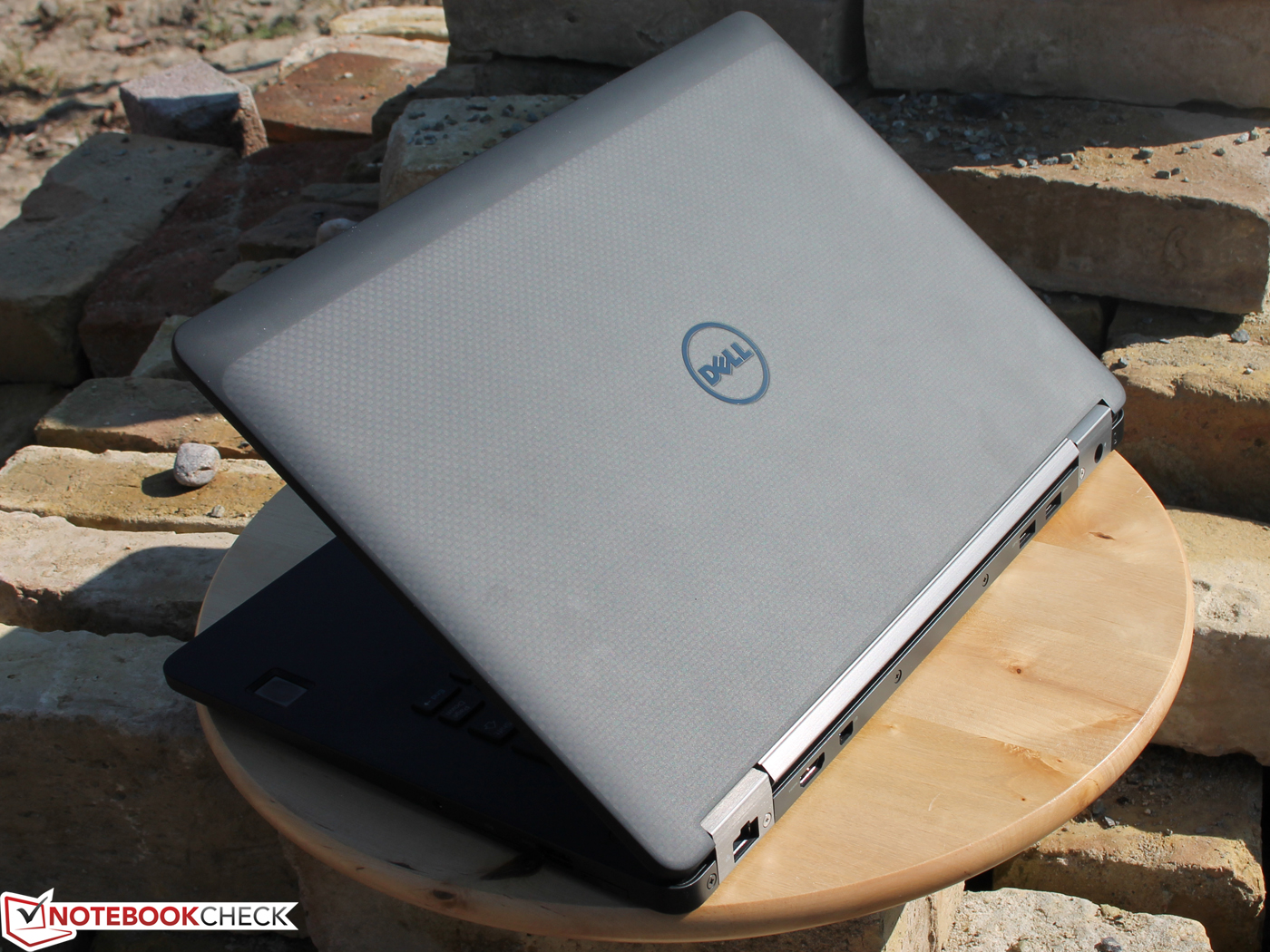

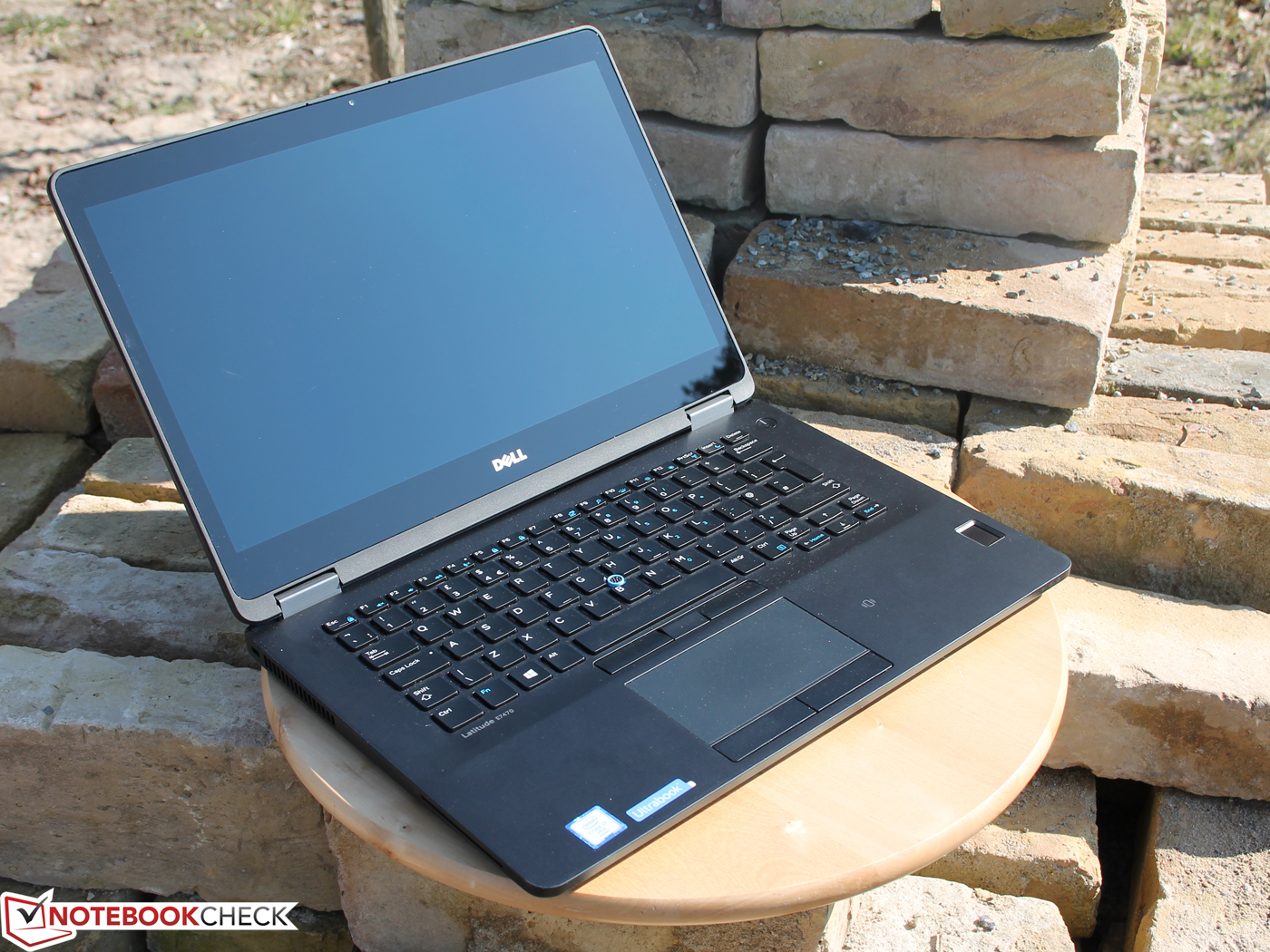

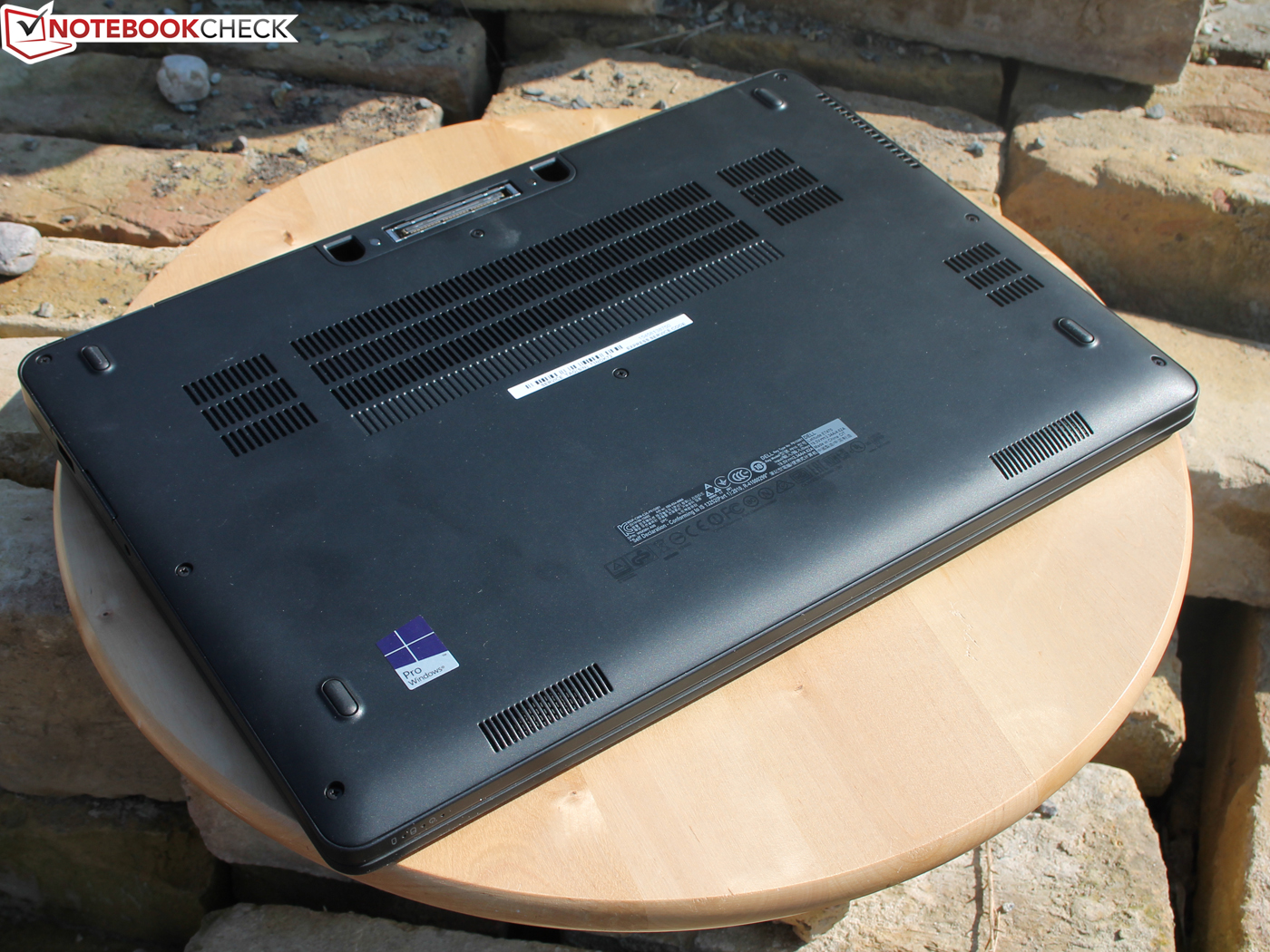

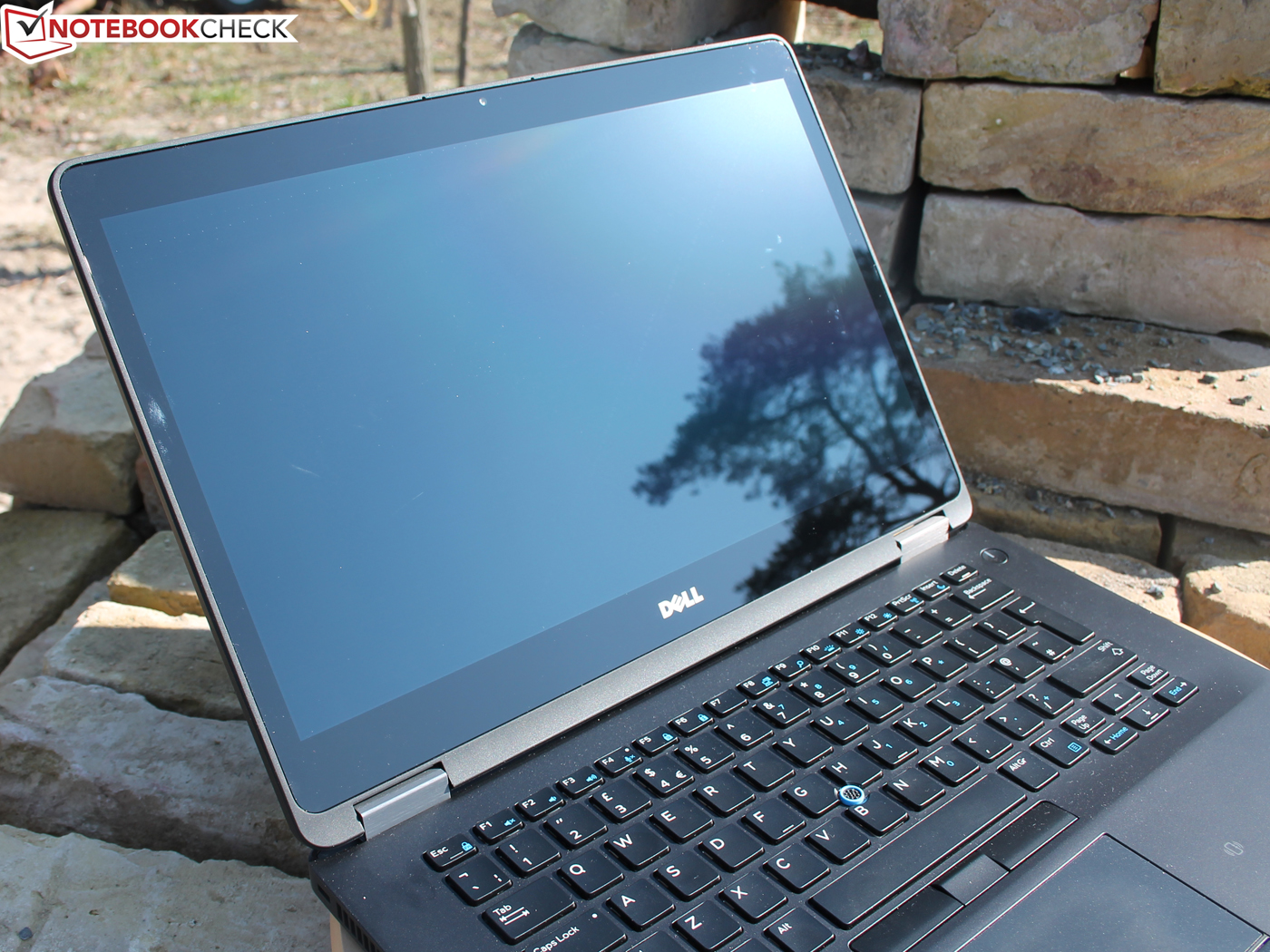

A Dell continua fiel a sua filosofia e não renuncia a nenhum recurso para o sucessor para os Ultrabooks empresariais. O aparelho de 14-polegadas é bem construído e suficientemente capaz para o campo empresarial, bem como qualquer outra tarefa prática. Isto exclui a tela refletiva, que produzirá perturbantes reflexos sob a luz do sol. O painel WQHD convence com excelentes especificações, em compensação, que são muito convincentes em interiores. Ótimos dispositivos de entrada são obrigatórios para um Latitude de gama alta, e o E7470 não decepciona. O mesmo se aplica para o gerenciamento e segurança: Raramente um portátil possui tantos recursos de segurança (opcionais). A capacidade de manutenção também merece ser elogiada; remova apenas a tampa inferior e terá acesso a todos os componentes.

A única desvantagem é a duração, não foi possível mais de 5:46 em nosso teste de Wi-Fi. Isto não combina nada com as altas expectativas ou com o alto preço de 2.300 Euros (~$2620). As versões com telas HD ou FHD deveriam ter um pouco mais de estamina com base em nossas experiências com configurações 4K e FHD do mesmo modelo.

Provavelmente a melhor alternativa seja o HP EliteBook Folio 1040 G2, mas inclusive a versão com um painel mate FHD custa 200-300 Euros (~$227-~$341) a mais. A duração da bateria é melhor,mas o Folio 1040 G2 oferece menos portas, em compensação. A versão IGP do Lenovo ThinkPad T450s interessante se quiser economizar um pouco de dinheiro; a configuração similar começa em cerca de 1.850 Euros (~$2107). A razão de preço-desempenho entre o E7470 e T450s é, de fato, similar quando compara as versões mate FHD.

Atualização 02/04/2016: ThinkPad T460s FHD IPS e T460s WQHD IPS adicionados às tabelas.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Dell Latitude 14 7000 Series E7470 - 03/23/2016 v5(old)
Sebastian Jentsch

Acabamento
92 / 98 → 94%
Teclado
90%
Mouse
90%
Conectividade
71 / 80 → 89%
Peso
66 / 20-67 → 98%
Bateria
87%
Pantalha
86%
Desempenho do jogos
57 / 68 → 84%
Desempenho da aplicação
80 / 92 → 87%
Temperatura
94%
Ruído
93%
Audio
73%
Camera
52 / 85 → 61%
Médio
79%
89%
Office - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Ultrabook Dell Latitude 14 E7470
Sebastian Jentsch, 2016-04-13 (Update: 2016-04-19)
