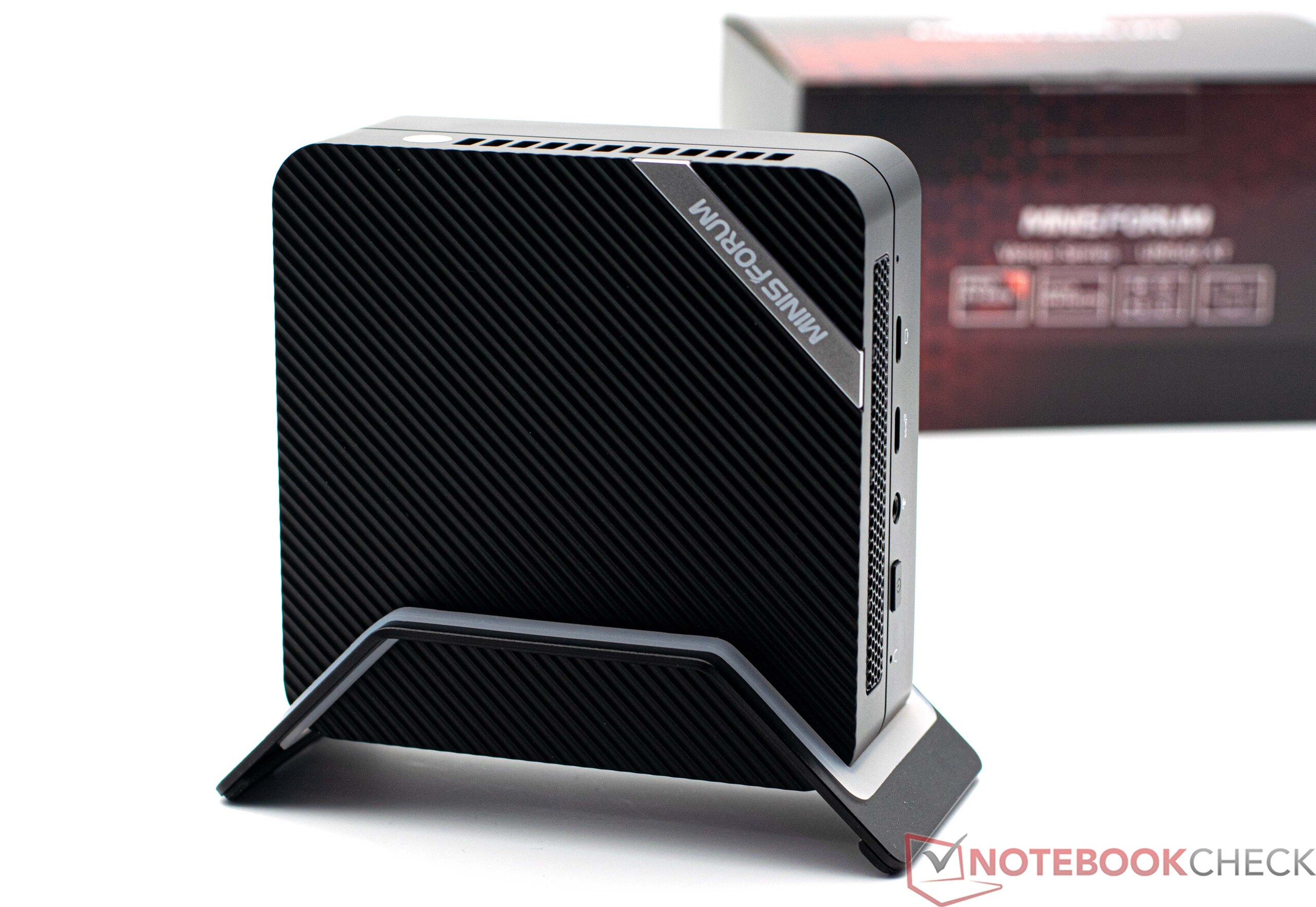

Análise do Minisforum Venus Series UM560 XT Desktop PC: Um mini PC com um SoC AMD Cezanne a um preço acessível!

Name: Minisforum Venus Series UM560 XT
Brand: Minisforum

Desempenho desperdiçado! A série Venus da Minisforum oferece muita potência no menor espaço possível. Já testamos o modelo superior, também conhecido como UM690, em seu ritmo. Agora, vamos nos voltar para o UM560 XT, que é equipado com o Ryzen 5 5600H. Nossa análise revela como o sistema se sai. No entanto, uma coisa já está clara: em termos de preço e desempenho, o Minisforum Venus Series UM560 XT lidera o grupo.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 05/25/2023 🇺🇸 🇩🇪 ...

Desktop Mini PC AMD Cezanne (Zen 3) Radeon

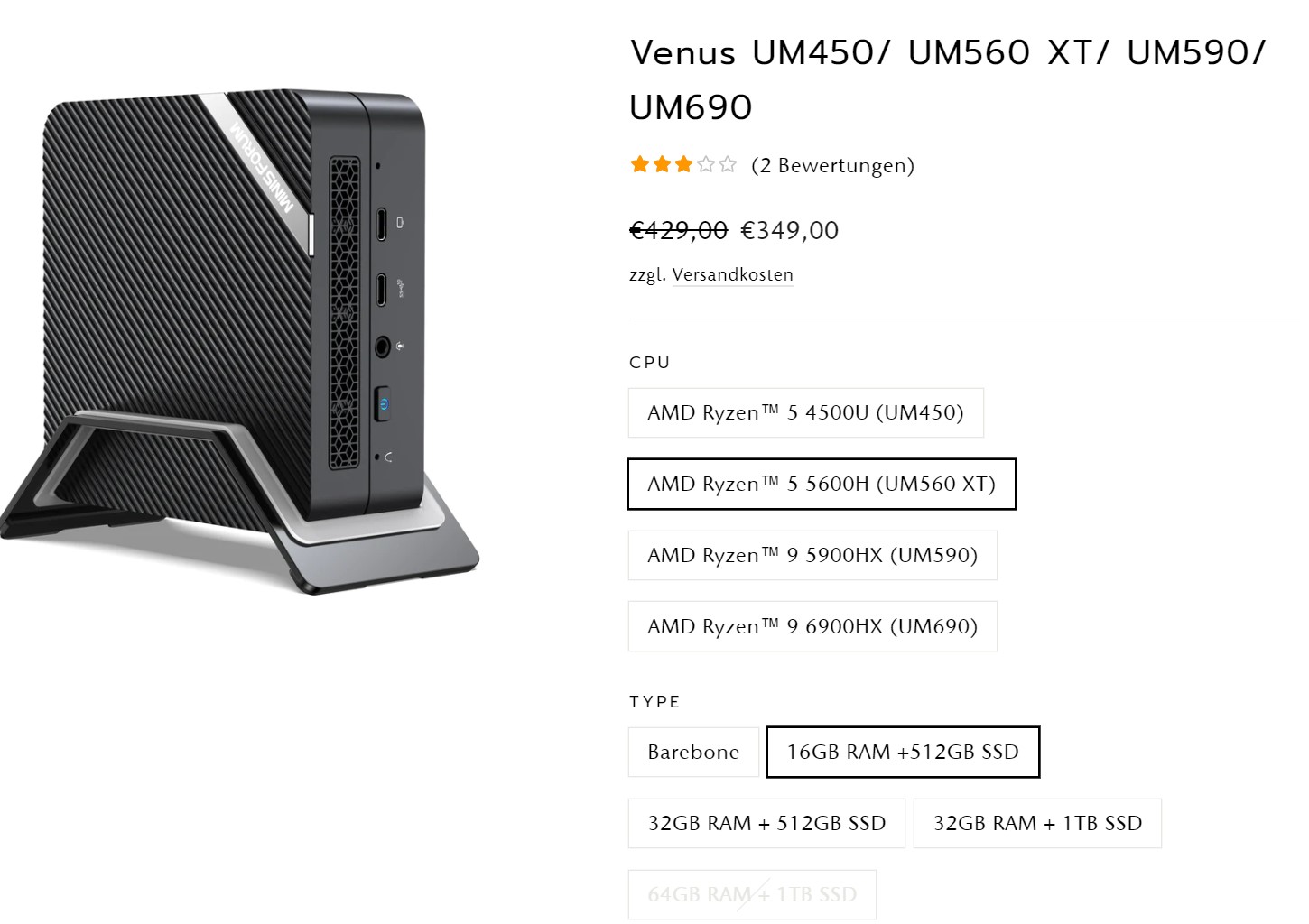

Configurações do Minisforum Venus Series UM560 XT (fonte: Minisforum)

No início deste ano, demos uma olhada no Minisforum Venus Series UM690. Além do modelo superior, que é baseado no AMD Ryzen 9 6900HX, o fabricante chinês de mini PCs oferece configurações adicionais. Baseado no AMD Ryzen 5 5600H, o UM560 XT está disponível no mesmo gabinete e a um preço significativamente mais baixo. É claro que não é justo comparar o desempenho da máquina nativa de seis núcleos com o modelo superior, mas por US$ 419 com 16 GB de RAM e um SSD de 512 GB, é uma proposta interessante. Na versão barebones, é possível economizar mais US$ 90. No entanto, cabe ao usuário cuidar da RAM e do SSD.

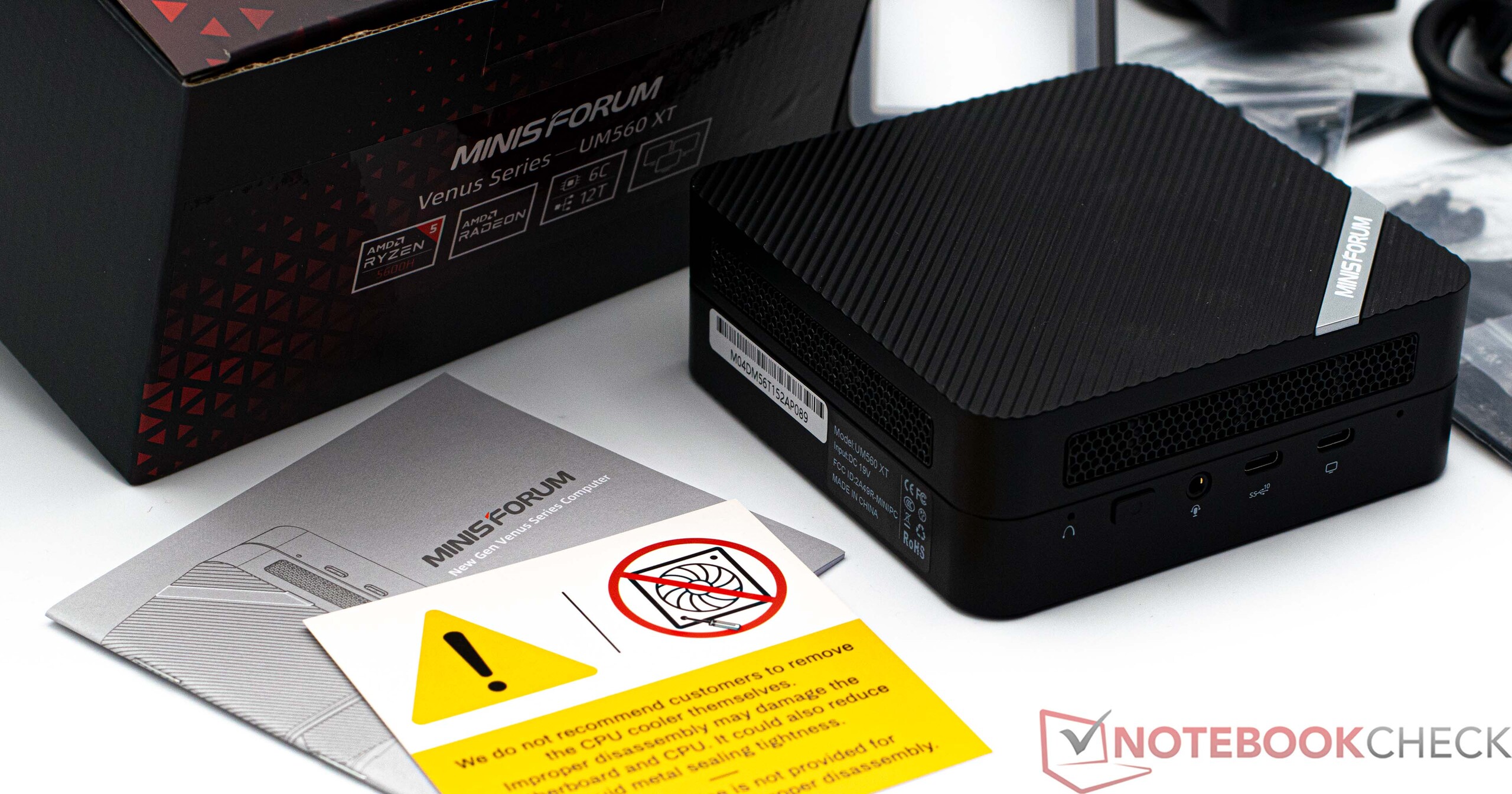

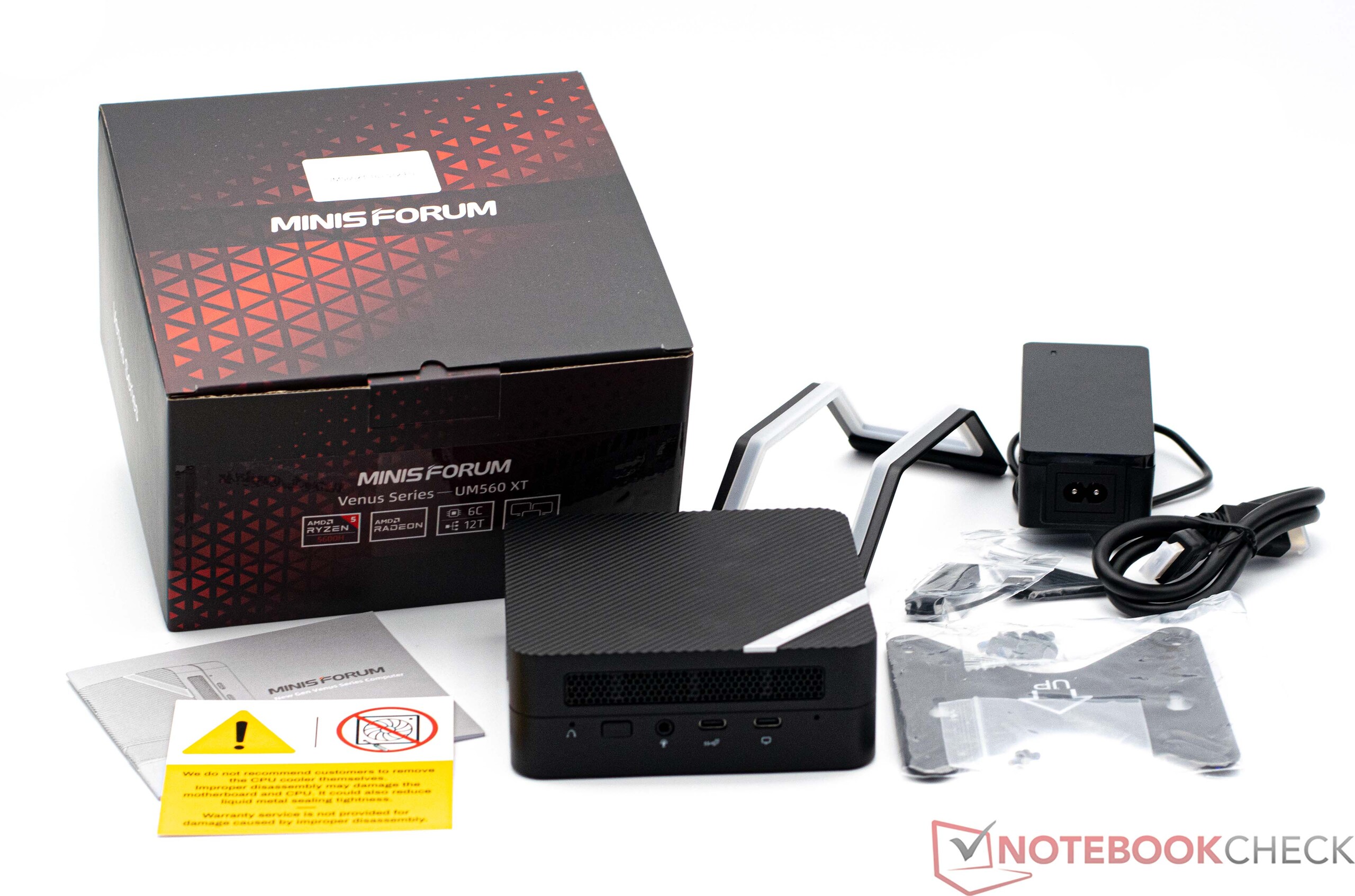

O Minisforum Venus Series UM560 XT vem bem equipado. Todos os itens necessários estão incluídos para colocar o dispositivo em funcionamento. O dispositivo também vem com uma placa que permite que o dispositivo seja fixado em um monitor (montagem Vesa). Nesta análise, veremos de perto como o modelo de análise se compara ao modelo superior, em termos de desempenho, um dispositivo que custa quase US$ 400 a mais. Essa diferença de preço se justifica ou o modelo de nível básico é suficiente? E quais são as mudanças em detalhes? Além disso, o Minisforum Venus Series UM560 XT não só tem que competir com seus próprios concorrentes internos, mas também com a forte concorrência da Geekom, Morefine e Intel nessa categoria de preço. A tabela a seguir apresenta uma lista desses concorrentes.

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series UM560 XT

Processador

AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, 35 W PL2 / Short Burst, 40 W PL1 / Sustained, Cezanne-H (Zen 3)

Placa gráfica

AMD Radeon RX Vega 7, Adrenalin 22.20.27.09

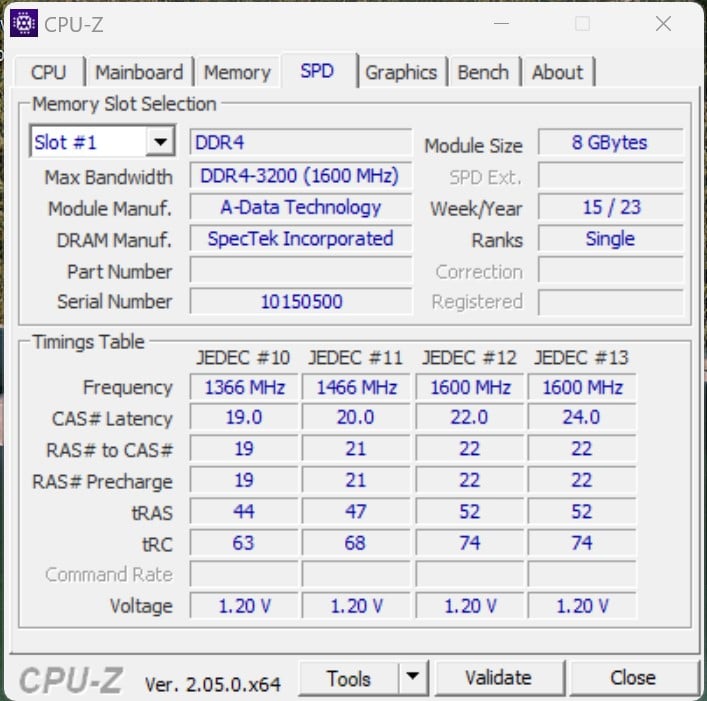

Memória

16 GB

, DDR4-3200, 2 of 2 occupied, max. 32 GB

placa mãe

AMD Promontory/Bixby FCH

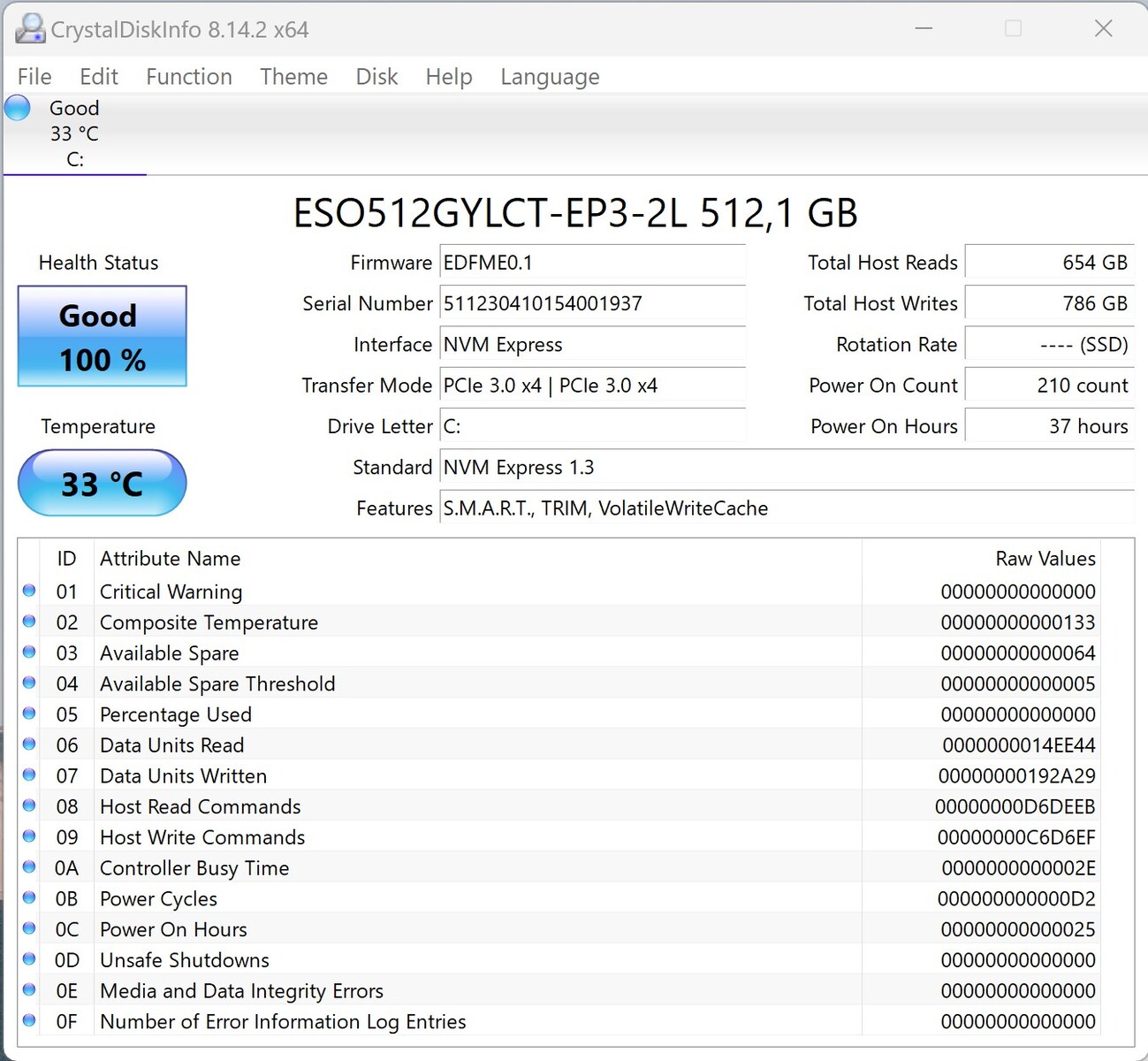

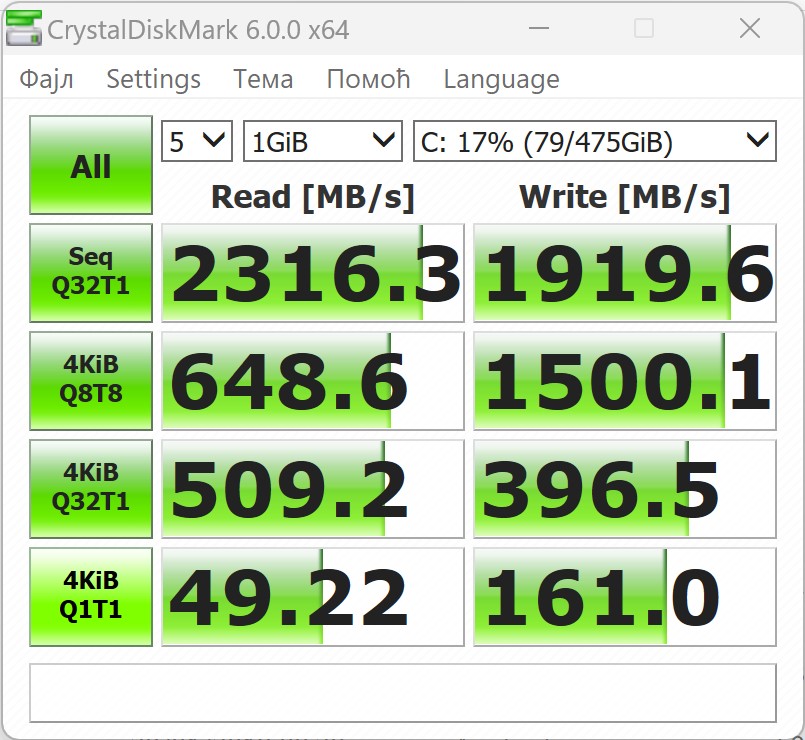

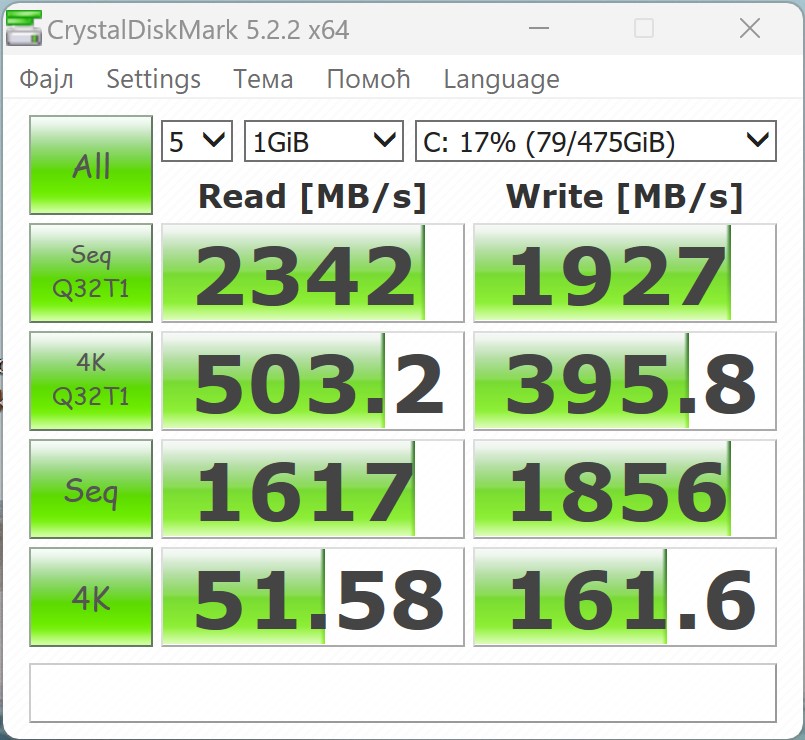

Disco rígido

ESO512GYLCT, 512 GB

, M.2 2280, NVMe, 450 GB livre

Placa de Som

AMD Zen - Audio Processor - HD Audio Controller

Conexões

2 USB 2.0, 4 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock

Funcionamento em rede

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 48 x 129 x 126

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

PSU with cable, HDMI cable, computer stand, Vesa mount assembly kit, user manual, 24 Meses Garantia

peso

652 g, Suprimento de energia: 228 g

Preço

429 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height
81.7 %	05/2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
79.5 %	02/2023	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm
81.9 %	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
85.5 %	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 %	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
82.3 %	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
85.1 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm

Minisforum Detalhes do Venus Series UM560 XT

Caso

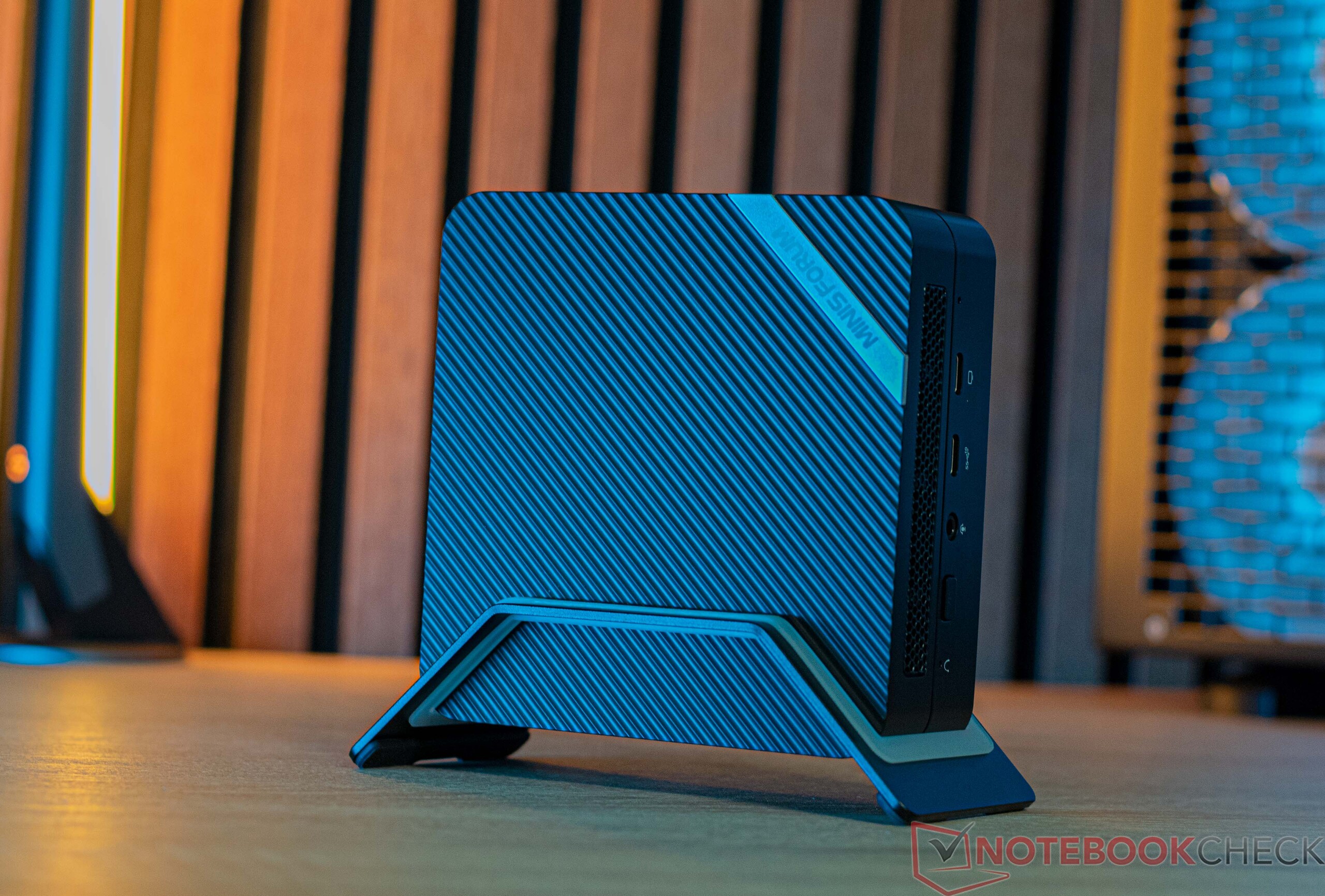

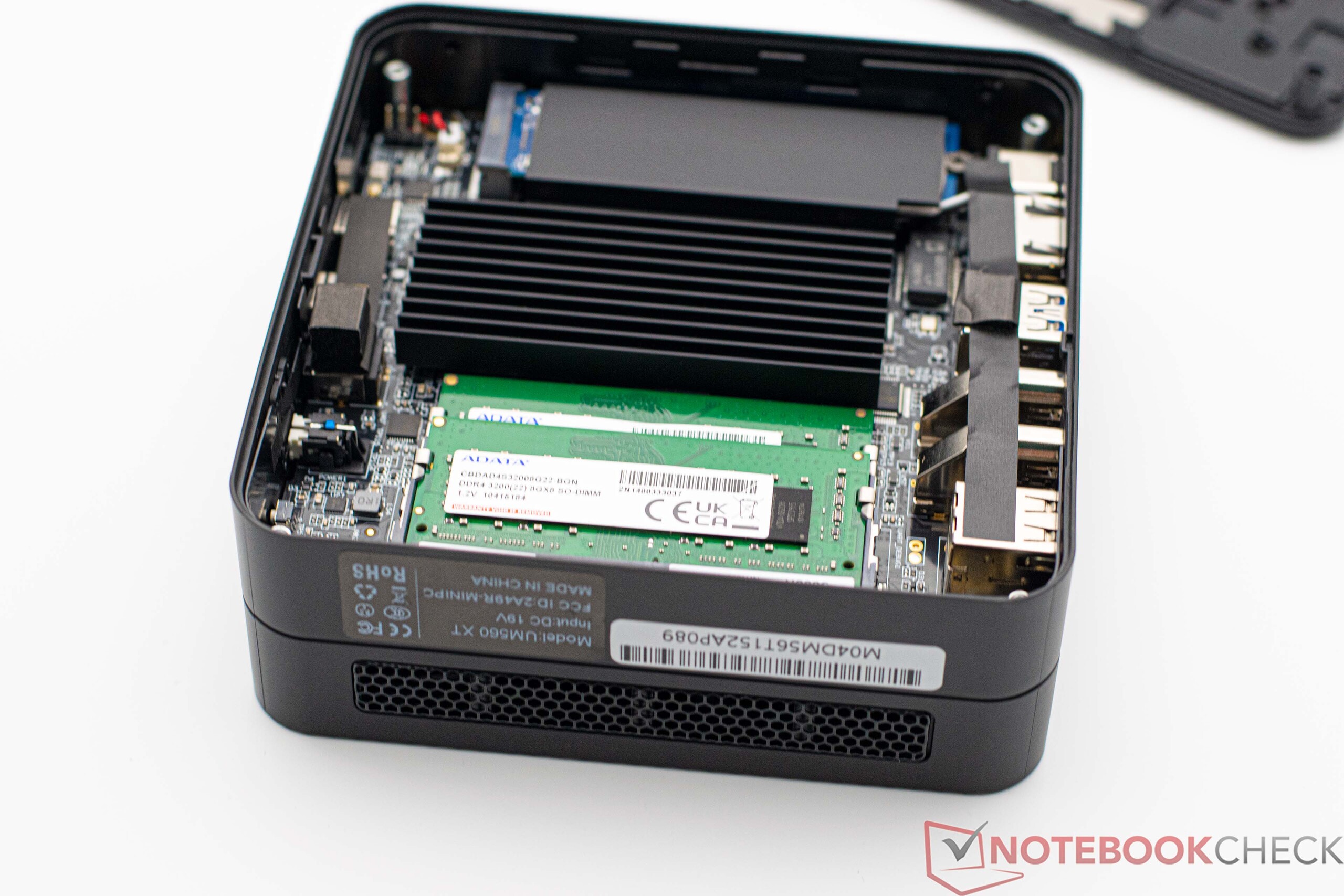

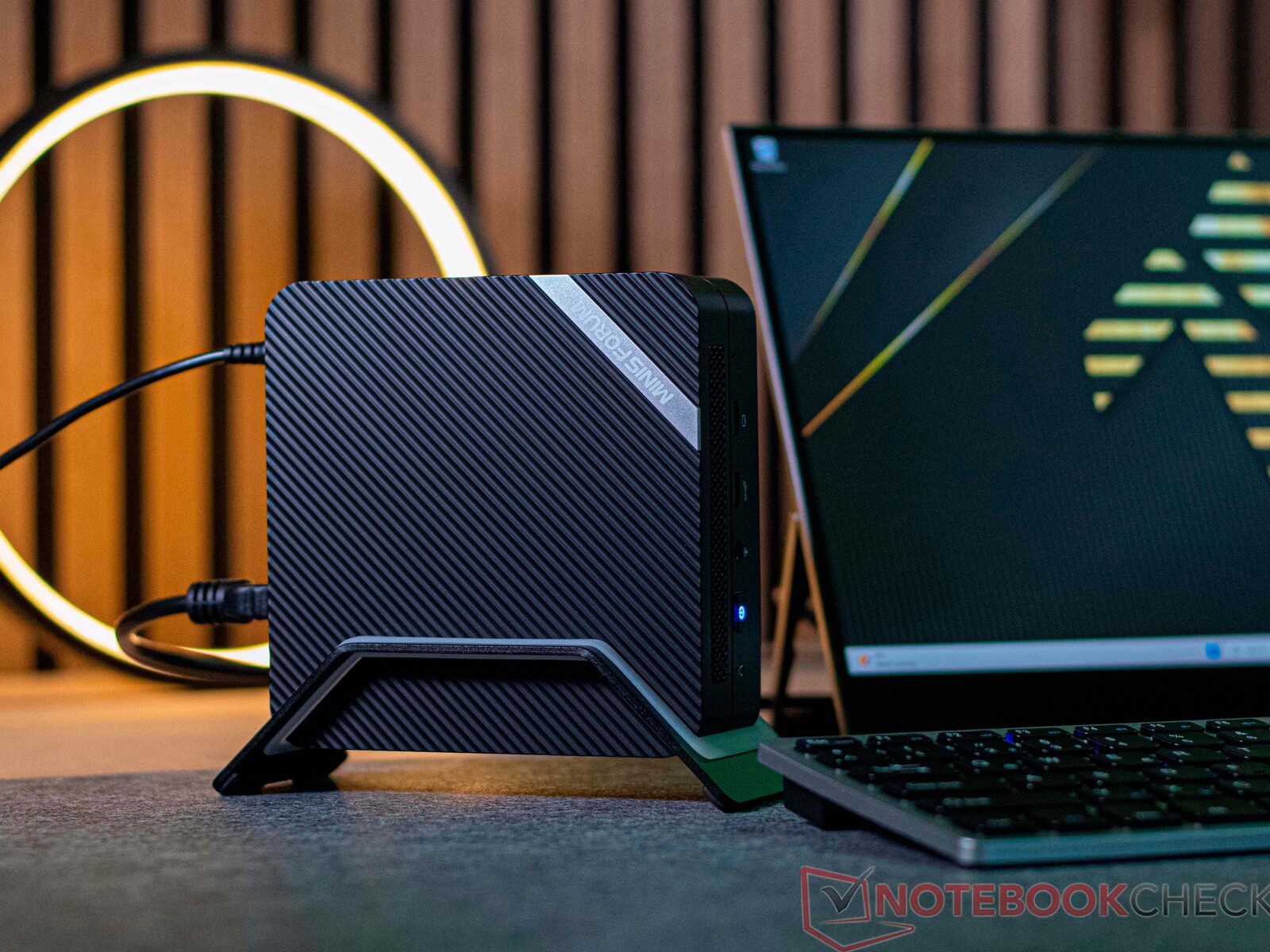

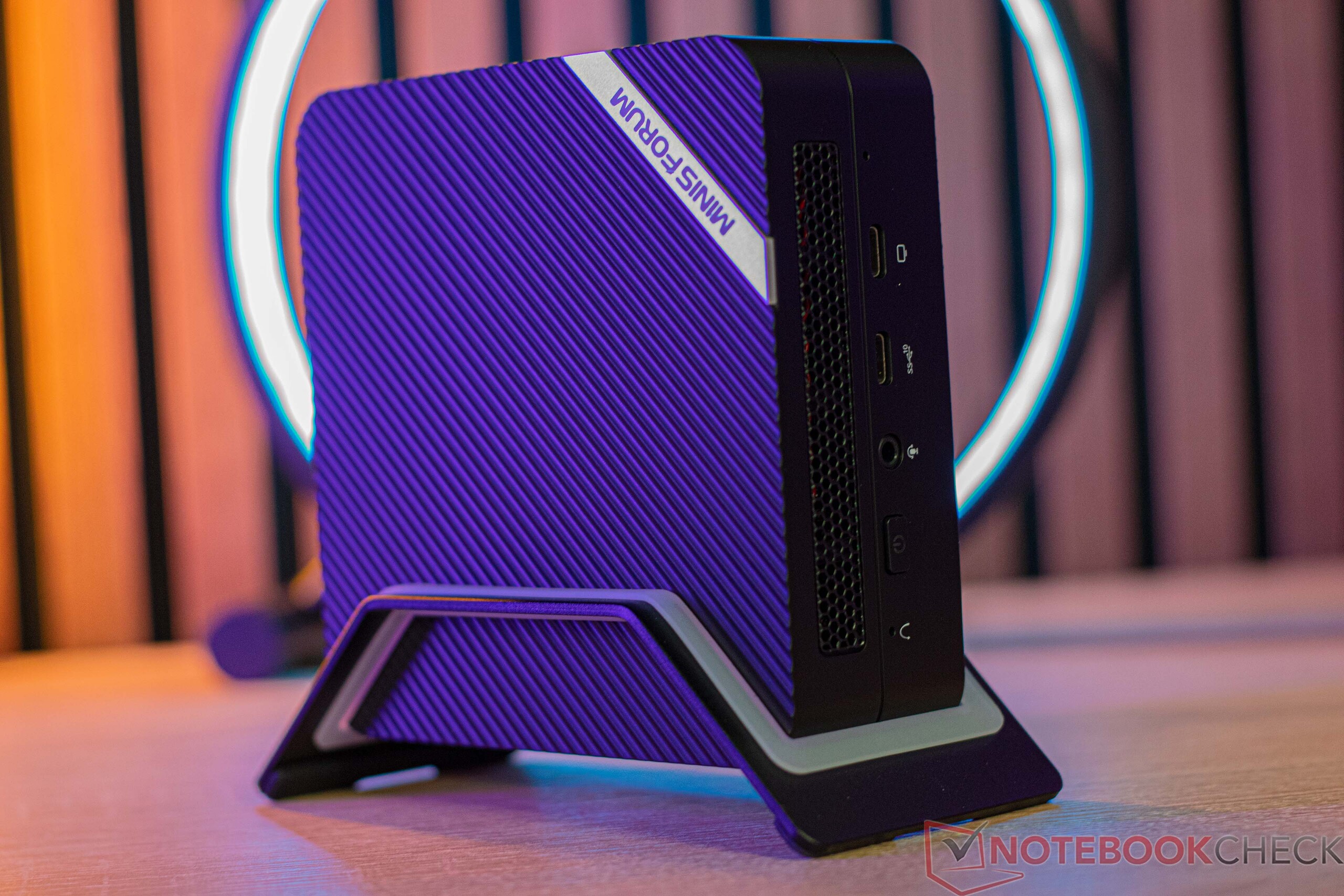

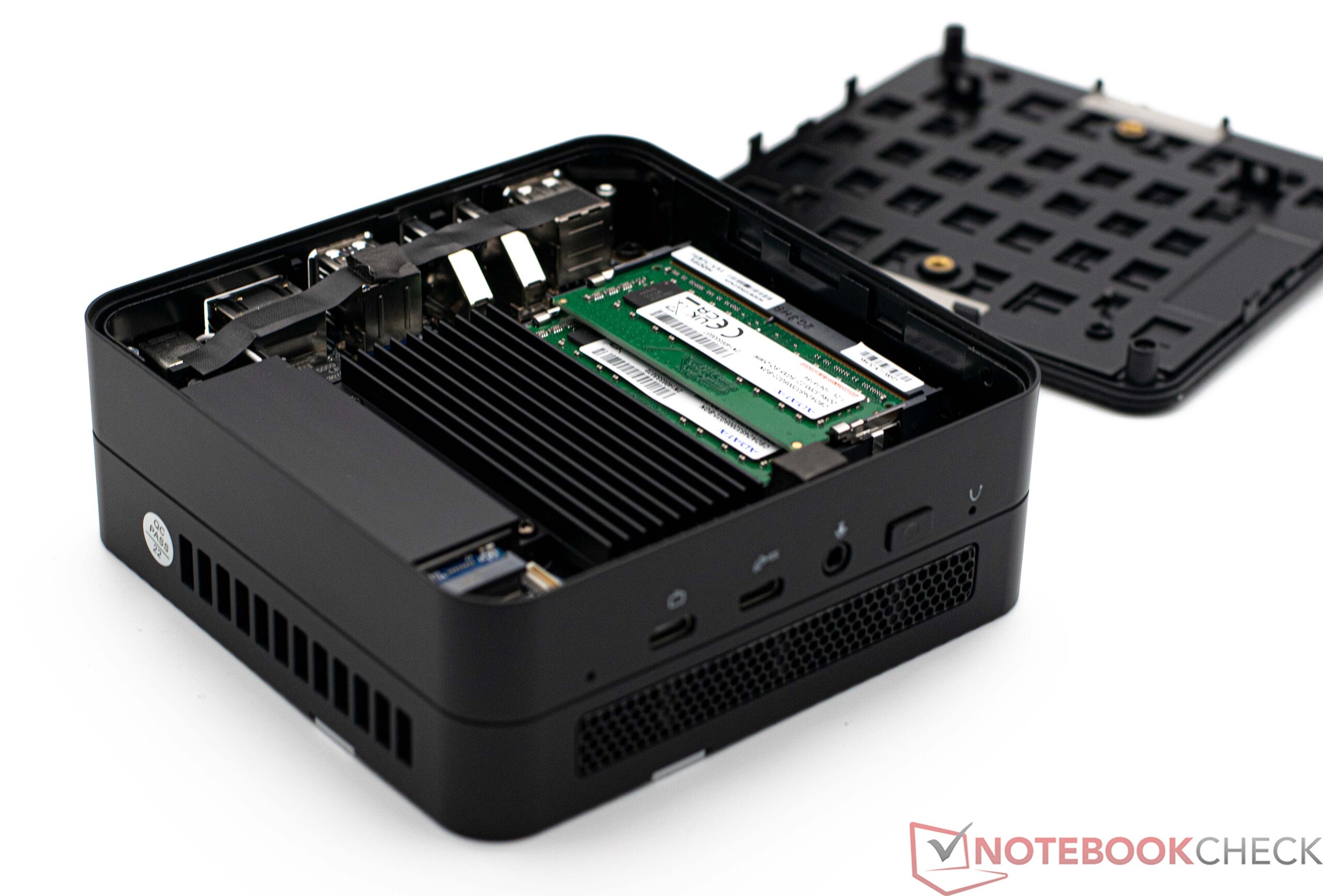

O Minisforum UM560 XT tem construção semelhante ao Minisforum UM690 com um AMD Ryzen 9 6900HX. Mais detalhes sobre o gabinete podem ser encontrados aqui em nossa análise do modelo superior.

Recursos

À primeira vista, o Minisforum Venus Series UM560 XT oferece os mesmos recursos que o modelo Modelo UM690. No entanto, o suporte a USB4 não está incluído. Isso significa que o tipo de expansão que seria possível via Thunderbolt não é possível aqui. No entanto, felizmente, há seis portas USB disponíveis. Além disso, três monitores podem ser usados simultaneamente se a porta USB-C na parte frontal do dispositivo também for usada.

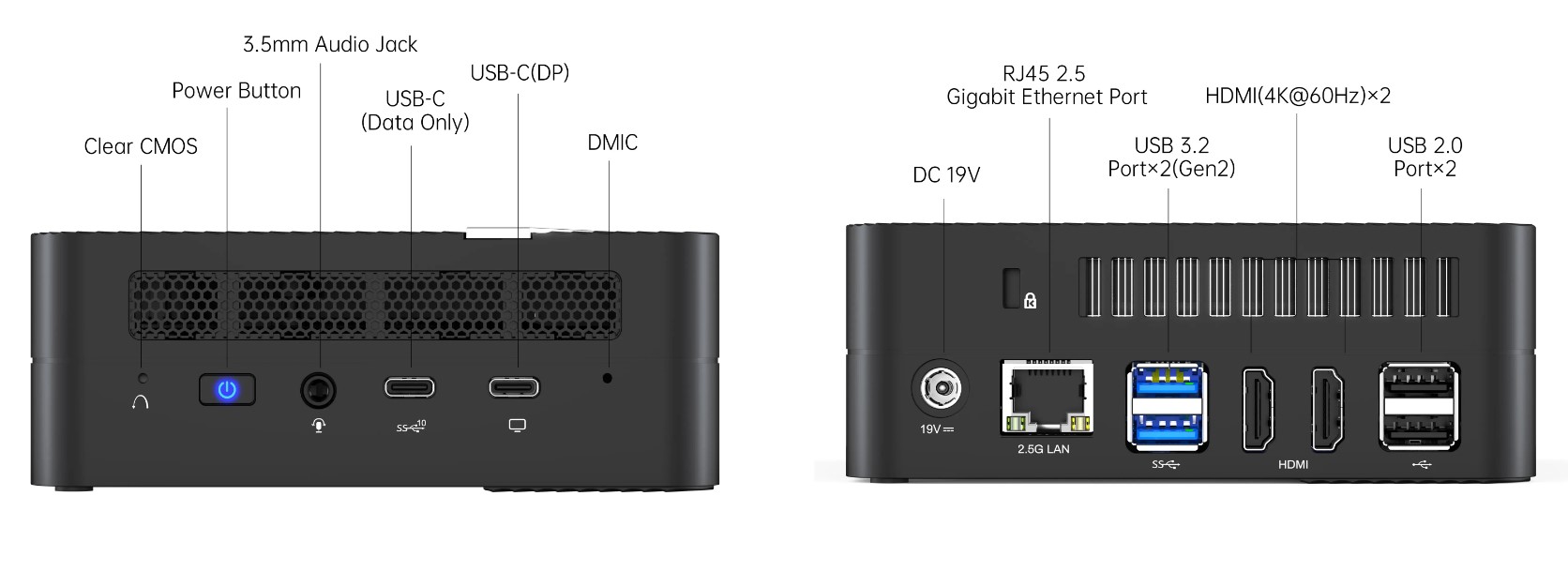

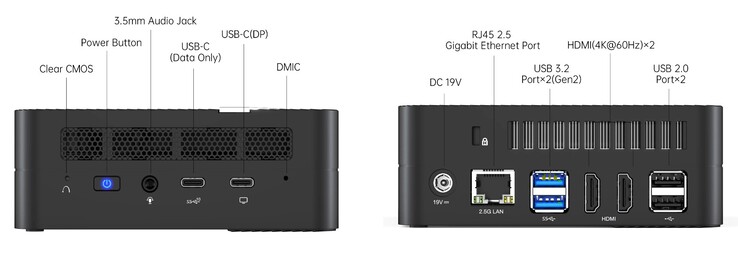

Portas externas no Minisforum Venus Series UM560 XT (fonte: Minisforum)

Comunicação

Minisforum Módulo Wi-Fi UM560 XT da série Venus

A Minisforum equipou o UM560 XT com o mesmo módulo Wi-Fi 6E encontrado no UM690. Nos testes práticos, o módulo Mediatek teve um bom desempenho. Para fins de teste, usamos o Asus ROG Rapture GT-AXE11000. Como alternativa, para conexões de dados mais rápidas, a porta LAN pode ser usada, permitindo transferências de dados de até um máximo de 2,5 GBit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +48%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +7%
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s +7%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +7%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +6%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +4%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +1%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s +1%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s
Average MediaTek RZ608 (430 - 975, n=19)	883 MBit/s -1%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +59%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +17%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +16%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +14%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s +13%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +11%
Average MediaTek RZ608 (572 - 979, n=19)	855 MBit/s +3%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s 0%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -5%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -24%

Minisforum Venus Series UM560 XT; iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)

Minisforum Venus Series UM560 XT; iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

Desempenho - AMD baseado na geração Cezanne

No Minisforum Venus Series UM560 XT, um AMD Ryzen 5 5600H com seis núcleos e doze threads faz seu trabalho para ajudar o dispositivo a ser bem equipado para as tarefas diárias baseadas no trabalho. Escritório, multimídia e streaming são o foco principal desse mini PC. Com a AMD Radeon RX Vega 7, temos uma boa iGPU que suporta habilmente o SoC.

Condições de teste

Ao realizar todos os testes de desempenho, selecionamos o perfil de energia High Performance. Os desvios desse perfil foram feitos apenas em relação às medições de energia e volume, de acordo com nossos critérios de teste. O desempenho da CPU não foi alterado no BIOS e também não fizemos nenhuma alteração na curva da ventoinha com relação ao resfriamento.

Processador

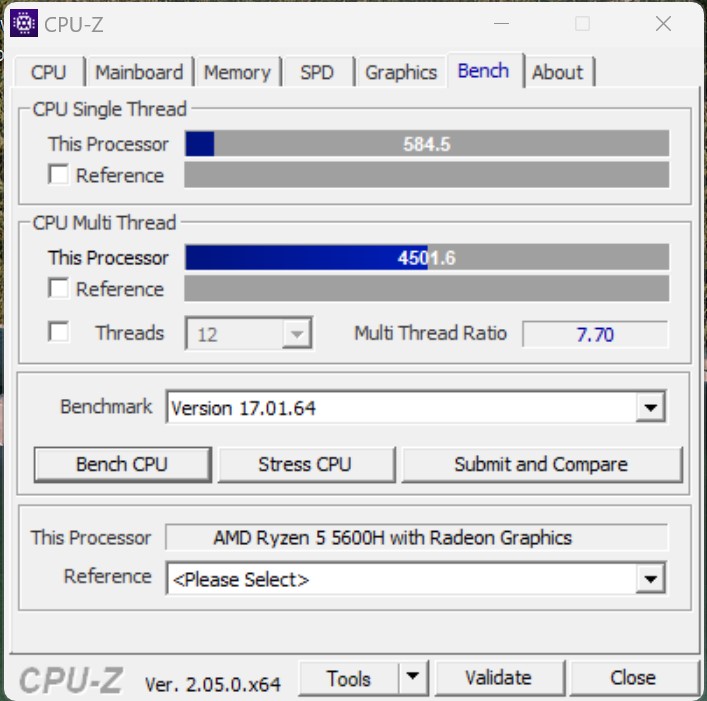

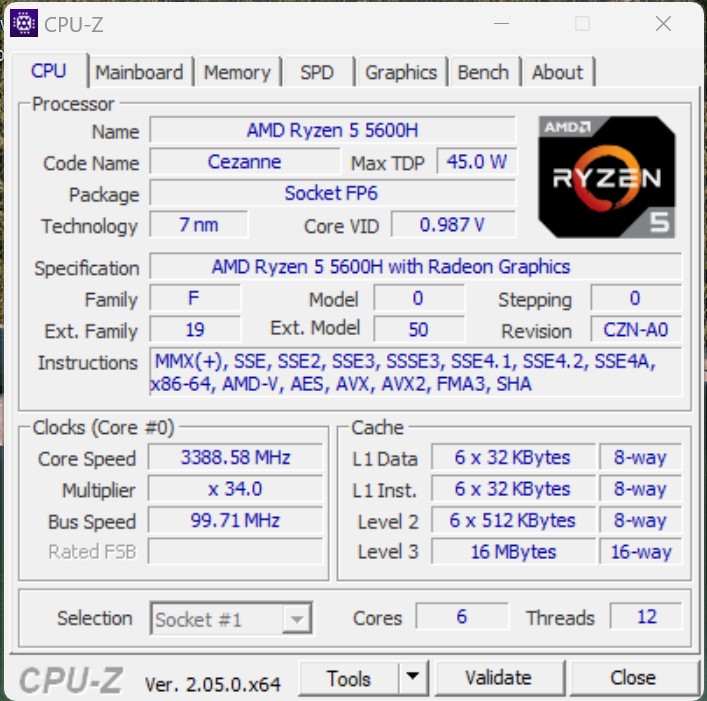

O AMD Ryzen 5 5600H pertence à série Cezanne da AMD e oferece seis núcleos com um total de doze threads. Em comparação com o modelo superior com um AMD Ryzen 9 6900HX, o Minisforum Venus Series UM560 XT perde 13% em nossa classificação de desempenho, ficando em torno do valor médio de todos os benchmarks de CPU nessa comparação. No entanto, em comparação com a concorrência, nosso exemplar analisado tem um desempenho excelente. Basicamente, o Minisforum Venus Series UM560 XT oferece desempenho semelhante ao encontrado no Geekom Mini IT12 com um Intel Core i7-1260P. Além disso, o Morefine M600 6600U é mantido sob controle. No entanto, nosso dispositivo de análise apresentou um desempenho apenas marginalmente melhor, que só pode ser realmente detectado aqui, sob condições de teste.

Outros benchmarks de processador podem ser encontradosaqui.

Performance Rating - Percent
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	49.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.4 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.2 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.7 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.1 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	44 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43.5 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	225 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +40%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +30%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1596 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -15%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -21%

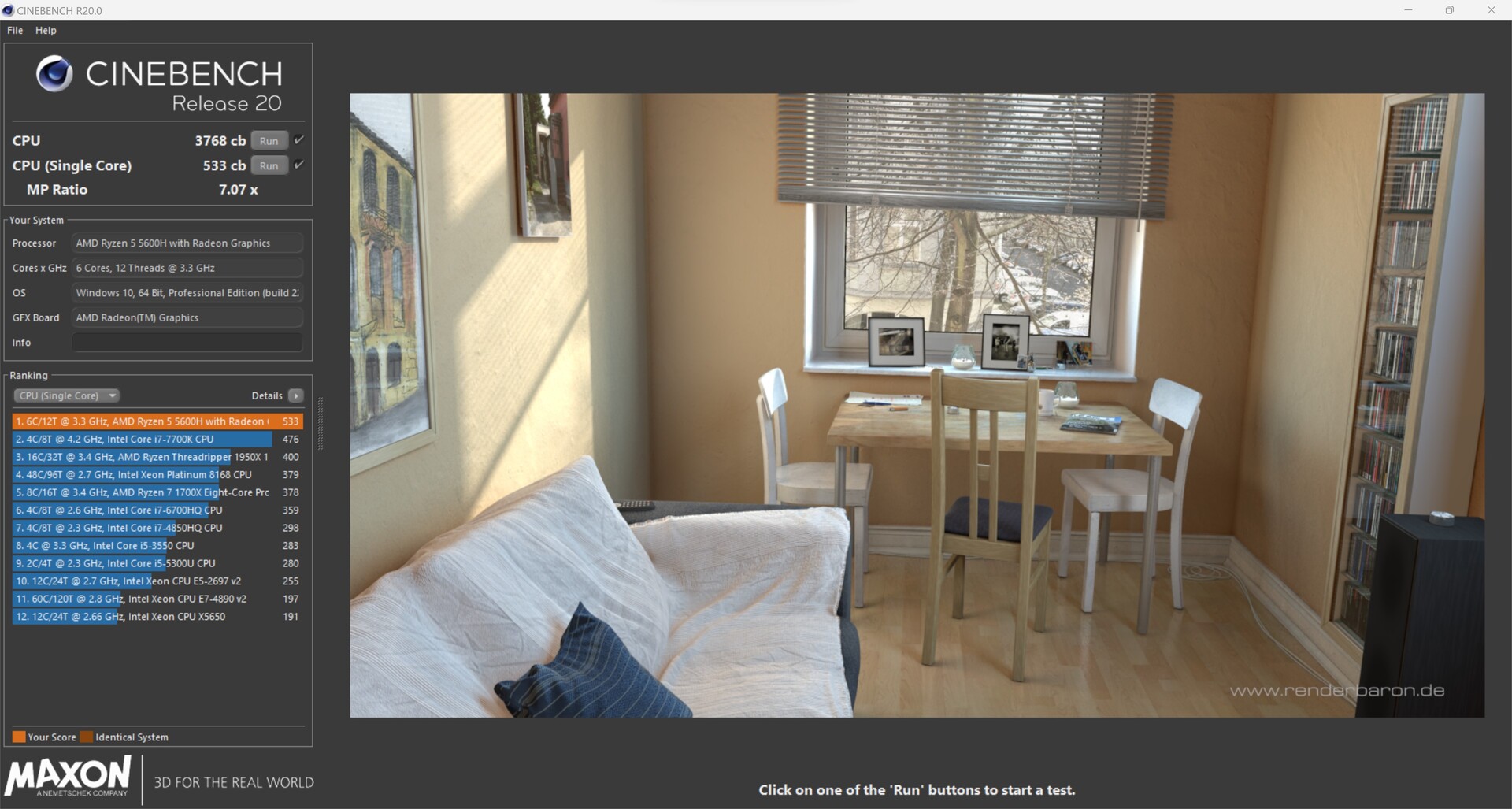

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points +18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	533 Points
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +31%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	3768 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -21%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +19%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	2.63 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	18.68 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -21%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +30%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	11201 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +30%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +15%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	59479 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -8%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -24%

Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds * -34%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -25%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	319 Seconds *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +28%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	4.552 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +25%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -218%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -84%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -46%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	129.204 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +28%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +24%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	251.21 fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -16%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	95.18 fps
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps -15%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -25%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7497 KB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -13%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +43%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +29%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	9.4 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +54%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s +38%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1.3 GB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -15%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +28%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.857 GB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -18%

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +34%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7253 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -15%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +29%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +22%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1443 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points -1%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +44%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +44%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +36%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points +35%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7128 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -14%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +32%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +25%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1393 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points -2%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +31%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +26%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6117 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +37%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +37%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +20%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	28997 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -16%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +27%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	14496 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -20%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	46562 MIPS
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	5369 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS -4%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	12.4 fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -19%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -19%

R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.526 sec *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * +10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +12%

LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	56.7 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +33%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	270 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -6%

Mozilla Kraken 1.1 - Total
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms * -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	651 ms *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +17%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21110 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -17%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21025 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +56%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6767 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -24%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points -25%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	71.2 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	69.4 pt
Average of class Mini PC	63.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	62.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	60.2 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +33%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +21%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -4%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -30%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +24%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -23%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points -26%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -43%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +8%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s 0%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s -12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -16%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points -7%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -11%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -17%
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -38%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +14%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -28%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points -29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -49%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -18%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s -21%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -41%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -58%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +19%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -18%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s 0%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s -8%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -28%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +46%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +37%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s +36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +35%
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s -13%

Minisforum Venus Series UM560 XT no teste multi-loop do Cinebench R15

No loop contínuo do Cinebench R15, é possível ter uma boa impressão de como o sistema funciona sob carga. O Minisforum Venus Series UM560 XT dominou o teste maravilhosamente. Os resultados do AMD Ryzen 5 5600H em cada uma das 50 execuções foram muito estáveis e não houve quase nenhuma queda significativa no desempenho. Nessa área de comparação, nenhum outro sistema chega perto.

Métricas da CPU durante o loop do Cinebench R15

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Desempenho do sistema

Na área de benchmarks de sistema, o Minisforum Venus Series UM560 XT se saiu muito bem, ficando em terceiro lugar na comparação com o PCMark 10. No entanto, as coisas parecem um pouco diferentes na comparação com o Crossmark. No entanto, é nessa área que todos os dispositivos equipados com AMD têm que dar lugar aos da Intel. O fato de possuir memória RAM DDR4 significa que o Minisforum Venus Series UM560 XT só pode competir com armas bastante contundentes. Os três primeiros lugares vão para os dispositivos com RAM DDR5 mais rápida. No entanto, o desempenho de nossa amostra de análise é decente e pode ser comparado a um UM560 XT. Isso se reflete subjetivamente em termos de desempenho.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +8%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points 0%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -7%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -9%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -7%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -6%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -23%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +41%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +39%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +29%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points -3%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +40%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +37%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points +27%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points -2%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +31%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +27%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points 0%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points -4%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +77%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +74%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +45%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +3%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +20%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -16%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +6%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +23%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -16%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -32%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns * -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns *
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +5%

* ... smaller is better

Latências de DPC

Não encontramos nenhuma latência problemática com o Minisforum Venus Series UM560 XT. Nosso dispositivo de análise lidou perfeitamente com a abertura de várias guias no Edge e com a reprodução de um vídeo de teste em 4K. Usando o Prime95, não conseguimos detectar nenhum aumento de latência.

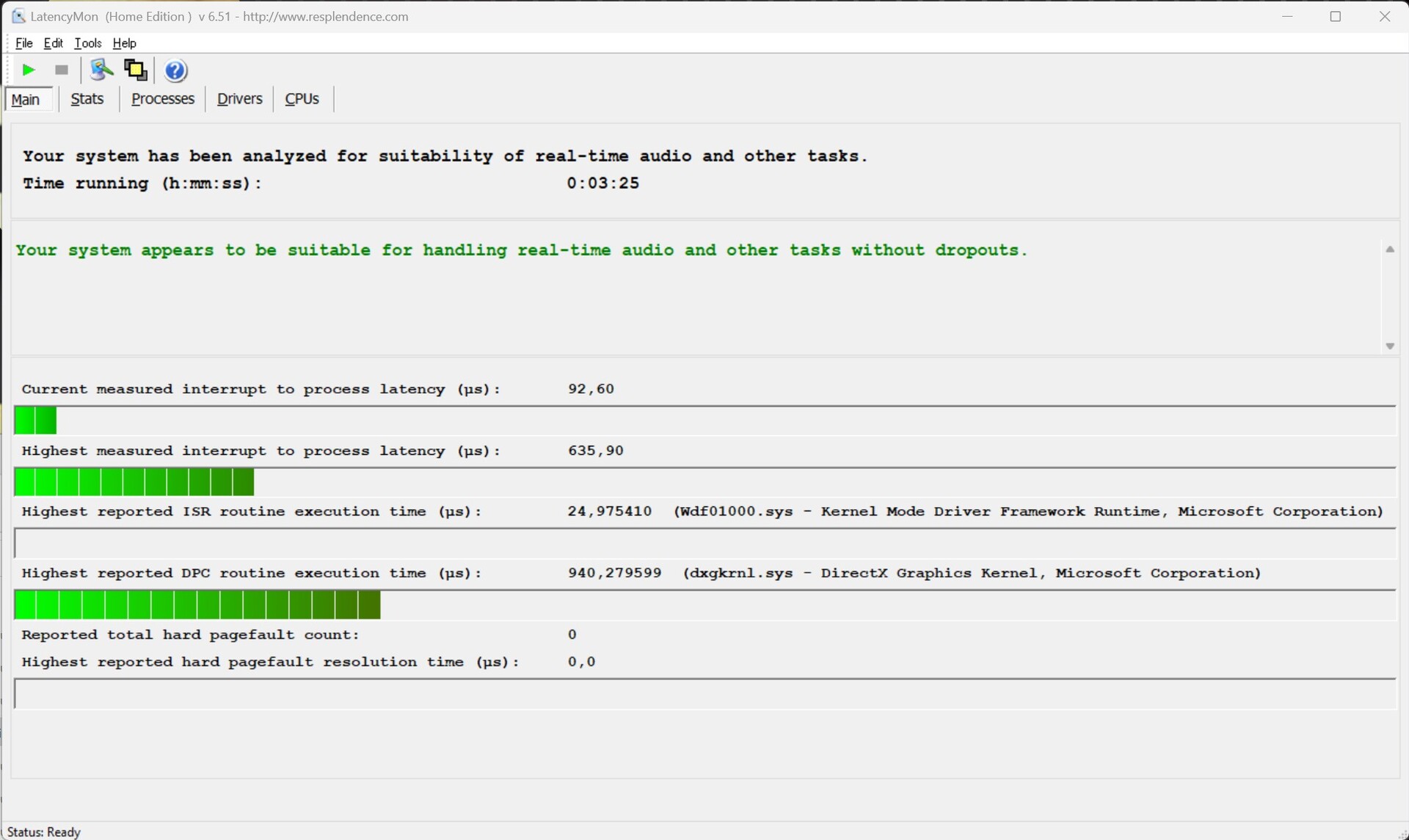

Latência máxima ao abrir várias guias do navegador e reproduzir material de vídeo 4K

Latência máxima após dez segundos de Prime95

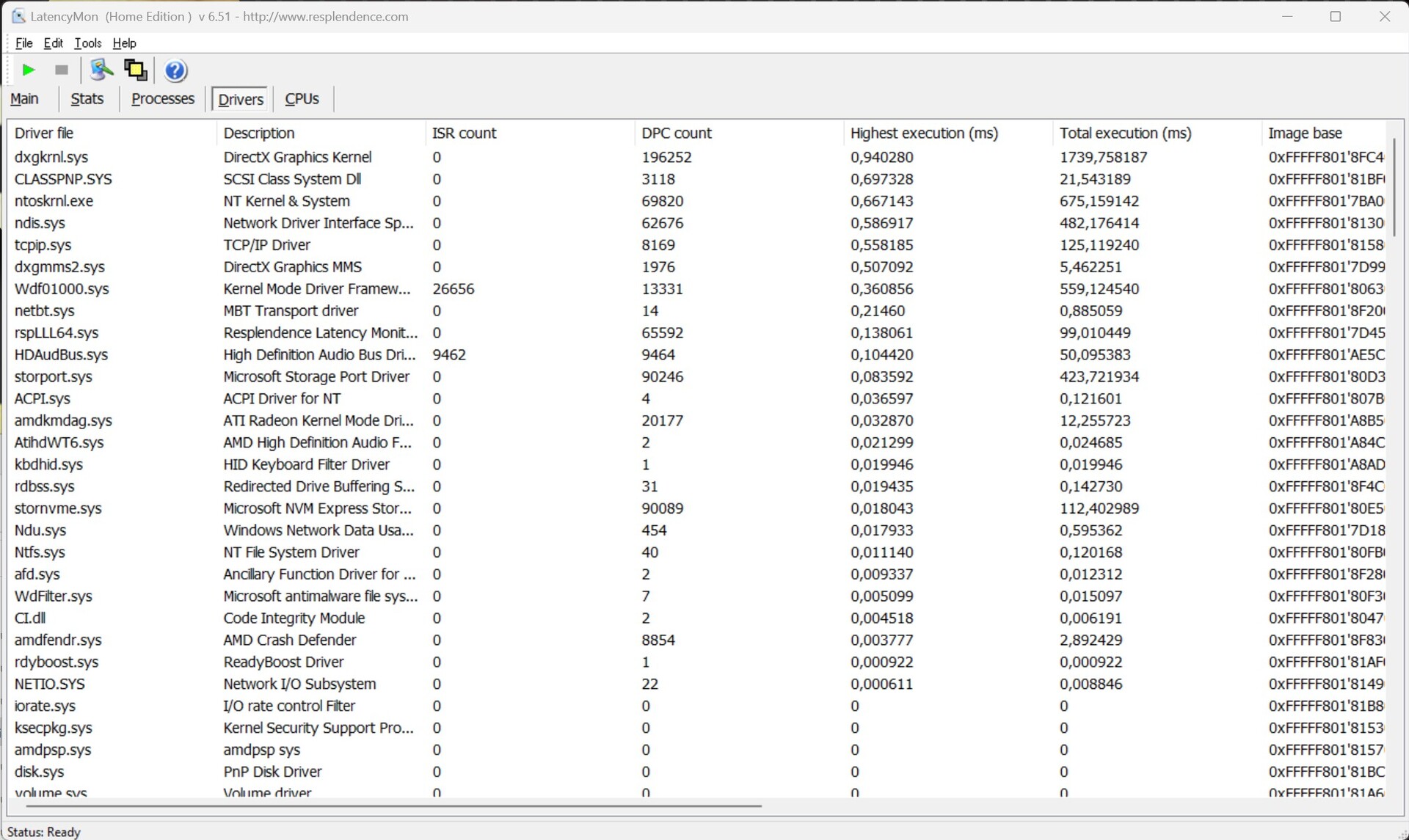

Motoristas ordenados de acordo com a duração mais longa do desempenho

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1359.1 μs * -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -8%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	985.8 μs * -5%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	940.27 μs *
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	795 μs * +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +19%

* ... smaller is better

Armazenamento em massa

O Minisforum equipou nosso modelo de análise do Venus Series UM560 XT com um SSD de 512 GB, sem especificar seus detalhes. As taxas de transferência do modelo instalado refletem sua interface PCIe 3.0. A concorrência, com SSDs PCIe 4.0 mais rápidos, desfruta de uma vantagem inatingível. Sob carga contínua, o Minisforum Venus Series UM560 XT não teve problemas para manter o desempenho da SSD. É nessa área que valeu a pena equipar a SSD com um dissipador de calor relativamente grande. O dispositivo pode abrigar um total de dois dispositivos de armazenamento em massa. Além da interface M.2, há também um conector SATA para uma mídia de armazenamento de 2,5 polegadas. O dispositivo vem completo com os cabos de conexão apropriados.

Outras comparações e benchmarks podem ser encontrados em nossa tabela de comparação.

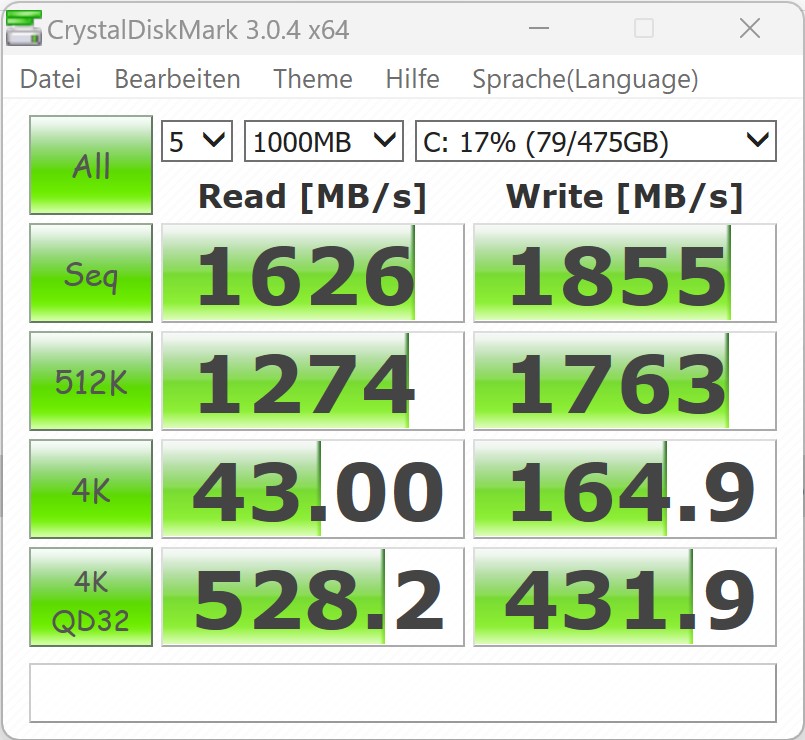

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

ESO512GYLCT

Sequential Read: 1626 MB/s

Sequential Write: 1855 MB/s

512K Read: 1274 MB/s

512K Write: 1763 MB/s

4K Read: 43 MB/s

4K Write: 164.9 MB/s

4K QD32 Read: 528.2 MB/s

4K QD32 Write: 431.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	85.4 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	81.4 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	70.1 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.2 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	47 pt
Average of class Mini PC	44.9 pt
Minisforum Mars Series MC560 ESO512GYLCT	41.2 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	40.6 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.9 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	36.7 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +94%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +71%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +63%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +27%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +23%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +5%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -12%
Minisforum Mars Series MC560 ESO512GYLCT	1310 (1296.67^min - 1309.67^max) MB/s -20%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -29%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +89%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +89%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +81%
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +9%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -5%
Minisforum Mars Series MC560 ESO512GYLCT	1735 (1689.26^min - 1735.49^max) MB/s -8%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -36%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -43%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +104%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +103%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +103%
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +34%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +7%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +4%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -16%
Minisforum Mars Series MC560 ESO512GYLCT	1749 (1565.12^min - 1749.09^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +82%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +82%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +75%
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +15%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	1815 (1770.86^min - 1814.81^max) MB/s -7%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -9%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -38%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -44%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +85%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +83%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +58%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +24%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +15%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +8%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -10%
Minisforum Mars Series MC560 ESO512GYLCT	35.4 (35.09^min - 35.36^max) MB/s -21%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +152%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +149%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +71%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +64%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +36%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +25%
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +10%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s
Minisforum Mars Series MC560 ESO512GYLCT	164.5 (163.24^min - 164.49^max) MB/s -2%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +134%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +133%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +133%
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +19%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -32%
Minisforum Mars Series MC560 ESO512GYLCT	424 (413.36^min - 423.78^max) MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -57%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +110%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +107%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +49%
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s -32%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -42%
Minisforum Mars Series MC560 ESO512GYLCT	934 (912.82^min - 933.64^max) MB/s -42%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s -45%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -59%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s -66%

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +188%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +127%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +112%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +51%
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +13%
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -11%
Minisforum Mars Series MC560 ESO512GYLCT	2491 Points -21%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -21%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -76%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +281%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +151%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +147%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +147%
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +42%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +22%
Minisforum Mars Series MC560 ESO512GYLCT	965 Points +1%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -24%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -31%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +112%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +108%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +85%
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points -8%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -14%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -38%
Minisforum Mars Series MC560 ESO512GYLCT	1037 Points -39%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -59%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +143%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +89%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +85%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +77%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +30%
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +29%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +27%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +3%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s
Minisforum Mars Series MC560 ESO512GYLCT	2181 MB/s -1%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +123%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +87%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +72%
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +12%
Minisforum Mars Series MC560 ESO512GYLCT	1769 MB/s 0%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s -7%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -30%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -50%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -70%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +87%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +86%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +56%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +20%
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s 0%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s
Minisforum Mars Series MC560 ESO512GYLCT	55.1 MB/s 0%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -3%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -5%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -12%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +141%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +134%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +80%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +59%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +38%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +22%
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +11%
Minisforum Mars Series MC560 ESO512GYLCT	160.1 MB/s +5%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -5%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +347%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +176%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +175%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +174%
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +50%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +30%
Minisforum Mars Series MC560 ESO512GYLCT	692 MB/s +2%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -52%
4K-64 Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +119%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +107%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +89%
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s -13%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -23%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s -37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -45%
Minisforum Mars Series MC560 ESO512GYLCT	699 MB/s -49%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -66%
Access Time Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * -166%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * -133%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * -123%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -70%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -68%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * -50%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * -48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * -36%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms *
Minisforum Mars Series MC560 ESO512GYLCT	0.022 ms * +50%
Access Time Write
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * -440%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -392%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * -358%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -325%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -29%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * -29%
Minisforum Mars Series MC560 ESO512GYLCT	0.024 ms * -0%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +4%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +25%

* ... smaller is better

Continuous performance Read: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minisforum Mars Series MC560 ESO512GYLCT: Ø1752 (1554.86-1765.21)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Placa de vídeo

O Minisforum Venus Series UM560 XT tem uma placa de vídeo integrada na forma da AMD Radeon RX Vega 7. Em uma comparação direta, essa iGPU está em um nível de desempenho semelhante ao da Intel Iris Xe Graphics G7 ou da AMD Radeon 660M. A AMD Radeon 680M possui muito mais potência e também pode ser encontrada, entre outros dispositivos, no Minisforum Venus Series UM690.

Outras comparações e benchmarks podem ser encontrados em nossoG Tabela de comparação de PU.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62.3 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	57.4 pt
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	54.3 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	53.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	51.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +82%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points +78%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +16%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +9%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5923 Points -3%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -7%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -8%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -10%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +45%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +37%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +2%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points -6%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	27497 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points -12%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -25%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -29%
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +68%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +67%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +39%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +22%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +16%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +3%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3819 Points -4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -10%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +93%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points +89%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +33%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +23%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +15%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -2%
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1153 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -12%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +94%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +85%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +48%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +30%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +30%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +13%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points
Minisforum Mars Series MC560 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1583 Points -4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -11%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.3 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57.9 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	56.9 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	55.8 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	55 pt
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	50.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	49.4 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +66%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +61%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -6%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.6 fps -11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -15%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +69%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +63%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +21%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +3%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.2 fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -14%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +59%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -3%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.3 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +69%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +58%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +13%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +12%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.2 fps -10%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -14%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -15%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +119%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +79%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +6%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points +5%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +2%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -1%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	2999 Points -8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -23%
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +47%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +36%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +17%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	243 Points -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -13%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -14%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points -18%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -21%
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +55%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +41%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +31%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -9%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	231 Points -11%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -18%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +114%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +77%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -2%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -13%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	790 Points -17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -49%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1945 Points +120%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +67%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +2%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	877 Points -1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -13%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +165%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +119%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +33%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +9%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +2%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	857 Points -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -6%

3DMark 05 Standard		41219 pontos
3DMark 06 Standard Score		27686 pontos
3DMark Vantage P Result		19568 pontos
3DMark 11 Performance		6495 pontos
3DMark Ice Storm Standard Score		130670 pontos
3DMark Cloud Gate Standard Score		23474 pontos
3DMark Fire Strike Score		3632 pontos
3DMark Fire Strike Extreme Score		1639 pontos
3DMark Time Spy Score		1420 pontos
Ajuda

... comparado com

Desempenho em jogos

Não se pode dizer que o Minisforum Venus Series UM560 XT seja adequado para jogos devido ao desempenho 3D limitado da iGPU. No entanto, nosso dispositivo de análise mostrou que alguns jogos podem ser jogados com poucos detalhes graças à sua AMD Radeon RX Vega 7mas, em sua maioria, não na resolução de 1080p. Qualquer pessoa que dê grande importância ao desempenho puro em jogos deve dar uma olhada em um minicomputador com uma placa de vídeo dedicada. Dois bons exemplos também são dispositivos do Minisforum: o HX99Gbem como oNUCXi7.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +75%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +51%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +29%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +15%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	75.4 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -18%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +80%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +71%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +26%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	23 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -15%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +37%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps +24%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	66.4 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -16%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps -20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -22%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +70%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	15.6 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps -15%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +8%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps +6%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	140.7 (5.04^min, 90.9^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -10%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps -19%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +69%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps +56%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	31.7 (15.9^min, 23.3^P1) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -41%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +32%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	57 (51^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -19%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps -23%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +56%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +36%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps 0%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	25 (22^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps -20%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +27%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps 0%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	52 (39^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -12%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps -23%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps +54%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +17%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	24 (20^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps -21%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +4%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	137.7 (114.5^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps -1%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -3%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -10%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps -19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -21%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +36%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +32%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +10%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +9%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	62.1 (57.1^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -2%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps -19%

	baixo	média	alto	ultra
GTA V (2015)	140.7	123	31.7	15
The Witcher 3 (2015)	75.4	45.4	23	14.8
Dota 2 Reborn (2015)	137.7	107.8	62.1	58.2
Final Fantasy XV Benchmark (2018)	40.8	20.2	14.3
X-Plane 11.11 (2018)	49.5	37	31.9
Far Cry 5 (2018)	57	27	25	23
Strange Brigade (2018)	94.4	36.1	30.1	25.4
Far Cry New Dawn (2019)	52	26	24	22
Metro Exodus (2019)	44	19.1	14.1	11.8
Borderlands 3 (2019)	66.4	25.2	15.6	11.9
F1 2020 (2020)	102.7	45.3	35.3	24.7
F1 2021 (2021)	107.9	45.8	35.6	23.7
Far Cry 6 (2021)	47	21.9	18.1	15.3
Tiny Tina's Wonderlands (2022)	33.1	25.1	15.7	11.5
F1 22 (2022)	42.3	38	28.2	19.7

Emissões - Muito silencioso, apesar do bom desempenho

Emissões sonoras

Na área de medições de som, o Minisforum Venus Series UM560 XT tem um desempenho maravilhoso e pertence às máquinas mais silenciosas comparadas aqui. Quando está funcionando em modo inativo ou com pouca carga, o dispositivo funciona quase silenciosamente. Nossos dispositivos de medição só registraram um nível de volume de 33,2 dB(A) sob carga alta.

Barulho

Ocioso		30.3 / 30.5 / 30.6 dB
Carga		32.5 / 33.2 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30 dB(A)

	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M
Noise		-21%	0%	-1%	-5%	-4%	1%	2%	6%
off / environment *	30	30.5 -2%	30.2 -1%	29.4 2%	30.4 -1%	30.5 -2%	29.8 1%	30.2 -1%	29.4 2%
Idle Minimum *	30.3	31.5 -4%	30.4 -0%	29.4 3%	30.9 -2%	31.6 -4%	29.9 1%	30.5 -1%	29.4 3%
Idle Average *	30.5	32.6 -7%	30.4 -0%	29.5 3%	31.5 -3%	31.6 -4%	30.1 1%	30.5 -0%	29.4 4%
Idle Maximum *	30.6	33.8 -10%	30.4 1%	29.7 3%	31.5 -3%	31.6 -3%	30.2 1%	30.5 -0%	29.5 4%
Load Average *	32.5	49.3 -52%	31.8 2%	34.6 -6%	37.5 -15%	33.9 -4%	32.1 1%	30.5 6%	29.6 9%
Load Maximum *	33.2	50.9 -53%	33.4 -1%	36.1 -9%	34.1 -3%	34.4 -4%	32.5 2%	30.5 8%	29.6 11%

* ... smaller is better

Temperatura

O gabinete do Minisforum Venus Series UM560 XT só esquentou um pouco quando estava ocioso. Mas, mesmo sob carga, a temperatura do gabinete permaneceu principalmente na zona verde. Um aquecimento perceptível pode ser sentido na área das saídas da ventoinha e isso pode ser observado perfeitamente nas imagens da nossa câmera de imagem térmica.

No teste de estresse, também demos uma olhada nos componentes integrados. O SoC definido de forma conservadora (máx. 40 watts) foi mantido sob controle, mesmo no teste de estresse. Não observamos nenhuma temperatura acima de 77,6 °C em nosso dispositivo de análise. Como a potência máxima do pacote só está disponível por um curto período, as temperaturas máximas só são atingidas por um curto período. No teste de estresse, o SoC operou a 67 °C.

Minisforum Série Venus UM560 XT vs. teste de estresse

Minisforum Venus Series UM560 XT vs. teste de estresse (PSU)

Consumo de energia

Em nossa comparação, o Minisforum Venus Series UM560 XT é o dispositivo mais econômico depois do Minisforum Mars Series MC560e isso o ajuda a garantir o segundo lugar. A vantagem sobre a concorrência às vezes é considerável. Quando ocioso, o Minisforum geralmente tem o consumo de energia do UM560 XT sob controle e é nessa área que o nosso dispositivo de análise se diferencia de seus pares. Com 73,4 watts durante o teste de estresse, vimos brevemente o valor mais alto que, no entanto, não foi permanente. Com 45,1 watts, os requisitos de energia se estabilizaram em relação aos da concorrência, com potência de SoC semelhante. A fonte de alimentação pode fornecer até 120 watts e forneceu energia de forma confiável e consistente à nossa unidade de teste. Isso significa que há espaço suficiente para a segunda mídia de armazenamento opcional.

Consumo de energia

desligado	0.7 / 1 Watt
Ocioso	6.6 / 6.8 / 7.2 Watt
Carga	45.1 / 73.4 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minisforum Mars Series MC560 R5 5600U, Vega 7	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Average AMD Radeon RX Vega 7	Average of class Mini PC
Power Consumption		-12%	10%	-62%	-55%	-39%	-10%	-88%	-21%	7%	-51%
Idle Minimum *	6.6	8.4 -27%	6.2 6%	10.4 -58%	9.9 -50%	8.7 -32%	5 24%	12.1 -83%	8 -21%	4.66 ?(2.6 - 8.4, n=52) 29%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -48%
Idle Average *	6.8	8.7 -28%	6.3 7%	12.3 -81%	11 -62%	9.6 -41%	7 -3%	13 -91%	8.7 -28%	7.56 ?(4.8 - 10.7, n=52) -11%	11.7 ?(1.9 - 63, n=91, last 2 years) -72%
Idle Maximum *	7.2	9.3 -29%	7.5 -4%	12.4 -72%	11.2 -56%	10.5 -46%	10.7 -49%	18.2 -153%	8.8 -22%	8.95 ?(5.6 - 13.8, n=52) -24%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -104%
Load Average *	45.1	46.4 -3%	41.3 8%	72.9 -62%	74.2 -65%	65.8 -46%	50.3 -12%	70.6 -57%	54.6 -21%	38.7 ?(21.6 - 54.9, n=53) 14%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -15%
Load Maximum *	73.4	52 29%	49 33%	101.2 -38%	103.2 -41%	94.5 -29%	82 -12%	113 -54%	83.2 -13%	51.9 ?(31 - 73.4, n=52) 29%	86 ?(18.1 - 271, n=91, last 2 years) -17%

* ... smaller is better

Power consumption with an external monitor

Minisforum Venus Series UM560 XT; Prime95 V2810 Stress (external Monitor): Ø64.9 (63.1-73.4)

Minisforum Venus Series UM560 XT; Cinebench R15 Multi (external Monitor): Ø65.1 (61.9-70.2)

Minisforum Venus Series UM560 XT; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø45.2 (42.7-58.8)

Minisforum Venus Series UM560 XT; Idle 1min (external Monitor): Ø7.26 (6.46-10.2)

Pro

+ design elegante

+ baixos requisitos de energia

+ desempenho consistente da SSD

+ gabinete muito compacto

+ baixas latências de DPC

+ três monitores (máx.) podem ser usados simultaneamente

+ muitas portas USB

+ suporte de metal sólido

+ Opção de montagem VESA

+ praticamente inaudível sob carga

+ Preço baixo

Contra

- sem leitor de cartão SD

- sem Thunderbolt / USB4

Veredicto - Um mini PC econômico com bom desempenho

Análise do Minisforum Venus Series UM560 XT - fornecido por Minisforum

Quando chegamos à nossa análise do Minisforum Venus Series UM560 XT, sabíamos que não estávamos lidando com um concorrente desconhecido, pois já estávamos convencidos e impressionados com o desempenho do modelo superior. Baseado no AMD Ryzen 5 5600H, o fabricante equipou esse modelo com um SoC mais antigo que, no momento, ainda é capaz de oferecer um bom desempenho. No entanto, no que diz respeito à conexão, você terá que passar sem o USB4. No entanto, em termos de números, as muitas portas externas disponíveis dissipam rapidamente qualquer preocupação com relação à conectividade comprometida. Em termos de qualidade de construção, não encontramos falhas, embora a abertura do dispositivo por meio dos parafusos cobertos tenha nos dado motivos para reclamar. Mas, pelo menos, o Minisforum Venus Series UM560 XT também pode ser adquirido como uma versão básica. Isso torna necessário abrir o gabinete. Se, como resultado, os pés colados perderem sua estabilidade, isso inevitavelmente resultará em um defeito visual pré-programado.

O Minisforum Venus Series UM560 XT nos impressionou com seu excelente desempenho e preço relativamente baixo. No entanto, o dispositivo não possui as portas mais modernas, como a Thunderbolt.

Gostamos do SSD grande com resfriamento passivo e da qualidade de construção sólida, bem como do suporte estável. Vale a pena mencionar as baixas emissões da máquina, pois o consumo de energia e as emissões de ruído do mini PC podem ser considerados pontos fortes. Ao fazer isso, o sistema obtém bons resultados onde é importante. Para uso diário no escritório, o Minisforum Venus Series UM560 XT também é adequado como cliente de streaming, pois as baixas latências permitem a reprodução de vídeos de alta resolução sem problemas. No entanto, o fabricante também desperdiçou o potencial do dispositivo devido ao consumo de energia limitado. Em vez disso, foi dado mais valor a um sistema mais equilibrado que seja silencioso ao realizar tarefas cotidianas, mas que ainda consiga oferecer desempenho suficiente sem exigir muita energia. Em nossa opinião, esse objetivo foi alcançado. Um ponto de venda adicional provavelmente pode ser encontrado na forma de preço. Por apenas US$ 419, nosso modelo de análise do Minisforum Venus Series UM560 XT com 16 GB de RAM e 512 GB de armazenamento não deixará um buraco enorme no orçamento doméstico. Nessa área, todos os concorrentes atuais comparados aqui em nossa análise têm dificuldades para acompanhar o ritmo. Qualquer pessoa para quem o Thunderbolt não seja uma necessidade absoluta no momento e que também não tenha nenhum uso futuro para ele pode comprar essa máquina com confiança.

Preço e disponibilidade

O Minisforum Venus Series UM560 XT pode ser adquirido diretamente no Minisforum. Atualmente, estão sendo oferecidos descontos atraentes com impostos já incluídos. Isso significa que nosso dispositivo de teste pode ser adquirido por US$ 419. Sem nenhum desconto, o preço fica em torno de US$ 549. No momento, o modelo barebones mais barato está com desconto de US$ 329.

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Minisforum Venus Series UM560 XT - 2023-05-22 05/22/2023 v7
Sebastian Bade

Acabamento

81 / 98 → 83%

Conectividade

62 / 81 → 76%

Peso

81%

Desempenho do jogos

67%

Desempenho da aplicação

94%

Ruído

87%

Médio

77%

82%

Mini PC - Médio equilibrado

Análise do Minisforum Venus Series UM560 XT Desktop PC: Um mini PC com um SoC AMD Cezanne a um preço acessível!

Possíveis concorrentes em comparação

Minisforum Detalhes do Venus Series UM560 XT

Caso

Comparação de tamanho

Recursos

Comunicação

Desempenho - AMD baseado na geração Cezanne

Condições de teste

Processador

Minisforum Venus Series UM560 XT no teste multi-loop do Cinebench R15

Desempenho do sistema

Latências de DPC

Armazenamento em massa

Continuous performance Read: DiskSpd Read Loop, Queue Depth 8

Placa de vídeo

Desempenho em jogos

Emissões - Muito silencioso, apesar do bom desempenho

Emissões sonoras

Temperatura

Consumo de energia

Power consumption with an external monitor

Pro

Contra

Veredicto - Um mini PC econômico com bom desempenho

Preço e disponibilidade

Transparency

More articles related to this device
