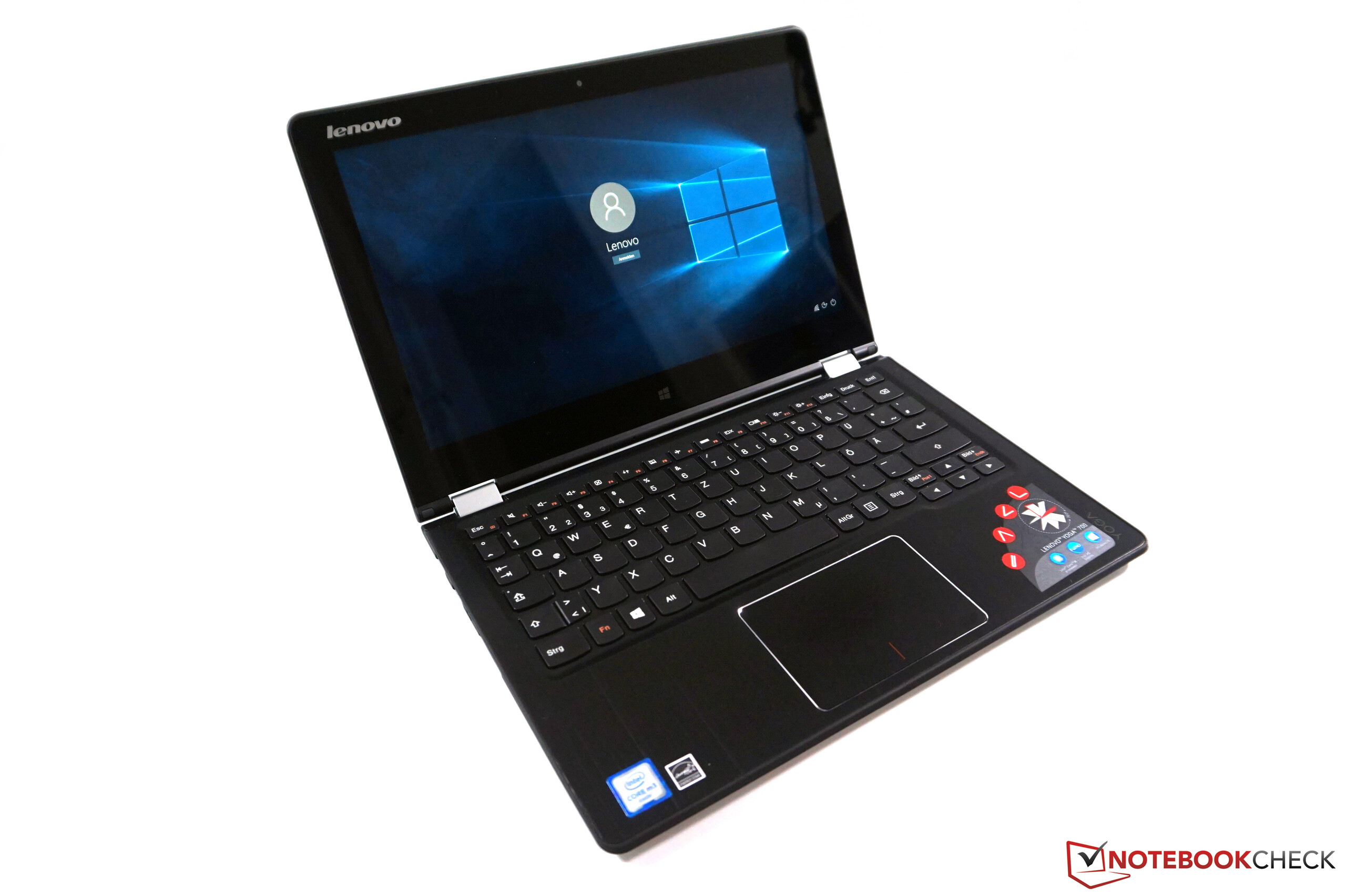

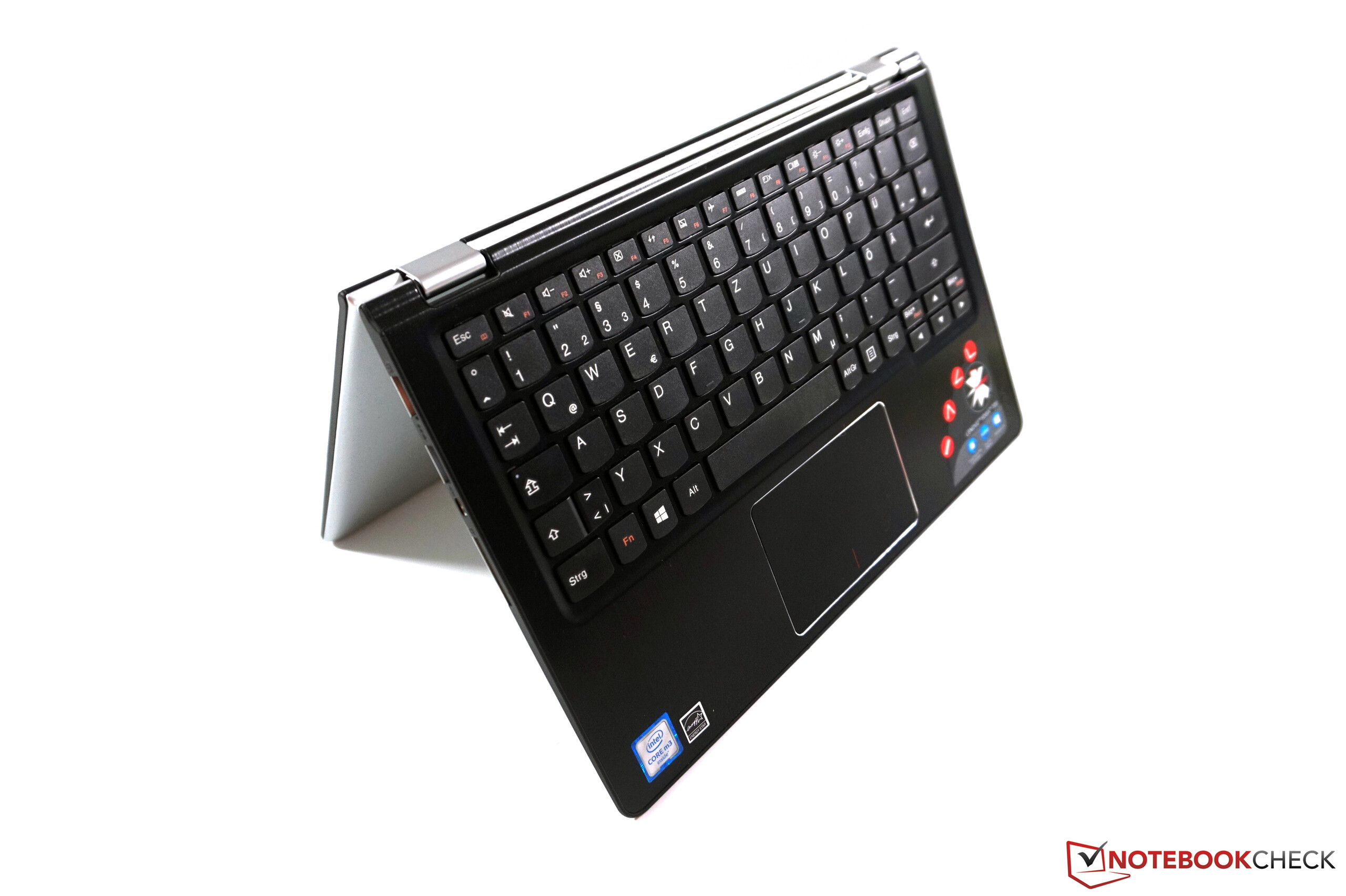

Breve Análise do Conversível Lenovo Yoga 700-11ISK

Name: Lenovo Yoga 700-11ISK
Brand: Lenovo

Resfriamento fraco. O pequeno Lenovo Yoga 700 é um companheiro portável e muito versátil graças à sua tela de 11,6 polegadas e modos diferentes de operação. No entanto, existem problemas em termos de dispositivos de entrada e da solução de resfriamento passivo, porque o processador não consegue utilizar todo seu potencial.

Andreas Osthoff, ✓ Tanja Hinum (traduzido por Ricardo Soto), Published 02/19/2017 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Laptop / Notebook Windows Touchscreen Skylake

Test device courtesy of Lenovo Deutschland

Download your licensed rating image as PNG / SVG

Lenovo Yoga 700-11ISK (Yoga 700 Serie)

Processador

Intel Core m3-6Y30 2 x 0.9 - 2.2 GHz, Skylake

Placa gráfica

Intel HD Graphics 515

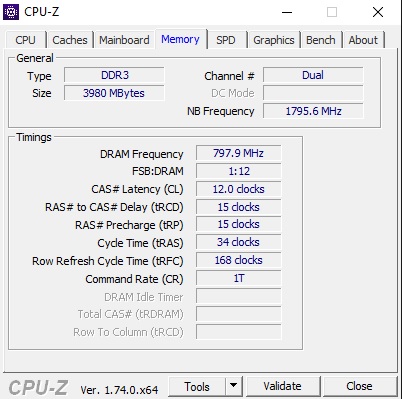

Memória

4 GB

, LPDDR3-1866, dual-channel, soldada

Pantalha

11.60 polegadas 16:9, 1920 x 1080 pixel 190 PPI, capacitiva, CMN1137, IPS, Brilhante: sim

placa mãe

Intel Skylake-Y Premium PCH

Disco rígido

Samsung SSD PM871 MZNLN256HCHP, 256 GB

, 180 GB livre

Placa de Som

Intel Skylake-U/Y PCH - High Definition Audio

Conexões

2 USB 2.0, 1 USB 3.0, 1 HDMI, Conexões Audio: Áudio de 3,5 mm, Card Reader: SDHC, SDXC, SD, MMC, Sensores: Sensor de posição

Funcionamento em rede

Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 15.8 x 290 x 197

Bateria

40 Wh, 4770 mAh Lítio-Polímero, 4 células, Duração da bateria (de acordo com o fabricante): 7 h

Sistema Operativo

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 0.9 MP

Características adicionais

Alto falantes: Stereo, Teclado: Chiclet, Iluminação do Teclado: não, Adaptador de força, panfletos de serviço, Lenovo Tools, Dolby Audio, Office 365 (teste), McAfee LiveSafe (teste), 24 Meses Garantia, fanless

peso

1.094 kg, Suprimento de energia: 201 g

Preço

800 Euro

Links

Lenovo página inicial
Lenovo Seção de notebook

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

HP Pavilion x2 12-b000ng Lenovo Yoga 3 11 80J8001WGE Lenovo Yoga 700-11ISK Acer Aspire Switch Alpha 12 SA5-271-56HM Microsoft Surface Pro 4, Core m3 DIN A4 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13-9365 2-in-1	61.6 MB/s +319%
Lenovo Yoga 700-11ISK	14.7 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13-9365 2-in-1	87.2 MB/s +223%
Lenovo Yoga 700-11ISK	27 MB/s

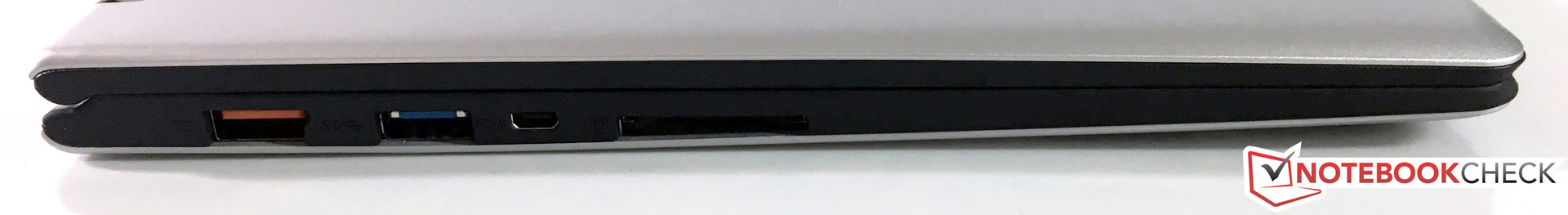

Left side: Power/USB 2.0, USB 3.0, mini-HDMI, SD-card reader

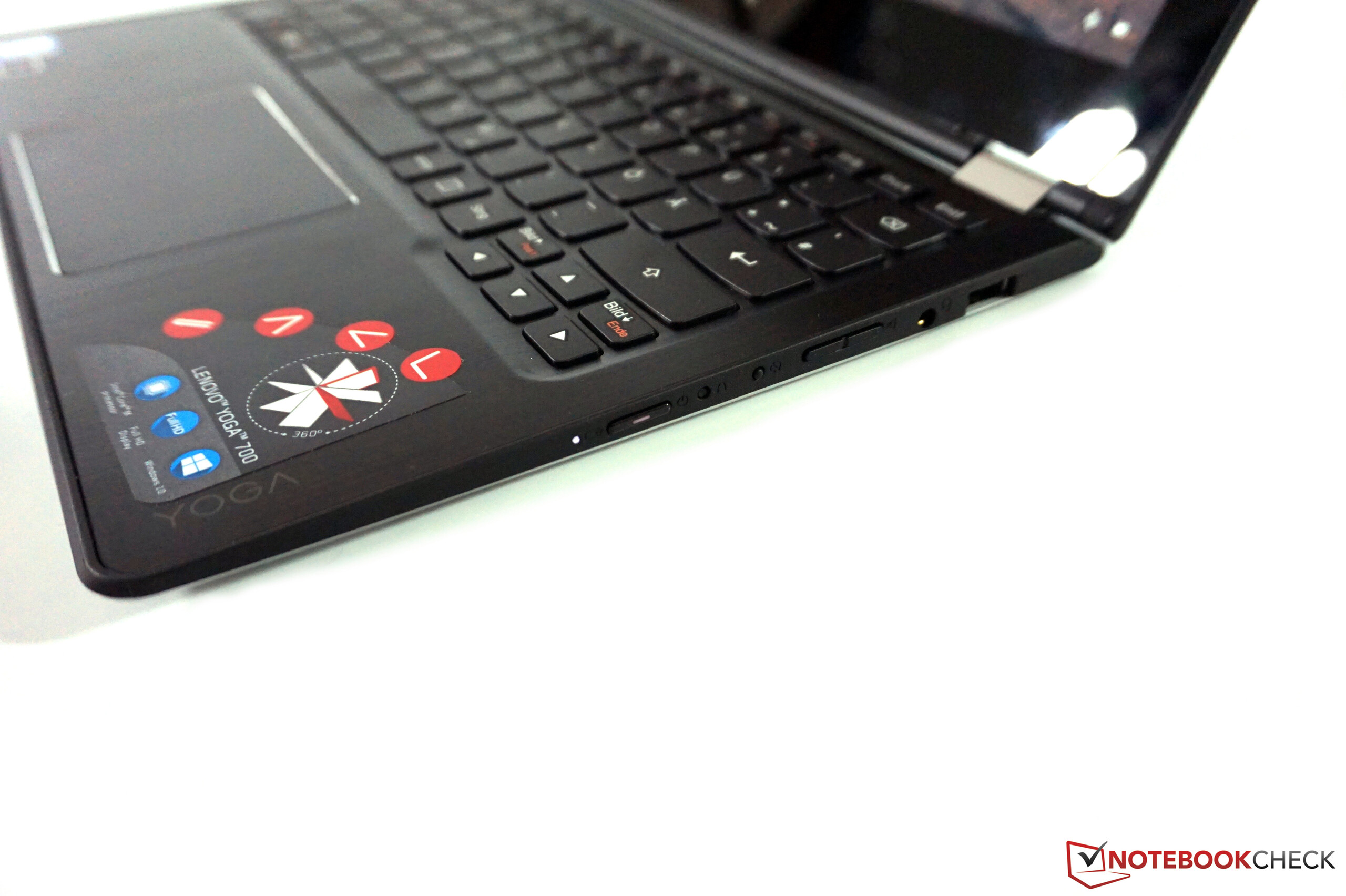

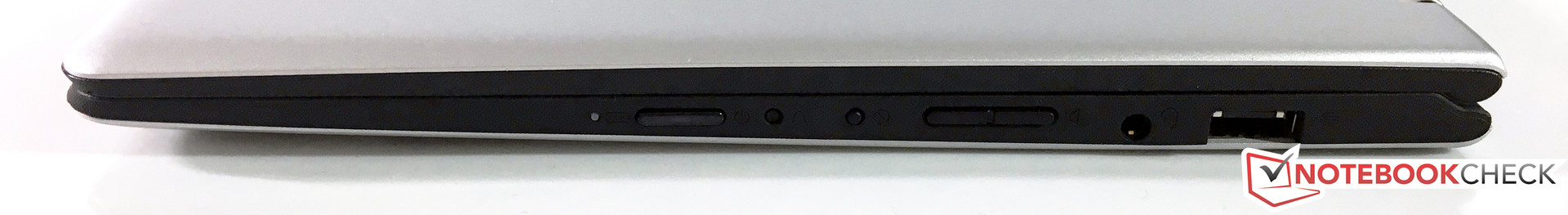

Right side: Power button, One-Key recovery, volume rocker, 3.5 mm audio, USB 2.0

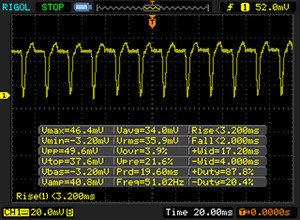

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

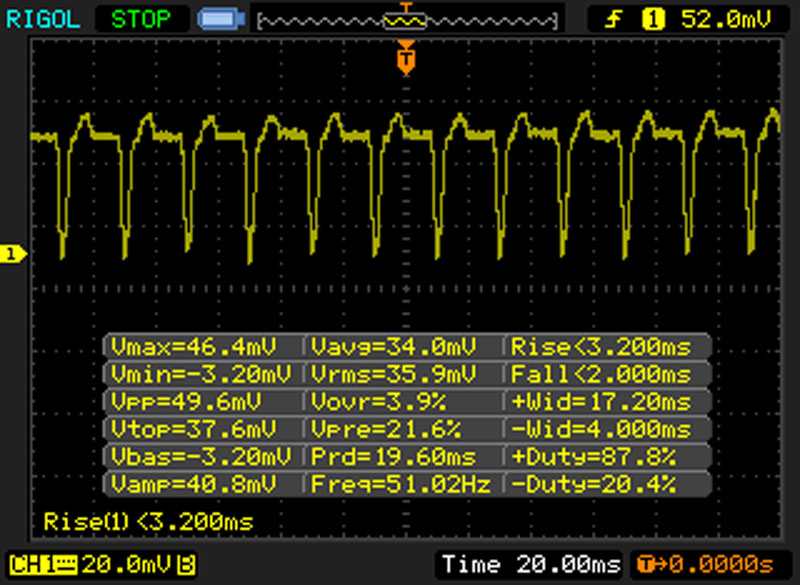

Screen flickering / PWM detected

50 Hz

≤ 70 % brightness setting

The display backlight flickers at 50 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 70 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 50 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured.


270 cd/m²	286 cd/m²	284 cd/m²
259 cd/m²	300 cd/m²	271 cd/m²
275 cd/m²	317 cd/m²	291 cd/m²

Distribuição do brilho

CMN1137 tested with X-Rite i1Pro 2

Máximo: 317 cd/m² (Nits) Médio: 283.7 cd/m² Minimum: 4 cd/m²
iluminação: 82 %
iluminação com acumulador: 300 cd/m²
Contraste: 909:1 (Preto: 0.33 cd/m²)
ΔE Color 7.87 | 0.5-29.43 Ø5
ΔE Greyscale 8.45 | 0.57-98 Ø5.3
64% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
45.17% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.2% sRGB (Argyll 2.2.0 3D)
43.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.42

Download Arquivo ICC (X-Rite i1Pro 2)

	Lenovo Yoga 700-11ISK HD Graphics 515, 6Y30, Samsung SSD PM871 MZNLN256HCHP	HP Pavilion x2 12-b000ng HD Graphics 515, 6Y30, SanDisk Z400s SD8SNAT-128G	Acer Aspire Switch Alpha 12 SA5-271-56HM HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2	Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	Lenovo Yoga 3 11 80J8001WGE HD Graphics 5300, 5Y10c, Lite-On IT L8T-128L9G
Display		17%	49%	53%	2%
Display P3 Coverage	43.6	53.2 22%	65.5 50%	67.5 55%	44.54 2%
sRGB Coverage	64.2	72.4 13%	96.1 50%	96.6 50%	65.7 2%
AdobeRGB 1998 Coverage	45.17	52.9 17%	66.9 48%	69 53%	46.15 2%
Response Times		-54%	611%	-54%
Response Time Grey 50% / Grey 80% *	23 ?(13, 10)	38 ?(17, 21) -65%	20 ?(5, 15, detail 5 schraffiert) 13%	46 ?(17.2, 28.8) -100%
Response Time Black / White *	19 ?(11, 8)	27 ?(14, 13) -42%	34 ?(15, 19, PWM@100% mit/ohne PSU) -79%	31 ?(6, 25.2) -63%
PWM Frequency	50 ?(70)		1000 ?(100) 1900%	50 ?(50) 0%
Screen		7%	17%	41%	-0%
Brightness middle	300	314 5%	345 15%	389.2 30%	290 -3%
Brightness	284	308 8%	328 15%	392 38%	286 1%
Brightness Distribution	82	93 13%	91 11%	92 12%	86 5%
Black Level *	0.33	0.48 -45%	0.38 -15%	0.27 18%	0.42 -27%
Contrast	909	654 -28%	908 0%	1441 59%	690 -24%
Colorchecker dE 2000 *	7.87	6.12 22%	8.4 -7%	3.61 54%	6.5 17%
Colorchecker dE 2000 max. *	17.75	10.92 38%	11.9 33%
Greyscale dE 2000 *	8.45	6.1 28%	4.3 49%	3.8 55%	6.35 25%
Gamma	2.42 ^91%	2.35 ^94%	2.63 ^84%	2.16 ^102%	2.44 ^90%
CCT	6856 ^95%	7391 ^88%	7368 ^88%	5969 ^109%	7156 ^91%
Color Space (Percent of AdobeRGB 1998)	41	46.81 14%	62 51%	63 54%	42 2%
Color Space (Percent of sRGB)	64	71.74 12%		97 52%	65 2%
Total Average (Program / Settings)		-10% / 1%	226% / 142%	13% / 24%	1% / 0%

* ... smaller is better

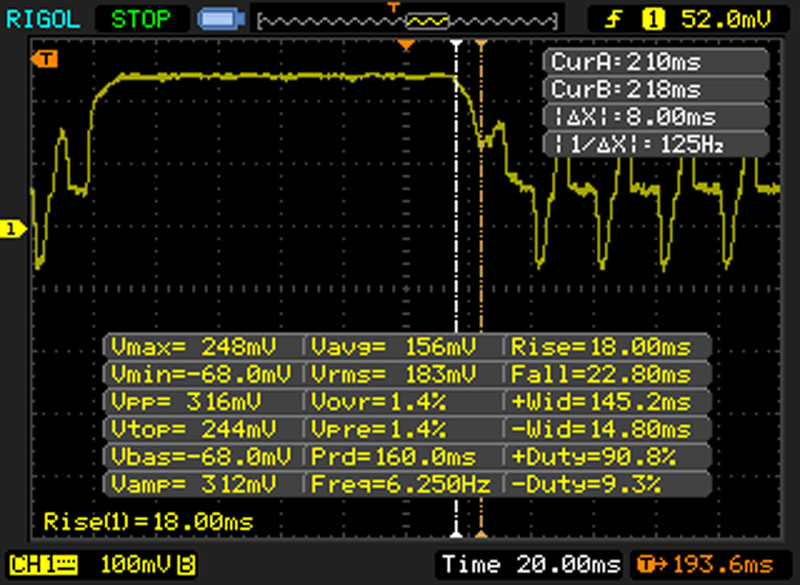

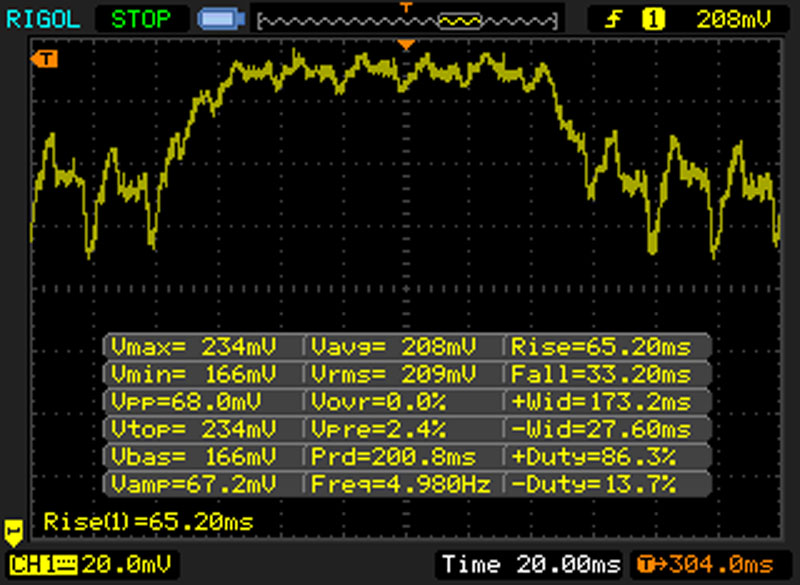

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

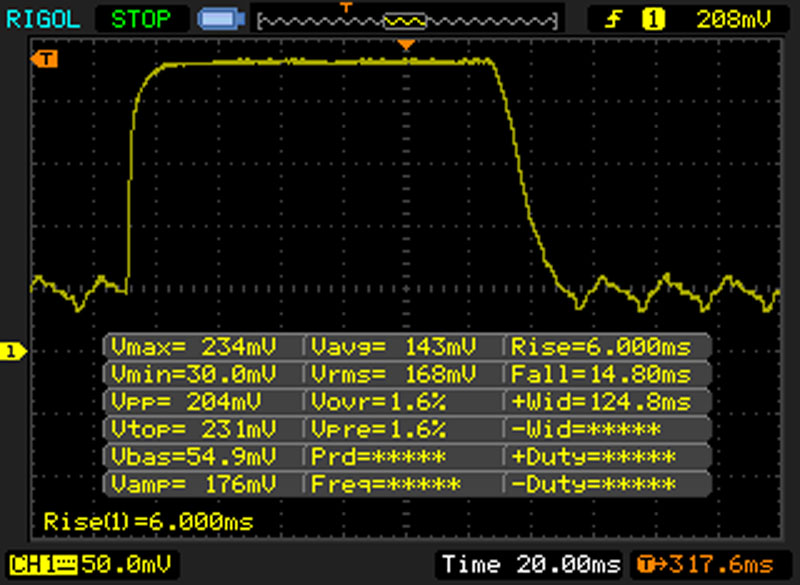

↔ Response Time Black to White
19 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
19 ms ... rise ↗ and fall ↘ combined	↘ 8 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.5 ms).

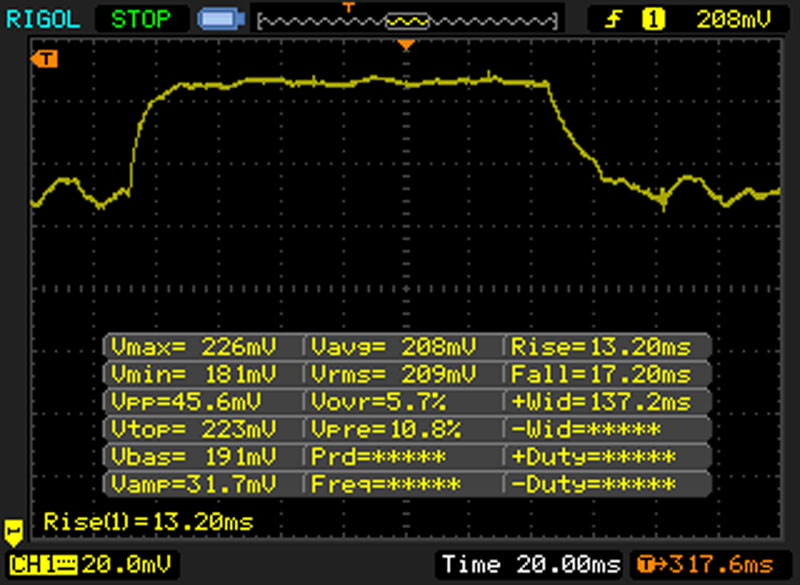

↔ Response Time 50% Grey to 80% Grey
23 ms ... rise ↗ and fall ↘ combined	↗ 13 ms rise
23 ms ... rise ↗ and fall ↘ combined	↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 29 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.7 ms).

Cinebench R15
CPU Multi 64Bit
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel Core i5-6200U	289 Points +198%
HP Pavilion x2 12-b000ng Intel Core m3-6Y30	216 Points +123%
Microsoft Surface Pro 4, Core m3 Intel Core m3-6Y30	206 Points +112%
Lenovo Yoga 3 11 80J8001WGE Intel Core M-5Y10c	131 Points +35%
Lenovo Yoga 700-11ISK Intel Core m3-6Y30	97 Points
CPU Single 64Bit
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel Core i5-6200U	114 Points +61%
HP Pavilion x2 12-b000ng Intel Core m3-6Y30	92 Points +30%
Microsoft Surface Pro 4, Core m3 Intel Core m3-6Y30	88 Points +24%
Lenovo Yoga 700-11ISK Intel Core m3-6Y30	71 Points
Lenovo Yoga 3 11 80J8001WGE Intel Core M-5Y10c	57 Points -20%

Cinebench R15 CPU Single 64Bit

71 Points

Cinebench R15 CPU Multi 64Bit

97 Points

Cinebench R15 OpenGL 64Bit

18.93 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Ajuda

... comparado com

PCMark 8
Home Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, 4096, Kingston RBU-SNS8152S3256GG2	3281 Points +25%
HP Pavilion x2 12-b000ng 6Y30, 4096, SanDisk Z400s SD8SNAT-128G	2831 Points +8%
Lenovo Yoga 700-11ISK 6Y30, 4096, Samsung SSD PM871 MZNLN256HCHP	2625 Points
Microsoft Surface Pro 4, Core m3 6Y30, 4096, Samsung MZFLV128 NVMe	2426 Points -8%
Lenovo Yoga 3 11 80J8001WGE 5Y10c, 8192, Lite-On IT L8T-128L9G	2114 Points -19%
Creative Score Accelerated v2
Lenovo Yoga 700-11ISK 6Y30, 4096, Samsung SSD PM871 MZNLN256HCHP	3202 Points
HP Pavilion x2 12-b000ng 6Y30, 4096, SanDisk Z400s SD8SNAT-128G	3198 Points 0%
Microsoft Surface Pro 4, Core m3 6Y30, 4096, Samsung MZFLV128 NVMe	2968 Points -7%
Work Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, 4096, Kingston RBU-SNS8152S3256GG2	3996 Points +7%
HP Pavilion x2 12-b000ng 6Y30, 4096, SanDisk Z400s SD8SNAT-128G	3773 Points +1%
Lenovo Yoga 700-11ISK 6Y30, 4096, Samsung SSD PM871 MZNLN256HCHP	3729 Points
Lenovo Yoga 3 11 80J8001WGE 5Y10c, 8192, Lite-On IT L8T-128L9G	3253 Points -13%
Microsoft Surface Pro 4, Core m3 6Y30, 4096, Samsung MZFLV128 NVMe	3186 Points -15%

PCMark 8 Home Score Accelerated v2		2625 pontos
PCMark 8 Creative Score Accelerated v2		3202 pontos
PCMark 8 Work Score Accelerated v2		3729 pontos
Ajuda

	Lenovo Yoga 700-11ISK Samsung SSD PM871 MZNLN256HCHP	HP Pavilion x2 12-b000ng SanDisk Z400s SD8SNAT-128G	Acer Aspire Switch Alpha 12 SA5-271-56HM Kingston RBU-SNS8152S3256GG2	Microsoft Surface Pro 4, Core m3 Samsung MZFLV128 NVMe	Lenovo Yoga 3 11 80J8001WGE Lite-On IT L8T-128L9G
CrystalDiskMark 3.0		-33%	-13%	-19%	-15%
Write 4k QD32	268.6	173.2 -36%	197.1 -27%	149.2 -44%	216.7 -19%
Read 4k QD32	324.2	136.4 -58%	272 -16%	243.7 -25%	222.3 -31%
Write 4k	73.6	57.9 -21%	76.8 4%	68 -8%	34.96 -52%
Read 4k	31.27	21.12 -32%	29.3 -6%	30.14 -4%	23 -26%
Write 512	301.9	176.2 -42%	201 -33%	158.2 -48%	318.9 6%
Read 512	385.7	226.2 -41%	374.9 -3%	313.1 -19%	352.4 -9%
Write Seq	302.8	184.3 -39%	199.9 -34%	158.2 -48%	322 6%
Read Seq	456.2	477.3 5%	518 14%	663 45%	468.7 3%

CrystalDiskMark 3.0

AS SSD

Samsung SSD PM871 MZNLN256HCHP

Sequential Read: 456.2 MB/s

Sequential Write: 302.8 MB/s

512K Read: 385.7 MB/s

512K Write: 301.9 MB/s

4K Read: 31.27 MB/s

4K Write: 73.6 MB/s

4K QD32 Read: 324.2 MB/s

4K QD32 Write: 268.6 MB/s

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	1585 Points +74%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	1344 Points +48%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	1260 Points +38%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	911 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	498 Points -45%
1280x720 Performance GPU
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	1428 Points +65%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	1206 Points +40%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	1133 Points +31%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	863 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	458 Points -47%

3DMark
1280x720 Cloud Gate Standard Score
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	5608 Points +107%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	4604 Points +70%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	4330 Points +60%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	2705 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	1361 Points -50%
1280x720 Cloud Gate Standard Graphics
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	7307 Points +68%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	6597 Points +51%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	6178 Points +42%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	4357 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	2895 Points -34%
1920x1080 Fire Strike Score
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	740 Points +59%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	671 Points +44%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	466 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	331 Points -29%
1920x1080 Fire Strike Graphics
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	810 Points +56%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	740 Points +43%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	519 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	389 Points -25%

3DMark 11 Performance		911 pontos
3DMark Cloud Gate Standard Score		2705 pontos
3DMark Fire Strike Score		466 pontos
Ajuda

... comparado com

	baixo	média	alto	ultra
Tomb Raider (2013)	27.9	14.8
BioShock Infinite (2013)	21.8	12
The Witcher 3 (2015)	5.1

Carga Máxima

Inatividade


34.4 °C	36.8 °C	33.8 °C
32 °C	34 °C	31.3 °C
27.1 °C	26.2 °C	27.7 °C

Máximo: 36.8 °C
Médio: 31.5 °C


35.7 °C	42 °C	37 °C
30.4 °C	35 °C	31.9 °C
27.1 °C	27.4 °C	27.1 °C

Máximo: 42 °C
Médio: 32.6 °C

alimentação elétrica 39.2 °C | Temperatura do quarto 22 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42 °C / 108 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+0.3 °C / 0.6 F).

Consumo de energia

desligado	0.35 / 0.45 Watt
Ocioso	4.3 / 7.1 / 7.2 Watt
Carga	14.6 / 15.7 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo Yoga 700-11ISK 40 Wh	HP Pavilion x2 12-b000ng 33 Wh	Acer Aspire Switch Alpha 12 SA5-271-56HM 37 Wh	Lenovo Yoga 3 11 80J8001WGE 34 Wh
Power Consumption		-28%	-62%	23%
Idle Minimum *	4.3	5.3 -23%	7.3 -70%	2.9 33%
Idle Average *	7.1	8.2 -15%	10 -41%	5.5 23%
Idle Maximum *	7.2	9 -25%	10.15 -41%	5.7 21%
Load Average *	14.6	20.7 -42%	25.2 -73%	11.3 23%
Load Maximum *	15.7	21.4 -36%	29.3 -87%	13.6 13%

* ... smaller is better

Tempo de Execução da Bateria

Ocioso (sem WLAN, min brilho)		14h 24min
WiFi Websurfing		6h 57min
Big Buck Bunny H.264 1080p		7h 42min
Carga (máximo brilho)		3h 46min

	Lenovo Yoga 700-11ISK 40 Wh	HP Pavilion x2 12-b000ng 33 Wh	Acer Aspire Switch Alpha 12 SA5-271-56HM 37 Wh	Microsoft Surface Pro 4, Core m3 38 Wh	Lenovo Yoga 3 11 80J8001WGE 34 Wh
Battery Runtime		-41%	-25%	-10%	7%
Reader / Idle	864	474 -45%	640 -26%	791 -8%	856 -1%
H.264	462	311 -33%	468 1%
WiFi v1.3	417	285 -32%	321 -23%	488 17%	443 6%
Load	226	109 -52%	112 -50%	138 -39%	260 15%

Pro

+ Pequeno e versátil

+ Tela IPS brilhante

+ Baixas temperaturas

+ Operação silenciosa

+ Boas durações da bateria

Contra

- baixo desempenho devido ao resfriamento fraco

- Dispositivos de entrada ruins

- Flickering PWM em frequências muito baixas

- A tampa da tela não é muito estável

- Apenas 1 USB 3.0

In review: Lenovo Yoga 700 11ISK. Test model courtesy of Lenovo Germany.

O Lenovo Yoga 700-11ISK é um conversível pequeno e versátil. A Lenovo aumentou o desempenho em comparação com o predecessor, graças a componentes mais modernos, o que melhorou a reprodução de mídia, em particular. Você ainda deveria considerar que o conversível está limitado principalmente para aplicativos simples. O modelo de teste provavelmente não seja a escolha correta se planeja editar filmes ou rodar múltiplos aplicativos simultaneamente.

Outras vantagens do Yoga 700-11ISK incluem o resfriamento passivo e, portanto a operação silenciosa. A tela IPS é brilhante e oferece amplos ângulos de visão, mas alguns usuários podem ter problemas com o flickering PWM.

Pequeno, leve e portável – o Lenovo Yoga 700-11ISK é uma boa opção para tarefas simples, mas o teclado é particularmente decepcionante.

As duas maiores desvantagens são o teclado e o desempenho. Os dispositivos de entrada oferecem pouca resposta e é um dos piores teclado que analisamos até agora. Nós também esperamos mais em termos de desempenho, porque inclusive o eficiente Core m3 é afogado fortemente sob uso intenso – uma solução de resfriamento passivo mais capaz teria sido melhor. No geral, existem alternativas muito melhores nesta faixa de preços – por exemplo, o Acer Aspire Switch 12 Alpha.

Lenovo Yoga 700-11ISK - 2017-02-07 02/07/2017 v6^(old)
Andreas Osthoff

Acabamento

82 / 98 → 84%

Teclado

66%

Mouse

76%

Conectividade

42 / 80 → 53%

Peso

74 / 35-78 → 90%

Bateria

89%

Pantalha

79%

Desempenho do jogos

43 / 68 → 63%

Desempenho da aplicação

69 / 87 → 79%

Temperatura

92%

Ruído

100%

Audio

56 / 91 → 62%

Camera

46 / 85 → 54%

Médio

70%

81%

Convertible - Médio equilibrado

Pricecompare

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1619 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Conversível Lenovo Yoga 700-11ISK

Andreas Osthoff, 2017-02-19 (Update: 2017-03- 3)
