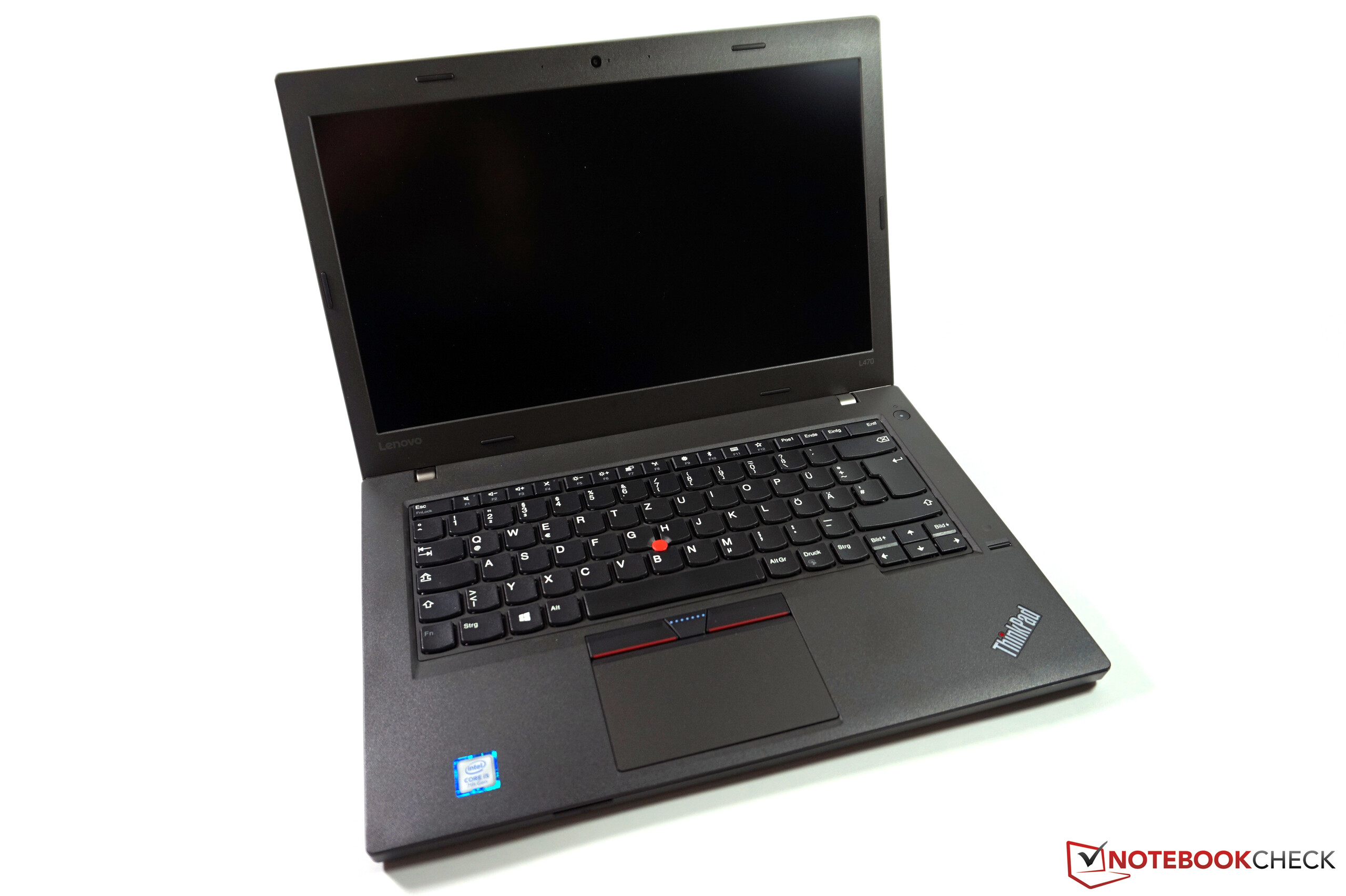

Breve Análise do Portátil Lenovo ThinkPad L470 (i5-7200U, FHD-IPS)

Benjamin Herzig (traduzido por Ricardo Soto), 11/12/2017

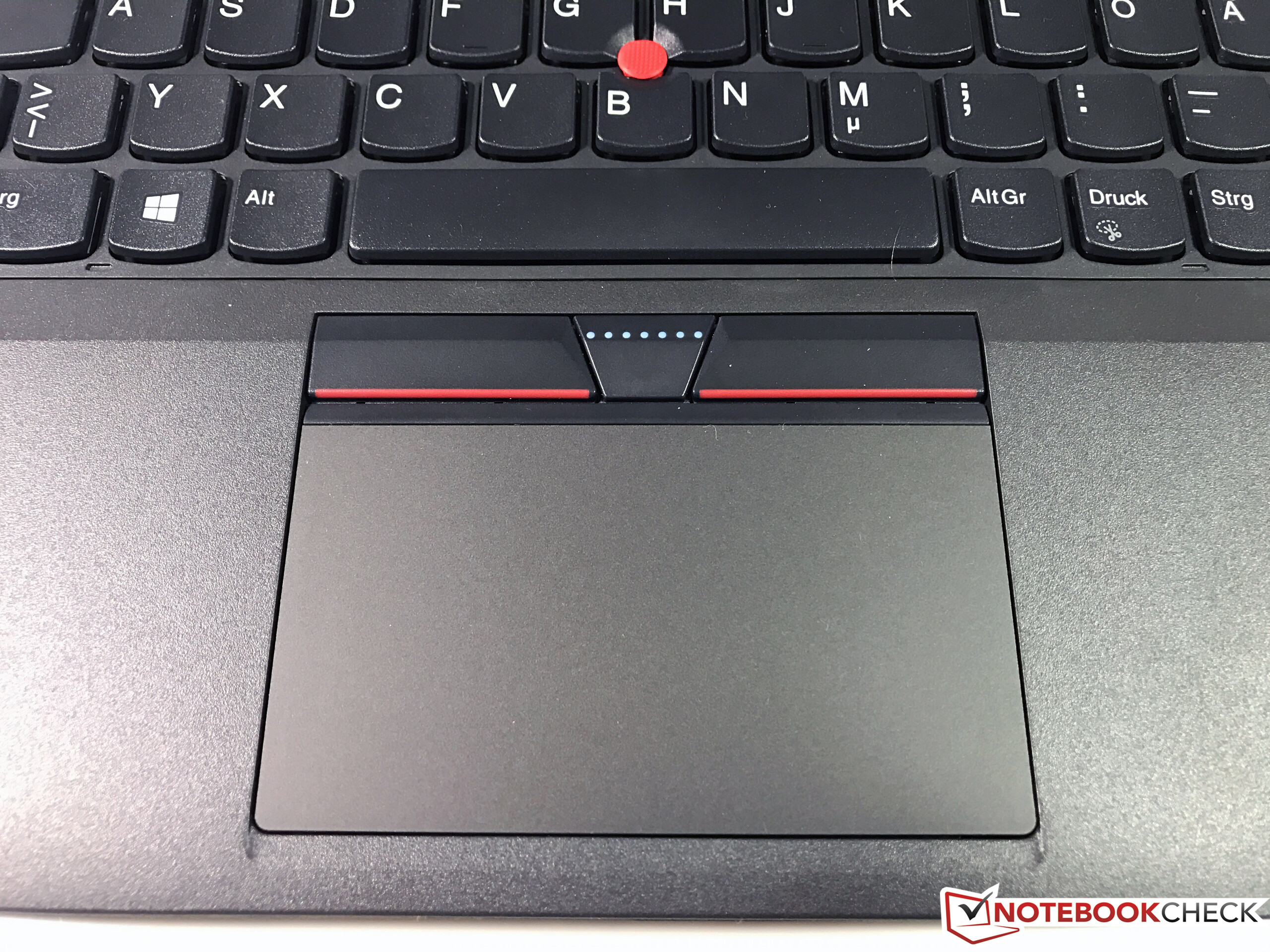

Mouse cinzento com recursos legados. Na ampla linha de ThinkPads de 14 polegadas da Lenovo, o L470 encontra o seu lugar na gama média baixa: abaixo da série T, mas acima da série E series. Por que o portátil de negócios de preço baixo é altamente recomendado e quais as vantagens que tem sobre os outros modelos, você pode descobrir em nossa análise.

Lenovo ThinkPad L470-20J5S00C00 (ThinkPad L470 Serie)
Processador
Intel Core i5-7200U
Placa gráfica
Intel HD Graphics 620
Memória
8192 MB
, DDR4-2400, Single-Channel, 2 slots (um dos dois slots está ocupado), máx. 32 GB
Pantalha
14 polegadas 16:9, 1920x1080 pixel 157 PPI, N140HCA-EAB, IPS, Brilhante: não
placa mãe
Intel Kaby Lake-U Premium PCH
Disco rígido
SanDisk X400 256GB, SATA (SD8SB8U-256G), 256 GB
, 220 GB livre
Placa de Som
Intel Kaby Lake-U/Y PCH - High Definition Audio
Conexões
3 USB 3.0, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: Conector de áudio combinado de 3,5 mm, Card Reader: 4-em-1 (MMC, SD, SDHC, SDXC), 1 Leitor de Impressões Digitais
Funcionamento em rede
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.1
Tamanho
altura x largura x profundidade (em mm): 23.9 x 339 x 235
Bateria
48 Wh Lítio-Ion, removeable, 6 células
Camera
Webcam: 720p HD
Características adicionais
Alto falantes: Estéreo, Teclado: Chiclet, Iluminação do Teclado: não, Adaptador de CA de 45-watts, guia de início rápido, informação de garantia, 12 Meses Garantia
peso
1.94 kg, Suprimento de energia: 292 g
Preço
739 Euro
Vendido em
DACH

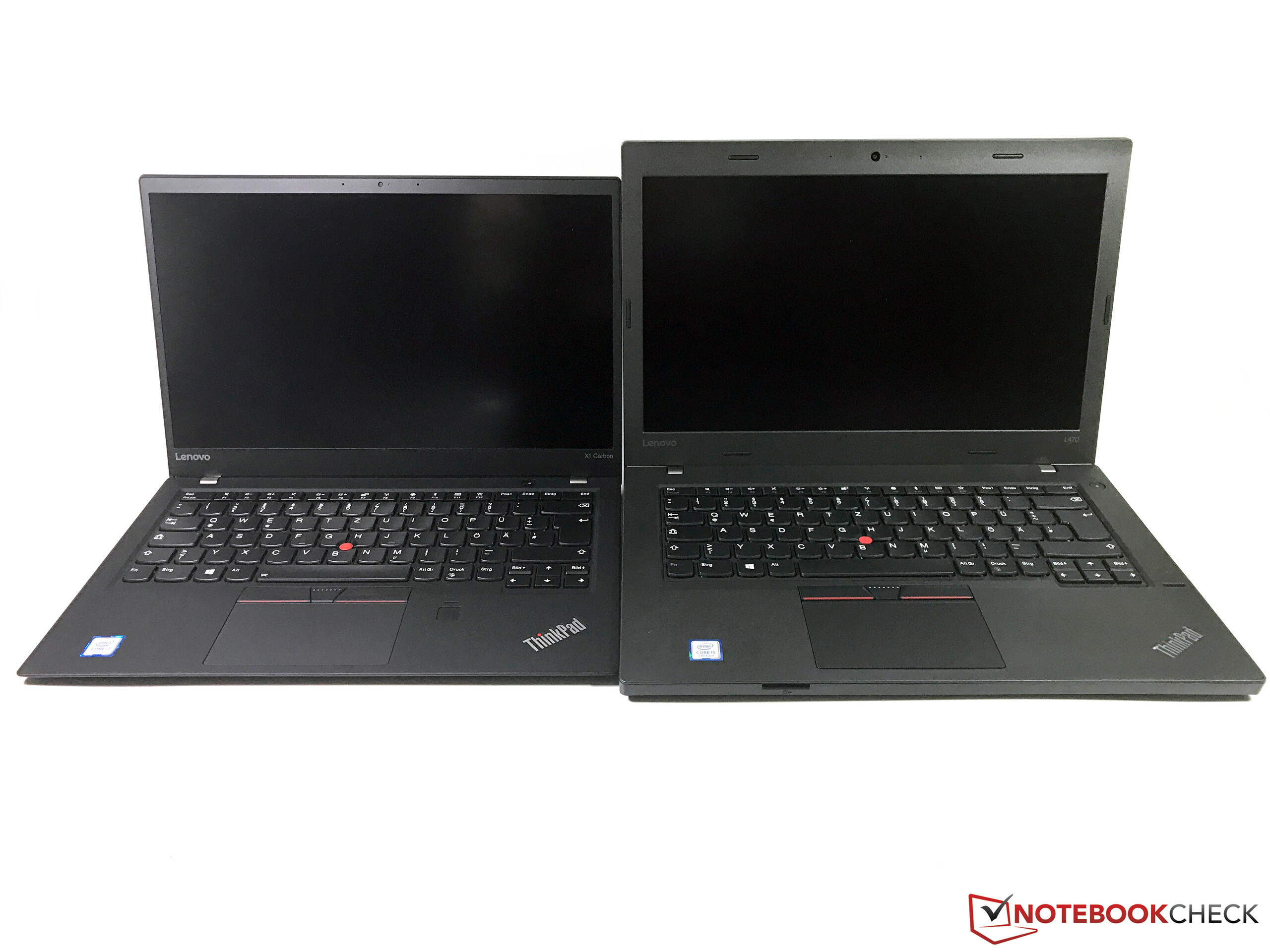

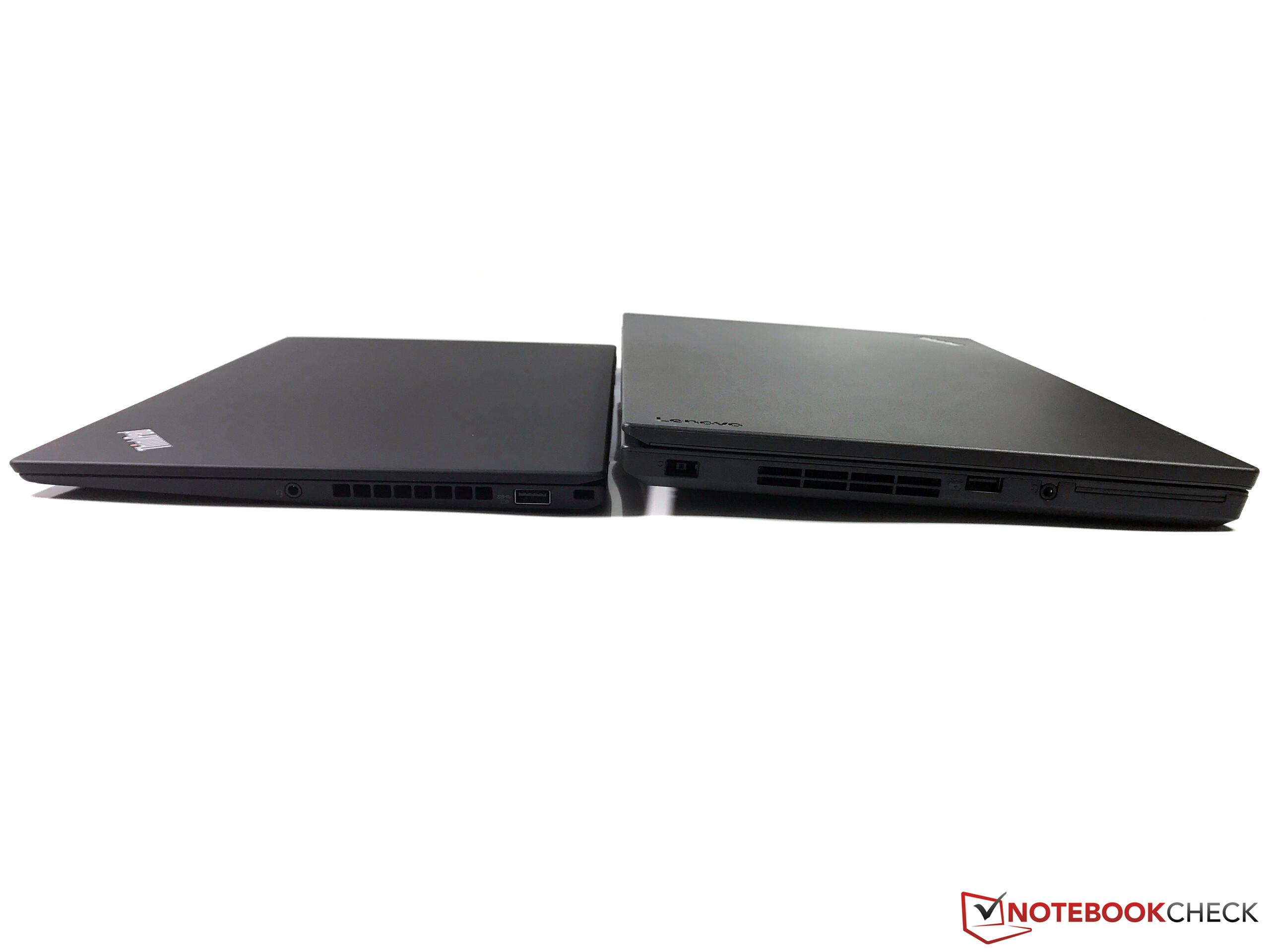

Size Comparison

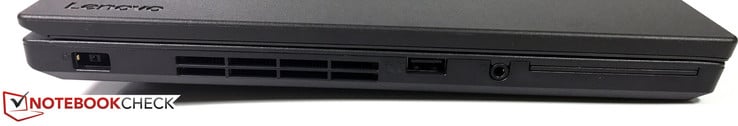

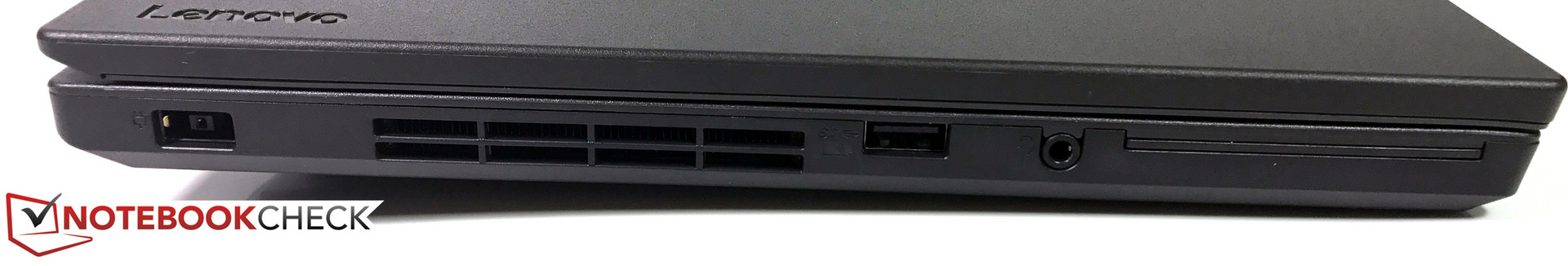

left side: DC power socket, USB 3.0 Type-A (powered), 3.5-mm combined audio jack
left side: DC power socket, USB 3.0 Type-A (powered), 3.5-mm combined audio jack
right side: SIM card slot , 2 USB 3.0 Type-A ports, one Mini DisplayPort output, Ethernet port, VGA port, Kensington Lock
right side: SIM card slot , 2 USB 3.0 Type-A ports, one Mini DisplayPort output, Ethernet port, VGA port, Kensington Lock

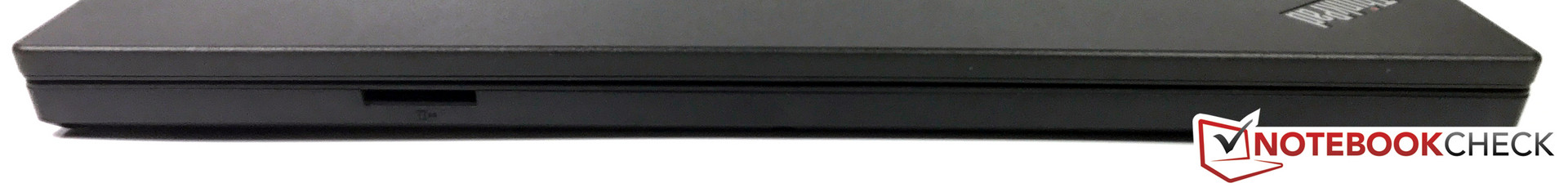

frontside: SD card reader
frontside: SD card reader

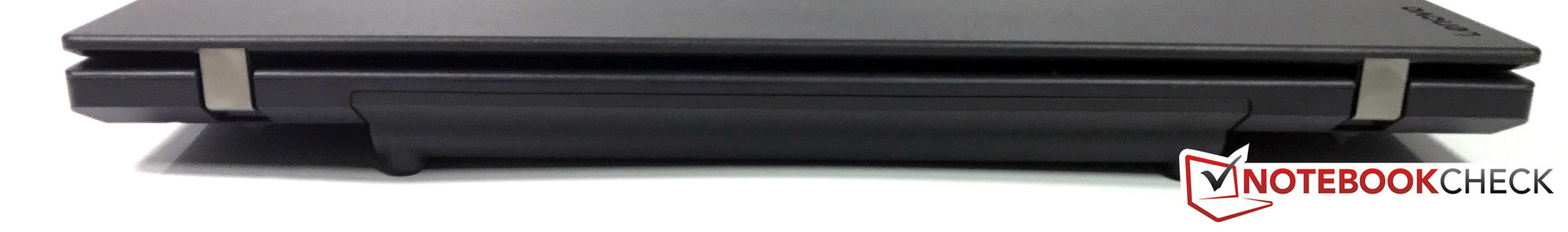

backside: external battery
backside: external battery
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad L470-20J5S00C00
Intel Dual Band Wireless-AC 8265
674 MBit/s ∼100%
Dell Latitude 5480
Qualcomm QCA6174
645 MBit/s ∼96% -4%
Lenovo ThinkPad E470-20H2S00400
Atheros/Qualcomm QCA6174
621 MBit/s ∼92% -8%
HP ProBook 640 G3 Z2W33ET
Intel Dual Band Wireless-AC 7265 (jseb)
543 MBit/s ∼81% -19%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ProBook 640 G3 Z2W33ET
Intel Dual Band Wireless-AC 7265 (jseb)
596 MBit/s ∼100% +18%
Lenovo ThinkPad L470-20J5S00C00
Intel Dual Band Wireless-AC 8265
506 MBit/s ∼85%
Lenovo ThinkPad E470-20H2S00400
Atheros/Qualcomm QCA6174
413 MBit/s ∼69% -18%
Dell Latitude 5480
Qualcomm QCA6174
314 MBit/s ∼53% -38%
259
cd/m²
268
cd/m²
261
cd/m²
264
cd/m²
274
cd/m²
258
cd/m²
241
cd/m²
251
cd/m²
232
cd/m²
Distribuição do brilho
X-Rite i1Pro 2
Máximo: 274 cd/m² Médio: 256.4 cd/m² Minimum: 2.9 cd/m²
iluminação: 85 %
iluminação com acumulador: 273 cd/m²
Contraste: 783:1 (Preto: 0.35 cd/m²)
ΔE Color 6.1 | - Ø
ΔE Greyscale 5.7 | - Ø
62.4% sRGB (Argyll) 40.2% AdobeRGB 1998 (Argyll)
Gamma: 2.11
Lenovo ThinkPad L470-20J5S00C00
N140HCA-EAB, , 1920x1080, 14
Lenovo ThinkPad T470-20HD002HGE
N140HCA-EAB, , 1920x1080, 14
Lenovo ThinkPad E470-20H2S00400
N140HCA-EAB, , 1920x1080, 14
HP ProBook 440 G4-Y8B51EA
AUO1E3D, , 1920x1080, 14
HP ProBook 640 G3 Z2W33ET
Chi Mei, , 1920x1080, 14
Dell Latitude 5480
LG Philips LGD0553, , 1920x1080, 14
Lenovo ThinkPad L460-20FVS01400
Lenovo N140HCE-EAA, , 1920x1080, 14
Response Times
4%
10%
18%
11%
25%
8%
Response Time Grey 50% / Grey 80% *
50.4 (27.6, 22.8)
41.6 (20.4, 21.2)
17%
40.8 (22, 18.8)
19%
43.2 (21.2, 22)
14%
41 (19, 22)
19%
32.8 (14, 18.8)
35%
44.4 (20.4, 24)
12%
Response Time Black / White *
30.8 (16.4, 14.4)
34 (9.6, 24.4)
-10%
30.4 (8.4, 22)
1%
24.4 (7.2, 17.2)
21%
30 (13, 17)
3%
26.4 (5.2, 21.2)
14%
29.6 (17.2, 12.4)
4%
PWM Frequency
192 (90)
Screen
7%
-5%
-29%
-23%
12%
3%
Brightness
256
287
12%
231
-10%
203
-21%
332
30%
205
-20%
225
-12%
Brightness Distribution
85
88
4%
89
5%
83
-2%
88
4%
90
6%
83
-2%
Black Level *
0.35
0.3
14%
0.37
-6%
0.47
-34%
0.69
-97%
0.22
37%
0.24
31%
Contrast
783
1020
30%
659
-16%
460
-41%
497
-37%
981
25%
1021
30%
Colorchecker DeltaE2000 *
6.1
6.2
-2%
6.41
-5%
8.98
-47%
9.06
-49%
5.1
16%
6.89
-13%
Greyscale DeltaE2000 *
5.7
5.8
-2%
5.94
-4%
9.61
-69%
9.87
-73%
4
30%
6.45
-13%
Gamma
2.11 114%
2.04 118%
2.28 105%
2.63 91%
2.5 96%
2.41 100%
2.46 98%
CCT
6419 101%
6277 104%
6101 107%
11265 58%
11115 58%
6856 95%
6857 95%
Color Space (Percent of AdobeRGB 1998)
40.2
39.62
-1%
39.3
-2%
35.9
-11%
47
17%
41.96
4%
40.1
0%
Color Space (Percent of sRGB)
62.4
61.44
-2%
61.1
-2%
56.7
-9%
75
20%
61.15
-2%
61.8
-1%
Total Average (Program / Settings)
6% / 6%
3% / -2%
-6% / -20%
-6% / -16%
19% / 15%
6% / 4%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

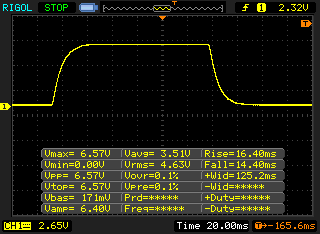

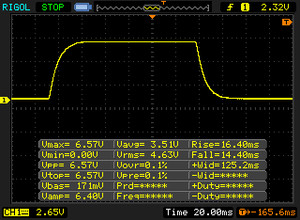

       Response Time Black to White
30.8 ms ... rise ↗ and fall ↘ combined↗ 16.4 ms rise
↘ 14.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 76 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (26.6 ms).

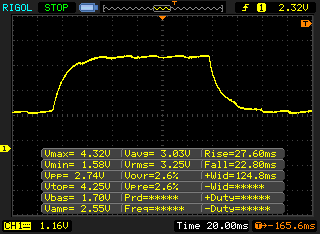

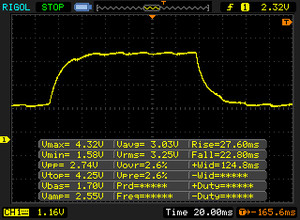

       Response Time 50% Grey to 80% Grey
50.4 ms ... rise ↗ and fall ↘ combined↗ 27.6 ms rise
↘ 22.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.5 ms).

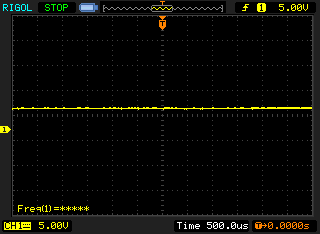

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8568 (minimum: 43 - maximum: 142900) Hz was measured.

HWiNFO
HWiNFO

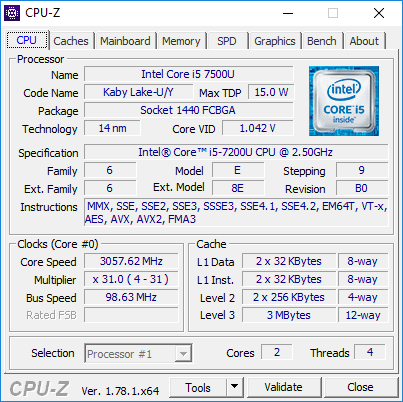

CPU-Z
CPU-Z

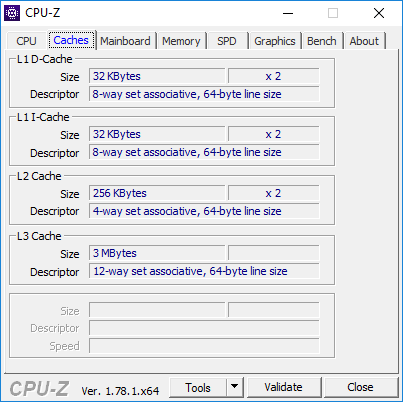

CPU-Z Caches
CPU-Z Caches

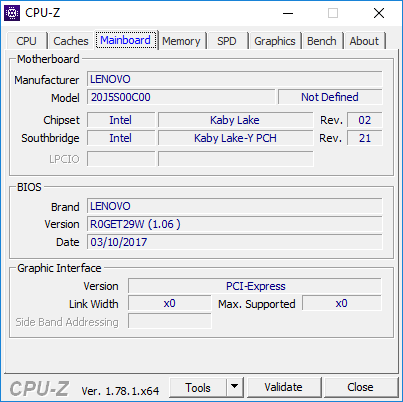

CPU-Z Motherboard
CPU-Z Motherboard

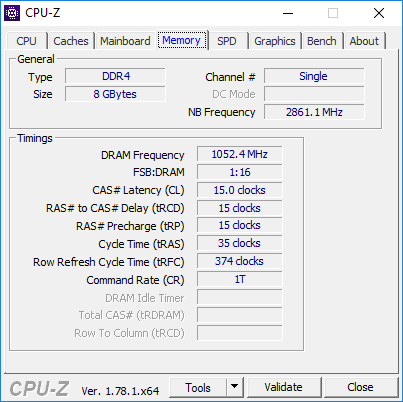

CPU-Z Memory
CPU-Z Memory

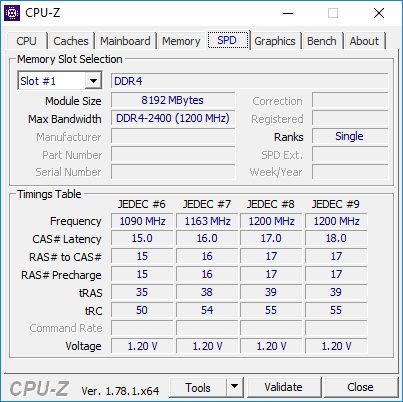

CPU-Z SPD
CPU-Z SPD
GPU-Z
GPU-Z
LatencyMon
LatencyMon
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Dell Latitude 5480
Intel Core i7-7600U
161 Points ∼81% +28%
HP ProBook 440 G4-Y8B51EA
Intel Core i7-7500U
145 Points ∼73% +15%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
129 Points ∼65% +2%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
127 Points ∼64% +1%
HP ProBook 640 G3 Z2W33ET
Intel Core i5-7200U
126 Points ∼63% 0%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
126 Points ∼63% 0%
Lenovo ThinkPad L470-20J5S00C00
Intel Core i5-7200U
126 Points ∼63%
CPU Multi 64Bit
Dell Latitude 5480
Intel Core i7-7600U
355 Points ∼17% +11%
HP ProBook 440 G4-Y8B51EA
Intel Core i7-7500U
335 Points ∼16% +5%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
331 Points ∼15% +3%
HP ProBook 640 G3 Z2W33ET
Intel Core i5-7200U
327 Points ∼15% +2%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
326 Points ∼15% +2%
Lenovo ThinkPad L470-20J5S00C00
Intel Core i5-7200U
320 Points ∼15%
Lenovo ThinkPad L460-20FVS01400
Intel Core i7-6500U
303 Points ∼14% -5%
Cinebench R15 CPU Single 64Bit
126 Points
Cinebench R15 CPU Multi 64Bit
320 Points
Cinebench R15 OpenGL 64Bit
37.98 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Ajuda
PCMark 8
Work Score Accelerated v2
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
4992 Points ∼77% +21%
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, 7500U, SanDisk SD8SNAT256G1002
4837 Points ∼74% +18%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
4667 Points ∼72% +14%
Lenovo ThinkPad E470-20H2S00400
GeForce 940MX, 7200U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
4642 Points ∼71% +13%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
4591 Points ∼70% +12%
HP ProBook 640 G3 Z2W33ET
HD Graphics 620, 7200U, Samsung PM951 NVMe MZVLV256
4545 Points ∼70% +11%
Lenovo ThinkPad L470-20J5S00C00
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
4111 Points ∼63%
Home Score Accelerated v2
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
3913 Points ∼65% +19%
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, 7500U, SanDisk SD8SNAT256G1002
3614 Points ∼60% +10%
Lenovo ThinkPad E470-20H2S00400
GeForce 940MX, 7200U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
3546 Points ∼59% +8%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
3507 Points ∼59% +6%
HP ProBook 640 G3 Z2W33ET
HD Graphics 620, 7200U, Samsung PM951 NVMe MZVLV256
3414 Points ∼57% +4%
Lenovo ThinkPad L470-20J5S00C00
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
3294 Points ∼55%
Lenovo ThinkPad L460-20FVS01400
Radeon R5 M330, 6500U, Toshiba HG6 THNSFJ256GCSU
3092 Points ∼52% -6%
PCMark 8 Home Score Accelerated v2
3294 pontos
PCMark 8 Creative Score Accelerated v2
4172 pontos
PCMark 8 Work Score Accelerated v2
4111 pontos
Ajuda
Lenovo ThinkPad L470-20J5S00C00
SanDisk X400 256GB, SATA (SD8SB8U-256G)
Lenovo ThinkPad T470-20HD002HGE
Samsung PM961 NVMe MZVLW512HMJP
Lenovo ThinkPad E470-20H2S00400
SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
HP ProBook 440 G4-Y8B51EA
SanDisk SD8SNAT256G1002
HP ProBook 640 G3 Z2W33ET
Samsung PM951 NVMe MZVLV256
Dell Latitude 5480
Toshiba SG5 256GB THNSNK256GVN8
Lenovo ThinkPad L460-20FVS01400
Toshiba HG6 THNSFJ256GCSU
CrystalDiskMark 3.0
116%
-2%
-14%
57%
3%
-7%
Write 4k QD32
188
425.4
126%
178.3
-5%
241.4
28%
293.3
56%
207.2
10%
230.4
23%
Read 4k QD32
321.3
496.2
54%
276
-14%
146.3
-54%
507.1
58%
380.3
18%
277.6
-14%
Write 4k
74.29
134.6
81%
78.82
6%
77.85
5%
138.6
87%
114.8
55%
71.47
-4%
Read 4k
34.2
55.46
62%
35.15
3%
19.57
-43%
41.79
22%
24.66
-28%
21.51
-37%
Write 512
291.5
861.6
196%
291.1
0%
276
-5%
300.8
3%
265.5
-9%
220.9
-24%
Read 512
323.4
810.6
151%
346.4
7%
310.1
-4%
679.4
110%
408.1
26%
361.8
12%
Write Seq
485.7
1076
122%
458.7
-6%
322.2
-34%
283.6
-42%
264.8
-45%
426.4
-12%
Read Seq
495.2
1155
133%
476.5
-4%
491.2
-1%
1285
159%
469.4
-5%
480.9
-3%
SanDisk X400 256GB, SATA (SD8SB8U-256G)
Sequential Read: 495.2 MB/s
Sequential Write: 485.7 MB/s
512K Read: 323.4 MB/s
512K Write: 291.5 MB/s
4K Read: 34.2 MB/s
4K Write: 74.29 MB/s
4K QD32 Read: 321.3 MB/s
4K QD32 Write: 188 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
2556 Points ∼100% +80%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
2206 Points ∼86% +55%
Lenovo ThinkPad L460-20FVS01400
AMD Radeon R5 M330, Intel Core i7-6500U
1736 Points ∼68% +22%
Dell Latitude 5480
Intel HD Graphics 620, Intel Core i7-7600U
1685 Points ∼66% +19%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, Intel Core i5-7200U
1432 Points ∼56% +1%
HP ProBook 640 G3 Z2W33ET
Intel HD Graphics 620, Intel Core i5-7200U
1423 Points ∼56% 0%
Lenovo ThinkPad L470-20J5S00C00
Intel HD Graphics 620, Intel Core i5-7200U
1419 Points ∼56%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
1752 Points ∼100% +115%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
1621 Points ∼93% +99%
Dell Latitude 5480
Intel HD Graphics 620, Intel Core i7-7600U
1027 Points ∼59% +26%
Lenovo ThinkPad L460-20FVS01400
AMD Radeon R5 M330, Intel Core i7-6500U
984 Points ∼56% +21%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, Intel Core i5-7200U
818 Points ∼47% 0%
Lenovo ThinkPad L470-20J5S00C00
Intel HD Graphics 620, Intel Core i5-7200U
816 Points ∼47%
HP ProBook 640 G3 Z2W33ET
Intel HD Graphics 620, Intel Core i5-7200U
808 Points ∼46% -1%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
9501 Points ∼100% +33%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
9056 Points ∼95% +27%
Dell Latitude 5480
Intel HD Graphics 620, Intel Core i7-7600U
8740 Points ∼92% +22%
Lenovo ThinkPad L470-20J5S00C00
Intel HD Graphics 620, Intel Core i5-7200U
7153 Points ∼75%
HP ProBook 640 G3 Z2W33ET
Intel HD Graphics 620, Intel Core i5-7200U
6956 Points ∼73% -3%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, Intel Core i5-7200U
6824 Points ∼72% -5%
Lenovo ThinkPad L460-20FVS01400
AMD Radeon R5 M330, Intel Core i7-6500U
5210 Points ∼55% -27%
3DMark 11 Performance
1540 pontos
3DMark Ice Storm Standard Score
55477 pontos
3DMark Cloud Gate Standard Score
5839 pontos
3DMark Fire Strike Score
771 pontos
Ajuda
baixo média alto ultra
BioShock Infinite (2013) 41.423.119.66.5fps
Battlefield 4 (2013) 30.424.716.1fps
The Witcher 3 (2015) 13.4fps

Barulho

Ocioso
29.3 / 29.3 / 29.3 dB
Carga
33.8 / 37.5 dB



30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 29.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.829.930.933.42533.731.532.432.93129.829.429.431.24030.527.827.629.25026.727.727.9286325.225.925.325.58025.725.725.426.710025.42625.526.212524.323.824.425.316022.822.121.922.920021.822.421.822.825021.821.320.722.631522.421.120.422.940020.920.319.322.25002221.318.622.763024.622.217.626.180023.521.917.125.1100023.922.916.425.7125025.323.616.227.4160023.52216.126200022.421.116.625250023.221.716.625.8315026.723.716.527.9400024.122.318.128.1500021.320.516.623.5630020.819.71822.7800017.917.618.519.51000017.117.31817.81250017.117.317.517.116000171717.816.9SPL35.433.829.537.5N2.21.91.32.7median 22.4Lenovo ThinkPad L470-20J5S00C00median 21.7median 18median 23.5Delta1.51.31.91.832.532.631.531.132.532.131.730.430.532.133.936.233.335.133.930.630.330.730.630.630.12928.529.130.127.927.627.726.927.926.127.326.826.926.127.226.226.225.927.225.725.225.624.325.724.324.12423.624.323.523.823.22323.523.123.322.321.623.122.523.321.620.822.521.422.320.720.421.420.621.319.119.620.620.721.319.118.520.72020.818.418.32019.119.618.21819.119.920.917.817.819.919.820.717.517.319.820.721.517.617.820.721.923.217.617.821.920.421.618.117.820.419.119.618.118.219.11919.618.318.31918.71918.618.218.718.718.718.518.618.718.818.918.718.718.818.81918.818.818.81919.119.1191932.232.930.630.532.21.71.81.51.41.7median 20.4Lenovo ThinkPad E470median 21.3median 18.7median 18.6median 20.41.91.91.81.81.9hearing rangehide median Fan Noise
Carga Máxima
 39.6 °C33.2 °C29.3 °C
 40.1 °C36.5 °C34.3 °C
 37.2 °C35.4 °C33.6 °C
Máximo: 40.1 °C
Médio: 35.5 °C
30.1 °C29.7 °C28 °C
33.9 °C51 °C43.7 °C
30.5 °C47.3 °C44 °C
Máximo: 51 °C
Médio: 37.6 °C
alimentação elétrica  41.7 °C | Temperatura do quarto 21.6 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.334.92532.733.23131.934.34027.932.85031.133.16326.834.3802637.410024.935.512524.338.816023.239.620022.144.22502254.831524.759.640019.258.750018.760.263017.361.680017.164.8100016.776.3125016.773.8160016.567.7200016.464.9250016.461.7315016.864400018.464.2500016.563630017.861.3800018.961.9100001855.81250017.655.31600017.954.2SPL29.880N1.342.5median 17.9Lenovo ThinkPad L470-20J5S00C00median 61.3Delta2.353336.432.635.528.436.629.234.626.23225.934.926.138.325.936.924.339.922.741.62245.324.550.52159.519.262.21862.218.668.618.573.420.369.216.56814.66614.962.814.466.514.771.315.160.214.867.11569.915.357.215.257.614.960.914.953.828.879.71.247.3median 16.5Lenovo ThinkPad T470-20HD002HGEmedian 62.23.17.1hearing rangehide median Pink Noise
Lenovo ThinkPad L470-20J5S00C00 audio analysis

(±) | speaker loudness is average but good (80 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.9% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 24% of all tested devices in this class were better, 8% similar, 68% worse
» The best had a delta of 11%, average was 21%, worst was 48%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 70% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad T470-20HD002HGE audio analysis

(±) | speaker loudness is average but good (80.44 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.6% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (6.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(±) | linearity of highs is average (13.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.3% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 9% similar, 62% worse
» The best had a delta of 11%, average was 21%, worst was 48%
Compared to all devices tested
» 28% of all tested devices were better, 5% similar, 67% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo de energia
desligadodarklight 0.22 / 0.34 Watt
Ociosodarkmidlight 2.6 / 6.3 / 7 Watt
Carga midlight 29.1 / 42.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad L470-20J5S00C00
7200U, HD Graphics 620, SanDisk X400 256GB, SATA (SD8SB8U-256G), IPS, 1920x1080, 14
Lenovo ThinkPad L460-20FVS01400
6500U, Radeon R5 M330, Toshiba HG6 THNSFJ256GCSU, IPS, 1920x1080, 14
Lenovo ThinkPad E470-20H2S00400
7200U, GeForce 940MX, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G), IPS, 1920x1080, 14
HP ProBook 440 G4-Y8B51EA
7500U, GeForce 930MX, SanDisk SD8SNAT256G1002, TN, 1920x1080, 14
HP ProBook 640 G3 Z2W33ET
7200U, HD Graphics 620, Samsung PM951 NVMe MZVLV256, TN LED, 1920x1080, 14
Dell Latitude 5480
7600U, HD Graphics 620, Toshiba SG5 256GB THNSNK256GVN8, IPS, 1920x1080, 14
Lenovo ThinkPad T470-20HD002HGE
7200U, HD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 14
Power Consumption
-14%
-18%
-13%
18%
-31%
0%
Idle Minimum *
2.6
3.1
-19%
2.7
-4%
3
-15%
2.3
12%
6.64
-155%
3.21
-23%
Idle Average *
6.3
6.3
-0%
5.5
13%
5.4
14%
5.2
17%
6.67
-6%
6.15
2%
Idle Maximum *
7
7.9
-13%
6.5
7%
6.3
10%
5.6
20%
7.78
-11%
6.82
3%
Load Average *
29.1
29.5
-1%
44.2
-52%
37.5
-29%
27.2
7%
30.83
-6%
28.5
2%
Load Maximum *
42.3
57.3
-35%
65.2
-54%
61.1
-44%
28.7
32%
31.7
25%
34.5
18%

* ... smaller is better

runtime at idle: 1398 minutes
runtime at idle: 1398 minutes
runtime underload: 130 minutes
runtime underload: 130 minutes
Big Buck Bunny runtime: 647 minutes
Big Buck Bunny runtime: 647 minutes
Wi-Fi runtime: 480 minutes
Wi-Fi runtime: 480 minutes
Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
23h 18min
Navegar com WLAN v1.3 (Edge 38.14393.0.0)
8h 00min
Big Buck Bunny H.264 1080p
10h 47min
Carga (máximo brilho)
2h 10min
Lenovo ThinkPad L470-20J5S00C00
7200U, HD Graphics 620, 48 Wh
Lenovo ThinkPad L460-20FVS01400
6500U, Radeon R5 M330, 48 Wh
Lenovo ThinkPad T470-20HD002HGE
7200U, HD Graphics 620, 48 Wh
Lenovo ThinkPad E470-20H2S00400
7200U, GeForce 940MX, 45 Wh
HP ProBook 440 G4-Y8B51EA
7500U, GeForce 930MX, 48 Wh
HP ProBook 640 G3 Z2W33ET
7200U, HD Graphics 620, 46 Wh
Dell Latitude 5480
7600U, HD Graphics 620, 68 Wh
Battery Runtime
-22%
-9%
-21%
-8%
8%
42%
Reader / Idle
1398
1153
-18%
1043
-25%
1083
-23%
1477
6%
1448
4%
H.264
647
431
-33%
623
-4%
503
-22%
571
-12%
519
-20%
WiFi v1.3
480
425
-11%
438
-9%
326
-32%
414
-14%
523
9%
964
101%
Load
130
97
-25%
110
-15%
124
-5%
151
16%
177
36%
159
22%

Pro

+ Tela IPS Full HD mate
+ Bateria substituível com boas durações da bateria
+ Touchpad e teclado confortáveis
+ Porta VGA e uma porta de estação docking
+ Carcaça robusta de plástico

Contra

- Sem USB Tipo C
- Ruído da bobina irritante
- Afogamento da GPU com a bateria
- Cobertura pobre do espaço de cores
- Apenas um ano de garantia de fábrica
In the review: Lenovo ThinkPad L470, provided courtesy of: CampusPoint
In the review: Lenovo ThinkPad L470, provided courtesy of: CampusPoint

Com o L470, a Lenovo oferece um ThinkPad orientado para o orçamento, que, acima de tudo, deve ser interessante para estudantes e empresas.

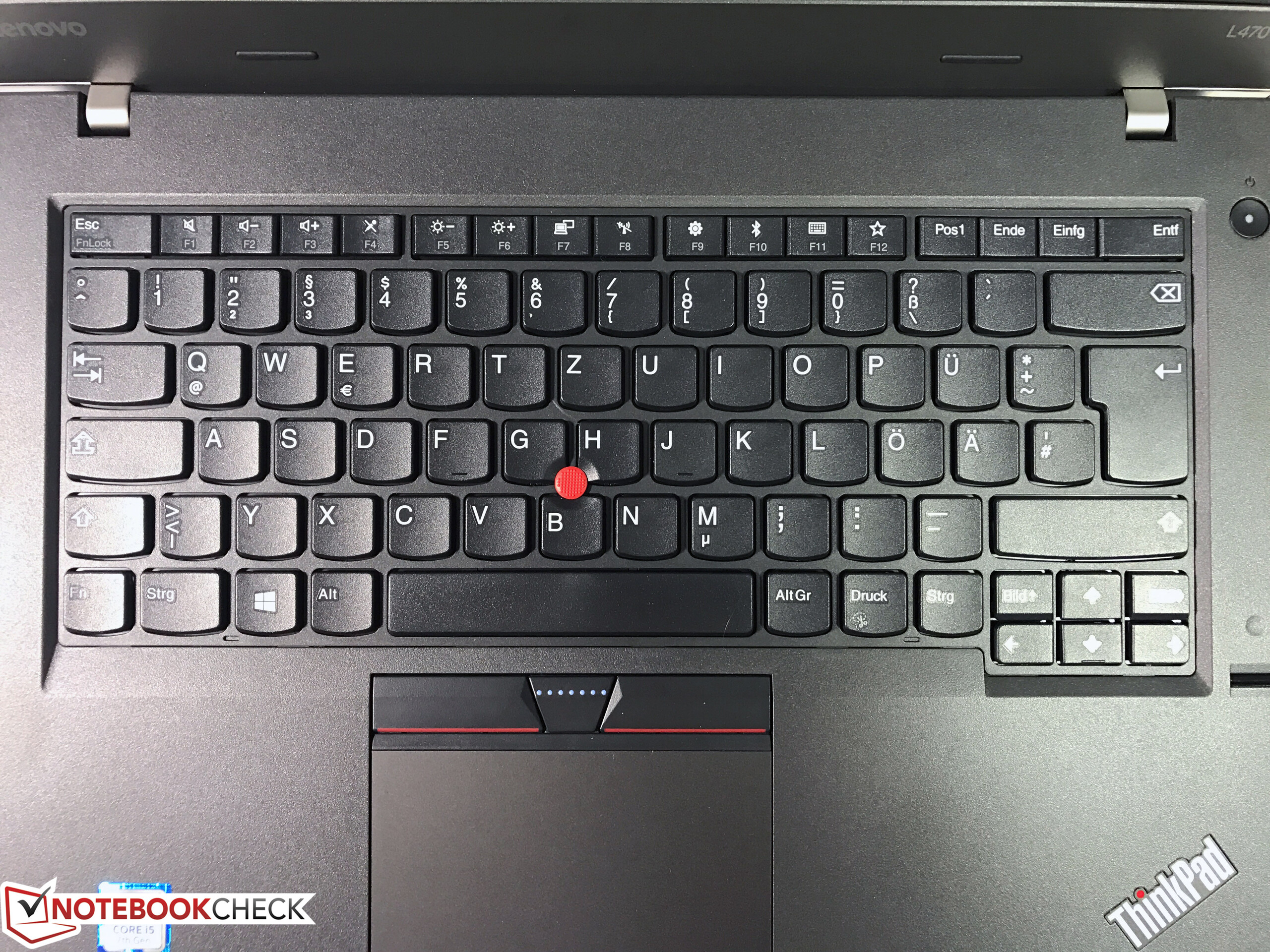

Por um preço relativamente baixo, o L470 oferece o conhecido e excelente teclado ThinkPad, incluindo o TrackPoint. Também na caixa: Uma tela IPS Full HD, que não pode ser considerada como garantida nesta categoria de preço. A carcaça de plástico não se sente de qualidade alta, no entanto, se sente bastante robusta e possui dobradiças duráveis. Como portátil empresarial, o L470 oferece uma boa variedade de portas. Aqui, é preciso lamentar a falta de uma porta tipo USB tipo C, no entanto, isso é um pouco compensado pelo fato de que a Lenovo ainda integra uma porta docking dedicada. Portanto, não se depende das estações dock USB Tipo C. O que também é bom é que a Lenovo ainda equipa o L470 com uma porta VGA, que é uma característica única entre os ThinkPads atuais. Para escolas, universidades e empresas que ainda utilizam projetores antigos, este é um importante ponto de venda. Neste caso, a boa duração da bateria e a flexibilidade de uma bateria substituível devem ser apreciadas, embora ela eleve um pouco o aparelho.

A Lenovo não cometeu grandes erros. Em primeiro lugar e acima de tudo nesta categoria está o irritante ruído da bobina, o que é uma grande pena, pois, de outra forma, o dispositivo teria sido completamente silencioso durante a o modo inativo. O afogamento da GPU, funcionando com a bateria, também é compreensível. A baixa cobertura do espaço de cores da tela não deve ser vista de forma negativa com um aparelho destinado aos negócios, mas deve ser mencionado, no entanto. Finalmente, é preciso criticar o período de garantia padrão, um ano não é suficiente.

O vencedor do preço/desempenho: Com um preço baixo e recursos legados, como uma porta VGA e uma bateria substituível, o L470 é um portátil empresarial interessante de 14 polegadas.

Apesar destas desvantagens, o L470 merece uma recomendação como um pacote de preço/desempenho atraente. Contra o seu concorrente interno mais próximo, o E470, o L470, um pouco mais caro, pode distinguir-se através de uma porta de estação docking dedicada, uma porta VGA e a bateria substituível. No entanto, com o Nvidia GeForce 940MX, o E470 é mais interessante para os gamers casuais. Acima de tudo, o L470 derrota os ProBooks 440640 da HP, graças à tela IPS, porque ambos os Probooks vêm com telas TN. O concorrente mais durão é o Dell Latitude 5480, que, em termos de preço, compete mais com o ThinkPad T470 que o L470.

Lenovo ThinkPad L470-20J5S00C00 - 11/02/2017 v6
Benjamin Herzig

Acabamento
82 / 98 → 83%
Teclado
89%
Mouse
85%
Conectividade
56 / 80 → 70%
Peso
64 / 67 → 93%
Bateria
91%
Pantalha
83%
Desempenho do jogos
54 / 68 → 80%
Desempenho da aplicação
84 / 92 → 91%
Temperatura
90%
Ruído
85%
Camera
53 / 85 → 62%
Médio
76%
85%
Office - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Lenovo ThinkPad L470 (i5-7200U, FHD-IPS)
Benjamin Herzig, 2017-11-12 (Update: 2017-11-23)
