Breve Análise do Workstation Dell Precision 7710

Tobias Winkler (traduzido por Ricardo Soto), 02/09/2016

Alta performance. A Dell recentemente revisou por completo o seu grande workstation móvel de 17-polegadas, que traz muitas inovações no modelo novo deste ano. Além de um novo chassi, especialmente novas interfaces, processadores, chips gráficos, e telas, oferece um valor agregado de consideração. Testamos em detalhe como o Dell Precision 7710 se desempenha realmente.

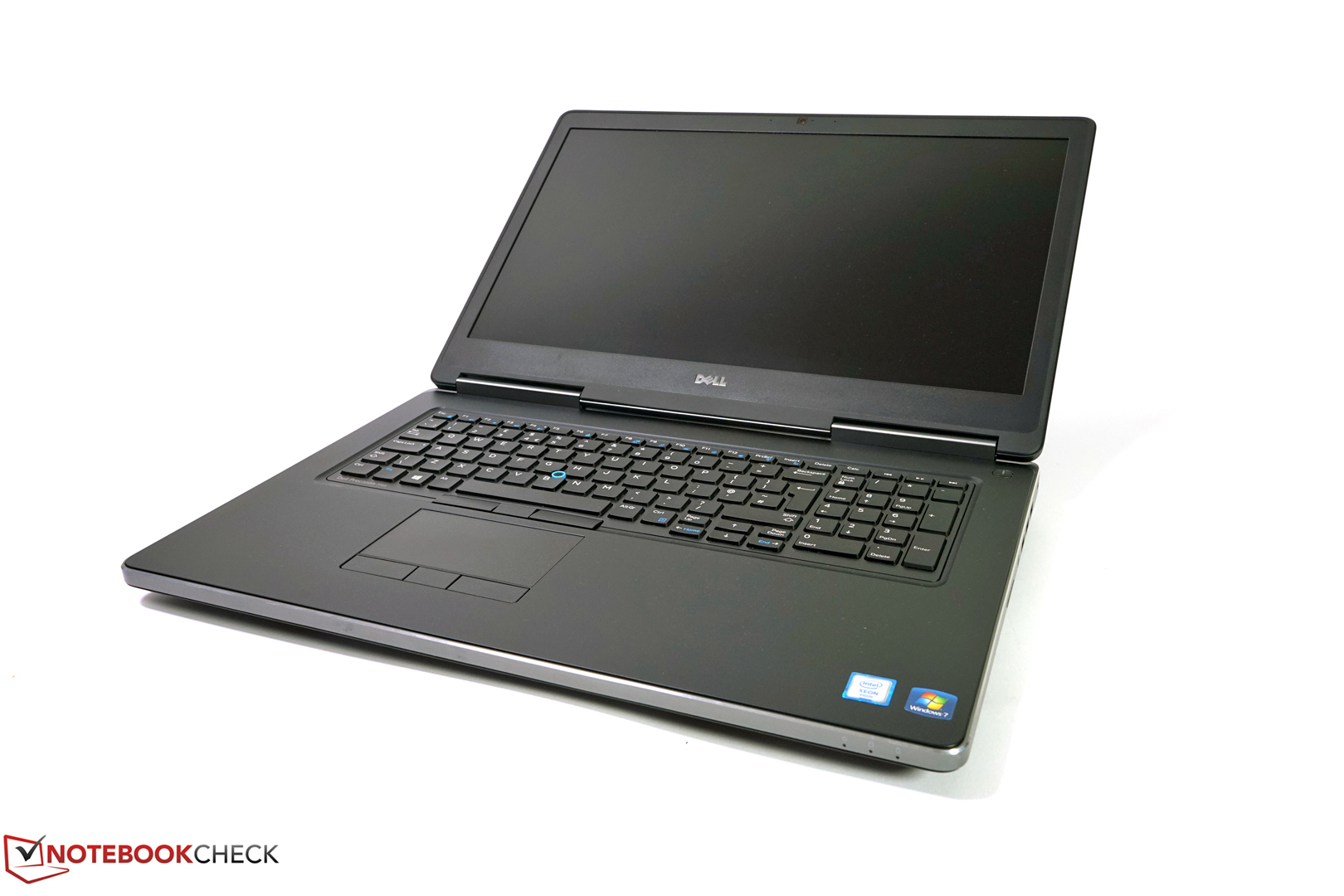

Dell Precision 7710 (Precision 7000 Serie)
Processador
Intel Xeon E3-1535M v5
Placa gráfica
AMD FirePro W7170M - 4096 MB, Análises do: 720 MHz, Memoría: 1250 MHz, 15.201.1101.1003 WHQL Win7/ 64, AMD Switchable Graphics mit Intel P530
Memória
16384 MB
, 2x 8192 MB DDR4-2133 Hynix, 2 slots livres, sem ECC
Pantalha
17.3 polegadas 16:9, 1920x1080 pixel, SDC8151, VHN17_173HL, IPS LED, 97 % sRGB, Brilhante: não
placa mãe
Intel Skylake-H
Disco rígido
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB

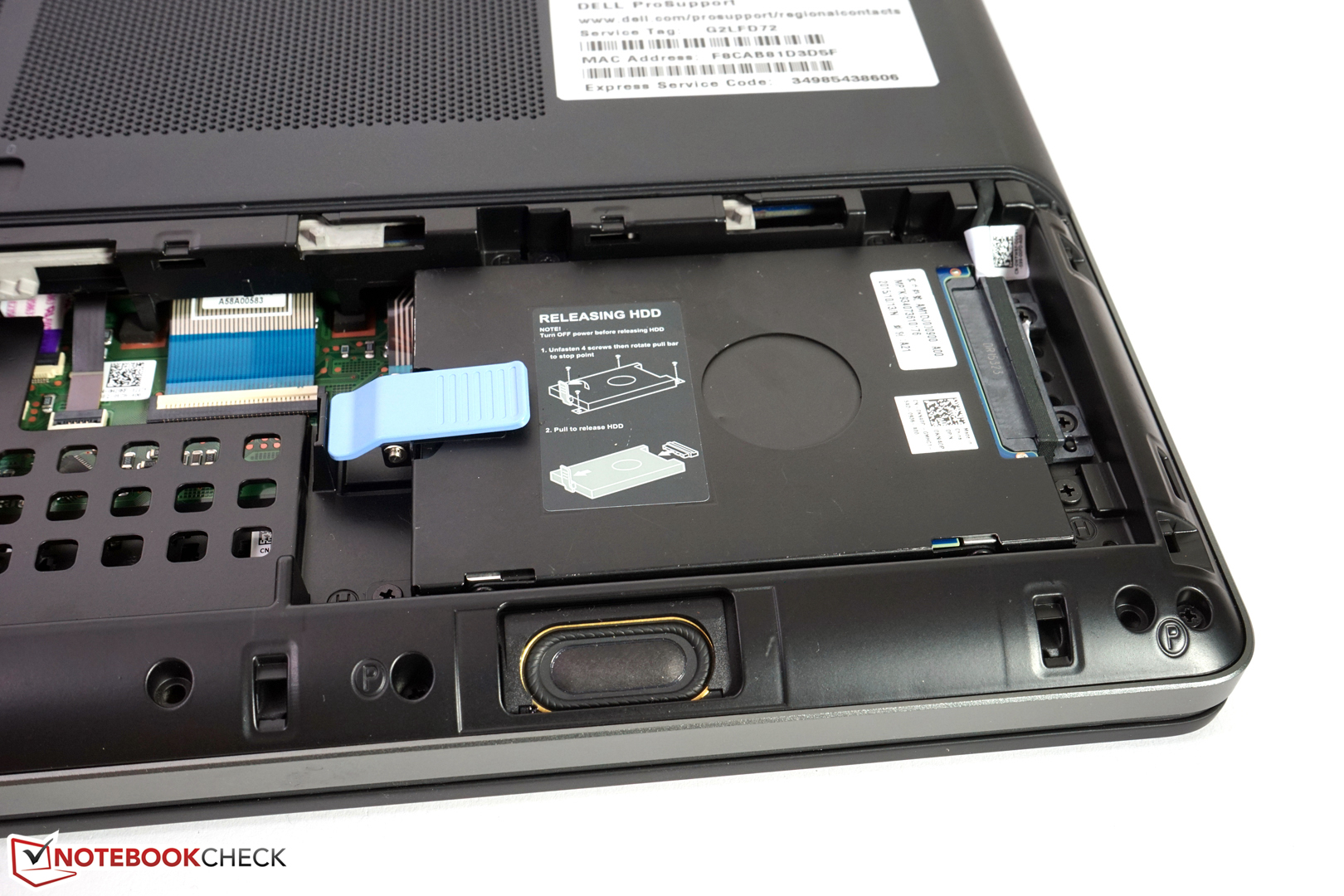

, in addition a HGST Travelstar 7K1000 HTS721010A9E630, 1 TB, 7200 RPM
Placa de Som
HD Audio
Conexões
4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Conexões Audio: áudio combinado, Card Reader: Realtek PCIe Cardreader UHS-II, SD, SDHC, SDXC
Funcionamento em rede
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.0
Tamanho
altura x largura x profundidade (em mm): 35 x 417 x 281
Bateria

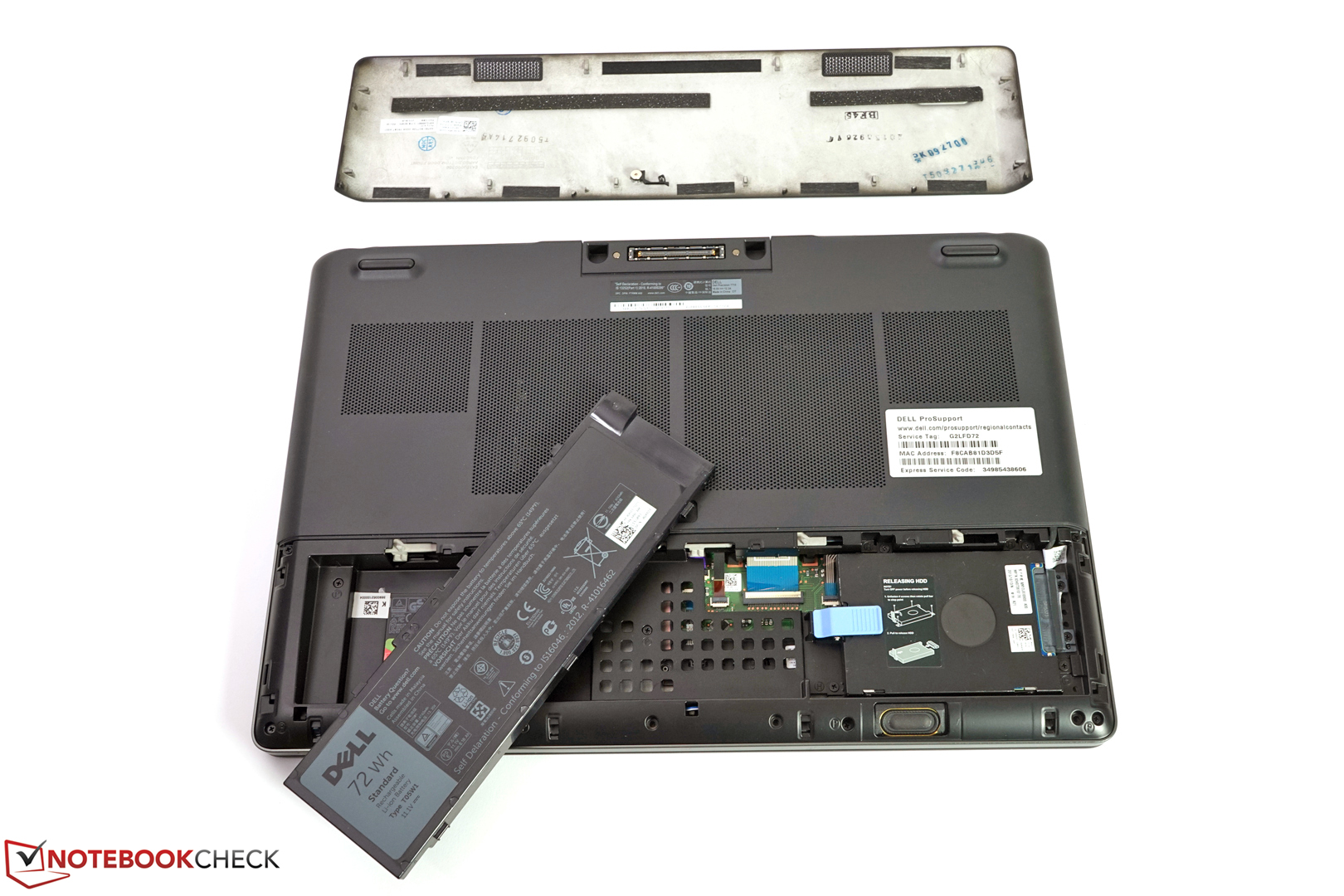

72 Wh Lítio-Ion, removeable
Sistema Operativo
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: HD web cam, 1280 x 720 pixels
Características adicionais
Alto falantes: 2 alto falantes estéreo no lado inferior do lado frontal, Teclado: Chiclet com teclado numéricodedicado, Iluminação do Teclado: sim, 36 Meses Garantia
peso

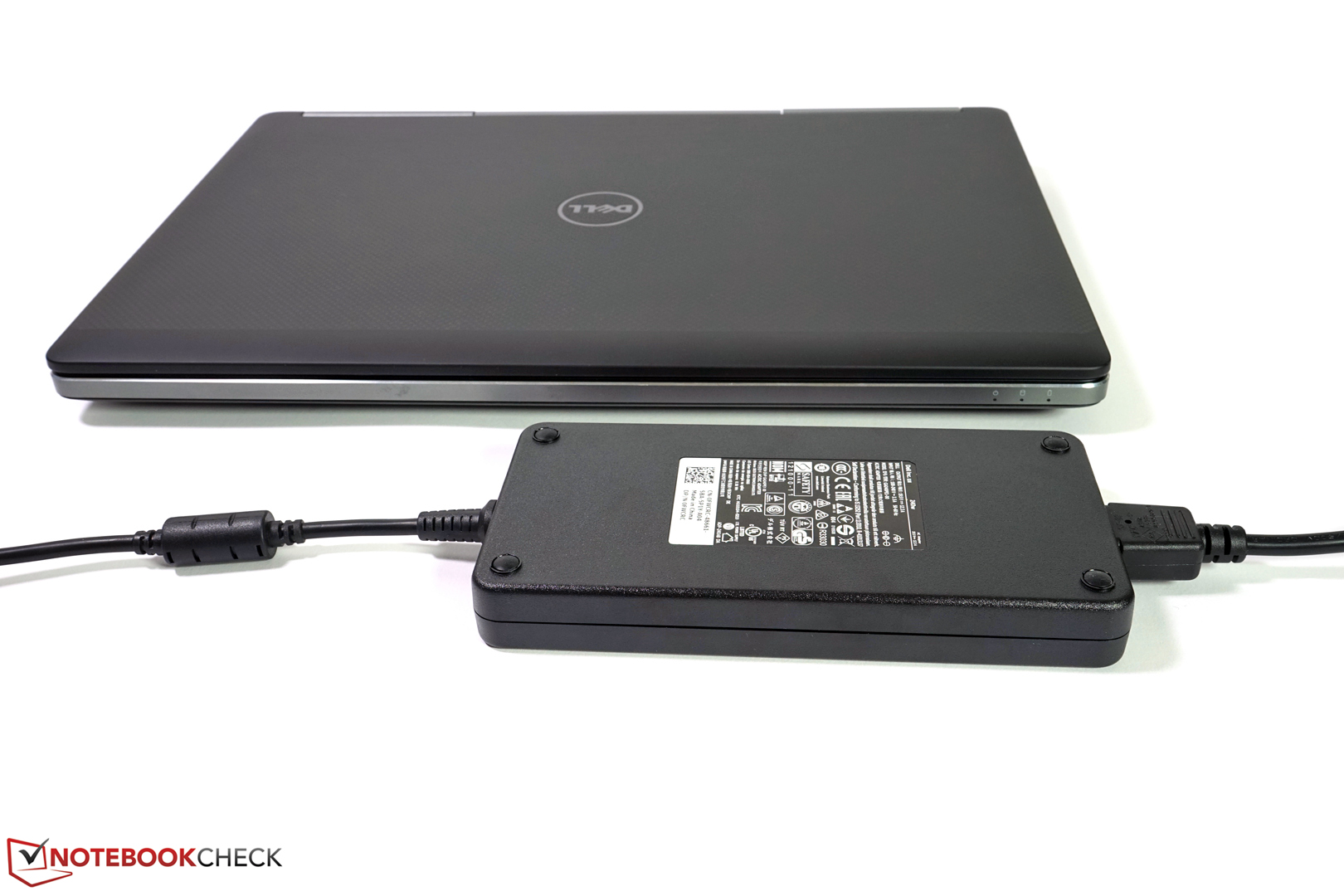

3.58 kg, Suprimento de energia: 990 g
Preço
3730 Euro

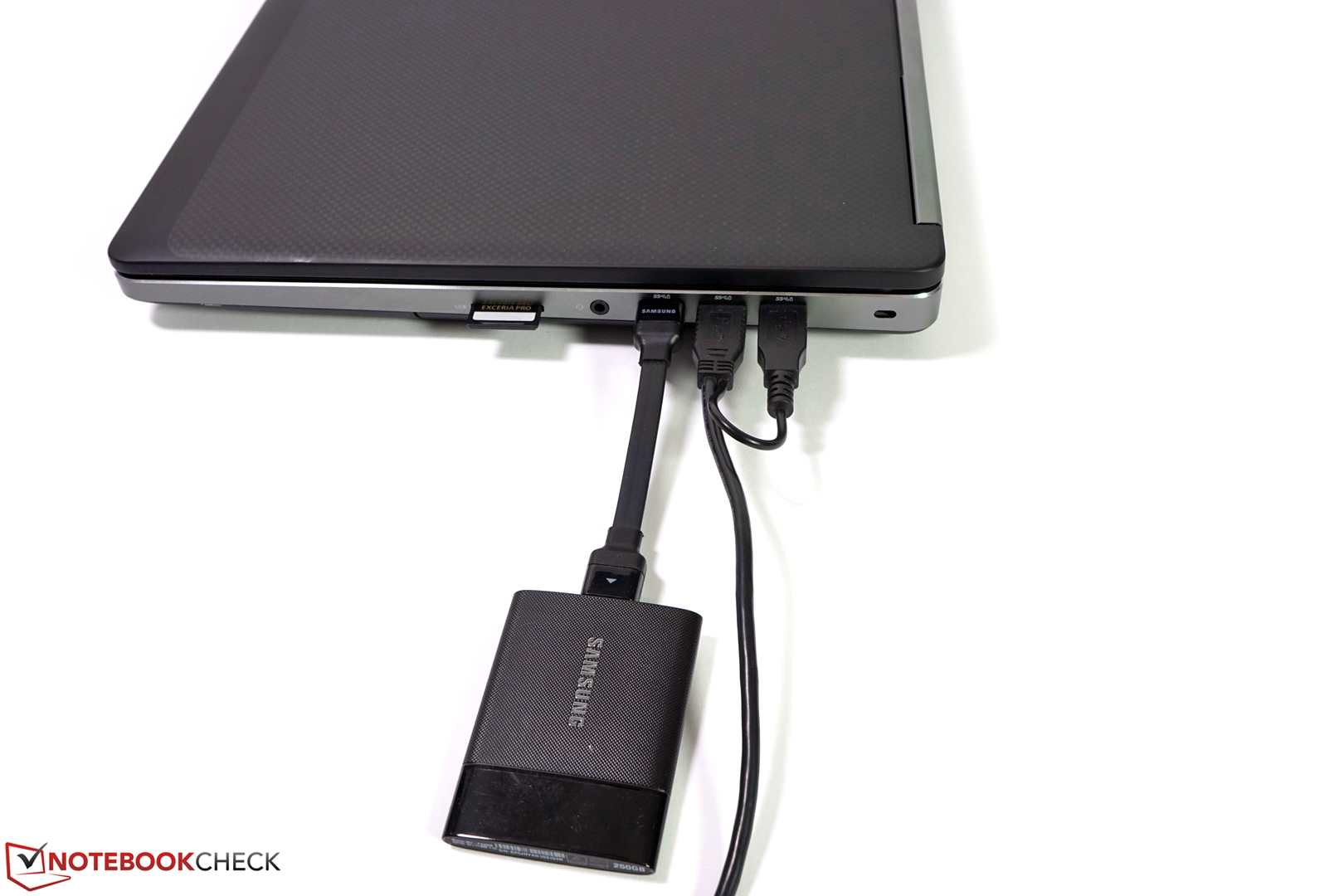

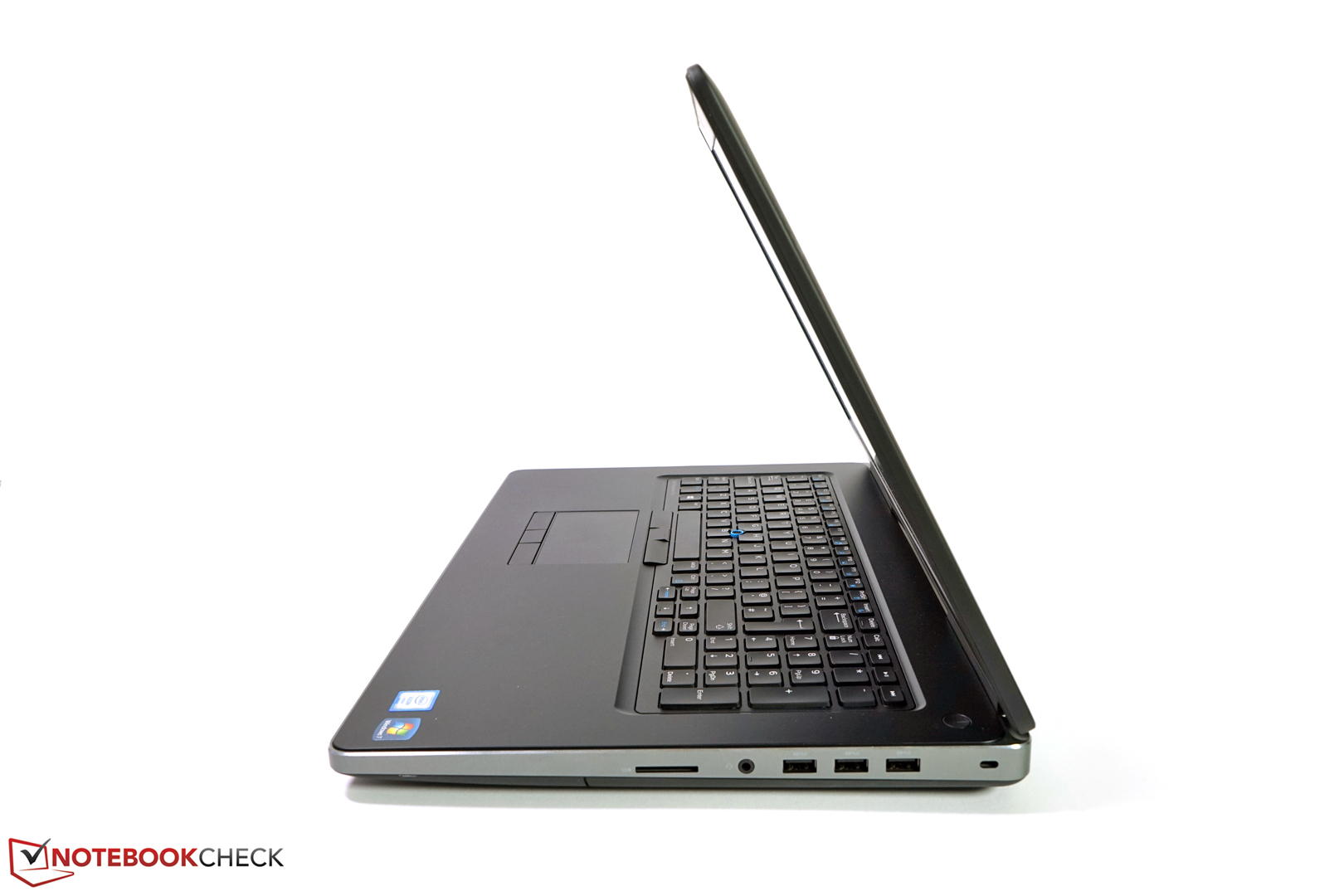

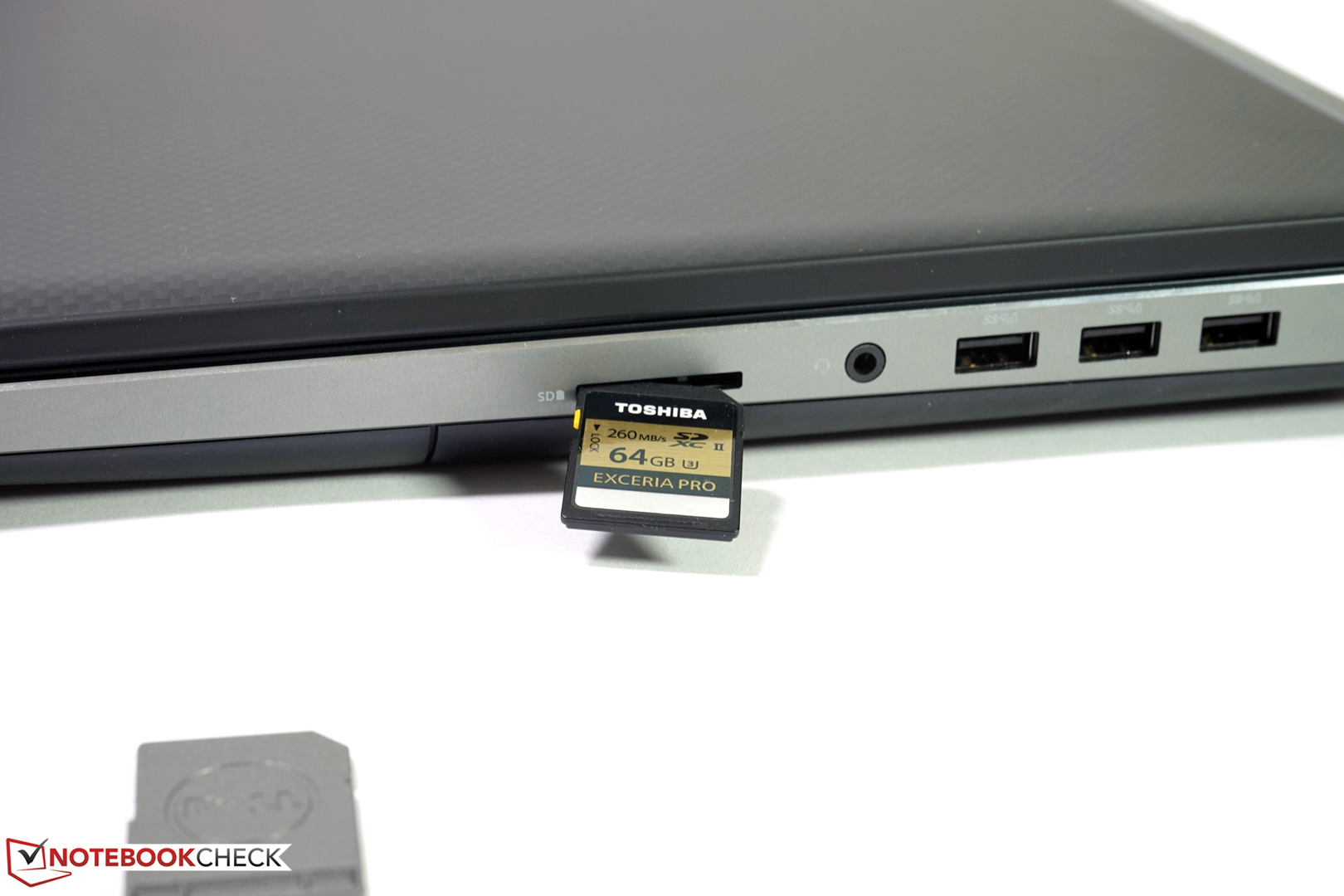

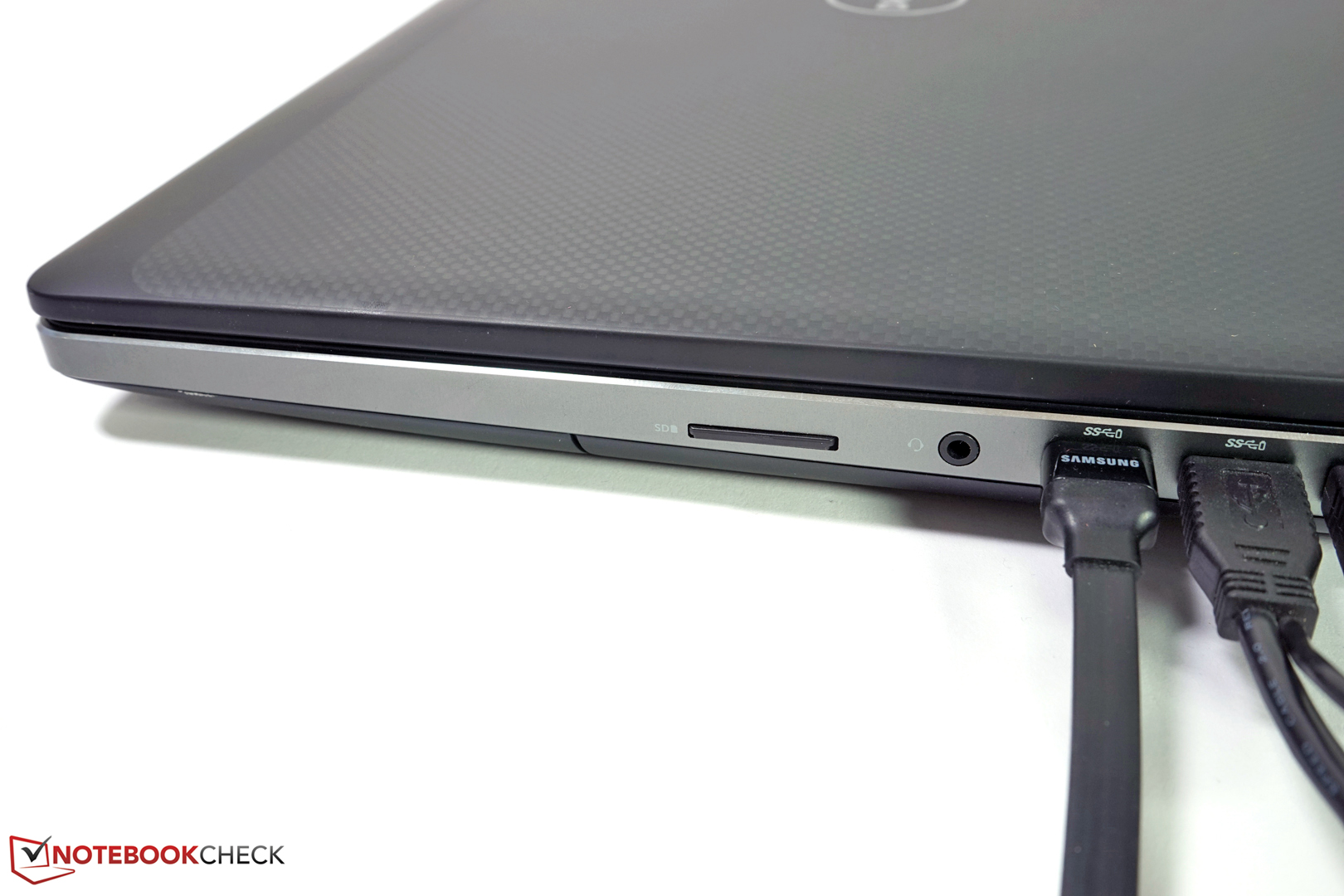

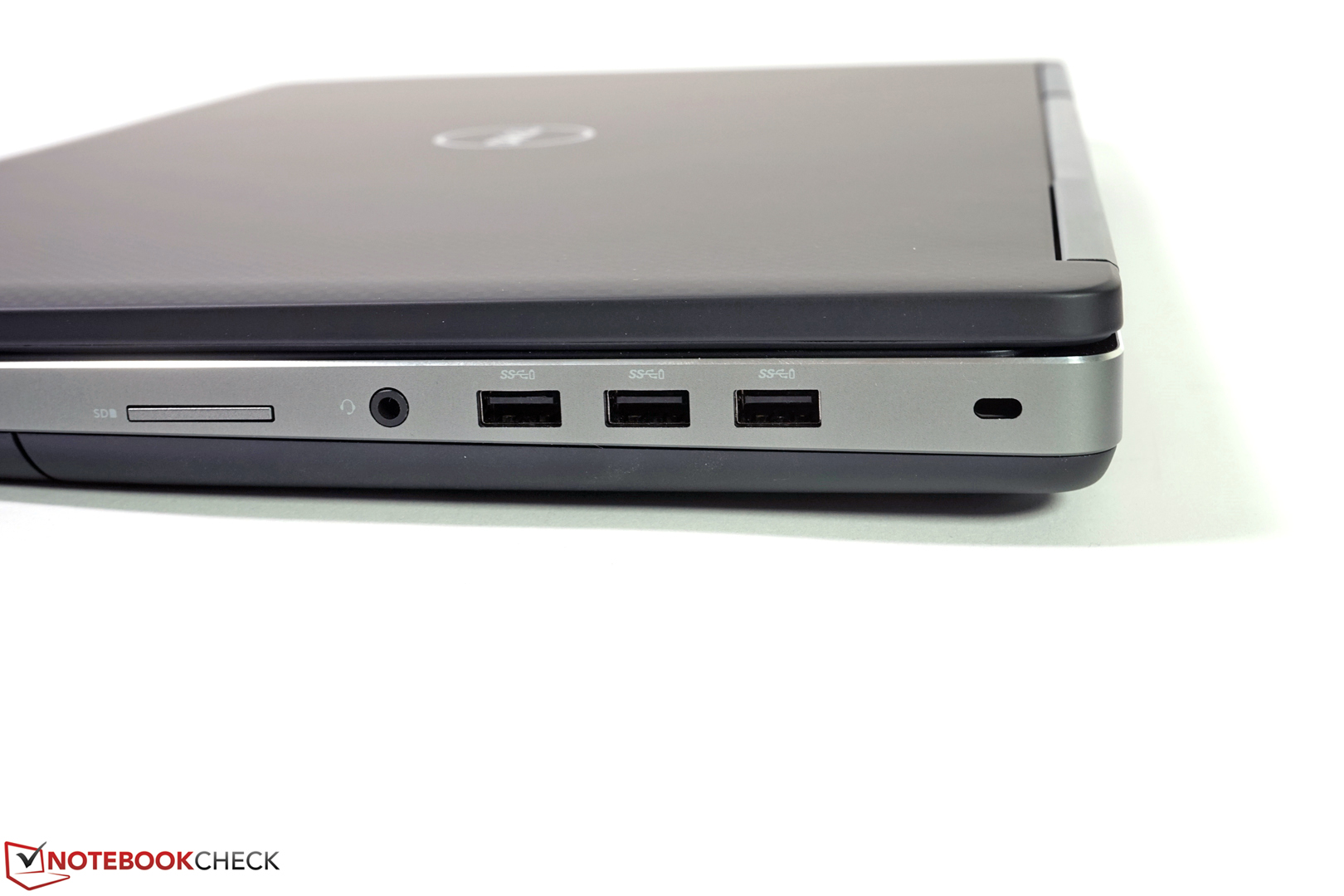

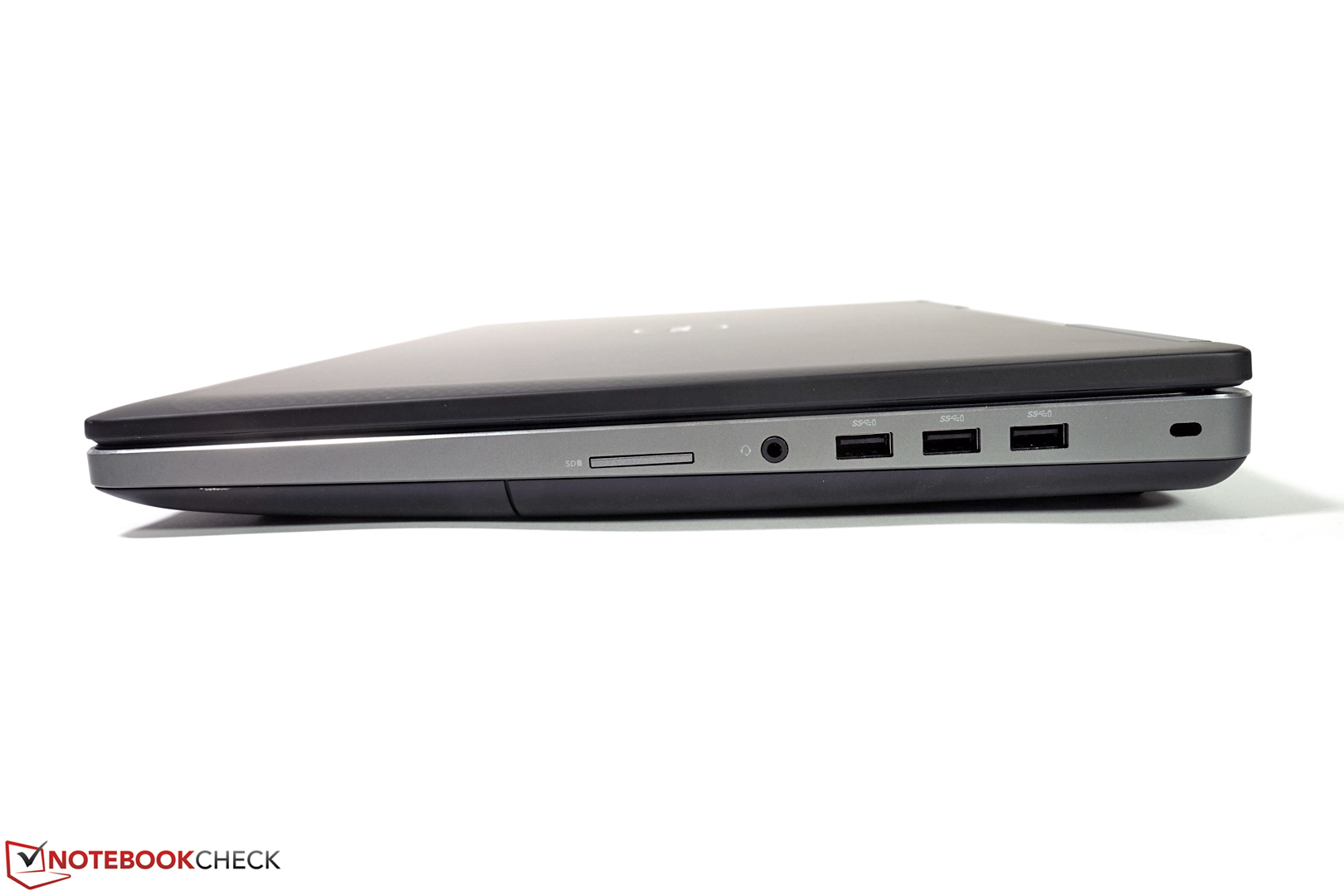

Right: card reader, combined audio in/out, 3x USB 3.0, Kensington lock slot
Right: card reader, combined audio in/out, 3x USB 3.0, Kensington lock slot

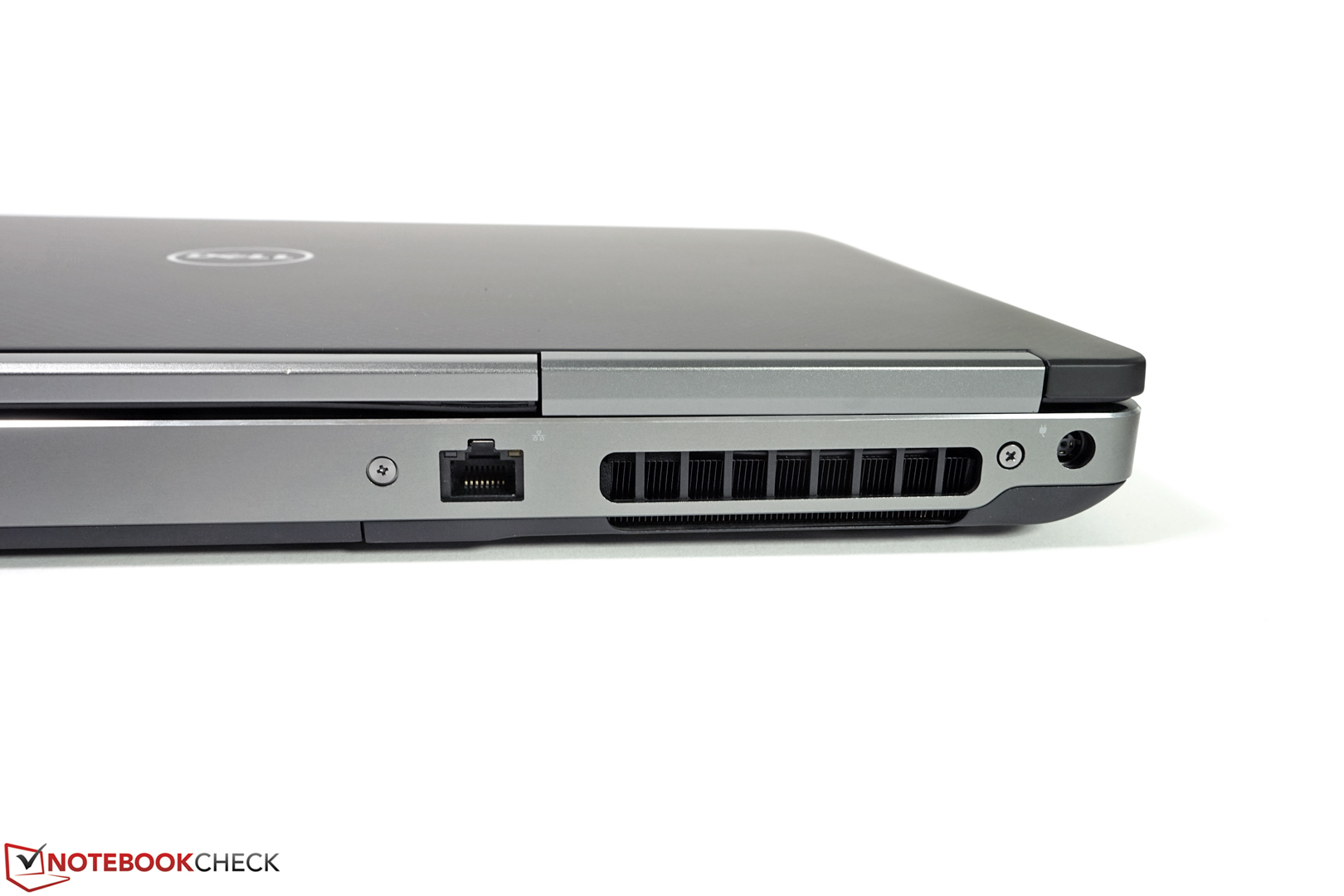

Rear: Gigabit LAN, fan grilles, power-in
Rear: Gigabit LAN, fan grilles, power-in

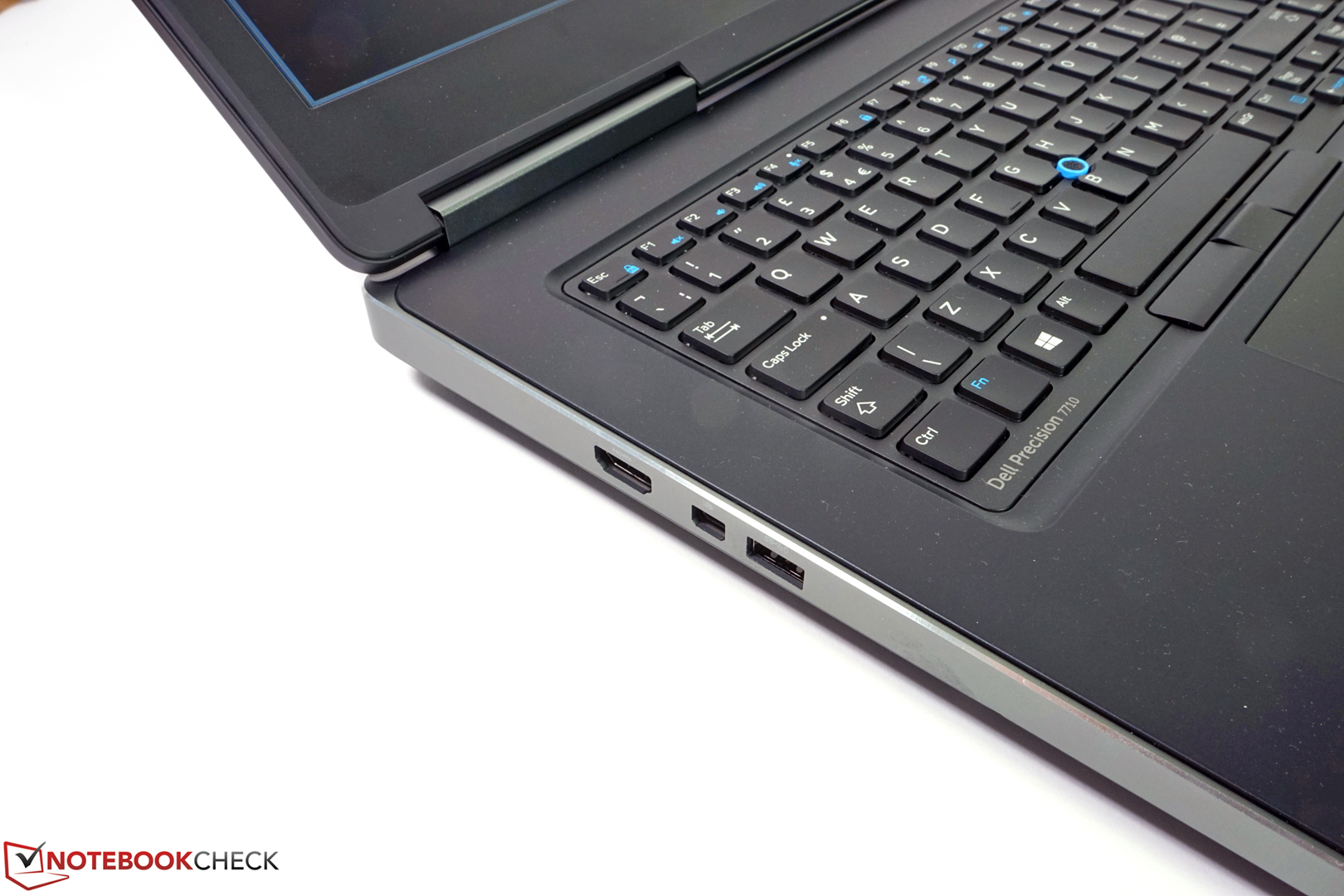

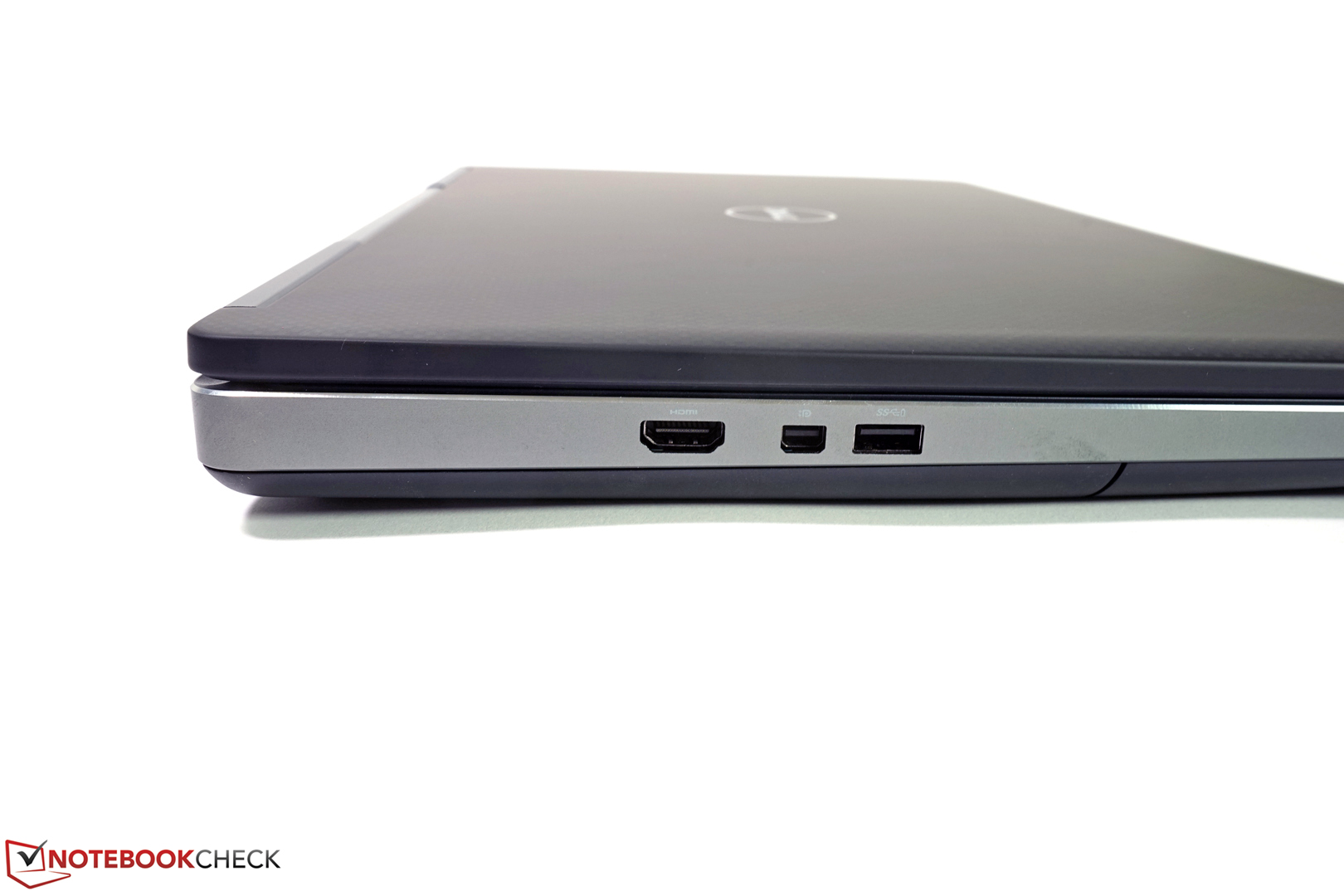

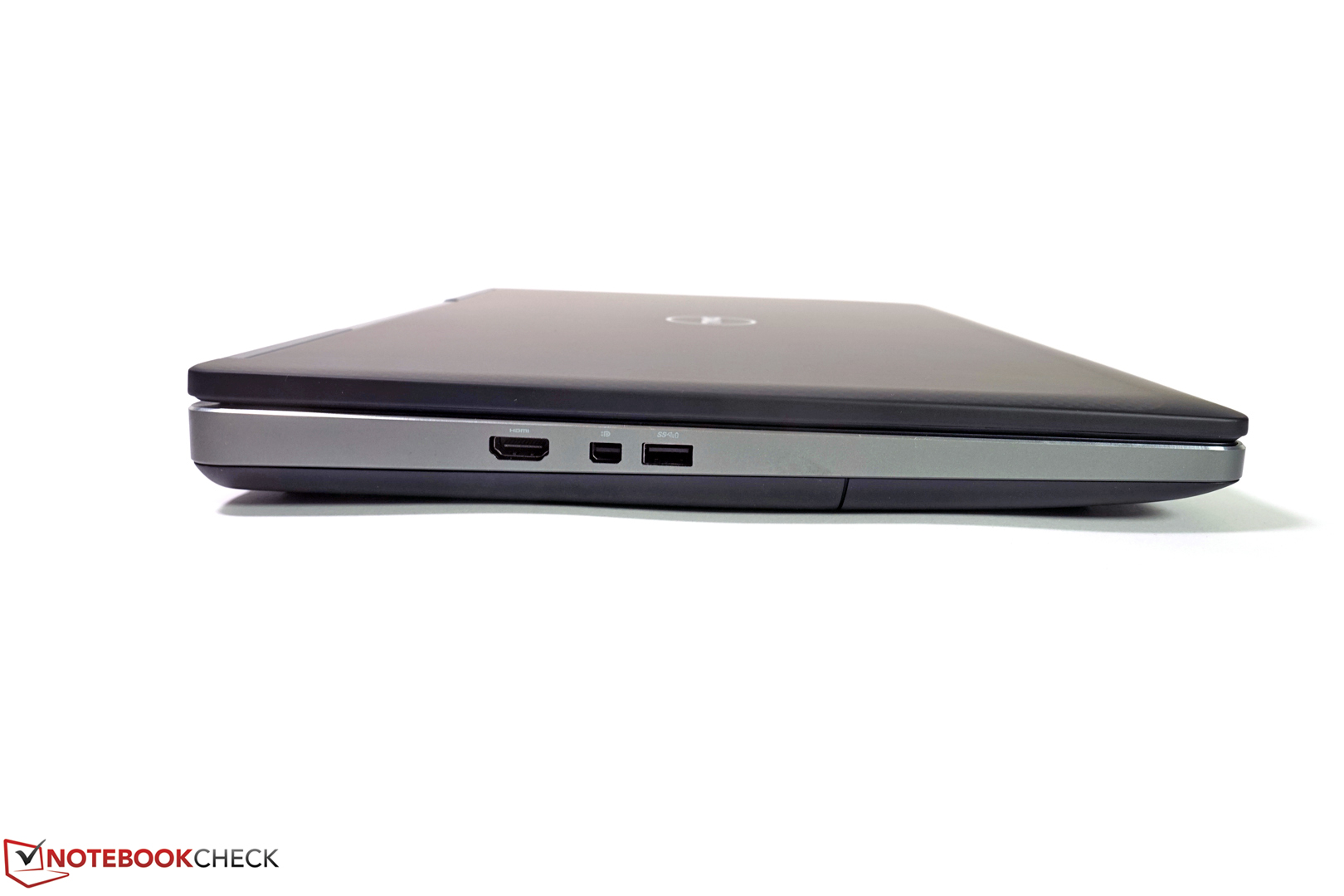

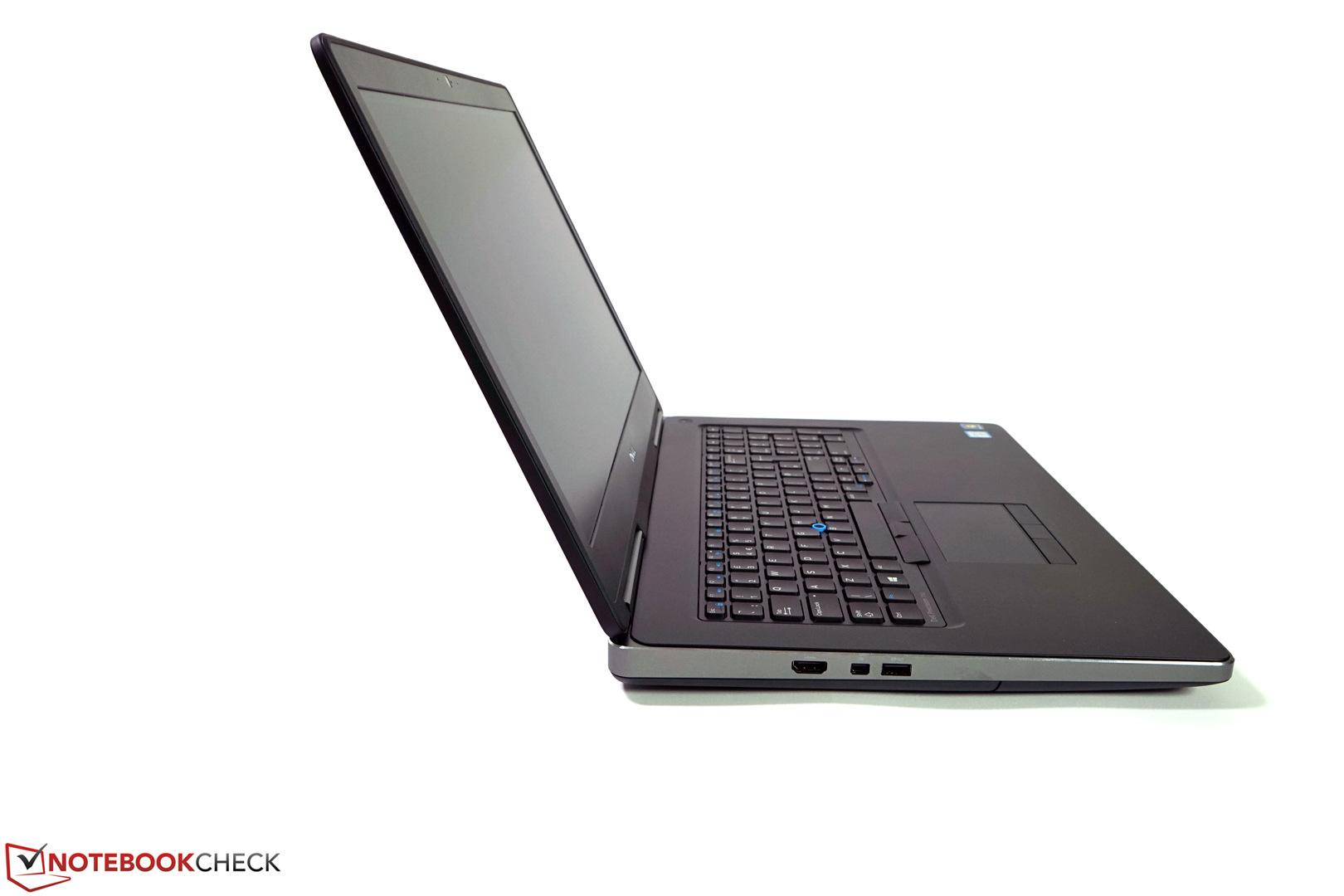

Left: HDMI, mini DisplayPort, USB 3.0
Left: HDMI, mini DisplayPort, USB 3.0
Front: no interfaces
Front: no interfaces
277
cd/m²
308
cd/m²
299
cd/m²
318
cd/m²
332
cd/m²
318
cd/m²
307
cd/m²
295
cd/m²
310
cd/m²
Distribuição do brilho
X-Rite i1Pro 2
Máximo: 332 cd/m² Médio: 307.1 cd/m²
iluminação: 83 %
iluminação com acumulador: 335 cd/m²
Contraste: 1006:1 (Preto: 0.33 cd/m²)
ΔE Color 3 | - Ø
ΔE Greyscale 4 | - Ø
97% sRGB (Argyll) 62% AdobeRGB 1998 (Argyll)
Gamma: 2
Response Times
Response Time Grey 50% / Grey 80% (sort by value)
Dell Precision 7710 (17, 33)
50 ms * ∼100%
Lenovo ThinkPad P70 (17.2, 26.8)
44 ms * ∼88% +12%
Schenker W706 (17.2, 26.8)
44 ms * ∼88% +12%
MSI WT72-6QM (13, 29)
42 ms * ∼84% +16%
Response Time Black / White (sort by value)
Dell Precision 7710 (11, 25)
36 ms * ∼100%
Lenovo ThinkPad P70 (4.8, 22.8)
27.6 ms * ∼77% +23%
Schenker W706 (8.4, 20.8)
29.2 ms * ∼81% +19%
MSI WT72-6QM (7, 19)
26 ms * ∼72% +28%
PWM Frequency (sort by value)
Dell Precision 7710 (25)
198 Hz ∼87%
Lenovo ThinkPad P70 (95)
228 Hz ∼100% +15%
Schenker W706
0 Hz ∼0% -100%
MSI WT72-6QM (10, 15)
86 Hz ∼38% -57%
Screen
Brightness (sort by value)
Dell Precision 7710
307 cd/m² ∼90%
Lenovo ThinkPad P70
341 cd/m² ∼100%
Schenker W706
331 cd/m² ∼97%
MSI WT72-6QM
298 cd/m² ∼87%
Brightness Distribution (sort by value)
Dell Precision 7710
83 % ∼88%
Lenovo ThinkPad P70
85 % ∼90%
Schenker W706
86 % ∼91%
MSI WT72-6QM
94 % ∼100%
Black Level (sort by value)
Dell Precision 7710
0.33 % * ∼69%
Lenovo ThinkPad P70
0.4 % * ∼83%
Schenker W706
0.48 % * ∼100%
MSI WT72-6QM
0.46 % * ∼96%
Contrast (sort by value)
Dell Precision 7710
1006 :1 ∼100%
Lenovo ThinkPad P70
913 :1 ∼91%
Schenker W706
742 :1 ∼74%
MSI WT72-6QM
659 :1 ∼66%
Colorchecker DeltaE2000 (sort by value)
Dell Precision 7710
3 * ∼52%
Lenovo ThinkPad P70
3.8 * ∼66%
Schenker W706
4.64 * ∼80%
MSI WT72-6QM
5.77 * ∼100%
Greyscale DeltaE2000 (sort by value)
Dell Precision 7710
4 * ∼66%
Lenovo ThinkPad P70
6.09 * ∼100%
Schenker W706
3.65 * ∼60%
MSI WT72-6QM
4.87 * ∼80%
Gamma (sort by value)
Dell Precision 7710
2 ∼87%
Lenovo ThinkPad P70
2.3 ∼100%
Schenker W706
2.02 ∼88%
MSI WT72-6QM
1.99 ∼87%
CCT (sort by value)
Dell Precision 7710
7089 ∼96%
Lenovo ThinkPad P70
6332 ∼86%
Schenker W706
6393 ∼87%
MSI WT72-6QM
7363 ∼100%
Color Space (Percent of AdobeRGB 1998) (sort by value)
Dell Precision 7710
62 % ∼82%
Lenovo ThinkPad P70
76.01 % ∼100%
Schenker W706
55 % ∼72%
MSI WT72-6QM
56.04 % ∼74%
Color Space (Percent of sRGB) (sort by value)
Dell Precision 7710
97 % ∼97%
Lenovo ThinkPad P70
99.97 % ∼100%
Schenker W706
84 % ∼84%
MSI WT72-6QM
85.27 % ∼85%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

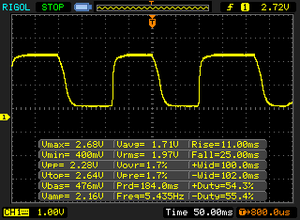

       Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 90 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (26.7 ms).

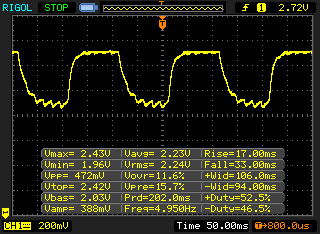

       Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 33 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 81 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.8 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 198 Hz25 % brightness setting

The display backlight flickers at 198 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 25 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6577 (minimum: 43 - maximum: 142900) Hz was measured.


Cinebench R15
CPU Single 64Bit (sort by value)
Dell Precision 7710
162 Points ∼100%
Lenovo ThinkPad P70
153 Points ∼94% -6%
Acer Aspire V5-591G-50NC
136 Points ∼84% -16%
CPU Multi 64Bit (sort by value)
Dell Precision 7710
746 Points ∼100%
Lenovo ThinkPad P70
699 Points ∼94% -6%
Acer Aspire V5-591G-50NC
465 Points ∼62% -38%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Acer Aspire V5-591G-50NC Intel Core i5-6300HQ, NVIDIA GeForce GTX 950M, Samsung SSD 850 EVO 250GB
Super Pi Mod 1.5 XS 32M - --- (sort by value)
Dell Precision 7710
511 Seconds * ∼83%
Lenovo ThinkPad P70
561 Seconds * ∼91% -10%
Acer Aspire V5-591G-50NC
617.799 Seconds * ∼100% -21%
wPrime 2.0x - 1024m (sort by value)
Dell Precision 7710
214.5 s * ∼59%
Lenovo ThinkPad P70
230.77 s * ∼64% -8%
Acer Aspire V5-591G-50NC
361.097 s * ∼100% -68%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Acer Aspire V5-591G-50NC Intel Core i5-6300HQ, NVIDIA GeForce GTX 950M, Samsung SSD 850 EVO 250GB

* ... smaller is better

Cinebench R10 Shading 32Bit
9551
Cinebench R10 Rendering Multiple CPUs 32Bit
22496
Cinebench R10 Rendering Single 32Bit
5837
Cinebench R10 Shading 64Bit
9829 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
29375 Points
Cinebench R10 Rendering Single CPUs 64Bit
7608 Points
Cinebench R11.5 CPU Multi 64Bit
8.24 Points
Cinebench R11.5 OpenGL 64Bit
86.52 fps
Cinebench R11.5 CPU Single 64Bit
1.84 Points
Cinebench R15 CPU Multi 64Bit
746 Points
Cinebench R15 CPU Single 64Bit
162 Points
Cinebench R15 Ref. Match 64Bit
98.01 %
Cinebench R15 OpenGL 64Bit
102.81 fps
Ajuda
PCMark 8
Work Score Accelerated v2 (sort by value)
Dell Precision 7710
5417 Points ∼96%
Lenovo ThinkPad P70
4411 Points ∼78% -19%
Schenker W706
5151 Points ∼91% -5%
MSI WT72-6QM
5655 Points ∼100% +4%
Creative Score Accelerated v2 (sort by value)
Dell Precision 7710
5668 Points ∼84%
Schenker W706
6772 Points ∼100% +19%
Home Score Accelerated v2 (sort by value)
Dell Precision 7710
4770 Points ∼97%
Lenovo ThinkPad P70
3345 Points ∼68% -30%
Schenker W706
4914 Points ∼100% +3%
MSI WT72-6QM
4731 Points ∼96% -1%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7
PCMark 7 Score
5072 pontos
PCMark 8 Home Score Accelerated v2
4770 pontos
PCMark 8 Creative Score Accelerated v2
5668 pontos
PCMark 8 Work Score Accelerated v2
5417 pontos
Ajuda
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read: 1886 MB/s
Sequential Write: 626 MB/s
4K Read: 51 MB/s
4K Write: 179 MB/s
4K-64 Read: 1064 MB/s
4K-64 Write: 275 MB/s
Access Time Read: 0.069 ms
Access Time Write: 0.022 ms
Copy ISO: 823 MB/s
Copy Program: 196 MB/s
Copy Game: 974 MB/s
Score Read: 1304 Points
Score Write: 517 Points
Score Total: 2435 Points
SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision 7710
49 fps ∼73%
Dell Precision 5510
41 fps ∼61% -16%
Lenovo ThinkPad P70
67.36 fps ∼100% +37%
HP ZBook 17 G2 J8Z55ET
47.84 fps ∼71% -2%
MSI WT72-6QM
61.76 fps ∼92% +26%
1920x1080 Tcvis (sort by value)
Dell Precision 7710
36 fps ∼64%
Dell Precision 5510
40 fps ∼72% +11%
Lenovo ThinkPad P70
41.16 fps ∼74% +14%
HP ZBook 17 G2 J8Z55ET
28.37 fps ∼51% -21%
MSI WT72-6QM
55.94 fps ∼100% +55%
1920x1080 SolidWorks (sort by value)
Dell Precision 7710
74 fps ∼100%
Dell Precision 5510
51 fps ∼69% -31%
Lenovo ThinkPad P70
35.28 fps ∼48% -52%
HP ZBook 17 G2 J8Z55ET
68.72 fps ∼93% -7%
MSI WT72-6QM
49.26 fps ∼67% -33%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision 7710
11.7 fps ∼56%
Dell Precision 5510
21 fps ∼100% +79%
Lenovo ThinkPad P70
16.08 fps ∼77% +37%
HP ZBook 17 G2 J8Z55ET
10.66 fps ∼51% -9%
MSI WT72-6QM
17.87 fps ∼85% +53%
1920x1080 Maya (sort by value)
Dell Precision 7710
106 fps ∼100%
Dell Precision 5510
56 fps ∼53% -47%
Lenovo ThinkPad P70
85.96 fps ∼81% -19%
HP ZBook 17 G2 J8Z55ET
99.72 fps ∼94% -6%
MSI WT72-6QM
71.59 fps ∼68% -32%
1920x1080 Lightwave (sort by value)
Dell Precision 7710
84 fps ∼100%
Dell Precision 5510
54 fps ∼64% -36%
Lenovo ThinkPad P70
35.34 fps ∼42% -58%
HP ZBook 17 G2 J8Z55ET
77.78 fps ∼93% -7%
MSI WT72-6QM
59.58 fps ∼71% -29%
1920x1080 Ensight (sort by value)
Dell Precision 7710
70 fps ∼95%
Dell Precision 5510
39 fps ∼53% -44%
Lenovo ThinkPad P70
59.49 fps ∼80% -15%
HP ZBook 17 G2 J8Z55ET
55.74 fps ∼75% -20%
MSI WT72-6QM
73.98 fps ∼100% +6%
1920x1080 Catia (sort by value)
Dell Precision 7710
61 fps ∼100%
Dell Precision 5510
54 fps ∼89% -11%
Lenovo ThinkPad P70
43.12 fps ∼71% -29%
HP ZBook 17 G2 J8Z55ET
49.28 fps ∼81% -19%
MSI WT72-6QM
55.25 fps ∼91% -9%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Dell Precision 7710
73 fps ∼70%
HP ZBook 17 G2 J8Z55ET
66.53 fps ∼63% -9%
Dell Precision 5510
62 fps ∼59% -15%
Lenovo ThinkPad P70
52.35 fps ∼50% -28%
Schenker W706
105 fps ∼100% +44%
Schenker XMG U716
49.23 fps ∼47% -33%
1900x1060 Siemens NX (snx-02) (sort by value)
Dell Precision 7710
63 fps ∼72%
HP ZBook 17 G2 J8Z55ET
50.73 fps ∼58% -19%
Dell Precision 5510
31 fps ∼35% -51%
Lenovo ThinkPad P70
39.84 fps ∼45% -37%
Schenker W706
88 fps ∼100% +40%
Schenker XMG U716
6.11 fps ∼7% -90%
1900x1060 Showcase (showcase-01) (sort by value)
Dell Precision 7710
37 fps ∼62%
HP ZBook 17 G2 J8Z55ET
26.31 fps ∼44% -29%
Dell Precision 5510
20 fps ∼34% -46%
Lenovo ThinkPad P70
39.81 fps ∼67% +8%
Schenker W706
44 fps ∼74% +19%
Schenker XMG U716
59.31 fps ∼100% +60%
1900x1060 Medical (medical-01) (sort by value)
Dell Precision 7710
27 fps ∼82%
HP ZBook 17 G2 J8Z55ET
16.27 fps ∼49% -40%
Dell Precision 5510
12 fps ∼36% -56%
Lenovo ThinkPad P70
17.46 fps ∼53% -35%
Schenker W706
33 fps ∼100% +22%
Schenker XMG U716
30.94 fps ∼94% +15%
1900x1060 Maya (maya-04) (sort by value)
Dell Precision 7710
46 fps ∼43%
HP ZBook 17 G2 J8Z55ET
39.17 fps ∼37% -15%
Dell Precision 5510
30 fps ∼28% -35%
Lenovo ThinkPad P70
23.08 fps ∼22% -50%
Schenker W706
73 fps ∼68% +59%
Schenker XMG U716
107.02 fps ∼100% +133%
1900x1060 Energy (energy-01) (sort by value)
Dell Precision 7710
3.17 fps ∼43%
HP ZBook 17 G2 J8Z55ET
0.59 fps ∼8% -81%
Dell Precision 5510
0.69 fps ∼9% -78%
Lenovo ThinkPad P70
4.68 fps ∼63% +48%
Schenker W706
7.4 fps ∼100% +133%
Schenker XMG U716
7.17 fps ∼97% +126%
1900x1060 Creo (creo-01) (sort by value)
Dell Precision 7710
50 fps ∼61%
HP ZBook 17 G2 J8Z55ET
42.61 fps ∼52% -15%
Dell Precision 5510
34 fps ∼41% -32%
Lenovo ThinkPad P70
42.17 fps ∼51% -16%
Schenker W706
82 fps ∼100% +64%
Schenker XMG U716
34.82 fps ∼42% -30%
1900x1060 Catia (catia-04) (sort by value)
Dell Precision 7710
58 fps ∼59%
HP ZBook 17 G2 J8Z55ET
44.02 fps ∼44% -24%
Dell Precision 5510
37 fps ∼37% -36%
Lenovo ThinkPad P70
45.24 fps ∼46% -22%
Schenker W706
99 fps ∼100% +71%
Schenker XMG U716
53.61 fps ∼54% -8%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

Schenker XMG U716 Intel Core i7-6700, NVIDIA GeForce GTX 980 (Laptop), Samsung SM951 MZHPV512HDGL m.2 PCI-e
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision 7710
782 Samples/s ∼62%
Lenovo ThinkPad P70
1258 Samples/s ∼100% +61%
Dell Precision 5510
534 Samples/s ∼42% -32%
Sala GPUs-only (sort by value)
Dell Precision 7710
1412 Samples/s ∼63%
Lenovo ThinkPad P70
2234 Samples/s ∼100% +58%
Dell Precision 5510
889 Samples/s ∼40% -37%
SiSoft Sandra 2016
Image Processing (sort by value)
Dell Precision 7710
527.4 MPix/s ∼100%
Lenovo ThinkPad P70
367.1 MPix/s ∼70% -30%
Dell Precision 5510
127.5 MPix/s ∼24% -76%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Dell Precision 7710
12.47 GB/s ∼100%
Lenovo ThinkPad P70
11.12 GB/s ∼89% -11%
Dell Precision 5510
7.38 GB/s ∼59% -41%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Dell Precision 7710
66.36 KOPT/s ∼100%
Lenovo ThinkPad P70
32.97 KOPT/s ∼50% -50%
Dell Precision 5510
17 KOPT/s ∼26% -74%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 7710
59.3 fps ∼100%
Lenovo ThinkPad P70
43.4 fps ∼73% -27%
Dell Precision 5510
43.4 fps ∼73% -27%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 7710
76.9 fps ∼97%
Lenovo ThinkPad P70
79.3 fps ∼100% +3%
Dell Precision 5510
44.9 fps ∼57% -42%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Dell Precision 7710
30.7 fps ∼81%
Lenovo ThinkPad P70
37.8 fps ∼100% +23%
Dell Precision 5510
18.7 fps ∼49% -39%
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Dell Precision 7710
26.6 fps ∼100%
Lenovo ThinkPad P70
22 fps ∼83% -17%
Dell Precision 5510
16.2 fps ∼61% -39%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB
3DMark 06 Standard
28430 pontos
3DMark Vantage P Result
26345 pontos
3DMark 11 Performance
9580 pontos
3DMark Ice Storm Standard Score
95675 pontos
3DMark Cloud Gate Standard Score
21612 pontos
3DMark Fire Strike Score
6180 pontos
Ajuda
baixo média alto ultra
Tomb Raider (2013) 37522416751fps
BioShock Infinite (2013) 22017815866fps
Metro: Last Light (2013) 1201129444fps
Company of Heroes 2 (2013) 57565528fps
Total War: Rome II (2013) 18516215336fps
Thief (2014) 62575740fps
GRID: Autosport (2014) 2321169967fps
Middle-earth: Shadow of Mordor (2014) 1771267052fps
Ryse: Son of Rome (2014) 101934315fps
F1 2014 (2014) 1321119574fps
Dirt Rally (2015) 2781878963fps
The Witcher 3 (2015) 97723123fps
Anno 2205 (2015) 146934320fps

Barulho

Ocioso
30 / 30 / 30 dB
HDD
33.2 dB
Carga
43.2 / 47.13 dB



30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm de distância)   environment noise: 30 dB(A)
Carga Máxima
 32.4 °C33.1 °C32.7 °C
 29.5 °C35.6 °C32.2 °C
 27 °C25.9 °C25.4 °C
Máximo: 35.6 °C
Médio: 30.4 °C
37.1 °C55 °C38.5 °C
28.3 °C38.2 °C33.2 °C
26 °C27.6 °C29.2 °C
Máximo: 55 °C
Médio: 34.8 °C
alimentação elétrica  44.8 °C | Temperatura do quarto 20 °C | Fennel FIRT 550-Pocket
Consumo de energia
desligadodarklight 0.2 / 0.8 Watt
Ociosodarkmidlight 6.04 / 15.2 / 42.3 Watt
Carga midlight 112.8 / 182.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
12h 55min
Navegar com WLAN v1.3
6h 05min
Big Buck Bunny H.264 1080p
4h 43min
Carga (máximo brilho)
1h 25min

Pro

+ Muito boa carcaça
+ Muito boa tela
+ Alto desempenho do sistema
+ Muito boas opções de atualização
+ Muitas opções de configuração
+ Ruído do sistema durante uso moderado
+ Produção de calor
+ Duração da bateria
+ Dispositivos de entrada

Contra

- "Bleeding" notório e distribuição relativamente irregular do brilho
- Flickering no brilho baixo até o nível 4
- Desempenho gráfico reduzido quando a CPU está sob uso intenso
- "Apenas" três unidades de armazenamento podem ser integradas
- Conectividade modesta

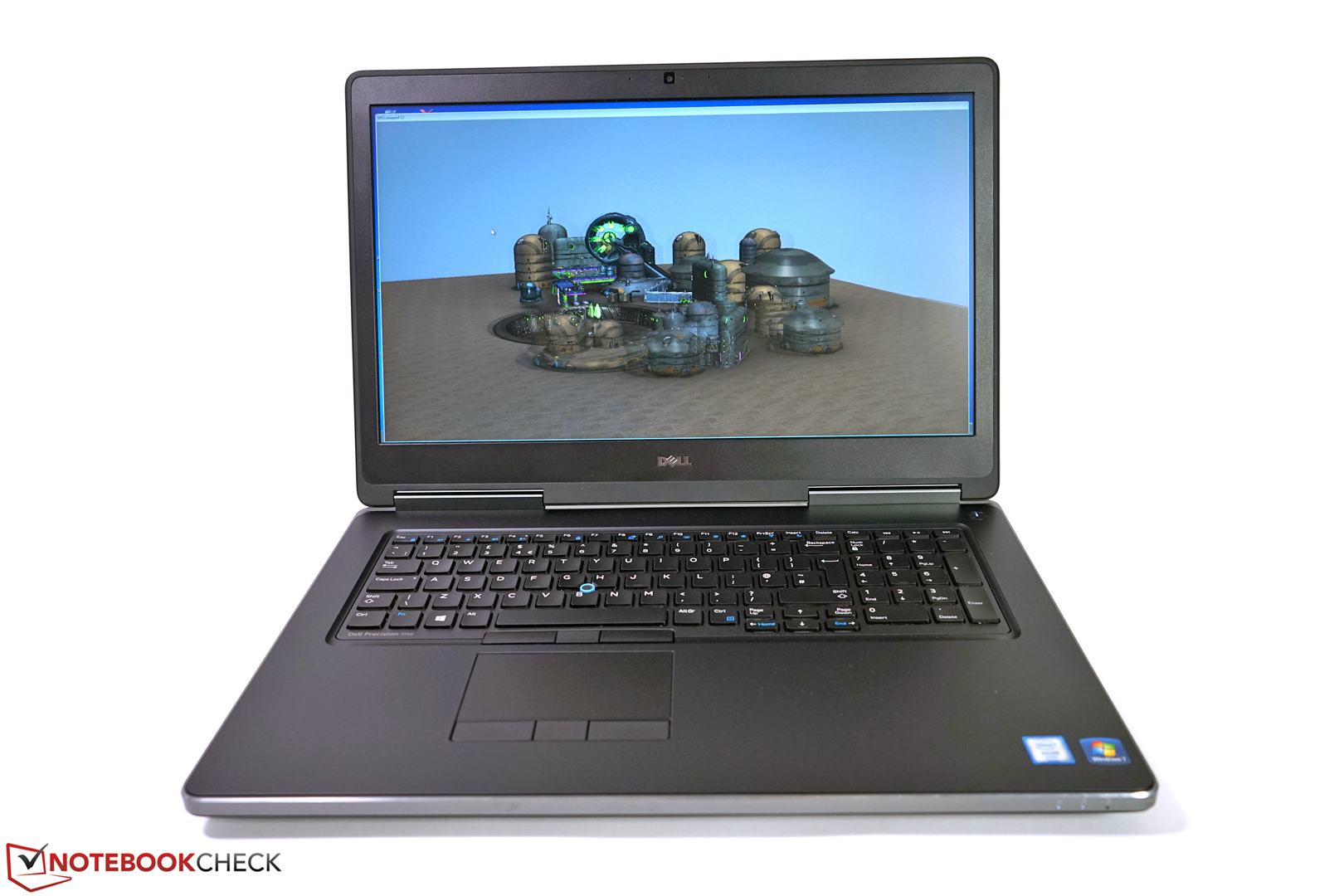

Dell Precision 7710
Dell Precision 7710
A very good mobile workstation...
A very good mobile workstation...
...with small weaknesses in detail.
...with small weaknesses in detail.

O Dell Precision 7710 foi fundamentalmente revisado e atualizado em muitos aspectos importantes.

O usuário obtém um workstation móvel com muito bom desempenho, manutenção simples, dispositivos de entrada adequados, e uma tela Full HD de gama alta para o uso profissional no novo modelo.

Como já estamos acostumados, a Dell oferece muitas opções de configuração e garantia, e extensões de serviço opcionais.

No entanto, não estamos completamente satisfeitos com a conectividade, que podia ter sido melhor em um workstation de 17 polegadas completamente revisado. Interfaces mais antigas foram removidas, mas portas modernas como USB 3.1 Gen.2, Thunderbolt 3.0 (disponível apenas opcionalmente) ou HDMI 2.0 ainda estão faltando. Além disso, você tem que viver sem uma unidade ótica ou um segundo slot de unidade de 2,5-polegadas. Mais ainda, não é adequado para o modelo de teste que o seu desempenho gráfico se afogue tanto durante o teste de estresse e com a bateria. Como os workstations móveis são comprados especialmente para o uso computacional intenso, esta medida é, de fato, contrária para o campo de aplicação planejado.

A Dell compensa isto com um baixo nível de ruído com uso moderado e um aquecimento geral baixo. As durações da bateria são excelentes, apesar de estar equipadas com a menor bateria de 72 Wh e garantem o uso longe de uma tomada durante um tempo adequadamente longo.

Considerando tudo, você obterá um workstation móvel sólido por um preço de cerca de 3.730 Euros (~$4.068), incluindo 36 meses de ProSupport com serviço on-site em nosso modelo de teste. No entanto, o usuário terá que aceitar algumas austeridades.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

Dell Precision 7710 - 03/17/2016 v5
Tobias Winkler

Acabamento
87 / 98 → 88%
Teclado
92%
Mouse
86%
Conectividade
68 / 81 → 84%
Peso
53 / 66 → 77%
Bateria
83%
Pantalha
88%
Desempenho do jogos
97%
Desempenho da aplicação
98%
Temperatura
90 / 95 → 94%
Ruído
83 / 90 → 92%
Audio
55%
Camera
40 / 85 → 47%
Médio
78%
86%
Workstation - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Workstation Dell Precision 7710
Tobias Winkler, 2016-02- 9 (Update: 2016-02-20)
