Revisão do Ace Magician T8Pro: Orçamento mini PC para uso em escritório

Name: Minipc Union Ace Magician T8Pro
Brand: Minipc Union

Quieto e eficiente! O Ace Magician T8Pro é um PC de escritório extremamente compacto lançado pela Minipc Union. O SoC interior do Lago Jasper só é capaz de executar tarefas básicas. Nesta revisão, resumimos nossas descobertas com muitas medidas e resultados de referência para dar-lhe uma melhor idéia deste produto.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 01/10/2023 🇺🇸 🇩🇪 ...

Jasper Lake Desktop Intel Mini PC

O fabricante do sistema Minipc Union oferece uma ampla gama de PCs compactos para aplicações que vão desde tarefas básicas de escritório até jogos orçamentários. O Ace Magician T8Pro é um mini PC altamente compacto alimentado por um Intel Celeron N5095A. O dispositivo também vem com 8 GB de RAM e um SSD de 256 GB. Você pode esperar pagar cerca de 290 euros (US$309) pelo dispositivo, o que é um preço justo em comparação com outros mini computadores compactos. Não há outras variantes disponíveis - não que pensemos que seja necessário de qualquer forma. Além disso, o Windows 11 Pro está incluído no preço.

O mini PC vem embalado em uma pequena caixa que também contém um carregador de 65 watts e um suporte VESA para montar o dispositivo em um monitor.

Minipc Union Ace Magician T8Pro

Processador

Intel Celeron N5095 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Placa gráfica

Intel UHD Graphics (Jasper Lake 16 EU)

Memória

8 GB

Disco rígido

FPT310M4SSD256G, 256 GB

, M.2 2242 SATA SSD, 210 GB livre

Conexões

3 USB 3.0, 3 HDMI, Conexões Audio: 3.5mm Klinke

Funcionamento em rede

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 43.5 x 87 x 87

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

12 Meses Garantia

peso

209 g, Suprimento de energia: 124 g

Preço

280 EUR

Links

Minipc Union página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Caso

O Ace Magician T8Pro é um minúsculo mini PC que ocupa apenas uma área de aproximadamente 8,7 x 8,7 cm (3,5 x 3,5"). O produto também é relativamente fino, com apenas 4,35 cm (1,69"). O fabricante optou por uma construção em sua maioria de plástico. As superfícies do dispositivo são bastante lisas e agradáveis ao toque. Em termos de cor, o Ace Magician T8Pro é mantido relativamente neutro com prata e cinza, permitindo que ele se misture perfeitamente em uma mesa moderna. Não há problemas de estabilidade graças a seu design compacto. E o pequeno computador é muito leve, com apenas 209 g (0,46 lb).

Comparação de tamanho

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Morefine S500+ Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A4 ❌

Especificações

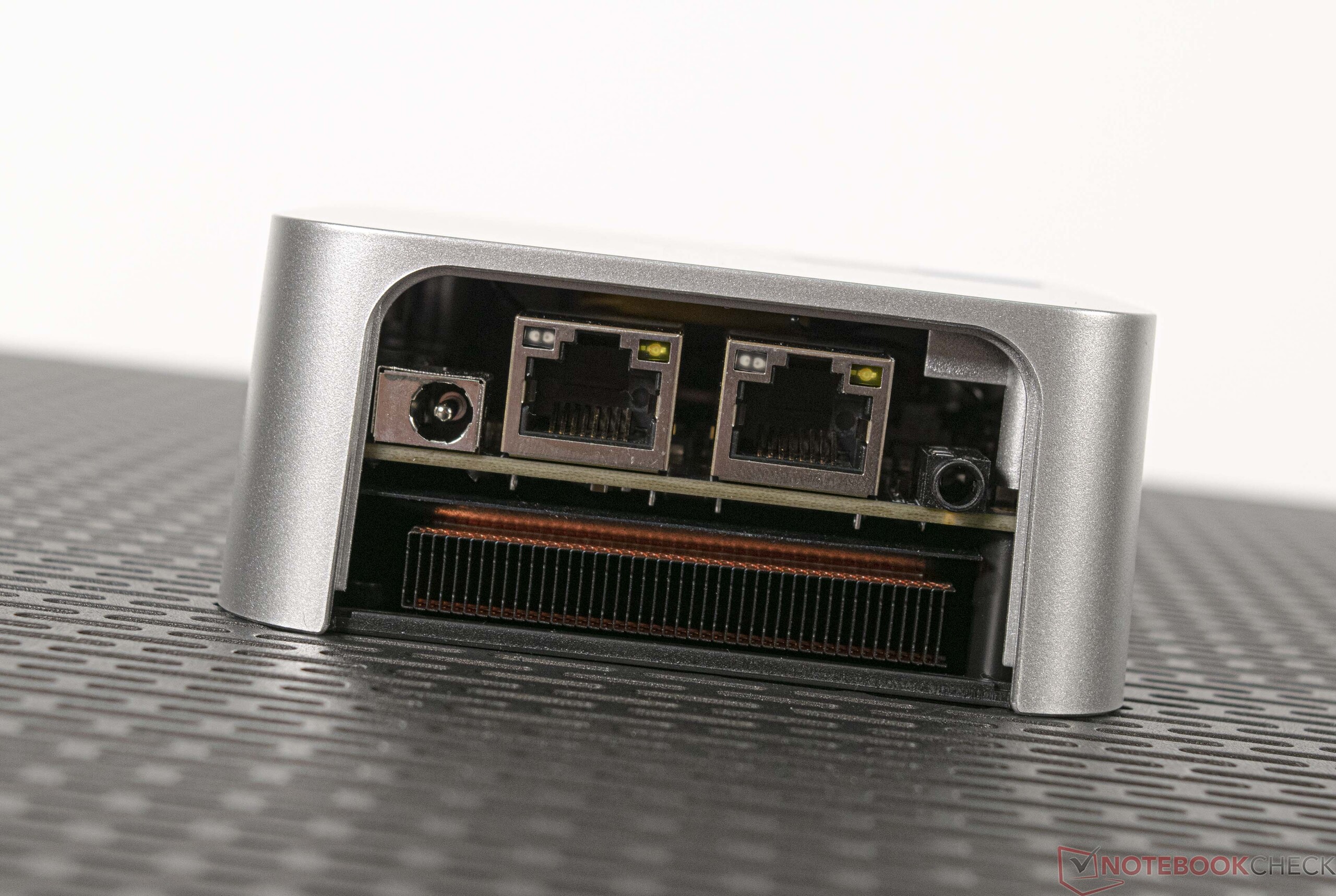

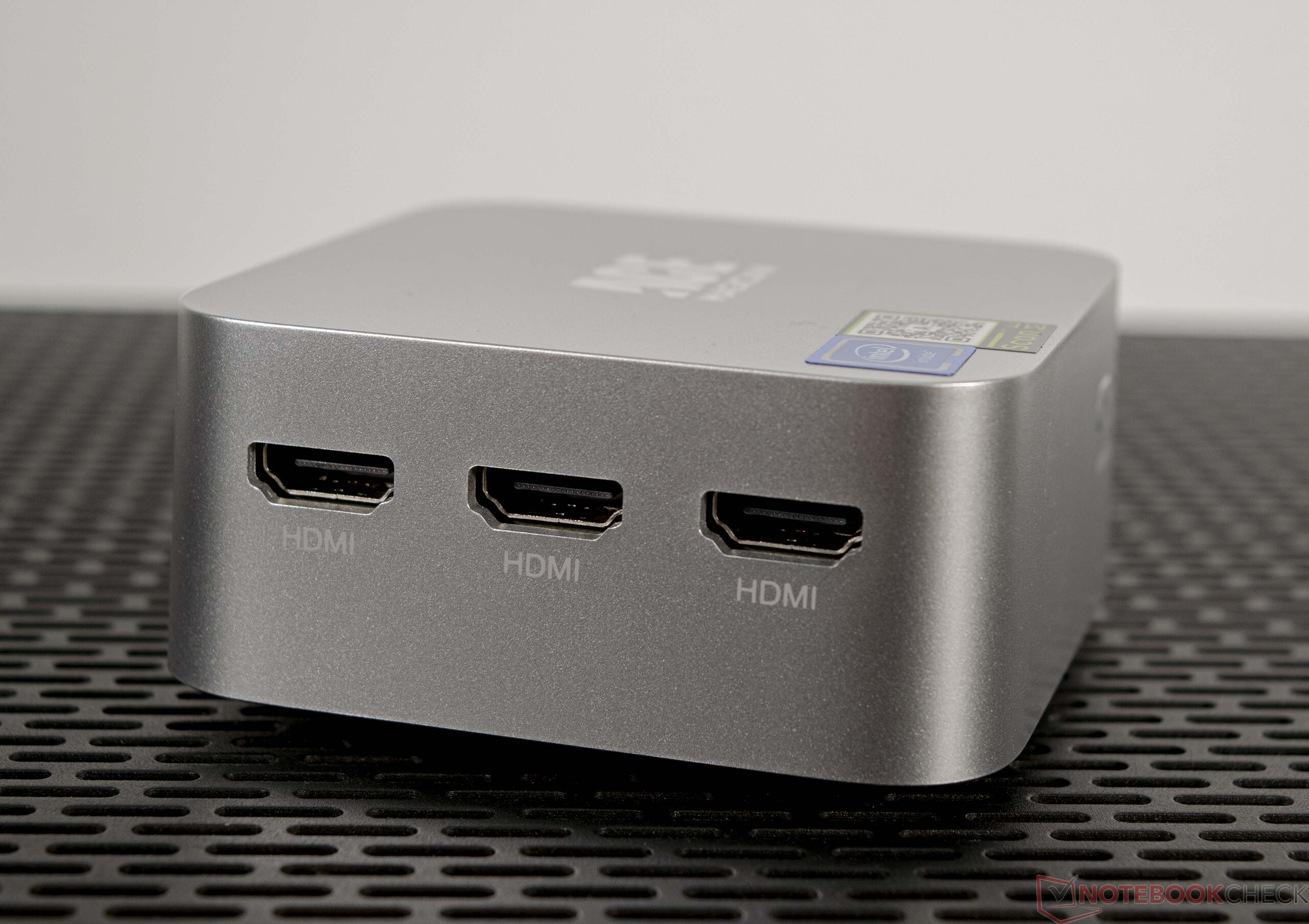

Apesar do design compacto, a Minipc Union conseguiu empacotar três portas USB-A e três saídas HDMI para o Ace Magician T8Pro. Os dois tipos de portas estão cada um localizado em um lado do dispositivo, e há duas portas LAN na parte traseira. Isto significa que o Ace Magician T8Pro é muito bem equipado e pode se segurar contra dispositivos "maiores" em nossa comparação. O T8Pro usa um chip Realtek 8821CE para comunicação sem fio, que oferece pior desempenho do que as soluções sem fio nos outros dispositivos.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s +166%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +149%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s +147%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +114%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +18%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 365, n=5)	360 MBit/s -1%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +425%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +370%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s +366%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +348%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +211%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 274, n=5)	242 MBit/s +31%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s +22%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s

Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)

Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

Manutenção

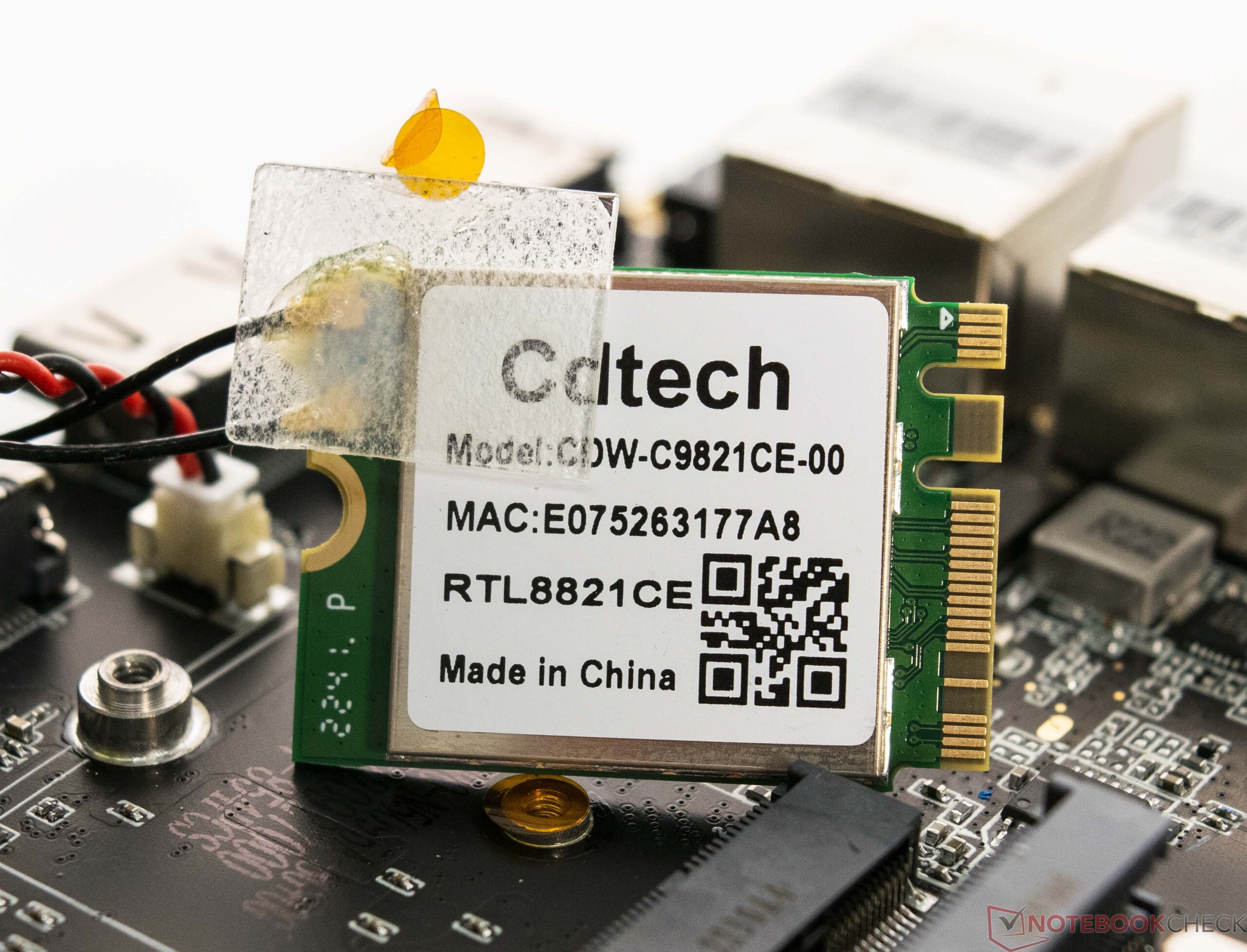

O módulo SSD e Wi-Fi são facilmente acessíveis para aqueles que desejam atualizar o Ace Magician T8Pro. Para abrir o dispositivo, basta remover os quatro parafusos na parte inferior. Entretanto, você deve tomar nota do fator de forma do SSD, pois o dispositivo só pode acomodar um SSD M.2 com 42 mm de comprimento. Ao contrário do SSD e do módulo Wi-Fi, no entanto, a memória não é atualizável.

Desempenho

O Intel Celeron N5095 é a única opção de processador disponível para o Ace Magician T8Pro. Os quatro núcleos nativos têm 8 GB de RAM DDR4 à sua disposição e oferecem um desempenho sólido para tarefas básicas de escritório.

Condições de teste

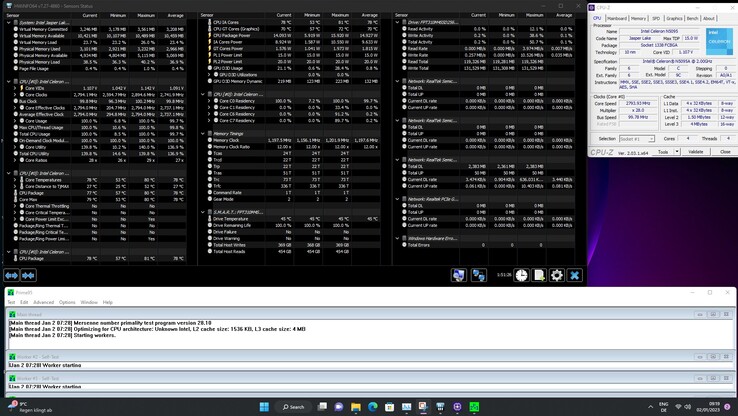

Realizamos todos os testes relacionados ao desempenho com o plano de potência "Alto Desempenho" a fim de obter os melhores resultados possíveis. A única vez que utilizamos um plano de energia diferente foi quando medimos o consumo de energia e os níveis de ruído. Clique aqui para saber mais sobre nossos critérios de teste.

Processador

O Mágico Ás T8Pro pode aproveitar o poder do Intel Celeron N5095 bastante bem. Dito isto, há produtos concorrentes que têm melhor desempenho com o mesmo SoC, como o Geekom MiniAir 11 Edição Especial. O diferencial de desempenho está, no entanto, na baixa faixa percentual de um dígito e, portanto, é insignificante. O limite de potência a curto prazo do SoC (PL2) é de cerca de 20 watts, enquanto o limite de potência a longo prazo (PL1) está limitado a 15 watts.

Você pode clicar em aquipara ver mais referências de processadores.

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points +21%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.3 Points +5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points +4%
Average Intel Celeron N5095 (95.4 - 109, n=5)	103.9 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	95.4 Points -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	76 Points -25%
CPU Multi 64Bit
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	372 Points +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	358 (350.25^min - 357.53^max) Points 0%
Average Intel Celeron N5095 (221 - 379, n=6)	343 Points -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	128 Points -64%

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +14%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	236 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points 0%
Average Intel Celeron N5095 (228 - 239, n=5)	234 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	228 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	174 Points -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	827 Points +1%
Average Intel Celeron N5095 (804 - 844, n=5)	825 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	804 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	285 Points -65%

Cinebench R23
Single Core
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points +15%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	615 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points +1%
Average Intel Celeron N5095 (587 - 621, n=5)	608 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	587 Points -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	439 Points -28%
Multi Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2176 (2164.67^min - 2176.1^max) Points +1%
Average Intel Celeron N5095 (2150 - 2219, n=5)	2174 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2159 (2113.79^min - 2158.74^max) Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	735 Points -66%

Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points +3%
Average Intel Celeron N5095 (1.25 - 1.29, n=2)	1.27 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.97 Points -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points +2%
Average Intel Celeron N5095 (4.65 - 4.76, n=2)	4.71 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.65 Points -65%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points +4%
Average Intel Celeron N5095 (5224 - 5451, n=2)	5338 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	4120 Points -21%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points
Average Intel Celeron N5095 (16442 - 17278, n=2)	16860 Points -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points -38%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	6653 Points -61%

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3767 Seconds * -144%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * -54%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -17%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1624 Seconds * -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -0%
Average Intel Celeron N5095 (1502 - 1624, n=5)	1548 Seconds * -0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds *
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1502 Seconds * +3%

wPrime 2.10
32m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	49.66 s * -159%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -3%
Average Intel Celeron N5095 (19.2 - 19.8, n=2)	19.5 s * -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s *
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * +10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * +11%
1024m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1561.178 s * -158%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -2%
Average Intel Celeron N5095 (605 - 617, n=2)	611 s * -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s *
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * +7%

X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps +7%
Average Intel Celeron N5095 (112.8 - 120.3, n=2)	116.5 fps +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	45.25 (44.7^min - 45.7^max) fps -60%
Pass 2
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps +2%
Average Intel Celeron N5095 (24.8 - 25.3, n=2)	25 fps +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	9.995 (9.97^min - 10.2^max) fps -60%

WinRAR - Result
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s +9%
Average Intel Celeron N5095 (1630 - 1781, n=2)	1706 KB/s +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	731 KB/s -55%

TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s
Average Intel Celeron N5095 (2.5 - 2.5, n=2)	2.5 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s -24%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.979 GB/s -61%
Twofish Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s +9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s
Average Intel Celeron N5095 (0.37 - 0.37, n=2)	0.37 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s -28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.14 GB/s -62%
Serpent Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s +16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s
Average Intel Celeron N5095 (0.198 - 0.198, n=2)	0.198 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s -8%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.074 GB/s -63%

Geekbench 5.5
Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2036 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -2%
Average Intel Celeron N5095 (1933 - 2052, n=4)	2010 Points -2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1933 Points -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points -27%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	844 Points -59%
Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	659 Points +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points +3%
Average Intel Celeron N5095 (637 - 659, n=4)	649 Points +2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	644 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	556 Points -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points -29%

Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points
Average Intel Celeron N5095 (1985 - 2070, n=4)	2029 Points -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2020 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	857 Points -58%
5.0 Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	655 Points +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points +3%
Average Intel Celeron N5095 (628 - 655, n=4)	644 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	559 Points -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points -29%

Geekbench 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points +2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2900 Points +1%
Average Intel Celeron N5095 (2858 - 2929, n=3)	2896 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2585 Points -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points
Average Intel Celeron N5095 (7759 - 7968, n=3)	7856 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	7759 Points -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points -31%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3606 Points -55%

3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	4322 Points +1%
Average Intel Celeron N5095 (4224 - 4439, n=5)	4309 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points 0%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	4224 Points -1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points -35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1591 Points -63%

7-Zip 18.03
7z b 4
Average Intel Celeron N5095 (10924 - 11168, n=5)	11024 MIPS +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	11023 MIPS +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	11013 MIPS +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -9%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS -29%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3974 MIPS -64%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +20%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	3124 MIPS +6%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	3100 MIPS +6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS +6%
Average Intel Celeron N5095 (2935 - 3124, n=5)	3074 MIPS +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2593 MIPS -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2 fps 0%
Average Intel Celeron N5095 (1.9 - 2.05, n=5)	1.996 fps -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.9 fps -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps -26%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.88 fps -56%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.371 sec * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec *
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1.178 sec * +2%
Average Intel Celeron N5095 (1.16 - 1.2, n=5)	1.174 sec * +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.16 sec * +3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * +5%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	144.7 s * -40%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * -38%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.9 s * -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	106.5 s * -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s *
Average Intel Celeron N5095 (97 - 107.9, n=5)	103.6 s * -0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * -0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * +10%

WebXPRT 3 - Overall
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points +15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points -1%
Average Intel Celeron N5095 (114.3 - 127.2, n=6)	123.4 Points -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	114.3 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	89.2 Points -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points -32%

Mozilla Kraken 1.1 - Total
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * -41%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms *
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1591 ms * +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * +2%
Average Intel Celeron N5095 (1557 - 1619, n=6)	1578 ms * +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * +4%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * +4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * +14%

3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	5499 Points -1%
Average Intel Celeron N5095 (5400 - 5572, n=5)	5496 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	5400 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2195 Points -60%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22 pt
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21 pt
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	20.7 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	17 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.2 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +704%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1245 KRay/s 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s -20%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -67%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +604%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7459 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points -3%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points -17%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -68%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +347%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s -23%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -68%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +210%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points -2%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21458 Points -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -65%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +631%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points +20%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1003 Points 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -60%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points -60%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +603%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3962 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -68%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +289%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19086 MB/s -1%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s -48%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -67%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +209%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	189.9 MB/s +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -68%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +689%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s -18%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -68%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s +149%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7707 MPixel/s -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s -25%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s -48%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -75%

O desempenho do Intel Celeron N5059é muito bem administrado sob carga, como demonstrado pelo teste do laço Cinebench R15. Os resultados permaneceram consistentes durante todas as 50 corridas do teste. O resfriamento passivo Notícias AC8 não conseguia acompanhar o ritmo apesar de ter um SoC mais rápido. De modo geral, nossa unidade de revisão conseguiu garantir o segundo lugar dentro do grupo de comparação.

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)

Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)

Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Desempenho do sistema

O Intel Celeron N5059 limita a capacidade do Mágico Ás T8Pro. No entanto, o dispositivo se sai bem no uso diário, desde que não sobrecarregue seu SoC. O Ace Magician foi até mesmo capaz de superar ligeiramente a Geekom MiniAir 11 Edição Especiale a lacuna de desempenho entre o T8Pro e o Notícias AC8 (com um Intel Pentium Silver N6005) é minúsculo.

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	97.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	96.7 pt
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	95.1 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93.7 pt
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	91.5 pt
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	75.6 pt

PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2317 Points -4%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5516 Points -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -7%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3454 Points -6%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points -20%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	99.8 pt
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	98 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93 pt

CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -4%

PCMark 10 Score		2417 pontos
Ajuda

Latência do DPC

O Ace Magician T8Pro encontrou problemas de latência assim que várias abas foram abertas no navegador Edge. A reprodução de nosso vídeo de teste 4K aumentou ainda mais a latência. Durante a reprodução do vídeo, o uso do iGPU foi um pouco acima de 30%.

Latência máxima com várias abas do navegador abertas e com reprodução de vídeo de 4K

Latência máxima após executar Prime95 por 10 segundos

Motoristas classificados de acordo com o tempo de execução (de alto a baixo)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs *
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	3767 μs * +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * +35%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2582.6 μs * +37%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * +83%

* ... smaller is better

Armazenamento em massa

O Ace Magician T8Pro é equipado com um SSD de 256 GB. A unidade só suporta velocidades SATA e, portanto, é mais lenta que os SSDs NVMe. No entanto, ele ainda é adequado para os propósitos pretendidos do T8Pro. Também não notamos nenhuma queda de desempenho sob carga sustentada. Se os 256 GB de armazenamento na configuração padrão não forem suficientes para suas necessidades, você pode substituir o SSD incluído por um maior. Embora você deva garantir que o novo SSD não seja maior do que 42 mm (M.2 2242).

Você pode consultar nossa tabela de unidades de armazenamento https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html para mais comparações e resultados de referência.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M4SSD256G

Sequential Read: 398.7 MB/s

Sequential Write: 463.1 MB/s

512K Read: 344.1 MB/s

512K Write: 446.8 MB/s

4K Read: 33.16 MB/s

4K Write: 74.22 MB/s

4K QD32 Read: 237.1 MB/s

4K QD32 Write: 215.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	97.5 pt
AC6-M Mini-PC	33 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	31.3 pt
Average FPT310M4SSD256G	31.3 pt
Newsmay AC8 N6005 Lexar 128GB SSD	31 pt
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	24.4 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	21.7 pt
Geekom MiniAir 11 NF830 256GB M.2 2280	18.4 pt
Zotac ZBOX PI336 pico SanDisk DF4128	6.8 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +330%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s +8%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s
Average FPT310M4SSD256G ()	472 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -8%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	229 (187.74^min - 229.26^max) MB/s -51%
seq write
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +343%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s
Average FPT310M4SSD256G ()	463 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s -6%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s -8%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -12%
Geekom MiniAir 11 NF830 256GB M.2 2280	256 (237.45^min - 255.73^max) MB/s -45%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s -77%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +477%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s +2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s
Average FPT310M4SSD256G ()	550 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -19%
Geekom MiniAir 11 NF830 256GB M.2 2280	260 (234.3^min - 260.36^max) MB/s -53%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s -54%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +379%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s +11%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s +7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s
Average FPT310M4SSD256G ()	466 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -26%
Geekom MiniAir 11 NF830 256GB M.2 2280	268 (261.2^min - 268.44^max) MB/s -42%
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s -78%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +52%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s
Average FPT310M4SSD256G ()	33.9 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s -22%
Geekom MiniAir 11 NF830 256GB M.2 2280	16.1 (12.09^min - 16.13^max) MB/s -53%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s -53%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s -59%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s -60%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -62%
4k q1 t1 write
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +151%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +35%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s
Average FPT310M4SSD256G ()	74.1 MB/s 0%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s -16%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s -37%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -70%
Geekom MiniAir 11 NF830 256GB M.2 2280	20.9 (15.11^min - 20.94^max) MB/s -72%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s -81%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +311%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s +14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s
Average FPT310M4SSD256G ()	266 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -30%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -36%
Geekom MiniAir 11 NF830 256GB M.2 2280	165.1 (75.31^min - 165.14^max) MB/s -38%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s -39%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s -90%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +241%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s +10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s
Average FPT310M4SSD256G ()	319 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s -10%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s -34%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	113 (45.88^min - 112.97^max) MB/s -65%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s -96%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points +410%
AC6-M Mini-PC	1091 Points +56%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points
Average FPT310M4SSD256G ()	698 Points 0%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -13%
Geekom MiniAir 11 NF830 256GB M.2 2280	582 Points -17%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points -17%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -78%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points -81%
Score Read
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points +323%
AC6-M Mini-PC	473 Points +48%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points
Average FPT310M4SSD256G ()	320 Points 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -32%
Geekom MiniAir 11 NF830 256GB M.2 2280	201 Points -37%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points -48%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -58%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points -80%
Score Write
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points +652%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points +90%
AC6-M Mini-PC	374 Points +80%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points +56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points +50%
Geekom MiniAir 11 NF830 256GB M.2 2280	278 Points +34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points
Average FPT310M4SSD256G ()	208 Points 0%
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points -81%
Seq Read
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +477%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s +5%
AC6-M Mini-PC	492 MB/s +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s
Average FPT310M4SSD256G ()	489 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s -7%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -11%
Geekom MiniAir 11 NF830 256GB M.2 2280	421.78 MB/s -14%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s -46%
Seq Write
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +473%
AC6-M Mini-PC	450 MB/s +31%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s +27%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s +20%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s +12%
Geekom MiniAir 11 NF830 256GB M.2 2280	365.24 MB/s +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s
Average FPT310M4SSD256G ()	344 MB/s 0%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s -66%
4K Read
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s +57%
Average FPT310M4SSD256G ()	35.5 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s -34%
AC6-M Mini-PC	19.43 MB/s -45%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s -61%
Geekom MiniAir 11 NF830 256GB M.2 2280	13.57 MB/s -62%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s -63%
4K Write
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s +343%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s +118%
AC6-M Mini-PC	51.4 MB/s +35%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s +31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s
Average FPT310M4SSD256G ()	38 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -4%
Geekom MiniAir 11 NF830 256GB M.2 2280	21.25 MB/s -44%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s -65%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s +331%
AC6-M Mini-PC	404.1 MB/s +71%
Average FPT310M4SSD256G ()	236 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s -33%
Geekom MiniAir 11 NF830 256GB M.2 2280	144.84 MB/s -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s -55%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -75%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s -89%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s +786%
AC6-M Mini-PC	277.8 MB/s +105%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s +101%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s +75%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s +70%
Geekom MiniAir 11 NF830 256GB M.2 2280	219.83 MB/s +62%
Average FPT310M4SSD256G ()	135.4 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s -90%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * -110%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.284 ms * -92%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms *
Average FPT310M4SSD256G ()	0.148 ms * -0%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * +6%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * +31%
AC6-M Mini-PC	0.088 ms * +41%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * -614%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.218 ms * -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * -36%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms *
Average FPT310M4SSD256G ()	0.132 ms * -0%
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * +2%
AC6-M Mini-PC	0.071 ms * +46%

* ... smaller is better

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)

Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)

Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)

Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Desempenho da placa gráfica e dos jogos

O processamento gráfico é tratado porA Intel UHD Graphics 16 EUs (Lago Jasper). Com este iGPU, não é razoável pedir ao Ace Magician T8Pro para realizar cálculos complexos em 3D. No entanto, com base em nossas medidas, o T8Pro é sempre um pouco melhor do que o Geekom MiniAir 11 Edição Especial em termos de desempenho gráfico. Dito isto, nossa unidade de revisão não é tão boa quanto a Notícias AC8porque o iGPU no Intel Pentium Silver N6005 tem um total de 32 UEs. Enquanto você não deve esperar jogar jogos 3D exigentes no Ace Magician T8Pro, o pequeno PC de escritório não deve ter problemas para rodar jogos simples baseados em navegador e outros jogos casuais.

Clique aqui para obter mais resultados de referência para a Intel UHD Graphics.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	72.6 pt
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.7 pt
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.1 pt
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	68.3 pt
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	54.7 pt
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	49.3 pt

3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points +85%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points -1%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -3%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -3%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points -24%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	602 Points -30%

3DMark
1280x720 Cloud Gate Standard Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points +13%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -5%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4952 Points -5%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4863 Points -7%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	3762 Points -28%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	3503 Points -33%
1920x1080 Fire Strike Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points +33%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -4%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	623 Points -6%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	605 Points -9%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points -21%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	446 Points -33%

	baixo	média	alto	ultra
Dota 2 Reborn (2015)	61.2	22.8	12	11.2
Final Fantasy XV Benchmark (2018)	7.13	3.27
X-Plane 11.11 (2018)	15.1

Emissões - em sua maioria silenciosas e eficientes

Emissões sonoras

Devido ao baixo TDP do Intel Celeron N5095o sistema de resfriamento não é particularmente tributado. O computador é quase silencioso ao ralenti e produz apenas uma pequena quantidade de ruído sob carga (não excedendo 30,9 dB(A) de acordo com nossas medidas).

	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		15%	-3%	-10%	-25%	1%
off / environment *	30.2	23.3 23%	30.2 -0%	30.2 -0%	30.5 -1%	29.6 2%
Idle Minimum *	30.2	24.2 20%	30.5 -1%	30.8 -2%	31.5 -4%	29.6 2%
Idle Average *	30.2	24.2 20%	30.5 -1%	32.1 -6%	32.6 -8%	29.6 2%
Idle Maximum *	30.2	24.2 20%	30.5 -1%	32.9 -9%	33.8 -12%	29.6 2%
Load Average *	30.5	25.1 18%	31.2 -2%	33.9 -11%	49.3 -62%	30 2%
Load Maximum *	30.9	33.9 -10%	35.1 -14%	41.4 -34%	50.9 -65%	32.9 -6%

* ... smaller is better

Barulho

Ocioso		30.2 / 30.2 / 30.2 dB
Carga		30.5 / 30.9 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.2 dB(A)

Temperatura

O chassi do Ace Magician T8Pro só fica moderadamente quente sob carga. No próprio SoC, a temperatura mais alta que registramos foi de 80°C (176°F), que ainda está longe do limite térmico máximo da CPU de 105°C (221°F).

Ace Magician T8Pro durante o teste de estresse

Adaptador de energia do Ace Magician T8Pro durante o teste de estresse

Consumo de energia

A maioria dos mini PCs têm consumo de energia impressionantemente baixo, e o Ace Magician T8Pro não é diferente. Embora seu consumo de energia seja substancialmente inferior à média desta classe de dispositivos, os outros mini PCs em nossa comparação são ainda mais eficientes em termos de energia. Nosso monitor de energia mostrou que o T8Pro consumiu no máximo 26,3 watts. Avaliado em 30 watts, o adaptador de energia é capaz de lidar com este nível de uso de energia.

Consumo de energia

desligado	0.8 / 1.7 Watt
Ocioso	8.4 / 8.4 / 11.1 Watt
Carga	16.5 / 26.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Average Intel UHD Graphics (Jasper Lake 16 EU)	Average of class Mini PC
Power Consumption		10%	40%	24%	20%	-106%
Idle Minimum *	8.4	7 17%	5.4 36%	4.8 43%	5.65 ?(2.5 - 8.4, n=8) 33%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -16%
Idle Average *	8.4	7 17%	5.5 35%	4.8 43%	6.61 ?(4.6 - 8.4, n=7) 21%	11.7 ?(1.9 - 63, n=91, last 2 years) -39%
Idle Maximum *	11.1	7.6 32%	6.2 44%	6.7 40%	7.54 ?(5.3 - 11.1, n=7) 32%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -32%
Load Average *	16.5	18.3 -11%	11.3 32%	15.9 4%	16.2 ?(12.3 - 18.3, n=6) 2%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -215%
Load Maximum *	26.3	27.1 -3%	11.8 55%	28.4 -8%	23.1 ?(13.4 - 28.4, n=7) 12%	86 ?(18.1 - 271, n=92, last 2 years) -227%

* ... smaller is better

Power consumption with external monitor

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.8 (23.8-26.3)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.6 (23.2-25.8)

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (15-23.3)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø21.4 (17.3-21.8)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (13.6-23.3)

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Pro

+ mini PC extremamente compacto

+ carcaça robusta

+ muito silencioso sob carga

+ baixo consumo de energia

+ 3x HDMI

+ LAN dupla

Contra

- soC lento

- desempenho gráfico limitado

- sem leitor de cartões SD

- wi-Fi lento

- rAM soldada

Veredicto - Mini PC para tarefas básicas

O Ace Magician T8Pro oferece um bom desempenho em um fator de forma muito pequeno e é capaz de lidar com o trabalho básico de escritório. O Intel Celeron N5095apresenta quatro núcleos nativos que são rapidamente empurrados aos seus limites ao realizar tarefas desafiadoras. Se você estiver atento ao que o Ace Magician T8Pro foi projetado para fazer, você encontrará um mini PC compacto que é ao mesmo tempo eficiente e extremamente silencioso. Há 8 GB de RAM a bordo, que em nossa opinião é a quantidade mínima necessária para um sistema razoavelmente funcional. Os 256 GB de armazenamento são adequados, e o T8Pro vem inclusive com Windows 11 Pro por menos de 300 euros (US$320).

O dispositivo tem grande qualidade de construção, embora seu chassi seja completamente feito de plástico. Apesar de seu design compacto, o Ace Magician T8Pro oferece uma seleção impressionante de portas. O mini PC pode conduzir até três monitores externos ao mesmo tempo e possui três portas USB-A e duas portas LAN. Todos estes nem sempre são um dado adquirido para um produto deste tamanho.

O Ace Magician T8Pro é um computador de trabalho compacto para aplicações básicas de escritório.

Uma coisa que não nos agradou no sistema foi o módulo Wi-Fi embutido. Infelizmente, ele não suporta o mais recente padrão e entrega um desempenho sem brilho. Um módulo Wi-Fi 6E moderno teria sido uma solução mais à prova de futuro. O Ace Magician T8Pro definitivamente teve uma grande exibição durante nossa revisão, mas o Beelink U59 Mini-S e Geekom MiniAir 11 (ambos equipados com o mesmo SoC) oferecem melhor desempenho em alguns aspectos, bem como uma latência muito menor de DPC.

O Ace Magician T8Pro foi emprestado ao Notebookcheck para fins de revisão.

Preço e disponibilidade

Na Alemanha, você pode comprar o Ace Magician T8Pro (com 8 GB de RAM e um SSD de 256 GB) no site Amazon por 329 euros agora mesmo. Nos EUA, o produto está indo para o mínimo de US$199 na Amazônia.

Favor observar que os preços são exatos como no momento em que são escritos e estão sujeitos a alterações.

Revisão do Ace Magician T8Pro: Orçamento mini PC para uso em escritório

Informações detalhadas sobre o Ace Magician T8Pro

Caso

Comparação de tamanho

Especificações

Manutenção

Desempenho

Condições de teste

Processador

Desempenho do sistema

Latência do DPC

Armazenamento em massa

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Desempenho da placa gráfica e dos jogos

Emissões - em sua maioria silenciosas e eficientes

Emissões sonoras

Temperatura

Consumo de energia

Power consumption with external monitor

Pro

Contra

Veredicto - Mini PC para tarefas básicas

Preço e disponibilidade

More articles related to this device
