Revisão do Minisforum EliteMini TH50: PC de mesa compacto para uso diário no escritório

Mais do que apenas um PC de escritório! O fabricante Minisforum oferece um PC de trabalho sólido baseado em Intel com o compacto EliteMini TH50. Graças ao Thunderbolt, a gama de aplicações foi consideravelmente ampliada. Nesta análise, vamos descobrir o que esta pequena central de computação tem a oferecer.

Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 02/22/2022 🇺🇸 🇩🇪 ...

Desktop Mini PC Thunderbolt Tiger Lake

Como fabricante de sistemas, Minisforum é agora um nome doméstico para muitos, embora o fabricante chinês ainda não esteja muito difundido nesta parte do mundo. O portfólio de produtos varia de mini-PCs IOT a dispositivos de escritório e computadores de jogos compactos. Nós já poderíamos conhecer alguns sistemas da série EliteMini. Entretanto, um APU da AMD tem servido como base para estes PCs até agora. Agora, o EliteMini TH50 conta com um SoC da Intel Tiger Lake e, portanto, oferece ainda mais opções de uso.

O Intel Core i5-11320H é um SoC sólido e oferece uma base sólida. Os registros não serão quebrados com este processador, mas o desempenho deve ser suficiente para o uso pretendido. Equipado com 16 GB de RAM DDR4 e um SSD de 512 GB, o Minisforum nos forneceu o modelo superior. O fabricante cobra US$669 por esta configuração. O EliteMini TH50 também está disponível como uma versão barebone sem SSD. Entretanto, o preço de US$629 sem um SSD não é uma grande economia. Também deve ser considerado que nenhuma licença do Windows está incluída na compra sem um dispositivo de armazenamento em massa. Além disso, a RAM de 16 GB é sempre instalada no EliteMini TH50 porque ele é soldado na placa.

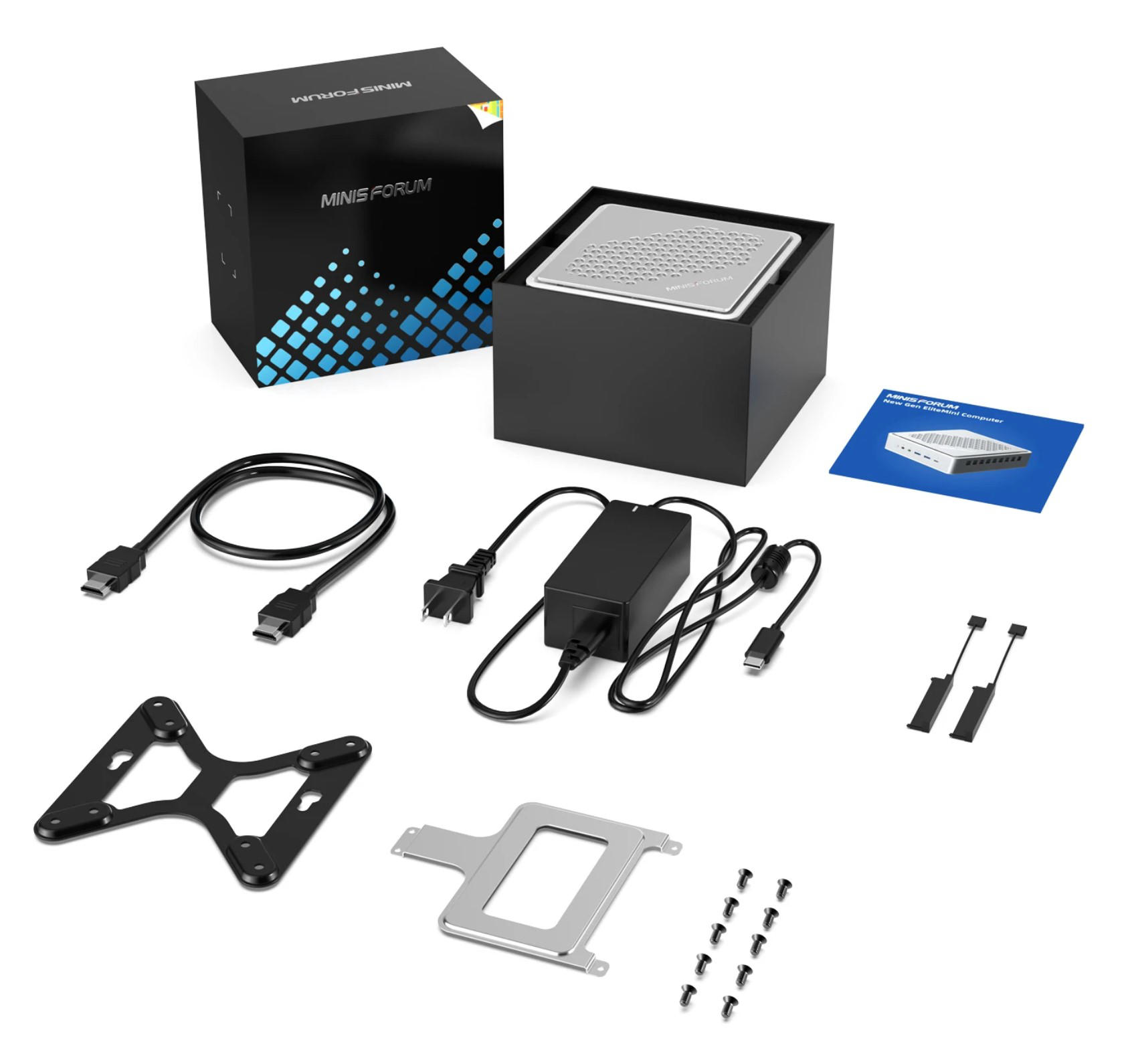

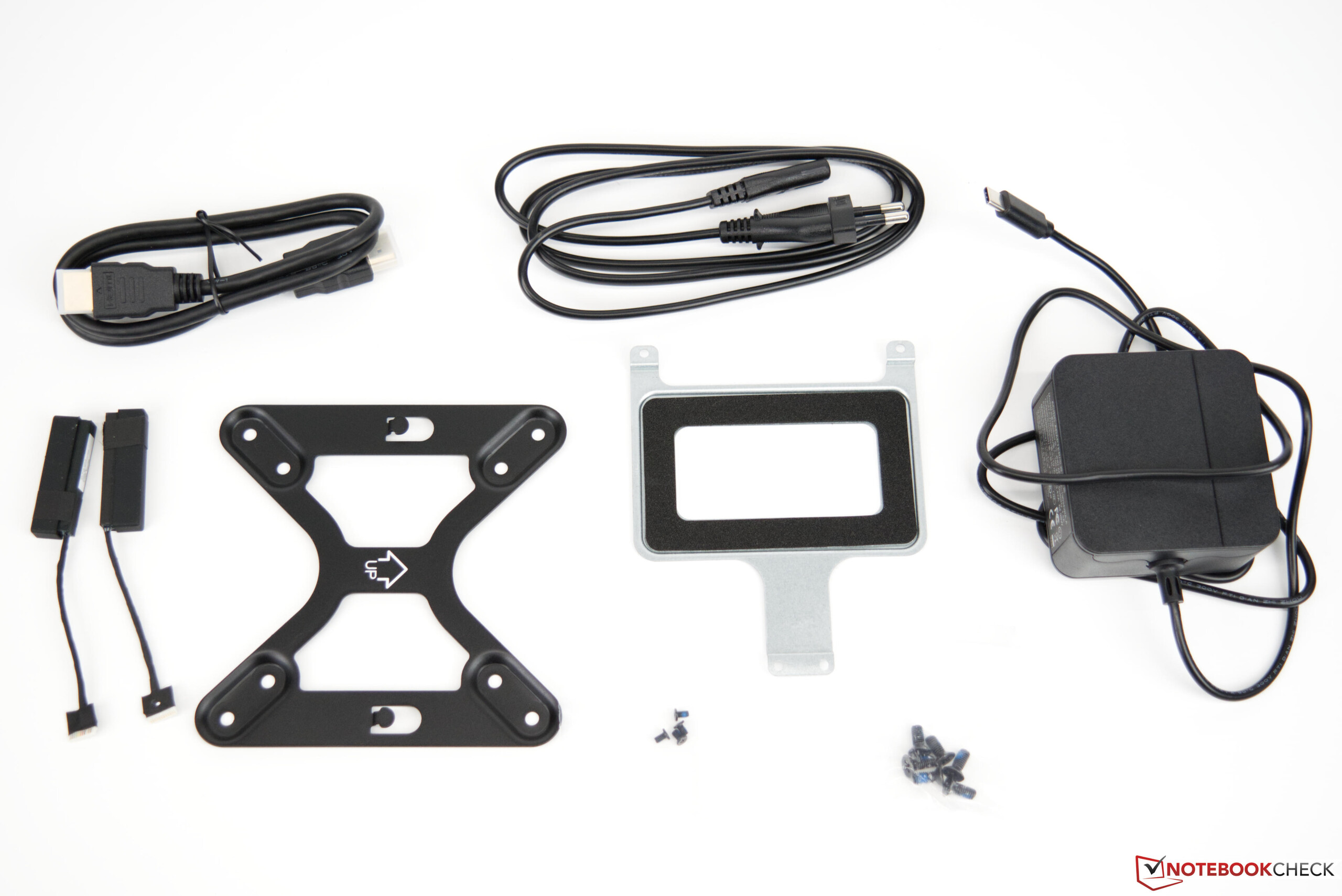

O Minisforum EliteMini TH50 é entregue em uma caixa robusta com acessórios adequados para colocar o sistema em funcionamento. A fonte de alimentação é compacta e fornece 65 W via USB-C. Além disso, há uma placa de montagem para fixação a um display (montagem VESA) no escopo da entrega. Internamente, o dispositivo pode ser equipado com dois dispositivos adicionais de armazenamento em massa de 2,5 polegadas.

Minisforum EliteMini TH50

Processador

Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35

Placa gráfica

Intel Iris Xe Graphics G7 96EUs, 30.0.101.1191 DCH

Memória

16 GB

, DDR4-3200, fest verlötet

placa mãe

Intel Tiger Lake-UP3 PCH-LP

Disco rígido

Kingston OM8PDP3512B-AI1, 512 GB

, M.2-2280 NVMe, 450 GB livre

Conexões

2 USB 2.0, 4 USB 3.0, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: 3.5mm Audio Jack

Funcionamento em rede

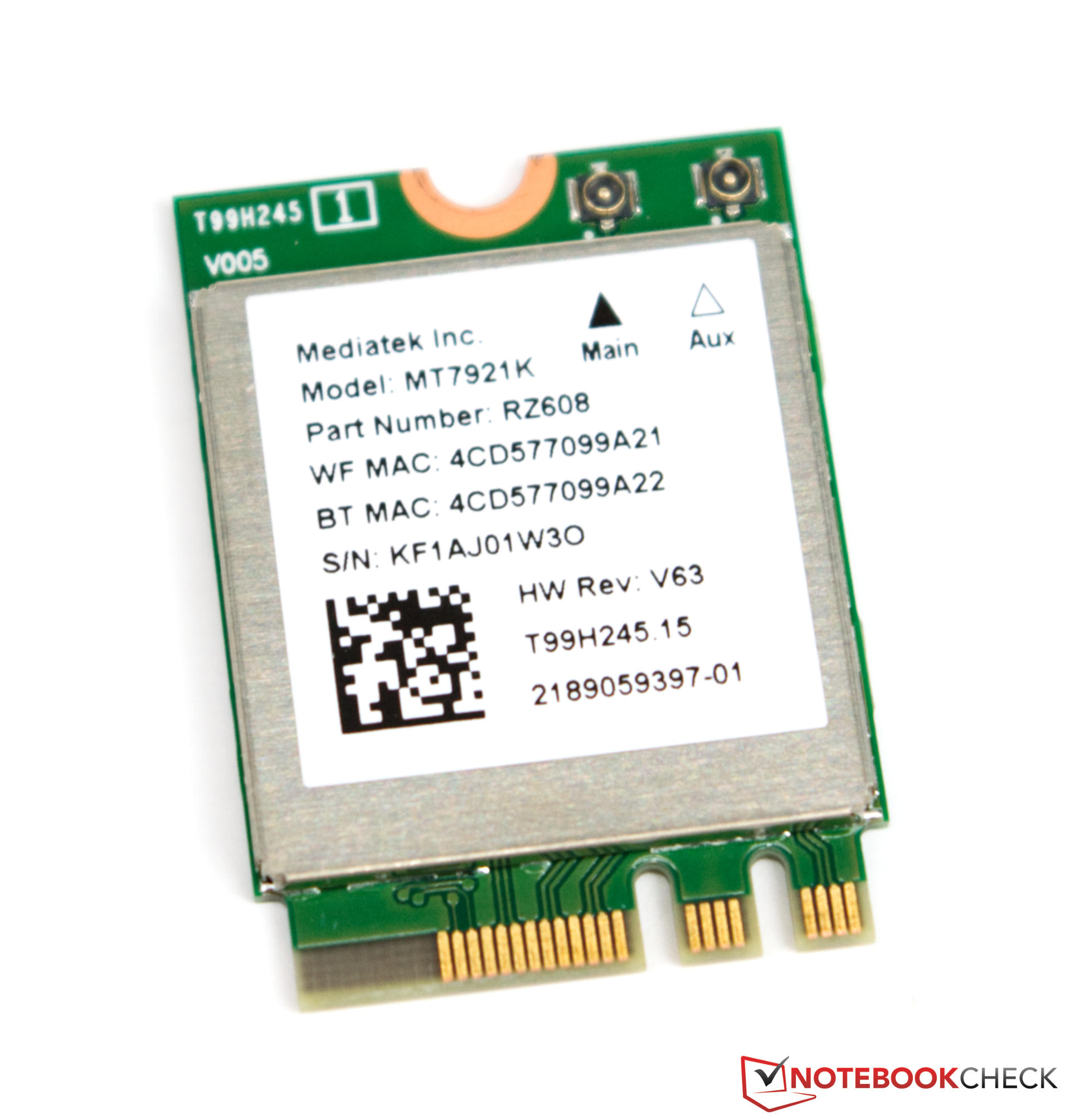

MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5

Tamanho

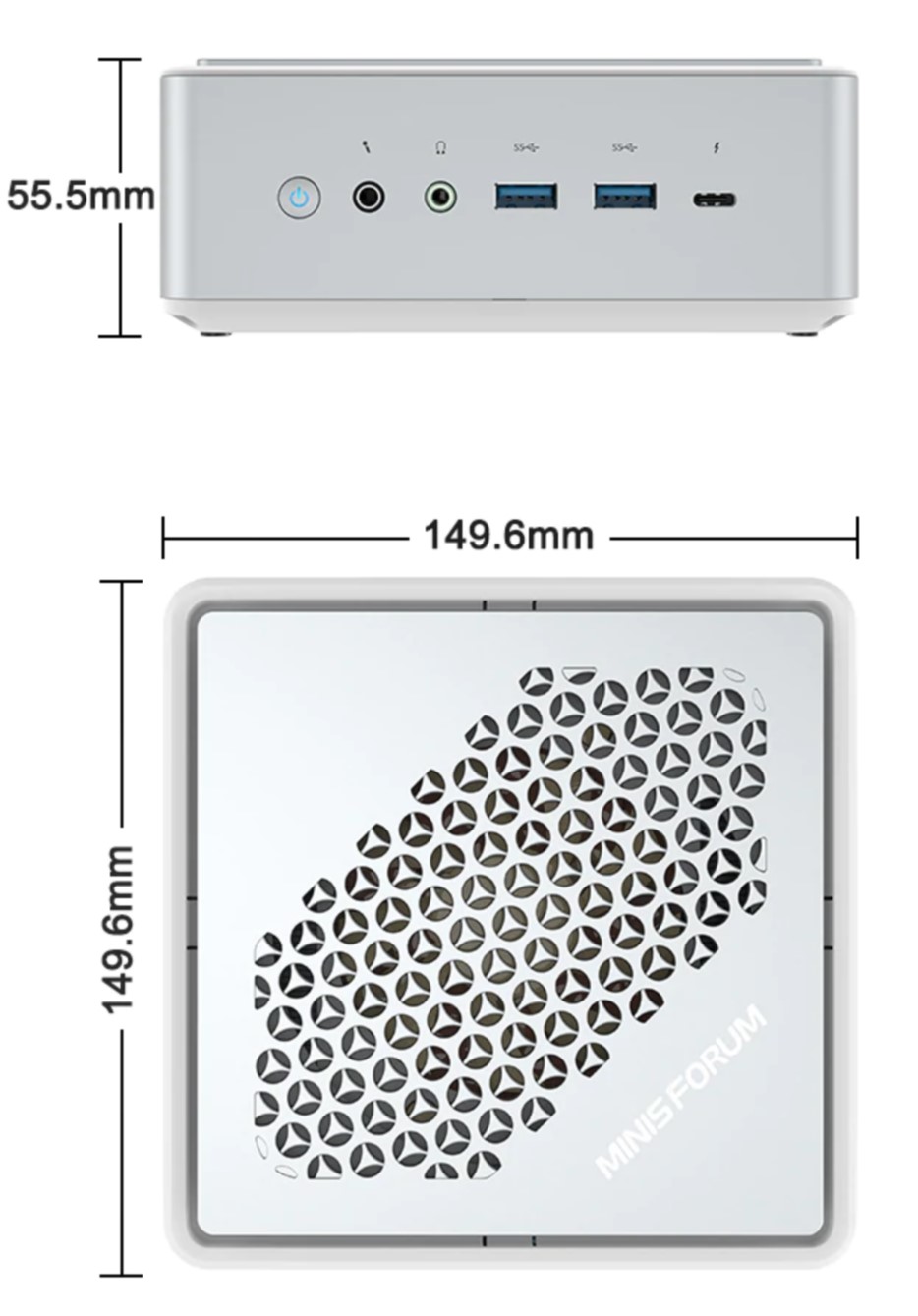

altura x largura x profundidade (em mm): 55.5 x 149.6 x 149.6

Sistema Operativo

Microsoft Windows 10 Pro 64 Bit

Características adicionais

65-Watt-Netzteil

peso

763 g, Suprimento de energia: 277 g

Preço

0 599

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Estojo e equipamento

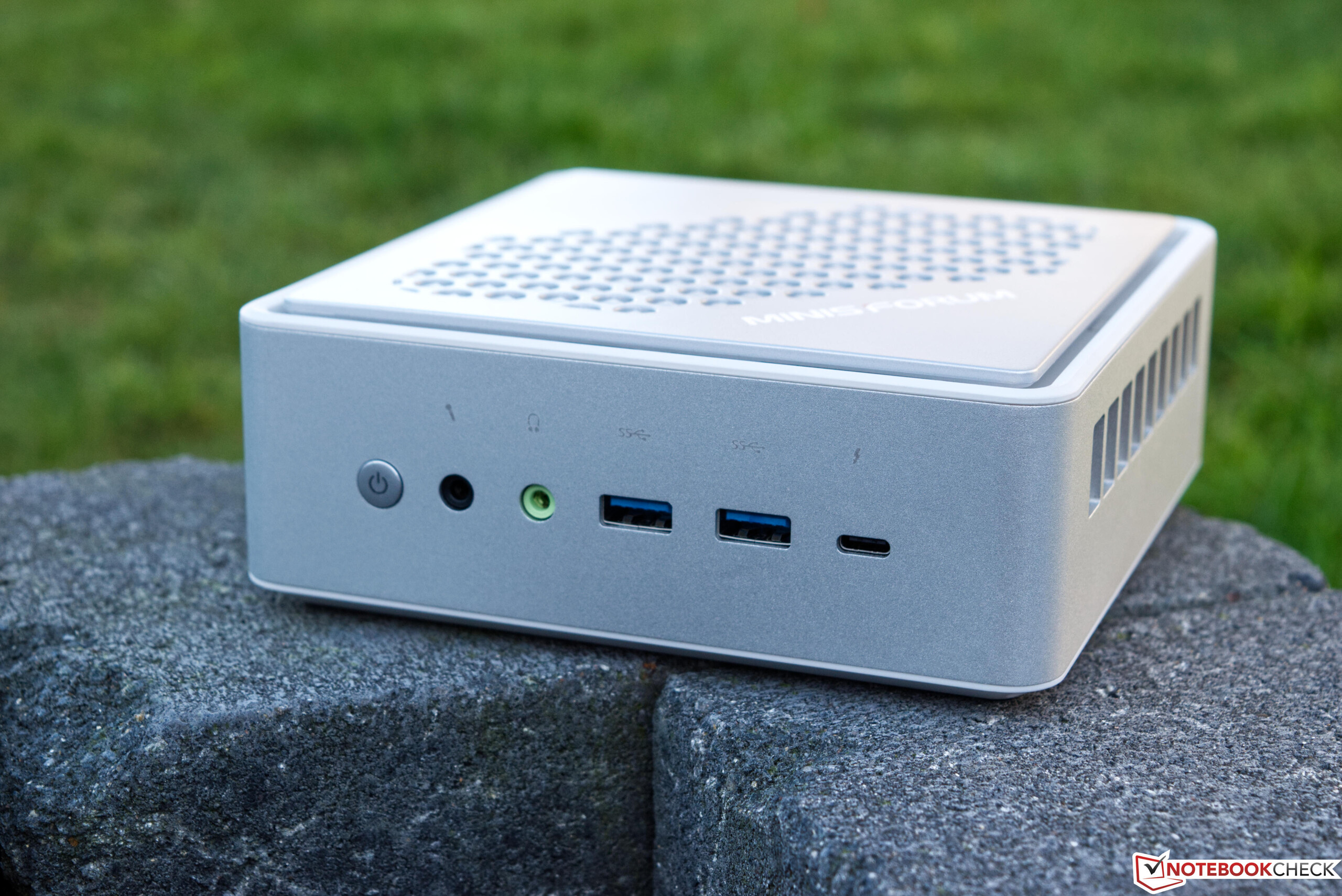

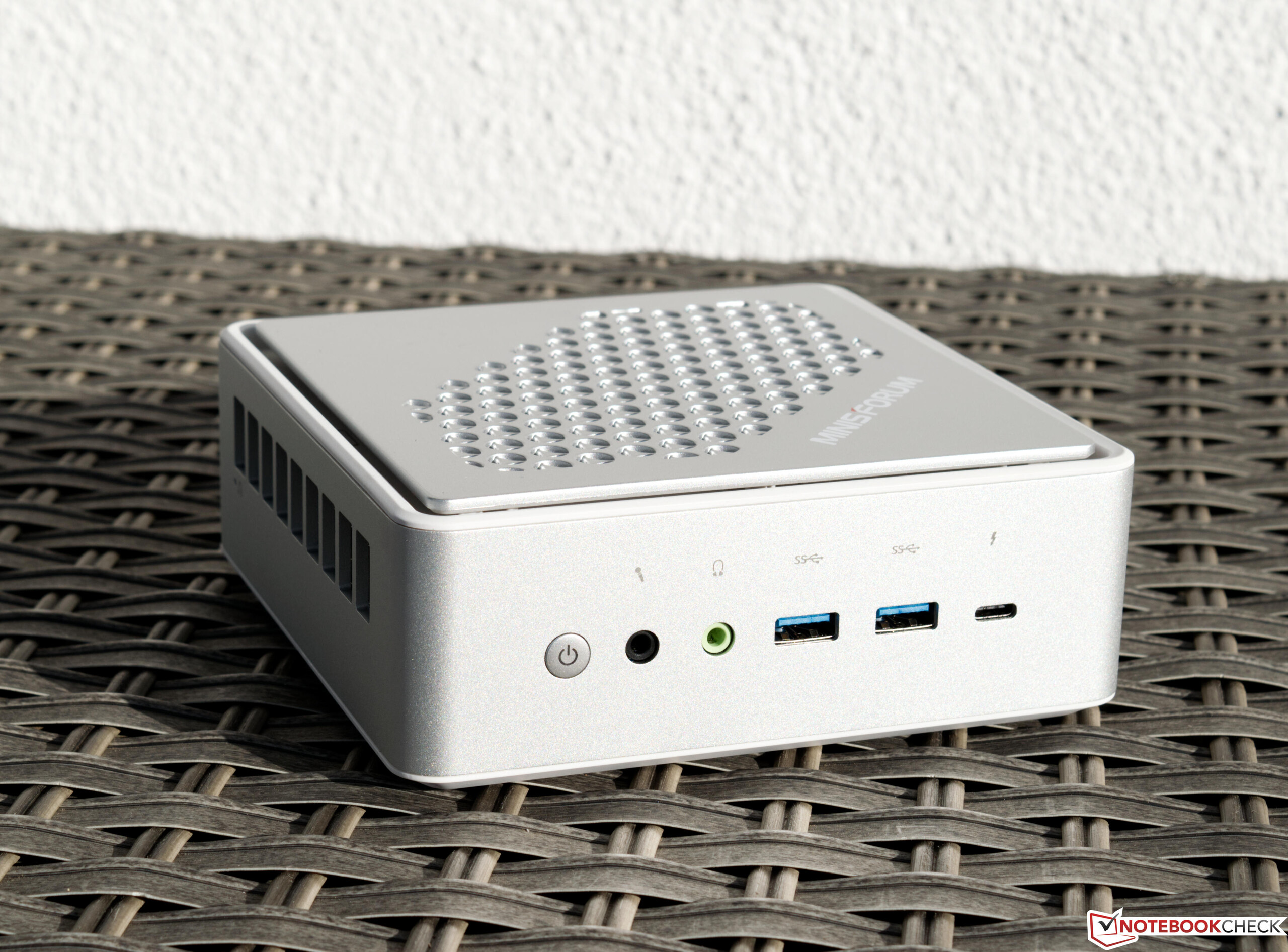

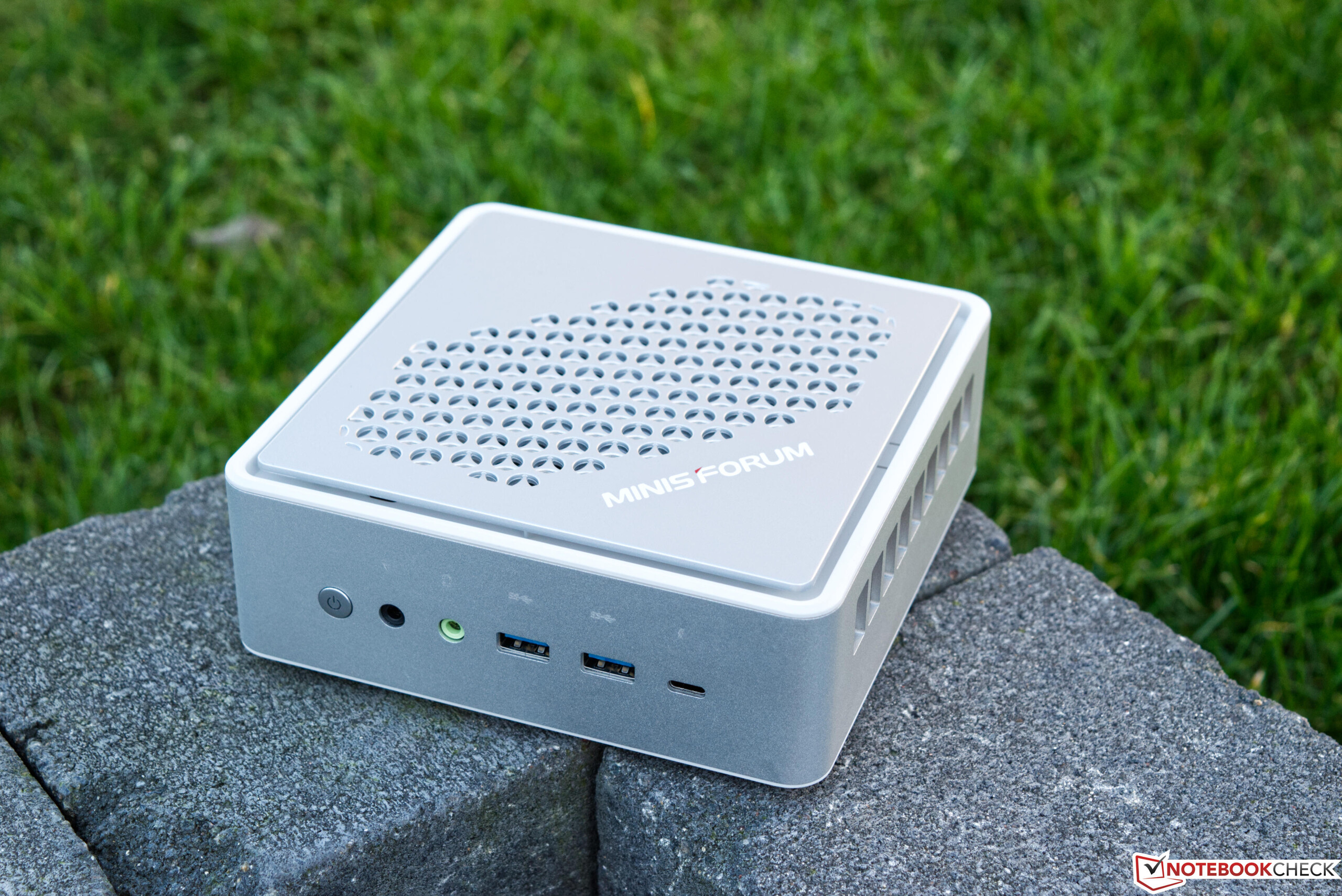

A estrutura do Minisforum EliteMini TH50 assemelha-se fortemente à do Minisforum Elitemini HM90. A caixa é feita de um corpo de alumínio, o que dá ao sistema uma boa estabilidade. A parte superior e inferior são feitas de plástico, que combina bem com a base de alumínio em termos de cor. Em termos de cor, você tem que gostar da combinação de prata e branco, já que não há alternativas. O sistema não oferece nenhum destaque óptico marcante, mas não precisa fazê-lo, uma vez que a funcionalidade é muito mais importante

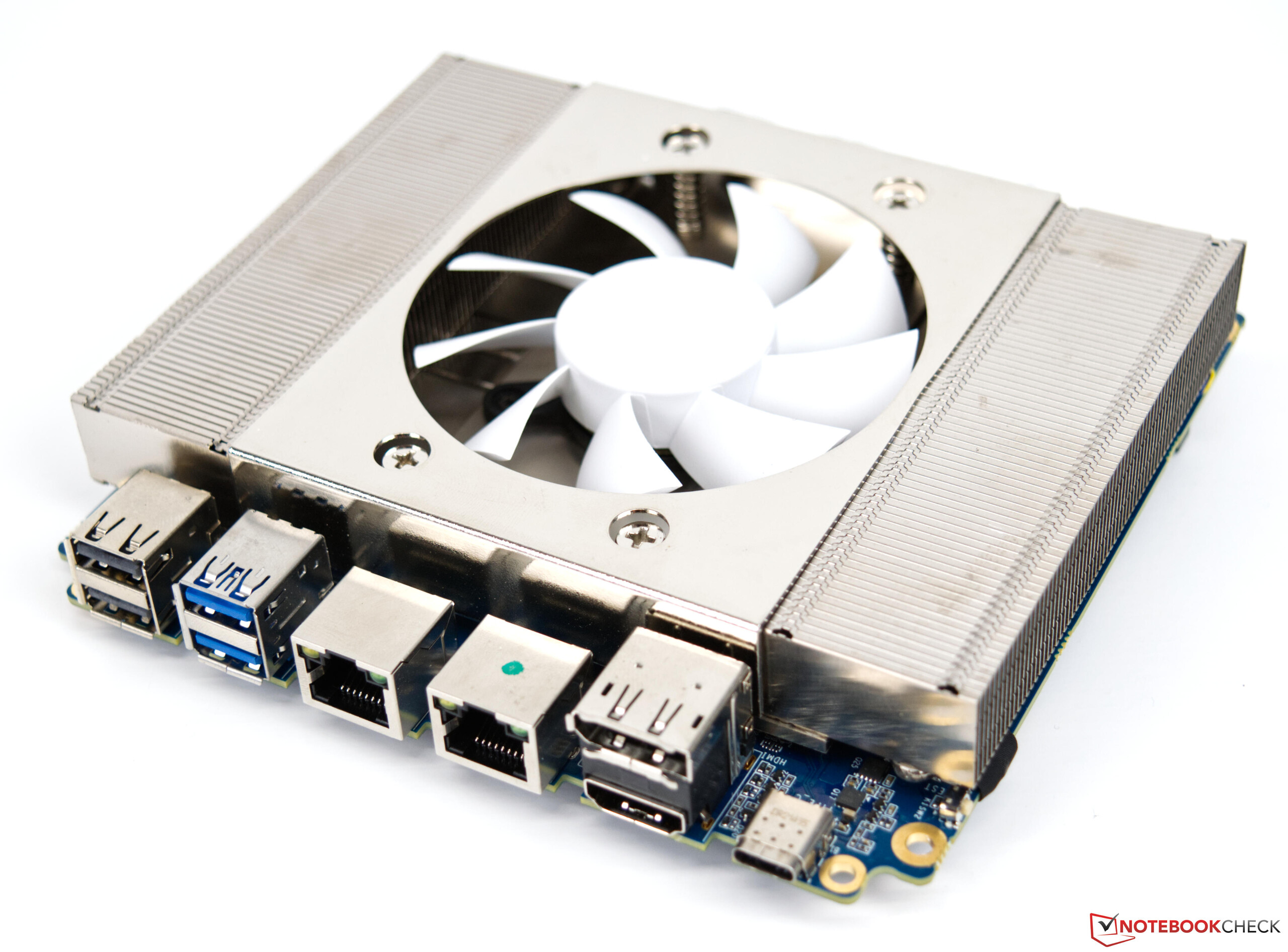

Falando em refrigeração antes de tudo: isto já foi bastante convincente no EliteMini HM90. O princípio permanece o mesmo desta vez também. O ar fresco é sugado no lado superior e conduzido para fora da caixa através do refrigerador no lado.

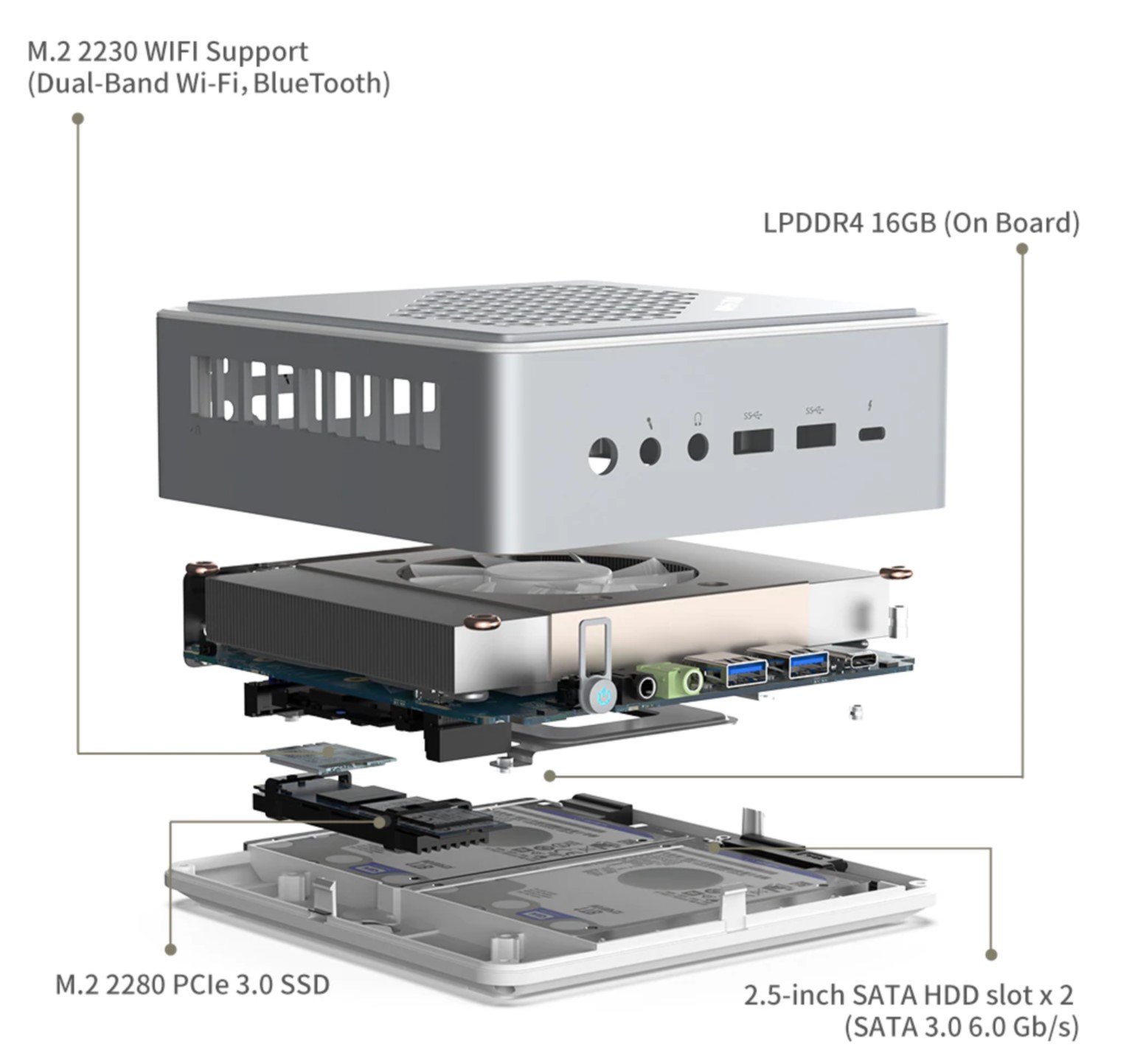

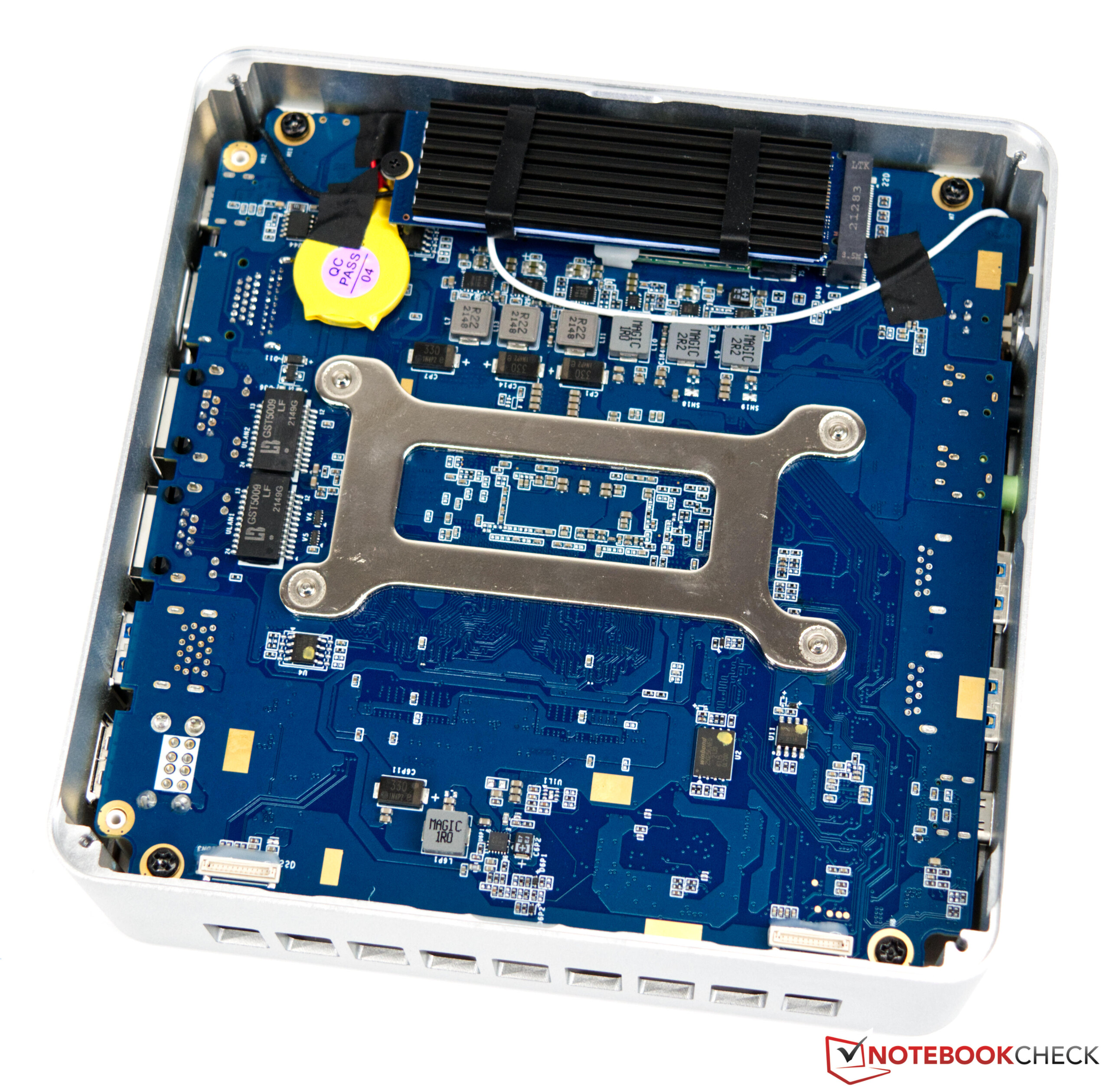

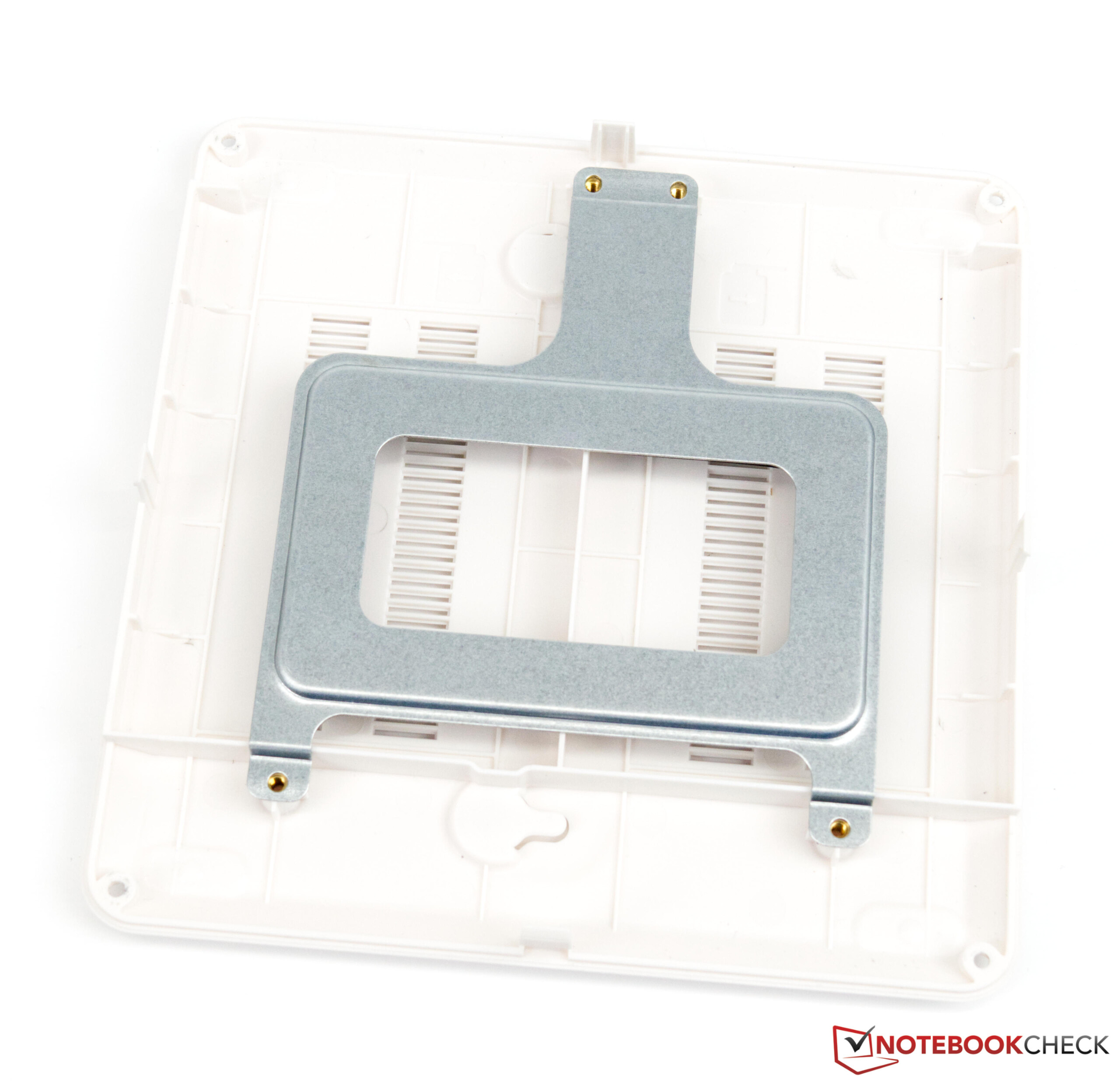

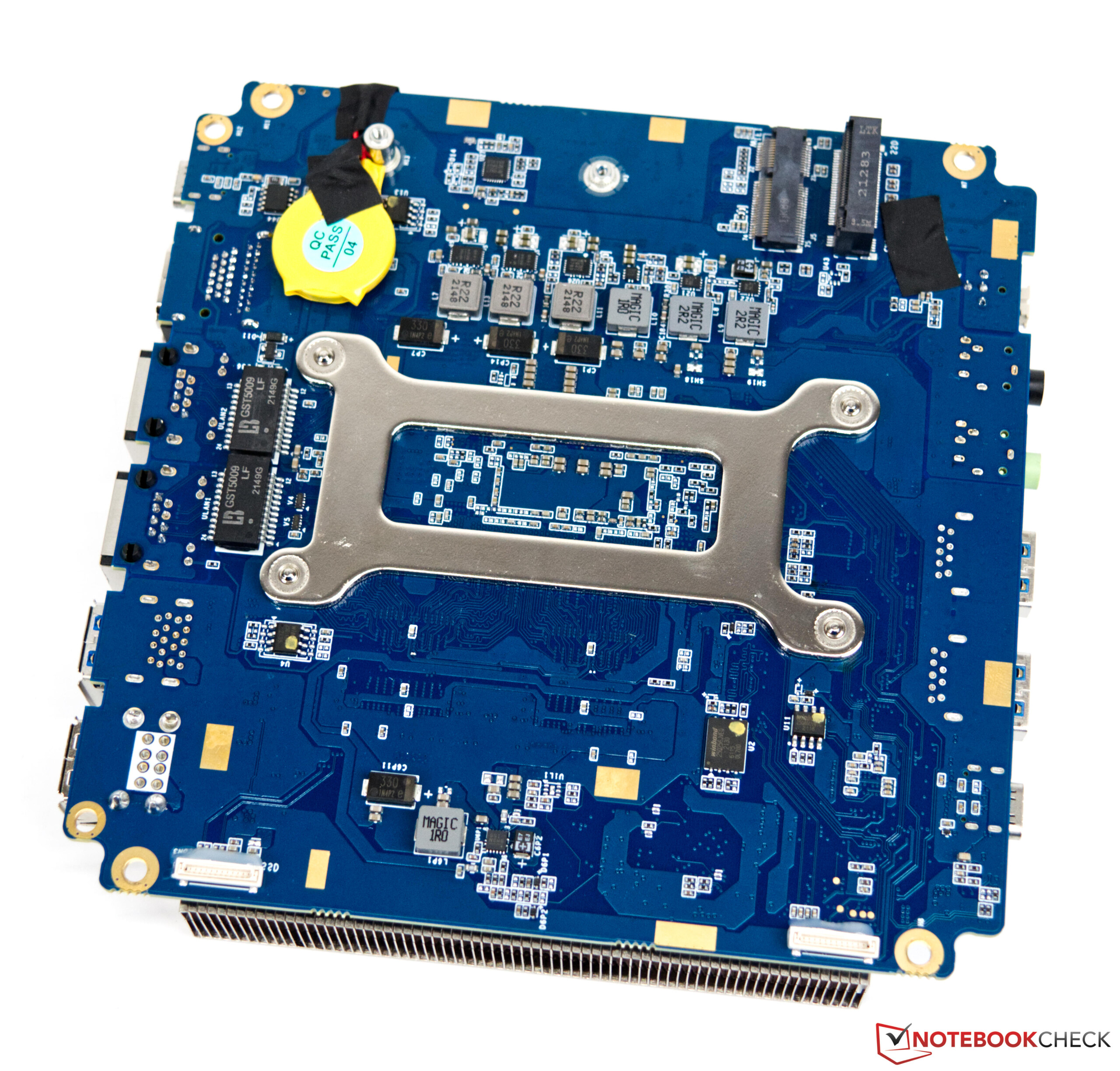

O dispositivo pode ser aberto facilmente através da placa inferior. Quatro parafusos fixam a placa de base à caixa. Entretanto, não há muito o que ver por baixo. O módulo WLAN, bem como o SSD, podem ser trocados. Além disso, mais dois drives de dados de 2,5 polegadas podem ser armazenados no dispositivo. Estes são fixados diretamente à placa de base e conectados à placa com cabos curtos.

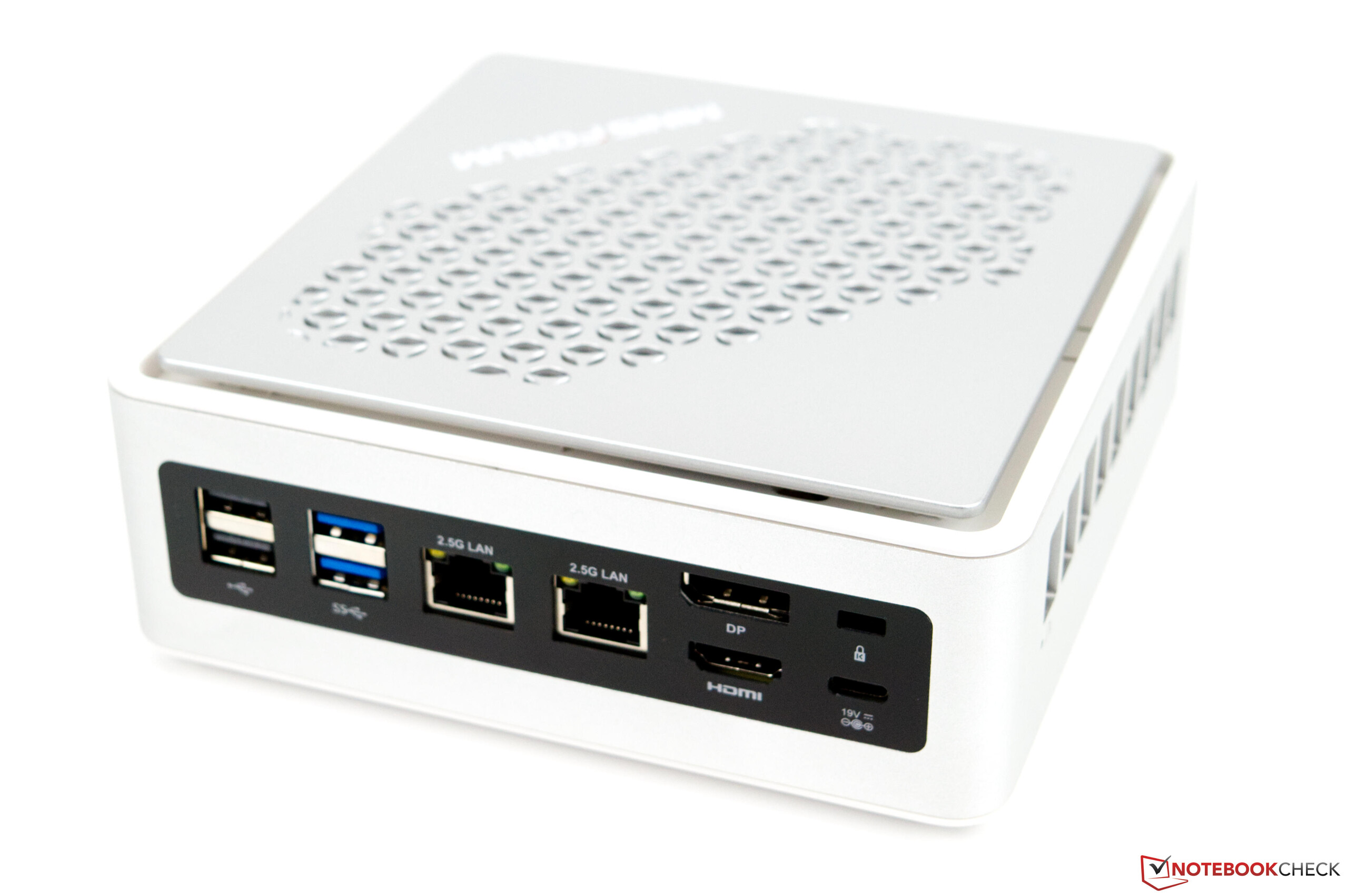

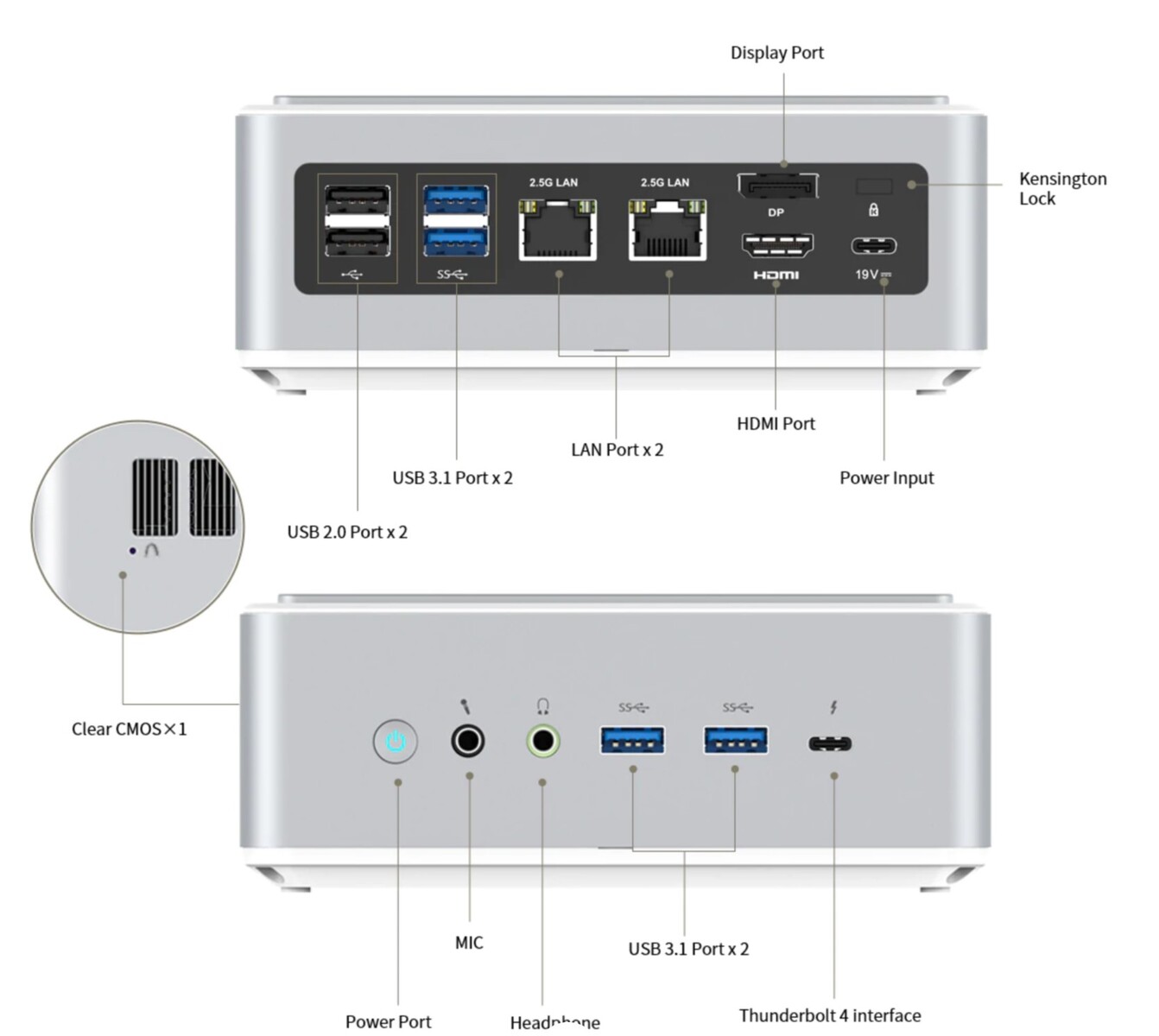

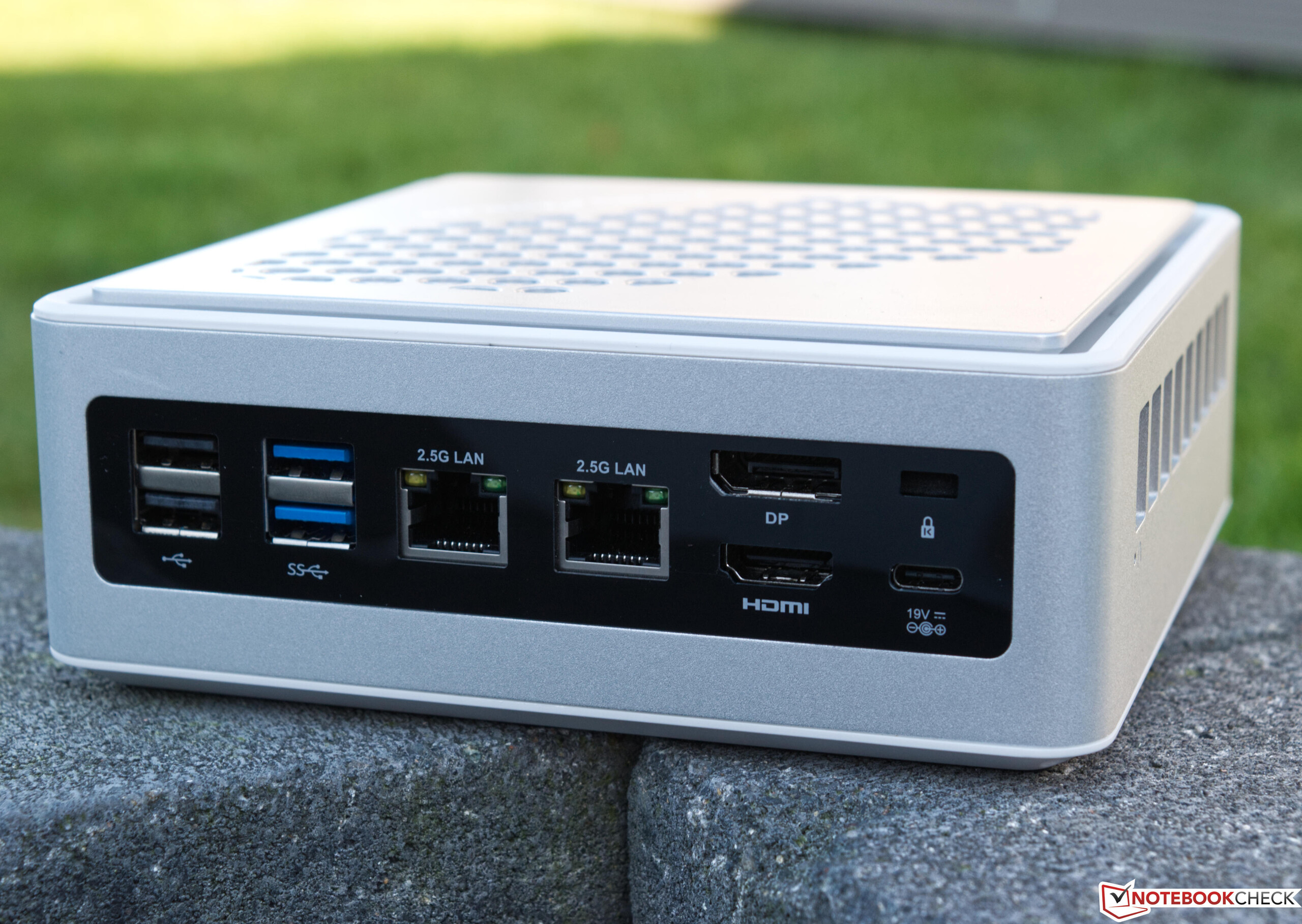

Em termos de conexões externas, o EliteMini HM50 oferece várias opções para conectar dispositivos adicionais. Um total de seis interfaces USB-A está disponível, o que deve ser mais do que suficiente. Há também o suporte Thunderbolt 4 ao qual soluções de acoplamento externo podem ser conectadas, permitindo assim uma ampla gama de opções para expandir a conectividade do EliteMini TH50. Também testamos uma solução de GPU externa para ver qual desempenho de jogo pode ser esperado com o pequeno sistema. Há também duas portas Ethernet 2,5G juntamente com um HDMI e um DisplayPort. Aqueles que também usam a porta Thunderbolt para saída de imagem podem conduzir até três monitores simultaneamente com o EliteMini TH50.

Aviso importante

Há uma porta USB-C na parte traseira, que é destinada ao adaptador de energia. O Minisforum aponta explicitamente para não conectar o adaptador de energia à porta Thunderbolt 4. Após contato com o fabricante, foi confirmado que a conexão incorreta da fonte de alimentação resultará na não inicialização do sistema e na danificação irreparável da placa-mãe.

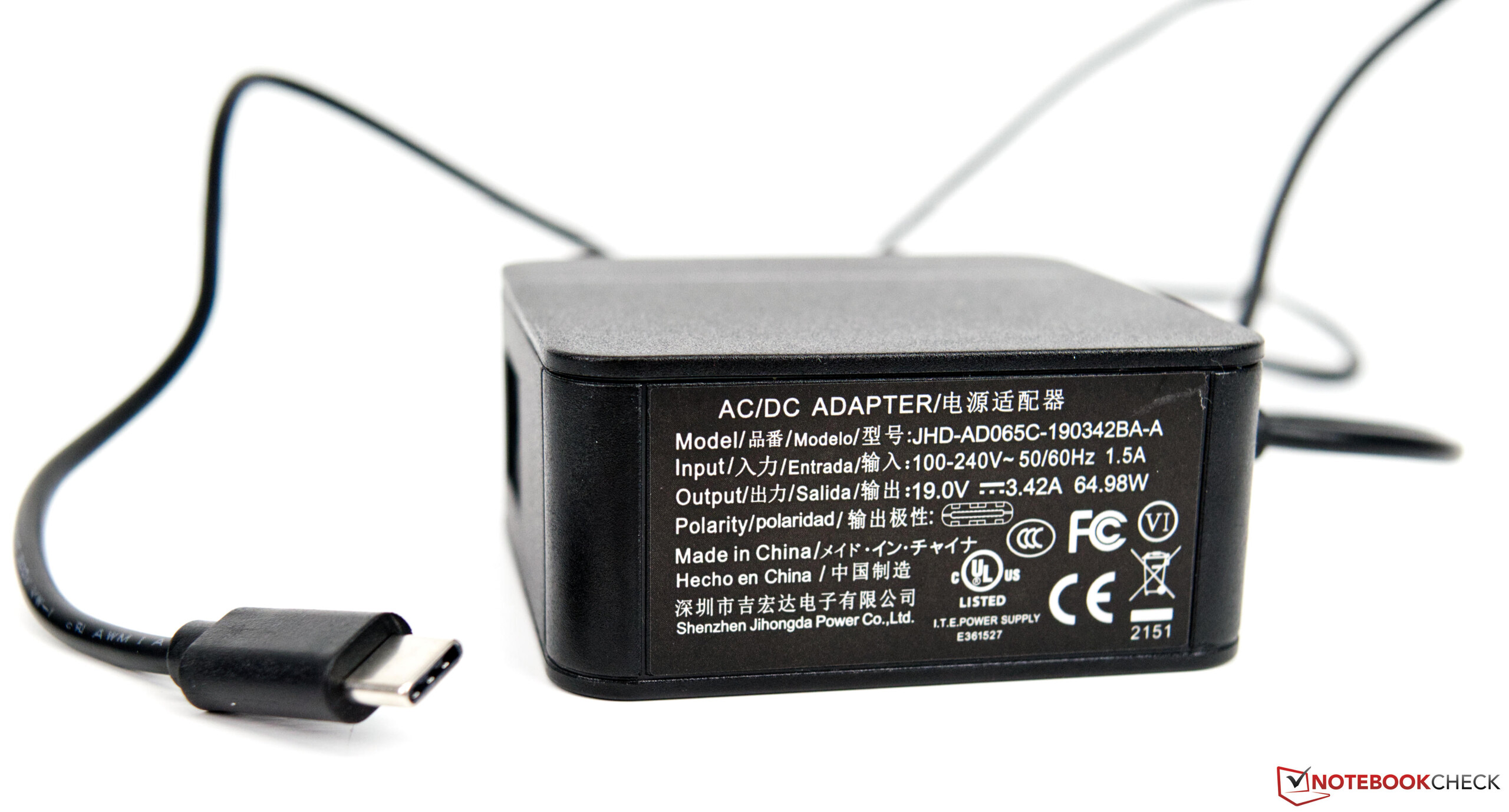

Minisforum EliteMini TH50 - Unidade de fornecimento de energia

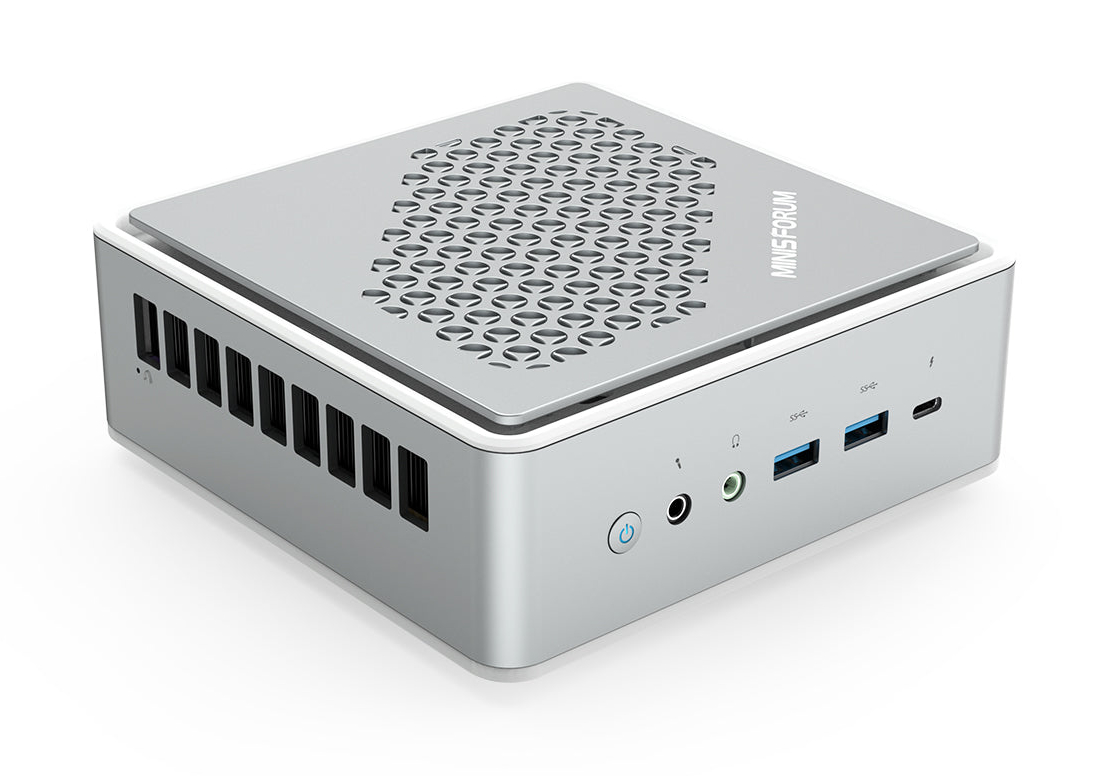

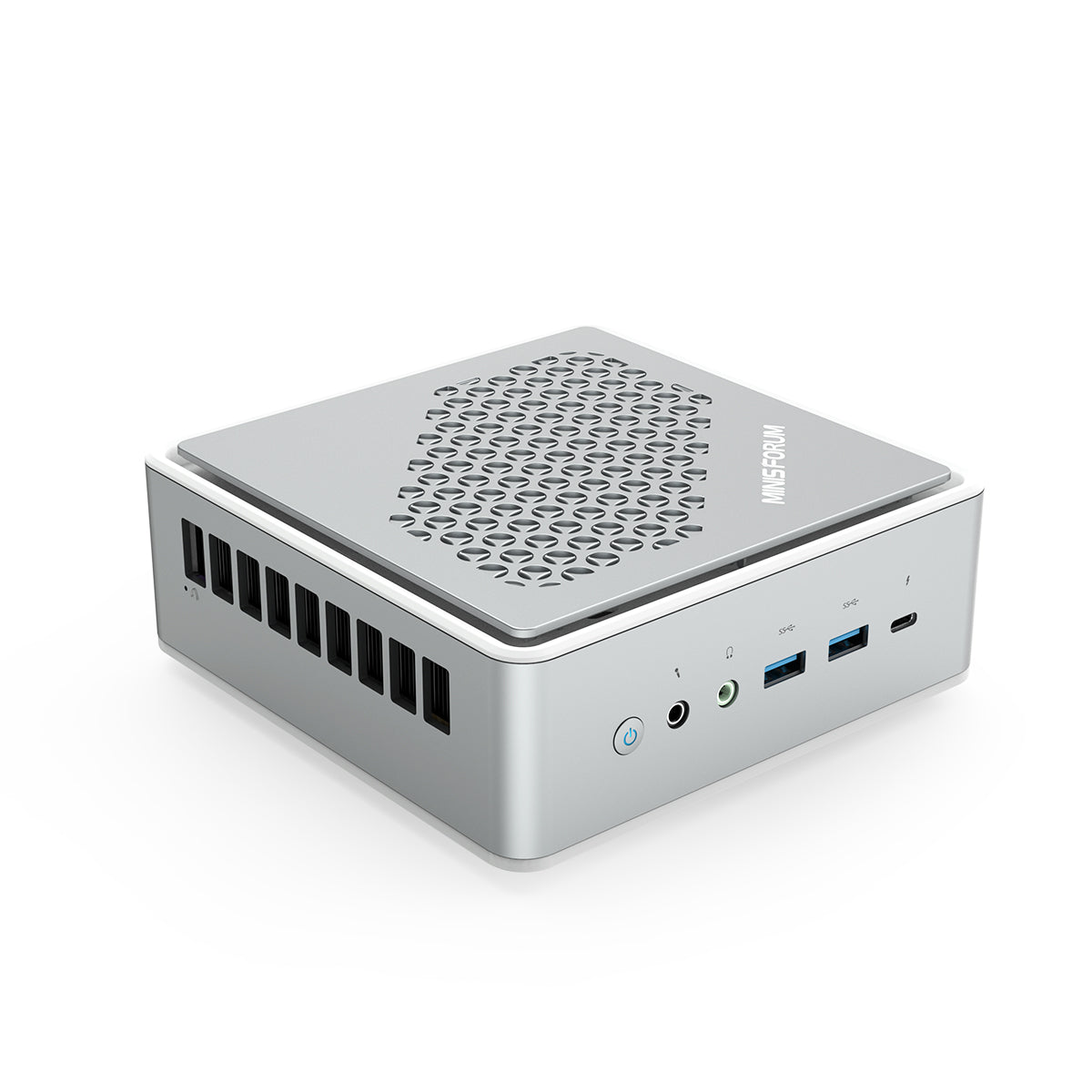

Minisforum EliteMini TH50 (Fonte: Minisforum)

Desempenho: Reservas suficientes

O Minisforum EliteMini TH50 é alimentado pelo Intel Core i5-11320H. Este SoC é suportado por 16 GB de RAM DDR4 e, portanto, oferece uma boa base para a maioria das aplicações. O rápido SSD NVMe oferece 512 GB de espaço de armazenamento em nossa configuração e deve ser suficiente para a maioria dos usuários. Alternativamente, o EliteMini TH50 também está disponível com um SSD de 256 GB. Entretanto, ainda recomendamos a opção pela variante de 512 GB, devido ao baixo potencial de economia

Processador

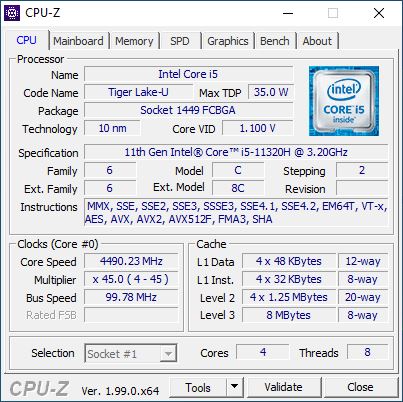

O Intel Core i5-11320H pertence à série Tiger Lake e provém da demografia do laptop. O SoC frugal oferece quatro núcleos nativos e oito fios com um TDP de 35 W. O desempenho de um só núcleo é bastante positivo e muitas vezes é apenas alguns por cento pior do que a concorrência com SoCs muito mais rápidos. Entretanto, o EliteMini TH50 tem que deixar os competidores com seis e oito núcleos marcharem à frente nos benchmarks multi-tarefas. No entanto, nossa amostra de teste se sai bem e, na maioria das vezes, se quadratura com o Intel NUC10i7FNH

O Intel Core i5-11320H é especificado com um consumo de energia de 35 W. No entanto, poderíamos documentar um consumo de energia do SoC até 48 W sob carga por um curto período de tempo. No entanto, isto só é de curta duração devido ao turbo do SoC. Infelizmente, nenhum outro ajuste do limite de potência pode ser definido na BIOS do Minisforum EliteMini TH50. Este tem sido o caso também com os sistemas baseados na AMD, assim se esperava uma opção semelhante para o EliteMini TH50

Para mais comparações e benchmarks, nos referimos ao nossoTabela comparativa de CPU.

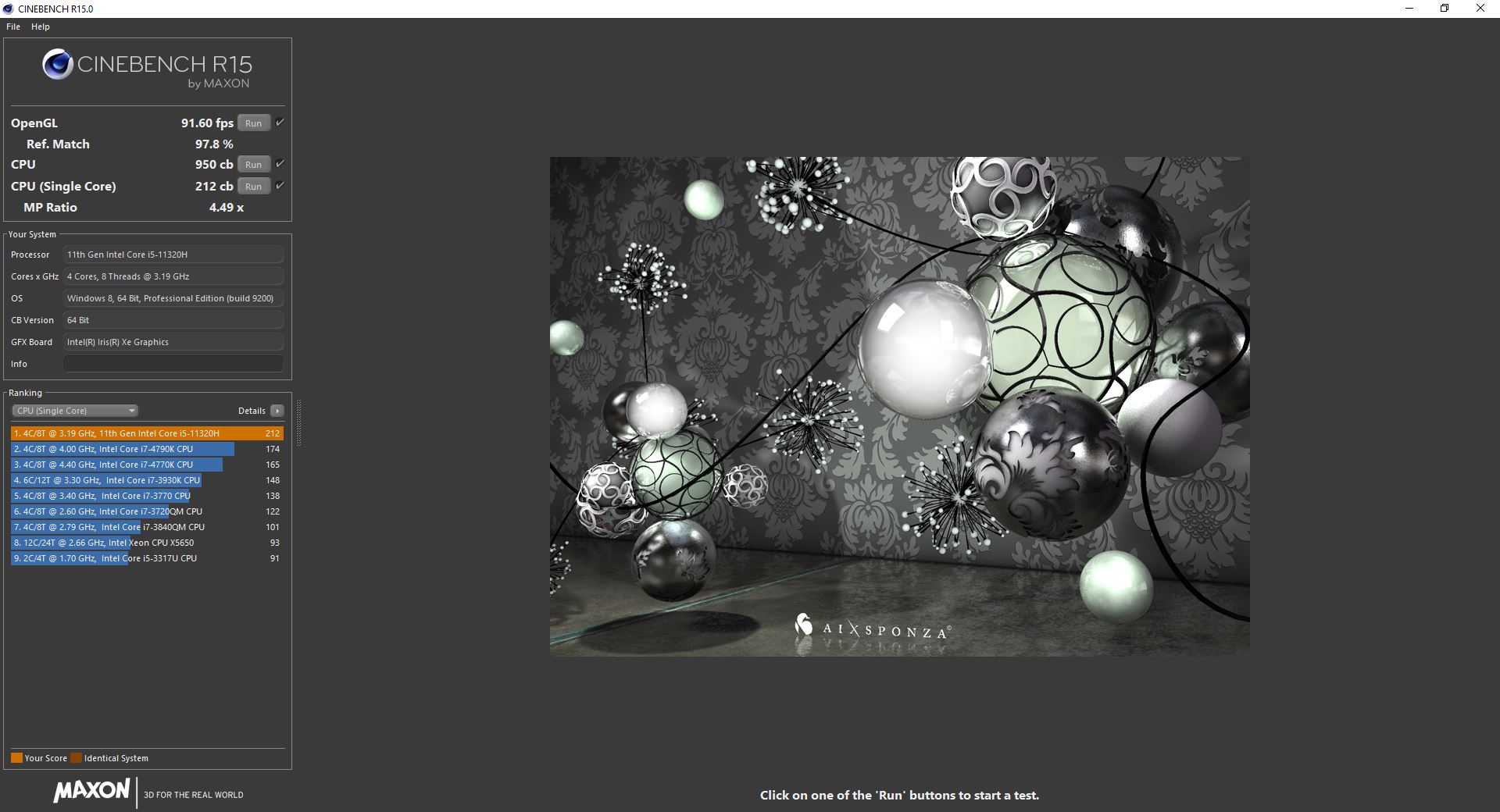

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	242 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	240 Points +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	215 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	212 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	196 Points -8%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	194 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	194 Points -8%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points -21%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	162 Points -24%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	123 Points -42%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points -45%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points -49%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -60%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	77 Points -64%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2224 Points +134%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1967 Points +107%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1919 (1862.02^min - 1893.4^max) Points +102%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1607 Points +69%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1455 Points +53%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1067 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	950 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points -17%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	319 Points -66%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	316 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points -73%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	248 Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -77%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -78%

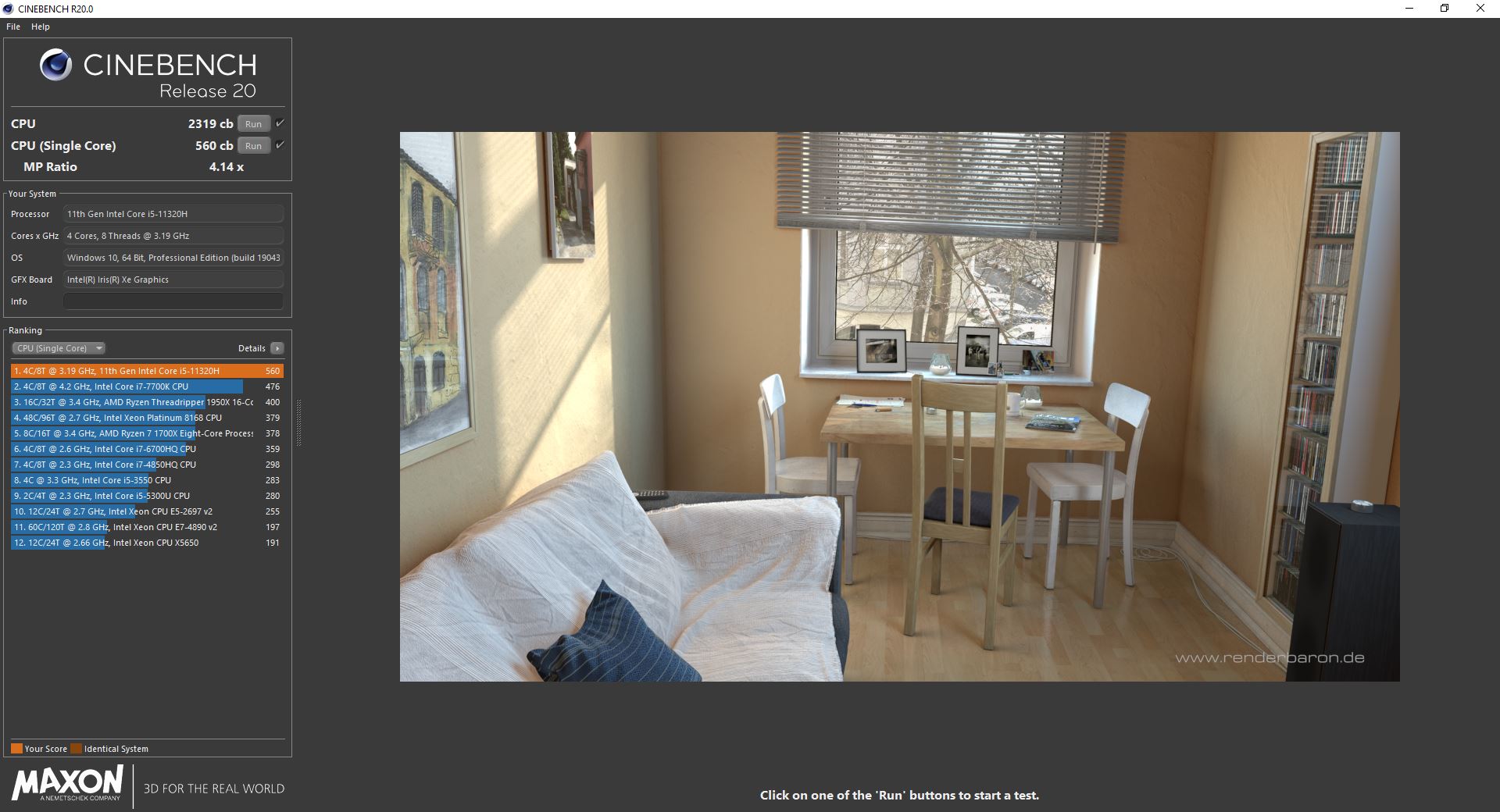

Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	582 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	567 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	560 Points
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	505 Points -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	504 Points -10%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	480 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	401 Points -28%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	266 Points -52%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -64%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	171 Points -69%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5185 Points +124%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4585 Points +98%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4495 Points +94%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	3357 Points +45%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2319 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2303 Points -1%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	743 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	720 Points -69%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	556 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -79%

Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1499 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1479 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	1456 Points
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1298 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1234 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1031 Points -29%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	696 Points -52%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	660 Points -55%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	411 Points -72%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13430 Points +125%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11792 Points +97%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11440 Points +91%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	8532 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5980 Points
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1910 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1833 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1529 (1521.41^min - 1529.3^max) Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	834 (768.67^min - 833.537^max) Points -86%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.86 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.8 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2.51 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	2.4 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	2.26 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.24 Points -11%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.19 Points -13%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.91 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.87 Points -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.47 Points -41%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points -47%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points -49%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.92 Points -63%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.6 Points +137%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.03 Points +114%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 Points +104%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	18.04 Points +67%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	16.7 Points +55%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	10.89 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	10.78 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8.66 Points -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	4.14 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	3.59 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points -70%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.09 Points -71%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points -73%

Blender - v2.79 BMW27 CPU
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2379 Seconds * -361%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1805 Seconds * -250%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds * -13%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	516 Seconds *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	468.3 Seconds * +9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	317.4 Seconds * +38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	315.4 Seconds * +39%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	265 Seconds * +49%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	247.3 Seconds * +52%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	229.3 Seconds * +56%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -282%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * -224%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	615 s * -221%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	566 s * -196%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * -192%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	543 s * -184%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s * -14%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	191.4 s *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	177.4 s * +7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	120.2 s * +37%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	119.5 s * +38%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.7 s * +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.6 s * +52%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.9 s * +57%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -292%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * -231%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * -205%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	17.62 s * -199%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	17.37 s * -195%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.09 s * -190%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s * -15%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5.895 s *
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.103 s * +13%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4.4 s * +25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	3.788 s * +36%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.308 s * +44%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	3.257 s * +45%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.194 s * +46%

X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	128 (122^min - 128^max) fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	112 (112^min - 112^max) fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	111 (111^min - 112^max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	92.8 (89.1^min - 100^max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	84.8 (84.6^min - 105^max) fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	60.5 (60.4^min - 73.5^max) fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21.6 (21.5^min - 22.1^max) fps
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	20.55 (20.4^min - 20.7^max) fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	16.75 (16.7^min - 16.9^max) fps
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	276.5 (274^min - 278^max) fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	271.5 (259^min - 276^max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	237.5 (236^min - 239^max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	236 (235^min - 257^max) fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	215 (213^min - 217^max) fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	206 (204^min - 208^max) fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	106.5 (106^min - 109^max) fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	102 (100^min - 118^max) fps
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	78.9 (77.1^min - 81.7^max) fps
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps

TrueCrypt
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s +129%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1.1 GB/s +110%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.1 GB/s +110%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1 GB/s +90%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.57 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.525 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s -9%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.23 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.21 GB/s -60%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.182 GB/s -65%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s -68%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -75%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s +118%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s +118%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	1.8 GB/s +96%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	1.7 GB/s +85%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.6 GB/s +74%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.919 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s -14%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.403 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.346 GB/s -62%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s -69%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.266 GB/s -71%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -78%
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.8 GB/s +77%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	10.3 GB/s +69%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	10.1 GB/s +66%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s +21%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6.1 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s -23%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4.6 GB/s -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.6 GB/s -57%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.9 GB/s -69%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.9 GB/s -69%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s -72%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s -75%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -79%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32434 Points +47%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	32174 Points +46%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31724 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	29385 Points +33%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28402 Points +29%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22969 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	22045 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13949 Points -37%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5468 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	5399 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points -77%
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6434 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6365 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6238 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	5969 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	5726 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5287 Points -15%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5271 Points -16%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3680 Points -41%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2555 Points -59%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1922 Points -69%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.9 fps +102%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.5 fps +84%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.9 fps +64%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	11.6 fps +48%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	11.4 fps +45%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	7.95 fps +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	7.86 fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.65 fps -79%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.48 fps -81%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16783 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	16422 Points +41%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	15497 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13940 Points +20%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12199 Points +5%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	11662 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	11443 Points -2%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	7679 Points -34%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	4420 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	3863 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3765 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3659 Points -69%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	3072 Points -74%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2794 Points -76%

LibreOffice - 20 Documents To PDF
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	143 s * -194%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	92.9 s * -91%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	66 s * -36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	59.5 s * -22%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.4 s * -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.3 s * -1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	48.7 s *
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	45.23 s * +7%

* ... smaller is better

Cinebench R15 multi-loop

Durante o teste de carga com o Cinebench R15 multi-loop, o Minisforum EliteMini TH50 pode manter o Intel Core i5-11320H bem sob controle. Após a primeira corrida, o desempenho reduz ligeiramente e depois permanece em grande parte estável. Com uma média de 896 pontos, nossa amostra de teste está apenas um pouco atrás doIntel NUC10i7FNHcom seis núcleos e 12 fios.

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)

Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)

Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

Desempenho do sistema e testes de renderização

Nos benchmarks sintéticos, nossa unidade Minisforum EliteMini TH50 assume mais uma vez oIntel NUC10i7FNH. Devido aos SoCs mais rápidos dos outros dispositivos de comparação, não é possível alcançar uma melhor classificação aqui. No entanto, o EliteMini TH50 se sai bem e a diferença com o EliteMini HM90 não é muito alta. A latência medida sob carga e durante a reprodução do vídeo 4K é muito boa e não há dropouts. O Intel Iris Xe Graphics G7 o iGPU é utilizado a cerca de 26% durante a reprodução. Mesmo depois de iniciar Prime 95, a latência do DPC não aumenta muito.

O que acontece com uma doca externa da GPU e o Nvidia GeForce RTX 3060 pode ser visto aqui de forma impressionante quando você olha para os resultados do LuxMark e ComputeMark. O potencial total da placa gráfica externa não pode ser realizado nos benchmarks da SPECviewprf.

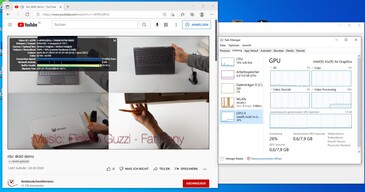

Máxima latência ao abrir várias abas do navegador e reproduzir um vídeo de 4K.

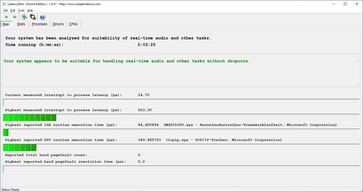

Latência máxima após dez segundos de Prime95

PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	6939 Points +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6507 Points +27%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	6499 Points +27%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6290 Points +23%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	5697 Points +11%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5565 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5130 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	4418 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2958 Points -42%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2548 Points -50%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points -53%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1806 Points -65%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10196 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9856 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	8581 Points +26%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8277 Points +21%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	8136 Points +19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	7447 Points +9%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	6876 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6832 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points -5%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	5397 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points -40%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3854 Points -44%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2928 Points -57%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	10797 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10321 Points +8%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10087 Points +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	9846 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	9556 Points
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	9059 Points -5%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9026 Points -6%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	9013 Points -6%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8235 Points -14%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	6210 Points -35%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	5446 Points -43%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5419 Points -43%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	4693 Points -51%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	10161 Points +81%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	9785 Points +74%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7105 Points +27%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	6808 Points +21%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6794 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6262 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5615 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	3777 Points -33%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3296 Points -41%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2139 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2097 Points -63%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1677 Points -70%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1165 Points -79%

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3767 μs * -978%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2635 μs * -654%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1625 μs * -365%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1581 μs * -352%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs * -216%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs * -216%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	349.5 μs *

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	82.3 fps +121%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 fps +73%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61.8 fps +66%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	59.2 fps +59%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.3 fps +32%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	47.8 fps +28%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	37.3 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	28.71 fps -23%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	26.2 fps -30%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	23.86 fps -36%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.55 fps -56%
1900x1060 Siemens NX (snx-02)
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.1 fps +513%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20.1 fps +484%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 fps +377%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	12 fps +249%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	9.08 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	7.39 fps +115%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	3.44 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.98 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.67 fps -22%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2.6 fps -24%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.48 fps -28%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	72.6 fps +295%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.4 fps -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.4 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.3 fps -28%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	8.8 fps -52%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	8.35 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.81 fps -63%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	5.56 fps -70%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	49 fps +341%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	40.14 fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	24.9 fps +124%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.8 fps +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.2 fps +10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	11.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.91 fps -74%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2.7 fps -76%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.62 fps -76%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.61 fps -85%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	200 fps +410%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	171 fps +336%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	66 fps +68%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	39.2 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	36.8 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31 fps -21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.6 fps -32%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	17 fps -57%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.71 fps -60%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13.02 fps -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	3.33 fps -92%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	13.1 fps +2947%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	11.49 fps +2572%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	8.21 fps +1809%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2.19 fps +409%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.52 fps +21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.5 fps +16%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.43 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.28 fps -35%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.23 fps -47%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.09 fps -79%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.08 fps -81%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	61.5 fps +635%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	52.2 fps +524%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	45.4 fps +442%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.2 fps +344%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.9 fps +329%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.9 fps +257%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	14.42 fps +72%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.93 fps +54%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	10.8 fps +29%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	9.89 fps +18%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	8.37 fps
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	117 fps +215%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	78.3 fps +111%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	63.1 fps +70%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.2 fps +11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.7 fps +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	37.1 fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.7 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	16.55 fps -55%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	15.5 fps -58%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	14.12 fps -62%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	11.3 fps -70%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	213 fps +449%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	180.8 fps +366%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	98 fps +153%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.5 fps +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.7 fps +13%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	38.8 fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.4 fps -4%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.22 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.92 fps -67%

SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	114 fps +129%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	85.4 fps +72%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	73.2 fps +47%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.7 fps +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69.6 fps +40%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	57.4 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	49.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	37.6 fps -24%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	31.48 fps -37%
Siemens NX (snx-03)
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 fps +517%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	36.3 fps +486%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 fps +378%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	21.9 fps +254%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	16.33 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	13.4 fps +116%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6.19 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	5.37 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.8 fps -22%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	72.9 fps +296%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.3 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.1 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.5 fps -27%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	8.34 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.81 fps -63%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	78.3 fps +498%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	56.4 fps +331%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	44.9 fps +243%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.2 fps +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps +47%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 fps +25%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	13.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	2.23 fps -83%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	2.12 fps -84%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	367 fps +834%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	281 fps +615%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	141 fps +259%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.6 fps +24%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	39.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.9 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.1 fps -11%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	22.97 fps -42%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	18.97 fps -52%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	28.2 fps +675%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	21.83 fps +500%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	13.1 fps +260%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6.93 fps +90%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	3.64 fps
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.42 fps -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.88 fps -76%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	0.82 fps -77%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	0.73 fps -80%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	241 fps +605%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	183.8 fps +437%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	111 fps +225%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.4 fps +47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.9 fps +31%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.7 fps +10%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	34.2 fps
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	18.88 fps -45%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	16.77 fps -51%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	171 fps +223%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	113.7 fps +115%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	92.9 fps +76%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.3 fps +12%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	52.9 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.2 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.4 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	23.37 fps -56%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	19.97 fps -62%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	213 fps +453%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	178.6 fps +364%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	97.7 fps +154%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.5 fps +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.9 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	38.5 fps
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 fps -2%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	15.01 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	12.71 fps -67%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	20018 Points +486%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4148 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3499 Points +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3499 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	3414 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1476 Points -57%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1134 Points -67%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	964 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	964 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	959 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	696 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	631 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	337 Points -90%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	2016 Points +559%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	306 Points
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	276 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	235 Points -23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	235 Points -23%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	128 Points -58%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	128 Points -58%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	86 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	86 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	86 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	67 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	54 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	44 Points -86%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	1958 Points +571%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	292 Points
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	272 Points -7%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	231 Points -21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	231 Points -21%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	126 Points -57%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	105 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	105 Points -64%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	103 Points -65%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	83 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	82 Points -72%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	63 Points -78%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	42 Points -86%
1024x600 Normal, Mandel Vector
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	4163 Points +446%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1280 Points +68%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1066 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1066 Points +40%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	763 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	250 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	211 Points -72%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	189 Points -75%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	189 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	186 Points -76%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	147 Points -81%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	140 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	79 Points -90%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	4367 Points +412%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1115 Points +31%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	964 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	964 Points +13%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	853 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	428 Points -50%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	262 Points -69%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	226 Points -74%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	223 Points -74%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	223 Points -74%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	137 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	135 Points -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	54 Points -94%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	7514 Points +526%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1205 Points 0%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	1200 Points
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1002 Points -16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1002 Points -16%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	543 Points -55%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	430 Points -64%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	379 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	362 Points -70%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	362 Points -70%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	272 Points -77%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	230 Points -81%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	118 Points -90%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	1647 Samples/s +138%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	693 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	547 Samples/s -21%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	451 Samples/s -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	451 Samples/s -35%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	306 Samples/s -56%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	291 Samples/s -58%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	291 Samples/s -58%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	188 Samples/s -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	163 Samples/s -76%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	146 Samples/s -79%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	109 Samples/s -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	76 Samples/s -89%
Sala GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	6513 Samples/s +181%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2320 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1287 Samples/s -45%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	939 Samples/s -60%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	939 Samples/s -60%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	736 Samples/s -68%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	736 Samples/s -68%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	702 Samples/s -70%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	404 Samples/s -83%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	397 Samples/s -83%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	379 Samples/s -84%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	266 Samples/s -89%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	129 Samples/s -94%

* ... smaller is better

Armazenamento em massa

Nosso sistema de teste é equipado com um SSD NVMe de 512 GB, que também é a oferta superior para o EliteMini TH50. Não há um SSD maior ex-fábrica, mas isso não significa que você mesmo não possa substituí-lo. No entanto, 512 GB de armazenamento devem ser suficientes para a maioria das finalidades, dado que o usuário ainda tem 450 GB disponíveis menos a instalação do Windows

O SSD instalado aqui utiliza o slot M.2-2280 e oferece taxas de transferência muito altas graças ao protocolo NVMe. Gostamos muito da taxa de leitura de 4K de mais de 60 MB/s. Alternativamente, você pode instalar dois dispositivos de armazenamento em massa de 2,5 polegadas no painel inferior. Todos os suportes, parafusos e cabos de conexão necessários estão incluídos.

Continuous DiskSpd Read Loop, Queue Depth 8

Minisforum EliteMini TH50: Ø1905 (1097.76-2359.4)

Placa gráfica

A unidade gráfica integrada do Intel Core i5-11320H é o Intel Iris Xe Graphics G7 com 96 UEs. No total, o desempenho aqui apresentado reflete exatamente o que você pode esperar deste iGPU. Em comparação com a AMD Radeon RX Vega 8a Intel iGPU pode se manter muito bem e muitas vezes até se colocar na frente

Também testamos aqui o desempenho da GPU com a ajuda do Razer Core X e de um Nvidia GeForce RTX 3060 e foram capazes de alcançar bons resultados. Surpreendentemente, os valores foram melhores do que os do Zotac Magnus One com um Nvidia GeForce RTX 3070

Mais referências para a Intel Iris Xe Graphics G7 podem ser encontradasaqui.

3DMark 11 | 3DMark | Unigine Heaven 4.0 | Unigine Valley 1.0

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	40950 Points +528%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	28828 Points +342%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	24369 Points +274%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7122 Points +9%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6518 Points
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=193)	6342 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6306 Points -3%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5567 Points -15%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1983 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1853 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1589 Points -76%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1316 Points -80%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points -82%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	602 Points -91%

3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	441161 Points +635%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	326331 Points +444%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	286573 Points +378%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	171104 Points +185%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (96941 - 231980, n=18)	154016 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	130976 Points +118%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100414 Points +67%
Average Intel Iris Xe Graphics G7 96EUs (35195 - 214326, n=39)	90880 Points +51%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	79747 Points +33%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	60011 Points
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	58199 Points -3%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	41037 Points -32%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	25631 Points -57%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21465 Points -64%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	376770 Points +646%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	289413 Points +473%
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	284001 Points +462%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	121736 Points +141%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (84227 - 147236, n=14)	111810 Points +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	102227 Points +102%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84227 Points +67%
Average Intel Iris Xe Graphics G7 96EUs (35612 - 144112, n=25)	70045 Points +39%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	50500 Points
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	48446 Points -4%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points -19%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	40532 Points -20%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	26409 Points -48%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	20602 Points -59%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14360 Points -72%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	30090 Points +536%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	20775 Points +339%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H 3200 MHz, NVIDIA GeForce RTX 3060	18711 Points +296%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=206)	4903 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	4730 Points
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4369 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3775 Points -20%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points -22%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3414 Points -28%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points -69%
Intel NUC10i7FNH, Intel Core i7-10710U 1100 MHz, Intel UHD Graphics 620	1418 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1202 Points -75%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points -78%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	881 Points -81%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	772 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points -84%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	446 Points -91%

Unigine Heaven 4.0
Extreme Preset DX11
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	196.4 fps +743%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	141.3 fps +506%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	23.3 fps
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 27.5, n=16)	23.3 fps 0%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.4 fps -8%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (15.4 - 24.4, n=9)	19.9 fps -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.4 fps -34%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2.4 fps -90%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.4 fps -90%
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	187.5 fps +708%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	132.9 fps +473%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	23.2 fps
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 26.3, n=16)	22.8 fps -2%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.6 fps -16%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.5 - 22.8, n=8)	18.8 fps -19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.2 fps -30%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.5 fps -42%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2.2 fps -91%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.2 fps -91%

Unigine Valley 1.0
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	140.2 fps +782%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	99.6 fps +526%
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.1, n=14)	16.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	15.9 fps
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.8 fps -19%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.8 - 14.7, n=8)	12.1 fps -24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.7 fps -33%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8.8 fps -45%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	6.3 fps -60%
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700 2900 MHz, NVIDIA GeForce RTX 3070	157.5 fps +957%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK 2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)	112.8 fps +657%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	14.9 fps
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 17.2, n=14)	14.8 fps -1%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps -5%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10 - 16.4, n=8)	13.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.6 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10 fps -33%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	6.5 fps -56%

3DMark 11 | 3DMark | Unigine Heaven 4.0 | Unigine Valley 1.0

3DMark 05 Standard		36918 pontos
3DMark 06 Standard Score		27809 pontos
3DMark Vantage P Result		22253 pontos
3DMark 11 Performance		6905 pontos
3DMark Ice Storm Standard Score		61362 pontos
3DMark Cloud Gate Standard Score		17814 pontos
3DMark Fire Strike Score		4340 pontos
3DMark Fire Strike Extreme Score		2149 pontos
3DMark Time Spy Score		1777 pontos
Ajuda

... comparado com

Desempenho do jogo

A Minisforum não anuncia explicitamente o EliteMini TH50 como um PC de jogo. No entanto, alguns valores podem ser encontrados na página inicial, o que deve ajudar a esclarecer o desempenho do jogo. Quem compra o EliteMini TH50 deve ter em mente que o instaladoIntel Iris Xe Graphics G7é apenas um simples iGPU. O desempenho é comparável ao do iGPU do AMD Ryzen 9 5900HXse considerarmos apenas o desempenho do jogo neste ponto

Entretanto, com a porta Thunderbolt 4, os usuários agora têm mais opções para melhorar a performance 3D com a ajuda das docas externas da GPU. Testamos o EliteMini TH50 com o Razer Core X, equipado com um Nvidia GeForce RTX 3060e olhou o que pode ser esperado em termos de desempenho do jogo

É claro que o desempenho não é comparável com um sistema de mesa convencional. Nos jogos testados, o desempenho estava cerca de 40% abaixo de nosso sistema de teste (base AMD Ryzen 9 5900X), que usamos para nossos testes de placas gráficas. No entanto, o benefício em relação ao iGPU ainda é muito claro. Todos os jogos testados funcionam bem mesmo com o Intel Core i5-11320H, em combinação com nosso Razer Core X e o Nvidia GeForce RTX 3060. Esta é uma clara vantagem sobre os mini-PCs baseados em AMD, que ainda não possuem Thunderbolt. No entanto, isto pode ser história no futuro próximo, porque os novos APUs AMD também poderão usar uma interface moderna como USB4.

Performance Rating - Percent
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	97.5 pt
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060 ^-1!	96 pt
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	69 pt
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.8 pt
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	20.3 pt
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	111 (4.48^min, 76.9^P1 - 235^max) fps +988%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	104 (4.33^min, 71.4^P1 - 206^max) fps +920%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	77.1 (6.65^min, 50^P1 - 157^max) fps +656%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.2 (7.37^min, 10.8^P1 - 37.9^max) fps +49%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12 (3.91^min, 8.93^P1 - 33.5^max) fps +18%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	10.2 (4.22^min, 6.37^P1 - 90.8^max) fps

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	63.3 (22.3^min, 40.7^P0.1, 51.3^P1 - 358^max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	52.4 (36.2^min, 37.9^P0.1, 42.8^P1 - 115^max) fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.4 (14^min, 14.2^P0.1, 14.7^P1 - 22.5^max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	15.5 (6.52^min, 7.57^P0.1, 9.58^P1 - 59^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.4 (8.07^min, 10.9^P0.1, 12^P1 - 59.1^max) fps -7%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	159.7 (126.4^min) fps +191%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	147.1 (126^min) fps +168%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	110.5 (94.3^min) fps +102%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62.8 (57.5^min) fps +15%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	54.8 (47.9^min) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.9 (43.8^min) fps -9%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	88.6 fps +282%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	88.6 fps +282%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	70.8 fps +205%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	23.2 fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16 fps -31%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.6 fps -41%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	112 fps +416%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	105 fps +384%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	73.4 fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.1 fps +85%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37 fps +71%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	21.7 fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	132 (109^min - 150^max) fps +428%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	122 (93^min - 151^max) fps +388%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	88 (67^min - 116^max) fps +252%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 (23^min - 32^max) fps 0%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	25 (22^min - 29^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (17^min - 23^max) fps -24%

Far Cry New Dawn - 1920x1080 Ultra Preset
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	112 (83^min - 146^max) fps +348%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	102 (72^min - 145^max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	73 (52^min - 111^max) fps +192%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	25 (18^min - 31^max) fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (19^min - 30^max) fps -4%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (14^min - 24^max) fps -24%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	154 (58.1^min, 116^P1 - 215^max) fps +521%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	153 (43.4^min, 116^P1 - 214^max) fps +517%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	114 (56^min, 73.9^P1 - 191^max) fps +360%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.6 (21.9^min, 22.5^P1 - 39^max) fps +11%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	24.8 (8^min, 8.72^P1 - 317^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.9 (18.2^min, 19.2^P1 - 34.3^max) fps -4%

Metro Exodus - 1920x1080 Ultra Quality AF:16x
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	59.8 (30.99^min - 119.9^max) fps +416%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	55.1 (32.45^min - 87.42^max) fps +375%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	37.8 (17.54^min - 83.29^max) fps +226%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13 (7.31^min - 18.99^max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	11.6 (6.55^min - 19.58^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.8 (5.78^min - 15.68^max) fps -7%

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	100 fps +777%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	78.5 fps +589%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	58.5 fps +413%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +21%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	11.4 fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.3 fps -1%

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	142 (114^min - 171^max) fps +509%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	142 (114^min - 171^max) fps +509%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	87.8 (55^min - 111^max) fps +277%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.4 (21^min - 36^max) fps +22%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.3 (18^min - 30^max) fps +4%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	23.3 (16^min - 29^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060	104 (88^min, 88^P1 - 117^max) fps +288%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060	96.9 (83^min, 83^P1 - 107^max) fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060	75.1 (52^min, 54^P1 - 85^max) fps +180%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 (22^min, 22^P1 - 31^max) fps +1%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs	26.8 (22^min, 22^P1 - 30^max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (17^min, 17^P1 - 25^max) fps -18%

Legend

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1

Intel Beast Canyon NUC Intel Core i9-11900KB, NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB

Inno3D GeForce RTX 3060 Twin X2 AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3060, Corsair MP600

Minisforum EliteMini TH50 (RTX 3060 via TB) Intel Core i5-11320H, NVIDIA GeForce RTX 3060,

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB

Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB

	baixo	média	alto	ultra
GTA V (2015)	99.2	85.3	26	10.2
The Witcher 3 (2015)	89.8	56.5	29.5	15.5
Dota 2 Reborn (2015)	125.3	90	60.5	54.8
Final Fantasy XV Benchmark (2018)	43.2	23.2	23.2
X-Plane 11.11 (2018)	27.3	25.5	21.7
Far Cry 5 (2018)	55	29	27	25
Strange Brigade (2018)	87.5	37.3	30.5	24.8
Far Cry New Dawn (2019)	48	29	27	25
Metro Exodus (2019)	40.4	20.6	14.8	11.6
Borderlands 3 (2019)	51.7	24.3	15.1	11.4
F1 2020 (2020)	93.1	47.7	36.4	23.3
F1 2021 (2021)	105	50.3	40.1	26.8
God of War (2022)	21	18.8	15.2	10.1
Dying Light 2 (2022)	16.8	13.8	11.7
GRID Legends (2022)	66.4	45.4	36.6	26.9
Elden Ring (2022)	45.5	41.5	33.6	27.9
Cyberpunk 2077 1.6 (2022)	17.8	15.4	12.2	10.1
Elex 2 (2022)	20.4	18.3	16.3	14.6

	baixo	média	alto	ultra
GTA V (2015)	166	160	135	77.1
The Witcher 3 (2015)	219	133	80	52.4
Dota 2 Reborn (2015)	135.5	117.1	113.2	110.5
Final Fantasy XV Benchmark (2018)	137	102	70.8
X-Plane 11.11 (2018)	95.8	88	73.4
Far Cry 5 (2018)	118	98	95	88
Strange Brigade (2018)	170	130	121	114
Far Cry New Dawn (2019)	100	86	80	73
Metro Exodus (2019)	110	66.9	50	37.8
Borderlands 3 (2019)	112	94.2	73.4	58.5
F1 2020 (2020)	180	111	111	87.8
F1 2021 (2021)	184	163	128	75.1

Emissões e Energia

Temperatura

Minisforum utiliza a mesma tecnologia de resfriamento para o EliteMini TH50 como o EliteMini HM90- o ventilador axial aspira o ar frio por cima e o pressiona para baixo no dissipador de calor, para que o ar quente possa escapar da lateral da caixa. O princípio é bem pensado e funciona muito bem. OIntel Core i5-11320H atingiu um máximo de 86 °C. Assim, o SoC está claramente na zona verde. Como o teste de estresse é um cenário extremo, podem ser esperadas temperaturas muito mais baixas em uso normal. Entretanto, a carga permanente não teve um impacto negativo. O resultado do benchmark 3DMark11 está no mesmo nível da partida a frio e varia apenas em alguns pontos dentro das tolerâncias de medição.

Desenvolvimento de calor durante o teste de estresse

Desenvolvimento de calor durante o teste de estresse (unidade de fornecimento de energia)

Emissões sonoras

Devido ao projeto sofisticado de refrigeração, o nível de ruído medido sob carga também é moderado. O dispositivo é quase silencioso no modo inativo e o ruído do ventilador se fixa em pouco menos de 32,5 dB(A) sob carga. No entanto, é perceptível uma clara aceleração no início. Medimos quase 41 dB(A) aqui, mas é apenas de curta duração

Emissões sonoras (teste de estresse: FurMark+Prime95)

Barulho

Ocioso		30.8 / 32.1 / 32.9 dB
Carga		33.9 / 41.4 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.2 dB(A)

	Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
Noise		-1%	6%
off / environment *	30.2	30.1 -0%	30.8 -2%
Idle Minimum *	30.8
Idle Average *	32.1	33.15 -3%	31.6 2%
Idle Maximum *	32.9
Load Average *	33.9
Load Maximum *	41.4	41.63 -1%	33.4 19%

* ... smaller is better

Absorção de energia

Em termos de consumo de energia, o Minisforum EliteMini TH50 corta um número muito bom. Devido ao SoC frugal, o consumo de energia é bastante nominal mesmo sob carga com uma média de 52,7 W. Entretanto, a fonte de energia tem que compensar até 72 W em um curto espaço de tempo. Além disso, a fonte de energia pode ficar sobrecarregada quando dois dispositivos de armazenamento adicionais são instalados. Portanto, teríamos preferido uma fonte de alimentação de até 90 W.

Consumo de energia durante o teste de estresse (Prime95)

Consumo de energia durante o teste de estresse (FurMark)

Consumo de energia durante o teste de estresse (FurMark e Prime95)

Consumo de energia durante os jogos (The Witcher 3 Ultra Preset)

Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)	326.2 (316^min - 333^max) Watt * -1991%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)	251.9 (242^min - 270^max) Watt * -1515%
Morefine S500+	58.3 (53.2^min, 55.8^P1 - 69.7^max) Watt * -274%
Minisforum EliteMini HX90 (Idle: 6.3 W)	56.2 (52.1^min, 53.3^P1 - 79.8^max) Watt * -260%
Minisforum HM90 (Idle: 9.8 W)	47.47 (44^min - 78^max) Watt * -204%
Intel NUC10i7FNH (Idle: 8.4 W)	46.6 (45^min - 68^max) Watt * -199%
Intel NUC10i5FNK (Idle: 15.7 W)	37.8 (35^min - 63^max) Watt * -142%
MSI Cubi 5 10M (Idle: 8 W)	25.17 (25^min - 26^max) Watt * -61%
Minisforum EliteMini TH50	15.6 (15^min, 15.1^P1 - 19.6^max) Watt *
Prime95 V2810 Stress (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)	116.3 (110^min - 238^max) Watt * -121%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)	109.4 (107^min - 151^max) Watt * -108%
Minisforum EliteMini HX90 (Idle: 6.3 W)	86.9 (77.4^min, 79.5^P1 - 109^max) Watt * -65%
Minisforum HM90 (Idle: 9.8 W)	73.2 (71^min - 76^max) Watt * -39%
Morefine S500+	72.4 (69.4^min, 71^P1 - 75.6^max) Watt * -37%
Intel NUC10i7FNH (Idle: 8.4 W)	60 (52^min - 86^max) Watt * -14%
Intel NUC10i5FNK (Idle: 15.7 W)	58.5 (56^min - 69^max) Watt * -11%
Minisforum EliteMini TH50	52.7 (45.8^min, 49.6^P1 - 72.1^max) Watt *
MSI Cubi 5 10M (Idle: 8 W)	46.72 (40^min - 66^max) Watt * +11%
AC6-M Mini-PC	17.4 (15.8^min, 16.8^P1 - 18^max) Watt * +67%

* ... smaller is better

Pro

+ bom desempenho do sistema

+ carcaça estável

+ dimensões compactas

+ muitas interfaces USB

+ Suporte Thunderbolt 4

+ até três dispositivos de armazenamento em massa possíveis

Contra

- sem leitor de cartões SD

Conclusão: Ótimo desempenho com boa conectividade

Minisforum EliteMini TH50 em teste, fornecido pela Minisforum

O Minisforum EliteMini TH50 é um mini-PC muito compacto com ótimo desempenho para uma ampla gama de aplicações. Com o Intel Core i5-11320H, o EliteMini TH50 deixa uma impressão positiva devido ao bom desempenho single-core. Com seus quatro núcleos, o SoC também pode se manter bem em aplicações multi-tarefas e pode assumir oIntel NUC10i7FNHque é equipado com um SoC de seis núcleos. Juntos, com 16 GB de memória de trabalho e o SSD de 512 GB, você obtém um ótimo dispositivo na configuração superior. Além disso, o EliteMini TH50 coleta mais pontos com sua moderna conectividade. Acima de tudo, a opção Thunderbolt deve oferecer o maior valor agregado para os usuários

O Minisforum EliteMini TH50 é um PC muito bom e completo que pode fazer mais do que simples tarefas de escritório.

No geral, o EliteMini TH50 convence com um desempenho estável. A Intel Iris Xe Graphics G7 também deu um grande passo em frente em termos de desempenho 3D. Aqui, o desempenho do AMD Radeon RX Vega 8 é superado. Assim, o EliteMini TH50 também é adequado para jogos de forma limitada. A performance 3D pode ser expandida com um dock GPU externo através da interface Thunderbolt, que transforma o EliteMini TH50 em um PC de pleno direito para jogos

A combinação de cores de prata e branco é uma questão de opinião, mas você não tem outra opção senão gostar dela. O Minisforum não oferece cores de caixa alternativas para o TH50 da EliteMini. A mão-de-obra é boa e a expansibilidade com compartimentos de armazenamento adicionais pode ser feita rapidamente

A preçosa partir de US$629o TH50 da EliteMini pode ser adquirido diretamente no Minisforum. Entretanto, você tem que contar com US$669 para nosso sistema de teste. Nos referimos à nossa configuração de teste como uma recomendação de compra porque uma licença do Windows só está incluída nas configurações com um drive de armazenamento.

Revisão do Minisforum EliteMini TH50: PC de mesa compacto para uso diário no escritório

Estojo e equipamento

Desempenho: Reservas suficientes

Processador

Cinebench R15 multi-loop

Desempenho do sistema e testes de renderização

Armazenamento em massa

Continuous DiskSpd Read Loop, Queue Depth 8

Placa gráfica

Desempenho do jogo

Emissões e Energia

Temperatura

Emissões sonoras

Absorção de energia

Pro

Contra

Conclusão: Ótimo desempenho com boa conectividade

More articles related to this device
