Revisão Ace Magician TK11-A0: Eficiente mini PC com Thunderbolt 4 e recursos úteis adicionais

PC de escritório com características úteis! Sob o selo Ace Magician TK11-A0, a Minipc Union oferece um moderno PC de escritório para muitos cenários de uso. Saiba mais sobre o desempenho deste Tiger Lake SoC nesta revisão detalhada com numerosas medidas e referências.

Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 09/12/2022 🇺🇸 🇩🇪 ...

Desktop Mini PC Tiger Lake

Já analisamos em detalhe o Sindicato Minipc Ás Mágico AMR5recentemente e saiu com uma impressão bastante positiva. Com o Ace Magician TK11-A0, a Minipc Union oferece um computador compacto adicional em seu portfólio. Entretanto, como um PC de escritório, o Ace Magician TK11-A0 visa um grupo de usuários diferente do Ace Magician AMR5, que é anunciado como um pequeno PC de jogos.

A Minipc Union Ace Magician TK11-A0 utiliza um Intel Core i5-1135G7com 16 GB de memória de trabalho e um SSD de 512 GB como solução de armazenamento. Em termos da solução gráfica, os usuários devem ficar satisfeitos em ver um Intel Iris Xe Graphics G7, que é bastante capaz de acompanhar o desempenho de um APU AMD. Com 560 Euros (~$562), o preço do Ace Magician TK11-A0 está a um nível semelhante ao de outros mini PCs comparavelmente equipados. Mas nossa unidade de teste também é capaz de pontuar com um alto-falante integrado e um sensor de impressão digital.

O mini PC vem em uma pequena caixa junto com uma fonte de alimentação de 65 watts e um dispositivo de montagem Vesa, permitindo a montagem do dispositivo em um monitor.

Ace Magician TK11-A0

Processador

Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 48 W PL2 / Short Burst, 20 W PL1 / Sustained, Tiger Lake-UP3

Placa gráfica

Intel Iris Xe Graphics G7 96EUs - shared Memory MB VRAM, Memoría: 2000 MHz, 27.20.100.8729 DCH

Memória

16 GB

, DDR4-2666, 2 of 2 used, 64 GB max

placa mãe

Intel Tiger Lake-UP3 PCH-LP

Disco rígido

Future Path FPE220M8SSD512G, 512 GB

, M.2 2280, NVMe, 450 GB livre

Placa de Som

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Conexões

3 USB 3.0, 1 USB 3.2 Gen 2x2 20Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: combined audio port, 1 Leitor de Impressões Digitais

Funcionamento em rede

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 53 x 138 x 138

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

Alto falantes: mono 3W, 12 Meses Garantia

peso

586 g, Suprimento de energia: 241 g

Preço

560 EUR

Links

Minipc Union página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Date	Model	Weight	Height
09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
08/2022	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	1.3 kg	40 mm
12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
12/2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm

Minipc Union Ace Magician TK11-A0 em detalhe

Caso

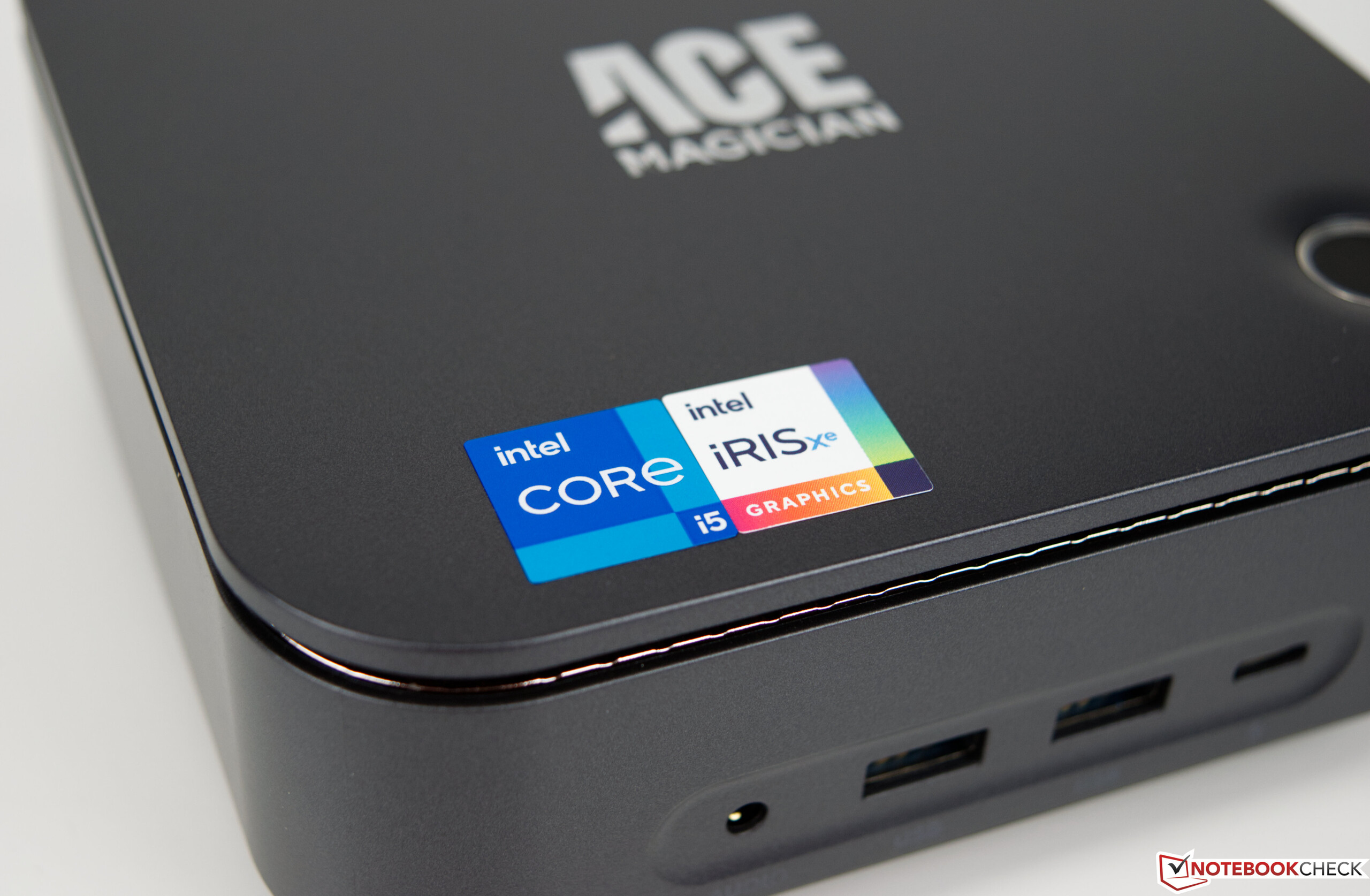

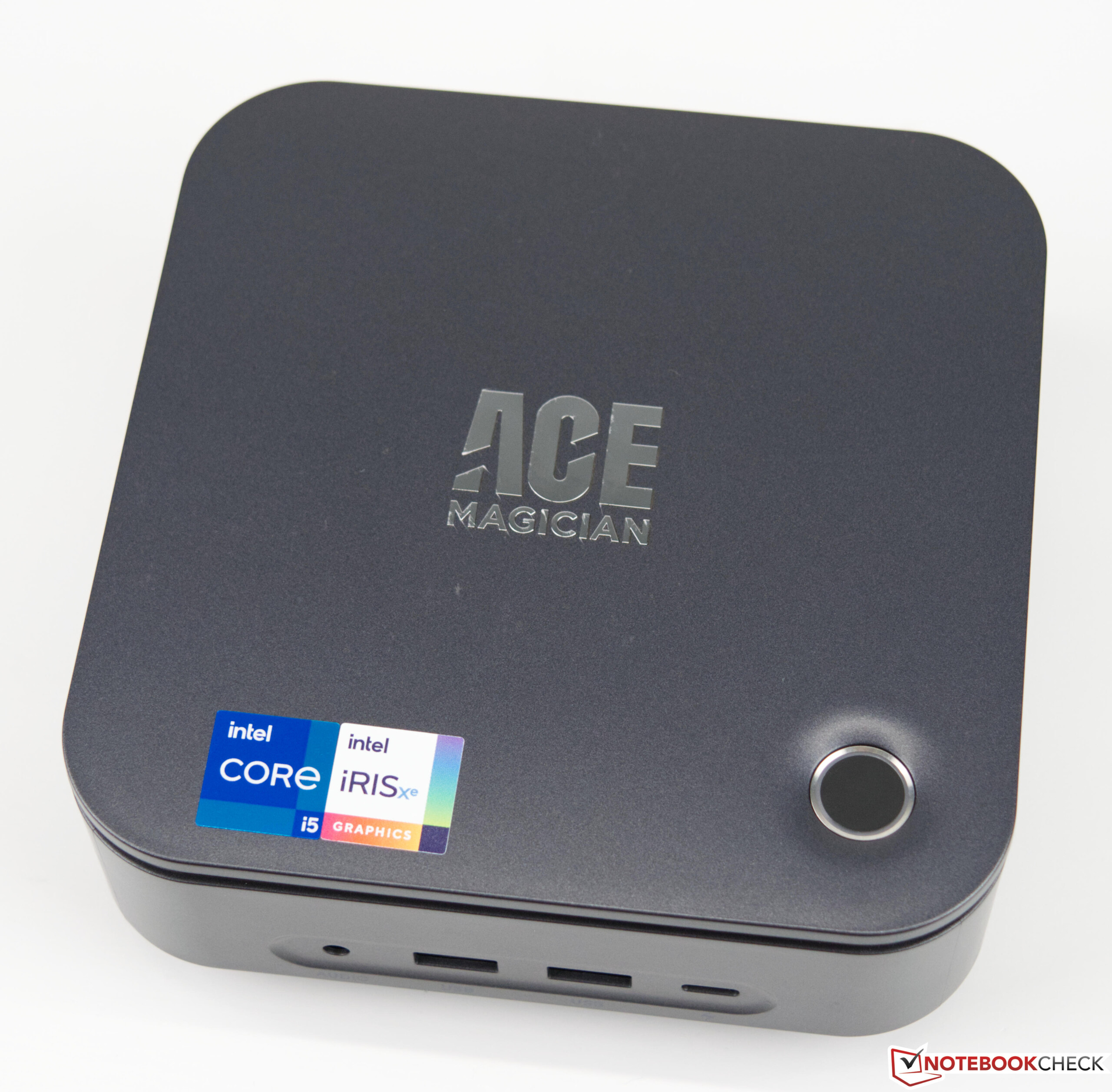

Visualmente, o Ace Magician TK11-A0 é um mini PC clássico com uma pegada de apenas cerca de 14 x 14 cm (~5,5 x 5,5 pol.). Ao mesmo tempo, o pequeno PC tem uma altura de 5 cm (~2 pol.), que é um pouco mais alto que os concorrentes. O case é feito principalmente de plástico. As superfícies são relativamente lisas, e todas as bordas são confortavelmente arredondadas. Em termos de design colorido, o fabricante usa cinza com um leve brilho azul. A estabilidade da caixa é boa, embora não haja alumínio. Com 586 gramas (~20,7 oz), o pequeno computador é mais leve do que nossos dispositivos de comparação aqui no teste.

Comparação de tamanho

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Morefine S500+ DIN A4 ❌

Equipamento

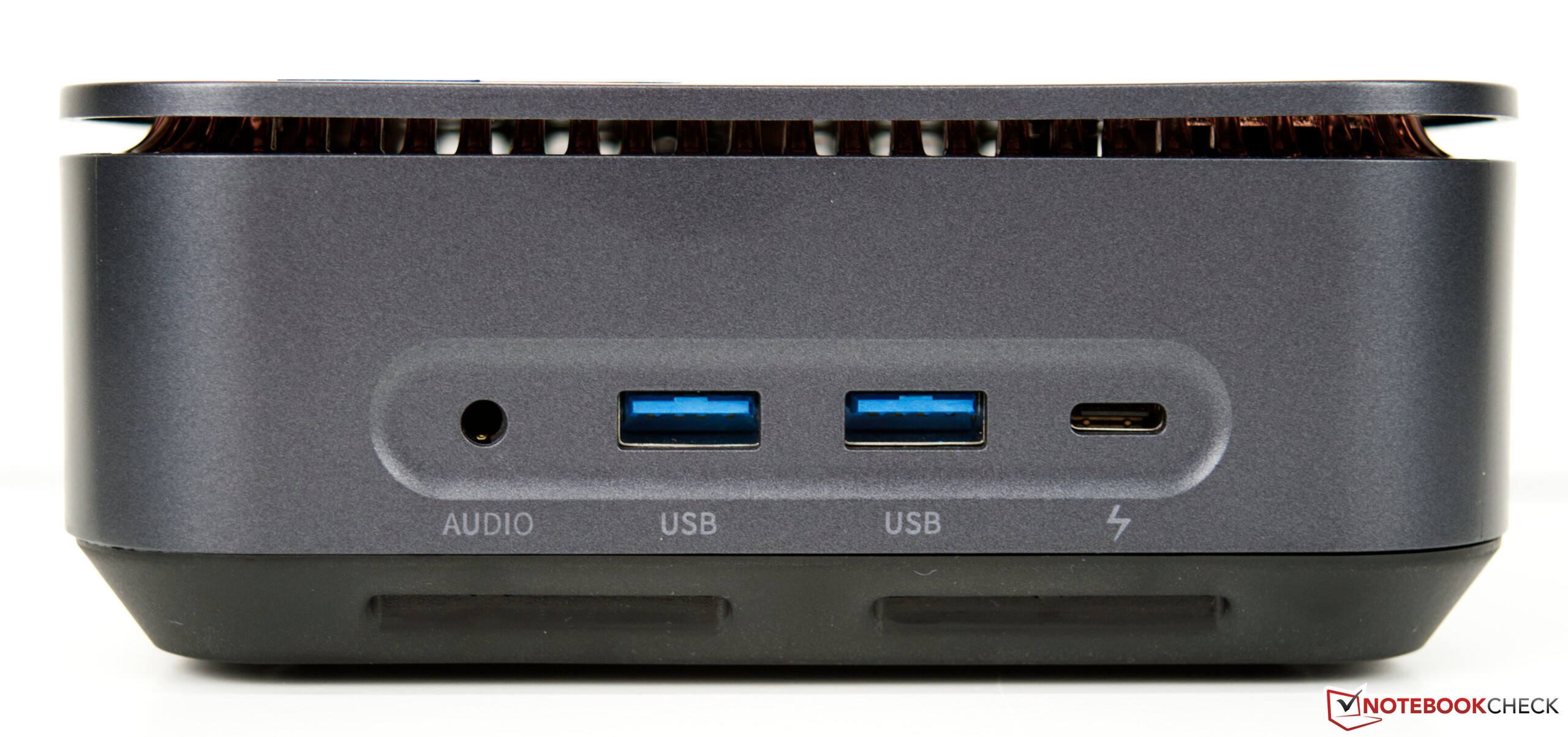

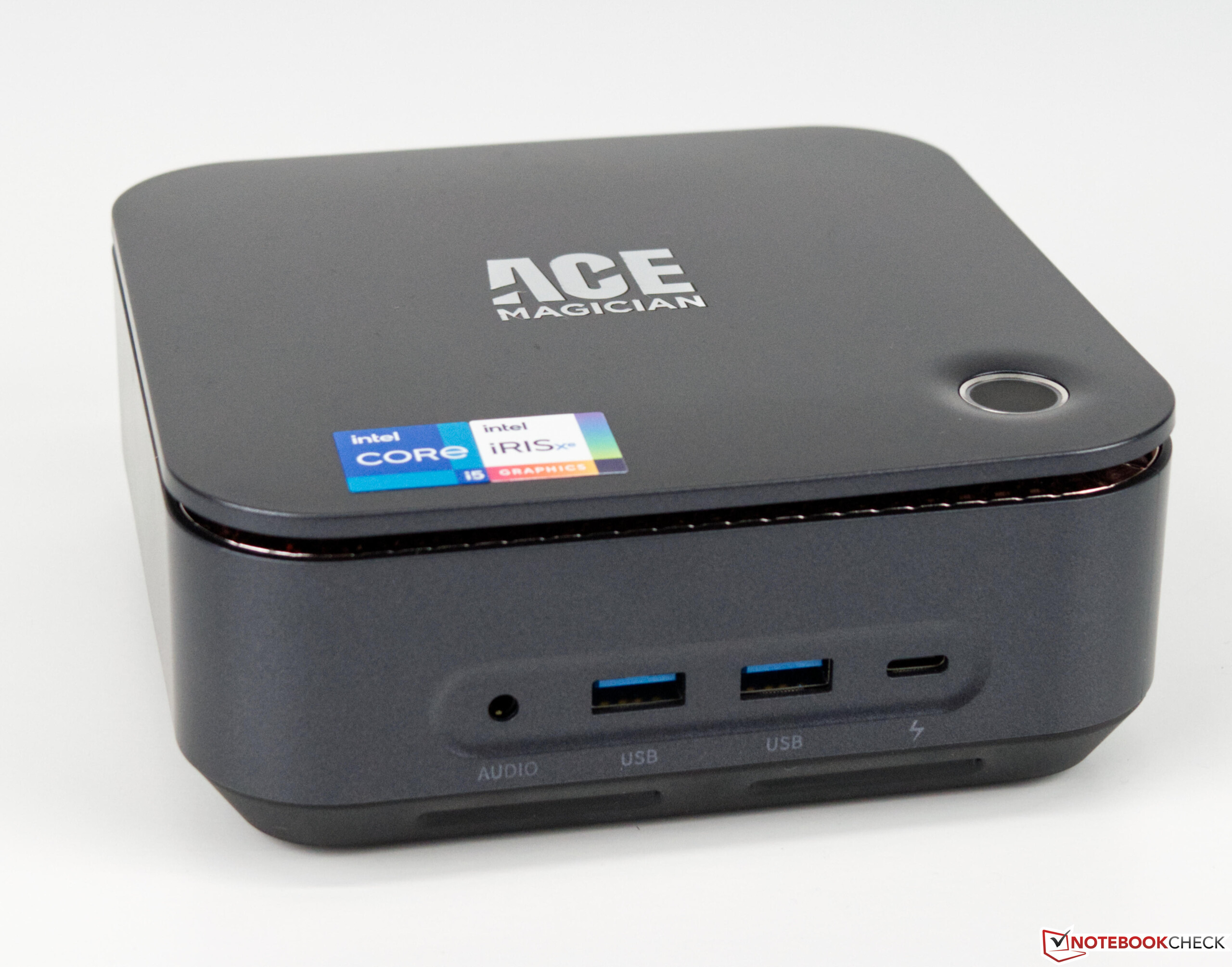

O Ace Magician TK11-A0 é capaz de pontuar com uma boa seleção de portas de conexão externa, que são distribuídas pela frente e por trás. Embora um número total de 5 portas USB seja bom, também não deve haver menos, já que duas delas já estão reservadas para o mouse e o teclado na maior parte do tempo. A porta Type-C oferece suporte a Thunderbolt, expandindo imensamente o espectro de dispositivos externos utilizáveis. Como a porta Ace Magician AMR5o TK11-A0 é capaz de executar 3 monitores externos simultaneamente. Infelizmente, também não há aqui nenhum leitor de cartões SD.

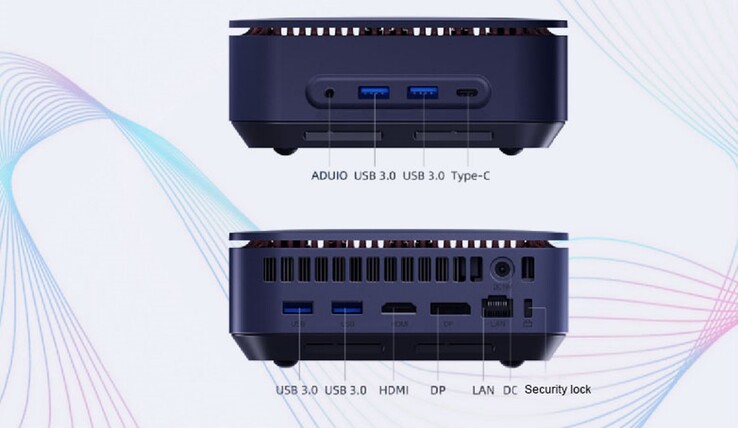

Portos externos do Ace Magician TK11-A0 (Fonte: Minipc Union)

Comunicação

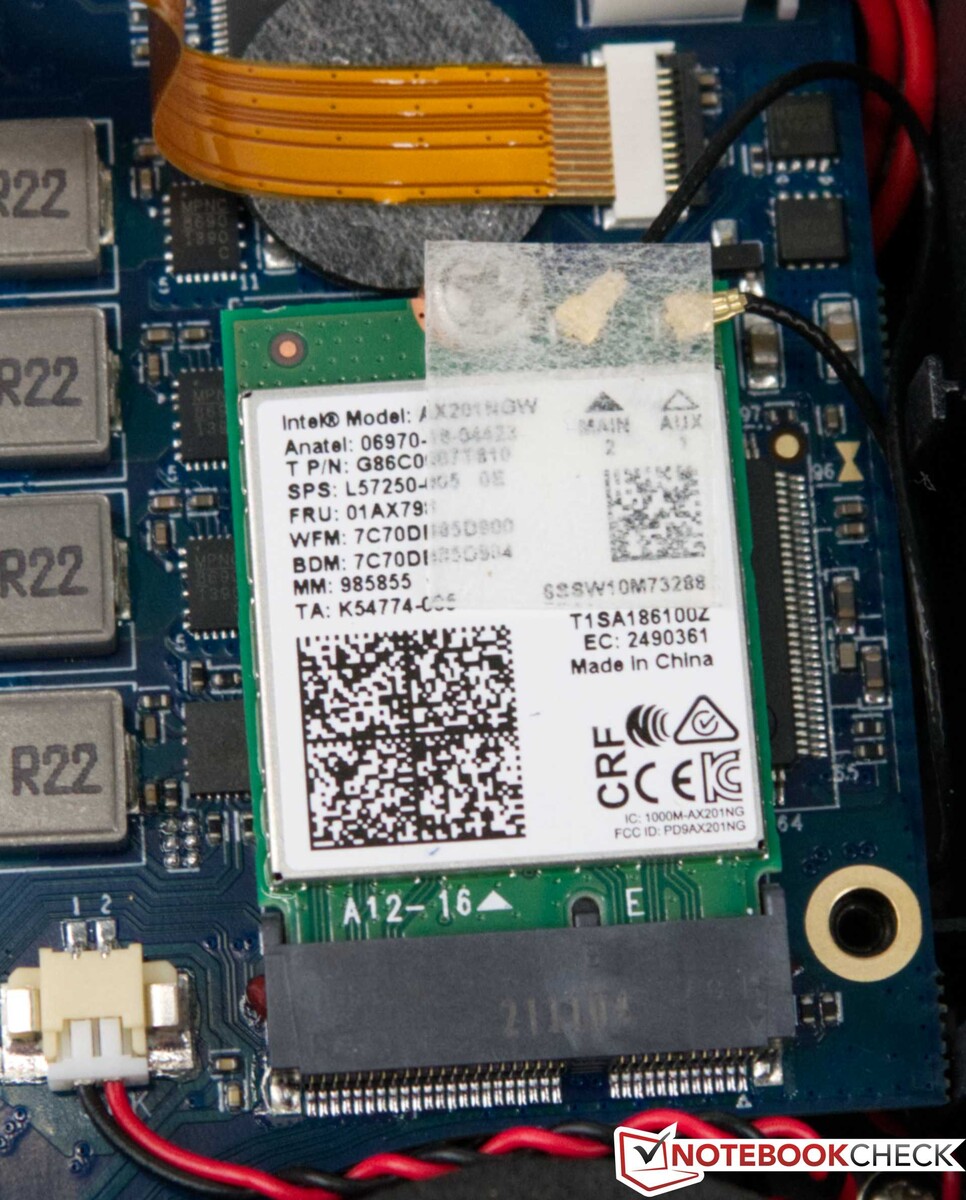

A Minipc Union usa um módulo Intel Wi-Fi 6 AX201 WLAN no Ace Magician TK11-A0. Infelizmente, o desempenho total do módulo Wi-Fi não está disponível, como mostram nossas medidas. Com as taxas de transferência medidas ao enviar e receber, nossa unidade de teste compete com a Minisforum EliteMini B550. Usamos nosso roteador Asus ROG Rapture GT-AXE11000 para este teste. Como alternativa à conexão sem fio, há também uma opção adicional para uma conexão de rede com uma porta RJ45. Infelizmente, isto oferece apenas um máximo de 1 Gbit/s. Alguns dos concorrentes fazem um trabalho melhor aqui, e o Minisforum EliteMini TH50oferece até dois portos de 2,5G.

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (390 - 1771, n=39, last 2 years)	1196 MBit/s +207%
Average Intel Wi-Fi 6 AX201 (390 - 1670, n=3)	993 MBit/s +155%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s +132%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s +99%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s +10%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (432 - 1764, n=40, last 2 years)	1162 MBit/s +56%
Average Intel Wi-Fi 6 AX201 (745 - 1252, n=3)	993 MBit/s +33%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +30%
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s +16%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -23%

Minipc Union Ace Magician TK11-A0; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

Segurança

Como uma característica especial, o Ace Magician TK11-A0 está equipado com um scanner de impressões digitais. O sensor da Mikroarray Technology é colocado na parte superior do estojo. Ele também suporta Windows Olá, e após uma breve configuração, você pode fazer o login diretamente usando seu dedo. Não encontramos problemas em nosso teste, e o login no sistema operacional funciona muito rápido usando-o.

Manutenção

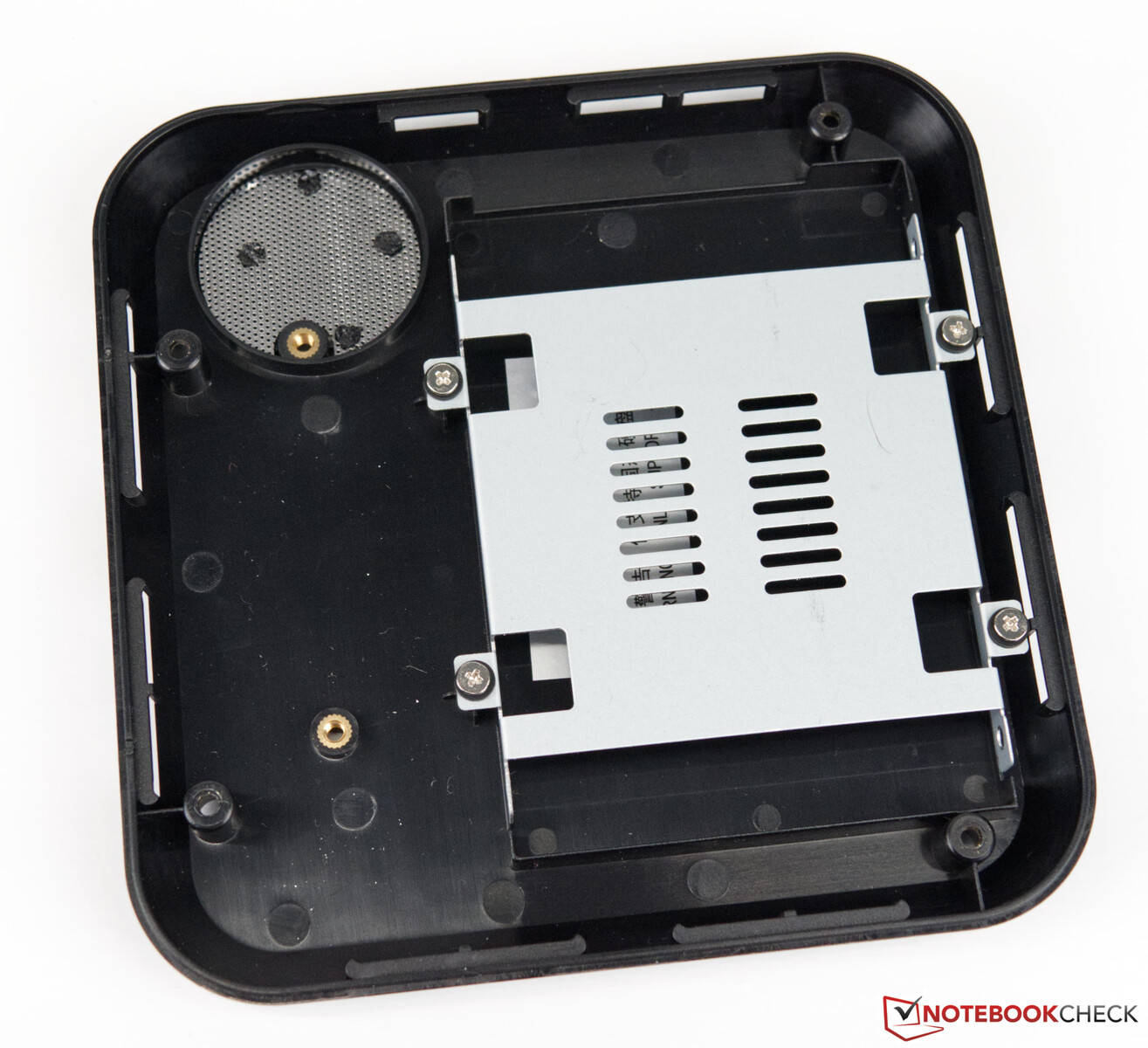

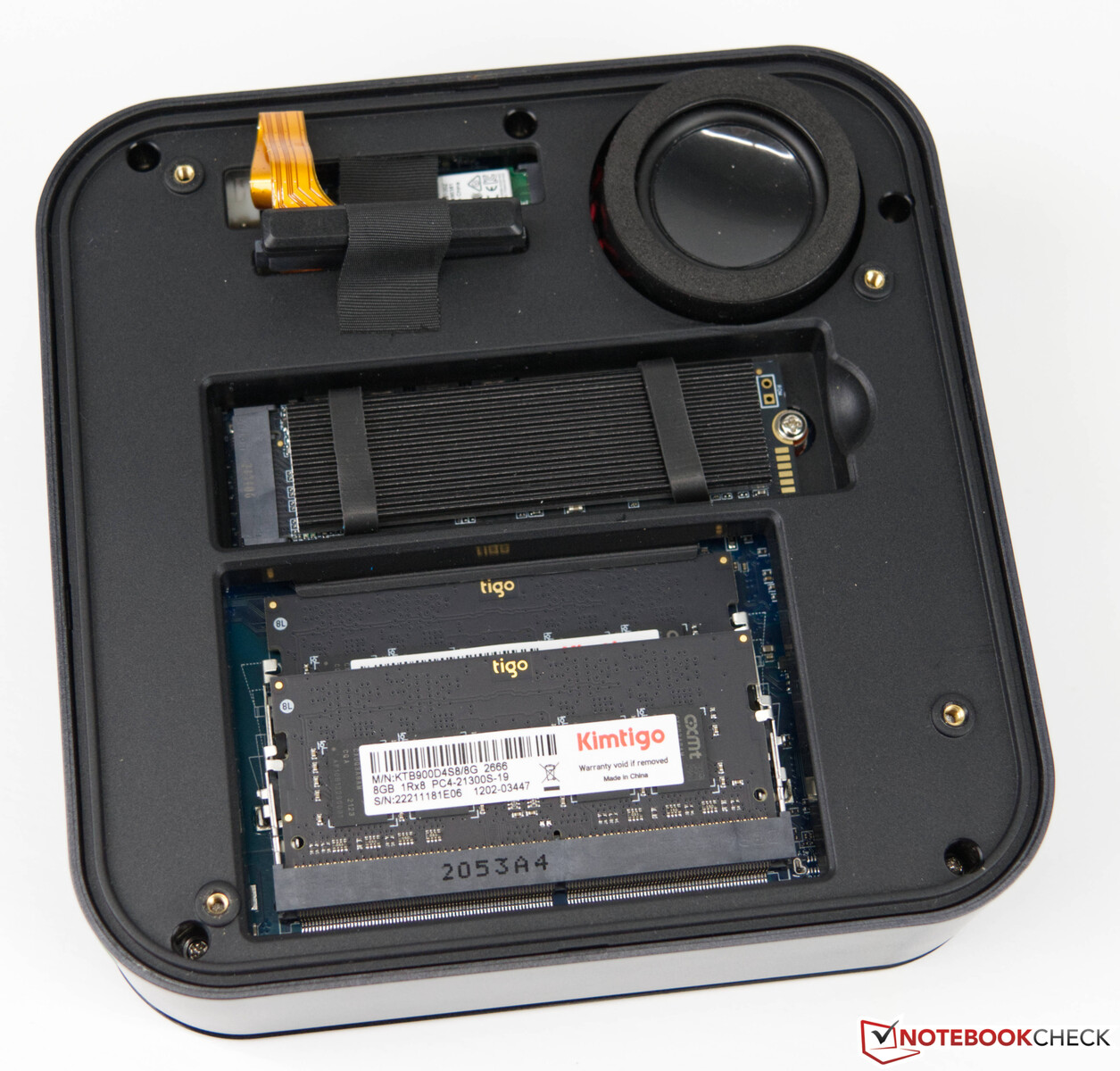

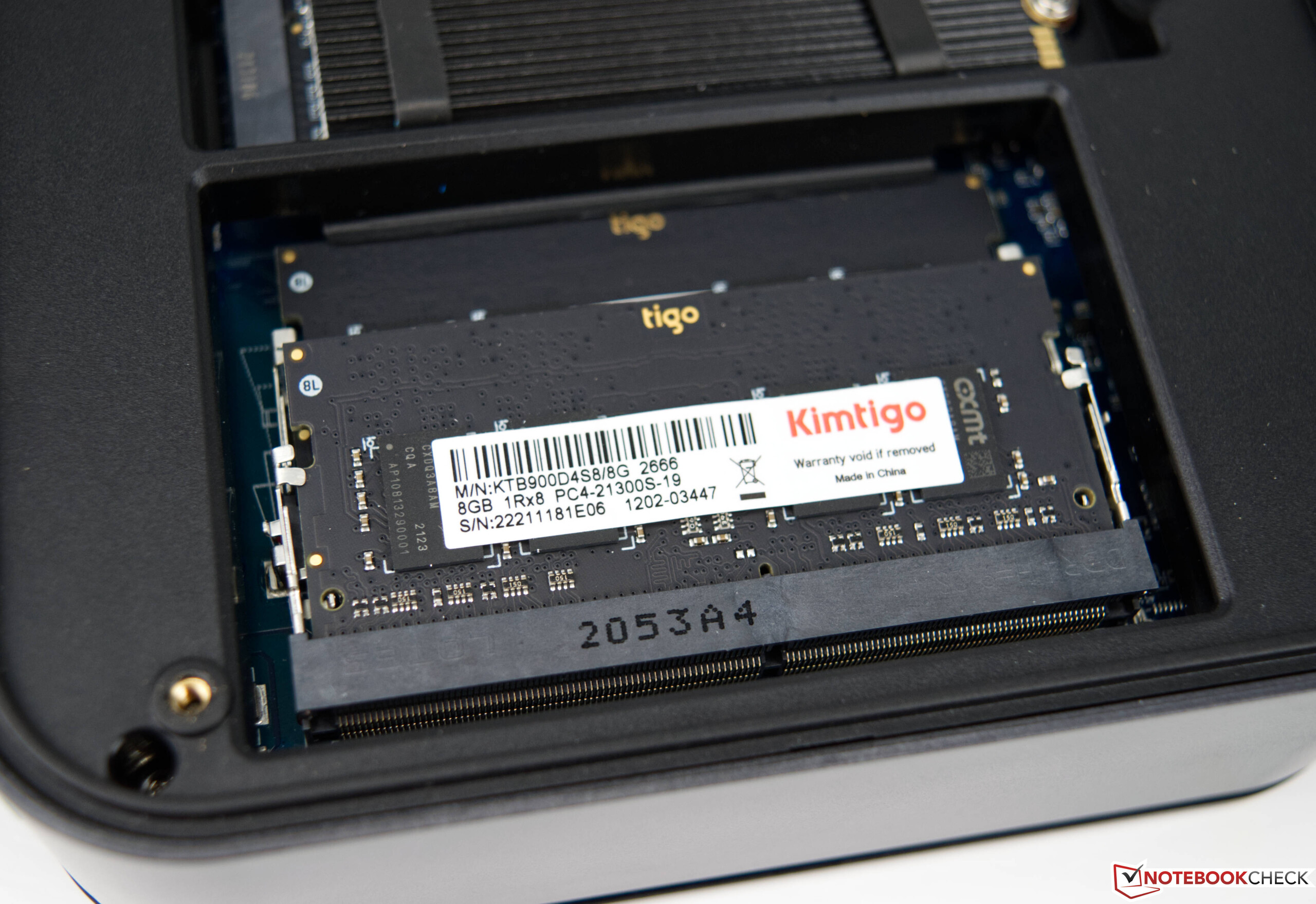

Aqueles que querem atualizar o Ace Magician TK11-A0 podem acessar facilmente o SSD ou RAM. A parte inferior da caixa pode ser removida muito facilmente. Aqueles que também querem acessar o sistema de refrigeração da CPU terão que realizar algumas remoções adicionais, o que parecia bastante assustador à primeira vista. Entretanto, isto não se revelou um grande obstáculo na prática. O Ace Magician TK11-A0 pode ser equipado com duas soluções de armazenamento, e os cabos de conexão para instalar um drive de armazenamento adicional no formato de 2,5 polegadas já estão pré-instalados.

Desempenho

UmIntel Core i5-1135G7forma a unidade de computação do Mágico Ás TK11-A0. Em nossa versão de equipamento, o SoC quad-core nativo é acompanhado por 16 GB de memória de trabalho, o que é mais do que suficiente para o trabalho diário. Aplicações simples de escritório não representam nenhum problema para ele, e o eficiente SoC também é adequado para tarefas exigentes. Se necessário, a memória de trabalho pode ser expandida até 64 GB. Por outro lado, o SoC é o mesmo em todos os modelos e não há outra base para o Ace Magician TK11-A0.

Condições de teste

Fizemos todos os testes de desempenho com o modo de potência de mais alto desempenho, a fim de refletir o mais alto desempenho possível do Mágico Ás TK11-A0. Outros modos de economia de energia foram usados apenas para as medições do consumo de energia e do volume do alto-falante. Você pode encontrar detalhes adicionais sobre nossos critérios de teste aqui.

Processador

OIntel Core i5-1135G7oferece quatro núcleos computacionais nativos e é baseado na arquitetura Tiger Lake da Intel. Com 20 watts, o consumo do SoC é bastante conservador, o que também se reflete nos benchmarks. Embora também possa usar até 48 watts por breves períodos de tempo, isto não é suficiente para vencer os concorrentes em nossa comparação. O Ace Magician TK11-A0 só é capaz de superar os Newsmay Neosmay S2-B560TPMem nossa concorrência.

Você pode encontrar referências adicionais sobre os processadores aqui

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	42 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt
Average Intel Core i5-1135G7	36.6 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt
Newsmay Neosmay S2-B560TPM ^-2! Intel Core i5-11400T, 1300 MHz	34.1 pt

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points
Average Intel Core i5-1135G7 (141.4 - 205, n=61)	194.4 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	153 Points -22%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +297%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +254%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +251%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +243%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +126%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +70%
Average Intel Core i5-1135G7 (431 - 941, n=65)	792 Points +41%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	642 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points
Average Intel Core i5-1135G7 (375 - 527, n=62)	507 Points -2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	378 Points -27%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +260%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +224%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +218%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +212%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +61%
Average Intel Core i5-1135G7 (979 - 2382, n=62)	1827 Points +27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1500 Points +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +9%
Average Intel Core i5-1135G7 (2.31 - 2.36, n=3)	2.33 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points -3%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1.79 Points -23%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +302%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +262%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +258%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +245%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +132%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +69%
Average Intel Core i5-1135G7 (6.37 - 9.72, n=3)	8.46 Points +33%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.3 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +7%
Average Intel Core i5-1135G7 (10395 - 10515, n=2)	10455 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	8290 Points -20%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +198%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +170%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +167%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +163%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +85%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +73%
Average Intel Core i5-1135G7 (24499 - 37000, n=2)	30750 Points +26%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	25835 Points +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	704 Seconds * +6%
Average Intel Core i5-1135G7 (499 - 1044, n=60)	662 Seconds * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +65%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +67%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +69%

wPrime 2.10
32m
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.804 s * -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s *
Average Intel Core i5-1135G7 (6.53 - 6.8, n=2)	6.66 s * +2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +51%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +53%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	261.299 s * +9%
Average Intel Core i5-1135G7 (231 - 287, n=2)	259 s * +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +45%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +66%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +68%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +71%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +67%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +64%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +41%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +30%
Average Intel Core i5-1135G7 (165.6 - 199.5, n=2)	182.5 fps +10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	154.5 (154.4^min - 155.1^max) fps -7%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +249%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +218%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +202%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +107%
Average Intel Core i5-1135G7 (36.7 - 46.1, n=2)	41.4 fps +13%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	40 (40^min - 40.1^max) fps +9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +85%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +66%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +64%
Average Intel Core i5-1135G7 (4185 - 9377, n=3)	6282 KB/s +50%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +31%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4409 KB/s +5%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s +3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +104%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +43%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s
Average Intel Core i5-1135G7 (4.2 - 5.3, n=3)	4.9 GB/s -8%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4.2 GB/s -21%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +165%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +112%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +99%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +46%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s
Average Intel Core i5-1135G7 (0.593 - 0.774, n=3)	0.707 GB/s -6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.648 GB/s -14%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +168%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +146%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +146%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s
Average Intel Core i5-1135G7 (0.384 - 0.449, n=3)	0.427 GB/s -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.414 GB/s -8%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +61%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +60%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points
Average Intel Core i5-1135G7 (3475 - 5472, n=58)	4663 Points -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3510 Points -28%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points
Average Intel Core i5-1135G7 (1147 - 1428, n=58)	1373 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1146 Points -18%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +62%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +61%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +57%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points
Average Intel Core i5-1135G7 (3937 - 5268, n=14)	4752 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3495 Points -28%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points 0%
Average Intel Core i5-1135G7 (1156 - 1407, n=14)	1365 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1130 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points
Average Intel Core i5-1135G7 (5194 - 6081, n=13)	5874 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4855 Points -18%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points
Average Intel Core i5-1135G7 (16405 - 20747, n=13)	18945 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	17082 Points -11%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +115%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +83%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +79%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +62%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +50%
Average Intel Core i5-1135G7 (6423 - 11623, n=58)	9300 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7319 Points -6%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +226%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +212%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +212%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +178%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +122%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +52%
Average Intel Core i5-1135G7 (14745 - 24873, n=62)	21407 MIPS +21%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	19699 MIPS +12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS -1%
Average Intel Core i5-1135G7 (3924 - 4921, n=62)	4674 MIPS -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4157 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +202%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +181%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +176%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +145%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +92%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +49%
Average Intel Core i5-1135G7 (3.57 - 7.6, n=57)	5.93 fps +13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	5.24 fps 0%

R Benchmark 2.5 - Overall mean
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.792 sec * -24%
Average Intel Core i5-1135G7 (0.619 - 0.727, n=59)	0.642 sec * -0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +22%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +23%

LibreOffice - 20 Documents To PDF
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * -27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	62.4 s * -20%
Average Intel Core i5-1135G7 (44.2 - 62.9, n=60)	52.8 s * -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +6%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +18%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points -4%
Average Intel Core i5-1135G7 (151 - 244, n=52)	226 Points -4%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	208 Points -12%

Mozilla Kraken 1.1 - Total
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	887 ms * -23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * -6%
Average Intel Core i5-1135G7 (710 - 1273, n=58)	739 ms * -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +17%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +150%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +143%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +140%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +99%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +44%
Average Intel Core i5-1135G7 (6277 - 13088, n=14)	10975 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +169%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +158%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +156%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +47%
Average Intel Core i5-1135G7 (1015 - 13480, n=61)	11403 Points +22%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	10064 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +186%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +147%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +143%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +128%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +90%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +82%
Average Intel Core i5-1135G7 (2664 - 5262, n=60)	3871 Points +35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.6 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	83.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.2 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.1 pt
Average of class Mini PC	61.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.2 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50.6 pt
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	49 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.1 pt
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	35.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +181%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +168%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +143%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +140%
Average of class Mini PC (561 - 27538, n=97, last 2 years)	9978 KRay/s +78%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +62%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s +36%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	5279 KRay/s -6%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +316%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +260%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +253%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +233%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +138%
Average of class Mini PC (3604 - 116903, n=97, last 2 years)	52513 Points +118%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +31%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	23312 Points -3%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +109%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +79%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +77%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +60%
Average of class Mini PC (225 - 5096, n=97, last 2 years)	2294 MB/s +39%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	1522 MB/s -8%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +125%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +118%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +109%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +103%
Average of class Mini PC (8172 - 119569, n=97, last 2 years)	69137 Points +48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +44%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55222 Points +18%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points +13%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +265%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +223%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +208%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +201%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +109%
Average of class Mini PC (408 - 15525, n=97, last 2 years)	7328 Points +85%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +26%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points +12%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	4059 Points +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +272%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +219%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +215%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +183%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +111%
Average of class Mini PC (1958 - 62378, n=97, last 2 years)	27844 Points +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +26%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	13839 Points -7%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +130%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +103%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +96%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +30%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +28%
Average of class Mini PC (3691 - 177158, n=97, last 2 years)	75036 MB/s +27%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55995 MB/s -5%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +229%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +221%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +192%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +182%
Average of class Mini PC (74.8 - 1183, n=97, last 2 years)	581 MB/s +119%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +91%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +55%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s +40%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	294 MB/s +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +181%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +175%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +140%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +140%
Average of class Mini PC (308 - 14722, n=97, last 2 years)	5327 KRay/s +78%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +55%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +34%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	2866 KRay/s -4%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s +18%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s
Average of class Mini PC (4408 - 44347, n=97, last 2 years)	24659 MPixel/s -9%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -26%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -28%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -45%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	12524 MPixel/s -54%

Ace Magician TK11-A0 na Cinebench-R15 Multi Loop

Temos uma primeira impressão da eficiência do resfriamento integrado durante o teste de loop constante Cinebench-R15. Após a primeira corrida, o desempenho cai em cerca de 5%, o que pode ser rastreado até a maior velocidade do relógio Turbo no início. Entretanto, continuando o teste, o desempenho do Intel Core i5-1135G7permanece muito estável.

Métricas de CPU durante o loop Cinebench-R15

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Beelink GTI 11 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø829 (822.06-915.5)

Desempenho do sistema

O fato de o SoC ter cerca de dois anos de existência se torna perceptível nos benchmarks. O Núcleo i5-1135G7é incapaz de acompanhar os processadores hexa ou octa-core mais modernos. Entretanto, estes resultados não refletem a impressão de desempenho subjetivo do Mágico Ás TK11-A0, uma vez que isso é muito melhor do que você imagina. O sistema está pronto para ser usado rapidamente e, enquanto trabalha, quase não há latências que possam fazer você sentir que está trabalhando em um sistema lento.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	84.5 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	78 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	72.5 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	66.7 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +44%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +27%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +23%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +13%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	4952 Points +10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	3975 Points -12%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +13%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	9893 Points +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +7%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	8679 Points -3%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +60%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +56%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +55%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +50%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +30%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +7%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	6400 Points +1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	5656 Points -11%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	80.5 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1113 Points -9%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +16%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1094 Points -8%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1160 Points -11%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1125 Points -10%

PCMark 10 Score		4521 pontos
Ajuda

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +37%
Average of class Mini PC (6481 - 70620, n=97, last 2 years)	42885 MB/s +21%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +18%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +6%
Average Intel Core i5-1135G7 (17443 - 63889, n=45)	36640 MB/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -1%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	19209 MB/s -46%

AIDA64 / Memory Read
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s +16%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +8%
Average of class Mini PC (6914 - 71285, n=97, last 2 years)	43515 MB/s +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +7%
Average Intel Core i5-1135G7 (19716 - 63705, n=45)	40897 MB/s +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -5%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s -6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	20405 MB/s -49%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +29%
Average of class Mini PC (6862 - 89318, n=97, last 2 years)	46630 MB/s +19%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s +18%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +7%
Average Intel Core i5-1135G7 (18722 - 66778, n=45)	41742 MB/s +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -10%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s -10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -10%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	18659 MB/s -52%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -39%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -32%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -31%
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years)	88 ns * -28%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -7%
Average Intel Core i5-1135G7 (68.3 - 107, n=51)	72.5 ns * -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	69.7 ns * -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns *
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns * +1%

* ... smaller is better

Latências DPC

Em nenhum momento existem problemas de latência com o Mágico Ás TK11-A0. Quer você abra várias abas do navegador, reproduza vídeos 4K do YouTube, ou esteja sob carga com Prime95, nunca há nenhum problema de latência aumentada. Ao reproduzir nosso vídeo de teste 4K, o iGPU doIntel Core i5-1135G7é carregado a cerca de 20%.

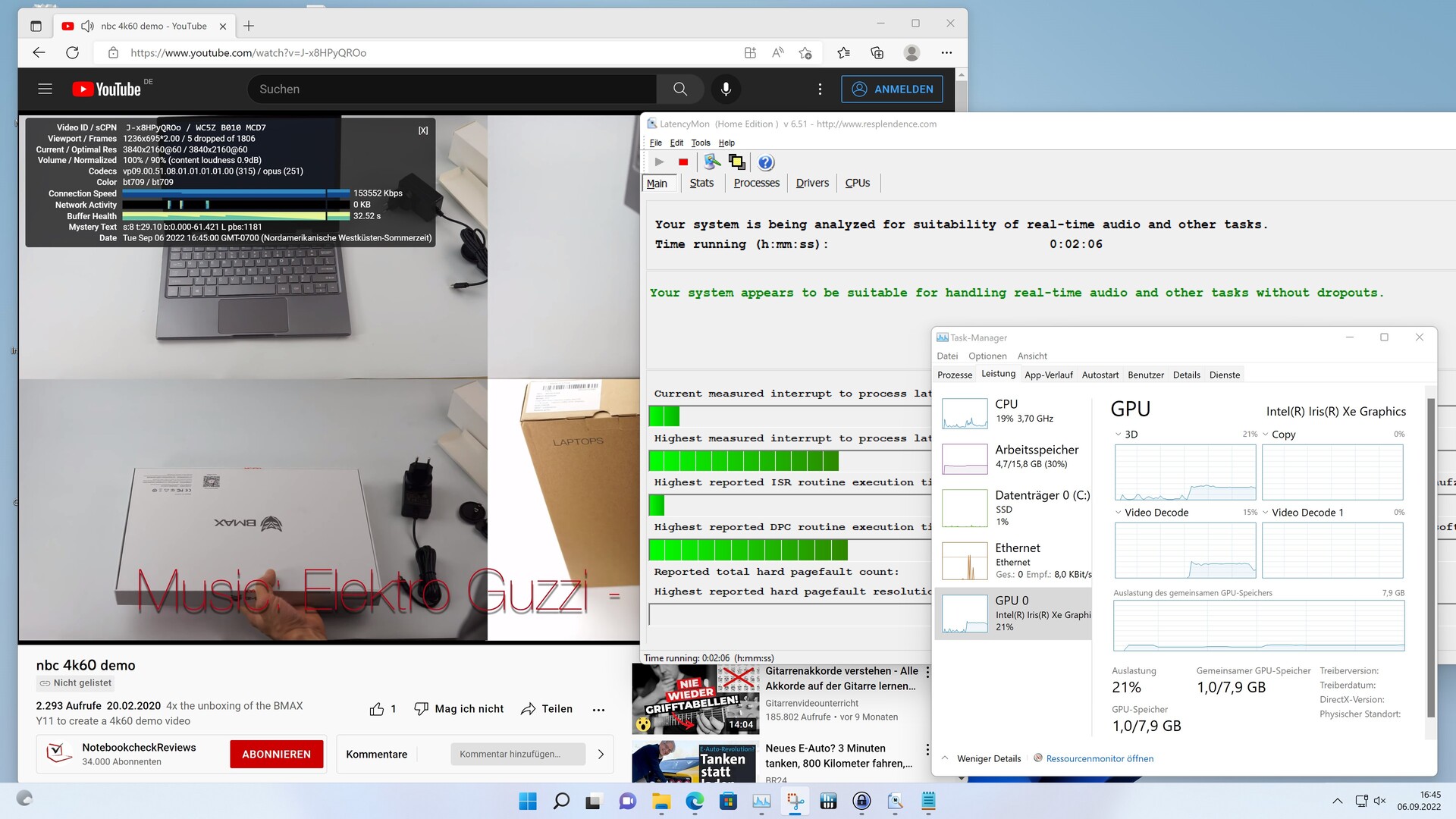

Latência máxima ao abrir várias abas do navegador e ao reproduzir material de vídeo 4K.

Latência máxima após dez segundos de Prime95

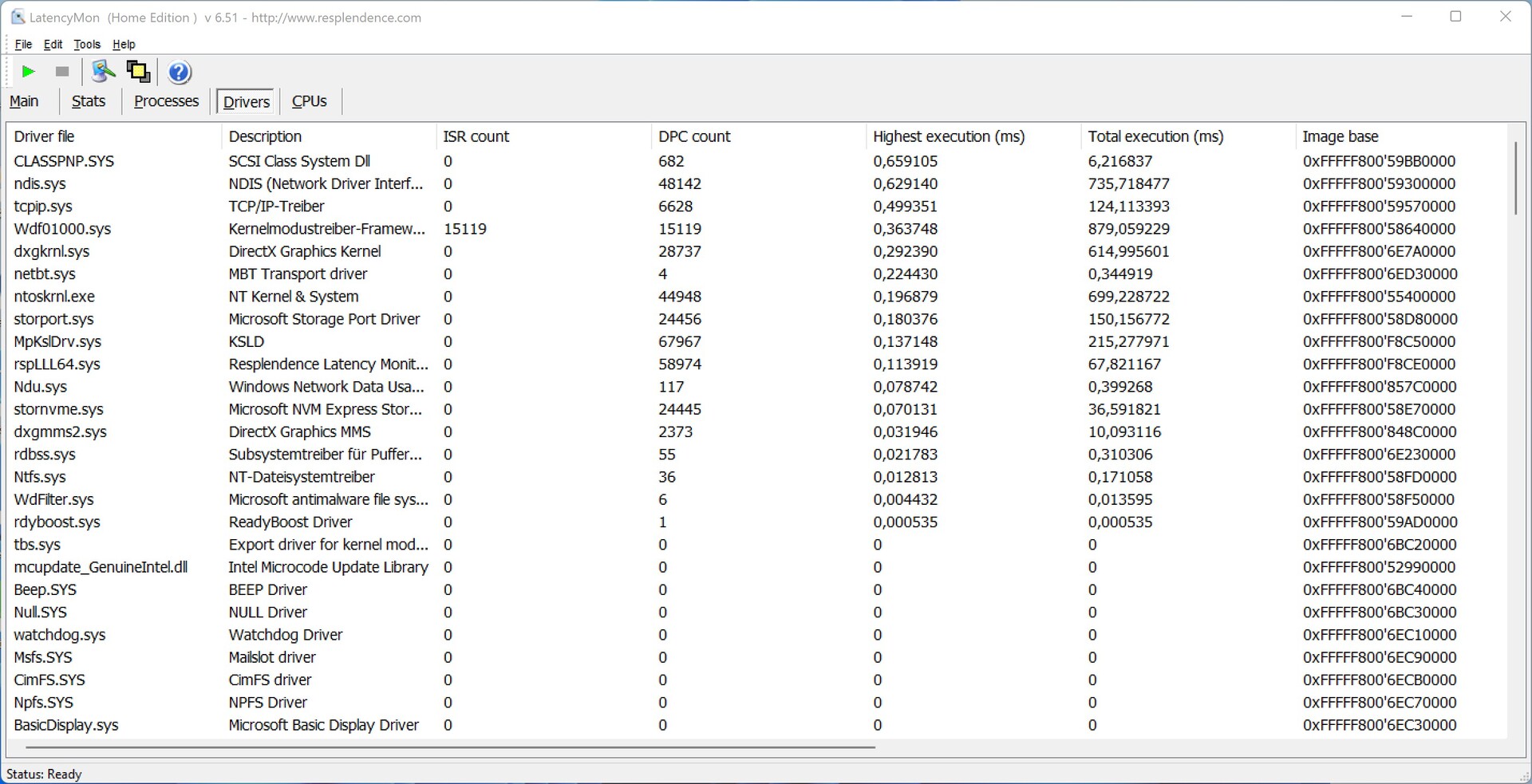

Motoristas ordenados pelo maior tempo de execução

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -183%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -147%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1232.3 μs * -87%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * -68%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +47%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	278.2 μs * +58%

* ... smaller is better

Solução de armazenamento

A Minipc Union equipa o Ace Magician TK11-A0 com um SSD de 512-GB. Já vimos o mesmo modelo do Caminho Futuro, que utiliza a conexão PCIe, no Ace Magician AMR5. Em geral, vemos aqui as mesmas vantagens e desvantagens. O resfriamento passivo é insuficiente para garantir valores estáveis também sob carga constante. Com 512 GB, o modelo é suficientemente grande para uso regular em escritório. No entanto, aqueles que precisam de mais espaço de armazenamento podem facilmente instalar um segundo SSD sem muito esforço. Entretanto, é preciso estar atento ao fator forma, pois o fundo da caixa só permite a instalação de um modelo de 2,5 polegadas.

Você pode encontrar comparações e benchmarks adicionais em nosso tabela comparativa.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2137 MB/s

Sequential Write: 1802 MB/s

512K Read: 1055 MB/s

512K Write: 1175 MB/s

4K Read: 52.7 MB/s

4K Write: 166.2 MB/s

4K QD32 Read: 707.7 MB/s

4K QD32 Write: 422.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	84.4 pt
Beelink GTI 11 Kingston SA2000M8500G	79.5 pt
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	76.3 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	74.9 pt
Average Future Path FPE220M8SSD512G	73.6 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	73.5 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	70.6 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	60.9 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	59.4 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	58.6 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	57.1 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s -4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -5%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -7%
Average of class Mini PC (233 - 4168, n=96, last 2 years)	2028 MB/s -7%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -22%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -30%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s -34%
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s -36%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -40%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	802 (778.67^min - 802.37^max) MB/s -63%
seq write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2380 (607.54^min - 2380.06^max) MB/s +33%
Average of class Mini PC (222 - 5595, n=96, last 2 years)	2049 MB/s +14%
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s -32%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=96, last 2 years)	3155 MB/s +25%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s -3%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2453 (2244.5^min - 2453.25^max) MB/s -3%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -6%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -7%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -14%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -22%
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s -33%
seq q8 t1 write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2378 (615.51^min - 2377.75^max) MB/s +33%
Average of class Mini PC (228 - 6669, n=96, last 2 years)	2223 MB/s +24%
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -1%
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s -30%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s +46%
Average of class Mini PC (5.67 - 86.6, n=96, last 2 years)	51.3 MB/s +14%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +10%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +7%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -2%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	42.1 (41.43^min - 42.13^max) MB/s -7%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -15%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -35%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -40%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s +14%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +7%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s +2%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	195.3 (151.02^min - 195.34^max) MB/s -1%
Average of class Mini PC (22 - 425, n=96, last 2 years)	184.7 MB/s -6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -15%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -18%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -30%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s -36%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=96, last 2 years)	1088 MB/s +8%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +6%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -1%
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s -19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -20%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -33%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s -41%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	509 (301.38^min - 508.59^max) MB/s -49%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -69%
4k q32 t16 write
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s +41%
Average of class Mini PC (30.2 - 3983, n=96, last 2 years)	1084 MB/s +40%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +26%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +20%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +15%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -15%
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -17%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	590 (520.84^min - 590.29^max) MB/s -24%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -32%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=94, last 2 years)	3534 Points +22%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	3347 Points +16%
Beelink GTI 11 Kingston SA2000M8500G	3013 Points +4%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points -2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -22%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -24%
Score Read
Average of class Mini PC (61 - 3635, n=94, last 2 years)	1346 Points +17%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +1%
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1068 Points -7%
Beelink GTI 11 Kingston SA2000M8500G	1001 Points -13%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -13%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -39%
Score Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1717 Points +47%
Average of class Mini PC (88 - 4185, n=94, last 2 years)	1551 Points +33%
Beelink GTI 11 Kingston SA2000M8500G	1486 Points +27%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points -1%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points -5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -9%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -15%
Seq Read
Average of class Mini PC (291 - 6620, n=94, last 2 years)	2804 MB/s +27%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +3%
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s +1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2203.6 MB/s 0%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -7%
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -19%
Seq Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2189.3 MB/s +37%
Average of class Mini PC (240 - 5783, n=94, last 2 years)	1949 MB/s +22%
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +3%
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s +1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -22%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -29%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -42%
4K Read
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s +53%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +46%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	56.28 MB/s +42%
Average of class Mini PC (6.08 - 104.2, n=94, last 2 years)	55.3 MB/s +39%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +32%
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s +16%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -30%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s +10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s
Average of class Mini PC (30.9 - 366, n=94, last 2 years)	166.7 MB/s -10%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s -11%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -18%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -22%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -23%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -35%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	119.31 MB/s -36%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=94, last 2 years)	1010 MB/s +13%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -1%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	791.75 MB/s -11%
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s -17%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -20%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -48%
4K-64 Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1378.5 MB/s +67%
Average of class Mini PC (32.8 - 3598, n=94, last 2 years)	1190 MB/s +45%
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s +33%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s -4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -9%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -10%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -157%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -75%
Average of class Mini PC (0.022 - 0.489, n=94, last 2 years)	0.1031 ms * -72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -25%
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * -13%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms *
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms * +22%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.035 ms * +42%
Access Time Write
Average of class Mini PC (0.016 - 0.765, n=94, last 2 years)	0.1304 ms * -27%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms *
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +1%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.1 ms * +3%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms * +19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +77%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Newsmay Neosmay S2-B560TPM Lexar NM610 500GB: Ø2450 (2230.26-2457.44)

Placa Gráfica

O Intel Iris Xe Graphics G7com 96EUs serve como a unidade gráfica integrada do Intel Core i5-1135G7. Mas em geral, o desempenho total do iGPU não pode ser usado completamente. Nossa unidade de teste também coloca aqui muito atrás do Beelink GTI 11, igualmente equipado de forma semelhante.

Aqueles que ainda precisam de mais desempenho 3D podem conectar uma placa gráfica externa através da conexão Thunderbolt. Tentamos isso com o Razer Core X e umNvidia GeForce RTX 3060 Tie também inseriu estes valores no gráfico

Você pode encontrar referências adicionais no Intel Iris Xe Graphics G7 aqui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.7 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	18.6 pt
Average Intel Iris Xe Graphics G7 96EUs	17.1 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	16.4 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	16.3 pt
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	15.1 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14.9 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	14.7 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	14.1 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	13.7 pt
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	6.8 pt

3DMark 11 - 1280x720 Performance GPU
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	37941 Points +582%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +486%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +28%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +17%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=193)	6342 Points +14%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +1%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points 0%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5566 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	2551 Points -54%

3DMark
1280x720 Cloud Gate Standard Graphics
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	153968 Points +654%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +451%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +61%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +42%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38040, n=171)	26309 Points +29%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +28%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +28%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	25008 Points +22%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +16%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	11485 Points -44%
1920x1080 Fire Strike Graphics
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	28145 Points +656%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +549%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=206)	4903 Points +32%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +27%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +17%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4010 Points +8%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -4%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points -8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -9%
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	1768 Points -53%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	62.3 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	12.7 pt
Average Intel Iris Xe Graphics G7 96EUs	12.6 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	9.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.8 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.6 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.9 pt
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.2 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	172.3 (11.4^min - 371.5^max) fps +896%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +721%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +34%
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 26.3, n=16)	22.8 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +13%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -6%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -14%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps -22%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps -45%
Extreme Preset DX11
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	188.6 (43.6^min - 434.5^max) fps +966%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +664%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +32%
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 27.5, n=16)	23.3 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +21%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -5%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps -13%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps -46%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	153.2 (48.2^min - 297.9^max) fps +1232%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +714%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +30%
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 17.2, n=14)	14.8 fps +29%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +23%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -2%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -8%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps -13%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.9 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	132.9 (48.3^min - 236.1^max) fps +870%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +569%
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.1, n=14)	16.7 fps +22%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +16%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -16%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -22%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -33%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps -36%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	7.3 fps -47%

Unigine Superposition
1280x720 720p Low
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	38414 Points +767%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	14192 Points +220%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +75%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +45%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +40%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +35%
Average Intel Iris Xe Graphics G7 96EUs (4088 - 6639, n=11)	5628 Points +27%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	5566 Points +26%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points +21%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	4433 Points
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	2704 Points -39%
1920x1080 1080p High
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	15479 Points +912%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +432%
Average Intel Iris Xe Graphics G7 96EUs (1522 - 2288, n=11)	2017 Points +32%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +11%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +3%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1487 Points -3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points -5%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	700 Points -54%

3DMark 05 Standard		24543 pontos
3DMark 06 Standard Score		17626 pontos
3DMark Vantage P Result		16744 pontos
3DMark 11 Performance		5618 pontos
3DMark Ice Storm Standard Score		55514 pontos
3DMark Cloud Gate Standard Score		13596 pontos
3DMark Fire Strike Score		3305 pontos
3DMark Fire Strike Extreme Score		1690 pontos
3DMark Time Spy Score		1221 pontos
Ajuda

... comparado com

Desempenho nos jogos

O Intel Iris Xe Graphics G7é sobrecarregado nos jogos atuais. Mesmo jogos mais antigos muitas vezes só podem ser jogados suavemente na resolução de 720p e nos níveis mais baixos de detalhe. Na melhor das hipóteses, o iGPU pode lidar apenas com os jogos casuais mais simples na resolução nativa. Nossa unidade de teste também é superada pelo Ace Magician AMR5 com o AMD Radeon RX Vega 7.

Você pode encontrar comparações e benchmarks adicionais em nosso Lista de jogos GPU.

Entretanto, com a conexão Thunderbolt, o Mágico Ás TK11-A0 ainda tem um ás na manga. Como também tínhamos o Razer Core Xdisponível durante o teste, nós simplesmente emparelhamos o mini PC com umNvidia GeForce RTX 3060 Ti. Embora a placa gráfica seja incapaz de operar em sua largura de banda, o desempenho não é muito prejudicado por isto. A desvantagem de nosso sistema de teste GPU permanece dentro dos limites, e o valor adicional é claramente perceptível.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +70%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +67%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +45%
Average Intel Iris Xe Graphics G7 96EUs (52 - 157, n=155)	97.5 fps +43%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps +39%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	51.9 (7.44^min, 31.3^P1) fps -24%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +124%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +90%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +79%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +72%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +56%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +50%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 137, n=158)	82.2 fps +50%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +36%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +28%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 110, n=181)	83.8 fps +27%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -6%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61.6 (30.7^min, 37.2^P0.1, 46.5^P1) fps -7%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +33%
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 74.1, n=179)	53.4 fps +25%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +23%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	42.6 (10.6^min, 28.7^P0.1, 33.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps -4%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.5 (21.6^min, 25.4^P0.1, 31.8^P1) fps -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -8%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +148%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +120%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +92%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47 (39^min) fps +88%
Average Intel Iris Xe Graphics G7 96EUs (24 - 67, n=85)	46.2 fps +85%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +84%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +76%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +76%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	19 (7^min) fps -24%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +71%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +71%
Average Intel Iris Xe Graphics G7 96EUs (14 - 34, n=83)	25.3 fps +49%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23 (21^min) fps +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +29%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	9 (8^min) fps -47%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +66%
Average Intel Iris Xe Graphics G7 96EUs (29 - 53, n=16)	45.5 fps +57%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +52%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +45%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	19 (14^min) fps -34%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +81%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +75%
Average Intel Iris Xe Graphics G7 96EUs (16 - 31, n=16)	26.4 fps +65%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +38%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	10 (8^min) fps -37%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +49%
Average Intel Iris Xe Graphics G7 96EUs (49 - 98.8, n=30)	80.4 fps +33%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	35.2 (28^min) fps -42%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +62%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +46%
Average Intel Iris Xe Graphics G7 96EUs (23.1 - 51.9, n=30)	41.9 fps +29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +26%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +26%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	16.3 (13^min) fps -50%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +74%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +58%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +57%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps +55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +40%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=206)	99.9 fps +26%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	90.8 (81.7^min) fps +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +50%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +26%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps +13%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +13%
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=206)	75.5 fps +6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	59 (53.4^min) fps -17%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +20%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +20%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 107.3, n=160)	84.6 fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +10%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps 0%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	33.1 (7.6^min, 9.05^P1) fps -55%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +32%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 48.3, n=158)	36.4 fps +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +11%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +7%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	13.5 (5^min, 5.16^P1) fps -52%

Ace Magician TK11-A0 + iGPU

	baixo	média	alto	ultra
GTA V (2015)	68.3	54.8	16.4	7.73
The Witcher 3 (2015)	65.9	42.6	23.7	12.5
Dota 2 Reborn (2015)	79.1	71.4	43.4	39
Final Fantasy XV Benchmark (2018)	31.7	17.8	13.8
X-Plane 11.11 (2018)	25.7	30.5	31.1
Far Cry 5 (2018)	25	17	16	15
Strange Brigade (2018)	72.9	28.3	23.2	19
Far Cry New Dawn (2019)	29	16	15	14
Borderlands 3 (2019)	33.9	15.8	10.5	7.97
F1 2020 (2020)	60.4	32.6	24.8	15.6

Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	140.8	125.8	96.1	56.1	51.2	25.7
The Witcher 3 (2015)	219	168.3	117	60.8		45
Dota 2 Reborn (2015)	115.5	97.6	94.8	92.8		93.2
Final Fantasy XV Benchmark (2018)	104.7	97.9	79		70	47.2
X-Plane 11.11 (2018)	72.8	66.9	58.9			53.2
Far Cry 5 (2018)	79	67	65	60	54	38
Strange Brigade (2018)	152.4	117.7	116.8	114.7	92.8	52.4
Far Cry New Dawn (2019)	72	61	58	54	50	35
Borderlands 3 (2019)	97.1	86.6	81	71.3	60.1	37.1
F1 2020 (2020)	154.1	94	97.8	81.5	67.7	39.2
F1 2021 (2021)	161.6	138.4	105.6	65.4	58.9	32.4

Emissões - Silencioso e eficiente

Devido ao sistema de refrigeração bem pensado, o nível de ruído sob carga é fácil de suportar e a um máximo de 37,1 dB(A) significativamente mais silencioso do que em alguns outros concorrentes nesta comparação. Entretanto, o Ace Magician TK11-A0 ainda não atingiu o Minisforum EliteMini HX90. Enquanto o ventilador também continua funcionando durante a operação ociosa, com 31 a 33 dB(A), a carga de ruído é muito baixa e quase imperceptível aqui.

Barulho

Ocioso		31.82 / 32.27 / 33.17 dB
Carga		35.82 / 37.1 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.28 dB(A)

	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs
Noise		3%	-5%	6%	-0%	-13%	-0%	-10%
off / environment *	30.28	30.8 -2%	30.1 1%	30.2 -0%	30.2 -0%	30.5 -1%	30.2 -0%	25.7 15%
Idle Minimum *	31.82			30.5 4%	30.8 3%	31.5 1%	31.8 -0%	28.4 11%
Idle Average *	32.27	31.6 2%	33.15 -3%	30.5 5%	32.1 1%	32.6 -1%	32.7 -1%	32 1%
Idle Maximum *	33.17			30.5 8%	32.9 1%	33.8 -2%	33.1 -0%	37.7 -14%
Load Average *	35.82			31.2 13%	33.9 5%	49.3 -38%	35.8 -0%	44.2 -23%
Load Maximum *	37.1	33.4 10%	41.63 -12%	35.1 5%	41.4 -12%	50.9 -37%	37.1 -0%	56 -51%
Witcher 3 ultra *								44.5

* ... smaller is better

Temperaturas

O aquecimento do caso do Mágico Ás TK11-A0 é muito limitado. No entanto, a unidade de resfriamento ainda é ligeiramente sobrecarregada com o SoC quando ele usa o máximo de 48 watts. Nesse caso, o SoC atinge 100 °C (212 °F) já após alguns momentos, levando à necessidade de estrangular a velocidade. Continuando o teste de carga, o PL1 a 20 watts toma posse, de modo que as temperaturas se estabilizam a uma média de 65 °C (149 °F), o que não dá motivo para preocupação.

Métricas de CPU - Prime95 teste de estresse solo

Ace Magician TK11-A0 durante o teste de estresse

Orador

Como uma característica adicional, a Minipc Union equipou o Ace Magician com um pequeno alto-falante. Isto é adequado para a reprodução de música e voz. O pequeno alto-falante deixa uma boa impressão e, devido ao seu tamanho, os altos e médios não soam muito avassaladores. Os graves são apenas insinuados, mas não faltam completamente.

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Minipc Union Ace Magician TK11-A0 audio analysis

(±) | speaker loudness is average but good (80.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.3% higher than median
(±) | linearity of mids is average (10.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.7% higher than median
(±) | linearity of highs is average (8.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.4% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 25% similar, 25% worse
» The best had a delta of 16%, average was 23%, worst was 38%
Compared to all devices tested
» 48% of all tested devices were better, 8% similar, 44% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia

Em termos de consumo de energia, o Mágico Ás TK11-A0 tem tarifas muito boas em comparação com os concorrentes. Vemos a maior diferença durante a operação ociosa e sob baixa carga. No entanto, ele ainda pode consumir até 68 watts sob carga às vezes. Mas como o valor máximo é atingido apenas por alguns segundos, o carregador de 65 watts é capaz de lidar com isso.

Consumo de energia

desligado	0.42 / 2.1 Watt
Ocioso	3.4 / 5.7 / 7 Watt
Carga	36.5 / 68 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-104%	-47%	-292%	-149%	-35%	-94%
Idle Minimum *	3.4	8.9 -162%	8.4 -147%	23.7 -597%	15.2 -347%	5.26 ?(2.2 - 46.5, n=184) -55%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -188%
Idle Average *	5.7	9.6 -68%	8.7 -53%	23.7 -316%	16 -181%	8.46 ?(3.8 - 63, n=184) -48%	11.7 ?(1.9 - 63, n=90, last 2 years) -105%
Idle Maximum *	7	11.8 -69%	9.3 -33%	40.8 -483%	16 -129%	10.6 ?(5.8 - 68.9, n=184) -51%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -110%
Load Average *	36.5	98.9 -171%	46.4 -27%	55.8 -53%	48.6 -33%	44.8 ?(12.5 - 77.5, n=184) -23%	51.9 ?(11.3 - 158.7, n=91, last 2 years) -42%
Load Maximum *	68	101.8 -50%	52 24%	74.5 -10%	104.3 -53%	66.6 ?(30.1 - 118, n=184) 2%	86 ?(18.1 - 271, n=91, last 2 years) -26%
Witcher 3 ultra *					53.8

* ... smaller is better

Power Consumption with an External Monitor

Minipc Union Ace Magician TK11-A0; Prime95 V2810 Stress (external Monitor): Ø31.4 (27.8-68.7)

Minipc Union Ace Magician TK11-A0; Cinebench R15 Multi (external Monitor): Ø32.9 (23.9-55.3)

Minipc Union Ace Magician TK11-A0; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø30.4 (28.6-48)

Minipc Union Ace Magician TK11-A0; Idle 1min (external Monitor): Ø7.02 (6.54-9.28)

Pro

+ pequenas necessidades de espaço

+ caixa robusta

+ sSD rápido com 512 GB

+ suporte a visor triplo

+ Thunderbolt

+ leitor de impressões digitais

+ orador aceitável

+ baixas latências

Contra

- sem leitor de cartões SD

- wLAN lento

- Velocidade SoC abaixo da média

Veredicto - Características úteis, mas um SoC lento

Testando o Ace Magician TK11-A0, unidade de teste fornecida pela Minipc Union

O Minipc Union Ace Magician TK11-A0 é um mini PC compacto padrão. Entretanto, com o Intel Core i5-1135G7o mini PC não se baseia no modelo de processador mais atual. Com isto, o Ace Magician TK11-A0 é incapaz de acompanhar os concorrentes mais modernos com processadores hexa ou octa-core. Além disso, o fabricante reduz os limites de potência, o que também vai em detrimento do desempenho. Por outro lado, o Ace Magician TK11-A0 é capaz de impressionar com valores de emissão muito bons. Tanto o consumo de energia quanto a carga de ruído são baixos, indo com facilidade na bolsa a longo prazo. Juntamente com os 16 GB de memória de trabalho e o SSD 512-GB, você obtém um bom PC de escritório para o trabalho diário com a configuração que testamos.

O estojo é robusto e pode ser aberto sem qualquer problema para substituir a memória de trabalho ou a solução de armazenamento, por exemplo. Pode haver opiniões diferentes sobre o número de conexões, mas basicamente todas as portas importantes estão lá, e o Thunderbolt também está incluído. Por outro lado, os concorrentes muitas vezes oferecem mais conexões, e teríamos esperado uma conexão de 2,5G em termos de suporte de rede.

O Ace Magician TK11-A0 é um ótimo dispositivo para trabalhar com algumas grandes características. Entretanto, o mini PC seria significativamente mais competitivo com um SoC mais atual.

No geral, o Ace Magician TK11-A0 convence com uma boa velocidade ao realizar tarefas diárias, o que é melhor do que o mostrado pelos benchmarks. Entretanto, a Intel Iris Xe Graphics G7 não consegue acompanhar um AMD Radeon RX Vega 7 no desempenho 3D. Por outro lado, a conexão Thunderbolt permite aumentar a performance 3D de forma fácil e rápida usando uma doca externa da GPU, permitindo ao Ace Magician TK11-A0 até mesmo lidar com os jogos atuais.

Consideramos o leitor de impressões digitais outra característica útil. Muitos conhecem este recurso de laptops, e agora os usuários do Ace Magician TK11-A0 também o têm disponível. Você pode ter opiniões diferentes sobre a utilidade do alto-falante embutido, mas sua qualidade é boa. Subjetivamente, o alto-falante soa melhor do que muitos modelos que são embutidos em displays.

Preço e Disponibilidade

Nossa configuração testada do Ace Magician TK11-A0 está atualmente à venda em Amazon por $449. Estranhamente, o modelo com o SSD menor custa mais a $659.

Revisão Ace Magician TK11-A0: Eficiente mini PC com Thunderbolt 4 e recursos úteis adicionais

Possíveis concorrentes em comparação

Minipc Union Ace Magician TK11-A0 em detalhe

Caso

Comparação de tamanho

Equipamento

Comunicação

Segurança

Manutenção

Desempenho

Condições de teste

Processador

Ace Magician TK11-A0 na Cinebench-R15 Multi Loop

Desempenho do sistema

Latências DPC

Solução de armazenamento

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

Placa Gráfica

Desempenho nos jogos

Ace Magician TK11-A0 + iGPU

Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

Emissões - Silencioso e eficiente

Temperaturas

Orador

Minipc Union Ace Magician TK11-A0 audio analysis

Consumo de energia

Power Consumption with an External Monitor

Pro

Contra

Veredicto - Características úteis, mas um SoC lento

Preço e Disponibilidade

More articles related to this device
