Breve Análise do Portátil Lenovo Legion Y720 (7700HQ, Full-HD, GTX 1060)

Um conceito convincente. A equação que a Lenovo utiliza para descrever seu novo portátil de jogos não parece ter sentido: poder + portabilidade = perfeição. A perfeição pode não ser absoluta - mas a Lenovo mostra que eles sabem como se faz um verdadeiro portátil para jogos.
Nino Ricchizzi, Tanja Hinum (traduzido por Ricardo Soto), 🇺🇸 🇩🇪 ...
, , , , , ,
pesquisar relação.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Lenovo Lenovo Legion Y720 80VR002XGE (Legion Y720 Serie)
Processador
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake, 4 núcleos, 45 TDP

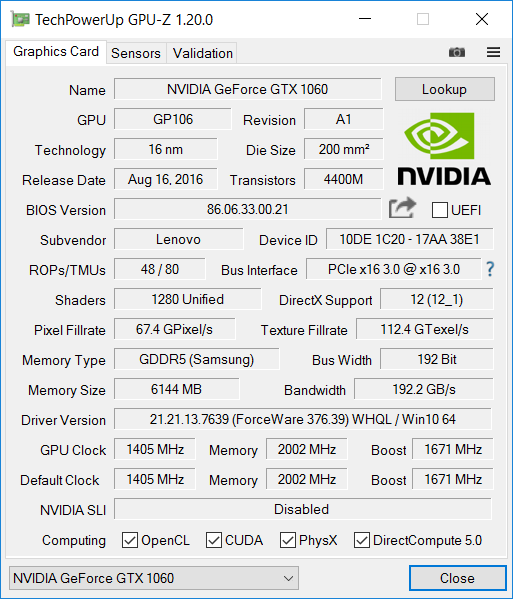

Placa gráfica
NVIDIA GeForce GTX 1060 Mobile - 6144 MB, Análises do: 1405 MHz, Memoría: 2002 MHz, 21.21.13.7639 (ForceWare 376.39), Nvidia Optimus

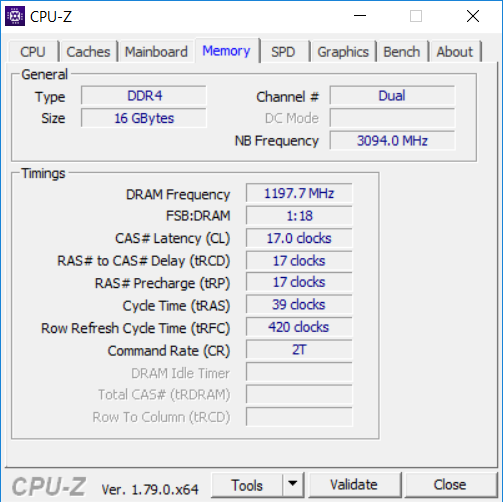

Memória
16384 MB
, DDR4 (2x8GB, ambos slots ocupados)
Pantalha
15.60 polegadas 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LGD0533 LP156WF6-SPK3, IPS, Brilhante: não
placa mãe
Intel HM175
Disco rígido
Samsung PM961 MZVLW256HEHP, 256 GB
, Adicional: HD com 1 TB
Placa de Som
Intel A171
Conexões
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: Conector combinado de áudio
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 30 x 380 x 277
Bateria
60 Wh Lítio-Polímero, 4 células
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p
Características adicionais
Alto falantes: 2 alto falantes JBL de 2W e Subwoofer de 3W Dolby Atmos, Teclado: Chiclet, Iluminação do Teclado: sim, Lenovo Companion, Lenovo Nerve Sense, Lenovo Settings, 24 Meses Garantia
peso
3.1 kg, Suprimento de energia: 680 g
Preço
1700 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovos named their newest gaming laptop

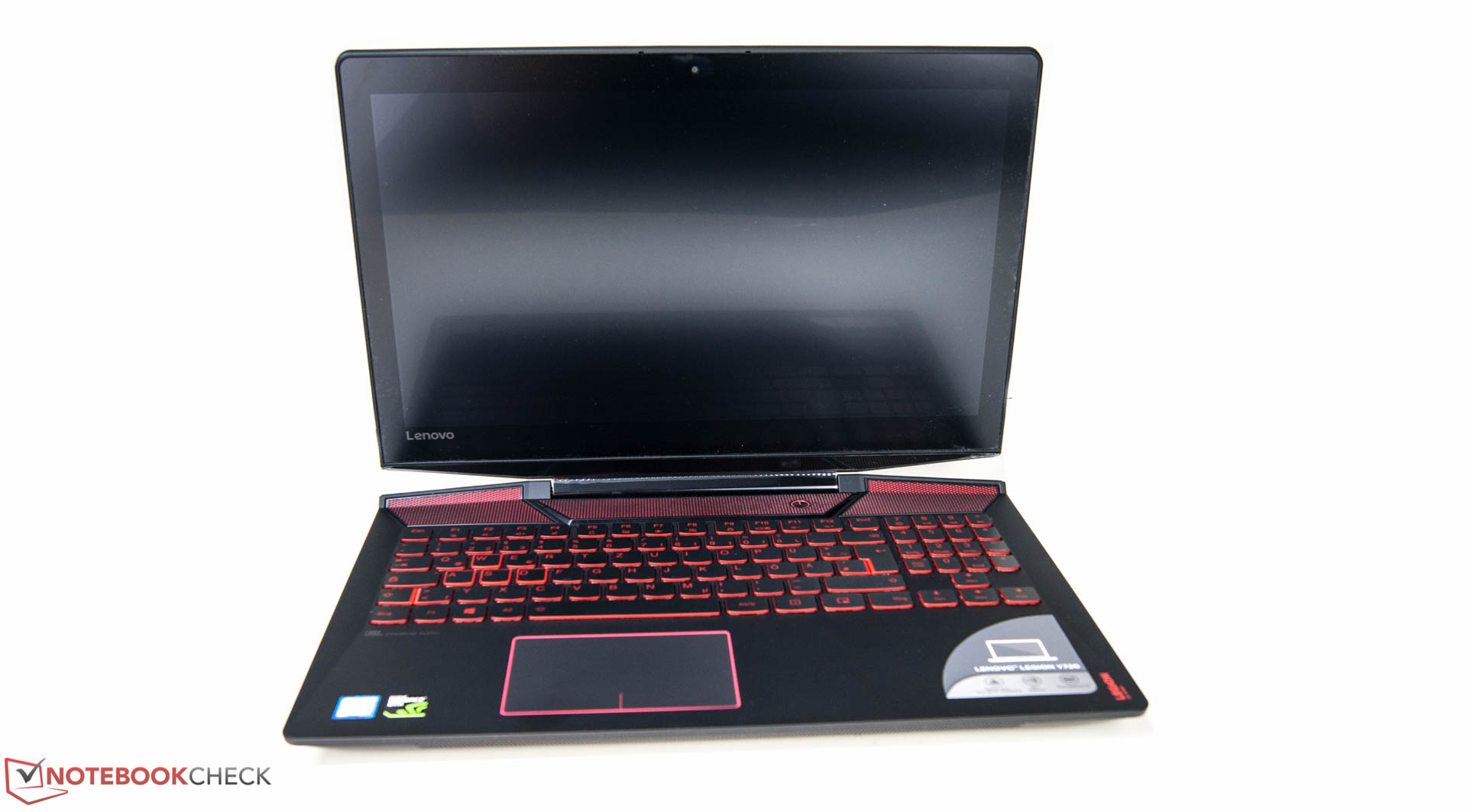

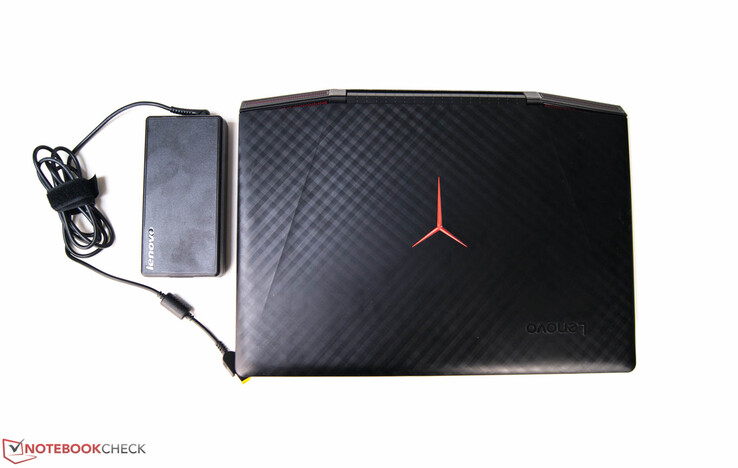

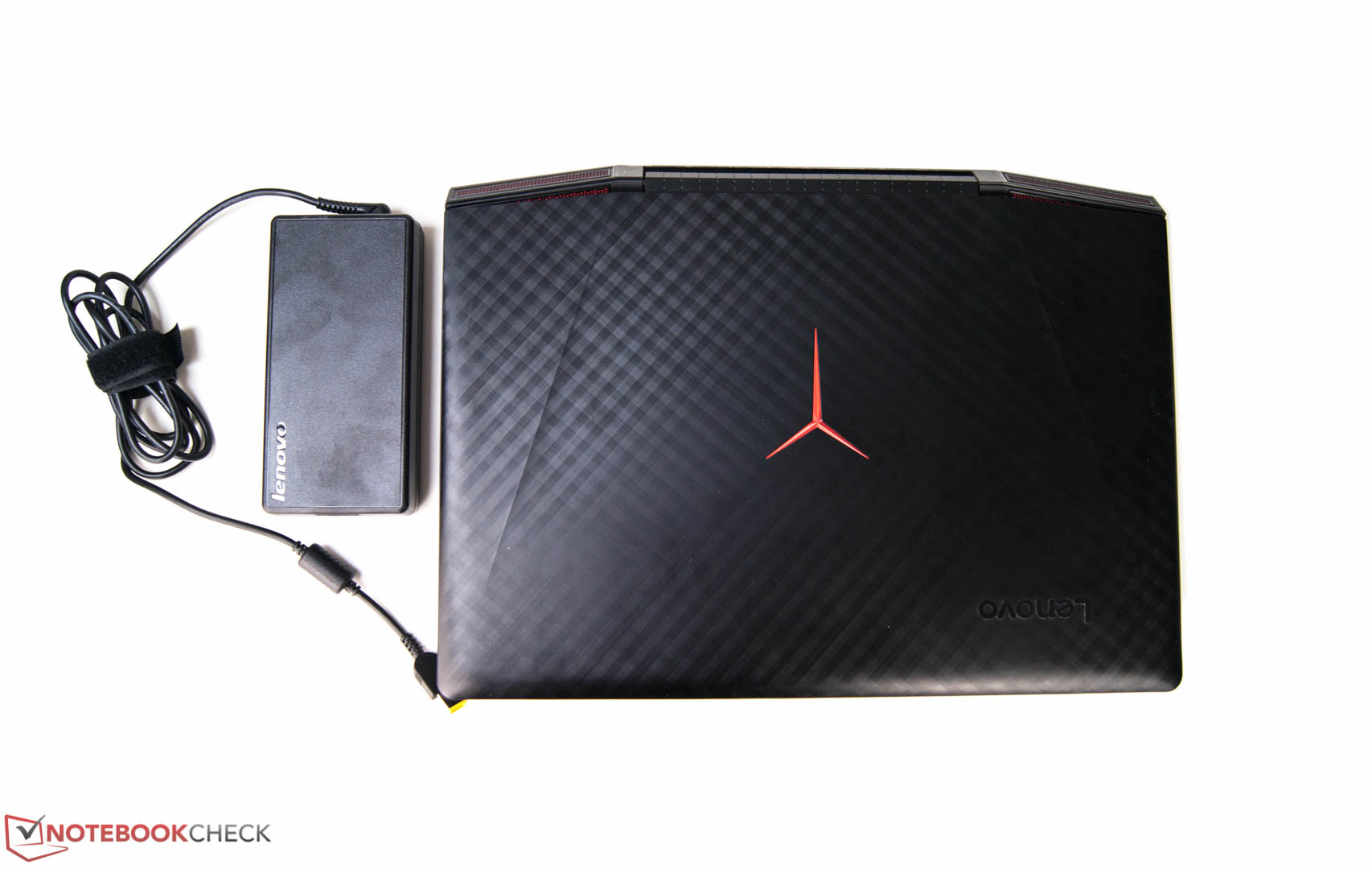

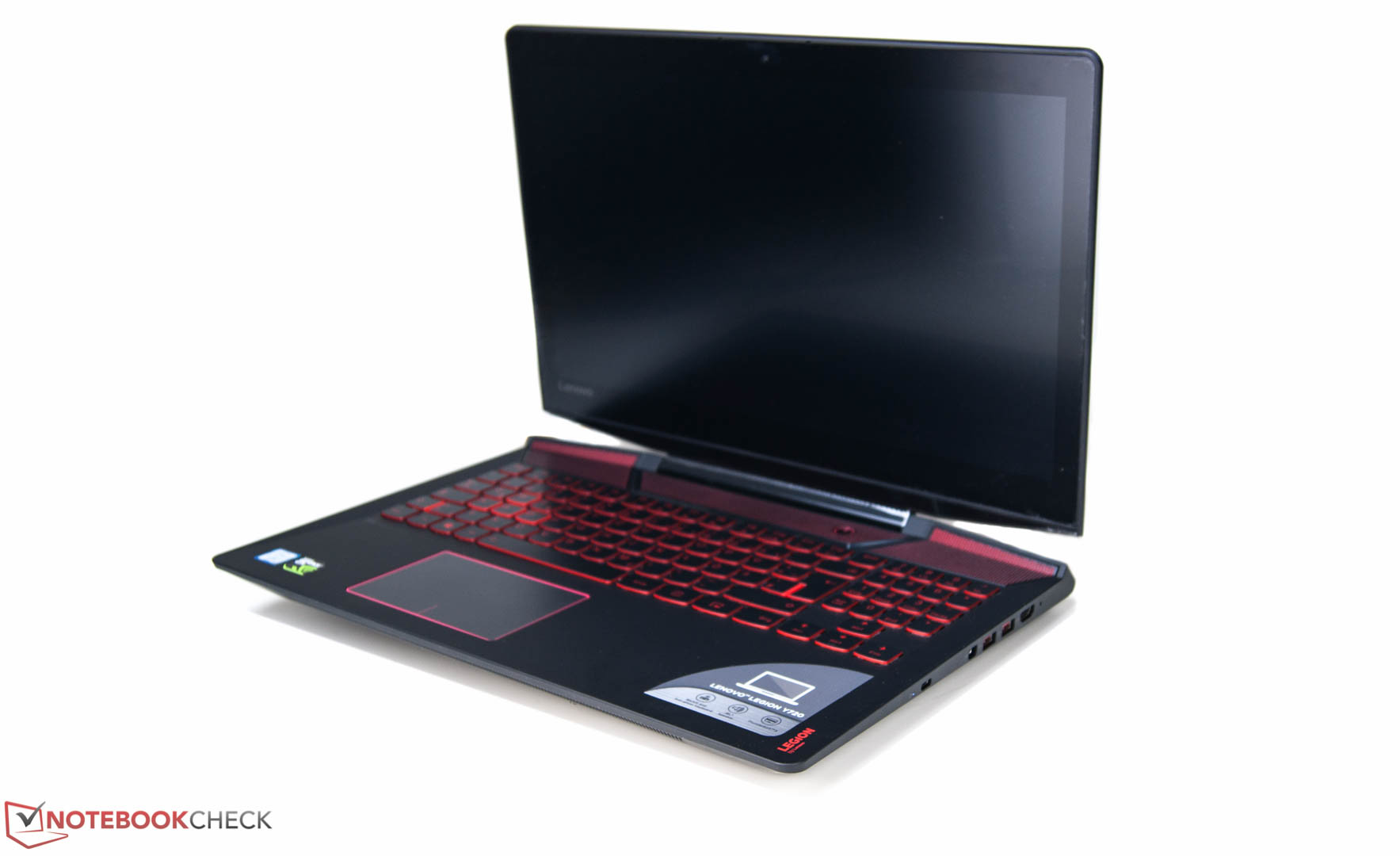

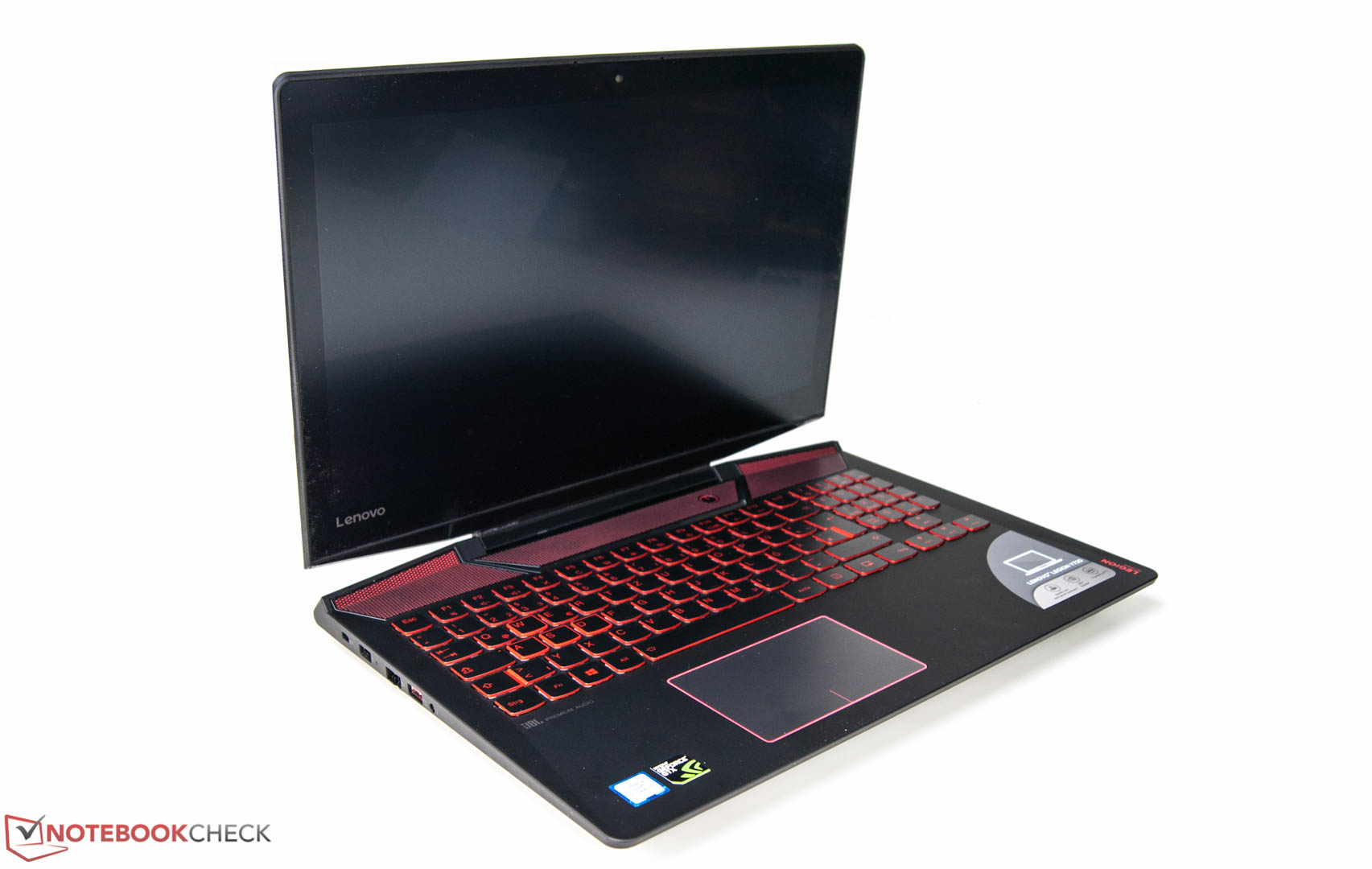

Lenovos named their newest gaming laptop "Legion".

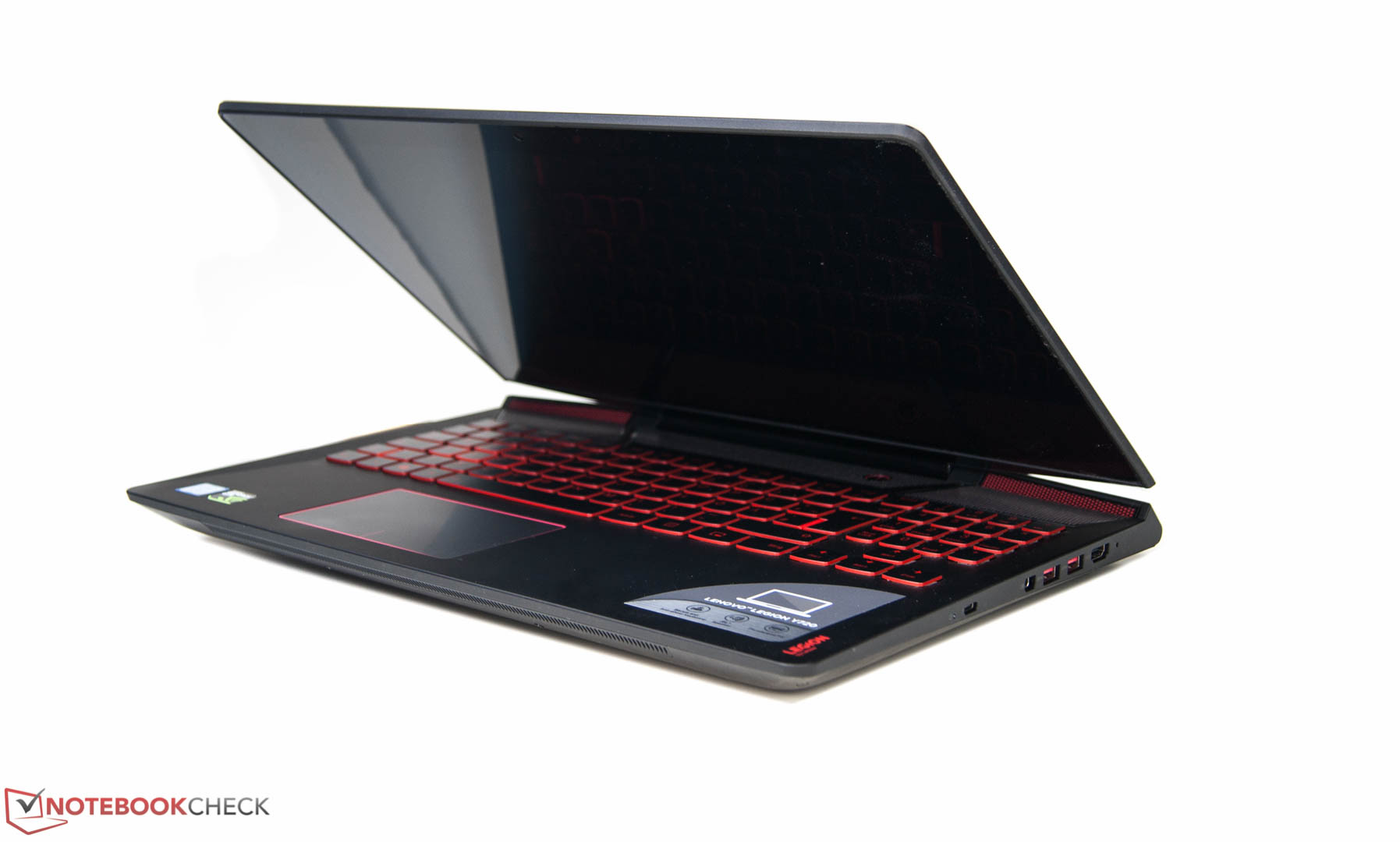

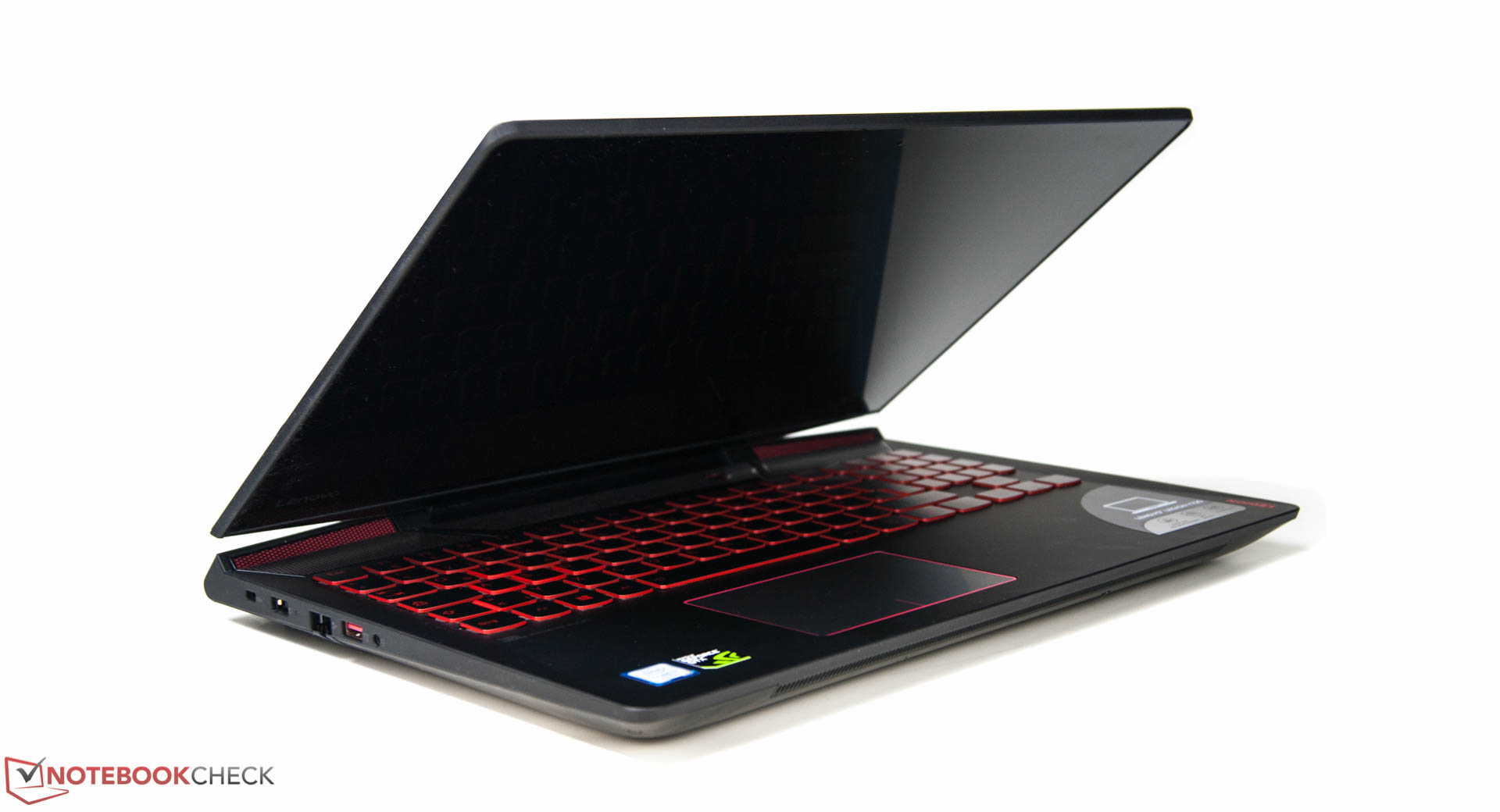

The looks of the chassis ...

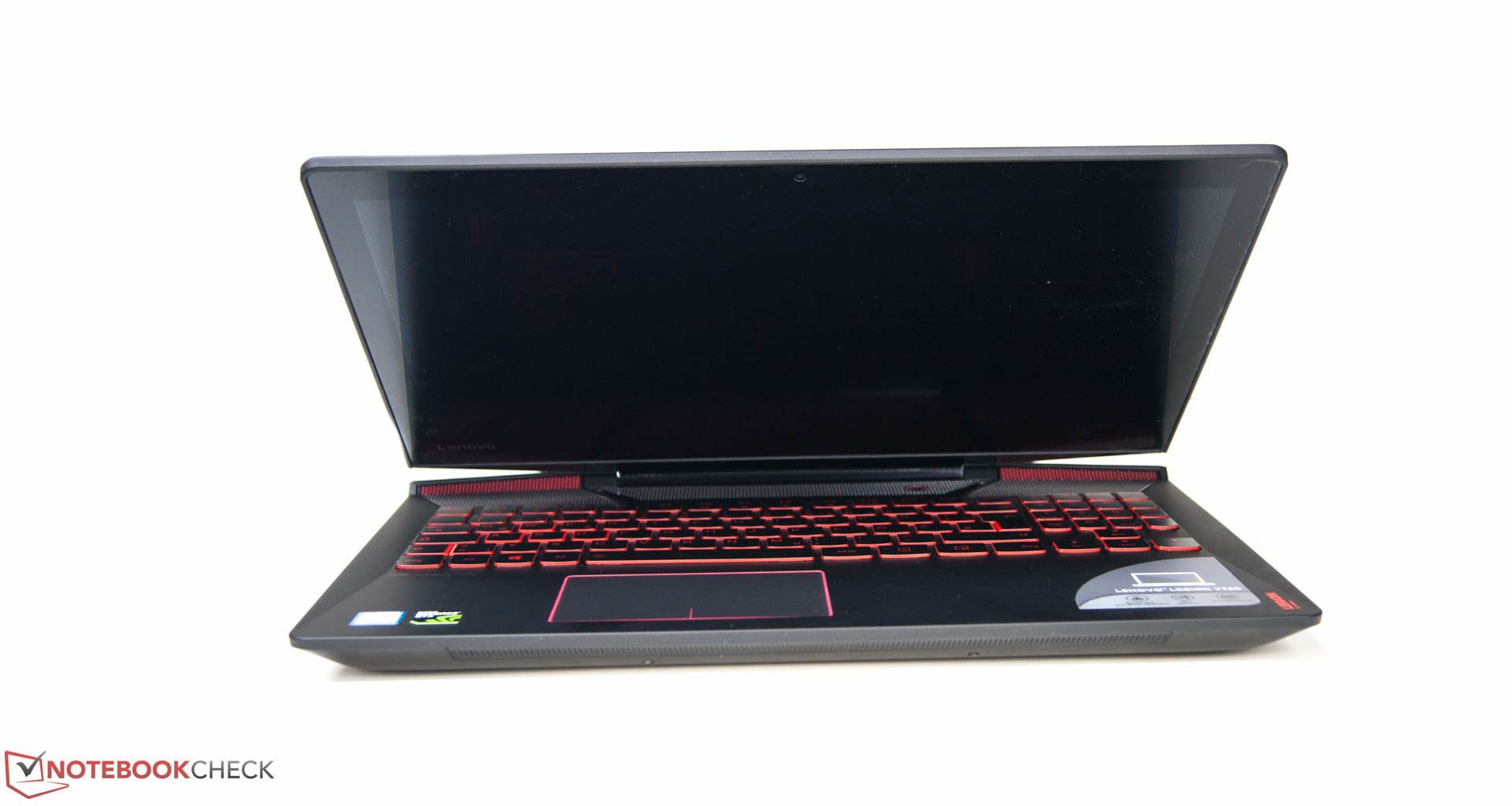

... hint at the intended purpose.
Lenovo uses both plastic and aluminum.
All surfaces ...
...are extremely susceptible to finger prints.

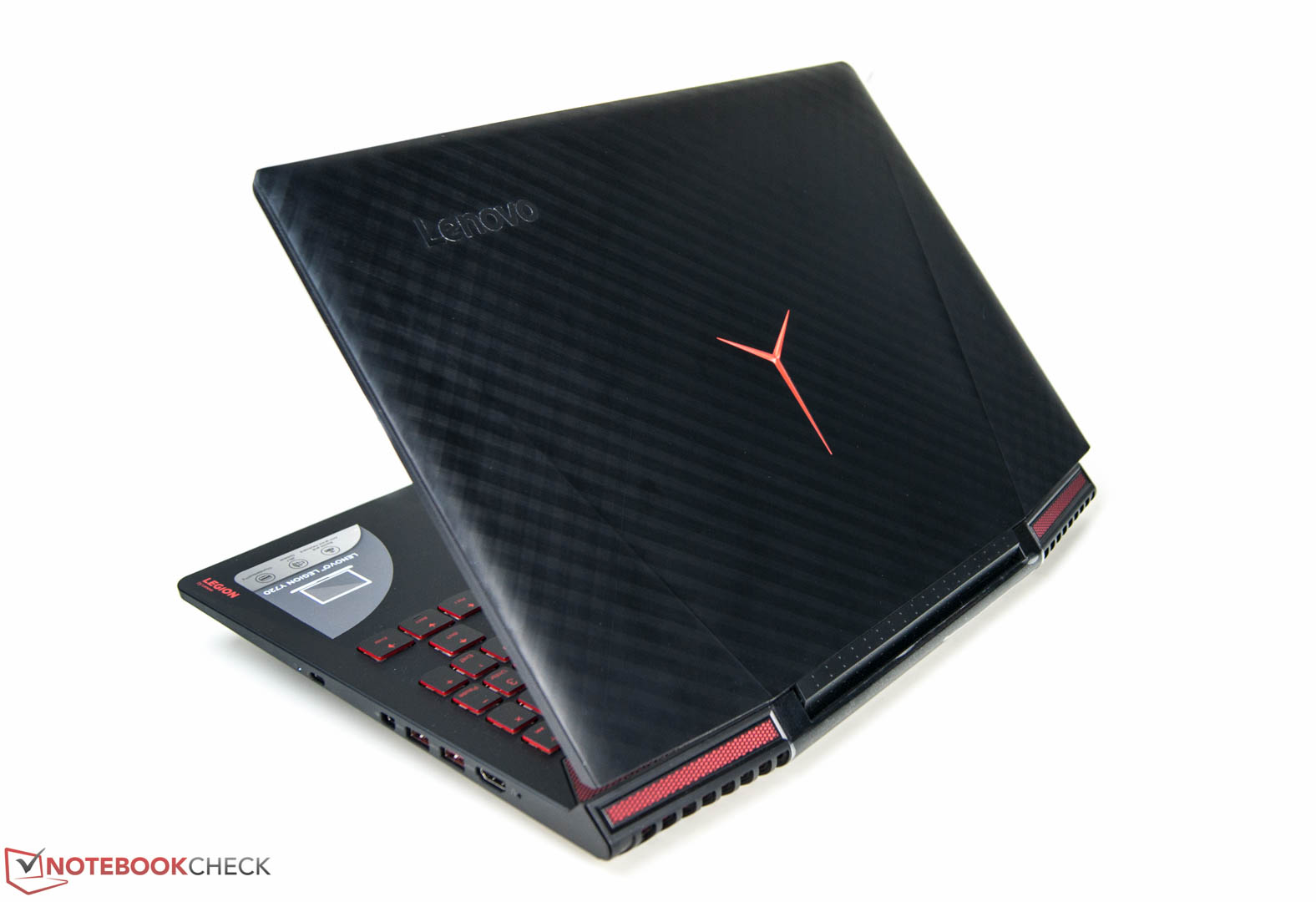

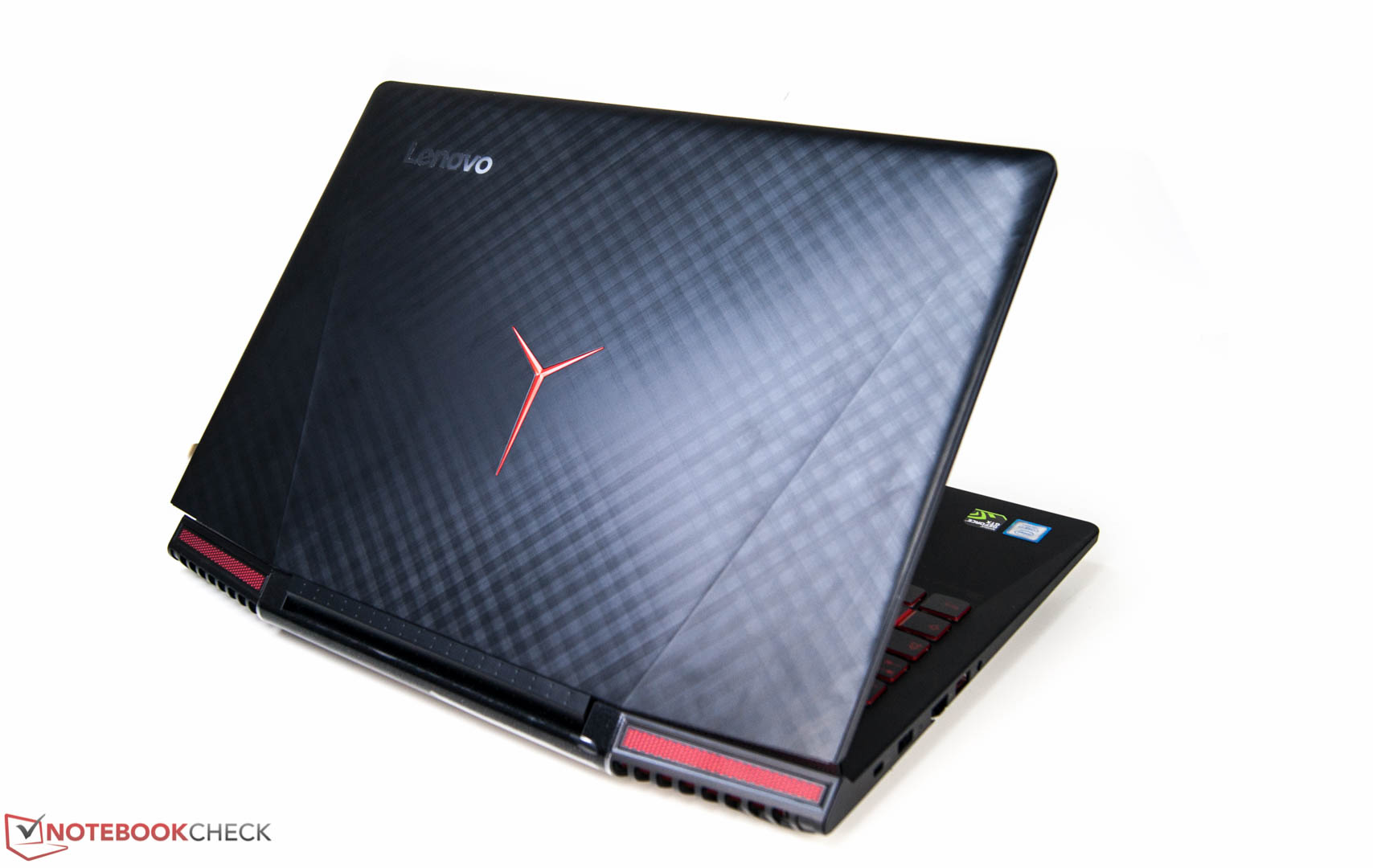

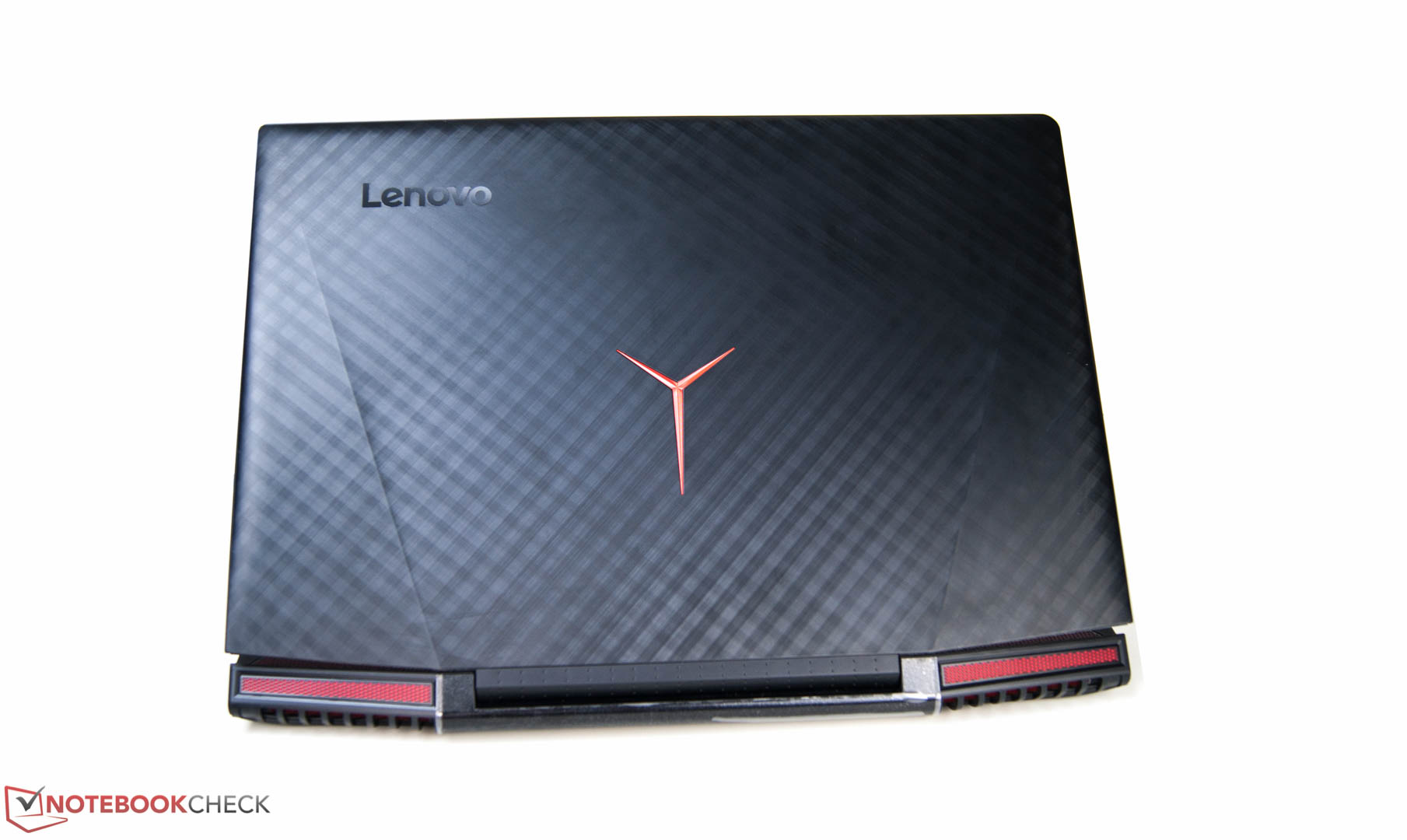

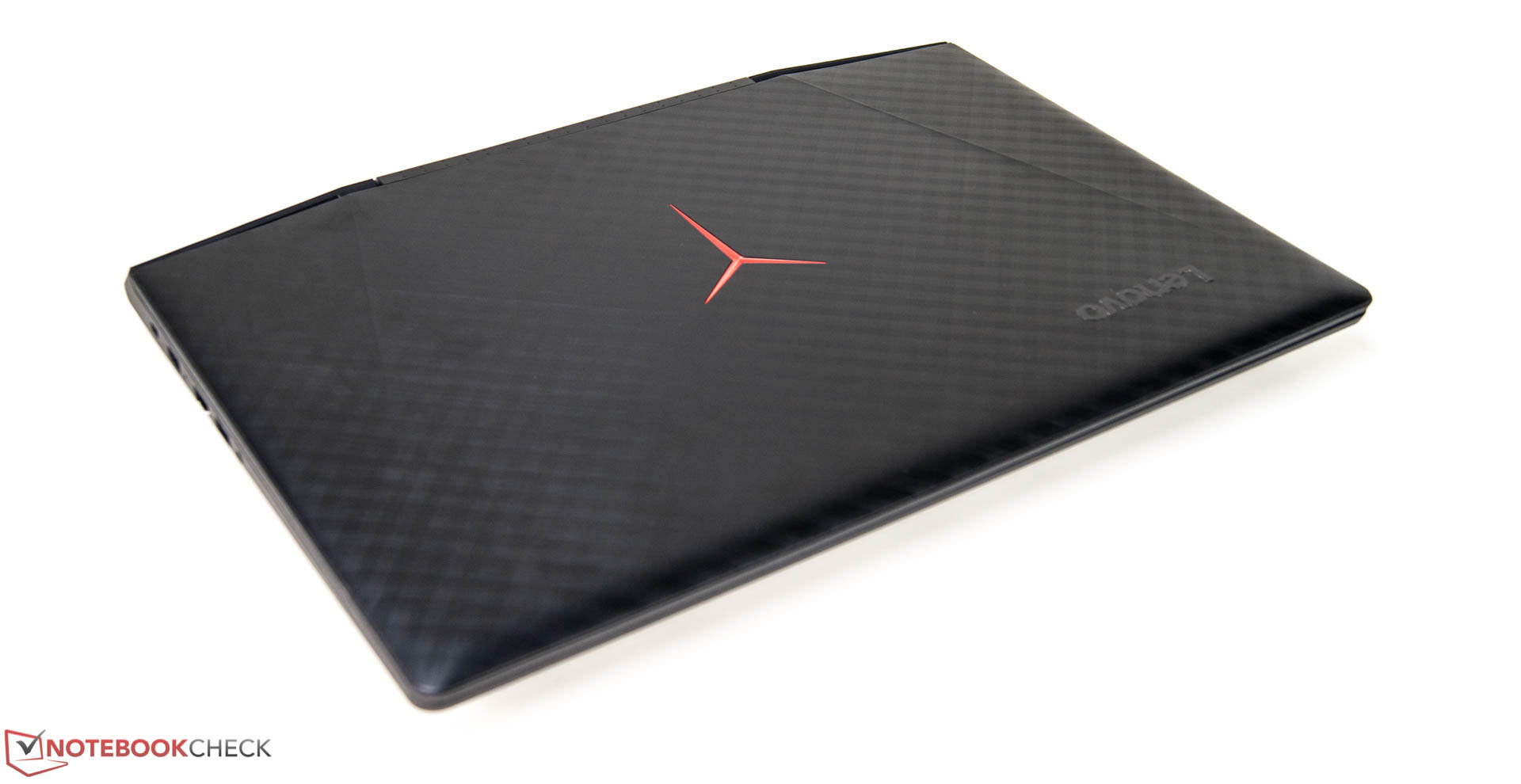

The logo on the back ...
... lights up red, just like the keyboard backlight

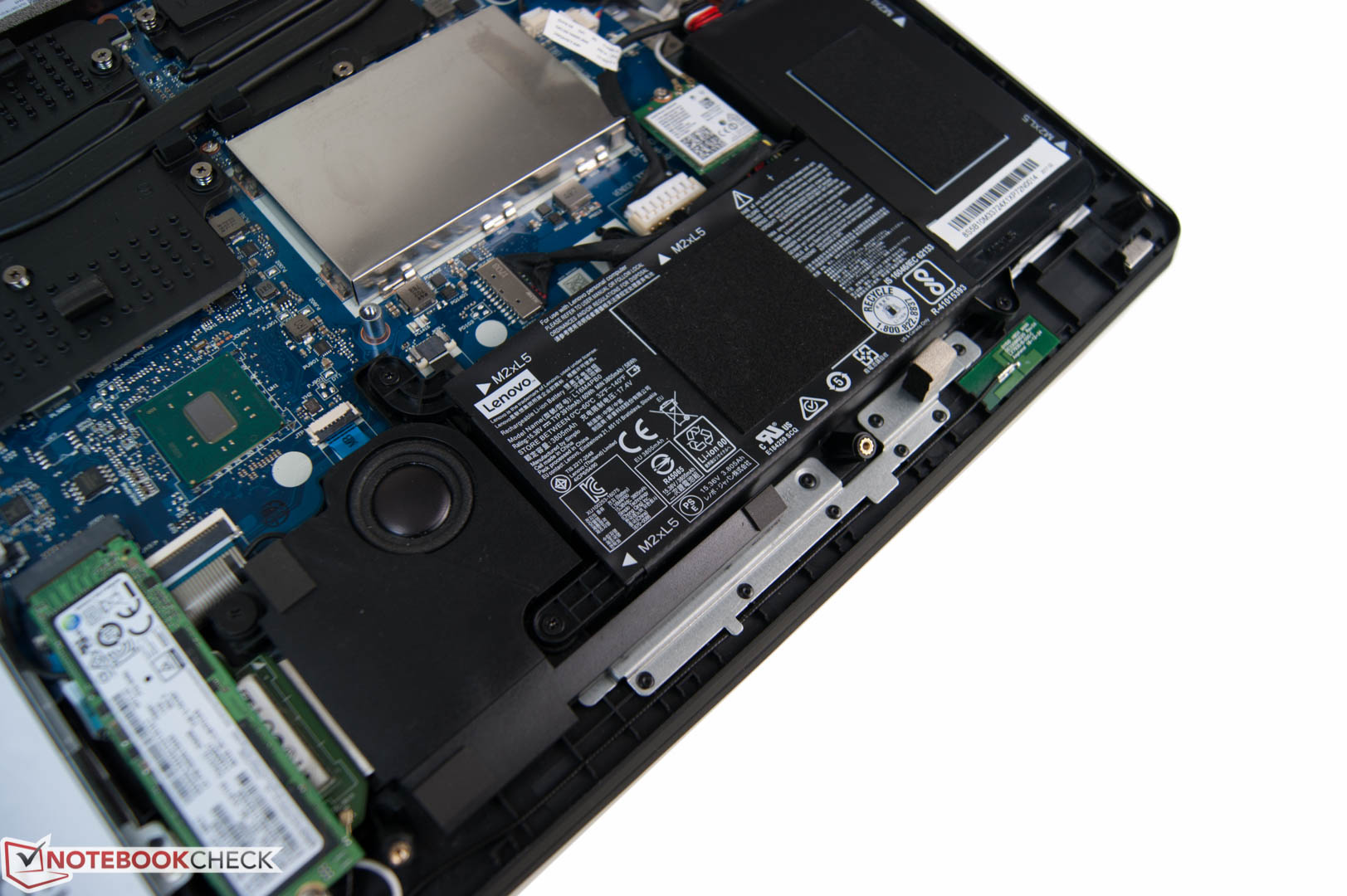

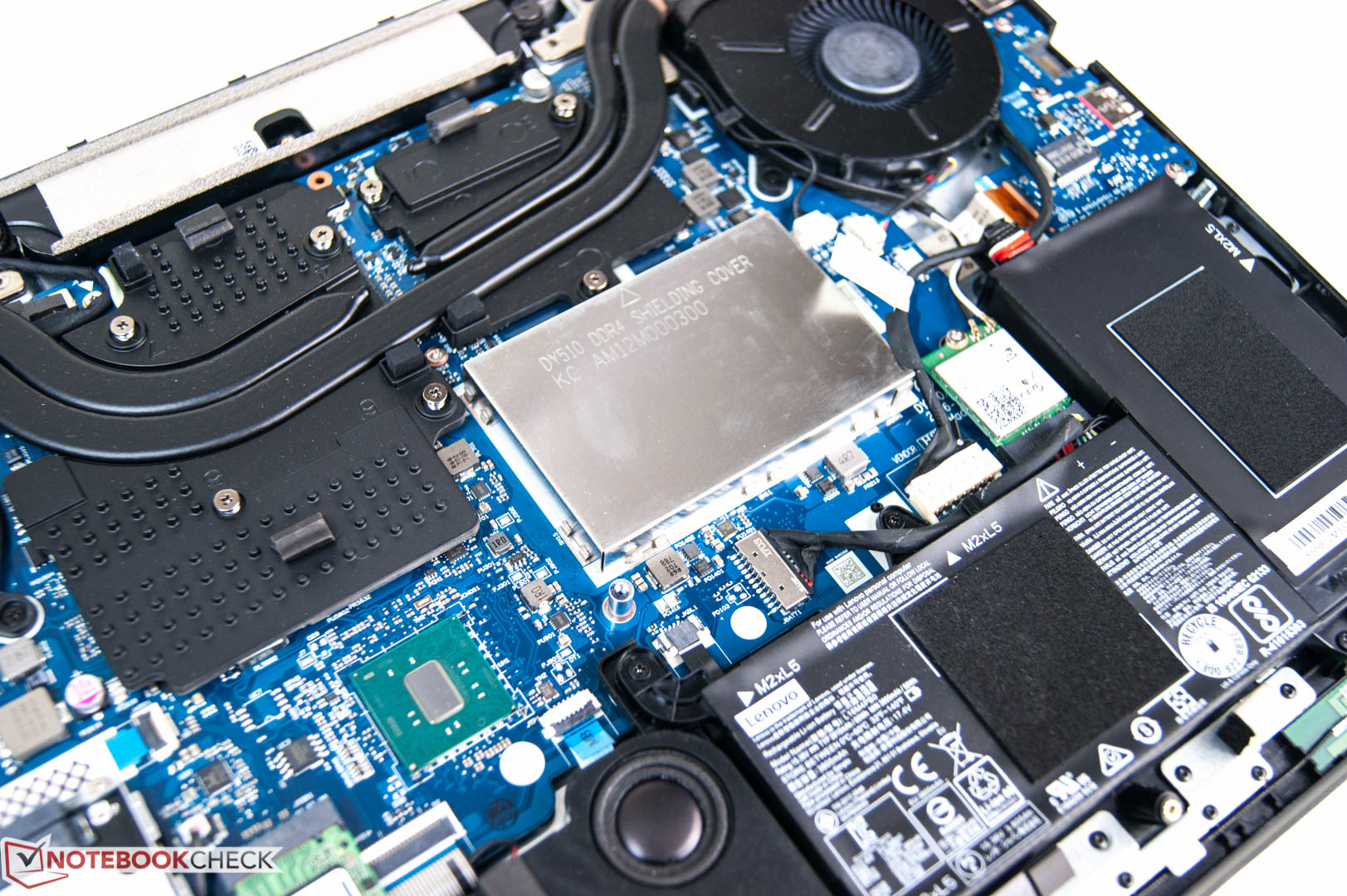

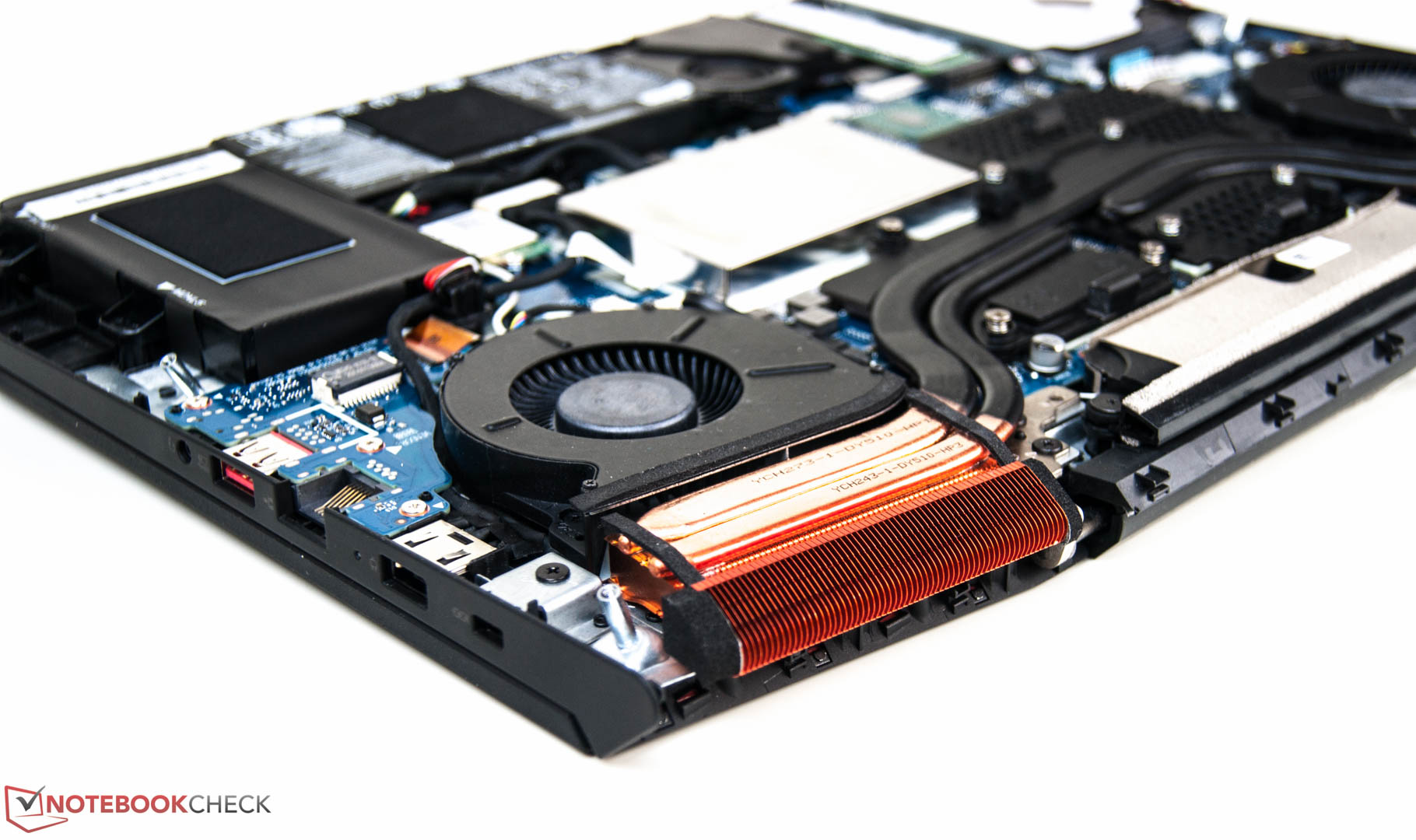

Access to the interior requires removal of the bottom unit.
Compared to the competition, the Legion is neither thin nor light.

Size Comparison

380 mm 269 mm 34 mm 2.6 kg391 mm 266 mm 22.5 mm 2.5 kg390 mm 266 mm 23 mm 2.6 kg380 mm 277 mm 30 mm 3.1 kg380 mm 249 mm 18 mm 1.9 kg

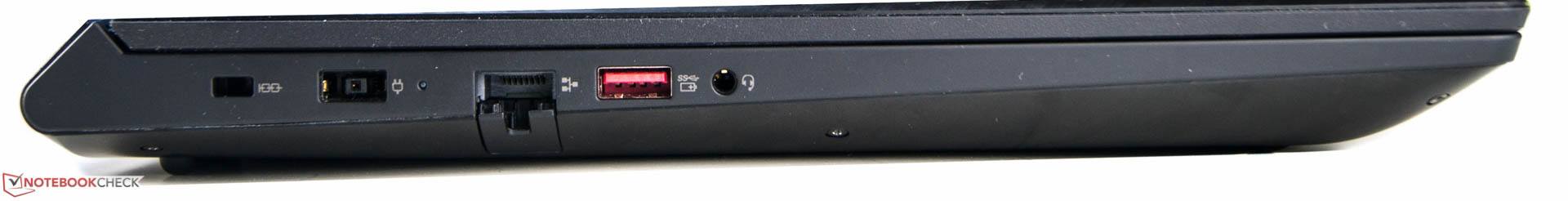

left: Kensington lock, power jack, Ethernet 1 x USB 3.0, audio-combo jack
left: Kensington lock, power jack, Ethernet 1 x USB 3.0, audio-combo jack

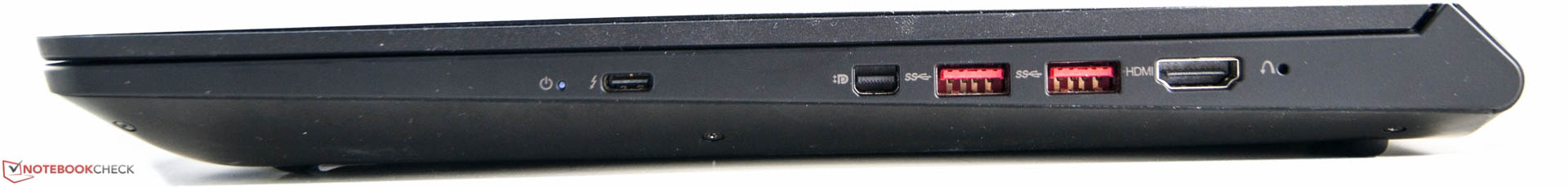

right: Thunderbolt 3, DisplayPort, 2 x USB 3.0, HDMI
right: Thunderbolt 3, DisplayPort, 2 x USB 3.0, HDMI
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo Lenovo Legion Y720 80VR002XGE

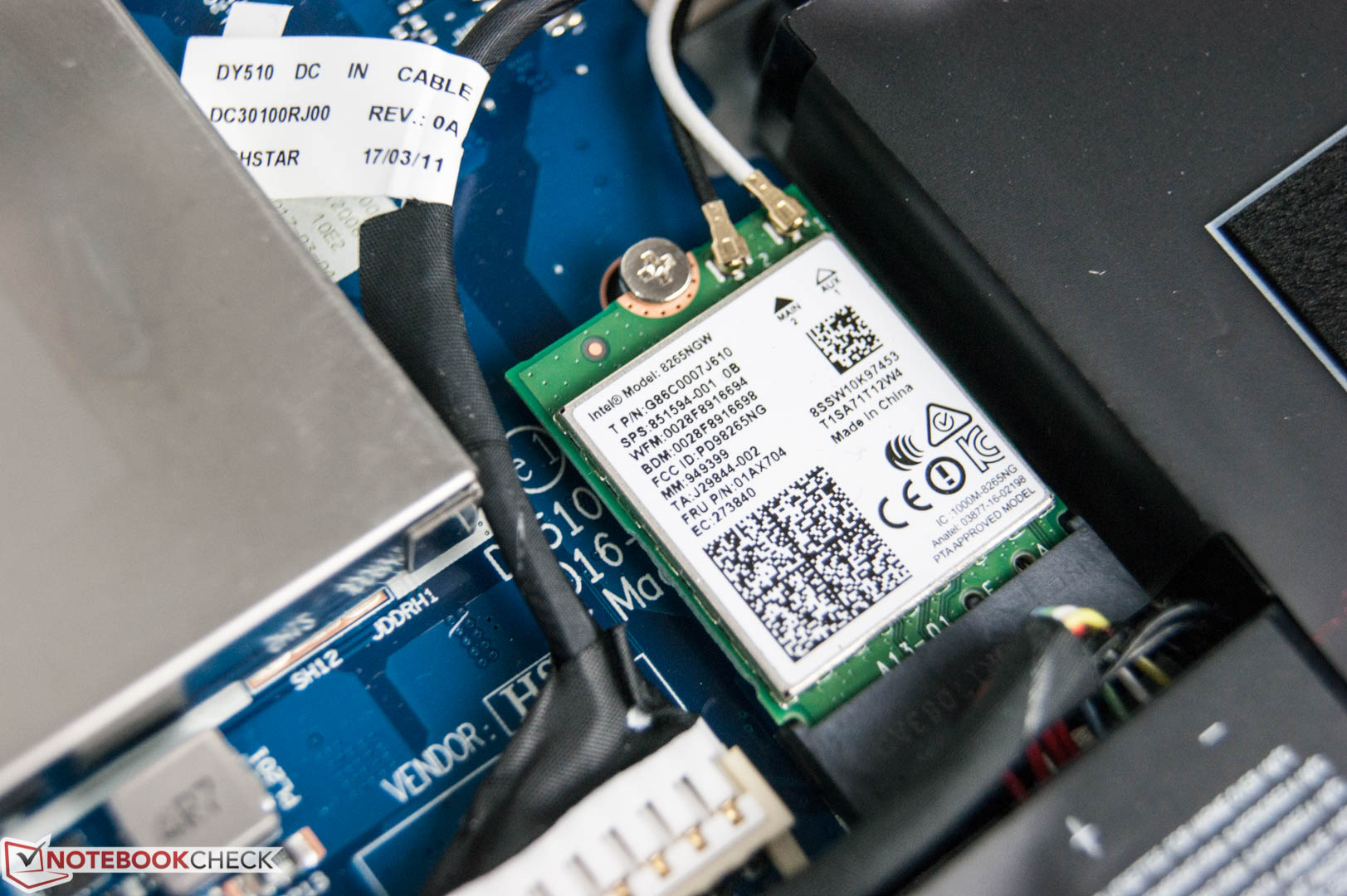

Intel Dual Band Wireless-AC 8265
661 MBit/s ∼100%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Atheros/Qualcomm QCA6174
618 MBit/s ∼93% -7%
MSI GS63VR 7RF-228US
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
594 MBit/s ∼90% -10%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
513 MBit/s ∼78% -22%
Gigabyte P55W v7
Intel Dual Band Wireless-AC 8260
470 MBit/s ∼71% -29%
iperf3 Client (receive) TCP 1 m 4M x10
Gigabyte P55W v7
Intel Dual Band Wireless-AC 8260
663 MBit/s ∼100% +30%
MSI GS63VR 7RF-228US
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
662 MBit/s ∼100% +30%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
541 MBit/s ∼82% +6%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Atheros/Qualcomm QCA6174
541 MBit/s ∼82% +6%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Dual Band Wireless-AC 8265
511 MBit/s ∼77%
259
cd/m²
271
cd/m²
256
cd/m²
275
cd/m²
288
cd/m²
262
cd/m²
296
cd/m²
288
cd/m²
284
cd/m²
Distribuição do brilho
LG Philips LGD0533 LP156WF6-SPK3
X-Rite i1Pro 2
Máximo: 296 cd/m² Médio: 275.4 cd/m² Minimum: 2.8 cd/m²
iluminação: 86 %
iluminação com acumulador: 288 cd/m²
Contraste: 800:1 (Preto: 0.36 cd/m²)
ΔE Color 5.29 | 0.59-29.43 Ø5.5
ΔE Greyscale 4.5 | 0.64-98 Ø5.7
57% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.75% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.47% sRGB (Argyll 2.2.0 3D)
38.43% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.39
Lenovo Lenovo Legion Y720 80VR002XGE
LG Philips LGD0533 LP156WF6-SPK3, , 1920x1080, 15.60
MSI GS63VR 7RF-228US
3840x2160, 15.60
Asus FX502VM-AS73
1920x1080, 15.60
Acer Aspire VN7-593G-73HP V15 Nitro BE
LG Display LP156WF6-SPP1, , 1920x1080, 15.60
Gigabyte P55W v7
LG Philips LP156WF6 (LGD046F), , 1920x1080, 15.60
Display
25%
-1%
58%
53%
Display P3 Coverage
38.43
48.21
25%
38.28
0%
65.85
71%
63.55
65%
sRGB Coverage
57.47
72.63
26%
56.86
-1%
85.05
48%
82.01
43%
AdobeRGB 1998 Coverage
39.75
49.81
25%
39.47
-1%
62.19
56%
59.94
51%
Response Times
-19%
21%
-19%
5%
Response Time Grey 50% / Grey 80% *
43 (22, 21)
28 (15.6, 12.4)
35%
28.4 (11.2, 17.2)
34%
41 (21, 20)
5%
37 (15, 22)
14%
Response Time Black / White *
24 (12, 12)
23.6 (15.2, 8.4)
2%
22.4 (6, 16.4)
7%
34 (21, 13)
-42%
25 (5, 20)
-4%
PWM Frequency
21000 (90)
1351 (39)
-94%
Screen
-20%
-23%
19%
16%
Brightness middle
288
274.2
-5%
209.5
-27%
322
12%
287
0%
Brightness
275
263
-4%
205
-25%
297
8%
289
5%
Brightness Distribution
86
92
7%
92
7%
86
0%
87
1%
Black Level *
0.36
0.44
-22%
0.69
-92%
0.31
14%
0.29
19%
Contrast
800
623
-22%
304
-62%
1039
30%
990
24%
Colorchecker DeltaE2000 *
5.29
8
-51%
4.7
11%
4.73
11%
4.92
7%
Colorchecker DeltaE2000 max. *
9.97
14.6
-46%
19.7
-98%
12.37
-24%
11
-10%
Greyscale DeltaE2000 *
4.5
9.1
-102%
1.8
60%
2.99
34%
3.66
19%
Gamma
2.39 92%
2.24 98%
2.23 99%
2.32 95%
2.32 95%
CCT
6839 95%
5020 129%
6975 93%
6905 94%
6482 100%
Color Space (Percent of AdobeRGB 1998)
37
45.7
24%
36.2
-2%
56
51%
54
46%
Color Space (Percent of sRGB)
57
72.1
26%
56.6
-1%
85
49%
82
44%
Total Average (Program / Settings)
-5% / -11%
-1% / -13%
19% / 22%
25% / 22%

* ... smaller is better

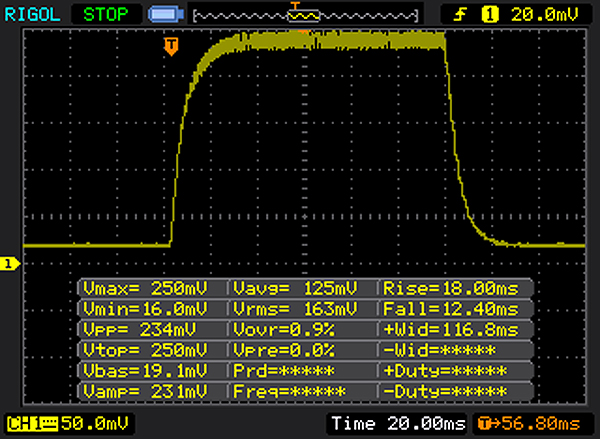

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
24 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 12 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (23.9 ms).

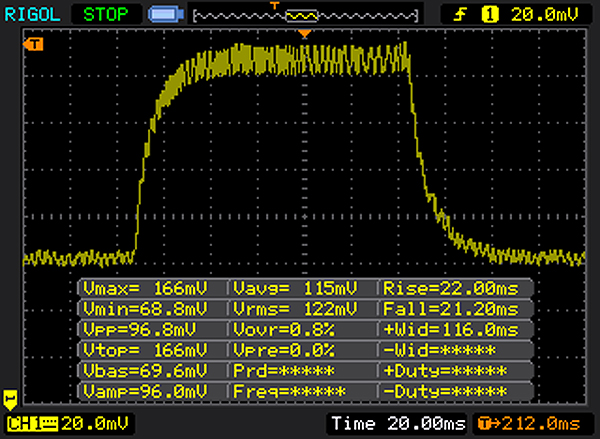

       Response Time 50% Grey to 80% Grey
43 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 21 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 61 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (37.8 ms).

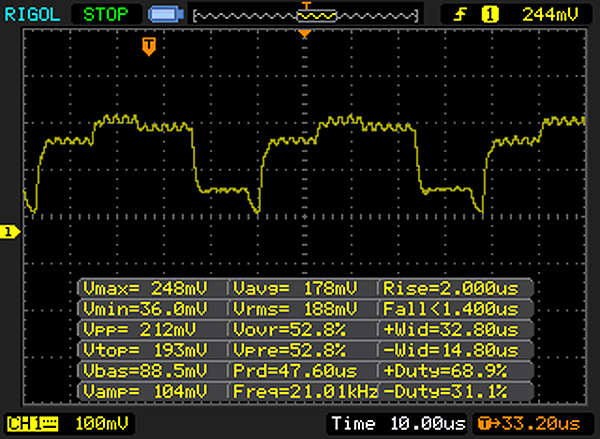

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 21000 Hz ≤ 90 % brightness setting

The display backlight flickers at 21000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 21000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 15334 (minimum: 5 - maximum: 2500000) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
162 Points ∼60% +1%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Core i7-7700HQ
160 Points ∼59%
Gigabyte P55W v7
Intel Core i7-7700HQ
156 Points ∼57% -2%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Intel Core i7-7700HQ
152 Points ∼56% -5%
Asus FX502VM-AS73
Intel Core i7-7700HQ
140 Points ∼51% -12%
CPU Multi 64Bit
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
742 Points ∼8% +1%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Core i7-7700HQ
737 Points ∼8%
Gigabyte P55W v7
Intel Core i7-7700HQ
733 Points ∼8% -1%
Asus FX502VM-AS73
Intel Core i7-7700HQ
725 Points ∼7% -2%
Acer Aspire VN7-593G-73HP V15 Nitro BE
Intel Core i7-7700HQ
673 (660min - 673max) Points ∼7% -9%
Cinebench R15 CPU Multi 64Bit
737 Points
Cinebench R15 CPU Single 64Bit
160 Points
Cinebench R15 OpenGL 64Bit
100.87 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Ajuda
PCMark 8
Home Score Accelerated v2
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
4765 Points ∼76% +16%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4141 Points ∼66% +1%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
4115 Points ∼66%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
4013 Points ∼64% -2%
Work Score Accelerated v2
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
5317 Points ∼75% +5%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5268 Points ∼74% +4%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
5083 Points ∼72%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
2722 Points ∼38% -46%
PCMark 8 Home Score Accelerated v2
4115 pontos
PCMark 8 Work Score Accelerated v2
5083 pontos
Ajuda
Lenovo Lenovo Legion Y720 80VR002XGE
Samsung PM961 MZVLW256HEHP
MSI GS63VR 7RF-228US
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Asus FX502VM-AS73
SK Hynix HFS256G39TND-N210A
Acer Aspire VN7-593G-73HP V15 Nitro BE
Seagate Mobile HDD 1TB ST1000LM035
Gigabyte P55W v7
Liteonit CV3-8D256
CrystalDiskMark 3.0
19%
-63%
-96%
-60%
Read Seq
2196
2141
-3%
502.5
-77%
120.9
-94%
466.2
-79%
Write Seq
1144
1621
42%
138.2
-88%
101.8
-91%
261.9
-77%
Read 512
746.5
499.7
-33%
343.5
-54%
37.83
-95%
252.5
-66%
Write 512
810
1531
89%
137.8
-83%
84.36
-90%
254.8
-69%
Read 4k
60.07
54.2
-10%
29.36
-51%
0.473
-99%
25.4
-58%
Write 4k
153.5
158.2
3%
70.91
-54%
0.313
-100%
54.98
-64%
Read 4k QD32
485.4
631.7
30%
369.9
-24%
1.133
-100%
358.5
-26%
Write 4k QD32
396.3
526.9
33%
99.74
-75%
0.274
-100%
240.1
-39%
Samsung PM961 MZVLW256HEHP
Sequential Read: 2196 MB/s
Sequential Write: 1144 MB/s
512K Read: 746.5 MB/s
512K Write: 810 MB/s
4K Read: 60.07 MB/s
4K Write: 153.5 MB/s
4K QD32 Read: 485.4 MB/s
4K QD32 Write: 396.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Acer Aspire VN7-593G-73HP V15 Nitro BE
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14942 Points ∼24% +5%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14732 Points ∼24% +4%
Gigabyte P55W v7
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14693 Points ∼24% +3%
MSI GS63VR 7RF-228US
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14450 Points ∼24% +2%
Lenovo Lenovo Legion Y720 80VR002XGE
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14233 Points ∼23%
3DMark
1280x720 Cloud Gate Standard Graphics
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
80496 Points ∼40% +20%
Acer Aspire VN7-593G-73HP V15 Nitro BE
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
66973 Points ∼33% 0%
Lenovo Lenovo Legion Y720 80VR002XGE
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
66856 Points ∼33%
Gigabyte P55W v7
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
54719 Points ∼27% -18%
MSI GS63VR 7RF-228US
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
32344 Points ∼16% -52%
1920x1080 Fire Strike Graphics
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11633 Points ∼23% +4%
Acer Aspire VN7-593G-73HP V15 Nitro BE
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11494 Points ∼23% +3%
Gigabyte P55W v7
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11426 Points ∼23% +3%
MSI GS63VR 7RF-228US
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11261 Points ∼22% +1%
Lenovo Lenovo Legion Y720 80VR002XGE
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11134 Points ∼22%
3DMark 11 Performance
12067 pontos
3DMark Cloud Gate Standard Score
21147 pontos
3DMark Fire Strike Score
9527 pontos
Ajuda
012345678910111213141516171819202122232425262728293031323334353637383940414243444546474849Tooltip
The Witcher 3 ultra
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
103.1 fps ∼100% +4%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
100.6 fps ∼98% +1%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
99.51 fps ∼97%
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ, Seagate Mobile HDD 1TB ST1000LM035
88 fps ∼85% -12%
1366x768 High Preset
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
159.5 fps ∼100%
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ, Seagate Mobile HDD 1TB ST1000LM035
128 fps ∼80% -20%
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
39.4 fps ∼100% +11%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
38.4 fps ∼97% +8%
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ, Seagate Mobile HDD 1TB ST1000LM035
38.3 fps ∼97% +8%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
35.5 fps ∼90%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
76 fps ∼100% +15%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
70.4 fps ∼93% +7%
Acer Aspire VN7-593G-73HP V15 Nitro BE
GeForce GTX 1060 Mobile, i7-7700HQ, Seagate Mobile HDD 1TB ST1000LM035
68 fps ∼89% +3%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
66 fps ∼87%
Doom
1920x1080 Ultra Preset AA:SM
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
95.1 fps ∼100% +2%
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
93 fps ∼98%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
92.3 fps ∼97% -1%
1920x1080 High Preset AA:FX
Lenovo Lenovo Legion Y720 80VR002XGE
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
97 fps ∼100%
baixo média alto ultra
BioShock Infinite (2013) 204.3 171.12 159.5 99.51 fps
The Witcher 3 (2015) 182.6 118 66 35.5 fps
Doom (2016) 131.7 125.1 97 93 fps

Barulho

Ocioso
31 / 30.9 / 31.5 dB
Carga
38.7 / 41.9 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Voltcraft SL 320 (15 cm de distância)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.433.634.63334.42533.2323233.333.23136.132.635.735.236.14032.628.631.229.932.65035.936.135.136.235.96332.133.228.227.132.18026.427.426.426.626.410026.327.125.324.426.312525.126.225.124.825.116025.126.923.923.625.120025.426.921.721.725.425026.428.222.521.426.431529.531.122.121.629.540029.531.522.120.229.550025.126.820.319.625.163025.126.919.518.625.180026.127.518.71826.1100027.830.319.217.627.8125029.131.518.917.829.1160029.532.118.517.729.520003032.418.617.630250030.632.718.217.730.6315028.731.81817.928.7400024.727.41817.824.7500023.62618.21823.6630023.526.418.418.223.5800021.223.418.318.321.21000019.420.618.418.219.41250018.719.218.318.218.71600021.721.119.71821.7SPL39.641.93130.339.6N3.23.91.51.43.2median 25.4median 27.1median 18.9median 18.2median 25.4Delta2.52.31.71.22.534.333.133.532.835.234.331.230.632.431.238.431.2373641.939.438.53732.329.336.132.232.132.331.231.62930.229.331.228.828.128.228.726.628.826.627.727.626.725.726.626.92826.627.226.426.926.828.525.42526.126.82527.324.423.723.72525.326.622.522.822.725.325.527.821.621.521.625.527.229.821.720.820.827.227.831.421.319.62027.824.326.920.319.919.424.324.727.119.31918.824.72628.821.320.118.32628.731.62120.417.628.728.631.719.818.917.828.628.932.219.318.117.528.929.232.519.518.117.529.230.433.818.918.217.430.432.634.218.518.217.832.630.935.418.218.117.930.926.631.418.418.118.126.626.130.818.618.518.326.121.525.418.418.318.421.520.522.618.418.518.420.519.620.118.418.518.319.621.320.418.718.818.321.340.843.931.630.930.440.83.54.61.61.51.43.5median 26.6median 28.8median 19.5median 18.9median 18.3median 26.61.82.41.51.51.91.8hearing rangehide median Fan NoiseLenovo Lenovo Legion Y720 80VR002XGEAcer Aspire VN7-593G-73HP V15 Nitro BE
 33.9 °C41.6 °C38.2 °C
 30.5 °C40.8 °C37.4 °C
 23.5 °C25.4 °C28.6 °C
Máximo: 41.6 °C
Médio: 33.3 °C
35.3 °C37 °C29.7 °C
31 °C34.8 °C30.8 °C
28.5 °C30.3 °C27.7 °C
Máximo: 37 °C
Médio: 31.7 °C
alimentação elétrica  36.4 °C | Temperatura do quarto 22 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 33.3 °C / 92 F, compared to the average of 33.6 °C / 92 F for the devices in the class Gaming.
(±) The maximum temperature on the upper side is 41.6 °C / 107 F, compared to the average of 40.1 °C / 104 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(+) The bottom heats up to a maximum of 37 °C / 99 F, compared to the average of 42.9 °C / 109 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 33.6 °C / 92 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.9 °C / 97 F, compared to the device average of 33.6 °C / 92 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37 °C / 98.6 F.
(-) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (-8 °C / -14.4 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.73331.72531.733.331.73132.335.232.34030.429.930.45036.336.236.36328.927.128.98029.926.629.910037.324.437.312545.224.845.216052.523.652.520055.621.755.625063.421.463.43156621.66640072.520.272.550061.619.661.663067.318.667.380068.51868.5100065.517.665.5125069.317.869.3160067.617.767.6200068.417.668.4250071.817.771.8315071.217.971.2400068.117.868.1500068.11868.1630065.918.265.9800062.218.362.21000060.318.260.3125006018.2601600058.91858.9SPL80.530.380.5N50.91.450.9median 65.9median 18.2median 65.9Delta5.11.25.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseLenovo Lenovo Legion Y720 80VR002XGEApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo Lenovo Legion Y720 80VR002XGE audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.6% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.8% away from median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.4% difference to median)
Compared to same class
» 17% of all tested devices in this class were better, 5% similar, 78% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 8% of all tested devices were better, 2% similar, 90% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Consumo de energia
desligadodarklight 0.5 / 0.7 Watt
Ociosodarkmidlight 8 / 10.9 / 11.8 Watt
Carga midlight 70 / 148 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo Lenovo Legion Y720 80VR002XGE
i7-7700HQ, GeForce GTX 1060 Mobile, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 15.60
Asus FX502VM-AS73
i7-7700HQ, GeForce GTX 1060 Mobile, SK Hynix HFS256G39TND-N210A, TN LED, 1920x1080, 15.60
MSI GS63VR 7RF-228US
i7-7700HQ, GeForce GTX 1060 Mobile, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.60
Acer Aspire VN7-593G-73HP V15 Nitro BE
i7-7700HQ, GeForce GTX 1060 Mobile, Seagate Mobile HDD 1TB ST1000LM035, AH-IPS, Normally Black, Transmissive, 1920x1080, 15.60
Gigabyte P55W v7
i7-7700HQ, GeForce GTX 1060 Mobile, Liteonit CV3-8D256, IPS, 1920x1080, 15.60
Power Consumption
-41%
-49%
-11%
-16%
Idle Minimum *
8
14.9
-86%
14.5
-81%
7.2
10%
8
-0%
Idle Average *
10.9
15.1
-39%
17.3
-59%
10.5
4%
13
-19%
Idle Maximum *
11.8
15.2
-29%
17.4
-47%
16
-36%
18
-53%
Load Average *
70
105.8
-51%
93
-33%
82
-17%
76
-9%
Witcher 3 ultra *
102
128.8
-26%
124
-22%
Load Maximum *
148
148.8
-1%
155
-5%
143
3%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
11h 47min
NBC WiFi Websurfing Battery Test 1.3
6h 20min
Big Buck Bunny H.264 1080p
5h 12min
Carga (máximo brilho)
1h 11min
Lenovo Lenovo Legion Y720 80VR002XGE
i7-7700HQ, GeForce GTX 1060 Mobile, 60 Wh
Asus FX502VM-AS73
i7-7700HQ, GeForce GTX 1060 Mobile, 64 Wh
MSI GS63VR 7RF-228US
i7-7700HQ, GeForce GTX 1060 Mobile, 65 Wh
Acer Aspire VN7-593G-73HP V15 Nitro BE
i7-7700HQ, GeForce GTX 1060 Mobile, 69 Wh
Gigabyte P55W v7
i7-7700HQ, GeForce GTX 1060 Mobile, 63 Wh
Battery Runtime
-29%
-26%
23%
14%
Reader / Idle
707
363
-49%
386
-45%
501
-29%
789
12%
H.264
312
WiFi v1.3
380
277
-27%
232
-39%
357
-6%
346
-9%
Load
71
64
-10%
75
6%
144
103%
98
38%

Pro

+ Leistungsbereitschaft
+ SSD PCIe
+ Duração da bateria
+ Aquecimento
+ Ruído

Contra

- Carcaça extremamente propensa às digitais
- Pesado
- Desempenho limitado no modo de bateria
- Sem slot para cartão SD
In review: the Lenovo Legion Y720, courtesy of Lenovo Germany.
In review: the Lenovo Legion Y720, courtesy of Lenovo Germany.

A Lenovo teve sucesso com o seu novo Legion Y720 - o portátil para jogos certamente é um concorrente digno. A qualidade de construção é alta e tanto o design quanto o esquema de cores combinam com o público alvo. A única grande desvantagem são as áreas de superfície sensíveis, que são um ímã para as digitais.

Importantes para os jogos são os dispositivos de entrada - em particular o teclado, que impressiona com grandes teclas e iluminação de fundo vermelha. Um desejo para o futuro: deslocamento mais longo das teclas e maior resposta. É claro que a tela também é importante. Aqui, a Lenovo utiliza um painel IPS Full HD, que avaliaríamos acima da média. De acordo com a folha de especificações, a Lenovo também planeja oferecer uma tela 4K. Os usuários que não querem esperar tanto podem querer dar uma olhada no concorrente da MSI

O desempenho também é mais do que aceitável: o Legion Y720 pode se afogar levemente sob uso intenso - mas a concorrência também. O novo portátil se sai bem quando se trata de temperaturas e nível de ruído - o Y720 realmente aproveita suas fortalezas aqui. O portátil para jogos da Lenovo é muito resistente e a duração da bateria também é muito boa.

O Lenovo Legion Y720 é exatamente o que deveria ser: um verdadeiro portátil para jogos.

Por este motivo, é necessário fazer compromissos em outras áreas. Os usuários à procura de um bom portátil para jogos que também podem ser utilizados longe das tomadas com certa frequência irão pelo caminho certo com o Lenovo Legion Y720.

Uma opção um pouco mais móvel - especialmente quando se trata de transporte - é o MSI GS63VR, que também possui uma tela 4K. Os compradores potenciais que não desejam gastar 1700 Euros(~$1865) podem querer dar uma olhada no Acer Aspire V15 Nitro e o Asus FX502VM

Lenovo Lenovo Legion Y720 80VR002XGE - 05/04/2017 v6(old)
Nino Ricchizzi

Acabamento
78 / 98 → 79%
Teclado
80%
Mouse
83%
Conectividade
65 / 81 → 80%
Peso
56 / 10-66 → 82%
Bateria
85%
Pantalha
86%
Desempenho do jogos
91%
Desempenho da aplicação
95%
Temperatura
91 / 95 → 96%
Ruído
88 / 90 → 97%
Audio
54%
Camera
40 / 85 → 46%
Médio
76%
84%
Gaming - Médio equilibrado

Pricecompare

Bernhard Pechlaner
Editor of the original article: Bernhard Pechlaner - Senior Tech Writer - 274 articles published on Notebookcheck since 2012
Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Portátil Lenovo Legion Y720 (7700HQ, Full-HD, GTX 1060)
Nino Ricchizzi, 2017-05-14 (Update: 2017-06- 1)
