Desempenho e eficiência: Análise do Mini-PC Alliwava H90 Pro com APU AMD Ryzen 7

O Alliwava H90 Pro promete um desempenho potente em um formato mini: com o Ryzen 7 8745HS, placa de vídeo Radeon 780M, RAM DDR5 e SSD PCIe, ele deve oferecer muita potência apesar de seu design compacto - e por cerca de US$ 500. Testamos se o pequeno PC cumpre o que as especificações prometem.
Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy) Publicado 10/30/2025 🇺🇸 🇩🇪 ...
Mini PC Desktop AMD Ryzen (Zen) Radeon

Veredicto - Mini PC eficiente com potência do Ryzen 7 a um preço justo

O Alliwava H90 Pro impressiona como um minicomputador compacto e eficiente, com acabamento sólido e desempenho equilibrado. O AMD Ryzen 7 8745HS oferece potência suficiente para aplicativos de escritório, reprodução de mídia e jogos leves, enquanto o sistema permanece predominantemente silencioso e econômico graças ao baixo consumo de energia. A carcaça combina alumínio e plástico e se destaca pelo acabamento sólido e pelo design simples e elegante. É uma pena que faltem conexões modernas, como USB4 ou OCuLink, e que a Radeon 780M integrada não possa explorar todo o seu potencial. No entanto, o mini PC oferece um pacote geral muito coerente em sua faixa de preço abaixo de 500 euros e, portanto, é uma opção interessante para a mesa de trabalho ou para o escritório doméstico.

Pro

+ carcaça simples e compacta

+ Bom desempenho do sistema com baixo consumo de energia

+ Eficiente em termos de energia e adequado para o uso diário

+ wLAN rápida

+ 32 GB DE RAM DDR5

+ LAN 2.5G dupla

+ sem ruído incômodo da ventoinha

Contra

- Sem interfaces modernas (USB4, OCuLink)

- iGPU com desempenho limitado para jogos

- apenas um dispositivo de armazenamento em massa pode ser instalado

- opções limitadas de BIOS

Preço e disponibilidade

O Alliwava H90 Pro pode ser adquirido do fabricante https://www.alliwava.de/en/products/h90pro?srsltid=AfmBOoonGINYEg5UKIJOhBn--MrZ9eDob_qo0RT4sOfi3Odk0u-tKmbG&shpxid=da5a2796-7cbf-4a1e-a230-199f796337a5&variant=45137312940226 por US$ 579. Com o código "60DSAWXAWR", o senhor pode economizar 60 dólares adicionais na loja do fabricante.

Índice

Veredicto - Mini PC eficiente com potência do Ryzen 7 a um preço justo
Especificações
Estojo e conectividade
Processador - Ryzen 7 8745HS com 8 núcleos, mas sem NPU
Desempenho do sistema e armazenamento em massa
Placa de vídeo e desempenho em jogos - AMD Radeon 780M
Emissões
Gerenciamento de energia
Classificação do Notebookcheck
Possíveis alternativas em comparação

O Alliwava H90 Pro é um mini PC compacto e potente equipado com um AMD Ryzen 7 8745HS. Esse processador é baseado na arquitetura Zen 4 e oferece 8 núcleos e 16 threads - ideal para multitarefa, aplicativos exigentes e jogos leves. Nosso dispositivo de teste também tem 32 GB de RAM e um SSD de 1 TB, permitindo que o SoC libere toda a sua potência graças à generosa configuração de memória.

Especificações

Alliwava H90 Pro

Processador

AMD Ryzen 7 8745HS 8 x 3.8 - 4.9 GHz, 54 W PL2 / Short Burst, 35 W PL1 / Sustained, Hawk Point-HS (Zen 4)

Placa gráfica

AMD Radeon 780M, Adrenalin 25.9.2

Memória

32 GB

, DDR5, 4.800 MT/s

placa mãe

AMD Promontory/Bixby FCH

Placa de Som

AMD Zen - Audio Processor - HD Audio Controller

Conexões

1 USB 2.0, 3 USB 3.0, 1 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 2 DisplayPort, 2nd Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Funcionamento em rede

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 52 x 130 x 127.5

Sistema Operativo

Microsoft Windows 11 Pro

peso

470 g, Suprimento de energia: 289 g

Preço

479 Euro

Nota: O fabricante pode utilizar componentes de diferentes fornecedores, incluindo painéis de exibição, unidades ou cartões de memória com especificações semelhantes.

veja todas as especificações

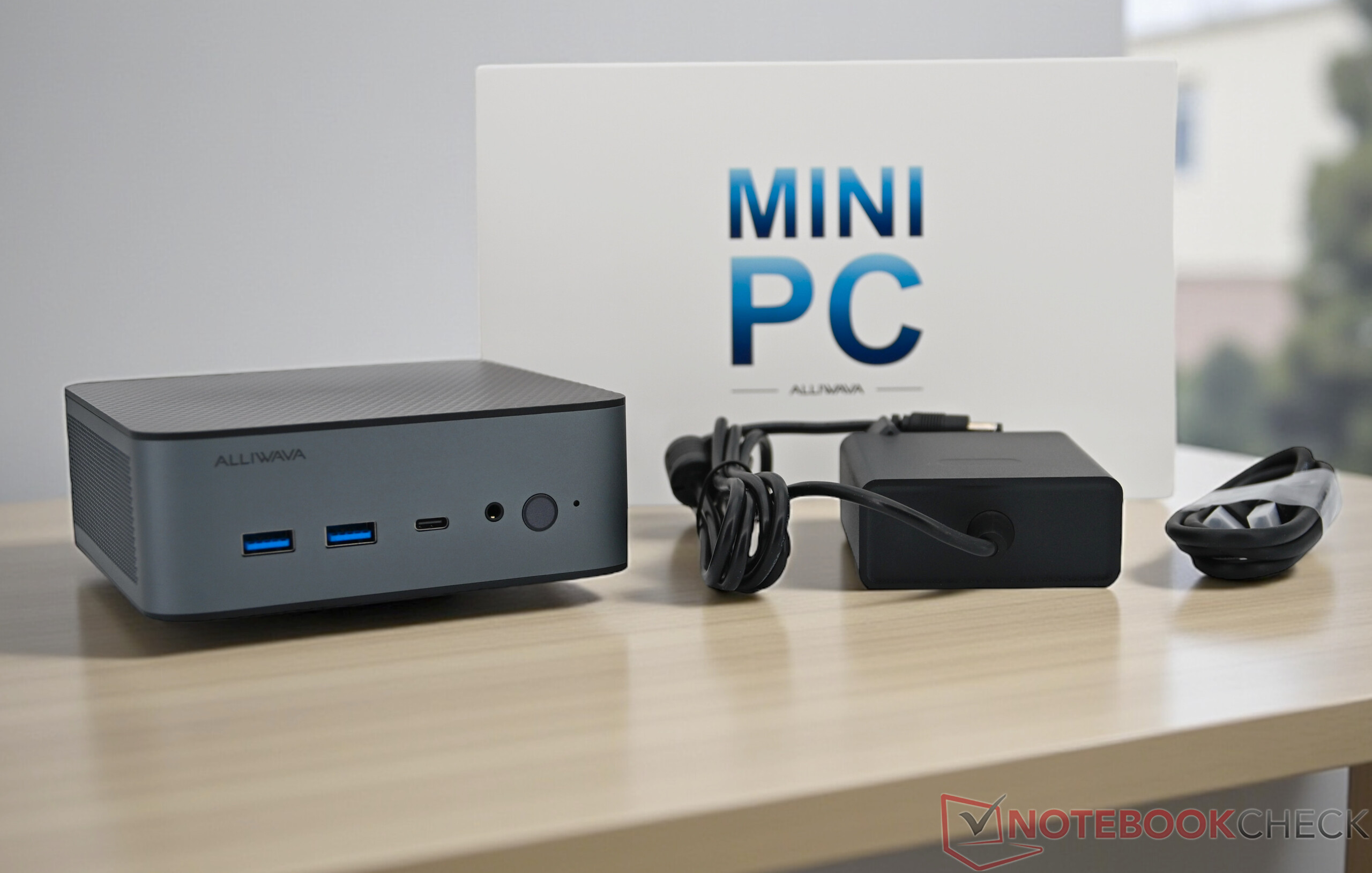

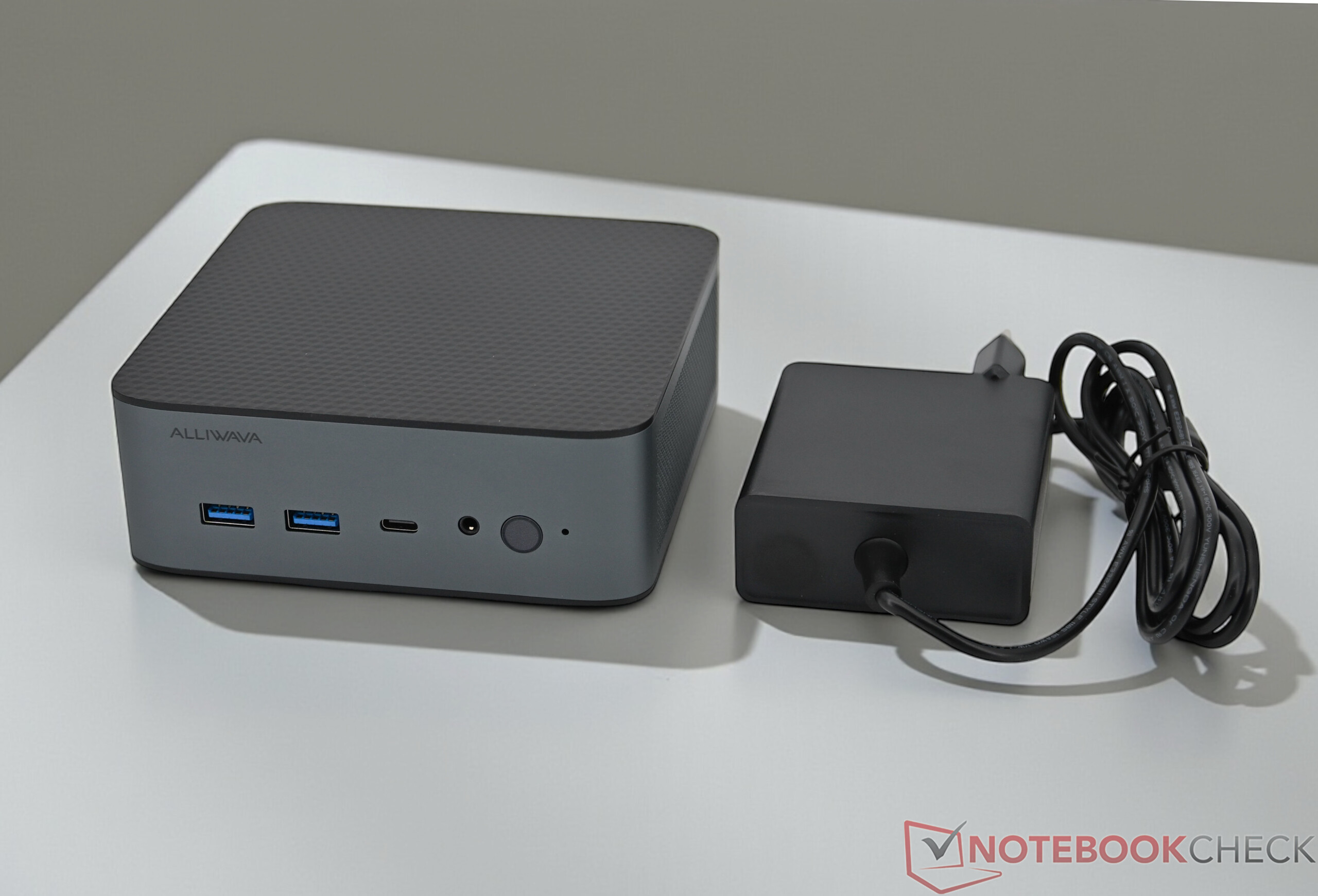

Alliwava H90 Pro com unidade de fonte de alimentação (19 V; 6,3 A)

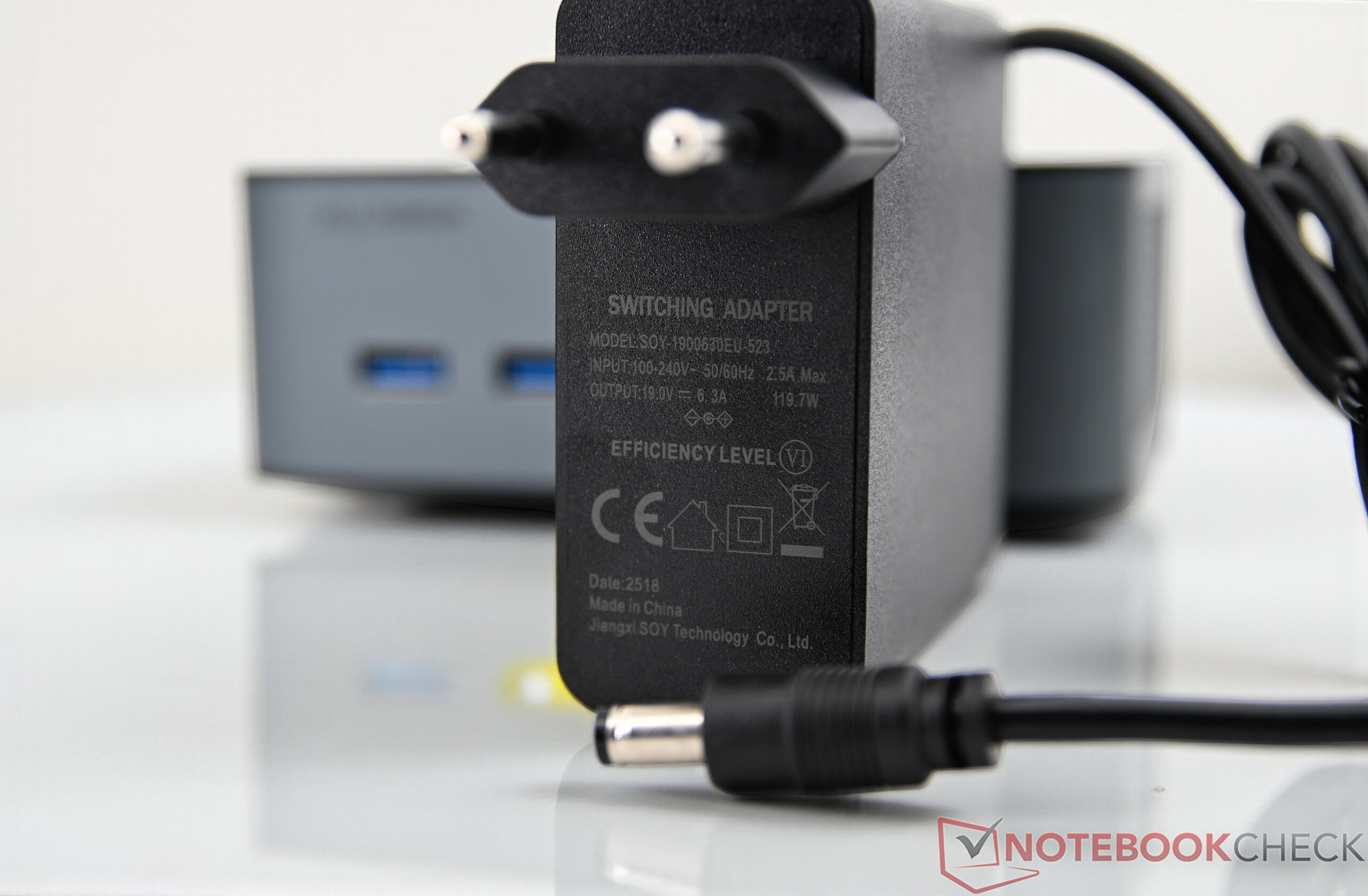

Unidade de fonte de alimentação (19 V; 6,3 A)

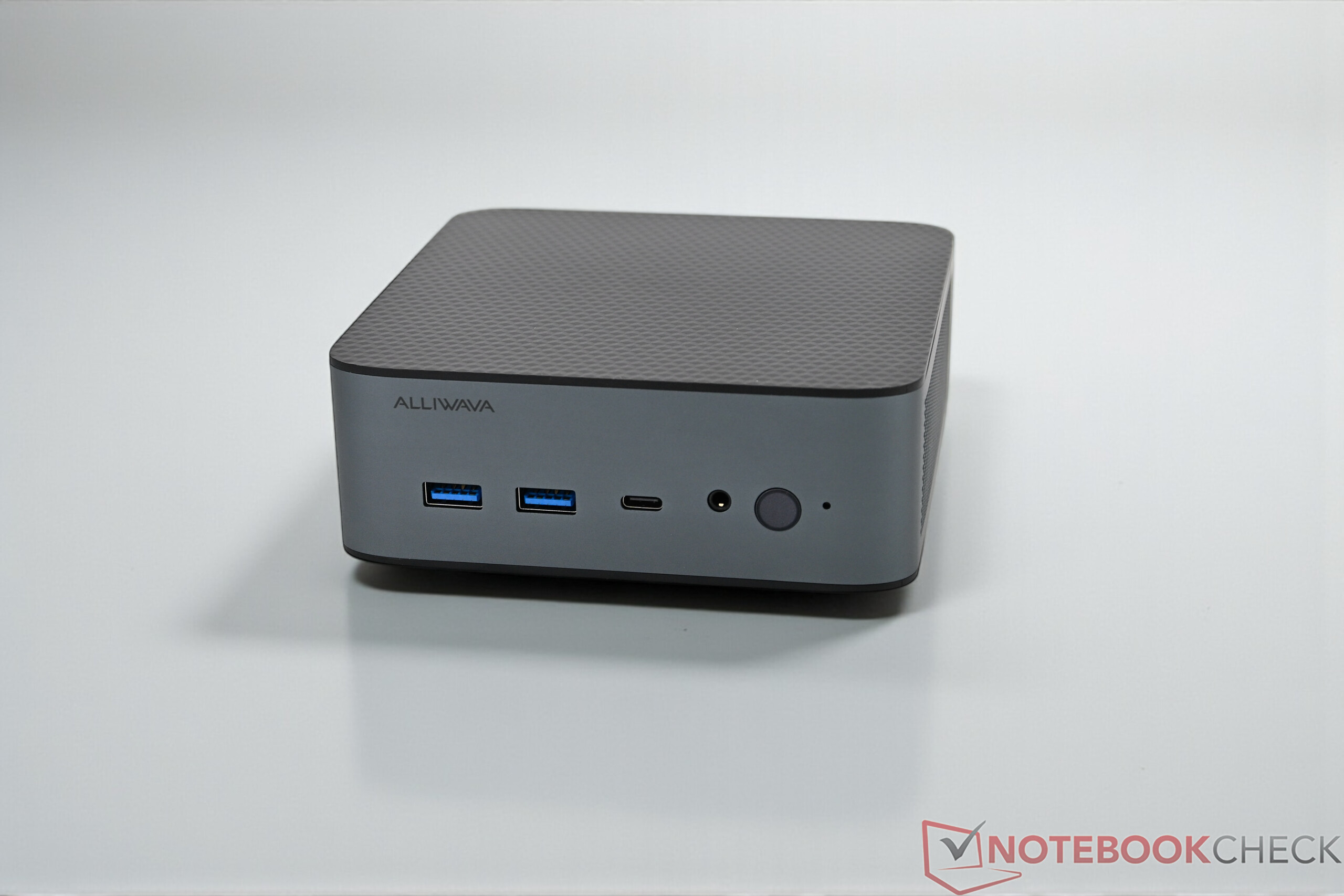

Estojo e conectividade

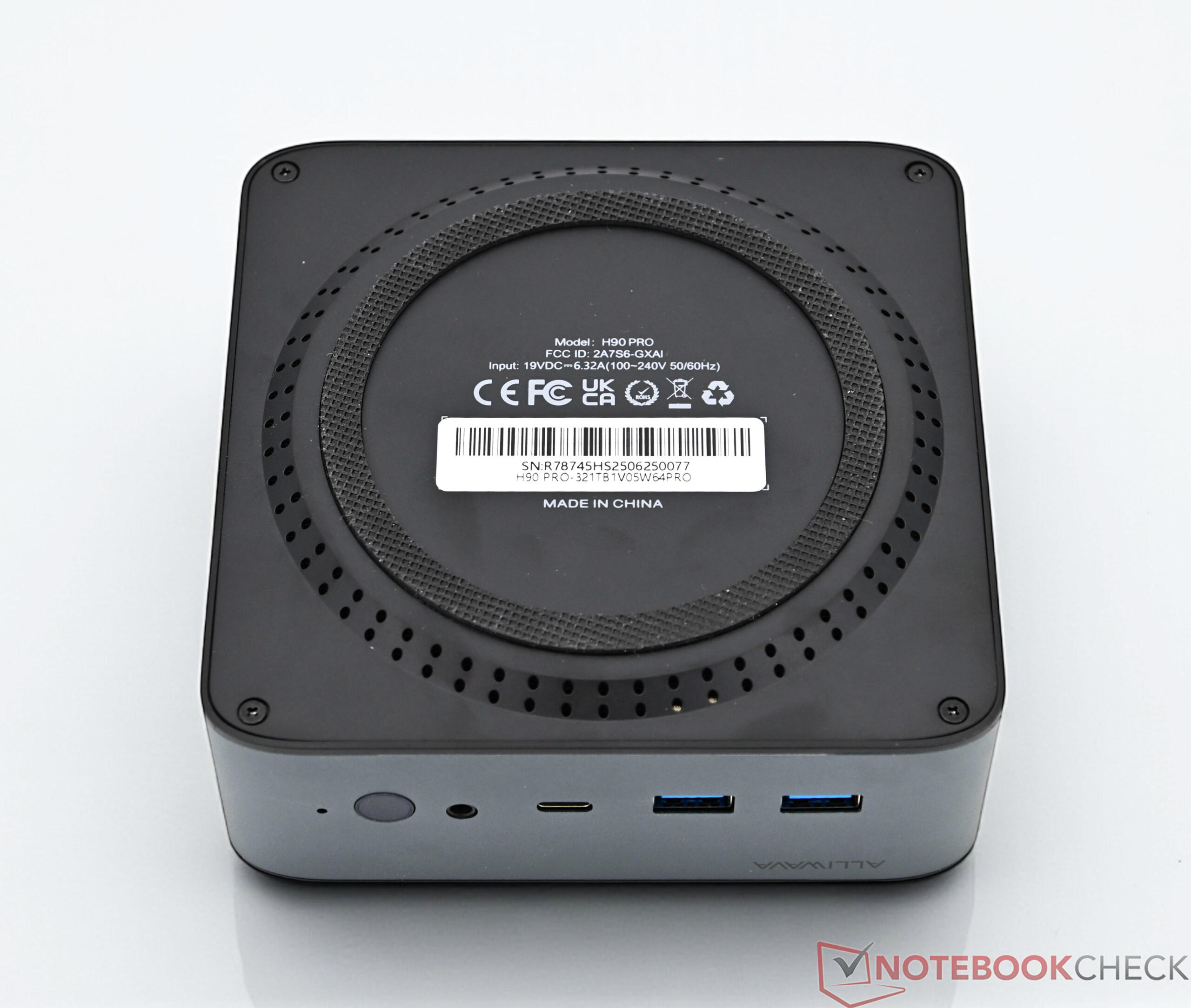

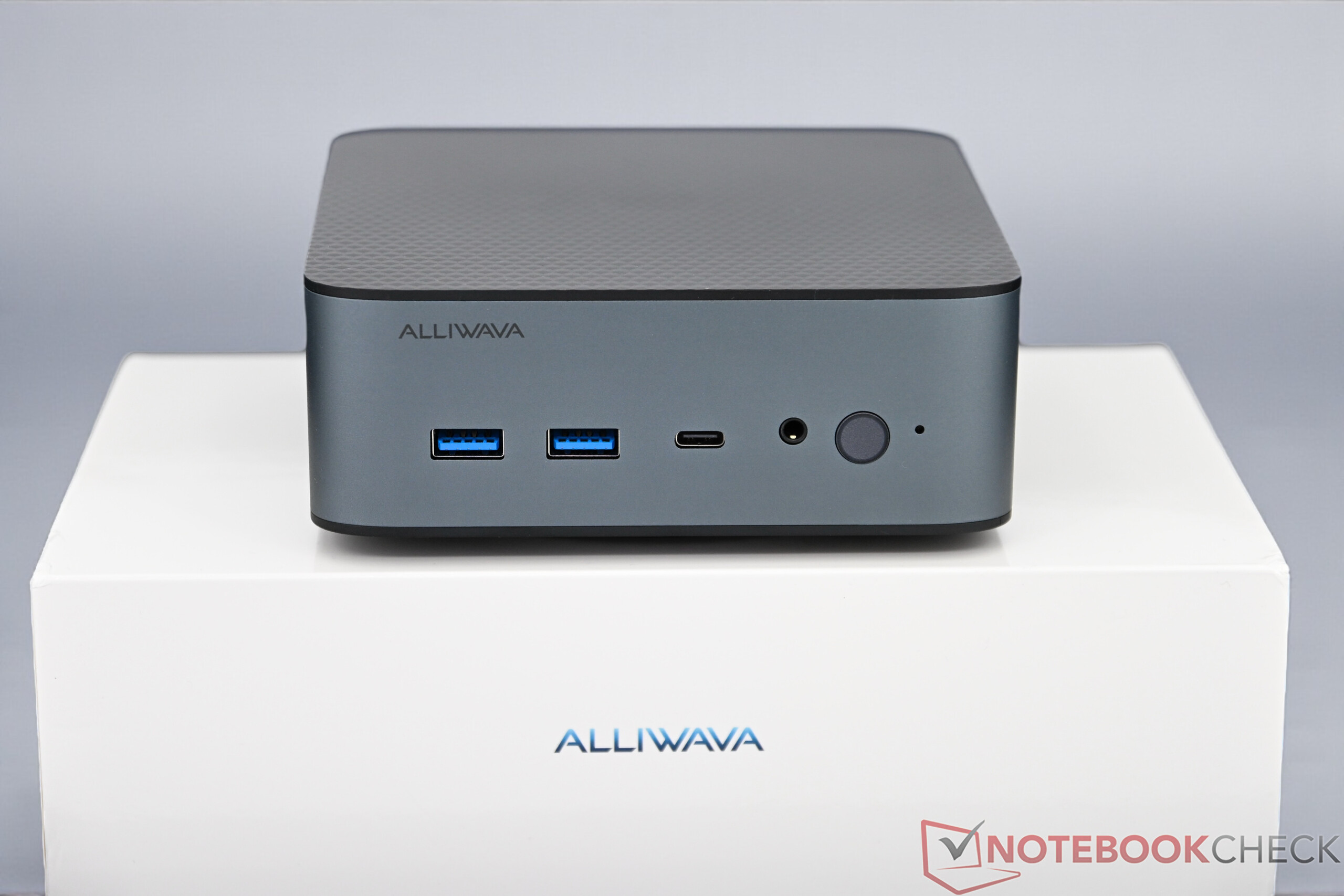

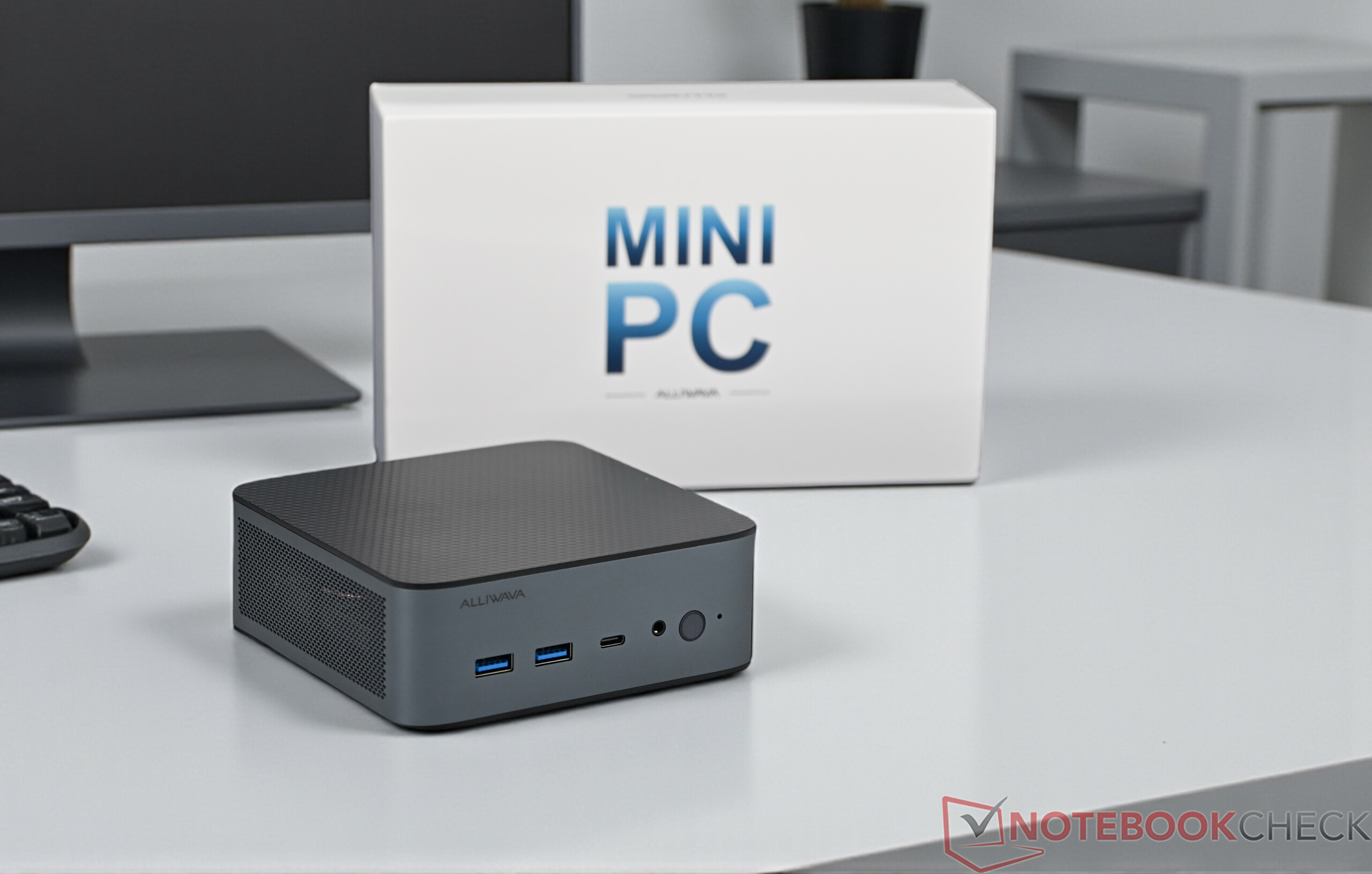

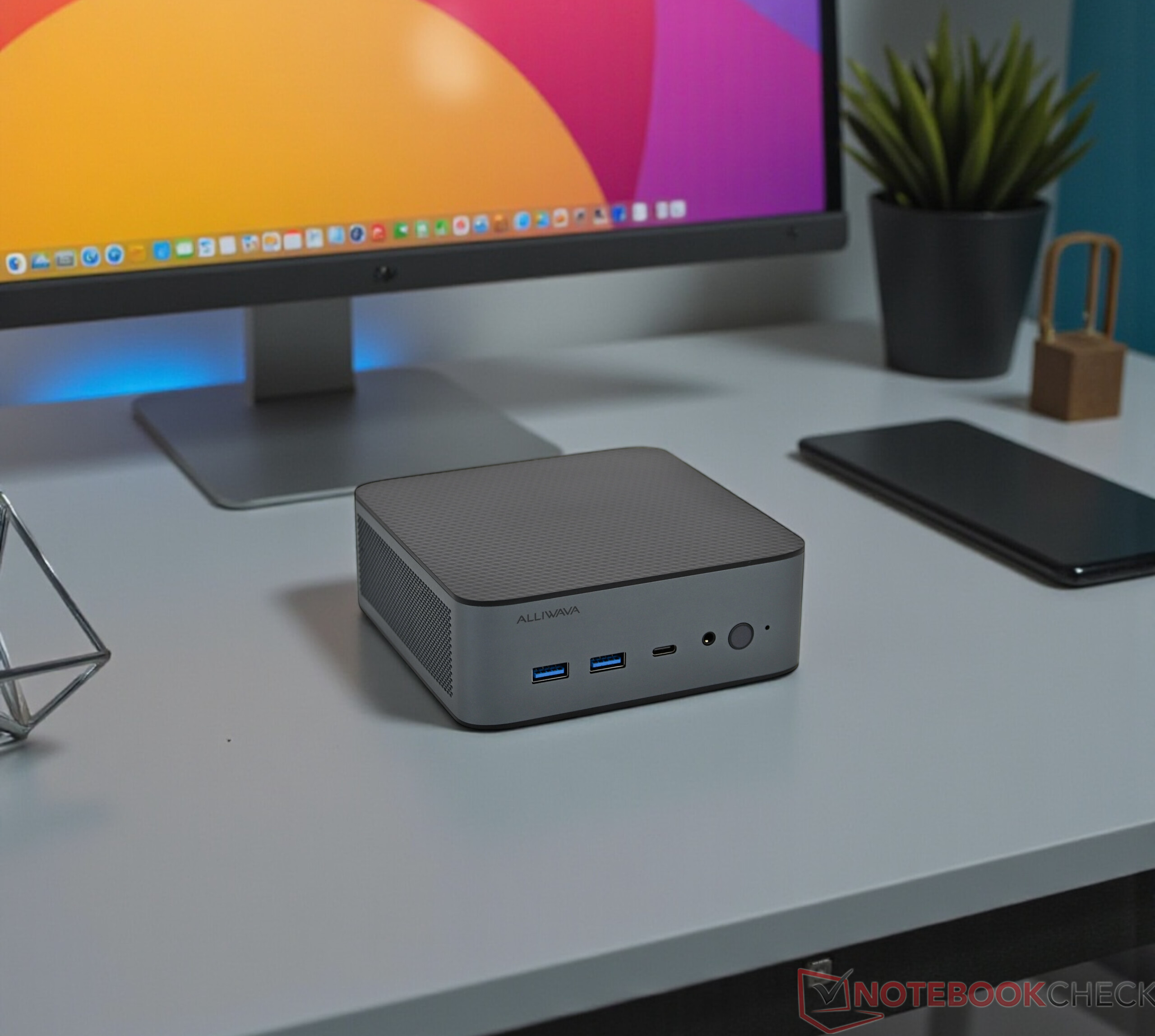

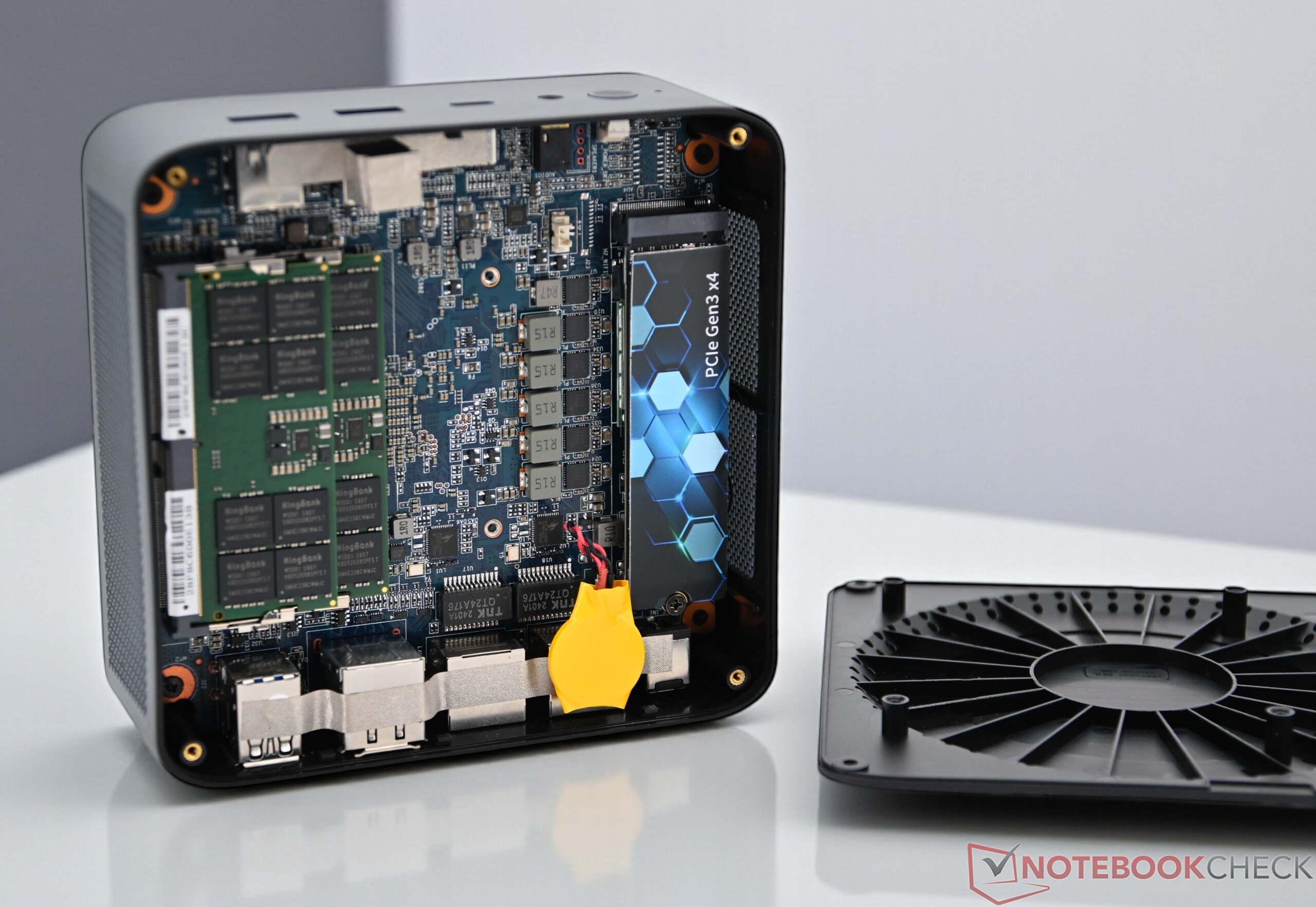

O Alliwava H90 Pro vem em uma caixa de alumínio de alta qualidade com dimensões compactas e peso de cerca de 500 gramas. Enquanto a base é feita de alumínio, a tampa da caixa e a parte inferior são feitas de plástico, o que não prejudica a impressão geral de solidez e alta qualidade. As conexões estão sensivelmente distribuídas na parte frontal e traseira e oferecem uma boa seleção para o uso diário no escritório ou no ambiente doméstico. Entretanto, as interfaces modernas, como USB4 ou OCuLink, devem ser dispensadas. Mesmo assim, o Alliwava H90 Pro pode controlar até três monitores simultaneamente. Seu equipamento de rede com duas portas LAN de 2,5 gigabits e WLAN rápida também estão entre os pontos fortes desse mini PC compacto do Extremo Oriente.

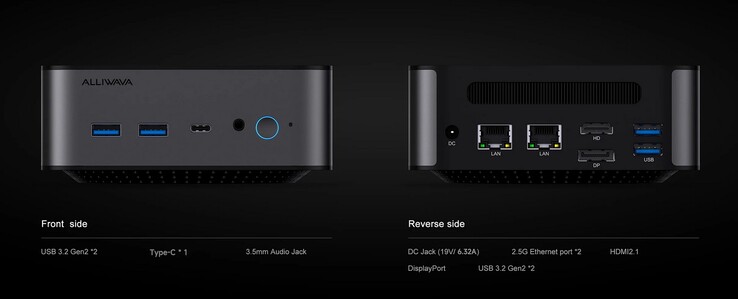

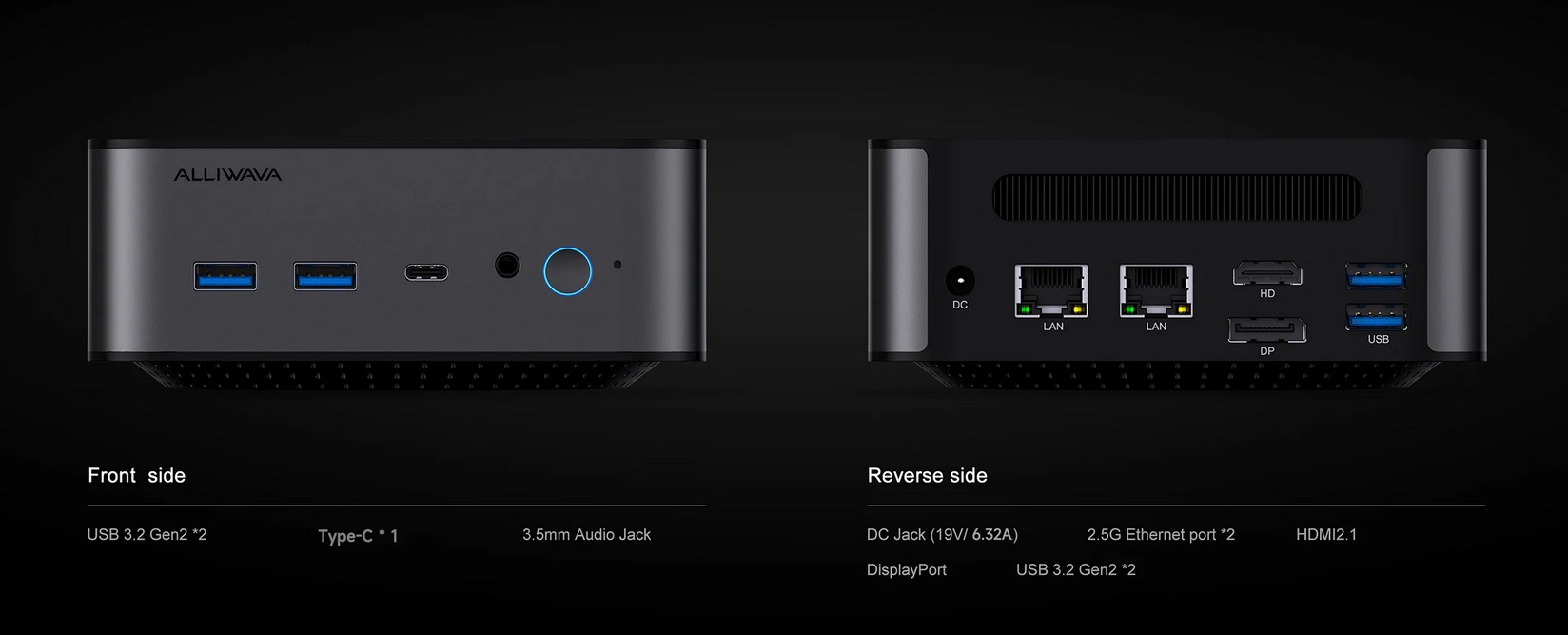

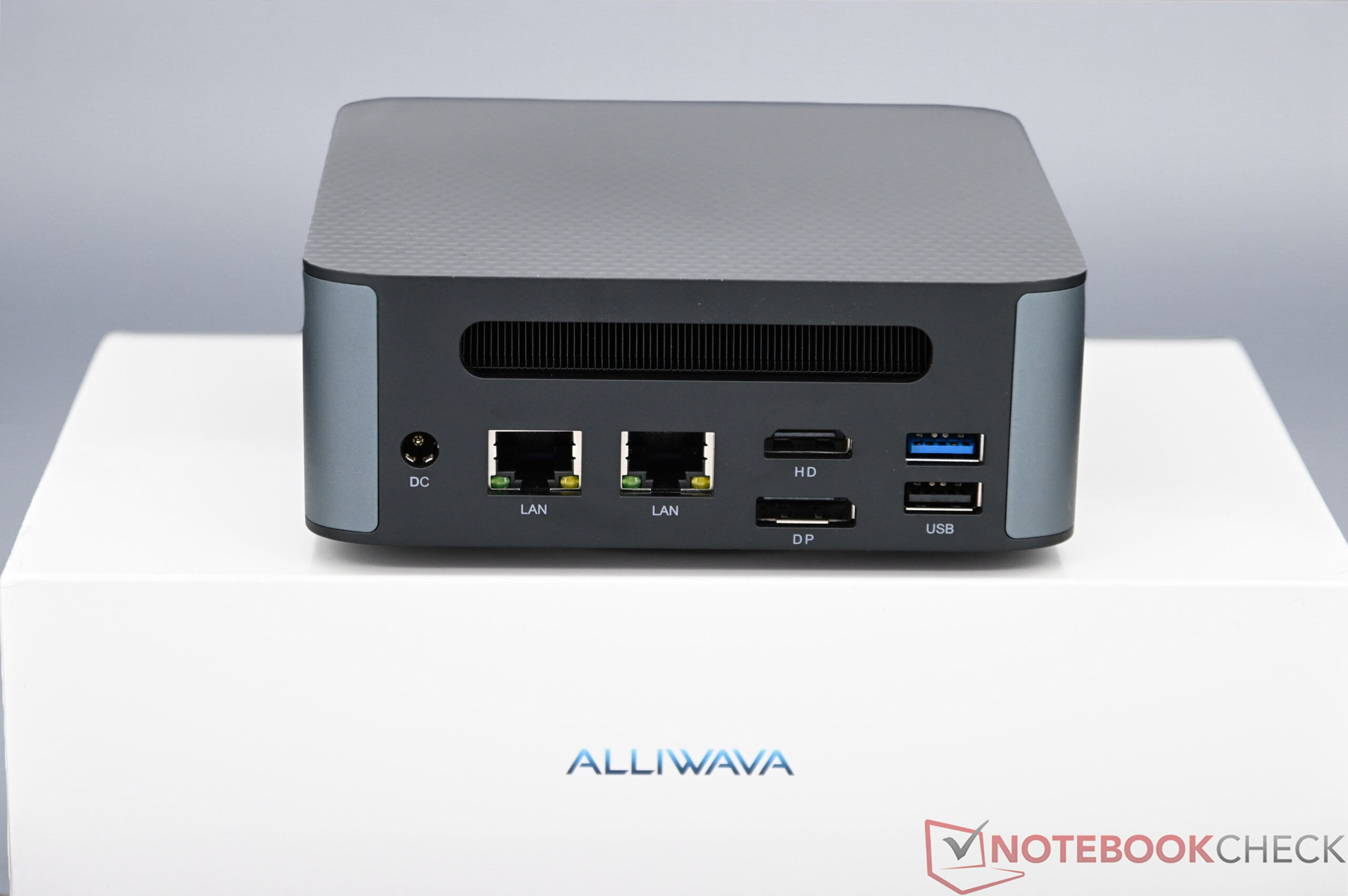

As interfaces externas do Alliwava H90 Pro (Fonte: Alliwava)

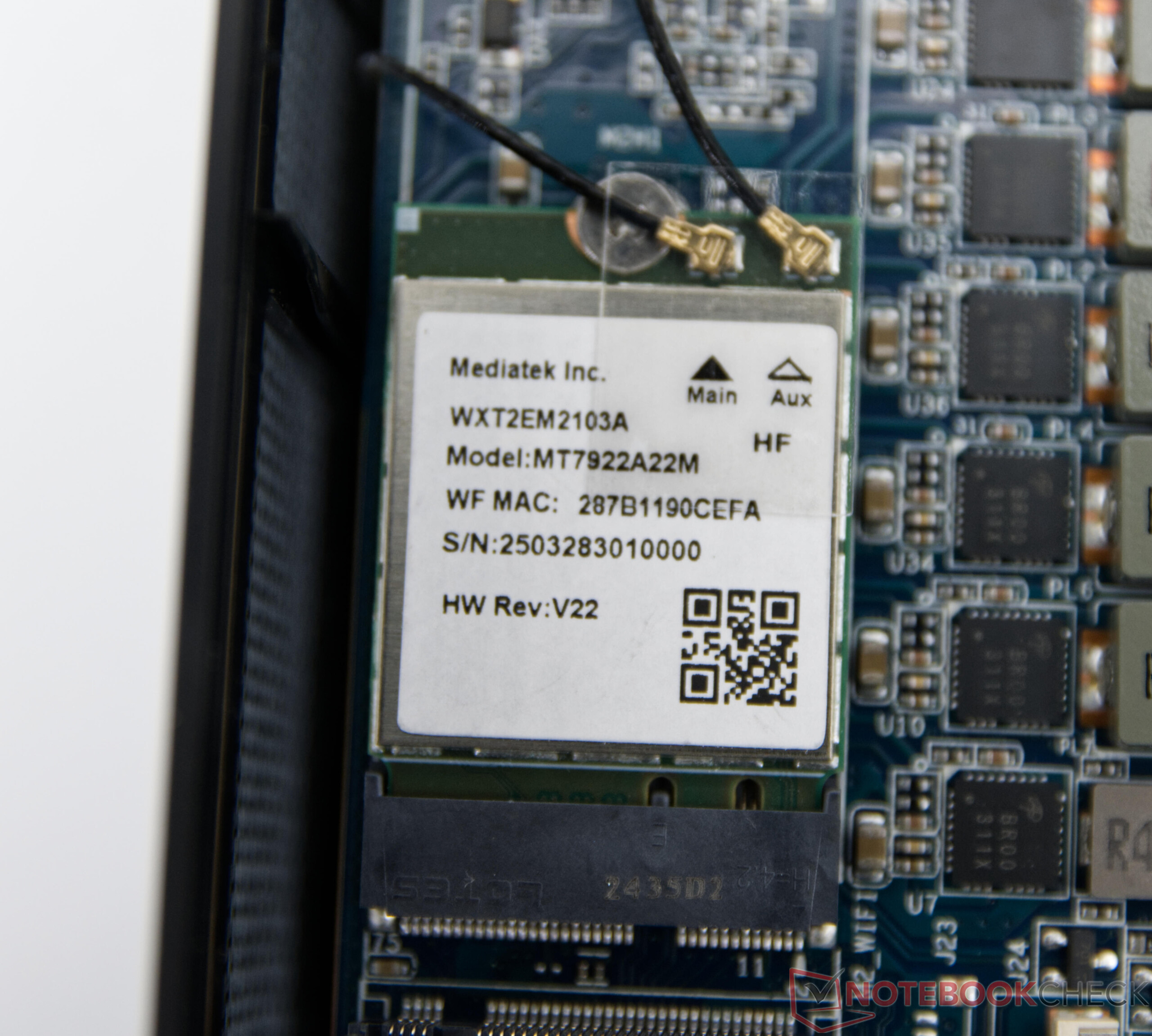

Desempenho do Wi-Fi

Networking
iperf3 receive AXE11000 6GHz
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1754 (1718^min - 1770^max) MBit/s +2%
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1722 (1502^min - 1771^max) MBit/s
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1716 (1560^min - 1782^max) MBit/s 0%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1702 (1657^min - 1730^max) MBit/s -1%
Média da turma Mini PC (684 - 1814, n=56, últimos 2 anos)	1527 MBit/s -11%
Média MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=54)	1466 MBit/s -15%
iperf3 transmit AXE11000 6GHz
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1721 (1649^min - 1781^max) MBit/s
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1546 (759^min - 1594^max) MBit/s -10%
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1464 (1344^min - 1577^max) MBit/s -15%
Média da turma Mini PC (394 - 1887, n=57, últimos 2 anos)	1458 MBit/s -15%
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1440 (1352^min - 1553^max) MBit/s -16%
Média MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1890, n=52)	1417 MBit/s -18%
iperf3 receive AXE11000
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (881^min - 1786^max) MBit/s +8%
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1773 (1750^min - 1795^max) MBit/s +8%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1716 (1642^min - 1755^max) MBit/s +4%
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1649 (1616^min - 1676^max) MBit/s
Média MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (644 - 1775, n=76)	1404 MBit/s -15%
Média da turma Mini PC (267 - 1775, n=95, últimos 2 anos)	1051 MBit/s -36%
Chuwi Aubox, R7 8745HS Realtek RTL8852BE	969 (950^min - 982^max) MBit/s -41%
iperf3 transmit AXE11000
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1720 (1653^min - 1796^max) MBit/s +2%
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1679 (841^min - 1807^max) MBit/s
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1643 (1516^min - 1705^max) MBit/s -2%
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1609 (1365^min - 1726^max) MBit/s -4%
Média MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=75)	1305 MBit/s -22%
Média da turma Mini PC (251 - 1811, n=95, últimos 2 anos)	982 MBit/s -42%
Chuwi Aubox, R7 8745HS Realtek RTL8852BE	748 (722^min - 769^max) MBit/s -55%

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1721 (1649-1781)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1464 (1344-1577)

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1721 (1502-1771)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1754 (1718-1770)

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1648 (1616-1676)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1745 (881-1786)

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1650 (841-1807)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1720 (1653-1796)

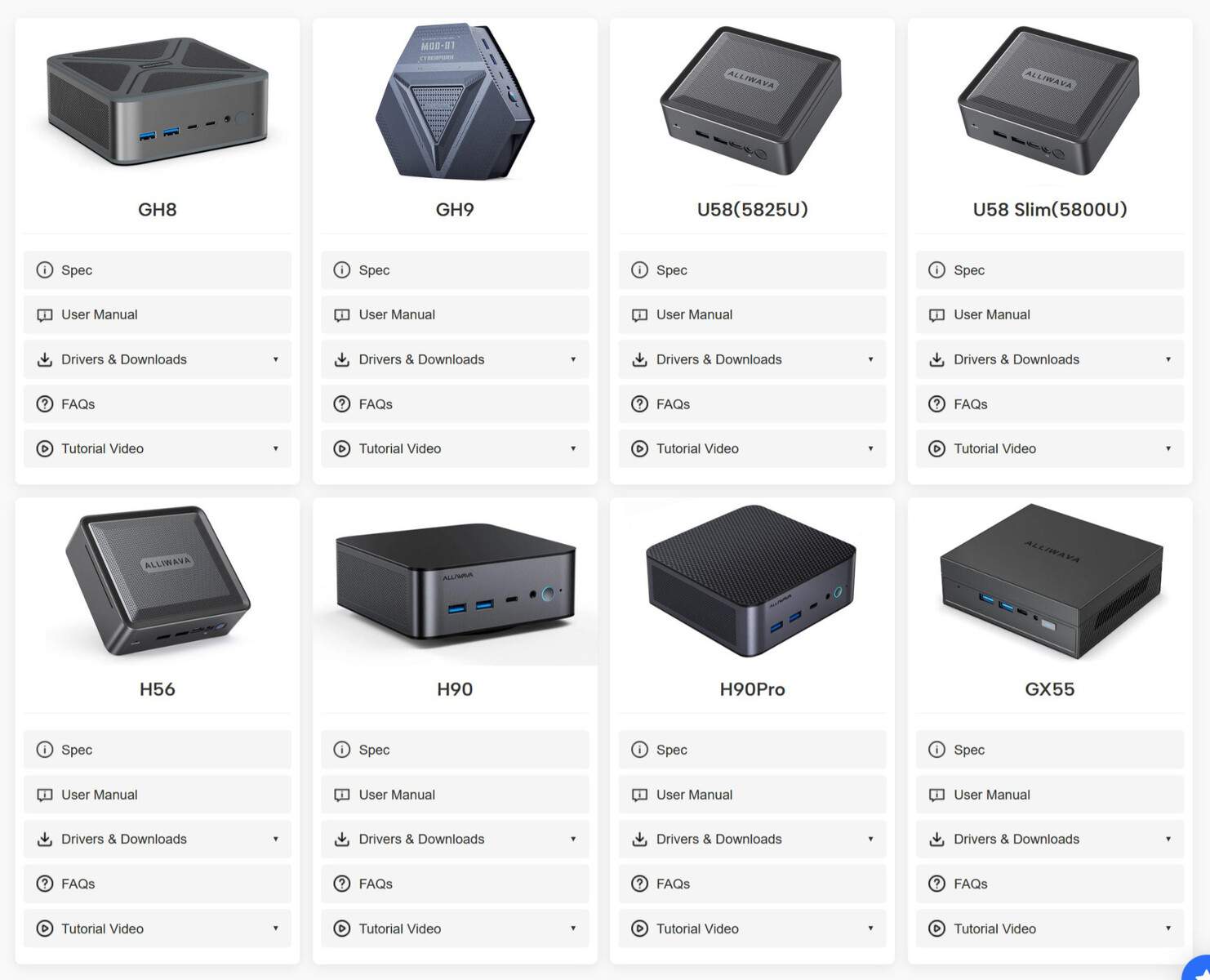

Suporte

O fabricante Alliwava respondeu às críticas anteriores e fez melhorias. A página de suporte foi revisada e os pacotes de drivers agora podem ser baixados diretamente de um provedor de nuvem sem registro prévio. A Alliwava também oferece uma garantia de 24 meses para as compras. De modo geral, a área de suporte agora é muito mais amigável ao cliente e mais clara, o que torna a configuração e a manutenção do Alliwava H90 Pro visivelmente mais fácil.

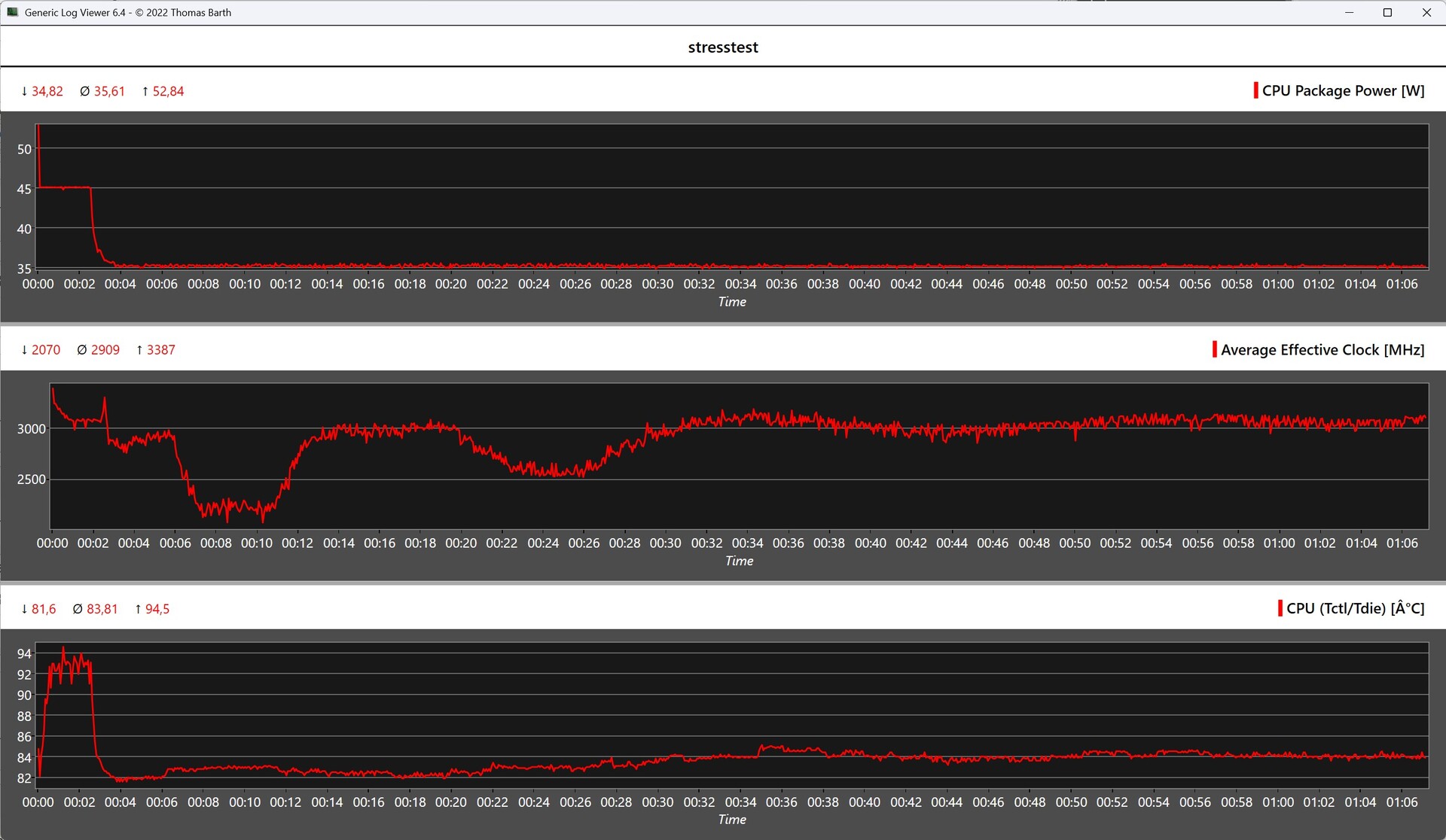

Processador - Ryzen 7 8745HS com 8 núcleos, mas sem NPU

O Alliwava H90 Pro é equipado com o poderoso AMD Ryzen 7 8745HS um processador de 8 núcleos baseado na arquitetura Zen 4. Em contraste com os modelos maiores, como o Ryzen 7 8845HS ou Ryzen 9 8945HS o 8745HS não tem uma NPU dedicada para acelerar os aplicativos de IA. Os usuários que trabalham especificamente com cargas de trabalho de IA devem, portanto, optar por um modelo com uma unidade de IA integrada. Nos testes de desempenho, o Alliwava H90 Pro está posicionado logo atrás do Chuwi Aubox, que também é equipado com o Ryzen 7 8745HS.

Performance rating - Percent
BOSGAME M4 Neo AMD Ryzen 7 7840HS	51.9 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	49.8 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	48.1 pt
Geekom XT13 Pro Intel Core i9-13900H	48.1 pt
Alliwava H90 Pro AMD Ryzen 7 8745HS	47.4 pt
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	46 pt

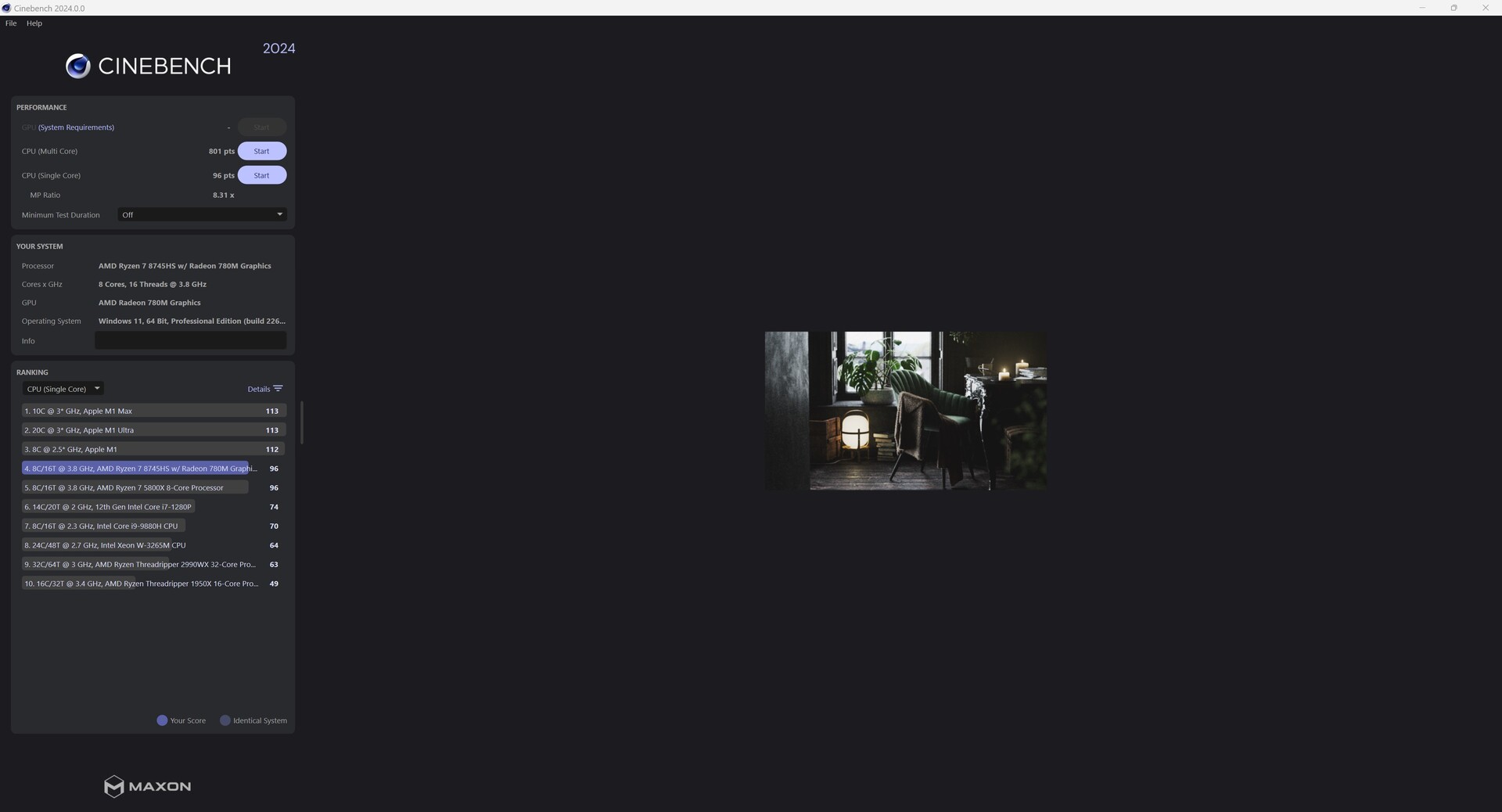

Cinebench 2024
CPU Multi Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	888 Points +11%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	869 Points +8%
Alliwava H90 Pro AMD Ryzen 7 8745HS	801 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	708 Points -12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	698 Points -13%
Geekom XT13 Pro Intel Core i9-13900H	680 Points -15%
CPU Single Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	105 Points +9%
Geekom XT13 Pro Intel Core i9-13900H	103 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	103 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	101 Points +5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	98 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	96 Points

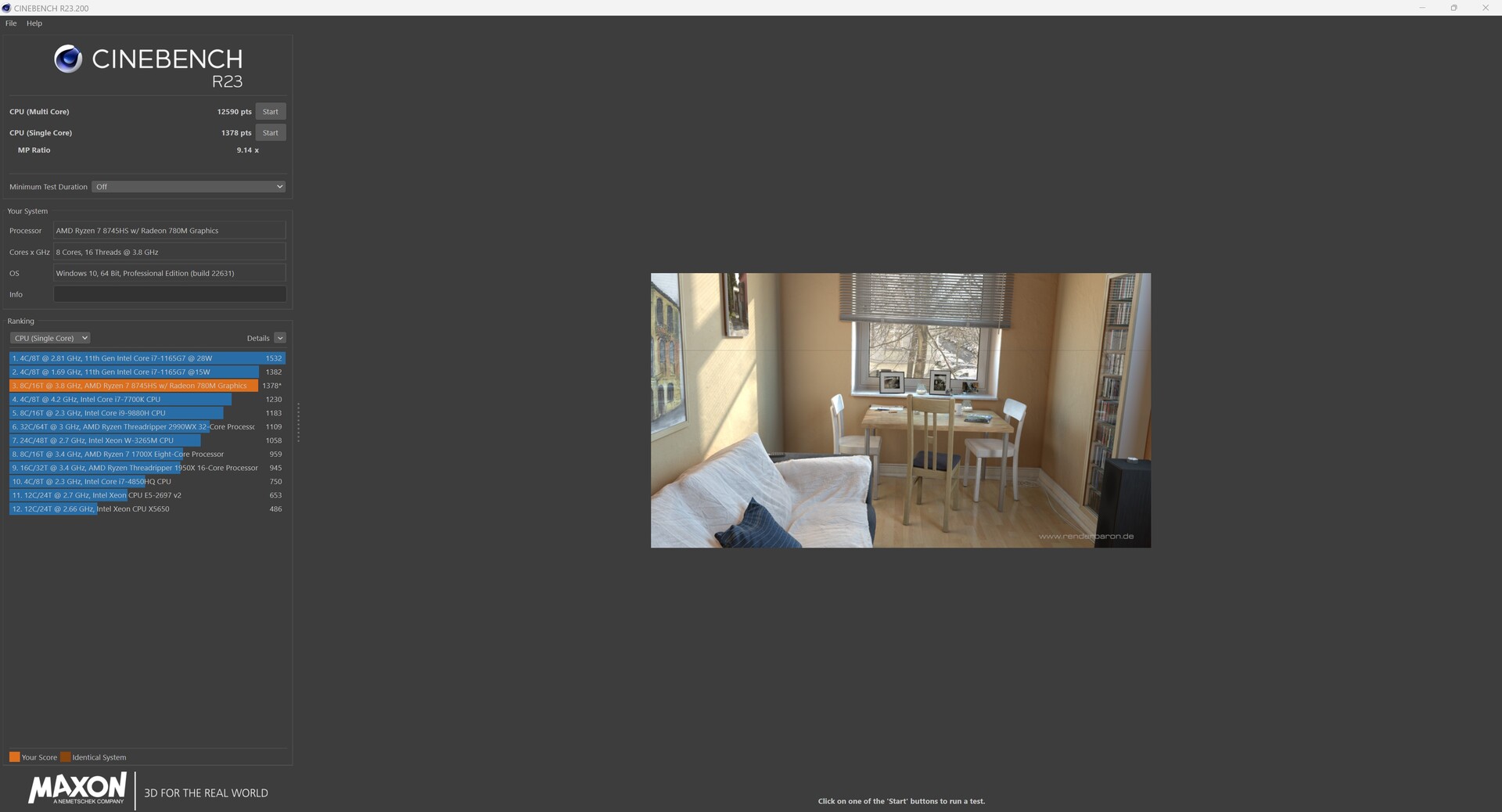

Cinebench R23
Multi Core
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	16236 Points +29%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	15533 Points +23%
Alliwava H90 Pro AMD Ryzen 7 8745HS	12590 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	12079 Points -4%
Geekom XT13 Pro Intel Core i9-13900H	11997 Points -5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	11694 Points -7%
Single Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1762 Points +28%
Geekom XT13 Pro Intel Core i9-13900H	1719 Points +25%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1716 Points +25%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1701 Points +23%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1614 Points +17%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1378 Points

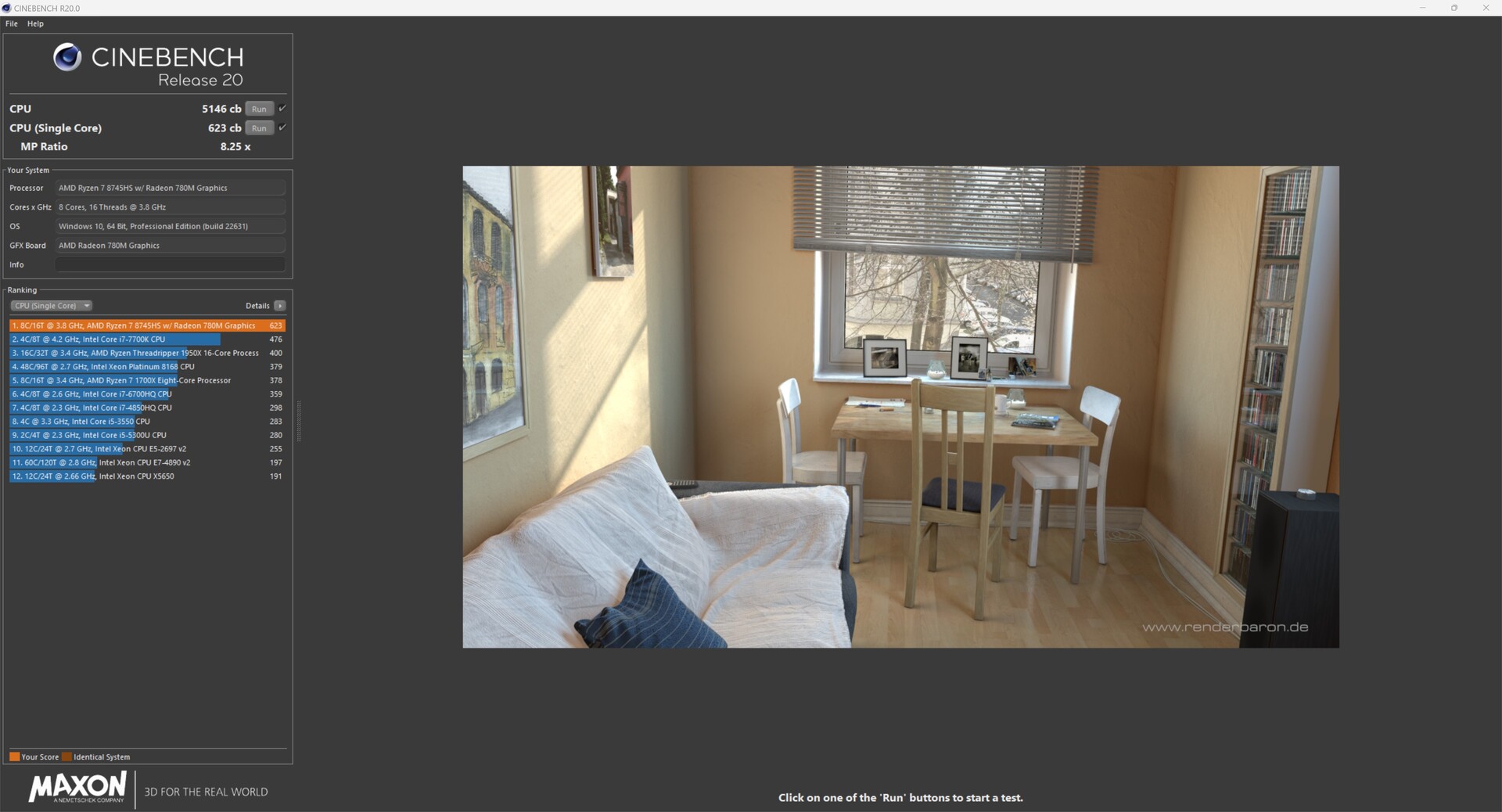

Cinebench R20
CPU (Multi Core)
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6351 Points +23%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6254 Points +22%
Alliwava H90 Pro AMD Ryzen 7 8745HS	5146 Points
Geekom XT13 Pro Intel Core i9-13900H	4935 Points -4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	4842 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	4734 Points -8%
CPU (Single Core)
BOSGAME M4 Neo AMD Ryzen 7 7840HS	677 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	666 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	658 Points +6%
Geekom XT13 Pro Intel Core i9-13900H	649 Points +4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	631 Points +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	623 Points

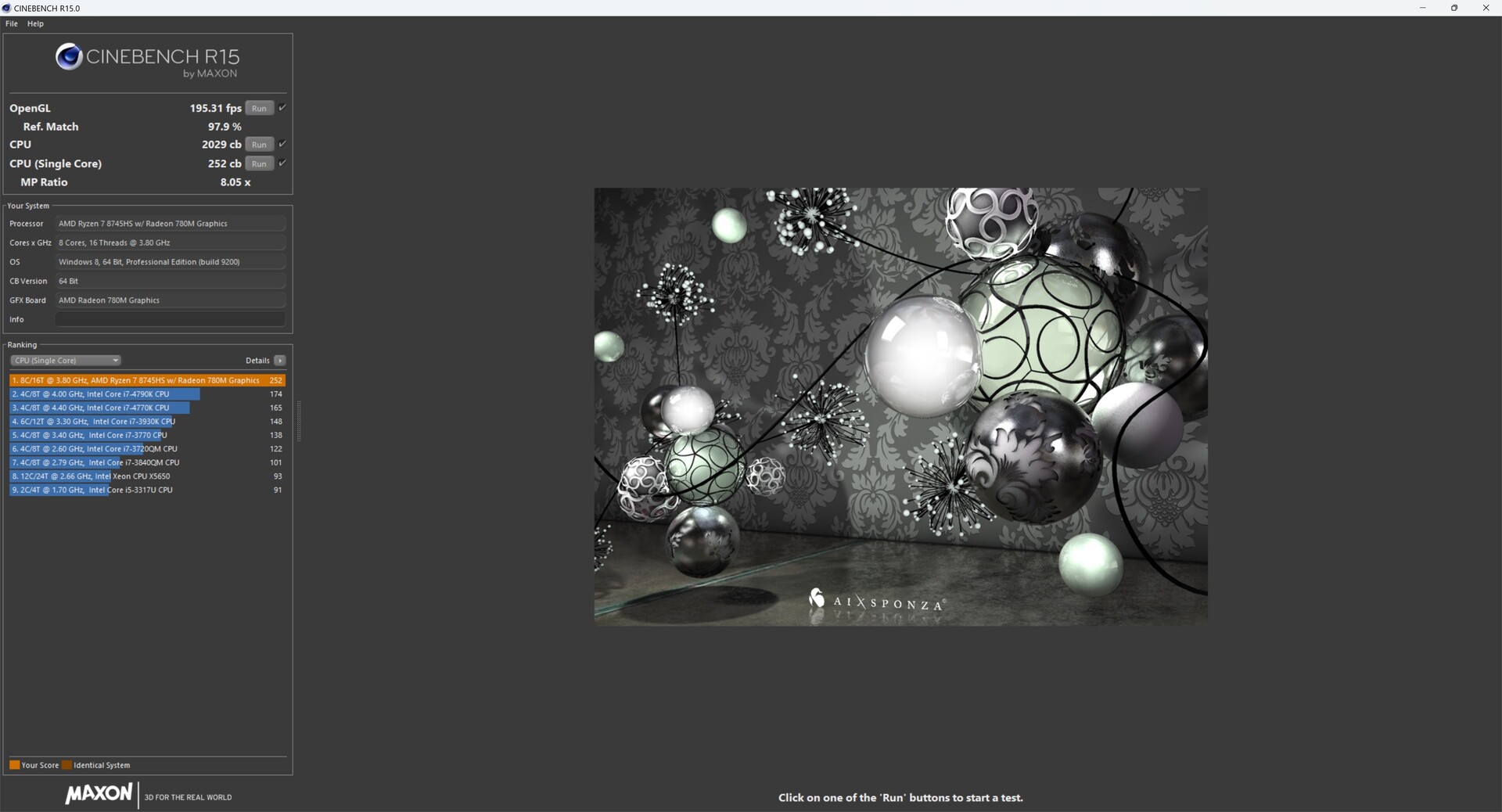

Cinebench R15
CPU Multi 64Bit
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2578 Points +27%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2508 Points +24%
Geekom XT13 Pro Intel Core i9-13900H	2448 Points +21%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2029 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2026 Points 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1877 Points -7%
CPU Single 64Bit
BOSGAME M4 Neo AMD Ryzen 7 7840HS	270 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	268 Points +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	263 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	252 Points
Geekom XT13 Pro Intel Core i9-13900H	245 Points -3%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	234 Points -7%

Cinebench R11.5
CPU Multi 64Bit
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	30.54 Points +20%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	29.59 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	28.47 Points +12%
Alliwava H90 Pro AMD Ryzen 7 8745HS	25.37 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	23.82 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22.33 Points -12%
CPU Single 64Bit
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.29 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.2 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3.18 Points +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3 Points
Geekom XT13 Pro Intel Core i9-13900H	2.93 Points -2%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2.83 Points -6%

Cinebench R10
Rendering Single CPUs 64Bit
BOSGAME M4 Neo AMD Ryzen 7 7840HS	14197 Points +6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	13966 Points +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	13867 Points +4%
Geekom XT13 Pro Intel Core i9-13900H	13515 Points +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	13388 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	12885 Points -4%
Rendering Multiple CPUs 64Bit
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	86842 Points +19%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	84973 Points +16%
Geekom XT13 Pro Intel Core i9-13900H	76558 Points +5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	72982 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	71955 Points -1%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	66662 Points -9%

Blender
v2.79 BMW27 CPU
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	266 Seconds * -9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	265 Seconds * -9%
Geekom XT13 Pro Intel Core i9-13900H	261 Seconds * -7%
Alliwava H90 Pro AMD Ryzen 7 8745HS	244 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	201 Seconds * +18%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	197 Seconds * +19%
v3.3 Classroom CPU
Geekom XT13 Pro Intel Core i9-13900H	475 Seconds * -21%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	475 Seconds * -21%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	434 Seconds * -10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	393 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	328 Seconds * +17%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	308 Seconds * +22%
v4.3 Barbershop CPU
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2448 Seconds * -28%
Geekom XT13 Pro Intel Core i9-13900H	2411 Seconds * -26%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2112 Seconds * -10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1912 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1601 Seconds * +16%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1549 Seconds * +19%

wPrime 2.10
32m
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	4.153 s * -28%
Geekom XT13 Pro Intel Core i9-13900H	3.521 s * -9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.406 s * -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.244 s * -0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3.235 s *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2.895 s * +11%
1024m
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	632.336 s * -647%
Geekom XT13 Pro Intel Core i9-13900H	429.446 s * -407%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	94.412 s * -11%
Alliwava H90 Pro AMD Ryzen 7 8745HS	84.679 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	75.535 s * +11%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	70.237 s * +17%

X264 HD Benchmark 4.0
Pass 1
Geekom XT13 Pro Intel Core i9-13900H	297.5 (283^min - 313^max) fps +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	282.5 (279^min - 287^max) fps +11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	280 (278^min - 288^max) fps +10%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	265.5 (265^min - 269^max) fps +4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	263 (254^min - 283^max) fps +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	255 (251^min - 256^max) fps
Pass 2
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	147.6 (147.1^min - 149.1^max) fps +22%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	142.85 (140.6^min - 147.6^max) fps +18%
Alliwava H90 Pro AMD Ryzen 7 8745HS	121 (119.6^min - 123.7^max) fps
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	111.6 (111^min - 113.5^max) fps -8%
Geekom XT13 Pro Intel Core i9-13900H	110.15 (104.3^min - 134.9^max) fps -9%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	109.9 (107.5^min - 116^max) fps -9%

WinRAR - Result
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7397 KB/s +5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	7387 KB/s +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7271 KB/s +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7033 KB/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6655 KB/s -5%
Geekom XT13 Pro Intel Core i9-13900H	6365 KB/s -9%

TrueCrypt
AES Mean 100MB
Geekom XT13 Pro Intel Core i9-13900H	13.3 GB/s +13%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	12.2 GB/s +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11.8 GB/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	11 GB/s -7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10.5 GB/s -11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	10.2 GB/s -14%
Twofish Mean 100MB
Geekom XT13 Pro Intel Core i9-13900H	2.3 GB/s +35%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2 GB/s +18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.9 GB/s +12%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1.8 GB/s +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1.7 GB/s
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1.5 GB/s -12%
Serpent Mean 100MB
Geekom XT13 Pro Intel Core i9-13900H	1.3 GB/s +18%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1.3 GB/s +18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.2 GB/s +9%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1.1 GB/s 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1.1 GB/s
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.984 GB/s -11%

Geekbench AI
Single Precision CPU 1.2
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3912 Points +19%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3375 Points +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3292 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3260 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	2886 Points -12%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2736 Points -17%
Half Precision CPU 1.2
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1713 Points +14%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1652 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1549 Points +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1501 Points
Geekom XT13 Pro Intel Core i9-13900H	1090 Points -27%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1071 Points -29%
Quantized CPU 1.2
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6838 Points +45%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6358 Points +35%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6189 Points +32%
Geekom XT13 Pro Intel Core i9-13900H	5012 Points +7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	4815 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	4706 Points
Single Precision CPU 1.5
BOSGAME M4 Neo AMD Ryzen 7 7840HS	4185 Points +19%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3581 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3503 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3250 Points -7%
Geekom XT13 Pro Intel Core i9-13900H	3001 Points -14%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2903 Points -17%
Half Precision CPU 1.5
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1799 Points +11%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1664 Points +2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1634 Points 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1628 Points
Geekom XT13 Pro Intel Core i9-13900H	1144 Points -30%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1139 Points -30%
Quantized CPU 1.5
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7545 Points +40%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7221 Points +34%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6522 Points +21%
Geekom XT13 Pro Intel Core i9-13900H	5616 Points +4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	5459 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	5377 Points

Geekbench 6.5
Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2626 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2545 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2522 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2416 Points
Geekom XT13 Pro Intel Core i9-13900H	2415 Points 0%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2304 Points -5%
Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	13020 Points +15%
Geekom XT13 Pro Intel Core i9-13900H	11541 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11341 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10642 Points -6%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	10285 Points -9%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9956 Points -12%

Geekbench 6.0
Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2521 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2447 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2410 Points +4%
Geekom XT13 Pro Intel Core i9-13900H	2357 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2322 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2148 Points -7%
Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	12513 Points +14%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11018 Points
Geekom XT13 Pro Intel Core i9-13900H	10935 Points -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10295 Points -7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	9888 Points -10%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9428 Points -14%

Geekbench 5.5
Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11794 Points +15%
Geekom XT13 Pro Intel Core i9-13900H	11536 Points +13%
Alliwava H90 Pro AMD Ryzen 7 8745HS	10214 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	10099 Points -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9864 Points -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9453 Points -7%
Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1908 Points +6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1879 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1865 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1795 Points
Geekom XT13 Pro Intel Core i9-13900H	1708 Points -5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1683 Points -6%

Geekbench 5.0
5.0 Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11775 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	11464 Points +14%
Alliwava H90 Pro AMD Ryzen 7 8745HS	10100 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	10006 Points -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9815 Points -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9462 Points -6%
5.0 Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1841 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1765 Points +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1761 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1719 Points
Geekom XT13 Pro Intel Core i9-13900H	1678 Points -2%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1612 Points -6%

Geekbench 4.4
64 Bit Multi-Core Score
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48762 Points +19%
Geekom XT13 Pro Intel Core i9-13900H	42713 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	41035 Points
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	40493 Points -1%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	39617 Points -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	37145 Points -9%
64 Bit Single-Core Score
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7879 Points +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7790 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	7430 Points +2%
Geekom XT13 Pro Intel Core i9-13900H	7389 Points +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7282 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	7194 Points -1%

3DMark 11 - 1280x720 Performance Physics
BOSGAME M4 Neo AMD Ryzen 7 7840HS	22199 Points +20%
Alliwava H90 Pro AMD Ryzen 7 8745HS	18567 Points
Geekom XT13 Pro Intel Core i9-13900H	18126 Points -2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	18116 Points -2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18094 Points -3%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	16492 Points -11%

7-Zip 18.03
7z b 4
BOSGAME M4 Neo AMD Ryzen 7 7840HS	69798 MIPS +20%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	63912 MIPS +10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	58207 MIPS
Geekom XT13 Pro Intel Core i9-13900H	56068 MIPS -4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	53012 MIPS -9%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	51249 MIPS -12%
7z b 4 -mmt1
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6495 MIPS +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6463 MIPS +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6334 MIPS +5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	6047 MIPS
Geekom XT13 Pro Intel Core i9-13900H	5828 MIPS -4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	5352 MIPS -11%

HWBOT x265 Benchmark v2.2 - 4k Preset
BOSGAME M4 Neo AMD Ryzen 7 7840HS	20.5 fps +31%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.4 fps +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	15.7 fps 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	15.7 fps
Geekom XT13 Pro Intel Core i9-13900H	14.7 fps -6%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	13.6 fps -13%

R Benchmark 2.5 - Overall mean
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	0.51 sec * -2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	0.501 sec *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	0.4716 sec * +6%
Geekom XT13 Pro Intel Core i9-13900H	0.4693 sec * +6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.4683 sec * +7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.4513 sec * +10%

LibreOffice - 20 Documents To PDF
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	83.3 s * -60%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	64.3 s * -23%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	60 s * -15%
Alliwava H90 Pro AMD Ryzen 7 8745HS	52.1 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48.7 s * +7%
Geekom XT13 Pro Intel Core i9-13900H	46.8 s * +10%

Mozilla Kraken 1.1 - Total
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	591 ms * -6%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	560 ms * -1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	556 ms *
Geekom XT13 Pro Intel Core i9-13900H	550 ms * +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	537 ms * +3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	532 ms * +4%

3DMark
1920x1080 Fire Strike Physics
BOSGAME M4 Neo AMD Ryzen 7 7840HS	26481 Points +29%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	25815 Points +25%
Geekom XT13 Pro Intel Core i9-13900H	23640 Points +15%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22281 Points +8%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	21147 Points +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	20605 Points
2560x1440 Time Spy CPU
Geekom XT13 Pro Intel Core i9-13900H	9741 Points +35%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	9532 Points +33%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	9145 Points +27%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	8644 Points +20%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7608 Points +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7192 Points

Super Pi mod 1.5 XS 1M - 1M
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	8.124 s * -5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7.753 s *
Geekom XT13 Pro Intel Core i9-13900H	7.512 s * +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	7.327 s * +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7.193 s * +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7.159 s * +8%

Super Pi mod 1.5 XS 2M - 2M
Alliwava H90 Pro AMD Ryzen 7 8745HS	19.626 s *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.261 s * +7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	18.141 s * +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	17.869 s * +9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	17.676 s * +10%
Geekom XT13 Pro Intel Core i9-13900H	16.436 s * +16%

Affinity Photo 2 - Combined (Multi CPU)
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	798 Points +61%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	781 Points +57%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	560 Points +13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	555 Points +12%
Geekom XT13 Pro Intel Core i9-13900H	520 Points +5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	497 Points

* ... menor é melhor

Desempenho do sistema e armazenamento em massa

Nos benchmarks de desempenho do sistema, o Alliwava H90 Pro apresenta um sólido desempenho geral, mesmo que revele seus limites em algumas áreas. É perceptível que outros modelos com uma CPU idêntica, como o Minisforum NAB9, alcançam resultados ligeiramente melhores em alguns testes. No uso prático, entretanto, o Alliwava H90 Pro deixou uma boa impressão - o sistema funcionou de forma suave e confiável, sem nenhum problema significativo no uso diário. O armazenamento em massa integrado oferece um desempenho decente, mas fica atrás da concorrência. Sob carga contínua, o SSD não consegue manter seu desempenho estável a longo prazo.

Performance rating
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	89.7 pt
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	84.6 pt
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	82.3 pt
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	81.2 pt
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	78.6 pt
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	76.1 pt

PCMark 10 / Score
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6914 Points +11%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	6564 Points +5%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	6448 Points +4%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	6227 Points
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	6102 Points -2%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	5497 Points -12%

PCMark 10 / Essentials
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	10908 Points +9%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10587 Points +6%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	9967 Points
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9933 Points 0%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	9891 Points -1%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	9423 Points -5%

PCMark 10 / Productivity
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9353 Points +1%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9325 Points +1%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	9315 Points +1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	9233 Points
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	7490 Points -19%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	6639 Points -28%

WebXPRT 4 / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points +12%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	251 Points +7%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	244 Points +4%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	240 Points +2%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	239 Points +2%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	235 Points

WebXPRT 3 / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	314 Points +9%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	292 Points +2%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	290 Points +1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	287 Points
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	271 Points -6%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	267 Points -7%

Mozilla Kraken 1.1 / Total
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	591 ms * -6%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	560 ms * -1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	556 ms *
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	550 ms * +1%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	537 ms * +3%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	532 ms * +4%

CrossMark / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1862 Points +20%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1837 Points +18%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1661 Points +7%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1642 Points +6%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1638 Points +6%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1552 Points

CrossMark / Productivity
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1799 Points +21%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1756 Points +18%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1643 Points +11%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1641 Points +11%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1594 Points +7%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1485 Points

CrossMark / Creativity
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1969 Points +13%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1889 Points +9%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1764 Points +1%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1749 Points +1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1739 Points
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1694 Points -3%

CrossMark / Responsiveness
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1931 Points +54%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1747 Points +39%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1486 Points +18%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1465 Points +17%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1435 Points +14%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1257 Points

* ... menor é melhor

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	67938 MB/s +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	63022 MB/s 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	62812 MB/s
Média da turma Mini PC (8472 - 163031, n=110, últimos 2 anos)	58662 MB/s -7%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	46670 MB/s -26%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	45017 MB/s -28%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	35054 MB/s -44%

AIDA64 / Memory Read
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	61294 MB/s +1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	61143 MB/s 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	60915 MB/s
Média da turma Mini PC (9130 - 123769, n=110, últimos 2 anos)	56972 MB/s -6%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45998 MB/s -24%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	44419 MB/s -27%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	30630 MB/s -50%

AIDA64 / Memory Write
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84236 MB/s +14%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	74661 MB/s +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	74154 MB/s
Média da turma Mini PC (9047 - 216693, n=110, últimos 2 anos)	67084 MB/s -10%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	47241 MB/s -36%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	46754 MB/s -37%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	42154 MB/s -43%

AIDA64 / Memory Latency
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	98.1 ns * -9%
Média da turma Mini PC (82.3 - 184.8, n=110, últimos 2 anos)	95.8 ns * -7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	94 ns * -5%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	89.9 ns *
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	89.7 ns * -0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	88.8 ns * +1%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	83 ns * +8%

* ... menor é melhor

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Geekom XT13 Pro Acer N7000 2 TB	93 pt
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	73.2 pt
Média da turma Mini PC	59.8 pt
Alliwava GH9, i9-12900HK	53.8 pt
GMK NucBox M6 Ultra	49.1 pt
Alliwava H90 Pro	46.2 pt
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	39.8 pt

DiskSpd
seq read
Geekom XT13 Pro Acer N7000 2 TB	3690 (2901.41^min - 3690.32^max) MB/s +63%
Média da turma Mini PC (413 - 4960, n=109, últimos 2 anos)	2474 MB/s +9%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2316 (2303.1^min - 2315.68^max) MB/s +2%
Alliwava H90 Pro	2263 (2233.26^min - 2263.46^max) MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2230 (2208.5^min - 2230.06^max) MB/s -1%
GMK NucBox M6 Ultra	2218 (2191.96^min - 2217.5^max) MB/s -2%
Alliwava GH9, i9-12900HK	2101 (2048.8^min - 2100.92^max) MB/s -7%
seq write
Geekom XT13 Pro Acer N7000 2 TB	4196 (3895.46^min - 4196.19^max) MB/s +79%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3100 (3080.64^min - 3100.01^max) MB/s +33%
Média da turma Mini PC (408 - 5595, n=109, últimos 2 anos)	2853 MB/s +22%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2593 (2497.12^min - 2592.77^max) MB/s +11%
Alliwava H90 Pro	2338 (906.67^min - 2337.91^max) MB/s
Alliwava GH9, i9-12900HK	2290 (1670.8^min - 2290.33^max) MB/s -2%
GMK NucBox M6 Ultra	2205 (2009.88^min - 2204.95^max) MB/s -6%
seq q8 t1 read
Geekom XT13 Pro Acer N7000 2 TB	6932 (5986.51^min - 6931.53^max) MB/s +95%
Média da turma Mini PC (397 - 7117, n=109, últimos 2 anos)	4185 MB/s +18%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	4079 (3799.36^min - 4078.56^max) MB/s +15%
Alliwava H90 Pro	3553 (3216.47^min - 3553.02^max) MB/s
Alliwava GH9, i9-12900HK	3546 (3112.87^min - 3546.46^max) MB/s 0%
GMK NucBox M6 Ultra	3301 (2507.56^min - 3301.34^max) MB/s -7%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	3227 (2874.36^min - 3227.1^max) MB/s -9%
seq q8 t1 write
Geekom XT13 Pro Acer N7000 2 TB	5793 (5555.78^min - 5793.38^max) MB/s +89%
Média da turma Mini PC (410 - 6669, n=109, últimos 2 anos)	3281 MB/s +7%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3108 (3096.75^min - 3107.85^max) MB/s +2%
Alliwava H90 Pro	3060 (3015.49^min - 3059.71^max) MB/s
Alliwava GH9, i9-12900HK	3006 (2793.83^min - 3006.48^max) MB/s -2%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2768 (2664.64^min - 2767.61^max) MB/s -10%
GMK NucBox M6 Ultra	2384 (2320.5^min - 2383.89^max) MB/s -22%
4k q1 t1 read
Geekom XT13 Pro Acer N7000 2 TB	70.3 (66.06^min - 70.34^max) MB/s +35%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	64.2 (64.13^min - 64.24^max) MB/s +24%
GMK NucBox M6 Ultra	58.8 (57.48^min - 58.79^max) MB/s +13%
Alliwava GH9, i9-12900HK	56.2 (51.16^min - 56.21^max) MB/s +8%
Média da turma Mini PC (6.85 - 87.3, n=109, últimos 2 anos)	56.1 MB/s +8%
Alliwava H90 Pro	51.9 (51.09^min - 51.86^max) MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38.5 (38.48^min - 38.51^max) MB/s -26%
4k q1 t1 write
Geekom XT13 Pro Acer N7000 2 TB	335 (332.49^min - 335.43^max) MB/s +152%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	278 (273.83^min - 278.28^max) MB/s +109%
Média da turma Mini PC (29.6 - 435, n=109, últimos 2 anos)	193.2 MB/s +45%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	181.2 (172.56^min - 181.15^max) MB/s +36%
Alliwava GH9, i9-12900HK	178.1 (118.26^min - 178.11^max) MB/s +34%
GMK NucBox M6 Ultra	173.4 (162.83^min - 173.44^max) MB/s +30%
Alliwava H90 Pro	133 (120.96^min - 132.96^max) MB/s
4k q32 t16 read
Geekom XT13 Pro Acer N7000 2 TB	4158 (4048.89^min - 4158.05^max) MB/s +742%
Média da turma Mini PC (102.3 - 4158, n=109, últimos 2 anos)	1501 MB/s +204%
GMK NucBox M6 Ultra	948 (936.95^min - 947.59^max) MB/s +92%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	788 (725.19^min - 788.35^max) MB/s +60%
Alliwava H90 Pro	494 (102.18^min - 494.41^max) MB/s
Alliwava GH9, i9-12900HK	466 (455.75^min - 465.66^max) MB/s -6%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	317 (315.3^min - 317.14^max) MB/s -36%
4k q32 t16 write
Geekom XT13 Pro Acer N7000 2 TB	3142 (2751.87^min - 3141.57^max) MB/s +624%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2876 (1106.13^min - 2875.94^max) MB/s +563%
Média da turma Mini PC (139.6 - 4288, n=109, últimos 2 anos)	1432 MB/s +230%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1118 (836.38^min - 1118.45^max) MB/s +158%
Alliwava GH9, i9-12900HK	1110 (170.23^min - 1109.52^max) MB/s +156%
GMK NucBox M6 Ultra	788 (750.91^min - 787.75^max) MB/s +82%
Alliwava H90 Pro	434 (176.74^min - 434.23^max) MB/s

AS SSD
Score Total
Geekom XT13 Pro Acer N7000 2 TB	6667 Points +96%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	5595 Points +65%
Média da turma Mini PC (507 - 10559, n=107, últimos 2 anos)	4701 Points +39%
Alliwava GH9, i9-12900HK	4235 Points +25%
GMK NucBox M6 Ultra	3522 Points +4%
Alliwava H90 Pro	3394 Points
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2500 Points -26%
Score Read
Geekom XT13 Pro Acer N7000 2 TB	2635 Points +149%
Média da turma Mini PC (172 - 3834, n=107, últimos 2 anos)	1664 Points +57%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1539 Points +45%
Alliwava GH9, i9-12900HK	1475 Points +39%
GMK NucBox M6 Ultra	1211 Points +14%
Alliwava H90 Pro	1059 Points
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	522 Points -51%
Score Write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3274 Points +79%
Geekom XT13 Pro Acer N7000 2 TB	2741 Points +50%
Média da turma Mini PC (210 - 4770, n=107, últimos 2 anos)	2215 Points +21%
Alliwava GH9, i9-12900HK	1998 Points +9%
Alliwava H90 Pro	1827 Points
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1719 Points -6%
GMK NucBox M6 Ultra	1709 Points -6%
Seq Read
Geekom XT13 Pro Acer N7000 2 TB	4882 MB/s +68%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3482 MB/s +20%
Média da turma Mini PC (483 - 5825, n=107, últimos 2 anos)	3466 MB/s +19%
GMK NucBox M6 Ultra	2966 MB/s +2%
Alliwava H90 Pro	2913 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2791 MB/s -4%
Alliwava GH9, i9-12900HK	2654 MB/s -9%
Seq Write
Geekom XT13 Pro Acer N7000 2 TB	3506 MB/s +77%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2950 MB/s +49%
Média da turma Mini PC (346 - 5783, n=107, últimos 2 anos)	2653 MB/s +34%
Alliwava GH9, i9-12900HK	2431 MB/s +22%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2358 MB/s +19%
GMK NucBox M6 Ultra	2291 MB/s +15%
Alliwava H90 Pro	1986 MB/s
4K Read
Geekom XT13 Pro Acer N7000 2 TB	84.3 MB/s +68%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	76 MB/s +51%
Alliwava GH9, i9-12900HK	69.4 MB/s +38%
GMK NucBox M6 Ultra	63.5 MB/s +26%
Média da turma Mini PC (18.2 - 104.3, n=107, últimos 2 anos)	59.8 MB/s +19%
Alliwava H90 Pro	50.3 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38 MB/s -24%
4K Write
Geekom XT13 Pro Acer N7000 2 TB	291 MB/s +110%
Alliwava GH9, i9-12900HK	236 MB/s +70%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	216 MB/s +56%
Média da turma Mini PC (40.8 - 366, n=107, últimos 2 anos)	178.1 MB/s +28%
GMK NucBox M6 Ultra	170.1 MB/s +23%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	147.7 MB/s +6%
Alliwava H90 Pro	138.8 MB/s
4K-64 Read
Geekom XT13 Pro Acer N7000 2 TB	2062 MB/s +188%
Média da turma Mini PC (94.3 - 3321, n=107, últimos 2 anos)	1258 MB/s +75%
Alliwava GH9, i9-12900HK	1141 MB/s +59%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1115 MB/s +56%
GMK NucBox M6 Ultra	850 MB/s +19%
Alliwava H90 Pro	717 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	205 MB/s -71%
4K-64 Write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2763 MB/s +86%
Geekom XT13 Pro Acer N7000 2 TB	2100 MB/s +41%
Média da turma Mini PC (96.3 - 4103, n=107, últimos 2 anos)	1772 MB/s +19%
Alliwava GH9, i9-12900HK	1520 MB/s +2%
Alliwava H90 Pro	1489 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1336 MB/s -10%
GMK NucBox M6 Ultra	1310 MB/s -12%
Access Time Read
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.139 ms * -53%
GMK NucBox M6 Ultra	0.117 ms * -29%
Média da turma Mini PC (0.027 - 0.288, n=107, últimos 2 anos)	0.09166 ms * -1%
Alliwava H90 Pro	0.091 ms *
Alliwava GH9, i9-12900HK	0.081 ms * +11%
Geekom XT13 Pro Acer N7000 2 TB	0.069 ms * +24%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.062 ms * +32%
Access Time Write
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.131 ms * -30%
Alliwava GH9, i9-12900HK	0.121 ms * -20%
Alliwava H90 Pro	0.101 ms *
Média da turma Mini PC (0.013 - 0.706, n=107, últimos 2 anos)	0.09674 ms * +4%
GMK NucBox M6 Ultra	0.088 ms * +13%
Geekom XT13 Pro Acer N7000 2 TB	0.056 ms * +45%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.019 ms * +81%

* ... menor é melhor

Carga de leitura sustentada: Loop de leitura do DiskSpd, profundidade da fila 8

Alliwava H90 Pro ; diskspd 2.0.17 f: Ø1823 (912.95-3559.3)

GMK NucBox M6 Ultra ; diskspd 2.0.17 f: Ø3300 (2878.04-3339.75)

Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G; diskspd 2.0.17 f: Ø3108 (2714.13-3123.96)

BOSGAME M4 Neo Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4063 (3587.97-4077.52)

Geekom XT13 Pro Acer N7000 2 TB; diskspd 2.0.17 f: Ø5637 (4899.21-6932.56)

Alliwava GH9, i9-12900HK ; diskspd 2.0.17 f: Ø2059 (1846.75-3542.76)

Placa de vídeo e desempenho em jogos - AMD Radeon 780M

No Alliwava H90 Pro, a AMD Radeon 780M integrada do Ryzen 7 8745HS assume a saída gráfica. Graças à configuração otimizada da RAM, a iGPU pode explorar seu potencial de desempenho melhor do que em alguns modelos da concorrência, como o Chuwi Aubox. Em uma comparação média de desempenho, isso resulta em uma vantagem de cerca de 20%. No entanto, é perceptível que o Alliwava não tira o máximo proveito da iGPU, o que se deve a um TDP mais baixo. Se o senhor quiser jogar os jogos atuais com o mini PC, terá que fazer concessões notáveis em termos de resolução e detalhes gráficos. Entretanto, o Alliwava H90 Pro é adequado para títulos mais antigos ou jogos casuais.

3DMark 11 - 1280x720 Performance GPU
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	13783 Points +41%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	10018 Points +2%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	9808 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8285 Points -16%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7428 Points -24%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6804 Points -31%

3DMark
2560x1440 Time Spy Graphics
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2953 Points +39%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2281 Points +7%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	2126 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1682 Points -21%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1622 Points -24%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1561 Points -27%
1920x1080 Fire Strike Graphics
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	8423 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6558 Points +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	6320 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5845 Points -8%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5441 Points -14%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	4832 Points -24%

Unigine Heaven 4.0
Extreme Preset OpenGL
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	33.1 fps +14%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	29 fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	28.8 fps -1%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	24.9 fps -14%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	23.6 fps -19%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	19.1 fps -34%
Extreme Preset DX11
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	35.4 fps +25%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	29.3 fps +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	28.3 fps
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.7 fps -9%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	24.5 fps -13%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	20.3 fps -28%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	19.5 fps +27%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	19.1 fps +24%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	15.4 fps
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.2 fps -1%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	14.6 fps -5%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	12.8 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	17.2 fps +37%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.6 fps +24%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	15.4 fps +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	15.3 fps +21%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	12.6 fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	10.8 fps -14%

Unigine Superposition
1280x720 720p Low
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11962 Points +26%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	9464 Points
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9195 Points -3%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	6807 Points -28%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6603 Points -30%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6545 Points -31%
1920x1080 1080p High
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3665 Points +34%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2830 Points +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	2734 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2254 Points -18%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2177 Points -20%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2117 Points -23%
1920x1080 1080p Extreme
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1810 Points +44%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1336 Points +6%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1260 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1128 Points -10%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1109 Points -12%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1075 Points -15%

Geekbench AI
Single Precision ONNX DirectML GPU 1.2
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	7217 Points +35%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6013 Points +12%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	5353 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	4709 Points -12%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3005 Points -44%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2937 Points -45%
Half Precision ONNX DirectML GPU 1.2
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	10943 Points +41%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	8781 Points +13%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8143 Points +5%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	7755 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3089 Points -60%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2960 Points -62%
Quantized ONNX DirectML GPU 1.2
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5532 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4702 Points +13%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	4151 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	3472 Points -16%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1956 Points -53%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1869 Points -55%
Half Precision GPU 1.5
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11732 Points +46%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9269 Points +15%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8575 Points +7%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	8051 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3252 Points -60%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3110 Points -61%
Quantized GPU 1.5
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5771 Points +37%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4807 Points +14%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	4204 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	3489 Points -17%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2012 Points -52%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1924 Points -54%

SPECworkstation 4.0 - Graphics Score
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2.11 Points +47%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1.57 Points +9%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1.44 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1.22 Points -15%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4332 Points +236%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	4130 Points +220%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1534 Points +19%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1495 Points +16%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1444 Points +12%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1290 Points

ComputeMark v2.1
1024x600 Normal, Score
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	9589 Points +67%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8341 Points +46%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6520 Points +14%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	5728 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3616 Points -37%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3460 Points -40%
1024x600 Normal, Fluid 3DTex
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	469 Points +14%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	422 Points +2%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	413 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	290 Points -30%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	282 Points -32%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	235 Points -43%
1024x600 Normal, Fluid 2DTexArr
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	491 Points +15%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	443 Points +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	428 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points -33%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	280 Points -35%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	243 Points -43%
1024x600 Normal, Mandel Vector
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2506 Points +64%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2364 Points +55%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1720 Points +13%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1527 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	851 Points -44%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	815 Points -47%
1024x600 Normal, Mandel Scalar
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2594 Points +81%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2504 Points +75%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1616 Points +13%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1431 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	866 Points -39%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	838 Points -41%
1024x600 Normal, QJuliaRayTrace
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3529 Points +83%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2995 Points +55%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2319 Points +20%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1928 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1323 Points -31%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1246 Points -35%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	44.7 (38.6^min - 53^max) fps +36%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	32.9 (28.4^min - 40.2^max) fps 0%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	32.8 (28^min, 26.6^P1 - 38.4^max) fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	25.7 (22.2^min - 30.6^max) fps -22%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	18.6 (15.4^min - 22.9^max) fps -43%
1920x1080 High Preset (FSR off)
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	23.1 (15.8^min - 32.4^max) fps +2%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	22.6 (19.2^min, 15.8^P1 - 27.6^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	20.9 (17.7^min - 25.3^max) fps -8%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	15.7 (13.2^min - 19.3^max) fps -31%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	13 (11^min - 15.9^max) fps -42%

Baldur's Gate 3
1280x720 Low Preset AA:SM
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	67.6 (49.8^min, 50.9^P0.1, 59.7^P1 - 76.3^max) fps +35%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	52.1 (39.1^min, 40.9^P0.1, 44.6^P1 - 58.5^max) fps +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	49.9 (36.7^min, 42.5^P0.1, 45.7^P1 - 60^max) fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	35.2 (24.4^min, 26^P0.1, 28.9^P1 - 41.9^max) fps -29%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	28.2 (13.8^min, 15.1^P0.1, 19.8^P1 - 64.3^max) fps -43%
1920x1080 High Preset AA:T
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	27.6 (23.1^min, 23.9^P0.1, 25.1^P1 - 30.2^max) fps +25%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	22.1 (13^min, 13.3^P0.1, 14.2^P1 - 25^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	20 (17.9^min, 17.9^P0.1, 18.3^P1 - 21.8^max) fps -10%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	14.7 (12.5^min, 12.5^P0.1, 12.9^P1 - 16.4^max) fps -33%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	13.5 (11.2^min, 11.2^P0.1, 11.6^P1 - 16.9^max) fps -39%

F1 24
1920x1080 Low Preset AA:T AF:16x
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	87.2 (71^min, 63^P1 - 104^max) fps +28%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	68.3 (56^min, 52^P1 - 78^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	66.1 (48^min, 37^P1 - 78^max) fps -3%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	45.5 (22^min, 30^P1 - 55^max) fps -33%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	43.1 (36^min, 26^P1 - 49^max) fps -37%
1920x1080 High Preset AA:T AF:16x
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	57.7 (45^min, 42^P1 - 68^max) fps +24%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	46.6 (37^min, 35^P1 - 55^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	43.4 (32^min, 27^P1 - 51^max) fps -7%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	31.3 (21^min, 16^P1 - 37^max) fps -33%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26.7 (23^min, 17^P1 - 30^max) fps -43%

The Witcher 3
1024x768 Low Graphics & Postprocessing
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	158.1 (6.12^min, 36.6^P0.1, 133.5^P1 - 193.6^max) fps +29%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	127.3 (17^min, 38.4^P0.1, 110.1^P1 - 150^max) fps +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	122.4 (5.27^min, 29.1^P0.1, 93.6^P1 - 148^max) fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	83.1 (15.2^min, 29.2^P0.1, 62.3^P1 - 109.8^max) fps -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	48 (37.4^min, 39.5^P0.1, 42.6^P1 - 56.4^max) fps +17%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	41 (22.3^min, 23.6^P0.1, 25.9^P1 - 49.1^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	39.9 (31.1^min, 31.7^P0.1, 34.9^P1 - 45^max) fps -3%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	26.2 (20.7^min, 21.4^P0.1, 23.1^P1 - 30.6^max) fps -36%

	baixo	média	alto	ultra
GTA V (2015)	152.9	142.1	54.7	23.5
The Witcher 3 (2015)	122.4	68.9	41	25.1
Dota 2 Reborn (2015)	150.2	112.6	80.6	72.2
X-Plane 11.11 (2018)	47.5	34.8	29
Baldur's Gate 3 (2023)	34.9	27.5	22.1	20.7
Cyberpunk 2077 2.2 Phantom Liberty (2023)	32.8	28.1	22.6	19.1
F1 24 (2024)	68.3	62.6	46.6	11.5

Emissões

Graças ao seu sofisticado design de resfriamento, a carcaça do Alliwava H90 Pro permanece predominantemente fria, mesmo sob alta carga. Somente na área das aberturas de ventilação traseiras há um aquecimento perceptível. No teste de estresse, o AMD Ryzen 7 8745HS atinge brevemente temperaturas de cerca de 94 C, mas isso ainda está dentro da faixa de segurança. O consumo médio de energia da APU é de cerca de 35 watts.
O Alliwava H90 Pro é muito eficiente em termos de energia no modo inativo, enquanto um consumo médio de energia de cerca de 62 watts e valores de pico de até 80 watts são medidos sob carga total. De modo geral, o Mini-PC impressiona por sua alta eficiência energética, o que se deve principalmente aos limites de energia modestamente definidos do processador. A fonte de alimentação de 120 watts fornecida é bem equilibrada em termos de desempenho e oferece reservas suficientes.

Ruído do sistema

Barulho

Ocioso		26.1 / 26.1 / 26.2 dB
Carga		44.2 / 44.5 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R (15 cm de distância) ruído ambiente: 24.9 dB(A)

	Alliwava H90 Pro R7 8745HS, Radeon 780M	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	Alliwava GH9, i9-12900HK i9-12900HK, Iris Xe G7 96EUs
Noise		1%	5%	-16%	-5%	-8%
desligado / ambiente * (dB)	24.9	24.7 1%	23.8 4%	24.3 2%	25 -0%	24.8 -0%
Idle Minimum * (dB)	26.1	27.5 -5%	24.3 7%	37.6 -44%	27.6 -6%	29 -11%
Idle Average * (dB)	26.1	29.3 -12%	24.3 7%	37.9 -45%	27.8 -7%	29.1 -11%
Idle Maximum * (dB)	26.2	30.1 -15%	24.3 7%	38 -45%	27.9 -6%	29.1 -11%
Load Average * (dB)	44.2	39 12%	37.6 15%	40.8 8%	42.2 5%	46.7 -6%
Witcher 3 ultra * (dB)	42.2	39 8%				46.4 -10%
Cyberpunk 2077 ultra * (dB)	42.5	39.3 8%	42.4 -0%	40.18 5%	46.6 -10%	46.5 -9%
Load Maximum * (dB)	44.5	39 12%	46.3 -4%	40.2 10%	49.5 -11%	46.4 -4%

* ... menor é melhor

Temperatura

Carga Máxima

Inatividade

Cyberpunk


39.6 °C	46.9 °C	41 °C
32.4 °C	37.3 °C	33 °C
33.5 °C	30.7 °C	34.6 °C

Máximo: 46.9 °C
Médio: 36.6 °C


30.4 °C	34.6 °C	31.6 °C
30.8 °C	42.3 °C	33.8 °C
31.6 °C	32.4 °C	33.5 °C

Máximo: 42.3 °C
Médio: 33.4 °C

alimentação elétrica 41.4 °C | Temperatura do quarto 22.8 °C | Fluke t3000FC (calibrated)

Carga Máxima

Inatividade

Cyberpunk


31.8 °C	36.4 °C	33 °C
30 °C	30.4 °C	31.5 °C
29.4 °C	30.5 °C	31.4 °C

Máximo: 36.4 °C
Médio: 31.6 °C


30.8 °C	31.6 °C	28.8 °C
31.9 °C	36.6 °C	29.1 °C
31.8 °C	31.4 °C	29.7 °C

Máximo: 36.6 °C
Médio: 31.3 °C

alimentação elétrica 29.2 °C | Temperatura do quarto 22 °C | Fluke t3000FC (calibrated)

Carga Máxima

Inatividade

Cyberpunk


37.8 °C	47.9 °C	42.3 °C
34.9 °C	38.5 °C	34.9 °C
33 °C	32.4 °C	34.3 °C

Máximo: 47.9 °C
Médio: 37.3 °C


31.4 °C	34.6 °C	32.7 °C
31.4 °C	43.3 °C	34 °C
32.5 °C	32.9 °C	34.8 °C

Máximo: 43.3 °C
Médio: 34.2 °C

alimentação elétrica 43.6 °C | Temperatura do quarto 22.8 °C | Fluke t3000FC (calibrated)

(±) A temperatura média para o lado superior sob carga máxima é 36.6 °C / 98 F, em comparação com a média de 32.4 °C / ###class_avg_f# ## F para os dispositivos da classe Mini PC.
(-) A temperatura máxima no lado superior é 46.9 °C / 116 F, em comparação com a média de 36 °C / 97 F , variando de 21.6 a 69.5 °C para a classe Mini PC.
(±) A parte inferior aquece até um máximo de 42.3 °C / 108 F, em comparação com a média de 36.6 °C / 98 F
(+) Em uso inativo, a temperatura média para o lado superior é 31.6 °C / 89 F, em comparação com a média do dispositivo de 32.4 °C / ### class_avg_f### F.
(±) 3: The average temperature for the upper side is 37.3 °C / 99 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.

Gerenciamento de energia

Consumo de energia

desligado	1.3 / 6.2 Watt
Ocioso	7.7 / 8.6 / 10.1 Watt
Carga	62.8 / 80.6 Watt


Key: min: , med: , max: Metrahit Energy

	Alliwava H90 Pro R7 8745HS, Radeon 780M	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	Alliwava GH9, i9-12900HK i9-12900HK, Iris Xe G7 96EUs	Média AMD Radeon 780M	Média da turma Mini PC
Power Consumption		-10%	3%	-12%	11%	-25%	7%	-29%
Idle Minimum * (Watt)	7.7	8.8 -14%	4.9 36%	7.6 1%	6.3 18%	10.8 -40%	6.07 ?(2.7 - 14, n=69) 21%	9.52 ?(2.4 - 35.9, n=108, últimos 2 anos) -24%
Idle Average * (Watt)	8.6	9.5 -10%	7.4 14%	9.1 -6%	7.1 17%	11.3 -31%	8.19 ?(4.4 - 17.6, n=69) 5%	11.7 ?(2.59 - 36.3, n=107, últimos 2 anos) -36%
Idle Maximum * (Watt)	10.1	11.8 -17%	9.4 7%	11.1 -10%	9 11%	13.1 -30%	10.4 ?(5.2 - 27, n=69) -3%	15.2 ?(2.7 - 49, n=108, últimos 2 anos) -50%
Load Average * (Watt)	62.8	69.6 -11%	57.4 9%	67.2 -7%	49.8 21%	70.9 -13%	57.4 ?(19.7 - 93.2, n=67) 9%	63.3 ?(12.9 - 170.6, n=108, últimos 2 anos) -1%
Cyberpunk 2077 ultra external monitor * (Watt)	62.5	70.5 -13%	72.6 -16%	81.3 -30%	54 14%
Load Maximum * (Watt)	80.6	74.8 7%	106.6 -32%	98.4 -22%	94.5 -17%	87.6 -9%	76.6 ?(34.9 - 111.8, n=68) 5%	107.5 ?(27.9 - 423, n=108, últimos 2 anos) -33%

* ... menor é melhor

Eficiência energética

Performance rating | Power Consumption

Performance rating - Percent
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	95.7 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	87.2 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	80.1 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	79.1 pt
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	79 pt
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	72.5 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	257 Points per Watt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	210 Points per Watt -18%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	195.1 Points per Watt -24%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	192.3 Points per Watt -25%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	189.8 Points per Watt -26%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	174.2 Points per Watt -32%
Cinebench R23 Single Power Efficiency - external Monitor
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	62.3 Points per Watt +15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	57.8 Points per Watt +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	54.3 Points per Watt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	50.6 Points per Watt -7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	47.8 Points per Watt -12%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	39.9 Points per Watt -27%
Cinebench R15 Multi Efficiency (external Monitor)
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	35 Points per Watt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	30.5 Points per Watt -13%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	30.2 Points per Watt -14%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	28.1 Points per Watt -20%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	27.5 Points per Watt -21%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	25.4 Points per Watt -27%

Consumo de energia - monitor externo

Alliwava H90 Pro; Idle 1min (external Monitor): Ø8.6 (8.15-10.1)

Alliwava H90 Pro; 1280x720 Prime95 28.10 and Furmark 1.25: Ø67.6 (54.8-80.6)

Alliwava H90 Pro; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø62.5 (53.4-72)

Alliwava H90 Pro; 3DMark06 Return To Proxycon: Ø62.8 (54.5-71)

Consumo de energia - monitor externo

Alliwava H90 Pro; Prime95 V2810 Stress (external Monitor): Ø57.2 (54.2-68.5)

Alliwava H90 Pro; Cinebench R15 Multi (external Monitor): Ø58 (50.5-62.9)

Alliwava H90 Pro; Cinebench R23 Single (external Monitor): Ø25.4 (23.4-41.6)

Alliwava H90 Pro; Cinebench R23 Multi (external Monitor): Ø49 (42.4-54.2)

Alliwava H90 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø64.4 (52.9-69)

Classificação do Notebookcheck

O Alliwava H90 Pro deixa uma boa impressão geral em nosso breve teste. O AMD Ryzen 7 8745HS garante alta potência de computação, enquanto o sistema de resfriamento é agradavelmente silencioso. A carcaça de alumínio tem uma aparência estável e de alta qualidade, o que também aumenta o apelo visual do Mini-PC. Embora faltem conexões modernas, como USB4 ou OCuLink, o que limita um pouco a capacidade de expansão, isso não chega a ser um problema no uso diário. De modo geral, o Alliwava H90 Pro se apresenta como um minicomputador potente e confiável - um bom polivalente para uso no escritório ou em casa, a um preço de cerca de 479 euros.

De volta ao veredicto

Possíveis alternativas em comparação

Imagem	Modelo / Análises	Preço	Peso	Dimensões
1.	Alliwava H90 Pro AMD Ryzen 7 8745HS ⎘ AMD Radeon 780M ⎘ 32 GB Memória	Amazon: 1. $21.00 Replacement Mini PC CPU Fan ... Preço de tabela: 479€	470 g	127.5 x 130 x 52 mm
2. 77.4%	GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memória	Amazon: $519.99 Preço de tabela: 336€	506 g	127 x 128.8 x 47.8 mm
3. 75.3%	Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS ⎘ AMD Radeon 780M ⎘ 16 GB Memória, 512 GB SSD	Preço de tabela: 386 EUR	743 g	152 x 154 x 45 mm
4. 74%	BOSGAME M4 Neo AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memória, 1024 GB SSD	Amazon: 1. $549.99 BOSGAME M4 Neo Mini PC, Mini... 2. $549.00 BOSGAME M4 Neo Mini PC, Mini... 3. $599.99 BOSGAME Mini PC M4 AMD Ryzen... Preço de tabela: 389 EUR	560 g	127 x 127 x 42 mm
5. 72.8%	Geekom XT13 Pro Intel Core i9-13900H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memória, 2048 GB SSD	Amazon: 1. $699.00 GEEKOM Mini PC XT13 Pro with... 2. $28.00 Mini PC Fan for GEEKOM XT13 ... 3. $32.00 Mini PC Fan for GEEKOM XT13 ... Preço de tabela: 999 EUR	555 g	112 x 117 x 37 mm
6.	Alliwava GH9, i9-12900HK Intel Core i9-12900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memória	Preço de tabela: 499€	402 g	200 x 65 x 180 mm

Transparência

A seleção dos dispositivos a serem analisados é feita pela nossa equipe editorial. A amostra de teste foi fornecida gratuitamente ao autor pelo fabricante para fins de revisão. Não houve influência de terceiros nesta revisão, nem o fabricante recebeu uma cópia desta revisão antes da publicação. Não houve obrigação de publicar esta revisão. Como empresa de mídia independente, a Notebookcheck não está sujeita à autoridade de fabricantes, varejistas ou editores.

Editor of the original article: Sebastian Bade - Senior Tech Writer - 702 articles published on Notebookcheck since 2012

contact me via: Bluesky, Threads, Facebook, nbc.basti, LinkedIn, Xing

Translator: Ninh Ngoc Duy - Editorial Assistant - 646940 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Desempenho e eficiência: Análise do Mini-PC Alliwava H90 Pro com APU AMD Ryzen 7

Sebastian Bade, 2025-10-30 (Update: 2025-10-30)
