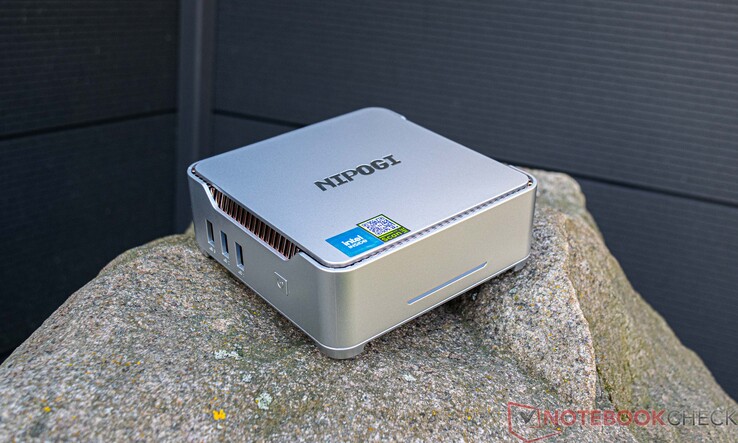

NiPoGi GK3 Plus N95 revisado: Um mini PC compacto com um Intel N95 para uso em escritório

Um SoC moderno para uso em escritórios de todos os dias! O fabricante chinês do sistema está comercializando um novo mini PC de escritório com o nome NiPoGi GK3 Plus N95. Com um Intel Pentium N95, o NiPoGi GK3 Plus N95 é baseado no atual Alder Lake N SoC da Intel, o qual foi demonstrado pela primeira vez na CES no início de 2023. Em nossa extensa revisão, descubra como o novíssimo SoC funciona e como o NiPoGi GK3 Plus N95 negocia nosso curso de teste.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 03/02/2023 🇺🇸 🇩🇪 ...

Com o NiPoGi GK3 Plus N95, a Minipc Union está vendendo um mini PC com base no novíssimo Alder Lake N SoC. Juntando este SoC com 16 GB de RAM e um SSD de 512 GB, o fabricante do sistema está oferecendo uma base sólida para a maioria das aplicações de escritório. Atualmente, o NiPoGi N95 custa 299 dólares e pode ser adquirido diretamente através da Amazon. A versão profissional do Windows 11 está incluída no preço.

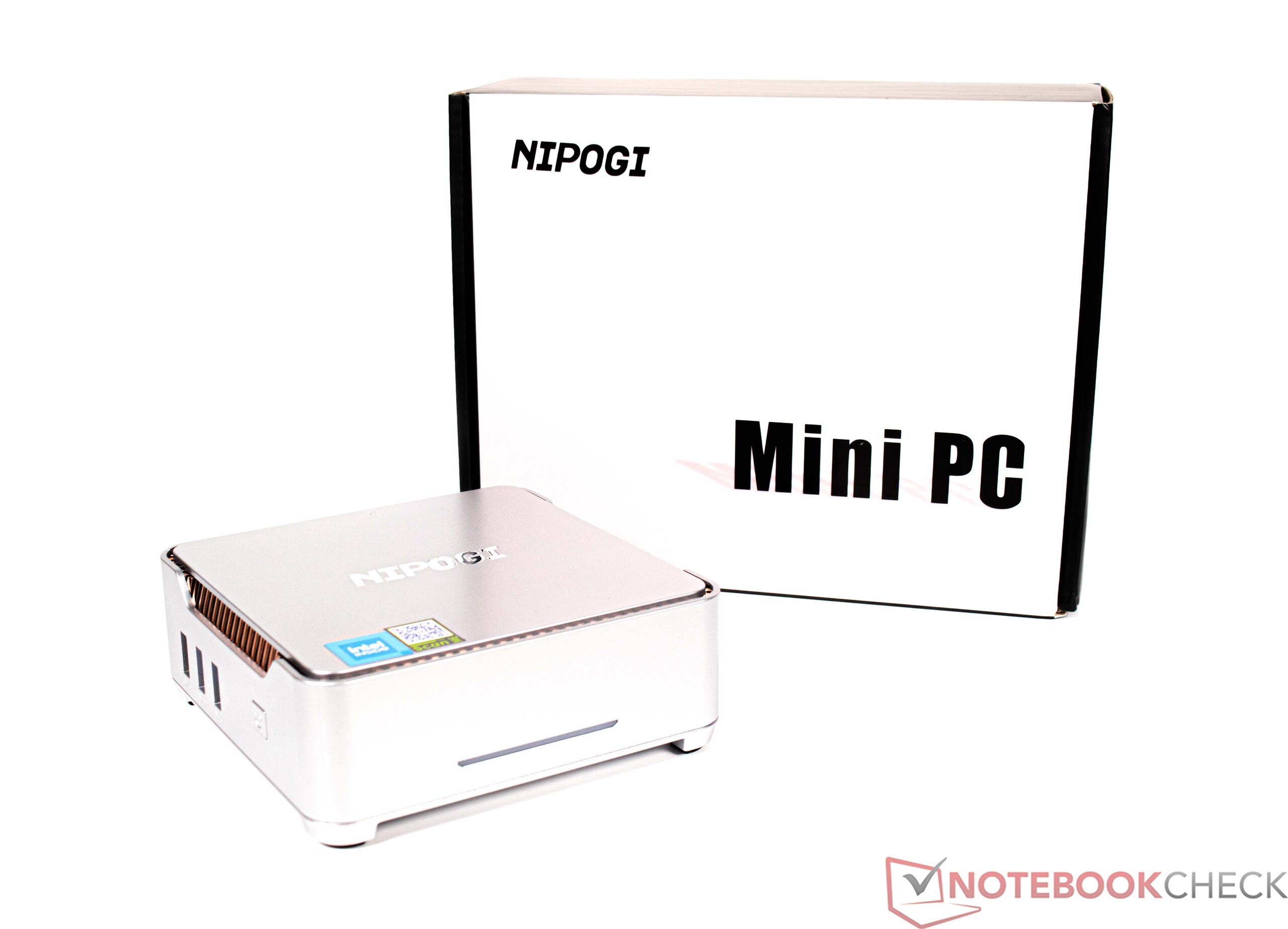

O mini PC vem em embalagem compacta, incluindo uma unidade de alimentação de 30 watts e uma montagem VESA para fixar o dispositivo a um monitor compatível.

Minipc Union NiPoGi GK3PLUS - N95

Processador

Intel Processor N95 4 x - 3.4 GHz, 15 W PL2 / Short Burst, 10 W PL1 / Sustained, Alder Lake-N

Placa gráfica

Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Análises do: 1200 MHz, 31.0.101.3417 DCH

Memória

16 GB

, DDR4 2666, 1 from 1 used, max. 16 GB

placa mãe

Intel Alder Lake-N PCH

Disco rígido

Kimtigo KTB900SM28/512GB, 512 GB

, M.2 2280 (SATA), 450 GB livre

Conexões

2 USB 2.0, 2 USB 3.0, 1 VGA, 2 HDMI, 1 Kensington Lock, Conexões Audio: 3,5mm

Funcionamento em rede

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 47 x 132 x 132

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

12 Meses Garantia

peso

381 g, Suprimento de energia: 125 g

Preço

399 EUR

Links

Minipc Union página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height	Resolution
68.2 %	03/2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	381 g	47 mm	x
65.9 %	01/2023	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	209 g	43.5 mm	x
	02/2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm	x
		Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	496 g	34.2 mm	x
	08/2022	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	1.3 kg	40 mm	x
	06/2022	Nofflink M500-5405U Pentium 5405U, UHD Graphics 610	657 g	39 mm	x

O NiPoGi GK3 Plus N95 em detalhes

Características

Basicamente, o NiPoGi GK3 Plus N95 vem com todas as interfaces importantes. No total, temos 4x USB Tipo A e duas portas HDMI com suporte para 4K60. Alternativamente, o mini PC oferece um conector analógico VGA que permite o uso de monitores mais antigos. Além disso, há uma tomada de rede, mas não há leitor de cartões SD ou conector USB-C. A colocação das portas é boa e, graças à localização escolhida, deve ser evitado um emaranhado de cabos.

NiPoGi GK3 Plus N95 interfaces externas (fonte: NiPoGi)

Size comparison

Newsmay Neosmay S2-B560TPM Minipc Union NiPoGi GK3PLUS - N95 Newsmay AC8 N6005 Nofflink M500-5405U Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A5 ❌

Comunicação

Dentro do NiPoGi GK3 Plus N95, temos um módulo WiFi da Realtek que suporta Bluetooth 4.2. Utilizamos o Asus ROG Rapture GT-AXE11000 para nossos testes de desempenho. O desempenho documentado de transmissão e recepção está muito abaixo da média da classe. Em comparação com os dispositivos de comparação, nossa amostra de revisão só foi capaz de superar o desempenho do Ace Magician T8Pro. A interface RJ45 oferece uma alternativa mais rápida do que a comunicação em rede sem fio. No entanto, mais de 1 GBit/s não é possível aqui.

Networking
iperf3 receive AXE11000
Nofflink M500-5405U MediaTek RZ608	975 (958^min - 997^max) MBit/s ∼100% +172%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s ∼99% +169%
Average of class Mini PC (192.9 - 1688, n=31, last 2 years)	845 MBit/s ∼87% +136%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s ∼37% +1%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s ∼37%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 363, n=3)	358 MBit/s ∼37% 0%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s ∼30% -19%
iperf3 transmit AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s ∼100% +219%
Nofflink M500-5405U MediaTek RZ608	832 (730^min - 860^max) MBit/s ∼97% +209%
Average of class Mini PC (184.1 - 1491, n=31, last 2 years)	773 MBit/s ∼90% +187%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s ∼31%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s ∼26% -16%
Average Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 269, n=3)	220 MBit/s ∼26% -18%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s ∼21% -32%

Minipc Union NiPoGi GK3PLUS - N95; iperf3 receive AXE11000; iperf 3.1.3: Ø352 (180-362)

Minipc Union NiPoGi GK3PLUS - N95; iperf3 transmit AXE11000; iperf 3.1.3: Ø265 (136-276)

Acessórios

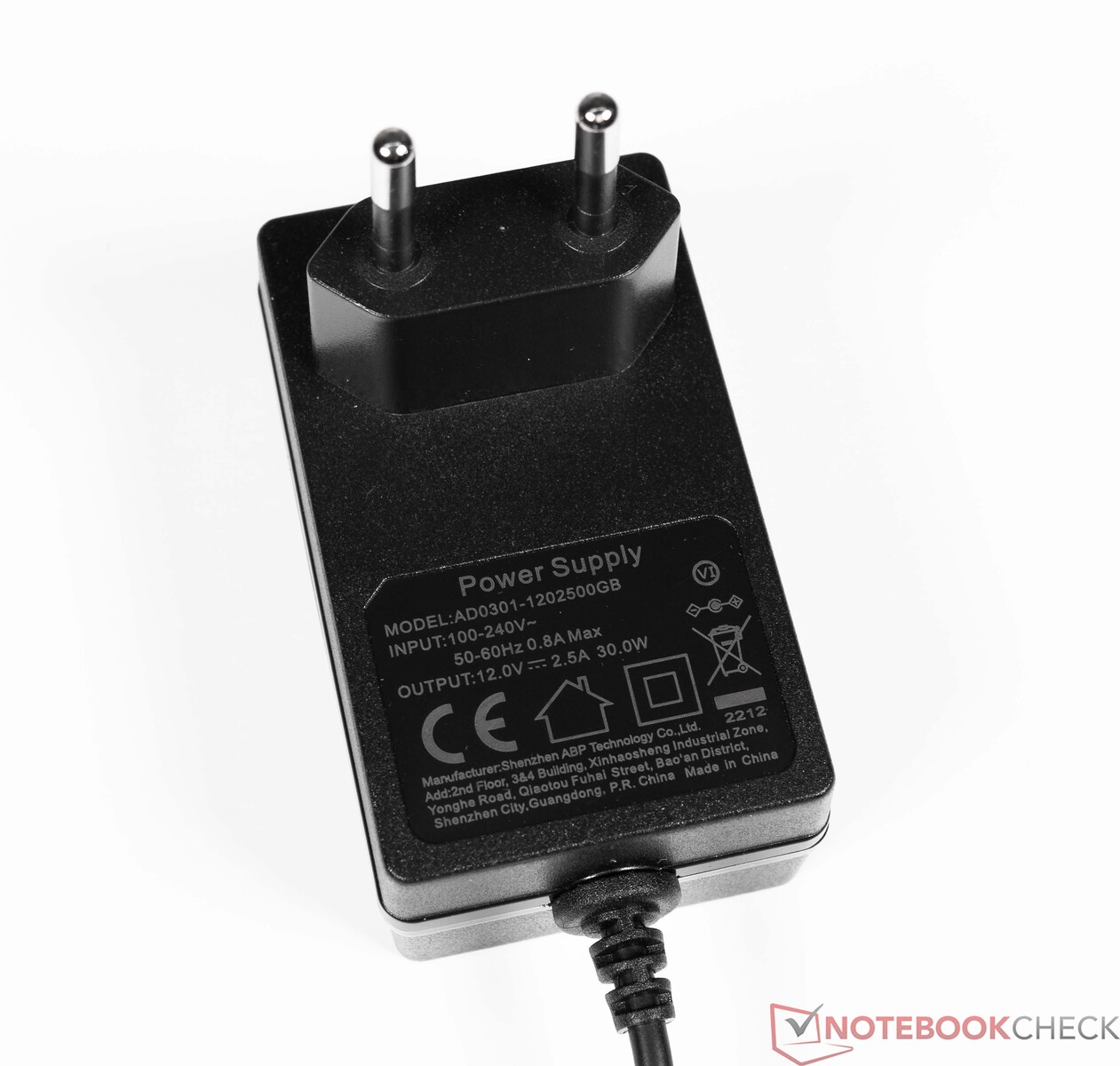

Além do dispositivo em si, o mini PC só vem com uma pequena unidade de alimentação de 30 watts, assim como um cabo HDMI e uma placa de montagem para montagem em um monitor (montagem VESA).

Manutenção

Com o NiPoGi GK3 Plus N95, as possíveis tarefas de manutenção ou opções de atualização são restritas ao mínimo. O dispositivo oferece apenas um slot SO-Dimm. Por outro lado, isso significa que mais RAM não pode ser instalado. Apenas um segundo dispositivo de armazenamento em massa pode ser instalado de forma relativamente rápida e fácil. Para conseguir isto, a tampa tem que ser removida, mas felizmente isto só envolve um único parafuso na base. Entretanto, o armazenamento de massa de 2,5 polegadas não deve ser mais alto do que um máximo de 7 milímetros. Todos os cabos já estão presentes dentro do NiPoGi GK3 Plus N95. Quem desejar limpar o ventilador ou trocar o M.2 SSD terá que desmontar mais o dispositivo, mas isto é, pelo menos, bastante manejável.

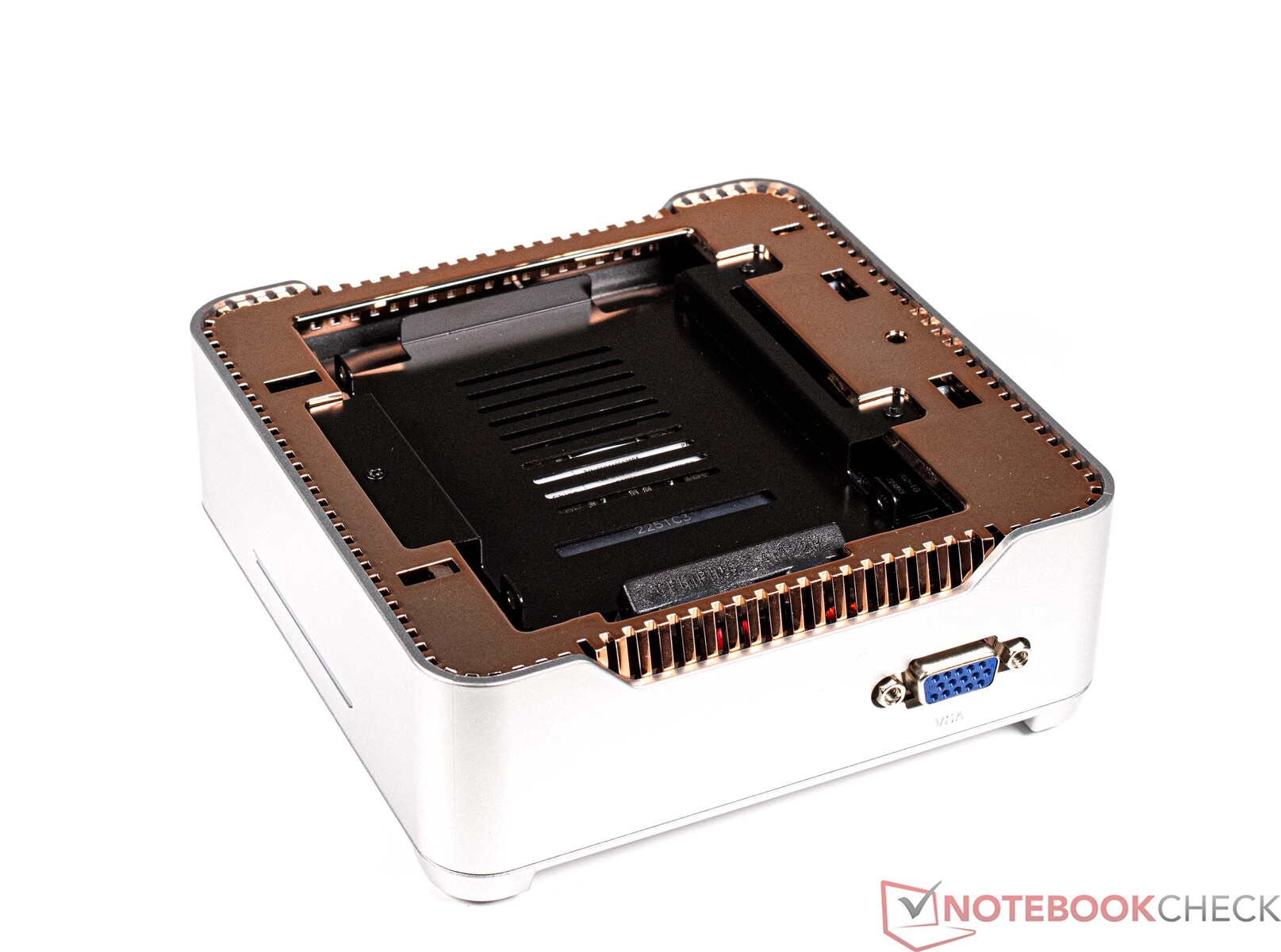

NiPoGi GK3 Plus N95 - aberto completamente

NiPoGi GK3 Plus N95 - completamente aberto

Desempenho - A econômica Intel N95 oferece 4 núcleos nativos

O Intel Pentium N95é um SoC nativo quad-core, fornecendo uma base sólida para seu uso pretendido. Com 16 GB de RAM, o NiPoGi GK3 Plus N95 está equipado com um generoso 16 GB de RAM.

Condições de teste

Todos os testes de desempenho foram realizados utilizando o perfil de energia de Alto Desempenho, a fim de alcançar o melhor desempenho possível. As diferentes medidas de economia de energia só entraram em jogo na análise tanto do consumo de energia quanto do nível de ruído. Mais detalhes a respeito de nossos critérios de teste podem ser encontrados aqui aqui.

Processador

OIntel N95 possui quatro núcleos nativos com uma velocidade máxima de impulso do relógio de até 3,4 GHz. Em testes, o N95 no NiPoGi GK3 Plus N95 demonstrou bom desempenho e pode até acompanhar oIntel Core i5-11400Tencontrado no Newsmay Neosmay S2. Entretanto, este não é o caso quando se trata de referências multi-core, com a máquina de quatro núcleos incapaz de acompanhar os seis núcleos nativos encontrados no Neosmay S2. Entretanto, em comparação com o Intel Pentium Silver N6005, o Intel N95 tem seu nariz na frente em cerca de 20%. O fabricante definiu os limites de potência do NiPoGi GK3 Plus N95 como sendo 15 (PL2) e 10 watts (PL1), respectivamente.

Infelizmente, a configuração algo questionável da RAM é a anulação do SoC, já que a NiPoGi só equipou o dispositivo com um único módulo SO-Dimm com 16 GB de DDR4 2666 MT/s. Entretanto, o SoC suporta até 4800 MT/s na forma do DDR5. No entanto, 3200 MT/s como opção do DDR4, teria sido a melhor escolha, a fim de obter mais desempenho. A operação de canal duplo não é possível com o NiPoGi GK3 Plus N95 de qualquer forma, pois há apenas um único slot SO-Dimm.

Podem ser encontrados benchmarks adicionais de processador aqui.

Performance Rating - Percent
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	35.5 pt ∼36%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.8 pt ∼30%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	27.5 pt ∼28%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	27.5 pt ∼28%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	27.3 pt ∼27%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	25.2 pt ∼25%

Cinebench R15
CPU Single 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	153 Points ∼47% +24%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points ∼38% 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points ∼38%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points ∼32% -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points ∼31% -17%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	94 Points ∼29% -24%
CPU Multi 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	642 Points ∼7% +57%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points ∼4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points ∼4% -10%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points ∼4% -12%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points ∼3% -22%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	239 Points ∼2% -41%

Cinebench R20
CPU (Single Core)
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	378 Points ∼43% +57%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points ∼31% +10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points ∼28%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points ∼27% -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points ∼27% -3%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	208 Points ∼24% -14%
CPU (Multi Core)
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1500 Points ∼6% +54%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points ∼4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points ∼4% -15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points ∼3% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points ∼3% -26%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	535 Points ∼2% -45%

Cinebench R11.5
CPU Single 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1.79 Points ∼6% +20%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points ∼5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points ∼5% -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points ∼4% -13%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points ∼4% -16%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.09 Points ∼3% -27%
CPU Multi 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.3 Points ∼10% +41%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points ∼7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points ∼7% -8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points ∼7% -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points ∼6% -20%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2.7 Points ∼4% -48%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	8290 Points ∼45% +26%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points ∼36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points ∼34% -6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points ∼30% -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points ∼28% -20%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	4704 Points ∼26% -28%
Rendering Multiple CPUs 64Bit
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	25835 Points ∼19% +26%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points ∼15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points ∼12% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points ∼12% -20%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points ∼11% -24%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	10418 Points ∼7% -49%

Blender - v2.79 BMW27 CPU
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2168 Seconds * ∼15% -88%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * ∼13% -57%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * ∼11% -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds * ∼11% -34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * ∼8%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	704 Seconds * ∼5% +39%

wPrime 2.10
32m
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	22.797 s * ∼5% -39%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * ∼4% -20%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s * ∼4% -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * ∼3% -4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * ∼3%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.804 s * ∼2% +53%
1024m
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	714.014 s * ∼8% -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * ∼7% -15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * ∼7% -15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s * ∼7% -13%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * ∼6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	261.299 s * ∼3% +51%

X264 HD Benchmark 4.0
Pass 1
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	154.5 (154.4^min - 155.1^max) fps ∼36% +6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps ∼34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps ∼28% -17%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps ∼26% -22%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps ∼24% -30%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	83.4 (83.2^min - 85.2^max) fps ∼20% -43%
Pass 2
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	40 (40^min - 40.1^max) fps ∼15% +35%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps ∼11%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps ∼9% -15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps ∼9% -17%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps ∼8% -27%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	15.7 (15.6^min - 15.9^max) fps ∼6% -47%

WinRAR - Result
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4409 KB/s ∼26% +102%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s ∼13%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2048 KB/s ∼12% -6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s ∼10% -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s ∼9% -25%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s ∼9% -30%

TrueCrypt
AES Mean 100MB
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4.2 GB/s ∼13% +75%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s ∼8% +8%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼8% +4%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s ∼8% +4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s ∼7%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.4 GB/s ∼4% -42%
Twofish Mean 100MB
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.648 GB/s ∼0% +30%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s ∼0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s ∼0% -19%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼0% -26%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s ∼0% -26%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	0.246 GB/s ∼0% -51%
Serpent Mean 100MB
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.414 GB/s ∼0% +70%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s ∼0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s ∼0% -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼0% -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s ∼0% -19%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	0.145 GB/s ∼0% -40%

Geekbench 5.4
Multi-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3510 Points ∼12% +47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points ∼8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points ∼7% -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points ∼7% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points ∼6% -30%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1393 Points ∼5% -42%
Single-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1146 Points ∼50% +43%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼35%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points ∼28% -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points ∼28% -21%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points ∼26% -25%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	600 Points ∼26% -25%

Geekbench 5.0
5.0 Multi-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3495 Points ∼11% +47%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points ∼8%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points ∼6% -14%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points ∼6% -17%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1381 Points ∼4% -42%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points ∼4% -45%
5.0 Single-Core
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1130 Points ∼5% +41%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points ∼3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points ∼3% -19%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points ∼3% -21%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points ∼3% -25%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	603 Points ∼3% -25%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4855 Points ∼50% +35%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points ∼37%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2970 Points ∼31% -17%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points ∼30% -18%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points ∼30% -20%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points ∼26% -29%
64 Bit Multi-Core Score
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	17082 Points ∼19% +77%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points ∼11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points ∼9% -18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points ∼9% -19%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	5806 Points ∼6% -40%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points ∼6% -44%

3DMark 11 - 1280x720 Performance Physics
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7319 Points ∼20% +44%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points ∼14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points ∼12% -16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points ∼12% -16%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points ∼10% -28%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	3279 Points ∼9% -36%

7-Zip 18.03
7z b 4
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	19699 MIPS ∼12% +69%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS ∼7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS ∼7% -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS ∼7% -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS ∼6% -15%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	6557 MIPS ∼4% -44%
7z b 4 -mmt1
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4157 MIPS ∼50% +33%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS ∼42% +13%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS ∼37%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS ∼37% -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS ∼35% -6%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	2563 MIPS ∼31% -18%

HWBOT x265 Benchmark v2.2 - 4k Preset
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	5.24 fps ∼11% +73%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps ∼7%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps ∼4% -33%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps ∼4% -34%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps ∼4% -46%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.24 fps ∼3% -59%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec * ∼26% -16%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1.183 sec * ∼26% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * ∼25% -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * ∼25% -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * ∼22%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.792 sec * ∼17% +23%

LibreOffice - 20 Documents To PDF
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	108.9 s * ∼28% -35%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s * ∼26% -29%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * ∼26% -28%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * ∼23% -16%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * ∼20%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	62.4 s * ∼16% +22%

WebXPRT 3 - ---
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	208 Points ∼48% +34%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points ∼36%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points ∼34% -6%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points ∼29% -18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points ∼28% -21%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	104.2 Points ∼24% -33%

Mozilla Kraken 1.1 - Total Score
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	1971 ms * ∼2% -59%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms * ∼2% -31%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * ∼2% -28%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * ∼2% -13%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * ∼1%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	887 ms * ∼1% +28%

3DMark - 1920x1080 Fire Strike Physics
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	10064 Points ∼19% +70%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points ∼11%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points ∼10% -6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points ∼10% -7%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points ∼8% -27%
Nofflink M500-5405U Intel Pentium Gold 5405U, 2300 MHz	3836 Points ∼7% -35%

* ... smaller is better

Performance Rating
Average of class Mini PC	100 pt ∼100%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	66.1 pt ∼66%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	24.8 pt ∼25%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	23.8 pt ∼24%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	18 pt ∼18%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	11.4 pt ∼11%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8 pt ∼8%

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (561 - 15814, n=39, last 2 years)	8186 KRay/s ∼100% +1000%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	5279 KRay/s ∼64% +610%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s ∼15% +67%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1241 KRay/s ∼15% +67%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	897 KRay/s ∼11% +21%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	744 KRay/s ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s ∼5% -44%

AIDA64 / FPU Julia
Average of class Mini PC (3604 - 99936, n=39, last 2 years)	45981 Points ∼100% +1058%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	23312 Points ∼51% +487%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points ∼16% +88%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7446 Points ∼16% +88%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	4029 Points ∼9% +1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	3970 Points ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points ∼5% -40%

AIDA64 / CPU SHA3
Average of class Mini PC (225 - 3570, n=39, last 2 years)	1961 MB/s ∼100% +626%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	1522 MB/s ∼78% +464%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s ∼26% +90%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	513 MB/s ∼26% +90%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	280 MB/s ∼14% +4%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	270 MB/s ∼14%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s ∼9% -38%

AIDA64 / CPU Queen
Average of class Mini PC (8178 - 104437, n=39, last 2 years)	64167 Points ∼100% +685%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55222 Points ∼86% +575%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points ∼35% +173%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 Points ∼35% +171%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	15686 Points ∼24% +92%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	8178 Points ∼13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points ∼12% -4%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 13164, n=39, last 2 years)	6503 Points ∼100% +1494%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	4059 Points ∼62% +895%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	1382 Points ∼21% +239%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points ∼15% +146%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1000 Points ∼15% +145%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	408 Points ∼6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points ∼6% -3%

AIDA64 / FPU Mandel
Average of class Mini PC (1958 - 55002, n=39, last 2 years)	24321 Points ∼100% +1124%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	13839 Points ∼57% +596%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points ∼16% +99%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3954 Points ∼16% +99%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	2053 Points ∼8% +3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	1987 Points ∼8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points ∼5% -36%

AIDA64 / CPU AES
Average of class Mini PC (3778 - 136723, n=39, last 2 years)	64372 MB/s ∼100% +709%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55995 MB/s ∼87% +604%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19354 MB/s ∼30% +143%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s ∼30% +143%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	7954 MB/s ∼12%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s ∼10% -20%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	5229 MB/s ∼8% -34%

AIDA64 / CPU ZLib
Average of class Mini PC (74.8 - 982, n=39, last 2 years)	514 MB/s ∼100% +586%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	294 MB/s ∼57% +293%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s ∼37% +151%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188 MB/s ∼37% +151%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	103.1 MB/s ∼20% +38%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	74.9 MB/s ∼15%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s ∼12% -19%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (308 - 8447, n=39, last 2 years)	4361 KRay/s ∼100% +958%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	2866 KRay/s ∼66% +596%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% +64%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s ∼16% +64%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	505 KRay/s ∼12% +23%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	412 KRay/s ∼9%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s ∼5% -48%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (4408 - 44347, n=39, last 2 years)	23492 MPixel/s ∼100% +433%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	12524 MPixel/s ∼53% +184%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	12141 MPixel/s ∼52% +175%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s ∼42% +125%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7654 MPixel/s ∼33% +74%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	4408 MPixel/s ∼19%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s ∼11% -43%

Cinebench R15 Loop

OIntel N95o desempenho do Cinebench R15 é muito gerenciável sob carga, como pode ser visto na análise do loop contínuo Cinebench R15. Os resultados foram consistentes em todas as corridas. Somente os resfriados passivamente Notícias AC8mostra aqui pequenas fraquezas. Em comparação, o NiPoGi GK3 Plus N95 conseguiu garantir o segundo lugar com uma média de 404 pontos.

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

Geekom MiniAir 11 Special Edition Intel Celeron N5095, Intel Celeron N5095: Ø371 (367.43-373.05)

Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)

Nofflink M500-5405U Intel Pentium Gold 5405U, Intel Pentium Gold 5405U: Ø238 (236.3-238.86)

Desempenho do sistema

Nossos benchmarks de desempenho do sistema também demonstraram bom desempenho da CPU, com nosso sistema de revisão assegurando com confiança o segundo lugar. No entanto, osNewsmay Neosmay S2com seus seis núcleos nativos, teve pontuação mais alta em testes de referência. No entanto, vimos um quadro totalmente diferente na área de testes de RAM. A configuração subótima da RAM tem seu custo e, como resultado, o NiPoGi GK3 Plus N95 fica muito atrás dos dispositivos de comparação.

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	100 pt ∼100%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	77.2 pt ∼77%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	65 pt ∼65%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	64.6 pt ∼65%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	64.4 pt ∼64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	62.4 pt ∼62%

PCMark 10
Score
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	3975 Points ∼100% +33%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	2983 Points ∼75%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points ∼64% -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points ∼61% -19%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	2365 Points ∼59% -21%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points ∼59% -21%
Essentials
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	8679 Points ∼100% +31%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	6650 Points ∼77%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points ∼68% -12%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points ∼65% -15%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points ∼63% -18%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	5425 Points ∼63% -18%
Productivity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	5656 Points ∼100% +25%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	4524 Points ∼80%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	4056 Points ∼72% -10%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points ∼68% -15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points ∼65% -19%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points ∼63% -22%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1125 Points ∼100% +69%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	666 Points ∼59%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points ∼44% -26%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	481 Points ∼43% -28%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points ∼42% -29%

CrossMark / Productivity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1160 Points ∼100% +61%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	721 Points ∼62%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points ∼48% -23%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points ∼46% -26%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	518 Points ∼45% -28%

CrossMark / Creativity
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1094 Points ∼100% +78%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	616 Points ∼56%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	449 Points ∼41% -27%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points ∼40% -29%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points ∼40% -29%

CrossMark / Responsiveness
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1113 Points ∼100% +68%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	661 Points ∼59%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points ∼45% -25%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	477 Points ∼43% -28%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points ∼36% -39%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (6481 - 70620, n=39, last 2 years)	40520 MB/s ∼100% +525%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	28606 MB/s ∼71% +341%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22138 MB/s ∼55% +242%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	19209 MB/s ∼47% +196%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16422 MB/s ∼41% +153%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6481 MB/s ∼16%
Average Intel Processor N95	6481 MB/s ∼16% 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6308 MB/s ∼16% -3%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 65856, n=39, last 2 years)	41277 MB/s ∼100% +497%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	27412 MB/s ∼66% +296%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	20405 MB/s ∼49% +195%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16615 MB/s ∼40% +140%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	15464 MB/s ∼37% +124%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6914 MB/s ∼17%
Average Intel Processor N95	6914 MB/s ∼17% 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6576 MB/s ∼16% -5%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 66047, n=39, last 2 years)	42837 MB/s ∼100% +524%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	31261 MB/s ∼73% +356%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30843 MB/s ∼72% +349%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	18659 MB/s ∼44% +172%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	18612 MB/s ∼43% +171%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6866 MB/s ∼16% 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	6862 MB/s ∼16%
Average Intel Processor N95	6862 MB/s ∼16% 0%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics Xe 16EUs (Tiger Lake-H)	146 ns * ∼100%
Average Intel Processor N95	146 ns * ∼100% -0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	144 ns * ∼99% +1%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	87.9 ns * ∼60% +40%
Average of class Mini PC (55.3 - 146, n=39, last 2 years)	84.7 ns * ∼58% +42%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	74.1 ns * ∼51% +49%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	69.7 ns * ∼48% +52%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	59.3 ns * ∼41% +59%

* ... smaller is better

PCMark 10 Score		2983 pontos
Ajuda

Latências DPC

O NiPoGi GK3 Plus N95 já apresentava problemas de latência ao abrir várias abas no navegador Edge. Nosso dispositivo de revisão teve problemas crescentes ao reproduzir nosso vídeo de teste 4K quando o SoC foi empurrado aos seus limites. Isto fez com que os quadros fossem pulados na ordem do dia. A carga do SoC só foi sustentavelmente menos tributada depois de reduzir a resolução para 1080p e resultou em nenhum fotograma saltado adicional.

Máxima latência ao abrir várias abas do navegador e reproduzir material de vídeo 4K

Latência máxima após dez segundos de Prime95

Motoristas classificados por maior tempo de funcionamento

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs * ∼100% -18%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Kimtigo KTB900SM28/512GB	3463 μs * ∼85%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * ∼65% +24%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1232.3 μs * ∼30% +64%
Nofflink M500-5405U, Intel Pentium Gold 5405U Intel UHD Graphics 610, Qunion P20A NGFF 512GB	751.7 μs * ∼18% +78%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * ∼17% +80%

* ... smaller is better

Armazenamento em massa

O ANiPoGi GK3 Plus N95 contém um SSD de 512 GB. Entretanto, o modelo instalado utiliza apenas a velocidade SATA e, ao fazê-lo, é muito inferior aos SSDs NVMe mais rápidos. O fabricante é a Kimtigo - uma empresa não tão conhecida nestas margens. Em comparação, o modelo utilizado aqui oferece desempenho sólido o suficiente para garantir o segundo lugar. Um slot adicional de 2,5 polegadas ainda é livre, o que significa que o NiPoGi GK3 Plus N95 pode abrigar até duas unidades de armazenamento em massa.

Para mais comparações e benchmarks, dê uma olhada em nossa tabela de comparação.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kimtigo KTB900SM28/512GB

Sequential Read: 461.3 MB/s

Sequential Write: 494 MB/s

512K Read: 425.4 MB/s

512K Write: 469.8 MB/s

4K Read: 24.16 MB/s

4K Write: 95.96 MB/s

4K QD32 Read: 130.5 MB/s

4K QD32 Write: 235.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	90.2 pt ∼90%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	83.8 pt ∼84%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	31 pt ∼31%
Average Kimtigo KTB900SM28/512GB	31 pt ∼31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	28.4 pt ∼28%
Newsmay AC8 N6005 Lexar 128GB SSD	27.6 pt ∼28%
Nofflink M500-5405U Qunion P20A NGFF 512GB	23.4 pt ∼23%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	17.1 pt ∼17%

DiskSpd
seq read
Average of class Mini PC (233 - 4168, n=38, last 2 years)	1831 MB/s ∼100% +299%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	802 (778.67^min - 802.37^max) MB/s ∼44% +75%
Nofflink M500-5405U Qunion P20A NGFF 512GB	517 (507.3^min - 516.74^max) MB/s ∼28% +13%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s ∼28% +11%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s ∼26% +3%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s ∼25%
Average Kimtigo KTB900SM28/512GB	459 MB/s ∼25% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s ∼24% -5%
seq write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2380 (607.54^min - 2380.06^max) MB/s ∼100% +382%
Average of class Mini PC (222 - 3938, n=38, last 2 years)	1827 MB/s ∼77% +270%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s ∼21%
Average Kimtigo KTB900SM28/512GB	494 MB/s ∼21% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s ∼21% -1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s ∼19% -6%
Nofflink M500-5405U Qunion P20A NGFF 512GB	428 (406.85^min - 428.26^max) MB/s ∼18% -13%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s ∼17% -17%
seq q8 t1 read
Average of class Mini PC (236 - 7061, n=38, last 2 years)	2738 MB/s ∼100% +443%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2453 (2244.5^min - 2453.25^max) MB/s ∼90% +387%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s ∼20% +9%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s ∼20% +9%
Nofflink M500-5405U Qunion P20A NGFF 512GB	538 (487.24^min - 538.13^max) MB/s ∼20% +7%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s ∼18%
Average Kimtigo KTB900SM28/512GB	504 MB/s ∼18% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s ∼16% -11%
seq q8 t1 write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2378 (615.51^min - 2377.75^max) MB/s ∼100% +358%
Average of class Mini PC (228 - 3938, n=38, last 2 years)	1920 MB/s ∼81% +270%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s ∼22%
Average Kimtigo KTB900SM28/512GB	519 MB/s ∼22% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s ∼22% -1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s ∼20% -10%
Nofflink M500-5405U Qunion P20A NGFF 512GB	445 (424.04^min - 444.81^max) MB/s ∼19% -14%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s ∼15% -33%
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=38, last 2 years)	49 MB/s ∼100% +89%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	42.1 (41.43^min - 42.13^max) MB/s ∼86% +63%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s ∼69% +31%
Nofflink M500-5405U Qunion P20A NGFF 512GB	28.2 (26.65^min - 28.17^max) MB/s ∼58% +9%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s ∼54% +2%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s ∼53%
Average Kimtigo KTB900SM28/512GB	25.9 MB/s ∼53% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s ∼26% -50%
4k q1 t1 write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	195.3 (151.02^min - 195.34^max) MB/s ∼100% +103%
Average of class Mini PC (22 - 425, n=38, last 2 years)	189.8 MB/s ∼97% +98%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s ∼51% +4%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s ∼49%
Average Kimtigo KTB900SM28/512GB	96 MB/s ∼49% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s ∼38% -23%
Nofflink M500-5405U Qunion P20A NGFF 512GB	45.2 (19.09^min - 45.17^max) MB/s ∼23% -53%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s ∼11% -77%
4k q32 t16 read
Average of class Mini PC (26.1 - 1948, n=38, last 2 years)	923 MB/s ∼100% +255%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	509 (301.38^min - 508.59^max) MB/s ∼55% +96%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s ∼29% +2%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s ∼28%
Average Kimtigo KTB900SM28/512GB	260 MB/s ∼28% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s ∼20% -29%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s ∼18% -35%
Nofflink M500-5405U Qunion P20A NGFF 512GB	169.9 (165.74^min - 169.94^max) MB/s ∼18% -35%
4k q32 t16 write
Average of class Mini PC (30.2 - 3830, n=38, last 2 years)	1176 MB/s ∼100% +354%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	590 (520.84^min - 590.29^max) MB/s ∼50% +128%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s ∼27% +23%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s ∼24% +11%
Nofflink M500-5405U Qunion P20A NGFF 512GB	272 (255.67^min - 271.76^max) MB/s ∼23% +5%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s ∼22%
Average Kimtigo KTB900SM28/512GB	259 MB/s ∼22% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s ∼14% -35%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=39, last 2 years)	3423 Points ∼100% +365%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	3347 Points ∼98% +355%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points ∼22%
Average Kimtigo KTB900SM28/512GB	736 Points ∼22% 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points ∼20% -5%
Nofflink M500-5405U Qunion P20A NGFF 512GB	688 Points ∼20% -7%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points ∼18% -18%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points ∼4% -79%
Score Read
Average of class Mini PC (61 - 3635, n=39, last 2 years)	1258 Points ∼100% +442%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1068 Points ∼85% +360%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points ∼25% +38%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points ∼18%
Average Kimtigo KTB900SM28/512GB	232 Points ∼18% 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	230 Points ∼18% -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points ∼17% -6%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points ∼11% -42%
Score Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1717 Points ∼100% +360%
Average of class Mini PC (88 - 4185, n=39, last 2 years)	1603 Points ∼93% +330%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points ∼23% +6%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points ∼22%
Average Kimtigo KTB900SM28/512GB	373 Points ∼22% 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	334 Points ∼19% -10%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points ∼18% -16%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points ∼12% -44%
Seq Read
Average of class Mini PC (291 - 5799, n=39, last 2 years)	2599 MB/s ∼100% +453%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2203.6 MB/s ∼85% +369%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s ∼20% +9%
Nofflink M500-5405U Qunion P20A NGFF 512GB	494.9 MB/s ∼19% +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s ∼19% +4%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s ∼18%
Average Kimtigo KTB900SM28/512GB	470 MB/s ∼18% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s ∼17% -8%
Seq Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2189.3 MB/s ∼100% +352%
Average of class Mini PC (240 - 3927, n=39, last 2 years)	1713 MB/s ∼78% +254%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s ∼22%
Average Kimtigo KTB900SM28/512GB	484 MB/s ∼22% 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	431.8 MB/s ∼20% -11%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s ∼19% -15%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s ∼18% -20%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s ∼16% -29%
4K Read
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	56.28 MB/s ∼100% +105%
Average of class Mini PC (6.08 - 103.7, n=39, last 2 years)	53.3 MB/s ∼95% +94%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s ∼63% +29%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s ∼49%
Average Kimtigo KTB900SM28/512GB	27.5 MB/s ∼49% 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	25.8 MB/s ∼46% -6%
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s ∼41% -15%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s ∼29% -41%
4K Write
Average of class Mini PC (30.9 - 366, n=39, last 2 years)	169.7 MB/s ∼100% +98%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	119.31 MB/s ∼70% +39%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s ∼50%
Average Kimtigo KTB900SM28/512GB	85.6 MB/s ∼50% 0%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s ∼49% -3%
Nofflink M500-5405U Qunion P20A NGFF 512GB	59.78 MB/s ∼35% -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s ∼22% -56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s ∼22% -57%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=39, last 2 years)	945 MB/s ∼100% +499%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	791.75 MB/s ∼84% +402%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s ∼25% +49%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s ∼17%
Average Kimtigo KTB900SM28/512GB	157.7 MB/s ∼17% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s ∼17% 0%
Nofflink M500-5405U Qunion P20A NGFF 512GB	154.49 MB/s ∼16% -2%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s ∼6% -62%
4K-64 Write
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1378.5 MB/s ∼100% +477%
Average of class Mini PC (32.8 - 3598, n=39, last 2 years)	1262 MB/s ∼92% +428%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s ∼20% +14%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s ∼17%
Average Kimtigo KTB900SM28/512GB	239 MB/s ∼17% 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s ∼17% -1%
Nofflink M500-5405U Qunion P20A NGFF 512GB	231.08 MB/s ∼17% -3%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s ∼10% -43%
Access Time Read
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * ∼100% -170%
Nofflink M500-5405U Qunion P20A NGFF 512GB	0.15 ms * ∼73% -97%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms * ∼72% -95%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * ∼68% -83%
Average of class Mini PC (0.022 - 0.489, n=39, last 2 years)	0.1042 ms * ∼51% -37%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * ∼37%
Average Kimtigo KTB900SM28/512GB	0.076 ms * ∼37% -0%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.035 ms * ∼17% +54%
Access Time Write
Nofflink M500-5405U Qunion P20A NGFF 512GB	0.267 ms * ∼100% -110%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * ∼76% -60%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * ∼54% -14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms * ∼49% -4%
Average of class Mini PC (0.017 - 0.765, n=39, last 2 years)	0.1271 ms * ∼48% -0%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * ∼48%
Average Kimtigo KTB900SM28/512GB	0.127 ms * ∼48% -0%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.1 ms * ∼37% +21%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB: Ø498 (453.55-500.22)
