Nofflink M500 mini PC em revisão: PC de escritório com eficiência energética e cliente streaming com um Intel SoC e 32 GB de RAM

Computador compacto para escritório. O Nofflink M500 é um mini PC para uso cotidiano no escritório. Nesta revisão, vamos analisar mais de perto o modelo base com o Intel Pentium Gold 5405U.

Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 06/29/2022 🇺🇸 🇩🇪 ...

Assim como Morefine ou MinisForum, Nofflink é um fabricante chinês de sistemas especializado em mini PCs compactos. A série M500 da Nofflink é destinada aos usuários de escritório. Entretanto, o M500 também é adequado para uso como um cliente streaming. O chassi abriga componentes comprovados, o que neste caso significa Intel Whiskey Lake e Intel Comet Lake SoCs. Para uso diário no escritório, os processadores um pouco datados ainda oferecem um desempenho decente.

Nossa configuração de teste é o modelo básico Nofflink com o Intel Pentium Gold 5405U. Combinado com 32 GB de RAM e um SSD de 512 GB, o dispositivo é certamente capaz. É certo que 32 GB podem ser um pouco excessivos e, portanto, a versão de 16-GB não deve ter nenhum inconveniente. Curiosamente, o Nofflink nem mesmo lista o modelo 32-GB em sua própria loja virtual. Os potenciais clientes que estiverem de olho em nossa configuração podem esperar pagar cerca de 400 USD. Enquanto isso, o modelo top model é baseado em um Intel Core i7 10510U e um SSD de 1 TB e custa cerca de 600 USD. Este é um preço justo e convincente para um mini PC rápido e compacto.

O Nofflink M500 vem em uma pequena embalagem com todos os acessórios necessários.

Nofflink M500

Processador

Intel Pentium Gold 5405U 2 x 2.3 GHz, 18 W PL2 / Short Burst, 10 W PL1 / Sustained, Whiskey Lake-U

Placa gráfica

Intel UHD Graphics 610

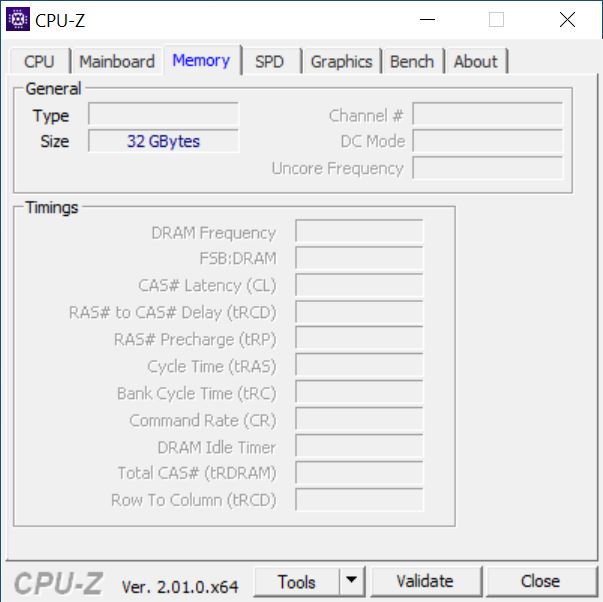

Memória

32 GB

, DDR4-2666, 2 of 2 occupied

placa mãe

Intel Cannon Lake-U PCH-LP Mainstream/Base

Disco rígido

Qunion P20A NGFF 512GB, 512 GB

Placa de Som

Intel Cannon Lake-LP - cAVS

Funcionamento em rede

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz)

Tamanho

altura x largura x profundidade (em mm): 39 x 127 x 127

Sistema Operativo

Microsoft Windows 10 Pro 64 Bit

peso

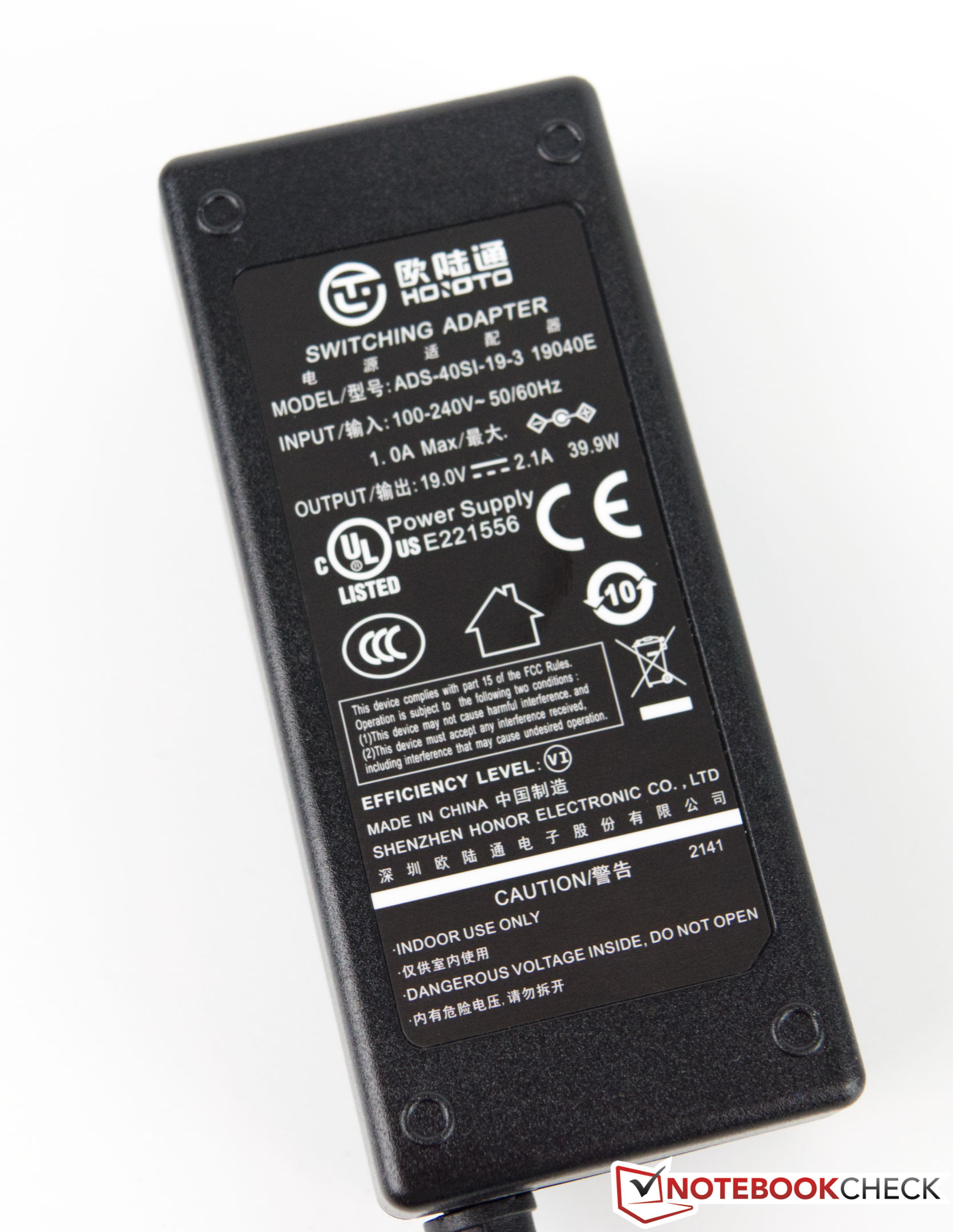

657 g, Suprimento de energia: 301 g

Preço

400 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Estojo e características

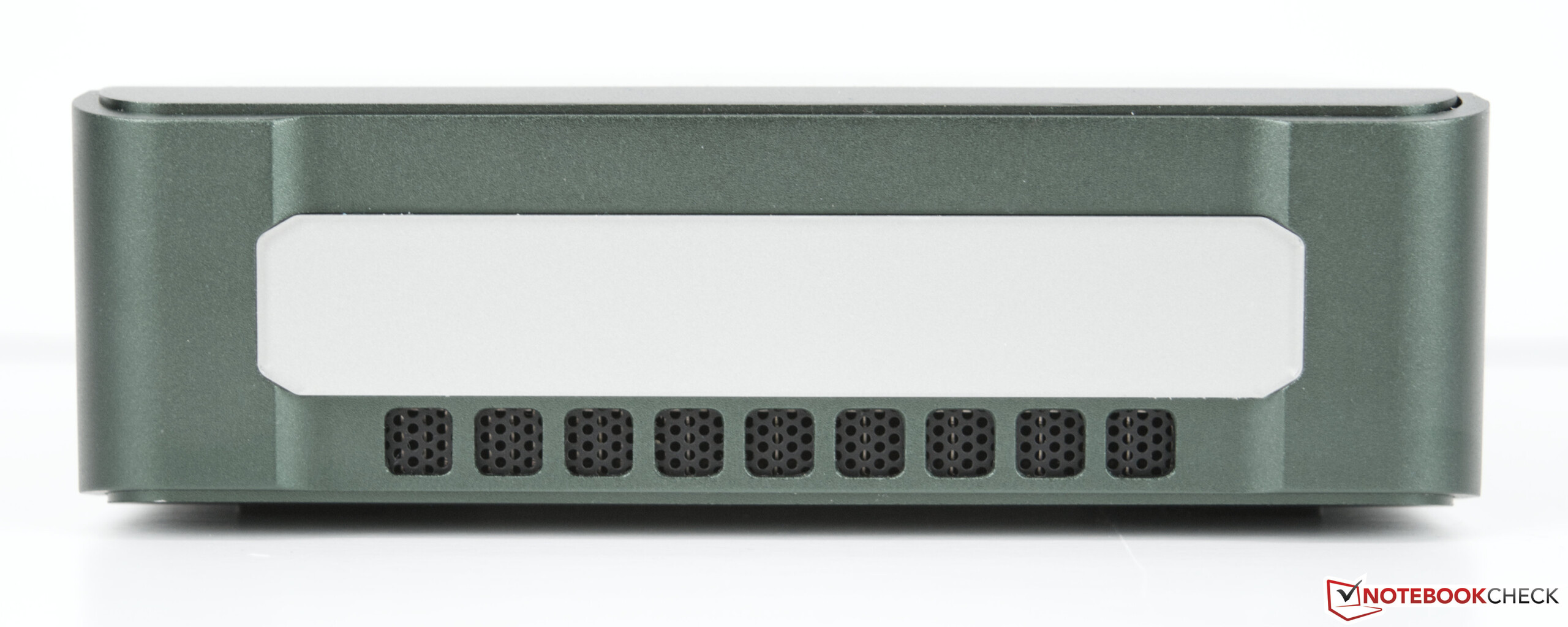

O Nofflink M500 consiste principalmente de alumínio, o que torna o dispositivo muito rígido. Embora o dispositivo pareça em sua maioria cinza na loja do fabricante, uma coloração verde distinta pode ser observada após uma inspeção mais detalhada. Em termos da aparência geral, isto não é uma desvantagem. Não há bordas afiadas e o dispositivo parece premium. Se necessário, a tampa do dispositivo pode ser removida rapidamente.

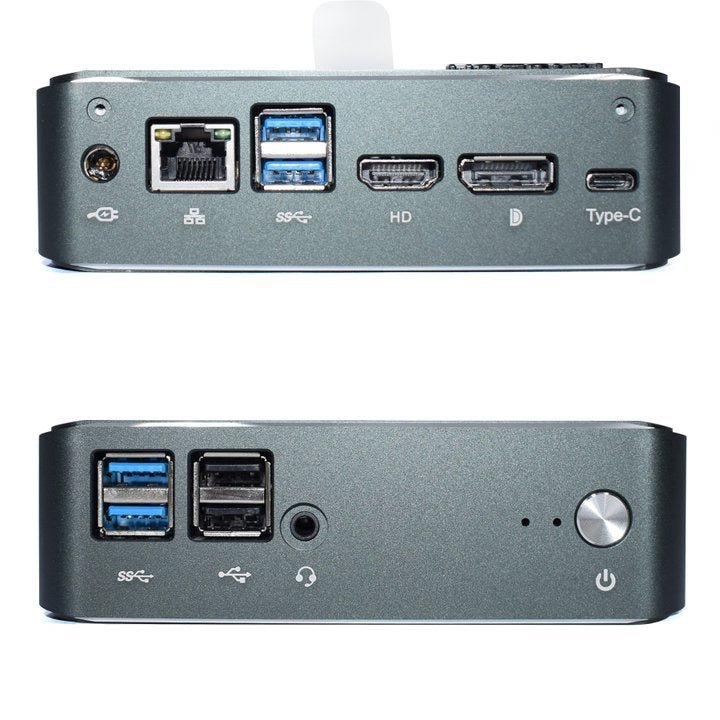

Quando se trata das interfaces externas, o Nofflink M500 oferece muitas opções para periféricos externos. Há um total de seis portas USB tipo A e uma porta USB tipo C. Como tal, o M500 oferece exatamente tantas portas quanto o Morefine S500+. Entretanto, duas das portas são limitadas ao USB 2.0. Os usuários podem escolher HDMI, DisplayPort ou USB tipo C para a saída de vídeo. Isto permite que até três monitores sejam conectados simultaneamente. Não há leitor de cartões SD.

Nofflink conta com o módulo Wi-Fi Intel AX201 para comunicação sem fio. Ele suporta Wi-Fi 6 na banda de 2,4-GHz e 5-GHz. Em nossos benchmarks de desempenho, o Nofflink M500 alcança bons resultados, embora eles fiquem abaixo da média da classe de PC desktop por uma margem significativa. Alternativamente, o mini PC oferece uma porta Ethernet tradicional com suporte para 2,5 Gb/s.

Networking
iperf3 receive AXE11000 6GHz
Zotac ZBOX Magnus EN173070C Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)	1480 (1212^min - 1519^max) MBit/s
Average of class Desktop (430 - 1827, n=9, last 2 years)	1265 MBit/s
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s
iperf3 transmit AXE11000 6GHz
Zotac ZBOX Magnus EN173070C Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)	1669 (1609^min - 1719^max) MBit/s
Average of class Desktop (572 - 1745, n=10, last 2 years)	1409 MBit/s
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s

Nofflink M500-5405U; iperf3 receive AXE11000; iperf 3.1.3: Ø976 (958-997)

Nofflink M500-5405U; iperf3 transmit AXE11000; iperf 3.1.3: Ø831 (730-860)

Desempenho

Processador

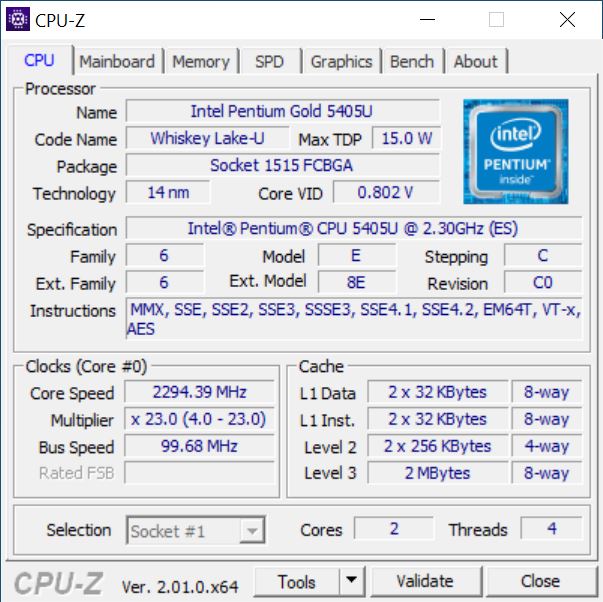

Como o nome sugere, o Nofflink M500-5405U utiliza um Intel Pentium Gold 5405U. O SoC de 15 watts faz parte da família Whiskey Lake-U e oferece dois núcleos físicos, que podem processar até quatro fios simultaneamente em até 2,3 GHz.

Em uma comparação direta, os inconvenientes do SoC nativo de núcleo duplo se tornam aparentes. O Notícias AC6 tem um desempenho ligeiramente melhor em nossos benchmarks multi-tarefas, embora o desempenho de nosso Nofflink M500 com um único núcleo seja ligeiramente superior. No entanto, a rápida CPU de octa-core da AMD deixa nossa Intel Pentium Gold 5405U na poeira. Isto corresponde às nossas expectativas e, portanto, não é surpreendente. Para fins de comparação, também incluímos o Intel Core i7-10510U em nosso gráfico. Isto mostra o desempenho aproximado que os usuários podem esperar deste SoC, que também está disponível para o Nofflink M500.

Mais comparações e benchmarks podem ser encontrados em nosso Tabela comparativa de CPU.

Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1499 Points +178%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1495 Points +177%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1479 Points +174%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	1456 Points +170%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1298 Points +141%
Average Intel Core i7-10510U (1066 - 1207, n=3)	1142 Points +112%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1031 Points +91%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	696 Points +29%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	660 Points +22%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	539 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	446 Points -17%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	411 Points -24%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13430 Points +866%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11873 Points +754%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11792 Points +748%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11440 Points +723%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5980 Points +330%
Average Intel Core i7-10510U (3626 - 4239, n=3)	3866 Points +178%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1910 Points +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1833 Points +32%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1563 (1557.19^min - 1562.55^max) Points +12%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1529 (1521.41^min - 1529.3^max) Points +10%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	1390 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	834 (768.67^min - 833.537^max) Points -40%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	585 Points +181%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	582 Points +180%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	567 Points +173%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	560 Points +169%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	505 Points +143%
Average Intel Core i7-10510U (362 - 497, n=37)	437 Points +110%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points +106%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	401 Points +93%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	266 Points +28%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	208 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -4%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	174 Points -16%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	171 Points -18%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	161 Points -23%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5185 Points +869%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4660 Points +771%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4585 Points +757%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4495 Points +740%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	2319 Points +333%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points +240%
Average Intel Core i7-10510U (1015 - 1897, n=38)	1412 Points +164%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	743 Points +39%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	720 Points +35%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	610 Points +14%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	556 Points +4%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	535 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -8%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	304 Points -43%

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	243 Points +159%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	242 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	240 Points +155%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	212 Points +126%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	194 Points +106%
Average Intel Core i7-10510U (113 - 202, n=42)	178.4 Points +90%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points +79%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	162 Points +72%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	123 Points +31%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points +24%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points +15%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	94 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -11%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	79.1 Points -16%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	77 Points -18%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	75.3 Points -20%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2224 Points +831%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1980 Points +728%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1967 Points +723%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1919 (1862.02^min - 1893.4^max) Points +703%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	950 Points +297%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points +231%
Average Intel Core i7-10510U (482 - 856, n=45)	666 Points +179%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	319 Points +33%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	316 Points +32%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points +25%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	271 (263.32^min - 271.42^max) Points +13%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points +9%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	248 Points +4%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	243 (199.13^min - 242.53^max) Points +2%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	239 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -8%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -12%

Blender - v2.79 BMW27 CPU
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2391 Seconds * -10%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2379 Seconds * -10%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2198 Seconds * -1%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	2168 Seconds *
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1805 Seconds * +17%
Average Intel Core i7-10510U (628 - 1051, n=31)	796 Seconds * +63%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds * +73%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	516 Seconds * +76%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	265 Seconds * +88%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	252.1 Seconds * +88%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	247.3 Seconds * +89%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	229.3 Seconds * +89%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -3%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	714.014 s *
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * +13%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	615 s * +14%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	603 s * +16%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	566 s * +21%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * +22%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	543 s * +24%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s * +69%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	191.4 s * +73%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.7 s * +85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.635 s * +86%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	91.6 s * +87%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.9 s * +88%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -1%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	22.797 s *
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * +14%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	19.42 s * +15%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * +21%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	17.62 s * +23%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	17.37 s * +24%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.09 s * +25%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s * +70%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5.895 s * +74%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4.4 s * +81%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.595 s * +84%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.308 s * +85%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3.194 s * +86%

X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	128 (122^min - 128^max) fps +715%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116.8 (116.8^min - 117.3^max) fps +644%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	112 (112^min - 112^max) fps +613%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	111 (111^min - 112^max) fps +607%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps +214%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21.6 (21.5^min - 22.1^max) fps +38%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	20.55 (20.4^min - 20.7^max) fps +31%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps +23%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	16.75 (16.7^min - 16.9^max) fps +7%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps +5%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	15.7 (15.6^min - 15.9^max) fps
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps -12%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	11.31 fps -28%
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	276.5 (274^min - 278^max) fps +232%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	271.5 (259^min - 276^max) fps +226%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	263.5 (262^min - 266^max) fps +216%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	215 (213^min - 217^max) fps +158%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps +121%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	106.5 (106^min - 109^max) fps +28%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps +26%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	102 (100^min - 118^max) fps +22%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps +6%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	83.4 (83.2^min - 85.2^max) fps
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	78.9 (77.1^min - 81.7^max) fps -5%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps -11%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	52.6 fps -37%

TrueCrypt
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.8 GB/s +671%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.6 GB/s +443%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s +429%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7.4 GB/s +429%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6.1 GB/s +336%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s +236%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.6 GB/s +86%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.9 GB/s +36%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1.9 GB/s +36%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.8 GB/s +29%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s +21%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s +7%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	1.4 GB/s
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -7%
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s +728%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.2 GB/s +728%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.1 GB/s +659%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.1 GB/s +659%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.525 GB/s +262%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s +231%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.23 GB/s +59%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.21 GB/s +45%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.182 GB/s +26%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.178 GB/s +23%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s +14%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	0.145 GB/s
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -2%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -8%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s +713%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	2 GB/s +713%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.6 GB/s +550%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1.5 GB/s +510%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	0.919 GB/s +274%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s +221%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.403 GB/s +64%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	0.346 GB/s +41%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s +15%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.266 GB/s +8%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.262 GB/s +7%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	0.246 GB/s
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s 0%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.9 fps +1182%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.8 fps +1094%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.5 fps +1069%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	12.9 fps +940%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	7.86 fps +534%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps +406%
Average Intel Core i7-10510U (3.41 - 6.04, n=31)	4.65 fps +275%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.65 fps +33%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.61 fps +30%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.48 fps +19%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.46 fps +18%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	1.24 fps
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	90.2 pt
Average of class Desktop	89.1 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80.7 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	80.3 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	80.2 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	49.2 pt
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	10.9 pt
Intel NUC5i3RYK ^-1! Intel Core i3-5010U, HD Graphics 5500	10.8 pt
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	10.5 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10.5 pt
Average Intel Pentium Gold 5405U	9.7 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4.3 pt

AIDA64 / FP32 Ray-Trace
Average of class Desktop (490 - 62786, n=25, last 2 years)	17460 KRay/s +1846%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +1656%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +1579%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +1420%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +1401%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +735%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	1473 KRay/s +64%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	1040 KRay/s +16%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s +11%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	897 KRay/s
Average Intel Pentium Gold 5405U (895 - 897, n=2)	896 KRay/s 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -54%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +2395%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +2055%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +2017%
Average of class Desktop (2932 - 264044, n=25, last 2 years)	81505 Points +1923%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +1893%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +685%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	7200 Points +79%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	6611 Points +64%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points +54%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	4029 Points
Average Intel Pentium Gold 5405U (4011 - 4029, n=2)	4020 Points 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -40%

AIDA64 / CPU SHA3
Average of class Desktop (202 - 10362, n=25, last 2 years)	3734 MB/s +1234%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +1130%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +955%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +944%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +840%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +650%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	417 MB/s +49%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s +41%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	280 MB/s
Average Intel Pentium Gold 5405U (279 - 280, n=2)	280 MB/s 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -40%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +570%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +548%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +523%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +503%
Average of class Desktop (8820 - 205588, n=25, last 2 years)	94006 Points +499%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points +235%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	20042 Points +28%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points +28%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	15686 Points
Average Intel Pentium Gold 5405U (15437 - 15686, n=2)	15562 Points -1%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	14767 Points -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -50%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +948%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +826%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +783%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +763%
Average of class Desktop (396 - 32855, n=25, last 2 years)	10987 Points +695%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +263%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	1382 Points
Average Intel Pentium Gold 5405U (1378 - 1382, n=2)	1380 Points 0%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	1342 Points -3%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	1263 Points -9%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -71%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +2601%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +2218%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +2190%
Average of class Desktop (1558 - 138291, n=25, last 2 years)	43317 Points +2010%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +1957%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +814%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	3821 Points +86%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	3614 Points +76%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points +64%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	2053 Points
Average Intel Pentium Gold 5405U (2050 - 2053, n=2)	2052 Points 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -38%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +2486%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +2192%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +2107%
Average of class Desktop (3778 - 379659, n=25, last 2 years)	108385 MB/s +1973%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +1363%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +1339%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	10604 MB/s +103%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s +93%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s +22%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	5229 MB/s
Average Intel Pentium Gold 5405U (5222 - 5229, n=2)	5226 MB/s 0%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	4759 MB/s -9%

AIDA64 / CPU ZLib
Average of class Desktop (75.2 - 2441, n=25, last 2 years)	936 MB/s +808%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +745%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +725%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +651%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +625%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +298%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	137 MB/s +33%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s +27%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	103.1 MB/s
Average Intel Pentium Gold 5405U (100 - 103.1, n=2)	101.6 MB/s -1%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	95 MB/s -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -41%

AIDA64 / FP64 Ray-Trace
Average of class Desktop (273 - 33821, n=25, last 2 years)	9478 KRay/s +1777%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +1568%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +1532%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +1324%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +1323%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +696%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	814 KRay/s +61%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	578 KRay/s +14%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s +10%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	505 KRay/s
Average Intel Pentium Gold 5405U (503 - 505, n=2)	504 KRay/s 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -58%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +152%
Average of class Desktop (5125 - 54037, n=25, last 2 years)	26592 MPixel/s +119%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +64%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s +62%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s +22%
Nofflink M500-5405U Intel Pentium Gold 5405U, UHD Graphics 610	12141 MPixel/s
Average Intel Pentium Gold 5405U (7835 - 12141, n=2)	9988 MPixel/s -18%
Intel NUC5i3RYK Intel Core i3-5010U, HD Graphics 5500	9034 MPixel/s -26%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -44%
Beelink GK Mini Intel Celeron J4125, UHD Graphics 600	6756 MPixel/s -44%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -79%

Nofflink M500-5405U no Cinebench R15 Multi Loop

Em nosso teste de carga, que é simulado pela execução do Cinebench R15 Multi em loop, a solução de resfriamento Nofflink mostra-se capaz de lidar com o desenvolvimento do calor do Intel Pentium Gold 5405U. Medimos uma pontuação média de 238 pontos após 50 corridas.

Nofflink M500-5405U Intel Pentium Gold 5405U, Intel Pentium Gold 5405U: Ø238 (236.3-238.86)

Beelink GK Mini Intel Celeron J4125, Intel Celeron J4125: Ø268 (263.32-271.42)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)

Desempenho do sistema e solução de armazenamento

Em nosso benchmark sintético PCMark 10, o Nofflink M500 atinge pontuações bastante decentes apesar de seu fraco SoC. No entanto, ele cai no terço mais baixo dos dispositivos em nossa comparação. A reprodução de um vídeo de teste 4K ainda funciona bem. A queda de quadros só ocorre no início do vídeo sem gagueira durante o restante do vídeo para uma reprodução suave de 4K. Enquanto isso, a carga do iGPU flutua entre 20 e 50%.

Latência máxima ao abrir várias abas do navegador e reprodução de vídeo 4K

Latência máxima após 10 segundos de funcionamento Prime95

PCMark 10 | DPC Latencies / LatencyMon

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6507 Points +175%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6290 Points +166%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6214 Points +163%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5565 Points +135%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	5130 Points +117%
Average Intel Core i7-10510U (3783 - 5409, n=39)	4312 Points +82%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points +70%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	2958 Points +25%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2548 Points +8%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	2365 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1898 Points -20%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1831 Points -23%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1806 Points -24%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10196 Points +151%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9941 Points +145%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9856 Points +143%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	8277 Points +104%
Average Intel Core i7-10510U (5883 - 8567, n=39)	7255 Points +79%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6832 Points +68%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points +60%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	5397 Points +33%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	4056 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3854 Points -5%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3050 Points -25%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2948 Points -27%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2928 Points -28%

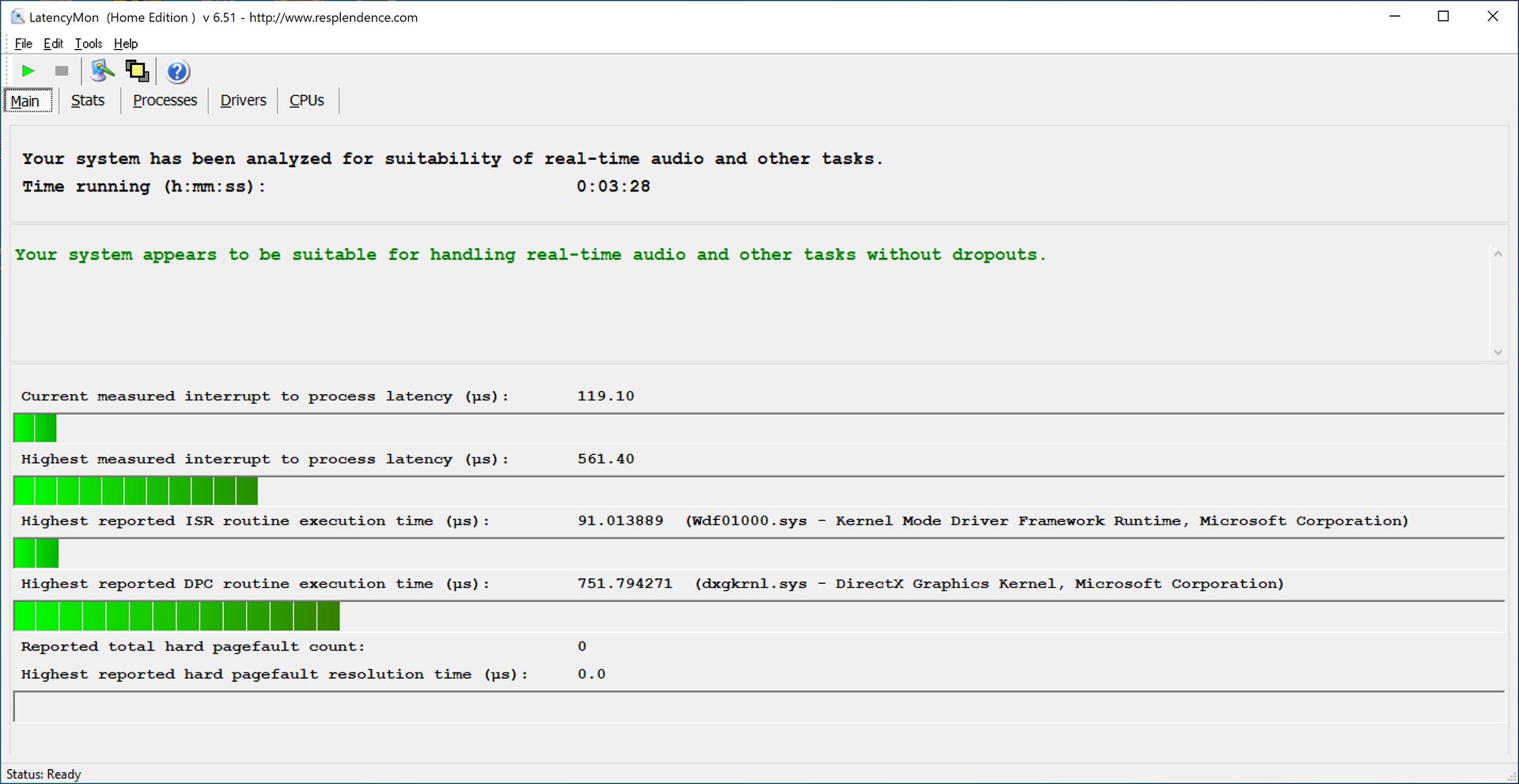

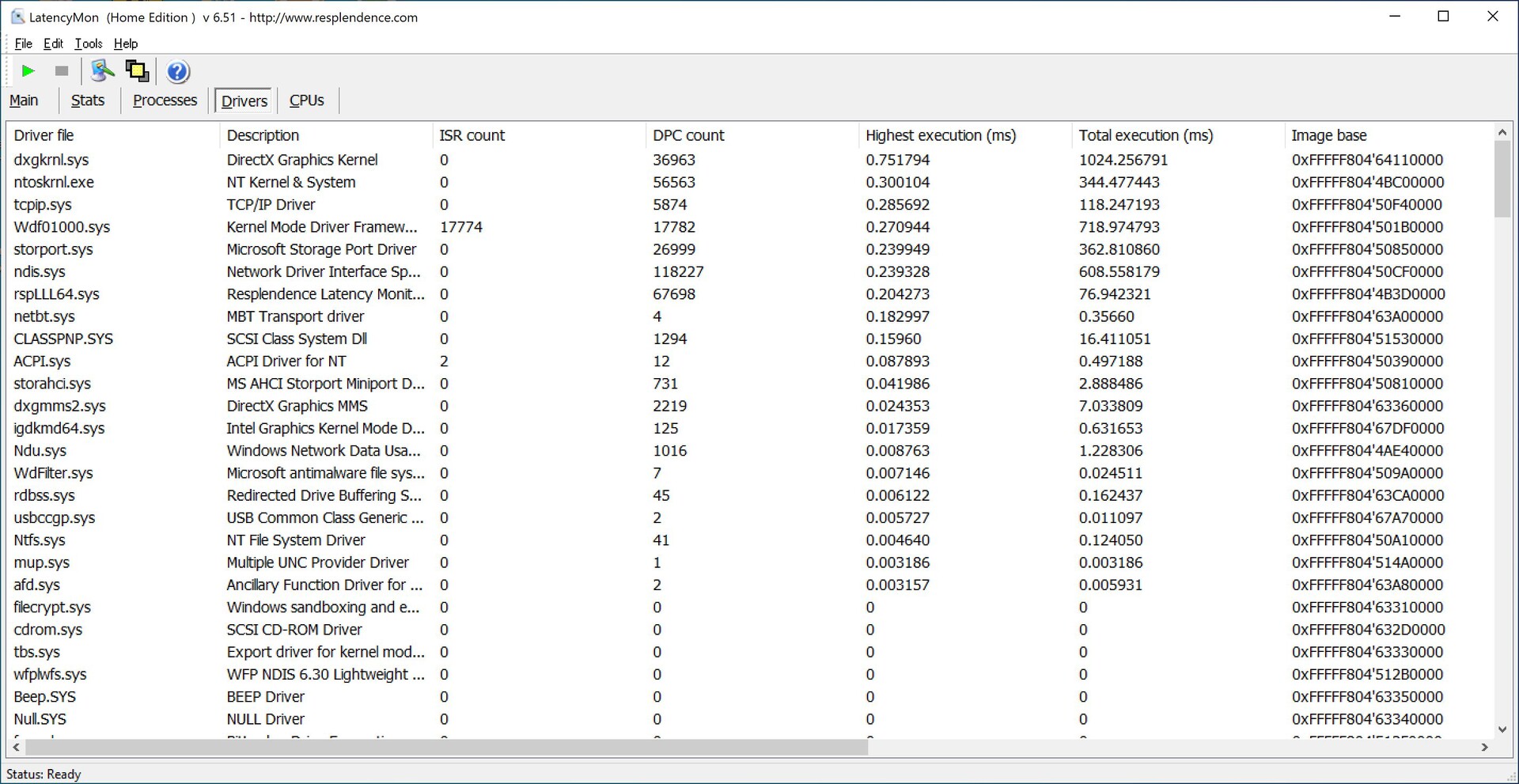

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3767 μs * -401%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2635 μs * -251%
Average Intel Core i7-10510U (395 - 5640, n=26)	2114 μs * -181%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1867 μs * -148%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1717 μs * -128%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1625 μs * -116%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1581 μs * -110%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1318 μs * -75%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs * -47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	1106 μs * -47%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	751.7 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	349.5 μs * +54%

PCMark 10 | DPC Latencies / LatencyMon

* ... smaller is better

Solução de armazenamento

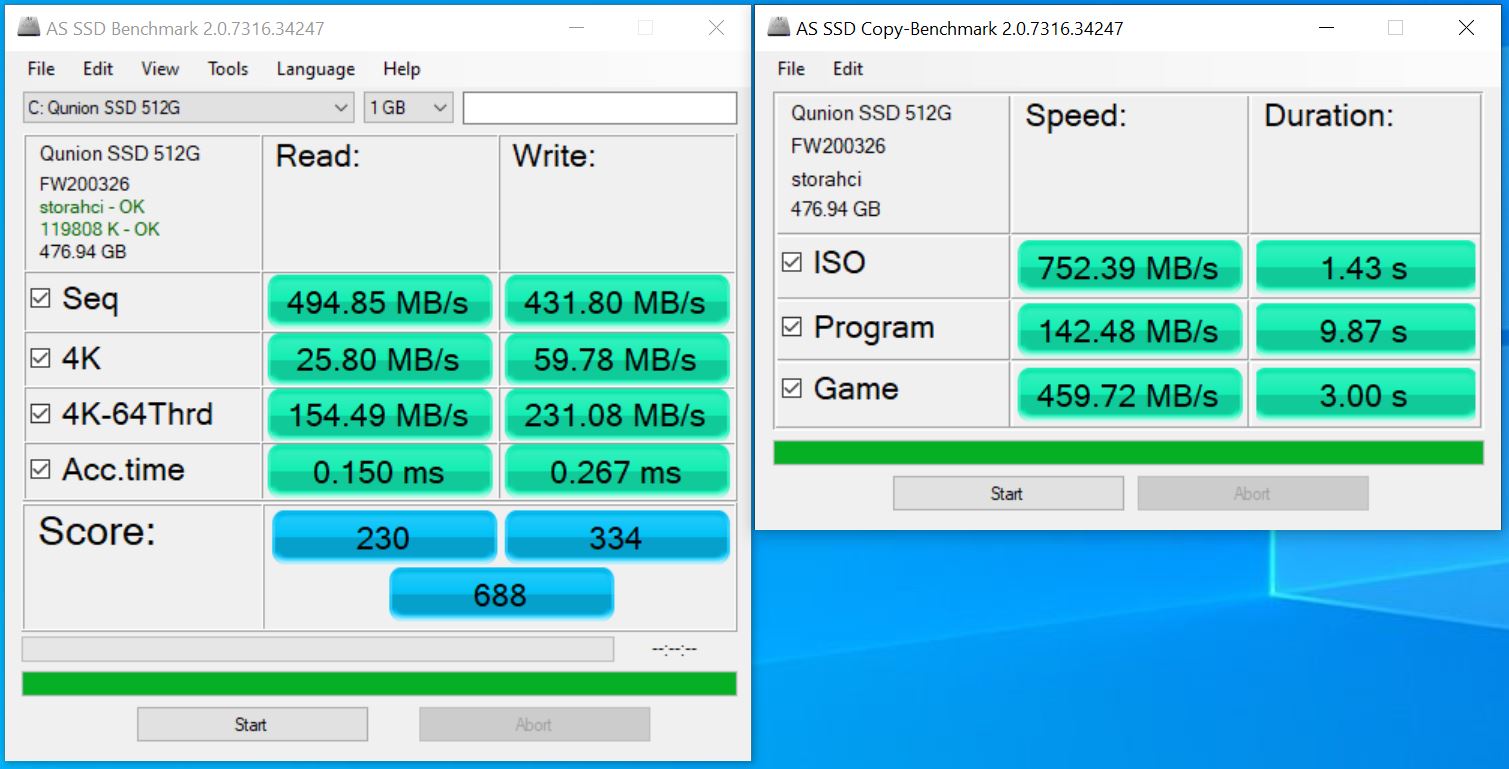

Nossa configuração do Nofflink M500 está equipada com um SSD 512-GB M.2 2280. A maioria dos usuários provavelmente não estará familiarizada com seu fabricante Qunion. O modelo utiliza a interface SATA e alcança resultados sólidos em nossos testes. Há também um slot para um drive de armazenamento secundário de 2,5 polegadas dentro da caixa. Todos os cabos e parafusos necessários para a instalação estão incluídos.

Desempenho da GPU

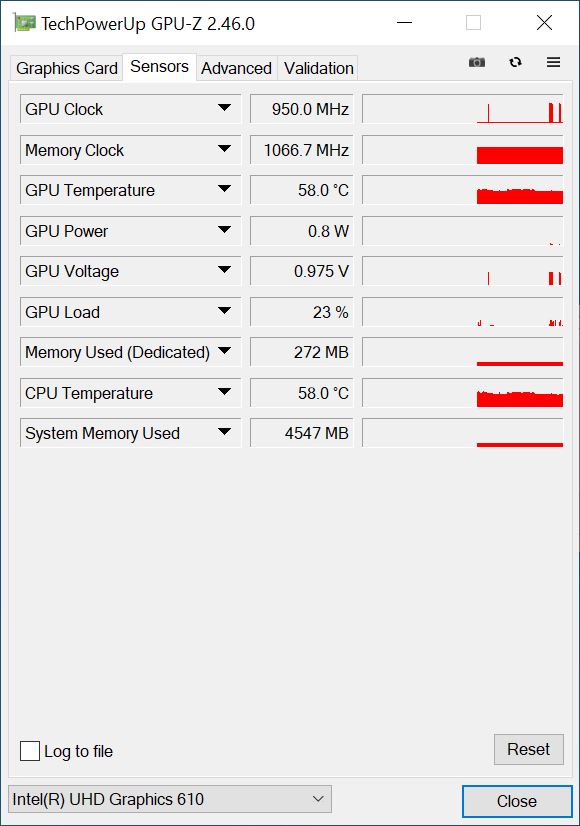

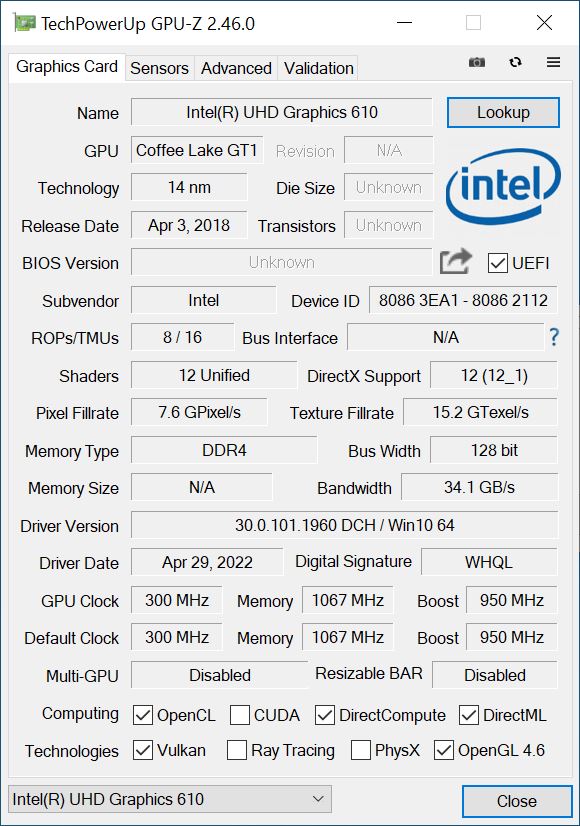

A conhecida Intel UHD Graphics 610 serve como a unidade gráfica do Nofflink M500. Com 12 EUs e uma velocidade de relógio de até 950 MHz, ela é adequada apenas para aplicações 2D simples. Mesmo aplicações 3D básicas podem trazer o Intel UHD Graphics 610 até os joelhos. Assim, os usuários devem evitar usar o Intel Graphics 610 para tudo, menos para aplicações puramente de escritório.

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	7122 Points +666%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	6518 Points +601%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	6306 Points +578%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5777 Points +521%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	5567 Points +499%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +150%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1853 Points +99%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1589 Points +71%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points +57%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	1316 Points +42%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points +26%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	930 Points
Average Intel HD Graphics 610 (804 - 949, n=5)	868 Points -7%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	613 Points -34%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	602 Points -35%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	589 Points -37%

3DMark
1280x720 Ice Storm Standard Graphics
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	171104 Points +416%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	141325 Points +326%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	130976 Points +295%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100414 Points +203%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +87%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	60011 Points +81%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	58199 Points +76%
Average Intel HD Graphics 610 (38522 - 60904, n=4)	47069 Points +42%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	41037 Points +24%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	33154 Points
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	25631 Points -23%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21465 Points -35%
1920x1080 Ice Storm Extreme Graphics
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	121736 Points +495%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	102227 Points +400%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96874 Points +374%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84227 Points +312%
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	50500 Points +147%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points +99%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	40532 Points +98%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	26409 Points +29%
Average Intel HD Graphics 610 (21082 - 26975, n=4)	23697 Points +16%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	20602 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	20443 Points
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14600 Points -29%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14360 Points -30%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50, Intel Core i5-11320H 3200 MHz, Intel Iris Xe Graphics G7 96EUs	4730 Points +583%
Morefine S500+, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	4369 Points +530%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3775 Points +445%
Minisforum HM90, AMD Ryzen 9 4900H 3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3414 Points +393%
Minisforum EliteMini B550, AMD Ryzen 7 5700G 3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	3379 Points +388%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points +113%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1202 Points +73%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points +49%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	881 Points +27%
MSI Cubi 5 10M, Intel Core i3-10110U 2100 MHz, Intel UHD Graphics 620	772 Points +11%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points +11%
Nofflink M500-5405U, Intel Pentium Gold 5405U 2300 MHz, Intel UHD Graphics 610	693 Points
Average Intel HD Graphics 610 (556 - 657, n=4)	607 Points -12%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	455 Points -34%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	446 Points -36%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	433 Points -38%

3DMark 11 | 3DMark

3DMark 05 Standard		12054 pontos
3DMark 06 Standard Score		7778 pontos
3DMark Vantage P Result		3996 pontos
3DMark 11 Performance		1065 pontos
3DMark Ice Storm Standard Score		32825 pontos
3DMark Cloud Gate Standard Score		4423 pontos
3DMark Fire Strike Score		635 pontos
Ajuda

... comparado com

	baixo	média	alto	ultra
GTA V (2015)	28.5	25.4	5.97
The Witcher 3 (2015)	11.3	7.68	4.18
Dota 2 Reborn (2015)	63.1	31.7	12.8	11.6
Final Fantasy XV Benchmark (2018)	7.73	3.53	3.53
X-Plane 11.11 (2018)	10.9	10.5	7.28
Far Cry 5 (2018)	8	4	3
Strange Brigade (2018)	18.3	7.7	10	13.6
Far Cry New Dawn (2019)	8	4	4
F1 2020 (2020)	17.6	7.54	5.5
F1 2021 (2021)	19.7	7.88	6.26

Emissões

Ruído do sistema

No que diz respeito aos níveis de ruído, esperávamos poder medir melhores resultados. Enquanto ocioso, o sistema é frequentemente completamente silencioso, embora o ventilador possa ocasionalmente se tornar notavelmente ativo temporariamente, mesmo assim. Sob carga, o ventilador produz um nível de ruído constante de cerca de 39,1 dB(A). Durante nosso teste de estresse, medimos um valor ainda mais alto de 45,5 dB(A). Isto faz lembrar um laptop de jogo com um nível de desempenho muito mais alto. Enquanto isso, medimos um máximo de 41,6 dB(A) a partir do Morefine S500+ no mesmo cenário.

Barulho

Ocioso		30.2 / 30.2 / 30.2 dB
Carga		39.1 / 45.5 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 29.8 dB(A)

Temperatura

Nossos testes iniciais de carga resultam em uma impressão favorável do resfriamento do SoC. Dito isto, a solução de resfriamento do Intel Pentium Gold 5405U está em seu limite em nosso cenário de carga extrema. A HWiNFO relata estrangulamento térmico, sugerindo que a Nofflink definiu a temperatura máxima do SoC em torno de 80 °C (176 °F). Sem limites estabelecidos pelo fabricante, o Intel Pentium Gold 5405U permite até 100 °C (212 °F). Em média, o relógio da CPU quando tanto a CPU quanto o iGPU estão estressados cai para apenas 1,2 GHz. Isto é resultado do orçamento limitado de energia de 10 watts, que a CPU e o iGPU têm que compartilhar.

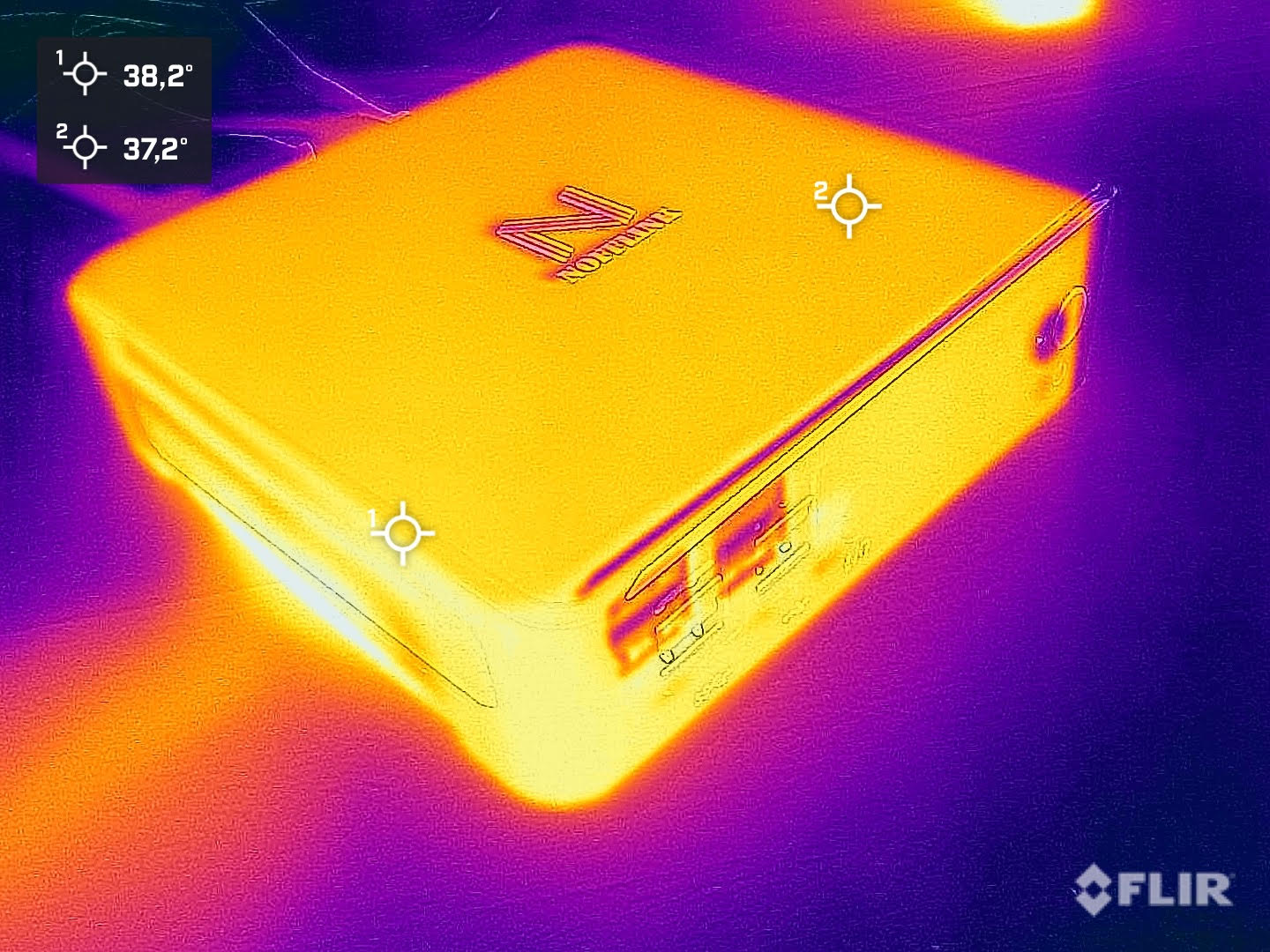

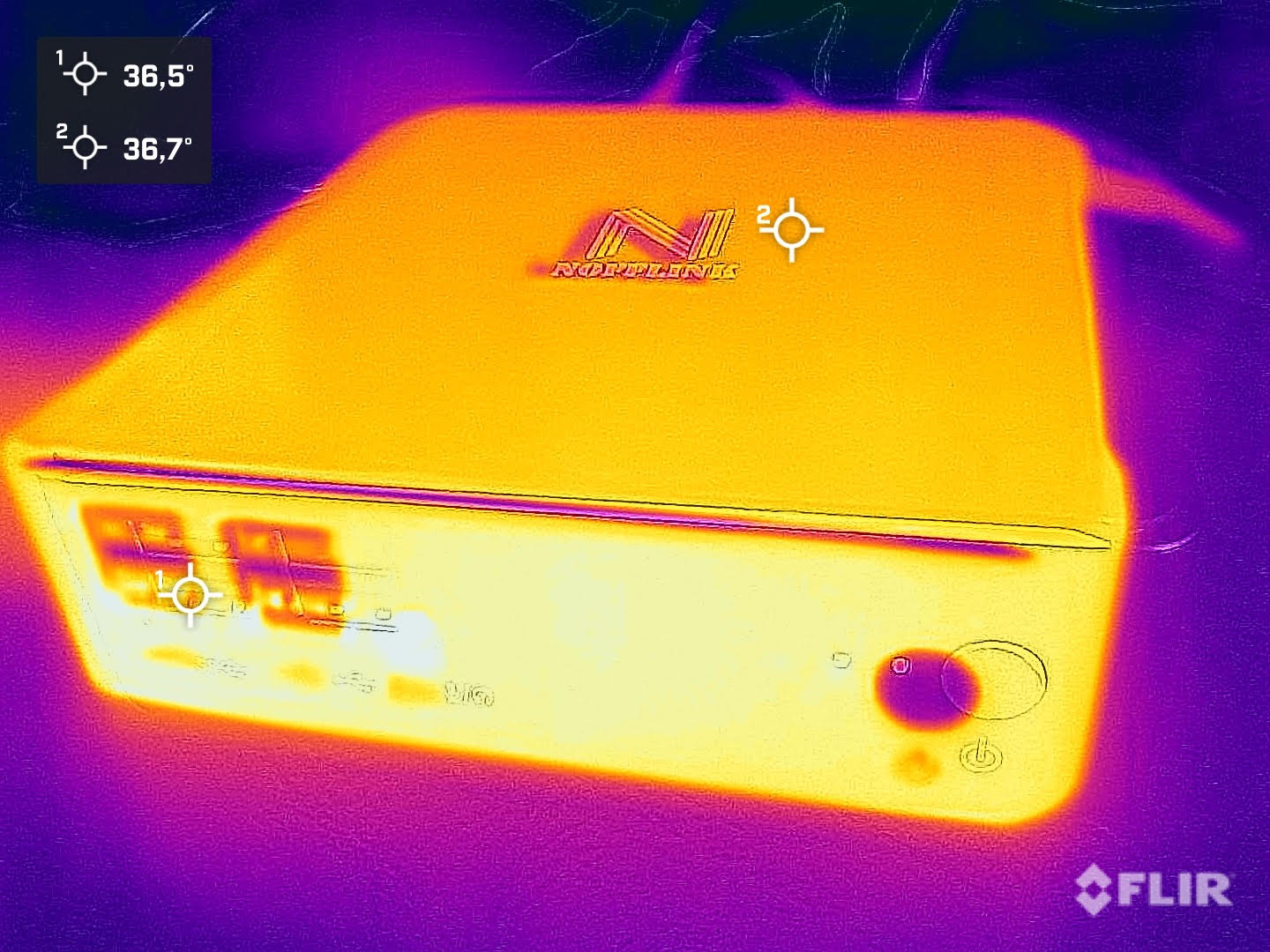

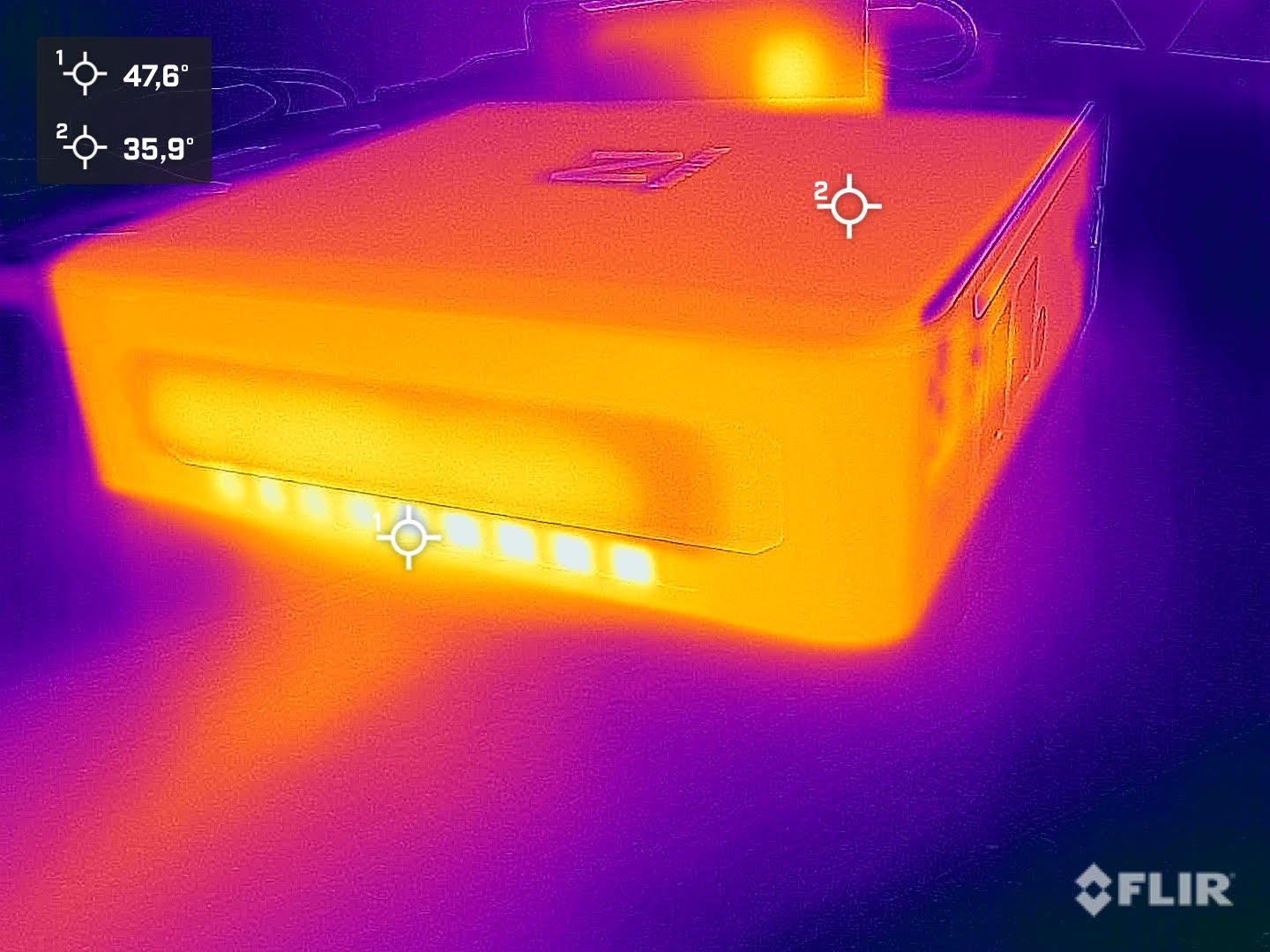

Como a caixa aquece visivelmente sob carga, ela deve ser colocada em uma área bem ventilada para permitir que o calor escape.

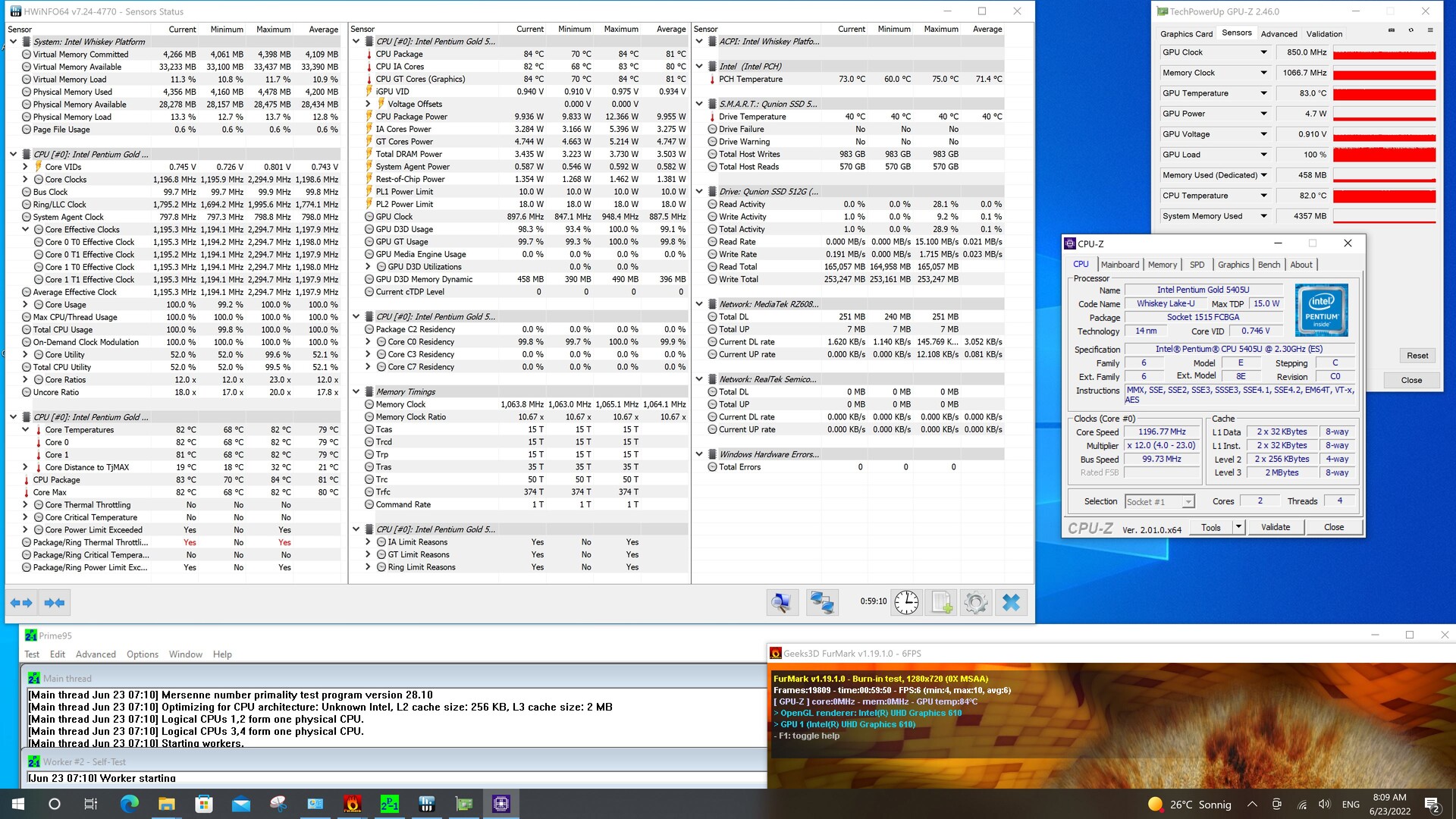

Teste de estresse de desenvolvimento de calor

Consumo de energia

O poder de atração é um dos pontos fortes do Nofflink M500. A menos de 20 watts, o sistema é muito eficiente em termos de energia durante ociosidade. Sob uma carga média, medimos apenas 32 watts. Na pior das hipóteses, o adaptador AC bastante grande de 40 watts tem que suportar até 38,5 watts. Deve haver reservas suficientes para um acionamento secundário, que também consome energia.

Consumo de energia

Ocioso	8.1 / 8.6 / 16.2 Watt
Carga	32.1 / 38.5 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Consumption external Monitor

Nofflink M500-5405U; Prime95 V2810 Stress (external Monitor): Ø23.6 (22.7-24.2)

Nofflink M500-5405U; Cinebench R15 Multi (external Monitor): Ø21 (18.9-21.5)

Nofflink M500-5405U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.2 (27.9-30)

Nofflink M500-5405U; Idle 1min (external Monitor): Ø8.68 (8.13-16.3)

Pro

+ construção compacta

+ design atrativo

+ boa seleção de portos

+ acessível

+ eficiência energética

+ dois slots de acionamento de armazenamento

+ desempenho Wi-Fi consistente

Contra

- solução de resfriamento perto de seu limite sob carga

- sem leitor de cartões SD

Veredicto - PC de escritório compacto com pequenas desvantagens

Nofflink M500-5405U, cortesia da Nofflink

O Nofflink M500-5405U é um mini PC muito compacto. O PC de formato pequeno baseado no Intel Pentium Gold 5405U não é adequado para cargas que são muito exigentes. Infelizmente, o fabricante não opta por um dos mais recentes SoCs do mercado e ele mostra isso. A CPU nativa de núcleo duplo ainda tem um desempenho admirável em nossos testes. Dito isto, esta configuração do Nofflink M500 não é adequada para nada além de puras tarefas de escritório, navegação na web ou streaming de vídeo. A este respeito, o Intel Core i7-10510U modelo tem muito mais potencial.

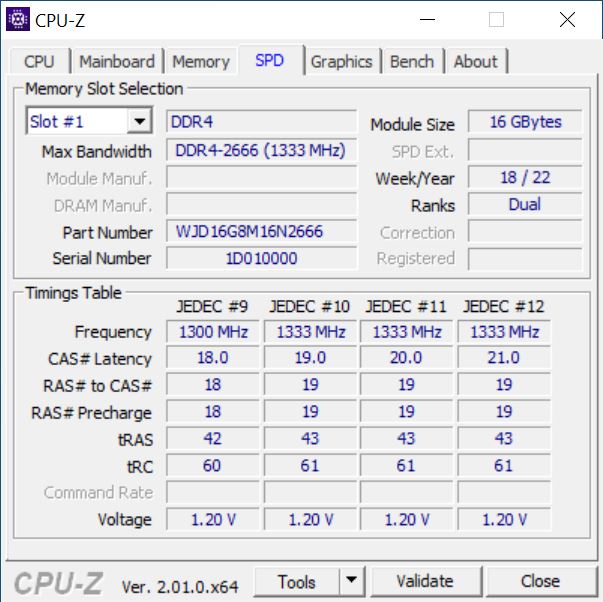

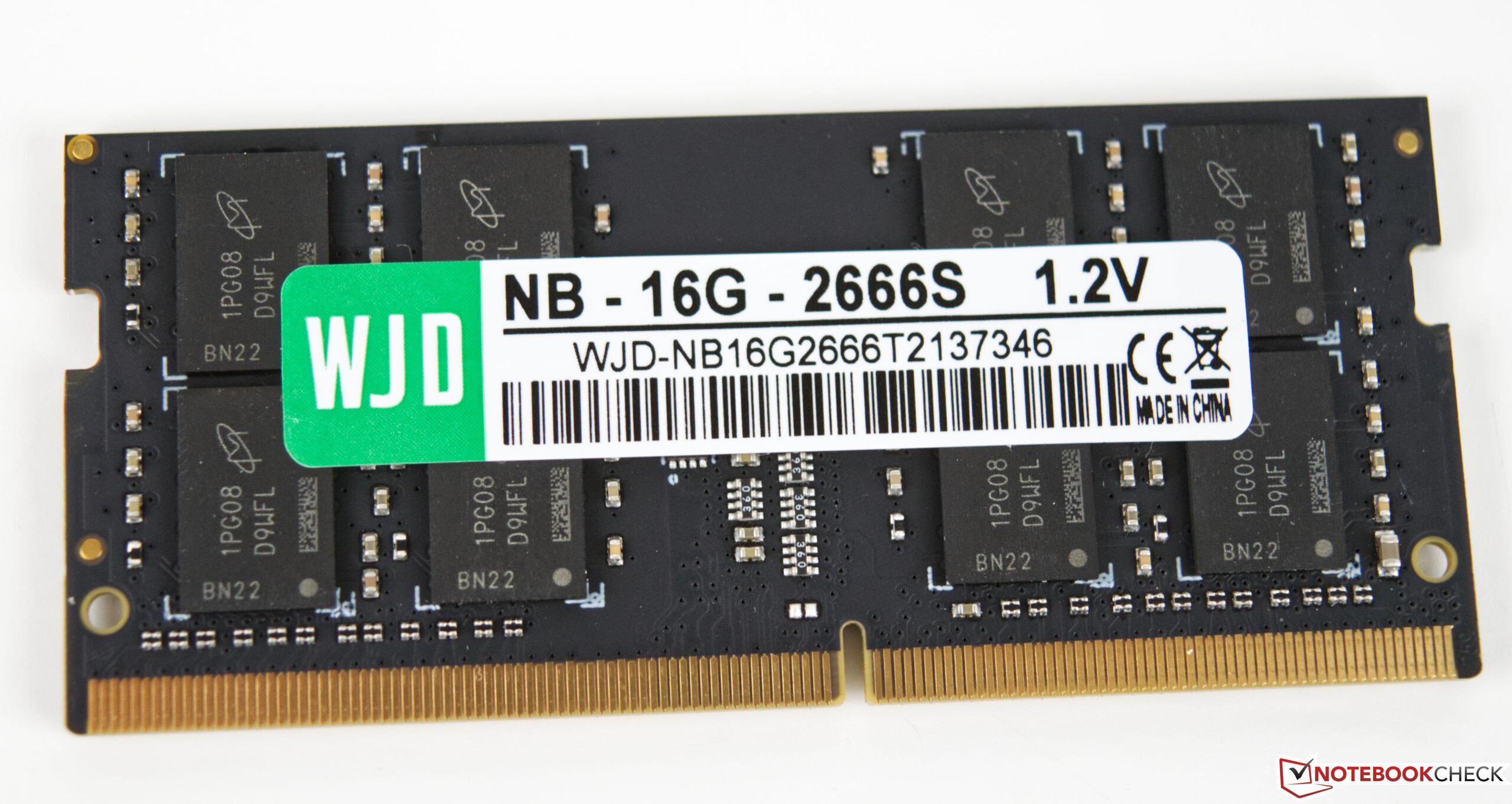

Embora 32 GB de RAM seja agradável de se ter, não é muito mais do que isso, já que a maioria dos usuários dificilmente aproveitará a alta capacidade de RAM nesta configuração. Assim, uma configuração com 16 GB de RAM será provavelmente uma escolha melhor e, mesmo com 8 GB, corresponde à quantidade padrão de memória do sistema da maioria dos dispositivos de escritório compactos.

O Nofflink M500 é um PC de escritório compacto com muitas portas externas. Infelizmente, muito potencial de desempenho é deixado na mesa por não se utilizar SoCs mais modernos.

O M500 oferece boas opções de conectividade, com todas as principais interfaces externas presentes. A falta de um leitor de cartões pode ser remediada com a ajuda de um adaptador USB, graças à quantidade suficiente de portas disponíveis.

O maior inconveniente do Nofflink M500 que experimentamos é a solução de resfriamento, que rapidamente atinge seus limites sob carga. Isto também resulta em níveis significativos de ruído em cenários exigentes. Aqui, o Notícias AC8 o mini PC pode ser uma boa alternativa, uma vez que é resfriado passivamente. Da mesma forma, o MSI Cubi M5 pode valer a pena ser visto mais de perto. Vários modelos estão disponíveis em Amazon a partir de 440 USD. O Nofflink M500-5405U custa atualmente cerca de 400 USD. Além disso, só está disponível através da loja online do fabricante https://www.nofflink.com/products/nofflink-m500-10510u-mini-pc-tht9?spm=..product_cbd45cce-a340-4899-887a-a3a69c2384a4.header_1.1&spm_prev=..404.header_1.1&variant=99e16d7b-ca78-4ff4-a505-cac1cc6ed519.

Editor of the original article: Marius Schell - Tech Writer and translator - 398 articles published on Notebookcheck since 2020

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 389263 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Nofflink M500 mini PC em revisão: PC de escritório com eficiência energética e cliente streaming com um Intel SoC e 32 GB de RAM

Sebastian Bade, 2022-06-29 (Update: 2022-06-30)
