NiPoGi CK10 com o Intel Core i7-10810U revisado: Pequeno PC de escritório que oferece espaço para três SSDs

Name: Minipc Union NiPoGi CK10 - 10810U
Brand: Minipc Union

Um PC de escritório silencioso! Em tempos de aumento contínuo dos preços da energia, os PCs compactos são excepcionalmente populares devido ao consumo consideravelmente menor de energia do que seus irmãos tradicionais de mesa. Com o NiPoGi CK10, colocamos este pequeno PC de escritório de seis núcleos através de seus passos. É um dispositivo extremamente silencioso, mas quão rápido é seu SoC? Em nossa análise, revelamos tudo o que você precisa saber sobre o Intel Core i7-10810U baseado no NiPoGi CK10.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 12/02/2022 🇺🇸 🇩🇪 ...

Desktop Intel Mini PC Comet Lake

Já estamos familiarizados com o fabricante chinês do sistema Minipc Union, depois de ter revisado os dois Ace Magician AMR5 bem como o Ace Magician TK11-A0 - dois mini PCs interessantes. Outro pequeno concorrente de PCs apareceu agora na forma de nossa amostra de revisão NiPiGi CK10. O sistema é baseado em um Intel Core i7-10810U da série Comet Lake. O SoC não é mais o garoto mais novo do bloco, apesar de quão promissores 6 núcleos e 12 fios possam soar. Emparelhado com 16 GB de RAM DDR4 e um SSD de 512 GB, assim como uma licença Windows, o dispositivo custa aproximadamente 600 euros

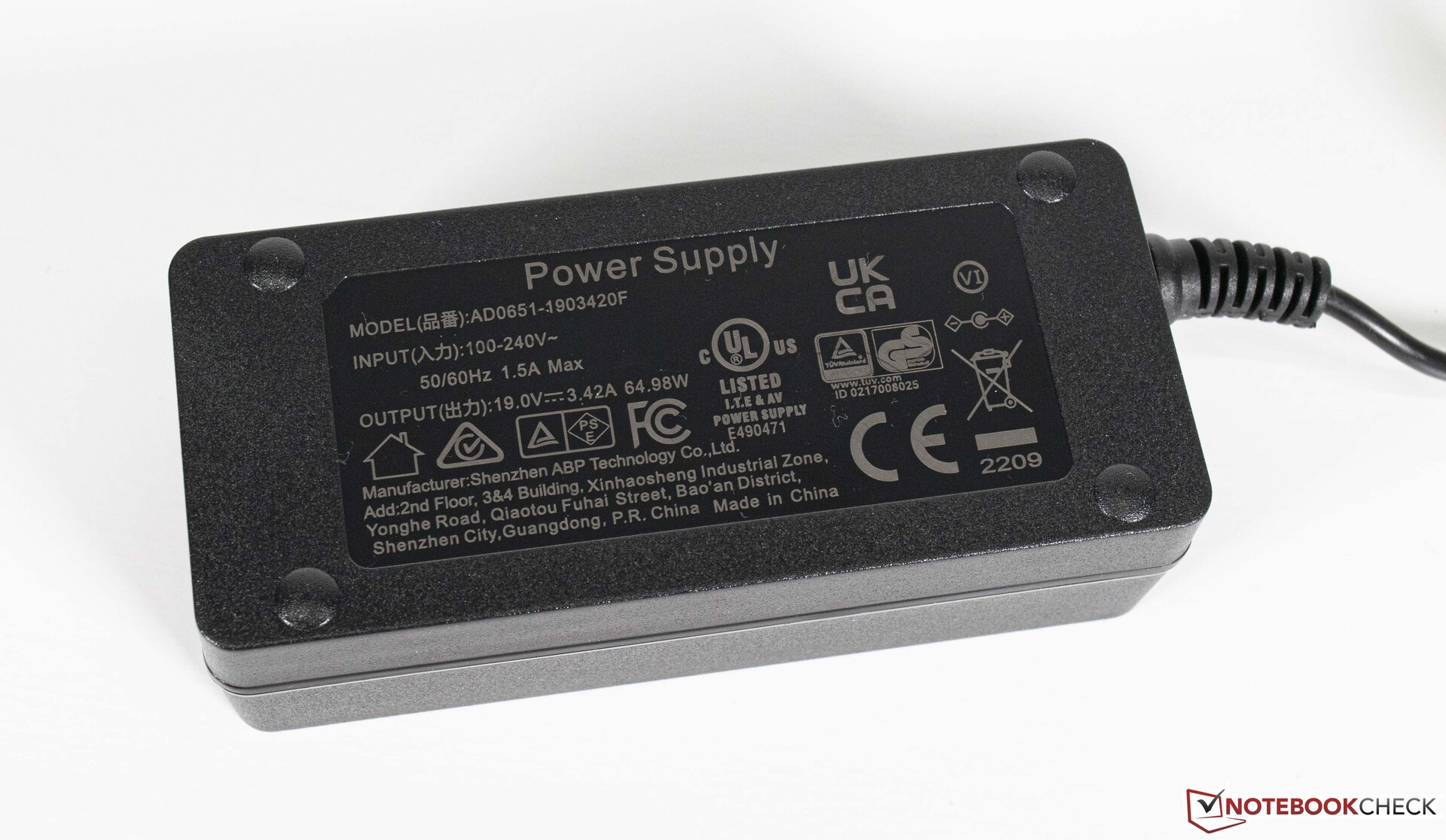

O Mini PC chegou em embalagem compacta, incluindo um adaptador de energia de 65 watts e um suporte VESA que permite que o dispositivo seja fixado a um monitor. Uma visão geral dos concorrentes potenciais pode ser encontrada na tabela abaixo.

Minipc Union NiPoGi CK10 - 10810U

Processador

Intel Core i7-10810U 6 x 1.1 - 4.9 GHz, 40 W PL2 / Short Burst, 15 W PL1 / Sustained, Comet Lake-U

Placa gráfica

Intel UHD Graphics 620, Análises do: 1150 MHz, Memoría: 1333 MHz

Memória

16 GB

, DDR4 2666, 1 of 2 installed, max. 32 GB

placa mãe

Intel Comet Lake-U PCH-LP Premium

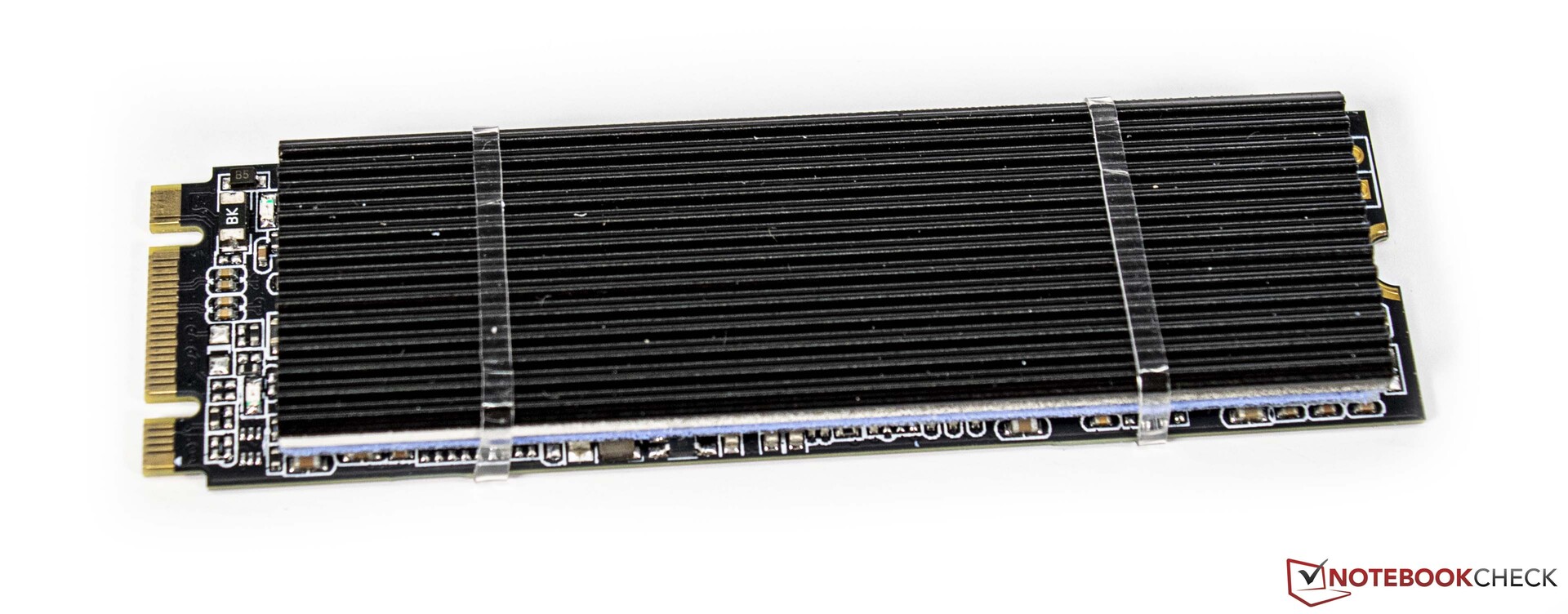

Disco rígido

FPT310M8SSD512G, 512 GB

, M.2 2280 SATA SSD, 440 GB livre

Placa de Som

Intel Comet Lake PCH-LP - cAVS

Conexões

5 USB 3.0, 1 VGA, 2 HDMI

Funcionamento em rede

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 50 x 137.5 x 125

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

12 Meses Garantia

peso

468 g, Suprimento de energia: 233 g

Preço

599 EUR

Links

Minipc Union página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

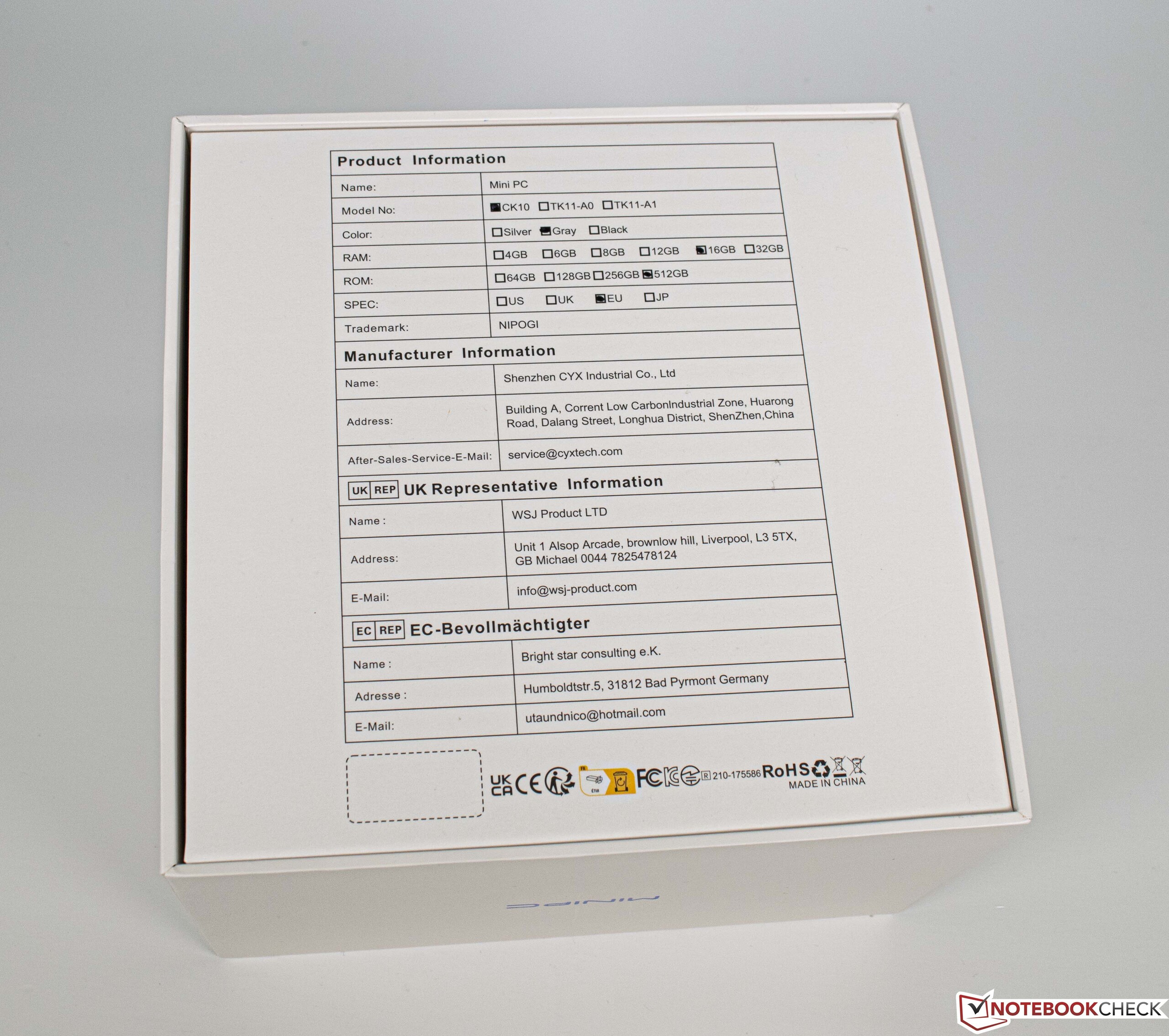

NiPoGi CK10 - Embalagem com especificações

Caso

O NiPoGi CK10 é um simples mini PC sem nenhum destaque especial a mencionar. Com uma pegada de 13,7 x 12,5 centímetros, ele é menor do que muitos de seus concorrentes. Em altura, o PC compacto tem quase exatamente cinco centímetros de altura. Quanto à escolha de materiais, o NiPoGi CK10 é feito principalmente de plástico. O fabricante evitou completamente a implementação de uma estrutura metálica estabilizadora. Um leitor de impressões digitais fictício está em cima do dispositivo e sugere que o estojo foi preparado para possibilidades adicionais de configuração.

Comparação de tamanho

Minisforum EliteMini HX90 Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ DIN A4 ❌

Conectividade

Na área de interfaces externas, o NiPoGi CK10 oferece uma seleção simples e padrão. Um total de cinco portas USB é bom e deve ser suficiente para a maioria dos usuários. A porta Type-C disponível não oferece suporte a Thunderbolt. No entanto, o conector VGA compensa isso com sentimentos de nostalgia. O quão interessante é a porta de monitor analógico será para os próprios usuários. No entanto, até dois monitores modernos podem ser operados sem nenhum engate via HDMI.

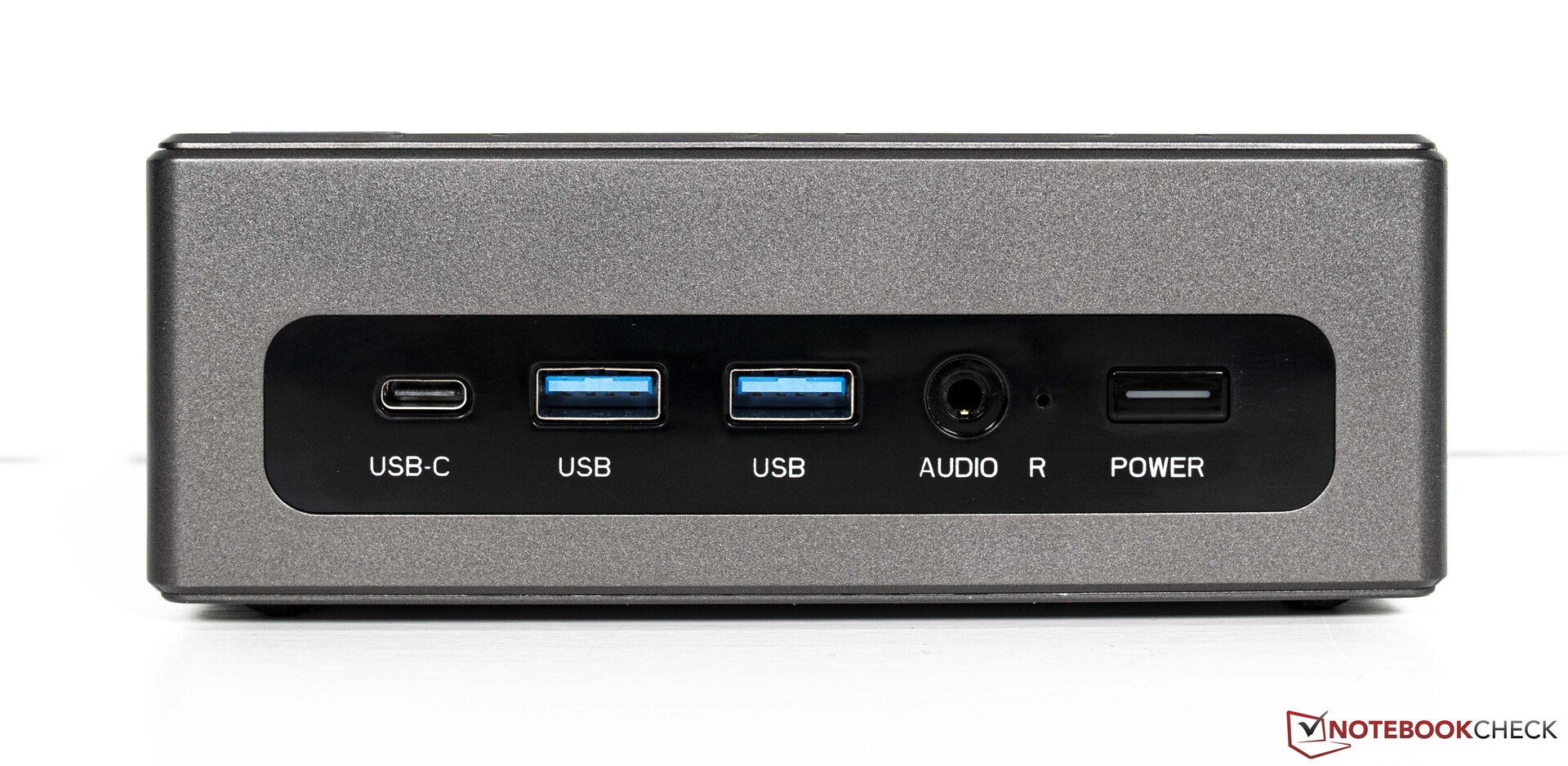

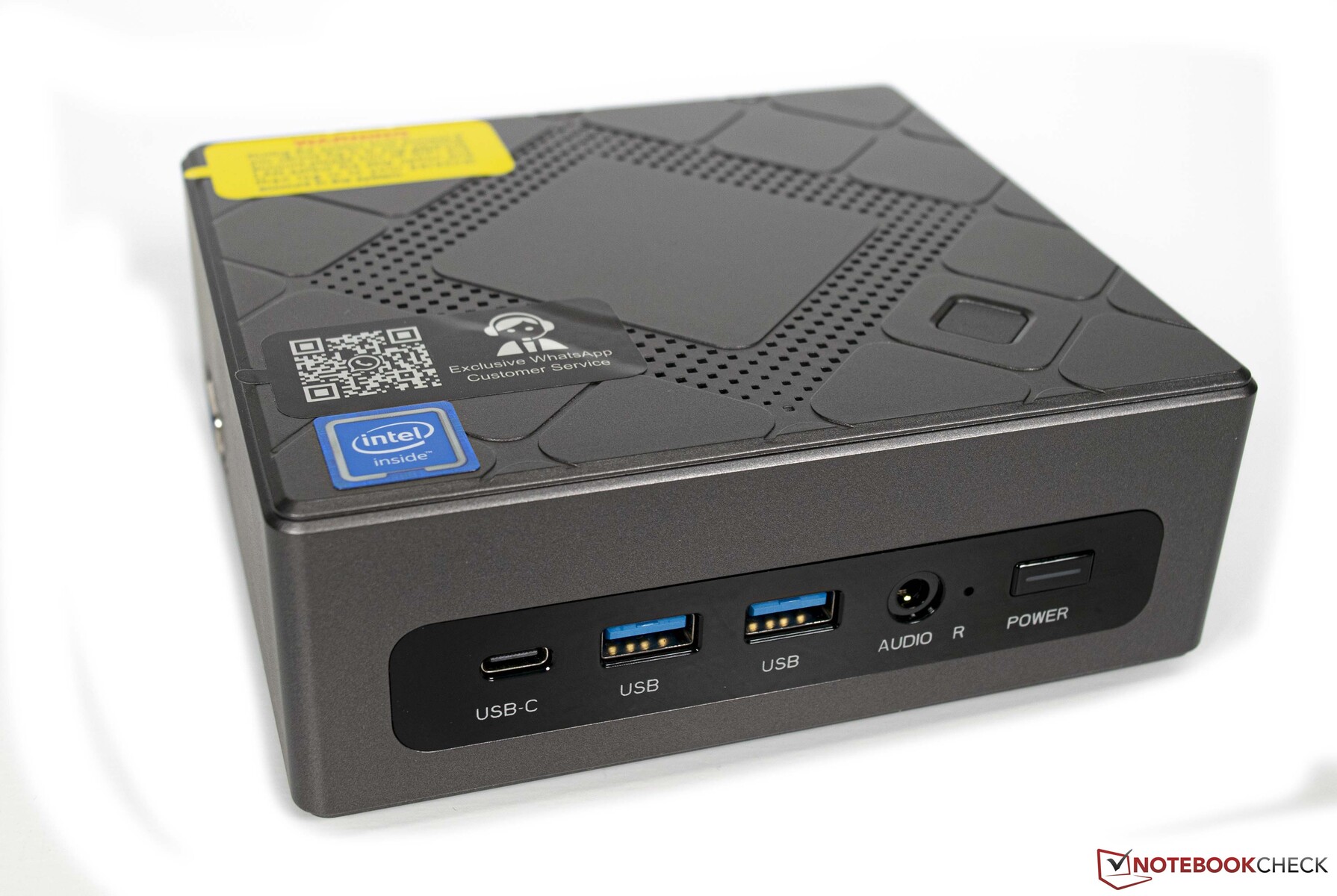

Lado frontal: USB tipo C (Data), conector de áudio 2x USB 3.0, 3.5-mm, botão de alimentação

Lado posterior: 2x USB 3.0, 2x HDMI, 2x LAN GBit, conector de rede

Comunicação

Um módulo Wi-Fi da Realtek está escondido dentro do NiPoGi CK10. Durante os testes, o módulo sem fio foi tristemente incapaz de oferecer um desempenho convincente quando emparelhado com nosso roteador de testes, o Asus ROG Rapture GT-AXE11000. Por uma margem considerável, a amostra de teste ficou em último lugar em nossa tabela de comparação. Felizmente, uma conexão de internet mais rápida de até 1 GBit/s é possível quando se usa uma conexão com fio.

Networking
iperf3 receive AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +368%
Average of class Mini PC (192.9 - 1796, n=85, last 2 years)	897 MBit/s +365%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +302%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +123%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s +102%
Average RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s +40%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +182%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +152%
Average of class Mini PC (184.1 - 1776, n=85, last 2 years)	828 MBit/s +141%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +117%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +67%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s
Average RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s -10%

Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

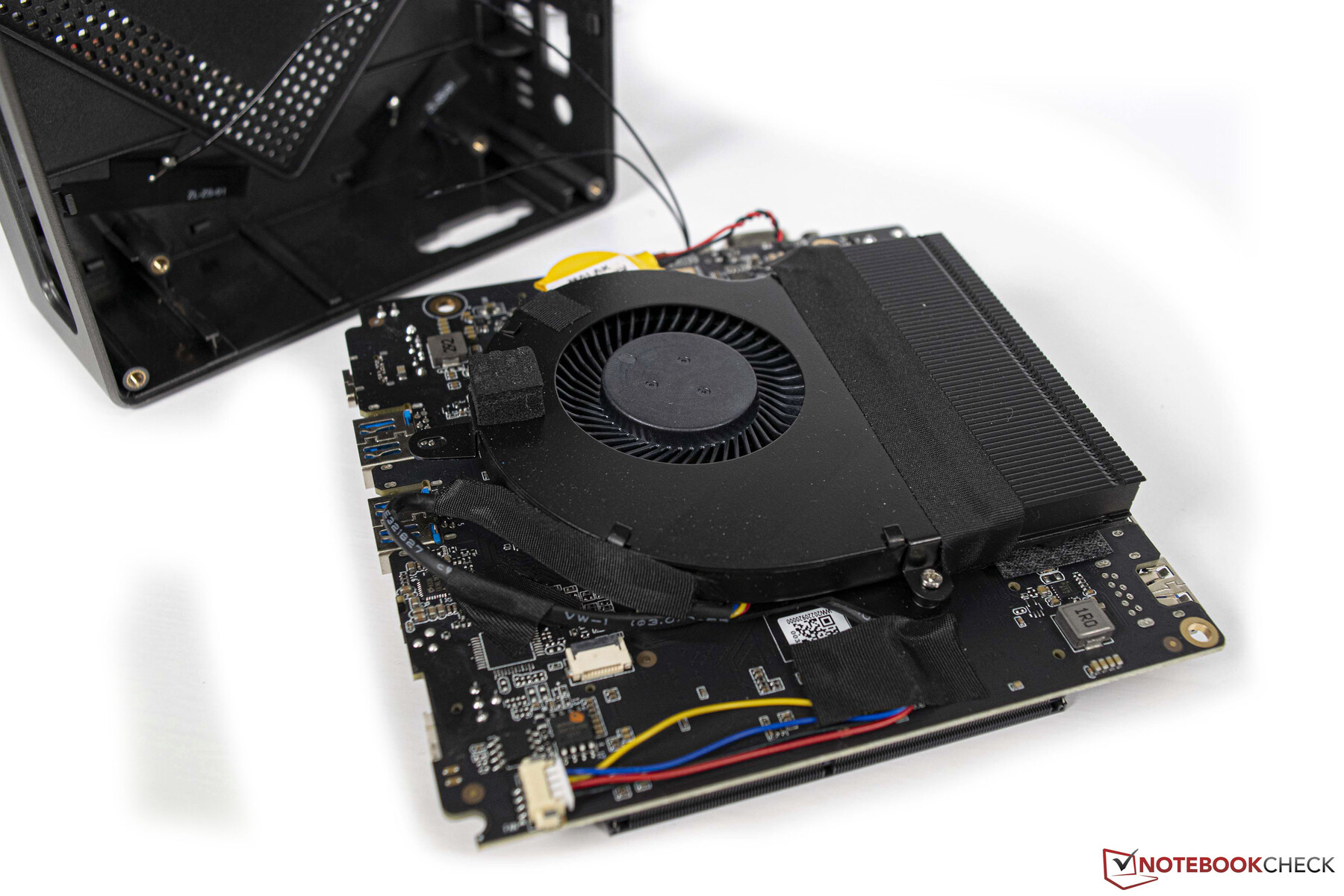

Manutenção

Por enquanto, uma atualização não é necessária, devido à sólida configuração da base. Se você ainda desejar acessar os componentes embutidos, isto pode ser facilmente alcançado, pois apenas quatro pequenos parafusos necessitam ser desenroscados para remover a placa base. Um slot adicional para um módulo SO DIMM adicional, assim como mais dois dispositivos de armazenamento em massa, poderiam ser alojados em nossa amostra de teste. Se você quiser limpar o ventilador, é necessária uma desmontagem adicional sem ser particularmente problemática.

Desempenho

Em um nível básico, o Intel Core i7-10810U é adequado para aplicações de escritório e cargas de trabalho leves, multi-tarefas, que são processadas eficientemente graças a seus 12 fios. Infelizmente, o fabricante desperdiçou parte do desempenho ao instalar apenas um módulo de RAM. O mesmo se aplica ao SSD embutido que se orgulha apenas da velocidade SATA.

Condições de teste

Todos os testes de desempenho foram realizados utilizando as configurações padrão de fábrica. Não fizemos nenhuma alteração nos limites de potência do SoC. No entanto, a BIOS permite que estes valores sejam alterados.

Processador

O Intel Core i7-10810U pertence à série Comet Lake e oferece seis núcleos de computação habilitados para Hyper-Threading para um total de 12 roscas. O consumo de energia é limitado a 40 watts (limite de potência a curto prazo) e 15 watts (limite de potência a longo prazo), sendo que o fabricante atua de forma muito conservadora nesta área. O sistema de resfriamento ainda tem as reservas para coaxar mais o desempenho do SoC. Isto significa que o NiPoGi CK10 tem dificuldades para acompanhar a concorrência. Somente o Ace Magician TK11-A0 se aproxima e pode ser vencido em muitos benchmarks multi-tarefas. O envelhecimento Intel Core i7-10810U lutas quando comparadas aos concorrentes com 8 núcleos nativos

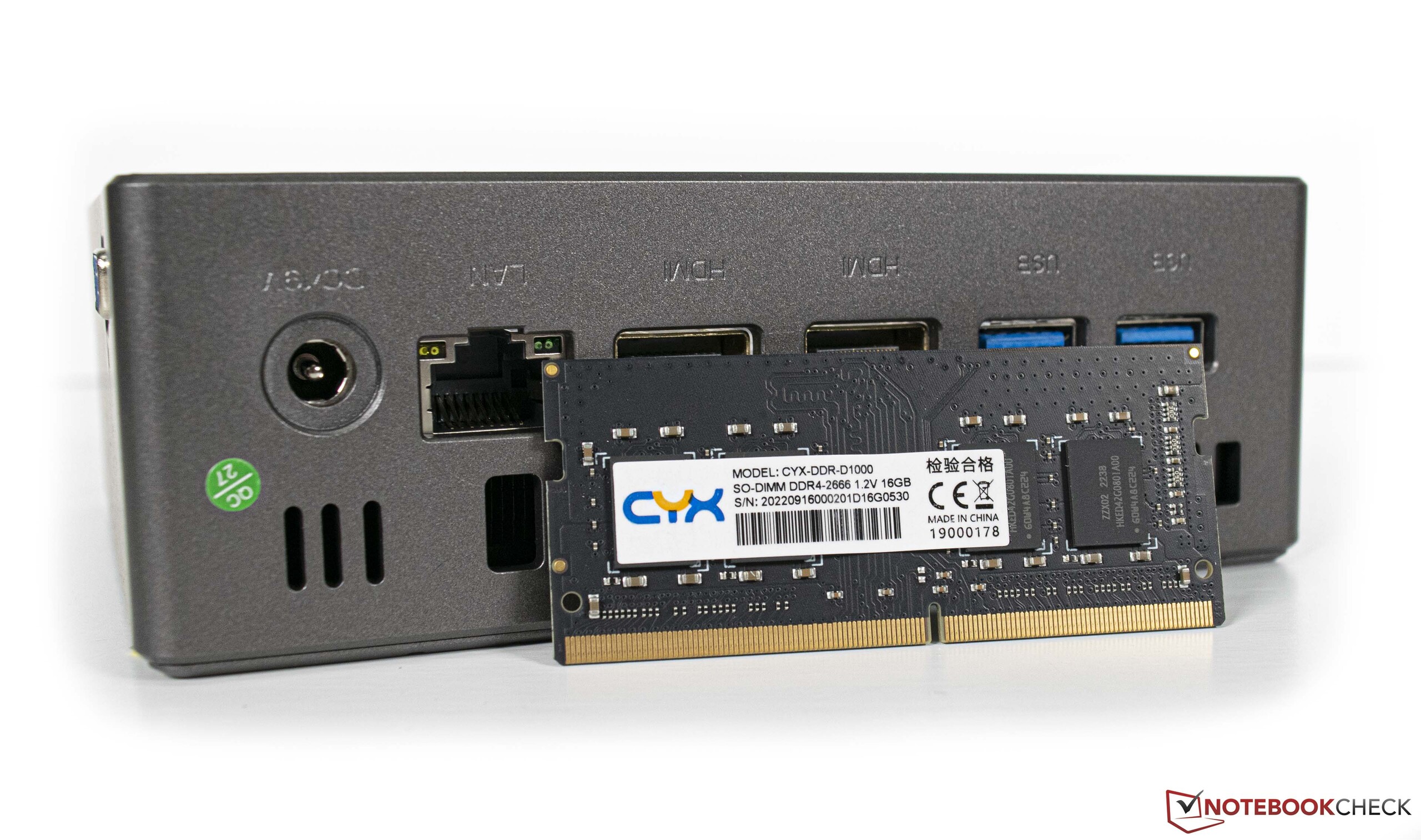

Nos benchmarks de memória, o módulo único de RAM incorporado é fatal para o NiPoGi CK10. O modo de canal duplo só pode ser usado com dois módulos de RAM e é algo do qual todo o sistema se beneficiaria

Você pode encontrar benchmarks adicionais de processador aqui.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	42 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt
Average Intel Core i7-10810U	34.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.5 pt

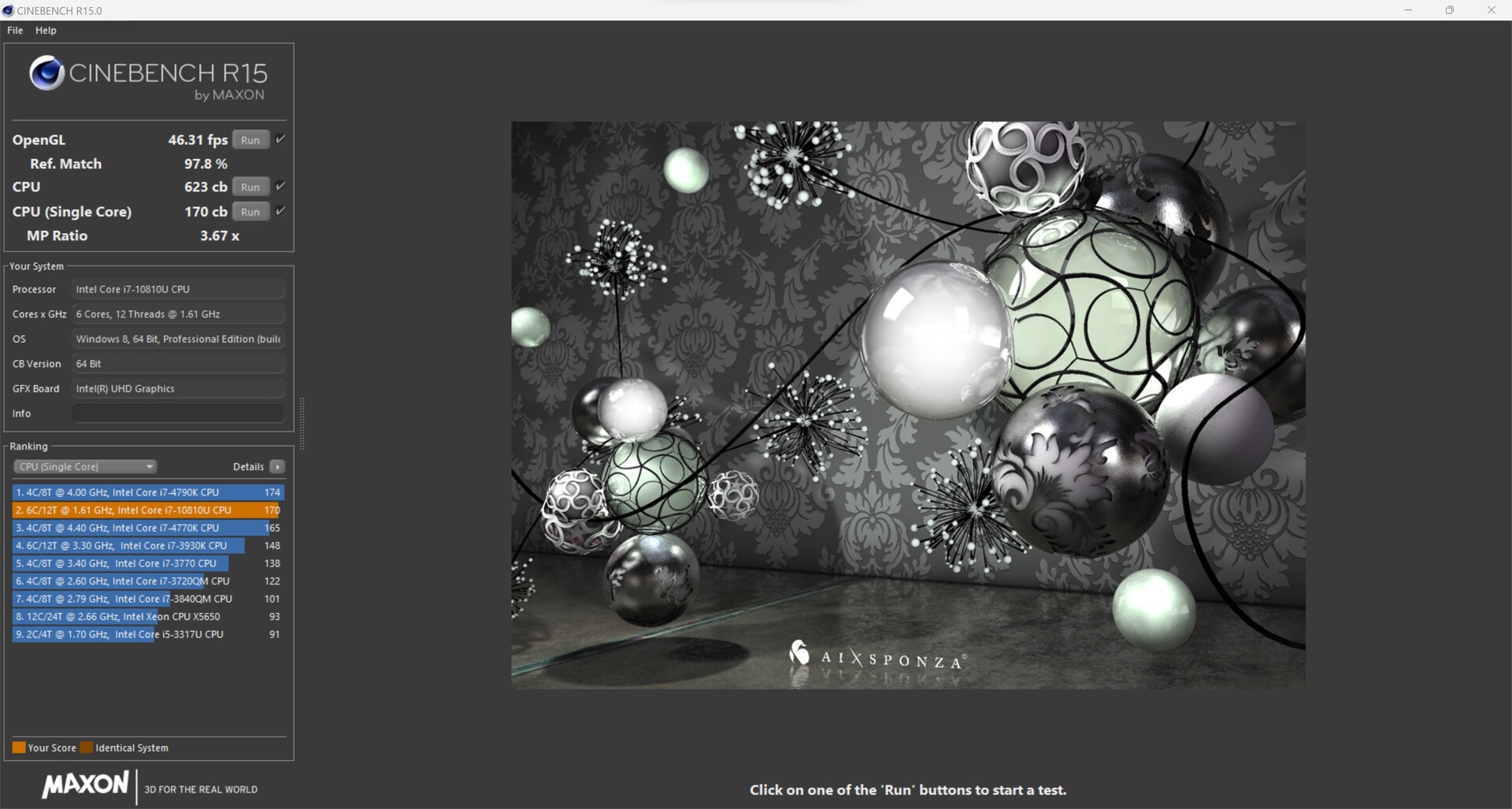

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points +16%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points +14%
Average Intel Core i7-10810U (161 - 183, n=5)	175.6 Points +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +257%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +218%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +216%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +208%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +103%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +52%
Average Intel Core i7-10810U (623 - 1064, n=4)	799 Points +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -10%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points +25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points +22%
Average Intel Core i7-10810U (396 - 447, n=5)	425 Points +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +246%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +211%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +206%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +200%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +55%
Average Intel Core i7-10810U (1498 - 2344, n=5)	1778 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -4%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points +18%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points +15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points
Average Intel Core i7-10810U ()	1.95 Points 0%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +267%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +230%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +227%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +215%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +112%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points
Average Intel Core i7-10810U ()	6.98 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -9%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +41%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points +21%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points
Average Intel Core i7-10810U ()	8591 Points 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +211%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +182%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +178%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +174%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +80%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points
Average Intel Core i7-10810U ()	23491 Points 0%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds *
Average Intel Core i7-10810U (571 - 875, n=5)	689 Seconds * +1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +64%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +67%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * +2%
Average Intel Core i7-10810U (4.86 - 6.95, n=2)	5.9 s * +15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +54%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s *
Average Intel Core i7-10810U (205 - 267, n=2)	236 s * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +69%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +95%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +92%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +86%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +65%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +52%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps +17%
Average Intel Core i7-10810U (141.6 - 153.7, n=2)	147.7 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +198%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +186%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +94%
Average Intel Core i7-10810U (39.2 - 39.7, n=2)	39.4 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -6%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +15%
Average Intel Core i7-10810U (4747 - 4927, n=2)	4837 KB/s +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -12%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +29%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s
Average Intel Core i7-10810U (5.5 - 5.9, n=2)	5.7 GB/s -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -10%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +100%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s
Average Intel Core i7-10810U (0.956 - 1, n=2)	0.978 GB/s -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -24%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +112%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +112%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +94%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +24%
Average Intel Core i7-10810U (0.566 - 0.64, n=2)	0.603 GB/s +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -21%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +84%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points +25%
Average Intel Core i7-10810U (3351 - 5553, n=5)	4350 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points +14%
Average Intel Core i7-10810U (1219 - 1274, n=5)	1240 Points +2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +43%
Average Intel Core i7-10810U (3924 - 5631, n=3)	4908 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +13%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points +1%
Average Intel Core i7-10810U (1220 - 1235, n=3)	1229 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +35%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points +23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points +11%
Average Intel Core i7-10810U (4762 - 5281, n=3)	5082 Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Average Intel Core i7-10810U (19324 - 22533, n=3)	21447 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points 0%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +157%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +118%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +93%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +78%
Average Intel Core i7-10810U (6537 - 10599, n=5)	8591 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +173%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +173%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +143%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +33%
Average Intel Core i7-10810U (16072 - 25244, n=5)	21290 MIPS +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -13%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS
Average Intel Core i7-10810U (4398 - 4794, n=5)	4561 MIPS -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +206%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +185%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +179%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +148%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +51%
Average Intel Core i7-10810U (3.81 - 6.45, n=5)	5.31 fps +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec *
Average Intel Core i7-10810U (0.651 - 0.717, n=5)	0.682 sec * +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +30%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s *
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * +3%
Average Intel Core i7-10810U (60.6 - 68.2, n=5)	65.4 s * +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +29%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points
Average Intel Core i7-10810U (202 - 207, n=5)	205 Points 0%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms *
Average Intel Core i7-10810U (853 - 968, n=5)	901 ms * +7%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * +21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +38%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +38%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +183%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +175%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +171%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +124%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +63%
Average Intel Core i7-10810U (8470 - 11179, n=2)	9825 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points +13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +179%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +166%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +53%
Average Intel Core i7-10810U (9003 - 11864, n=5)	10590 Points +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +200%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +160%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +155%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +91%
Average Intel Core i7-10810U (2331 - 4127, n=5)	3331 Points +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.4 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +239%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +224%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +193%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +189%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +95%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +61%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +283%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +231%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +225%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +206%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -8%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +181%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +178%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +87%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s +57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +86%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +80%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +73%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -18%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +211%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +175%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +163%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +78%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -15%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +341%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +279%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +274%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +236%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +655%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +569%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +544%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +337%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +327%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +229%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +198%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +191%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +156%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -9%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +233%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +226%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +83%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +203%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +167%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +97%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s +95%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s +48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s

NiPoGi CK10 Cinebench R15 multi-loop

O loop contínuo Cinebench R15 mostrou que o sistema de refrigeração embutido não tem realmente seu trabalho cortado com o Intel Core i7-10810U. O ajuste conservador garante uma velocidade de relógio turbo muito curta e é por isso que só observamos uma perda mínima no desempenho após a primeira corrida. Com uma média de 612 pontos, o desempenho foi excepcionalmente estável em todas as 50 corridas.

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Desempenho do sistema

Os benchmarks servem para destacar que o SoC já tem mais de dois anos de existência. Visto subjetivamente, as limitações de desempenho do sistema são perceptíveis devido à relativamente lenta SSD e RAM, que só funciona em operação de canal único. Às vezes, pequenas latências podem ser observadas ao abrir programas. Além disso, o desempenho Wi-Fi abaixo da média também não tem um efeito benéfico sobre os fluxos de trabalho.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +48%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +36%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points

PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +43%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -5%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	69.9 pt

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +33%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +29%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +156%
Average of class Mini PC (6481 - 70620, n=97, last 2 years)	42885 MB/s +126%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +121%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +98%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s +87%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s +85%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s +67%
Average Intel Core i7-10810U (18973 - 28662, n=2)	23818 MB/s +26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +139%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +138%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +123%
Average of class Mini PC (6914 - 71285, n=97, last 2 years)	43515 MB/s +122%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +119%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s +96%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s +94%
Average Intel Core i7-10810U (19621 - 30124, n=2)	24873 MB/s +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +175%
Average of class Mini PC (6862 - 89318, n=97, last 2 years)	46630 MB/s +155%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +128%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s +114%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s +105%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s +93%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s +92%
Average Intel Core i7-10810U (18296 - 32064, n=2)	25180 MB/s +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -52%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -50%
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years)	88 ns * -46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -32%
Average Intel Core i7-10810U (60.2 - 94.3, n=2)	77.3 ns * -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns *

* ... smaller is better

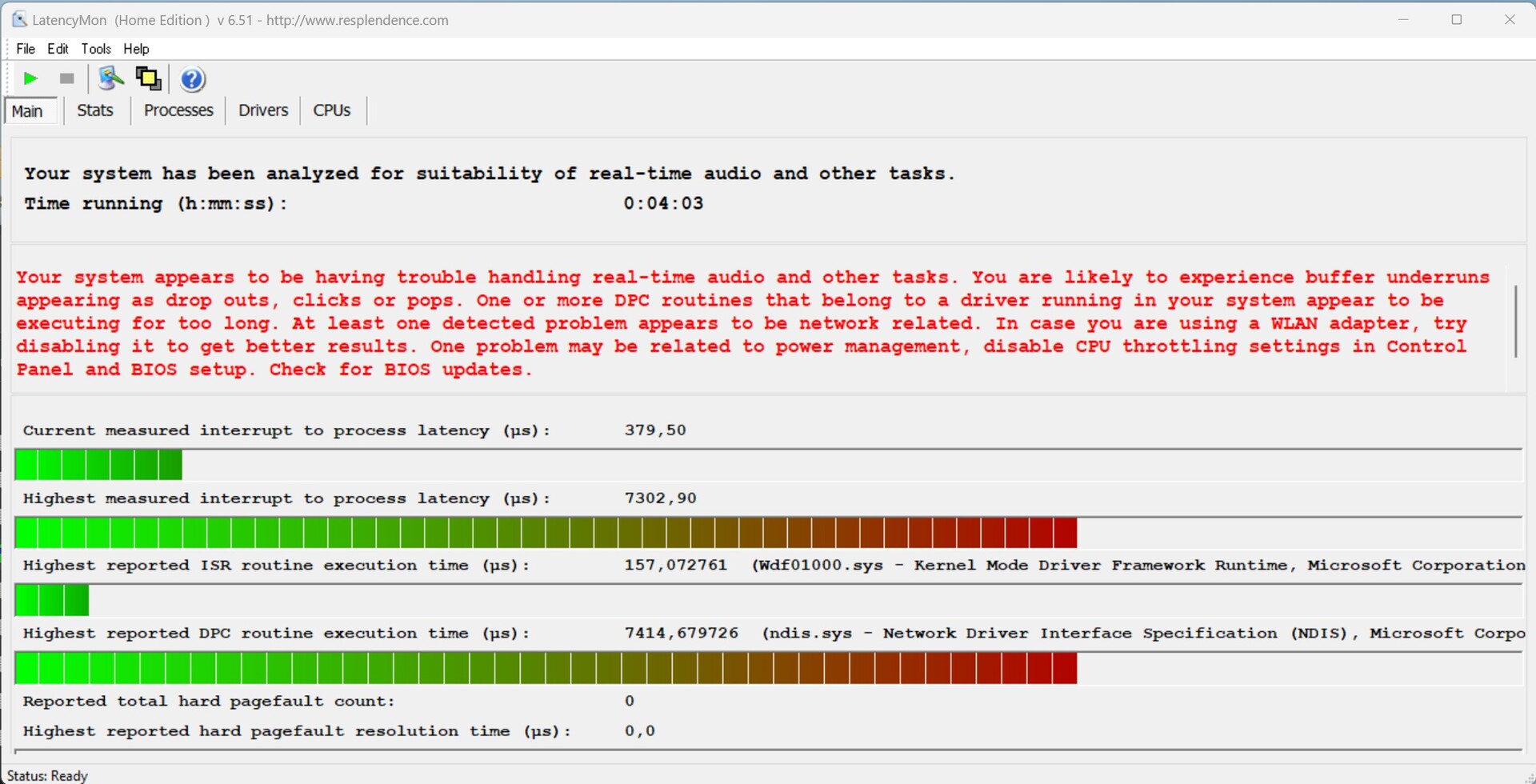

Latências DPC

O NiPoGi CK10 tem problemas de latência ao abrir várias abas em Edge. A latência não piorou ao reproduzir vídeos do Youtube 4K. O Intel Core i7-10810Uo iGPU da iGPU opera com uma carga de aproximadamente 35% quando reproduz um vídeo desse tipo.

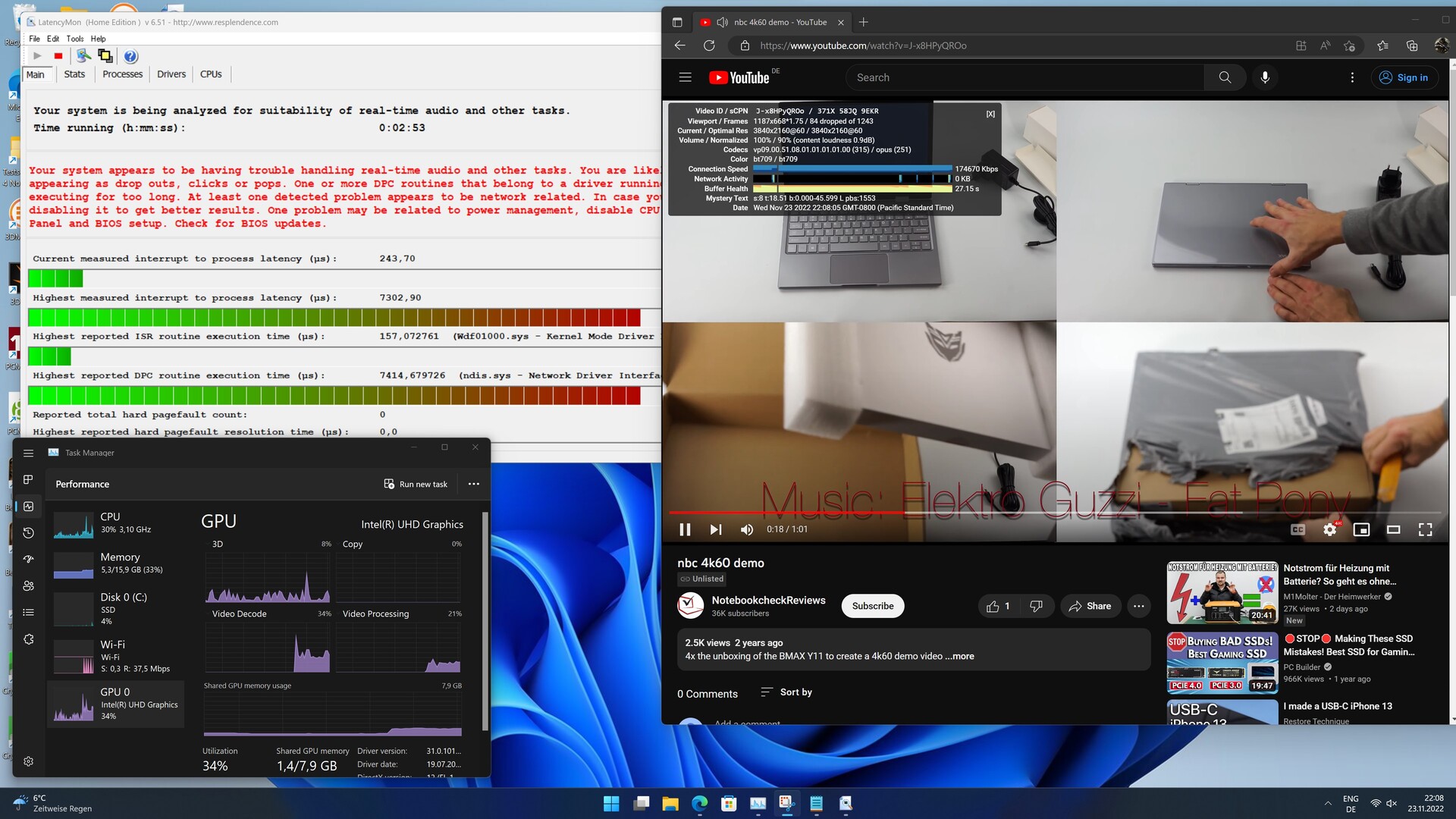

Máxima latência ao abrir várias abas do navegador e reproduzir material de vídeo 4K

Latência máxima após dez segundos de Prime95

Motoristas classificados por maior latência

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs *
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * +75%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * +78%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +91%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +95%

* ... smaller is better

Armazenamento em massa

O CK10 é alimentado por um SSD desconhecido com uma capacidade de armazenamento de 512 GB. Este é um SSD M.2 2280 baseado em SATA que pode ser visto claramente em padrões de referência. As desvantagens são óbvias quando comparadas a alternativas mais rápidas, como as SSDs NVMe. Entretanto, o desempenho de leitura de 4K está em um bom nível. O mini PC pode ser equipado com até três dispositivos de armazenamento de massa (2x M.2 2280, 1x 2,5 polegadas).

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M8SSD512G

Sequential Read: 346.8 MB/s

Sequential Write: 395.5 MB/s

512K Read: 263.7 MB/s

512K Write: 307.5 MB/s

4K Read: 39.26 MB/s

4K Write: 83.54 MB/s

4K QD32 Read: 317.5 MB/s

4K QD32 Write: 338.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	87.4 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	85.7 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	82.4 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	71.1 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	68.6 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	68.3 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	64.8 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	27.5 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +602%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +569%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +554%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s +451%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +392%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s +365%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s +324%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +308%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +308%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +191%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s +170%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s +123%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s +26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +469%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +450%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s +436%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +430%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s +390%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +388%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s +344%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +288%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +185%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s +170%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s +160%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s +112%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s +20%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +24%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s +14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -2%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -24%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -30%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +166%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +156%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +140%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s +104%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s +95%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s +68%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +259%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +240%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +235%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +171%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +127%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s +99%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s
4k q32 t16 write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +214%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +197%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +183%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +171%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +135%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +100%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +1491%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +1441%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points +1400%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +1139%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +1103%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +204%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +202%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points +162%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +124%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +83%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points
Score Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +623%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +576%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +566%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +512%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +473%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points
Seq Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +370%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +361%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +350%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s +318%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s +263%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +311%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +301%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +214%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s +186%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s +132%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +38%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +30%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +25%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -34%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +370%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +287%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +266%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +263%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s +208%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +206%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +203%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s +144%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +113%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s
4K-64 Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +951%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +878%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +779%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +701%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +696%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -38%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * +6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +46%
Access Time Write
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms *
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * +9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +9%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +10%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +74%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +79%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Gráficos

A Intel UHD Graphics 620 tem dificuldade para acompanhar seus sucessores. O modelo seguinte - o Intel Iris Xe Graphics - é capaz de competir com o Radeon RX Vega 8 da AMD. O desempenho 3D melhoraria se o dispositivo fosse equipado com um segundo módulo DDR4 de RAM. Como ponto de referência, incluímos o HP EliteBook x360 1040 G7 na tabela de comparação.

Você pode encontrar referências adicionais aqui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.4 pt
Average Intel Iris Xe Graphics G7 96EUs	89.7 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	86.6 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.5 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	77.2 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.5 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	73.3 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	72.1 pt
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	30.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	23.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +329%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +293%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=193)	6342 Points +282%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +280%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +248%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +238%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points +235%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +235%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1959 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +303%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +254%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38040, n=171)	26309 Points +222%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +221%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +221%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +191%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +189%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +150%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	11437 Points +40%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points
1920x1080 Fire Strike Graphics
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=206)	4903 Points +355%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +339%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +305%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +250%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +246%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points +233%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points +217%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points +213%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1444 Points +34%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	92.7 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	90.8 pt
Average Intel Iris Xe Graphics G7 96EUs	90.8 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	78.6 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	77.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	74.7 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	73.3 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	69.5 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	23.5 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +330%
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 26.3, n=16)	22.8 fps +322%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +263%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +228%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +220%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps +176%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps +150%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +309%
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 27.5, n=16)	23.3 fps +309%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +275%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +216%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +211%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps +195%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps +170%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +282%
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 17.2, n=14)	14.8 fps +279%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +264%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +197%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +195%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps +190%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps +172%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.1, n=14)	16.7 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +361%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +327%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	3499 Points +289%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points +289%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +280%
Average Intel Iris Xe Graphics G7 96EUs (2693 - 3797, n=20)	3357 Points +273%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +259%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +200%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points
1024x600 Normal, Fluid 3DTex
Average Intel Iris Xe Graphics G7 96EUs (186 - 420, n=20)	312 Points +263%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +256%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +221%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	235 Points +173%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +173%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points +173%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +160%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +116%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points
1024x600 Normal, Fluid 2DTexArr
Average Intel Iris Xe Graphics G7 96EUs (204 - 389, n=20)	302 Points +260%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +248%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +224%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	231 Points +175%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points +175%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points +162%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points +152%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +143%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +623%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +588%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1066 Points +502%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +502%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +455%
Average Intel Iris Xe Graphics G7 96EUs (558 - 911, n=20)	768 Points +334%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points +331%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +215%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points
1024x600 Normal, Mandel Scalar
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1115 Points +458%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1047 Points +424%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	964 Points +382%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +382%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +353%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	853 Points +327%
Average Intel Iris Xe Graphics G7 96EUs (747 - 888, n=20)	827 Points +314%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +276%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +242%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +241%
Average Intel Iris Xe Graphics G7 96EUs (936 - 1303, n=20)	1147 Points +226%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points +219%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1002 Points +185%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points +185%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +182%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points

3DMark 05 Standard		16972 pontos
3DMark 06 Standard Score		11379 pontos
3DMark Vantage P Result		6899 pontos
3DMark 11 Performance		1848 pontos
3DMark Ice Storm Standard Score		51368 pontos
3DMark Cloud Gate Standard Score		7637 pontos
3DMark Fire Strike Score		1004 pontos
3DMark Fire Strike Extreme Score		474 pontos
3DMark Time Spy Score		419 pontos
Ajuda

... comparado com

Desempenho nos jogos

A Intel UHD Graphics 620 é dominada por todos os jogos atuais. Mesmo títulos mais antigos muitas vezes só podem ser jogados suavemente em 720p e com detalhes definidos para baixo. O iGPU lida melhor com os jogos casuais mais simples com resolução nativa

Outras comparações e benchmarks podem ser encontrados em nosso Lista de jogos GPU.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +301%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +242%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +237%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +235%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +193%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +174%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps +101%
Average Intel UHD Graphics 620 (33.9 - 35.7, n=2)	34.8 fps +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +339%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +271%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +250%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +237%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +194%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps +96%
Average Intel UHD Graphics 620 (28 - 30.6, n=2)	29.3 fps +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +464%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +400%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +336%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +318%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps +127%
Average Intel UHD Graphics 620 (6 - 16, n=12)	12.9 fps +17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +480%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +480%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +320%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +320%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps +240%
Average Intel UHD Graphics 620 (5 - 7, n=5)	6.6 fps +32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +409%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +336%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +300%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +282%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +273%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +264%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps +164%
Average Intel UHD Graphics 620 (11 - 13, n=2)	12 fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +480%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +460%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +320%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps +220%
Average Intel UHD Graphics 620 (5 - 7, n=2)	6 fps +20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +347%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +271%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +265%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +255%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +253%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +213%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps +137%
Average Intel UHD Graphics 620 (25.5 - 29.2, n=4)	27.1 fps +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +368%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +322%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +265%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +264%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +242%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps +188%
Average Intel UHD Graphics 620 (11.1 - 13.5, n=4)	12.2 fps +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +74%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +71%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +52%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps
Average Intel UHD Graphics 620 (42.4 - 90, n=92)	71.9 fps -1%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +137%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +114%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +109%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +100%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +78%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps
Average Intel UHD Graphics 620 (8.6 - 57.1, n=92)	43.5 fps -4%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +289%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +241%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +240%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +214%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +212%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps +184%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps +182%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps
Average Intel UHD Graphics 620 (17 - 31, n=5)	23.9 fps -7%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +290%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +281%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +242%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +220%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +208%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +197%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps +189%
Average Intel UHD Graphics 620 (7 - 12.5, n=5)	10.2 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps

	baixo	média	alto	ultra
GTA V (2015)	33.9	28	6.56	2.67
Dota 2 Reborn (2015)	72.8	45.1	18.4	16
Final Fantasy XV Benchmark (2018)	10.8	5.08	3.75
X-Plane 11.11 (2018)	20.2	13.1	12
Far Cry 5 (2018)	11	5	5
Strange Brigade (2018)	25.7	9.8	10.1
Far Cry New Dawn (2019)	11	5	5
Metro Exodus (2019)	12.3	5.95	4.61
Borderlands 3 (2019)	14.9	5.83	3.69
F1 2020 (2020)	25.5	11.3		5.34
F1 2021 (2021)	28	12.2	9.22
Tiny Tina's Wonderlands (2022)	7.02	5.06	3.3

Emissões - consistentemente silenciosas e econômicas

Emissões sonoras

Por outro lado, o Intel Core i7-10810Uo limite conservador de potência (PL1 e PL2) garante um ruído de operação muito silencioso. Tanto ocioso como sob carga, o NiPoGi CK10 nunca é realmente audível. Com 31 dB(A), o mini PC era muito silencioso durante os testes de estresse e, portanto, bate todos os dispositivos de comparação aqui testados por alguma distância.

Barulho

Ocioso		30.8 / 30.9 / 30.9 dB
Carga		31 / 31 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.4 dB(A)

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-2%	-9%	-23%	-8%
off / environment *	30.4	30.2 1%	30.2 1%	30.5 -0%	30.28 -0%
Idle Minimum *	30.8	30.5 1%	30.8 -0%	31.5 -2%	31.82 -3%
Idle Average *	30.9	30.5 1%	32.1 -4%	32.6 -6%	32.27 -4%
Idle Maximum *	30.9	30.5 1%	32.9 -6%	33.8 -9%	33.17 -7%
Load Average *	31	31.2 -1%	33.9 -9%	49.3 -59%	35.82 -16%
Load Maximum *	31	35.1 -13%	41.4 -34%	50.9 -64%	37.1 -20%

* ... smaller is better

Temperatura

As temperaturas do case NiPoGi CK10 são em sua maioria baixas e pequenos hotspots são vistos apenas de forma seletiva. Durante os testes de carga SoC com Prime95, observamos uma temperatura máxima de 81°C. Portanto, mesmo sob carga máxima, a Intel Núcleo i7-10810U opera dentro de sua especificação e excede claramente a velocidade do relógio de base de 1,1 GHz.

NiPoGi CK10 durante os testes de estresse

NiPoGi CK10 adaptador de rede durante testes de tensão

Consumo de energia

Na área de consumo de energia, o NiPoGi CK10 se beneficia de seu muito econômico SoC. Seja ocioso ou sob baixa carga, nossa amostra de revisão se saiu bem contra a concorrência. Durante os testes de estresse, o adaptador de rede de 65 watts teve que trabalhar até 54 watts por um curto período de tempo. Isto deixa um pouco de espaço para outro dispositivo de armazenamento em massa e um módulo SO-DIMM adicional.

Consumo de energia

desligado	0.3 / 0.4 Watt
Ocioso	4.8 / 4.9 / 5.5 Watt
Carga	23 / 54 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel UHD Graphics 620	Average of class Mini PC
Power Consumption		-143%	-64%	-20%	-24%	-119%
Idle Minimum *	4.8	8.9 -85%	8.4 -75%	3.4 29%	3.81 ?(1 - 12.4, n=259) 21%	9.8 ?(1.9 - 46.5, n=91, last 2 years) -104%
Idle Average *	4.9	9.6 -96%	8.7 -78%	5.7 -16%	6.94 ?(2.8 - 15.7, n=261) -42%	11.7 ?(1.9 - 63, n=90, last 2 years) -139%
Idle Maximum *	5.5	11.8 -115%	9.3 -69%	7 -27%	8.75 ?(3.8 - 30, n=259) -59%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -167%
Load Average *	23	98.9 -330%	46.4 -102%	36.5 -59%	35 ?(8.1 - 51.6, n=259) -52%	51.9 ?(11.3 - 158.7, n=91, last 2 years) -126%
Load Maximum *	54	101.8 -89%	52 4%	68 -26%	47.5 ?(22 - 96.3, n=261) 12%	86 ?(18.1 - 271, n=91, last 2 years) -59%

* ... smaller is better

Power consumption with an external monitor

Minipc Union NiPoGi CK10 - 10810U; Prime95 V2810 Stress (external Monitor): Ø29.1 (25.3-42.4)

Minipc Union NiPoGi CK10 - 10810U; Cinebench R15 Multi (external Monitor): Ø32.6 (23.3-53.5)

Minipc Union NiPoGi CK10 - 10810U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.4 (23-37.2)

Minipc Union NiPoGi CK10 - 10810U; Idle 1min (external Monitor): Ø5.49 (5.09-6.37)

Pro

+ Pequena pegada

+ 6 núcleos e 12 fios

+ 16 GB de RAM e 512 GB de SSD

+ Até três unidades de armazenamento possíveis

+ Fácil de abrir

+ Sempre em silêncio

+ Baixos requisitos de energia

Contra

- Wi-Fi lento

- Apenas um módulo de RAM instalado (monocanal)

- Sem Thunderbolt

- Sem leitor de cartões SD

- Latência muito alta de DPC

Veredicto - Um PC de escritório ultra-silencioso

A unidade de revisão foi fornecida pela Minipc Union

Antes de mais nada, o NiPoGi CK10 é um PC compacto, de escritório, baseado em um Intel Core i7-10810U. Embora o SoC não seja mais um dos modelos atuais, ele ainda é capaz de alcançar um excelente desempenho multifios devido a seus 6 núcleos e um total de 12 roscas. Além disso, um olhar sobre a folha de dados também promete muito em termos de RAM e armazenamento em massa. No entanto, uma inspeção mais atenta, o sistema teria se beneficiado de um desempenho utilizável desperdiçado no final. A RAM só funciona em modo de canal único e o SSD oferece apenas velocidade SATA. Estas pequenas desvantagens podem ser remediadas à medida que as opções de atualização são possíveis

Em comparação com a concorrência aqui em nosso teste, o NiPoGi CK10 lutou devido às limitações acima mencionadas. Para qualquer pessoa capaz de lidar com essas limitações, o NiPoGi CK10 representa um bom mini PC para uso em escritório. O maior ponto positivo do PC compacto é seus valores de emissão

O NiPoGi CK10 é uma boa estação de trabalho doméstica. Entretanto, o dispositivo é bastante desinteressante devido ao seu preço.

Principalmente, o NiPoGi CK10 é uma boa escolha para uso simples, em casa, no escritório. No entanto, existem excelentes alternativas, algumas das quais são feitas internamente e oferecem uma melhor relação custo-benefício. O é uma boa opção Ace Magician TK11-A0 se encontra na mesma categoria de desempenho, embora com certas desvantagens próprias. Além disso, a Minisforum também tem em seu portfólio alternativas interessantes. Uma comparação com a EliteMini TH50 vale a pena aqui.

Preço e disponibilidade

Atualmente, o NiPoGi CK10 com nossas especificações de revisão pode ser obtido na Amazon por 599 Euro na Alemanha. A máquina idêntica é vendida nos EUA sob o nome KAMURI CK10 com as mesmas especificações. No momento, o mini PC está disponível em por $599também na Amazônia.

O notebookcheck foi entregue ao NiPoGi CK10 para teste. O fabricante não exerceu qualquer influência sobre o resultado da revisão. Além disso, o fabricante não recebeu a revisão final antes da publicação.

Minipc Union NiPoGi CK10 - 10810U - 2022-11-25 11/25/2022 v7
Sebastian Bade

Acabamento

81 / 98 → 82%

Conectividade

48 / 81 → 59%

Peso

84%

Desempenho do jogos

44%

Desempenho da aplicação

84%

Ruído

88%

Médio

71%

Mini PC - Médio equilibrado

Pricecompare

Editor of the original article: Andrew Dickson - Translator - 87 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 387270 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > NiPoGi CK10 com o Intel Core i7-10810U revisado: Pequeno PC de escritório que oferece espaço para três SSDs

Sebastian Bade, 2022-12- 2 (Update: 2022-12- 2)

NiPoGi CK10 com o Intel Core i7-10810U revisado: Pequeno PC de escritório que oferece espaço para três SSDs

Possíveis concorrentes em comparação

Caso

Comparação de tamanho

Conectividade

Comunicação

Manutenção

Desempenho

Condições de teste

Processador

NiPoGi CK10 Cinebench R15 multi-loop

Desempenho do sistema

Latências DPC

Armazenamento em massa

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Gráficos

Desempenho nos jogos

Emissões - consistentemente silenciosas e econômicas

Emissões sonoras

Temperatura

Consumo de energia

Power consumption with an external monitor

Pro

Contra

Veredicto - Um PC de escritório ultra-silencioso

Preço e disponibilidade

More articles related to this device

Pricecompare
