Análise do mini PC Blackview MP200 - Pequeno PC desktop com Intel Core i5-11400H em um gabinete atraente

Beleza na área de trabalho. Já conhecemos a Blackview pelo segmento de smartphones e tablets, mas, neste momento, o fabricante também inclui vários Mini PCs em seu portfólio. Com o MP200, damos uma olhada em um PC compacto visualmente atraente para o trabalho diário de escritório. Entretanto, o processador não é mais um dos mais novos. Descubra nesta análise o que o SoC Tiger Lake do Blackview MP200 é capaz de fazer.
Blackview MP200, i5-11400H
Blackview MP200, i5-11400H

Muitos compradores conhecem a Blackview mais como um fabricante de smartphones e tablets, mas, neste momento, a Blackview também inclui vários Mini PCs em seu portfólio. Agora há também o MP200, embora ele não esteja mais atualizado com seu processador Intel Core i5-11400Hum pouco antigo. Mas o desempenho ainda é suficiente para lidar com as tarefas diárias na maioria dos casos. SoCs mais modernos geralmente oferecem um desempenho melhor com um consumo de energia menor. No entanto, o processador nativo de 6 núcleos com seus 12 threads ainda é um bom multitalento para o trabalho diário. OIntel Core i5-11400Hé acompanhado por 16 GB de memória de trabalho e uma solução de armazenamento com capacidade de 512 GB. O Windows 11 Professional vem pré-instalado e está incluído no preço. O Mini PC está atualmente à venda por 360 euros (~$395), o que é um preço justo. Em termos de preço normal, a Blackview está pedindo 540 euros (~$593), o que parece um pouco ambicioso em nossa opinião.

Nesta análise, comparamos o Blackview MP200 com alguns concorrentes conhecidos que já examinamos em detalhes anteriormente. Você pode encontrar uma lista dos dispositivos de comparação para esta análise na tabela abaixo.

Blackview MP200
Processador
Intel Core i5-11400H 6 x 2.7 - 4.5 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Tiger Lake-H
Placa gráfica
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Análises do: 1450 MHz, 31.0.101.1999
Memória
16 GB
, DDR4-3200, 1 of 2 slots used
placa mãe
Intel HM570

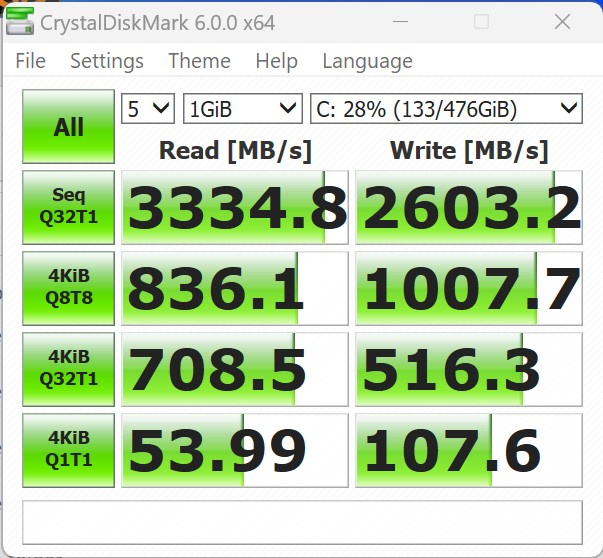

Disco rígido

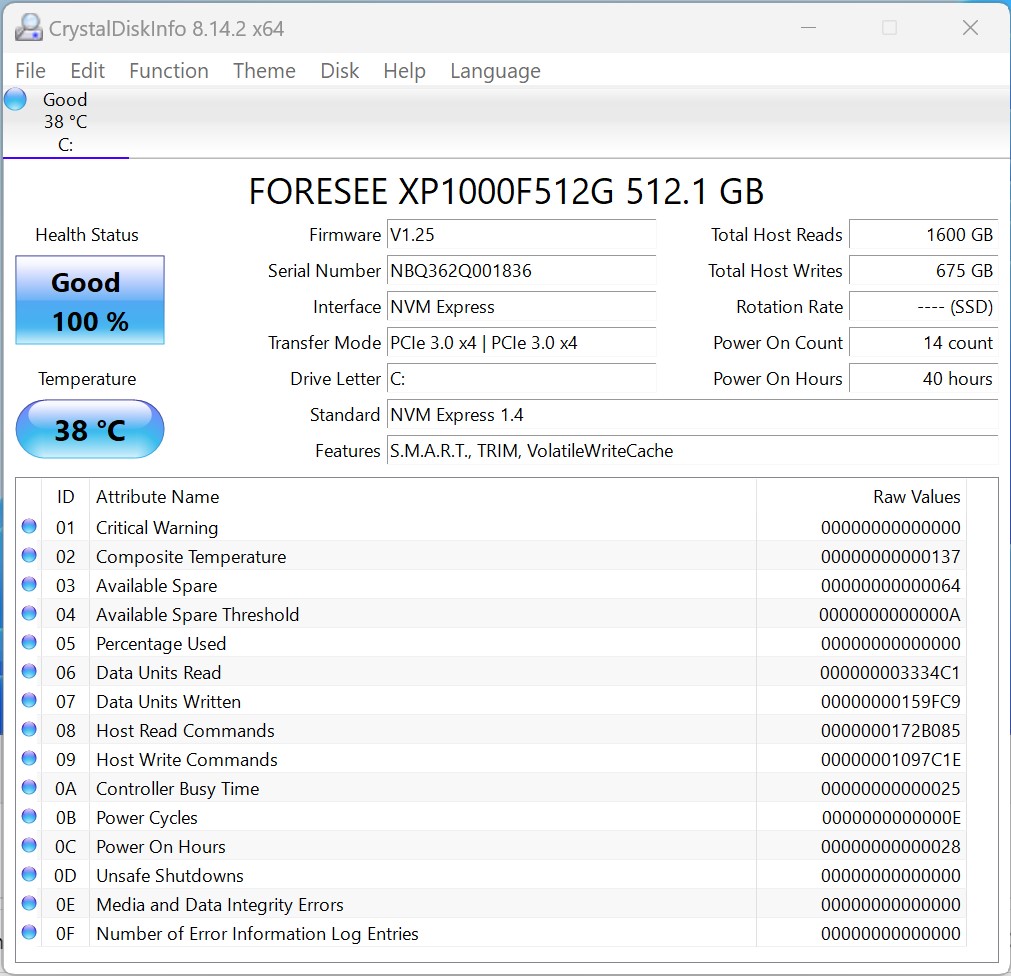

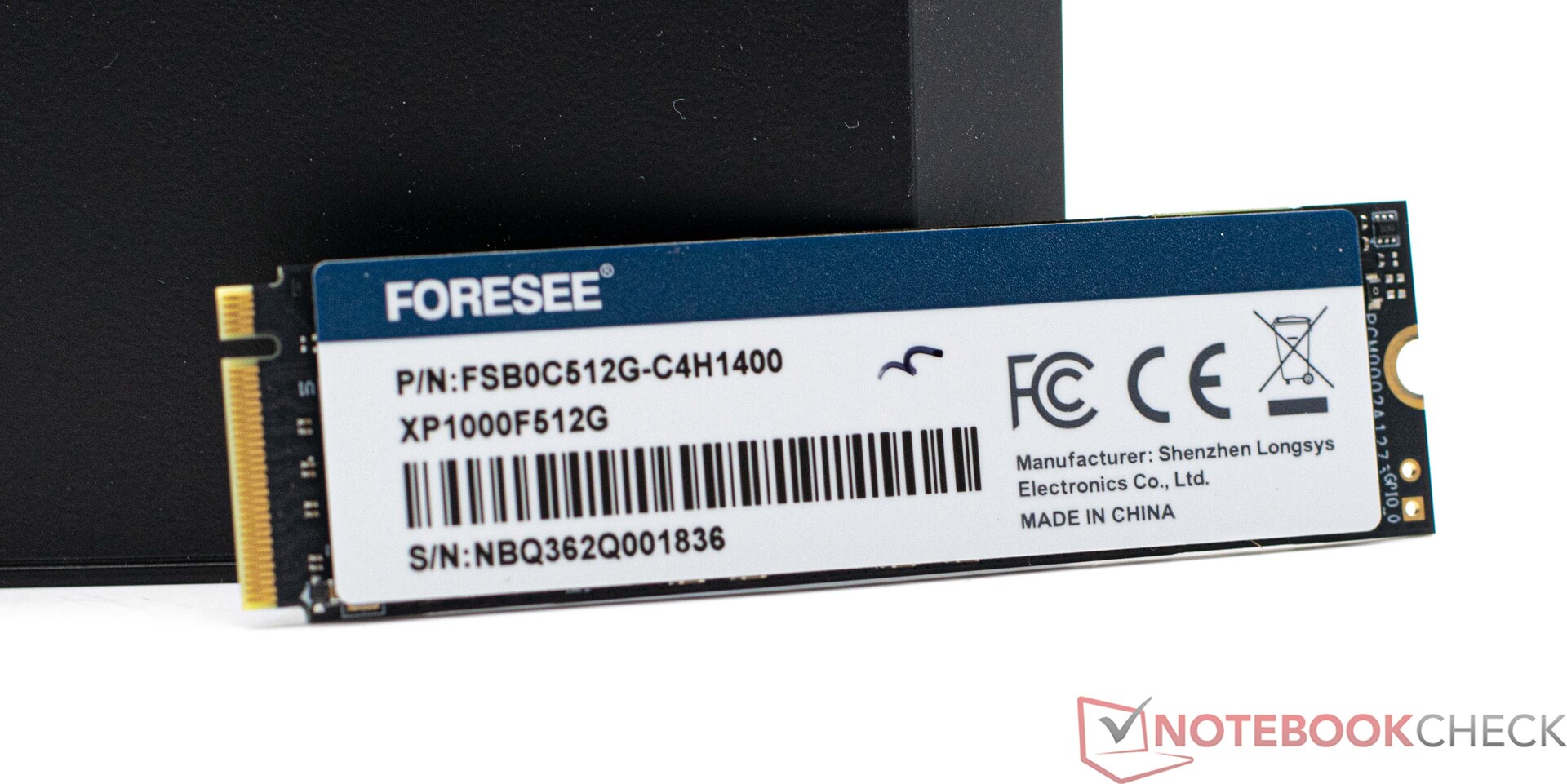

Foresee XP1000F512G, 512 GB
, M.2 2280, NVMe, 450 GB livre
Placa de Som
Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech)
Conexões
5 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, Conexões Audio: 3.5 mm audio port
Funcionamento em rede
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Tamanho
altura x largura x profundidade (em mm): 75.5 x 183.2 x 150
Sistema Operativo
Microsoft Windows 11 Pro
Características adicionais
120-Watt charger, 12 Meses Garantia
peso
678 g, Suprimento de energia: 461 g
Preço
546 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possíveis concorrentes em comparação

Rating
Date
Model
Weight
Height
Best Price
73.8 %
08/2023
Blackview MP200
i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
678 g75.5 mm
83.7 %
05/2023
Morefine M600, 6600U
R5 6600U, Radeon 660M
768 g40.6 mm
81.7 %
05/2023
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
652 g48 mm
80.6 %
07/2023
Geekom Mini IT11, i7-11390H
i7-11390H, Iris Xe G7 96EUs
536 g48 mm
73.4 %
04/2023
ACEMagician ACE-CK10-8259U
i5-8259U, Iris Plus Graphics 655
449 g50 mm
70.9 %
12/2022
Minipc Union NiPoGi CK10 - 10810U
i7-10810U, UHD Graphics 620
468 g50 mm
09/2022
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
586 g53 mm

Blackview MP200 em detalhes

Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200

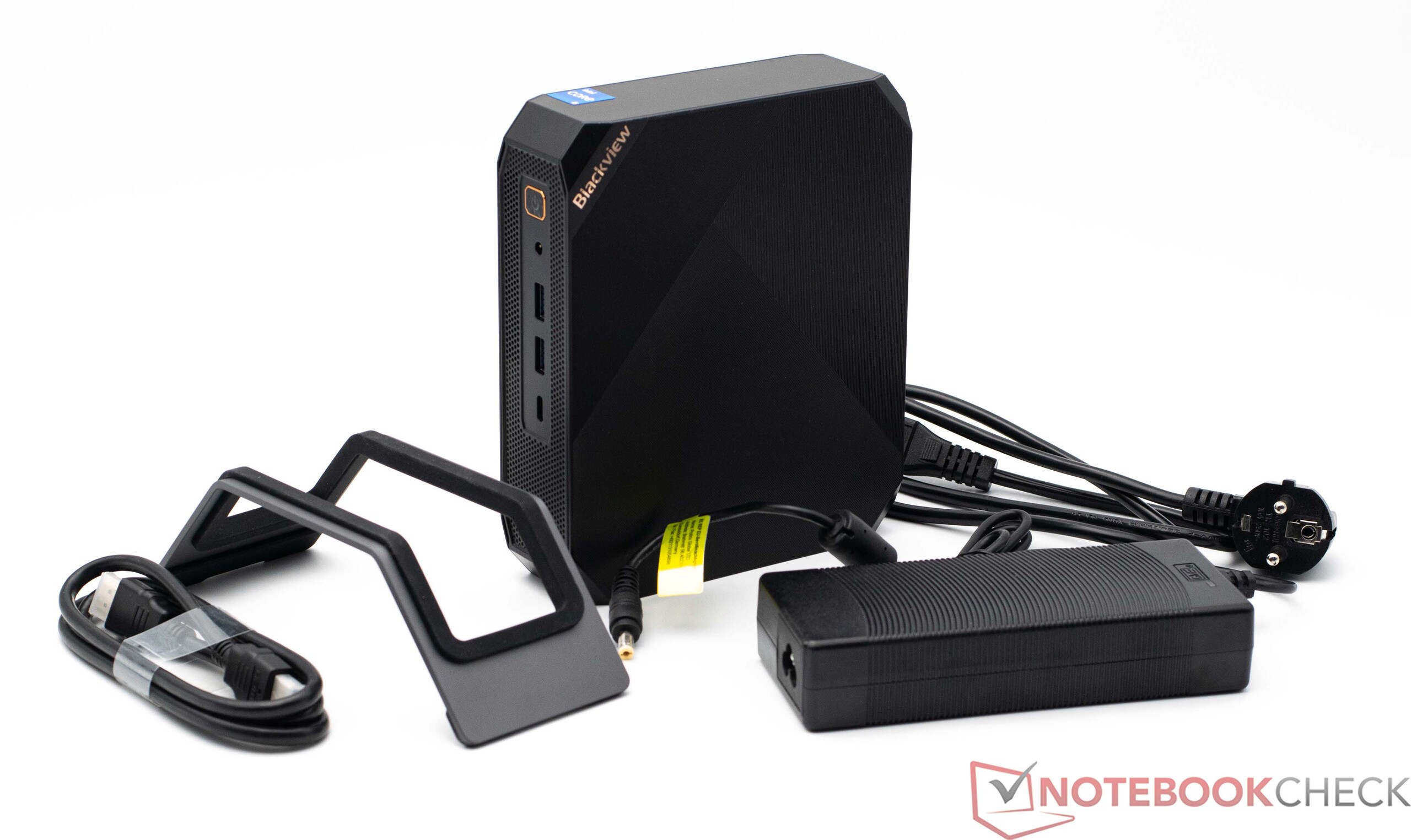

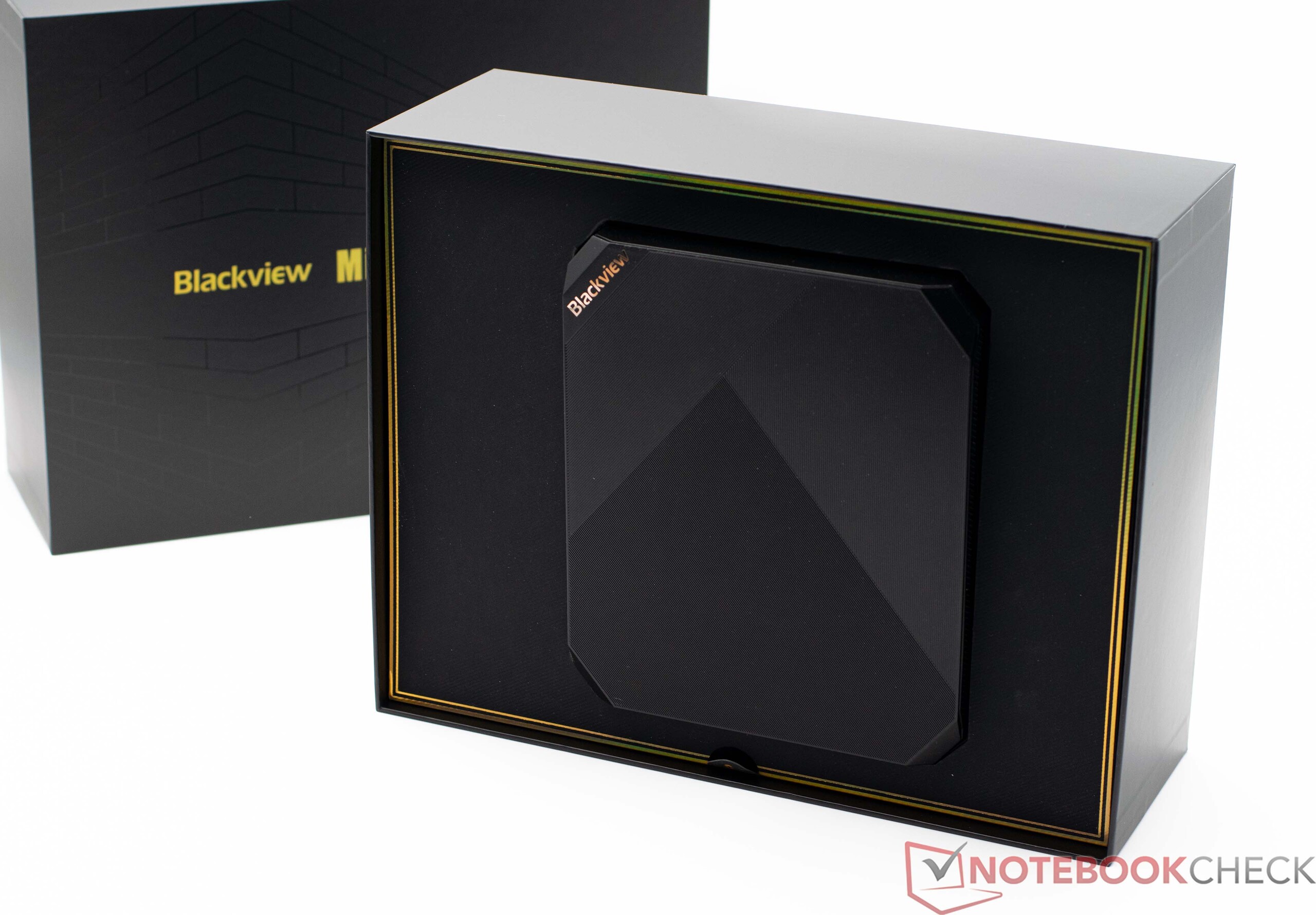

Blackview MP200 - o que está incluído na caixa
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200
Blackview MP200 - 16 GB de RAM DDR4

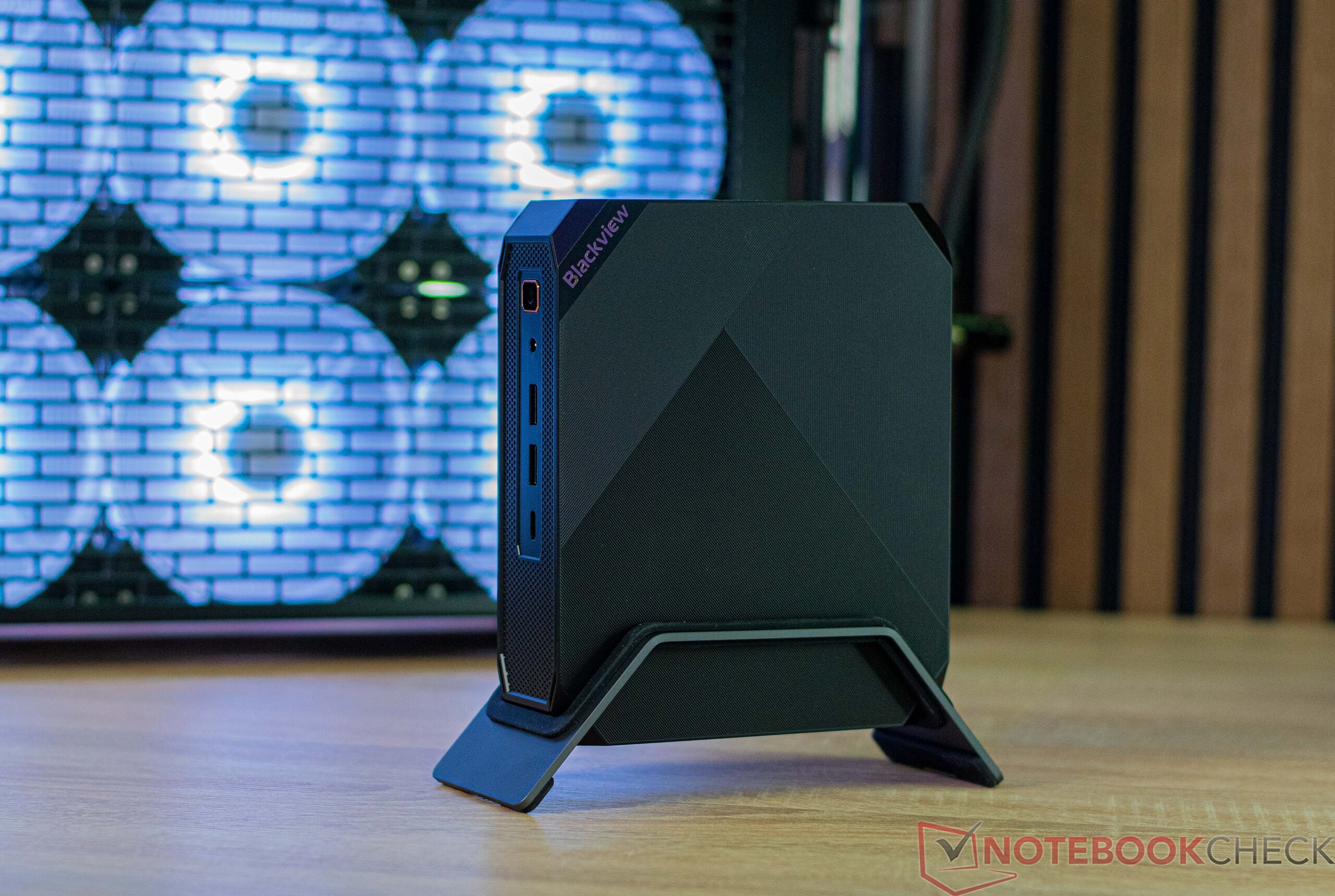

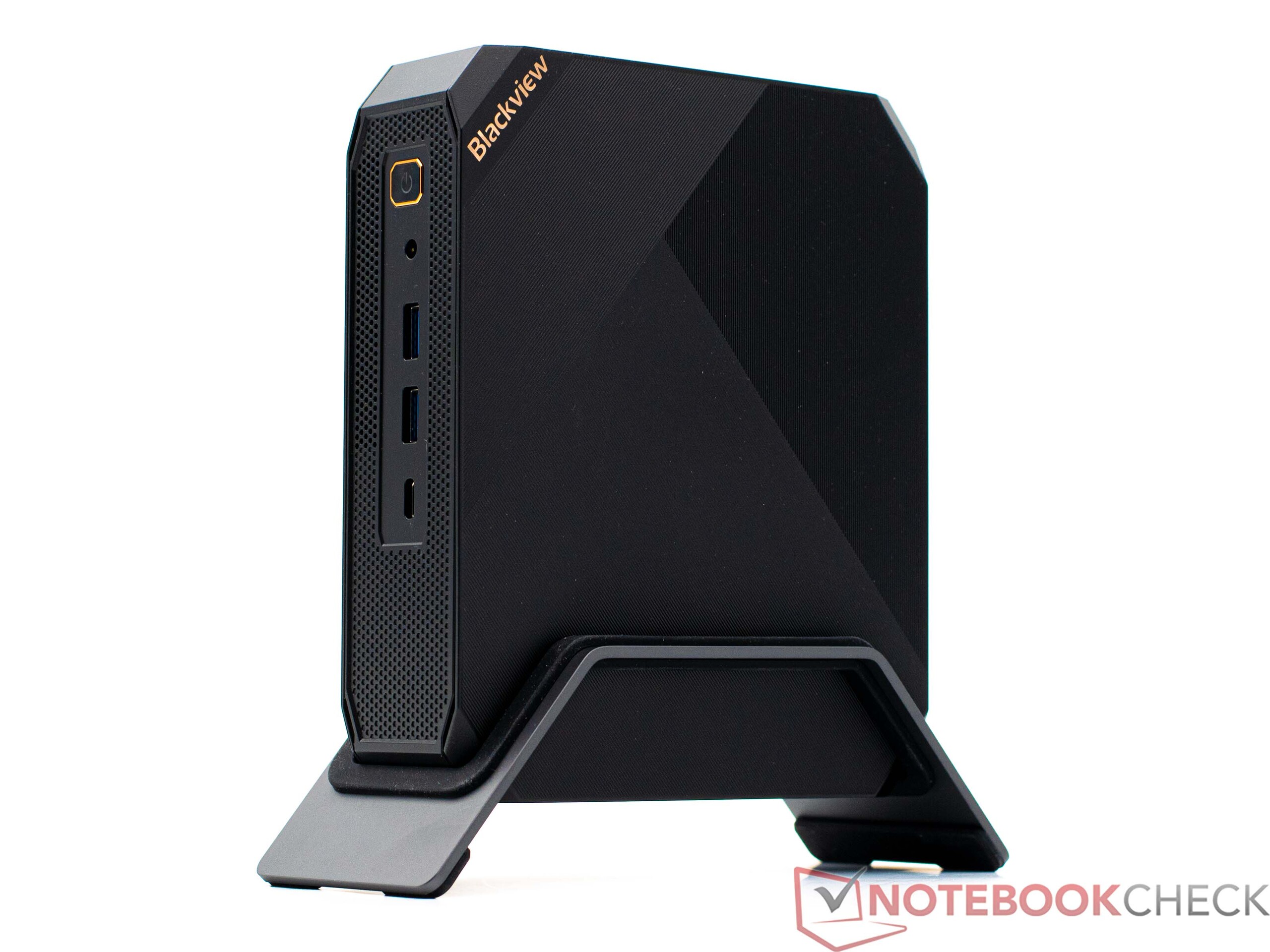

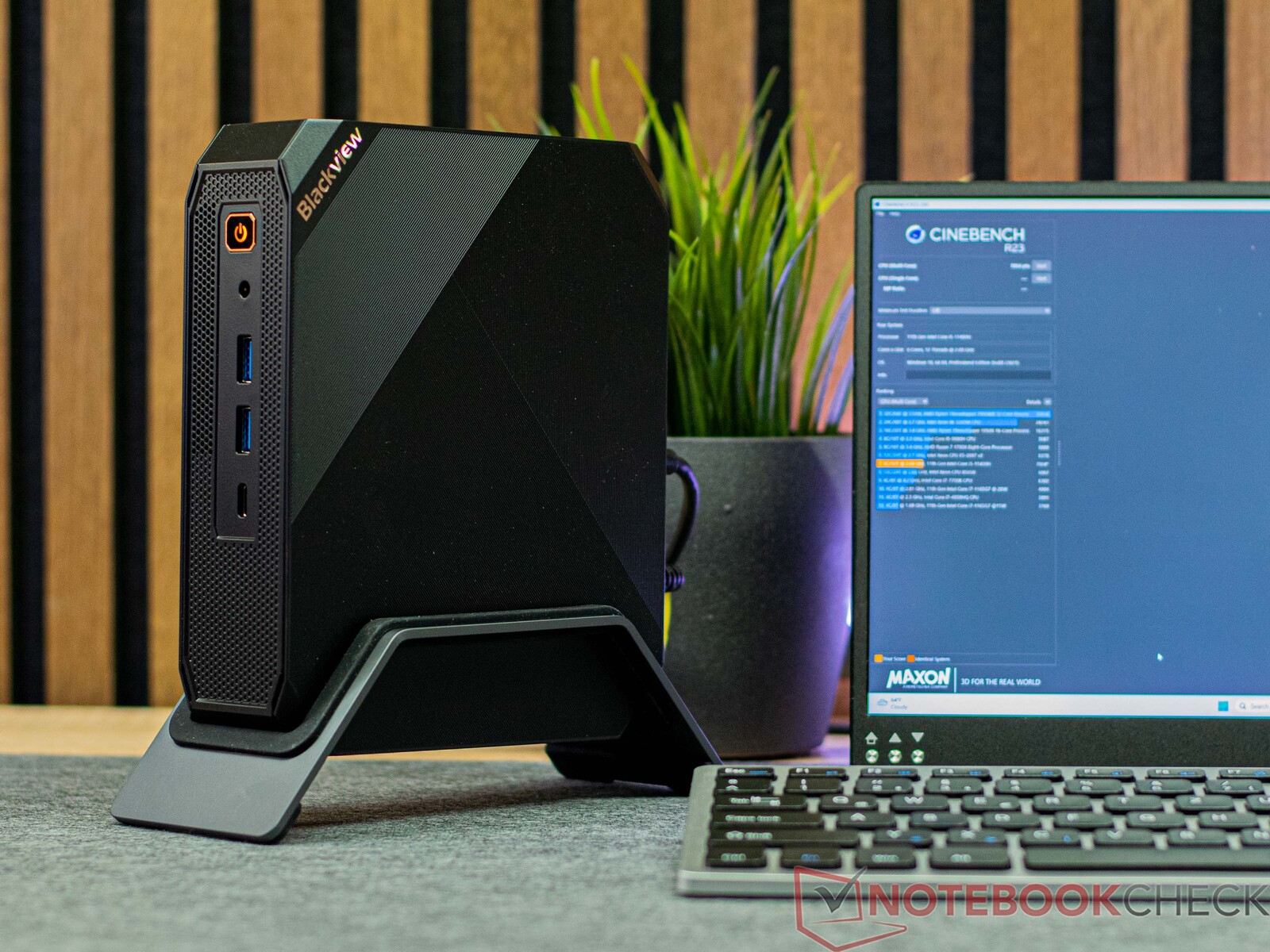

Caixa - Caixa plástica atraente

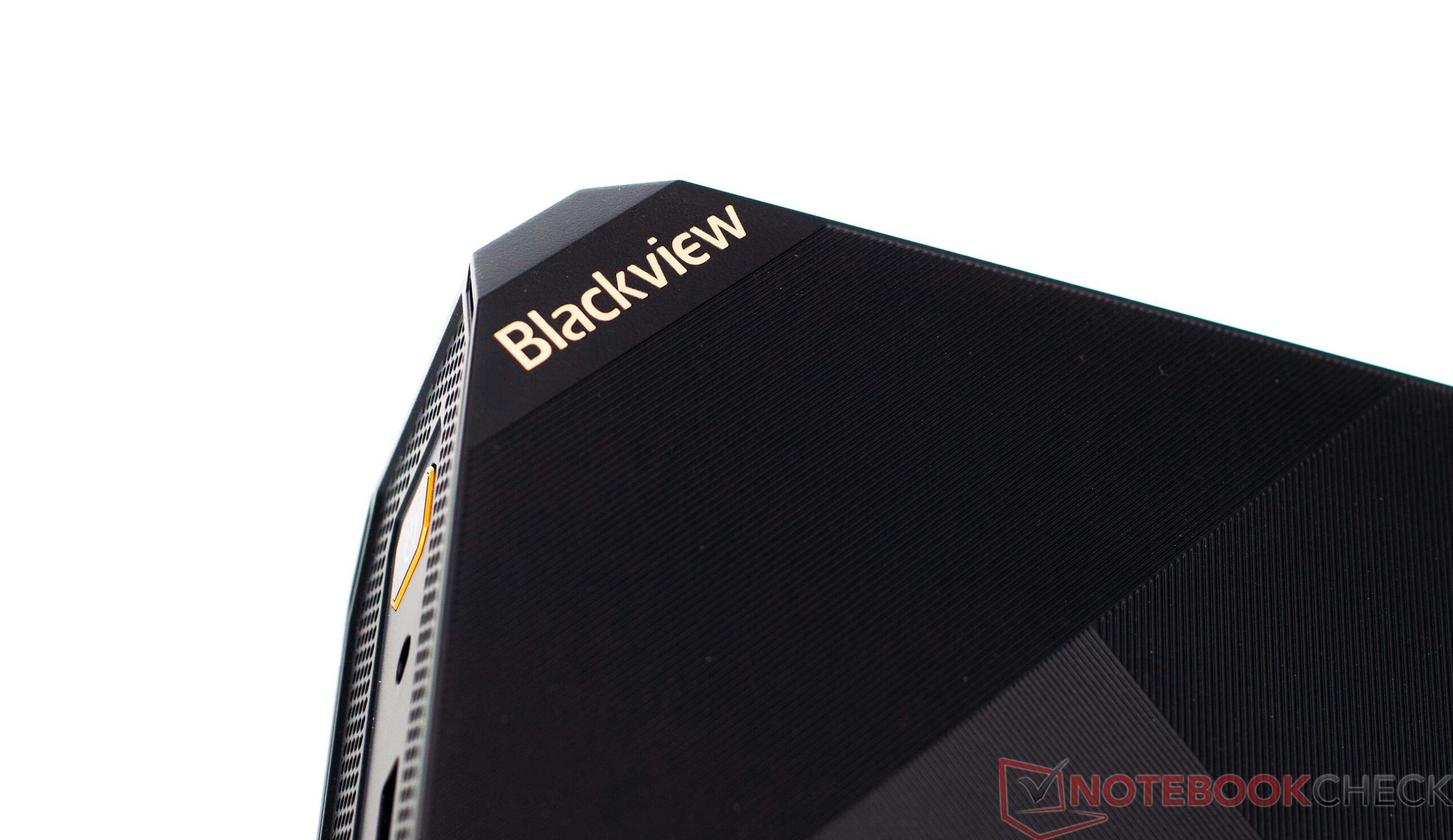

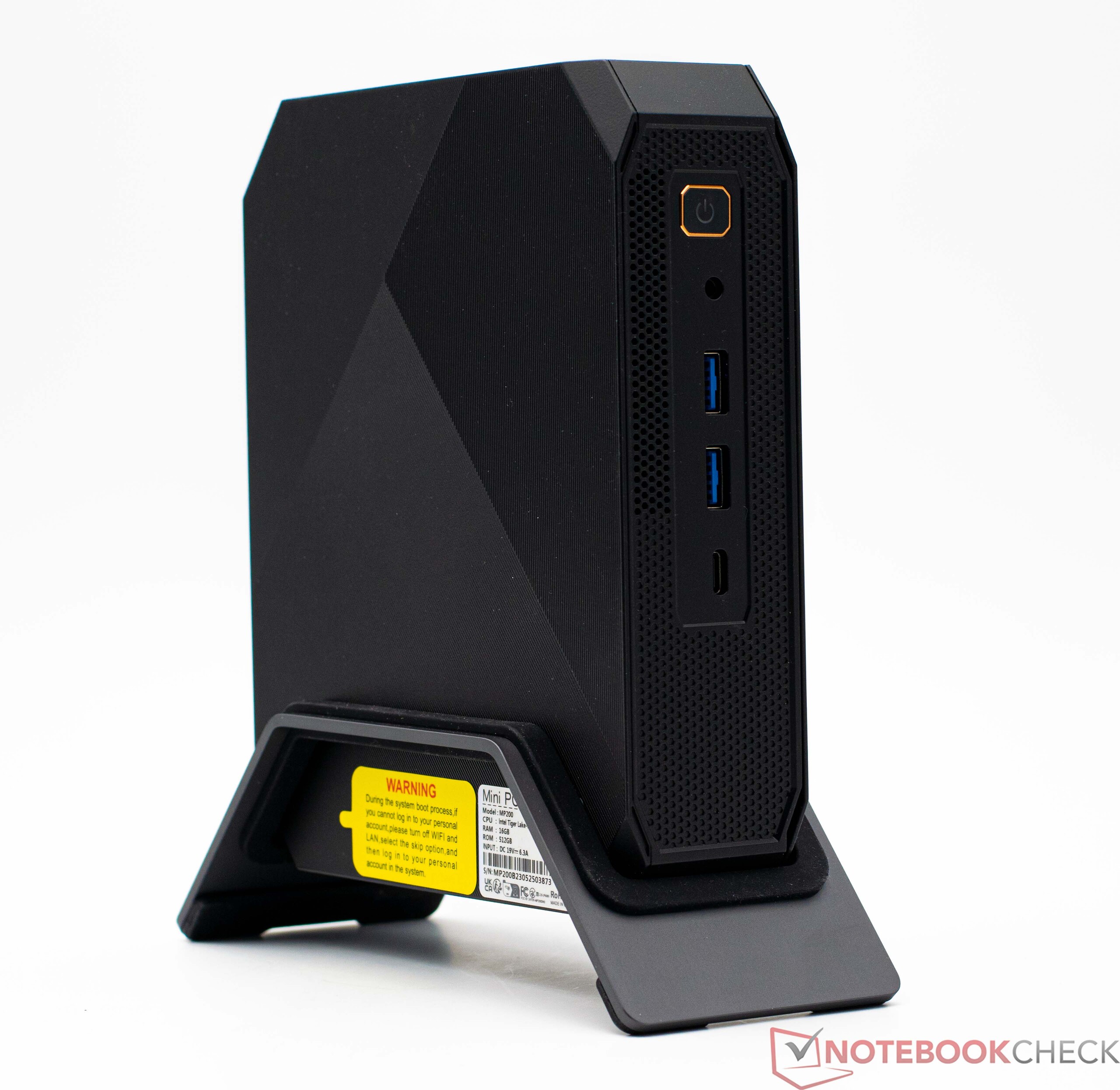

Visualmente, o Blackview MP200 é muito atraente. Alguns detalhes dourados deixam a caixa totalmente preta mais solta, dando-lhe uma aparência de alta qualidade. Essa impressão é confirmada pelas superfícies confortáveis de toque suave. Entretanto, a seleção de materiais limita-se apenas ao plástico, com o metal usado somente no suporte.

Com um peso de 678 gramas (~1,5 lb), o Blackview MP200 é o segundo dispositivo mais pesado em nossa comparação. Além disso, também vemos dimensões significativamente maiores em comparação com outros Mini PCs aqui.

Comparação de tamanho

183.2 mm 150 mm 75.5 mm 678 g138 mm 138 mm 53 mm 586 g147.3 mm 144.7 mm 40.6 mm 768 g137.5 mm 125 mm 50 mm 449 g137.5 mm 125 mm 50 mm 468 g129 mm 126 mm 48 mm 652 g117 mm 112 mm 48 mm 536 g297 mm 210 mm 1 mm 5.7 g

Equipamento - O padrão simples

O Blackview MP200 não oferece nada de excepcional em termos de equipamento de conexão. Um total de cinco conexões USB é suficiente, embora o USB4 ou o Thunderbolt não estejam incluídos. Os monitores podem ser conectados via DisplayPort ou HDMI, portanto, junto com as portas USB-C, você pode conectar até três monitores simultaneamente.

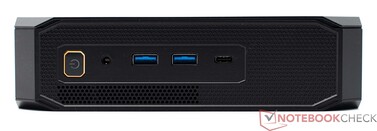

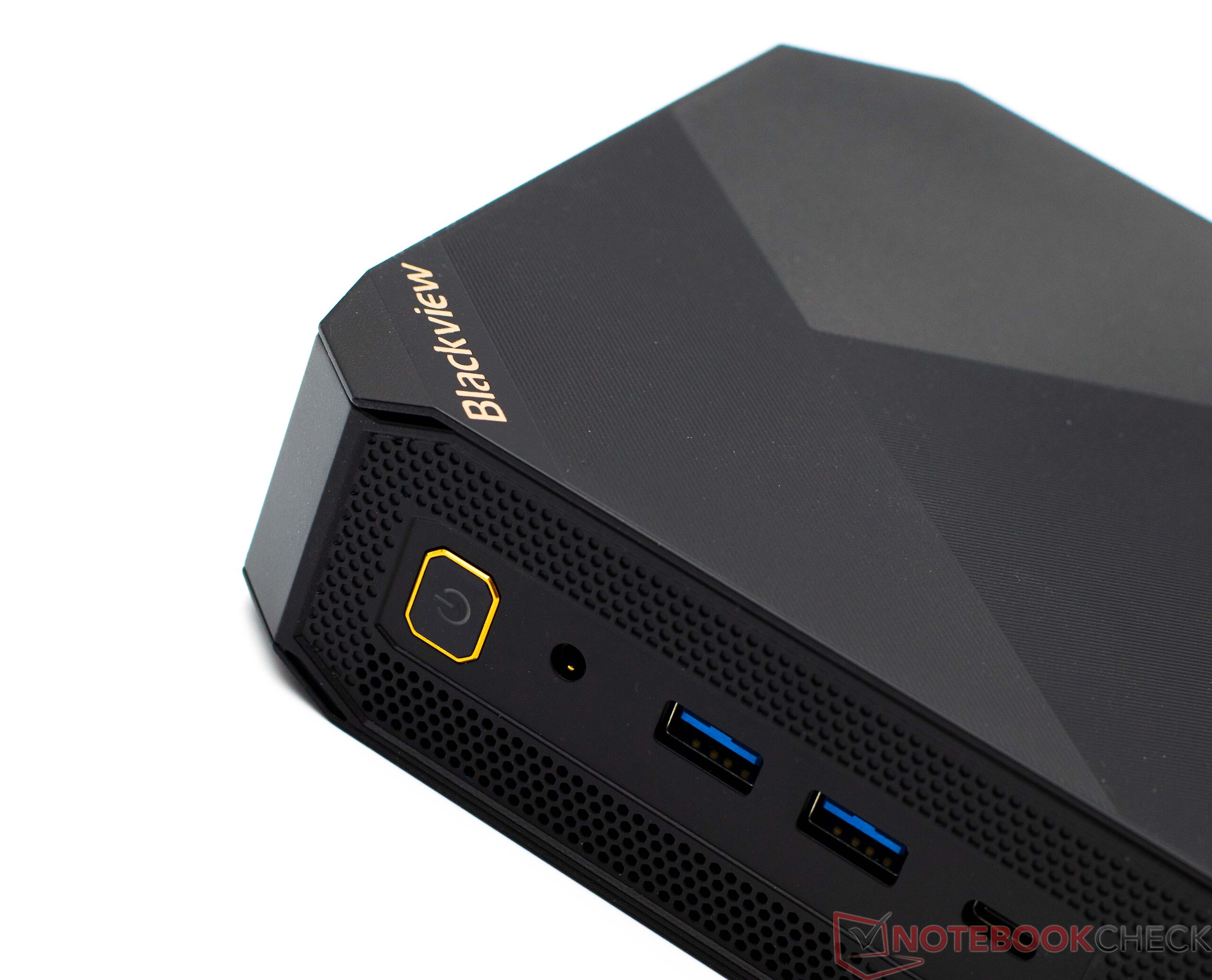

Frontal: botão liga/desliga, porta de áudio de 3,5 mm, 2x USB 3.2 Gen2, USB Type-C
Frontal: botão liga/desliga, porta de áudio de 3,5 mm, 2x USB 3.2 Gen2, USB Type-C
Parte traseira: alimentação, RJ45, HDMI 2.0, DisplayPort, 2x USB 3.2 Gen2
Parte traseira: alimentação, RJ45, HDMI 2.0, DisplayPort, 2x USB 3.2 Gen2

Comunicação

Módulo WLAN
Módulo WLAN

Como módulo de comunicação no MP200, a Blackview usa o módulo Wi-Fi 6 AX201 da Intel, que suporta apenas conexões de rede nas bandas de frequência de 2,4 e 5 GHz. O módulo de comunicação também suporta conexões Bluetooth 5.2. No teste, nossa unidade de teste se saiu muito bem, ficando bem à frente em nossa comparação. As conexões com fio também são possíveis usando a porta RJ45, mas você terá que se contentar com velocidades de Gbit aqui também.

Usamos nosso roteador de teste Asus ROG Rapture GT-AXE11000 para esse teste.

Networking
iperf3 receive AXE11000
Average Intel Wi-Fi 6 AX201
  (390 - 1734, n=75)
1430 MBit/s +50%
Geekom Mini IT11, i7-11390H
Intel Wi-Fi 6 AX201
958 (941min - 967max) MBit/s +1%
Blackview MP200
Intel Wi-Fi 6 AX201
953 (859min - 970max) MBit/s
Morefine M600, 6600U
MediaTek RZ608
948 (934min - 957max) MBit/s -1%
Average of class Mini PC
  (192.9 - 1796, n=96, last 2 years)
915 MBit/s -4%
Minisforum Venus Series UM560 XT
MediaTek RZ608
890 (851min - 908max) MBit/s -7%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 MBit/s -59%
ACEMagician ACE-CK10-8259U
RealTek Semiconductor, Device ID: C821
349 (175min - 353max) MBit/s -63%
Minipc Union NiPoGi CK10 - 10810U
RealTek Semiconductor, Device ID: C821
192.9 (95min - 196max) MBit/s -80%
iperf3 transmit AXE11000
Average Intel Wi-Fi 6 AX201
  (438 - 1715, n=70)
1294 MBit/s +57%
Average of class Mini PC
  (184.1 - 1776, n=96, last 2 years)
846 MBit/s +3%
Geekom Mini IT11, i7-11390H
Intel Wi-Fi 6 AX201
845 (818min - 879max) MBit/s +2%
Minisforum Venus Series UM560 XT
MediaTek RZ608
829 (775min - 889max) MBit/s 0%
Blackview MP200
Intel Wi-Fi 6 AX201
825 (426min - 867max) MBit/s
Morefine M600, 6600U
MediaTek RZ608
784 (381min - 874max) MBit/s -5%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 MBit/s -10%
Minipc Union NiPoGi CK10 - 10810U
RealTek Semiconductor, Device ID: C821
343 (170min - 362max) MBit/s -58%
ACEMagician ACE-CK10-8259U
RealTek Semiconductor, Device ID: C821
272 (263min - 279max) MBit/s -67%
050100150200250300350400450500550600650700750800850900950Tooltip
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)
Blackview MP200 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø953 (859-970)
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)
Blackview MP200 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø811 (426-867)
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

Acessórios

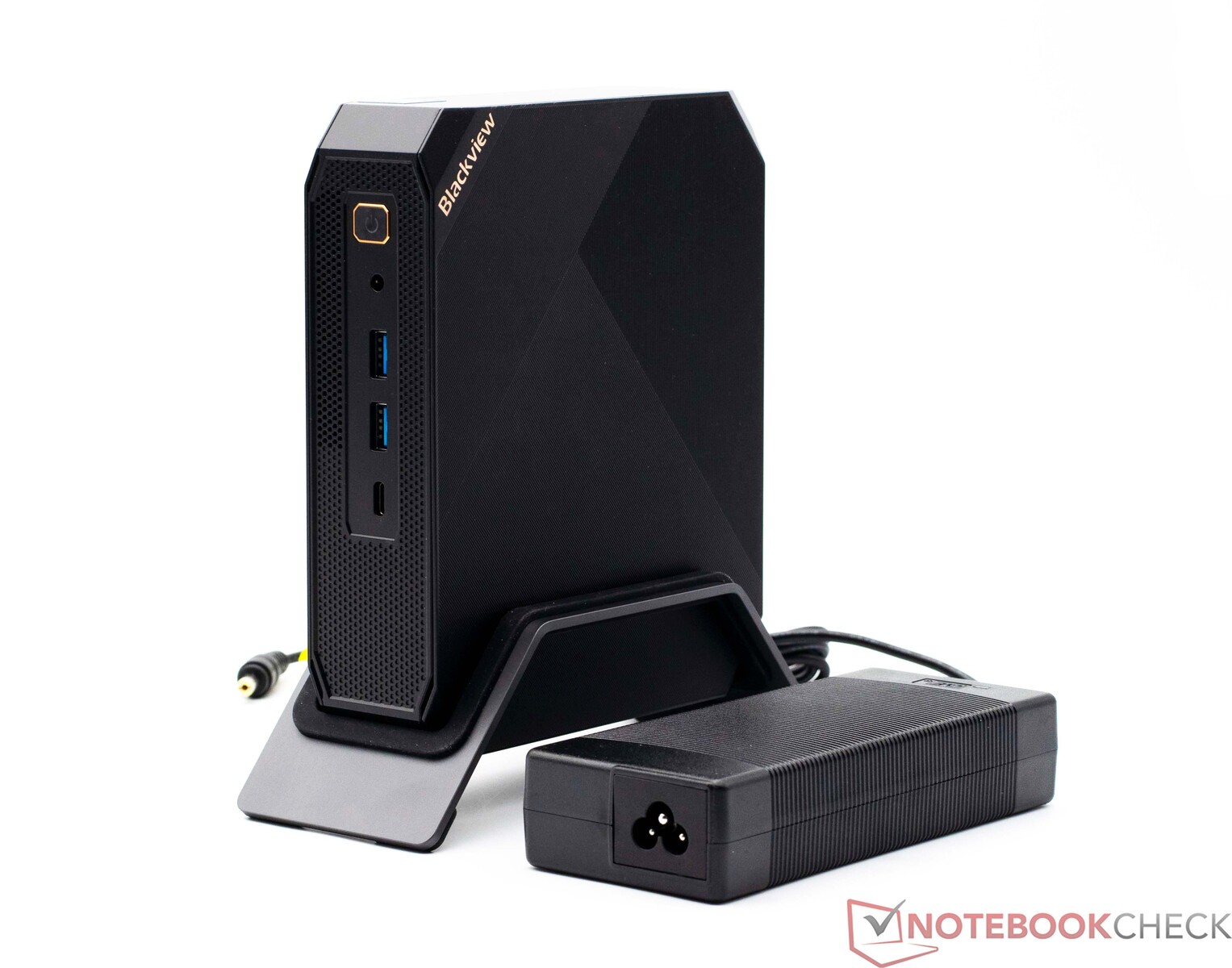

A caixa inclui todas as necessidades importantes, como o carregador de 120 watts e o suporte de metal de alta qualidade. Um cabo HDMI também está incluído com o Blackview.

Manutenção

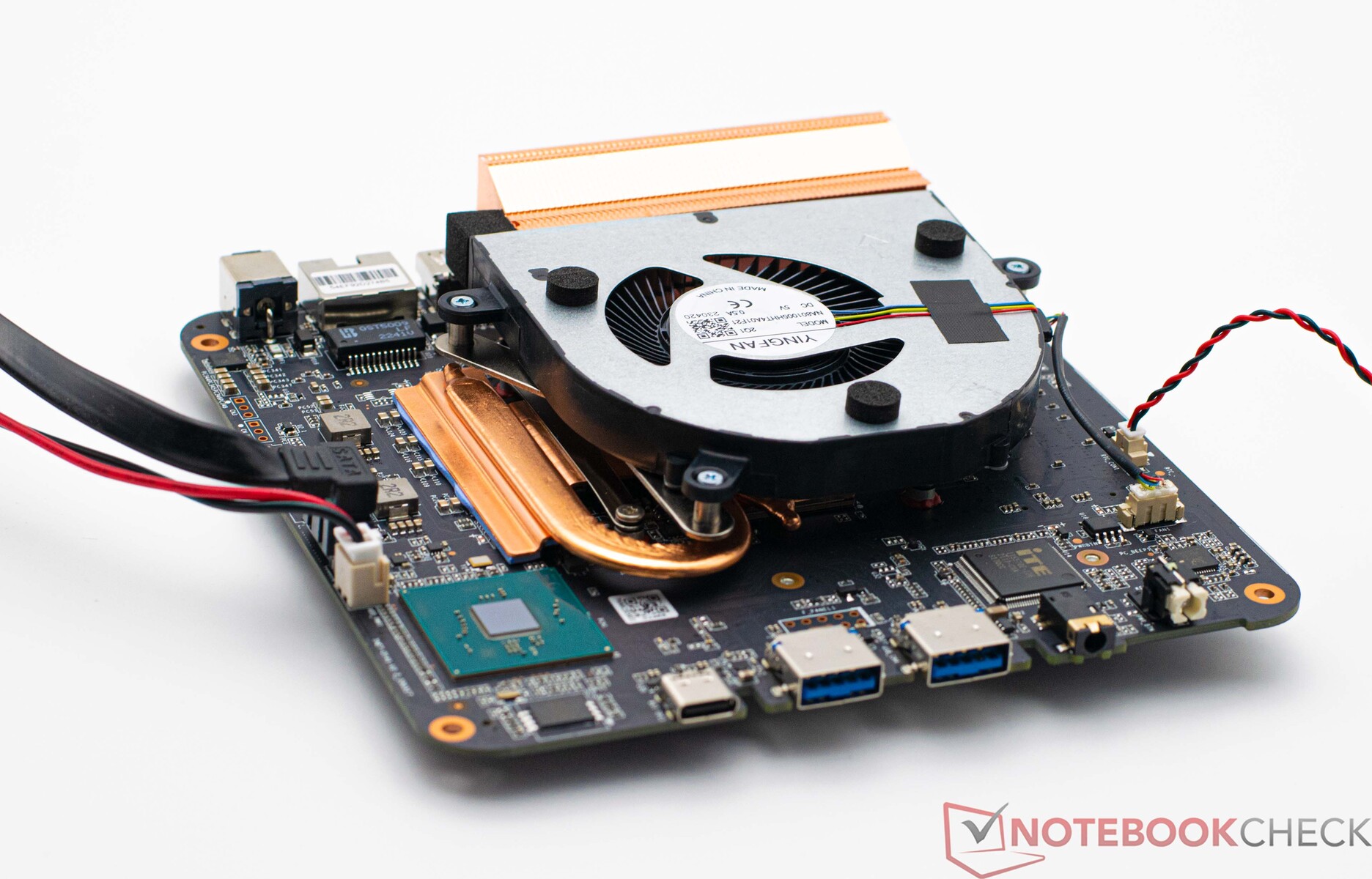

Blackview MP200 com a tampa lateral removida
Blackview MP200 com a tampa lateral removida

A caixa do Blackview MP200 pode ser aberta com relativa facilidade. A tampa lateral é conectada ao gabinete com dois parafusos na parte inferior. Depois de removê-los, basta deslizar a tampa lateral para baixo para removê-la. Em seu interior, você encontrará a memória de trabalho e a solução de armazenamento na forma de SSD M.2. Embora esteja equipado com apenas um módulo de RAM, é possível adicionar um segundo módulo posteriormente. Em termos de armazenamento, o PC também comporta um segundo módulo no formato de 2,5 polegadas, além do SSD M.2. Se você quiser substituir o módulo WLAN, o PC terá que ser desmontado, mas isso é basicamente possível com alguns toques cuidadosos.

Blackview MP200
Blackview MP200
Blackview MP200

Desempenho - O Intel Core i5-11400H oferece 6 coves e 12 threads

O Blackview MP200 é baseado no Intel Core i5-11400Hque proporciona um desempenho sólido na operação cotidiana. Como unidade gráfica integrada, há apenas uma placa de vídeoIntel Iris Xe Graphics G7com 16 UEs.

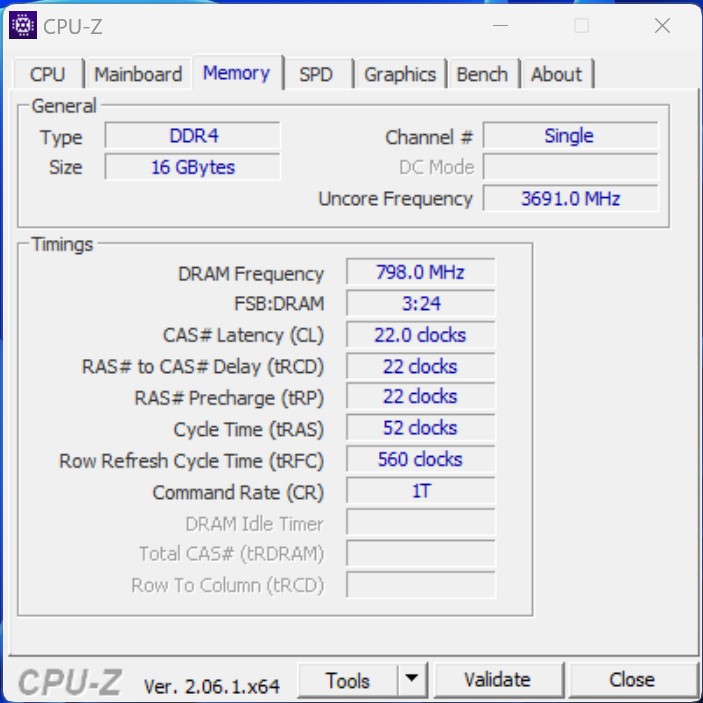

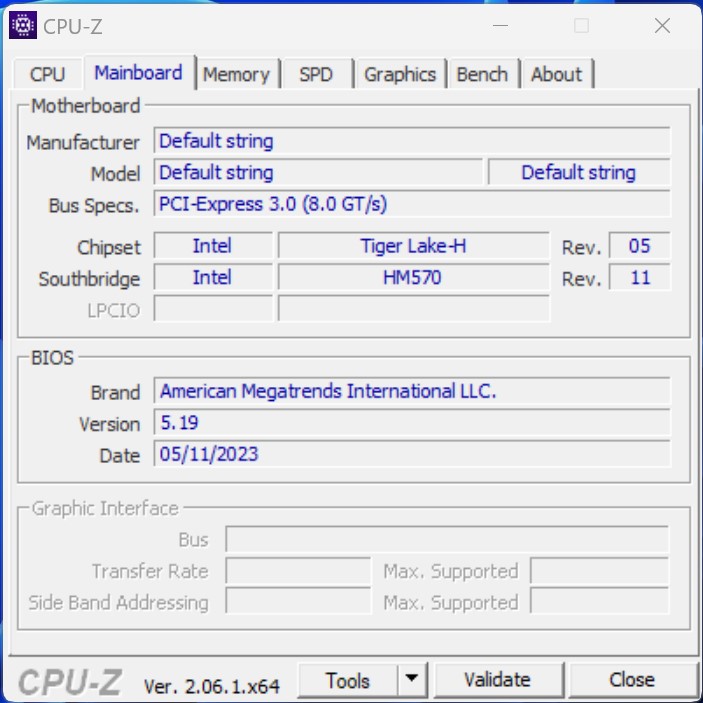

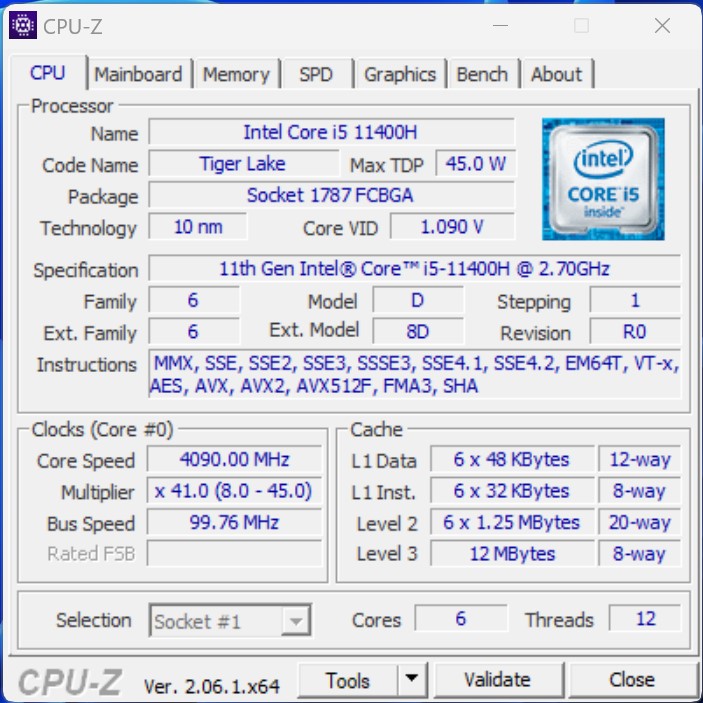

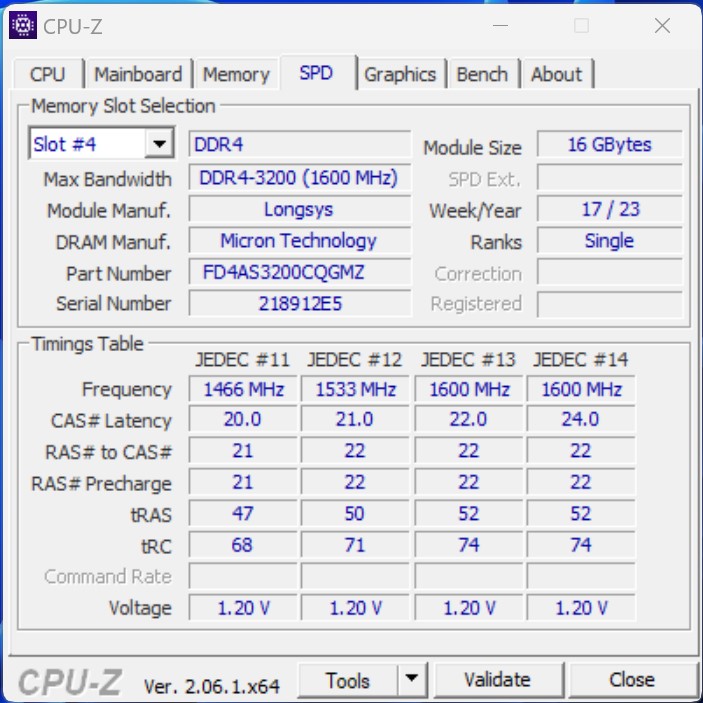

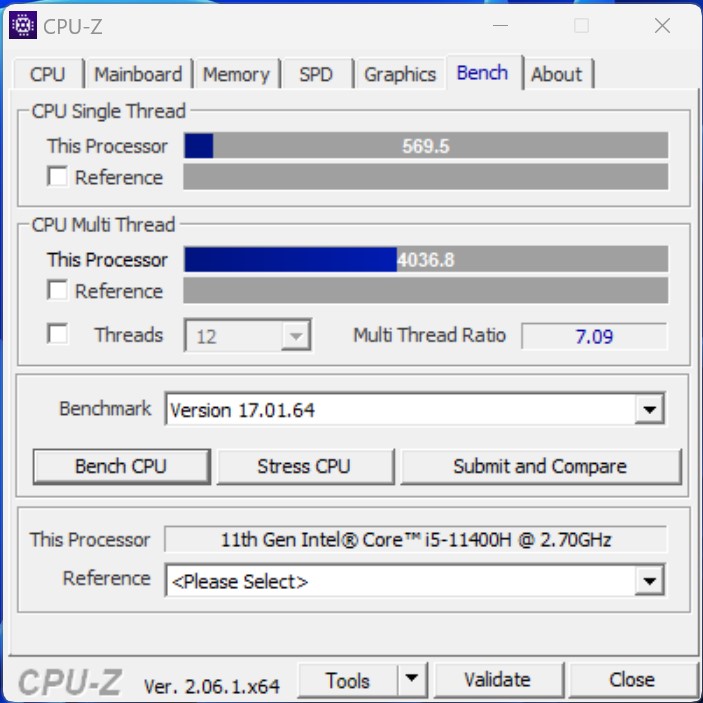

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

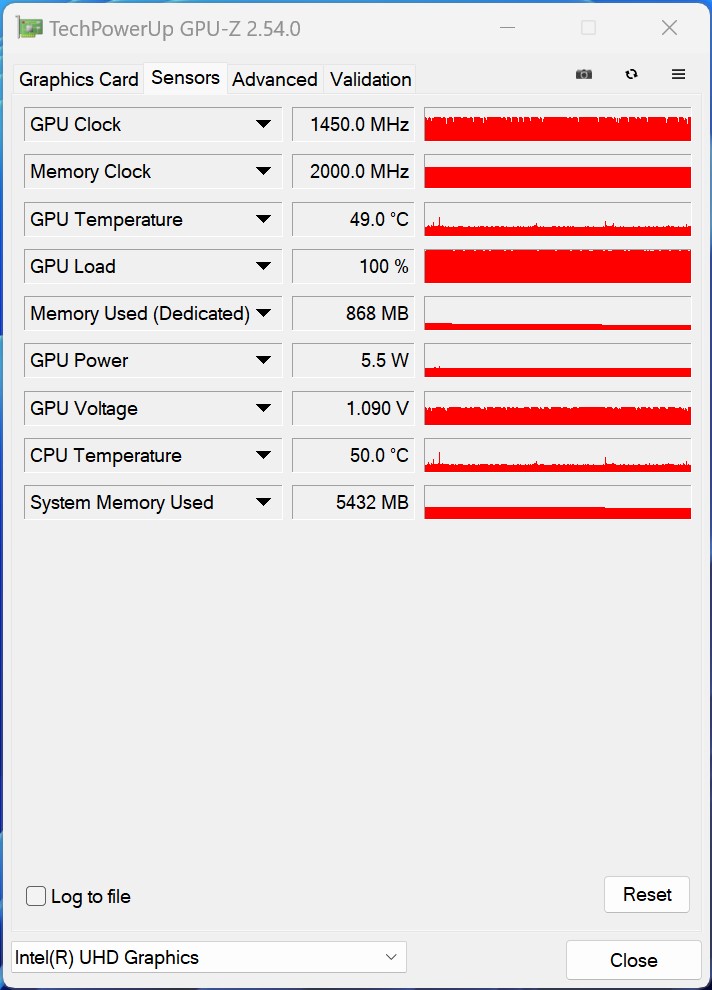

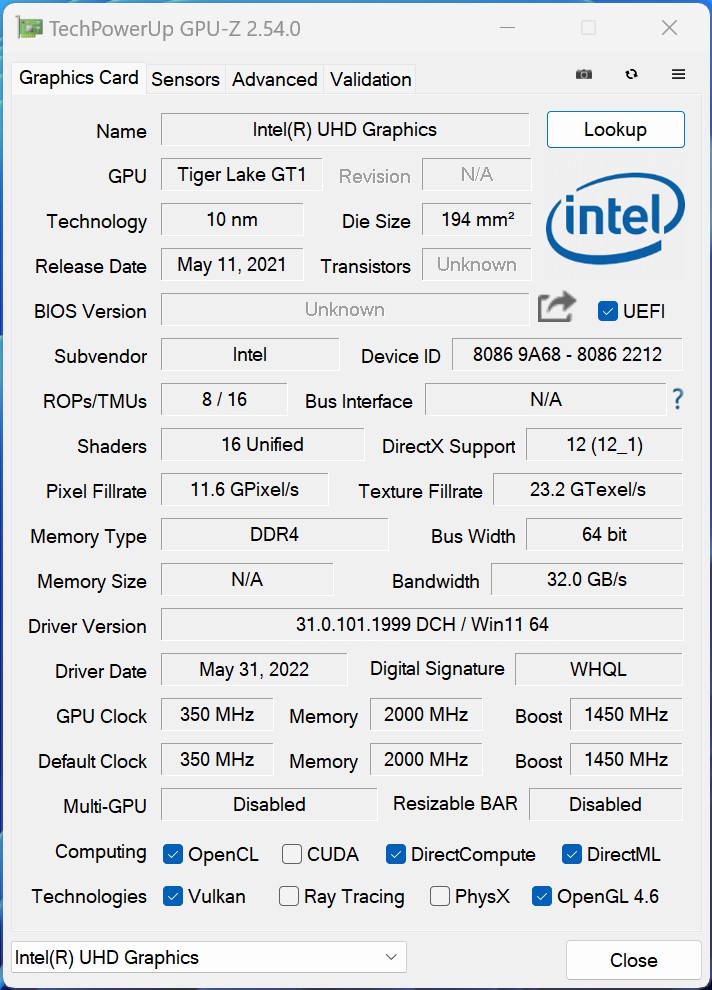

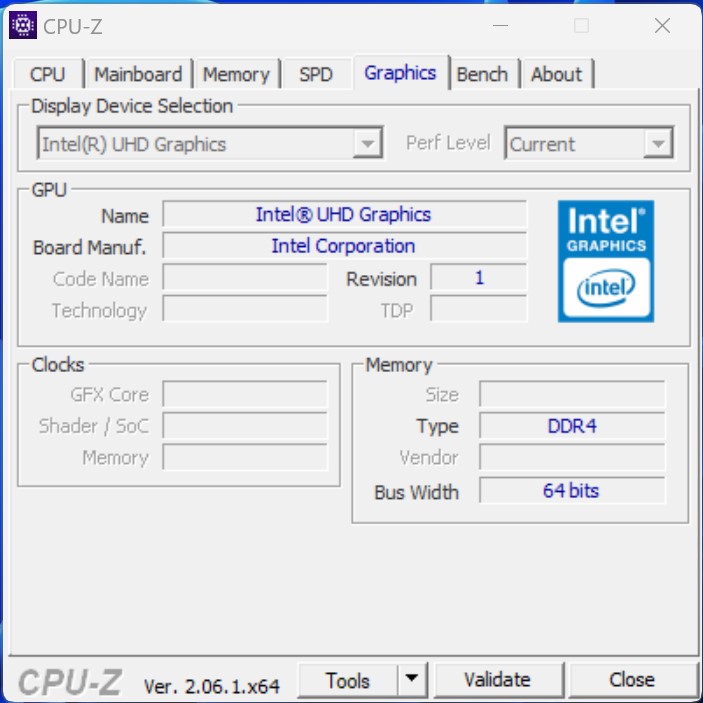

GPU-Z
GPU-Z

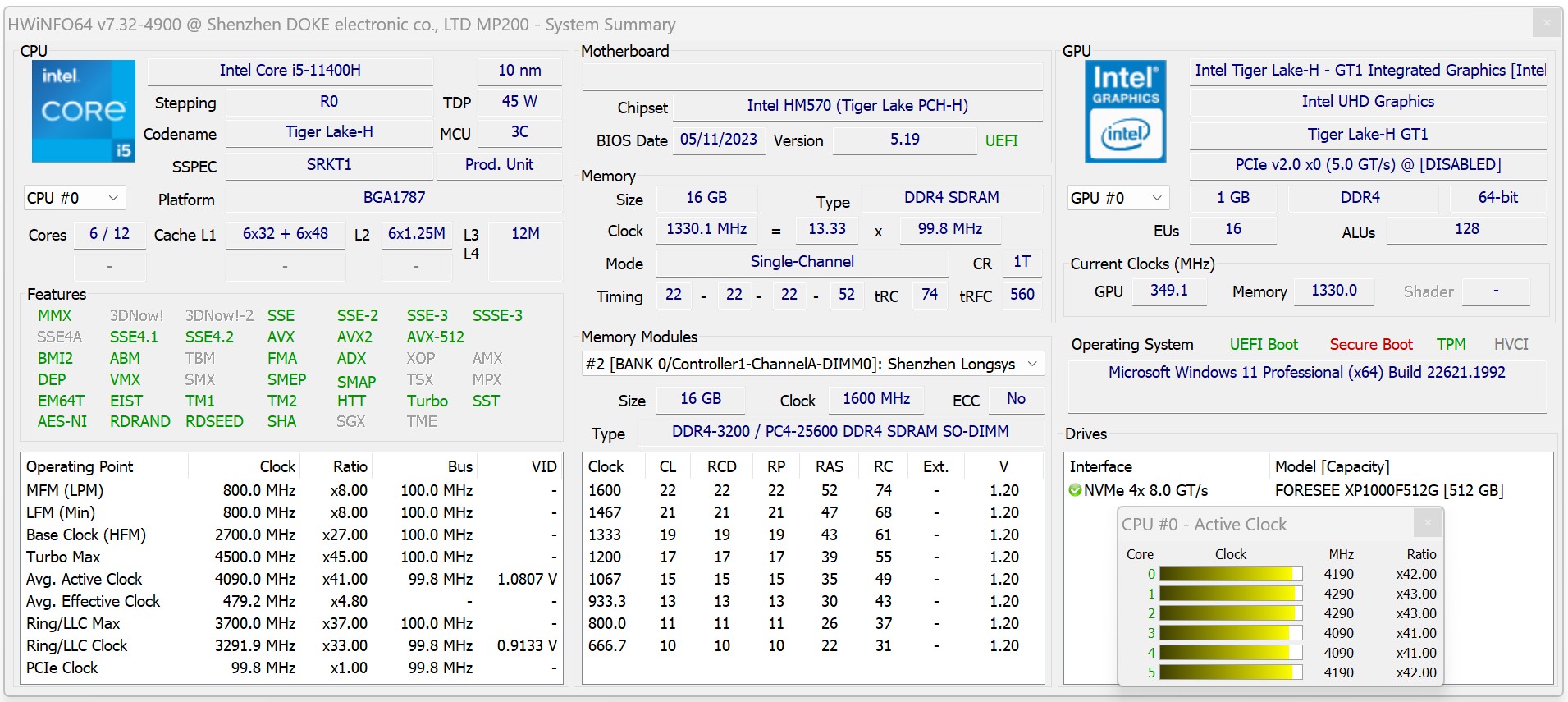

HWiNFO

Condições de teste

Executamos todos os testes de desempenho usando o perfil de energia "Highest Performance". Não modificamos o consumo de energia do SoC, deixando as configurações padrão do BIOS. Outros perfis de energia foram usados apenas para as medições de consumo de energia e nível de ruído de acordo com nossos critérios de teste.

Processador

Intel Core i5-11400H (Fonte: Blackview)
Intel Core i5-11400H (Fonte: Blackview)

O Blackview MP200 é baseado no Intel Core i5-11400H. O SoC tem seis núcleos de computação nativos e é capaz de processar um total de doze threads em paralelo. Devido aos seus seis núcleos, o Blackview MP200 é capaz de acompanhar o ritmo do Morefine M600. O novo processador AMD Ryzen 5 6600U da AMD não é muito mais rápido aqui e pode até ser superado no desempenho de núcleo único. Isso deixa claro que o Intel Core i5-11400H não será descartado por muito tempo e ainda oferece um desempenho sólido.

O consumo de energia de curto prazo (PL2) é especificado em 65 watts e, durante a carga constante (PL1), 45 watts podem ser consumidos. Embora o Blackview MP600 consiga atingir o valor PL2, ele só pode usá-lo por um período muito curto. Não vemos nenhum problema com o Blackview MP200 executando o processador com o valor PL1.

Você pode encontrar outras comparações e benchmarks em nossa Gráfico de comparação de CPU.

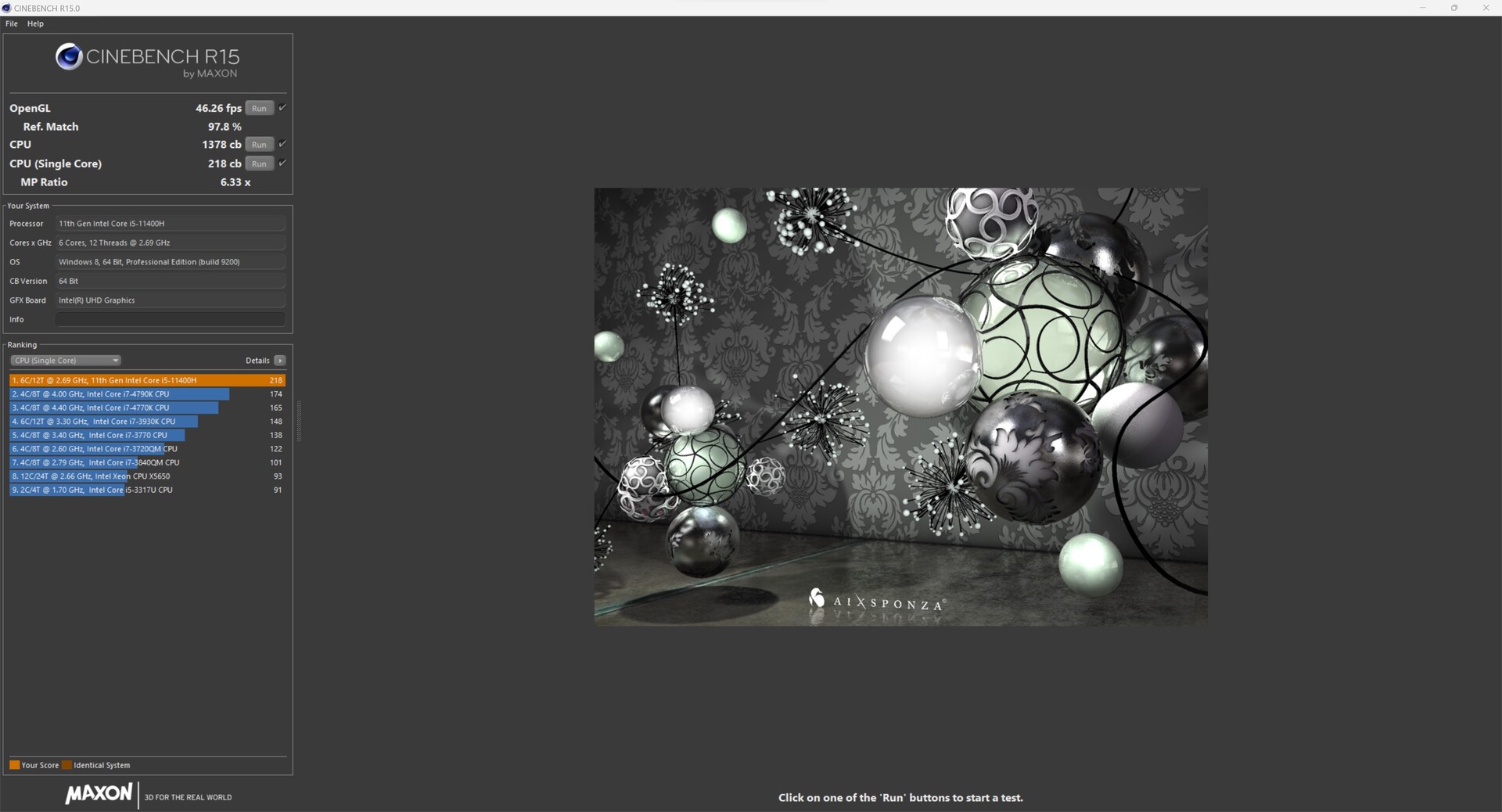

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Performance Rating - Percent
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
43.4 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U
43 pt
Blackview MP200
Intel Core i5-11400H
41.1 pt
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
40.3 pt
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
35.4 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
33 pt
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
31.8 pt
Cinebench R23
Multi Core
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
9564 Points +13%
Morefine M600, 6600U
AMD Ryzen 5 6600U
8491 Points 0%
Blackview MP200
Intel Core i5-11400H
8451 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5917 Points -30%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
4025 Points -52%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3867 Points -54%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
3721 Points -56%
Single Core
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1602 Points +10%
Blackview MP200
Intel Core i5-11400H
1462 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
1420 Points -3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1375 Points -6%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1346 Points -8%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1082 Points -26%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
959 Points -34%
Cinebench R15
CPU Single 64Bit
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
232 Points +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U
227 Points +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
225 Points +3%
Blackview MP200
Intel Core i5-11400H
218 Points
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
197 Points -10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
170 Points -22%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
146 Points -33%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1596 Points +16%
Blackview MP200
Intel Core i5-11400H
1378 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
1361 Points -1%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
953 Points -31%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
634 Points -54%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
623 Points -55%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
560 Points -59%

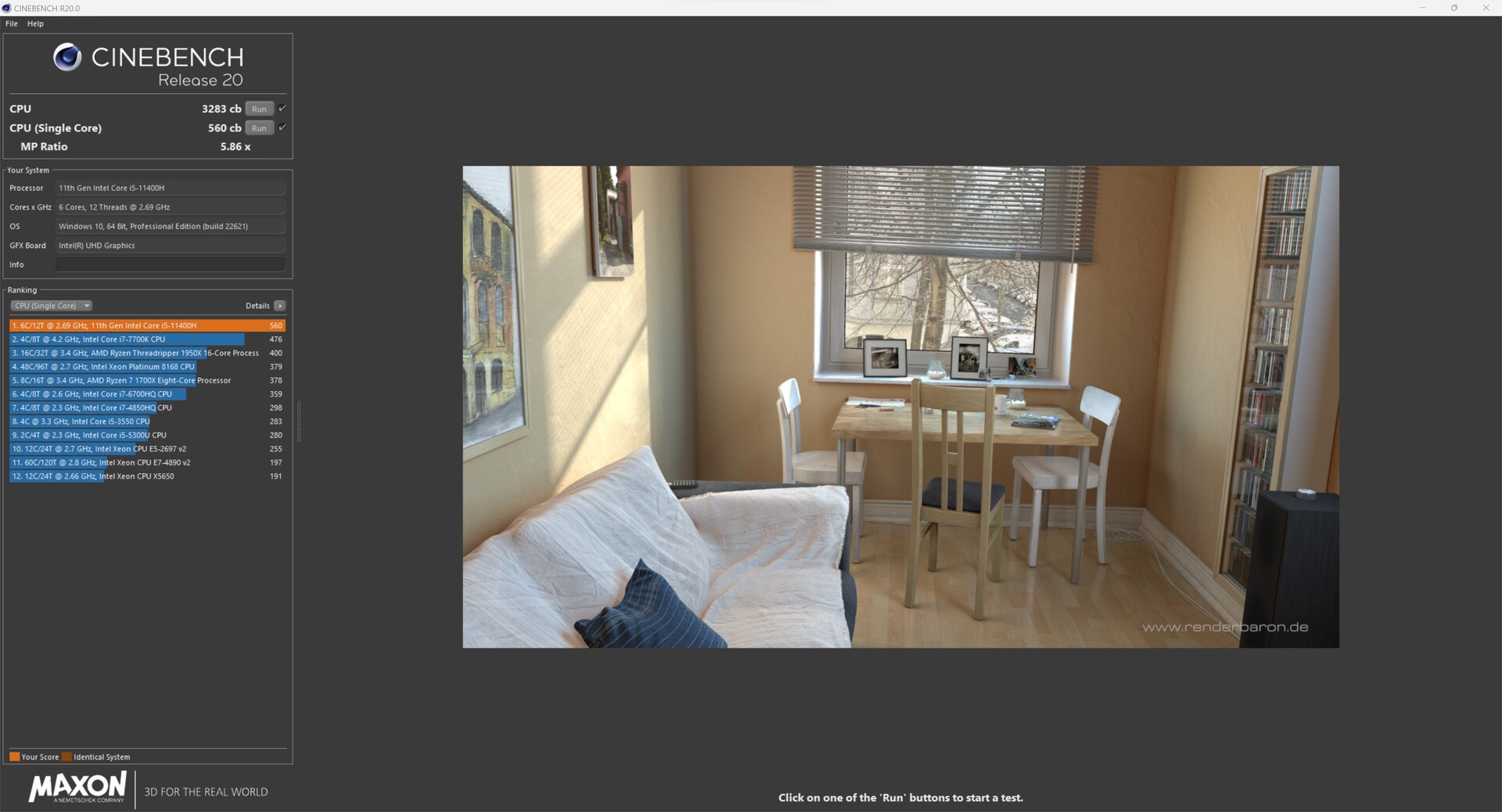

Cinebench R20
CPU (Single Core)
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
620 Points +11%
Blackview MP200
Intel Core i5-11400H
560 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
558 Points 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
533 Points -5%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
517 Points -8%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
415 Points -26%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
372 Points -34%
CPU (Multi Core)
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
3768 Points +15%
Morefine M600, 6600U
AMD Ryzen 5 6600U
3419 Points +4%
Blackview MP200
Intel Core i5-11400H
3283 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
2284 Points -30%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
1567 Points -52%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1498 Points -54%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1440 Points -56%
Cinebench R11.5
CPU Single 64Bit
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
2.78 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U
2.73 Points +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
2.63 Points +3%
Blackview MP200
Intel Core i5-11400H
2.55 Points
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
2.31 Points -9%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1.95 Points -24%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
1.67 Points -35%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
18.68 Points +17%
Morefine M600, 6600U
AMD Ryzen 5 6600U
17.15 Points +7%
Blackview MP200
Intel Core i5-11400H
15.97 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
10.68 Points -33%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
7.07 Points -56%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
6.98 Points -56%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
6.37 Points -60%
Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
12516 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11685 Points +1%
Blackview MP200
Intel Core i5-11400H
11530 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
11201 Points -3%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
10395 Points -10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
8591 Points -25%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
7397 Points -36%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
59479 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U
54792 Points 0%
Blackview MP200
Intel Core i5-11400H
54687 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
39426 Points -28%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
27377 Points -50%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
24499 Points -55%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
23491 Points -57%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
750 Seconds * -101%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
694 Seconds * -86%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
688 Seconds * -84%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
513 Seconds * -38%
Morefine M600, 6600U
AMD Ryzen 5 6600U
415 Seconds * -11%
Blackview MP200
Intel Core i5-11400H
373 Seconds *
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
319 Seconds * +14%
wPrime 2.10
32m
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
7.479 s * -66%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
6.952 s * -55%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
6.799 s * -51%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
6.518 s * -45%
Morefine M600, 6600U
AMD Ryzen 5 6600U
4.688 s * -4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
4.552 s * -1%
Blackview MP200
Intel Core i5-11400H
4.498 s *
1024m
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
286.835 s * -104%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
267.369 s * -90%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
248.619 s * -77%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
196.909 s * -40%
Morefine M600, 6600U
AMD Ryzen 5 6600U
146.553 s * -4%
Blackview MP200
Intel Core i5-11400H
140.674 s *
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
129.204 s * +8%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
251.21 fps +11%
Blackview MP200
Intel Core i5-11400H
226.5 (210min - 228max) fps
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
214.5 (213min - 216max) fps -5%
Morefine M600, 6600U
AMD Ryzen 5 6600U
212 (206min - 224max) fps -6%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
167.95 (167.5min - 172.9max) fps -26%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
165.55 (163.6min - 204max) fps -27%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
141.6 (140.9min - 163.1max) fps -37%
Pass 2
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
95.18 fps +22%
Blackview MP200
Intel Core i5-11400H
77.85 (69.8min - 82.6max) fps
Morefine M600, 6600U
AMD Ryzen 5 6600U
71.45 (70.2min - 76.6max) fps -8%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
55.2 (54.6min - 55.9max) fps -29%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
40.5 (39.6min - 43.1max) fps -48%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
39.15 (39.1min - 42.7max) fps -50%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
36.7 (36.7min - 37.6max) fps -53%
WinRAR - Result
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
7497 KB/s +37%
Morefine M600, 6600U
AMD Ryzen 5 6600U
6937 KB/s +27%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
6144 KB/s +12%
Blackview MP200
Intel Core i5-11400H
5477 KB/s
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
5348 KB/s -2%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4747 KB/s -13%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4185 KB/s -24%
TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
9.4 GB/s +12%
Morefine M600, 6600U
AMD Ryzen 5 6600U
9.3 GB/s +11%
Blackview MP200
Intel Core i5-11400H
8.4 GB/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
5.9 GB/s -30%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5.4 GB/s -36%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
5.3 GB/s -37%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
4.1 GB/s -51%
Twofish Mean 100MB
Morefine M600, 6600U
AMD Ryzen 5 6600U
1.3 GB/s 0%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1.3 GB/s 0%
Blackview MP200
Intel Core i5-11400H
1.3 GB/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1 GB/s -23%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.838 GB/s -36%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
0.755 GB/s -42%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
0.753 GB/s -42%
Serpent Mean 100MB
Morefine M600, 6600U
AMD Ryzen 5 6600U
0.857 GB/s +5%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
0.857 GB/s +5%
Blackview MP200
Intel Core i5-11400H
0.815 GB/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
0.566 GB/s -31%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.509 GB/s -38%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
0.454 GB/s -44%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
0.448 GB/s -45%
Geekbench 5.5
Multi-Core
Morefine M600, 6600U
AMD Ryzen 5 6600U
7658 Points +28%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
7253 Points +21%
Blackview MP200
Intel Core i5-11400H
6006 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5091 Points -15%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4898 Points -18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3934 Points -34%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3839 Points -36%
Single-Core
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1669 Points +14%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1504 Points +3%
Blackview MP200
Intel Core i5-11400H
1465 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1443 Points -2%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1391 Points -5%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1219 Points -17%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
948 Points -35%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U
AMD Ryzen 5 6600U
10249 Points +72%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
7128 Points +20%
Blackview MP200
Intel Core i5-11400H
5961 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5025 Points -16%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4841 Points -19%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3924 Points -34%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3811 Points -36%
5.0 Single-Core
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1655 Points +13%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1557 Points +7%
Blackview MP200
Intel Core i5-11400H
1461 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1393 Points -5%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1385 Points -5%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1220 Points -16%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
944 Points -35%
Geekbench 4.4
64 Bit Single-Core Score
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
7146 Points +17%
Morefine M600, 6600U
AMD Ryzen 5 6600U
6698 Points +10%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
6117 Points 0%
Blackview MP200
Intel Core i5-11400H
6110 Points
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
5911 Points -3%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4762 Points -22%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
4211 Points -31%
64 Bit Multi-Core Score
Morefine M600, 6600U
AMD Ryzen 5 6600U
39852 Points +60%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
28997 Points +16%
Blackview MP200
Intel Core i5-11400H
24947 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
20385 Points -18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
19324 Points -23%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
19288 Points -23%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
14984 Points -40%
3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
14496 Points +32%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11630 Points +6%
Blackview MP200
Intel Core i5-11400H
10999 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
10536 Points -4%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
8666 Points -21%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
7792 Points -29%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
6537 Points -41%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
46562 MIPS +34%
Morefine M600, 6600U
AMD Ryzen 5 6600U
44320 MIPS +28%
Blackview MP200
Intel Core i5-11400H
34660 MIPS
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
25876 MIPS -25%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
20163 MIPS -42%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
18729 MIPS -46%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
17636 MIPS -49%
7z b 4 -mmt1
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5895 MIPS +10%
Morefine M600, 6600U
AMD Ryzen 5 6600U
5486 MIPS +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
5369 MIPS 0%
Blackview MP200
Intel Core i5-11400H
5343 MIPS
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4788 MIPS -10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4638 MIPS -13%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3753 MIPS -30%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
12.4 fps +22%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11.7 fps +15%
Blackview MP200
Intel Core i5-11400H
10.2 fps
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
7.61 fps -25%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
5.49 fps -46%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
5.26 fps -48%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
5.2 fps -49%
R Benchmark 2.5 - Overall mean
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
0.818 sec * -41%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
0.7 sec * -20%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
0.639 sec * -10%
Blackview MP200
Intel Core i5-11400H
0.581 sec *
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.543 sec * +7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
0.526 sec * +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U
0.511 sec * +12%
LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
68.2 s * -29%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
62.7 s * -18%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
56.7 s * -7%
Morefine M600, 6600U
AMD Ryzen 5 6600U
53 s * -0%
Blackview MP200
Intel Core i5-11400H
53 s *
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
52 s * +2%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
47.2 s * +11%
WebXPRT 3 - Overall
Morefine M600, 6600U
AMD Ryzen 5 6600U
274 Points +11%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
270 Points +9%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
261 Points +6%
Blackview MP200
Intel Core i5-11400H
247 Points
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
236 Points -4%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
205 Points -17%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
182.4 Points -26%
Mozilla Kraken 1.1 - Total
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
1088 ms * -65%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
968 ms * -47%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
724 ms * -10%
Blackview MP200
Intel Core i5-11400H
660 ms *
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
651 ms * +1%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
644 ms * +2%
Morefine M600, 6600U
AMD Ryzen 5 6600U
619 ms * +6%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
21110 Points +30%
Morefine M600, 6600U
AMD Ryzen 5 6600U
18599 Points +14%
Blackview MP200
Intel Core i5-11400H
16258 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
11557 Points -29%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
10500 Points -35%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
9561 Points -41%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
8470 Points -48%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
21025 Points +24%
Blackview MP200
Intel Core i5-11400H
16949 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
15934 Points -6%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
11883 Points -30%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
10860 Points -36%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
9354 Points -45%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
9003 Points -47%
2560x1440 Time Spy CPU
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
6767 Points +31%
Blackview MP200
Intel Core i5-11400H
5160 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
5114 Points -1%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
4598 Points -11%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3346 Points -35%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
2867 Points -44%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
2728 Points -47%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
94.6 pt
Average of class Mini PC

86.9 pt
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
83.8 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
82.7 pt
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
59 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
53.3 pt
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
43.6 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
41.7 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
11347 KRay/s +8%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
10552 KRay/s
Average of class Mini PC
  (561 - 27538, n=107, last 2 years)
10532 KRay/s 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
9518 KRay/s -10%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
6633 KRay/s -37%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s -47%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
5247 KRay/s -50%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
4654 KRay/s -56%
AIDA64 / FPU Julia
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
70782 Points +58%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
59704 Points +33%
Average of class Mini PC
  (3604 - 116903, n=107, last 2 years)
54806 Points +22%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
44789 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
27788 Points -38%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
26251 Points -41%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
26145 Points -42%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points -46%
AIDA64 / CPU SHA3
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
3103 MB/s
Average of class Mini PC
  (225 - 5096, n=107, last 2 years)
2398 MB/s -23%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
2360 MB/s -24%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
1997 MB/s -36%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
1841 MB/s -41%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s -47%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
1367 MB/s -56%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
1052 MB/s -66%
AIDA64 / CPU Queen
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75724 Points +9%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
75248 Points +8%
Average of class Mini PC
  (8172 - 119802, n=107, last 2 years)
71321 Points +2%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
69756 Points
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
56561 Points -19%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
49399 Points -29%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points -33%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
43072 Points -38%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
8952 Points +25%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
8738 Points +22%
Average of class Mini PC
  (408 - 15525, n=107, last 2 years)
7594 Points +6%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
7186 Points
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
4648 Points -35%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
4529 Points -37%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
4310 Points -40%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points -45%
AIDA64 / FPU Mandel
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
38989 Points +45%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
32465 Points +21%
Average of class Mini PC
  (1958 - 62378, n=107, last 2 years)
28955 Points +8%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
26798 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
16652 Points -38%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points -44%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
12914 Points -52%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
12560 Points -53%
AIDA64 / CPU AES
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
99449 MB/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
95057 MB/s -4%
Average of class Mini PC
  (3691 - 177158, n=107, last 2 years)
78773 MB/s -21%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s -41%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
57644 MB/s -42%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
39680 MB/s -60%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
17907 MB/s -82%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
16354 MB/s -84%
AIDA64 / CPU ZLib
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
614 MB/s +4%
Average of class Mini PC
  (74.8 - 1233, n=107, last 2 years)
607 MB/s +3%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
591 MB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
530 MB/s -10%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
372 MB/s -37%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
316 MB/s -47%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
292 MB/s -51%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s -55%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
5777 KRay/s +1%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
5743 KRay/s
Average of class Mini PC
  (308 - 14722, n=107, last 2 years)
5628 KRay/s -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
5058 KRay/s -12%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
3668 KRay/s -36%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s -48%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
2771 KRay/s -52%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
2527 KRay/s -56%
AIDA64 / CPU PhotoWorxx
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
27456 MPixel/s +124%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s +120%
Average of class Mini PC
  (4408 - 45560, n=107, last 2 years)
25572 MPixel/s +109%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
25453 MPixel/s +108%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
20410 MPixel/s +67%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
14986 MPixel/s +22%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
12248 MPixel/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
10107 MPixel/s -17%

Blackview MP200 vs. Cinebench R15 Multi Loop

Usamos o teste de loop constante Cinebench R15 para ter uma primeira impressão da eficiência do sistema de resfriamento em combinação com a meta de potência do SoC. Vemos aqui que o Blackview MP200 não consegue manter o desempenho constante durante todo o tempo. Após a terceira execução, o desempenho se estabiliza em cerca de 1.586 pontos.

Métricas da CPU durante o loop do Cinebench R15
Métricas da CPU durante o loop do Cinebench R15
0851702553404255105956807658509351020110511901275136014451530Tooltip
Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)
Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Desempenho do sistema

Nos benchmarks sintéticos, o Blackview MP200 parece ter algumas dificuldades crescentes para se impor contra os concorrentes. No PCMark10 e no Crossmark, nossa unidade de teste fica no meio do campo. Nos testes de RAM, a situação fica ainda mais difícil, pois ter apenas um único módulo SO-DIMM de 16 GB também corresponde a apenas metade da largura de banda de armazenamento, o que limita o sistema. No entanto, ainda podemos atestar subjetivamente uma boa velocidade de trabalho na operação cotidiana.

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
6189 Points +37%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
5872 Points +30%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
4914 Points +9%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
4525 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
4521 Points 0%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
4132 Points -9%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
3884 Points -14%
PCMark 10 / Essentials
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
10503 Points +10%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9820 Points +3%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
9649 Points +1%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
9513 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
8910 Points -6%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
8215 Points -14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
7469 Points -21%
PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
9642 Points +48%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9031 Points +39%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
6788 Points +5%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
6657 Points +2%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
6495 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
6357 Points -2%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
5976 Points -8%
CrossMark / Overall
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1517 Points +18%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1438 Points +12%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1346 Points +5%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1285 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1245 Points -3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1018 Points -21%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
954 Points -26%
CrossMark / Responsiveness
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1434 Points +33%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1238 Points +15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1224 Points +13%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1197 Points +11%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1079 Points
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
796 Points -26%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
779 Points -28%
CrossMark / Creativity
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1652 Points +26%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1377 Points +5%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1359 Points +4%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1309 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1193 Points -9%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1038 Points -21%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
1027 Points -22%
CrossMark / Productivity
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1523 Points +14%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1491 Points +12%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1368 Points +2%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1336 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1306 Points -2%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1092 Points -18%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
943 Points -29%
AIDA64 / Memory Copy
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
47711 MB/s +115%
Average of class Mini PC
  (6481 - 71990, n=107, last 2 years)
44326 MB/s +100%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
41953 MB/s +89%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
41732 MB/s +88%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
37992 MB/s +71%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
35423 MB/s +60%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
22181 MB/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
18973 MB/s -14%
AIDA64 / Memory Read
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
47290 MB/s +89%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
46963 MB/s +88%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
46084 MB/s +84%
Average of class Mini PC
  (6914 - 75449, n=107, last 2 years)
44810 MB/s +79%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40348 MB/s +61%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
35415 MB/s +42%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
25003 MB/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
19621 MB/s -22%
AIDA64 / Memory Write
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
49353 MB/s +116%
Average of class Mini PC
  (6862 - 89318, n=107, last 2 years)
48325 MB/s +111%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
46860 MB/s +105%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
44872 MB/s +96%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
43598 MB/s +90%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
39154 MB/s +71%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
22892 MB/s
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
18296 MB/s -20%
AIDA64 / Memory Latency
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
94 ns * -28%
Average of class Mini PC
  (44.9 - 154.6, n=107, last 2 years)
88.2 ns * -20%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75.5 ns * -3%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
73.3 ns *
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
69 ns * +6%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
66.3 ns * +10%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
60.3 ns * +18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
60.2 ns * +18%

* ... smaller is better

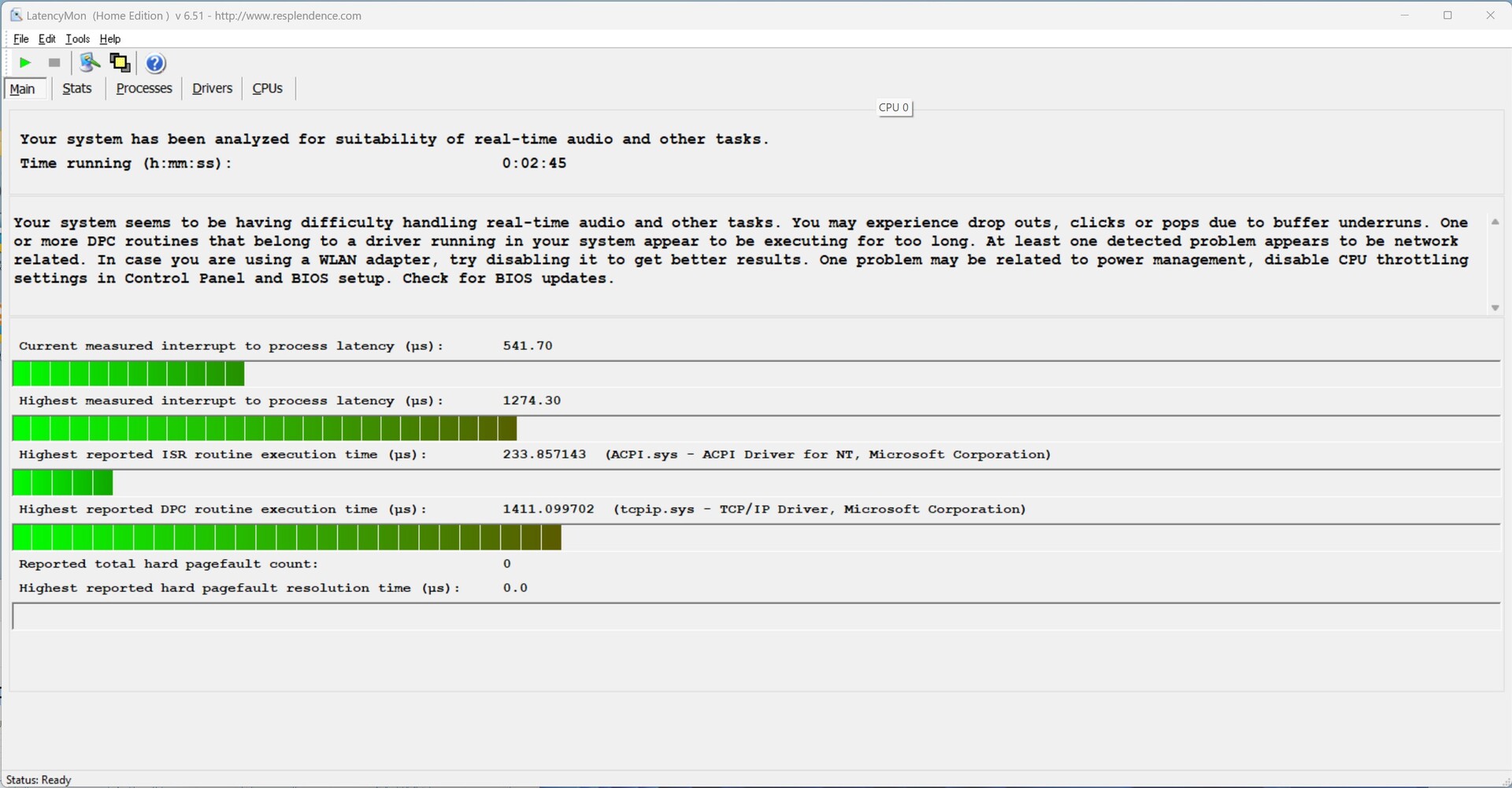

Latências DPC

Nesse teste, o Blackview MP200 mostra inicialmente alguns bons resultados. Ao abrir várias guias no navegador Edge e reproduzir nosso vídeo de teste em 4K, ainda não observamos nenhuma latência crítica. Somente quando iniciamos o Prime95 é que as latências aumentam ligeiramente, mas não aumentam mais.

Latências máximas para abrir várias guias do navegador e reproduzir material de vídeo 4K
Latências máximas para abrir várias guias do navegador e reproduzir material de vídeo 4K
Latências máximas após 10 segundos de Prime95
Latências máximas após 10 segundos de Prime95
Drivers ordenados pelos tempos de execução mais longos
Drivers ordenados pelos tempos de execução mais longos
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
7414 μs * -425%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
3247 μs * -130%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
1411 μs *
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
1016.7 μs * +28%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
940.27 μs * +33%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
659.1 μs * +53%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
466 μs * +67%

* ... smaller is better

Solução de armazenamento

sSD NVMe de 512 GB
sSD NVMe de 512 GB

A Blackview equipou o MP200 com um SSD NVMe de 512 GB. O modelo instalado usa a conexão NVMe e oferece taxas de transferência bastante sólidas. Ele é conectado através da conexão M.2 (PCIe 3.0 x4). No entanto, isso é suficiente apenas para um lugar no meio do campo dos concorrentes, embora a distância para o primeiro lugar não seja muito grande, apenas 10%. O PC permite que você insira um segundo módulo de armazenamento no formato de 2,5 polegadas.

Você pode encontrar outras comparações e benchmarks em nossa tabela de comparação.

SSD AS
SSD AS
MDL 3
MDL 3
MDL 5
MDL 5
MDL 6
MDL 6
CDI
CDI
Foresee XP1000F512G
Sequential Read: 2322 MB/s
Sequential Write: 2621 MB/s
512K Read: 1601 MB/s
512K Write: 2296 MB/s
4K Read: 62.28 MB/s
4K Write: 109.1 MB/s
4K QD32 Read: 632.9 MB/s
4K QD32 Write: 574.1 MB/s
Drive Performance Rating - Percent
Average of class Mini PC

84.6 pt
Minisforum Venus Series UM560 XT
ESO512GYLCT
78.4 pt
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
75.4 pt
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
71.7 pt
Blackview MP200
Foresee XP1000F512G
70.9 pt
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
58.9 pt
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
29.9 pt
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
24.5 pt
DiskSpd
seq read
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2184 (2176.42min - 2183.52max) MB/s +5%
Blackview MP200
Foresee XP1000F512G
2089 (1961.74min - 2088.97max) MB/s
Average of class Mini PC
  (233 - 4168, n=106, last 2 years)
2087 MB/s 0%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1720 (1344.24min - 1720.17max) MB/s -18%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1684 (1646.89min - 1684.01max) MB/s -19%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1645 (1636.91min - 1645.01max) MB/s -21%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
464 (407.92min - 464.01max) MB/s -78%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
311 (298.22min - 311.01max) MB/s -85%
seq write
Blackview MP200
Foresee XP1000F512G
2395 (2371.88min - 2394.91max) MB/s
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2298 (1081.92min - 2298.06max) MB/s -4%
Average of class Mini PC
  (222 - 5595, n=106, last 2 years)
2173 MB/s -9%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1877 (1870.87min - 1877.35max) MB/s -22%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1681.49min - 1789.9max) MB/s -25%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1075 (545.51min - 1075.26max) MB/s -55%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
502 (311.64min - 502.31max) MB/s -79%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
439 (396.15min - 438.89max) MB/s -82%
seq q8 t1 read
Average of class Mini PC
  (236 - 8430, n=106, last 2 years)
3268 MB/s +8%
Blackview MP200
Foresee XP1000F512G
3034 (2493.77min - 3034.37max) MB/s
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2525 (2269.25min - 2525.2max) MB/s -17%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2522 (2230.32min - 2522.44max) MB/s -17%
Minisforum Venus Series UM560 XT
ESO512GYLCT
2360 (2078.7min - 2359.72max) MB/s -22%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2223 (1765.77min - 2223.4max) MB/s -27%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
444 (287.73min - 443.55max) MB/s -85%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
236 (35.65min - 236.35max) MB/s -92%
seq q8 t1 write
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2494 (2222.35min - 2493.51max) MB/s +3%
Blackview MP200
Foresee XP1000F512G
2412 (2365.59min - 2411.72max) MB/s
Average of class Mini PC
  (228 - 6669, n=106, last 2 years)
2362 MB/s -2%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1946 (1938.09min - 1945.74max) MB/s -19%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1687.16min - 1790.13max) MB/s -26%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1599 (266.87min - 1599.24max) MB/s -34%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
512 (493.73min - 511.73max) MB/s -79%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
461 (421.95min - 460.95max) MB/s -81%
4k q1 t1 read
Blackview MP200
Foresee XP1000F512G
53.7 (53.3min - 53.65max) MB/s
Average of class Mini PC
  (5.67 - 86.6, n=106, last 2 years)
52.7 MB/s -2%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
45.1 (43.96min - 45.09max) MB/s -16%
Minisforum Venus Series UM560 XT
ESO512GYLCT
44.8 (44.42min - 44.77max) MB/s -17%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
40.3 (36.8min - 40.3max) MB/s -25%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
38.8 (38.52min - 38.82max) MB/s -28%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
38.1 (37.92min - 38.07max) MB/s -29%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
38.1 (35.61min - 38.07max) MB/s -29%
4k q1 t1 write
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
229 (165.03min - 229.29max) MB/s +117%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
196.3 (179.94min - 196.31max) MB/s +86%
Average of class Mini PC
  (22 - 435, n=106, last 2 years)
191.6 MB/s +82%
Minisforum Venus Series UM560 XT
ESO512GYLCT
168.4 (166.77min - 168.37max) MB/s +60%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
120 (112.79min - 120.03max) MB/s +14%
Blackview MP200
Foresee XP1000F512G
105.3 (104.05min - 105.3max) MB/s
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
90.9 (89.44min - 90.91max) MB/s -14%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
81.9 (80.7min - 81.87max) MB/s -22%
4k q32 t16 read
Average of class Mini PC
  (26.1 - 3197, n=106, last 2 years)
1157 MB/s +58%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1005 (1003.31min - 1005.12max) MB/s +37%
Minisforum Venus Series UM560 XT
ESO512GYLCT
831 (807.33min - 831.01max) MB/s +14%
Blackview MP200
Foresee XP1000F512G
731 (727.82min - 730.52max) MB/s
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
639 (421.15min - 639.47max) MB/s -13%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
561 (475.29min - 560.56max) MB/s -23%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
338 (299.48min - 338.25max) MB/s -54%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
296 (283.25min - 295.59max) MB/s -60%
4k q32 t16 write
Minisforum Venus Series UM560 XT
ESO512GYLCT
1611 (1590.22min - 1610.86max) MB/s +114%
Average of class Mini PC
  (30.2 - 3983, n=106, last 2 years)
1172 MB/s +55%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
774 (725.33min - 774.03max) MB/s +3%
Blackview MP200
Foresee XP1000F512G
754 (743.45min - 754.38max) MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
544 (355.98min - 544.47max) MB/s -28%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
350 (206.15min - 349.79max) MB/s -54%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
329 (317.87min - 329.01max) MB/s -56%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
176.1 (168.14min - 176.06max) MB/s -77%
AS SSD
Score Total
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
3887 Points +23%
Average of class Mini PC
  (151.3 - 10021, n=104, last 2 years)
3731 Points +18%
Blackview MP200
Foresee XP1000F512G
3153 Points
Minisforum Venus Series UM560 XT
ESO512GYLCT
3139 Points 0%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2887 Points -8%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
1048 Points -67%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
748.83 Points -76%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
181.49 (344min) Points -94%
Score Read
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1513 Points +19%
Average of class Mini PC
  (61 - 3741, n=104, last 2 years)
1406 Points +10%
Blackview MP200
Foresee XP1000F512G
1276 Points
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1152 Points -10%
Minisforum Venus Series UM560 XT
ESO512GYLCT
954 Points -25%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
661 Points -48%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
420 Points -67%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
382 Points -70%
Score Write
Minisforum Venus Series UM560 XT
ESO512GYLCT
1702 Points +38%
Average of class Mini PC
  (88 - 4371, n=104, last 2 years)
1654 Points +34%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1632 Points +32%
Blackview MP200
Foresee XP1000F512G
1235 Points
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1169 Points -5%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
700 Points -43%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
403 Points -67%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
173 Points -86%
Seq Read
Blackview MP200
Foresee XP1000F512G
2930 MB/s
Average of class Mini PC
  (291 - 6620, n=104, last 2 years)
2872 MB/s -2%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2844 MB/s -3%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2268 MB/s -23%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2204 MB/s -25%
Minisforum Venus Series UM560 XT
ESO512GYLCT
2193 MB/s -25%
