Breve Análise do Conversível Lenovo Yoga 510-14AST (A9-9410, HD)

Tela decepcionante. O conversível de 14 polegadas da Lenovo tem um preço de cerca de 500 Euros (~$533). O comprador recebe uma APU Stoney Ridge com um solid-state drive, e 4 GB de memória de trabalho. A Lenovo estraga a impressão geral boa instalando um painel TN dependente dos ângulos de visão.
Yoga 510-14AST (Yoga 510 Serie)
Processador
AMD A9-9410 2 x 2.9 - 3.5 GHz, Stoney Ridge
Placa gráfica
AMD Radeon R5 (Stoney Ridge), Análises do: 800 MHz, single-channel, Crimson 17.2.1
Memória
4 GB
, DDR4-2132, single-channel, um banco de memória (ocupado)
Pantalha
14.00 polegadas 16:9, 1366 x 768 pixel 112 PPI, capacitiva, 10 pontos de toque, suporte para Active Stylus, AU Optronics B140XTN02.E, TN LED, Brilhante: sim
placa mãe
AMD CZ FCH
Placa de Som
Realtek ALC236 @ AMD K15.7 - High Definition Audio Controller
Conexões
1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 Kensington Lock, Conexões Audio: combo audio, Card Reader: SD, Brightness Sensor, Sensores: Sensor de movimento
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Tamanho
altura x largura x profundidade (em mm): 20.9 x 336.4 x 232
Bateria
35 Wh, 4510 mAh Lítio-Ion, 8.7 V
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Características adicionais
Alto falantes: stereo, Teclado: chiclet, Iluminação do Teclado: não, Lenovo Photo Master, McAfee LiveSafe (teste), MS Office 365 (teste), 24 Meses Garantia
peso
1.75 kg, Suprimento de energia: 176 g
Preço
499 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

336.4 mm 232 mm 20.9 mm 1.8 kg336 mm 232 mm 20.9 mm 1.7 kg328 mm 229 mm 20 mm 1.7 kg326.4 mm 222 mm 19.8 mm 1.7 kg297 mm 210 mm 1 mm 5.7 g

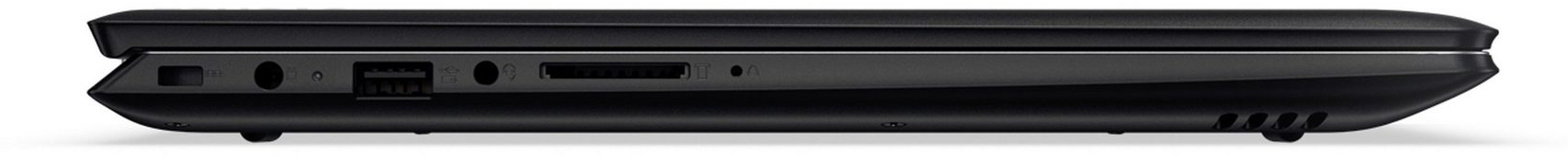

Left: Cable lock slot, power-in, USB 2.0 (Type A), combo audio, memory card reader (SD), One Key Recovery button
Left: Cable lock slot, power-in, USB 2.0 (Type A), combo audio, memory card reader (SD), One Key Recovery button

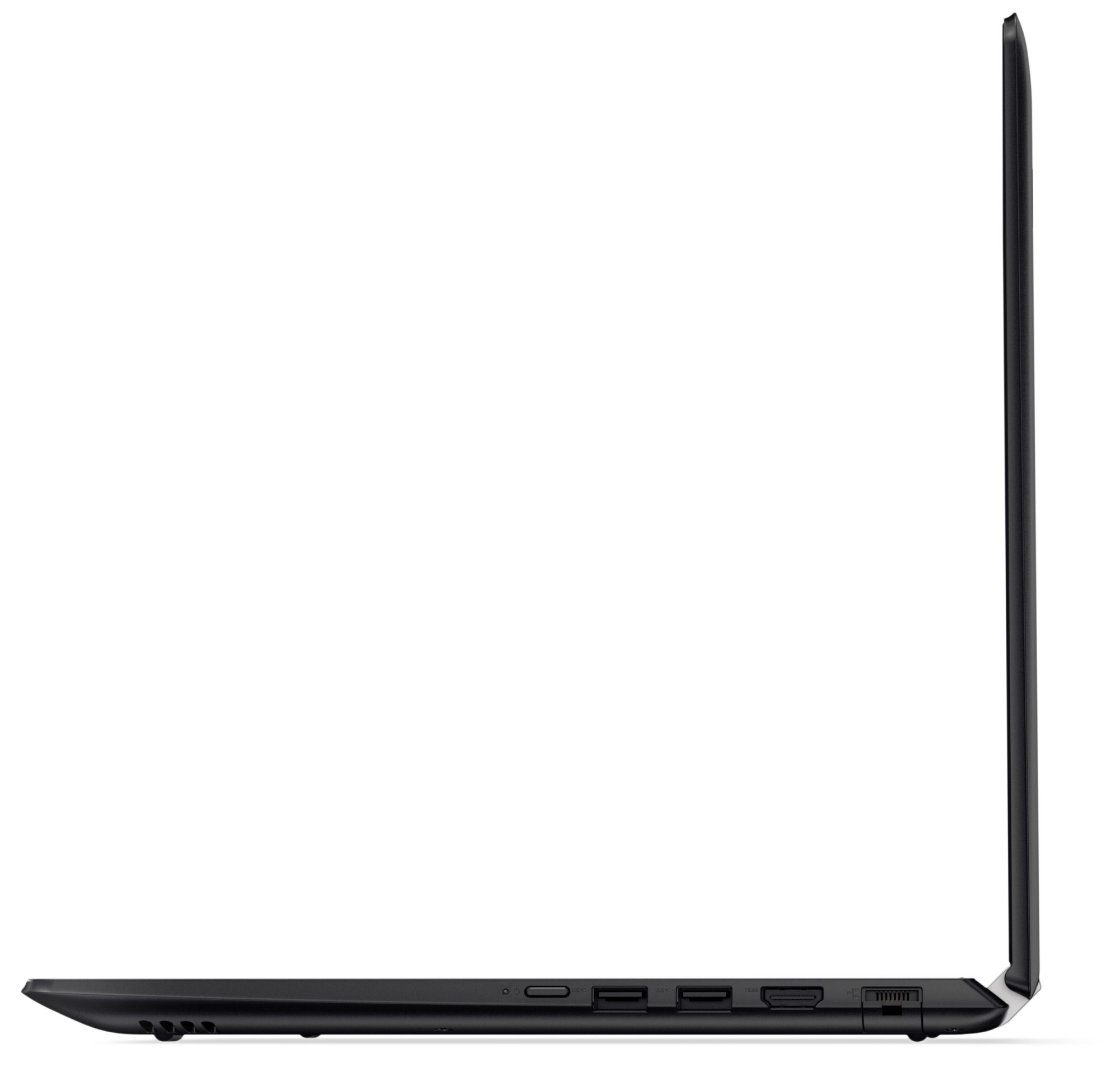

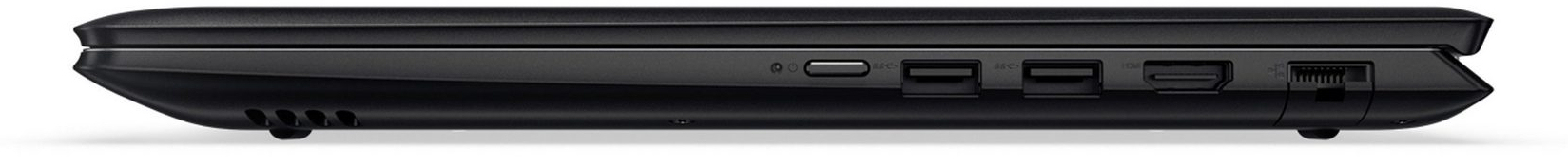

Right: Power button, 2x USB 3.1 Gen 1 (Type-A), HDMI, Gigabit Ethernet
Right: Power button, 2x USB 3.1 Gen 1 (Type-A), HDMI, Gigabit Ethernet
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP Pavilion x360 13-u102ng

68.1 MB/s +6%
Lenovo Yoga 510-14AST

64.1 MB/s
Lenovo Yoga 510-14IKB

59.7 MB/s -7%
maximum AS SSD Seq Read Test (1GB)
HP Pavilion x360 13-u102ng

87.5 MB/s +1%
Lenovo Yoga 510-14AST

86.7 MB/s
Lenovo Yoga 510-14IKB

85.3 MB/s -2%
Networking
iperf3 transmit AX12
Acer Spin 5 SP513-51
Qualcomm Atheros QCA9377 Wireless Network Adapter
349 MBit/s +5%
Lenovo Yoga 510-14AST
Qualcomm Atheros QCA9377 Wireless Network Adapter
332 MBit/s
iperf3 receive AX12
Acer Spin 5 SP513-51
Qualcomm Atheros QCA9377 Wireless Network Adapter
347 MBit/s +85%
Lenovo Yoga 510-14AST
Qualcomm Atheros QCA9377 Wireless Network Adapter
188 MBit/s
219
cd/m²
222
cd/m²
222
cd/m²
217
cd/m²
242
cd/m²
229
cd/m²
214
cd/m²
226
cd/m²
225
cd/m²
Distribuição do brilho
AU Optronics B140XTN02.E tested with X-Rite i1Pro 2
Máximo: 242 cd/m² (Nits) Médio: 224 cd/m² Minimum: 24.2 cd/m²
iluminação: 88 %
iluminação com acumulador: 242 cd/m²
Contraste: 390:1 (Preto: 0.62 cd/m²)
ΔE Color 13.03 | 0.5-29.43 Ø5
ΔE Greyscale 14.6 | 0.57-98 Ø5.3
52% sRGB (Argyll 1.6.3 3D)
33% AdobeRGB 1998 (Argyll 1.6.3 3D)
35.28% AdobeRGB 1998 (Argyll 2.2.0 3D)
51.4% sRGB (Argyll 2.2.0 3D)
34.15% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
Lenovo Yoga 510-14AST
TN LED, 1366x768, 14.00
Lenovo Yoga 510-14IKB
IPS, 1920x1080, 14.00
HP Pavilion x360 13-u102ng
IPS, 1920x1080, 13.30
Acer Spin 5 SP513-51
IPS LED, 1920x1080, 13.30
Display
22%
15%
17%
Display P3 Coverage
34.15
41.78
22%
39.43
15%
39.99
17%
sRGB Coverage
51.4
62.9
22%
59.1
15%
59.5
16%
AdobeRGB 1998 Coverage
35.28
43.17
22%
40.76
16%
41.32
17%
Response Times
-5%
30%
14%
Response Time Grey 50% / Grey 80% *
70 ?(32, 38)
53 ?(20, 33)
24%
38 ?(14, 24)
46%
56 ?(18, 38)
20%
Response Time Black / White *
29 ?(23, 6)
39 ?(12, 27)
-34%
25 ?(6, 19)
14%
27 ?(8, 19)
7%
PWM Frequency
350 ?(60)
Screen
37%
39%
49%
Brightness middle
242
243
0%
277
14%
245
1%
Brightness
224
248
11%
263
17%
233
4%
Brightness Distribution
88
91
3%
88
0%
87
-1%
Black Level *
0.62
0.32
48%
0.31
50%
0.21
66%
Contrast
390
759
95%
894
129%
1167
199%
Colorchecker dE 2000 *
13.03
5.44
58%
5.57
57%
4.2
68%
Colorchecker dE 2000 max. *
18.79
9.73
48%
13.6
28%
8.75
53%
Greyscale dE 2000 *
14.6
4.74
68%
4.56
69%
3.94
73%
Gamma
2.22 99%
2.38 92%
2.28 96%
2.66 83%
CCT
18869 34%
7799 83%
6648 98%
6096 107%
Color Space (Percent of AdobeRGB 1998)
33
39.6
20%
38
15%
38
15%
Color Space (Percent of sRGB)
52
62.5
20%
59
13%
59
13%
Total Average (Program / Settings)
18% / 28%
28% / 33%
27% / 38%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18034 (minimum: 5 - maximum: 3846000) Hz was measured.

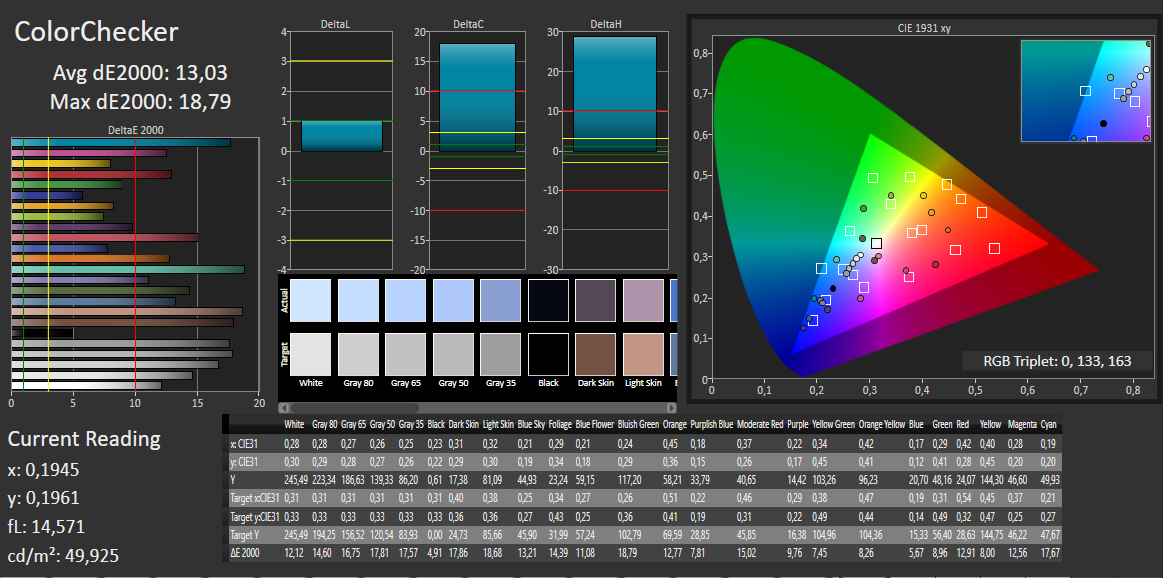

CalMAN - ColorChecker
CalMAN - ColorChecker

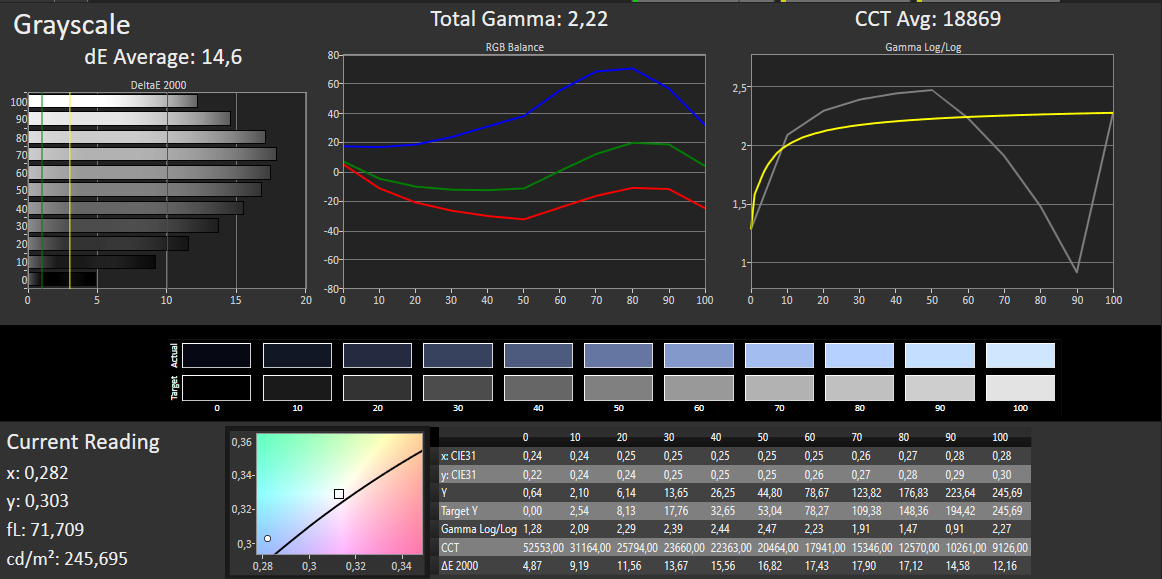

CalMAN - Grayscale
CalMAN - Grayscale

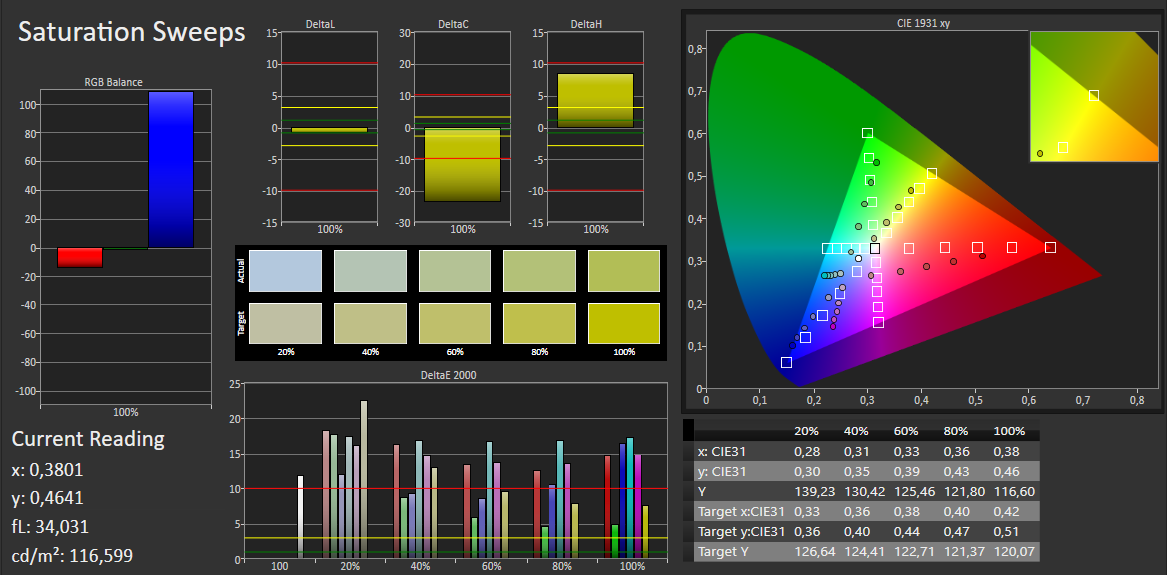

CalMAN - Saturation Sweeps
CalMAN - Saturation Sweeps

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
29 ms ... rise ↗ and fall ↘ combined↗ 23 ms rise
↘ 6 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
70 ms ... rise ↗ and fall ↘ combined↗ 32 ms rise
↘ 38 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 98 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.8 ms).

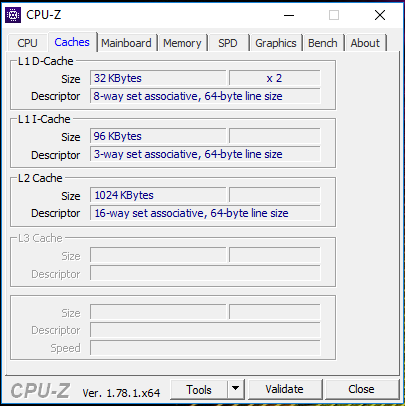

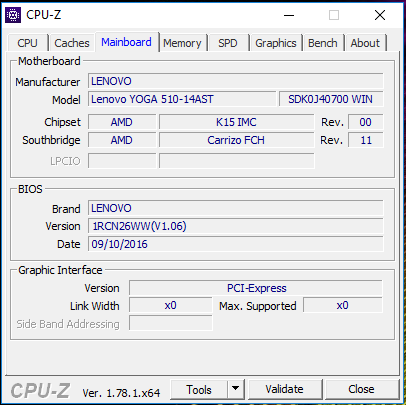

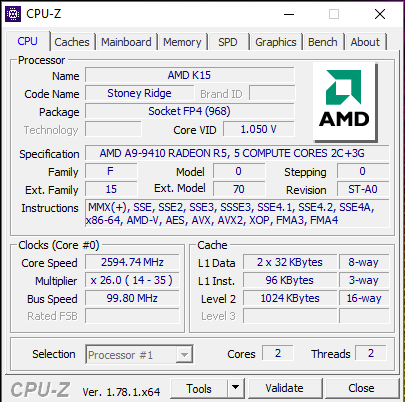

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

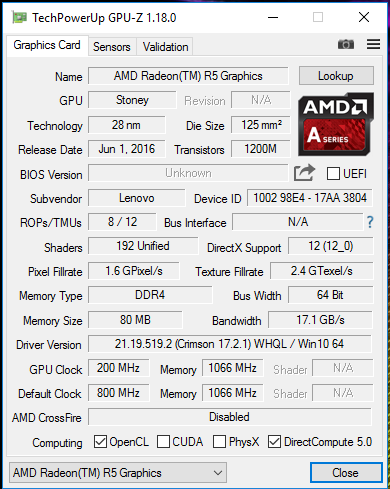

GPU-Z

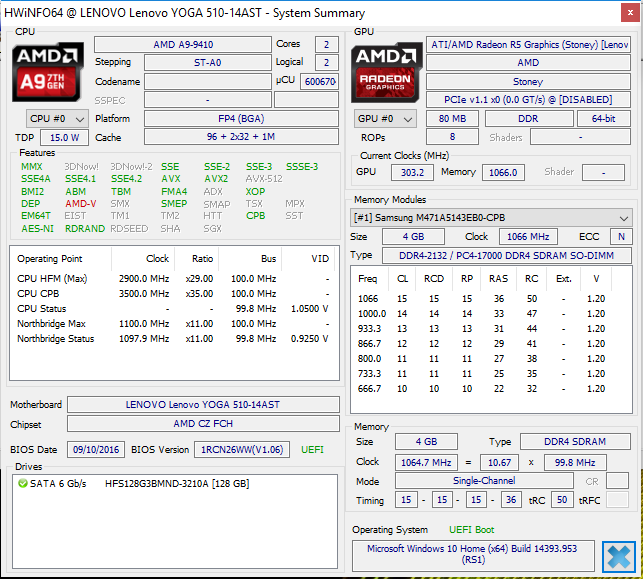

HWInfo

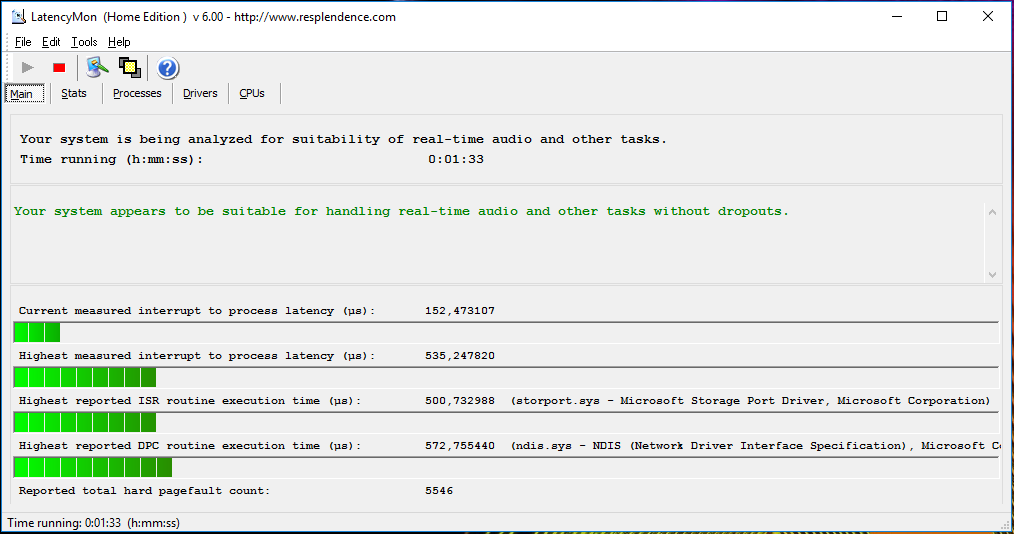

LatencyMon
0102030405060708090100110120130140Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Shading 32Bit
3497
Cinebench R10 Rendering Multiple CPUs 32Bit
4619
Cinebench R10 Rendering Single 32Bit
2694
Cinebench R11.5 OpenGL 64Bit
16.56 fps
Cinebench R11.5 CPU Multi 64Bit
1.59 Points
Cinebench R11.5 CPU Single 64Bit
0.82 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
22.71 fps
Cinebench R15 CPU Multi 64Bit
130 Points
Cinebench R15 CPU Single 64Bit
63 Points
Ajuda
Cinebench R15
CPU Single 64Bit
Lenovo Yoga 510-14IKB
Intel Core i5-7200U
130 Points +106%
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
126 Points +100%
Acer Spin 5 SP513-51
Intel Core i3-6100U
96 Points +52%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
92 Points +46%
Asus Zenbook UX360CA-FC060T
Intel Core m3-6Y30
85 Points +35%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
74 Points +17%
Lenovo M30-70
Intel Core i3-4010U
68 Points +8%
Lenovo Yoga 510-14AST
AMD A9-9410
63 Points
Acer Aspire ES1-332-P91H
Intel Pentium N4200
53 Points -16%
HP 250 G5 Y1V08UT
Intel Celeron N3060
37 Points -41%
CPU Multi 64Bit
Lenovo Yoga 510-14IKB
Intel Core i5-7200U
332 Points +155%
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
328 Points +152%
Acer Spin 5 SP513-51
Intel Core i3-6100U
240 Points +85%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
216 Points +66%
Asus Zenbook UX360CA-FC060T
Intel Core m3-6Y30
208 Points +60%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
187 Points +44%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
173 Points +33%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
173 Points +33%
Lenovo M30-70
Intel Core i3-4010U
170 Points +31%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
165 Points +27%
Lenovo Yoga 510-14AST
AMD A9-9410
130 Points
HP 250 G5 Y1V08UT
Intel Celeron N3060
68 Points -48%
Cinebench R11.5
CPU Multi 64Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
3.67 Points +131%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
2.4 Points +51%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
2.09 Points +31%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
1.85 Points +16%
Lenovo M30-70
Intel Core i3-4010U
1.8 Points +13%
Lenovo Yoga 510-14AST
AMD A9-9410
1.59 Points
HP 250 G5 Y1V08UT
Intel Celeron N3060
0.86 Points -46%
CPU Single 64Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
1.38 Points +68%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
1.04 Points +27%
Lenovo Yoga 510-14AST
AMD A9-9410
0.82 Points
Medion Akoya S4217T MD98599
Intel Core i3-4010U
0.77 Points -6%
Lenovo M30-70
Intel Core i3-4010U
0.73 Points -11%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
0.66 Points -20%
HP 250 G5 Y1V08UT
Intel Celeron N3060
0.41 Points -50%
Cinebench R10
Rendering Multiple CPUs 32Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
11347 Points +146%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
7321 Points +58%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
6309 Points +37%
Lenovo M30-70
Intel Core i3-4010U
5584 Points +21%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
5284 Points +14%
Lenovo Yoga 510-14AST
AMD A9-9410
4619 Points
HP 250 G5 Y1V08UT
Intel Celeron N3060
2256 Points -51%
Rendering Single 32Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
4986 Points +85%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
3477 Points +29%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
2777 Points +3%
Lenovo Yoga 510-14AST
AMD A9-9410
2694 Points
Lenovo M30-70
Intel Core i3-4010U
2447 Points -9%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1677 Points -38%
HP 250 G5 Y1V08UT
Intel Celeron N3060
1216 Points -55%
Geekbench 3
32 Bit Single-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
2852 Points +34%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
2459 Points +15%
Lenovo Yoga 510-14AST
AMD A9-9410
2134 Points
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
1788 Points -16%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1362 Points -36%
32 Bit Multi-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
6431 Points +95%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
4686 Points +42%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
4425 Points +34%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
3755 Points +14%
Lenovo Yoga 510-14AST
AMD A9-9410
3299 Points
Geekbench 4.0
64 Bit Single-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
3576 Points +68%
Lenovo Yoga 510-14AST
AMD A9-9410
2133 Points
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1555 Points -27%
64 Bit Multi-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
6725 Points +111%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
4162 Points +31%
Lenovo Yoga 510-14AST
AMD A9-9410
3182 Points
JetStream 1.1 - Total Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
211.4 Points +62%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
133.5 Points +2%
Lenovo Yoga 510-14AST
AMD A9-9410
130.4 Points
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
123.2 Points -6%
Asus Zenbook UX360CA-FC060T
Intel Core m3-6Y30
111.1 Points -15%
Acer Spin 5 SP513-51
Intel Core i3-6100U
90.9 Points -30%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
89.1 Points -32%
HP 250 G5 Y1V08UT
Intel Celeron N3060
58.5 Points -55%
PCMark 7 Score
3814 pontos
PCMark 8 Home Score Accelerated v2
2670 pontos
PCMark 8 Creative Score Accelerated v2
2898 pontos
PCMark 8 Work Score Accelerated v2
3728 pontos
Ajuda
PCMark 8
Home Score Accelerated v2
Lenovo Yoga 510-14IKB
Radeon R5 M430, i5-7200U, Samsung MZYTY256HDHP
3550 Points +33%
HP Pavilion x360 13-u102ng
HD Graphics 620, i5-7200U, HGST Travelstar 5K1000 HTS541010A7E630
3274 Points +23%
Acer Spin 5 SP513-51
HD Graphics 520, 6100U, Hynix HFS128G39TND
3224 Points +21%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
2670 Points
Work Score Accelerated v2
Acer Spin 5 SP513-51
HD Graphics 520, 6100U, Hynix HFS128G39TND
4121 Points +11%
HP Pavilion x360 13-u102ng
HD Graphics 620, i5-7200U, HGST Travelstar 5K1000 HTS541010A7E630
4050 Points +9%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
3728 Points
Sequential Read: 434.6 MB/s
Sequential Write: 207.7 MB/s
512K Read: 356.3 MB/s
512K Write: 195.6 MB/s
4K Read: 26.71 MB/s
4K Write: 56.8 MB/s
4K QD32 Read: 176.3 MB/s
4K QD32 Write: 163.3 MB/s
Lenovo Yoga 510-14AST

Lenovo Yoga 510-14IKB
Samsung MZYTY256HDHP
HP Pavilion x360 13-u102ng
HGST Travelstar 5K1000 HTS541010A7E630
CrystalDiskMark 3.0
61%
-87%
Read Seq
434.6
518
19%
104.8
-76%
Write Seq
207.7
476.5
129%
91
-56%
Read 512
356.3
408
15%
20.67
-94%
Write 512
195.6
274.5
40%
45.05
-77%
Read 4k
26.71
35.66
34%
0.215
-99%
Write 4k
56.8
106.7
88%
1.037
-98%
Read 4k QD32
176.3
368.7
109%
0.968
-99%
Write 4k QD32
163.3
246.3
51%
1.09
-99%
3DMark 06 Standard Score
5141 pontos
3DMark Vantage P Result
3346 pontos
3DMark 11 Performance
1199 pontos
3DMark Ice Storm Standard Score
36896 pontos
3DMark Cloud Gate Standard Score
3010 pontos
3DMark Fire Strike Score
712 pontos
3DMark Fire Strike Extreme Score
344 pontos
3DMark Time Spy Score
274 pontos
Ajuda
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
1643 Points +38%
HP Pavilion x360 13-u102ng
Intel HD Graphics 620, Intel Core i5-7200U
1390 Points +17%
Acer Spin 5 SP513-51
Intel HD Graphics 520, Intel Core i3-6100U
1213 Points +2%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), AMD A9-9410
1190 Points
3DMark
1280x720 Cloud Gate Standard Graphics
HP Pavilion x360 13-u102ng
Intel HD Graphics 620, Intel Core i5-7200U
6799 Points +43%
Acer Spin 5 SP513-51
Intel HD Graphics 520, Intel Core i3-6100U
6249 Points +31%
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
5249 Points +10%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), AMD A9-9410
4755 Points
1920x1080 Fire Strike Graphics
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
989 Points +28%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), AMD A9-9410
772 Points
HP Pavilion x360 13-u102ng
Intel HD Graphics 620, Intel Core i5-7200U
762 Points -1%
Acer Spin 5 SP513-51
Intel HD Graphics 520, Intel Core i3-6100U
752 Points -3%
baixo média alto ultra
World of Warcraft (2005) 82.6 43.7
Deus Ex Human Revolution (2011) 62.4 29
The Elder Scrolls V: Skyrim (2011) 32.7 22.2 15.4
Diablo III (2012) 59.6 41.8 33.6
Counter-Strike: GO (2012) 39.2 28.5 25
Dead Space 3 (2013) 63.9 31 26.6
Tomb Raider (2013) 51.9 25.7 18.2
BioShock Infinite (2013) 43.5 26.9 22.2
X-Plane 10.25 (2013) 31.7 17.7 9.6
GRID: Autosport (2014) 65.1 29.7
Risen 3: Titan Lords (2014) 20.9 12.9
Sims 4 (2014) 111.9 34.3
Middle-earth: Shadow of Mordor (2014) 22.3 13.8
F1 2014 (2014) 39 30
Dragon Age: Inquisition (2014) 19.3 14.8
Dirt Rally (2015) 59.7 22
Metal Gear Solid V (2015) 34.1 24.9
Dota 2 Reborn (2015) 33.1 23.2
World of Warships (2015) 37.7 28.8
Rainbow Six Siege (2015) 26.9 21.6
Rise of the Tomb Raider (2016) 16.1 10.4
The Division (2016) 18.2 11.3
Civilization VI (2016) 29.4 12.1
Farming Simulator 17 (2016) 53.4 36.1
Resident Evil 7 (2017) 28.6 13.2
For Honor (2017) 19.9 7.3
Ghost Recon Wildlands (2017) 10.9 5.2
BioShock Infinite - 1280x720 Very Low Preset
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
43.5 fps
Acer Spin 5 SP513-51
HD Graphics 520, 6100U, Hynix HFS128G39TND
42.77 fps -2%
Lenovo Yoga 510-14IKB
Radeon R5 M430, i5-7200U, Samsung MZYTY256HDHP
42.3 fps -3%
HP Pavilion x360 13-u102ng
HD Graphics 620, i5-7200U, HGST Travelstar 5K1000 HTS541010A7E630
38.6 fps -11%
Acer Aspire ES1-332-P91H
HD Graphics 505, Pentium N4200, WDC Slim WD10SPCX-21KHST0
22.2 fps -49%
Tomb Raider - 1024x768 Low Preset
HP Pavilion x360 13-u102ng
HD Graphics 620, i5-7200U, HGST Travelstar 5K1000 HTS541010A7E630
62.1 fps +20%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
51.9 fps
Acer Aspire ES1-332-P91H
HD Graphics 505, Pentium N4200, WDC Slim WD10SPCX-21KHST0
31.2 fps -40%
GRID: Autosport - 1024x768 Ultra Low Preset
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
65.1 fps
Acer Aspire ES1-332-P91H
HD Graphics 505, Pentium N4200, WDC Slim WD10SPCX-21KHST0
51.5 fps -21%

Barulho

Ocioso
30.4 / 30.4 / 30.4 dB
Carga
31.3 / 33.3 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm de distância)   environment noise: 30.4 dB(A)
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge)
Lenovo Yoga 510-14IKB
i5-7200U, Radeon R5 M430
HP Pavilion x360 13-u102ng
i5-7200U, HD Graphics 620
Acer Spin 5 SP513-51
6100U, HD Graphics 520
Noise
-5%
-5%
-2%
off / environment *
30.4
29
5%
30.5
-0%
30.5
-0%
Idle Minimum *
30.4
29
5%
31.3
-3%
30.5
-0%
Idle Average *
30.4
29
5%
31.3
-3%
30.5
-0%
Idle Maximum *
30.4
29
5%
31.6
-4%
30.6
-1%
Load Average *
31.3
37.3
-19%
34.2
-9%
31
1%
Load Maximum *
33.3
43.1
-29%
37.3
-12%
36.8
-11%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.834.832.432253331.231.732.13136.436.135.335.24030.129.929.830.3502829.329.127.96327.228.328.228.18026.22725.727.610025.425.725.625.512524.724.32524.216023.523.423.423.820023.123.522.822.725021.921.52222.431521.721.12121.840021.120.42021.950020.319.419.520.863019.21919.119.180019.918.118.319.8100021.218.217.821.5125020.317.717.620.116001917.417.718.8200018.617.717.518.4250018.817.817.918.7315018.218.21818.1400018.218.117.918.2500018.318.218.118.1630018.318.418.418.3800018.518.418.518.31000018.418.618.518.41250018.318.418.318.21600018.318.318.418.3SPL31.330.530.431.3N1.61.41.41.6median 19.2median 18.4median 18.4median 19.1Delta1.71.21.11.8hearing rangehide median Fan NoiseLenovo Yoga 510-14AST
Carga Máxima
 25.4 °C34.5 °C32.3 °C
 24.4 °C30.8 °C29.4 °C
 23.4 °C23 °C26 °C
Máximo: 34.5 °C
Médio: 27.7 °C
28.7 °C39 °C32.3 °C
25.7 °C33.8 °C25 °C
24.1 °C22.8 °C23 °C
Máximo: 39 °C
Médio: 28.3 °C
alimentação elétrica  31.1 °C | Temperatura do quarto 21.8 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 27.7 °C / 82 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.5 °C / 94 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.1 °C / 81 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.3 °C / 79.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+1.8 °C / 3.3 F).
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge)
Lenovo Yoga 510-14IKB
i5-7200U, Radeon R5 M430
HP Pavilion x360 13-u102ng
i5-7200U, HD Graphics 620
Acer Spin 5 SP513-51
6100U, HD Graphics 520
Heat
-6%
10%
-0%
Maximum Upper Side *
34.5
40.1
-16%
34.6
-0%
38.3
-11%
Maximum Bottom *
39
46.1
-18%
36.4
7%
42.5
-9%
Idle Upper Side *
30.8
28.5
7%
26.6
14%
28.7
7%
Idle Bottom *
33.4
31.6
5%
27.7
17%
29.4
12%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.934.831.92531.731.231.73134.936.134.94029.729.929.75029.529.329.56328.228.328.28026.92726.910026.525.726.512527.524.327.516029.623.429.620033.223.533.22504321.54331554.721.154.740062.120.462.150057.419.457.463056.41956.48006518.165100065.118.265.1125061.617.761.6160060.517.460.5200059.517.759.525006017.860315060.618.260.6400060.118.160.1500061.518.261.5630053.118.453.1800060.218.460.21000065.418.665.4125006518.465160006018.360SPL73.530.573.5N32.51.432.5median 60median 18.4median 60Delta7.61.27.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseLenovo Yoga 510-14ASTApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo Yoga 510-14AST audio analysis

(-) | not very loud speakers (65 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.3% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(±) | linearity of mids is average (8.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(±) | linearity of highs is average (8.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.8% difference to median)
Compared to same class
» 57% of all tested devices in this class were better, 9% similar, 35% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 57% of all tested devices were better, 7% similar, 36% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia
desligadodarklight 0.25 / 0.28 Watt
Ociosodarkmidlight 3.9 / 7.4 / 9.4 Watt
Carga midlight 19.2 / 22.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge)
Lenovo Yoga 510-14IKB
i5-7200U, Radeon R5 M430
HP Pavilion x360 13-u102ng
i5-7200U, HD Graphics 620
Acer Spin 5 SP513-51
6100U, HD Graphics 520
Power Consumption
-40%
-17%
-1%
Idle Minimum *
3.9
3.9
-0%
4.7
-21%
4.1
-5%
Idle Average *
7.4
7.1
4%
7.2
3%
6.8
8%
Idle Maximum *
9.4
7.7
18%
7.9
16%
7.9
16%
Load Average *
19.2
33.4
-74%
30
-56%
20.4
-6%
Load Maximum *
22.5
55.9
-148%
29
-29%
26.8
-19%

* ... smaller is better

Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
14h 07min
WiFi Websurfing (Edge 38)
5h 25min
Big Buck Bunny H.264 1080p
5h 06min
Carga (máximo brilho)
1h 52min
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge), 35 Wh
Lenovo Yoga 510-14IKB
i5-7200U, Radeon R5 M430, 35 Wh
HP Pavilion x360 13-u102ng
i5-7200U, HD Graphics 620, 41 Wh
Acer Spin 5 SP513-51
6100U, HD Graphics 520, 45 Wh
Battery Runtime
-4%
-13%
16%
Reader / Idle
847
722
-15%
560
-34%
749
-12%
H.264
306
320
5%
WiFi v1.3
325
373
15%
322
-1%
463
42%
Load
112
100
-11%
86
-23%
133
19%

Pro

+ Boa construção
+ Operação silenciosa
+ Baixas temperaturas
+ Bom teclado
+ Solid state drive
+ WiFi AC

Contra

- Painel TN dependente dos ângulos de visão
- Tela escura e de baixo contraste
- Curta duração da bateria
- Sem USB Type-C

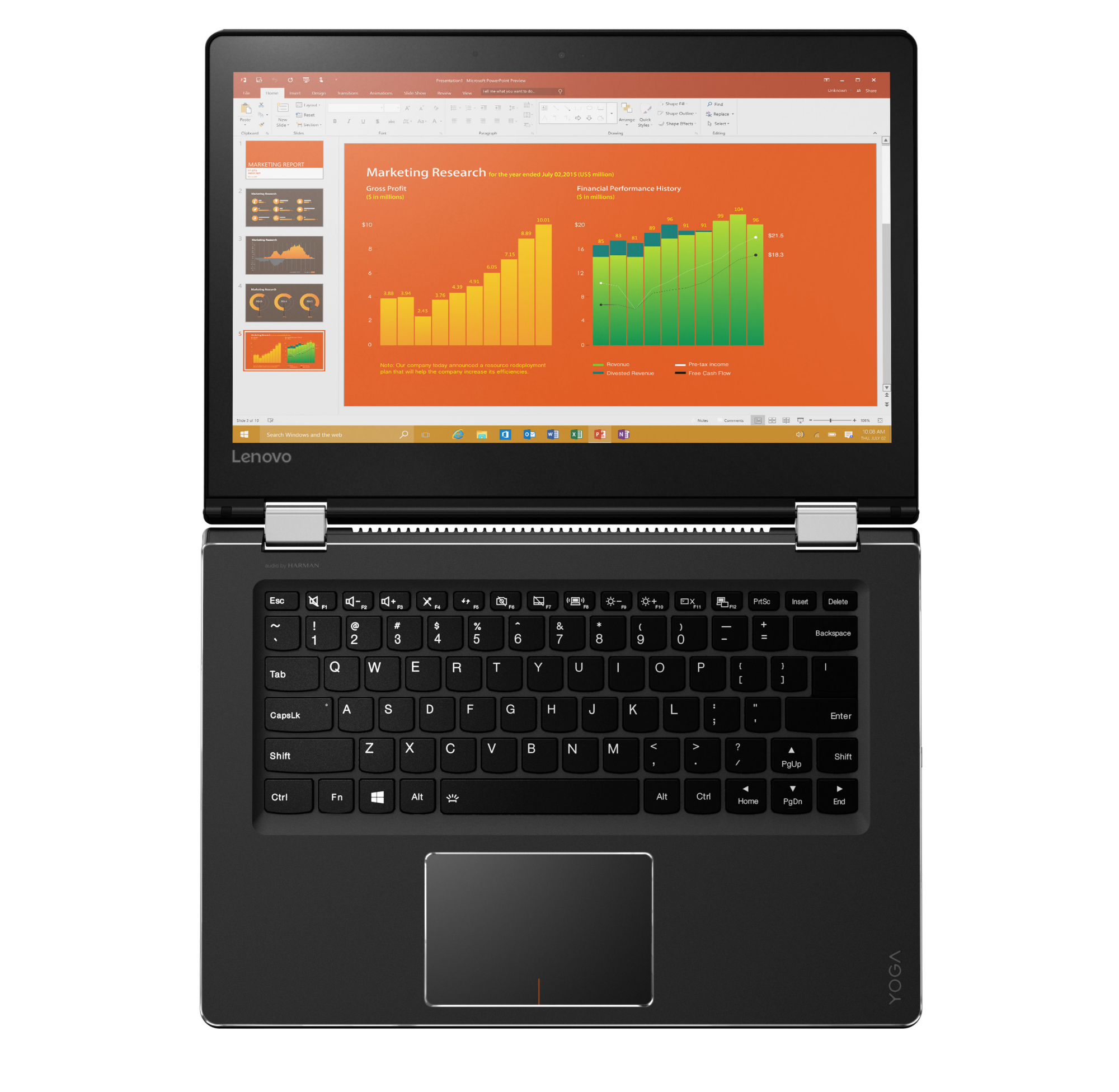

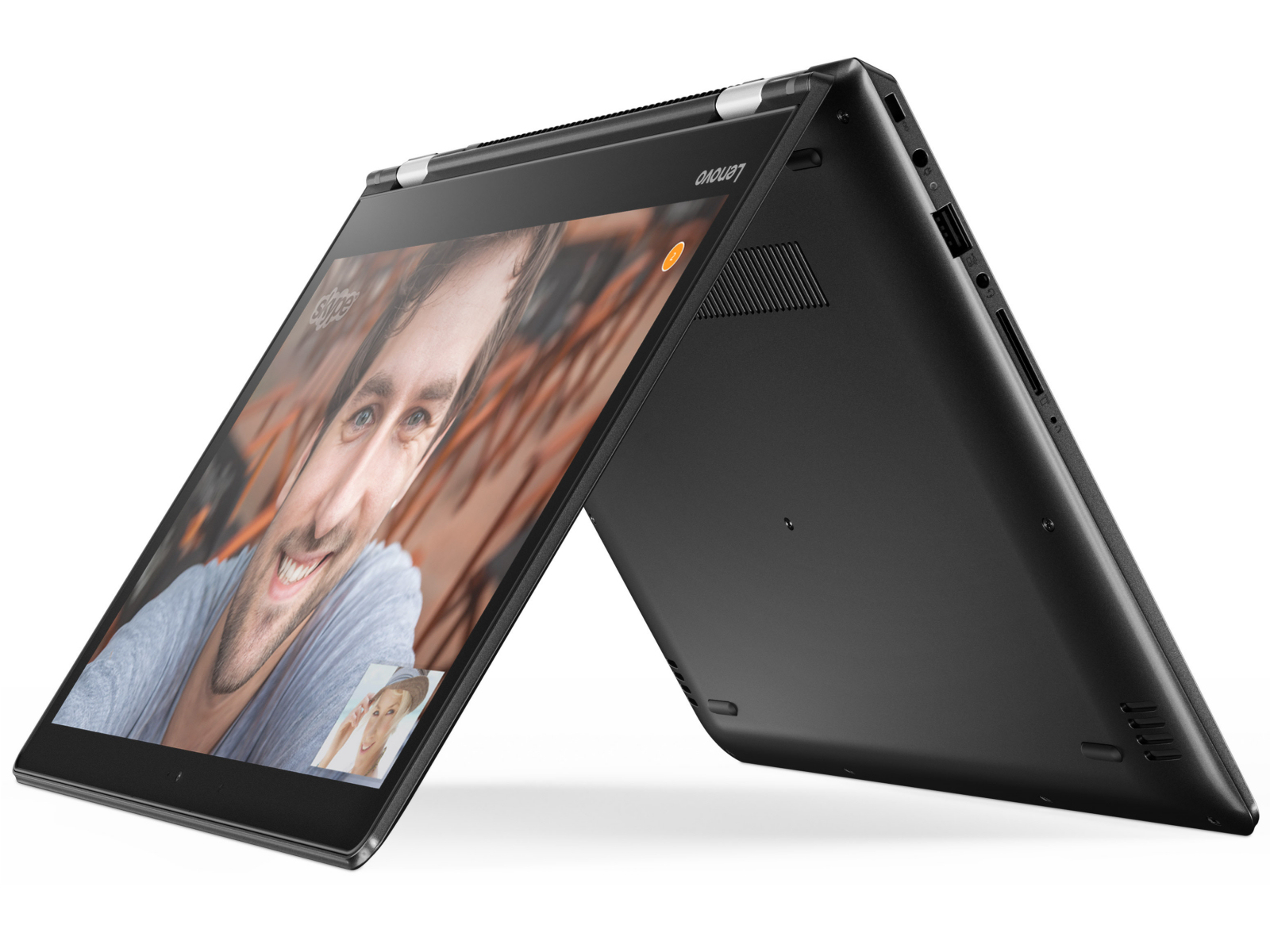

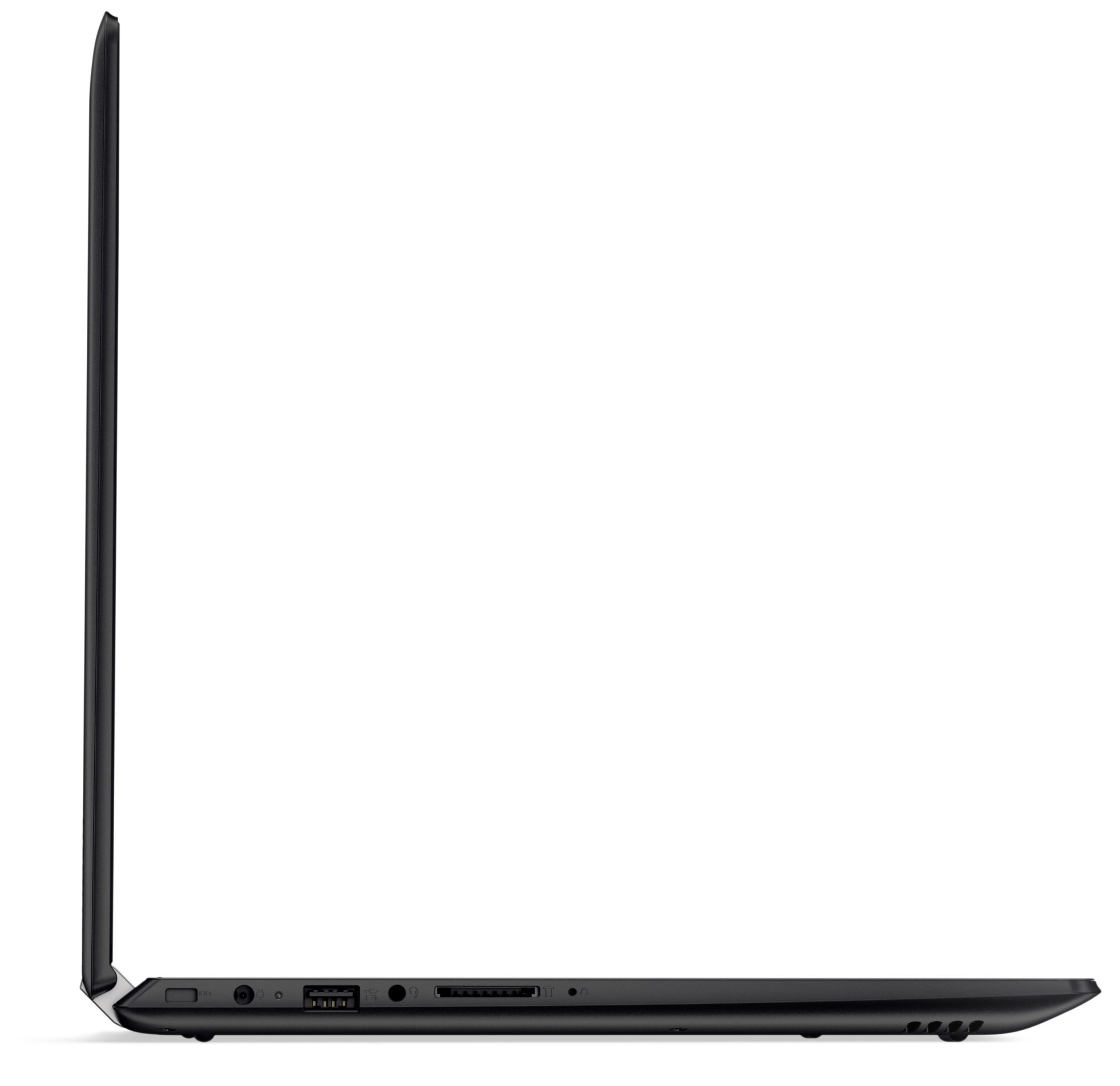

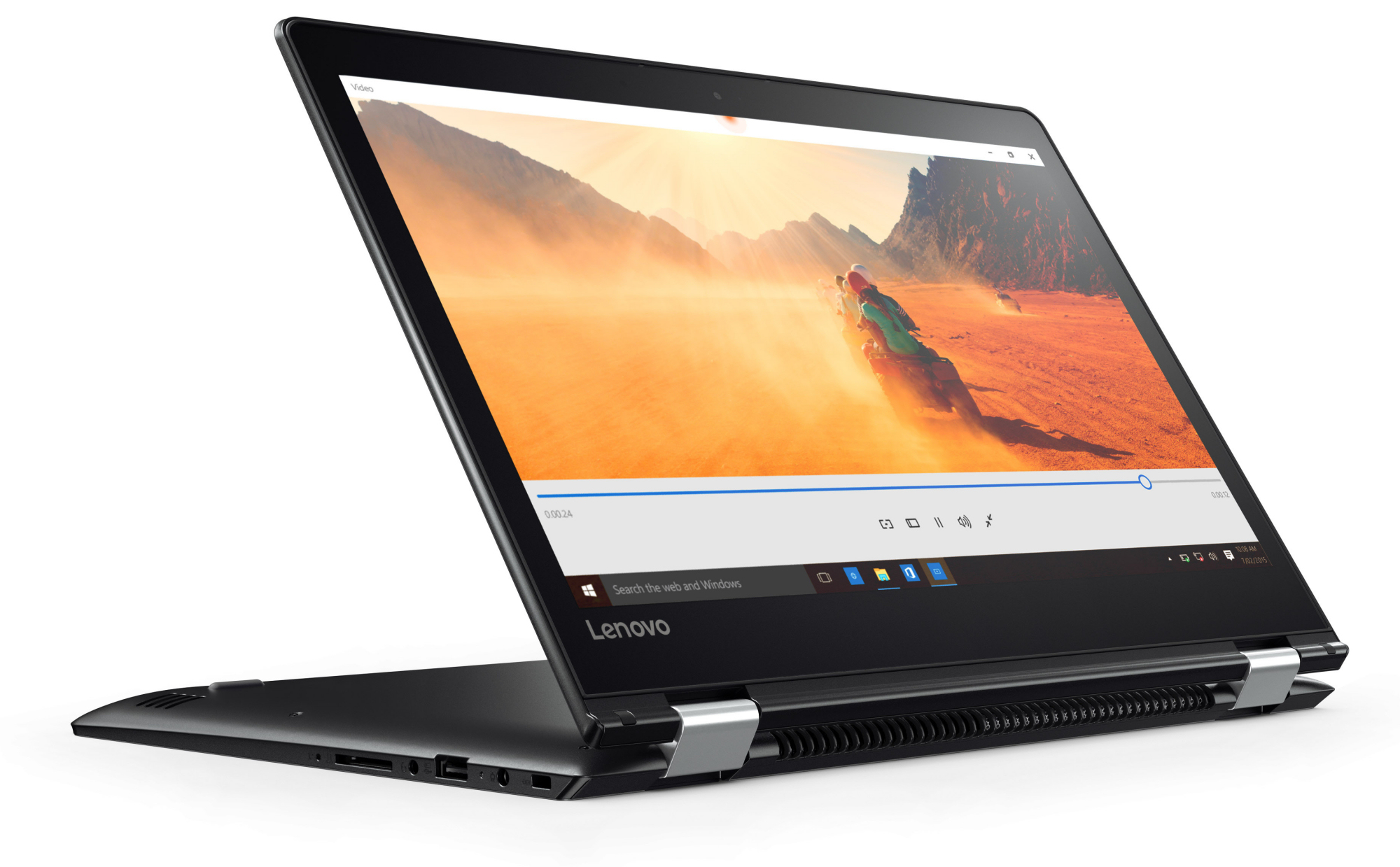

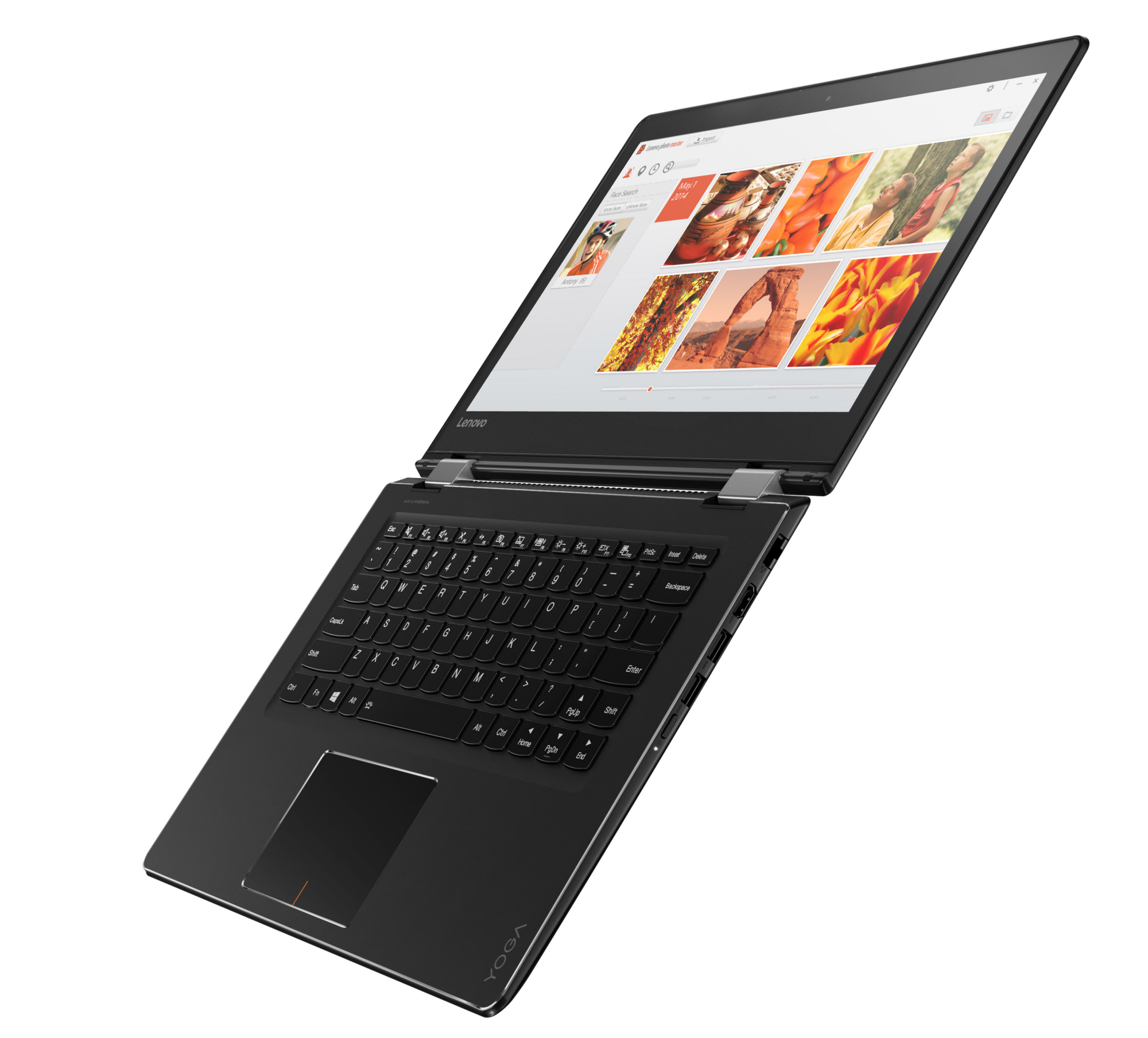

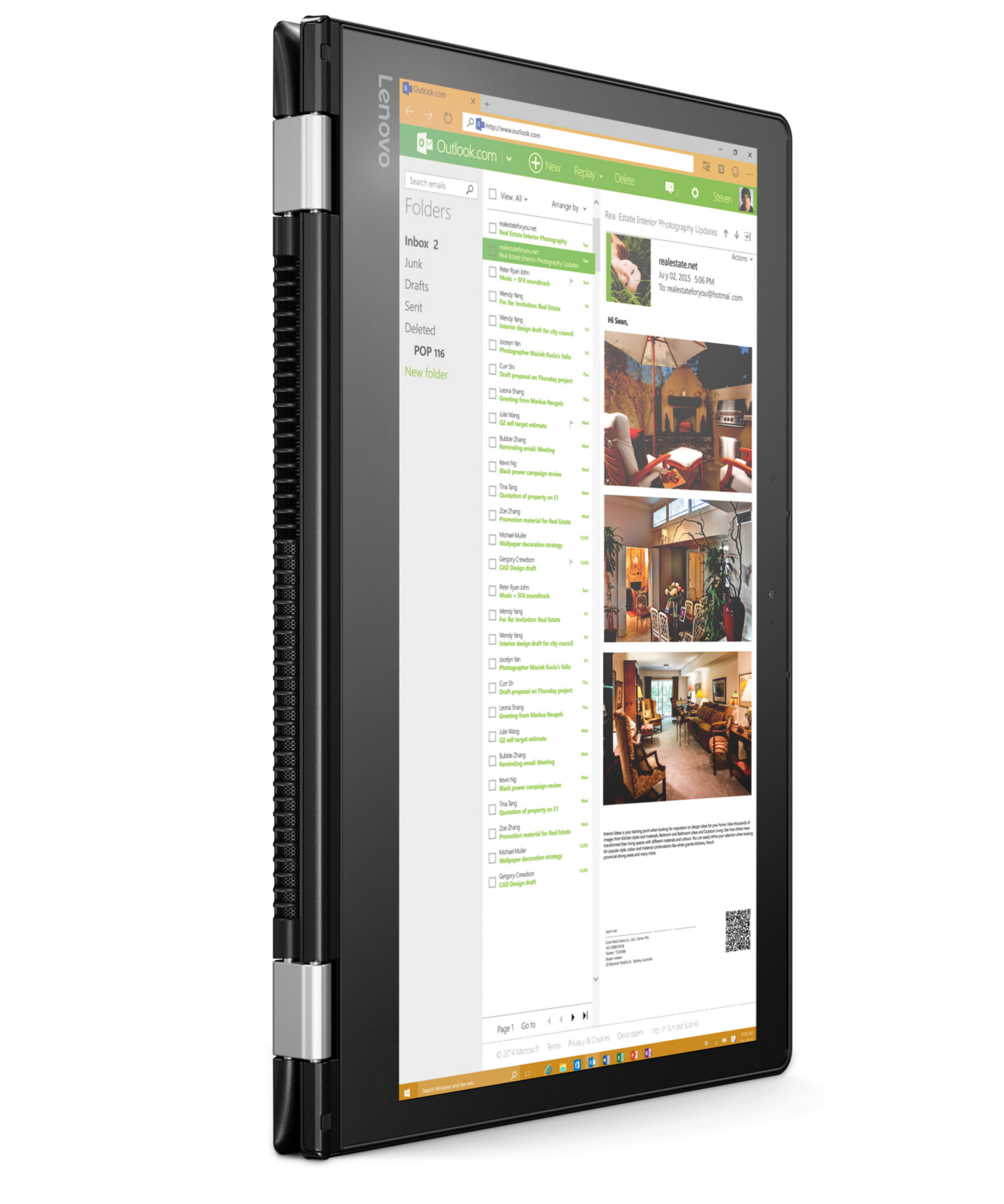

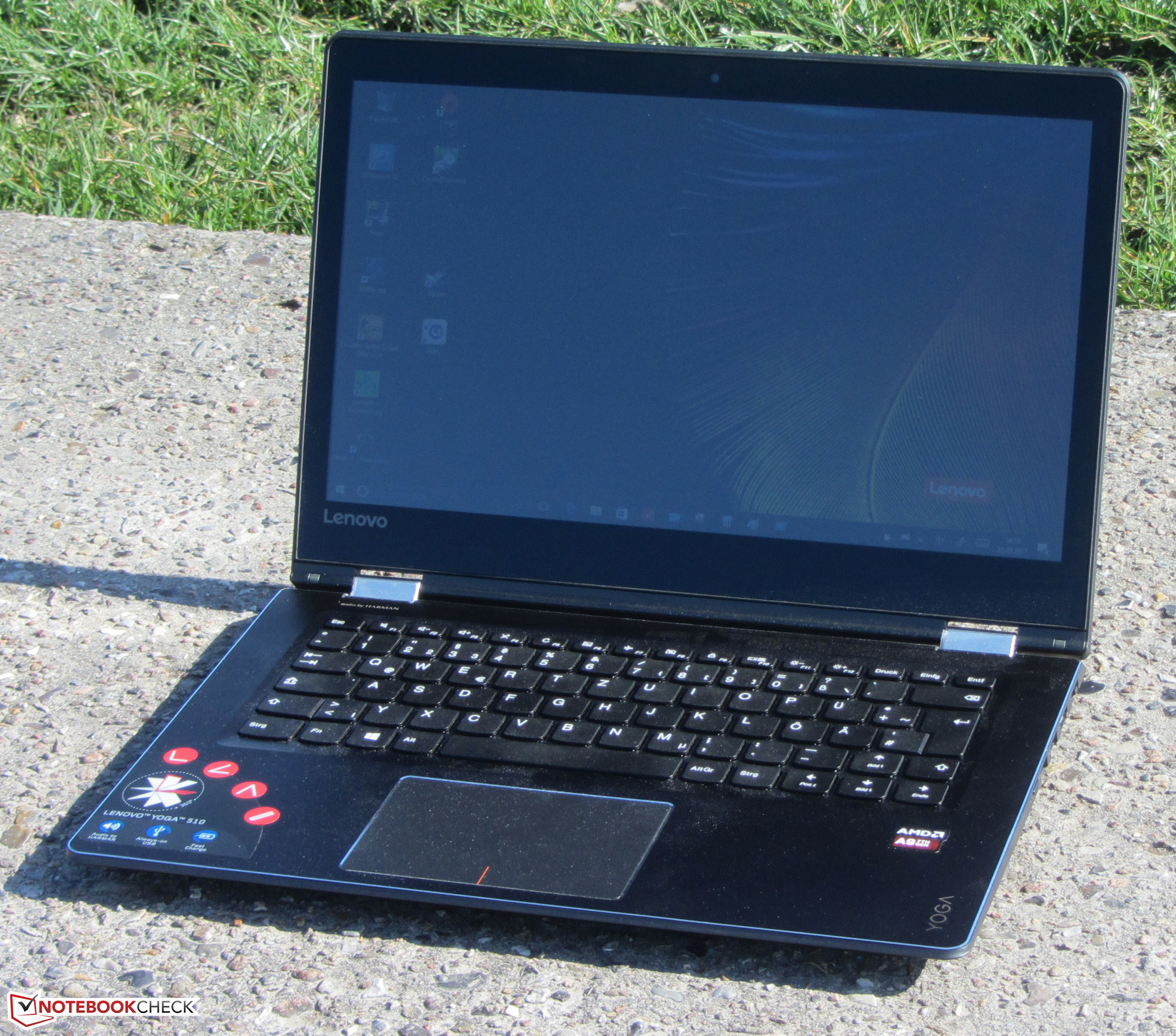

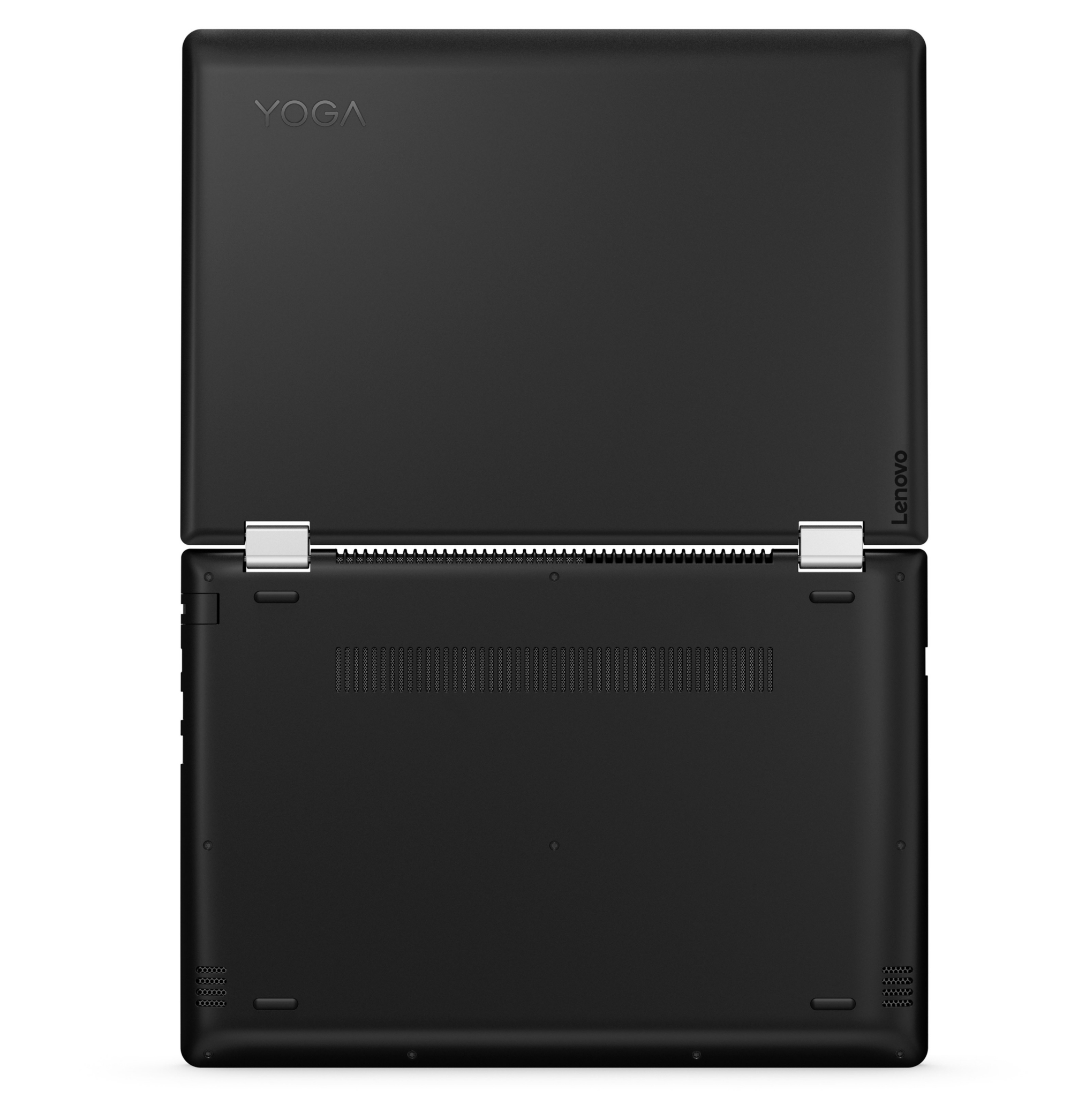

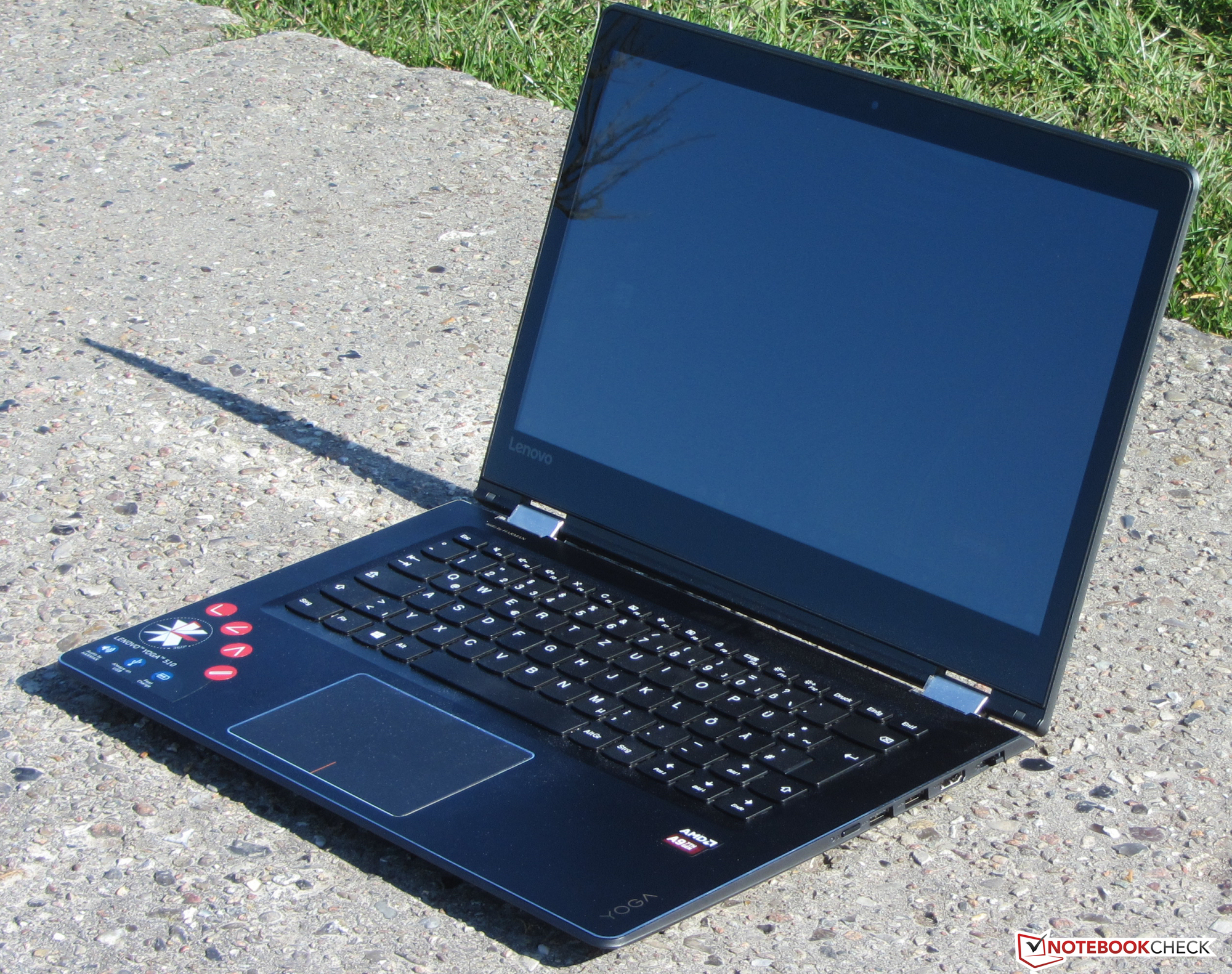

In review: Lenovo Yoga 510-14AST 80S90018GE. Test model courtesy of Notebooksbilliger.de

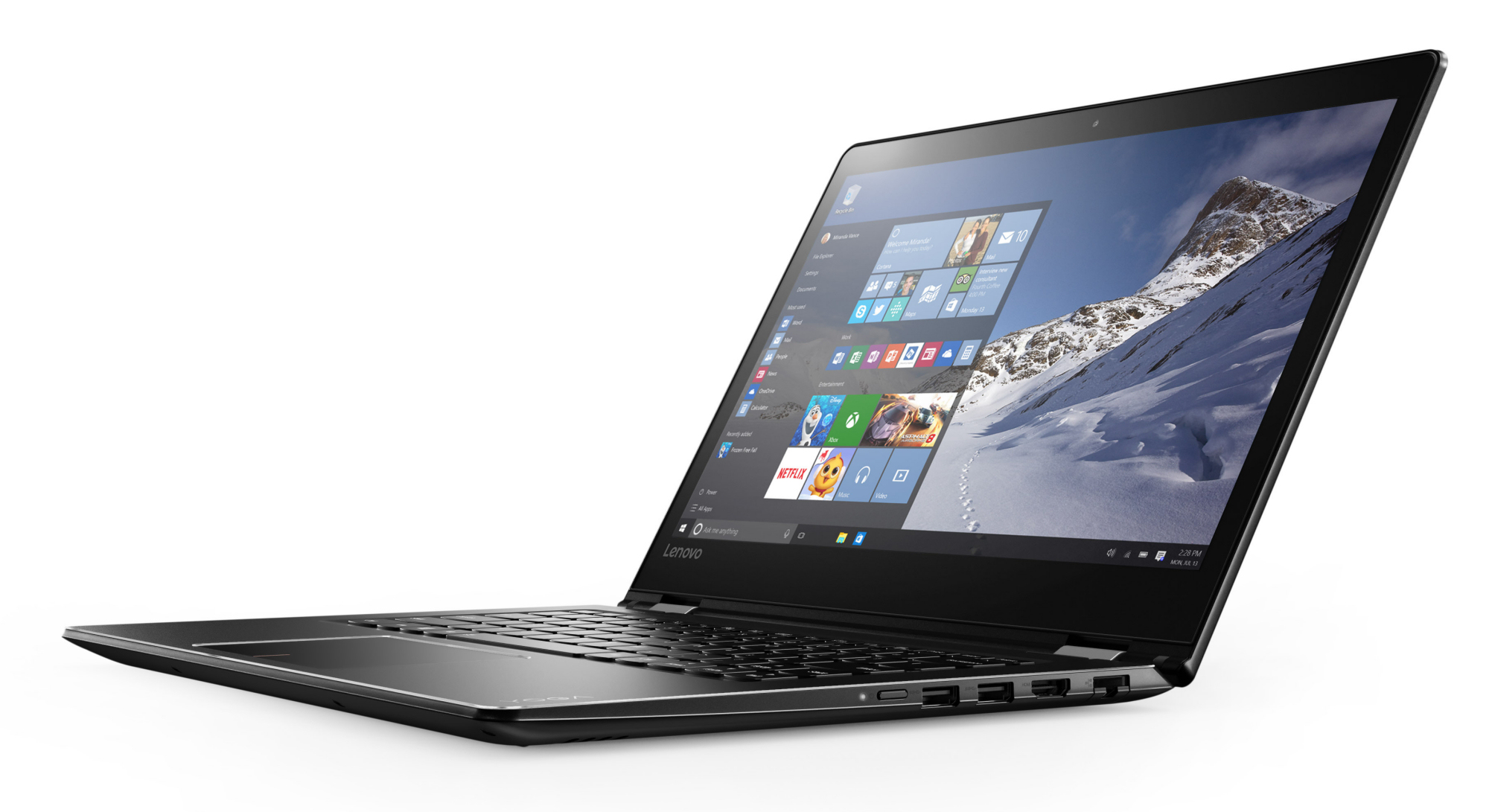

In review: Lenovo Yoga 510-14AST 80S90018GE. Test model courtesy of Notebooksbilliger.de

Com o Yoga 510-14AST, a Lenovo entrega a versão acessível do Yoga 510-15IKB que testamos. Com um preço de aproximadamente 500 Euros (~$533), o Yoga 510-14AST é bons 400 Euros (~$427) mais barato que o modelo irmão testado. A nova APU Stoney Bridge deixou uma boa impressão: A CPU tem suficiente poder para a aplicação que se pretende (escritório, Internet), e a GPU compete com a unidade gráfica da Intel HD Graphics 520 e roda fluentemente alguns jogos.

O Yoga funciona silenciosamente durante todo o uso intenso e esquenta moderadamente. Um SSD garante um sistema veloz. Os usuários que precisem de mais capacidade de armazenamento que o SSD de 128 GB fornece, podem substituí-lo com um modelo de maior capacidade. A bandeja da base do portátil deve ser removida para isso. O teclado instalado é atraente, e ele inclusive permite sessões de digitação frequentes. As durações da bateria são curtas.

A tela de decepcionante. Os trabalhadores responsáveis na Lenovo aparentemente acreditam que um painel TN dependentes dos ângulos de visão é uma boa opção para um conversível.

Além disso, também é um modelo escuro e de baixo contraste que fornece reprodução de cores pobre no estado de fábrica. A Lenovo diminui significativamente o atrativo do aparelho com a escolha de sua tela. Isso é uma penas, dado que a Lenovo, de fato criou um aparelho completo que certamente encontraria seus compradores. Aparentemente não é possível escolher outro modelo. Todas as versões 14AST disponíveis no momento da análise foram equipadas com esta tela inferior - incompreensível.

Os usuários que desejem um painel com ângulos de visão estáveis terão que optar por um modelo Yoga baseado em Intel. O Yoga 510-14IKB 80VB0081GE custa 50 Euros (~$53) a mais e vem com um processador Core i3-7100U muito mais poderoso e uma tela IPS Full HD com ângulos de visão estáveis. Por isso, existem poucos motivos para optar o modelo baseado em AMD.

Lenovo Yoga 510-14AST - 03/23/2017 v6(old)
Sascha Mölck

Acabamento
81 / 98 → 82%
Teclado
79%
Mouse
94%
Conectividade
48 / 80 → 59%
Peso
66 / 35-78 → 72%
Bateria
82%
Pantalha
71%
Desempenho do jogos
54 / 68 → 79%
Desempenho da aplicação
65 / 87 → 75%
Temperatura
94%
Ruído
94%
Audio
44 / 91 → 48%
Camera
27 / 85 → 32%
Médio
69%
78%
Convertible - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Conversível Lenovo Yoga 510-14AST (A9-9410, HD)
Sascha Mölck, 2017-04- 4 (Update: 2017-04-11)
