Breve Análise do Portátil Gigabyte P35W v2

Foguete de jogos com deficiências. A Gigabyte deseja oferecer um portátil para gamers que valorizam o desempenho e estilo na forma de seu P35W v2. Particularmente o peso de apenas 2,44 kg e ua espessura de apenas 2 cm são coisas das que a Gigabyte está orgulhosa.
299
cd/m²
294
cd/m²
302
cd/m²
280
cd/m²
282
cd/m²
291
cd/m²
319
cd/m²
315
cd/m²
344
cd/m²
Distribuição do brilho
LG Philips 156WF4 tested with X-Rite i1Pro 2
Máximo: 344 cd/m² (Nits) Médio: 302.9 cd/m²
iluminação: 81 %
iluminação com acumulador: 284 cd/m²
Contraste: 742:1 (Preto: 0.38 cd/m²)
ΔE Color 4.08 | 0.5-29.43 Ø5
ΔE Greyscale 2.34 | 0.57-98 Ø5.3
53.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
59.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
81.7% sRGB (Argyll 2.2.0 3D)
64.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.25
Cinebench R11.5
CPU Single 64Bit (sort by value)
Gigabyte P35W v2
1.55 Points
Asus G750JS-T4064H
1.49 Points -4%
Asus G750JS-T4064H
1.49 Points -4%
MSI GE60-2PEi781B
1.5 Points -3%
MSI GS60 - 2PEWi716SR21
1.5 Points -3%
CPU Multi 64Bit (sort by value)
Gigabyte P35W v2
6.89 Points
Asus G750JS-T4064H
6.94 Points +1%
Asus G750JS-T4064H
6.94 Points +1%
MSI GE60-2PEi781B
6.97 Points +1%
MSI GS60 - 2PEWi716SR21
7.12 Points +3%
Cinebench R15
CPU Single 64Bit (sort by value)
Gigabyte P35W v2
126 Points
Asus G750JS-T4064H
131 Points +4%
MSI GE60-2PEi781B
135 Points +7%
MSI GS60 - 2PEWi716SR21
130 Points +3%
CPU Multi 64Bit (sort by value)
Gigabyte P35W v2
588 Points
Asus G750JS-T4064H
641 Points +9%
MSI GE60-2PEi781B
642 Points +9%
MSI GS60 - 2PEWi716SR21
652 Points +11%

Legend


Gigabyte P35W v2 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Lite-On LMT-128M6M (RAID 0)

Asus G750JS-T4064H Intel Core i7-4700HQ, NVIDIA GeForce GTX 870M, SanDisk SD5SE2256G1002E

MSI GE60-2PEi781B Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, WDC Scorpio Blue WD10JPVX-22JC3T0

MSI GS60 - 2PEWi716SR21 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Kingston RBU-SNS8100S3128GD (RAID 0)
Cinebench R11.5 CPU Single 64Bit
1.55 Points
Cinebench R11.5 CPU Multi 64Bit
6.89 Points
Cinebench R11.5 OpenGL 64Bit
58.6 fps
Cinebench R15 CPU Single 64Bit
126 Points
Cinebench R15 CPU Multi 64Bit
588 Points
Cinebench R15 OpenGL 64Bit
96 fps
Ajuda
PCMark 8
Storage Score (sort by value)
MSI GE60-2PEi781B
2038 Points
Work Score Accelerated v2 (sort by value)
MSI GE60-2PEi781B
3966 Points
Asus G750JS-T4064H
4199 Points
Creative Score Accelerated v2 (sort by value)
MSI GE60-2PEi781B
4513 Points
Asus G750JS-T4064H
4775 Points
Home Score Accelerated v2 (sort by value)
Gigabyte P35W v2
3457 Points
MSI GE60-2PEi781B
3242 Points -6%
Asus G750JS-T4064H
3195 Points -8%

Legend


Gigabyte P35W v2 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Lite-On LMT-128M6M (RAID 0)

MSI GE60-2PEi781B Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, WDC Scorpio Blue WD10JPVX-22JC3T0

Asus G750JS-T4064H Intel Core i7-4700HQ, NVIDIA GeForce GTX 870M, SanDisk SD5SE2256G1002E
PCMark 8 Home Score Accelerated v2
3457 pontos
Ajuda
CrystalDiskMark 3.0
Read Seq (sort by value)
Gigabyte P35W v2
977 MB/s
Asus G750JS-T4064H
502 MB/s -49%
MSI GE60-2PEi781B
94.8 MB/s -90%
Write Seq (sort by value)
Gigabyte P35W v2
630 MB/s
Asus G750JS-T4064H
405.7 MB/s -36%
MSI GE60-2PEi781B
91.4 MB/s -85%
Read 4k (sort by value)
Gigabyte P35W v2
29.39 MB/s
Asus G750JS-T4064H
31.32 MB/s +7%
MSI GE60-2PEi781B
0.388 MB/s -99%
Write 4k (sort by value)
Gigabyte P35W v2
64.5 MB/s
Asus G750JS-T4064H
81.4 MB/s +26%
MSI GE60-2PEi781B
0.974 MB/s -98%

Legend


Gigabyte P35W v2 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Lite-On LMT-128M6M (RAID 0)

Asus G750JS-T4064H Intel Core i7-4700HQ, NVIDIA GeForce GTX 870M, SanDisk SD5SE2256G1002E

MSI GE60-2PEi781B Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, WDC Scorpio Blue WD10JPVX-22JC3T0

MSI GS60 - 2PEWi716SR21 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Kingston RBU-SNS8100S3128GD (RAID 0)
2x Lite-On LMT-128M6M (RAID 0)
Sequential Read: 977 MB/s
Sequential Write: 630 MB/s
512K Read: 691 MB/s
512K Write: 611 MB/s
4K Read: 29.39 MB/s
4K Write: 64.5 MB/s
4K QD32 Read: 509 MB/s
4K QD32 Write: 492.7 MB/s
3DMark Fire Strike Score
4206 pontos
3DMark Fire Strike Extreme Score
2096 pontos
Ajuda
3DMark - 1920x1080 Fire Strike Score (sort by value)
Gigabyte P35W v2
4206 Points
Asus G750JS-T4064H
4384 Points +4%
MSI GE60-2PEi781B
3679 Points -13%
MSI GS60 - 2PEWi716SR21
4294 Points +2%

Legend


Gigabyte P35W v2 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Lite-On LMT-128M6M (RAID 0)

Asus G750JS-T4064H Intel Core i7-4700HQ, NVIDIA GeForce GTX 870M, SanDisk SD5SE2256G1002E

MSI GE60-2PEi781B Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, WDC Scorpio Blue WD10JPVX-22JC3T0

MSI GS60 - 2PEWi716SR21 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Kingston RBU-SNS8100S3128GD (RAID 0)
Thief
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Gigabyte P35W v2
46 fps
MSI GE60-2PEi781B
37.4 fps -19%
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Gigabyte P35W v2
31 fps
MSI GE60-2PEi781B
21.9 fps -29%
Metro: Last Light
1366x768 High (DX11) AF:16x (sort by value)
Gigabyte P35W v2
58 fps
Asus G750JS-T4064H
61.9 fps +7%
MSI GE60-2PEi781B
50.5 fps -13%
MSI GS60 - 2PEWi716SR21
63 fps +9%
1920x1080 Very High (DX11) AF:16x (sort by value)
Gigabyte P35W v2
33 fps
Asus G750JS-T4064H
35.3 fps +7%
MSI GE60-2PEi781B
27.7 fps -16%
MSI GS60 - 2PEWi716SR21
35 fps +6%
BioShock Infinite
1366x768 High Preset (sort by value)
Gigabyte P35W v2
131 fps
MSI GE60-2PEi781B
101.3 fps -23%
MSI GS60 - 2PEWi716SR21
133 fps +2%
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Gigabyte P35W v2
52 fps
MSI GE60-2PEi781B
39 fps -25%
MSI GS60 - 2PEWi716SR21
54 fps +4%

Legend


Gigabyte P35W v2 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Lite-On LMT-128M6M (RAID 0)

Asus G750JS-T4064H Intel Core i7-4700HQ, NVIDIA GeForce GTX 870M, SanDisk SD5SE2256G1002E

MSI GE60-2PEi781B Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, WDC Scorpio Blue WD10JPVX-22JC3T0

MSI GS60 - 2PEWi716SR21 Intel Core i7-4710HQ, NVIDIA GeForce GTX 870M, 2x Kingston RBU-SNS8100S3128GD (RAID 0)
baixo média alto ultra
Tomb Raider (2013) 60 60 60 60
BioShock Infinite (2013) 174 146 131 52
Metro: Last Light (2013) 82 77 58 33
Battlefield 4 (2013) 141 119 91 37
Thief (2014) 50 47 46 31
Wolfenstein: The New Order (2014) 60 60 60 54

Barulho

Ocioso
30.8 / 32.4 / 40 dB
HDD
31 dB
DVD
37.8 / dB
Carga
53.6 / 53.8 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm de distância)
Carga Máxima
 52.4 °C61.2 °C59.8 °C
 49.2 °C59.2 °C57.8 °C
 32.6 °C36.4 °C35.6 °C
Máximo: 61.2 °C
Médio: 49.4 °C
58.5 °C63.9 °C53.3 °C
54.5 °C49.5 °C41.8 °C
31.6 °C32.5 °C33.3 °C
Máximo: 63.9 °C
Médio: 46.5 °C
alimentação elétrica  50.5 °C | Temperatura do quarto 27 °C | Voltcraft IR-550
(-) The average temperature for the upper side under maximal load is 49.4 °C / 121 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 61.2 °C / 142 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 63.9 °C / 147 F, compared to the average of 43.2 °C / 110 F
(-) In idle usage, the average temperature for the upper side is 38.7 °C / 102 F, compared to the device average of 33.8 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.4 °C / 97.5 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-7.5 °C / -13.5 F).
Consumo de energia
desligadodarklight 0.2 / 0.6 Watt
Ociosodarkmidlight 14.3 / 19 / 23.7 Watt
Carga midlight 111.5 / 176.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Tempo de Execução da Bateria
Ocioso (sem WLAN, min brilho)
6h 25min
Navegar com WLAN
6h 47min
Carga (máximo brilho)
1h 58min
Gigabyte P35W v2
Gigabyte P35W v2

O design simples, porém elegante e a boa construção são as primeiras coisas notadas sobre o Gigabyte's P35W v2. Isso oculta o seu poder bruto o que ainda é suficiente para os jogos mais exigentes. A longa duração da bateria também é agradável. Basicamente, é o teclado medíocre e principalmente as emissões sob carga pesada (ruído, temperaturas da superfície) que impedem uma melhor avaliação. As temperaturas da superfície de mais de 60 °C e problemas no teste de estresse demonstram que o fino P35W executa um ato balançante sobre os limites do que é fisicamente possível.

Quando estas desvantagens do Gigabyte P35W v2 possam ser aceitas, o comprador obterá um portátil de jogos de alto desempenho que é o companheiro perfeito para se movimentar, graças ao seu baixo peso e construção fina. Além disso, o aparelho está disponível em várias configurações, que é um importante ponto positivo.

Os ouvidos sensíveis devem evitar a categoria de jogos ultra-finos. Os aparelhos com um case maior, por exemplo, o Asus G750, permanece mais silencioso e frio inclusive durante carga e, em nossa opinião, eles também são mais adequados para extensas sessões de jogos.

Esta é uma versão reduzida da análise original. Você pode ler a análise completa em inglês aqui.

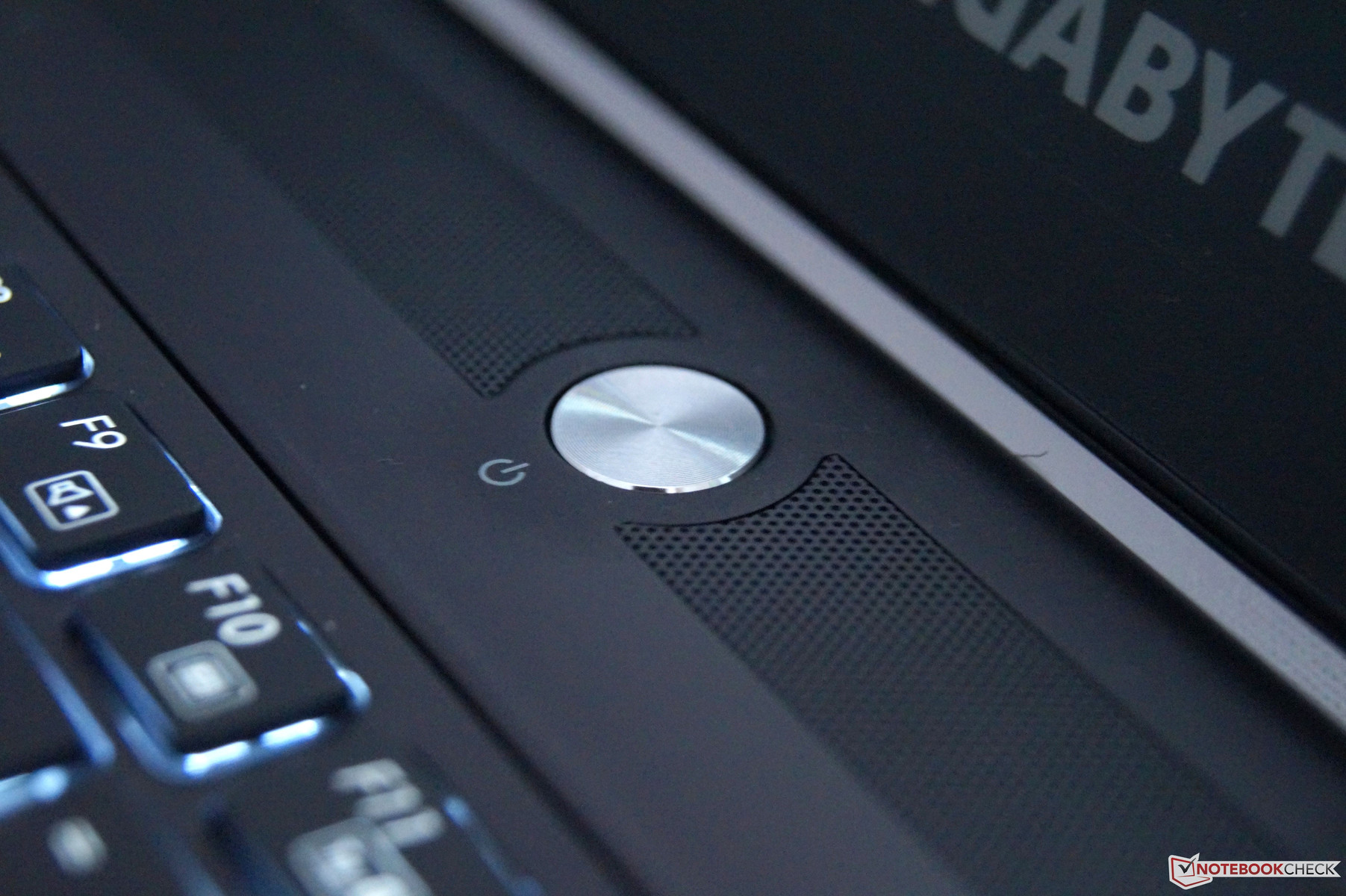

O proeminente botão de energia está acima do teclado.
O proeminente botão de energia está acima do teclado.

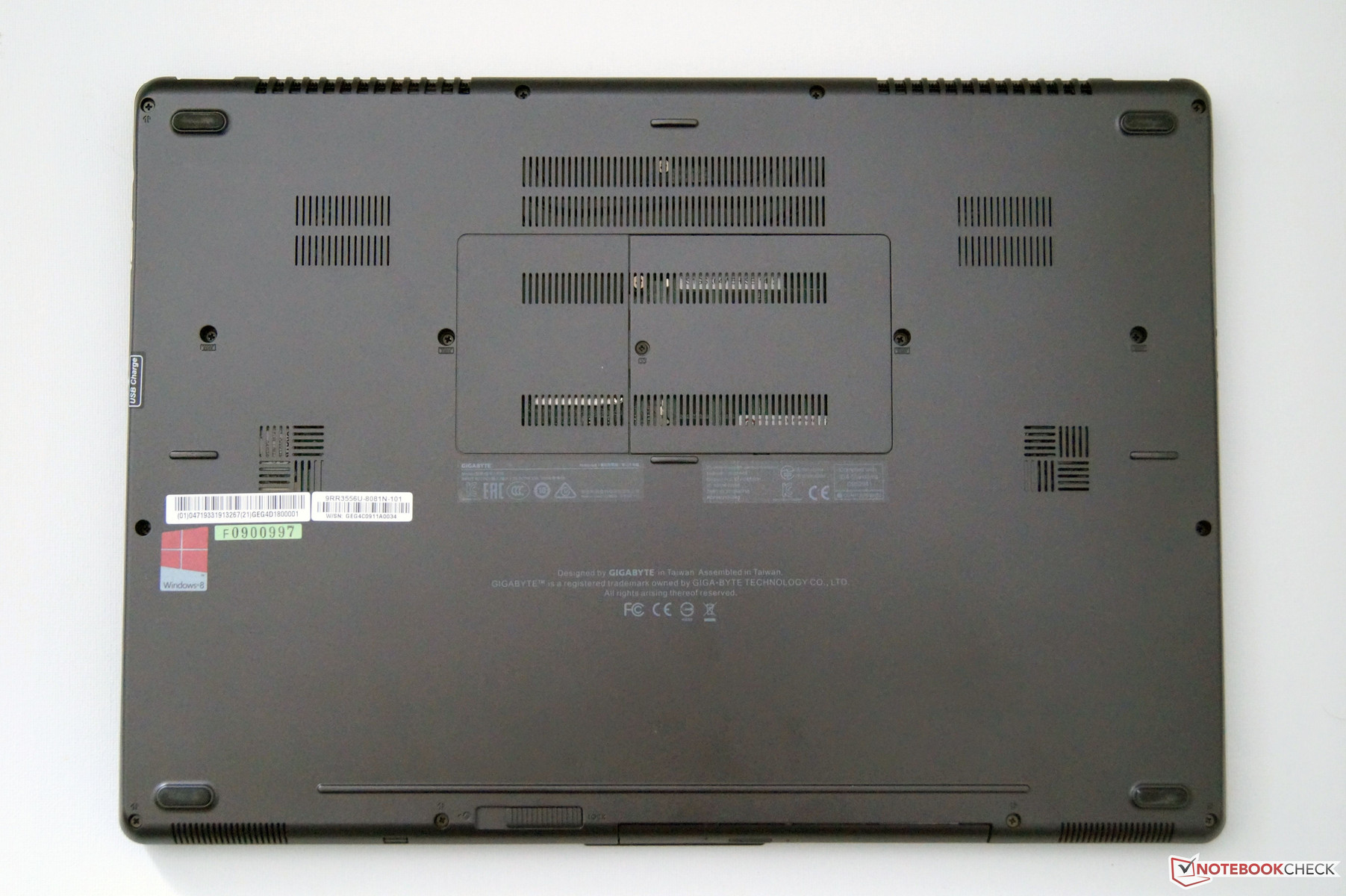

O lado inferior tem uma pequena tampa de manutenção para a memória de trabalho.
O lado inferior tem uma pequena tampa de manutenção para a memória de trabalho.
O drive ótico é fácil de retirar via hot-swap.
O drive ótico é fácil de retirar via hot-swap.
O Gigabyte P35W v2 aberto.
O Gigabyte P35W v2 aberto.

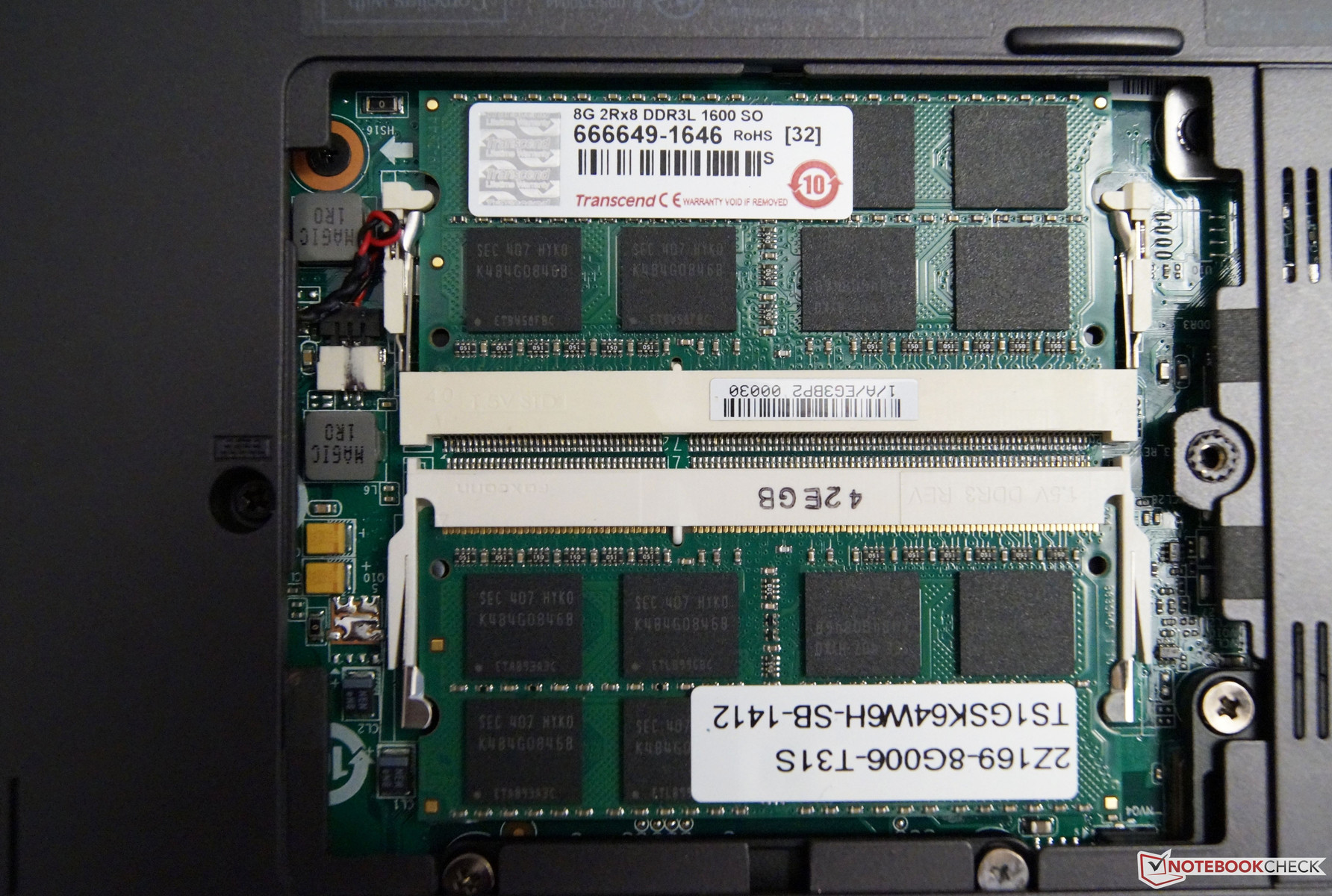

Ambas barras de memória de trabalho instaladas.
Ambas barras de memória de trabalho instaladas.

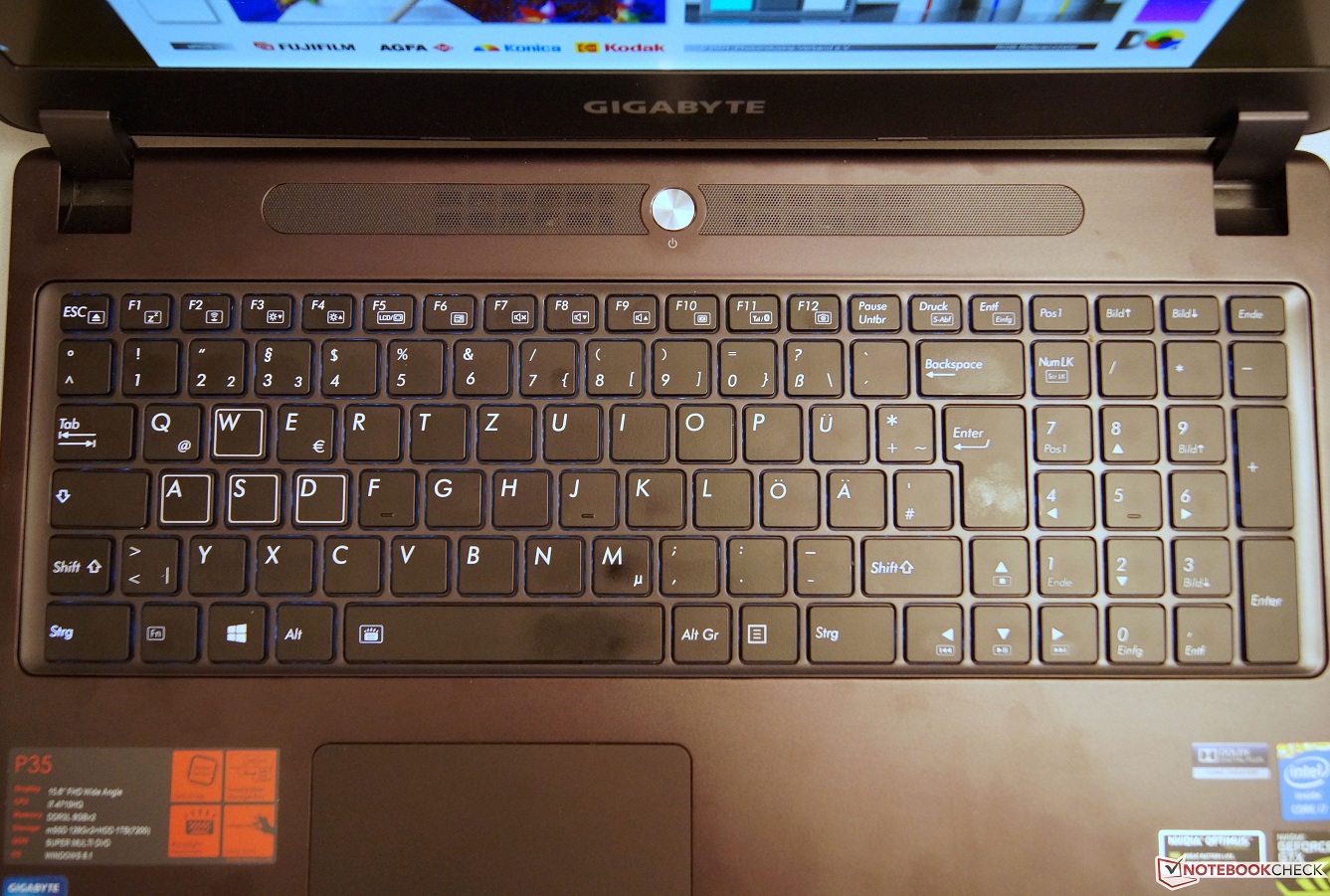

O teclado com retro-iluminação desativada
O teclado com retro-iluminação desativada


Please share our article, every link counts!

Especificações do portátil

Gigabyte P35W v2 (P35 Serie)
Processador
Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz, Haswell, Haswell
Placa gráfica
NVIDIA GeForce GTX 870M - 6 GB VRAM, Análises do: 941 MHz, Memoría: 1250 MHz, ForceWare 332.38, Optimus
Memória
16 GB
, Transcend TS1GSK64W6H
Pantalha
15.60 polegadas 16:9, 1920 x 1080 pixel, LG Philips 156WF4, IPS, Brilhante: não
placa mãe
Intel HM87 (Lynx Point)
Disco rígido
2x Lite-On LMT-128M6M (RAID 0) , 256 GB
, + 1 terabyte Hitachi HTS721010A9E630, 1200 GB livre
Placa de Som
Intel Lynx Point PCH - High Definition Audio Controller
Conexões
2 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Conexões Audio: 2, Card Reader: Leitor de cartões SD
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Unidade ótica
Matshita DVD-RAM UJ8E2
Tamanho
altura x largura x profundidade (em mm): 20.9 x 385 x 270
Bateria
76 Wh Lítio-Polímero
Sistema Operativo
Microsoft Windows 8.1 64 Bit
Camera
Webcam: HD webcam
Características adicionais
Alto falantes: 2, Teclado: QWERTZ, Iluminação do Teclado: sim, PowerDVD 10, 24 Meses Garantia
peso
2.5 kg, Suprimento de energia: 640 g
Preço
1800 Euro



Portáteis com o mesmo GPU e tamanho de tela

Portáteis com o mesmo GPU

Breve Análise do Portátil MSI GS70-2PEi71611
GeForce GTX 870M, Core i7 4700HQ, 17.30", 2.72 kg
Breve Análise do Portátil para Jogos Asus G750JS-T4064H
GeForce GTX 870M, Core i7 4700HQ, 17.30", 4.08 kg

Portáteis com o tamanho de tela e peso

Análise do Gigabyte G6X 9KG (2024): Notebook para jogos acessível com RTX 4060
NVIDIA GeForce RTX 4060 Laptop GPU, Raptor Lake-HX i7-13650HX, 16.00", 2.552 kg
Análise do Gigabyte G5 KF: Laptop para jogos com RTX 4060 por 969 euros
NVIDIA GeForce RTX 4060 Laptop GPU, Alder Lake-P i5-12500H, 15.60", 1.9 kg
Análise do Gigabyte G5 KE: Laptop para jogos de médio porte que atende à maioria das necessidades
GeForce RTX 3060 Laptop GPU, Alder Lake-P i5-12500H, 15.60", 1.99 kg
Revisão do laptop Slim Gigabyte AERO 16 OLED: Eficiente RTX 4070 para gamers e criativos
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-H i9-13900H, 16.00", 2.1 kg

Pro

+Case de qualidade
+Prático recurso hot-swap do DVD drive
+As boas cores da tela e os ângulos de visão
+Reservas de alto desempenho
+É possível obter boas durações da bateria


Contra

-Bateria não removível
-O teclado precisa de um tempo de adaptação
-Muito quente...
-...e muito barulhento durante a carga de trabalho

Gigabyte P35W v2 - 07/15/2014 v4(old)
Andre Reinhardt

Acabamento
79 / 98 → 81%
Teclado
73%
Mouse
78%
Conectividade
72 / 81 → 89%
Peso
60 / 10-66 → 89%
Bateria
86%
Pantalha
88%
Desempenho do jogos
94%
Desempenho da aplicação
90%
Temperatura
60 / 95 → 63%
Ruído
60 / 90 → 67%
Audio
73%
Camera
47 / 85 → 55%
Médio
74%
82%
Gaming - Médio equilibrado
Andre Reinhardt, 2014-07-25 (Update: 2014-08- 3)
