Comino GRANDO RM V2-S estação de trabalho profissional de alto nível em revisão - 4 RTX A6000 atende a Ryzen Threadripper Pro 3975WX

Estação de trabalho feita sob medida! Recebemos uma estação de trabalho compacta de 19 polegadas da Comino, que está equipada com quatro Nvidia A6000s e um Threadripper AMD Ryzen Pro 3975WX. Além disso, há refrigeração líquida, que deve manter tanto a CPU quanto as GPUs sob controle. Demos uma olhada mais detalhada no sistema e explicamos os prós e os contras.

Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 11/28/2021 🇺🇸 🇩🇪 ...

Comino é um fabricante de sistemas que produz estações de trabalho e soluções completas de data center multi-GPU de acordo com as exigências do cliente. O fabricante associa tudo isso a um sistema de resfriamento líquido especialmente desenvolvido. Devido ao perfeito acabamento e aos extensos testes, a Comino entrega seus sistemas em qualidade de servidor, mesmo se for uma estação de trabalho ou um PC de jogos de alta tecnologia.

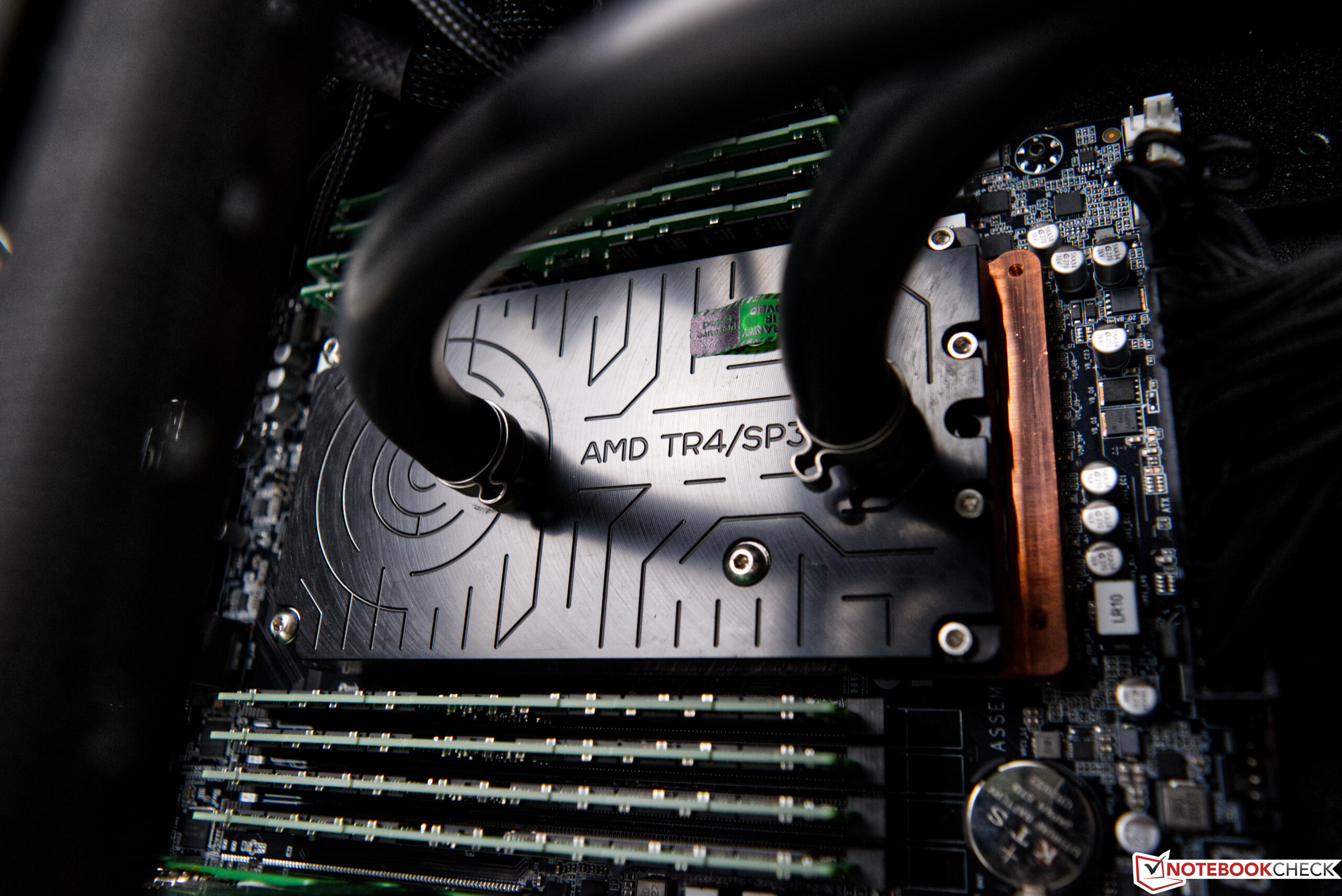

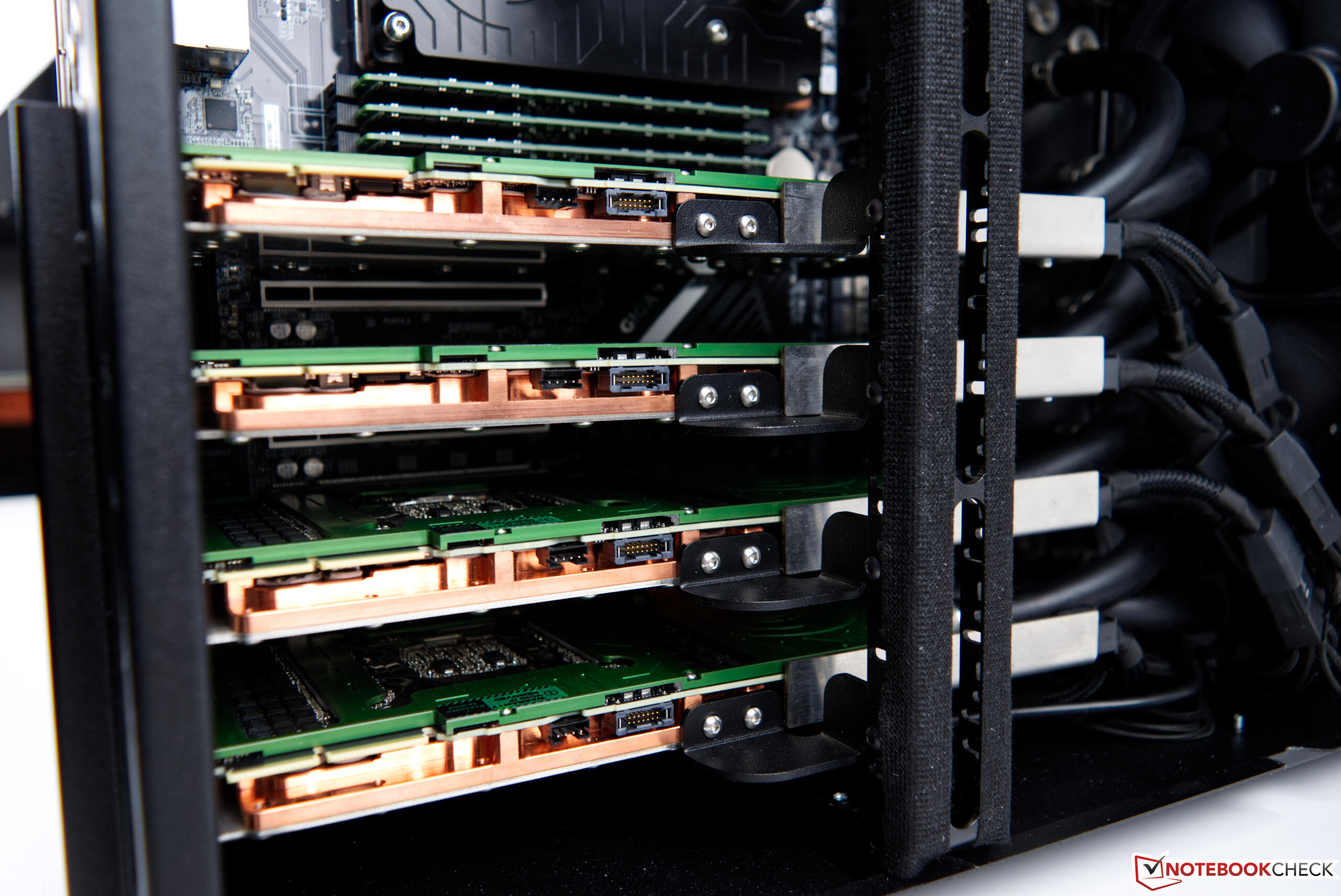

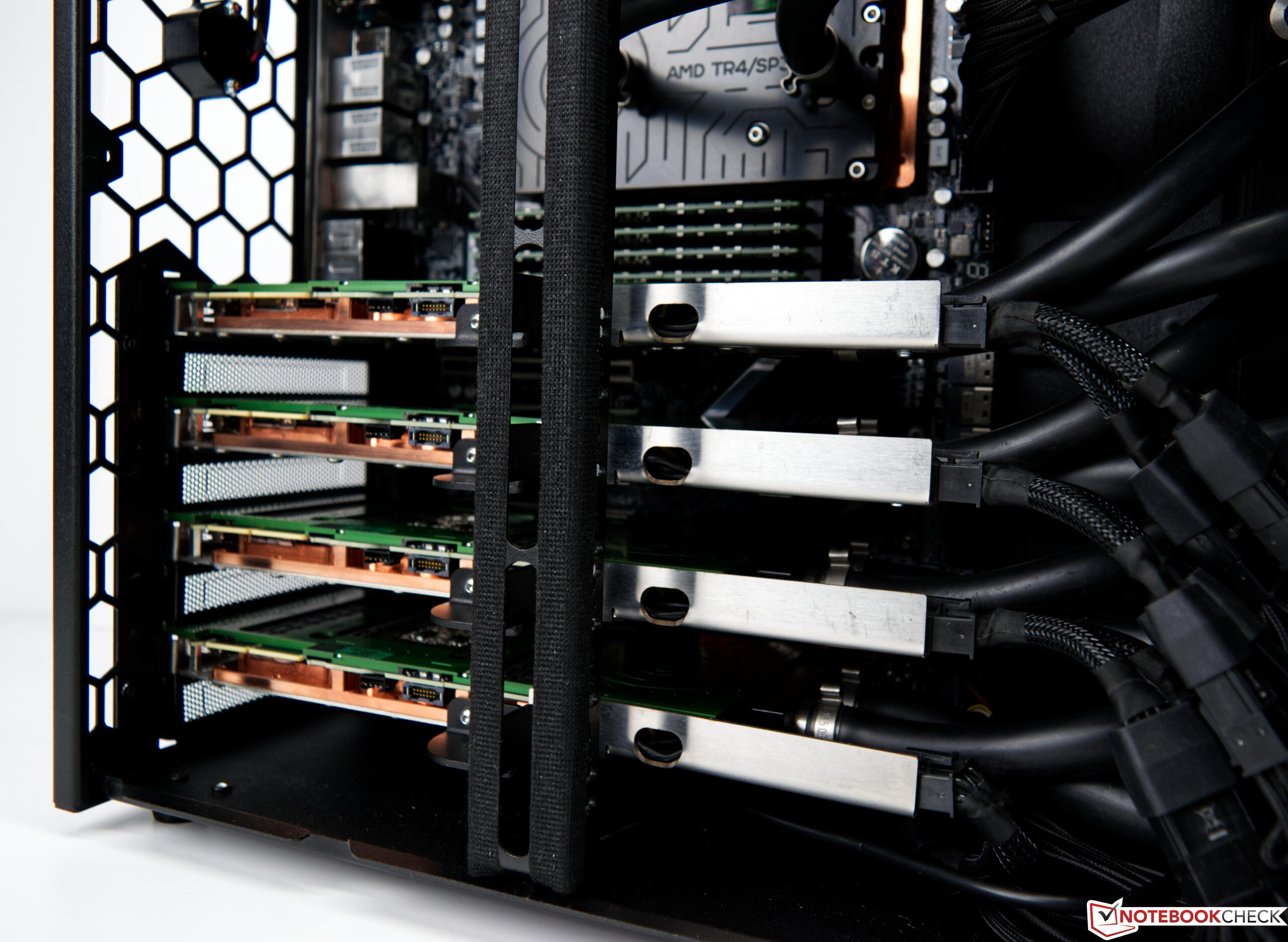

AMD Ryzen Threadripper Pro 3975WX atende 4 GPUs Nvidia RTX A6000 de uma só vez

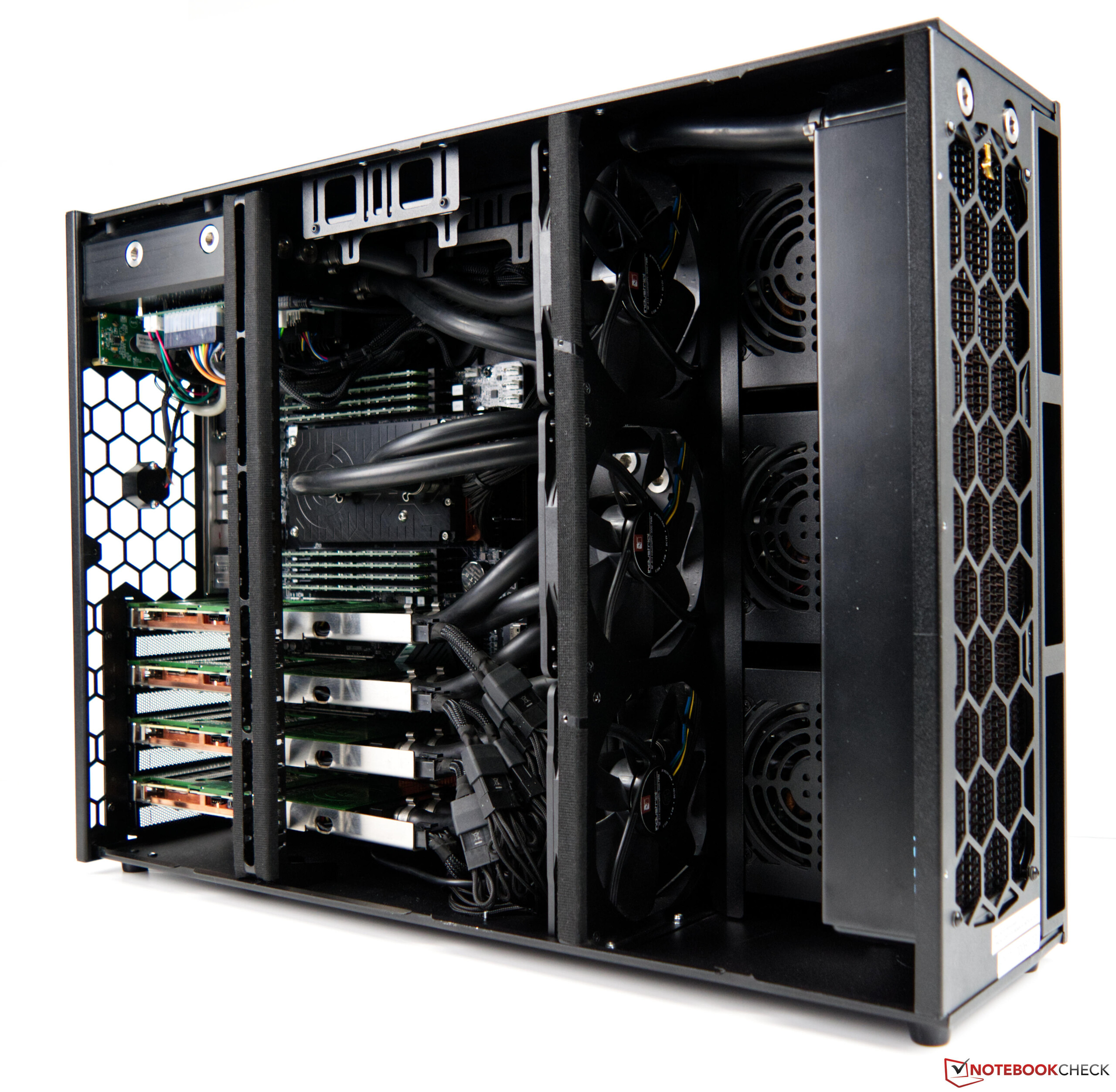

O fabricante Comino nos enviou a estação de trabalho GRANDO RM V2-S para a revisão. Todo o sistema foi embalado em uma caixa de madeira resistente com muito estofamento, para que o sistema chegasse sem danos. Especialmente com PCs prontos para uso que também são equipados com um sistema de resfriamento de água, a embalagem segura e estável é uma obrigação. A Comino já fez tudo aqui mesmo. Mas agora ao próprio sistema. Construído é umAMD Ryzen Threadripper Pro 3975WXcom um total de 32 núcleos de CPU e roscas. Portanto, este processador é atualmente a segunda CPU AMD Ryzen Threadripper Pro mais rápida da AMD. A Comino instala 4 Nvidia RTX A6000 placas gráficas nesta configuração. Cada uma tem 48 GB de VRAM, que é o dobro do tamanho de uma Nvidia GeForce RTX 3090. Mas isso não é suficiente, porque os 32 núcleos são suportados por uma enorme quantidade de 512 GB de RAM. Deve ficar claro para todos que esta configuração não é barata, porque só um Nvidia RTX A6000 custa cerca de 5.000 euros (~$5.659). Assim, não é surpreendente que o resultado final seja quase 29.000 euros (~$32.824) antes dos impostos para este sistema.

Aqueles que não querem cavar tão fundo em seus bolsos também podem escolher outros componentes. Há diferentes configurações no site do fabricante.

Referências de processadores - 32 núcleos e 64 roscas

OAMD Ryzen Threadripper Pro 3975WXé um verdadeiro monstro da computação com seus 32 núcleos. Somente em alguns pontos de referência é que o AMD Ryzen Threadripper Pro 3995WX se diferenciar nos testes multi-core. A vantagem de desempenho da estação de trabalho Comino GRANDO reside claramente no resfriamento embutido. Isto garante que os 32 núcleos possam chamar o desempenho ideal e, portanto, podem bater os supostamente mais rápidos 64 núcleos da AMD. Com seus 32 núcleos e o total de 64 fios, o Threadripper Ryzen Pro 3975WX da AMD é perfeitamente adequado para virtualizações. A generosa RAM DDR4 ECC de 512 GB é uma vantagem aqui. Entretanto, o Threadripper AMD Ryzen Pro 3975WX não pode contar com as vantagens da arquitetura Zen3 atual, uma vez que apenas as matrizes Matisse, que são baseadas na arquitetura Zen2, são instaladas sob o enorme espalhador de calor. Isto resulta na defasagem nos referenciais de núcleo único em comparação com a última geração de 5000 Ryzen. O Threadripper AMD Ryzen Pro 3975WX é mais comparável com o AMD Ryzen R9 3900X em termos de desempenho de um só núcleo.

Para mais comparações e benchmarks, nos referimos ao nossoGráfico de comparação de CPU.

CPU-Benchmarks Performance rating

Performance Rating - Percent
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	56.4 pt
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	55.8 pt
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	55.6 pt
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	53.6 pt
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	51.6 pt
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	45.1 pt
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	43.5 pt
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	41 pt
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	37.3 pt
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	35.3 pt

Cinebench R20
CPU (Multi Core)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	23571 Points +43%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	16464 Points
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	10482 Points -36%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	10240 Points -38%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	10000 Points -39%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	8845 Points -46%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	8629 Points -48%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	6950 Points -58%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	6910 Points -58%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	5997 Points -64%
CPU (Single Core)
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	766 Points +53%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	647 Points +29%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	641 Points +28%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	639 Points +28%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	514 Points +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	500 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	488 Points -2%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	487 Points -3%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	445 Points -11%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	430 Points -14%

Cinebench R15
CPU Multi 64Bit
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	9706 Points +38%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	7053 Points
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	4492 Points -36%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	4376 Points -38%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	4057 Points -42%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	3717 Points -47%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	3632 (3541.7^min - 3632.07^max) Points -49%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	3110 Points -56%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	3049 Points -57%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	2436 Points -65%
CPU Single 64Bit
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	286 Points +42%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	272 Points +35%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	271 Points +35%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	262 Points +30%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	209 Points +4%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	208 Points +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	201 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	195 Points -3%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	176 Points -12%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	173 Points -14%

Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	54.3 Points +4%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	52.2 Points
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	49.6 Points -5%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	47.06 Points -10%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	41.78 Points -20%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	38.39 Points -26%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	33.44 Points -36%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	27.07 Points -48%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	26.76 Points -49%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	21.6 Points -59%
CPU Single 64Bit
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	3.49 Points +59%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	3.14 Points +43%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	3.14 Points +43%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	3.1 Points +42%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	2.36 Points +8%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	2.36 Points +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	2.19 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	2.12 Points -3%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	1.9 Points -13%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	1.9 Points -13%

Blender - v2.79 BMW27 CPU
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	190.3 Seconds * -174%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	162.3 Seconds * -134%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	152.7 Seconds * -120%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	141 Seconds * -103%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	125 Seconds * -80%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	121.1 Seconds * -74%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	112.8 Seconds * -63%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	110.7 Seconds * -60%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	69.4 Seconds *
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	47.8 Seconds * +31%

WinRAR - Result
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	13361 KB/s +105%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	12503 KB/s +91%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	10792 KB/s +65%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	9030 KB/s +38%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	7529 KB/s +15%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	7172 KB/s +10%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	6689 KB/s +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	6530 KB/s
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	4548 KB/s -30%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	4261 KB/s -35%

TrueCrypt
AES Mean 100MB
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	27 GB/s
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	26.9 GB/s 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	26 GB/s -4%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	21.2 GB/s -21%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	19.5 GB/s -28%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	18.5 GB/s -31%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	18.2 GB/s -33%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	13 GB/s -52%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	12.2 GB/s -55%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	10.9 GB/s -60%
Twofish Mean 100MB
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	4.8 GB/s +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	4.7 GB/s
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	3.7 GB/s -21%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	3.7 GB/s -21%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	3.2 GB/s -32%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	3 GB/s -36%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	2.9 GB/s -38%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	2.9 GB/s -38%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	2.9 GB/s -38%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	1.9 GB/s -60%
Serpent Mean 100MB
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	2.9 GB/s +12%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	2.6 GB/s
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	2.4 GB/s -8%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	1.9 GB/s -27%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	1.9 GB/s -27%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	1.9 GB/s -27%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	1.8 GB/s -31%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	1.8 GB/s -31%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	1.7 GB/s -35%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	1.2 GB/s -54%

Geekbench 4.4
64 Bit Multi-Core Score
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	81029 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	80545 Points -1%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	63583 Points -22%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	63233 Points -22%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	51794 Points -36%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	50801 Points -37%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	43978 Points -46%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	42329 Points -48%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	36198 Points -55%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	32029 Points -60%
64 Bit Single-Core Score
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	8665 Points +50%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	7976 Points +38%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	7297 Points +27%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	7216 Points +25%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	5880 Points +2%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	5820 Points +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	5764 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	5567 Points -3%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	4903 Points -15%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	4463 Points -23%

HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	46.6 fps +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	43 fps
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	31.8 fps -26%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	30 fps -30%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	27.8 fps -35%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	25.5 fps -41%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	20.9 fps -51%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	19.8 fps -54%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	18 fps -58%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	17.5 fps -59%

X264 HD Benchmark 4.0
Pass 1
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	368.5 (366^min - 369^max) fps +38%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	338.5 (337^min - 340^max) fps +26%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	335 (325^min - 337^max) fps +25%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	309.5 (308^min - 311^max) fps +15%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	268 (266^min - 268^max) fps
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	267.5 (266^min - 268^max) fps 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	264 (261^min - 266^max) fps -1%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	215 (214^min - 216^max) fps -20%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	202.3 (200.47^min - 203.47^max) fps -25%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	202 (198^min - 202^max) fps -25%
Pass 2
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	221 (220^min - 221^max) fps +15%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	206 (206^min - 206^max) fps +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	193 (192^min - 193^max) fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	192.5 (192^min - 195^max) fps 0%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	191 (190^min - 192^max) fps -1%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	157.5 (155^min - 159^max) fps -18%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	147 (147^min - 148^max) fps -24%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	144.9 (143.48^min - 145.54^max) fps -25%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	137 (137^min - 137^max) fps -29%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	116.5 (115^min - 117^max) fps -40%

* ... smaller is better

More CPU-Benchmarks

Cinebench R23
Single Core
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	1998 Points +55%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	1693 Points +32%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	1649 Points +28%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	1568 Points +22%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	1286 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	1249 Points -3%
Multi Core
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	61102 Points +43%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	42744 Points
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	27062 Points -37%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	27005 Points -37%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	20634 Points -52%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	15519 Points -64%

Cinebench R10
Rendering Multiple CPUs 64Bit
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	112749 Points +28%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	104638 Points +19%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	99651 Points +13%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	88079 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	85956 Points -2%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	80613 Points -8%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	76051 Points -14%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	76051 Points -14%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	63266 Points -28%
Rendering Single CPUs 64Bit
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	16144 Points +59%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	14149 Points +39%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	13279 Points +30%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	12739 Points +25%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	10352 Points +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	10178 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	9892 Points -3%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	8763 Points -14%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	8678 Points -15%

wPrime 2.10
32m
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	6.109 s * -68%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	4.924 s * -36%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	4.186 s * -15%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	4.156 s * -15%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	3.982 s * -10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	3.626 s *
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	2.81 s * +23%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	2.564 s * +29%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	2.538 s * +30%
1024m
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	190.6 s * -685%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	77.9 s * -221%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	64.9 s * -167%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	57.5 s * -137%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	53.2 s * -119%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	47.4 s * -95%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	38.49 s * -59%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	25.41 s * -5%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	24.28 s *

Geekbench 5.5
Multi-Core
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	28798 Points
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	17854 Points -38%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	16891 Points -41%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	14881 Points -48%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	12990 Points -55%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	12160 Points -58%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	11035 Points -62%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	10501 Points -64%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	10498 Points -64%
Single-Core
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	2042 Points +59%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	1885 Points +47%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	1720 Points +34%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	1682 Points +31%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	1669 Points +30%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	1285 Points
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	1250 Points -3%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	1100 Points -14%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	1095 Points -15%

Geekbench 5.0
5.0 Multi-Core
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	31711 Points +9%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	29094 Points
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	17959 Points -38%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	16570 Points -43%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	15598 Points -46%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	12974 Points -55%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	11135 Points -62%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	11008 Points -62%
5.0 Single-Core
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	1968 Points +51%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	1863 Points +43%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	1683 Points +29%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	1667 Points +28%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	1306 Points
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	1271 Points -3%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	1266 Points -3%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	1247 Points -5%

3DMark 11 - 1280x720 Performance Physics
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	28211 Points +63%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	25367 Points +46%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	23423 Points +35%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	21175 Points +22%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	20452 Points +18%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	18270 Points +5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	17518 Points +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	17335 Points
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	17245 Points -1%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	17222 Points -1%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	12297 Points -29%

7-Zip 18.03
7z b 4
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	141386 MIPS
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	140172 MIPS -1%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	127792 MIPS -10%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	97671 MIPS -31%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	95123 MIPS -33%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	93092 MIPS -34%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	82119 MIPS -42%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	62746 MIPS -56%
7z b 4 -mmt1
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	6974 MIPS +36%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	6785 MIPS +32%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	6652 MIPS +29%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	6571 MIPS +28%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	5533 MIPS +8%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	5333 MIPS +4%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	5140 MIPS
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	5021 MIPS -2%

R Benchmark 2.5 - Overall mean
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	0.561 sec * -4%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	0.542 sec * -1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	0.538 sec *
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	0.4733 sec * +12%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	0.4556 sec * +15%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	0.4513 sec * +16%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	0.4216 sec * +22%

LibreOffice - 20 Documents To PDF
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	72.5 s * -6%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	68.2 s *
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	63.5 s * +7%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	56.5 s * +17%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	47.65 s * +30%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	45.97 s * +33%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	40.6 s * +40%

WebXPRT 3 - Overall
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	320 Points +62%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	291 Points +47%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	284 Points +43%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	239 Points +21%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	229 Points +16%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	217 Points +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	198 Points

Mozilla Kraken 1.1 - Total
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	954 ms * -30%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	762 ms * -4%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	736 ms *
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	566 ms * +23%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	558 ms * +24%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	544 ms * +26%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	481 ms * +35%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	39462 Points +55%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	39353 Points +54%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	36154 Points +42%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	28865 Points +13%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	27685 Points +9%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	27220 Points +7%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	25515 Points 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	25515 Points
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	24341 Points -5%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	23094 Points -9%
1920x1080 Fire Strike Physics
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	39600 Points +57%
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	39112 Points +55%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	35451 Points +41%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	28927 Points +15%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	28747 Points +14%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	28606 Points +14%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	27107 Points +8%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	25166 Points 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	25166 Points
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	23884 Points -5%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	21457 Points -15%
2560x1440 Time Spy CPU
Intel Core i9-12900K, Intel Core i9-12900K i9-12900K, 3200 MHz	18431 Points +65%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X R9 5950X, 3400 MHz	13650 Points +22%
Intel Core i9-11900K, Intel Core i9-11900K i9-11900K, 3500 MHz	13433 Points +20%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X R9 5900X, 3700 MHz	12633 Points +13%
Asus X299 Prime Desktop, Intel Core i9-10980XE i9-10980XE, 3000 MHz	12436 Points +11%
AMD Radeon RX Vega 64, AMD Ryzen 9 3900X R9 3900X, 3800 MHz	11880 Points +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	11154 Points
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX TR Pro 3975WX, 3500 MHz	11061 Points -1%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX TR Pro 3995WX, 2700 MHz	10946 Points -2%
no name, AMD Ryzen Threadripper 2950X TR 2950X, 3500 MHz	9886 Points -11%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64, AMD Ryzen Threadripper 2970WX TR 2970WX, 3000 MHz	7663 Points -31%

* ... smaller is better

Comino GRANDO RM V2-S no Cinebench R15 multi-loop

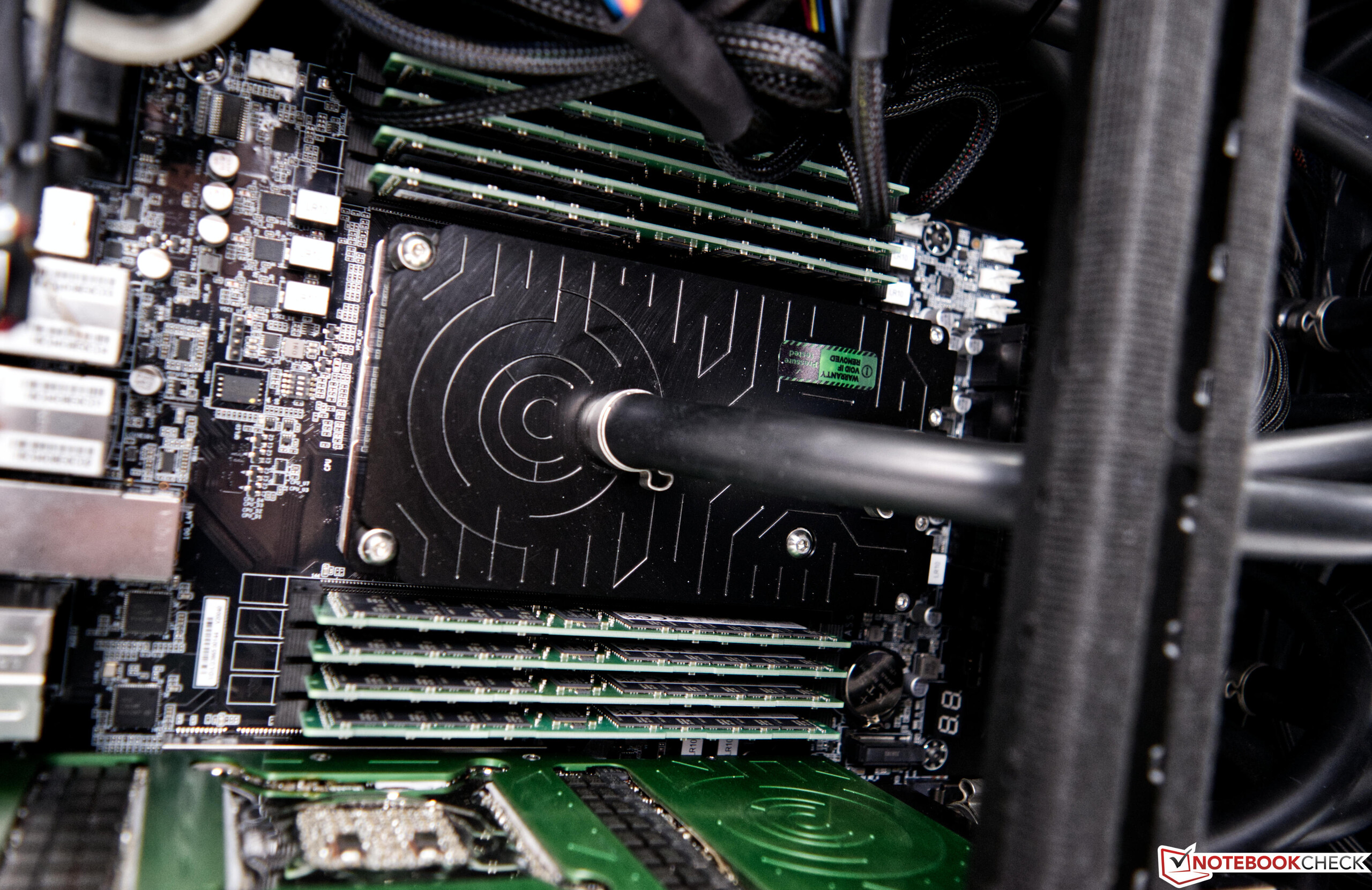

O conceito de resfriamento especialmente desenvolvido garante um bom desempenho, o que já vimos nos benchmarks de CPU. Mas mesmo sob carga permanente, o resfriamento não atinge seus limites. Assim, todas as pontuações do Cinebench R15 multi-loop estão mais ou menos no mesmo nível, com algumas pequenas flutuações. A estação de trabalho domina as 50 corridas com uma média de 7.121 pontos.

GRANDO RM-S (4 Nvidia RTX A6000) AMD Ryzen Threadripper PRO 3975WX, AMD Ryzen Threadripper PRO 3975WX: Ø7121 (7059.65-7173.6)

AMD Threadripper 2970WX, AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2970WX, AMD Ryzen Threadripper 2970WX: Ø4284 (4252.15-4316.86)

Lenovo ThinkStation P620 AMD Ryzen Threadripper PRO 3995WX, AMD Ryzen Threadripper PRO 3995WX: Ø9747 (9622.32-10101.01)

Desempenho da aplicação

Nos benchmarks de aplicação, a estação de trabalho Comino GRANDO RM V2-S pode dominar se o software também for capaz de recuperar o desempenho de todas as placas gráficas. O teste do LuxMark mostra muito claramente qual desempenho pode ser esperado. Nos outros benchmarks, o número dos quatro Nvidia RTX A6000 infelizmente não mostra vantagem. Dependendo do teste de renderização, às vezes Nvidia e às vezes AMD se beneficiam do desempenho.

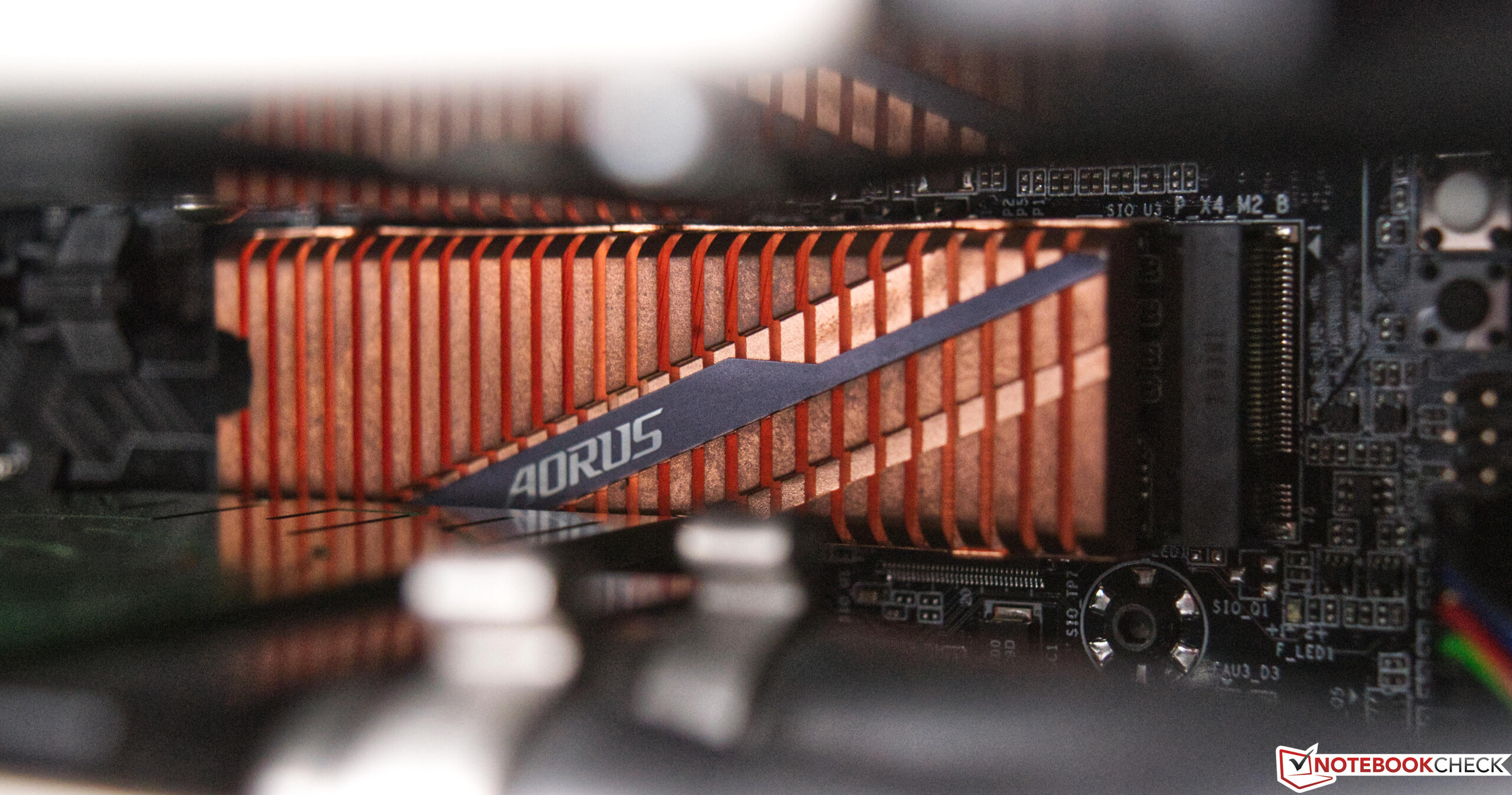

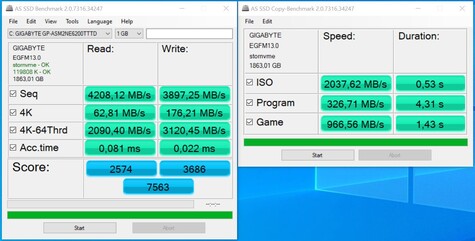

O armazenamento em massa instalado de nossa amostra de teste compreende 2 TB e fornece taxas de transferência muito rápidas graças ao protocolo NVMe. Também tivemos 512 GB de memória de trabalho DDR4, o que é um exagero absoluto para cargas normais de trabalho. Quem encomendar uma máquina com esta quantidade de memória de trabalho deve saber como utilizá-la.

Render Tests in Performance Rating

Performance Rating | LuxMark v2.0 64Bit | ComputeMark v2.1 | V-Ray 5 Benchmark

Performance Rating - Percent
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	94.4 pt
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	69.8 pt
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX ^-1! AMD Radeon Pro W6800	55.8 pt

LuxMark v2.0 64Bit
Room GPUs-only
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	22134 Samples/s
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	5504 Samples/s -75%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	4483 Samples/s -80%
Sala GPUs-only
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	57054 Samples/s
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	14363 Samples/s -75%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	3260 Samples/s -94%

ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	17677 Points +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	16101 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	9695 Points -40%
1024x600 Normal, Mandel Scalar
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	11336 Points +12%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	10135 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	8733 Points -14%
1024x600 Normal, Mandel Vector
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	9648 Points +11%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	8665 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	7356 Points -15%
1024x600 Normal, Fluid 2DTexArr
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	4262 Points +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	4168 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	3283 Points -21%
1024x600 Normal, Fluid 3DTex
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	4867 Points +18%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	4746 Points +15%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	4141 Points
1024x600 Normal, Score
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	47668 Points +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	43210 Points
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	33935 Points -21%

V-Ray 5 Benchmark
GPU CUDA
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	6733 mpaths
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	1659 mpaths -75%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	1345 mpaths -80%
GPU RTX
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	11043 mpaths
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	2806 mpaths -75%

Performance Rating | SPECviewperf 2020 | SPECviewperf 13 | SPECviewperf 12 | PCMark 10

Performance Rating - Percent
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	89.3 pt
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	83.7 pt
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	80.4 pt
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	79.3 pt
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	77.5 pt
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	77.3 pt
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	76.3 pt

SPECviewperf 2020
3840x2160 Solidworks (solidworks-05)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	265 fps +88%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	169 fps +20%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	158 fps +12%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	154 fps +9%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	153 fps +9%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	153 fps +9%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	141 fps
3840x2160 Siemens NX (snx-04)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	481 fps +31%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	434 fps +18%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	370 fps +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	367 fps
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	363 fps -1%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	347 fps -5%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	337 fps -8%
3840x2160 Medical (medical-03)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	52 fps +62%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	37.9 fps +18%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	32.1 fps
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	16.8 fps -48%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	16.5 fps -49%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	16.42 fps -49%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	16.33 fps -49%
3840x2160 Maya (maya-06)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	345 fps +32%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	329 fps +26%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	262 fps 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	262 fps
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	257 fps -2%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	257 fps -2%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	247 fps -6%
3840x2160 Energy (energy-03)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	87.7 fps +90%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	63 fps +37%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	58.2 fps +26%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	57.9 fps +26%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	46.1 fps
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	39.1 fps -15%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	38.7 fps -16%
3840x2160 Creo (creo-03)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	129 fps +71%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	126 fps +67%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	113 fps +49%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	111 fps +47%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	109 fps +44%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	87.8 fps +16%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	75.6 fps
3840x2160 CATIA (catia-06)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	82.4 fps +22%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	79.7 fps +18%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	78.6 fps +16%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	78.2 fps +16%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	77.2 fps +14%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	76.2 fps +13%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	67.5 fps
3840x2160 3ds Max (3dsmax-07)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	162 fps +69%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	137 fps +43%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	115 fps +20%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	114 fps +19%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	114 fps +19%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	108 fps +13%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	95.7 fps

SPECviewperf 13
Solidworks (sw-04)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	199 fps +4%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	198 fps +4%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	196.4 fps +3%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	192 fps +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	191 fps
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	174.6 fps -9%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	173 fps -9%
Siemens NX (snx-03)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	638 fps +6%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	604 fps
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	516 fps -15%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	493.4 fps -18%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	478.5 fps -21%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	450 fps -25%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	437 fps -28%
Showcase (showcase-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	255 fps +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	239 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	216 fps -10%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	199 fps -17%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	194 fps -19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	191.1 fps -20%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	190.5 fps -20%
Medical (medical-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	184 fps +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	180 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	116 fps -36%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	93.6 fps -48%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	90.8 fps -50%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	90.6 fps -50%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	90 fps -50%
Maya (maya-05)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	505 fps +25%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	460.3 fps +14%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	458 fps +13%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	454 fps +12%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	415 fps +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	405 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	395 fps -2%
Energy (energy-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	132 fps +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	128 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	87.8 fps -31%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	53.7 fps -58%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	52.7 fps -59%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	52 fps -59%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	52 fps -59%
Catia (catia-05)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	467 fps +30%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	430 fps +20%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	415 fps +16%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	389 fps +8%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	374.8 fps +4%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	371 fps +3%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	359 fps
3ds Max (3dsmax-06)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	338 fps +37%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	318 fps +29%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	291.3 fps +18%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	290.5 fps +18%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	287 fps +16%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	265 fps +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	247 fps

SPECviewperf 12
1900x1060 Solidworks (sw-03)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	225 fps +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	208 fps
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	196.8 fps -5%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	185 fps -11%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	182 fps -12%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	174.9 fps -16%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	174 fps -16%
1900x1060 Siemens NX (snx-02)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	351 fps +5%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	333 fps
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	287 fps -14%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	273.2 fps -18%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	264.7 fps -21%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	245 fps -26%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	243 fps -27%
1900x1060 Showcase (showcase-01)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	255 fps +8%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	237 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	215 fps -9%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	203 fps -14%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	200 fps -16%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	191.1 fps -19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	190.8 fps -19%
1900x1060 Medical (medical-01)
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	165 fps +6%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	159 fps +2%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	156 fps
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	108 fps -31%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	90.7 fps -42%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	87.8 fps -44%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	87.8 fps -44%
1900x1060 Maya (maya-04)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	211 fps +44%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	199 fps +35%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	189.7 fps +29%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	188.3 fps +28%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	157 fps +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	147 fps
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	144 fps -2%
1900x1060 Energy (energy-01)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	39.8 fps +1%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	39.3 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	37.8 fps -4%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	30.1 fps -23%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	28.31 fps -28%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	28.2 fps -28%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	27.88 fps -29%
1900x1060 Creo (creo-01)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	187 fps +47%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	173 fps +36%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	173 fps +36%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	141.9 fps +12%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	136 fps +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	127 fps
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	101 fps -20%
1900x1060 Catia (catia-04)
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	290 fps +39%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	269 fps +29%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	262.7 fps +26%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	248 fps +19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	237.7 fps +14%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	229 fps +10%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	208 fps
1900x1060 3ds Max (3dsmax-05)
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	336 fps +37%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	311 fps +27%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	292.6 fps +19%
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	291.3 fps +19%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	289 fps +18%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	262 fps +7%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	245 fps

PCMark 10
Score
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	8778 Points +27%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	8604 Points +25%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	8480 Points +23%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	7745 Points +12%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	7474 Points +8%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	6893 Points 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	6893 Points
Digital Content Creation
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	14607 Points +23%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	14573 Points +22%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	13801 Points +16%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	12357 Points +4%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	11919 Points 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	11919 Points
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	11863 Points 0%
Productivity
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	11163 Points +45%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	10699 Points +39%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	10079 Points +31%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	10039 Points +31%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	9425 Points +23%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	7681 Points 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	7681 Points
Essentials
AMD Ryzen 9 5950X, AMD Ryzen 9 5950X NVIDIA Titan RTX	11255 Points +16%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX	11086 Points +14%
AMD Ryzen 9 5900X, AMD Ryzen 9 5900X NVIDIA Titan RTX	10964 Points +13%
Intel Core i9-11900K, Intel Core i9-11900K NVIDIA Titan RTX	10585 Points +9%
GRANDO RM-S (1 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX NVIDIA RTX A6000	9731 Points 0%
Lenovo ThinkStation P620, AMD Ryzen Threadripper PRO 3995WX AMD Radeon Pro W6800	9711 Points 0%
GRANDO RM-S (4 Nvidia RTX A6000), AMD Ryzen Threadripper PRO 3975WX 4x NVIDIA RTX A6000	9711 Points

Desempenho 3D

Que uma estação de trabalho não deve ser usada principalmente como uma plataforma de jogos fica claro quando você analisa em detalhes os testes de jogos. Especialmente nos dois jogos Far Cry , nossa amostra de teste tem enormes problemas com taxas de quadros jogáveis. As coisas parecem um pouco melhores nos outros jogos que examinamos, embora o desempenho do Nvidia RTX A6000 esteja às vezes claramente atrás do Nvidia GeForce RTX 3090. Além disso, o suporte multi-GPU está completamente ausente nos jogos, de modo que apenas uma das quatro GPUs poderia ser usada. Entretanto, se você desativar três das quatro placas gráficas, a performance do Nvidia RTX A6000 utilizado individualmente aumenta significativamente. Fica muito claro aqui que o Windows não deve ser a primeira escolha como plataforma para multi-GPUs.

Para mais comparações e benchmarks, nos referimos ao nossoG Tabela de comparação PU.

Performance Rating - Percent
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	93.3 pt
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	83.5 pt
NVIDIA Titan RTX ^-6! NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	81.6 pt
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	81.5 pt
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	75 pt
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	67.2 pt
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	62.2 pt

3DMark
Fire Strike Extreme Graphics
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	25015 Points +27%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	22075 Points +12%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	21196 Points +7%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	19729 Points 0%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	19729 Points
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	18131 Points -8%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	17009 Points -14%
1920x1080 Fire Strike Graphics
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	49735 Points +78%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	41298 Points +48%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	37550 Points +34%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	35136 Points +26%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	27937 Points 0%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	27937 Points
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	27511 Points -2%
2560x1440 Time Spy Graphics
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	18685 Points +84%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	17603 Points +73%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	15202 Points +50%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	12136 Points +19%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	11473 Points +13%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	10490 Points +3%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	10167 Points

3DMark 11
1280x720 Performance GPU
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	55144 Points +45%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	52046 Points +36%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	50957 Points +34%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	50224 Points +32%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	44404 Points +16%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	43888 Points +15%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	38132 Points
1280x720 Performance
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	41663 Points +42%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	38620 Points +32%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	38057 Points +30%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	34321 Points +17%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	34078 Points +16%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	30190 Points +3%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	29277 Points

Unigine Superposition
1280x720 720p Low
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	36452 Points +56%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	34713 Points +49%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	34649 Points +48%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	24008 Points +3%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	23343 Points
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	22537 Points -3%
1920x1080 1080p High
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	23853 Points +10%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	22265 Points +3%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	22164 Points +3%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	21617 Points
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	19450 Points -10%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	15832 Points -27%
1920x1080 1080p Extreme
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	12113 Points +3%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	11806 Points 0%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	11790 Points
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	10046 Points -15%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	8478 Points -28%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	6804 Points -42%
3840x2160 4k Optimized
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	16166 Points +2%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	15818 Points
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	15794 Points 0%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	13471 Points -15%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	12133 Points -23%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	9106 Points -42%
7680x4320 8k Optimized
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	7071 Points 0%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	7036 Points
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	7002 Points 0%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	5256 Points -25%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	4838 Points -31%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	3586 Points -49%

Metro Exodus - 3840x2160 Ultra Quality AF:16x
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	70.6 (41.43^min - 118.98^max) fps +5%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	70.4 (45.27^min - 104.78^max) fps +5%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	67 (41.38^min - 103.26^max) fps
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	56.3 (40.14^min - 64.28^max) fps -16%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	54.7 (36.07^min - 72.76^max) fps -18%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	42.3 (27.78^min - 56.35^max) fps -37%

Far Cry New Dawn - 3840x2160 Ultra Preset
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	97 (75^min - 124^max) fps +169%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	94 (75^min - 129^max) fps +161%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	84 (71^min - 101^max) fps +133%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	70 (57^min - 91^max) fps +94%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	63 (45^min - 91^max) fps +75%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	55 (42^min - 77^max) fps +53%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	36 (20^min - 55^max) fps

Far Cry 5 - 3840x2160 Ultra Preset AA:T
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	105 (94^min - 121^max) fps +483%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	95 (72^min - 124^max) fps +428%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	83 (72^min - 98^max) fps +361%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	70 (59^min - 91^max) fps +289%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	60 (49^min - 75^max) fps +233%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	50 (35^min - 70^max) fps +178%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	18 (11^min - 27^max) fps

X-Plane 11.11 - 3840x2160 high (fps_test=3)
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	117 fps +73%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	92.8 fps +37%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	67.8 fps
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	67.2 fps -1%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	45.5 fps -33%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	45.1 fps -33%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	40.1 fps -41%

Final Fantasy XV Benchmark - 3840x2160 High Quality
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	82.4 fps +46%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	81.5 fps +45%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	65.2 fps +16%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	64.1 fps +14%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	60.8 fps +8%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	56.3 fps
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	47.7 fps -15%

Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	178.9 (147.4^min) fps +64%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	138.6 (69.8^min) fps +27%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	127.9 (109.8^min) fps +17%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	122.2 (105.8^min) fps +12%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	109.3 (82.8^min) fps
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	105.8 (89.8^min) fps -3%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	94 (67.5^min) fps -14%

The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	148 fps +4%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	146 (65.4^min, 78.1^P0.1, 117^P1 - 396^max) fps +3%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	142 (35.4^min, 62.7^P0.1, 101^P1 - 411^max) fps
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	110 (97^min - 117^max) fps -23%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	103 (57.9^min, 71.8^P0.1, 88.3^P1 - 466^max) fps -27%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	99.1 (58^min, 70.3^P0.1, 79.5^P1 - 233^max) fps -30%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	63 fps -56%

F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	137 (113^min - 161^max) fps +1%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	136 (114^min - 160^max) fps
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	135 (116^min - 157^max) fps -1%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	128 (106^min - 152^max) fps -6%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	109 (87^min - 131^max) fps -20%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	101 (87^min - 119^max) fps -26%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	83 fps -39%

GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	155 (3.76^min, 100^P1 - 267^max) fps +12%
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	151 (6.66^min, 33.3^P1 - 81.5^max) fps +9%
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	139 (0.64^min, 25^P1 - 249^max) fps
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	138 (6.01^min, 100^P1 - 287^max) fps -1%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	134 (15.5^min, 55.6^P1 - 252^max) fps -4%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	125 (6.9^min, 90.9^P1 - 181^max) fps -10%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	96.5 (5.12^min, 71.4^P1 - 220^max) fps -31%

Strange Brigade - 3840x2160 ultra AA:ultra AF:16
4x NVIDIA RTX A6000 NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	246 (41^min, 167^P1 - 401^max) fps
NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 5900X, Corsair MP600	150 (99^min, 124^P1 - 238^max) fps -39%
NVIDIA RTX A6000 NVIDIA RTX A6000, TR Pro 3975WX	149 (55.1^min, 127^P1 - 206^max) fps -39%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5	133 (45.6^min, 48.7^P1 - 316^max) fps -46%
AMD Radeon Pro W6800 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	126 (91.9^min, 104^P1 - 184^max) fps -49%
NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	115 (98.4^min, 101^P1 - 148^max) fps -53%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600	91 (73.6^min, 77.5^P1 - 121^max) fps -63%

Comino GRANDO RM V2-S with 4x Nvidia RTX A6000

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	169	162	142	88.5	88.4	139
The Witcher 3 (2015)	351	331	305	173		142
Dota 2 Reborn (2015)	154	135.3	126.8	115.3		109.3
Final Fantasy XV Benchmark (2018)	175	167	131		113	56.3
X-Plane 11.11 (2018)	109	96.8	78.3			67.8
Far Cry 5 (2018)	18	18	17	18	17	18
Strange Brigade (2018)	317	260	257	258	252	246
Far Cry New Dawn (2019)	40	40	38	37	37	36
Metro Exodus (2019)	119	106	95.7	87.9	83.5	67
F1 2020 (2020)	277	241	241	221	210	136
F1 2021 (2021)	328	303	278	159	149	96.8

Comino GRANDO RM V2-S with 1x Nvidia RTX A6000

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	177	171	160	96.2	95.8	155
The Witcher 3 (2015)	362	334	307	180		146
Dota 2 Reborn (2015)	160.5	144.8	138.7	131.2		127.9
Final Fantasy XV Benchmark (2018)	176	168	135		127	82.4
X-Plane 11.11 (2018)	109	97	78.1			67.2
Far Cry 5 (2018)	55	52	53	52	52	50
Strange Brigade (2018)	382	300	293	288	247	149
Far Cry New Dawn (2019)	71	66	68	65	63	63
Metro Exodus (2019)	120	109	96.8	87.9	84.1	70.4
F1 2020 (2020)	278	248	241	224	210	137
F1 2021 (2021)	333	313	281	162	155	99.7

Emissões

Comino GRANDO RM V2-S resfria surpreendentemente bem

O conceito de resfriamento da estação de trabalho Comino GRANDO RM V2-S é único. Tanto o Threadripper AMD Pro 3975WXassim como os quatro Nvidia RTX A6000As placas gráficas são resfriadas por um sistema de resfriamento líquido especialmente desenvolvido. Muito surpreendente é o uso de um único radiador de 360 milímetros (~14,2 pol.). Além disso, três ventiladores de 140 milímetros (~5,5 pol.) são instalados na caixa a fim de conduzir o calor residual para fora da caixa. Para isso, é necessário observar mais de perto a construção da caixa, pois o sistema não deve ser usado sem o painel lateral montado, pois de outra forma a pressão dos ventiladores não é suficiente para forçar o ar através do radiador.

Os 32 núcleos aquecem até um máximo de 69 °C (156,2 °F) no teste de esforço com Prime95. Se também iniciarmos o FurMark, o processador aquece até 73 °C (163,4 °F), embora observemos 57 °C (134,6 °F) para a placa gráfica. Entretanto, o FurMark usa apenas uma GPU sob carga. Várias configurações para alterar isto foram tentadas sem sucesso. Com outras ferramentas, porém, foi possível carregar todas as placas gráficas ao mesmo tempo para verificar se o resfriamento é capaz de resfriar todos os componentes, apesar do radiador único. De fato, isto é possível. Entretanto, as temperaturas das placas gráficas sobem um pouco mais de 80 °C (176 °F), o que ainda está bem dentro da zona verde. Se considerarmos que há um total de calor residual de 1.480 watts (CPU + GPUs), o resultado final é muito bom. Quanto ao projeto do Comino GRANDO RM V2-S, deve ser mencionado que é um rack de 19 polegadas. Assim, o uso planejado é mais em uma sala de servidores com ar condicionado, o que deve melhorar ainda mais as temperaturas. A temperatura em nosso ambiente de teste era de 22,6 °C (~73 °F) no momento do teste.

O desempenho extremamente alto também tem uma desvantagem

A estação de trabalho Comino GRANDO RM V2-S estabelece novos patamares no consumo de energia. Mesmo em modo inativo, nosso dispositivo de medição mostra pouco mais de 200 watts. Assim que iniciamos Prime95, ele aumenta e atinge uma média de 580 watts. Mas isso não é suficiente, pois quase 716 watts têm de ser fornecidos durante os jogos. Medimos uma média de 1.880 watts no pior cenário, onde carregamos a CPU e as GPUs a 100%. Entretanto, o máximo que as unidades de fornecimento de energia têm que fornecer é de até 1.940 watts. Fontes de alimentação, sim, você leu corretamente. Se você já tiver dado uma olhada mais de perto na configuração, você pode ver que um total de três fontes de alimentação SFF com 750 watts cada uma estão instaladas. Estas fornecem um desempenho sólido e não houve falha no sistema devido a picos de carga muito altos, mesmo sob carga extrema

Consumo de energia durante o teste de estresse com Prime95

Consumo de energia CPU de carga completa e todas as GPUs

Energy consumption of the Comino GRANDO RM V2-S

GRANDO RM-S (4 Nvidia RTX A6000) NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX; Prime95 V2810 Stress (external Monitor): Ø580 (526-609)

GRANDO RM-S (4 Nvidia RTX A6000) NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX; 1920x1080 The Witcher 3 ultra (external Monitor): Ø717 (602-873)

Power Consumption
1920x1080 The Witcher 3 ultra (external Monitor)
GRANDO RM-S (4 Nvidia RTX A6000) NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	716 (692^min - 872^max) Watt *
Intel Core i9-12900K NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5 (Idle: 70.5 W)	463 (439^min - 490^max) Watt * +35%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64 RX Vega 64, TR 2970WX	441 (382^min - 475^max) Watt * +38%
AMD Ryzen 9 5950X NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5 (Idle: 78 W)	440.5 (420^min - 466^max) Watt * +38%
AMD Ryzen 9 5900X NVIDIA Titan RTX, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 78.1 W)	439.6 (419^min - 497^max) Watt * +39%
no name RX Vega 64, TR 2950X	411 Watt * +43%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600 (Idle: 81.56 W)	392.1 (329^min - 466^max) Watt * +45%
Intel Core i9-11900K NVIDIA Titan RTX, i9-11900K, Intel Optane 905P 480GB 2.5 (Idle: 57.3 W)	387 (380^min - 410^max) Watt * +46%
Lenovo ThinkStation P620 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	344 (304^min, 307^P1 - 405^max) Watt * +52%
Prime95 V2810 Stress (external Monitor)
GRANDO RM-S (4 Nvidia RTX A6000) NVIDIA RTX A6000 (Quad NV-Link), TR Pro 3975WX	580 (526^min, 540^P1 - 609^max) Watt *
Lenovo ThinkStation P620 Radeon Pro W6800, TR Pro 3995WX, WDC PC SN720 SDAPNTW-256G	420 (399^min, 401^P1 - 432^max) Watt * +28%
AMD Threadripper 2970WX, AMD Radeon RX Vega 64 RX Vega 64, TR 2970WX	373 (326^min - 411^max) Watt * +36%
Intel Core i9-11900K NVIDIA Titan RTX, i9-11900K, Intel Optane 905P 480GB 2.5 (Idle: 57.3 W)	302.2 (263^min - 353^max) Watt * +48%
Intel Core i9-12900K NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5 (Idle: 70.5 W)	279.6 (261^min - 357^max) Watt * +52%
no name RX Vega 64, TR 2950X	270 Watt * +53%
AMD Ryzen 9 5950X NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5 (Idle: 78 W)	252.3 (227^min - 259^max) Watt * +56%
AMD Ryzen 9 5900X NVIDIA Titan RTX, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 78.1 W)	235.6 (211^min - 284^max) Watt * +59%
AMD Radeon RX Vega 64 RX Vega 64, R9 3900X, Corsair MP600 (Idle: 81.56 W)	210.6 (195^min - 256^max) Watt * +64%

* ... smaller is better

Pro

+ desempenho multi-core muito alto (32 núcleos - 64 fios)

+ 4 GPUs Nvidia RTX A6000

+ muito bom desempenho 3D em uso profissional

+ 512 GB RAM (ECC)

+ caso muito maciço e bem pensado

+ sofisticado e especialmente projetado sistema de resfriamento de água

+ muito rápido 2 TB NVMe SSD

Contra

- O software nem sempre suporta todos os núcleos de CPU

- sem software especial, muitas vezes apenas uma GPU utilizável

- preço muito alto

Veredicto - Posto de trabalho de alta qualidade pelo preço de um carro de gama média

Estação de trabalho Comino GRANDO RM V2-S em revisão - Fornecido por Comino UK

O Comino GRANDO RM V2-S não é uma simples estação de trabalho de prateleira. Pelo contrário, o fabricante fez questão de responder diretamente aos desejos do cliente, a fim de oferecer soluções personalizadas de estação de trabalho. Ele também conta com componentes de servidor para oferecer a melhor estabilidade possível no uso diário. Entretanto, o fabricante ousa equipar o sistema com um sistema de resfriamento por água para resfriar perfeitamente o processador e as placas gráficas. Dificilmente poderíamos acreditar que um único radiador seja suficiente para manter o sistema inteiro sob controle após a primeira inspeção visual. Mas no decorrer do teste, descobriu-se que o conceito de resfriamento funcionou. Assim, o Threadripper AMD Ryzen Pro 3975WX foi capaz de proporcionar um desempenho muito bom. Mesmo sob carga total, o desempenho foi sempre mantido no mesmo nível. Isto também se aplica às quatro placas gráficas Nvidia RTX A6000, que só podem mostrar seu verdadeiro potencial em combinação com um software especial. O que é teoricamente viável poderia ser mostrado em benchmarks individuais.

O Comino GRANDO RM V2-S é uma estação de trabalho especial com desempenho bruto e um conceito sofisticado de refrigeração.

Com o Threadripper AMD Ryzen Pro 3975WX instalado, você obtém uma CPU de 32 núcleos muito rápida, que é suportada por um total de 512 GB de RAM em nossa configuração. Aqueles que conhecem as vantagens de um drive de RAM podem aproveitá-las ao máximo aqui. Outras cargas de trabalho, tais como virtualização ou edição de vídeo, são tratadas por esta estação de trabalho sem qualquer problema. Outras tarefas para tal sistema seriam, por exemplo, a pesquisa de IA ou cálculos científicos, bem como a renderização 3D e a produção de filmes.

Qualquer pessoa que decida montar tal estação de trabalho tem um claro objetivo de uso para esta máquina. Para uso profissional, o desempenho é muito alto e a economia de tempo deve ter um papel importante. No entanto, o fator custo é enorme. Em nosso caso, o sistema como o tivemos no teste custa cerca de 29.000 euros (~$32.824, antes de impostos). Como se trata de uma compra puramente comercial, o valor bruto pode ser negligenciado. Uma pessoa privada certamente não pagará esta quantia por uma estação de trabalho. Entretanto, se você pensa que este preço é uma exceção, está errado. A recente revisãoLenovo ThinkStation P620 também pode ser configurado rapidamente até 25.000 euros (~$28.296).

Comino oferece um grande número de PCs de estações de trabalho que podem ser personalizados mediante solicitação. Os preços para equipamentos alternativos também só estão disponíveis mediante solicitação do fabricante.

Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 388017 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Comino GRANDO RM V2-S estação de trabalho profissional de alto nível em revisão - 4 RTX A6000 atende a Ryzen Threadripper Pro 3975WX

Sebastian Bade, 2021-11-28 (Update: 2021-11-28)
