Intel NUC 12 Pro Kit - Wall Street Canyon em revisão: Mini PC avançado com Intel Core i7-1260P para alta versatilidade

Name: Intel NUC 12 Pro Kit NUC12WSKi7
Brand: Intel

Rápido e à prova de futuro! As peças móveis do 12º gênero Alder Lake da Intel conseguiram chegar à série NUC. O design híbrido composto por núcleos P e E é um sucesso e proporciona um bom desempenho. Nesta revisão, vamos explorar as características incluídas e o bom desempenho do mini PC.

Sebastian Bade (traduzido por DeepL / Ninh Duy), Published 11/28/2022 🇺🇸 🇩🇪 ...

Alder Lake Desktop Intel Mini PC Thunderbolt

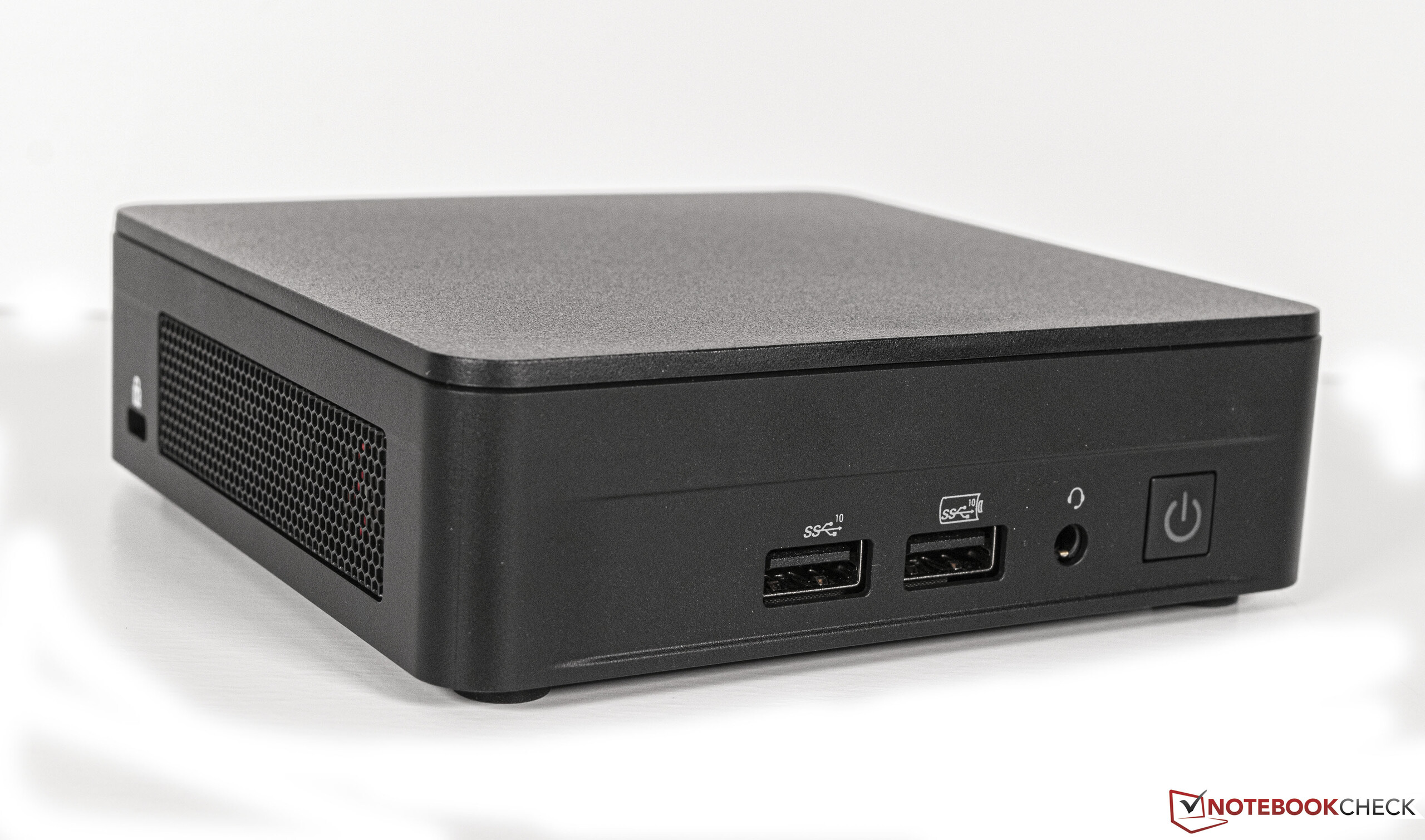

Kit Intel NUC 12 Pro - Wall Street Canyon

A Intel atualizou sua série compacta NUC mini PC com os novos SoCs Alder Lake-P. O nome "Wall Street Canyon" significa a última série de modelos baseados nos modernos SoCs. Existem duas configurações básicas, que diferem em termos de suas dimensões. O modelo ligeiramente mais alto carrega o moniker "Tall", que indica a opção de um acionamento adicional de 2,5 polegadas. Em contraste, nosso dispositivo de teste "Slim" não oferece esta opção. Em termos de preço, cerca de 100 USD separa as duas variantes. Ambos os dispositivos são capazes apenas como um barebone. Assim, os usuários terão que instalar a RAM e armazenar eles mesmos.

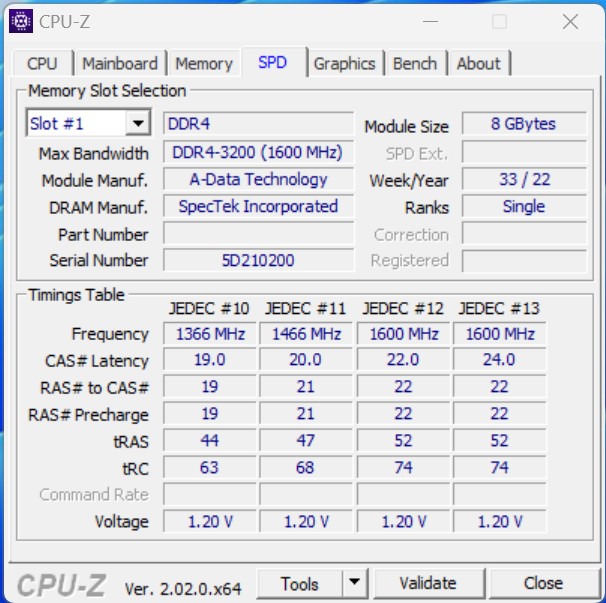

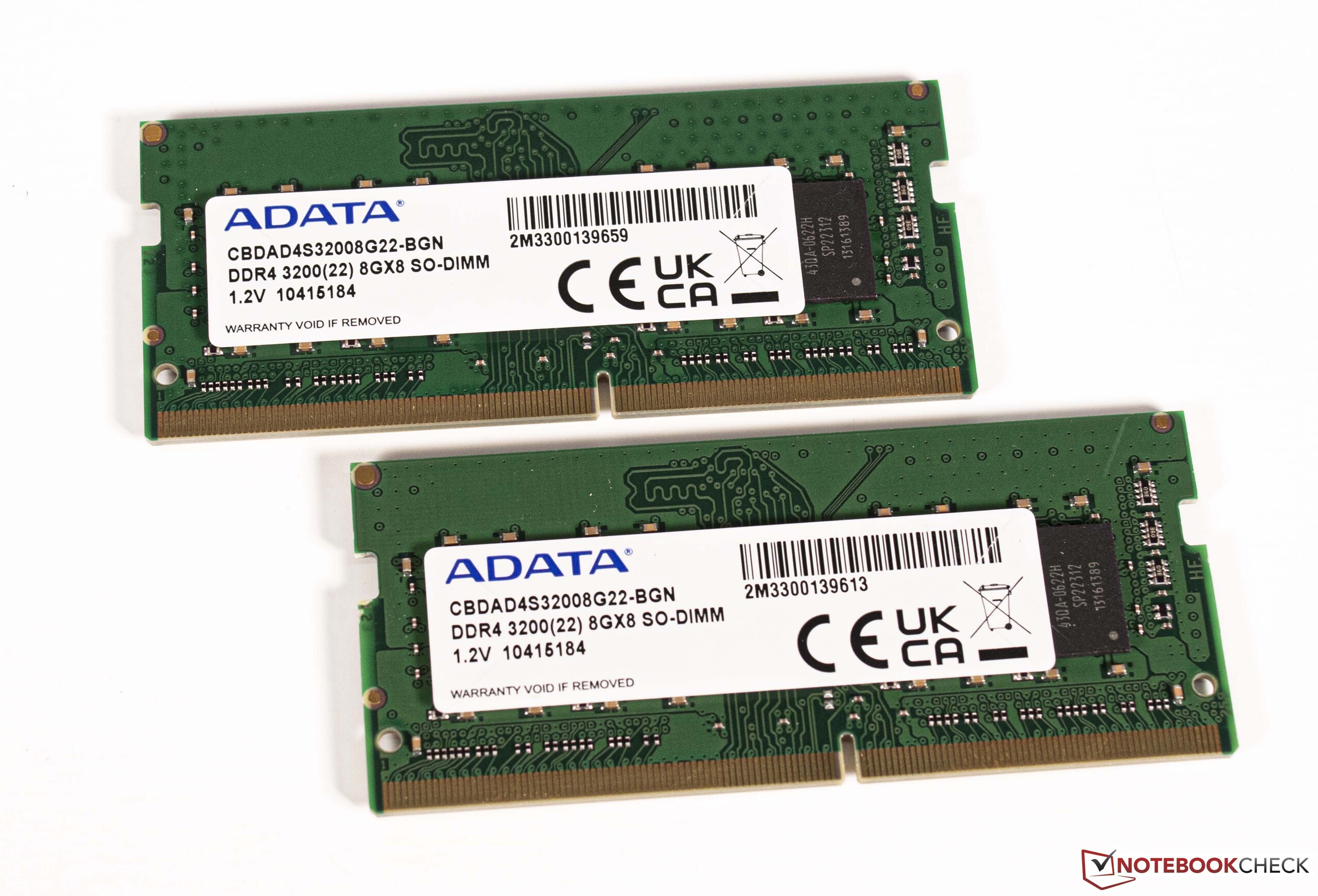

Para nossos testes, instalamos dois módulos DDR4-3200 de 8 GB e um SSD de 512 GB em nossa amostra de teste. A última versão disponível do Windows 11 Professional no momento desta revisão serve como sistema operacional.

Intel NUC 12 Pro Kit NUC12WSKi7

Processador

Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 64 W PL2 / Short Burst, 40 W PL1 / Sustained, Alder Lake-P

Placa gráfica

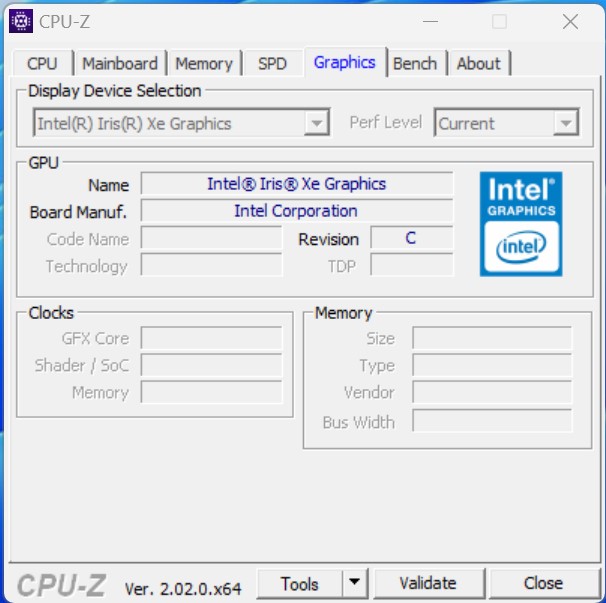

Intel Iris Xe Graphics G7 96EUs, Análises do: 1400 MHz, Memoría: 1600 MHz, 30.0.101.1369 DCH

Memória

16 GB

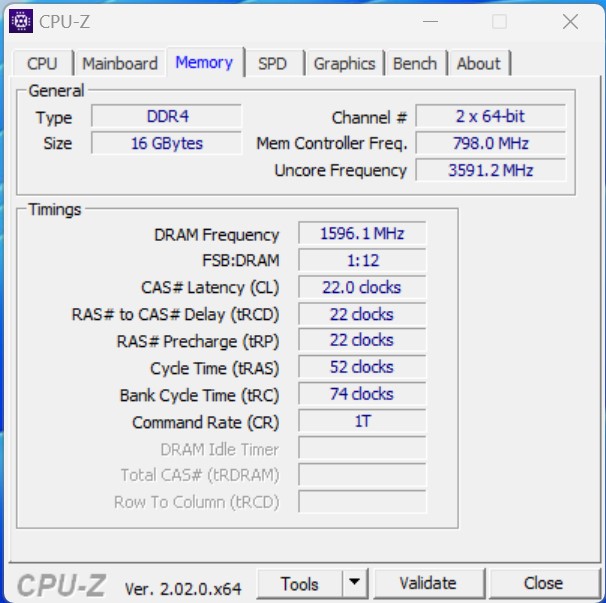

, DDR4-3200, Dual-Channel, max. 64 GB

placa mãe

Intel Alder Lake-P PCH

Disco rígido

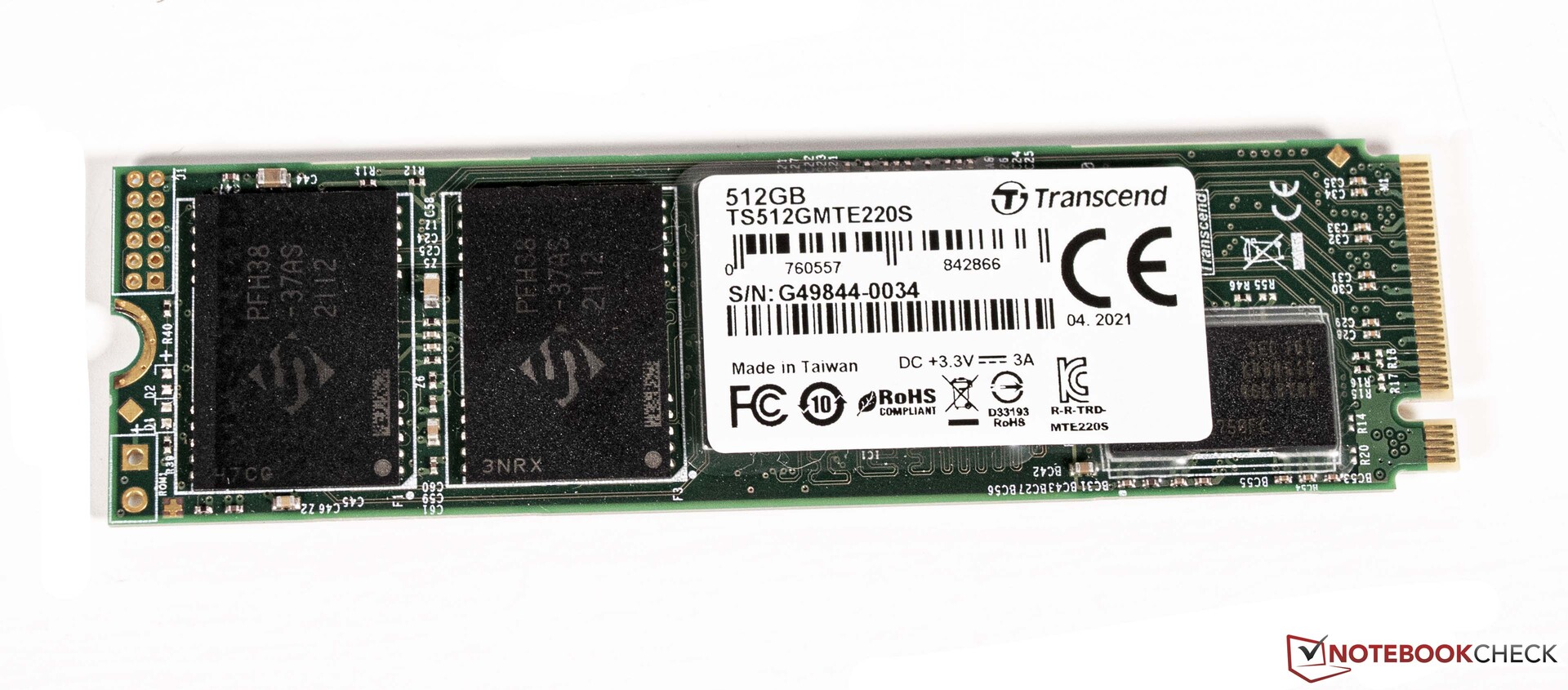

Transcend M.2 SSD 2200S TS512GMTE220S, 512 GB

Placa de Som

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Conexões

1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 1 Kensington Lock, Conexões Audio: 3.5mm Klinke

Funcionamento em rede

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 37 x 117 x 112

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

Netzteil, 36 Meses Garantia

peso

511 g, Suprimento de energia: 342 g

Preço

699 EUR

Links

Intel página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height
78.9 %	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
	04/2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm

Kit Intel NUC 12 Pro em detalhe

Kit Intel NUC 12 Pro - Wall Street Canyon (sem tampa)

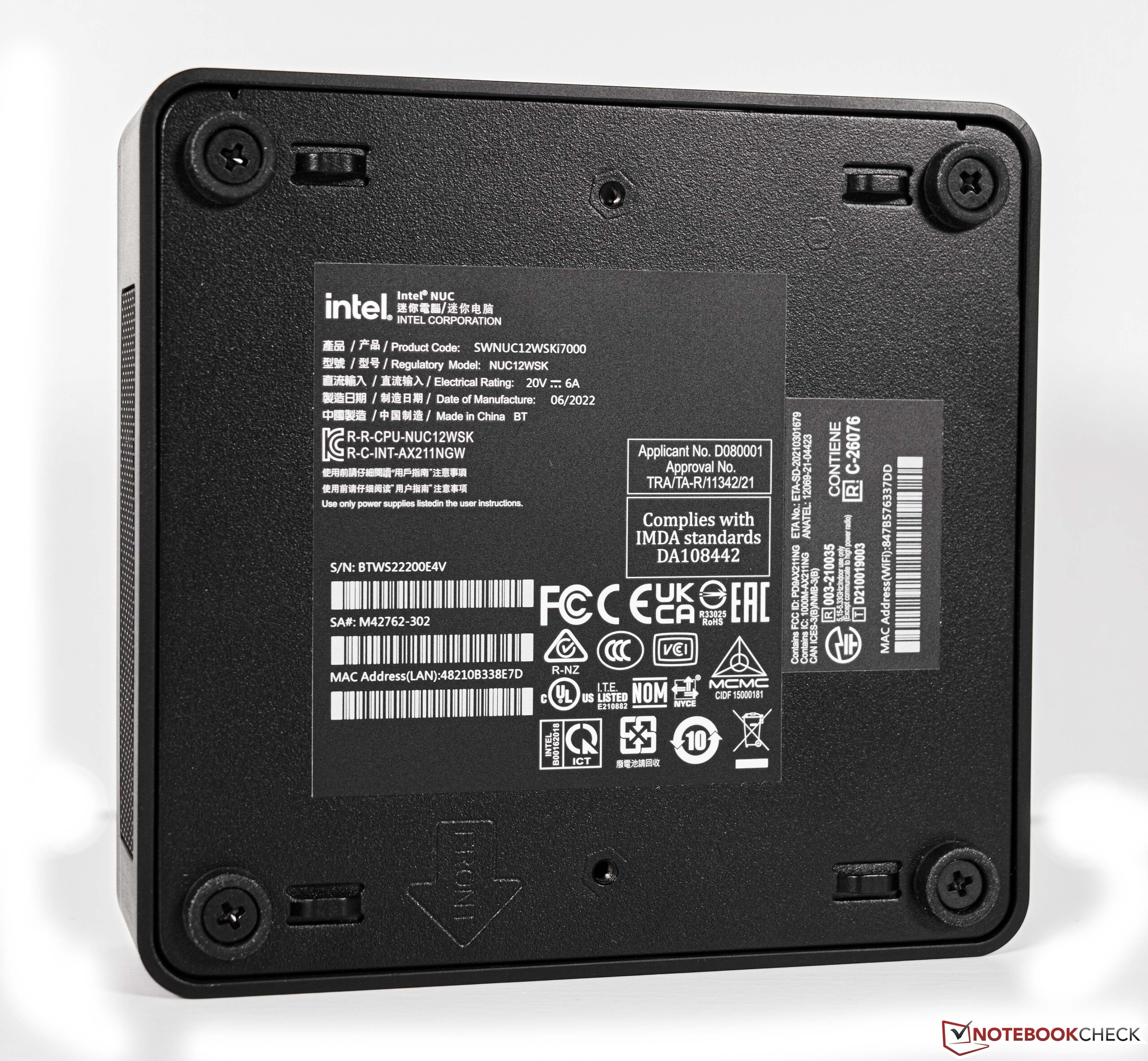

Kit Intel NUC 12 Pro - Wall Street Canyon (placa inferior)

Caso

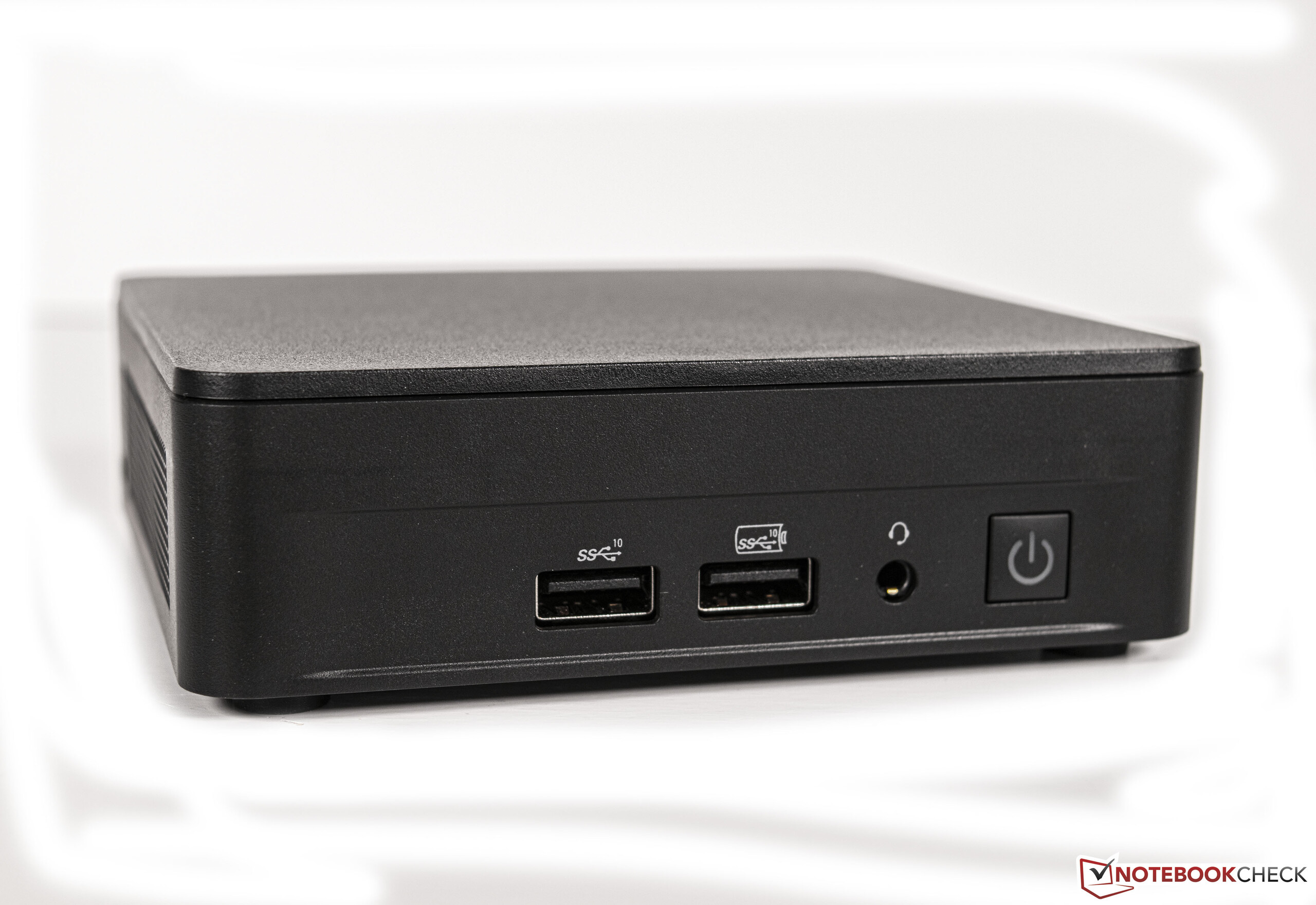

Visualmente, o Wall Street Canyon é muito obviamente um NUC da Intel. O design exterior do dispositivo é muito sutil e não há superfícies brilhantes em nenhum lugar do sistema. Embora o fundo da caixa seja de metal, dobrando como uma solução de resfriamento para o armazenamento, uma parte notável do NUC consiste de plástico. O dispositivo tem uma estrutura metálica robusta, que quase se tornou padrão nos compactos NUCs da Intel e fornece ao PC a rigidez necessária. Com uma altura de apenas 37 mm (~1,46 pol.), nossa versão Slim é bastante pequena. Além disso, o dispositivo não ocupa muito espaço em uma mesa devido a sua pequena altura de 11,7 x 11,2 cm (~4,61 x 4,41 pol.). Alternativamente, ele pode ser fixado a um monitor com o suporte VESA incluído.

Conectividade

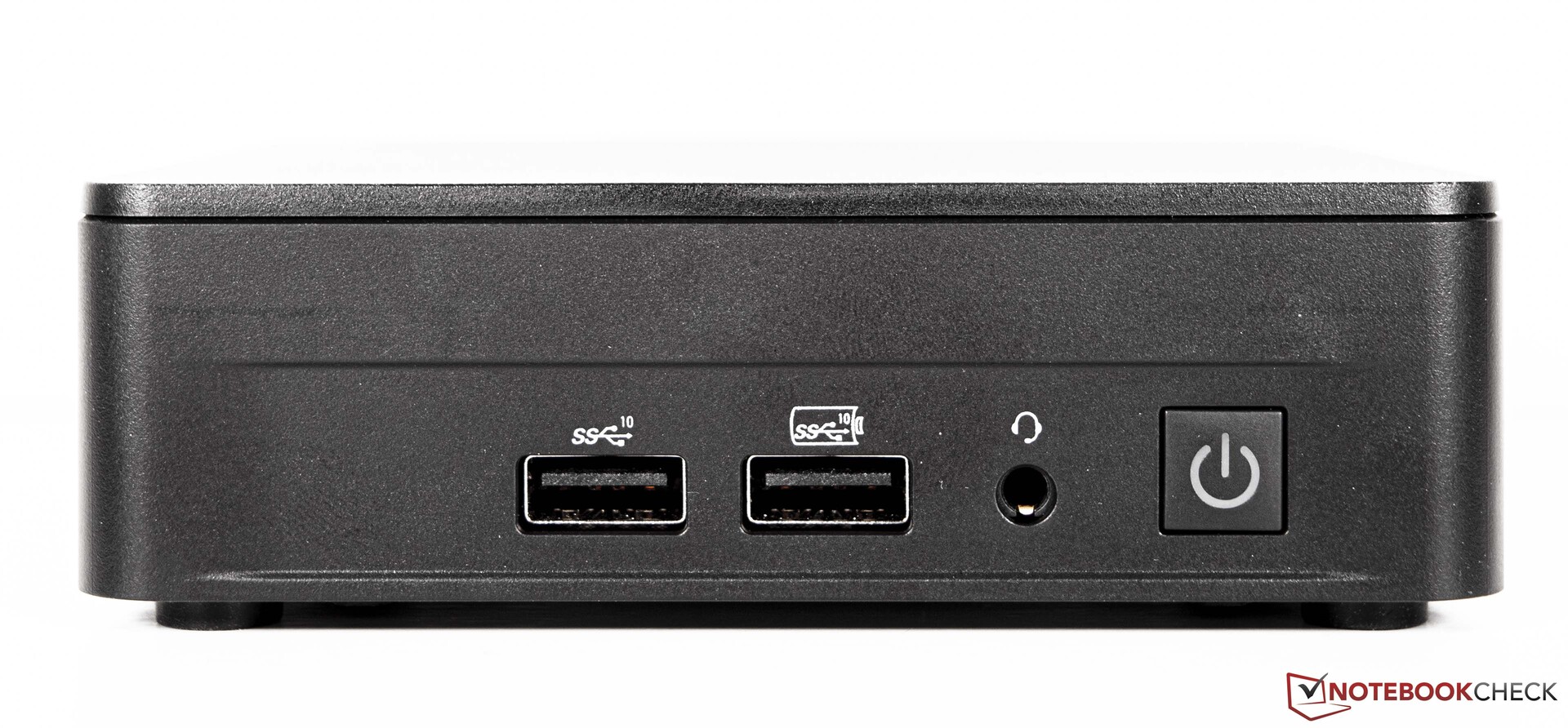

O Kit Intel NUC 12 Pro oferece todas as opções mais comuns em termos de seleção de portas. Existem quatro portas USB tipo A e duas portas USB tipo C. As portas do tipo C suportam velocidades USB4. As duas interfaces Thunderbolt também aumentam enormemente a flexibilidade do sistema. A ampla gama de acessórios disponíveis é quase infinita. Finalmente, há duas portas HDMI e uma porta Ethernet 2.5G.

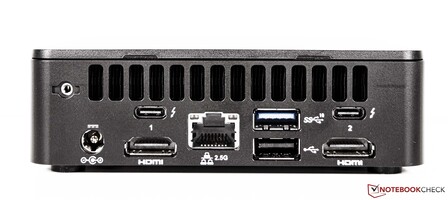

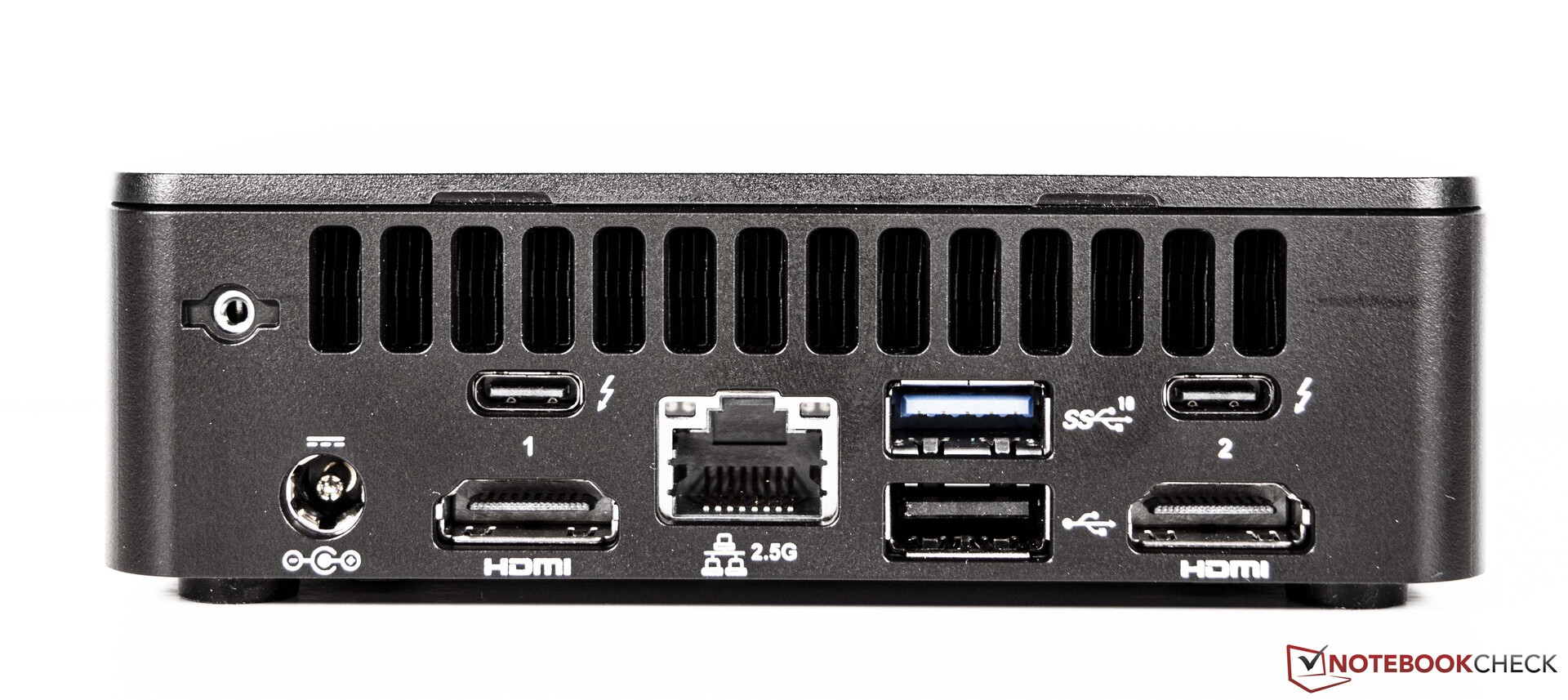

Voltar: Adaptador AC, 2x USB4 (tipo C), 1x USB 3.2, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1

Comunicação

No Kit NUC 12 Pro, o próprio módulo Wi-Fi 6E AX211 da Intel é usado para redes sem fio. Ele tem um bom desempenho em nossos testes. Independentemente disso, ele não atinge as taxas de transferência que estávamos esperando ao enviar dados. O Morefine S600-Apex alcança resultados significativamente melhores com o mesmo módulo. Utilizamos nosso roteador de referência Asus ROG Rapture GT-AXE11000 para este teste.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s
Average Intel Wi-Fi 6E AX211 (883 - 1857, n=171)	1492 MBit/s -2%
Average of class Mini PC (390 - 1771, n=38, last 2 years)	1197 MBit/s -22%
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1044 (1009^min - 1058^max) MBit/s -32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -41%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -75%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1658 (1514^min - 1706^max) MBit/s +80%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=172)	1375 MBit/s +50%
Average of class Mini PC (432 - 1764, n=39, last 2 years)	1158 MBit/s +26%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -19%

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø904 (458-982)

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1530 (1509-1551)

Acessórios

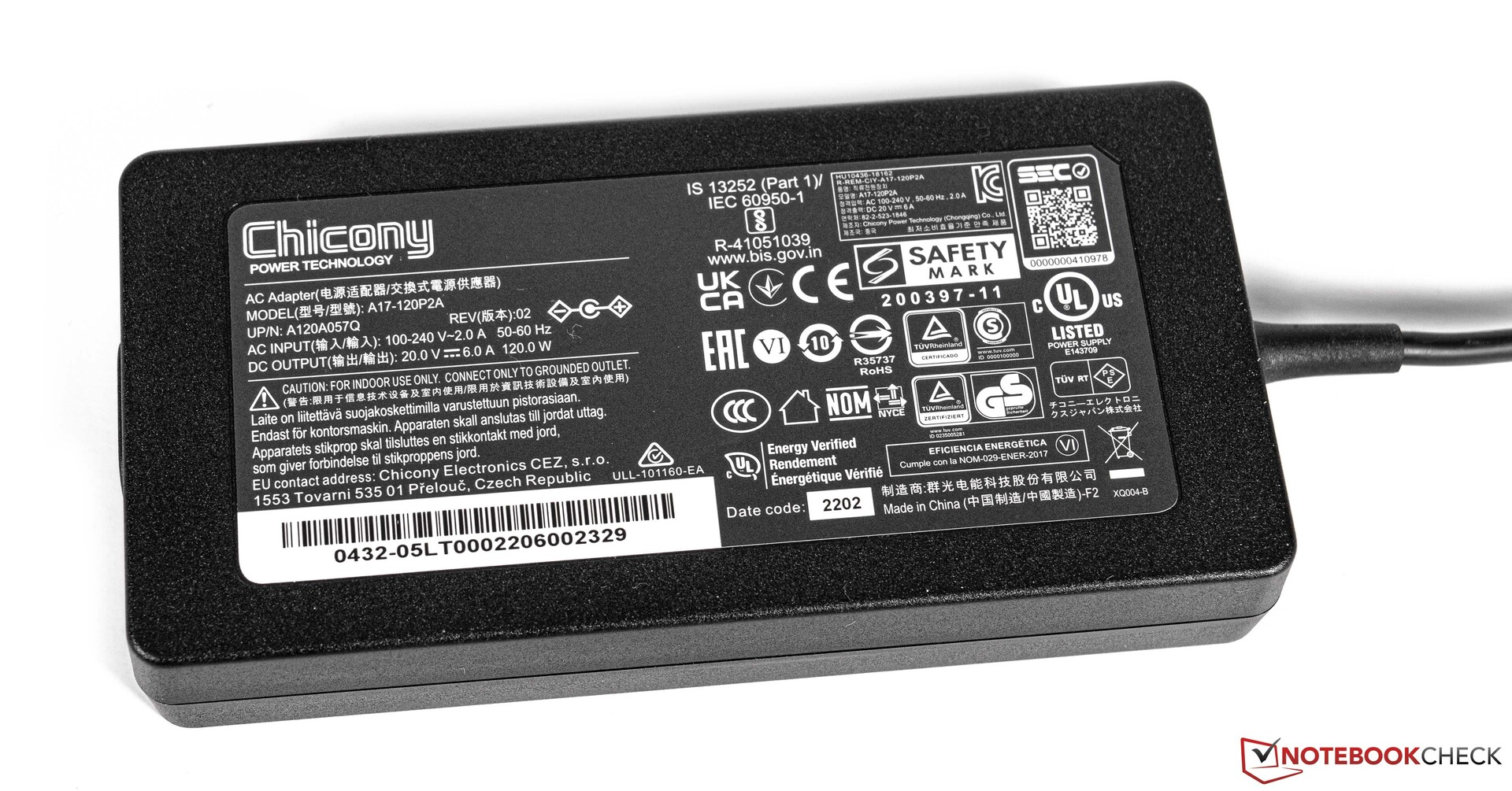

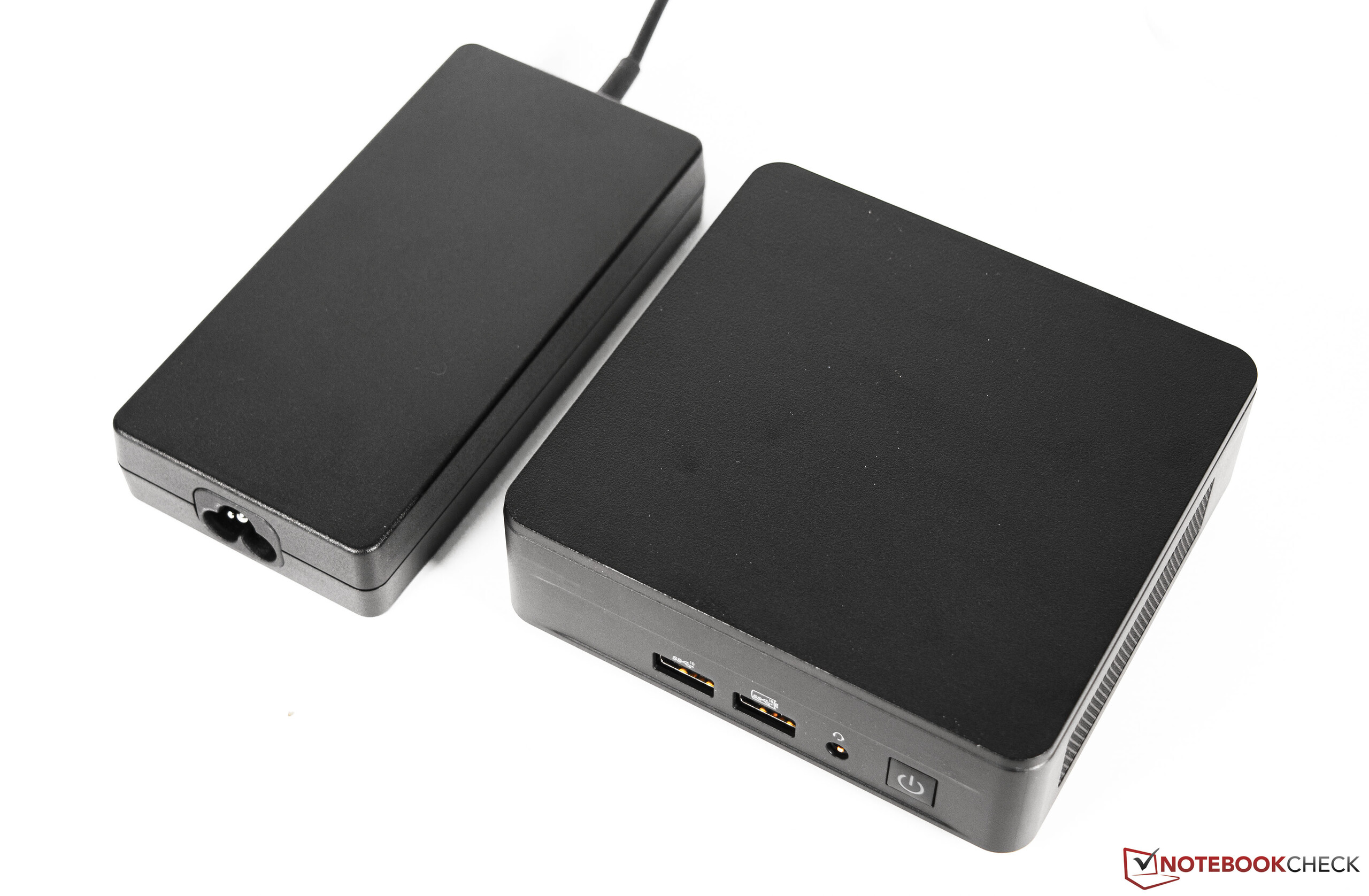

Além do dispositivo em si, o pacote inclui o adaptador AC de 120 watts e uma placa para montagem VESA.

Manutenção

Como todos os NUCs compactos da Intel, o Kit NUC 12 Pro permite uma manutenção rápida e fácil através da parte inferior do dispositivo. A tampa inferior é fixada por quatro pequenos parafusos e duplica como um refrigerador para os SSDs. Uma vez dentro, o acesso aos slots de RAM e SSD é muito simples.

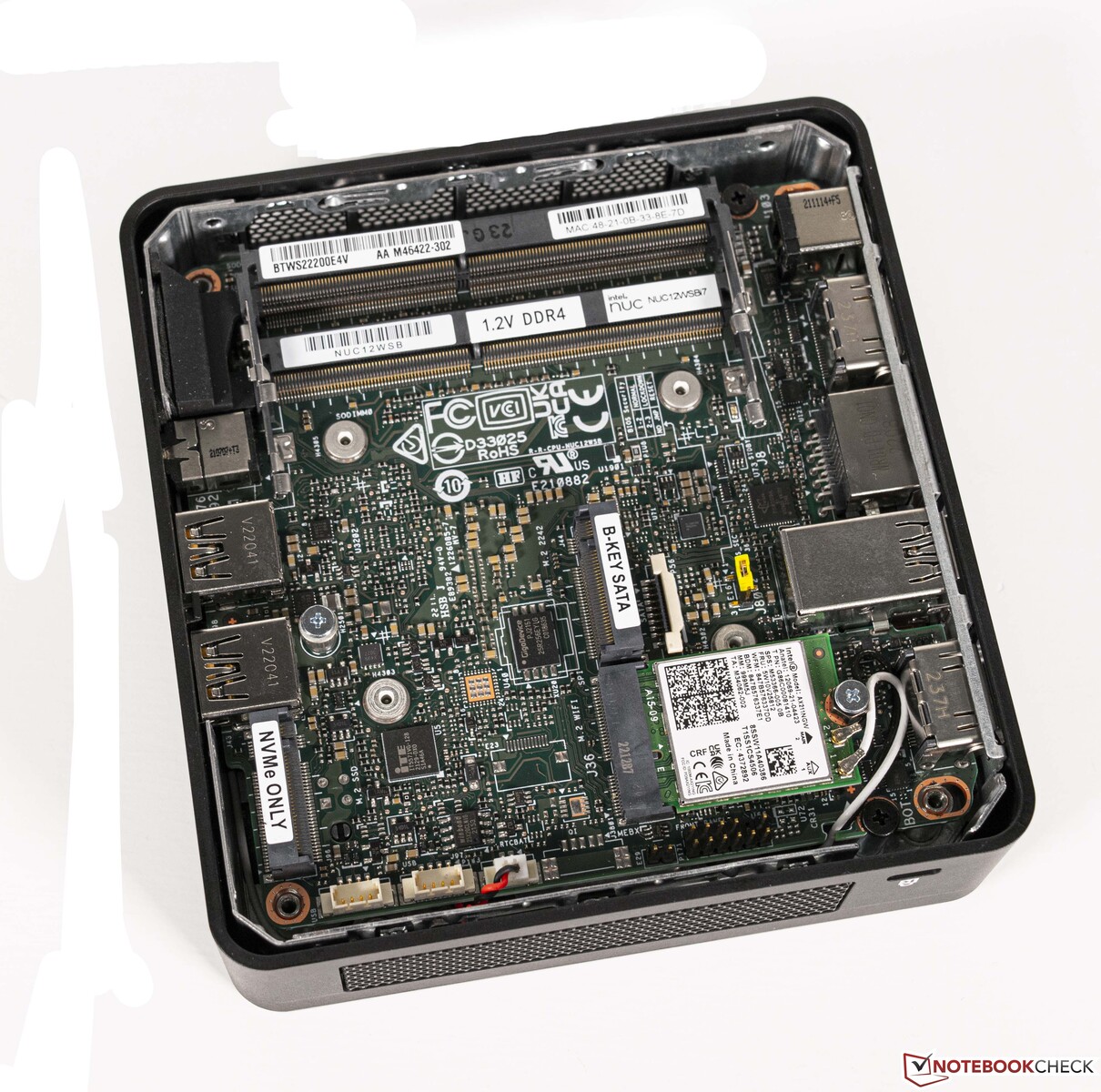

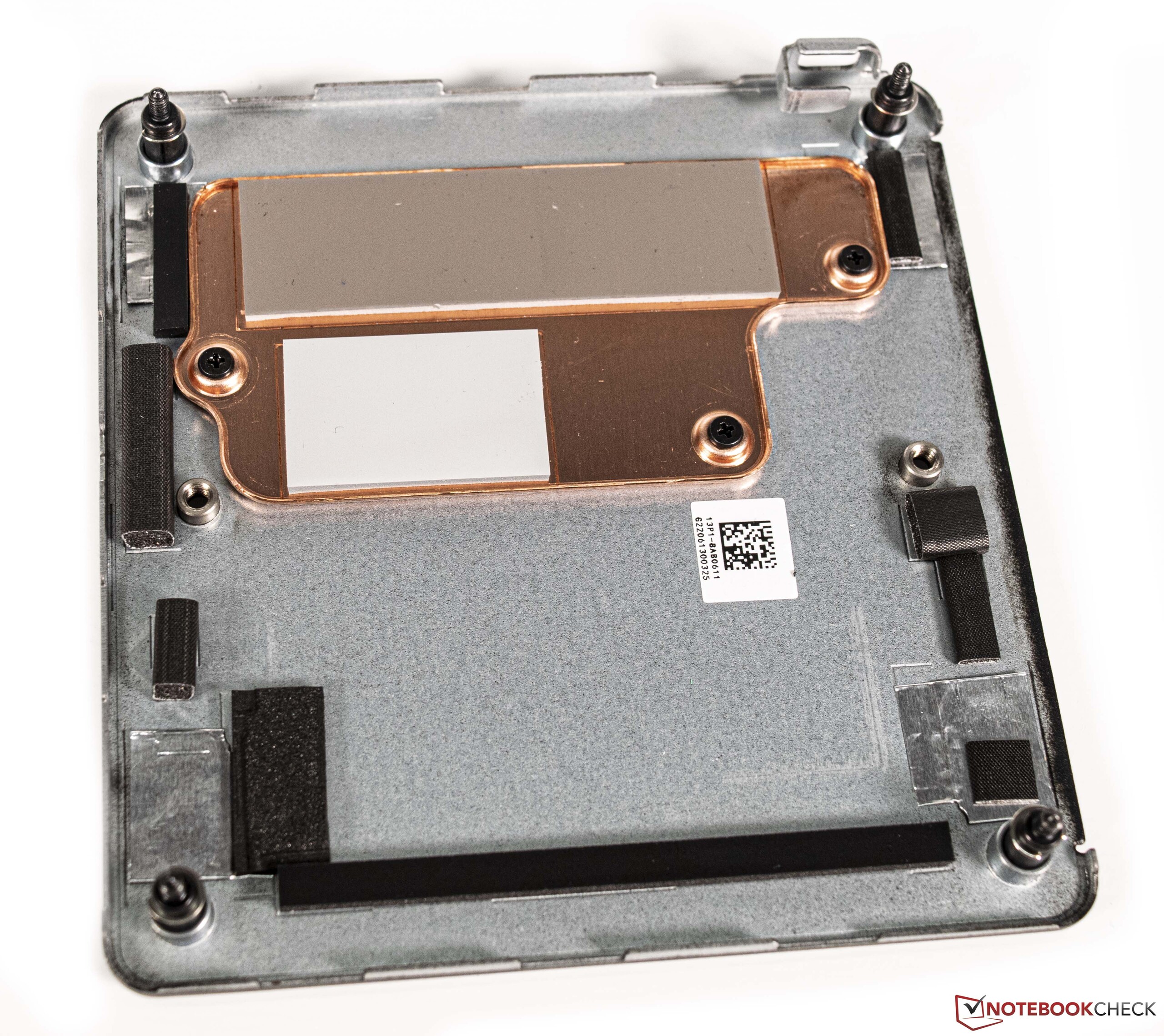

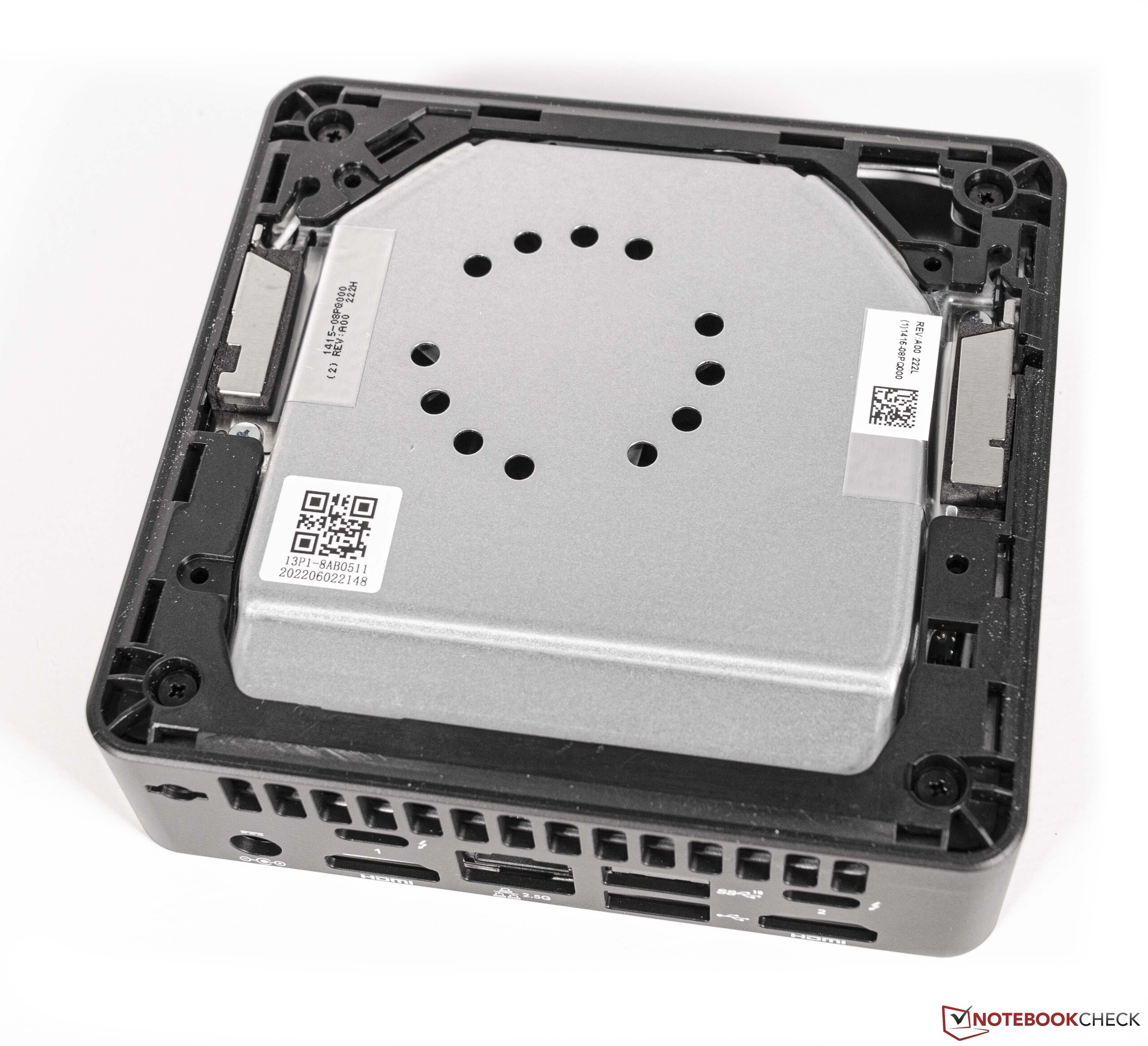

Kit Intel NUC 12 Pro - Wall Street Canyon com a tampa inferior removida

Desempenho - Core i7 com 12 Núcleos

Os PCs compactos estão se tornando cada vez mais poderosos, como os usuários que trabalham com o Kit Intel NUC 12 Pro perceberão rapidamente. No coração do sistema, há uma CPU de 12 núcleos com 16 roscas, tornando o sistema compacto uma excelente escolha para tarefas exigentes.

Condições de teste

Realizamos todos os benchmarks utilizando o perfil de potência equilibrado. Não modificamos as configurações de desempenho da CPU e deixamos tudo em automático nas configurações da BIOS.

Processador

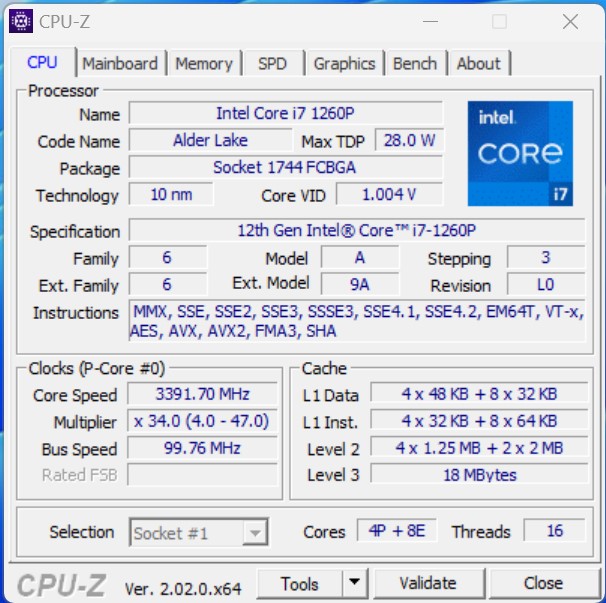

Com oIntel Core i7-1260Po kit Intel NUC 12 Pro inclui um SoC muito recente. Graças a seus 12 núcleos físicos e um total de 16 fios, o Intel Core i7-1260p é uma escolha sólida, mesmo para usuários exigentes. Ele é classificado para um TDP (PL2) de 64 watts e um TDP (PL1) contínuo de 40 watts. Em comparação com seus concorrentes, o Intel NUC 12 Pro Kit tem um desempenho muito bom. Entre seus concorrentes PC compactos, apenas o Morefine S600-Apex é capaz de alcançar uma pontuação geral ligeiramente melhor. Um déficit de 14% comparado a um Intel Core i5-12600K ainda não é particularmente grande. Isto ilustra ainda mais como este SoC móvel é capaz de ter um bom desempenho.

Mais comparações e benchmarks podem ser encontrados em nosso Página de referência da CPU.

Performance Rating - Percent
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	55.2 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	48.5 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Average Intel Core i7-1260P	46 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt

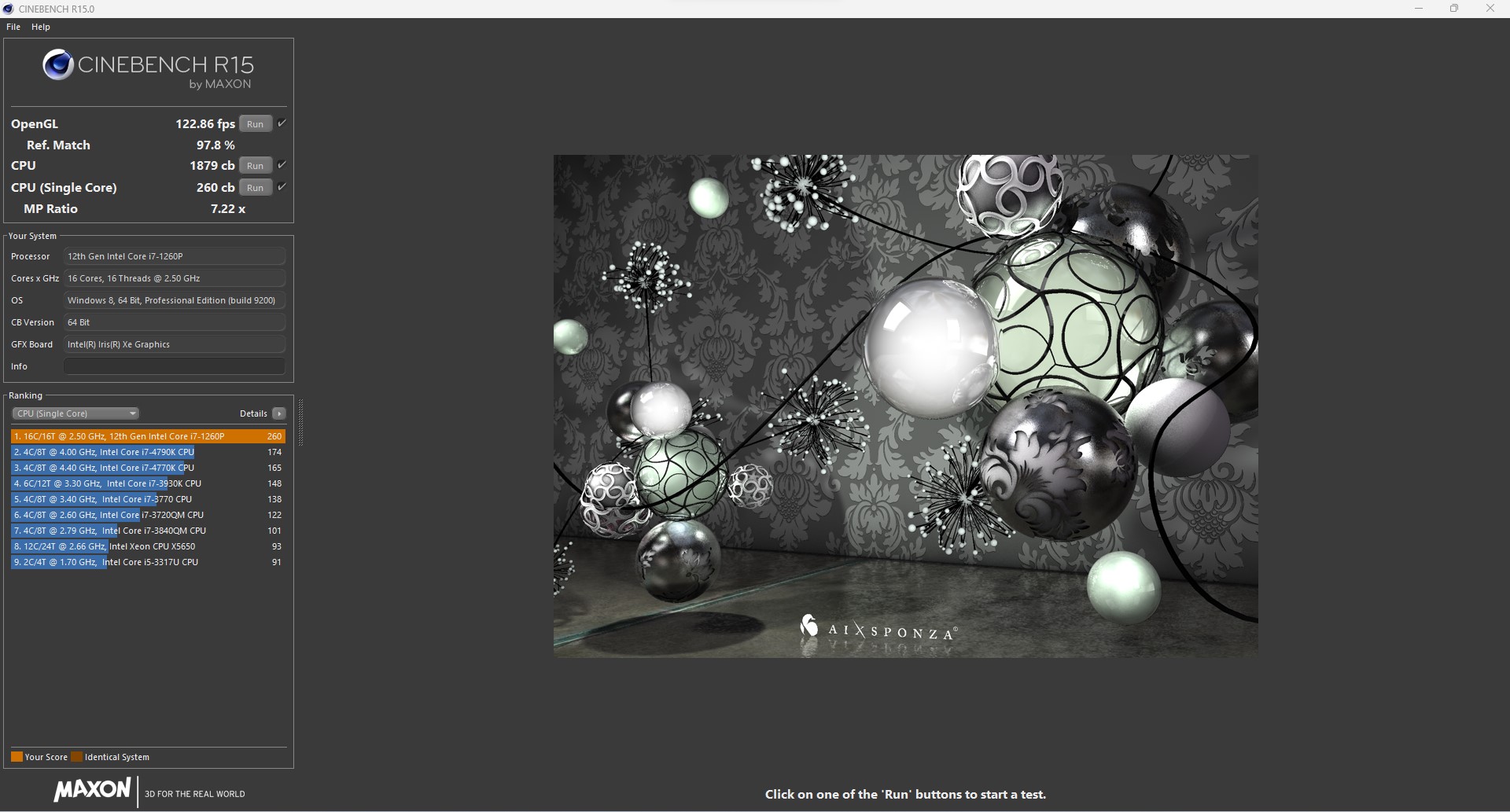

Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	275 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points -7%
Average Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -24%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2555 Points +36%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Average Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -70%

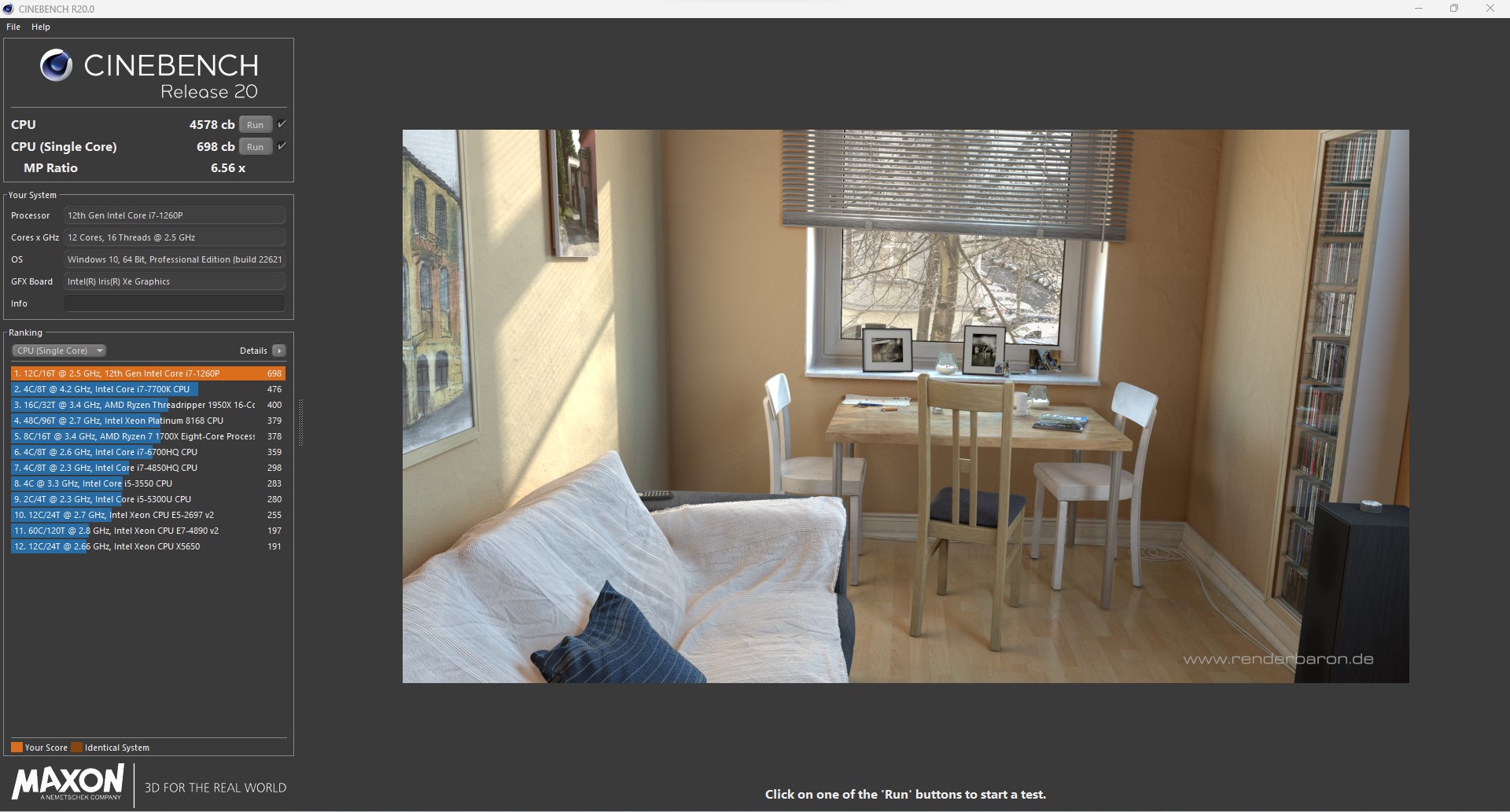

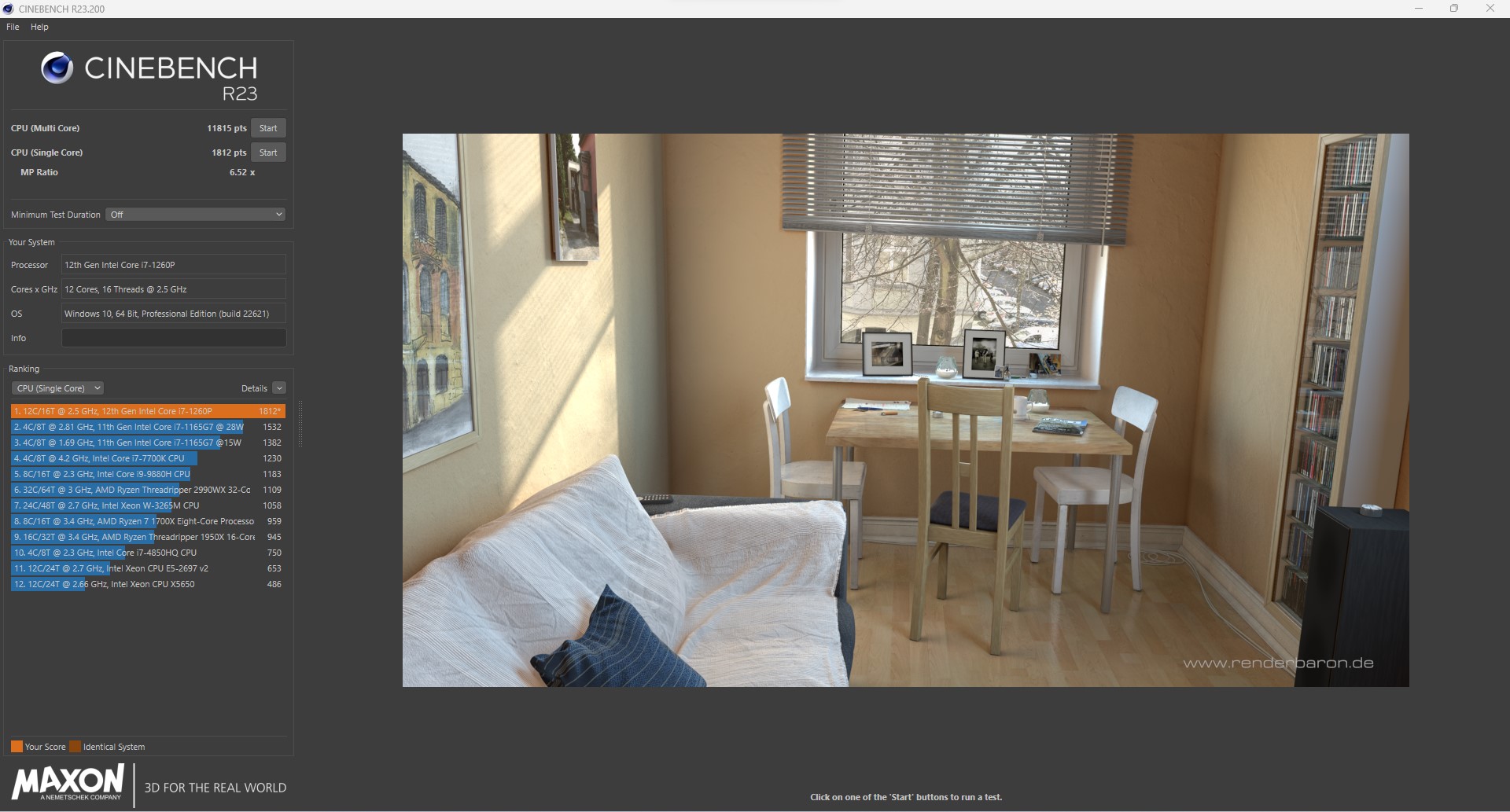

Cinebench R20
CPU (Single Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	734 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Average Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -26%
CPU (Multi Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6692 Points +46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Average Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -69%

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	3.31 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Average Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -27%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.01 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Average Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -73%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	15180 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Average Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -28%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	89478 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points -1%
Average Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -67%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -168%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -43%
Average Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +18%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	189.5 Seconds * +32%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -87%
Average Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -48%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	4.725 s * -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +9%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -22%
Average Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	202.7 s * +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +61%

X264 HD Benchmark 4.0
Pass 1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Average Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -38%
Pass 2
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	148 (147^min - 148^max) fps +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Average Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -67%

WinRAR - Result
Average Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -4%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6239 KB/s -13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -42%

TrueCrypt
AES Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12.8 GB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Average Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -54%
Twofish Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2.2 GB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Average Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -60%
Serpent Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1.3 GB/s +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Average Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -59%

Geekbench 5.5
Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12797 Points +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Average Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -51%
Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1904 Points +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Average Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12746 Points +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Average Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -51%
5.0 Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1821 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Average Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	8223 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Average Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -23%
64 Bit Multi-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	46557 Points +26%
Average Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -48%

3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	25017 Points +39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points -23%
Average Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	64260 MIPS +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -17%
Average Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -63%
7z b 4 -mmt1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	5944 MIPS +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Average Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.1 fps +128%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Average Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -60%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -12%
Average Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	0.4456 sec * +7%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	71.8 s * -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * -10%
Average Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *

WebXPRT 3 - Overall
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	293 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Average Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -17%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -13%
Average Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	511 ms * +4%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29443 Points +52%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +19%
Average Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -51%
1920x1080 Fire Strike Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29671 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -13%
Average Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -55%
2560x1440 Time Spy CPU
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	13869 Points +65%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points -17%
Average Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -66%

* ... smaller is better

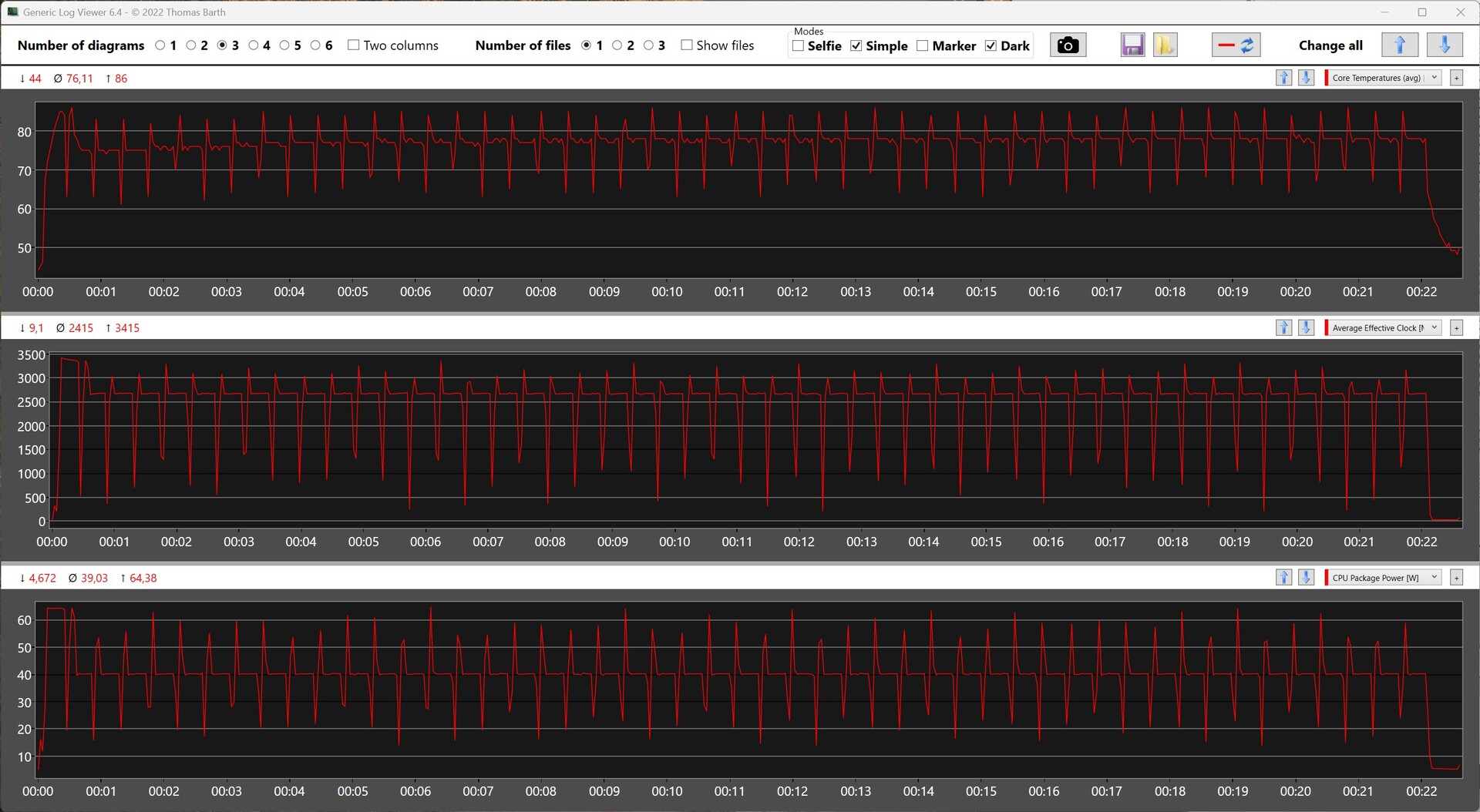

Cinebench R15
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Average Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	201 Points -23%
CPU Multi 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Average Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	794 (772.57^min - 794.38^max) Points -58%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Average Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	503 Points -28%
CPU (Multi Core)
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Average Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1974 Points -57%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Average Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -15%
CPU Multi 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -1%
Average Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Average Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -15%
Rendering Multiple CPUs 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Average Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%

Blender - v2.79 BMW27 CPU
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	600 Seconds * -114%
Average Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +17%

wPrime 2.10
32m
Average Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +7%
1024m
Average Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * +15%

X264 HD Benchmark 4.0
Pass 1
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Average Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Pass 2
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Average Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%

WinRAR - Result
Average Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Average Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Average Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Average Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Average Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4593 Points -54%
Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Average Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1396 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Average Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4586 Points -53%
5.0 Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Average Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1368 Points -19%

Geekbench 4.4
64 Bit Single-Core Score
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Average Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	5828 Points -23%
64 Bit Multi-Core Score
Average Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	18200 Points -51%

3DMark 11 - 1280x720 Performance Physics
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -4%
Average Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	10105 Points -44%

7-Zip 18.03
7z b 4
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Average Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	23280 MIPS -51%
7z b 4 -mmt1
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -7%
Average Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4738 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Average Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	6.63 fps -50%

R Benchmark 2.5 - Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	0.622 sec * -30%
Average Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *

LibreOffice - 20 Documents To PDF
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	51.3 s * -14%
Average Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * +7%

WebXPRT 3 - Overall
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Average Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	228 Points -20%

Mozilla Kraken 1.1 - Total
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	715 ms * -34%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -9%
Average Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points +14%
Average Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12434 Points -36%
1920x1080 Fire Strike Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Average Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12562 Points -39%
2560x1440 Time Spy CPU
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Average Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4117 Points -51%

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	91.9 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	70.1 pt
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	69 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	63.7 pt
Average of class Mini PC	58.4 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	56.1 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	37.1 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +52%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s
Average of class Mini PC (561 - 27538, n=97, last 2 years)	9978 KRay/s -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -12%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	8243 KRay/s -20%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -46%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +93%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +10%
Average of class Mini PC (3604 - 116903, n=97, last 2 years)	52513 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	37321 Points -28%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -54%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +33%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	3250 MB/s +25%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s
Average of class Mini PC (225 - 5096, n=97, last 2 years)	2294 MB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +27%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points +16%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	88337 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points
Average of class Mini PC (8172 - 119569, n=97, last 2 years)	69137 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -43%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -44%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +90%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	9510 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points +22%
Average of class Mini PC (408 - 15525, n=97, last 2 years)	7328 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -41%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points +18%
Average of class Mini PC (1958 - 62378, n=97, last 2 years)	27844 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	24230 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -43%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -15%
Average of class Mini PC (3691 - 177158, n=97, last 2 years)	75036 MB/s -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -28%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -36%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	58635 MB/s -37%

AIDA64 / CPU ZLib
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	988 MB/s +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s
Average of class Mini PC (74.8 - 1183, n=97, last 2 years)	581 MB/s -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s -48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -63%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +50%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s
Average of class Mini PC (308 - 14722, n=97, last 2 years)	5327 KRay/s -5%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	5149 KRay/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -47%

AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	48577 MPixel/s +71%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -5%
Average of class Mini PC (4408 - 44347, n=97, last 2 years)	24659 MPixel/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -32%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -47%

Kit Intel NUC 12 Pro - Wall Street Canyon vs. Cinebench R15 Multi Loop

Leituras da CPU durante o loop do Cinebench R15

Temos nosso primeiro vislumbre da eficiência da solução de refrigeração integrada em nosso loop Cinebench R15. O Turbo máximo só está ativo durante o primeiro loop com o desempenho caindo significativamente durante a segunda corrida. As pontuações diminuem em cerca de 10%. Não há grandes flutuações durante o restante do teste e a pontuação média total é de 1702 pontos.

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø789 (772.57-794.38)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Desempenho do sistema

Infelizmente, o kit Intel NUC 12 Pro Kit não é capaz de fazer uma transição perfeita de suas boas pontuações de benchmark da CPU para boas pontuações de benchmark sintético. Desconsiderando o Intel Core i5-12600K, ele só ocupa o terceiro lugar no PCMark 10. Em contraste, a Crossmark mais uma vez parece favorecer nosso dispositivo de teste e restaura a antiga hierarquia de desempenho. Da mesma forma, observamos taxas de transferência acima da média em comparação com outros mini PCs nos testes de RAM.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8259 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -3%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -24%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -24%

PCMark 10 / Essentials
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	10650 Points 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -3%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -16%

PCMark 10 / Productivity
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	11001 Points +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +25%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -17%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -19%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -26%

CrossMark / Responsiveness
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points +23%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -17%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -33%

CrossMark / Productivity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -21%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	70749 MB/s +58%
Average Intel Core i7-1260P (25125 - 71544, n=25)	54361 MB/s +22%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s
Average of class Mini PC (6481 - 70620, n=97, last 2 years)	42885 MB/s -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -49%

AIDA64 / Memory Read
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	76864 MB/s +65%
Average Intel Core i7-1260P (24983 - 72065, n=25)	56385 MB/s +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s -6%
Average of class Mini PC (6914 - 71285, n=97, last 2 years)	43515 MB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -47%

AIDA64 / Memory Write
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	73824 MB/s +60%
Average Intel Core i7-1260P (23512 - 66799, n=25)	53353 MB/s +15%
Average of class Mini PC (6862 - 89318, n=97, last 2 years)	46630 MB/s +1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -49%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +2%
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years)	88 ns * +5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * +6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +14%
Average Intel Core i7-1260P (77.9 - 118.4, n=21)	78.7 ns * +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +26%

* ... smaller is better

Latência do DPC

O Kit Intel NUC 12 Pro funciona bem em combinação com o Intel Core i7-1260P. Não observamos latências problemáticas durante a reprodução de vídeo de uma amostra de vídeo. Aqui o iGPU estava em cerca de 45% de utilização.

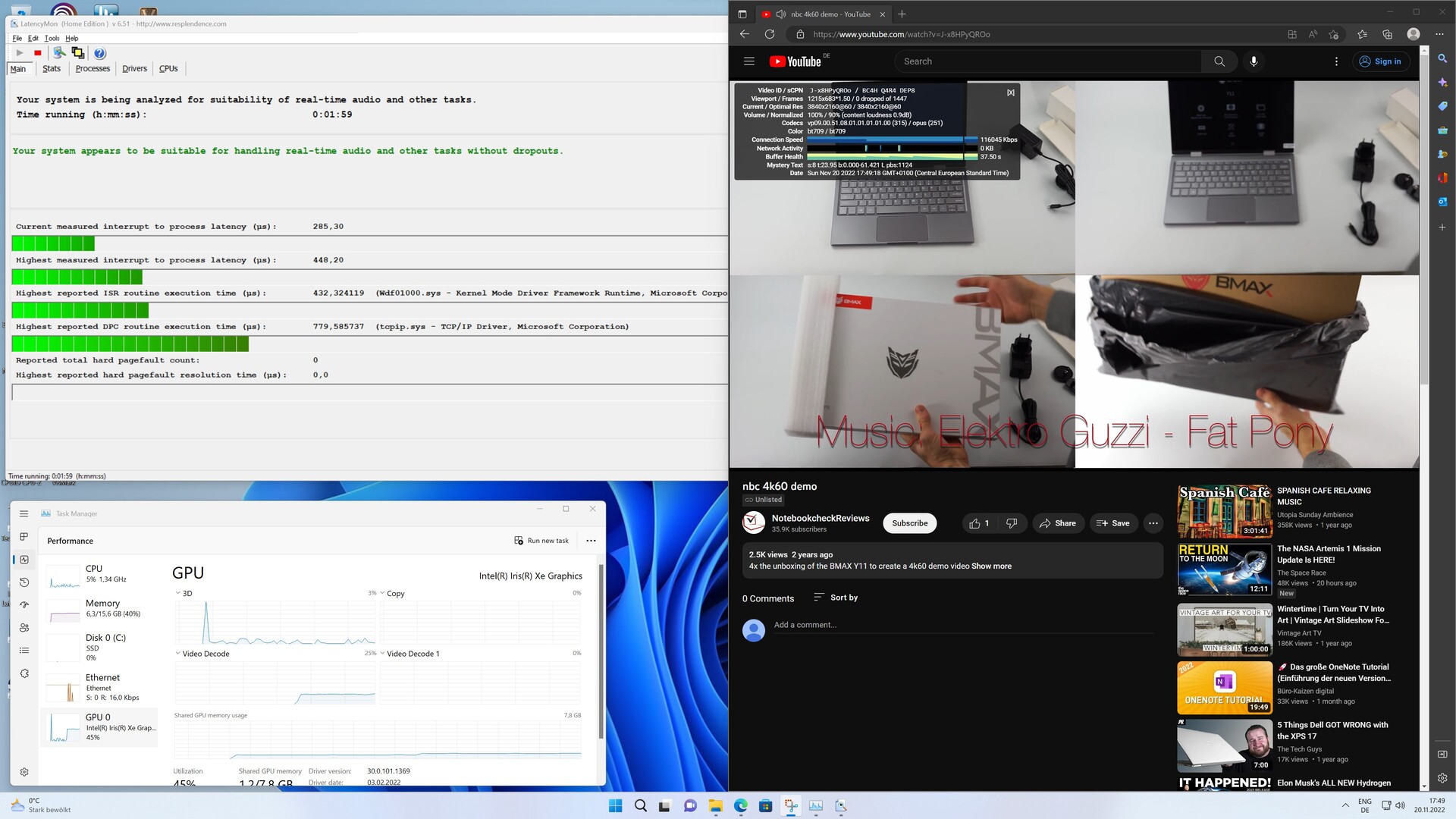

Máxima latência ao abrir várias abas do navegador e reproduzir vídeo 4K

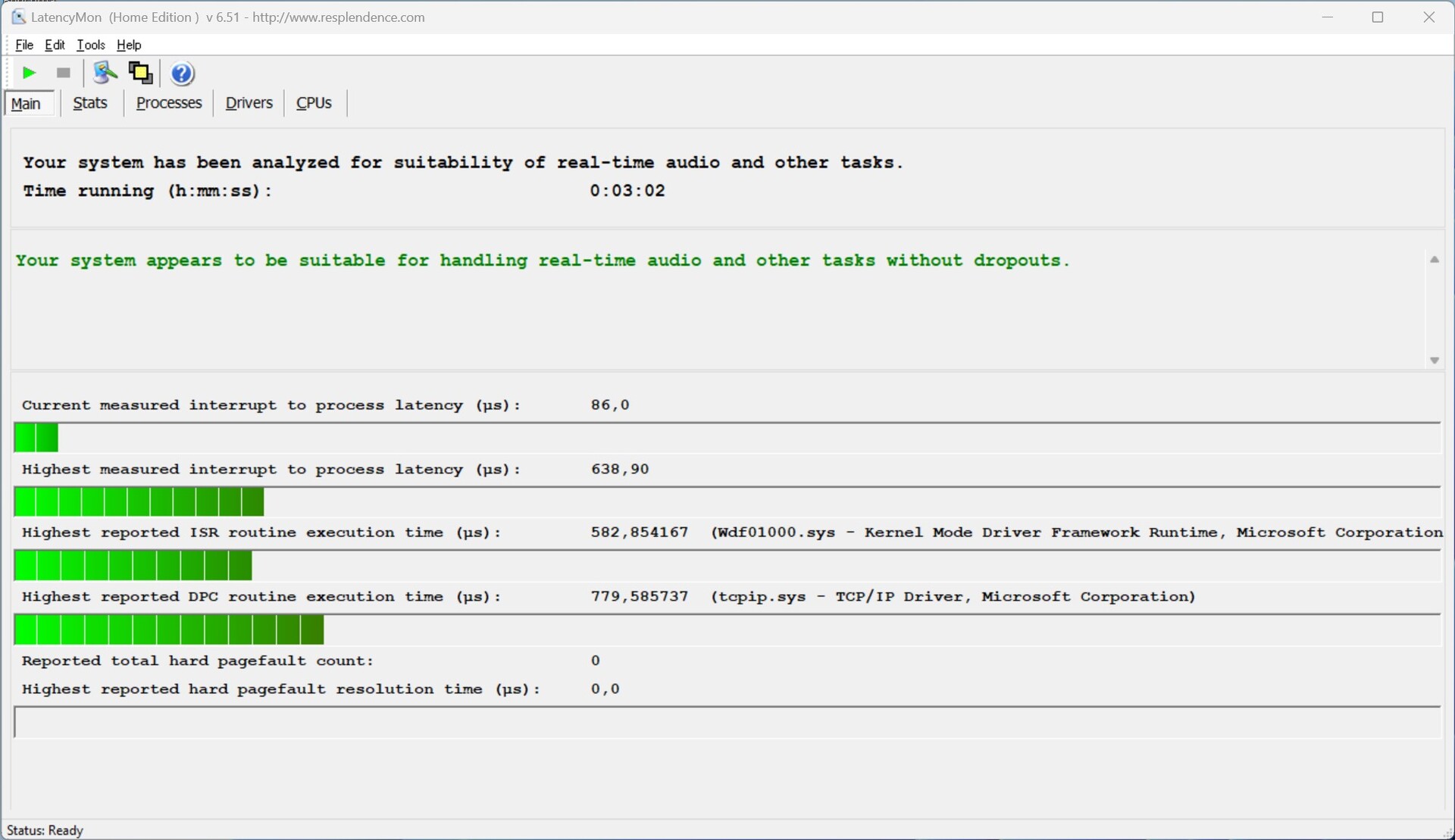

Latência máxima depois de tensionar o sistema com Prime95 por dez segundos

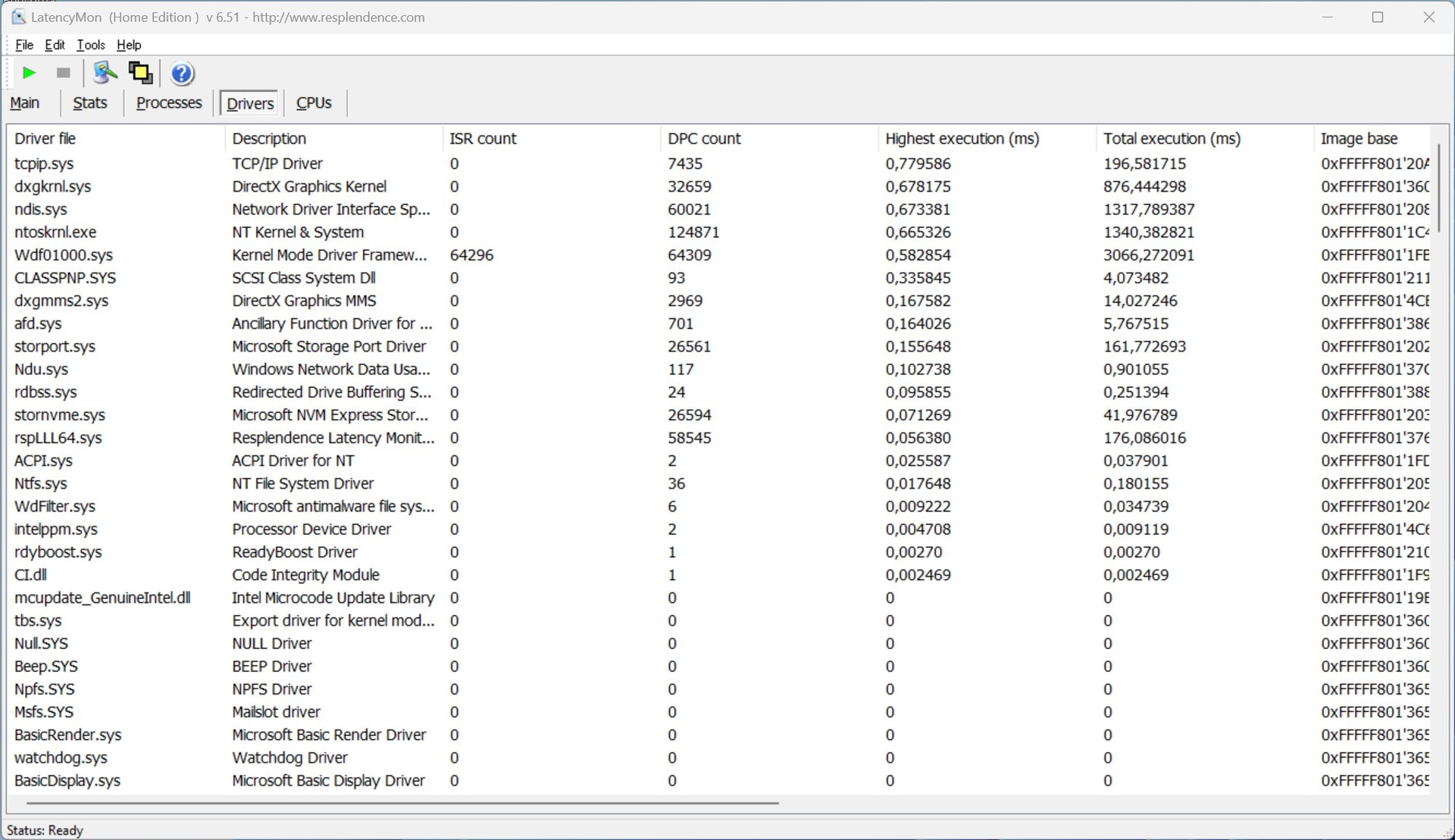

Motoristas ordenados pelo maior tempo de execução

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1106 μs * -42%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	961.5 μs * -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +15%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +33%

* ... smaller is better

Solução de armazenamento

Nossa amostra de teste do Kit Intel NUC 12 Pro suporta até dois M.2 SSDs. No entanto, os usuários terão que prestar atenção ao fator forma. Enquanto o slot primário NVMe-M.2 suporta apenas SSDs de 80mm, o slot secundário M.2 aceita apenas SSDs de 42mm mais curtos.

Usamos um SSD Transcend e RAM de nosso estoque de hardware. O desempenho dos SSDs é sólido. Entretanto, outros dispositivos em nossa comparação são equipados com SSDs mais rápidos. A importância destes resultados não deve ser superestimada, já que os usuários poderão instalar um SSD de sua escolha no barebone do Kit Intel NUC 12 Pro.

Mais comparações e benchmarks podem ser encontrados em nosso Página SSD e HDD.

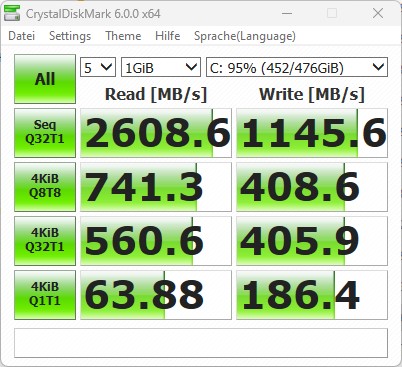

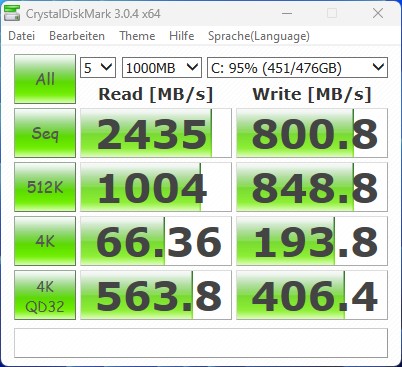

CrystalDiskMark 3.0

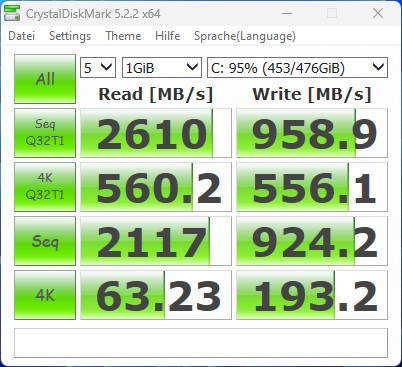

CrystalDiskMark 5.2 / 6

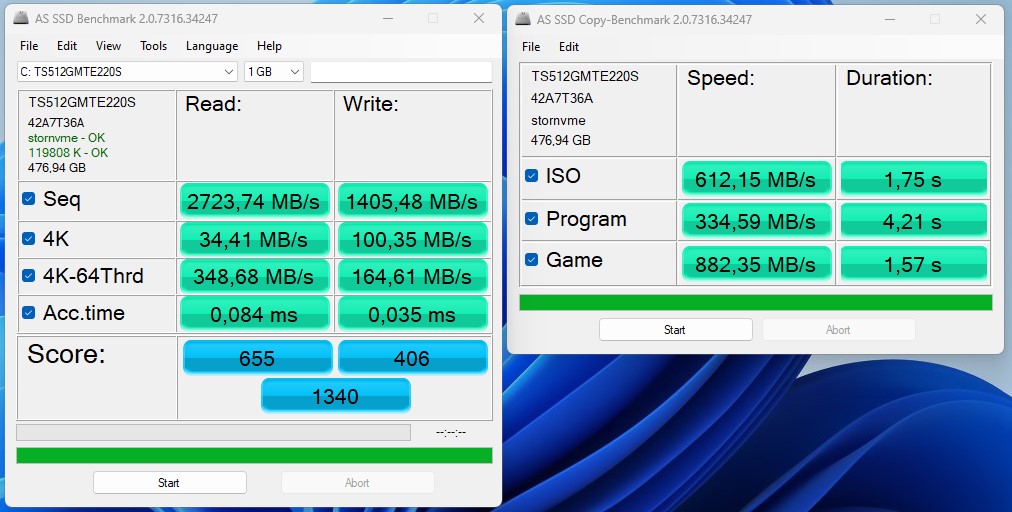

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2435 MB/s

Sequential Write: 800.8 MB/s

512K Read: 1004 MB/s

512K Write: 848.8 MB/s

4K Read: 66.36 MB/s

4K Write: 193.8 MB/s

4K QD32 Read: 563.8 MB/s

4K QD32 Write: 406.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	90.6 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	80.2 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	78.5 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	63.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	59.3 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	22.1 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +22%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +16%
Average of class Mini PC (233 - 4168, n=96, last 2 years)	2028 MB/s +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -26%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -72%
seq write
Average of class Mini PC (222 - 5595, n=96, last 2 years)	2049 MB/s +108%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +82%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +82%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -1%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -53%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=96, last 2 years)	3155 MB/s +39%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -13%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -75%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=96, last 2 years)	2223 MB/s +26%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -44%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -71%
4k q1 t1 read
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=96, last 2 years)	51.3 MB/s -19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -23%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -25%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -28%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -66%
4k q1 t1 write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -2%
Average of class Mini PC (22 - 425, n=96, last 2 years)	184.7 MB/s -7%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -16%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -77%
4k q32 t16 read
Average of class Mini PC (26.1 - 2810, n=96, last 2 years)	1088 MB/s +211%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +187%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -11%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -19%
4k q32 t16 write
Average of class Mini PC (30.2 - 3983, n=96, last 2 years)	1084 MB/s +93%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +74%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +38%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -41%

AS SSD
Score Total
Average of class Mini PC (151.3 - 9030, n=94, last 2 years)	3534 Points +164%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +115%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +109%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +63%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -37%
Score Read
Average of class Mini PC (61 - 3635, n=94, last 2 years)	1346 Points +105%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +77%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +76%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -54%
Score Write
Average of class Mini PC (88 - 4185, n=94, last 2 years)	1551 Points +282%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +188%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +184%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +161%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -8%
Seq Read
Average of class Mini PC (291 - 6620, n=94, last 2 years)	2804 MB/s +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -19%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -35%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -81%
Seq Write
Average of class Mini PC (240 - 5783, n=94, last 2 years)	1949 MB/s +39%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -34%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -67%
4K Read
Average of class Mini PC (6.08 - 104.2, n=94, last 2 years)	55.3 MB/s +61%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +58%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +85%
Average of class Mini PC (30.9 - 366, n=94, last 2 years)	166.7 MB/s +66%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +44%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -58%
4K-64 Read
Average of class Mini PC (23.4 - 3035, n=94, last 2 years)	1010 MB/s +190%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +156%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +153%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -34%
4K-64 Write
Average of class Mini PC (32.8 - 3598, n=94, last 2 years)	1190 MB/s +623%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +456%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +400%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +356%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s +73%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -48%
Average of class Mini PC (0.022 - 0.489, n=94, last 2 years)	0.1031 ms * -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +29%
Access Time Write
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -669%
Average of class Mini PC (0.016 - 0.765, n=94, last 2 years)	0.1304 ms * -273%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -194%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -191%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +31%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Intel NUC 12 Pro Kit NUC12WSKi7: Ø2242 (1995.64-2278.98)

Desempenho da GPU

Um Intel Iris Xe Graphics G7 com 96 EUs é usada como solução gráfica integrada. Em termos de desempenho, ela é adequada apenas para renderização 2D. A performance 3D é significativamente insuficiente em comparação com uma GPU dedicada. No entanto, uma GPU externa pode ser conectada via Thunderbolt em seu lugar. Tentamos isto usando nosso Razer Core X e um Nvidia GeForce RTX 3060 Ti e documentou os resultados, que podem ser encontrados nos gráficos a seguir. Em resumo, o desempenho do Inte NUC 12 Pro Kit aumenta substancialmente neste cenário, onde excede até mesmo o do Ace Magician TK11-A0.

Mais comparações e referências podem ser encontradas em nosso Página da GPU.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	95.9 pt
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	20.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	17.7 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	16.2 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14.7 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.3 pt
Intel NUC11TNKi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	13.3 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +389%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +377%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6687 Points -2%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -19%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -24%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +477%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +433%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	30433 Points +44%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +37%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -3%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	19330 Points -8%
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +413%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +395%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5543 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -24%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -35%
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +577%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +546%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1633 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -32%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -32%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -37%
Fire Strike Extreme Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +514%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +499%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2498 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -20%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1578 Points -27%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -32%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | LuxMark v2.0 64Bit

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	97.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti ^-8! , i5-1135G7, Future Path FPE220M8SSD512G	76 pt
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	27.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.9 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	18.7 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.9 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +664%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +540%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.1 fps +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -22%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -27%
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +631%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +501%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.7 fps +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -24%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +941%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +588%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.5 fps +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps -15%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +685%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +465%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	16.4 fps +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -29%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -34%

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +688%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points -1%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	3343 Points -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -24%
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +1104%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	298 Points +33%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -17%
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +986%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	286 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -16%
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +541%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +20%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	808 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -37%
1024x600 Normal, Mandel Scalar
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	6278 Points +618%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +10%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	874 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	836 Points -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -14%
1024x600 Normal, QJuliaRayTrace
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +708%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1115 Points -14%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points -31%

LuxMark v2.0 64Bit
Room GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	655 Samples/s +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	508 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	508 Samples/s 0%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	451 Samples/s -11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	450 Samples/s -11%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	415 Samples/s -18%
Sala GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2494 Samples/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	2188 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2188 Samples/s 0%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1640 Samples/s -25%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	993 Samples/s -55%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	939 Samples/s -57%

3DMark 05 Standard		43430 pontos
3DMark 06 Standard Score		32994 pontos
3DMark Vantage P Result		24787 pontos
3DMark 11 Performance		7421 pontos
3DMark Ice Storm Standard Score		53585 pontos
3DMark Cloud Gate Standard Score		19367 pontos
3DMark Fire Strike Score		4564 pontos
3DMark Fire Strike Extreme Score		2165 pontos
3DMark Time Spy Score		1854 pontos
Ajuda

... comparado com

Desempenho nos jogos

O iGPU não é adequado para uso em jogos. Na melhor das hipóteses, alguns títulos são jogáveis em baixas resoluções e configurações gráficas baixas. Independentemente disso, a experiência de jogo ainda não é grande. Se você estiver procurando um dispositivo para jogos, um modelo com uma GPU dedicada será mais adequado. Os últimos modelosHX90G e NUCXi7 do Minisforum podem ser alternativas adequadas. Alternativamente, uma doca Thunderbolt eGPU pode ser usada. Usamos o Razer Core X em combinação com o Nvidia GeForce RTX 3060 Ti para testar esta configuração. Embora esta configuração seja capaz de executar muitos jogos em alta resolução, o desempenho ainda é significativamente pior em comparação com um PC desktop tradicional. Isto é o resultado de as portas Thunderbolt 4 serem limitadas a apenas 4 pistas PCIe.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	97.6 (8.8^min, 27.5^P0.1, 58.5^P1) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	32.1 (3.28^min, 14.8^P0.1, 18.7^P1) fps +111%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +56%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.9 (8.18^min, 17.5^P0.1, 19^P1) fps +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps

GTA V
1024x768 Lowest Settings possible
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	114.9 (9.31^min, 76.9^P1) fps +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.6 (21.4^min, 71.4^P1) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps -37%
1366x768 Normal/Off AF:4x
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	93.9 (23.8^min, 58.8^P1) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps -42%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	59 (53^min) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52 (45^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps -52%
1920x1080 Medium Preset AA:T
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	30 (27^min) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps -37%

Far Cry New Dawn
1280x720 Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	53 (31^min) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	47 (30^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps -38%
1920x1080 Medium Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (21^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps -41%

F1 2020
1280x720 Ultra Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	95.2 (83^min) fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	95 (75^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps -36%
1920x1080 Medium Preset AF:16x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	49.4 (42^min) fps +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	48.7 (41^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps -33%

Strange Brigade
1280x720 lowest AF:1
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	97.4 (21.9^min, 40.2^P1) fps +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.1 (16.9^min, 29.3^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps -19%
1920x1080 medium AA:medium AF:4
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	44.6 (10.8^min, 23.9^P1) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.5 (13.2^min, 21.1^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps -28%

Borderlands 3
1920x1080 Medium Overall Quality (DX11)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	25.3 fps +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.1 fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.2 fps -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	15.8 fps -31%
1280x720 Very Low Overall Quality (DX11)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	60.1 fps +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	55.5 fps +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	53.4 fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52.4 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	33.9 fps -35%

Metro Exodus
1280x720 Low Quality AF:4x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	42.9 (22.44^min) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.5 (21.89^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.2 (25.3^min) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	37.9 (22.1^min) fps -9%
1920x1080 Medium Quality AF:4x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	21.1 (10.84^min) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	20.3 (10.85^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 (7.91^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	15.9 (8.1^min) fps -22%

F1 2021
1280x720 Ultra Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	106.6 (85^min, 83^P1) fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	101.1 (75^min, 72^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -6%
1920x1080 Medium Preset AA:T AF:16x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	52.6 (43^min, 42^P1) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	47.3 (37^min, 37^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps -16%

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	124.3 (35.1^min, 81.8^P0.1, 103.5^P1 - 390^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	85.6 (59^min, 67.3^P0.1, 74.7^P1 - 139.4^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	72.3 (48.3^min, 54.7^P0.1, 59.9^P1 - 170^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	45 (8.46^min, 15.2^P0.1, 22^P1 - 192.2^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps

GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	149.9 (6.21^min, 100^P1 - 286^max) fps +1713%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	106 (6.46^min, 76.9^P1 - 212^max) fps +1182%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	86.6 (3.43^min, 58.8^P1 - 176^max) fps +947%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +929%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +578%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	8.27 (3.9^min, 4.85^P1 - 22.7^max) fps
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	117 (8.45^min, 76.9^P1 - 225^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.6 (7.58^min, 62.5^P1 - 157.1^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	60.8 (5.28^min, 41.7^P1 - 124.7^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	57.8 (15.7^min, 32.3^P1 - 150.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	51.2 (15^min, 35.7^P1 - 107^max) fps

Dota 2 Reborn
1920x1080 ultra (3/3) best looking
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	232.1 (197.7^min) fps +301%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	135.6 (116.6^min) fps +134%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	134.5 (115.1^min) fps +132%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75.3^min) fps +67%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (79.9^min) fps +60%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	57.9 (52^min) fps
3840x2160 ultra (3/3) best looking
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	169 (145.3^min) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	124.3 (103^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	109 (89.4^min) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.2 (80^min) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.7 (71.3^min) fps

Final Fantasy XV Benchmark
1920x1080 High Quality
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	125.9 fps +668%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	103.3 fps +530%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	97.6 fps +495%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.4 fps +396%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	79 fps +382%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.4 fps
2560x1440 High Quality
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	93.2 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	77.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	76.7 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	70 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	56.6 fps

X-Plane 11.11
1920x1080 high (fps_test=3)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	152.7 fps +278%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	94.8 fps +135%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	90.3 fps +124%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 fps +46%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	47.1 fps +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	40.4 fps
3840x2160 high (fps_test=3)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	127.4 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	80.1 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	53.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps

Far Cry 5
1920x1080 Ultra Preset AA:T
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	170 (134^min - 197^max) fps +608%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	120 (92^min - 158^max) fps +400%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	119 (90^min - 152^max) fps +396%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	110 (87^min - 142^max) fps +358%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60 (46^min - 78^max) fps +150%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	24 (21^min - 28^max) fps
2560x1440 Ultra Preset AA:T
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	125 (113^min - 146^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 (85^min - 120^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99 (83^min - 117^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	89 (77^min - 111^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (43^min - 73^max) fps

Far Cry New Dawn
1920x1080 Ultra Preset
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	142 (103^min - 196^max) fps +517%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	101 (74^min - 147^max) fps +339%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	100 (71^min - 156^max) fps +335%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	90 (63^min - 144^max) fps +291%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (39^min - 85^max) fps +135%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23 (17^min - 30^max) fps
2560x1440 Ultra Preset
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	121 (92^min - 148^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92 (73^min - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91 (70^min - 121^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	85 (63^min - 124^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	50 (34^min - 75^max) fps

Strange Brigade
1920x1080 ultra AA:ultra AF:16
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	219 (159.8^min, 163.4^P1 - 311^max) fps +736%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	184.7 (56.8^min, 140.7^P1 - 287^max) fps +605%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	151.8 (107^min, 110.3^P1 - 258^max) fps +479%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +468%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	114.7 (58.8^min, 72.4^P1 - 210^max) fps +338%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26.2 (8.6^min, 9.63^P1 - 224^max) fps
2560x1440 ultra AA:ultra AF:16
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	161.3 (124.3^min, 127.6^P1 - 219^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	137.3 (44.8^min, 111^P1 - 303^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	129.9 (35.9^min, 86.2^P1 - 222^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	98.3 (78^min, 79.9^P1 - 147.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (33.1^min, 61.7^P1 - 192.6^max) fps

Metro Exodus
1920x1080 Ultra Quality AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	91.5 (46.9^min - 167.64^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	74.6 (38.07^min - 133.07^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	59.2 (34.14^min - 86.99^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	52.9 (24.48^min - 97.96^max) fps
2560x1440 Ultra Quality AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	72 (40.41^min - 128.37^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	59.9 (32.93^min - 102.72^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	46.1 (22.9^min - 80.71^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	45.1 (27.81^min - 61.71^max) fps

Borderlands 3
2560x1440 Badass Overall Quality (DX11)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	76.3 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	63.9 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.1 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	44.9 fps
1920x1080 Badass Overall Quality (DX11)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	108.5 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	83.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	71.3 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps

Tiny Tina's Wonderlands
1920x1080 Badass Preset (DX12)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	106.8 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	88.3 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	81.5 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	74.8 fps
2560x1440 Badass Preset (DX12)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	74.4 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	61.9 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	49.4 fps

F1 2020
1920x1080 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	201 (161^min - 240^max) fps +741%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	166.2 (136^min - 198^max) fps +595%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	132.4 (98^min - 165^max) fps +454%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	102.7 (53^min - 145^max) fps +330%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	81.5 (43^min - 107^max) fps +241%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.9 (17^min - 30^max) fps
2560x1440 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	150 (125^min - 175^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.7 (103^min - 145^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75^min - 119^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92.7 (51^min - 119^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	67.7 (37^min - 87^max) fps

F1 2021
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	107.8 (92^min, 92^P1 - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.2 (78^min, 77^P1 - 100^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	65.7 (55^min, 55^P1 - 77^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 (45^min, 41^P1 - 65^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	49.2 (34^min, 21^P1 - 59^max) fps
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	147.6 (127^min, 126^P1 - 165^max) fps +449%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.1 (104^min, 93^P1 - 137^max) fps +358%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	95.8 (80^min, 80^P1 - 110^max) fps +256%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65.4 (47^min, 47^P1 - 73^max) fps +143%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +92%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26.9 (20^min, 21^P1 - 30^max) fps

F1 22
2560x1440 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	49.3 (42^min, 41^P1 - 58^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	39.7 (31^min, 29^P1 - 47^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	30.2 (20^min, 18^P1 - 37^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	24.4 (19^min, 19^P1 - 30^max) fps
1920x1080 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	77.7 (66^min, 65^P1 - 92^max) fps +228%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	61.9 (49^min, 37^P1 - 72^max) fps +161%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	39.9 (30^min, 30^P1 - 51^max) fps +68%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	31.5 (21^min, 18^P1 - 39^max) fps +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.7 (19^min, 19^P1 - 28^max) fps

Performance Rating - Percent
Average NVIDIA GeForce RTX 3060 Ti	97.2 pt
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	96.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	84.6 pt
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	69.8 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65.4 pt

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps
Average NVIDIA GeForce RTX 3060 Ti (64.6 - 124.3, n=6)	94 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average NVIDIA GeForce RTX 3060 Ti (54.6 - 85.6, n=6)	75.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	72.3 (48.3^min, 54.7^P0.1, 59.9^P1 - 170^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	45 (8.46^min, 15.2^P0.1, 22^P1 - 192.2^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps

GTA V - 2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.6 (7.58^min, 62.5^P1 - 157.1^max) fps
Average NVIDIA GeForce RTX 3060 Ti (38.9 - 117, n=6)	87.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	60.8 (5.28^min, 41.7^P1 - 124.7^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	57.8 (15.7^min, 32.3^P1 - 150.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	51.2 (15^min, 35.7^P1 - 107^max) fps

Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	124.3 (103^min) fps
Average NVIDIA GeForce RTX 3060 Ti (33.7 - 169, n=6)	121 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	109 (89.4^min) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.2 (80^min) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.7 (71.3^min) fps

Final Fantasy XV Benchmark - 2560x1440 High Quality
Average NVIDIA GeForce RTX 3060 Ti (40.8 - 93.2, n=6)	78.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	77.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	76.7 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	70 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	56.6 fps

X-Plane 11.11 - 3840x2160 high (fps_test=3)
Average NVIDIA GeForce RTX 3060 Ti (30.3 - 128.8, n=6)	90.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	80.1 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	53.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps

Far Cry 5 - 2560x1440 Ultra Preset AA:T
Average NVIDIA GeForce RTX 3060 Ti (90 - 125, n=6)	107.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 (85^min - 120^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99 (83^min - 117^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	89 (77^min - 111^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (43^min - 73^max) fps

Far Cry New Dawn - 2560x1440 Ultra Preset
Average NVIDIA GeForce RTX 3060 Ti (73 - 121, n=6)	97.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92 (73^min - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91 (70^min - 121^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	85 (63^min - 124^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	50 (34^min - 75^max) fps

Strange Brigade - 2560x1440 ultra AA:ultra AF:16
Average NVIDIA GeForce RTX 3060 Ti (119.3 - 161.3, n=6)	140.8 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	137.3 (44.8^min, 111^P1 - 303^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	129.9 (35.9^min, 86.2^P1 - 222^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	98.3 (78^min, 79.9^P1 - 147.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (33.1^min, 61.7^P1 - 192.6^max) fps

Borderlands 3
2560x1440 Badass Overall Quality (DX11)
Average NVIDIA GeForce RTX 3060 Ti (63.2 - 76.3, n=6)	68.9 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	63.9 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.1 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	44.9 fps
1920x1080 Badass Overall Quality (DX11)
Average NVIDIA GeForce RTX 3060 Ti (78.2 - 108.5, n=6)	92.6 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	83.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	71.3 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps

F1 2020 - 2560x1440 Ultra High Preset AA:T AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.7 (103^min - 145^max) fps
Average NVIDIA GeForce RTX 3060 Ti (87.6 - 150, n=6)	117.4 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75^min - 119^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92.7 (51^min - 119^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	67.7 (37^min - 87^max) fps

F1 2021 - 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.2 (78^min, 77^P1 - 100^max) fps
Average NVIDIA GeForce RTX 3060 Ti (45.2 - 107.8, n=6)	77 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	65.7 (55^min, 55^P1 - 77^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 (45^min, 41^P1 - 65^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	49.2 (34^min, 21^P1 - 59^max) fps

Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only

	baixo	média	alto	ultra
GTA V (2015)	108.6	93.9	19.4	8.27
The Witcher 3 (2015)	88.1		15.2
Dota 2 Reborn (2015)	116.4	87.9	63.1	57.9
Final Fantasy XV Benchmark (2018)	42.8	23	16.4
X-Plane 11.11 (2018)	62.3	46.2	40.4
Far Cry 5 (2018)	52	27	25	24
Strange Brigade (2018)	90.1	39.5	32.5	26.2
Far Cry New Dawn (2019)	47	27	26	23
Metro Exodus (2019)	41.5	20.3	14.4
Borderlands 3 (2019)	52.4	23	15
F1 2020 (2020)	95	48.7	37.4	23.9
F1 2021 (2021)	101.1	47.3	36.8	26.9
Tiny Tina's Wonderlands (2022)	31.8	24.2	15.2
F1 22 (2022)	44.3	42.6	30.9	23.7

Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti

	baixo	média	alto	ultra	QHD	4K
GTA V (2015)	178.5	172.4	128.2	85.1	57.8	39.4
The Witcher 3 (2015)	308	211	151.2	75.3		72.3
Dota 2 Reborn (2015)	167.7	150.9	144.9	134.5		109
Final Fantasy XV Benchmark (2018)	175.7	141.1	97.6		77.1	48.5
X-Plane 11.11 (2018)	126.9	110.6	90.3			80.1
Far Cry 5 (2018)	153	133	127	120	100
Strange Brigade (2018)	204	156.4	153.7	148.8	129.9	83.4
Far Cry New Dawn (2019)	133	115	111	101	92	59
Metro Exodus (2019)	144.5	91.9	70.5	52.9	46.1	33.8
Borderlands 3 (2019)	145.2	126.5	101.3	83.6	63.9	37.8
F1 2020 (2020)	209	124.7	126.1	102.7	92.7	60.3
F1 2021 (2021)	142.1	113.1	68.7	51.7	49.2	41.5
Tiny Tina's Wonderlands (2022)	173.9	139.5	100.3	81.5	61.9	36
F1 22 (2022)	71.3	70.4	57.7	31.5	30.2	21.1

Emissões

Ruído do sistema

O Kit Intel NUC 12 Pro só é silencioso durante ociosidade. O ventilador funciona suavemente a 33 dB(A), o que o torna quase imperceptível. Sob carga, este valor aumenta para uma média de 38 dB(A) e um ainda maior 43 dB(A) durante o teste de estresse. Dito isto, o Kit Intel NUC 12 Pro ainda não é o dispositivo mais barulhento em nossa comparação. Entretanto, concorrentes como o Minisforum EliteMini HX90 são capazes de permanecer muito mais silenciosos.

Barulho

Ocioso		33.1 / 33.1 / 33.1 dB
Carga		38.1 / 43.6 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 30.4 dB(A)

	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs
Noise		9%	-2%	-7%	5%	-8%
off / environment *	30.4	30.8 -1%	24.8 18%	30.5 -0%	30.28 -0%	29.6 3%
Idle Minimum *	33.1		35.6 -8%	31.5 5%	31.82 4%	36.1 -9%
Idle Average *	33.1	31.6 5%	35.6 -8%	32.6 2%	32.27 3%	37.6 -14%
Idle Maximum *	33.1		35.6 -8%	33.8 -2%	33.17 -0%	39.2 -18%
Load Average *	38.1		36.2 5%	49.3 -29%	35.82 6%	42.6 -12%
Load Maximum *	43.6	33.4 23%	47.6 -9%	50.9 -17%	37.1 15%	42.4 3%
Witcher 3 ultra *			38

* ... smaller is better

Temperaturas

Durante as tarefas ociosas e não exigentes, as temperaturas da superfície do Kit Intel NUC 12 Pro permanecem relativamente frias. O calor é capaz de escapar rapidamente da caixa pela parte de trás.

Quando se enfatiza o sistema com Prime95, o Intel Core i7-1260P atinge uma temperatura máxima de 93 °C (199,4 °F) e uma freqüência de 2,6 GHz nos núcleos P. Enquanto isso, os núcleos E ainda mantêm uma respeitável taxa de 2,3 GHz. As temperaturas não são motivo de preocupação em geral e não há estrangulamento térmico durante o estresse puro da CPU. A CPU inicialmente atinge o limite PL2 TDP e depois cai para o limite PL1 de 40 watts. Este valor pode ser mantido durante todo o teste de estresse.

Kit Intel NUC 12 Pro vs. teste de estresse

Consumo de energia

O Kit Intel NUC 12 Pro não pode ser descrito como sendo extremamente eficiente em termos energéticos. Isto se deve ao consumo um pouco alto de energia durante ociosidade. Neste cenário, o adaptador AC de 120 watts tem que fornecer pelo menos 12 watts. Sob carga, este valor aumenta para uma média de 64 watts com picos temporários para quase 99 watts quando o Turbo está ativo. Assim, o adaptador CA é suficientemente dimensionado. Surpreendentemente, o consumo de energia durante o modo de sono (4,7 watts) e enquanto desligado (1,6 watts) é relativamente alto.

Consumo de energia

desligado	1.66 / 4.73 Watt
Ocioso	12.1 / 12.2 / 12.3 Watt
Carga	64 / 98.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		12%	32%	48%	-231%	33%	7%
Idle Minimum *	12.1	11.5 5%	8.4 31%	3.4 72%	46.5 -284%	5.26 ?(2.2 - 46.5, n=184) 57%	9.8 ?(1.9 - 46.5, n=91, last 2 years) 19%
Idle Average *	12.2	12.4 -2%	8.7 29%	5.7 53%	63 -416%	8.46 ?(3.8 - 63, n=184) 31%	11.7 ?(1.9 - 63, n=90, last 2 years) 4%
Idle Maximum *	12.3	12.9 -5%	9.3 24%	7 43%	68.9 -460%	10.6 ?(5.8 - 68.9, n=184) 14%	14.7 ?(2.6 - 68.9, n=91, last 2 years) -20%
Load Average *	64	40.7 36%	46.4 27%	36.5 43%	73.9 -15%	44.8 ?(12.5 - 77.5, n=184) 30%	51.9 ?(11.3 - 158.7, n=91, last 2 years) 19%
Load Maximum *	98.8	73.5 26%	52 47%	68 31%	80.8 18%	66.6 ?(30.1 - 118, n=184) 33%	86 ?(18.1 - 271, n=91, last 2 years) 13%
Witcher 3 ultra *		43.9

* ... smaller is better

Consumption external Monitor

Intel NUC 12 Pro Kit NUC12WSKi7; Prime95 V2810 Stress (external Monitor): Ø64.7 (58.8-98.8)

Intel NUC 12 Pro Kit NUC12WSKi7; Cinebench R15 Multi (external Monitor): Ø70.7 (59.2-93.2)

Intel NUC 12 Pro Kit NUC12WSKi7; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49 (40-59.1)

Intel NUC 12 Pro Kit NUC12WSKi7; Idle 1min (external Monitor): Ø12.2 (8.04-41.3)

Pro

+ caixa robusta e compacta

+ soC moderno com núcleos P e E

+ bom desempenho do sistema

+ fácil manutenção

+ 2x Thunderbolt

+ baixas latências DPC

Contra

- ventilador perceptível sob carga

- consumo de energia relativamente alto

Veredicto - Avançado, Poderoso e à prova de futuro

Intel NUC 12 Pro Kit - Wall Street Canyon em análise - Cortesia da Intel Alemanha

O Intel NUC 12 Pro Kit é mais do que capaz de ser um excelente PC de escritório. Ele é baseado no Intel Core i7-1260Pum SoC rápido, com 12 núcleos e 16 fios, capaz de executar muitas aplicações simultaneamente. A principal vantagem do sistema é seu formato compacto combinado com as mais recentes e maiores interfaces, que quase não deixam nada a desejar. O Thunderbolt 4, que está disponível em duas versões, é de longe a adição mais interessante.

O preço de cerca de 700 USD é uma meia verdade quando se trata de tomar uma decisão de compra, uma vez que o sistema barebone não inclui nem RAM, nem um SSD ou uma licença Windows. Dito isto, as ofertas de outros fabricantes de mini PCs são semelhantes em sua natureza. Nossa configuração de teste modestamente equipada inclui 16 GB de RAM e um SSD de 512 GB e tem um desempenho muito bom. Subjetivamente, o sistema nunca se sentiu lento durante nosso período de testes. Graças às boas latências DPC, o dispositivo é bem adequado para ser um cliente streaming para a sala de estar. Uma doca externa de GPU também pode ser conectada no caso de ser necessário mais desempenho 3D. Durante a revisão do sistema, exploramos esta opção com a ajuda de um Nvidia GeForce RTX 3060 Ti.

Antes de tudo, o Kit Intel NUC 12 Pro é um ótimo PC de escritório. Entretanto, com os acessórios adequados, o pequeno sistema torna-se capaz de muito mais.

Visualmente, o Kit Intel NUC 12 Pro está em linha com outros modelos da série NUC da Intel. A qualidade de construção é boa, embora o exterior revestido de plástico possa parecer um pouco barato à primeira vista. Em geral, o Kit Intel NUC 12 Pro não faz erros importantes que nos desqualificariam de recomendar o sistema. Há muitos concorrentes no espaço do mini PC. Dito isto, não há muitos deles com suporte de Thunderbolt. O Ace Magician TK11-A0 é uma das exceções. No entanto, ele não consegue igualar o desempenho da CPU do Kit Intel NUC 12 Pro.

Preço e Disponibilidade

O Kit Intel NUC 12 Pro - Wall Street Canyon está atualmente disponível em vários varejistas, como Amazon por cerca de 710 USD.

Intel NUC 12 Pro Kit NUC12WSKi7 - 2022-11-24 11/24/2022 v7
Sebastian Bade

Acabamento

81 / 98 → 83%

Conectividade

55 / 81 → 68%

Peso

83%

Desempenho do jogos

67%

Desempenho da aplicação

94%

Ruído

78%

Médio

76%

79%

Mini PC - Médio equilibrado

Intel NUC 12 Pro Kit - Wall Street Canyon em revisão: Mini PC avançado com Intel Core i7-1260P para alta versatilidade

Possíveis concorrentes em comparação

Kit Intel NUC 12 Pro em detalhe

Caso

Conectividade

Comunicação

Acessórios

Manutenção

Desempenho - Core i7 com 12 Núcleos

Condições de teste

Processador

Kit Intel NUC 12 Pro - Wall Street Canyon vs. Cinebench R15 Multi Loop

Desempenho do sistema

Latência do DPC

Solução de armazenamento

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Desempenho da GPU

Desempenho nos jogos

Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only

Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti

Emissões

Ruído do sistema

Temperaturas

Consumo de energia

Consumption external Monitor

Pro

Contra

Veredicto - Avançado, Poderoso e à prova de futuro

Preço e Disponibilidade

More articles related to this device
