Revisão do Minisforum HX90G: PC de jogos compacto com AMD Ryzen 9 5900HX e AMD Radeon RX 6600M

Poderoso mini PC! Minisforum e sua linha de computadores de mesa compactos está se tornando cada vez mais popular. A linha atual do fabricante chinês se concentra cada vez mais em sistemas de jogos como o Neptune Series HX90G. Descubra o que este dispositivo compacto tem a oferecer e se nós o recomendaríamos nesta revisão.


Configurações do Minisforum HX90G (Fonte: Minisforum)
Configurações do Minisforum HX90G (Fonte: Minisforum)

O Minisforum está se tornando cada vez mais popular. O construtor de sistemas chinês começou com computadores de escritório compactos e marcou sua estréia no setor de jogos com o EliteMini HX90 - um dispositivo sem uma GPU dedicada. O Minisforum Neptune Series HX90G compensa isso e inclui um AMD Radeon RX 6600M para complementar o AMD Ryzen 9 5900HX. Estamos familiarizados com este chip de nossas resenhas de notebooks. Ele tem uma VRAM de 8 GB e pode funcionar sem ser estrangulado pela HX90G.

O Minisforum HX90G está disponível na própria loja on-line do fabricante. Ele também vem como uma versão barebone sem módulos RAM ou SSD - e sem uma licença para Windows Professional 11. O preço para esta versão barebone começa em 1.079 Euros. O melhor modelo com 64 GB de RAM e um SSD de 512 GB está disponível por 1.469 Euros. Os primeiros produtos serão distribuídos em meados de novembro e estão atualmente disponíveis com um desconto de aproximadamente 300 euros antes da encomenda, o que torna o preço muito atraente.

Esta análise inclui computadores de mesa compactos como dispositivos de comparação e também analisa os notebooks de jogos equipados de forma semelhante para uma comparação mais direta do desempenho da GPU.

Minisforum Neptune Series HX90G
Processador
AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 45 W PL1 / Sustained, Cezanne-H (Zen 3)
Placa gráfica
AMD Radeon RX 6600M - 8 GB VRAM, Análises do: 2448 MHz, Memoría: 1750 MHz, 100 W TDP, GDDR6, Adrenalin 22.10.1
Memória
16 GB
, DDR4-3200, 2 von 2 installiert
placa mãe
AMD Promontory/Bixby FCH
Disco rígido
ESO512GYLCT, 512 GB
, M.2 NVMe, 450 GB livre
Placa de Som
AMD Zen - Audio Processor - HD Audio Controller
Conexões
2 USB 3.0, 3 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, Conexões Audio: Mikrofonbuchse, Kopfhöreranschluss
Funcionamento em rede
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Tamanho
altura x largura x profundidade (em mm): 69.3 x 205 x 203
Sistema Operativo
Microsoft Windows 11 Pro
Características adicionais
power supply with cable, HDMI cable, computer stand, user manual, 24 Meses Garantia
Released
11/21/2022
peso
1.414 kg, Suprimento de energia: 653 g
Preço
1229 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possíveis concorrentes em comparação

Rating
Date
Model
Weight
Height
Best Price
10/2022
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
1.4 kg69.3 mm
12/2021
Intel Beast Canyon NUC
i9-11900KB, NVIDIA GeForce RTX 3060
189 mm
06/2021
Zotac Magnus One (ECM73070C)
i7-10700, NVIDIA GeForce RTX 3070
05/2022
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
1.8 kg62.2 mm
04/2022
Intel Dragon Canyon NUC - RTX 3060
i9-12900, NVIDIA GeForce RTX 3060
189 mm
82.6 %
05/2022
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
2.5 kg25.75 mm
09/2022
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
2.4 kg393 mm
01/2022
Minisforum EliteMini HX90
R9 5900HX, Vega 8
60 mm

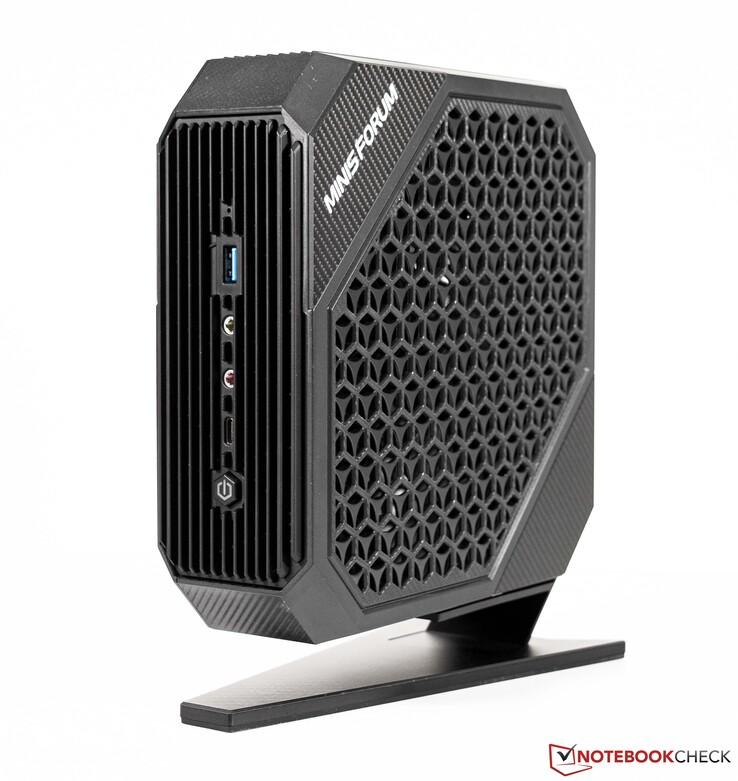

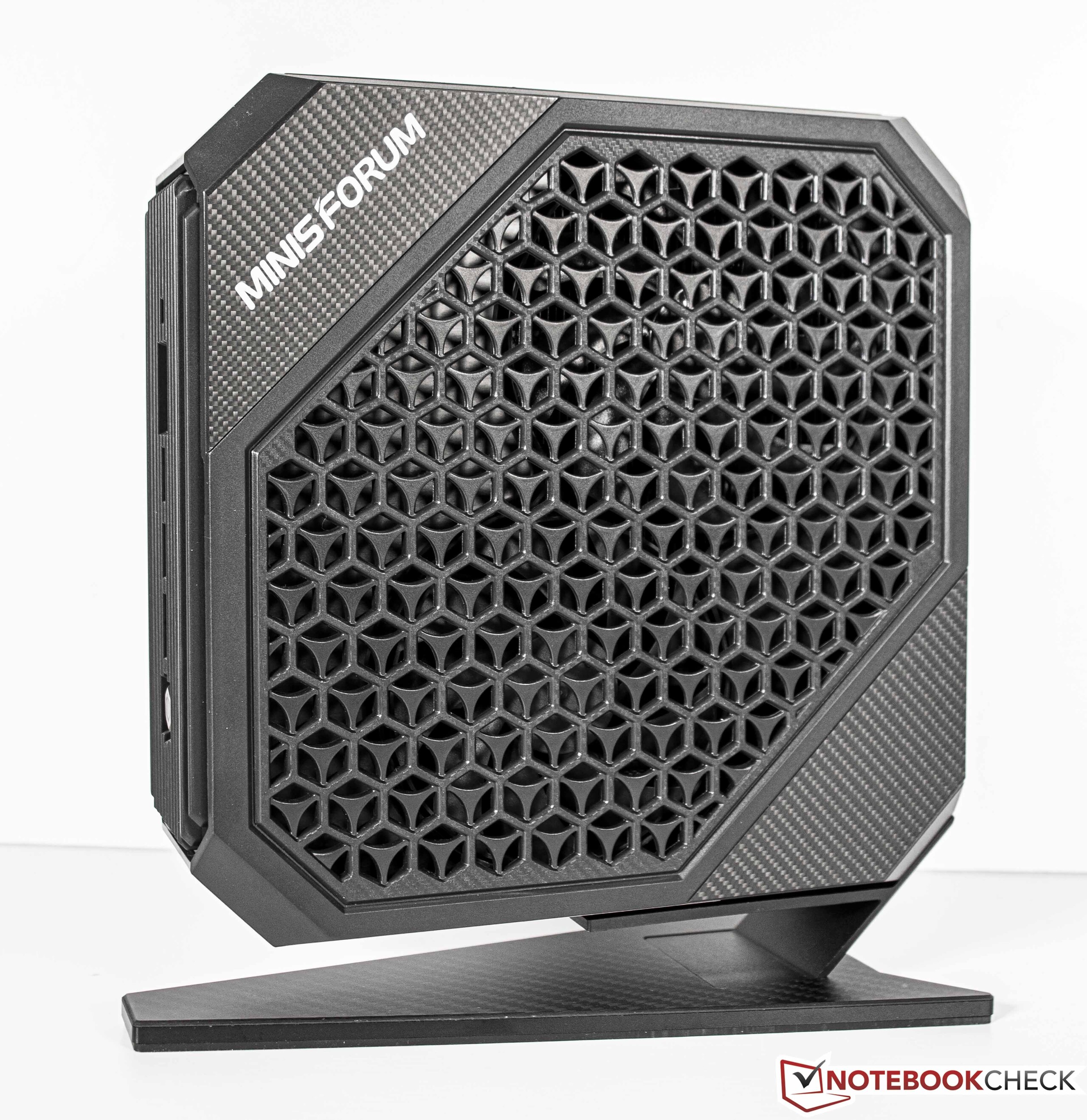

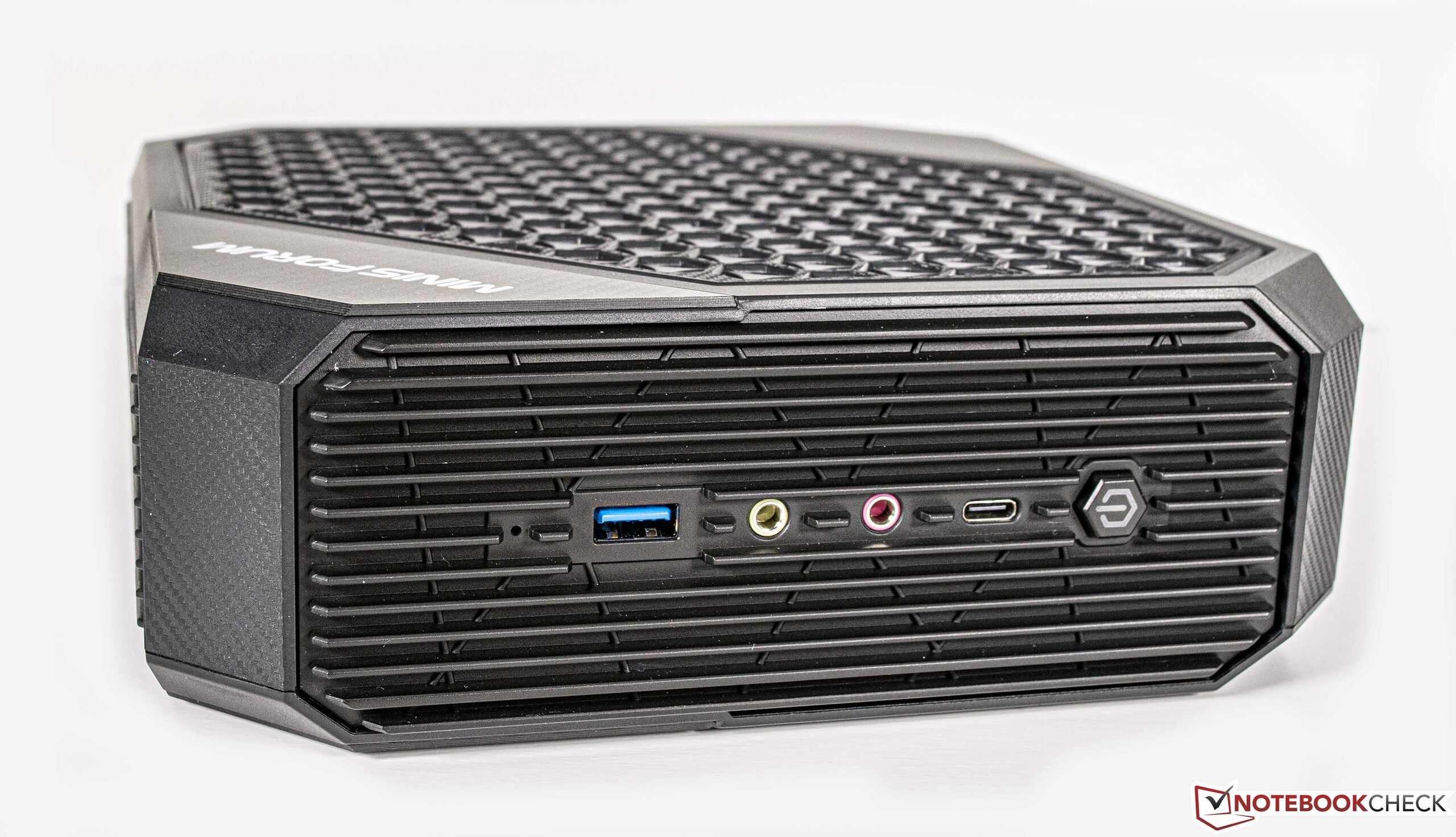

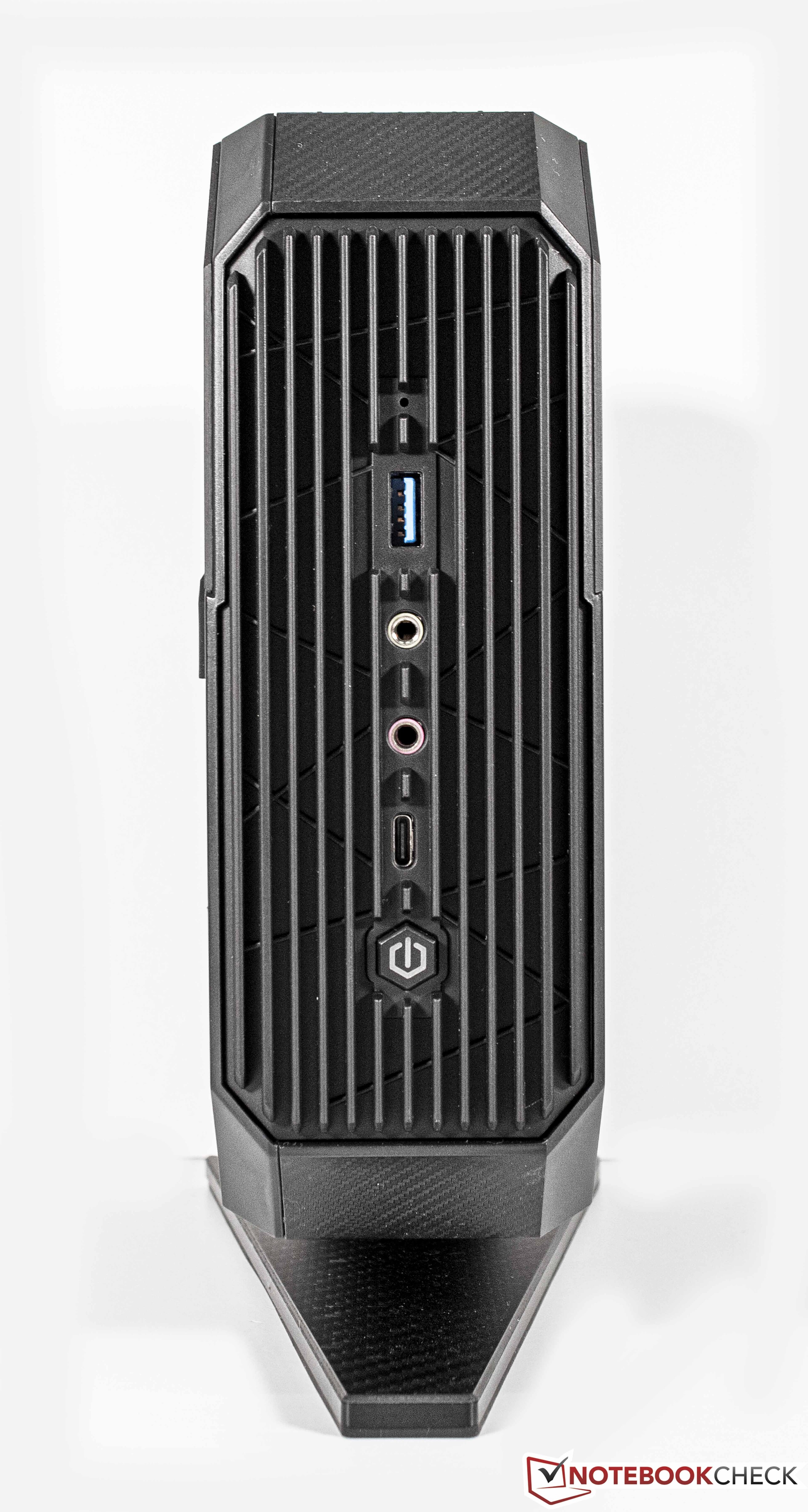

Um olhar detalhado sobre o Minisforum Série Neptune HX90G

Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G
Minisforum Série Neptune HX90G

Caso

A caixa é feita inteiramente de plástico e, como a Minisforum EliteMini HX90, apresenta um visual de carbono em algumas de suas peças. O interior do estojo é reforçado com metal. Não há nada a criticar sobre o exterior do dispositivo. O acabamento é bom e as dimensões da fenda não são muito grandes. No entanto, teríamos preferido um estojo de alumínio. Isto poderia ter tornado o dispositivo um pouco mais pesado, mas teria dado a ele uma aparência mais de alta qualidade. O Minisforum HX90G pode ser posicionado de forma plana ou vertical com a ajuda de um pequeno suporte, como você pode ver nas fotos.

O Minisforum HX90G pesa apenas 1,4 kg (incl. o suporte). A fonte de alimentação externa pesa mais 650 g.

Conectividade

À primeira vista, o Minisforum Neptune Series HX90G parece incluir todas as portas relevantes. Ele tem cinco portas USB, uma das quais é uma porta tipo C. Infelizmente, nenhuma das portas suporta Thunderbolt, e a porta Tipo C não suporta saída de imagem. O dispositivo oferece alternativas suficientes para conectar telas externas: dois HDMI e dois conectores DisplayPort. Infelizmente, estas quatro portas suportam apenas até 4K@60Hz. As portas são distribuídas na frente e atrás e são de fácil acesso.

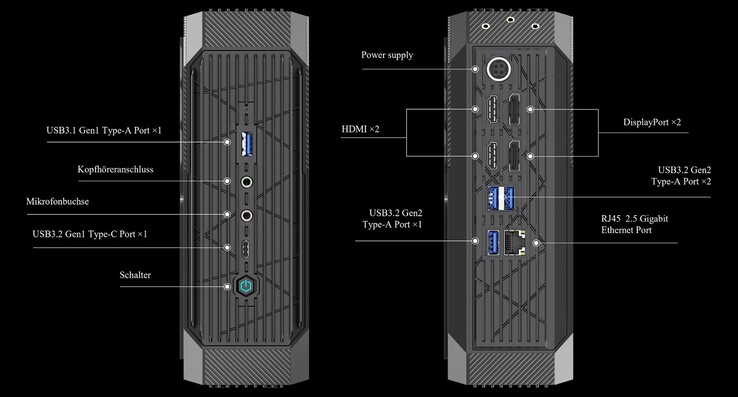

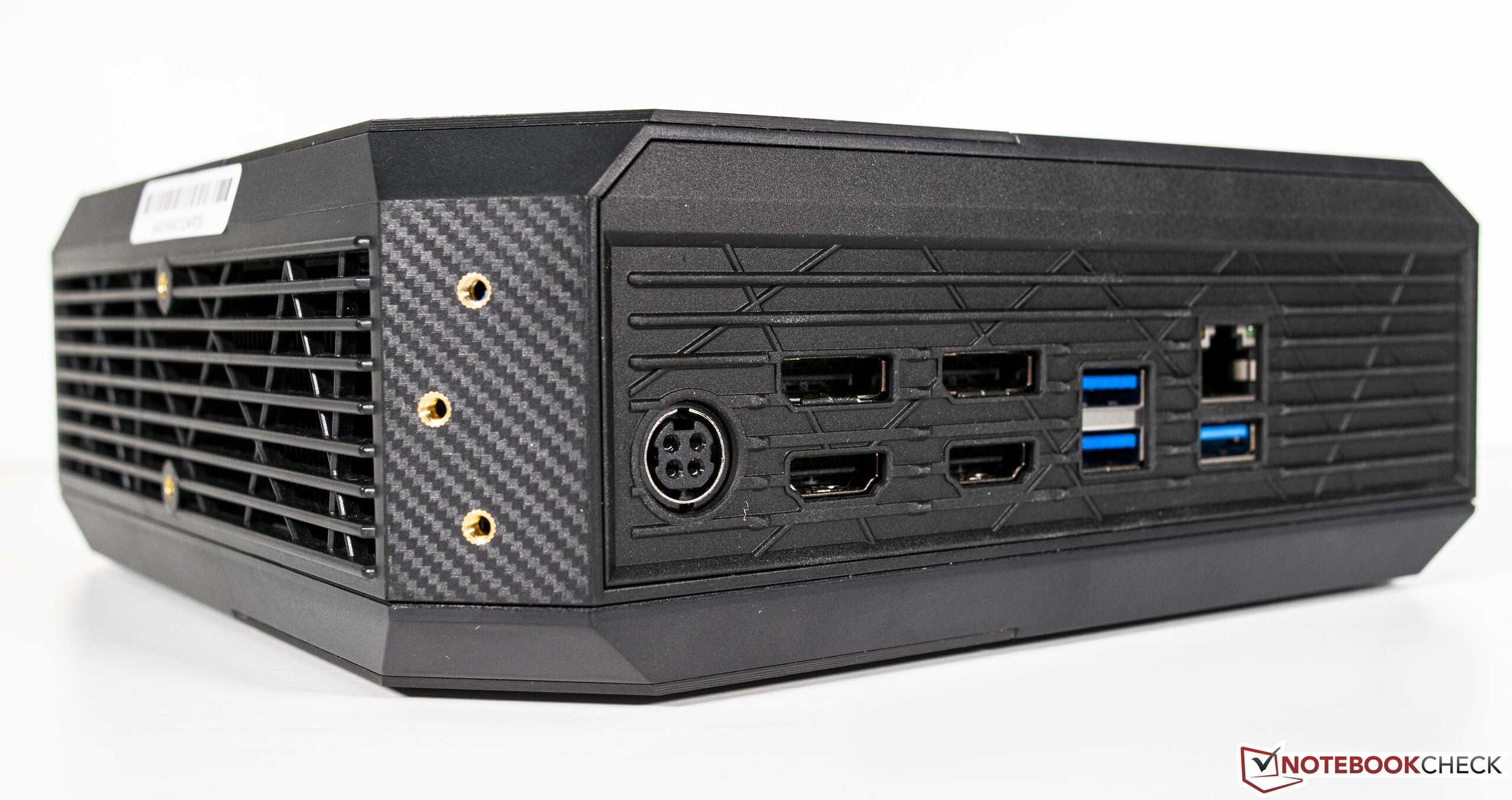

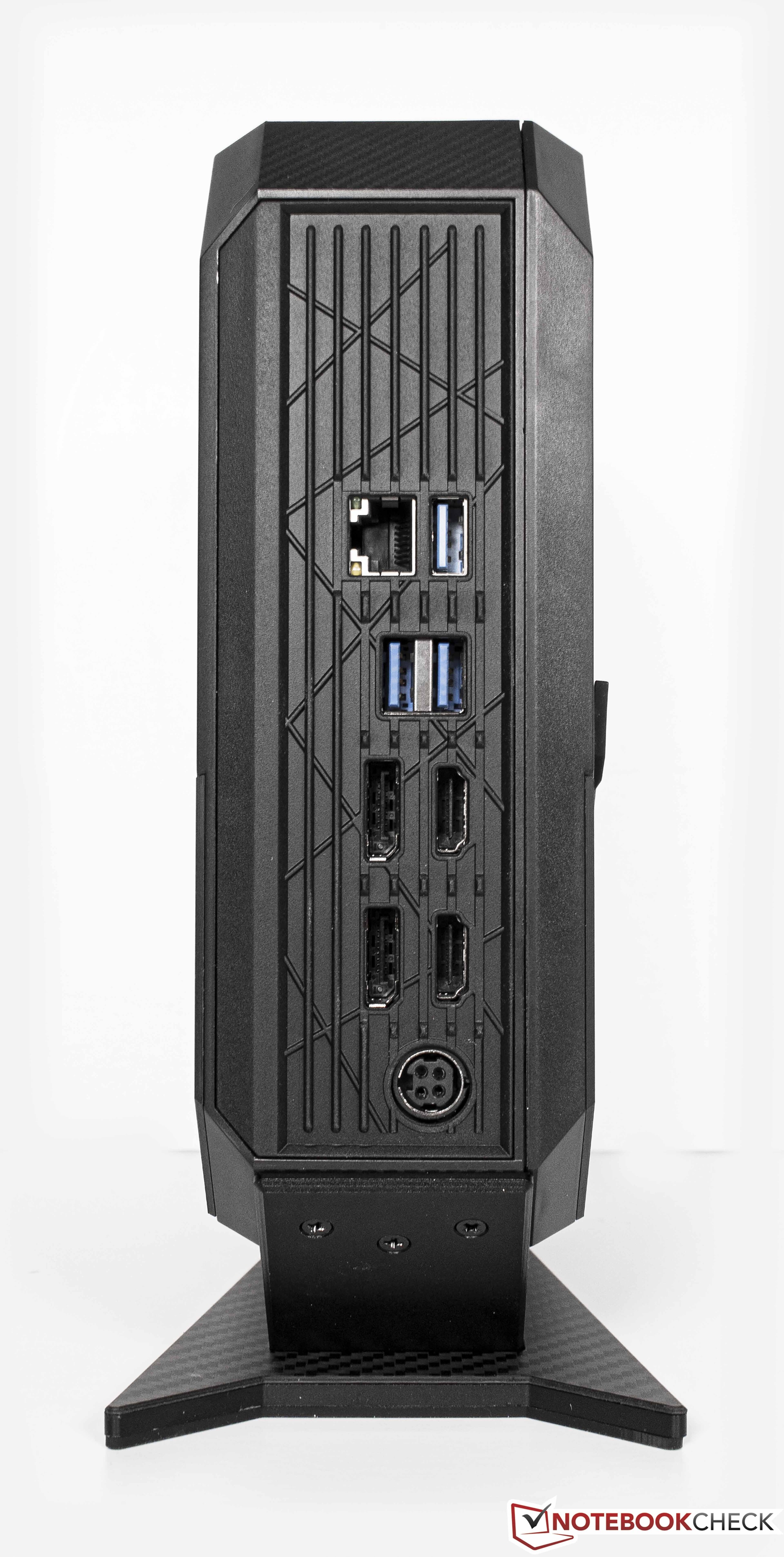

Portas externas no Minisforum Série Neptune HX90G (Fonte: Minisforum)
Portas externas no Minisforum Série Neptune HX90G (Fonte: Minisforum)

Comunicaçao

A Minisforum incluiu um módulo MediaTek RZ608 em seu HX90G. O mini PC alcançou bons resultados em nosso teste com nosso roteador de referência ASUS ROG Rapture GT-AXE11000. Suas taxas de transferência foram superiores a todas as nossas medições anteriores com este módulo em outras unidades de teste. Os módulos Intel Wi-Fi 6E são muito mais rápidos, porém, e superam facilmente nossa unidade de teste. A porta LAN integrada é uma boa alternativa e suporta até 2,5 GBit/s.

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1848 (1731min - 1888max) MBit/s +122%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1480 (1212min - 1519max) MBit/s +78%
Average of class Mini PC
  (390 - 1771, n=38, last 2 years)
1197 MBit/s +44%
Minisforum NUCX i7
Intel Wi-Fi 6E AX210
885 (820min - 897max) MBit/s +6%
Minisforum Neptune Series HX90G
MediaTek RZ608
831 (801min - 844max) MBit/s
Average MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s -1%
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1851 (1799min - 1897max) MBit/s +91%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1669 (1609min - 1719max) MBit/s +72%
Minisforum NUCX i7
Intel Wi-Fi 6E AX210
1198 (975min - 1352max) MBit/s +24%
Average of class Mini PC
  (432 - 1764, n=39, last 2 years)
1158 MBit/s +20%
Minisforum Neptune Series HX90G
MediaTek RZ608
968 (949min - 994max) MBit/s
Average MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s -15%
050100150200250300350400450500550600650700750800850900950Tooltip
Minisforum Neptune Series HX90G; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø968 (949-994)
Minisforum Neptune Series HX90G; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø830 (801-844)

Acessórios

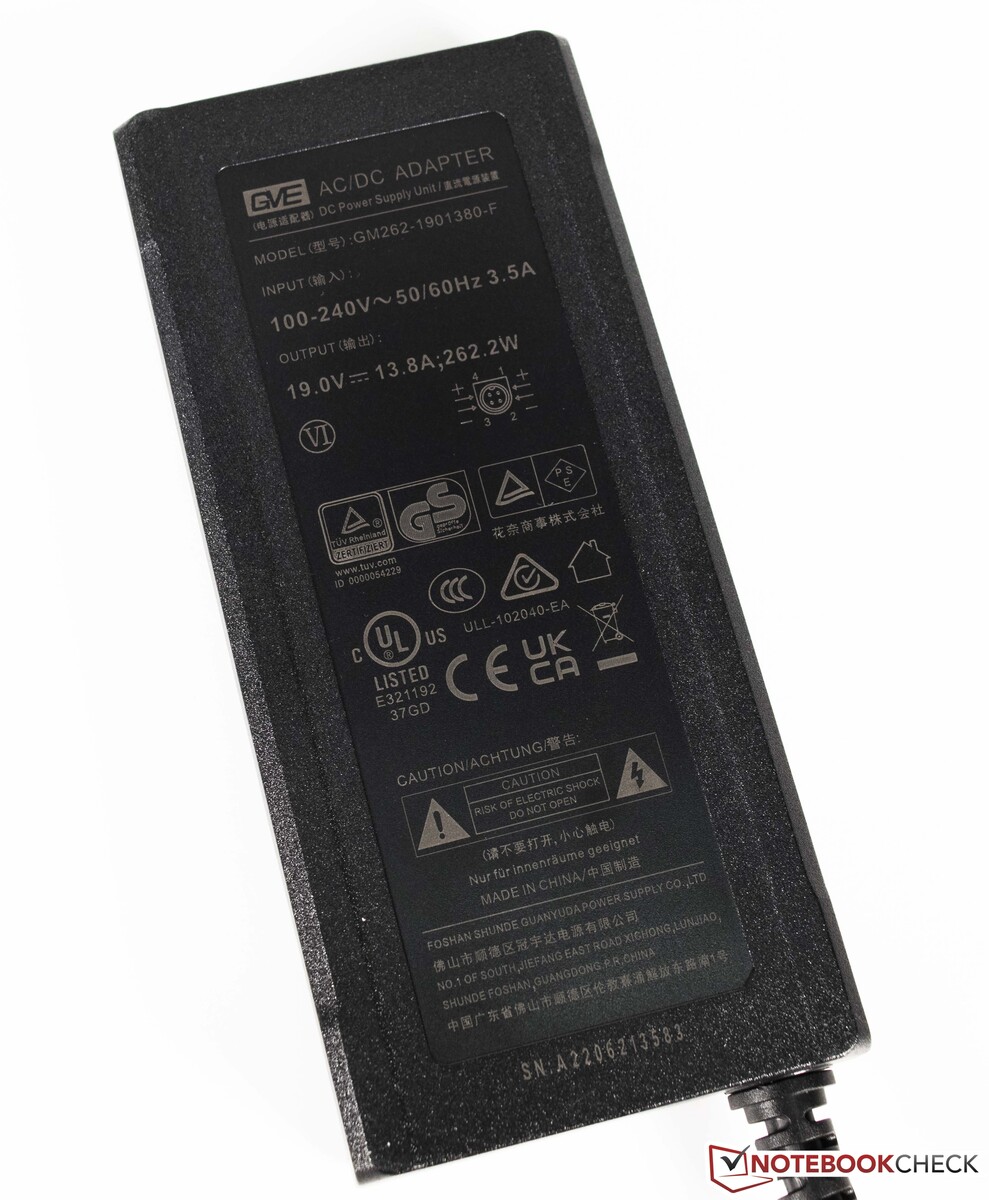

O dispositivo vem com uma fonte de alimentação de 260 watts e um suporte.

Manutenção

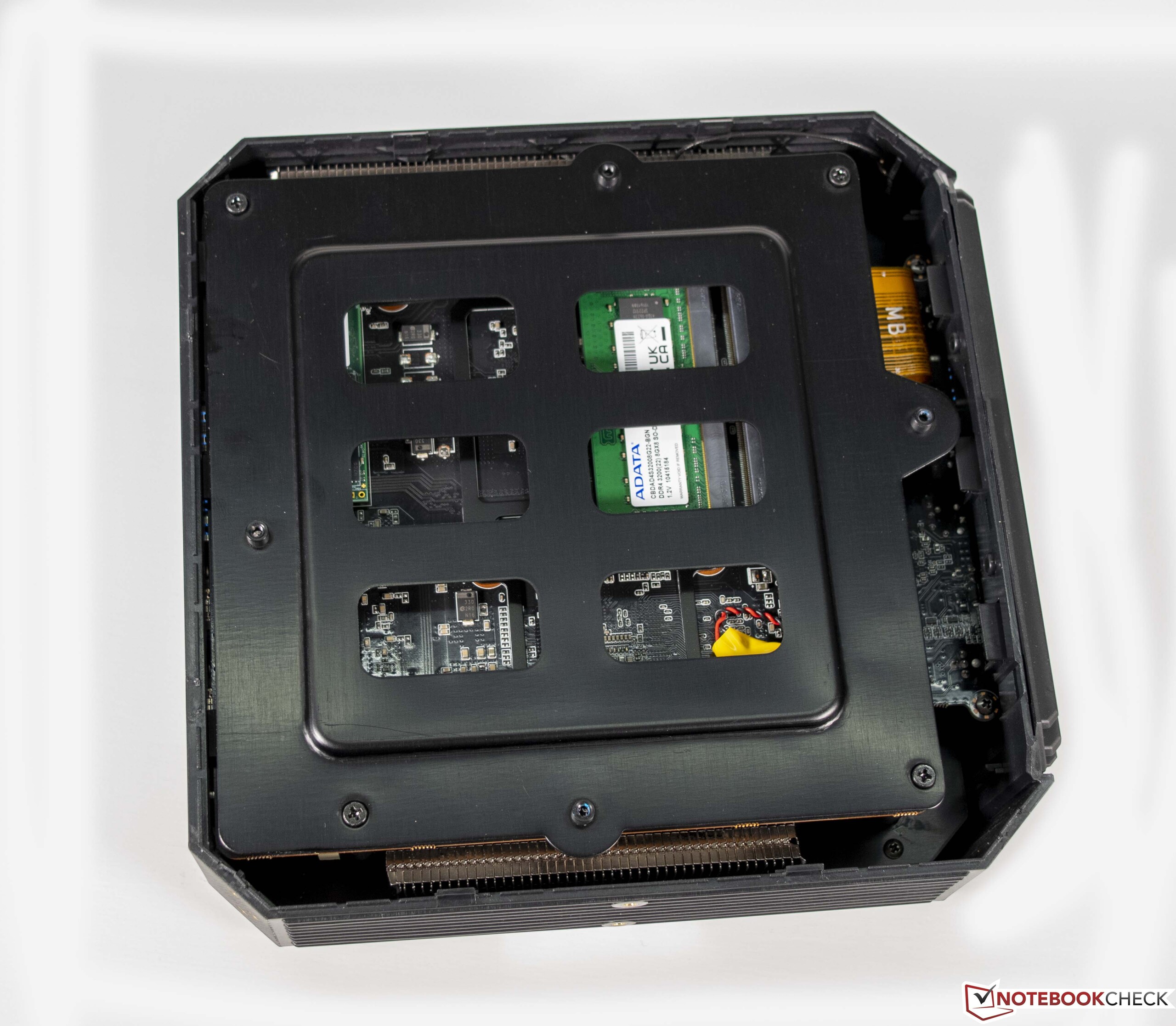

A tampa lateral do dispositivo pode ser removida para qualquer trabalho de manutenção. Infelizmente, isto requer a remoção das almofadas de borracha, o que não é o ideal, pois elas tendem a perder sua pegajosidade quando isto acontece. A tampa lateral é fixada ao estojo com quatro parafusos. Os usuários terão então que remover outra tampa metálica antes de ter acesso ao módulo RAM, ao SSD ou ao módulo Wi-Fi. A placa metálica serve apenas para fixar a tampa lateral. Não há espaço para um dispositivo de armazenamento de 2,5 polegadas, nem poderia ser conectado à placa principal. Há espaço, entretanto, para dois módulos SO-DIMM e dois M.2 SSD. Você terá que desmontar o dispositivo ainda mais se quiser limpar os ventiladores, mas isto não deve ser um problema se você souber o que está fazendo. O fabricante desencoraja os usuários de desmontar o sistema de resfriamento. E como o fabricante utilizou pasta térmica de boa qualidade (metal líquido), não achamos que isto seja necessário de qualquer forma.

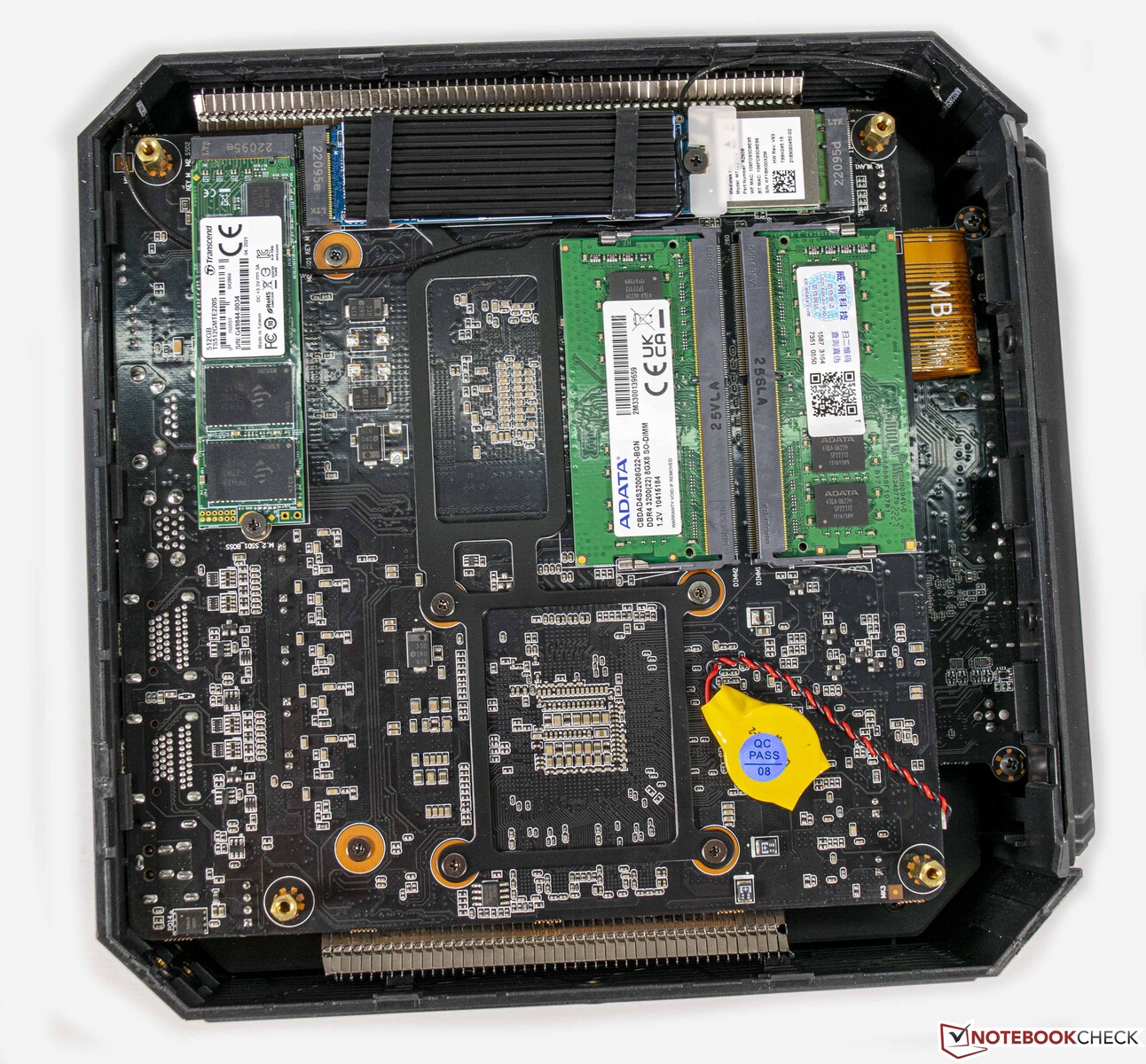

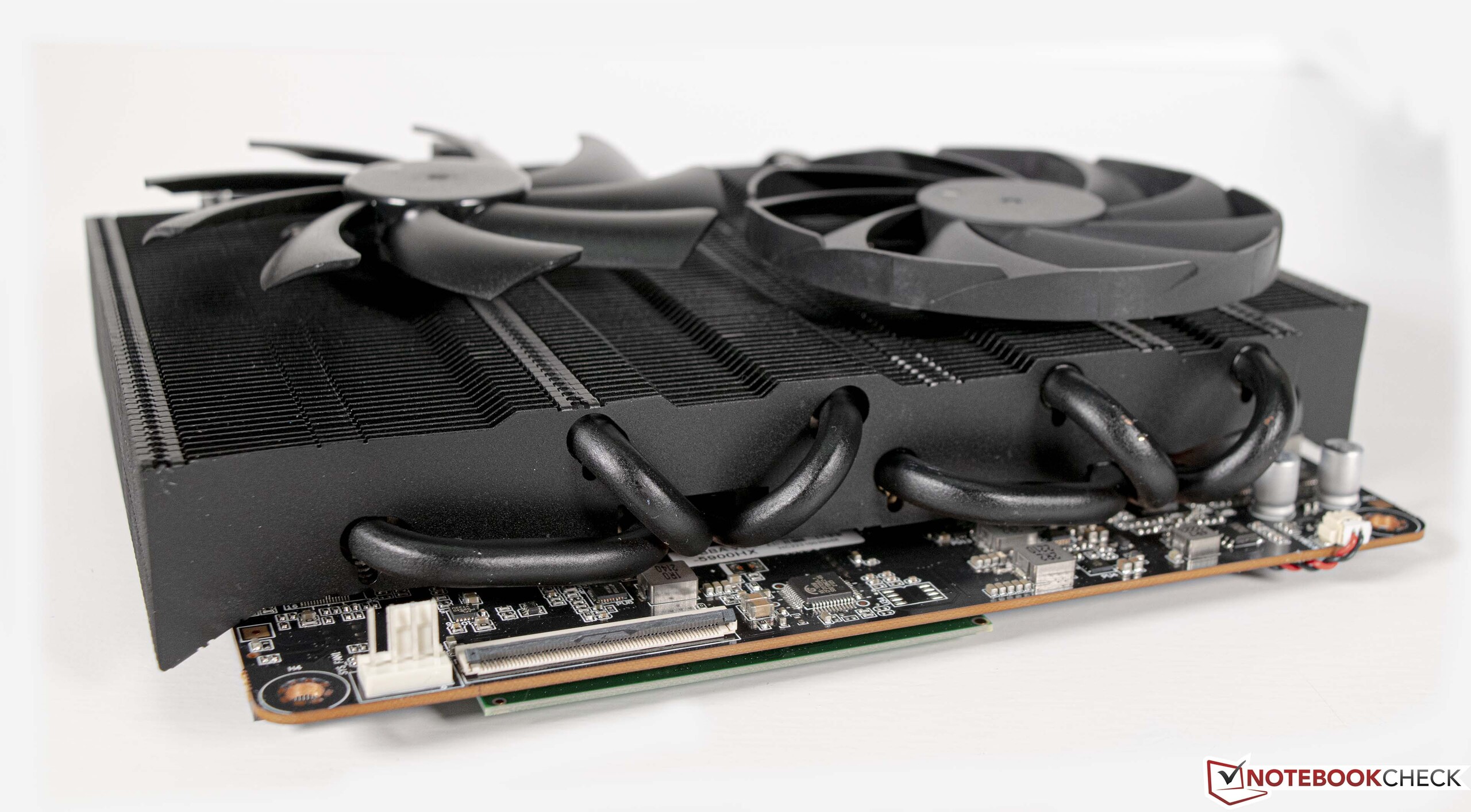

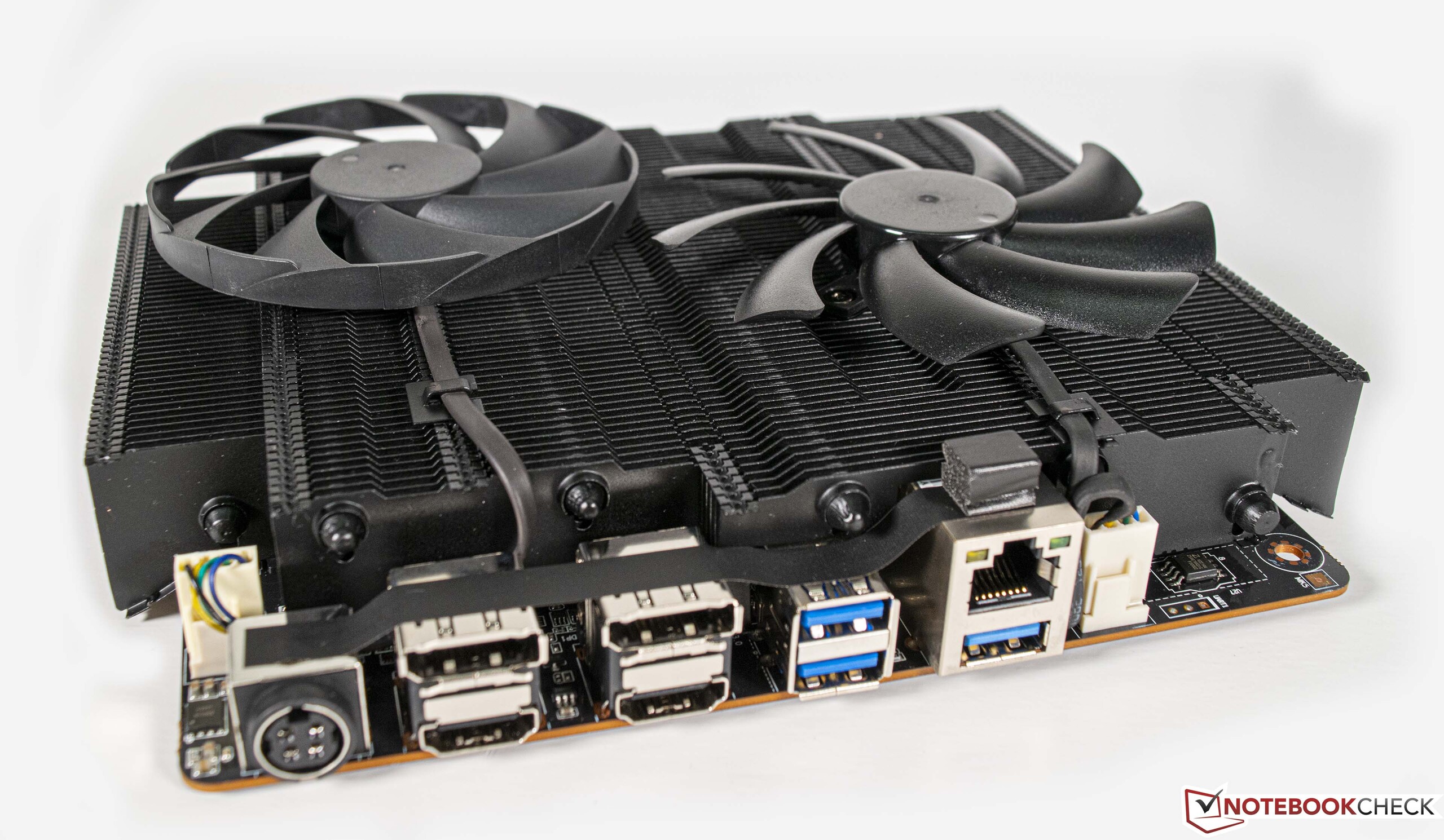

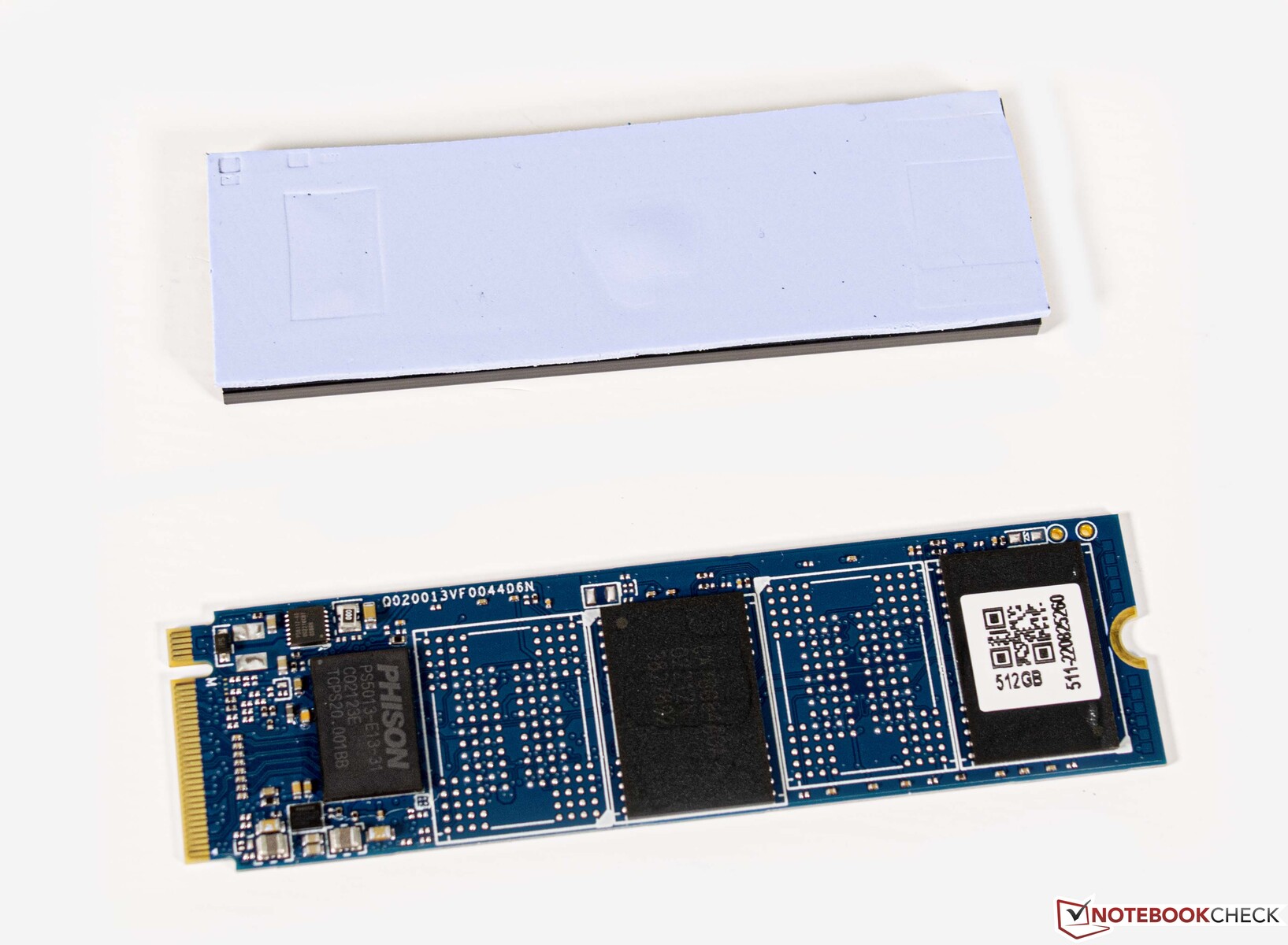

Dentro do Minisforum Série Neptune HX90G
Dentro do Minisforum Série Neptune HX90G

Desempenho - compacto e poderoso

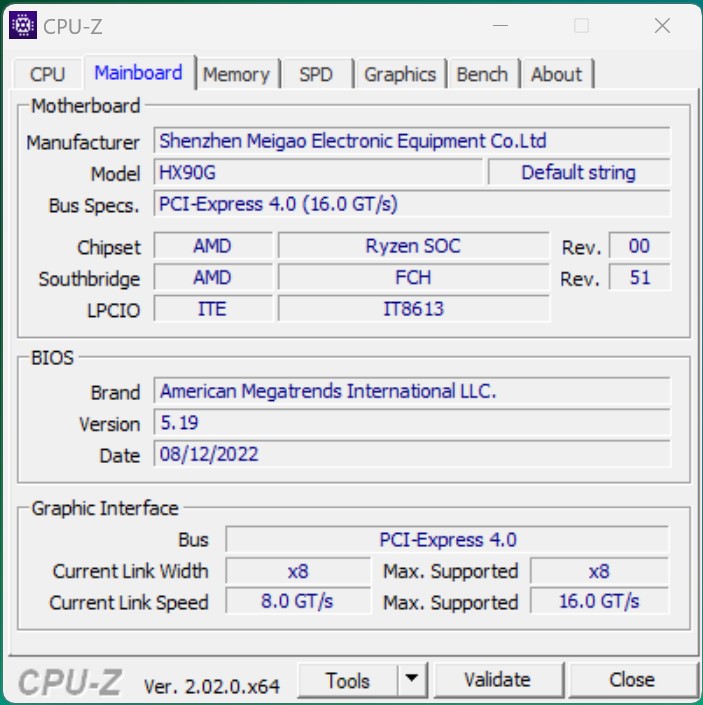

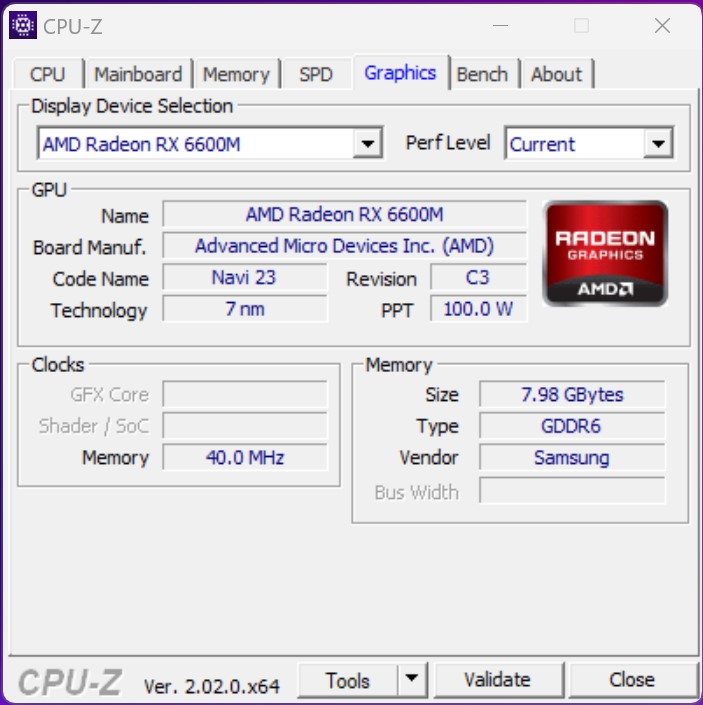

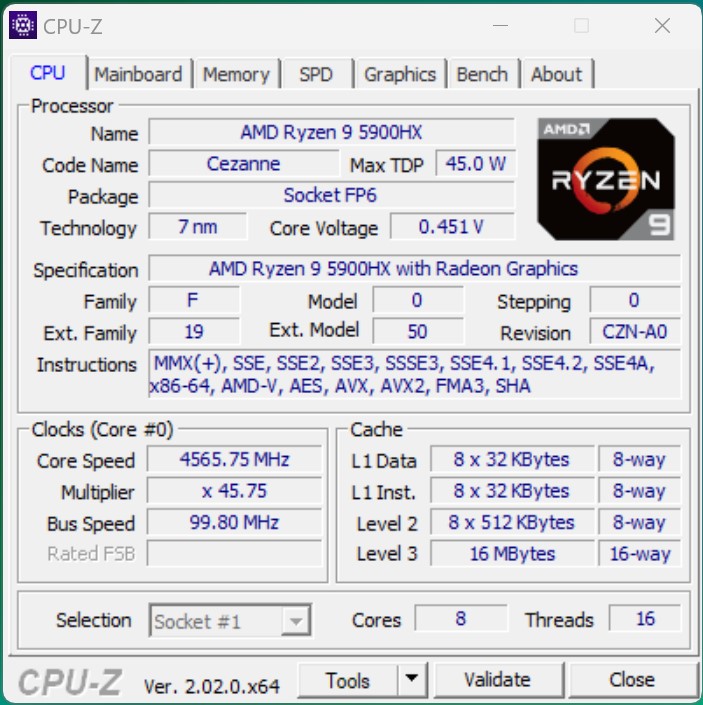

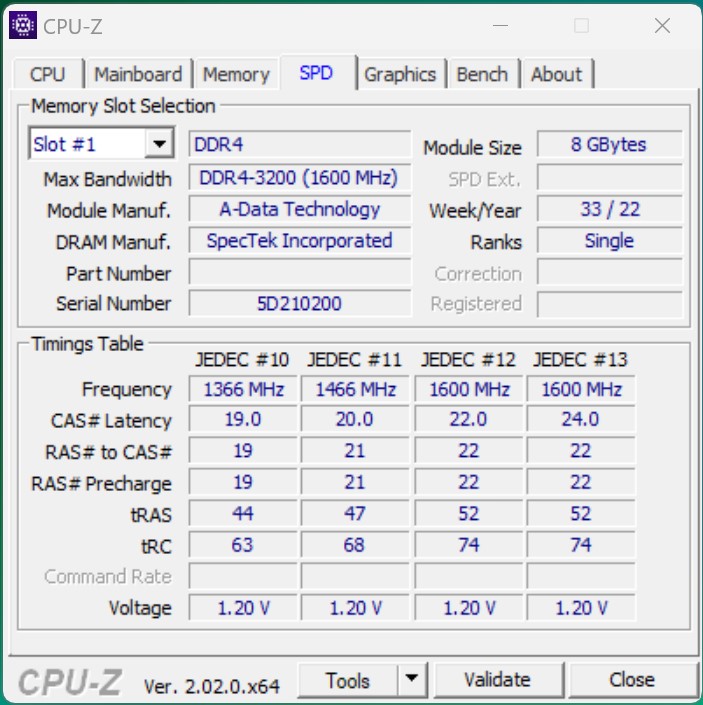

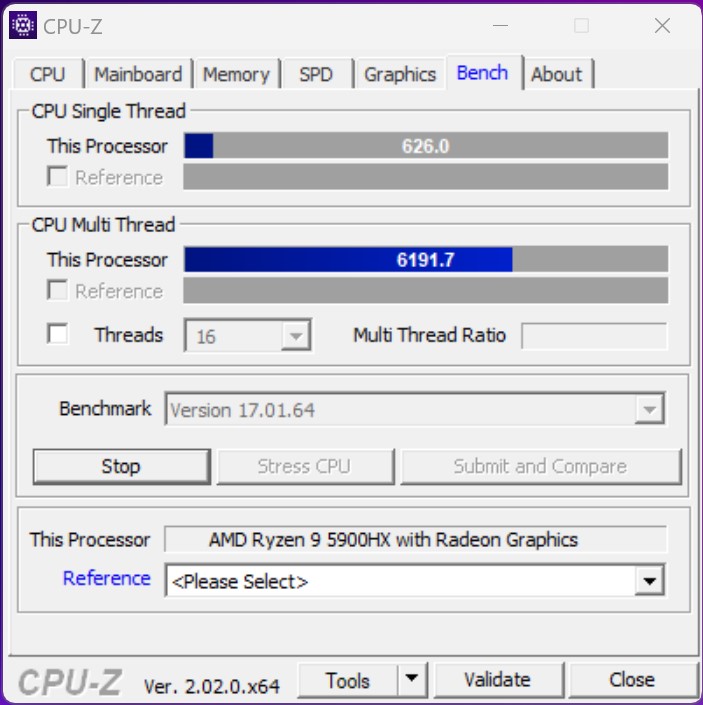

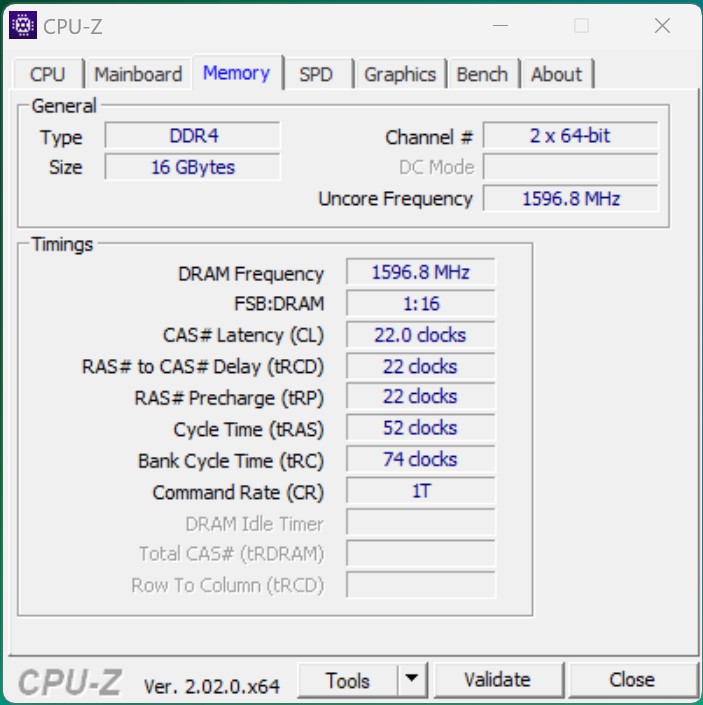

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
HWiNFO

Condições de teste

Fizemos todos os testes de desempenho no perfil energético de "alto desempenho". Não fizemos nenhuma alteração no desempenho da CPU e deixamos todas as configurações da BIOS em modo automático.

Processador

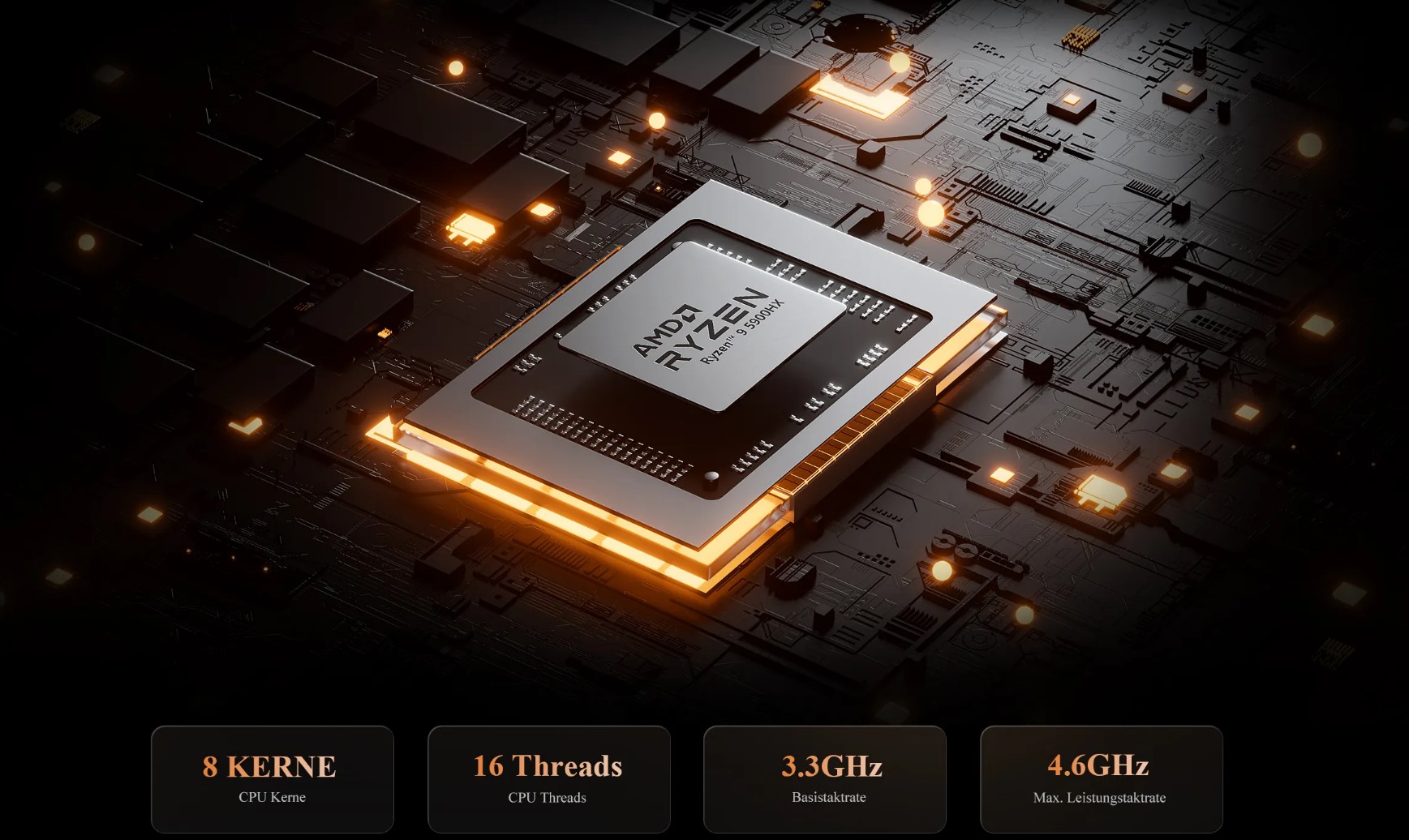

AMD Ryzen 9 5900HX no Minisforum HX90G (Fonte: Minisforum)
AMD Ryzen 9 5900HX no Minisforum HX90G (Fonte: Minisforum)

O AMD Ryzen 9 5900HX pertence à série Cezanne e é baseado na arquitetura Zen3. O SoC oferece 8 núcleos físicos com um total de 16 fios (graças ao SMT). Isto é particularmente benéfico para aplicações multi-tarefas. O AMD Ryzen 9 5900HX tem um bom desempenho, e o desempenho geral do HX90G é melhor que o do HX90, equipado com o mesmo SoC. Para uma diferença mais pronunciada no desempenho da CPU, o fabricante poderia ter usado o mais recente SoC Ryzen 9 6900HX da AMD. Nossa classificação de desempenho mostrou que este SoC está 10% acima do SoC de nosso sistema. O HX90G tem outro oponente interno na forma do Minisforum NUCXi7. O AMD Ryzen 9 5900HX tem o Intel Core i7-11800H sob muito bom controle, mas não pode competir com o Intel Dragon Canyon NUC, com base na geração atual do Alder Lake. Em números, isto equivale a uma diferença de 12% no desempenho, que não consideraríamos perceptível no uso diário.

Não há diferenças em comparação com o Minisforum HX90 em termos de especificações do SoC. Testamos o SoC do HX90G em modo automático, com o SoC atingindo brevemente até 54 watts. O limite de potência a longo prazo é fixado em 45 watts. O SoC pode ser ajustado para seis modos diferentes (10, 15, 25, 35, 45, 54 watts) para economizar eletricidade ou reduzir ainda mais as já baixas emissões de ruído.

Para mais comparações e benchmarks, por favor, visite nosso Tabela comparativa de CPU.

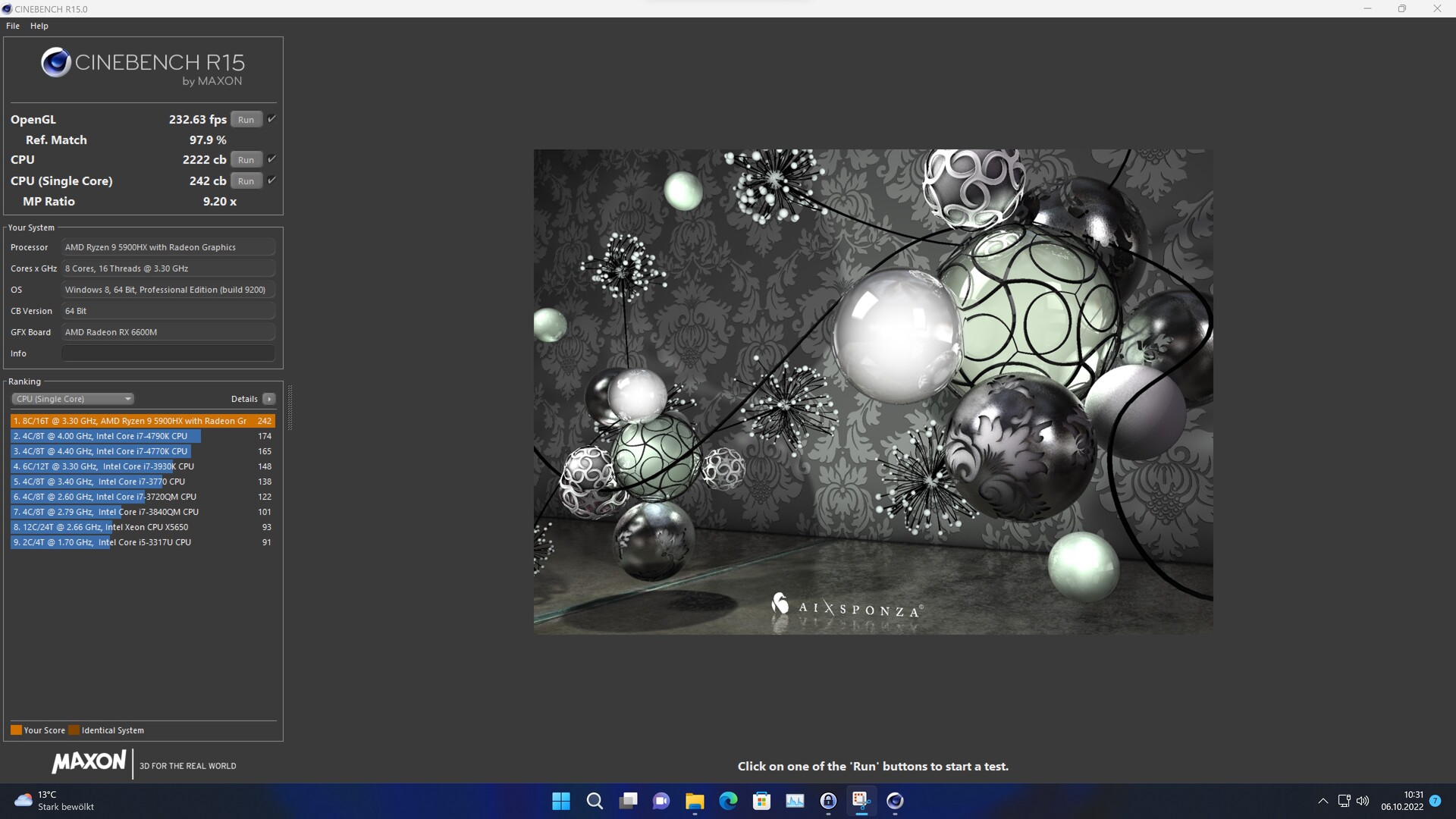

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
54.3 pt
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
48.7 pt
Average AMD Ryzen 9 6900HX

48.5 pt
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
48.1 pt
Average AMD Ryzen 9 5900HX

47.3 pt
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
47 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
46.7 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
45.5 pt
Lenovo Legion 5 15ACH6A-82NW0010GE -8!
AMD Ryzen 5 5600H, 3300 MHz
44.7 pt
Zotac Magnus One (ECM73070C) -2!
Intel Core i7-10700, 2900 MHz
43.4 pt
Cinebench R15
CPU Single 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
262 Points +8%
Average AMD Ryzen 9 6900HX
  (241 - 261, n=19)
250 Points +3%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
247 Points +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
242 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
242 Points
Average AMD Ryzen 9 5900HX
  (197 - 243, n=25)
238 Points -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
227 Points -6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
224 Points -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
223 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
196 Points -19%
CPU Multi 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3299 Points +48%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2224 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
2222 Points
Average AMD Ryzen 9 6900HX
  (1588 - 2411, n=19)
2163 Points -3%
Average AMD Ryzen 9 5900HX
  (1076 - 2267, n=29)
2050 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
2045 Points -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
2027 Points -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1723 Points -22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1666 Points -25%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1455 Points -35%
Cinebench R20
CPU (Single Core)
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
703 Points +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
629 Points +8%
Average AMD Ryzen 9 6900HX
  (595 - 631, n=19)
610 Points +5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
582 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
580 Points
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
579 Points 0%
Average AMD Ryzen 9 5900HX
  (471 - 584, n=29)
573 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
564 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
535 Points -8%
CPU (Multi Core)
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
7179 Points +36%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
5276 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5185 Points -2%
Average AMD Ryzen 9 6900HX
  (3742 - 5813, n=19)
5162 Points -2%
Average AMD Ryzen 9 5900HX
  (2242 - 5476, n=30)
4847 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
4760 Points -10%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
4644 Points -12%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
4059 Points -23%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
3954 Points -25%
Cinebench R11.5
CPU Single 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3.16 Points +11%
Average AMD Ryzen 9 6900HX
  (2.86 - 3.07, n=8)
2.94 Points +4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2.86 Points +1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
2.84 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
2.84 Points
Average AMD Ryzen 9 5900HX
  (2.8 - 2.86, n=5)
2.84 Points 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
2.62 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
2.61 Points -8%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
2.59 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
2.26 Points -20%
CPU Multi 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
38.96 Points +58%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
25.6 Points +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
24.71 Points
Average AMD Ryzen 9 5900HX
  (22 - 25.6, n=5)
24 Points -3%
Average AMD Ryzen 9 6900HX
  (19 - 26.4, n=8)
23.9 Points -3%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
22.07 Points -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
21.87 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
19.71 Points -20%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
19.18 Points -22%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
16.7 Points -32%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
14610 Points +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
12508 Points +4%
Average AMD Ryzen 9 6900HX
  (11870 - 12943, n=8)
12332 Points +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
12152 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
12037 Points
Average AMD Ryzen 9 5900HX
  (11811 - 12152, n=5)
12020 Points 0%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
11957 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
11608 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
11082 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
9898 Points -18%
Rendering Multiple CPUs 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
107565 Points +44%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
74772 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
73115 Points -2%
Average AMD Ryzen 9 5900HX
  (64320 - 74772, n=5)
70380 Points -6%
Average AMD Ryzen 9 6900HX
  (55915 - 77450, n=8)
69650 Points -7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
67486 Points -10%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
67183 Points -10%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
63144 Points -16%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
58426 Points -22%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
52577 Points -30%
Blender - v2.79 BMW27 CPU
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
315.4 Seconds * -37%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
305.2 Seconds * -32%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
286.1 Seconds * -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
262.7 Seconds * -14%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
262.7 Seconds * -14%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
261 Seconds * -13%
Average AMD Ryzen 9 5900HX
  (219 - 442, n=29)
250 Seconds * -8%
Average AMD Ryzen 9 6900HX
  (212 - 357, n=21)
239 Seconds * -3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
231 Seconds *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
229.3 Seconds * +1%
wPrime 2.10
32m
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
4.186 s * -25%
Average AMD Ryzen 9 6900HX
  (3.46 - 4.69, n=7)
4 s * -20%
Average AMD Ryzen 9 5900HX
  (3.31 - 4.4, n=4)
3.66 s * -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
3.416 s * -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
3.405 s * -2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
3.345 s *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
3.308 s * +1%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
3.257 s * +3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
2.67 s * +20%
1024m
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
211.8 s * -128%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
120.839 s * -30%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
119.5 s * -28%
Average AMD Ryzen 9 6900HX
  (93.2 - 149.4, n=7)
114.7 s * -23%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
102.2 s * -10%
Average AMD Ryzen 9 5900HX
  (91.6 - 106.7, n=4)
98.7 s * -6%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
98.307 s * -6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
93.062 s *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
91.6 s * +2%
X264 HD Benchmark 4.0
Pass 1
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
310 (303min - 324max) fps +12%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
278 (276min - 280max) fps
Average AMD Ryzen 9 5900HX
  (272 - 278, n=4)
275 fps -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
272.5 (271min - 279max) fps -2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
271.5 (259min - 276max) fps -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
258 (256min - 259max) fps -7%
Average AMD Ryzen 9 6900HX
  (241 - 263, n=7)
254 fps -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
247.5 (245min - 250max) fps -11%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
236 (235min - 257max) fps -15%
Pass 2
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
147.5 (134min - 173max) fps +15%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
128.35 (126.9min - 128.4max) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
128 (122min - 128max) fps 0%
Average AMD Ryzen 9 5900HX
  (112 - 128.4, n=4)
120.2 fps -6%
Average AMD Ryzen 9 6900HX
  (93.3 - 127.8, n=7)
115.2 fps -10%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
109.3 (108.1min - 111.7max) fps -15%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
106 (101min - 108max) fps -17%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
93.75 (91.3min - 98.8max) fps -27%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
84.8 (84.6min - 105max) fps -34%
WinRAR - Result
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
10739 KB/s +43%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
9584 KB/s +27%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
7944 KB/s +6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
7925 KB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
7523 KB/s
Average AMD Ryzen 9 6900HX
  (6795 - 6980, n=7)
6875 KB/s -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
6555 KB/s -13%
Average AMD Ryzen 9 5900HX
  (4297 - 7722, n=4)
6535 KB/s -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
4297 KB/s -43%
TrueCrypt
AES Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
17.2 GB/s +51%
Average AMD Ryzen 9 6900HX
  (9.3 - 13.5, n=7)
11.8 GB/s +4%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
11.6 GB/s +2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
11.6 GB/s +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
11.4 GB/s
Average AMD Ryzen 9 5900HX
  (7.4 - 12.3, n=4)
10.5 GB/s -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
10.3 GB/s -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
9.9 GB/s -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7.4 GB/s -35%
Twofish Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3.4 GB/s +79%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2 GB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1.9 GB/s
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1.8 GB/s -5%
Average AMD Ryzen 9 5900HX
  (1.6 - 2, n=4)
1.775 GB/s -7%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1.7 GB/s -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1.7 GB/s -11%
Average AMD Ryzen 9 6900HX
  (1.3 - 1.8, n=7)
1.643 GB/s -14%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1.5 GB/s -21%
Serpent Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1.9 GB/s +58%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s
Average AMD Ryzen 9 5900HX
  (1.1 - 1.2, n=4)
1.15 GB/s -4%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1.1 GB/s -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1.1 GB/s -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1.1 GB/s -8%
Average AMD Ryzen 9 6900HX
  (0.857 - 1.2, n=7)
1.094 GB/s -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
0.9 GB/s -25%
Geekbench 5.5
Multi-Core
Average AMD Ryzen 9 6900HX
  (8313 - 10490, n=21)
9642 Points +7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
9186 Points +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
9020 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
8924 Points -1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
8924 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
8207 Points -9%
Average AMD Ryzen 9 5900HX
  (5057 - 9294, n=27)
8188 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8173 Points -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7875 Points -13%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6567 Points -27%
Single-Core
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1656 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1656 Points +6%
Average AMD Ryzen 9 6900HX
  (1523 - 1652, n=21)
1589 Points +2%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1579 Points +1%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1570 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1560 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1542 Points -1%
Average AMD Ryzen 9 5900HX
  (1271 - 1574, n=27)
1517 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1414 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1299 Points -17%
Geekbench 5.0
5.0 Multi-Core
Average AMD Ryzen 9 6900HX
  (9220 - 10426, n=15)
9880 Points +12%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
9074 Points +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
8853 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
8845 Points 0%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
8845 Points 0%
Average AMD Ryzen 9 5900HX
  (7327 - 9053, n=9)
8267 Points -7%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8196 Points -7%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
8109 Points -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7859 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6483 Points -27%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6483 Points -27%
5.0 Single-Core
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1638 Points +9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1638 Points +9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1571 Points +5%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1563 Points +4%
Average AMD Ryzen 9 6900HX
  (1531 - 1603, n=15)
1561 Points +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1500 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1498 Points 0%
Average AMD Ryzen 9 5900HX
  (1233 - 1517, n=9)
1460 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1377 Points -8%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1377 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1304 Points -13%
Geekbench 4.4
64 Bit Single-Core Score
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
6991 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
6991 Points +6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
6698 Points +2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
6693 Points +2%
Average AMD Ryzen 9 6900HX
  (6191 - 6804, n=11)
6642 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
6572 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6365 Points -3%
Average AMD Ryzen 9 5900HX
  (5249 - 6591, n=8)
6240 Points -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
5812 Points -12%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
5726 Points -13%
64 Bit Multi-Core Score
Average AMD Ryzen 9 6900HX
  (36780 - 39852, n=11)
39028 Points +14%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
36347 Points +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
36310 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
36310 Points +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
34259 Points
Average AMD Ryzen 9 5900HX
  (30451 - 35465, n=8)
33068 Points -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
33034 Points -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
32434 Points -5%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
32174 Points -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
27071 Points -21%
3DMark 11 - 1280x720 Performance Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
24314 Points +33%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
18332 Points
Average AMD Ryzen 9 6900HX
  (15855 - 21036, n=23)
18161 Points -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
17803 Points -3%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
16736 Points -9%
Average AMD Ryzen 9 5900HX
  (13940 - 18790, n=28)
16642 Points -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
15739 Points -14%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
15497 Points -15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
13940 Points -24%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
13568 Points -26%
7-Zip 18.03
7z b 4
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
61760 MIPS
Average AMD Ryzen 9 6900HX
  (49526 - 65336, n=20)
60091 MIPS -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
57435 MIPS -7%
Average AMD Ryzen 9 5900HX
  (36011 - 62503, n=29)
57266 MIPS -7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
51773 MIPS -16%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
50152 MIPS -19%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
50152 MIPS -19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
45999 MIPS -26%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
44503 MIPS -28%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
43007 MIPS -30%
7z b 4 -mmt1
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
5979 MIPS +3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
5979 MIPS +3%
Average AMD Ryzen 9 6900HX
  (5090 - 6070, n=20)
5799 MIPS 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
5798 MIPS
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5739 MIPS -1%
Average AMD Ryzen 9 5900HX
  (4791 - 5905, n=29)
5701 MIPS -2%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
5619 MIPS -3%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
5446 MIPS -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
5330 MIPS -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
5293 MIPS -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average AMD Ryzen 9 6900HX
  (12.6 - 18.7, n=20)
16.7 fps +5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps
Average AMD Ryzen 9 5900HX
  (8.26 - 17.1, n=29)
15.2 fps -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
14.8 fps -7%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
14.4 fps -9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
14.4 fps -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
13.2 fps -17%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
12.8 fps -19%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
11.6 fps -27%
R Benchmark 2.5 - Overall mean
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
0.588 sec * -20%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
0.562 sec * -14%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
0.56 sec * -14%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
0.537 sec * -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
0.535 sec * -9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
0.535 sec * -9%
Average AMD Ryzen 9 5900HX
  (0.48 - 0.599, n=29)
0.507 sec * -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
0.4965 sec * -1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
0.492 sec *
Average AMD Ryzen 9 6900HX
  (0.4627 - 0.4974, n=20)
0.483 sec * +2%
LibreOffice - 20 Documents To PDF
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
59.5 s * -1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
59 s *
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
55.1 s * +7%
Average AMD Ryzen 9 5900HX
  (44.1 - 87.4, n=29)
53.3 s * +10%
Average AMD Ryzen 9 6900HX
  (44.8 - 81.7, n=20)
53.1 s * +10%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
50.1 s * +15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
49.3 s * +16%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
48 s * +19%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
44.9 s * +24%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
44.9 s * +24%
WebXPRT 3 - Overall
Average AMD Ryzen 9 6900HX
  (248 - 304, n=17)
280 Points +1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
278 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
278 Points
Average AMD Ryzen 9 5900HX
  (230 - 291, n=28)
275 Points -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
269 Points -3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
269 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
267 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
267 Points -4%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
267 Points -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
262 Points -6%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
244 Points -12%
Mozilla Kraken 1.1 - Total
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
752 ms * -22%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
647 ms * -5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
641 ms * -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
640 ms * -4%
Average AMD Ryzen 9 5900HX
  (595 - 728, n=29)
617 ms * -0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
614 ms *
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
602 ms * +2%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
602 ms * +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
601 ms * +2%
Average AMD Ryzen 9 6900HX
  (564 - 607, n=18)
588 ms * +4%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
37967 Points +41%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
26957 Points
Average AMD Ryzen 9 5900HX
  (22976 - 26958, n=19)
25146 Points -7%
Average AMD Ryzen 9 6900HX
  (17731 - 26684, n=18)
24448 Points -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
23921 Points -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
23774 Points -12%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
22976 Points -15%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
22873 Points -15%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
21542 Points -20%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
21256 Points -21%
1920x1080 Fire Strike Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
35153 Points +31%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
26772 Points
Average AMD Ryzen 9 5900HX
  (17714 - 27288, n=31)
24899 Points -7%
Average AMD Ryzen 9 6900HX
  (18389 - 27338, n=23)
24551 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
24508 Points -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
24327 Points -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
24096 Points -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
23641 Points -12%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
21095 Points -21%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
20080 Points -25%
2560x1440 Time Spy CPU
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
15095 Points +42%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
10603 Points
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
10169 Points -4%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
10035 Points -5%
Average AMD Ryzen 9 6900HX
  (6621 - 11039, n=23)
9584 Points -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
9282 Points -12%
Average AMD Ryzen 9 5900HX
  (6932 - 10603, n=31)
9224 Points -13%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8580 Points -19%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6957 Points -34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6955 Points -34%

* ... smaller is better

Performance Rating
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
94.9 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
94.1 pt
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
86.1 pt
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
86.1 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
80.4 pt
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
80.3 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
71.8 pt
Average of class Mini PC

62.8 pt
AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
15334 KRay/s
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
14342 KRay/s -6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
14342 KRay/s -6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
13002 KRay/s -15%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
12788 KRay/s -17%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
12360 KRay/s -19%
Average of class Mini PC
  (561 - 27538, n=97, last 2 years)
9978 KRay/s -35%
AIDA64 / FPU Julia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
99427 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
76011 Points -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
60136 Points -40%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
60136 Points -40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
56368 Points -43%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
54342 Points -45%
Average of class Mini PC
  (3604 - 116903, n=97, last 2 years)
52513 Points -47%
AIDA64 / CPU SHA3
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
4043 MB/s +19%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
4043 MB/s +19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3829 MB/s +13%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3655 MB/s +7%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
3401 MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
2607 MB/s -23%
Average of class Mini PC
  (225 - 5096, n=97, last 2 years)
2294 MB/s -33%
AIDA64 / CPU Queen
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
104437 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
98219 Points -6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
98219 Points -6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
89290 Points -15%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
88481 Points -15%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
76998 Points -26%
Average of class Mini PC
  (8172 - 119569, n=97, last 2 years)
69137 Points -34%
AIDA64 / FPU SinJulia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
12662 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
9861 Points -22%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
9861 Points -22%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9734 Points -23%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9457 Points -25%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
8894 Points -30%
Average of class Mini PC
  (408 - 15525, n=97, last 2 years)
7328 Points -42%
AIDA64 / FPU Mandel
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
54893 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
41691 Points -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
36161 Points -34%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
36161 Points -34%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
33223 Points -39%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
32372 Points -41%
Average of class Mini PC
  (1958 - 62378, n=97, last 2 years)
27844 Points -49%
AIDA64 / CPU AES
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
141926 MB/s +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
141926 MB/s +6%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
134031 MB/s
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
128262 MB/s -4%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
124539 MB/s -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
96790 MB/s -28%
Average of class Mini PC
  (3691 - 177158, n=97, last 2 years)
75036 MB/s -44%
AIDA64 / CPU ZLib
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
859 MB/s
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
756 MB/s -12%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
755 MB/s -12%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
755 MB/s -12%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
735 MB/s -14%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
632 MB/s -26%
Average of class Mini PC
  (74.8 - 1183, n=97, last 2 years)
581 MB/s -32%
AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
8000 KRay/s
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
7780 KRay/s -3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
7780 KRay/s -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7119 KRay/s -11%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7109 KRay/s -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
6652 KRay/s -17%
Average of class Mini PC
  (308 - 14722, n=97, last 2 years)
5327 KRay/s -33%
AIDA64 / CPU PhotoWorxx
Average of class Mini PC
  (4408 - 44347, n=97, last 2 years)
24659 MPixel/s +21%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23774 MPixel/s +16%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23758 MPixel/s +16%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
23422 MPixel/s +15%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
23422 MPixel/s +15%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
20422 MPixel/s
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
15135 MPixel/s -26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s -27%

Minisforum Neptune Series HX90G durante o Cinebench R15 Multi loop

O loop Cinebench R15 fornece uma primeira visão da eficiência do sistema de resfriamento. Não observamos nenhuma diminuição na eficiência após as primeiras corridas. Somente na segunda metade do total de 50 corridas percebemos uma queda mínima. No geral, o desempenho é ligeiramente melhor do que o do Minisforum EliteMini HX90 (2.121 pontos) com uma média de 2.169 pontos.

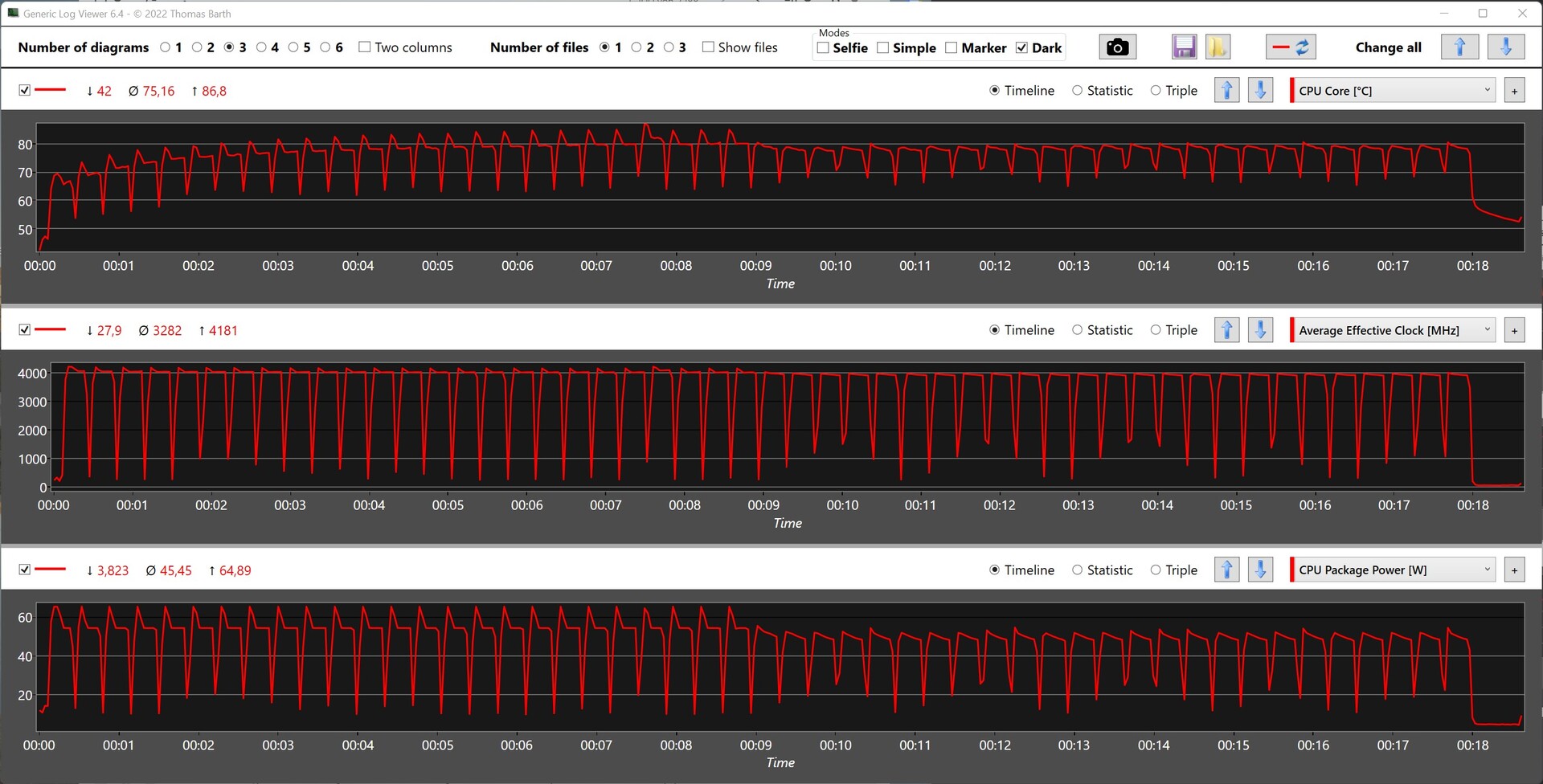

Métricas de CPU durante o loop Cinebench R15
Métricas de CPU durante o loop Cinebench R15
017034051068085010201190136015301700187020402210238025502720289030603230Tooltip
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2169 (2116.63-2224.69)
Intel Beast Canyon NUC Intel Core i9-11900KB, Intel Core i9-11900KB: Ø1800 (1776.75-1859.25)
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, Intel Core i7-11800H: Ø1562 (1536.63-1683.86)
Intel Dragon Canyon NUC - RTX 3060 Intel Core i9-12900, Intel Core i9-12900: Ø2592 (2433.39-3346.44)
Minisforum NUCX i7 Intel Core i7-11800H, Intel Core i7-11800H: Ø1825 (1783.96-2050.55)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Desempenho do sistema

O Minisforum HX90G se sai bem em nossos benchmarks sintéticos e ocupa o terceiro lugar no PCMark 10. No entanto, nossa unidade de teste baseada na AMD não pode competir com os resultados de nossos concorrentes baseados na Intel no benchmark Crossmark. Subjetivamente, o Minisforum HX90G ainda é confortavelmente rápido. O sistema funciona sem problemas e não notamos qualquer atraso causado por altas latências enquanto carregamos vários programas.

Performance Rating - Percent
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
100 pt
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
92.4 pt
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
92.1 pt
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
91 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
90.9 pt
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
87.9 pt
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
85.8 pt
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
80.5 pt
PCMark 10
Score
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
8083 Points +10%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
7341 Points
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
7281 Points -1%
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
7091 Points -3%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
6952 Points -5%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
6863 Points -7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
6507 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
6499 Points -11%
Essentials
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
11171 Points +6%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
10552 Points
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
10506 Points 0%
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
10422 Points -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10321 Points -2%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
10014 Points -5%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
9865 Points -7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
9846 Points -7%
Productivity
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
10205 Points +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10196 Points +10%
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
9582 Points +3%
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
9299 Points 0%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
9288 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
8985 Points -3%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
8579 Points -8%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
7447 Points -20%
CrossMark / Responsiveness
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1885 Points +43%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1885 Points +43%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1496 Points +13%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1435 Points +9%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1322 Points
CrossMark / Creativity
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1724 Points +12%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1724 Points +12%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1644 Points +7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1613 Points +5%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1535 Points
CrossMark / Productivity
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1816 Points +20%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1816 Points +20%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1592 Points +6%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1573 Points +4%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1508 Points
CrossMark / Overall
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1785 Points +20%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +20%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1600 Points +7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1569 Points +5%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1491 Points
AIDA64 / Memory Copy
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
44474 MB/s +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
44474 MB/s +6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
44370 MB/s +5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
44240 MB/s +5%
Average of class Mini PC
  (6481 - 70620, n=97, last 2 years)
42885 MB/s +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
42133 MB/s
Average AMD Ryzen 9 5900HX
  (36725 - 43318, n=26)
40935 MB/s -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
37616 MB/s -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
37007 MB/s -12%
AIDA64 / Memory Read
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
50365 MB/s +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
49616 MB/s +5%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
49616 MB/s +5%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
49326 MB/s +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
47460 MB/s
Average AMD Ryzen 9 5900HX
  (41378 - 47593, n=26)
45797 MB/s -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
43678 MB/s -8%
Average of class Mini PC
  (6914 - 71285, n=97, last 2 years)
43515 MB/s -8%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
42375 MB/s -11%
AIDA64 / Memory Write
Average of class Mini PC
  (6862 - 89318, n=97, last 2 years)
46630 MB/s +7%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
46213 MB/s +6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
46018 MB/s +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
45577 MB/s +5%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
45577 MB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
43471 MB/s
Average AMD Ryzen 9 5900HX
  (32536 - 46718, n=26)
41417 MB/s -5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
35146 MB/s -19%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
30785 MB/s -29%
AIDA64 / Memory Latency
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
97.7 ns * -31%
Average of class Mini PC
  (44.9 - 154.6, n=97, last 2 years)
88 ns * -18%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
87.9 ns * -18%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
87.4 ns * -17%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
87.4 ns * -17%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
79.6 ns * -6%
Average AMD Ryzen 9 5900HX
  (73.5 - 97.1, n=26)
78.8 ns * -5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
77.3 ns * -3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
74.8 ns *

* ... smaller is better

Latências DPC

O Minisforum HX90G não tem nenhum problema ao abrir várias abas do navegador no Edge browser, nem ao reproduzir vídeos 4K no Youtube. LatencyMon não documentou nenhum aumento da latência e o AMD Radeon RX 6600M só precisa trabalhar a 10% da capacidade para reproduzir nosso vídeo de teste.

Máxima latência ao abrir várias abas do navegador e ao reproduzir vídeos 4K
Máxima latência ao abrir várias abas do navegador e ao reproduzir vídeos 4K
Latência máxima após dez segundos de Prime95
Latência máxima após dez segundos de Prime95
Motoristas classificados por maior tempo de execução
Motoristas classificados por maior tempo de execução

Dispositivo de armazenamento

512 GB NVMe SSD
512 GB NVMe SSD

Nossa configuração de teste é equipada com um SSD NVMe com 512 GB de armazenamento. O modelo é rápido e se coloca na faixa média, mas não pode competir com os SSDs PCIe 4.0 mais rápidos. Seu desempenho é perfeitamente adequado para o uso diário. A quantidade de espaço de armazenamento que ele proporciona, por outro lado, é bastante baixa para um computador de jogos. O espaço que o sistema operacional requer reduz os 512 GB de armazenamento para 450 GB. Como este é um dispositivo para jogos, teríamos esperado pelo menos 1 TB de armazenamento. Felizmente, o espaço de armazenamento pode ser facilmente expandido a qualquer momento, graças ao segundo slot M.2.

Veja nosso tabela comparativa para mais comparações e benchmarks.

AS SSD
AS SSD
MDL 3
MDL 3
MDL 5
MDL 5
MDL 6
MDL 6
CDI
CDI
ESO512GYLCT
Sequential Read: 1561 MB/s
Sequential Write: 1864 MB/s
512K Read: 1306 MB/s
512K Write: 1805 MB/s
4K Read: 45.25 MB/s
4K Write: 167.7 MB/s
4K QD32 Read: 567.5 MB/s
4K QD32 Write: 428.3 MB/s
Drive Performance Rating - Percent
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
90.9 pt
Intel Dragon Canyon NUC - RTX 3060 -11!
Transcend M.2 SSD 2200S TS512GMTE220S
87.1 pt
Average of class Mini PC

62.5 pt
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
60.4 pt
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
60 pt
Average ESO512GYLCT

58.8 pt
Minisforum Neptune Series HX90G
ESO512GYLCT
57.9 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
52.8 pt
Minisforum NUCX i7

52.2 pt
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
46 pt
DiskSpd
seq read
Average of class Mini PC
  (233 - 4168, n=96, last 2 years)
2028 MB/s +26%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2008 (1998.8min - 2008.02max) MB/s +24%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1936 (1755.26min - 1936.41max) MB/s +20%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1936 (1755.26min - 1936.41max) MB/s +20%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1935 (1931.9min - 1934.83max) MB/s +20%
Minisforum NUCX i7

1620 (1579.16min - 1620.17max) MB/s 0%
Minisforum Neptune Series HX90G
ESO512GYLCT
1614 (1595.77min - 1613.55max) MB/s
Average ESO512GYLCT
  (1310 - 1645, n=3)
1523 MB/s -6%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1319 (1307.78min - 1319.44max) MB/s -18%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
824 (549.82min - 823.58max) MB/s -49%
seq write
Average of class Mini PC
  (222 - 5595, n=96, last 2 years)
2049 MB/s +22%
Average ESO512GYLCT
  (1681 - 1877, n=3)
1764 MB/s +5%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1744 (525.75min - 1743.78max) MB/s +4%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1744 (525.75min - 1743.78max) MB/s +4%
Minisforum NUCX i7

1707 (1684.21min - 1706.66max) MB/s +2%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1701 (653.68min - 1701.42max) MB/s +1%
Minisforum Neptune Series HX90G
ESO512GYLCT
1681 (1674.37min - 1681.28max) MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1146 (903.24min - 1146.3max) MB/s -32%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 977.06max) MB/s -42%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
665 (240.27min - 665.08max) MB/s -60%
seq q8 t1 read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
4996 (4330.97min - 4996.25max) MB/s +113%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
4996 (4330.97min - 4996.25max) MB/s +113%
Average of class Mini PC
  (236 - 8430, n=96, last 2 years)
3155 MB/s +35%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2635 (2212.29min - 2635.07max) MB/s +12%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2599 (2228.8min - 2599.21max) MB/s +11%
Minisforum Neptune Series HX90G
ESO512GYLCT
2344 (2130.71min - 2343.78max) MB/s
Minisforum NUCX i7

2308 (2036.12min - 2307.5max) MB/s -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
2213 (2018.77min - 2212.5max) MB/s -6%
Average ESO512GYLCT
  (1749 - 2360, n=3)
2151 MB/s -8%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1973 (254.17min - 1973.17max) MB/s -16%
seq q8 t1 write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2524 (535.17min - 2524.36max) MB/s +37%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
2524 (535.17min - 2524.36max) MB/s +37%
Average of class Mini PC
  (228 - 6669, n=96, last 2 years)
2223 MB/s +20%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2002 (577.14min - 2001.94max) MB/s +8%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1988 (530.16min - 1987.88max) MB/s +8%
Average ESO512GYLCT
  (1815 - 1946, n=3)
1870 MB/s +1%
Minisforum Neptune Series HX90G
ESO512GYLCT
1849 (1833.02min - 1849.14max) MB/s
Minisforum NUCX i7

1843 (1731.1min - 1843.4max) MB/s 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1145 (65.64min - 1144.64max) MB/s -38%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 976.5max) MB/s -47%
4k q1 t1 read
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
68.2 (66.68min - 68.15max) MB/s +80%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
60.5 (60.38min - 60.5max) MB/s +60%
Average of class Mini PC
  (5.67 - 86.6, n=96, last 2 years)
51.3 MB/s +35%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
47.4 (11.99min - 47.41max) MB/s +25%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
45.7 (45.38min - 45.71max) MB/s +21%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
45.7 (45.38min - 45.71max) MB/s +21%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
42.2 (41.94min - 42.15max) MB/s +11%
Average ESO512GYLCT
  (35.4 - 44.8, n=3)
39.4 MB/s +4%
Minisforum NUCX i7

38.9 (38.65min - 38.87max) MB/s +3%
Minisforum Neptune Series HX90G
ESO512GYLCT
37.9 (37.34min - 37.87max) MB/s
4k q1 t1 write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
320 (298.75min - 319.53max) MB/s +98%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
320 (298.75min - 319.53max) MB/s +98%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
251 (152.06min - 251.09max) MB/s +56%
Minisforum NUCX i7

187.4 (170.03min - 187.4max) MB/s +16%
Average of class Mini PC
  (22 - 425, n=96, last 2 years)
184.7 MB/s +15%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
167 (54.54min - 166.59max) MB/s +4%
Average ESO512GYLCT
  (161.3 - 168.4, n=3)
164.7 MB/s +2%
Minisforum Neptune Series HX90G
ESO512GYLCT
161.3 (150.7min - 161.34max) MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
153 (151.1min - 152.72max) MB/s -5%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
120 (119.43min - 119.96max) MB/s -26%
4k q32 t16 read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1311 (1269.74min - 1311.13max) MB/s +59%
Average of class Mini PC
  (26.1 - 2810, n=96, last 2 years)
1088 MB/s +32%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
970 (966.45min - 970.29max) MB/s +18%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
970 (966.45min - 970.29max) MB/s +18%
Minisforum Neptune Series HX90G
ESO512GYLCT
822 (773.05min - 821.5max) MB/s
Minisforum NUCX i7

786 (734.36min - 786.34max) MB/s -4%
Average ESO512GYLCT
  (424 - 831, n=3)
692 MB/s -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
656 (654.58min - 656.18max) MB/s -20%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
646 (644.91min - 645.74max) MB/s -21%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
313 (311.66min - 312.85max) MB/s -62%
4k q32 t16 write
Minisforum Neptune Series HX90G
ESO512GYLCT
1492 (333.99min - 1492.35max) MB/s
Average ESO512GYLCT
  (934 - 1611, n=3)
1346 MB/s -10%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1119 (483.18min - 1119.3max) MB/s -25%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1119 (483.18min - 1119.3max) MB/s -25%
Average of class Mini PC
  (30.2 - 3983, n=96, last 2 years)
1084 MB/s -27%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1061 (62.92min - 1061.17max) MB/s -29%
Minisforum NUCX i7

1032 (266.97min - 1032.05max) MB/s -31%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
976 (747.22min - 976.04max) MB/s -35%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
937 (473.07min - 936.52max) MB/s -37%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
933 (584.14min - 933.42max) MB/s -37%
AS SSD
Score Total
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
6467 Points +116%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
4893 Points +64%
Average of class Mini PC
  (151.3 - 9030, n=94, last 2 years)
3534 Points +18%
Minisforum Neptune Series HX90G
ESO512GYLCT
2988 Points
Average ESO512GYLCT
  (2491 - 3139, n=3)
2873 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
2499 Points -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2237 Points -25%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
2184 Points -27%
Minisforum NUCX i7

1054.23 Points -65%
Score Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2462 Points +146%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1911 Points +91%
Average of class Mini PC
  (61 - 3635, n=94, last 2 years)
1346 Points +34%
Minisforum Neptune Series HX90G
ESO512GYLCT
1001 Points
Average ESO512GYLCT
  (954 - 1001, n=3)
973 Points -3%
Minisforum NUCX i7

895 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
841 Points -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
824 Points -18%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
698 Points -30%
Score Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2827 Points +91%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2041 Points +38%
Minisforum NUCX i7

1556 Points +5%
Average of class Mini PC
  (88 - 4185, n=94, last 2 years)
1551 Points +5%
Minisforum Neptune Series HX90G
ESO512GYLCT
1482 Points
Average ESO512GYLCT
  (1037 - 1702, n=3)
1407 Points -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1251 Points -16%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1152 Points -22%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1022 Points -31%
Seq Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
4274 MB/s +93%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2822 MB/s +27%
Average of class Mini PC
  (291 - 6620, n=94, last 2 years)
2804 MB/s +27%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2361 MB/s +7%
Minisforum Neptune Series HX90G
ESO512GYLCT
2215 MB/s
Average ESO512GYLCT
  (2181 - 2215, n=3)
2196 MB/s -1%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1948 MB/s -12%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1777 MB/s -20%
Minisforum NUCX i7

1613 MB/s -27%
Seq Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2382 MB/s +34%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2044 MB/s +15%
Average of class Mini PC
  (240 - 5783, n=94, last 2 years)
1949 MB/s +9%
Minisforum Neptune Series HX90G
ESO512GYLCT
1780 MB/s
Average ESO512GYLCT
  (1762 - 1780, n=3)
1770 MB/s -1%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1690 MB/s -5%
Minisforum NUCX i7

1468 MB/s -18%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1094 MB/s -39%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
929 MB/s -48%
4K Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
83.9 MB/s +58%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
60.58 MB/s +14%
Average of class Mini PC
  (6.08 - 104.2, n=94, last 2 years)
55.3 MB/s +4%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
54.5 MB/s +2%
Average ESO512GYLCT
  (53.2 - 55.3, n=3)
54.5 MB/s +2%
Minisforum NUCX i7

54.25 MB/s +2%
Minisforum Neptune Series HX90G
ESO512GYLCT
53.18 MB/s
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
38.25 MB/s -28%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
37.9 MB/s -29%
4K Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
308.4 MB/s +96%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
173.69 MB/s +10%
Average of class Mini PC
  (30.9 - 366, n=94, last 2 years)
166.7 MB/s +6%
Minisforum Neptune Series HX90G
ESO512GYLCT
157.2 MB/s
Average ESO512GYLCT
  (151.8 - 160.1, n=3)
156.4 MB/s -1%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
145.7 MB/s -7%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
143.1 MB/s -9%
Minisforum NUCX i7

129.81 MB/s -17%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
100.2 MB/s -36%
4K-64 Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1950 MB/s +169%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1637 MB/s +125%
Average of class Mini PC
  (23.4 - 3035, n=94, last 2 years)
1010 MB/s +39%
Minisforum Neptune Series HX90G
ESO512GYLCT
725.98 MB/s
Average ESO512GYLCT
  (679 - 726, n=3)
699 MB/s -4%
Minisforum NUCX i7

679.23 MB/s -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
585.23 MB/s -19%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
503.52 MB/s -31%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
465.3 MB/s -36%
4K-64 Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2281 MB/s +99%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1772 MB/s +55%
Minisforum NUCX i7

1279.71 MB/s +12%
Average of class Mini PC
  (32.8 - 3598, n=94, last 2 years)
1190 MB/s +4%
Minisforum Neptune Series HX90G
ESO512GYLCT
1146.83 MB/s
Average ESO512GYLCT
  (699 - 1374, n=3)
1073 MB/s -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
995.52 MB/s -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
916 MB/s -20%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
643.35 MB/s -44%
Access Time Read
Minisforum Neptune Series HX90G
ESO512GYLCT
0.117 ms *
Average of class Mini PC
  (0.022 - 0.489, n=94, last 2 years)
0.1031 ms * +12%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.099 ms * +15%
Minisforum NUCX i7

0.092 ms * +21%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.081 ms * +31%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
0.077 ms * +34%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
0.071 ms * +39%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
0.063 ms * +46%
Average ESO512GYLCT
  (0.022 - 0.117, n=3)
0.061 ms * +48%
Access Time Write
Average of class Mini PC
  (0.016 - 0.765, n=94, last 2 years)
0.1304 ms * -443%
Minisforum NUCX i7

0.079 ms * -229%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
0.039 ms * -63%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.035 ms * -46%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
0.027 ms * -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.024 ms * -0%
Minisforum Neptune Series HX90G
ESO512GYLCT
0.024 ms *
Average ESO512GYLCT
  (0.024 - 0.024, n=3)
0.024 ms * -0%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
0.012 ms * +50%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

02555107651020127515301785204022952550280530603315357038254080433545904845Tooltip
Minisforum Neptune Series HX90G ESO512GYLCT: Ø1859 (996.67-1961.26)
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB: Ø3896 (225.06-5002.7)
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S: Ø2440 (1786.98-2501.9)
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S: Ø3896 (225.06-5002.7)
Minisforum NUCX i7  : Ø2309 (2137.76-2318.4)
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Desempenho da GPU

o desempenho 3D é influenciado não apenas pela CPU, mas também pela GPU. A vantagem que isto oferece é evidente em nossa comparação direta com o Minisforum EliteMini HX90, que só está equipado com o AMD Radeon RX Vega 8. O Minisforum HX90G apresenta a AMD Radeon RX 6600M - uma boa placa gráfica de médio alcance. Ela é baseada na mais nova arquitetura RDNA-2 e tem um TDP de até 100 watts, que muitas vezes atinge quando se trabalha sob carga. Os usuários podem esperar utilizar o desempenho total desta GPU dedicada.

A comparação de desempenho sintético posiciona nossa unidade de teste no centro. O desempenho do AMD Radeon RX 6600M é ligeiramente melhor do que o dos concorrentes equipados com o Nvidia GeForce RTX 3060. Em troca, o Minisforum NUXCi7 com o Nvidia GeForce RTX 3070 consegue superar o Minisforum HX90G em pouco menos de 10 por cento.

Para mais detalhes sobre o AMD Radeon RX 6600Mpor favor, visite nossa página de GPU.

Nossa Tabela de comparação GPU fornece mais comparações e benchmarks.

3DMark Performance Rating - Percent
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
100 pt
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
85.8 pt
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
80.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
78.3 pt
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
74.1 pt
Average AMD Radeon RX 6600M

74 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
70.2 pt
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
70 pt
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
13.1 pt
3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
40950 Points +28%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
34986 Points +10%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
34957 Points +10%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
31877 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
31702 Points -1%
Average AMD Radeon RX 6600M
  (27030 - 32340, n=6)
31142 Points -2%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
29172 Points -8%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
28939 Points -9%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
6306 Points -80%
3DMark
1280x720 Cloud Gate Standard Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
164443 Points +13%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
159036 Points +9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
155788 Points +7%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
145359 Points
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
143126 Points -2%
Average AMD Radeon RX 6600M
  (117448 - 155788, n=6)
139228 Points -4%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
124830 Points -14%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
120756 Points -17%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
28915 Points -80%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
30090 Points +31%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
26284 Points +15%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
24788 Points +8%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
24451 Points +7%
Average AMD Radeon RX 6600M
  (21876 - 24788, n=7)
23563 Points +3%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
22884 Points
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
21984 Points -4%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
21379 Points -7%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
3775 Points -84%
2560x1440 Time Spy Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
12668 Points +65%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
9929 Points +29%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
9205 Points +20%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
8578 Points +12%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
8525 Points +11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
8234 Points +7%
Average AMD Radeon RX 6600M
  (7200 - 8234, n=7)
7864 Points +2%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
7685 Points
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1247 Points -84%
Fire Strike Extreme Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
15597 Points +48%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
12636 Points +20%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
11757 Points +11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
11255 Points +7%
Average AMD Radeon RX 6600M
  (10016 - 11360, n=6)
10782 Points +2%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
10545 Points
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
10244 Points -3%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
10181 Points -3%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1578 Points -85%
Performance Rating - Percent
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
100 pt
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
80.3 pt
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
74.4 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
66 pt
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
65.1 pt
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
60.7 pt
Average AMD Radeon RX 6600M

59.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
53.8 pt
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
8.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
187.5 fps +39%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
152.9 fps +13%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
139.4 fps +3%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
135.1 fps
Average AMD Radeon RX 6600M
  (92.2 - 140.4, n=4)
126.3 fps -7%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
124.9 fps -8%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
121 fps -10%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
92.2 fps -32%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
16.2 fps -88%
Extreme Preset DX11
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
196.4 fps +54%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
165.1 fps +29%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
152.9 fps +20%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
134.8 fps +6%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
130.8 fps +2%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
127.7 fps
Average AMD Radeon RX 6600M
  (114.8 - 130.2, n=4)
125.4 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
114.8 fps -10%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
18 fps -86%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
157.5 fps +69%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
131.6 fps +41%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
120.9 fps +30%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
108.3 fps +16%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
106.7 fps +14%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
93.3 fps
Average AMD Radeon RX 6600M
  (83.6 - 94.5, n=4)
91.1 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
83.6 fps -10%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
11.6 fps -88%
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
140.2 fps +53%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
115.3 fps +26%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
104.8 fps +14%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
96.1 fps +5%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
93.9 fps +3%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
91.6 fps
Average AMD Radeon RX 6600M
  (64.8 - 93.8, n=4)
85.5 fps -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
64.8 fps -29%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
10.7 fps -88%
Unigine Superposition
1920x1080 1080p High
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
17054 Points +67%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
13502 Points +33%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
12667 Points +24%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
11177 Points +10%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
11130 Points +9%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
10438 Points +2%
Average AMD Radeon RX 6600M
  (10187 - 10459, n=4)
10319 Points +1%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
10187 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
1702 Points -83%
1920x1080 1080p Extreme
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
8276 Points +94%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
6259 Points +46%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
5847 Points +37%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
5008 Points +17%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
5006 Points +17%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
4498 Points +5%
Average AMD Radeon RX 6600M
  (4212 - 4498, n=4)
4335 Points +1%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
4274 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
762 Points -82%
3840x2160 4k Optimized
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
10544 Points +92%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
7997 Points +46%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
7574 Points +38%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
6733 Points +23%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
6694 Points +22%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
5707 Points +4%
Average AMD Radeon RX 6600M
  (5478 - 5707, n=4)
5567 Points +2%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
5478 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
989 Points -82%
3DMark 05 Standard
57463 pontos
3DMark 06 Standard Score
48270 pontos
3DMark Vantage P Result
76579 pontos
3DMark 11 Performance
26149 pontos
3DMark Ice Storm Standard Score
231518 pontos
3DMark Cloud Gate Standard Score
59875 pontos
3DMark Fire Strike Score
20656 pontos
3DMark Fire Strike Extreme Score
10026 pontos
3DMark Time Spy Score
8015 pontos
Ajuda

Desempenho nos jogos

O Minisforum HX90G se sai bem quando se trata de puro desempenho em jogos graças a seu AMD Radeon RX 6600M. Em comparação com a Lenovo Legion 5, equipada com a mesma GPU, o laptop é o vencedor claro. Por quê? O desempenho da GPU dedicada permanece consistentemente em um máximo de 100 watts. Nossa amostra de teste só fica para trás quando comparada com uma Nvidia GeForce RTX 3060. Em geral, o Minisforum HX90G pode exibir todos os jogos que testamos a 1080p com o máximo de detalhes. Alguns jogos podem até ser jogados a 1440p, mas resoluções ainda mais altas logo empurram a GPU de médio alcance para seus limites.

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
106 (6.46min, 76.9P1) fps +22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
104.9 (4.3min, 71.4P1) fps +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1) fps +20%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1) fps +20%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
95.6 (6.11min, 66.7P1) fps +10%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
86.6 (3.43min, 58.8P1) fps
Average AMD Radeon RX 6600M
  (65.9 - 88.7, n=6)
78.6 fps -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
73.8 (17.6min, 52.6P1) fps -15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 (3.91min, 8.93P1) fps -86%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
121 fps +38%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
105.5 (40.2min, 65.7P0.1, 83.1P1) fps +20%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
104.1 (24.9min, 51.1P0.1, 81.2P1) fps +18%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
91.3 (52.3min, 64.5P0.1, 77.1P1) fps +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
88 (41.9min, 48.7P0.1, 72.5P1) fps
Average AMD Radeon RX 6600M
  (75.4 - 88.2, n=6)
84 fps -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
81.3 (9.27min, 52.3P0.1, 66.2P1) fps -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 (8.07min, 10.9P0.1, 12P1) fps -84%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
132 (114min) fps +20%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
122 (93min) fps +11%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
120 (91min) fps +9%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
119 (90min) fps +8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
117 (89min) fps +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
110 (87min) fps
Average AMD Radeon RX 6600M
  (86 - 110, n=6)
100 fps -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
86 (64min) fps -22%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (17min) fps -83%
Far Cry New Dawn - 1920x1080 Ultra Preset
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
113 (86min) fps +26%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
102 (72min) fps +13%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (67min) fps +11%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (71min) fps +11%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
95 (66min) fps +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
90 (63min) fps
Average AMD Radeon RX 6600M
  (67 - 91, n=4)
83.8 fps -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
67 (48min) fps -26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (14min) fps -79%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
166.2 (136min) fps +26%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
165.8 (134min) fps +25%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
142 (114min) fps +7%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
142 (114min) fps +7%
Average AMD Radeon RX 6600M
  (128 - 135.8, n=4)
133 fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
132.4 (98min) fps
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
128 (95min) fps -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (18min) fps -82%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
147.1 (126min) fps +52%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
147.1 (126min) fps +52%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
135.6 (116.6min) fps +40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
133.9 (116.8min) fps +39%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
129.7 (113.4min) fps +34%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
104 (83.4min) fps +8%
Average AMD Radeon RX 6600M
  (91.4 - 110.1, n=8)
100.9 fps +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
96.6 (75.3min) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.9 (43.8min) fps -48%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
222 (155min, 168P1) fps +46%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
186.7 (103.5min, 141.7P1) fps +23%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
184.7 (56.8min, 140.7P1) fps +22%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1) fps +1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1) fps +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
151.8 (107min, 110.3P1) fps
Average AMD Radeon RX 6600M
  (138 - 158, n=6)
151.7 fps 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
151 (104min, 109P1) fps -1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.9 (18.2min, 19.2P1) fps -84%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
100 fps +51%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
98.8 fps +49%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
84.7 fps +28%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
84.7 fps +28%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
84.6 fps +28%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
66.2 fps
Average AMD Radeon RX 6600M
  (59.9 - 67.3, n=5)
64.8 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
64.5 fps -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.3 fps -83%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
93.1 (45.73min) fps +57%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
74.6 (38.33min) fps +26%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
74.6 (38.07min) fps +26%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
65.3 (34.71min) fps +10%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
62.3 (31.28min) fps +5%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
59.8 (30.99min) fps +1%
Average AMD Radeon RX 6600M
  (55.6 - 62.3, n=4)
59.8 fps +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
59.2 (34.14min) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 (5.78min) fps -82%
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
123.1 (104min, 93P1) fps +28%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
122.7 (104min, 102P1) fps +28%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1) fps +1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1) fps +1%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
95.9 (79min, 73P1) fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
95.8 (80min, 80P1) fps
Average AMD Radeon RX 6600M
  (80.9 - 95.9, n=5)
91.8 fps -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (17min, 17P1) fps -77%
baixo média alto ultraQHD4K
GTA V (2015) 179.6 172.2 157.4 86.6 60.8 57.9
The Witcher 3 (2015) 367 260 144.9 88 43.9
Dota 2 Reborn (2015) 154.9 120.2 106.8 96.6 81.7
Rise of the Tomb Raider (2016) 263 206 126.8 105.2 41.5
Final Fantasy XV Benchmark (2018) 197.7 111.1 81.4 56.6 30.6
X-Plane 11.11 (2018) 60.1 49.8 47.1 29
Far Cry 5 (2018) 137 122 116 110 89 43
Strange Brigade (2018) 447 216 174.1 151.8 98.3 51.6
Shadow of the Tomb Raider (2018) 170.3 135.7 126 105.7 67.3 31.1
Forza Horizon 4 (2018) 220 187 184 158 123 73
Far Cry New Dawn (2019) 114 102 99 90 85 48
Metro Exodus (2019) 198.4 98.8 72.5 59.2 45.1 27.3
Anno 1800 (2019) 109.6 96.7 79.6 47 37.3 20.3
Control (2019) 220 102.6 70.4 44.9 21.7
Borderlands 3 (2019) 127.5 111.2 85.1 66.2 44.9 23.7
F1 2020 (2020) 325 242 198.8 132.4 96.6 52.6
Mafia Definitive Edition (2020) 137.4 93.8 85.6 57.7 27.3
Dirt 5 (2020) 236.2 135.4 104.5 81.3 68 40.4
F1 2021 (2021) 326 283 215 95.8 65.7 31.6
New World (2021) 113.7 90.5 84.1 75.6 52.4 31.3
Far Cry 6 (2021) 102 86.6 78.2 71.5 61.7 2.85
Forza Horizon 5 (2021) 154 121 118 62 50 30
Farming Simulator 22 (2021) 205 133.6 114.1 111.2 110.9 65.4
God of War (2022) 109.1 96.9 77.7 54.5 42.5 25
GRID Legends (2022) 236 207 164.7 131.7 102.8 59.8
Cyberpunk 2077 1.6 (2022) 107.3 82.6 68.8 61.2 36 14.4
Tiny Tina's Wonderlands (2022) 178.8 151 96.5 74.8 49.4 18.2
F1 22 (2022) 240 222 167.7 39.9 24.4 11.3
The Quarry (2022) 116.5 91 73.3 53 35 13
FIFA 23 (2022) 170.4 170.2 169.5 169.4 134 73.9
A Plague Tale Requiem (2022) 79.6 67.2 55.4 46.4 35.7 21.7
Uncharted Legacy of Thieves Collection (2022) 76.8 74.6 68.2 65.4 33.6 18.8
Call of Duty Modern Warfare 2 2022 (2022) 113 104 79 68 48 28
Spider-Man Miles Morales (2022) 94 85.3 82.9 69.4 47.2 24.4

Emissões - operação muito silenciosa

Ruído do sistema

O sistema de resfriamento do Minisforum HX90G consiste em sete tubos de calor e dois grandes ventiladores. O fabricante utilizou metal líquido para garantir a transferência ideal de calor da CPU e GPU para o sistema de resfriamento. É por isso que o fabricante desencoraja explicitamente os usuários de desmontar o sistema de resfriamento. O sistema é muito silencioso e é praticamente silencioso quando funciona em velocidade lenta. Com cargas baixas, medimos um ruído de sistema de apenas 31 dB(A), o que ainda é muito baixo. O Minisforum HX90G atinge um máximo de 36,6 dB(A) durante o teste de estresse. O volume então flutua entre 31 e 34 dB(A), dependendo da aplicação e da carga. Não notamos nenhuma aceleração abrupta dos ventiladores.

O sistema de resfriamento da série Minisforum Neptune HX90G (Fonte: Minisforum)
O sistema de resfriamento da série Minisforum Neptune HX90G (Fonte: Minisforum)

Barulho

Ocioso
30.4 / 30.7 / 30.7 dB
Carga
31 / 36.6 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distância)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2047.933.133.533.133.533.347.92548.333.133.232.630.63548.33148.531.134.334.929.931.448.5404028.829.430.229.529.9405036.532.330.930.234.128.236.56333.228.92726.929.127.233.28030.428.227.827.52826.330.410029.826.826.925.826.324.329.812527.725.324.82525.224.527.716026.924.625.124.424.622.826.920027.323.223.922.723.322.627.325030.722.622.822.122.122.330.731526.622.222.322.322.320.926.640027.420.320.921.121.320.227.45002720.520.320.420.520.22763028.920.520.220.320.41928.980028.219.519.819.519.318.228.2100025.41918.618.918.717.925.4125026.518.618.418.118.51826.5160024.818.217.718.117.917.824.8200025.418.217.517.517.417.225.4250023.817.917.517.617.617.423.8315021.918.217.617.417.417.421.9400021.818.917.717.817.517.521.8500018.818.117.817.917.817.618.8630018.418.21818.118.117.918.4800018.418.418.218.218.21818.41000018.718.618.418.518.318.218.712500191918.818.918.818.6191600019.419.519.419.319.319.119.4SPL36.73130.730.730.730.336.7N2.61.51.51.51.51.42.6median 25.4median 19median 18.8median 18.9median 18.8median 18.2median 25.4Delta3.71.82.32.12.11.43.7hearing rangehide median Fan NoiseMinisforum Neptune Series HX90G
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
Zotac Magnus One (ECM73070C)
i7-10700, NVIDIA GeForce RTX 3070
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
Intel Dragon Canyon NUC - RTX 3060
i9-12900, NVIDIA GeForce RTX 3060
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
Minisforum EliteMini HX90
R9 5900HX, Vega 8
Noise
-21%
-14%
-4%
-11%
-1%
1%
off / environment *
30.3
30
1%
30.7
-1%
30.2
-0%
25
17%
29.5
3%
30.8
-2%
Idle Minimum *
30.4
33.58
-10%
32.7
-8%
30.2
1%
25
18%
29.5
3%
Idle Average *
30.7
32.8
-7%
30.4
1%
25
19%
29.5
4%
31.6
-3%
Idle Maximum *
30.7
32.8
-7%
30.8
-0%
34.5
-12%
29.5
4%
Load Average *
31
44.25
-43%
41.7
-35%
51.1
-65%
32.8
-6%
Load Maximum *
36.6
48.72
-33%
45.4
-24%
45.1
-23%
51.3
-40%
40.8
-11%
33.4
9%

* ... smaller is better

Temperatura

As temperaturas de superfície atingem um máximo de 48°C sob carga, o que não é um grande problema. Utilizamos o dispositivo sem seu suporte para este teste. As temperaturas caem minimamente quando o dispositivo é usado com seu suporte.

As temperaturas da CPU e da GPU que medimos são muito boas. O teste de estresse, que simula um cenário extremo, aumenta a temperatura da CPU a um máximo de 88,3°C. O aumento da temperatura da GPU é visivelmente menor a 77°C. Entretanto, a temperatura do VR VDDC aumentou para até 106°C. Mesmo no teste único com Furmark, documentamos 103°C. Entretanto, não detectamos estrangulamento do desempenho.

Teste de estresse somente FurMark
Teste de estresse somente FurMark
Teste de estresse somente Prime95
Teste de estresse somente Prime95
Teste de estresse Prime95 + FurMark
Teste de estresse Prime95 + FurMark
Carga Máxima
 30.3 °C28.7 °C35 °C
 27.7 °C30 °C27.4 °C
 35.6 °C30.5 °C28.7 °C
Máximo: 35.6 °C
Médio: 30.4 °C
45.2 °C46.5 °C42.6 °C
46.4 °C48.2 °C42.7 °C
42.2 °C39 °C42.5 °C
Máximo: 48.2 °C
Médio: 43.9 °C
alimentação elétrica  58.5 °C | Temperatura do quarto 24.5 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 32 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 35.6 °C / 96 F, compared to the average of 35.4 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 48.2 °C / 119 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.3 °C / 85 F, compared to the device average of 32 °C / 90 F.
Top enquanto ocioso
Top enquanto ocioso
Top sob carga
Top sob carga
Fundo enquanto ocioso
Fundo enquanto ocioso
Fundo sob carga
Fundo sob carga

Consumo de energia

fonte de alimentação de 262 watts
fonte de alimentação de 262 watts

Os mini PCs compactos baseados em componentes de mesa têm uma grande vantagem em termos de consumo de energia em comparação com os PCs desktop tradicionais. De acordo com nosso dispositivo de medição, nosso Minisforum HX90G consome apenas 17-18 watts enquanto ocioso. Medimos 82 watts durante a carga média e até 262 watts sob carga máxima. No entanto, o dispositivo só manteve este valor máximo por um breve período de tempo. A carga média máxima foi medida durante o jogo, com um consumo de energia de 185 watts.

A fonte de alimentação tem uma potência nominal de 262 watts, o que é suficiente para este dispositivo. Não notamos nenhum problema de fornecimento de energia durante nossos testes.

Consumo de energia
desligadodarklight 0.77 / 0.65 Watt
Ociosodarkmidlight 17.8 / 17.9 / 18.1 Watt
Carga midlight 82.1 / 262 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
Average AMD Radeon RX 6600M

Average of class Mini PC

Power Consumption
-90%
-0%
-42%
2%
41%
Idle Minimum *
17.8
31.3
-76%
10
44%
28.2
-58%
13.7 ?(9.1 - 17.8, n=6)
23%
Idle Average *
17.9
35.1
-96%
13.2
26%
29.9
-67%
Idle Maximum *
18.1
41.6
-130%
15.6
14%
36.2
-100%
Load Average *
82.1
214
-161%
178
-117%
83.2
-1%
114.4 ?(77.2 - 190, n=6)
-39%
Load Maximum *
262
231
12%
180
31%
215.7
18%
197.8 ?(114.4 - 262, n=6)
25%
Witcher 3 ultra *
193.5
181
167

* ... smaller is better

Power consumption with external monitor

0153045607590105120135150165180195210Tooltip
Minisforum Neptune Series HX90G; Prime95 V2810 Stress (external Monitor): Ø112.8 (101-119.4)
Minisforum Neptune Series HX90G; Cinebench R15 Multi (external Monitor): Ø117.8 (112.5-133.5)
Minisforum Neptune Series HX90G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø174.1 (164.6-195.4)
Minisforum Neptune Series HX90G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø185.6 (177.8-218)
Minisforum Neptune Series HX90G; Idle 1min (external Monitor): Ø18.2 (15-24.1)

Pro

+ muito bom desempenho do sistema
+ rápido AMD Ryzen 9 5900HX com 8 núcleos e 16 fios
+ dedicada AMD Radeon RX 6600M com 8 GB VRAM
+ caso sólido
+ sempre quieto
+ até quatro displays ao mesmo tempo
+ baixa latência DPC
+ um monte de portas USB

Contra

- sem leitor de cartões SD
- bastante caro (sem descontos)
- As portas de visualização suportam um máximo de 4K@60Hz

Veredicto - PC de jogos compacto 1080p

A série Minisforum Neptune HX90G em revisão: fornecido pela Minisforum
A série Minisforum Neptune HX90G em revisão: fornecido pela Minisforum

O Minisforum Neptune Series HX90G é um dispositivo de jogo muito compacto que está equipado com uma GPU completa. Devido a sua construção, o dispositivo é baseado em uma configuração que o fabricante tem usado repetidamente para produzir mini PCs rápidos e assim se tornou muito familiarizado com eles. Fundamentalmente, o Minisforum melhorou sua configuração inicialEliteMini HX90e a expandiu para incluir umAMD Radeon RX 6600M, tornando o sistema mais adequado ao desempenho 3D e permitindo jogos sem limites em 1080p e o máximo de detalhes

O hardware é montado em um dispositivo compacto com boa ventilação. O sistema de resfriamento é bem dimensionado e permite aAMD Ryzen 9 5900HXe o AMD Radeon RX 6600Mpara trabalhar sem limitações, mesmo sob carga máxima. O fabricante já comprovou o uso de boas unidades de refrigeração em outros dispositivos. Alguns problemas permanecem na seleção das portas disponíveis. Embora o número de portas seja satisfatório, as portas HDMI e DisplayPort infelizmente suportam apenas 2160p a 60Hz. O leitor de cartões em falta e o suporte para Thunderbolt são menos decepcionantes em vista da categoria do dispositivo (dispositivo de jogo) e são algo com que poderíamos conviver

O Minisforum Neptune Series HX90G é um atraente dispositivo de jogos compacto para jogos Full HD sem compromissos.

Ficamos muito satisfeitos com os baixos valores de emissões do Minisforum HX90G. O dispositivo não é apenas silencioso, ele também é econômico e sempre tem suas temperaturas sob controle. Nossa unidade de teste apresentou um desempenho sólido ao longo de nossos testes, sem falhas graves. Seu desempenho do sistema está ao mesmo nível dos dispositivos de mesa tradicionais e seu desempenho em jogos é impressionante, com o Minisforum HX90G dando aos dispositivos de comparação equipados com um Nvidia GeForce RTX 3060 uma corrida por seu dinheiro

O Minisforum HX90G deve competir com outro dos PCs compactos da Minisforum, o poderosoMinisforum NUCXi7equipada com o sistema rápido Nvidia GeForce RTX 3070 LaptopgPU. A Lenovo Legion 5pode também impedir a história de sucesso do HX90G. O atraente laptop oferece conectividade similar por apenas US$1.150.

Preço e disponibilidade

A série Minisforum Neptune HX90G pode ser encomendada diretamente da loja on-line da Minisforum. Atualmente, o fabricante tem descontos atraentes pré-compra, o que significa que nossa configuração de teste é reduzida para pouco mais de $900 no momento da redação. Sem o desconto, o aparelho custa US$1070. O modelo de barebone mais acessível está atualmente disponível por $800. O dispositivo é despachado de Hongkong a partir de meados de novembro. Prazo de entrega estimado: 2-3 semanas.

Foi entregue ao Minisforum Neptune Series HX90G o caderno de notas para testes. Esta revisão será regularmente atualizada com os resultados dos últimos jogos. O fabricante não teve influência sobre a revisão. Além disso, o fabricante não recebeu uma versão da revisão final antes da publicação.


Minisforum Neptune Series HX90G - 10/26/2022 v7
Sebastian Bade

Acabamento
79 / 98 → 81%
Conectividade
54 / 81 → 67%
Peso
70%
Desempenho do jogos
98%
Desempenho da aplicação
95%
Temperatura
90%
Ruído
86%
Médio
83%
0%
Mini PC - Médio equilibrado
Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Revisão do Minisforum HX90G: PC de jogos compacto com AMD Ryzen 9 5900HX e AMD Radeon RX 6600M
Sebastian Bade, 2022-10-31 (Update: 2022-10-31)
