Breve Análise do Mini PC Zotac ZBOX Magnus EN980

GTX 980 em um mini PC. O ZBox EN980 é um dos primeiros mini PCs preparado para a VR e, surpreendentemente, funciona de forma relativamente fria e silenciosa graças ao seu denso sistema de resfriamento. Apesar de tudo, o ruído da ventoinha podia ter sido menor e o sistema ainda não possui alguns recursos chave que achamos que deveriam ser padrão para um preço de $1600 USD.

Allen Ngo (traduzido por Ricardo Soto), Published 09/09/2016 🇺🇸 🇩🇪 ...

Skylake Desktop

Zotac ZBOX Magnus EN980-U

Processador

Intel Core i5-6400 4 x 2.7 - 3.3 GHz, Skylake, Intel Core i5-6400

Placa gráfica

NVIDIA GeForce GTX 980 - 4 GB VRAM, Análises do: 1190 MHz, Memoría: 7010 MHz, GDDR5, 359.3

placa mãe

Intel HM170 (Skylake PCH-H)

Disco rígido

HGST Travelstar 7K1000 HTS721010A9E630, 1000 GB

, 7200 rpm

Placa de Som

Nvidia GM204 - High Definition Audio Controller

Conexões

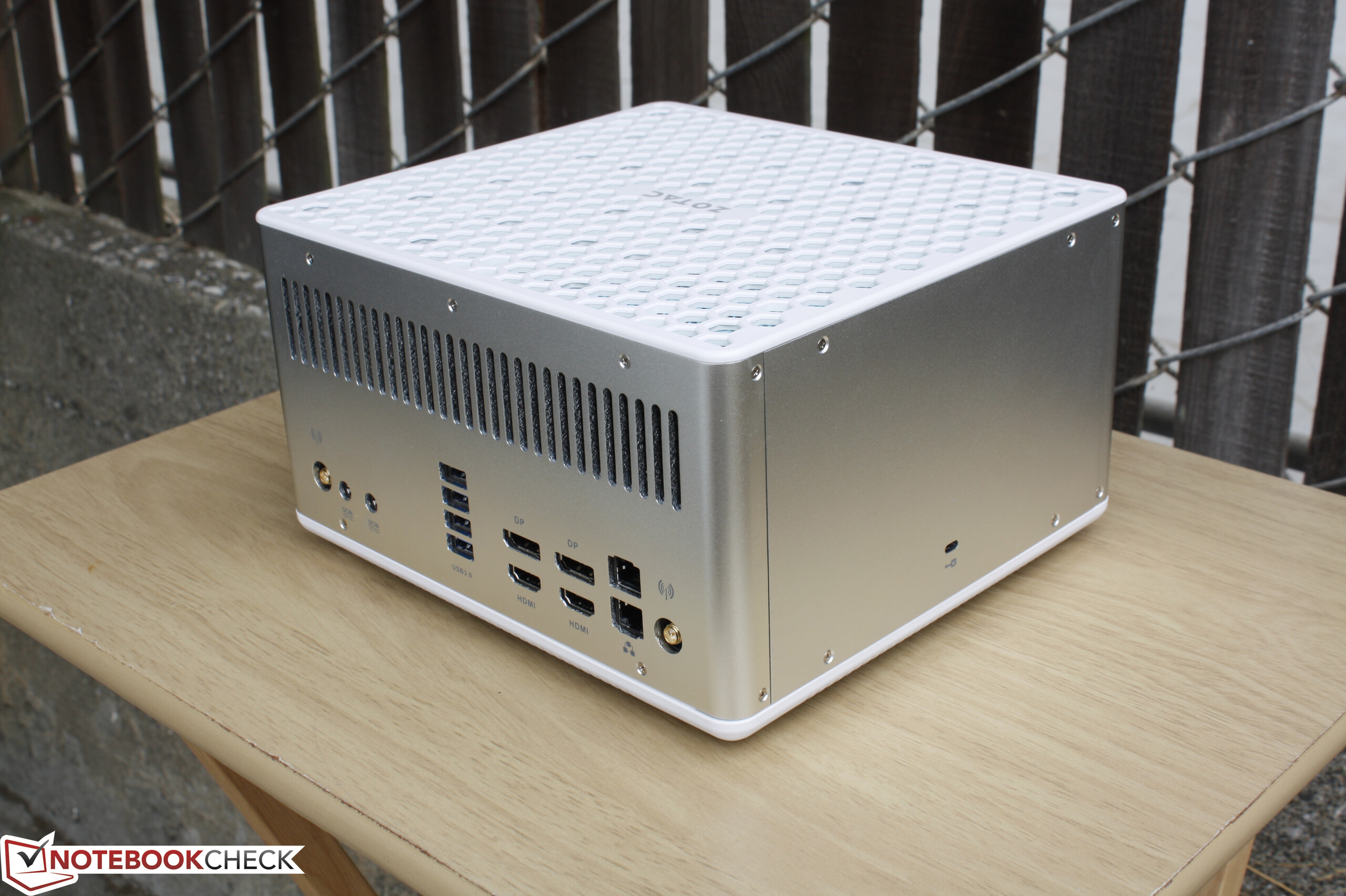

5 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Conexões Audio: Fones de 3,5 mm, microfones de 3,5 mm, Card Reader: SDXC UHS II reader

Funcionamento em rede

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Tamanho

altura x largura x profundidade (em mm): 128 x 225 x 203

Características adicionais

Guia de início rápido, Disco de controladores/unidade USB, 12 Meses Garantia

peso

3.89 kg, Suprimento de energia: 1.41 kg

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

MSI GT72VR 6RE-015US Acer Predator 17 G9-792-71EF Alienware 15 R2 (Skylake) Asus Strix GL502VY-DS71 Zotac ZBOX Magnus EN980-U DIN A4 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
MSI GT72VR 6RE-015US	135.3 MB/s +227%
Dell XPS 13 2016 9350 (FHD, i7-6560U)	135 MB/s +226%
Apple MacBook Pro Retina 13 inch 2013-10	78 MB/s +88%
Zotac ZBOX Magnus EN980-U	41.4 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 2016 9350 (FHD, i7-6560U)	210 MB/s +366%
MSI GT72VR 6RE-015US	186.3 MB/s +313%
Zotac ZBOX Magnus EN980-U	45.1 MB/s

Networking
WiFi Speed Client 1m
WiFi Speed Server 1m

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10 | Super Pi Mod 1.5 XS 32M

Cinebench R15
CPU Single 64Bit
DogHouse Systems Mobius SS Intel Core i7-6700K	166 Points +24%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	149 Points +11%
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	144 Points +7%
Lenovo ThinkPad X1 Yoga-20FRS1VS00 Intel Core i7-6600U	135 Points +1%
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	134 Points
Toshiba Satellite S70-B-106 Intel Core i7-4700HQ	131 Points -2%
CPU Multi 64Bit
DogHouse Systems Mobius SS Intel Core i7-6700K	865 Points +70%
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	719 Points +41%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	679 Points +33%
Toshiba Satellite S70-B-106 Intel Core i7-4700HQ	566 Points +11%
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	510 Points
Lenovo ThinkPad X1 Yoga-20FRS1VS00 Intel Core i7-6600U	305 Points -40%

Cinebench R11.5
CPU Single 64Bit
DogHouse Systems Mobius SS Intel Core i7-6700K	1.91 Points +26%
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	1.68 Points +11%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	1.61 Points +7%
Lenovo ThinkPad X1 Yoga-20FRS1VS00 Intel Core i7-6600U	1.51 Points 0%
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	1.51 Points
Toshiba Satellite S70-B-106 Intel Core i7-4700HQ	1.49 Points -1%
CPU Multi 64Bit
DogHouse Systems Mobius SS Intel Core i7-6700K	9.56 Points +61%
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	7.96 Points +34%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	7.48 Points +26%
Toshiba Satellite S70-B-106 Intel Core i7-4700HQ	6.02 Points +2%
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	5.92 Points
Lenovo ThinkPad X1 Yoga-20FRS1VS00 Intel Core i7-6600U	3.32 Points -44%

Cinebench R10
Rendering Multiple CPUs 32Bit
DogHouse Systems Mobius SS Intel Core i7-6700K	26150 Points +43%
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	21681 Points +18%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	20419 Points +12%
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	18297 Points
Rendering Single 32Bit
DogHouse Systems Mobius SS Intel Core i7-6700K	6487 Points +27%
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	5567 Points +9%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	5474 Points +8%
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	5088 Points

wPrime 2.10 - 1024m
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	327.1 s *
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	206.3 s * +37%
DogHouse Systems Mobius SS Intel Core i7-6700K	178.5 s * +45%

Super Pi Mod 1.5 XS 32M - 32M
Zotac ZBOX Magnus EN980-U Intel Core i5-6400	660 s *
MSI GE62 2QC-468XPL Intel Core i7-5700HQ	574 s * +13%
HP Pavilion 17 FHD V3A33AV Intel Core i7-6700HQ	563 s * +15%
DogHouse Systems Mobius SS Intel Core i7-6700K	498.3 s * +24%

* ... smaller is better

Cinebench R10 Shading 32Bit

6831

Cinebench R10 Rendering Multiple CPUs 32Bit

18297

Cinebench R10 Rendering Single 32Bit

5088

Cinebench R11.5 OpenGL 64Bit

62.9 fps

Cinebench R11.5 CPU Multi 64Bit

5.92 Points

Cinebench R11.5 CPU Single 64Bit

1.51 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

109.6 fps

Cinebench R15 CPU Multi 64Bit

510 Points

Cinebench R15 CPU Single 64Bit

134 Points

Ajuda

... comparado com

3DMark | 3DMark 11

3DMark
1280x720 Cloud Gate Standard Graphics
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	103082 Points +19%
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	86619 Points
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	70557 Points -19%
Asus Strix GL502VT-DS74 NVIDIA GeForce GTX 970M, 6700HQ	50205 Points -42%
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	45568 Points -47%
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	27162 Points -69%
1920x1080 Fire Strike Graphics
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	17354 Points +28%
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	13510 Points
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	13018 Points -4%
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	9820 Points -27%
Asus Strix GL502VT-DS74 NVIDIA GeForce GTX 970M, 6700HQ	7321 Points -46%
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	4249 Points -69%
3840x2160 Fire Strike Ultra Graphics
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	3984 Points +29%
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	3093 Points
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	3009 Points -3%
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	2326 Points -25%
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	942 Points -70%
Fire Strike Extreme Graphics
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	8153 Points +30%
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	6261 Points
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	6123 Points -2%
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	4663 Points -26%
Asus Strix GL502VT-DS74 NVIDIA GeForce GTX 970M, 6700HQ	3517 Points -44%
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	2004 Points -68%

3DMark 11
1280x720 Performance GPU
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	17811 Points
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	16946 Points -5%
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	13760 Points -23%
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	12890 Points -28%
Asus Strix GL502VT-DS74 NVIDIA GeForce GTX 970M, 6700HQ	9824 Points -45%
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	5452 Points -69%
1280x720 Performance Combined
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	9256 Points +39%
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	9017 Points +35%
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	8452 Points +27%
Asus Strix GL502VT-DS74 NVIDIA GeForce GTX 970M, 6700HQ	7952 Points +19%
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	6666 Points
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	5472 Points -18%
1280x720 Performance Physics
EVGA SC17 NVIDIA GeForce GTX 980M, 6820HK	9574 Points +52%
Asus G701VO-CS74K NVIDIA GeForce GTX 980 (Laptop), 6820HK	9468 Points +51%
HP Pavilion 15 UHD T9Y85AV NVIDIA GeForce GTX 960M, 6700HQ	8671 Points +38%
MSI GT72VR 6RE-015US NVIDIA GeForce GTX 1070 Mobile, 6700HQ	8521 Points +36%
Asus Strix GL502VT-DS74 NVIDIA GeForce GTX 970M, 6700HQ	8347 Points +33%
Zotac ZBOX Magnus EN980-U NVIDIA GeForce GTX 980, 6400	6283 Points

3DMark 11 Performance		12348 pontos
3DMark Ice Storm Standard Score		134303 pontos
3DMark Cloud Gate Standard Score		18386 pontos
3DMark Fire Strike Score		10345 pontos
3DMark Fire Strike Extreme Score		5628 pontos
Ajuda

... comparado com

Overwatch - 1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	151.7 fps +31%
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	118.2 fps +2%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	116 fps
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	87.3 fps -25%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	40.2 fps -65%

Fallout 4 - 1920x1080 Ultra Preset AA:T AF:16x
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	100.9 fps +28%
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	79.3 fps +1%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	78.8 fps
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	57.9 fps -27%
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	43.5 fps -45%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	24.1 fps -69%

BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	129.5 fps +9%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	119.2 fps
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	106.2 fps -11%
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	86.4 fps -28%
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	69.5 fps -42%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	45.8 fps -62%

Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	83.2 fps
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	78 fps -6%
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	67.9 fps -18%
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	58.6 fps -30%
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	47.5 fps -43%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	28.2 fps -66%

Guild Wars 2 - 1920x1080 All Maximum / On AA:FX
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	60.1 fps
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	54.7 fps -9%

Batman: Arkham Knight - 1920x1080 High / On AA:SM AF:16x
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	79 fps +25%
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	63 fps 0%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	63 fps
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	36 fps -43%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	22 fps -65%

Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	88.3 fps +2%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	86.4 fps
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	50.5 fps -42%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	31.4 fps -64%

Metal Gear Solid V - 1920x1080 Extra High / On
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	60 fps 0%
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	60 fps 0%
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	60 fps 0%
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	60 fps 0%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	60 fps
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	32.1 fps -46%

Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	92.3 fps +25%
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	74.1 fps
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	60.4 fps -18%
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	55 fps -26%
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	42.8 fps -42%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	23.5 fps -68%

Sleeping Dogs - 1920x1080 Extreme Preset AA:Extreme
Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	84.3 fps
Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	75.2 fps -11%
Asus Strix GL502VY-DS71 GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122	57.5 fps -32%
Asus Strix GL502VT-DS74 GeForce GTX 970M, 6700HQ, Lite-On CV1-8B128	44.9 fps -47%
HP Pavilion 15 UHD T9Y85AV GeForce GTX 960M, 6700HQ, SanDisk Z400s SD8SNAT-128G	24.1 fps -71%

	baixo	média	alto	ultra
Sleeping Dogs (2012)				84.3
Guild Wars 2 (2012)				60.1
BioShock Infinite (2013)				119.2
Metro: Last Light (2013)				86.4
Thief (2014)				83.2
Batman: Arkham Knight (2015)				63
Metal Gear Solid V (2015)				60
Fallout 4 (2015)				78.8
Rise of the Tomb Raider (2016)				74.1
Overwatch (2016)				116

Barulho

Ocioso		36.2 / 36.2 / 36.5 dB
Carga		36.5 / 42.9 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: BK Precision 732A (15 cm de distância) environment noise: 29.5 dB(A)

	Zotac ZBOX Magnus EN980-U GeForce GTX 980, 6400, HGST Travelstar 7K1000 HTS721010A9E630	Asus G701VO-CS74K GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)	MSI GT72VR 6RE-015US GeForce GTX 1070 Mobile, 6700HQ, SanDisk SD8SNAT256G1122	Aorus X7 Pro v5 GeForce GTX 970M SLI, 6820HK, Samsung SM951 MZVPV512 m.2 PCI-e	Eurocom Sky DLX7 GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Noise		2%	1%	-6%	4%
off / environment *	29.5	29.1 1%	28.9 2%	30 -2%
Idle Minimum *	36.2	29.1 20%	32.4 10%	34 6%	31.9 12%
Idle Average *	36.2	31.9 12%	32.4 10%	35 3%	32 12%
Idle Maximum *	36.5	31.9 13%	32.4 11%	39 -7%	34 7%
Load Average *	36.5	46 -26%	39.4 -8%	39 -7%	39 -7%
Load Maximum *	42.9	47.5 -11%	52 -21%	54 -26%	44.5 -4%

* ... smaller is better

Consumo de energia

desligado	1 / 1.74 Watt
Ocioso	34.9 / 35.9 / 40.4 Watt
Carga	190.4 / 260.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Zotac ZBOX Magnus EN980-U 6400, GeForce GTX 980, HGST Travelstar 7K1000 HTS721010A9E630, , x, 0.00	Asus G752VS-XB78K 6820HK, GeForce GTX 1070 Mobile, Toshiba NVMe THNSN5512GPU7, IPS, 1920x1080, 17.30	MSI GT72S 6QE-071PL 6820HK, GeForce GTX 980M, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0), IPS, 1920x1080, 17.30	MSI GT80-2QES32SR311BW 4980HQ, GeForce GTX 980M SLI, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0), Wide View, Super PLS, 1920x1080, 18.40	Asus G701VO-CS74K 6820HK, GeForce GTX 980 (Laptop), 2x Samsung SM951 MZVPV512HDGL (RAID 0), IPS, 1920x1080, 17.30
Power Consumption		26%	20%	-7%	19%
Idle Minimum *	34.9	24 31%	14.5 58%	34.3 2%	28.2 19%
Idle Average *	35.9	31 14%	28.3 21%	41.9 -17%	32 11%
Idle Maximum *	40.4	36 11%	44 -9%	49.3 -22%	32.6 19%
Load Average *	190.4	94 51%	165.5 13%	140.2 26%	162.2 15%
Load Maximum *	260.8	204 22%	214.8 18%	328.6 -26%	173.5 33%

* ... smaller is better

Pro

+ Excelente acabamento e qualidade de construção

+ RAM acessível e baias de armazenamento

+ Baixas temperaturas de operação

+ Ruído silencioso da ventoinha sob uso intenso

+ Sem afogamento da CPU ou GPU

+ CPU e GPU em socket

+ G-Sync via mDP 1.2

+ USB Type-C Gen. 2

Contra

- Sem Thunderbolt 3, NVMe, RAID, ou opções WLAN adicionais

- Placa mãe inacessível sem anular a garantia

- Sem DDR4; até apenas 16 GB de RAM

- Sem opção para 8 GB GDDR5 de VRAM

- Forte ruído da ventoinha durante o modo inativo

- Dois adaptadores AC necessários

- Lento leitor de cartões SD

- Sem opções Core i7

- Pesado

In review: Zotac ZBOX Magnus EN980-U. Test model courtesy of Zotac.

O ZBox EN980 não é o menor, nem o mais leve mini PC de jogos, mas utiliza seus extras sabiamente com um sistema de resfriamento muito eficiente que não deveria ser menosprezado. Quando comparado com portáteis de jogos ainda mais grossos como a série GT72S ou Asus G752, tanto o ruído da ventoinha quanto as temperaturas são notoriamente inferiores quando estão sob uso intenso para um potencial de overclock da GPU superior. É um design muito sólido - embora simples em forma - é mais prático do que pomposo.

Por seus $1600 USD, no entanto, achamos que o sistema poderia oferecer mais. Recursos como NVMe, DDR4, RAID, Thunderbolt 3, e ventoinha controles superiores da ventoinha são comuns em portáteis de jogos na mesma faixa de preços. O ruído da ventoinha durante o modo inativo podia ser menor e opções superiores da CPU da gama Core i7 teriam feito deste aparelho uma melhor compra, dado que o Core i5-6400 deixa uma impressão de que falta um pouco de potência em cargas de trabalho multi-threaded. As temperaturas de funcionamento já baixas da CPU sugerem que a solução de resfriamento presente seria suficiente para processadores mais rápidos se a Zotac continuar a utilizar este chassi.

Com Pascal agora disponível tanto em desktops quanto em portáteis, esperamos que o EN980 (e outros sistemas equipados com Maxwell) baixem o preço nos próximos meses. O seu design e o desempenha da GPU são excelentes desde que os usuários não se importem em perder um pouco de hardware e recursos de conectividade.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5190 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Mini PC Zotac ZBOX Magnus EN980

Allen Ngo, 2016-09- 9 (Update: 2020-06- 8)
