Breve Análise do Mini PC Chuwi GBox CWI560 (Celeron N4100)

Affordable streamer. Um mini-PC Windows 10 sem problemas, pronto para ser usado por $200 USD. O Chuwi GBox está equipado com todos os recursos básicos e muito mais para caber em qualquer instalação de home theater de orçamento.

Allen Ngo, 👁 Allen Ngo (traduzido por Ricardo Soto), Published 10/03/2018 🇺🇸 🇫🇷 ...

Chinese Tech Desktop

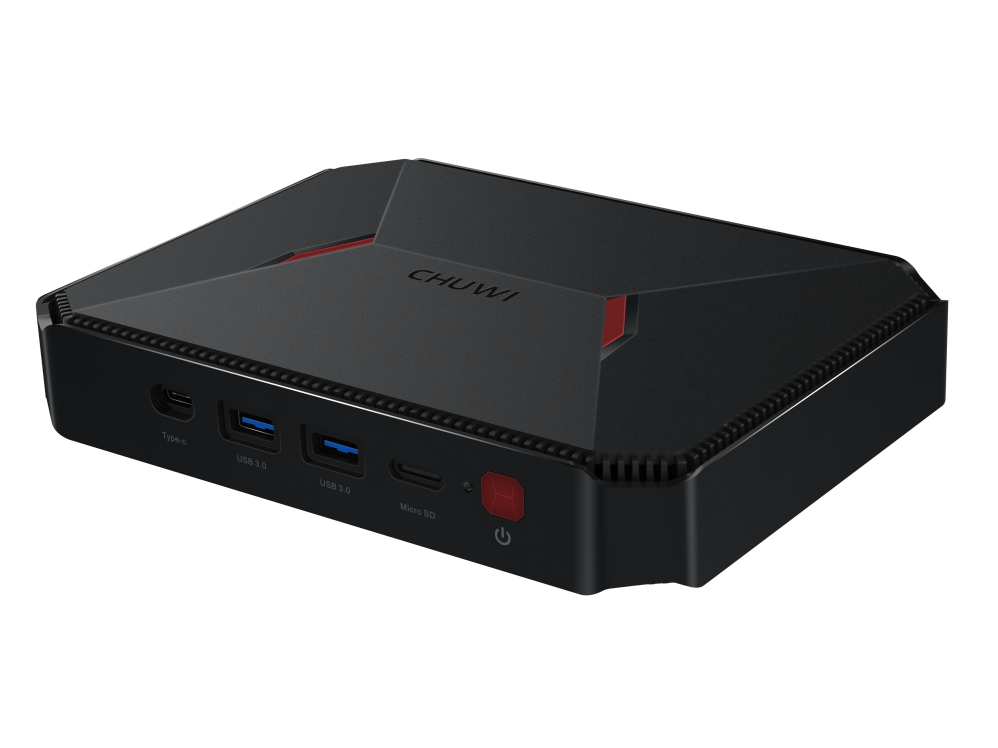

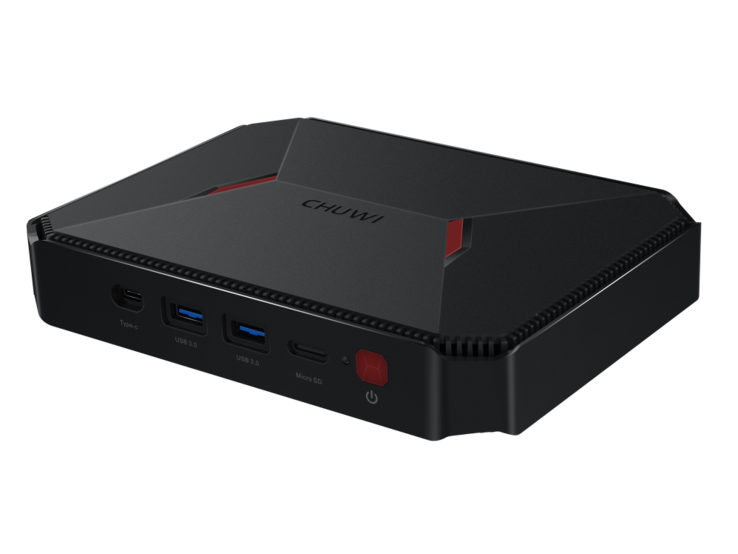

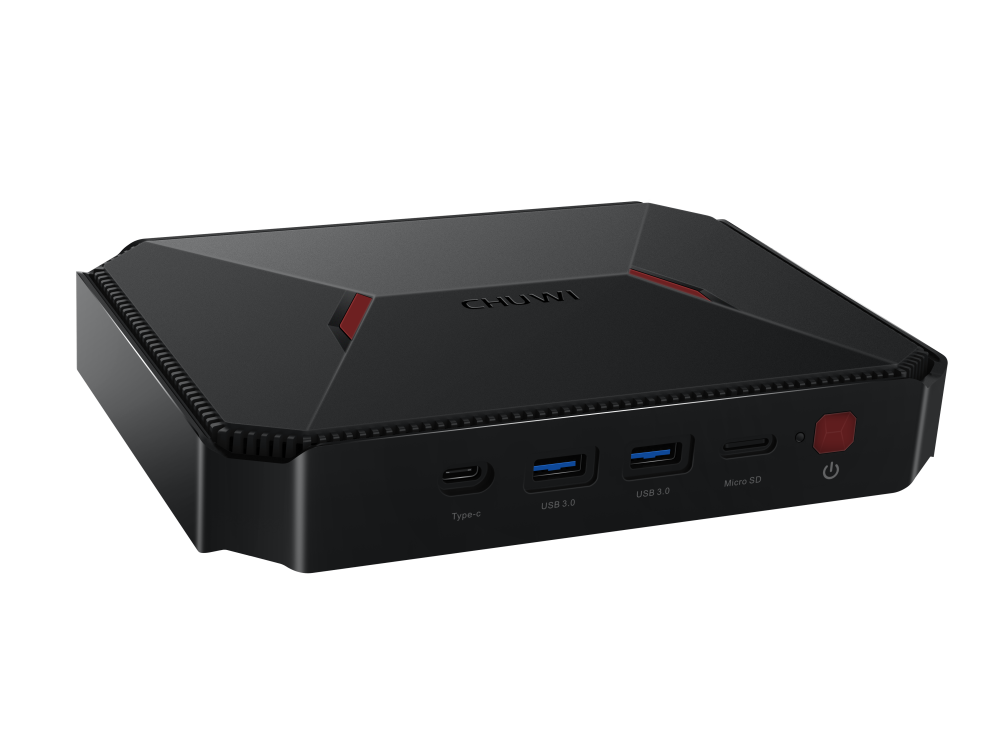

Chuwi GBox CWI560

Processador

Intel Celeron N4100 4 x 1.1 - 2.4 GHz, Gemini Lake

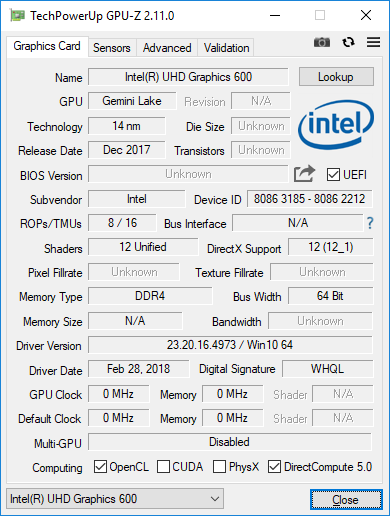

Placa gráfica

Intel UHD Graphics 600, Análises do: 300 MHz, 23.20.16.4973

Memória

4 GB

, LPDDR4

placa mãe

Gemini Lake

Disco rígido

SanDisk DA4064, 64 GB

Placa de Som

Intel Gemini Lake SoC - High Definition Audio Controller

Conexões

2 USB 2.0, 3 USB 3.0, 1 VGA, 1 HDMI, Conexões Audio: 3.5 mm earphones, Card Reader: MicroSD

Funcionamento em rede

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Tamanho

altura x largura x profundidade (em mm): 37.3 x 187.6 x 138.3

Sistema Operativo

Microsoft Windows 10 Home 64 Bit

Características adicionais

Bracket de montagem, Remoto, Guia do usuário, Cartão de garantia, 12 Meses Garantia

peso

558 g, Suprimento de energia: 165 g

Preço

200 USD

Links

Chuwi página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Zotac ZBOX-CI660 Nano Intel Skull Canyon NUC6i7KYK NVIDIA Shield Android TV Chuwi GBox CWI560 Intel NUC7CJYH DIN A4 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 9370 i7 UHD (Toshiba Exceria Pro UHS-II)	156.4 MB/s +736%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	35 MB/s +87%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	18.7 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9370 i7 UHD (Toshiba Exceria Pro UHS-II)	207.2 MB/s +896%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	37.73 MB/s +81%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	20.8 MB/s

Networking
iperf3 transmit AX12
Dell XPS 13 9370 i7 UHD Killer Wireless-n/a/ac 1435 Wireless Network Adapter	504 MBit/s +122%
Chuwi GBox CWI560 Intel Dual Band Wireless-AC 3165	227 MBit/s
Zotac ZBOX-CI660 Nano Intel Dual Band Wireless-AC 3165	218 MBit/s -4%
iperf3 receive AX12
Dell XPS 13 9370 i7 UHD Killer Wireless-n/a/ac 1435 Wireless Network Adapter	665 MBit/s +104%
Chuwi GBox CWI560 Intel Dual Band Wireless-AC 3165	326 MBit/s
Zotac ZBOX-CI660 Nano Intel Dual Band Wireless-AC 3165	301 MBit/s -8%

Cinebench R15 CPU Multi 64 Bit

Cinebench R15
CPU Single 64Bit
Zotac ZBOX-CI660 Nano Intel Core i7-8550U	156 Points +129%
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	139 Points +104%
Lenovo IdeaPad 320s-14IKB Intel Core i5-7200U	128 Points +88%
Intel NUC7CJYH Intel Celeron J4005	77 Points +13%
Acer Swift 1 SF114-32-P8GG Intel Pentium Silver N5000	73 Points +7%
Chuwi LapBook SE Intel Celeron N4100	69.8 Points +3%
Chuwi GBox CWI560 Intel Celeron N4100	68 Points
Lenovo Flex 6-11IGM Intel Celeron N4000	65 Points -4%
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	65 Points -4%
Trekstor Primebook C13 Intel Celeron N3350	45 Points -34%
Chuwi Hi12 Intel Atom x5-Z8300	31 Points -54%
Lenovo IdeaPad Miix 320-10ICR Pro LTE Intel Atom x5-Z8350	28 Points -59%
CPU Multi 64Bit
Intel Skull Canyon NUC6i7KYK Intel Core i7-6770HQ	711 Points +278%
Zotac ZBOX-CI660 Nano Intel Core i7-8550U	702 Points +273%
Lenovo IdeaPad 320s-14IKB Intel Core i5-7200U	331 Points +76%
Acer Swift 1 SF114-32-P8GG Intel Pentium Silver N5000	236 Points +26%
Chuwi GBox CWI560 Intel Celeron N4100	188 Points
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	164 Points -13%
Chuwi LapBook SE Intel Celeron N4100	161 (150.45^min - 161.13^max) Points -14%
Intel NUC7CJYH Intel Celeron J4005	144 Points -23%
Lenovo Flex 6-11IGM Intel Celeron N4000	138 Points -27%
Chuwi Hi12 Intel Atom x5-Z8300	99 Points -47%
Lenovo IdeaPad Miix 320-10ICR Pro LTE Intel Atom x5-Z8350	92 Points -51%
Trekstor Primebook C13 Intel Celeron N3350	88 Points -53%
Chuwi Hi10 Pro Intel Atom x5-Z8300	85 Points -55%

Cinebench R10 Rendering Multiple CPUs 32Bit

5102

Cinebench R10 Rendering Single 32Bit

2049

Cinebench R10 Shading 32Bit

3549

Cinebench R11.5 CPU Multi 64Bit

2.18 Points

Cinebench R11.5 OpenGL 64Bit

7.95 fps

Cinebench R11.5 CPU Single 64Bit

0.83 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

10.61 fps

Cinebench R15 CPU Multi 64Bit

188 Points

Cinebench R15 CPU Single 64Bit

68 Points

Ajuda

... comparado com

PCMark 10 | PCMark 8

PCMark 10 - Score
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	3837 Points +131%
Dell XPS 13 9370 i7 UHD UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G	3728 Points +125%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	1658 Points
Chuwi LapBook SE UHD Graphics 600, Celeron N4100, SanDisk DF4032	1502 Points -9%
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	1269 (1261^min - 1270^max) Points -23%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	1136 Points -31%

PCMark 8 - Home Score Accelerated v2
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	3594 Points +74%
Dell XPS 13 9370 i7 UHD UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G	3371 Points +63%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	2084 Points +1%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	2062 Points
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	1461 (1450^min - 1461^max) Points -29%

PCMark 8 Home Score Accelerated v2		2062 pontos
PCMark 10 Score		1658 pontos
Ajuda

	Chuwi GBox CWI560 SanDisk DA4064	Intel NUC7CJYH SanDisk Ultra II	Lenovo Flex 6-11IGM SanDisk DF4064	Teclast Tbook 16 Power 64 GB eMMC Flash	Trekstor Primebook C13 SanDisk DF4064
CrystalDiskMark 5.2 / 6		121%	-30%	-81%	-36%
Write 4K	38	61.1 61%	14.29 -62%	1.95 -95%	13.16 -65%
Read 4K	23.84	31.99 34%	13.12 -45%	7.77 -67%	5.04 -79%
Write Seq	226.7	421.7 86%	117.9 -48%	27.89 -88%	117 -48%
Read Seq	271.8	427.4 57%	295.7 9%	74.7 -73%	264.7 -3%
Write 4K Q32T1	44.74	97 117%	13.82 -69%	2.17 -95%	16.58 -63%
Read 4K Q32T1	53.2	121.9 129%	37.36 -30%	11.62 -78%	33.3 -37%
Write Seq Q32T1	129.4	504 289%	105.5 -18%	18.4 -86%	111.2 -14%
Read Seq Q32T1	189.4	551 191%	240.7 27%	68.9 -64%	226.3 19%
Write 4K Q8T8		183.1
Read 4K Q8T8		221.3

CrystalDiskMark 5.2 / 6

SanDisk DA4064

CDM 5/6 Read Seq Q32T1: 189.4 MB/s

CDM 5/6 Write Seq Q32T1: 129.4 MB/s

CDM 5/6 Read 4K Q32T1: 53.2 MB/s

CDM 5/6 Write 4K Q32T1: 44.74 MB/s

CDM 5 Read Seq: 271.8 MB/s

CDM 5 Write Seq: 226.7 MB/s

CDM 5/6 Read 4K: 23.84 MB/s

CDM 5/6 Write 4K: 38 MB/s

3DMark 11
1280x720 Performance GPU
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	3220 Points +565%
Lenovo IdeaPad 330-15ARR 81D2005CUS AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	2294 Points +374%
Lenovo IdeaPad 320s-14IKB NVIDIA GeForce 920MX, i5-7200U	1887 Points +290%
Zotac ZBOX-CI660 Nano Intel UHD Graphics 620, i5-8550U	1769 Points +265%
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	1257 Points +160%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	584 Points +21%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	579 Points +20%
Average Intel UHD Graphics 600 (410 - 854, n=27)	558 Points +15%
Trekstor Primebook C13 Intel HD Graphics 500, Celeron N3350	543 Points +12%
Lenovo Flex 6-11IGM Intel UHD Graphics 600, Celeron N4000	513 Points +6%
Chuwi GBox CWI560 Intel UHD Graphics 600, Celeron N4100	484 Points
Teclast Tbook 16 Power Intel HD Graphics 405 (Braswell), Z8750	408 Points -16%
Chuwi Hi12 Intel HD Graphics (Cherry Trail), Z8300	299 Points -38%
Lenovo IdeaPad Miix 320-10ICR Pro LTE Intel HD Graphics 400 (Braswell), Z8350	297 Points -39%
1280x720 Performance Combined
Intel Skull Canyon NUC6i7KYK Intel Iris Pro Graphics 580, 6770HQ	2784 Points +526%
Lenovo IdeaPad 320s-14IKB NVIDIA GeForce 920MX, i5-7200U	2224 Points +400%
Zotac ZBOX-CI660 Nano Intel UHD Graphics 620, i5-8550U	1410 Points +217%
Lenovo IdeaPad 330-15ARR 81D2005CUS AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	1232 Points +177%
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	1134 Points +155%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	593 Points +33%
Trekstor Primebook C13 Intel HD Graphics 500, Celeron N3350	571 Points +28%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	570 Points +28%
Average Intel UHD Graphics 600 (362 - 983, n=27)	552 Points +24%
Lenovo Flex 6-11IGM Intel UHD Graphics 600, Celeron N4000	521 Points +17%
Chuwi GBox CWI560 Intel UHD Graphics 600, Celeron N4100	445 Points
Teclast Tbook 16 Power Intel HD Graphics 405 (Braswell), Z8750	363 Points -18%
Chuwi Hi12 Intel HD Graphics (Cherry Trail), Z8300	360 Points -19%
Lenovo IdeaPad Miix 320-10ICR Pro LTE Intel HD Graphics 400 (Braswell), Z8350	357 Points -20%

3DMark 11 Performance		542 pontos
Ajuda

... comparado com

Consumo de energia

desligado	0.21 / 0.37 Watt
Ocioso	1.9 / 2 / 2.9 Watt
Carga	8.6 / 9.5 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Chuwi GBox CWI560 Celeron N4100, UHD Graphics 600, SanDisk DA4064, , x,	Chuwi Lapbook 12.3 Celeron N3450, HD Graphics 500, 64 GB eMMC Flash, IPS, 2736x1824, 12.30	Chuwi Hi12 Z8300, HD Graphics (Cherry Trail), Hynix HCG8E 64 GB, IPS, 2160x1440, 12.00	NVIDIA Shield Android TV X1, Tegra X1 Maxwell GPU, 16 GB iNAND Flash, , 1920x1080, 0.00	Intel Skull Canyon NUC6i7KYK 6770HQ, Iris Pro Graphics 580, Samsung SSD 850 EVO m.2 120GB, , x, 0.00	Zotac ZBOX-CI660 Nano i5-8550U, UHD Graphics 620, OCZ Vertex OCZSSD2-1VTX120G, , x,	Lenovo Flex 6-11IGM Celeron N4000, UHD Graphics 600, SanDisk DF4064, TN LED, 1366x768, 11.60	Lenovo IdeaPad Miix 320-10ICR Pro LTE Z8350, HD Graphics 400 (Braswell), SanDisk DF4128, IPS, 1920x1200, 10.10
Power Consumption		-191%	1%	-67%	-570%	-435%	-87%	-77%
Idle Minimum *	1.9	5.9 -211%	1.7 11%	3.6 -89%	14.8 -679%	9.7 -411%	2.7 -42%	3 -58%
Idle Average *	2	7.7 -285%	1.7 15%	4.4 -120%	15.7 -685%	9.8 -390%	4.5 -125%	5.3 -165%
Idle Maximum *	2.9	8.6 -197%	3.3 -14%	4.6 -59%	15.8 -445%	11.8 -307%	5.7 -97%	6.4 -121%
Load Average *	8.6	18.2 -112%	7.9 8%	10 -16%	62.7 -629%	51.6 -500%	13.7 -59%	10.9 -27%
Load Maximum *	9.5	23.6 -148%	10.8 -14%	14.5 -53%	48.5 -411%	63.2 -565%	20.3 -114%	11 -16%

* ... smaller is better

Pro

+ Capaz de manter velocidades Turbo Boost

+ Armazenamento expansível via MicroSD e SATA

+ Streaming 4K fluente

+ Porta VGA integrada

+ Muito energeticamente eficiente

+ Design atraente

+ Qualidade de construção sólida

+ Controle remoto incluído

+ Econômico

+ Sem ventoinha

Contra

- Sem Thunderbolt 3, DisplayPort, ou saída ótica

- Somente leitor de MicroSD - sem leitor SD grande

- O comprador paga pelo envio da garantia

- As atualizações do Windows não conseguem ser instaladas

- Poder limitado da CPU e GPU

- sem opções de suporte vertical

- Poderia ser menor em tamanho

- 1x1 WLAN

In review: Chuwi GBox CWI560. Test model provided by Chuwi

Por $200 USD, o Chuwi GBox fornece uma quantidade razoável de hardware. O sistema vem com RAM soldada, armazenamento expansível, Windows 10 Home pré-instalado, um controle remoto e a nova plataforma Gemini Lake da Intel para usuários que não querem lidar com mini PCs barebone. As séries Intel NUC, Zotac ZBox e Gigabyte Brix são frequentemente vendidas como kits barebone com preços mais altos, uma vez que RAM, armazenamento e Windows são contabilizados. Enquanto isso, dispositivos de streaming como o Nvidia Shield perdem a versatilidade de um sistema operacional Windows/Linux.

A desvantagem mais notável da GBox é semelhante a outros dispositivos Chuwi como o LapBook ou Hi10 tablet. O desempenho do processador não é tão ágil quanto o que os usuários estão acostumados em desktops e nos Ultrabooks mais modernos. Esta é uma máquina para streaming, navegação ou processamento de texto e não muito mais, dado que qualquer tipo de multitarefa leve a moderada resultará em quadros omitidos e carregamento notavelmente mais lento.

Se alguma vez houver um GBox de segunda geração, esperaríamos que tenha uma PSU integrada com um adaptador de carregamento USB Tipo C, um leitor SD de tamanho completo e uma opção de orientação vertical.

Para configurações de home theater sem complicações e econômicas. Se a Android TV não é atraente, então o Chuwi GBox pode fazer o trabalho como um HTPC Windows 10 básico. A CPU Celeron de baixo consumo de energia limita o desempenho de multitarefa apenas para usos leves.
