NVIDIA GeForce ULP (Tegra 2)

NVIDIA GeForce ULP (Tegra 2)

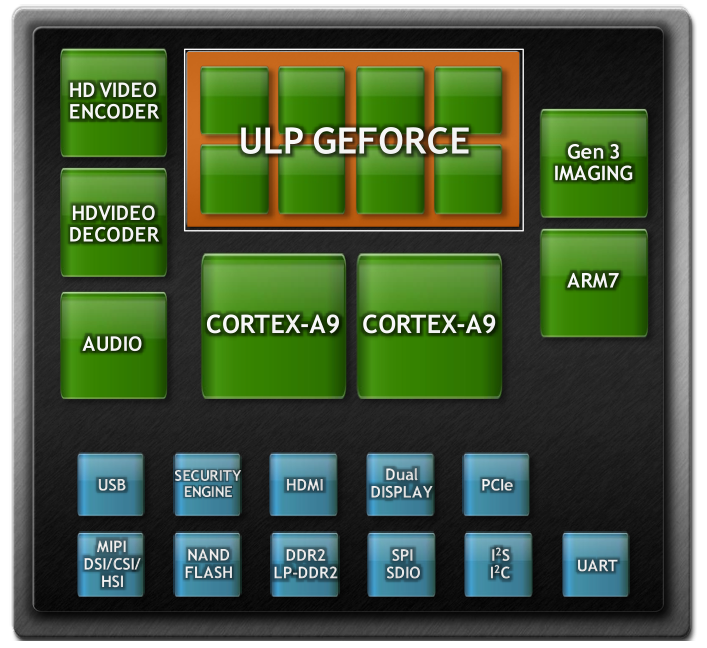

A NVIDIA GeForce ULP é uma placa de vídeo integrada no SoC Tegra 2 para tablets e smartphones Android. Ela oferece 4 pixels e 4 shaders vertex que suportam OpenGL ES 2.0, OpenVG 1.1 e EGL 1.4. A GeForce ULP suporta a saída para dois monitores, um de 1920x1080 via HDMI 1.3 e o integrado de 1024x600 (Tegra 230) ou 1680x1050 (Tegra 250).

O desempenho deve estar um pouco acima da PowerVR SGX540.

fabricanteNVIDIA
GeForce ULP Serie
GeForce ULP (Tegra 3) 8/4 cores
GeForce ULP (Tegra 2) 4/4 cores @ 300 - 400 (Boost) MHz
CódigoTegra 2
Pipelines4 / 4 Pixel- / Vertexshader
Velocidade do núcleo *300 - 400 (Boost) MHz
Memória compartilhadasim
tecnología40 nm
Data do anúncio01.01.2010
Link à página do Fabricantehttp://www.nvidia.com/object/tegra-2.html
* As freqüências (clock rate) especificadas são somente orientações para os fabricantes e podem ser alteradas por eles.
CPUGPU Base SpeedGPU Boost / Turbo
Nvidia Tegra 2 (250)2 x 1000 MHz, 1 W? MHz? MHz
min. - max.? - ? MHz? - ? MHz

Benchmarks

Antutu 3DRating - Off-screen 1024x2048
0%
100%
min: 920     avg: 920 (32%)     median: 920 (32%)     max: 920 Points
Antutu 3DRating -
0%
100%
min: 1621     avg: 1621 (14%)     median: 1621 (14%)     max: 1621 Points
GLBenchmark 2.5 - Egypt HD Offscreen Fixed Time 1920x1080
0%
100%
min: 3.9     avg: 3.9 (1%)     median: 3.9 (1%)     max: 3.9 fps
GLBenchmark 2.5 - Egypt HD Fixed Time
0%
100%
min: 5.9     avg: 5.9 (10%)     median: 5.9 (10%)     max: 5.9 fps
AnTuTu Benchmark v3 - GPU
0%
100%
min: 1605     avg: 1605 (17%)     median: 1605 (17%)     max: 1605 pontos
NenaMark2 -
0%
100%
min: 25     avg: 25 (37%)     median: 25 (37%)     max: 25 fps
Basemark ES 2.0 - Taiji Free
0%
100%
min: 4.21     avg: 4.6 (8%)     median: 4.6 (8%)     max: 4.9 fps
Smartbench 2012 - Gaming Index
0%
100%
min: 1101     avg: 1215.7 (26%)     median: 1225 (27%)     max: 1321 points
- Gama de valores benchmark para essa solução gráfica
- Média de valores benchmark para essa solução gráfica

Para mais jogos compatíveis e uma lista de todos os jogos e soluções gráficas visite nosso Lista de jogos
