AMD Radeon Graphics (Ryzen 7000)

AMD Radeon Graphics (Ryzen 7000)

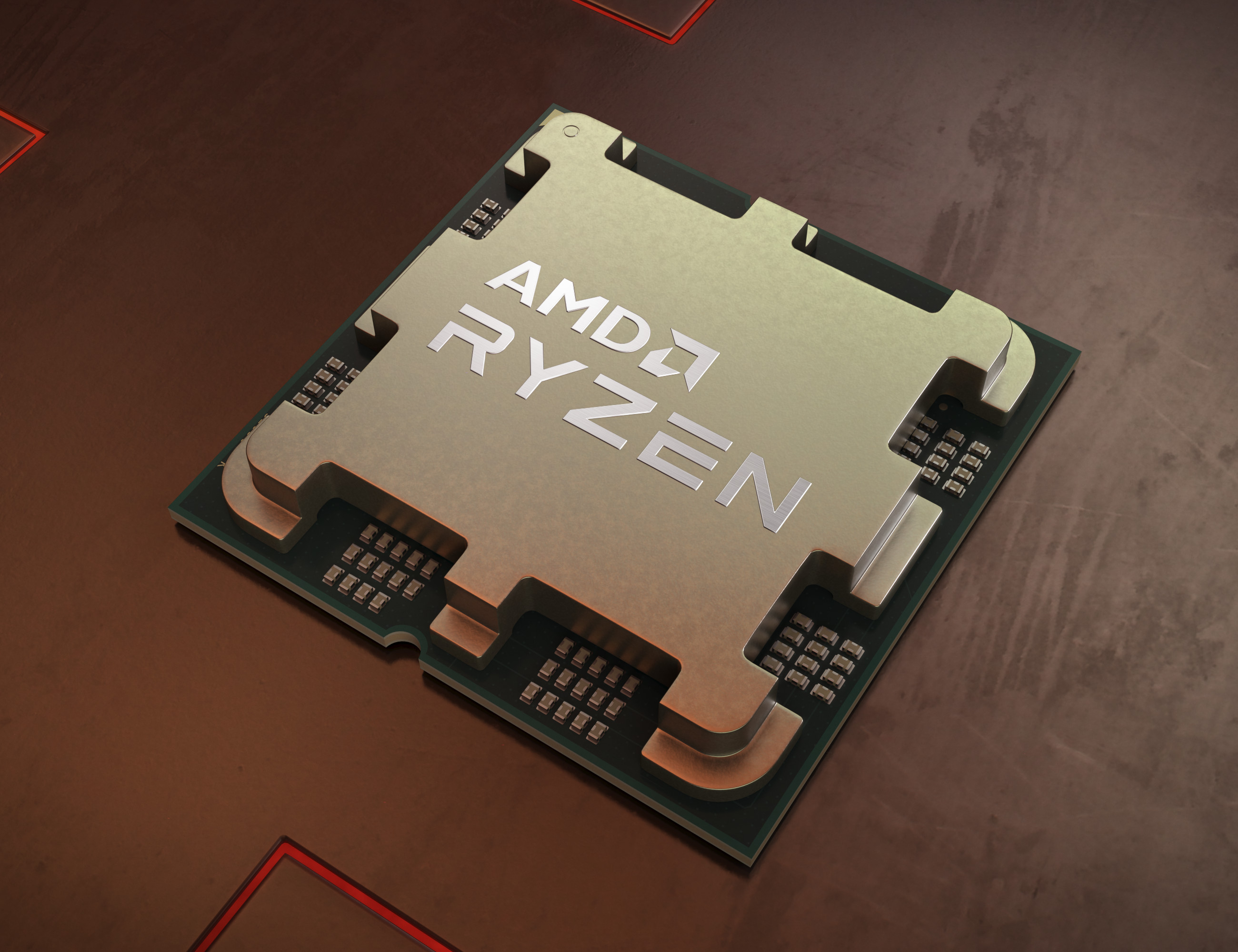

A AMD Radeon Graphics of the Ryzen 7000 desktop CPUs é uma placa gráfica integrada (iGPU) baseada na arquitectura RDNA 2. Oferece apenas 2 CUs (128 shader) e é semelhante à Radeon 610M. A velocidade do relógio na maioria das CPUs varia entre 400 e 2200 MHz. Devido à baixa quantidade de shaders, o desempenho do jogo é muito baixo e apenas adequado para jogos pouco exigentes. A GPU também integra um motor de codificação de vídeo AMD (VCE) para codificação H.264, H.265 10/8bpc e descodificação AV1, VP9, H.265, e H.264 10/8bpc.

AMD Radeon 600M Serie

Radeon 680M 768 @ 2.4 GHz
Radeon 660M 384 @ 1.9 GHz
Radeon Graphics (Ryzen 7000) 128 @ 2.2 GHz
Radeon 610M 128 @ 0.4 - 2.2 GHz
CódigoRaphael
ArquiteturaRDNA 2
Pipelines128 - unificado
TMUs8
ROPs4
Raytracing Cores1
Velocidade do núcleo2200 (Boost) MHz
Memória compartilhadasim
APIDirectX 12_2, OpenGL 4.6
Contagem de transistores3.4 Billion
Die Size 122 mm²
tecnología6 nm
Data do anúncio26.09.2022
CPU in Radeon Graphics (Ryzen 7000)GPU Base SpeedGPU Boost / Turbo
AMD Ryzen 9 7950X16 x 4500 MHz, 170 W400 MHz2200 MHz
AMD Ryzen 9 7950X3D16 x 4200 MHz, 120 W400 MHz2200 MHz
AMD Ryzen 9 7900X12 x 4700 MHz, 170 W? MHz? MHz
» show 6 more
min. - max.400 MHz2200 MHz

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
1 pt (3%)
AMD Radeon HD 8180
0.06605 -94%
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
0.968 -7%
AMD Radeon R7 250
0.977 -6%
AMD Radeon HD 8870M
0.988 -5%
Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
0.991 -5%
NVIDIA Quadro K4000M
1.002 -4%
AMD Radeon R8 M445DX
1.006 -3%
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
1.023 -2%
NVIDIA GeForce GTX 760M
1.035 -1%
AMD Radeon RX Vega 10
1.035 -1%
AMD Radeon Graphics (Ryzen 7000)
1.042
Intel UHD Graphics Xe G4 48EUs
1.057 1%
AMD FirePro M5100
1.06 2%
NVIDIA GeForce GTX 675M
1.062 2%
NVIDIA Quadro M520
1.067 2%
NVIDIA GeForce MX130
1.068 2%
NVIDIA GeForce 845M
1.076 3%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
1.085 4%
AMD Radeon R9 M370X
1.102 6%
NVIDIA Quadro M600M
1.107 6%
...
NVIDIA GeForce RTX 4090
33.3 3096%
0%
100%
3DMark - 3DMark Time Spy Score
845 Points (2%)
+ 1 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Time Spy Graphics
725 Points (2%)
+ 1 Mais detalhes   - Ocultar tabela de cmparação
Qualcomm Adreno 618
112 -85%
...
Intel Iris Plus Graphics 655
570 -21%
NVIDIA GeForce 940MX
577 -20%
NVIDIA Quadro M520
614 -15%
NVIDIA Quadro M600M
631 -13%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
639 -12%
NVIDIA GeForce MX130
650 -10%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
670 -8%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
673 -7%
AMD Radeon RX Vega 10
724 0%
AMD Radeon Graphics (Ryzen 7000)
725
AMD Radeon RX Vega 5
733 1%
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
744 3%
NVIDIA GeForce MX230
758 5%
Intel UHD Graphics Xe G4 48EUs
763 5%
AMD Radeon RX 540
787 9%
Intel UHD Graphics 770
796 10%
AMD Radeon 540X
797 10%
Qualcomm Adreno 690
811 12%
AMD Radeon Pro WX 3100
820 13%
...
NVIDIA GeForce RTX 4090
36485 4932%
0%
100%
3DMark - 3DMark Ice Storm Unlimited Graphics
159603 Points (18%)
+ 2 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Ice Storm Extreme Graphics
66294 Points (8%)
+ 2 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Cloud Gate Score
16760 Points (18%)
+ 2 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Cloud Gate Graphics
15247 Points (4%)
+ 2 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Fire Strike Standard Score
2183 Points (4%)
+ 1 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Fire Strike Standard Graphics
2287 Points (3%)
+ 1 Mais detalhes   + Mostrar tabela de cpomparação
3DMark - 3DMark Ice Storm Graphics
100802 Points (12%)
+ 2 Mais detalhes   + Mostrar tabela de cpomparação
3DMark 11 - 3DM11 Performance Score
3466 Points (5%)
+ 2 Mais detalhes   + Mostrar tabela de cpomparação
3DMark 11 - 3DM11 Performance GPU
3026 Points (3%)
+ 2 Mais detalhes   - Ocultar tabela de cmparação
AMD Radeon HD 6250
171.8 -94%
...
AMD Radeon HD 6790
2887 -5%
NVIDIA Quadro M600M
2911 -4%
Qualcomm Adreno 690
2930 -3%
AMD Radeon HD 8870M
2941 -3%
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
2965 -2%
AMD FirePro M5100
2967 -2%
NVIDIA GeForce 845M
2973 -2%
Intel Iris Plus Graphics 645
2985 -1%
NVIDIA Quadro P500
3022 0%
AMD Radeon Graphics (Ryzen 7000)
3026
AMD Radeon HD 7770
3098 2%
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
3101 2%
AMD FirePro W5130M
3106 3%
NVIDIA GeForce GTX 580M
3131 3%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
3180 5%
Intel Iris Pro Graphics 580
3220 6%
AMD Radeon HD 6990M
3238 7%
NVIDIA GeForce GTX 675M
3249 7%
AMD Radeon R9 M275
3261 8%
...
NVIDIA GeForce RTX 4090
106023 3404%
0%
100%
3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
11455 Points (3%)
+ 1 Mais detalhes   + Mostrar tabela de cpomparação
3DM Vant. Perf. GPU no PhysX +
3DMark Vantage - 3DM Vant. Perf. GPU no PhysX
8837 Points (5%)
+ 1 Mais detalhes   - Ocultar tabela de cmparação
ATI Radeon HD 3200
62 -99%
...
Intel Iris Graphics 540
8220 -7%
AMD Radeon HD 8790M
8407 -5%
NVIDIA GeForce 9800M GTX SLI
8492 -4%
AMD Radeon HD 8850M
8538 -3%
NVIDIA GeForce GTS 450
8551 -3%
NVIDIA GeForce GTX 470M
8589 -3%
AMD Radeon R7 M275DX
8607 -3%
NVIDIA GeForce GT 750M
8624 -2%
NVIDIA GeForce GTX 260M SLI
8764 -1%
AMD Radeon Graphics (Ryzen 7000)
8837
NVIDIA Quadro K2100M
8930 1%
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
8994 2%
AMD FirePro M6000
9070 3%
Intel Iris Graphics 550
9089 3%
AMD Radeon R9 M265X
9135 3%
NVIDIA Quadro 4000M
9184 4%
Intel UHD Graphics Xe G4 48EUs
9484 7%
NVIDIA GeForce GTX 660M
9666 9%
AMD Radeon HD 6950M
9694 10%
...
AMD Radeon RX 7900 XTX
170928 1834%
0%
100%
3DMark 05 - 3DMark 05 - Standard
38243 Points (42%)
+ 1 Mais detalhes   - Ocultar tabela de cmparação
Intel Graphics Media Accelerator (GMA) 500
133.4 -100%
...
AMD Radeon RX Vega 64
35209 -8%
4x NVIDIA RTX A6000
35288 -8%
NVIDIA GeForce GTX 1650 (Desktop)
35596 -7%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen)
35662 -7%
AMD Radeon HD 7970M Crossfire
36878 -4%
AMD Radeon RX 580 (Desktop)
37491 -2%
NVIDIA GeForce GTX 1080 Mobile
37669 -2%
AMD Radeon RX Vega 7
38073 0%
AMD Radeon Pro W6800
38177 0%
AMD Radeon Graphics (Ryzen 7000)
38243
NVIDIA GeForce RTX 2080 (Desktop)
38535 1%
NVIDIA GeForce GTX 1070 SLI (Desktop)
38635 1%
AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38999 2%
Intel Iris Xe Graphics G7 80EUs
39066 2%
Intel Arc 8-Cores iGPU
42967 12%
NVIDIA GeForce RTX 2080 Super (Desktop)
43011 12%
Intel Arc A730M
43138 13%
AMD Radeon RX 590 (Desktop)
43361 13%
AMD Radeon 680M
43450 14%
...
NVIDIA GeForce RTX 4080 Super
87172 128%
0%
100%
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
21514 Points (28%)
+ 1 Mais detalhes   + Mostrar tabela de cpomparação
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
min: 6826     avg: 15026     median: 17745 (13%)     max: 18855 pontos
+ 11 Mais detalhes   + Mostrar tabela de cpomparação
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
Cinebench R11.5 - Cinebench R11.5 OpenGL 64 Bit
min: 198.52     avg: 203     median: 205 (71%)     max: 205.43 fps
+ 3 Mais detalhes   + Mostrar tabela de cpomparação
Cinebench R15
Cinebench R15 OpenGL 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 100     avg: 164.3     median: 101.4 (6%)     max: 359.59 fps
+ 11 Mais detalhes   + Mostrar tabela de cpomparação
Cinebench R15 OpenGL Ref. Match 64 Bit +
Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
min: 97.9     avg: 98.4     median: 97.9 (98%)     max: 99.6 %
+ 11 Mais detalhes   + Mostrar tabela de cpomparação
- Gama de valores benchmark para essa solução gráfica
- Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance

Benchmarks de jogos

Os seguintes benchmarks têm origem em nossos benchmarks de portáteis de análise O desempenho depende da memória gráfica utilizada, frequência, processador, configurações do sistema, controladores, e sistemas operacionais. Assim os resultados não tem que representantes para todos os portáteis com esta GPU. Para informações detalhadas sobre os resultados de benchmark, clique no número de fps.

F1 2021

F1 2021

2021
baixo 1280x720
46.3  fps    + Comparar
média 1920x1080
18.3  fps    + Comparar
alto 1920x1080
15  fps    + Comparar
ultra 1920x1080
5.7  fps    + Comparar
» Jogável em configuração de detalhes com todos os notebooks testados baixo.
F1 2020

F1 2020

2020
baixo 1280x720
49.7  fps    + Comparar
média 1920x1080
18.7  fps    + Comparar
alto 1920x1080
13.7  fps    + Comparar
ultra 1920x1080
8.7  fps    + Comparar
» Jogável em configuração de detalhes com todos os notebooks testados baixo.
Strange Brigade

Strange Brigade

2018
baixo 1280x720
54  fps    + Comparar
média 1920x1080
17.4  fps    + Comparar
alto 1920x1080
11.4  fps    + Comparar
ultra 1920x1080
9  fps    + Comparar
» Jogável em configuração de detalhes com todos os notebooks testados baixo.
X-Plane 11.11

X-Plane 11.11

2018
baixo 1280x720
35.9  fps    + Comparar
média 1920x1080
23  fps    + Comparar
alto 1920x1080
20.5  fps    + Comparar
» Jogável em configuração de detalhes com todos os notebooks testados baixo.
Final Fantasy XV Benchmark

Final Fantasy XV Benchmark

2018
baixo 1280x720
19.3  fps    + Comparar
média 1920x1080
19.3  fps    + Comparar
alto 1920x1080
5.7  fps    + Comparar
» Não é jogável com a maioria dos notebooks testados.
Dota 2 Reborn

Dota 2 Reborn

2015
baixo 1280x720
157.8  fps    + Comparar
média 1366x768
61.8  fps    + Comparar
alto 1920x1080
25.7  fps    + Comparar
ultra 1920x1080
23.6  fps    + Comparar
» Jogável em configuração de detalhes com todos os notebooks testados média.
baixomédiaaltoultraQHD4K
F1 202146.318.3155.66
F1 202049.718.713.78.67
Strange Brigade5417.411.49
X-Plane 11.1135.92320.5
Final Fantasy XV Benchmark19.319.35.74
Dota 2 Reborn157.861.825.723.6
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps		1
4

1		5

1
6


4








Para mais jogos compatíveis e uma lista de todos os jogos e soluções gráficas visite nosso Lista de jogos

v1.26
log 18. 12:02:55

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Tue, 16 Apr 2024 05:39:00 +0200 +0.001s ... 0.001s

#3 no comparison url found in template nbc.compare_page_1 needed +0.035s ... 0.036s

#4 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.036s

#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.036s

#6 composed specs +0s ... 0.036s

#7 did output specs +0s ... 0.036s

#8 start showIntegratedCPUs +0s ... 0.036s

#9 getting avg benchmarks for device 11422 +0.027s ... 0.064s

#10 got single benchmarks 11422 +0.015s ... 0.079s

#11 got avg benchmarks for devices +0s ... 0.079s

#12 min, max, avg, median took s +0.461s ... 0.54s

#13 before gaming benchmark output +0s ... 0.54s

#14 Got 22 rows for game benchmarks. +0.008s ... 0.548s

#15 composed SQL query for gamebenchmarks +0s ... 0.548s

#16 got data and put it in $dataArray +0.004s ... 0.553s

#17 benchmarks composed for output. +0.249s ... 0.802s

#18 no comparison url found in template nbc.compare_page_1 needed +0.003s ... 0.805s

#19 return log +0s ... 0.805s

Análises de Portáteis com AMD Radeon Graphics (Ryzen 7000) Placa de vídeo

Noctua NH-U9S, NH-D9L e NH-La9-AM5

Revisão Noctua NH-U9S, NH-D9L e NH-La9-AM5: Três potentes refrigeradores de ar para CPUs econômicas

A Noctua oferece um amplo portfólio de resfriadores de ar de alto desempenho e tem sido considerada uma marca de ponta por anos quando se trata do tópico de res...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
Noctua NH-U9S, NH-D9L e NH-La9-AM5

Revisão Noctua NH-U9S, NH-D9L e NH-La9-AM5: Três potentes refrigeradores de ar para CPUs econômicas

A Noctua oferece um amplo portfólio de resfriadores de ar de alto desempenho e tem sido considerada uma marca de ponta por anos quando se trata do tópico de res...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
Noctua NH-U9S, NH-D9L e NH-La9-AM5

Revisão Noctua NH-U9S, NH-D9L e NH-La9-AM5: Três potentes refrigeradores de ar para CPUs econômicas

A Noctua oferece um amplo portfólio de resfriadores de ar de alto desempenho e tem sido considerada uma marca de ponta por anos quando se trata do tópico de res...
AMD Ryzen 5 7600X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
Noctua NH-D12L

Noctua NH-D12L em revisão: Poderoso refrigerador de CPU premium para todas as tomadas comuns

Noctua é conhecida por seus refrigeradores de alta qualidade e cobre todas as plataformas comuns com sua linha de produtos. Com o Noctua NH-D12L, temos outro re...
AMD Ryzen 9 7900X | AMD Radeon Graphics (Ryzen 7000) | 32.00"
Noctua NH-D15 e Noctua NH-U12A

Noctua NH-D15 e NH-U12A Revisão: Dois potentes resfriadores de ar para todos os soquetes comuns de CPU

Noctua oferece uma ampla gama de potentes refrigeradores de ar que são capazes de manter sob controle a atual safra de CPUs de navios de bandeira. Nesta breve a...
AMD Ryzen 9 7900X | AMD Radeon Graphics (Ryzen 7000) | 32.00"

AMD Ryzen 9 7900X (Wakü + MO-RA3 420 Pro): AMD Ryzen 9 7900X, 32.00"
  ánalise » Noctua NH-D15 e NH-U12A Revisão: Dois potentes resfriadores de ar para todos os soquetes comuns de CPU

  ánalise » Noctua NH-D15 e NH-U12A Revisão: Dois potentes resfriadores de ar para todos os soquetes comuns de CPU

  ánalise » Noctua NH-D15 e NH-U12A Revisão: Dois potentes resfriadores de ar para todos os soquetes comuns de CPU

Please share our article, every link counts!

Class 1

RTX 6000 Ada Generation Desktop
NVIDIA GeForce RTX 4090 Desktop
Radeon RX 7900 XTX Desktop
NVIDIA GeForce RTX 4080 Super Desktop
NVIDIA GeForce RTX 4080 Desktop
NVIDIA GeForce RTX 3090 Ti Desktop
NVIDIA GeForce RTX 4070 Ti SUPER Desktop
Radeon RX 7900 XT Desktop
NVIDIA GeForce RTX 4070 Ti Desktop
Radeon RX 7900 GRE Desktop
Radeon RX 6950 XT Desktop
NVIDIA GeForce RTX 4090 Laptop GPU
NVIDIA RTX 5000 Ada Generation Laptop GPU
NVIDIA GeForce RTX 3090 Desktop
NVIDIA GeForce RTX 3080 Ti Desktop
Radeon RX 7800 XT Desktop
NVIDIA GeForce RTX 4070 SUPER Desktop
NVIDIA RTX A6000 Desktop
Radeon RX 7900M
Radeon RX 6900 XT Desktop
NVIDIA GeForce RTX 4080 Laptop GPU
NVIDIA RTX 4000 Ada Generation Laptop GPU
NVIDIA GeForce RTX 3080 12 GB Desktop
NVIDIA GeForce RTX 3080 Desktop
NVIDIA GeForce RTX 4070 Desktop
NVIDIA RTX 3500 Ada Generation Laptop GPU
Radeon Pro W6800 Desktop
Radeon RX 6800 XT Desktop
Radeon RX 6800 Desktop
Radeon RX 7700 XT Desktop
NVIDIA Titan RTX Desktop
GeForce RTX 3070 Ti Desktop
NVIDIA GeForce RTX 4060 Ti 16G Desktop
NVIDIA GeForce RTX 4060 Ti 8G Desktop
GeForce RTX 3080 Ti Laptop GPU
NVIDIA GeForce RTX 4070 Laptop GPU
NVIDIA RTX 3000 Ada Generation Laptop GPU
RTX A5500 Laptop GPU
NVIDIA GeForce RTX 3070 Desktop
Radeon RX 6750 XT Desktop
GeForce RTX 2080 Ti (Desktop) Desktop
Radeon RX 6700 XT Desktop
GeForce RTX 3080 Laptop GPU
NVIDIA GeForce RTX 3060 Ti Desktop
Arc A770 Desktop
NVIDIA GeForce RTX 4060 Desktop
Radeon RX 7600 Desktop
Radeon RX 6850M XT
GeForce RTX 3070 Ti Laptop GPU
RTX A4500 Laptop GPU
RTX A5000 Laptop GPU
NVIDIA GeForce RTX 4060 Laptop GPU
NVIDIA RTX 2000 Ada Generation Laptop GPU
GeForce RTX 2080 Super (Desktop) Desktop
Quadro RTX 6000 (Laptop)
Radeon RX 6800M
Radeon RX 6650 XT Desktop
Radeon RX 6600 XT Desktop
GeForce RTX 2080 (Desktop) Desktop
GeForce RTX 2080 Super Mobile
GeForce RTX 3070 Laptop GPU
RTX A4000 Laptop GPU *
Arc A750 Desktop
Arc A580 Desktop

Class 2

Radeon RX 6800S
Radeon RX 7600M XT *
NVIDIA GeForce RTX 3060 Desktop
Radeon RX 7700S *
M3 Max 40-Core GPU *
M2 Max 38-Core GPU *
GeForce RTX 2080 Mobile
Radeon RX 6700M
GeForce GTX 1080 Ti Desktop
Titan X Pascal Desktop
GeForce RTX 2070 Super (Desktop) Desktop
M3 Max 30-Core GPU *
Quadro RTX 5000 (Laptop)
Radeon VII Desktop
Radeon RX 5700 XT (Desktop) Desktop
GeForce RTX 2070 (Desktop) Desktop
Radeon RX 7600M *
M2 Max 30-Core GPU *
GeForce RTX 3060 Laptop GPU
M1 Max 32-Core GPU *
Radeon RX 7600S
GeForce RTX 2070 Super Mobile
GeForce GTX 1080 (Desktop) Desktop
GeForce RTX 2080 Super Max-Q
RTX A3000 Laptop GPU
M1 Max 24-Core GPU *
GeForce RTX 2060 Super (Desktop) Desktop
A770M *
Radeon RX 6600 Desktop
Radeon RX 6650M XT *
M3 Pro 18-Core GPU *
M2 Pro 19-Core GPU *
Radeon RX 5700 (Desktop) Desktop
Radeon RX 6650M
Radeon RX 6600M
Radeon RX 6700S
GeForce RTX 2070 Mobile
Quadro RTX 5000 Max-Q
GeForce RTX 2080 Max-Q
GeForce RTX 2060 (Desktop) Desktop
Radeon RX 5700M *
RX Vega 64 Desktop
GeForce GTX 1080 Mobile
Quadro RTX 4000 (Laptop)
M3 Pro 14-Core GPU *
M2 Pro 16-Core GPU *
M1 Pro 16-Core GPU *
Radeon PRO W6600M *
GeForce RTX 2070 Super Max-Q
Quadro RTX 4000 Max-Q *
GeForce GTX 1070 Ti (Desktop) Desktop
M1 Pro 14-Core GPU *
GeForce RTX 2070 Max-Q *
RX Vega 56 Desktop
Radeon RX 6600S *
Quadro P5200
Quadro RTX 3000 (Laptop) *
GeForce RTX 2060 Mobile
NVIDIA GeForce RTX 3050 Desktop
GeForce GTX 1070 (Desktop) Desktop
Radeon RX 5600 XT (Desktop) Desktop
Quadro RTX 3000 Max-Q *
GeForce GTX 1080 Max-Q
Pro Vega 56 Desktop
GeForce GTX 1070 Mobile
GeForce RTX 2060 Max-Q *
Quadro P4200
GeForce GTX 1660 Ti (Desktop) Desktop
GeForce GTX 1660 Super (Desktop) Desktop
Radeon RX 6500 XT Desktop
Radeon RX 5500 XT (Desktop) Desktop
NVIDIA GeForce RTX 4050 Laptop GPU
Nvidia RTX 1000 Ada Generation Laptop GPU
RTX A2000 Laptop GPU
A730M *
Radeon Pro 5600M *
Radeon RX 5600M
Quadro P5000
GeForce GTX 1660 Ti Mobile
GeForce RTX 3050 Ti Laptop GPU
GeForce RTX 3050 6GB Laptop GPU
A570M *
RTX A1000 Laptop GPU
GeForce GTX 980 Ti Desktop
GeForce GTX 1660 (Desktop) Desktop
GeForce GTX 1070 Max-Q
A550M *
GeForce GTX 1650 Super (Desktop) Desktop
Quadro P5000 Max-Q *
Radeon R9 Fury Desktop
Radeon R9 Nano Desktop
GeForce GTX 980 Desktop
GeForce RTX 3050 4GB Laptop GPU
Nvidia RTX 500 Ada Generation Laptop GPU
A530M *
GeForce GTX 1660 Ti Max-Q
RTX A500 Laptop GPU
Radeon RX 6550M *
Radeon RX 6500M
Radeon RX 6550S *
Radeon RX 590 Desktop
Radeon RX 580 Desktop
GeForce GTX 980 (Laptop)
Quadro M5500
Radeon R9 390X Desktop
GeForce GTX 1060 (Desktop) Desktop
Radeon RX 570 Desktop
Quadro P4000
Quadro T2000 (Laptop) *
Radeon RX 480 Desktop
GeForce GTX 1060 Mobile
GeForce GTX 1650 Ti Mobile
A370M *
Radeon RX 5500M
Radeon Pro 5500M *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon RX 6450M *
GeForce RTX 2050 Mobile
GeForce MX570 *
Radeon RX 6300M *
GeForce GTX 1650 (Desktop) Desktop
GeForce GTX 1650 Mobile
Arc A380 Desktop
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000
GeForce GTX 970 Desktop
GeForce GTX 1060 Max-Q
Quadro P3000 Max-Q *
GeForce GTX 1650 Ti Max-Q *
Quadro T2000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 470 (Desktop) Desktop
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
GeForce GTX 1650 Max-Q *
T1200 Laptop GPU *
Quadro T1000 (Laptop) *
Quadro T1000 Max-Q *
A310 *
Arc 8-Cores *
A350M *
Arc 7-Cores *
T600 Laptop GPU *
T550 Laptop GPU *

Class 3

GeForce GTX 980M
Vega M GH
Quadro M5000M
Radeon Pro Vega 20
Radeon 780M *
M3 10-Core GPU *
Radeon R9 380 Desktop
GeForce GTX 960 Desktop
GeForce MX550
GeForce GTX 1050 Ti Mobile
GeForce GTX 1050 Ti (Desktop) Desktop
Radeon 680M
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
GeForce GTX 970M
T500 Laptop GPU *
GeForce MX450 *
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
Radeon Pro Vega 16
Vega M GL / 870
WX Vega M GL
Radeon R9 M485X
Quadro M3000M
GeForce GTX 1050 (Desktop) Desktop
GeForce GTX 1050 Mobile
FirePro W7170M
Radeon R9 M395
Radeon R7 370 Desktop
GeForce GTX 1050 Max-Q *
M3 8-Core GPU *
M2 10-Core GPU *
GeForce GTX 950 Desktop
T600 Desktop
Radeon 760M *
Radeon Radeon Steam Deck 8CU
Radeon 660M
Radeon RX 460 (Desktop) Desktop
Radeon Pro WX 4150 *
GeForce GTX 965M
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Quadro M2200
Radeon RX 460 (Laptop)
Quadro P1000
Radeon R9 M390
Xe MAX
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Iris Xe G7 96EUs
GeForce MX350
GeForce GTX 960M
Quadro M1200
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon RX 550 (Laptop)
Radeon RX 640
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Radeon Pro 455
GeForce GT 1030 (Desktop) Desktop
Quadro P600
GeForce MX250
GeForce MX330
GeForce MX150
Iris Xe G7 80EUs
Graphics 4-Core *
GeForce GT 710 Desktop
Quadro M2000M
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon RX 540 *
Radeon Pro WX 3100 *
GeForce GTX 950M
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M470X *
Radeon R9 M385X
Quadro P520
Quadro M1000M
Quadro M620 *
Vega 11 * Desktop
GeForce 945M
SD X Elite Adreno GPU *
Quadro P500 *
UHD Graphics 64EUs
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics P580
Iris Pro Graphics 580
Radeon R9 M470 *
FirePro W5170M *
Radeon R9 M370X
Vega 9
FirePro W5130M
UHD Graphics Xe G4 48EUs *
UHD Graphics 32EUs
UHD Graphics Xe 32EUs (Tiger Lake-H) *
UHD Graphics 770 Desktop
UHD Graphics 750
UHD Graphics Xe 750 32EUs * Desktop
Radeon 740M *
GeForce MX230
M2 8-Core GPU *
M1 8-Core GPU *
Vega 8 *
M1 7-Core GPU *
Vega 7
Radeon R7 M465
FirePro W4100 Desktop
Iris Pro Graphics 6200
GeForce MX130
GeForce 940MX
Quadro M520
Vega 8
GeForce 940M
Iris Plus Graphics G4 (Ice Lake 48 EU)
GeForce 930MX
A12Z Bionic GPU *
A12X Bionic GPU *
A17 Pro GPU *
Quadro M600M
FirePro W4190M
Adreno 750 *
Radeon R9 M375
Xclipse 940 *
Adreno 740 *
Immortalis-G720 MP12 *
Immortalis-G715 MP11 *
A16 GPU 5-Core *
Iris Plus Graphics 655
Radeon R7 M445
A15 GPU 5-Core *
Adreno 730 *
Mali-G715 MP7 *
Mali-G615 MP6 *
Adreno 725 *
Mali-G710 MP10 *
Quadro M500M
A15 GPU 4-Core *
A14 Bionic GPU *
Xclipse 920 *
Adreno 660 *
Mali-G78 MP24 *
Mali-G710 MP7 *
Mali-G78 MP22 *
Iris Plus Graphics 650
GeForce 930M
Iris Graphics 550
Radeon 530
Radeon 625
Vega 6 *
Iris Plus Graphics 645
A13 Bionic GPU *
GeForce MX110 *
Iris Plus Graphics 640
GeForce 920MX
Iris Graphics 540
A12 Bionic GPU *
Adreno 650 *
Mali-G78 MP20 *
Mali-G78 MP14 *
A11 Bionic GPU *
A10X Fusion GPU *
UHD Graphics 24EUs (Alder Lake-N) *
Radeon R7 (Bristol Ridge) *
Radeon R7 M460 *
A9X / PowerVR GT7xxx
Radeon R7 M360
GeForce 920M
Radeon R8 M445DX
Radeon 620
Radeon R7 M440
Radeon R7 M340
Radeon 520
Radeon 610
Radeon Graphics (Ryzen 7000)
Radeon 610M *
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU)
UHD Graphics 630 Desktop
UHD Graphics P630 Desktop
UHD Graphics Xe 16EUs (Tiger Lake-H) *
HD Graphics 630 Desktop
HD Graphics P630 Desktop
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics 530
Tegra X1 Maxwell GPU
Radeon R5 (Bristol Ridge)
UHD Graphics 620
HD Graphics 620
Adreno 690 *
Adreno 685 *
Adreno 680 *
FirePro W2100 Desktop
Radeon R5 M330
Radeon R5 M430
Vega 3 *
GeForce 910M
HD Graphics 520
Iris Graphics 6100
UHD Graphics G4 (Lakefield GT1 48 EU) *
Adreno 710 *

Class 4

UHD Graphics 730
Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
Radeon R5 (Stoney Ridge)
A10 Fusion GPU
HD Graphics 6000
Mali-G77 MP11 *
Mali-G77 MP9 *
Mali-G76 MP16 *
Mali-G610 MP6 *
Mali-G610 MP4 *
Adreno 644 *
Adreno 643 *
Adreno 642 *
Mali-G610 MP3 *
Adreno 642L *
Adreno 640 *
Maleoon 910 *
Adreno 630 *
Mali-G76 MP12 *
Mali-G76 MP10 *
Mali-G68 MP5 *
Mali-G57 MP6 *
Mali-G57 MP5 *
Adreno 540 *
Mali-G72 MP18 *
Mali-G71 MP20 *
UHD Graphics (Jasper Lake 32 EU) *
UHD Graphics (Elkhart Lake 32 EU) Desktop
Mali-G72 MP12 *
Mali-G71 MP8
UHD Graphics 617
UHD Graphics 615
UHD Graphics (Jasper Lake 24 EU) *
HD Graphics 615
PowerVR GM9446
Adreno 530
PowerVR GXA6850
GeForce ULP K1 (Tegra K1 Kepler GPU)
A9 / PowerVR GT7600
Mali-T880 MP12
Mali-G76 MP4 *
HD Graphics 515
UHD Graphics 610
HD Graphics 610
HD Graphics 510
UHD Graphics (Elkhart Lake 16 EU) Desktop
UHD Graphics (Jasper Lake 16 EU)
UHD Graphics 605
HD Graphics 505
HD Graphics 5300
Mali-T760 MP8
Mali-G71 MP2 *
Radeon R4 (Stoney Ridge)
Adreno 430
Radeon R5 (Beema/Carrizo-L)
Radeon R4 (Beema)
Radeon R3 (Mullins/Beema)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
Mali-G72 MP3 *
Mali-G68 MP4 *
Mali-T880 MP4
Mali-G52 MP6 *
Mali-G68 MP2 *
Mali-G52 MP2 *
Mali-G52 MP1 *
UHD Graphics 600
HD Graphics 500
Mali-T760 MP6
Mali-T880 MP2
HD Graphics 405 (Braswell)
HD Graphics (Braswell)
HD Graphics 400 (Braswell)
PowerVR GX6450
Adreno 420
Adreno 620 *
IMG BXM-8-256
Mali-G57 MP4 *
Mali-G57 MP3 *

Class 5

Adreno 418
Adreno 619 *
Adreno 619L *
Adreno 618 *
Mali-G57 MP2 *
Mali-G57 MP1 *
Adreno 616 *
Radeon R2 (Mullins/Beema/Carrizo-L)
Mali-G51 MP4 *
Radeon R6 (Mullins)
HD Graphics (Cherry Trail)
Adreno 612 *
Adreno 610 *
Adreno 512 *
Adreno 510 *
Adreno 330
PowerVR G6430
PowerVR GX6250
PowerVR G6400
HD Graphics (Bay Trail)
Mali-T628 MP6
Mali-T760 MP4
SGX554MP4
Mali-T628 MP4
Adreno 509 *
Adreno 508 *
Adreno 506 *
GE8322 / IMG8322 *
Adreno 505 *
Adreno 504 *
Mali-T860 MP2
Mali-T830 MP3
Mali-T604 MP4
PowerVR G6200
Adreno 405 *
Mali-T830 MP2

Class 6

SGX543MP4 *
Mali-T624
Adreno 320 *
Mali-T760 MP2
PowerVR GE8320 *
PowerVR GE8300 *
PowerVR GE8100 *
Mali-T720 MP4
Mali-450 MP4
Mali-T830 MP1
SGX543MP3 *
SGX543MP2 *
SGX545
SGX544MP2 *
Mali-T720 MP2
SGX544 *
Adreno 308
Adreno 306
Adreno 305
Adreno 304
Mali-T720
GC7000UL
Adreno 302
Adreno 225 *
GC4000 *
Mali-400 MP4 *
VideoCore-IV *
Adreno 220 *
Vivante GC1000+ Dual-Core
Mali-400 MP2 *
Mali-400 MP *
SGX540 *
Adreno 205 *
Adreno 203 *
GC800 *
SGX535
SGX531
SGX530
Adreno 200 *
Mali-200 *

Posição aproximada do adaptador gráfico

> Análises e revisões de portáteis e celulares > FAQ/Técnica > Comparação de Placas de Vídeo > AMD Radeon Graphics (Ryzen 7000)
Klaus Hinum (Update: 2022-12-31)
