MSI Modern 14 B11SB revisão: O allrounder de 14 polegadas sofre com o desenvolvimento do calor

Aquecedor com ventilador. As 14 pontuações Modernas com um processador Core i7-1165G7, GeForce MX450 núcleo gráfico, e 16 GB de memória de trabalho. Entretanto, este último só pode operar em modo monocanal. Além disso, o laptop aquece muito significativamente sob carga pesada e produz muito ruído.

Com o moderno 14 B11SB, a MSI oferece um allrounder de 14 polegadas que traz muito desempenho em computação graças ao Núcleo i7-1165G7CPU e GeForce MX450GPU. Os concorrentes incluem dispositivos tais como a Schenker Visão 14oHP Envy 14oHonor Magicbook 14oLenovo IdeaPad 5 14ALC05e o Asus Zenbook 14 UX435EG.

MSI Modern 14 B11SB-085 (Modern 14 Serie)
Processador
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3
Placa gráfica
NVIDIA GeForce MX450 - 2048 MB VRAM, Análises do: 1575 MHz, Memoría: 1751 MHz, 25 W TDP, GDDR5, 27.21.14.7111, Optimus
Memória
16 GB
, DDR4-3200, single-channel mode, single memory slot (in use)
Pantalha
14.00 polegadas 16:9, 1920 x 1080 pixel 157 PPI, BOE CQ NV140FHM-N4V, IPS, Brilhante: não, 60 Hz
placa mãe
Intel Tiger Lake-UP3 PCH-LP
Disco rígido
Kingston OM8PCP3512F-AB, 512 GB
, M.2-2280 (NVMe), 399 GB livre
Conexões
2 USB 3.0, 1 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Conexões Audio: combined audio port, Card Reader: microSD, TPM 2.0
Funcionamento em rede
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Tamanho
altura x largura x profundidade (em mm): 16.9 x 319 x 219
Bateria
52.4 Wh, 4600 mAh Lítio-Ion
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Características adicionais
Alto falantes: stereo, Teclado: chiclet, Iluminação do Teclado: sim, MS Office 365 (trial), Norton Security (trial), 24 Meses Garantia
peso
1.3 kg, Suprimento de energia: 316 g
Preço
1199 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
82.2 %
07/2021
MSI Modern 14 B11SB-085
i7-1165G7, GeForce MX450
1.3 kg16.9 mm14.00"1920x1080
89.1 %
06/2021
SCHENKER Vision 14
i7-1165G7, Iris Xe G7 96EUs
1 kg15.6 mm14.00"2880x1800
85.6 %
12/2020
Honor MagicBook 14, Ryzen 5 4500U
R5 4500U, Vega 6
1.4 kg15.9 mm14.00"1920x1080
86.5 %
02/2021
HP Envy 14-eb0010nr
i5-1135G7, GeForce GTX 1650 Ti Max-Q
1.6 kg17.9 mm14.00"1920x1200
86.3 %
05/2021
Lenovo IdeaPad 5 14ALC05 82LM005YGE
R5 5500U, Vega 7
1.4 kg19.1 mm14.00"1920x1080
84.1 %
01/2021
Asus Zenbook 14 UX435EG
i7-1165G7, GeForce MX450
1.3 kg16.9 mm14.00"1920x1080

Estojo e Equipamento - O Modern 14 oferece Thunderbolt 4

A MSI usa uma elegante caixa de alumínio no 14 Moderno, tornando-a disponível nas cores chamadas Carbon Grey, Beige Mousse e Bluestone. Estamos testando o modelo azul aqui. Enquanto o estojo mostra um bom acabamento, ele poderia oferecer mais estabilidade: É muito fácil empenar o estojo e a unidade base. Quando a tampa é aberta, o fundo da tampa serve como um rodapé, angulando a unidade base em direção ao usuário. O ângulo máximo de abertura é de 180 graus.

A B11SB oferece duas portas USB-A (USB 3.2 Gen 2) e uma única porta USB-C (Thunderbolt 4). Esta última suporta Power Delivery e DisplayPort via USB-C e também permite o uso de uma estação de acoplamento ou GPU externo. O laptop de 14 polegadas também inclui um total de duas portas de vídeo (1x DP, 1x HDMI). O leitor de cartões de armazenamento microSD integrado é um representante mais lento de seu tipo (usando nosso cartão de armazenamento de referência AV PRO microSD 128 GB V60).

O chip WLAN (Intel AX201) suporta os padrões 802.11 a/b/g/n/ac/ax e também oferece funcionalidade Bluetooth 5. As taxas de dados que medimos sob condições ideais (nenhum outro dispositivo WLAN em proximidade e distância próxima entre laptop e PC servidor; roteador: Netgear Nighthawk AX12) se revelam muito bons.

Size Comparison

321.57 mm 211.59 mm 19.1 mm 1.4 kg322.5 mm 214.8 mm 15.9 mm 1.4 kg319 mm 219 mm 16.9 mm 1.3 kg319 mm 199 mm 16.9 mm 1.3 kg313.1 mm 224 mm 17.9 mm 1.6 kg308.8 mm 215 mm 15.6 mm 1 kg297 mm 210 mm 1 mm 5.7 g

Equipamento de conexão

Lado esquerdo: alimentação, HDMI, Thunderbolt 4 (Tipo C; Power Delivery, DisplayPort), leitor de cartões de armazenamento (microSD)
Lado esquerdo: alimentação, HDMI, Thunderbolt 4 (Tipo C; Power Delivery, DisplayPort), leitor de cartões de armazenamento (microSD)
Lado direito: combinação de áudio, 2x USB 3.2 Gen 2 (Tipo A)
Lado direito: combinação de áudio, 2x USB 3.2 Gen 2 (Tipo A)
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Multimedia
  (17.6 - 205, n=66, last 2 years)
93.3 MB/s +275%
SCHENKER Vision 14
  (AV PRO V60)
80.7 MB/s +224%
Asus Zenbook 14 UX435EG
  (Toshiba Exceria Pro M501 microSDXC 64GB)
79.2 MB/s +218%
Lenovo IdeaPad 5 14ALC05 82LM005YGE

77.5 MB/s +211%
HP Envy 14-eb0010nr
  (Toshiba Exceria Pro M501 microSDXC 32GB)
75.9 MB/s +205%
MSI Modern 14 B11SB-085
  (Toshiba Exceria Pro M501 microSDXC 64GB)
24.9 MB/s
maximum AS SSD Seq Read Test (1GB)
Average of class Multimedia
  (16.8 - 266, n=62, last 2 years)
122.6 MB/s +407%
SCHENKER Vision 14
  (AV PRO V60)
87.6 MB/s +262%
Asus Zenbook 14 UX435EG
  (Toshiba Exceria Pro M501 microSDXC 64GB)
86.2 MB/s +256%
Lenovo IdeaPad 5 14ALC05 82LM005YGE

85.9 MB/s +255%
HP Envy 14-eb0010nr
  (Toshiba Exceria Pro M501 microSDXC 32GB)
85.3 MB/s +252%
MSI Modern 14 B11SB-085
  (Toshiba Exceria Pro M501 microSDXC 64GB)
24.2 MB/s
Networking
iperf3 transmit AX12
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Intel Wi-Fi 6 AX200
1380 (1117min - 1459max) MBit/s +3%
Asus Zenbook 14 UX435EG
Intel Wi-Fi 6 AX201
1365 (1309min - 1394max) MBit/s +2%
Honor Magicbook 14 i7-1165G7
Intel Wi-Fi 6 AX201
1352 (674min - 1509max) MBit/s +1%
Huawei MateBook 14 2020 Intel
Intel Wireless-AC 9560
1337 (691min - 1388max) MBit/s 0%
MSI Modern 14 B11SB-085
Intel Wi-Fi 6 AX201
1336 (1053min - 1440max) MBit/s
SCHENKER Vision 14
Intel Wi-Fi 6 AX201
1303 (653min - 1347max) MBit/s -2%
HP Envy 14-eb0010nr
Intel Wi-Fi 6 AX201
1192 (526min - 1384max) MBit/s -11%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s -13%
Honor MagicBook 14, Ryzen 5 4500U
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
652 (343min - 741max) MBit/s -51%
iperf3 receive AX12
SCHENKER Vision 14
Intel Wi-Fi 6 AX201
1486 (713min - 1549max) MBit/s +13%
Asus Zenbook 14 UX435EG
Intel Wi-Fi 6 AX201
1416 (1229min - 1441max) MBit/s +8%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Intel Wi-Fi 6 AX200
1392 (1295min - 1594max) MBit/s +6%
HP Envy 14-eb0010nr
Intel Wi-Fi 6 AX201
1336 (1246min - 1419max) MBit/s +2%
MSI Modern 14 B11SB-085
Intel Wi-Fi 6 AX201
1313 (1251min - 1558max) MBit/s
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s -4%
Huawei MateBook 14 2020 Intel
Intel Wireless-AC 9560
1230 (708min - 1294max) MBit/s -6%
Honor Magicbook 14 i7-1165G7
Intel Wi-Fi 6 AX201
1191 (1067min - 1275max) MBit/s -9%
Honor MagicBook 14, Ryzen 5 4500U
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
637 (613min - 660max) MBit/s -51%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550Tooltip
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450; iperf3 receive AX12; iperf 3.1.3: Ø1313 (1251-1558)
SCHENKER Vision 14 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 receive AX12; iperf 3.1.3: Ø1462 (713-1549)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 receive AX12; iperf 3.1.3: Ø1190 (1067-1275)
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000); iperf3 receive AX12; iperf 3.1.3: Ø637 (613-660)
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q; iperf3 receive AX12; iperf 3.1.3: Ø1336 (1246-1419)
Huawei MateBook 14 2020 Intel Intel Core i7-10510U, NVIDIA GeForce MX350; iperf3 receive AX12; iperf 3.1.3: Ø1230 (708-1294)
Lenovo IdeaPad 5 14ALC05 82LM005YGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7; iperf3 receive AX12; iperf 3.1.3: Ø1391 (1295-1594)
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450; iperf3 transmit AX12; iperf 3.1.3: Ø1336 (1053-1440)
SCHENKER Vision 14 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 transmit AX12; iperf 3.1.3: Ø1282 (653-1347)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs; iperf3 transmit AX12; iperf 3.1.3: Ø1329 (674-1509)
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000); iperf3 transmit AX12; iperf 3.1.3: Ø641 (343-741)
HP Envy 14-eb0010nr Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q; iperf3 transmit AX12; iperf 3.1.3: Ø1175 (526-1384)
Huawei MateBook 14 2020 Intel Intel Core i7-10510U, NVIDIA GeForce MX350; iperf3 transmit AX12; iperf 3.1.3: Ø1314 (691-1388)
Lenovo IdeaPad 5 14ALC05 82LM005YGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7; iperf3 transmit AX12; iperf 3.1.3: Ø1380 (1117-1459)

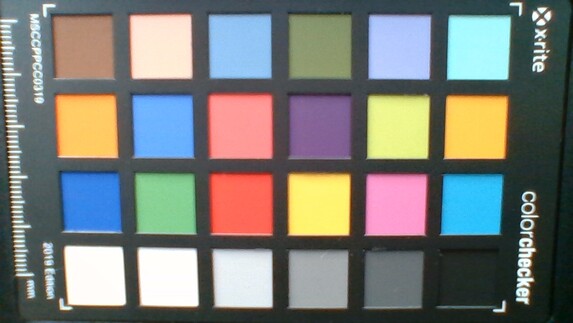

ColorChecker
26.2 ∆E
27.6 ∆E
24.7 ∆E
25.8 ∆E
22.8 ∆E
17.8 ∆E
28.5 ∆E
27.3 ∆E
22.9 ∆E
23.5 ∆E
18.4 ∆E
26.2 ∆E
29.1 ∆E
25.1 ∆E
27.1 ∆E
14.2 ∆E
23.4 ∆E
25 ∆E
3 ∆E
11.9 ∆E
22.3 ∆E
22.8 ∆E
26.3 ∆E
12.4 ∆E
ColorChecker Lenovo IdeaPad 5 14ALC05 82LM005YGE: 22.26 ∆E min: 3.02 - max: 29.14 ∆E

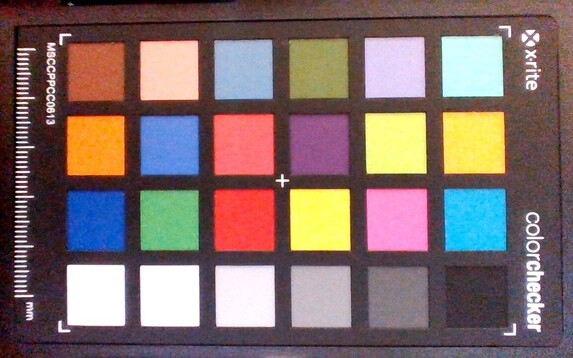

ColorChecker
22.1 ∆E
24.2 ∆E
21.9 ∆E
20.5 ∆E
22.6 ∆E
16.8 ∆E
21 ∆E
24.5 ∆E
23.3 ∆E
19.9 ∆E
16.7 ∆E
22.8 ∆E
19.8 ∆E
19.5 ∆E
26.1 ∆E
13.4 ∆E
24.1 ∆E
22.2 ∆E
0 ∆E
9.5 ∆E
22.2 ∆E
20.4 ∆E
20.4 ∆E
11.7 ∆E
ColorChecker MSI Modern 14 B11SB-085: 19.41 ∆E min: 0 - max: 26.13 ∆E
ColorChecker
18.8 ∆E
15.9 ∆E
20.4 ∆E
22.7 ∆E
25 ∆E
20.5 ∆E
11.1 ∆E
20.5 ∆E
14.3 ∆E
14.6 ∆E
18.1 ∆E
21.4 ∆E
10.8 ∆E
14.6 ∆E
18.7 ∆E
13.5 ∆E
20.3 ∆E
21.6 ∆E
2.3 ∆E
11.8 ∆E
22.5 ∆E
23.2 ∆E
18.3 ∆E
7.7 ∆E
ColorChecker HP Envy 14-eb0010nr: 17.02 ∆E min: 2.33 - max: 24.98 ∆E
ColorChecker
24.2 ∆E
21.5 ∆E
23.2 ∆E
17.1 ∆E
21.5 ∆E
17.6 ∆E
21.5 ∆E
31 ∆E
19 ∆E
13.9 ∆E
15.4 ∆E
12.3 ∆E
24.3 ∆E
15.7 ∆E
19.8 ∆E
8.3 ∆E
19.1 ∆E
17.7 ∆E
2.6 ∆E
7.8 ∆E
9.7 ∆E
9.1 ∆E
8.9 ∆E
9.2 ∆E
ColorChecker Huawei MateBook 14 2020 Intel: 16.27 ∆E min: 2.6 - max: 30.96 ∆E
ColorChecker
17.6 ∆E
19.4 ∆E
18.2 ∆E
17.9 ∆E
18.2 ∆E
17.8 ∆E
15 ∆E
24.3 ∆E
18.4 ∆E
15.7 ∆E
12.9 ∆E
12.1 ∆E
19 ∆E
13.2 ∆E
20 ∆E
7.8 ∆E
16.7 ∆E
19 ∆E
2.7 ∆E
12.8 ∆E
17.5 ∆E
16.7 ∆E
15.5 ∆E
15 ∆E
ColorChecker SCHENKER Vision 14: 15.97 ∆E min: 2.75 - max: 24.28 ∆E
ColorChecker
25.1 ∆E
16.8 ∆E
18.2 ∆E
14.4 ∆E
13.9 ∆E
13.8 ∆E
21.4 ∆E
26.1 ∆E
14.2 ∆E
6.2 ∆E
11.8 ∆E
6.8 ∆E
23.6 ∆E
20.2 ∆E
17.1 ∆E
7 ∆E
12.6 ∆E
15.3 ∆E
4.2 ∆E
11.5 ∆E
16 ∆E
7.2 ∆E
3.8 ∆E
6.5 ∆E
ColorChecker Honor MagicBook 14, Ryzen 5 4500U: 13.91 ∆E min: 3.84 - max: 26.07 ∆E
ColorChecker
8.3 ∆E
12.3 ∆E
9 ∆E
6.9 ∆E
9.8 ∆E
8.1 ∆E
9.1 ∆E
13.7 ∆E
13.1 ∆E
6.2 ∆E
7.2 ∆E
6.1 ∆E
8.3 ∆E
5.6 ∆E
17.1 ∆E
5.1 ∆E
15.5 ∆E
12.6 ∆E
2.5 ∆E
10.7 ∆E
11 ∆E
9.9 ∆E
5.9 ∆E
7.3 ∆E
ColorChecker Honor Magicbook 14 i7-1165G7: 9.22 ∆E min: 2.47 - max: 17.15 ∆E
No screenshots found ()

Dispositivos de entrada - O laptop MSI oferece uma iluminação de teclado

A MSI equipou o laptop de 14 polegadas com um teclado chiclet iluminado, cujas teclas oferecem um curso curto e um ponto de pressão claro. A resistência das teclas poderia ser mais nítida. Enquanto datilografa, o teclado tem um mínimo de dar, mas isto não criou nenhum incômodo. A iluminação em três etapas é controlada através de uma tecla de função. No geral, a MSI fornece aqui um teclado adequado para as tarefas diárias.

A superfície lisa do ClickPad com capacidade multitouch (~10,5 x 6,5 cm; ~4,1 x 2,6 pol.) facilita o deslizamento dos dedos, e a almofada também responde às entradas nos cantos. Ele oferece um curso curto e um ponto de pressão claro.

MSI Modern 14 dispositivos de entrada
MSI Modern 14 dispositivos de entrada

Visor - IPS a bordo

Grelha de pixel
Grelha de pixel

O brilho (310,6 cd/m²) e o contraste (2892:1) da tela mate de 14 polegadas (1920 x 1080 pixels) são bons e muito bons, respectivamente. Em níveis de brilho de 10% ou menos, a tela mostra alguma cintilação a uma freqüência de 92 Hz. Esta baixa freqüência pode levar a dores de cabeça ou problemas oculares para usuários sensíveis.

308
cd/m²
336
cd/m²
319
cd/m²
292
cd/m²
347
cd/m²
307
cd/m²
280
cd/m²
305
cd/m²
301
cd/m²
Distribuição do brilho
BOE CQ NV140FHM-N4V tested with X-Rite i1Pro 2
Máximo: 347 cd/m² (Nits) Médio: 310.6 cd/m² Minimum: 7 cd/m²
iluminação: 81 %
iluminação com acumulador: 347 cd/m²
Contraste: 2892:1 (Preto: 0.12 cd/m²)
ΔE Color 5.05 | 0.5-29.43 Ø5
ΔE Greyscale 1.63 | 0.57-98 Ø5.3
58% sRGB (Argyll 1.6.3 3D)
38% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.8% sRGB (Argyll 2.2.0 3D)
39.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3
MSI Modern 14 B11SB-085
BOE CQ NV140FHM-N4V, IPS, 1920x1080, 14.00
SCHENKER Vision 14
CSOT T3_MNE007ZA1_1, IPS, 2880x1800, 14.00
Honor MagicBook 14, Ryzen 5 4500U
Chi Mei CMN1404, IPS, 1920x1080, 14.00
HP Envy 14-eb0010nr
AU Optronics AUOF392, IPS, 1920x1200, 14.00
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AU Optronics B140HAN04.E, IPS, 1920x1080, 14.00
Asus Zenbook 14 UX435EG
Au Optronics B140HAN03.2, IPS, 1920x1080, 14.00
Display
81%
14%
83%
-6%
53%
Display P3 Coverage
39.9
75.4
89%
45.1
13%
77.1
93%
37.47
-6%
60.9
53%
sRGB Coverage
58.8
99
68%
67.8
15%
99.8
70%
56
-5%
90.4
54%
AdobeRGB 1998 Coverage
41.2
76.4
85%
46.59
13%
76.7
86%
38.71
-6%
62.3
51%
Response Times
-30%
8973%
-167%
10717%
-66%
Response Time Grey 50% / Grey 80% *
25 ?(11, 14)
32.8 ?(15.6, 17.2)
-31%
44 ?(23.6, 20.4)
-76%
61.2 ?(30, 31.2)
-145%
41 ?(18, 23)
-64%
39 ?(20, 19)
-56%
Response Time Black / White *
16 ?(9, 7)
20.4 ?(10, 10.4)
-28%
28.8 ?(16.4, 12.4)
-80%
46 ?(24, 22)
-188%
28 ?(15, 13)
-75%
28 ?(17, 11)
-75%

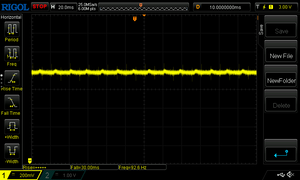

PWM Frequency
92 ?(10)
25000 ?(40)
27074%
29800
32291%
Screen
3%
-28%
9%
-38%
-31%
Brightness middle
347
390
12%
271
-22%
412
19%
357
3%
323
-7%
Brightness
311
387
24%
252
-19%
392
26%
315
1%
313
1%
Brightness Distribution
81
94
16%
84
4%
81
0%
82
1%
80
-1%
Black Level *
0.12
0.29
-142%
0.18
-50%
0.32
-167%
0.455
-279%
0.36
-200%
Contrast
2892
1345
-53%
1506
-48%
1288
-55%
785
-73%
897
-69%
Colorchecker dE 2000 *
5.05
2.8
45%
5.6
-11%
1.88
63%
3.98
21%
4.86
4%
Colorchecker dE 2000 max. *
16.98
4.4
74%
18.9
-11%
3.06
82%
6.92
59%
7.52
56%
Greyscale dE 2000 *
1.63
3.5
-115%
4.1
-152%
2.2
-35%
3.33
-104%
4.83
-196%
Gamma
2.3 96%
2.24 98%
2.03 108%
2.1 105%
2.47 89%
2.64 83%
CCT
6666 98%
6174 105%
7253 90%
6650 98%
6138 106%
7405 88%
Color Space (Percent of AdobeRGB 1998)
38
76.4
101%
43
13%
68.7
81%
36
-5%
57.5
51%
Color Space (Percent of sRGB)
58
99
71%
67.7
17%
99.8
72%
56
-3%
90.3
56%
Colorchecker dE 2000 calibrated *
1.8
3.8
1.96
3.64
Total Average (Program / Settings)
18% / 14%
2986% / 1668%
-25% / 0%
3558% / 1985%
-15% / -19%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
16 ms ... rise ↗ and fall ↘ combined↗ 9 ms rise
↘ 7 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 32 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (21.5 ms).
       Response Time 50% Grey to 80% Grey
25 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 14 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 30 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (33.7 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 92 Hz ≤ 10 % brightness setting

The display backlight flickers at 92 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 10 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 92 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

No estado de entrega, o visor demonstra uma reprodução de cores decente, mas com um desvio de quase 5, ele mal falha o alvo (DeltaE menor que 3). Embora o display não sofra de uma coloração azul, ele não consegue cobrir os espaços de cor AdobeRGB (41%), sRGB (59%), e DCI-P3 (40%).

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Escala de cinza
CalMAN - Escala de cinza
CalMAN - Saturação
CalMAN - Saturação

O painel IPS oferece ângulos de visão estáveis e pode ser lido a partir de qualquer posição. Ao ar livre, o visor pode ser lido quando a luz do sol não está muito brilhante.

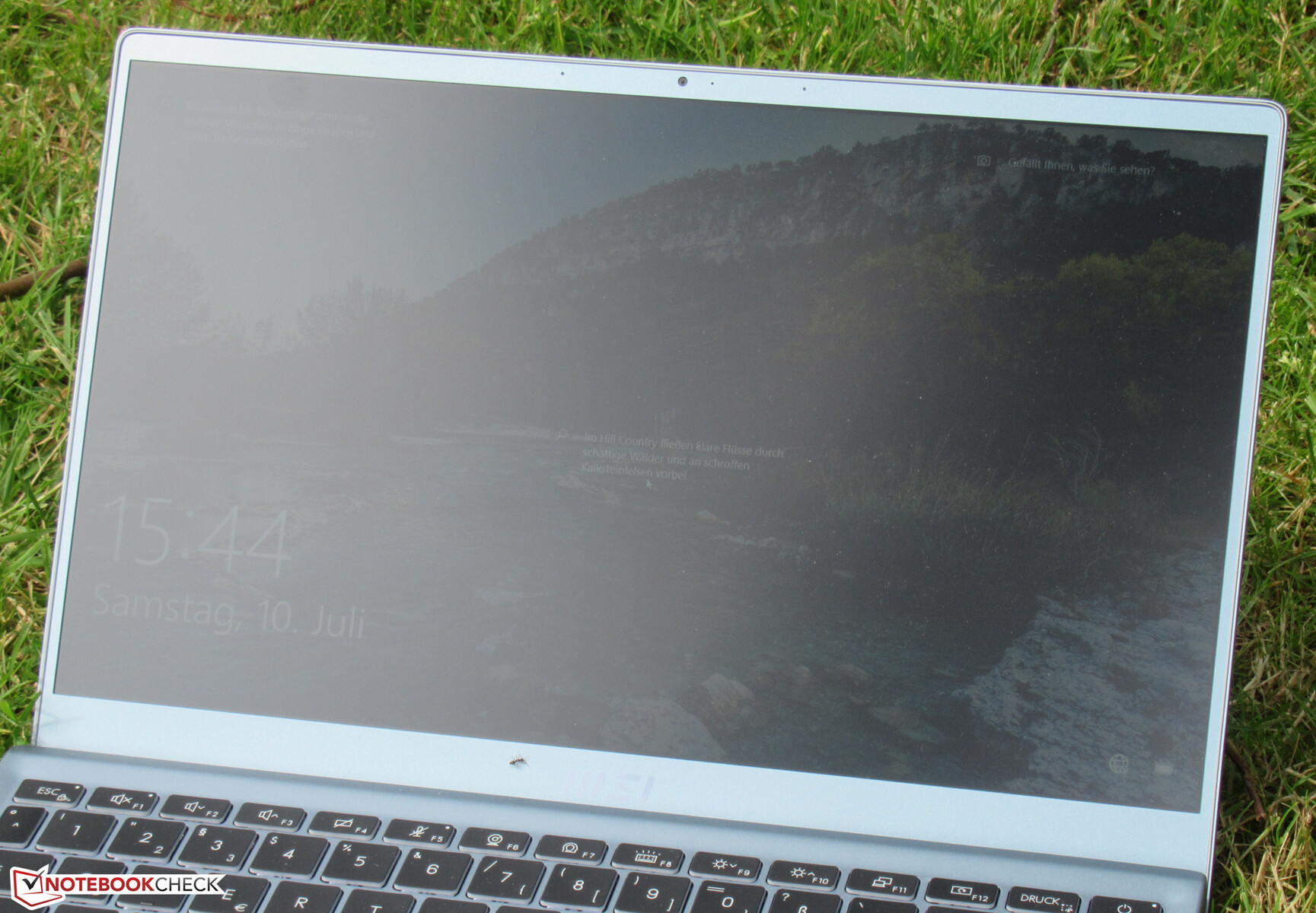

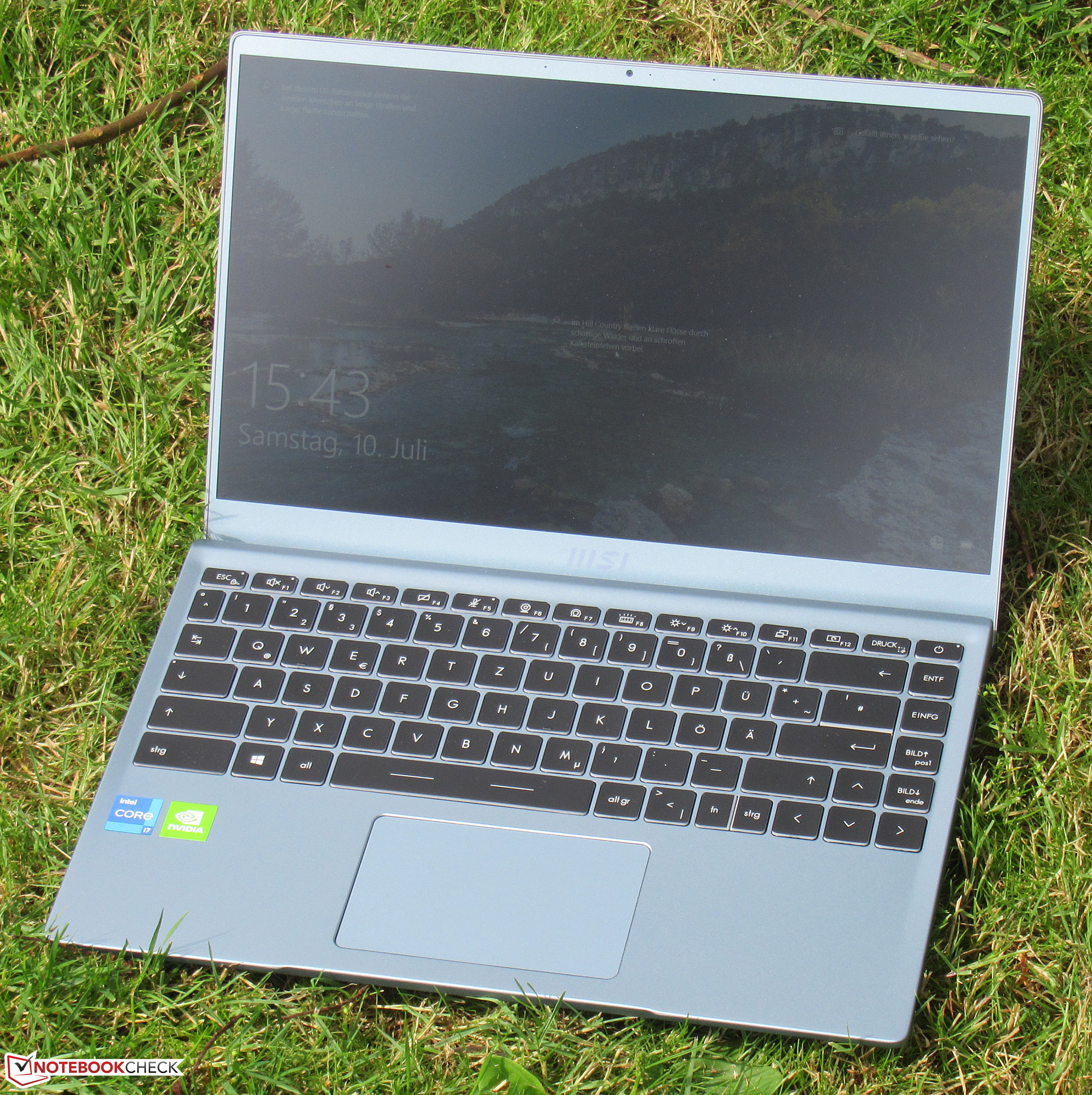

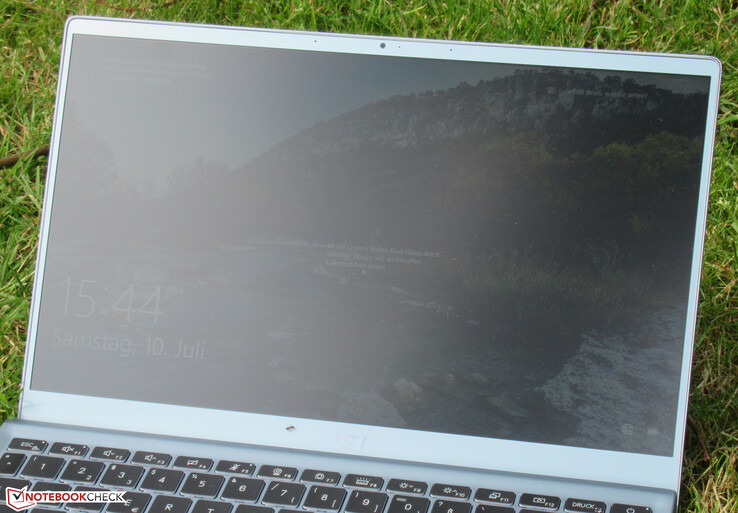

Os 14 modernos ao ar livre
Os 14 modernos ao ar livre

Desempenho - MSI combina Tiger Lake e Turing

Com o Moderno 14 B11SB, a MSI oferece um laptop de 14 polegadas que oferece desempenho suficiente para aplicações de escritório e Internet, bem como jogos simples de computador

Condições de teste

O MSI Center Pro pré-instalado também oferece uma opção para configurar um perfil de potência entre outras coisas, e você pode alternar rapidamente entre os perfis usando a tecla F7. Usamos o perfil "Balanceado" durante nossos testes e, além disso, também executamos vários benchmarks usando o perfil de "Alto Desempenho".

Processador

ONúcleo i7-1165G7O processador quad-core (Tiger Lake) funciona a uma velocidade básica de 2,8 GHz, que pode ser aumentada via Turbo até 4,1 GHz (quatro núcleos) e até 4,7 GHz (um núcleo). É suportada a hiper-treading (dois fios por núcleo).

O teste multithread do benchmark Cinebench R15 funciona por um curto período de tempo a 4,1 GHz, antes que a velocidade do relógio caia para entre 1,8 e 3,6 GHz. A velocidade do relógio durante a faixa de teste de linha única entre 1,7 e 4,7 GHz. Durante o funcionamento da bateria, as velocidades do relógio são significativamente mais baixas.

CPU-Z
CPU-Z

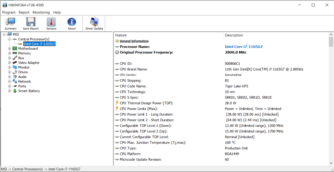

HWInfo
HWInfo
HWInfo
HWInfo

Avaliamos se a CPU Turbo também é utilizada constantemente na operação de rede elétrica executando o teste multithread do benchmark Cinebench R15 por pelo menos 30 minutos em um loop constante. Em média, ele atinge um nível Turbo relativamente baixo, mas a velocidade do relógio pode ser aumentada significativamente usando o perfil de "Alto Desempenho".

0651301952603253904555205856507157808459109751040110511701235Tooltip
MSI Modern 14 B11SB-085 Intel Core i7-1165G7: Ø771 (684.76-915.3)
MSI Modern 14 B11SB-085 Intel Core i7-1165G7; Hohe Leistung: Ø876 (809.21-955.25)
SCHENKER Vision 14 Intel Core i7-1165G7: Ø886 (876-943.04)
Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7: Ø870 (762.33-887.51)
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U: Ø906 (894.39-958.29)
HP Envy 14-eb0010nr Intel Core i5-1135G7: Ø919 (891.54-924.6)
Huawei MateBook 14 2020 Intel Intel Core i7-10510U: Ø561 (522.67-564.75)
Lenovo IdeaPad 5 14ALC05 82LM005YGE AMD Ryzen 5 5500U: Ø1156 (1134.46-1251.72)
Asus Zenbook 14 UX435EG Intel Core i7-1165G7: Ø603 (589.73-747.11)
Velocidades do relógio da CPU durante a execução do loop CB15
Velocidades do relógio da CPU durante a execução do loop CB15

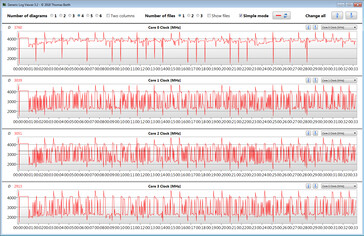

Velocidades de relógio da CPU durante a execução do loop CB15 (perfil de alto desempenho)
Velocidades de relógio da CPU durante a execução do loop CB15 (perfil de alto desempenho)
Cinebench R15 CPU Single 64Bit
202 Points
Cinebench R15 CPU Multi 64Bit
915 Points
Cinebench R15 OpenGL 64Bit
129.4 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Ajuda
Cinebench R23
Single Core
Average of class Multimedia
  (878 - 2110, n=99, last 2 years)
1713 Points +14%
SCHENKER Vision 14
Intel Core i7-1165G7
1515 Points +1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
1500 Points
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
1494 Points 0%
Average Intel Core i7-1165G7
  (1110 - 1539, n=59)
1425 Points -5%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
1337 Points -11%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1183 Points -21%
Multi Core
Average of class Multimedia
  (4624 - 30789, n=101, last 2 years)
14189 Points +154%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
6964 Points +25%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
6152 Points +10%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
6136 (5867.5min - 6136.37max) Points +10%
SCHENKER Vision 14
Intel Core i7-1165G7
5878 Points +5%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
5590 Points
Average Intel Core i7-1165G7
  (2525 - 6862, n=64)
5110 Points -9%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
4266 Points -24%
Cinebench R20
CPU (Single Core)
Average of class Multimedia
  (341 - 812, n=97, last 2 years)
646 Points +11%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
581 Points
SCHENKER Vision 14
Intel Core i7-1165G7
580 Points 0%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
577 Points -1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
577 Points -1%
Average Intel Core i7-1165G7
  (442 - 589, n=81)
552 Points -5%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
548 Points -6%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
503 Points -13%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
461 Points -21%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
446 Points -23%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
443 Points -24%
CPU (Multi Core)
Average of class Multimedia
  (1783 - 11768, n=97, last 2 years)
5352 Points +154%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
2570 Points +22%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
2389 Points +13%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
2382 Points +13%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
2319 Points +10%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
2242 Points +6%
SCHENKER Vision 14
Intel Core i7-1165G7
2235 Points +6%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
2108 Points
Average Intel Core i7-1165G7
  (1060 - 2657, n=81)
1967 Points -7%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
1452 Points -31%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
1317 Points -38%
Cinebench R15
CPU Single 64Bit
Average of class Multimedia
  (142.6 - 308, n=99, last 2 years)
251 Points +24%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
227 Points +12%
SCHENKER Vision 14
Intel Core i7-1165G7
225 Points +11%
Average Intel Core i7-1165G7
  (115 - 230, n=78)
212 Points +5%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
210 Points +4%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
202 Points
HP Envy 14-eb0010nr
Intel Core i5-1135G7
198 Points -2%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
182 Points -10%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
172 Points -15%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
172 Points -15%
CPU Multi 64Bit
Average of class Multimedia
  (785 - 4703, n=106, last 2 years)
2321 Points +154%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1252 Points +37%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
958 Points +5%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
955 Points +4%
SCHENKER Vision 14
Intel Core i7-1165G7
943 (876min - 943.04max) Points +3%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
925 (891.54min - 924.6max) Points +1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
915 Points
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
888 (762.33min - 887.51max) Points -3%
Average Intel Core i7-1165G7
  (553 - 1027, n=86)
846 Points -8%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
747 Points -18%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
565 (522.67min - 564.75max) Points -38%
Blender - v2.79 BMW27 CPU
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
797 Seconds * -47%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
692 Seconds * -27%
Average Intel Core i7-1165G7
  (468 - 1138, n=80)
618 Seconds * -14%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
547 Seconds * -1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
543 Seconds *
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
528 Seconds * +3%
SCHENKER Vision 14
Intel Core i7-1165G7
525 Seconds * +3%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
499 Seconds * +8%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
498 Seconds * +8%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
447 Seconds * +18%
Average of class Multimedia
  (107 - 662, n=95, last 2 years)
265 Seconds * +51%
7-Zip 18.03
7z b 4 -mmt1
Average of class Multimedia
  (3398 - 7163, n=90, last 2 years)
5639 MIPS +8%
SCHENKER Vision 14
Intel Core i7-1165G7
5408 MIPS +4%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
5382 MIPS +3%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
5225 MIPS
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
5209 MIPS 0%
Average Intel Core i7-1165G7
  (4478 - 5507, n=80)
5182 MIPS -1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
5150 MIPS -1%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
4694 MIPS -10%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
4678 MIPS -10%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
4341 MIPS -17%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
4237 MIPS -19%
7z b 4
Average of class Multimedia
  (20166 - 119900, n=90, last 2 years)
57411 MIPS +138%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
31686 MIPS +31%
SCHENKER Vision 14
Intel Core i7-1165G7
25894 MIPS +7%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
25812 MIPS +7%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
25506 MIPS +6%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
25076 MIPS +4%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
24188 MIPS 0%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
24151 MIPS
Average Intel Core i7-1165G7
  (15347 - 27405, n=80)
22935 MIPS -5%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
21119 MIPS -13%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
17186 MIPS -29%
Geekbench 5.5
Single-Core
Average of class Multimedia
  (926 - 2342, n=100, last 2 years)
1758 Points +16%
SCHENKER Vision 14
Intel Core i7-1165G7
1579 Points +4%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
1573 Points +4%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
1530 Points +1%
Average Intel Core i7-1165G7
  (1302 - 1595, n=77)
1524 Points +1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
1514 Points
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
1489 Points -2%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
1406 Points -7%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
1222 Points -19%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
1118 Points -26%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
1096 Points -28%
Multi-Core
Average of class Multimedia
  (3828 - 23059, n=100, last 2 years)
11372 Points +142%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
5468 Points +17%
SCHENKER Vision 14
Intel Core i7-1165G7
5441 Points +16%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
5310 Points +13%
Average Intel Core i7-1165G7
  (3078 - 5926, n=77)
5155 Points +10%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
5089 Points +8%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
4732 Points +1%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
4695 Points 0%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
4693 Points
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
4688 Points 0%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
4314 Points -8%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Multimedia
  (4.99 - 30.5, n=88, last 2 years)
15.6 fps +132%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
8.08 fps +20%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
7.6 fps +13%
SCHENKER Vision 14
Intel Core i7-1165G7
7.46 fps +11%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
7.28 fps +8%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
7.06 fps +5%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
7.03 fps +4%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
6.73 fps
Average Intel Core i7-1165G7
  (1.39 - 8.47, n=80)
6.3 fps -6%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
5.38 fps -20%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
4.69 fps -30%
LibreOffice - 20 Documents To PDF
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
61.9 s * -20%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
61.2 s * -19%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
54.2 s * -5%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
51.4 s *
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
51.4 s * -0%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
51 s * +1%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
49.6 s * +4%
Average Intel Core i7-1165G7
  (21.5 - 88.1, n=78)
49.2 s * +4%
Average of class Multimedia
  (6.7 - 84.9, n=92, last 2 years)
48 s * +7%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
47.4 s * +8%
SCHENKER Vision 14
Intel Core i7-1165G7
45.6 s * +11%
R Benchmark 2.5 - Overall mean
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U
0.67 sec * -15%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U
0.644 sec * -10%
HP Envy 14-eb0010nr
Intel Core i5-1135G7
0.634 sec * -8%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U
0.614 sec * -5%
Average Intel Core i7-1165G7
  (0.552 - 1.002, n=80)
0.594 sec * -2%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7 (Hohe Leistung)
0.59 sec * -1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7
0.585 sec *
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7
0.571 sec * +2%
SCHENKER Vision 14
Intel Core i7-1165G7
0.569 sec * +3%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7
0.552 sec * +6%
Average of class Multimedia
  (0.3826 - 0.723, n=90, last 2 years)
0.4811 sec * +18%

* ... smaller is better

Desempenho do sistema

O sistema de funcionamento rápido e suave não encontrou nenhum problema e a CPU oferece desempenho mais do que suficiente para aplicações de escritório e Internet. O núcleo gráfico dedicado permite o uso de jogos de computador de forma limitada. Isto também é acompanhado por bons resultados de PC Mark. Como há apenas um único slot de memória, a memória de trabalho (16 GB, DDR4-3200) só pode rodar emmodo monocanal, portanto a MSI está deixando algumas opções para mais desempenho sem uso.

Há apenas um único slot para a memória de trabalho.
Há apenas um único slot para a memória de trabalho.
PCMark 8 Home Score Accelerated v2
4211 pontos
PCMark 8 Creative Score Accelerated v2
4755 pontos
PCMark 8 Work Score Accelerated v2
5649 pontos
PCMark 10 Score
4823 pontos
Ajuda
PCMark 10 / Score
Average of class Multimedia
  (4635 - 8670, n=85, last 2 years)
6602 Points +37%
HP Envy 14-eb0010nr
GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ
5410 Points +12%
Average Intel Core i7-1165G7, NVIDIA GeForce MX450
  (4823 - 5814, n=9)
5347 Points +11%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
5193 Points +8%
Asus Zenbook 14 UX435EG
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5150 Points +7%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
5104 Points +6%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
5036 Points +4%
Honor MagicBook 14, Ryzen 5 4500U
Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G
4900 Points +2%
MSI Modern 14 B11SB-085
GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB
4823 Points
Huawei MateBook 14 2020 Intel
GeForce MX350, i7-10510U, Lite-On CA5-8D512
4364 Points -10%
PCMark 10 / Essentials
Average of class Multimedia
  (8480 - 12420, n=85, last 2 years)
10473 Points +29%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
10368 Points +28%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
9985 Points +23%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
9303 Points +15%
Average Intel Core i7-1165G7, NVIDIA GeForce MX450
  (8088 - 9955, n=9)
9146 Points +13%
Asus Zenbook 14 UX435EG
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
9079 Points +12%
HP Envy 14-eb0010nr
GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ
9036 Points +12%
Huawei MateBook 14 2020 Intel
GeForce MX350, i7-10510U, Lite-On CA5-8D512
8894 Points +10%
Honor MagicBook 14, Ryzen 5 4500U
Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G
8780 Points +9%
MSI Modern 14 B11SB-085
GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB
8088 Points
PCMark 10 / Productivity
Average of class Multimedia
  (5845 - 11186, n=85, last 2 years)
8709 Points +11%
Average Intel Core i7-1165G7, NVIDIA GeForce MX450
  (7826 - 9292, n=9)
8644 Points +10%
Asus Zenbook 14 UX435EG
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
8386 Points +7%
HP Envy 14-eb0010nr
GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ
8342 Points +7%
MSI Modern 14 B11SB-085
GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB
7826 Points
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
7717 Points -1%
Honor MagicBook 14, Ryzen 5 4500U
Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G
7566 Points -3%
Huawei MateBook 14 2020 Intel
GeForce MX350, i7-10510U, Lite-On CA5-8D512
7286 Points -7%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
6807 Points -13%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
6802 Points -13%
PCMark 10 / Digital Content Creation
Average of class Multimedia
  (4688 - 13548, n=85, last 2 years)
8686 Points +81%
HP Envy 14-eb0010nr
GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ
5701 Points +18%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
5297 Points +10%
Average Intel Core i7-1165G7, NVIDIA GeForce MX450
  (4812 - 5878, n=9)
5255 Points +9%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
5114 Points +6%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
5103 Points +6%
Asus Zenbook 14 UX435EG
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
4870 Points +1%
MSI Modern 14 B11SB-085
GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB
4812 Points
Honor MagicBook 14, Ryzen 5 4500U
Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G
4808 Points 0%
Huawei MateBook 14 2020 Intel
GeForce MX350, i7-10510U, Lite-On CA5-8D512
3482 Points -28%

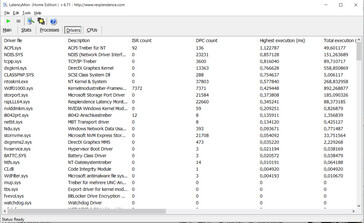

Latências DPC

Monitor de latência
Monitor de latência
Monitor de latência
Monitor de latência
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP Envy 14-eb0010nr
GeForce GTX 1650 Ti Max-Q, i5-1135G7, Samsung SSD PM981a MZVLB256HBHQ
3239 μs * -233%
MSI Modern 14 B11SB-085
GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB
973 μs *
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
739 μs * +24%
Honor Magicbook 14 i7-1165G7
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G
592 μs * +39%
Honor MagicBook 14, Ryzen 5 4500U
Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G
555 μs * +43%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ
474.4 μs * +51%
Huawei MateBook 14 2020 Intel
GeForce MX350, i7-10510U, Lite-On CA5-8D512
395.3 μs * +59%
Asus Zenbook 14 UX435EG
GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
370.7 μs * +62%

* ... smaller is better

Solução de armazenamento

A 512-GB NVMe SSD (M.2-2280) da Kingston serve como a unidade do sistema. Mesmo que as taxas de transferência sejam boas, o modelo utilizado aqui não é um dos melhores modelos entre os SSDs

Kingston OM8PCP3512F-AB
CDM 5/6 Read Seq Q32T1: 1983 MB/s
CDM 5/6 Write Seq Q32T1: 974 MB/s
CDM 5/6 Read 4K Q32T1: 299.3 MB/s
CDM 5/6 Write 4K Q32T1: 603 MB/s
CDM 5 Read Seq: 1043 MB/s
CDM 5 Write Seq: 974 MB/s
CDM 5/6 Read 4K: 47.53 MB/s
CDM 5/6 Write 4K: 236.2 MB/s
MSI Modern 14 B11SB-085
Kingston OM8PCP3512F-AB
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
Honor MagicBook 14, Ryzen 5 4500U
WDC PC SN530 SDBPNPZ-512G
HP Envy 14-eb0010nr
Samsung SSD PM981a MZVLB256HBHQ
Lenovo IdeaPad 5 14ALC05 82LM005YGE
Samsung SSD PM981a MZVLB512HBJQ
Asus Zenbook 14 UX435EG
Samsung PM981a MZVLB1T0HBLR
Average Kingston OM8PCP3512F-AB

Average of class Multimedia

CrystalDiskMark 5.2 / 6
196%
37%
45%
71%
99%
-1%
116%
Write 4K
236.2
240
2%
161.1
-32%
119.7
-49%
93.3
-60%
211.8
-10%
194.5 ?(107.3 - 286, n=8)
-18%
Read 4K
47.53
90.9
91%
50
5%
45.28
-5%
38.87
-18%
50.1
5%
Write Seq
974
4236
335%
1814
86%
1951
100%
2834
191%
2938
202%
Read Seq
1043
4101
293%
1983
90%
2252
116%
2452
135%
2639
153%
Write 4K Q32T1
603
662
10%
385.3
-36%
438.1
-27%
386.6
-36%
656
9%
505 ?(327 - 625, n=8)
-16%
Read 4K Q32T1
299.3
720
141%
509
70%
312.8
5%
495.5
66%
723
142%
Write Seq Q32T1
974
5222
436%
1816
86%
2348
141%
2981
206%
3022
210%
Read Seq Q32T1
1983
7102
258%
2433
23%
3529
78%
3566
80%
3561
80%
AS SSD
181%
17%
24%
67%
91%
-18%
81%
Seq Read
1610
4899
204%
2119
32%
2127
32%
2645
64%
2861
78%
Seq Write
931
3952
324%
1654
78%
1427
53%
2627
182%
2837
205%
4K Read
36.18
83.8
132%
43.54
20%
52.5
45%
55.2
53%
60.3
67%
4K Write
170.5
205
20%
144.3
-15%
122.9
-28%
119.4
-30%
164.2
-4%
118.9 ?(66 - 170.5, n=10)
-30%
4K-64 Read
457.3
2938
542%
1067
133%
947
107%
1308
186%
1598
249%
4K-64 Write
914
2077
127%
846
-7%
1598
75%
1816
99%
1572
72%
Access Time Read *
0.092
0.025
73%
0.073
21%
0.072
22%
0.057
38%
0.046
50%
0.1294 ?(0.081 - 0.191, n=10)
-41%
Access Time Write *
0.019
0.02
-5%
0.061
-221%
0.09
-374%
0.031
-63%
0.021
-11%
0.0371 ?(0.019 - 0.084, n=10)
-95%
Score Read
655
3512
436%
1322
102%
1212
85%
1628
149%
1945
197%
Score Write
1178
2677
127%
1156
-2%
1864
58%
2198
87%
2020
71%
1036 ?(429 - 1178, n=10)
-12%
Score Total
2144
7939
270%
3138
46%
3674
71%
4667
118%
4966
132%
Copy ISO MB/s
1277
2100
64%
1605
26%
1476
16%
2414
89%
977 ?(675 - 1277, n=7)
-23%
Copy Program MB/s
438.4
994
127%
847
93%
538
23%
575
31%
373 ?(248 - 609, n=7)
-15%
Copy Game MB/s
977
1859
90%
1632
67%
1185
21%
1408
44%
Total Average (Program / Settings)
189% / 186%
27% / 25%
35% / 31%
69% / 69%
95% / 94%
-10% / -12%
99% / 94%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

No graph data

Placa Gráfica

Os dedicadosGeForce MX450O núcleo gráfico representa o atual modelo de médio alcance da Nvidia. A GPU é baseada no mesmo chip Turing que o GeForce GTX-1650núcleo gráfico. A Nvidia oferece quatro versões do MX450 em seu portfólio, e o Modern 14 está equipado com a versão 3.

GPU Clock Speed Storage Storage Speed Storage Connection TGP
Versão 1 1395 - 1575 MHz GDDR6 5001 MHz 128 Bit 28,5 Watt
Versão 2 1395 - 1575 MHz GDDR6 5001 MHz 64 Bit 25 Watt
Versão 3 1395 - 1575 MHz GDDR5 3501 MHz 64 Bit 25 Watt
Versão 4 720 - 930 MHz GDDR6 5001 MHz 64 Bit 12 Watt

Os resultados da Marca 3D podem ser chamados de "bons" em geral, variando acima da média dos resultados do MX450 que medimos até agora. O perfil de "Alto Desempenho" não tem influência sobre o desempenho gráfico. O perfil integrado Intel Iris Xe Graphics G7-96EUA GPU está ativa e o laptop usa a solução de comutação gráfica Optimus da Nvidia.

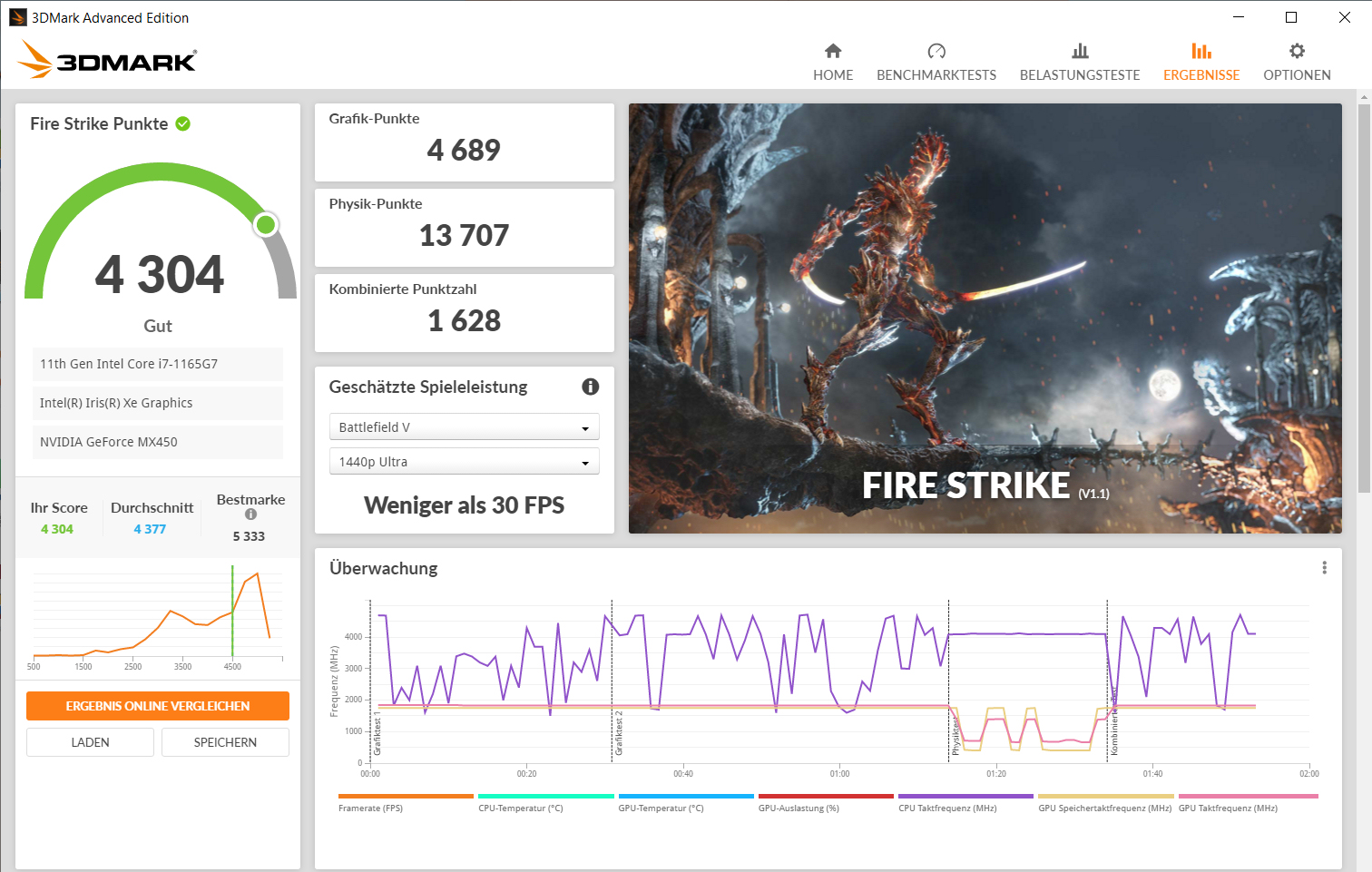

Fire Strike (operação principal)
Fire Strike (operação principal)
Fire Strike (operação principal, perfil de alto desempenho)
Fire Strike (operação principal, perfil de alto desempenho)
Fire Strike (funcionamento por bateria)
Fire Strike (funcionamento por bateria)

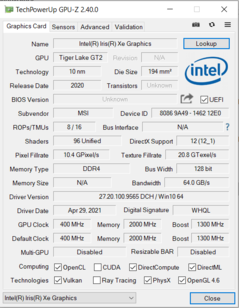

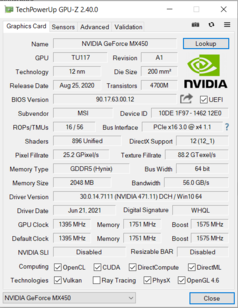

GPU-Z
GPU-Z
GPU-Z
GPU-Z

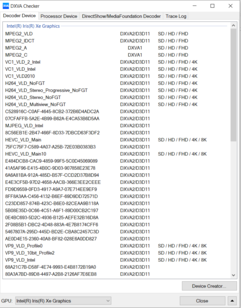

DXVAChecker
DXVAChecker
3DMark 11 Performance
8339 pontos
3DMark Ice Storm Standard Score
67894 pontos
3DMark Cloud Gate Standard Score
19094 pontos
3DMark Fire Strike Score
4304 pontos
3DMark Time Spy Score
2148 pontos
Ajuda
3DMark 11 - 1280x720 Performance GPU
Average of class Multimedia
  (3505 - 60250, n=89, last 2 years)
18929 Points +124%
HP Envy 14-eb0010nr
NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7
11055 Points +31%
MSI Modern 14 B11SB-085
NVIDIA GeForce MX450, Intel Core i7-1165G7
8435 Points
HP Pavilion 15-eg
NVIDIA GeForce MX450, Intel Core i7-1165G7
8204 Points -3%
Average NVIDIA GeForce MX450
  (6341 - 9580, n=16)
8129 Points -4%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6624 Points -21%
Asus Zenbook 14 UX435EG
NVIDIA GeForce MX450, Intel Core i7-1165G7
6524 Points -23%
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
6341 Points -25%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6194 Points -27%
Huawei MateBook 14 2020 Intel
NVIDIA GeForce MX350, Intel Core i7-10510U
5989 Points -29%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
5255 Points -38%
Honor MagicBook 14, Ryzen 5 4500U
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U
4191 Points -50%
3DMark
1920x1080 Fire Strike Graphics
Average of class Multimedia
  (1835 - 46022, n=90, last 2 years)
14005 Points +199%
HP Envy 14-eb0010nr
NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7
8131 Points +73%
Average NVIDIA GeForce MX450
  (4336 - 5753, n=17)
4869 Points +4%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4795 Points +2%
HP Pavilion 15-eg
NVIDIA GeForce MX450, Intel Core i7-1165G7
4753 Points +1%
MSI Modern 14 B11SB-085
NVIDIA GeForce MX450, Intel Core i7-1165G7
4689 Points
HP Envy 13-ba1475ng
NVIDIA GeForce MX450, Intel Core i7-1165G7
4571 Points -3%
Asus Zenbook 14 UX435EG
NVIDIA GeForce MX450, Intel Core i7-1165G7
4371 Points -7%
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
4336 Points -8%
Huawei MateBook 14 2020 Intel
NVIDIA GeForce MX350, Intel Core i7-10510U
4311 Points -8%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
3988 Points -15%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
3253 Points -31%
1280x720 Cloud Gate Standard Graphics
Average of class Multimedia
  (14679 - 150699, n=60, last 2 years)
58293 Points +111%
HP Envy 14-eb0010nr
NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7
51846 Points +88%
Average NVIDIA GeForce MX450
  (25467 - 33806, n=13)
29167 Points +6%
Asus Zenbook 14 UX435EG
NVIDIA GeForce MX450, Intel Core i7-1165G7
29148 Points +6%
MSI Modern 14 B11SB-085
NVIDIA GeForce MX450, Intel Core i7-1165G7
27570 Points
HP Pavilion 15-eg
NVIDIA GeForce MX450, Intel Core i7-1165G7
27532 Points 0%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
25191 Points -9%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
24425 Points -11%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
24152 Points -12%
2560x1440 Time Spy Graphics
Average of class Multimedia
  (622 - 17620, n=90, last 2 years)
5310 Points +170%
HP Envy 14-eb0010nr
NVIDIA GeForce GTX 1650 Ti Max-Q, Intel Core i5-1135G7
2982 Points +52%
MSI Modern 14 B11SB-085
NVIDIA GeForce MX450, Intel Core i7-1165G7
1968 Points
HP Pavilion 15-eg
NVIDIA GeForce MX450, Intel Core i7-1165G7
1945 Points -1%
Average NVIDIA GeForce MX450
  (1086 - 2300, n=16)
1796 Points -9%
Asus Zenbook 14 UX435EG
NVIDIA GeForce MX450, Intel Core i7-1165G7
1682 Points -15%
Lenovo ThinkPad T14 Gen2-20W1S00000
NVIDIA GeForce MX450, Intel Core i7-1165G7
1633 Points -17%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1441 Points -27%
Honor Magicbook 14 i7-1165G7
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1269 Points -36%
Huawei MateBook 14 2020 Intel
NVIDIA GeForce MX350, Intel Core i7-10510U
1123 Points -43%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Radeon RX Vega 7, AMD Ryzen 5 5500U
985 Points -50%

Desempenho nos jogos

A maioria dos jogos em nosso banco de dados atinge taxas de quadros adequadas em baixas resoluções e em níveis de qualidade de baixa a média. Jogos com demandas moderadas sobre o hardware permitem mais. Em comparação com todos os laptops MX450 que testamos até agora, o laptop MSI atinge taxas de quadros que estão ligeiramente acima da média

Embora o perfil de "Alto Desempenho" não tenha nenhuma influência real sobre as taxas de quadros, alguns jogos pesados da CPU podem lucrar com o desempenho adicional da CPU

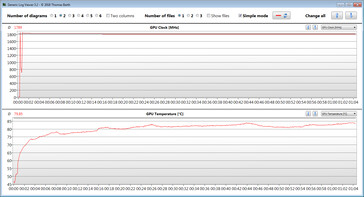

The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
Average of class Multimedia
  (23 - 327, n=64, last 2 years)
138.6 fps +131%
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
90 (83min - 97max) fps +50%
Average NVIDIA GeForce MX450
  (34 - 81.4, n=14)
61.6 fps +3%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
59.9 (30.6min, 32.9P0.1, 40.4P1 - 211max) fps
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (Hohe Leistung)
59.6 (22.8min, 33.3P0.1, 40.7P1 - 218max) fps -1%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
59 fps -2%
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
56 fps -7%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
49.8 fps -17%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U, NVIDIA GeForce MX350
42.4 (34min - 49max) fps -29%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
39.1 (23.8min, 25.3P0.1, 29.4P1 - 97max) fps -35%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
105 (91.2min) fps +28%
Average of class Multimedia
  (26.3 - 171.6, n=90, last 2 years)
101.6 fps +24%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
82.1 (68.9min) fps
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
80.2 (68.1min) fps -2%
Average NVIDIA GeForce MX450
  (34.9 - 104.6, n=20)
79.9 fps -3%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (Hohe Leistung)
78.5 (69.5min) fps -4%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U, NVIDIA GeForce MX350
75.6 (64.3min) fps -8%
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
46.5 (32min) fps -43%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
44.9 (40.1min) fps -45%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
39.5 (36.2min) fps -52%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
36.7 (26.1min) fps -55%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Average of class Multimedia
  (23 - 131.1, n=95, last 2 years)
68.4 fps +19%
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
62.7 fps +9%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (Hohe Leistung)
59.8 fps +4%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
59.2 fps +3%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
57.4 fps
Average NVIDIA GeForce MX450
  (35.4 - 71.4, n=20)
54.9 fps -4%
Huawei MateBook 14 2020 Intel
Intel Core i7-10510U, NVIDIA GeForce MX350
51.4 fps -10%
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
38.7 fps -33%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.3 fps -44%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
30 fps -48%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
26.1 fps -55%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Multimedia
  (19 - 211, n=73, last 2 years)
99.5 fps +77%
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q (1.3)
90.1 fps +60%
Average NVIDIA GeForce MX450
  (27.6 - 72.2, n=16)
57.3 fps +2%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1.3, Hohe Leistung)
56.5 fps +1%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450 (1.3)
56.2 fps
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1.3)
40.8 fps -27%
Honor Magicbook 14 i7-1165G7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.9 fps -41%
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
26.7 fps -52%
GTA V - 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Average of class Multimedia
  (11.8 - 181.9, n=90, last 2 years)
98.7 fps +91%
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
88.1 (15.1min, 62.5P1 - 150max) fps +70%
Average NVIDIA GeForce MX450
  (30.6 - 68.3, n=11)
54.1 fps +5%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
51.7 (15.6min, 35.7P1 - 117max) fps
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (Hohe Leistung)
51.6 (17.6min, 35.7P1 - 109max) fps 0%
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
51.2 fps -1%
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
20.6 (7.02min, 15.9P1 - 34.3max) fps -60%
Strange Brigade - 1280x720 lowest AF:1
Average of class Multimedia
  (39.7 - 460, n=77, last 2 years)
231 fps +118%
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q (1.47.22.14 D3D12)
188 (61.8min, 146P1 - 283max) fps +77%
Average NVIDIA GeForce MX450
  (61.4 - 137.7, n=12)
117 fps +10%
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450 (1.47.22.14 D3D12)
106 (78.7min, 88.7P1 - 150max) fps
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1.47.22.14 D3D12, Hohe Leistung)
105 (79.9min, 88.8P1 - 153max) fps -1%
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (1.47.22.14 D3D12)
83.5 (17.3min, 27.4P1 - 373max) fps -21%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (1.47.22.14 D3D12)
73.5 (57.9min, 63.4P1 - 98.3max) fps -31%

A fim de avaliar se as taxas de quadros também permanecem em grande parte constantes durante um período de tempo mais longo, executamos o jogo"The Witcher 3" por cerca de 60 minutos em resolução Full HD e em configurações de qualidade máxima, sem mover o personagem do jogo. Não notamos nenhuma queda no desempenho

Witcher 3 FPS Diagram

111621Tooltip
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB: Ø23 (20-25)
MSI Modern 14 B11SB-085 Iris Xe G7 96EUs, i7-1165G7; Hohe Leistung: Ø23.5 (20-26)
SCHENKER Vision 14 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW: Ø12.6 (11-14)
Lenovo IdeaPad 5 14ALC05 82LM005YGE Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ: Ø13.5 (11-16)
Asus Zenbook 14 UX435EG GeForce MX450, i7-1165G7, Samsung PM981a MZVLB1T0HBLR: Ø20.1 (18-22)
Medidas da GPU durante o teste Witcher 3
Medidas da GPU durante o teste Witcher 3
Medidas de GPU durante o teste Witcher 3 (Perfil de alta performance)
Medidas de GPU durante o teste Witcher 3 (Perfil de alta performance)
baixo média alto ultra
GTA V (2015) 151 135 51.7 23.6
The Witcher 3 (2015) 103 59.9 33 19.9
Dota 2 Reborn (2015) 125 109 87.5 82.1
Final Fantasy XV Benchmark (2018) 56.2 25.5 14.9
X-Plane 11.11 (2018) 84.9 68.3 57.4
Strange Brigade (2018) 106 40.5 35.6 21.6
The Division 2 (2019) 74 35 26 17
Anno 1800 (2019) 81.7 40 22.7 11.8
Gears Tactics (2020) 142 54.3 37.7 25.7
Serious Sam 4 (2020) 86.4 10.8 7.09
Star Wars Squadrons (2020) 146 64.5 57.7 54.2
FIFA 21 (2020) 135 93.7 89.1 75.9
Dirt 5 (2020) 75.7 17.6 8.8 6.3
Assassin´s Creed Valhalla (2020) 33 6 5
Immortals Fenyx Rising (2020) 47 18 12 11
Hitman 3 (2021) 53.9 29.7 20 17.23
Outriders (2021) 52.6 23.8 18.7 16
Resident Evil Village (2021) 24.6 13 14.4
Mass Effect Legendary Edition (2021) 88.7 48.6
Days Gone (2021) 60.3 25.7 23 8.21
F1 2021 (2021) 115 40 26

Emissions and Power Management - The Modern 14 gets hot and loud

Emissões sonoras

Normalmente o ventilador permanece desligado durante a operação ociosa e há silêncio. O Modern 14 é, portanto, projetado principalmente para aplicações de escritório, onde o laptop permanece silencioso a maior parte do tempo.

Por outro lado, se você usa o laptop para jogos, você tem que se acostumar a um nível de ruído muito perceptível.Durante o teste Witcher 3,medimos um nível de ruído de 46,3 dB(A), e durante o teste de estresse, registramos até mesmo um nível máximo de 52,6 db(A), que é um valor no nível de um notebook para jogos

Um allrounder de 14 polegadas da classe de desempenho que temos aqui deve produzir significativamente menos ruído, mesmo em momentos em que você coloca alguma carga sobre ele. Embora o desenvolvimento do ruído possa ser reduzido usando o perfil de potência "Modo Silencioso", isto ocorre às custas do desempenho do computador.

Barulho

Ocioso
26 / 26 / 26 dB
Carga
46.3 / 52.9 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distância)   environment noise: 26 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs202121.628.725.82523.725.639.833.33122.624.933.839.94019.21924.535.55021.323.526.832.96317.21716.239.38021.91915.325.310031.216.417.626.112519.516.717.432.8160201815.824.420019.517.815.321.725019.917.514.42331522.520.213.222.840026.722.512.717.750026.523.111.716.163032.129.51216.880033.128.81217.110003328.71221.4125036.131.311.819.9160037.432.812.216.620004035.112.416.3250041.535.612.815.8315040.735.313.217.3400043.637.113.318.5500044.836.313.720.1630044.7371425.9800044.235.614.830.41000034.925.61422.91250024.917.313.2171600017.114.212.714.3SPL52.946.225.134.1N7.750.61.9median 33median 28.7median 13.2median 19.9Delta9.58.61.33.2hearing rangehide median Fan NoiseMSI Modern 14 B11SB-085
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
Noise
8%
6%
8%
7%
7%
off / environment *
26
25
4%
29.9
-15%
25.9
-0%
25.5
2%
25.6
2%
Idle Minimum *
26
25
4%
29.9
-15%
26
-0%
25.5
2%
25.6
2%
Idle Average *
26
25
4%
29.9
-15%
26
-0%
25.5
2%
25.6
2%
Idle Maximum *
26
26.9
-3%
30.3
-17%
26
-0%
25.5
2%
26.3
-1%
Load Average *
46.3
38.6
17%
30.9
33%
34.9
25%
40.6
12%
41.6
10%
Witcher 3 ultra *
46.3
41.2
11%
31.5
32%
34.5
25%
41.6
10%
Load Maximum *
52.9
41.2
22%
32.5
39%
48.7
8%
40.8
23%
41.6
21%

* ... smaller is better

Temperaturas

Os 14 modernos durante o teste de estresse
Os 14 modernos durante o teste de estresse

No funcionamento diário que consiste principalmente em aplicações de escritório e navegação na Internet, as temperaturas permanecem dentro da faixa verde.

No início do teste de estresse (Prime95 e FurMark funcionando por pelo menos uma hora), a CPU e a GPU funcionam em 3,5 a 4 GHz e 1830 MHz, respectivamente. Depois disso, a velocidade do relógio cai para entre 1,4 e 2,4 GHz (CPU) e 1395 MHz (GPU). O teste de estresse representa um cenário extremo, e usamos este teste para avaliar se o sistema também funciona de forma estável sob carga total. O laptop MSI aquece significativamente. Durante o teste de estresse, medimos temperaturas acima de 60 ºC (140 ºF) em vários pontos de medição.

Carga Máxima
 54.5 °C55.6 °C42.6 °C
 45.5 °C49.1 °C38.3 °C
 37.9 °C33.5 °C32.1 °C
Máximo: 55.6 °C
Médio: 43.2 °C
63.6 °C59.4 °C67.8 °C
33.7 °C46.5 °C45.9 °C
33.2 °C37.7 °C37.7 °C
Máximo: 67.8 °C
Médio: 47.3 °C
alimentação elétrica  44.8 °C | Temperatura do quarto 22.5 °C | FIRT 550-Pocket
(-) The average temperature for the upper side under maximal load is 43.2 °C / 110 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 55.6 °C / 132 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 67.8 °C / 154 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 27.3 °C / 81 F, compared to the device average of 31.2 °C / 88 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.9 °C / 100.2 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-9.1 °C / -16.4 F).
Desenvolvimento de calor - topo (carga)
Desenvolvimento de calor - topo (carga)
Desenvolvimento de calor - topo (ocioso)
Desenvolvimento de calor - topo (ocioso)
Desenvolvimento de calor - fundo (carga)
Desenvolvimento de calor - fundo (carga)
Desenvolvimento de calor - fundo (ocioso)
Desenvolvimento de calor - fundo (ocioso)
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
Heat
4%
21%
4%
15%
20%
Maximum Upper Side *
55.6
46.2
17%
39.9
28%
41.2
26%
40.8
27%
39.1
30%
Maximum Bottom *
67.8
52.2
23%
44.7
34%
45.6
33%
42.2
38%
36.6
46%
Idle Upper Side *
28.3
30.6
-8%
24.9
12%
31.8
-12%
29.8
-5%
28.4
-0%
Idle Bottom *
28.9
33.6
-16%
25.7
11%
37.8
-31%
29.5
-2%
27.5
5%

* ... smaller is better

Orador

Enquanto os alto-falantes estéreo produzem um som decente, faltam-lhe graves.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2026.528.726.52536.839.836.83134.933.834.94033.624.533.6503226.8326328.716.228.78025.115.325.110031.417.631.412536.217.436.216038.115.838.120038.215.338.225050.714.450.731557.713.257.740062.612.762.650063.511.763.563061.41261.48006212621000591259125058.111.858.1160061.512.261.5200059.212.459.2250059.412.859.4315057.713.257.7400056.813.356.8500059.913.759.96300701470800075.114.875.11000071.31471.31250063.613.263.6160005512.755SPL7825.178N38.20.638.2median 59.2median 13.2median 59.2Delta5.61.35.622.422.822.429.735.929.731.830.631.824.425.624.422.424.722.424.122.124.122.921.122.925.122.325.131.217.231.233.515.433.539.713.539.753.715.553.759.914.759.964.219.464.259.213.359.257.612.957.663.212.263.271.912.971.970.813.170.867.712.467.767.31367.367.413.267.468.613.168.668.913.268.964.813.564.859.613.659.659.913.559.960.513.660.55713.45760.712.660.779.225.679.243.10.743.1median 60.5median 13.4median 60.59.319.3hearing rangehide median Pink NoiseMSI Modern 14 B11SB-085Lenovo IdeaPad 5 14ALC05 82LM005YGE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
MSI Modern 14 B11SB-085 audio analysis

(±) | speaker loudness is average but good (75.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.1% lower than median
(±) | linearity of bass is average (11.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2% away from median
(+) | mids are linear (4.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.2% higher than median
(±) | linearity of highs is average (7.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.4% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 8% similar, 41% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 35% of all tested devices were better, 8% similar, 57% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo IdeaPad 5 14ALC05 82LM005YGE audio analysis

(-) | not very loud speakers (71.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20% lower than median
(±) | linearity of bass is average (13.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.8% higher than median
(±) | linearity of mids is average (7.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20% difference to median)
Compared to same class
» 58% of all tested devices in this class were better, 9% similar, 33% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 46% of all tested devices were better, 8% similar, 46% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Consumo de energia

Durante a operação ociosa, medimos um consumo máximo de energia de 10,3 watts. Sob carga, o consumo aumenta até 88 watts (teste de estresse) ou uma média de 66,6 watts ( testeWitcher 3 ). O gráfico abaixo ilustra o consumo de energia razoavelmente constante durante o teste Witcher 3. A fonte de energia é classificada em 90 watts

Consumo de energia
desligadodarklight 0.8 / 0.8 Watt
Ociosodarkmidlight 3 / 6.3 / 10.3 Watt
Carga midlight 66 / 90.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption Witcher 3

0510152025303540455055606570758085Tooltip
MSI Modern 14 B11SB-085 GeForce MX450, i7-1165G7, Kingston OM8PCP3512F-AB: Ø66.6 (48.2-88.4)
Lenovo IdeaPad 5 14ALC05 82LM005YGE Vega 7, R5 5500U, Samsung SSD PM981a MZVLB512HBJQ: Ø46.6 (45.1-48.9)
MSI Modern 14 B11SB-085
Intel Core i7-1165G7, NVIDIA GeForce MX450
SCHENKER Vision 14
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Honor MagicBook 14, Ryzen 5 4500U
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
HP Envy 14-eb0010nr
Intel Core i5-1135G7, NVIDIA GeForce GTX 1650 Ti Max-Q
Lenovo IdeaPad 5 14ALC05 82LM005YGE
AMD Ryzen 5 5500U, AMD Radeon RX Vega 7
Asus Zenbook 14 UX435EG
Intel Core i7-1165G7, NVIDIA GeForce MX450
Power Consumption
-44%
24%
-60%
-5%
4%
Idle Minimum *
3
9.8
-227%
4.2
-40%
4.2
-40%
5.4
-80%
3.4
-13%
Idle Average *
6.3
12.5
-98%
6.5
-3%
18.3
-190%
8.4
-33%
7.6
-21%
Idle Maximum *
10.3
13.7
-33%
7.9
23%
19.2
-86%
11.3
-10%
14.2
-38%
Load Average *
66
39.3
40%
31.2
53%
72.9
-10%
45.3
31%
56
15%
Witcher 3 ultra *
66.6
44.8
33%
32
52%
61.5
8%
46.6
30%
41
38%
Load Maximum *
90.6
72.8
20%
37
59%
127.8
-41%
63
30%
50.4
44%

* ... smaller is better

Vida útil do batedor

Em nosso teste WLAN realista, o 14 Moderno atinge um tempo de execução de 8:43 h. Durante este teste, simulamos a carga ao abrir websites através de um roteiro

Tempo de Execução da Bateria
WiFi Websurfing (Edge 91)
8h 43min
Battery Runtime - WiFi Websurfing
Honor MagicBook 14, Ryzen 5 4500U
R5 4500U, Vega 6, 56 Wh
865 min +65%
HP Envy 14-eb0010nr
i5-1135G7, GeForce GTX 1650 Ti Max-Q, 63.3 Wh
649 min +24%
Lenovo IdeaPad 5 14ALC05 82LM005YGE
R5 5500U, Vega 7, 56.5 Wh
649 min +24%
Average of class Multimedia
  (274 - 1204, n=95, last 2 years)
572 min +9%
MSI Modern 14 B11SB-085
i7-1165G7, GeForce MX450, 52.4 Wh
523 min
Asus Zenbook 14 UX435EG
i7-1165G7, GeForce MX450, 63 Wh
507 min -3%
SCHENKER Vision 14
i7-1165G7, Iris Xe G7 96EUs, 53 Wh
366 min -30%

Pro

+ visor brilhante IPS com alto contraste
+ NVMe SSD
+ iluminação de teclado
+ Thunderbolt 4 / USB 4
+ Fornecimento de energia
+ DisplayPort via USB-C
+ boa duração da bateria

Contra

- caso poderia ter sido mais rígido e robusto
- quente e barulhento sob carga alta
- leitor de cartões de armazenamento lento
- memória de trabalho em modo monocanal
- apenas um único slot de memória de trabalho

Veredicto - Um poderoso allrounder

Das MSI Modern 14 B11SB-085, zur Verfügung gestellt von:
Das MSI Modern 14 B11SB-085, zur Verfügung gestellt von:

Graças aoCore i7-1165G7processador e GeForce MX450GPU, o laptop de 14 polegadas oferece uma grande performance de computação que também está totalmente desenvolvida. Aplicações de escritório e Internet, assim como jogos de computador em grau limitado, não representam nenhum desafio maior para o dispositivo.

No moderno 14 B11SB, o MSI mostra algumas fraquezas que um dispositivo 1200-Euro (~$1416) não deveria ter.

Entretanto, estranhamente, a MSI não faz pleno uso das capacidades do hardware, já que a memória de trabalho só pode funcionar em modo monocanal. Existe apenas um único slot de armazenamento, o que é um absurdo para um dispositivo desta classe de preço.

O sistema de resfriamento do laptop também parece ser subdimensionado para cenários de carga pesada. Apesar das altas velocidades de ventilação sob carga (jogos), o laptop ainda aquece mais do que muitos laptops de alto desempenho para jogos. A tela (IPS, FHD) pontua com uma superfície mate, ângulos de visão estáveis, um bom brilho e um excelente contraste. A cobertura do espaço de cores, por outro lado, é pouco convincente.

O laptop não falta em resistência. Com um tempo de execução WLAN de quase 9 horas, você deve ser capaz de passar um dia sem um carregador. Um ponto positivo é o fato de que o dispositivo pode ser carregado usando a fonte de alimentação de 90 watts incluída ou usando um carregador USB-C universal (pelo menos 45 watts para carregar a bateria, caso contrário 90 watts), o que é possível pela conexão Thunderbolt 4 (Power Delivery, DisplayPort)

Uma possível alternativa para o 14 moderno seria o Lenovo IdeaPad 5 14ALC05por exemplo. Esse laptop só aquece moderadamente, não produz uma quantidade extensa de ruído e oferece uma melhor duração da bateria. Por outro lado, o problema do IdeaPad é que a memória de trabalho é soldada.

Preço e Disponibilidade

O MSI Modern 14 B11SB com Core i7-1165G7, GeForce MX450, 16 GB RAM, 512 GB SSD, e Windows 10 Pro está atualmente disponível nos EUA por ~$1100 da Amazon e outros fornecedores. Várias outras configurações também estão disponíveis no site https://us.msi.com/Business-Productivity/Modern-14-B11X/buynow

MSI Modern 14 B11SB-085 - 07/26/2021 v7
Sascha Mölck

Acabamento
75 / 98 → 77%
Teclado
83%
Mouse
86%
Conectividade
61 / 80 → 76%
Peso
71 / 20-72 → 99%
Bateria
84 / 95 → 88%
Pantalha
84%
Desempenho do jogos
71 / 90 → 79%
Desempenho da aplicação
87 / 90 → 96%
Temperatura
79%
Ruído
78 / 95 → 82%
Audio
66%
Camera
38 / 85 → 45%
Médio
74%
82%
Multimedia - Médio equilibrado

Pricecompare

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > MSI Modern 14 B11SB revisão: O allrounder de 14 polegadas sofre com o desenvolvimento do calor
Sascha Mölck, 2021-07-29 (Update: 2021-07-29)
