Análise do Mini-PC Ninkear L20: Pequeno, rápido e moderno – será suficiente para competir?

Name: Ninkear L20, Ultra 5 226V
Brand: Ninkear

Potência Core Ultra em formato mini.

Pequeno, moderno e equipado com um Intel Core Ultra 5 226V: o Ninkear L20 pretende mostrar que um mini PC não precisa comprometer o desempenho. Na nossa análise, examinamos a rapidez real dos 16 GB de memória LPDDR5X, o nível de ruído do computador compacto sob carga e se o L20 consegue competir com concorrentes Ryzen mais potentes.
Sebastian Bade, 👁 Sebastian Bade (traduzido por DeepL / Ninh Duy) Publicado 10/06/2026 🇺🇸 🇩🇪 ...
Mini PC Desktop Intel Lunar Lake Arc

Veredito - Ninkear L20 impressiona com hardware moderno em um formato mini

O Ninkear L20 causa uma boa impressão geral na nossa análise. Com o Intel Core Ultra 5 226V e 16 GB de RAM LPDDR5X a funcionar a 8.533 MT/s, o mini PC compacto oferece um bom desempenho para trabalho de escritório, multimédia e tarefas de produtividade do dia a dia. Outros pontos positivos incluem a conectividade moderna com USB4, HDMI e DisplayPort, as baixas latências DPC e o desempenho amplamente consistente sob carga prolongada. A NPU integrada e a Intel Arc Graphics 130V também fazem do L20 uma plataforma atualizada para aplicações de IA e multimédia.

As limitações incluem a RAM soldada e a ligação comparativamente lenta do SSD, que funciona apenas através de PCIe 3.0 x2. O consumo de energia em repouso também é relativamente elevado. Sob carga, porém, o consumo de energia mantém-se num nível razoável. Embora os níveis de ruído de 41,4 a um máximo de 45,6 dB(A) sob carga não sejam excessivamente elevados, o L20 não está entre os modelos mais silenciosos da sua classe.

Dispositivo de teste cortesia de Ninkear

Download your licensed rating image as PNG / SVG

Quem precisa de maior desempenho gráfico e em tarefas multithread encontrará alternativas mais potentes em mini PCs baseados em processadores Ryzen atuais, como o Minisforum AI X1. O Ninkear L20, por outro lado, destina-se principalmente a utilizadores que procuram um equipamento compacto e versátil com uma plataforma Intel moderna, boa conectividade e um desempenho sólido no dia a dia. Neste segmento, o L20 oferece um conjunto equilibrado, mas o seu SSD e o consumo de energia em repouso deixam margem para críticas.

Pro

+ chassis metálico robusto

+ Intel Core Ultra 5 226V energeticamente eficiente

+ RAM LPDDR5x rápida a 8.533 MT/s

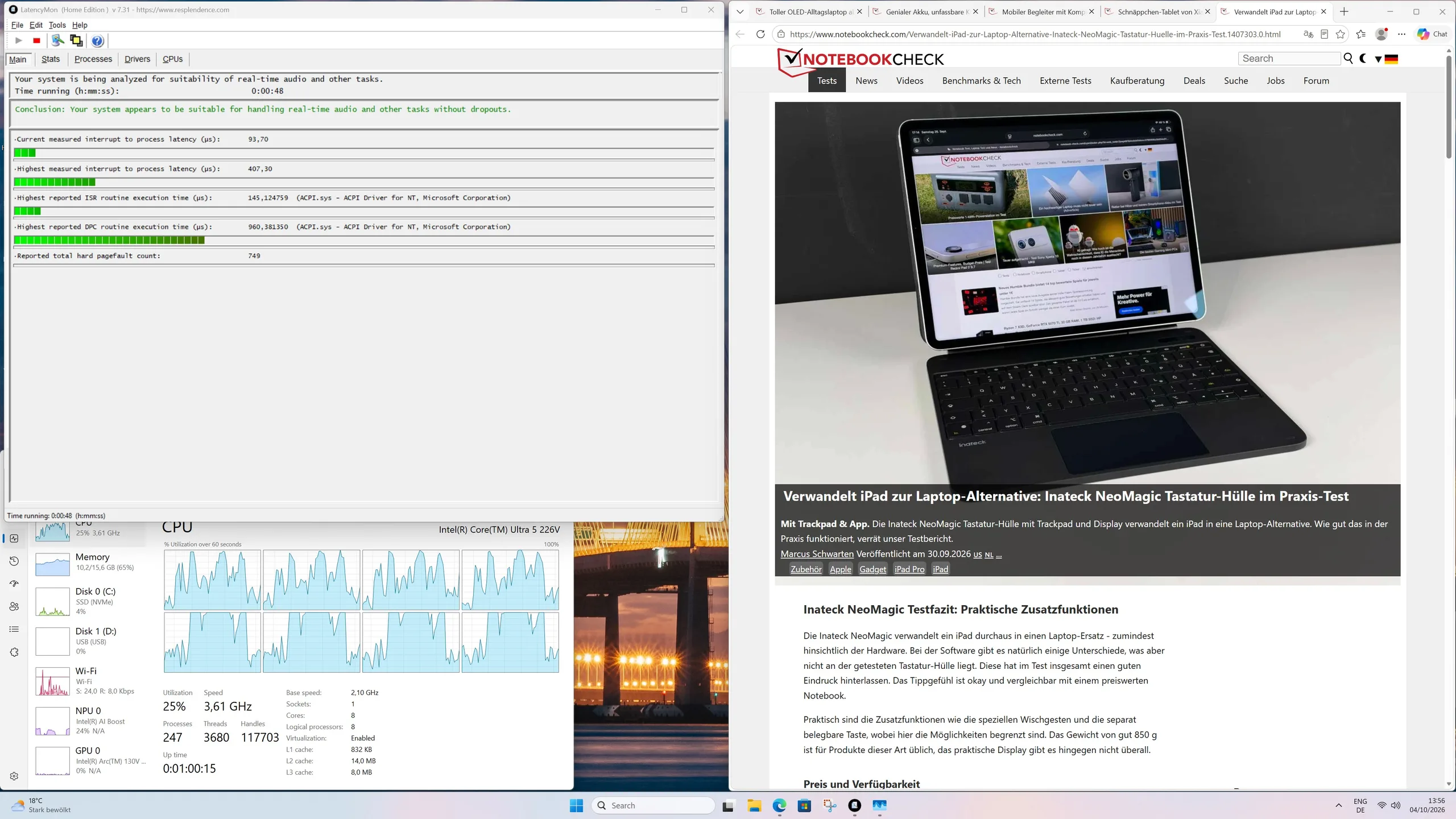

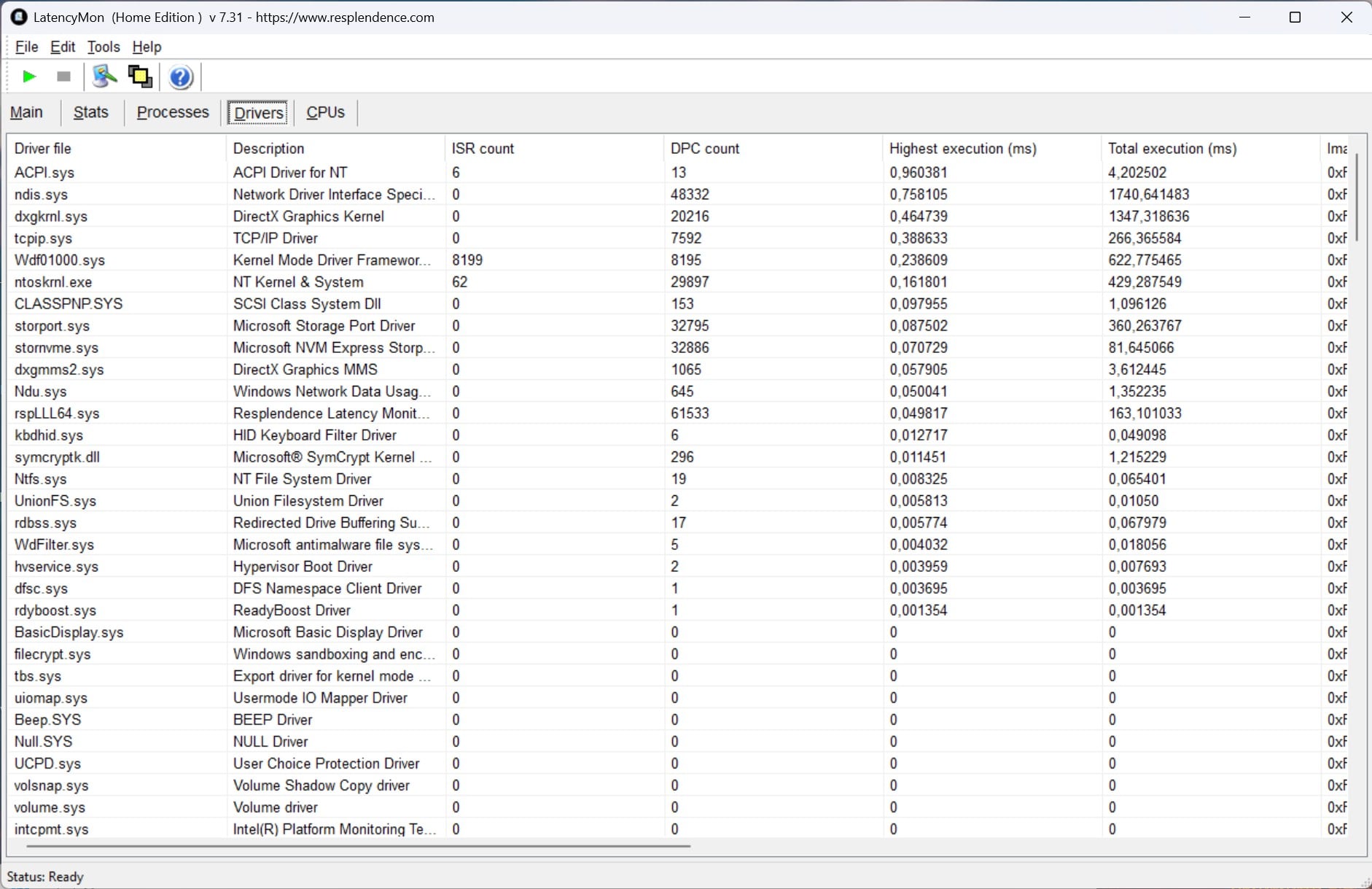

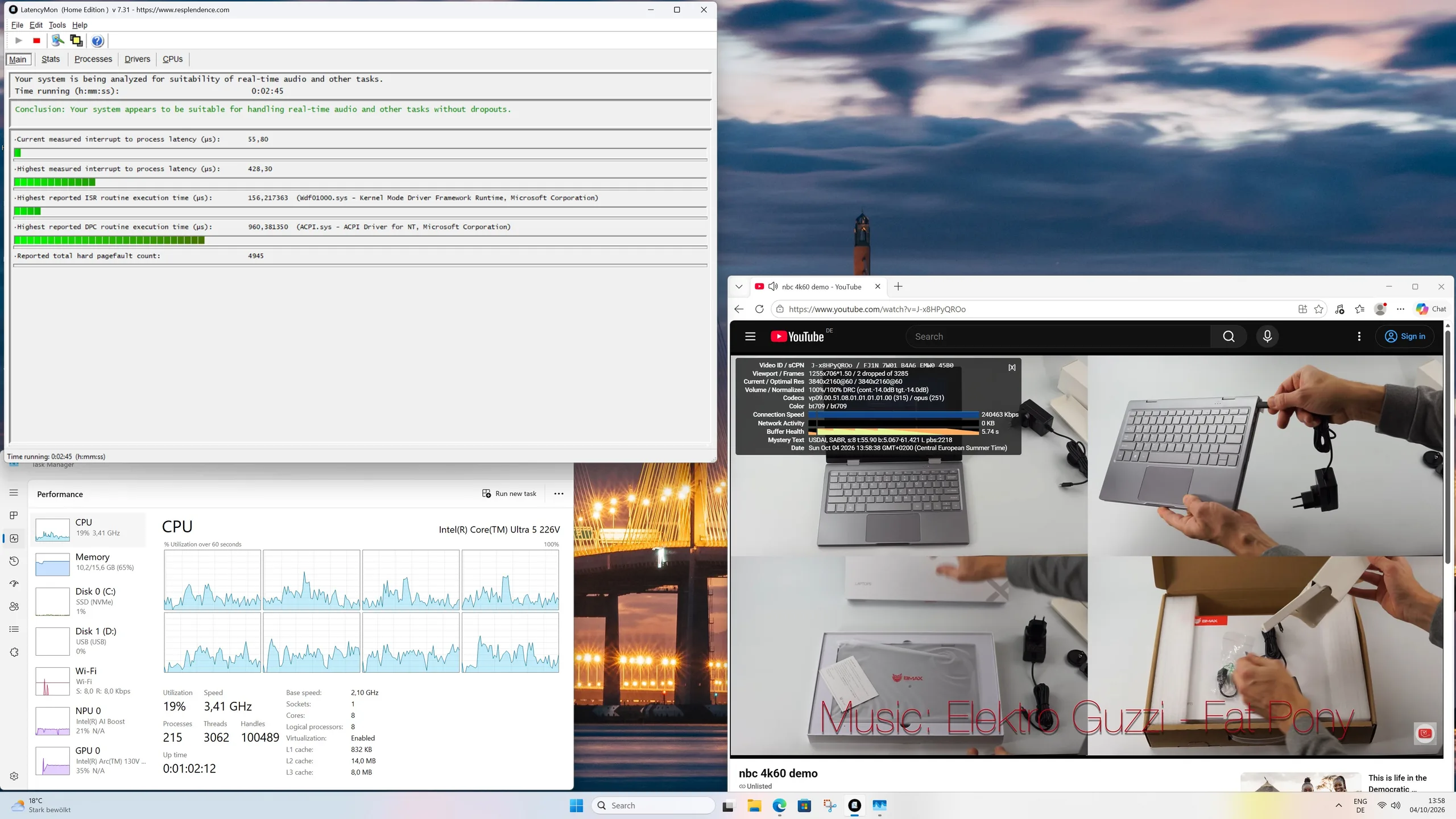

+ baixas latências DPC

+ Wi-Fi rápido

+ opção de montagem VESA

+ desempenho da CPU consistentemente estável

+ muitas portas USB, incluindo USB4

Contra

- não é possível ajustar as velocidades das ventoinhas

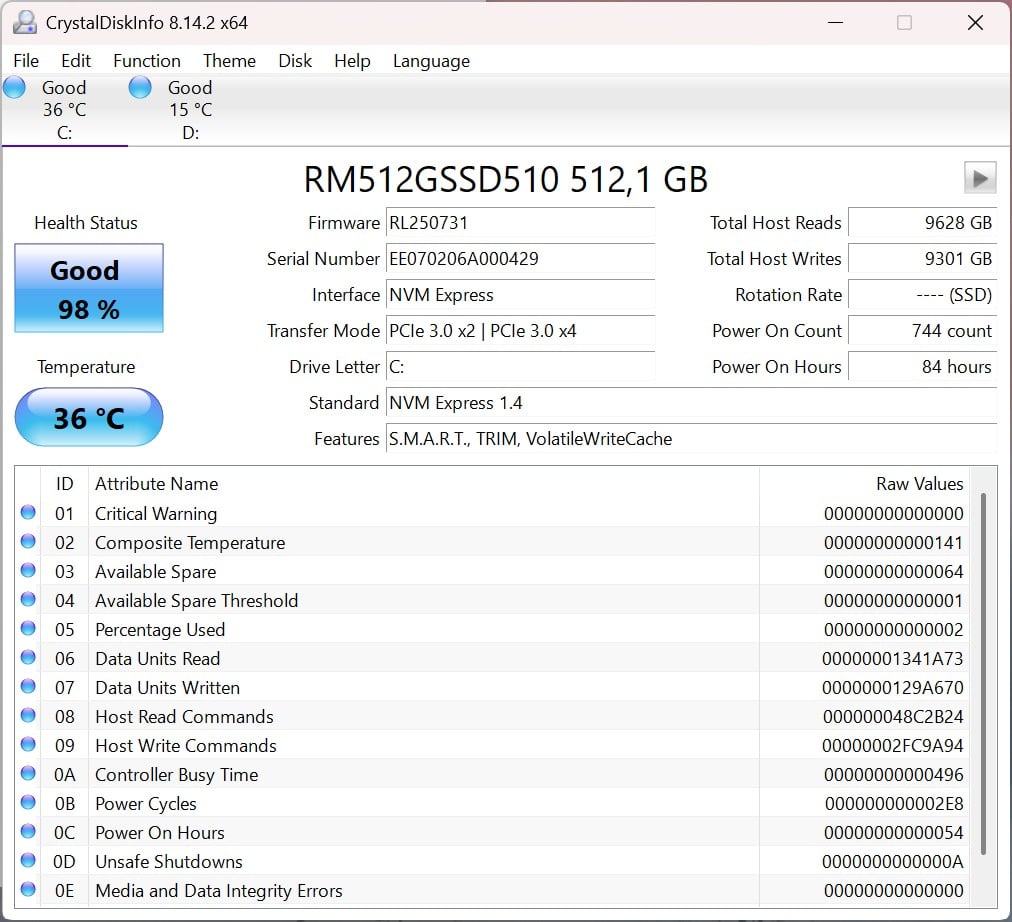

- SSD ligado apenas via PCIe 3.0 x2

- sem OCuLink

- não é possível expandir a RAM

Preço e disponibilidade

O Ninkear L20 pode ser encomendado diretamente na loja do fabricante a partir de 699 euros. A versão idêntica nos restantes aspetos, mas com 1 TB de armazenamento, está disponível por 799 euros.

Amazon: No results found for your request.

Índice

Veredito - Ninkear L20 impressiona com hardware moderno em um formato mini
Especificações
Estojo e conectividade
Desempenho

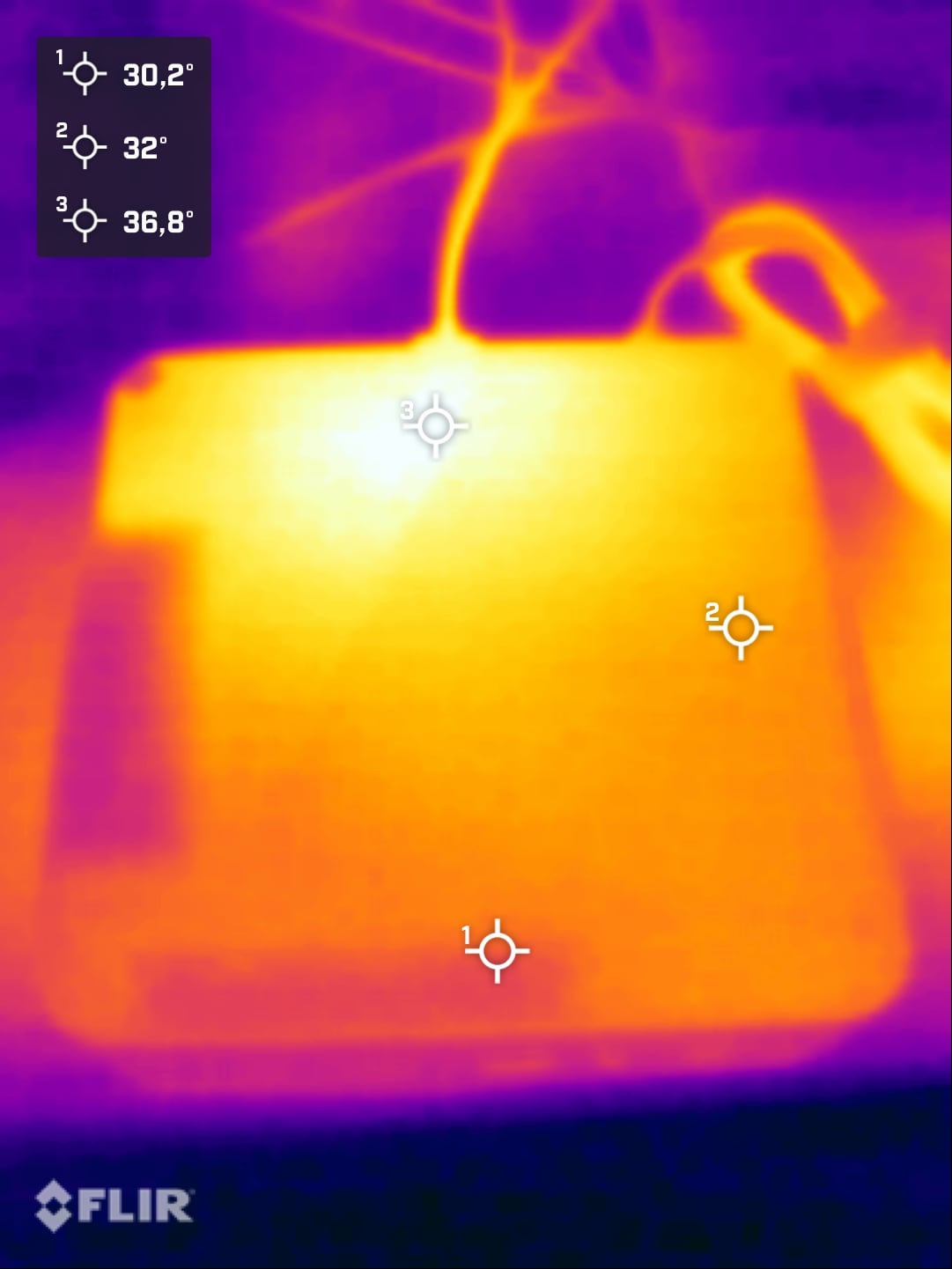

Emissões
Gestão de energia
Avaliação do Notebookcheck
Possíveis alternativas comparadas

O Ninkear L20 traz hardware moderno ao formato compacto de mini PC com o Intel Core Ultra 5 226V e 16 GB de LPDDR5X a 8.533 MT/s. Mas quanto desempenho este pequeno computador realmente oferece – e como se sai no uso diário? É exatamente isso que exploramos na nossa análise.

Especificações

Ninkear L20, Ultra 5 226V

Processador

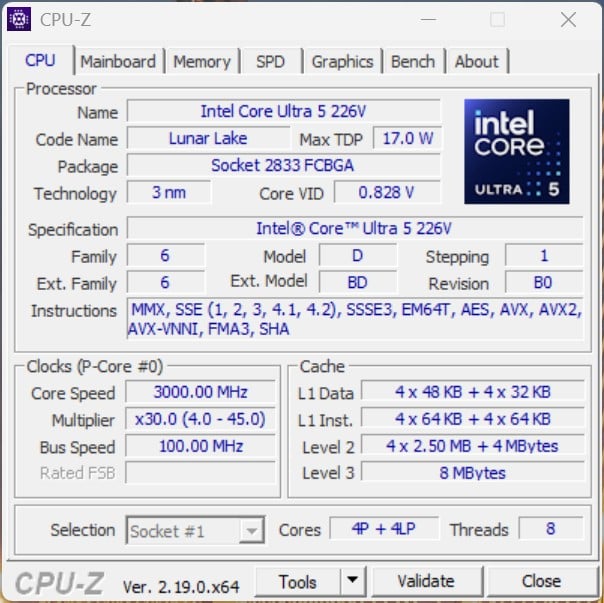

Intel Core Ultra 5 226V 8c/8t, 4 x 4.5 GHz Intel Lion Cove P-Core, 4 x 3.5 GHz Intel Skymont E-Core, 37 W PL2 / Short Burst, 37 W PL1 / Sustained, Lunar Lake

Placa gráfica

Intel Arc Graphics 130V, Análises do: 1800 MHz

Memória

16 GB

, LPDDR5, 8.533 MT/s, nicht erweiterbar

placa mãe

Intel Lunar Lake PCH

Disco rígido

RAYSMEM RM512GSSD510, 512 GB

Placa de Som

Intel Lunar Lake SOC - cAVS (Audio, Voice, Speech)

Conexões

1 USB 2.0, 4 USB 3.0, 1 USB 3.1 Gen2, 1 USB4 40 Gbps, 2 HDMI, 2 DisplayPort, 1 Docking Station Port, Conexões Audio: 3.5mm Audio Jack

Funcionamento em rede

Intel Ethernet Controller I226-V (10/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Tamanho

altura x largura x profundidade (em mm): 43 x 129 x 129

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

24 Meses Garantia

peso

626 g, Suprimento de energia: 259 g

Preço

699 Euro

Nota: O fabricante pode utilizar componentes de diferentes fornecedores, incluindo painéis de exibição, unidades ou cartões de memória com especificações semelhantes.

veja todas as especificações

Estojo e conectividade

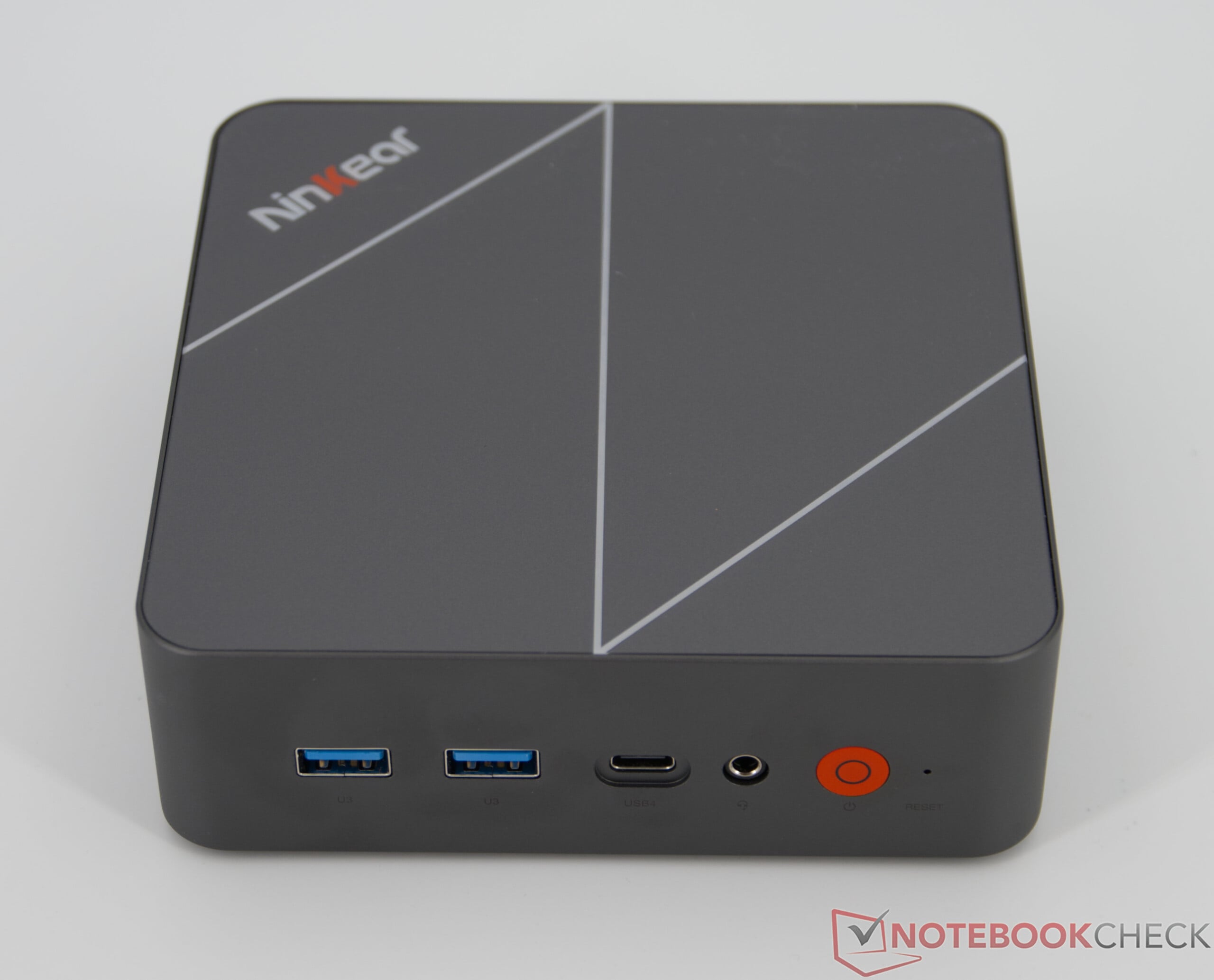

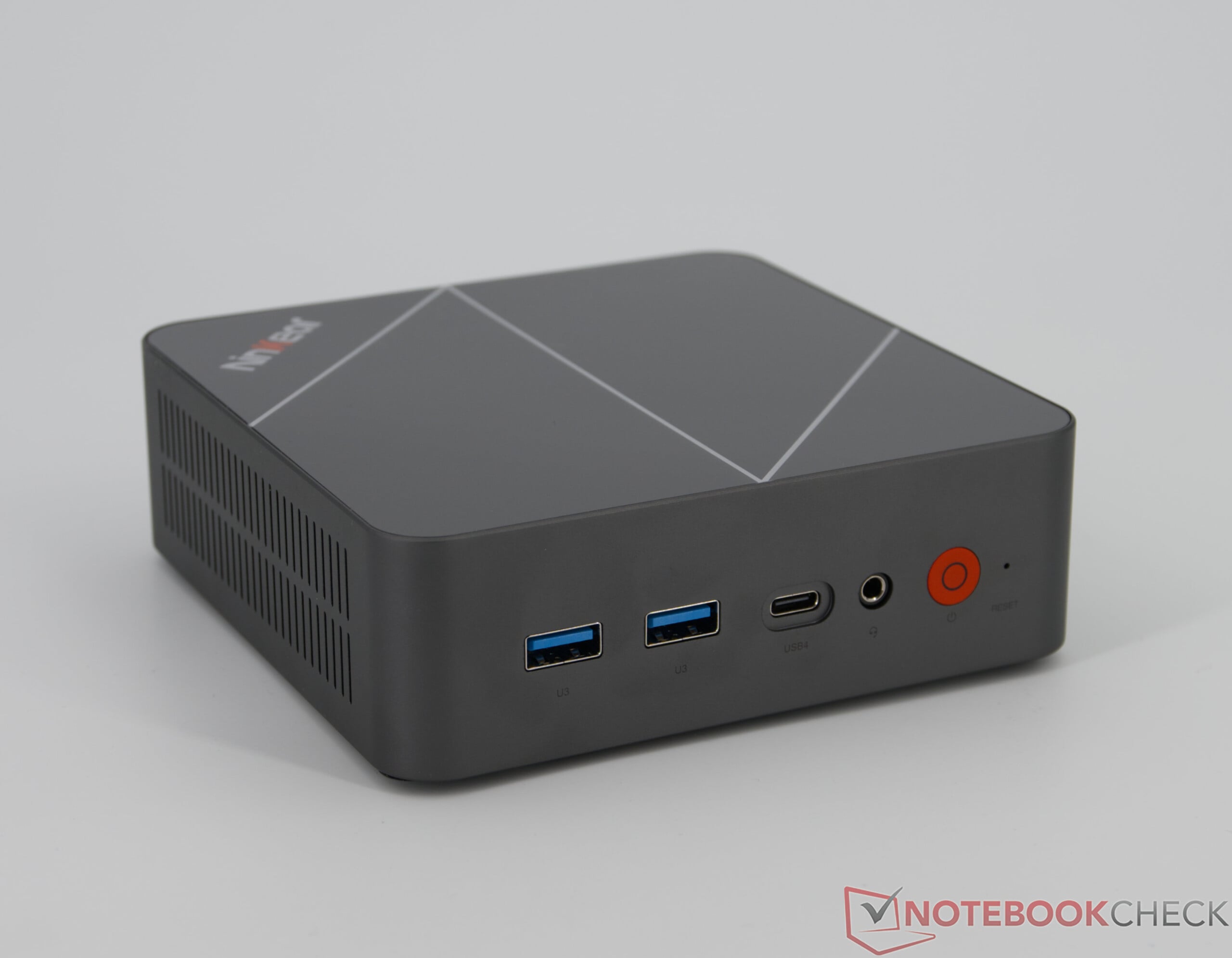

O Ninkear L20 apresenta uma caixa simples e funcional que também incorpora elementos de design familiares da marca Ninkear. O seu design compacto tem um aspeto moderno e cabe facilmente numa secretária. O L20 também oferece conectividade versátil: várias portas USB, incluindo USB4, juntamente com a possibilidade de ligar monitores através de HDMI e DisplayPort, proporcionam uma ampla variedade de opções de ligação. Isto torna o Ninkear L20 bem equipado tanto para o uso quotidiano como para aplicações de produtividade.

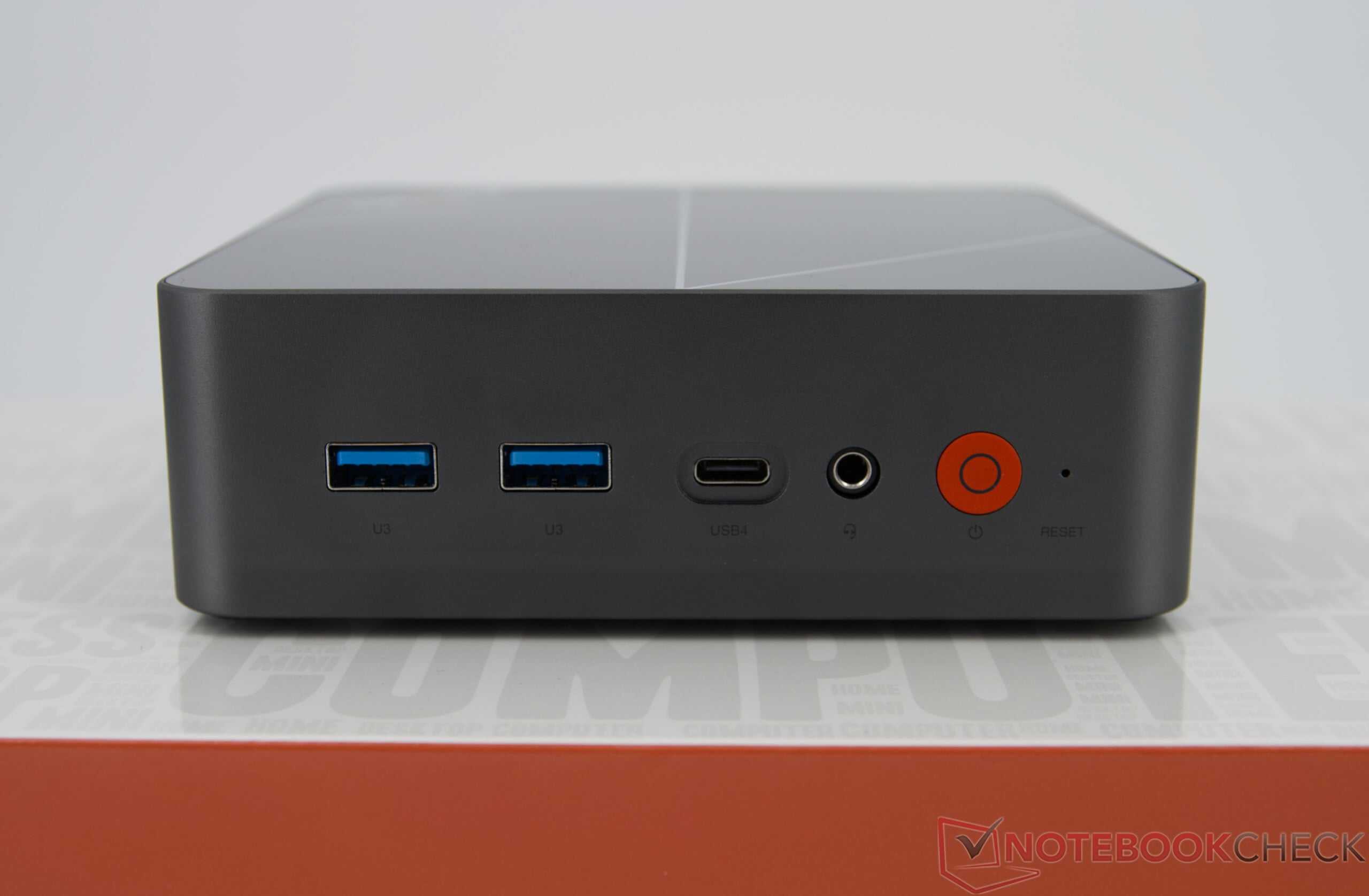

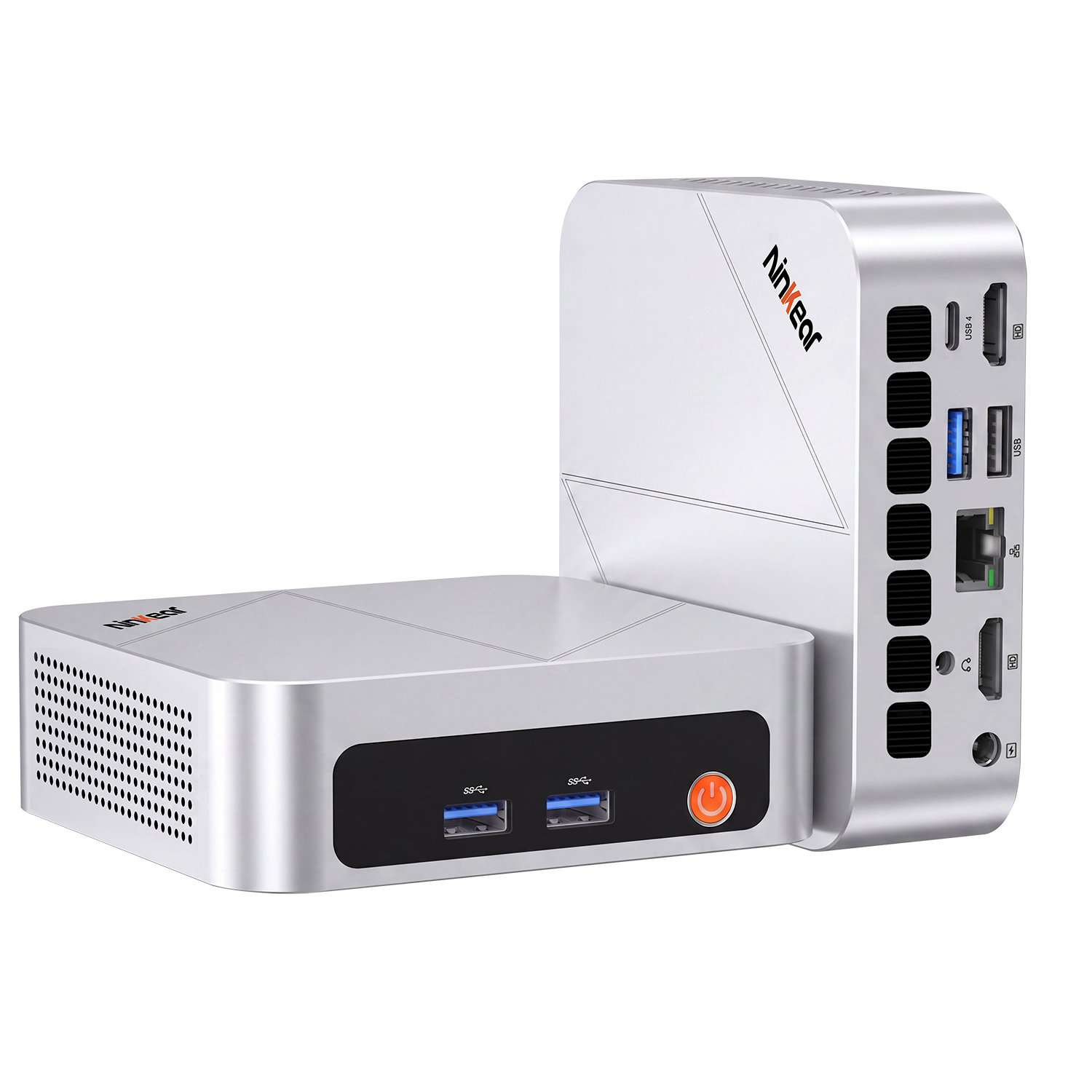

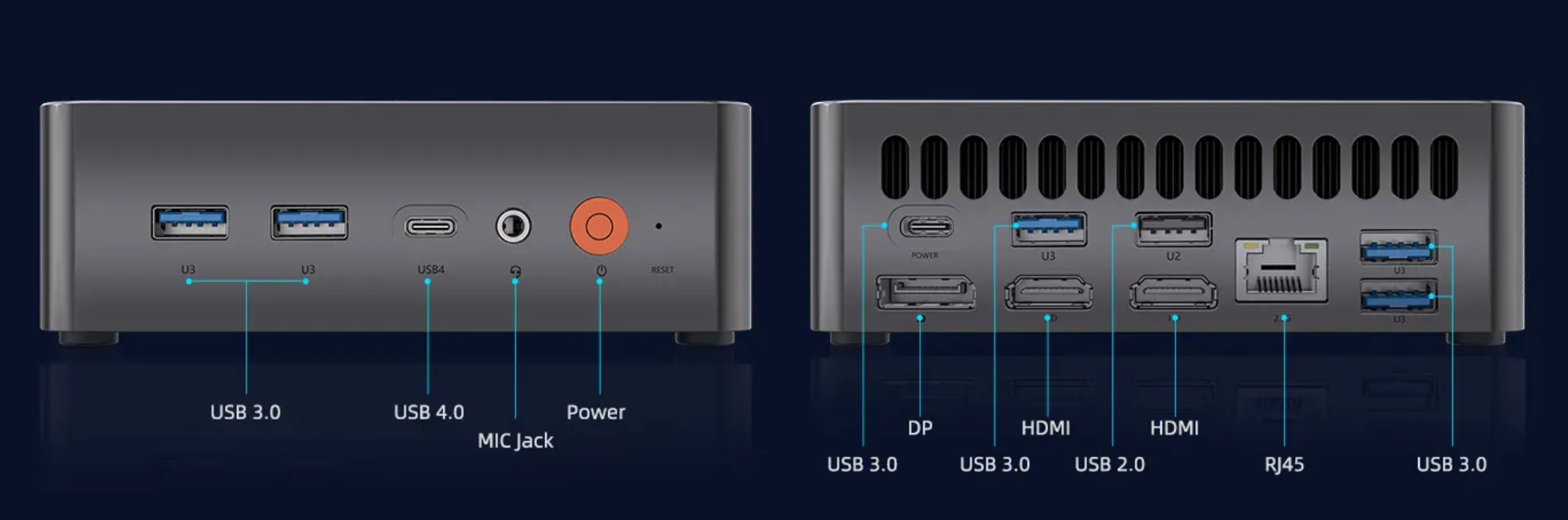

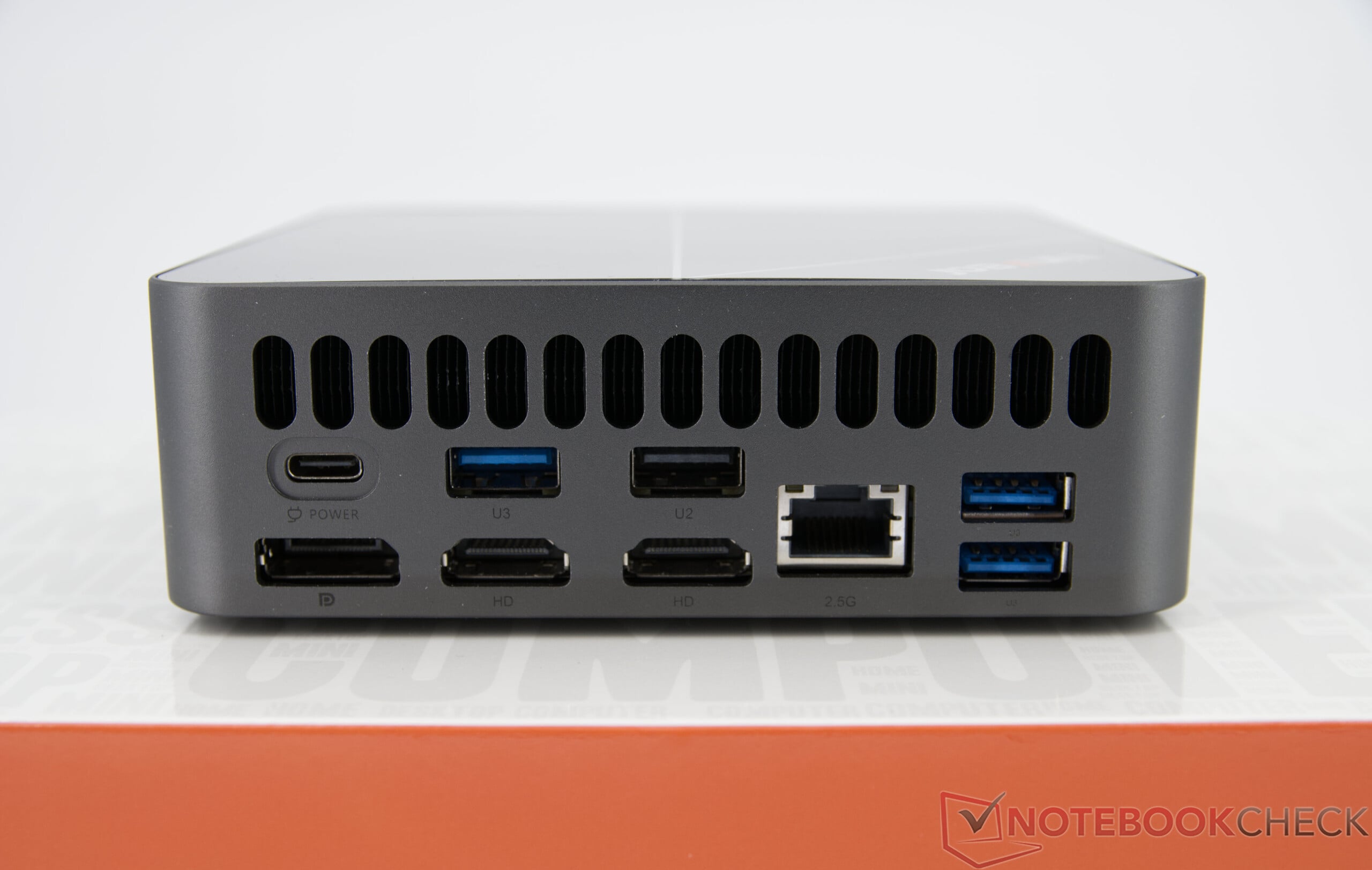

As portas externas do Ninkear L20 (Fonte: Ninkear)

Comparação de tamanhos

GMK NucBox K17 GMK NucBox M7 Ultra Geekom IT13 Max Acer Revo Box RB102-LNL, Core Ultra 7 256V Acemagic Retro X3 Ninkear L20, Ultra 5 226V DIN A4 ❌

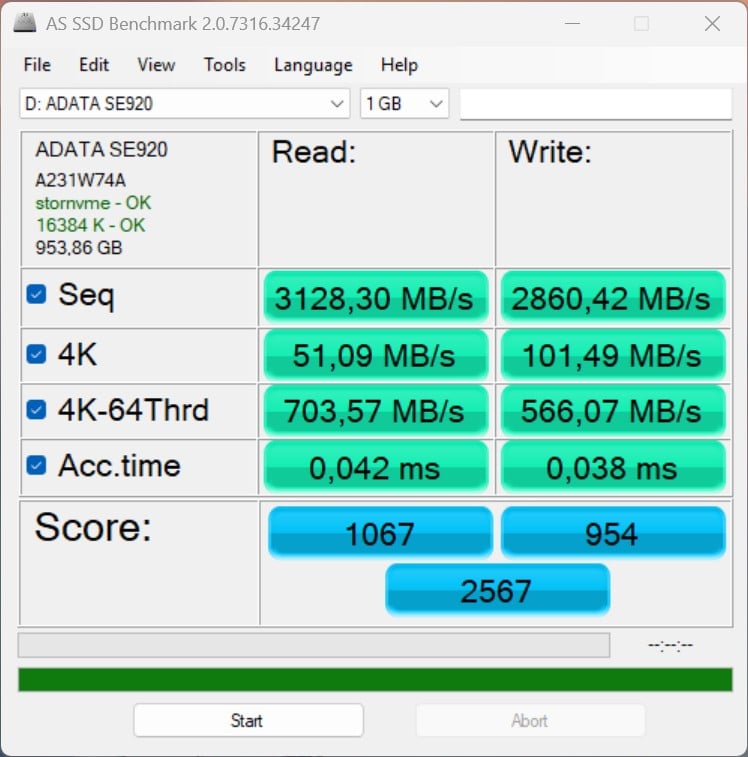

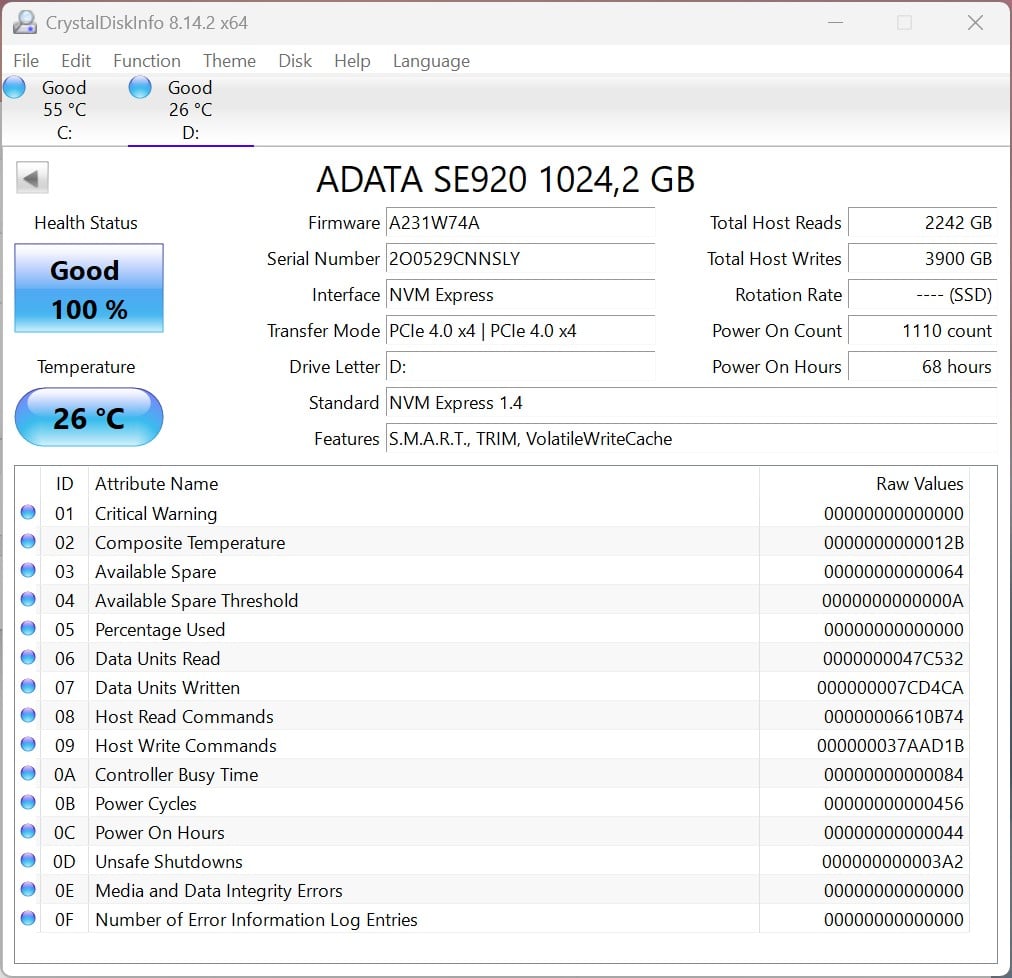

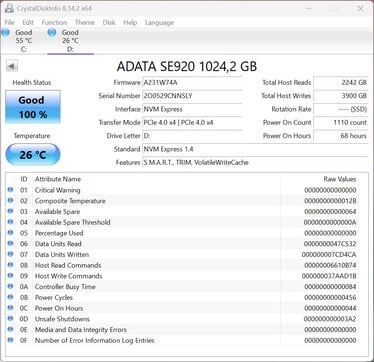

Velocidade USB4 (ADATA SE920)

Teste de desempenho com o ADATA SE920 via USB4

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	3139.42 MB/s
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	3128.3 MB/s
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	3118.71 MB/s
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	3044.72 MB/s
Média da turma Mini PC (423 - 3906, n=48, últimos 2 anos)	2753 MB/s
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	1639.9 MB/s
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	789.54 MB/s

Networking
iperf3 transmit Wi-Fi6/7 RT-BE96U
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	4122 (2112^min - 4336^max) MBit/s +102%
Média da turma Mini PC (973 - 4122, n=8, últimos 2 anos)	2050 MBit/s 0%
Ninkear L20, Ultra 5 226V Intel Wi-Fi 6E AX211	2040 (1946^min - 2170^max) MBit/s
Média Intel Wi-Fi 6E AX211 (1755 - 2040, n=2)	1898 MBit/s -7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Wi-Fi 6E AX211	1755 (1379^min - 1871^max) MBit/s -14%
Acemagic Retro X3 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1477 (725^min - 1611^max) MBit/s -28%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	973 (922^min - 1011^max) MBit/s -52%
iperf3 receive Wi-Fi6/7 RT-BE96U
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	2843 (2427^min - 2923^max) MBit/s +77%
Média da turma Mini PC (1498 - 2843, n=8, últimos 2 anos)	1909 MBit/s +19%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1827 (1808^min - 1845^max) MBit/s +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Wi-Fi 6E AX211	1625 (1523^min - 1689^max) MBit/s +1%
Média Intel Wi-Fi 6E AX211 (1603 - 1625, n=2)	1614 MBit/s +1%
Ninkear L20, Ultra 5 226V Intel Wi-Fi 6E AX211	1603 (1555^min - 1633^max) MBit/s
Acemagic Retro X3 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1498 (1333^min - 1556^max) MBit/s -7%
iperf3 receive AXE11000 6GHz
Média da turma Mini PC (729 - 1814, n=50, últimos 2 anos)	1531 MBit/s
Média Intel Wi-Fi 6E AX211 (700 - 1857, n=226)	1498 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1195 (658^min - 1297^max) MBit/s
iperf3 transmit AXE11000 6GHz
Média da turma Mini PC (504 - 1887, n=50, últimos 2 anos)	1473 MBit/s
Média Intel Wi-Fi 6E AX211 (385 - 1851, n=226)	1363 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	504 (440^min - 565^max) MBit/s
iperf3 receive AXE11000
Média Intel Wi-Fi 6E AX211 (582 - 1890, n=276)	1393 MBit/s
Média da turma Mini PC (267 - 1776, n=68, últimos 2 anos)	1163 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	937 (922^min - 947^max) MBit/s
iperf3 transmit AXE11000
Média Intel Wi-Fi 6E AX211 (64 - 1921, n=276)	1230 MBit/s
Média da turma Mini PC (251 - 1811, n=68, últimos 2 anos)	1106 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	903 (863^min - 936^max) MBit/s

Ninkear L20, Ultra 5 226V; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø1603 (1555-1633) MBit/s

Ninkear L20, Ultra 5 226V; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø2040 (1946-2170) MBit/s

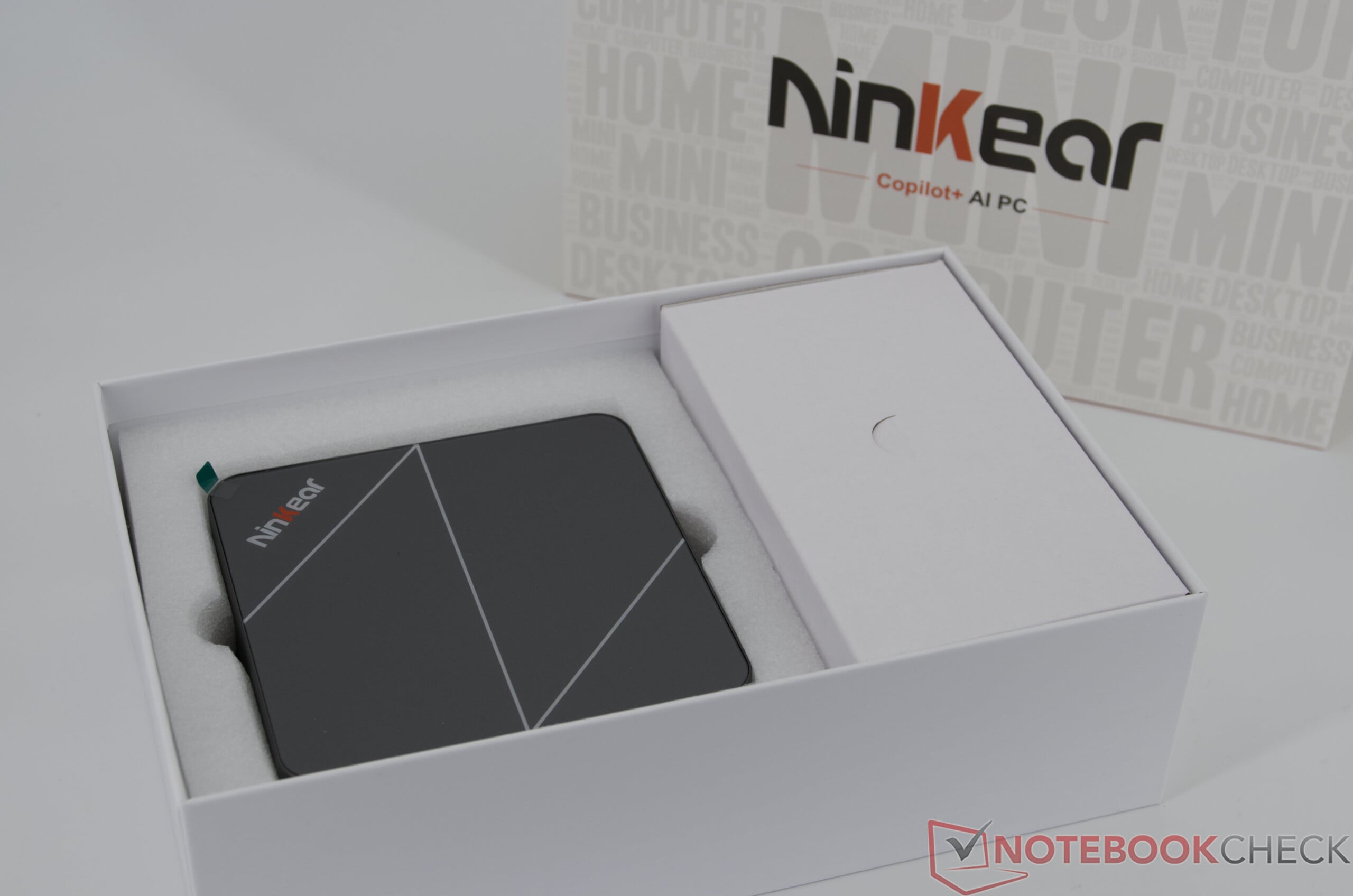

Acessórios

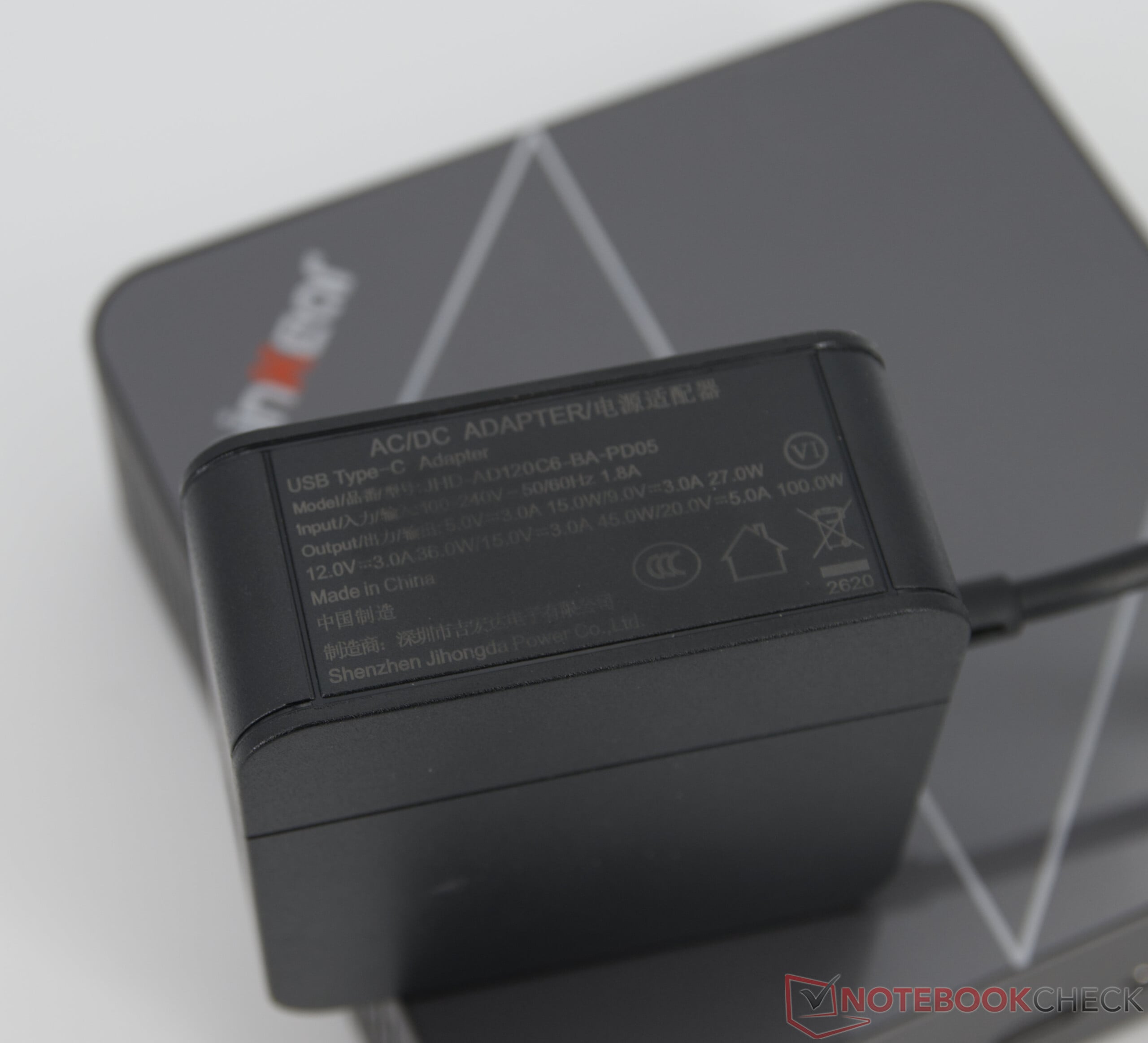

O Ninkear L20 vem com um adaptador de alimentação compacto, um cabo HDMI e um suporte VESA para instalar o mini PC na parte traseira de um monitor, poupando espaço.

Manutenção

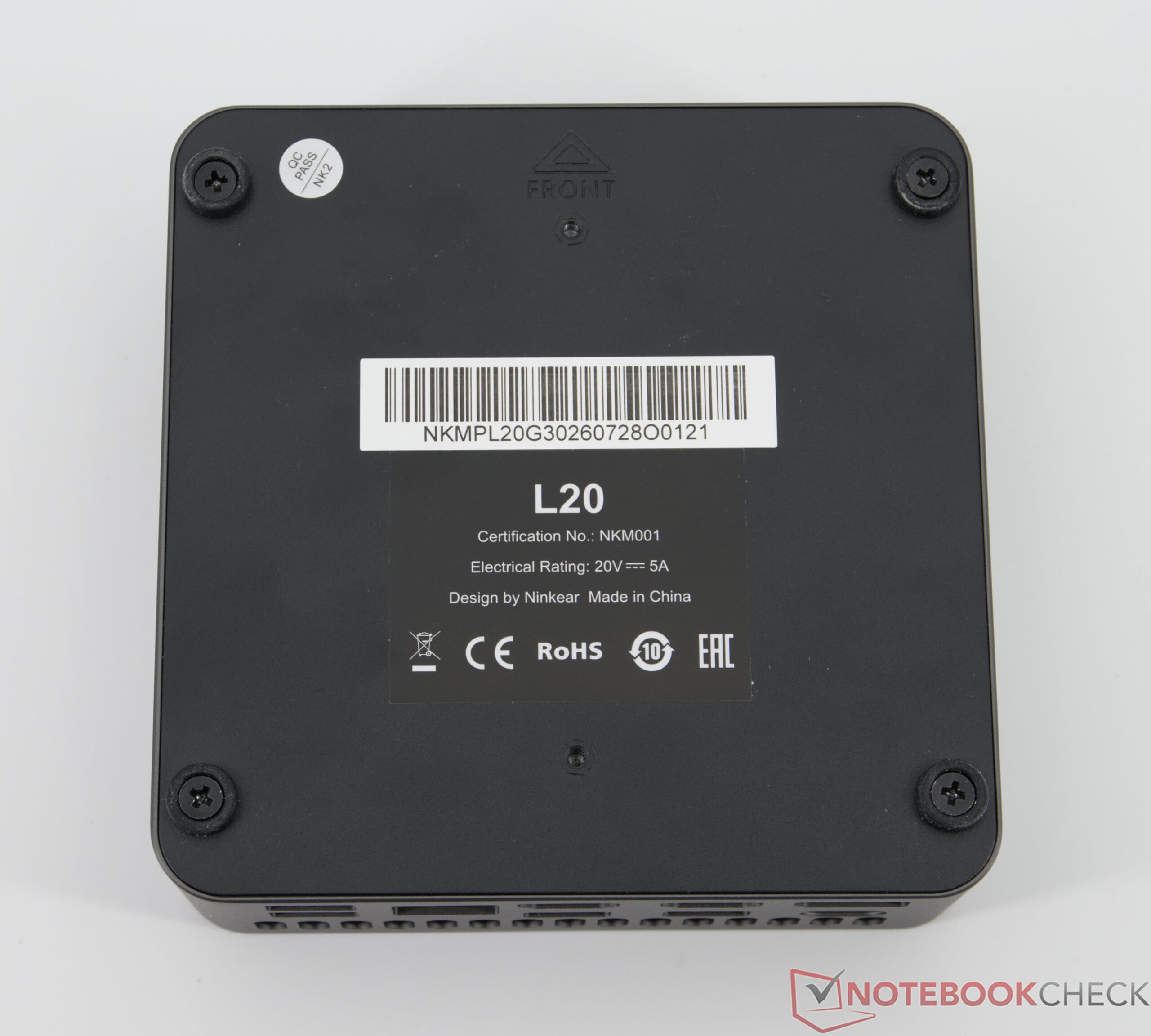

O Ninkear L20 é relativamente fácil de reparar. A remoção do painel inferior permite aceder aos componentes instalados. O armazenamento pode ser expandido através de uma ranhura M.2 adicional, enquanto os 16 GB de RAM LPDDR5X a funcionar a 8,533 MT/s estão soldados e, por isso, não podem ser atualizados. O módulo Wi-Fi, por outro lado, está encaixado num conector e pode ser substituído, se necessário.

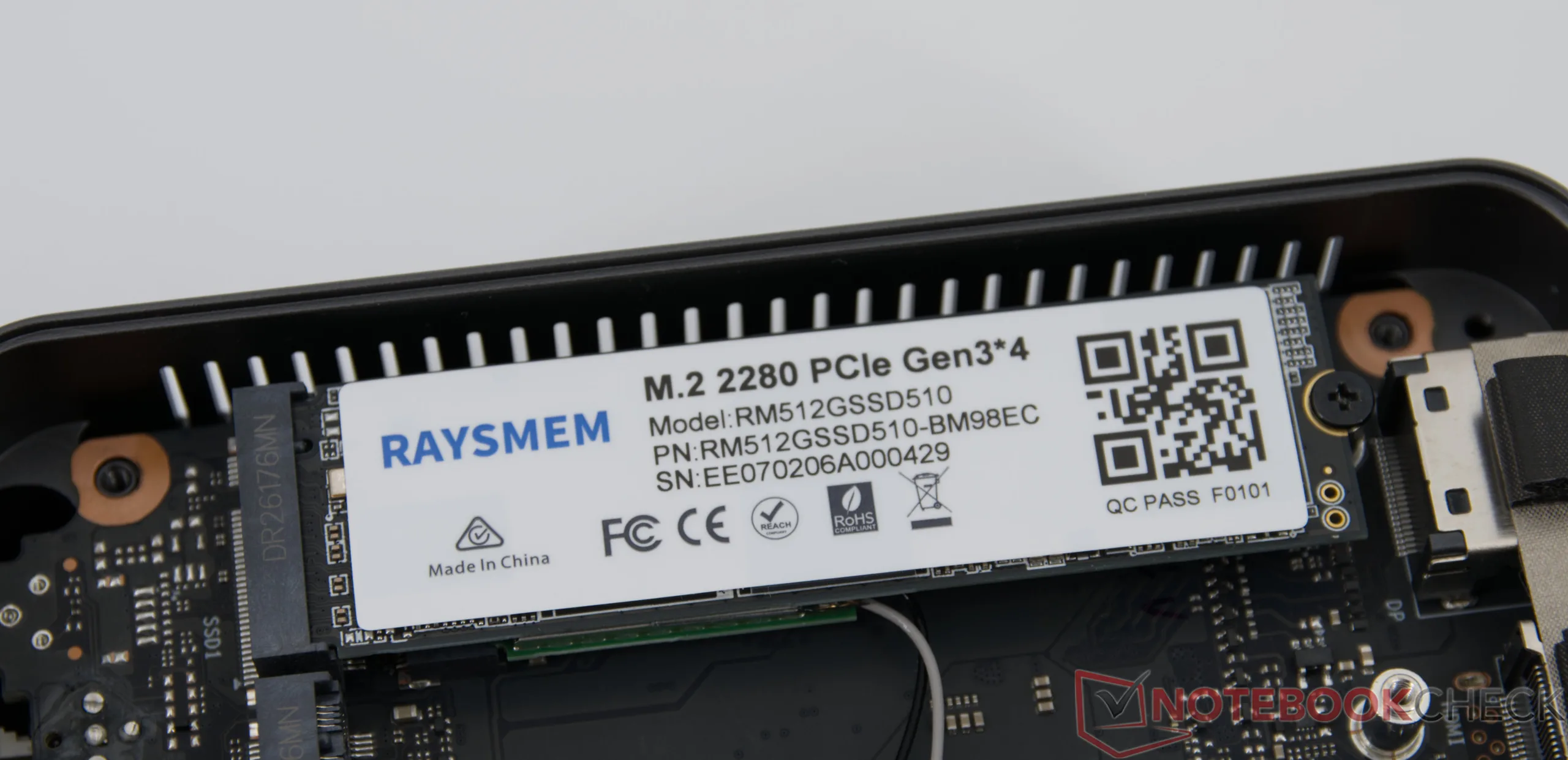

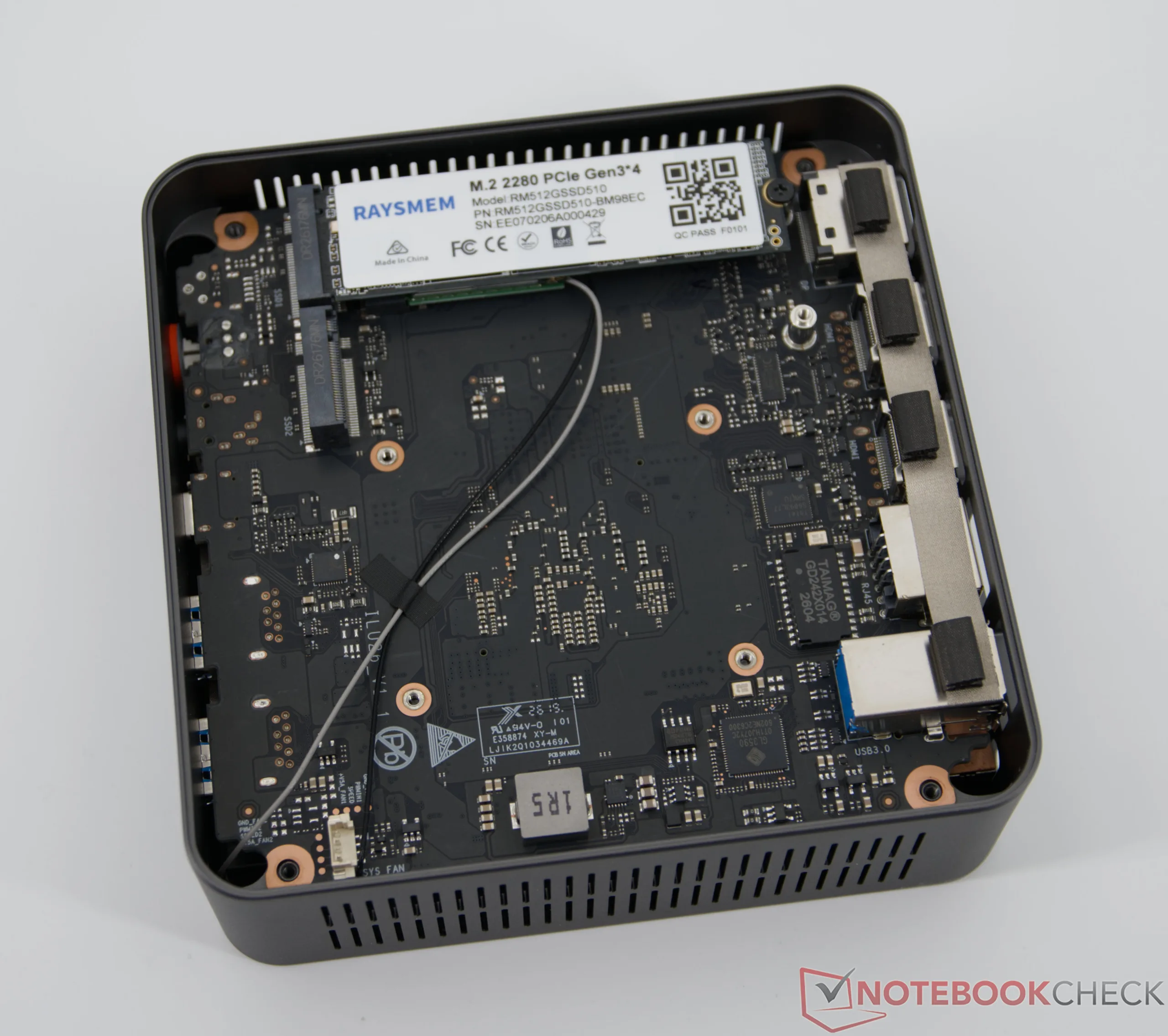

Ninkear L20 com o painel inferior removido

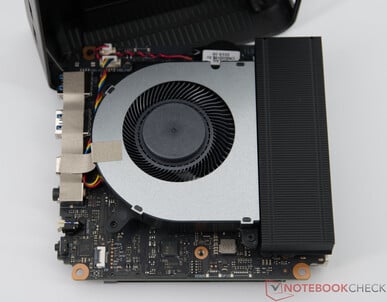

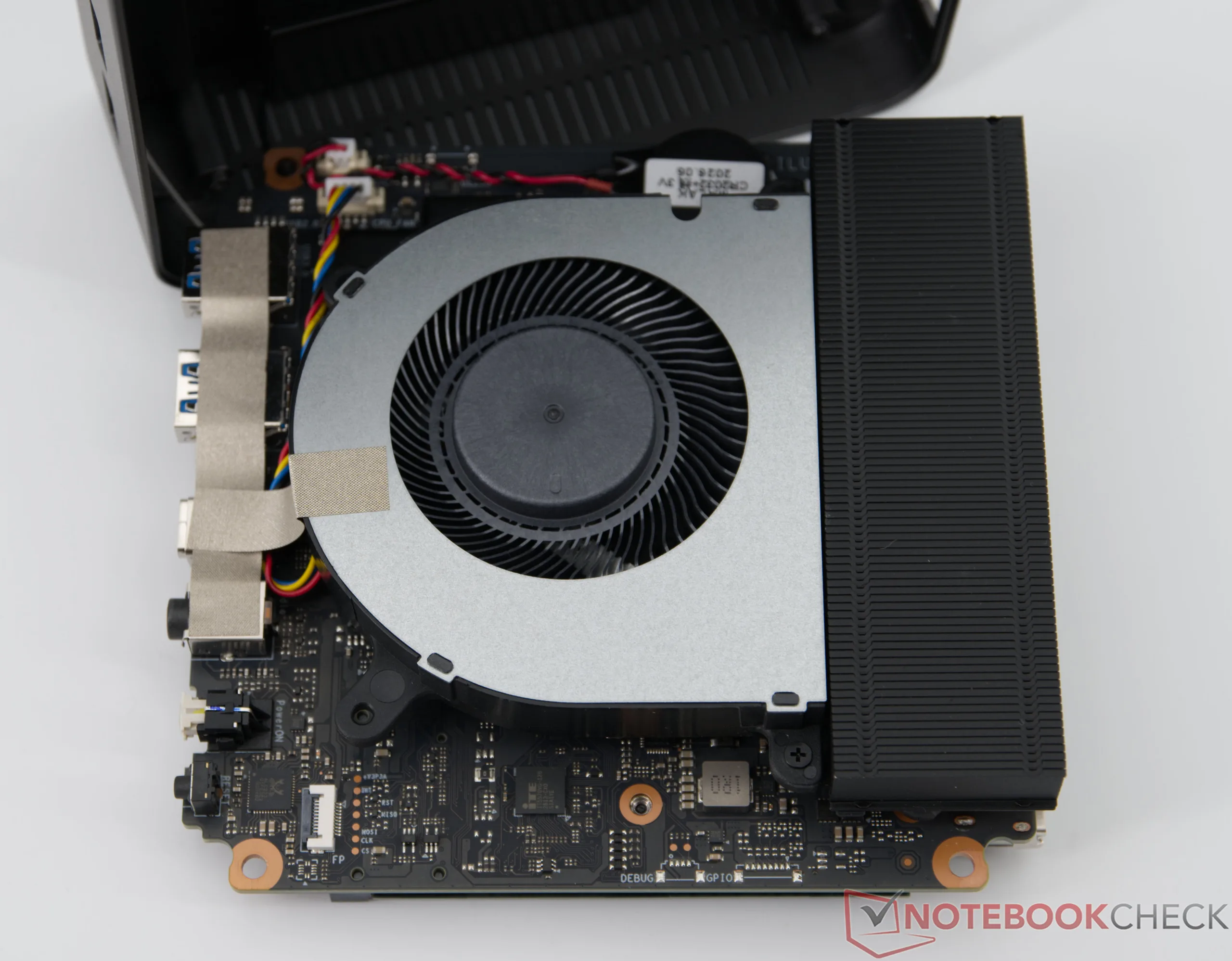

Ninkear L20 - Placa-mãe com unidade de refrigeração

Sustentabilidade

O fabricante não fornece informações específicas sobre sustentabilidade ou medidas ambientais na produção do Ninkear L20. A embalagem é composta principalmente de papelão e utiliza relativamente poucos insertos de espuma para proteger o mini PC durante o transporte.

Desempenho

Condições de teste

Todos os testes de desempenho do Ninkear L20 foram realizados com as configurações de fábrica. O Intel Core Ultra 5 226V opera com um TDP de 37 watts.

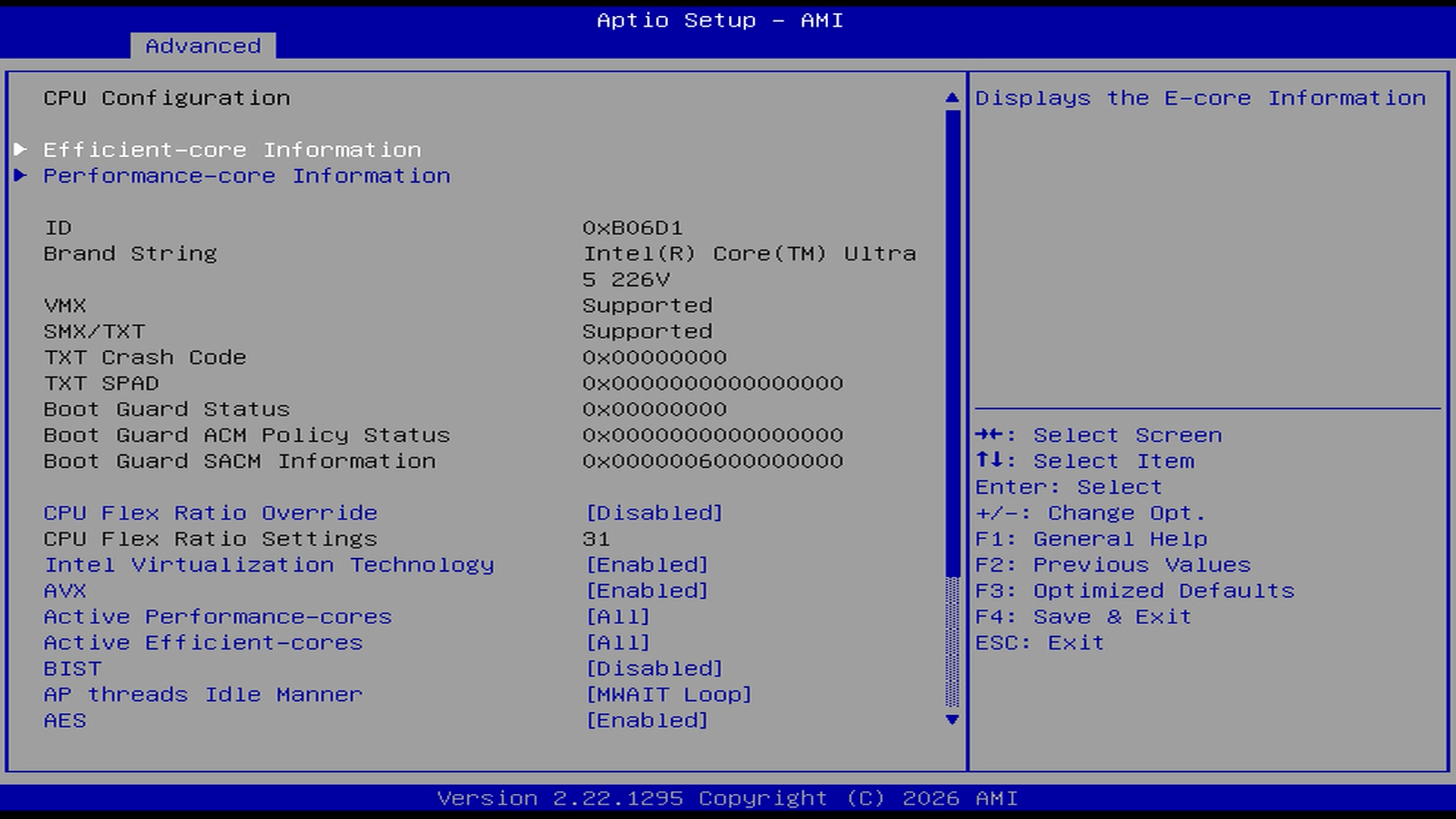

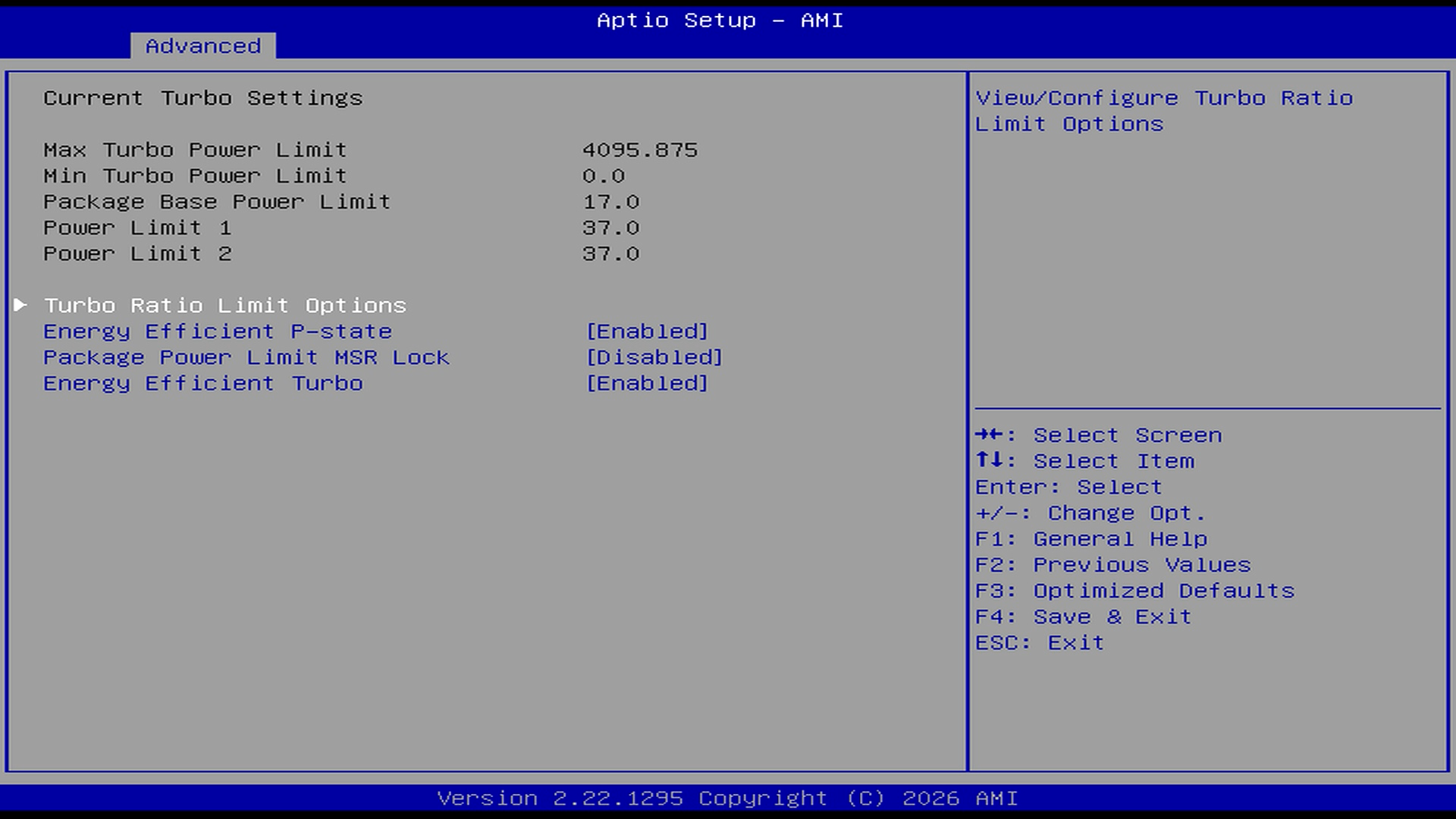

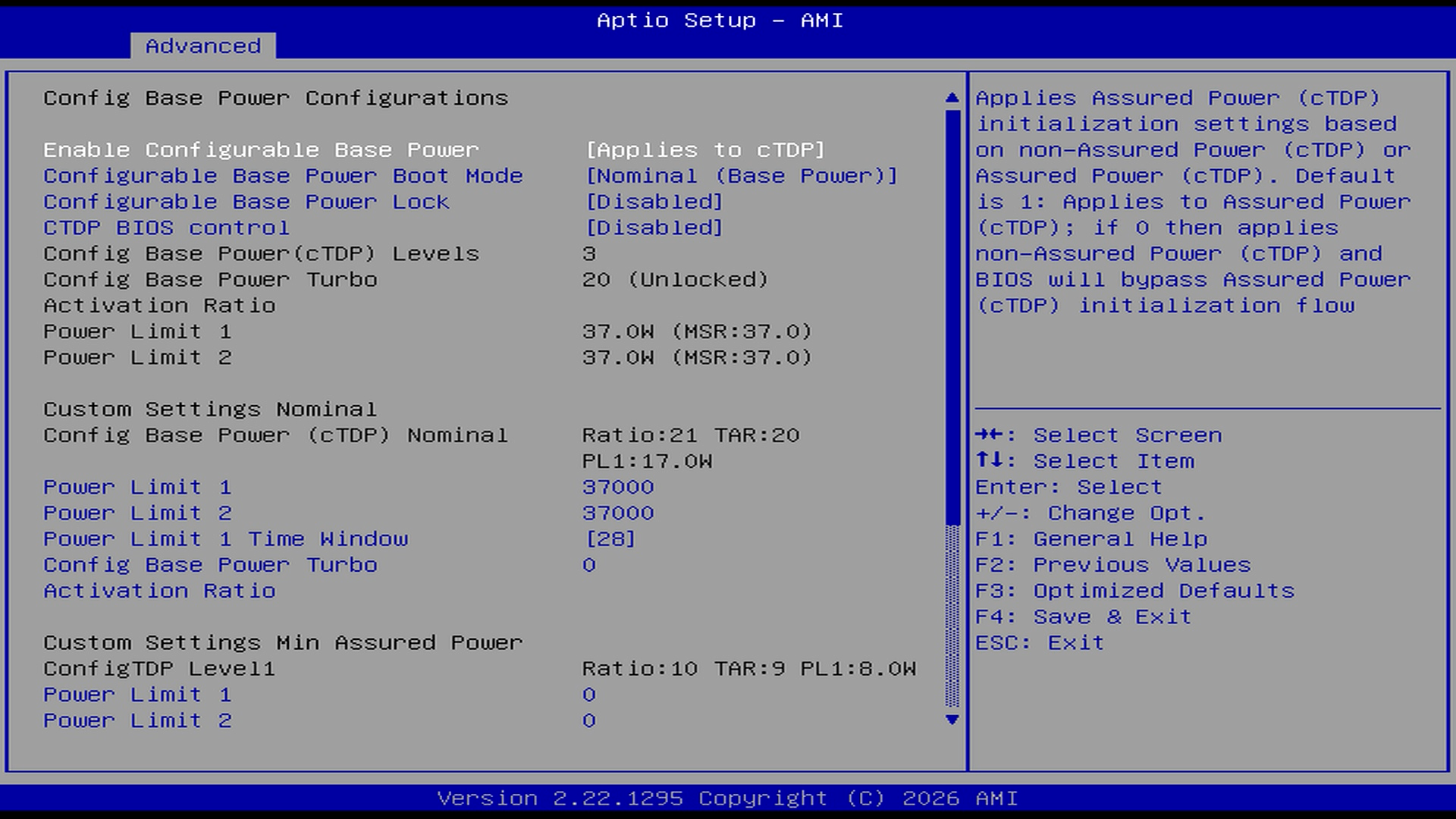

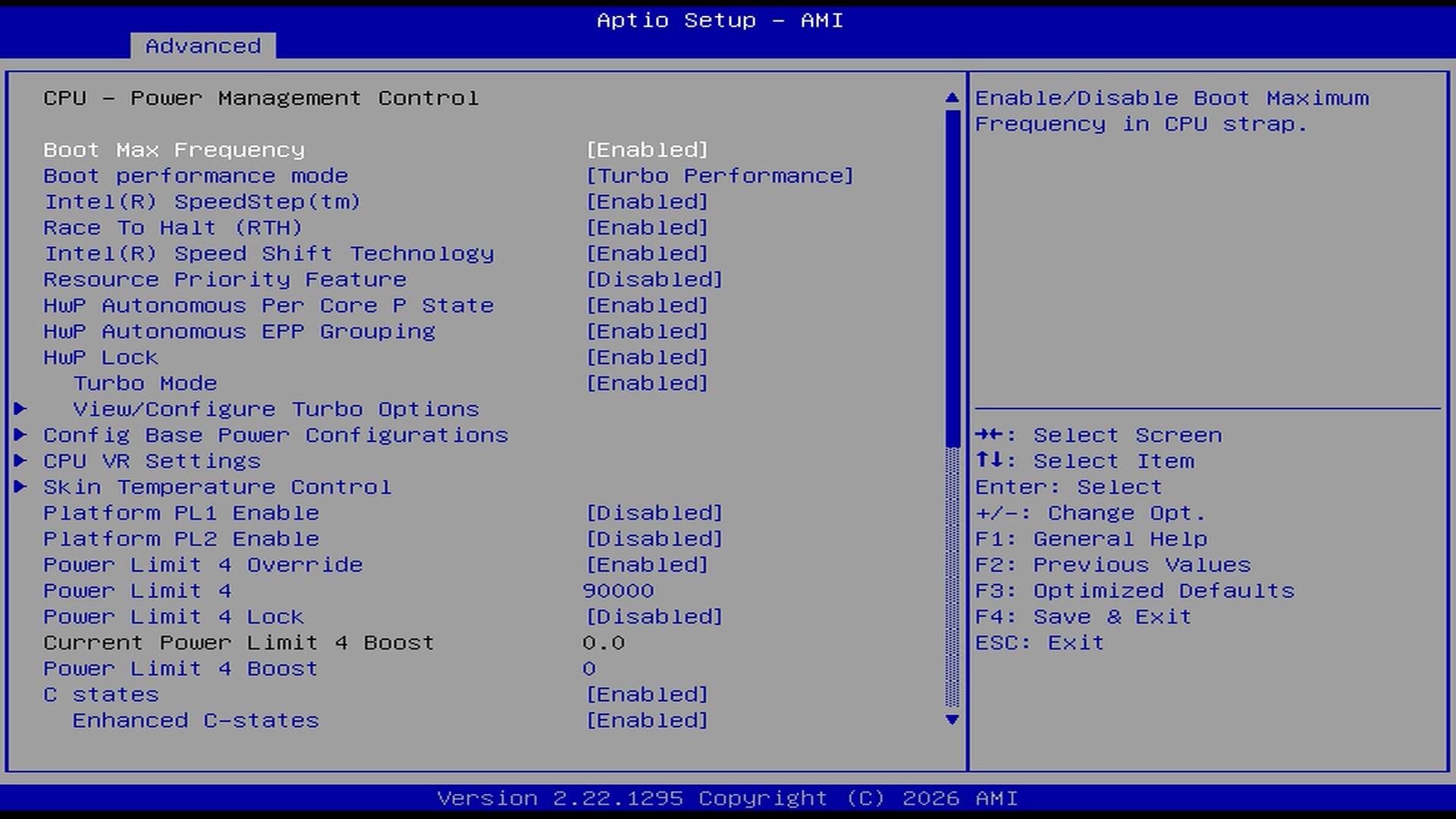

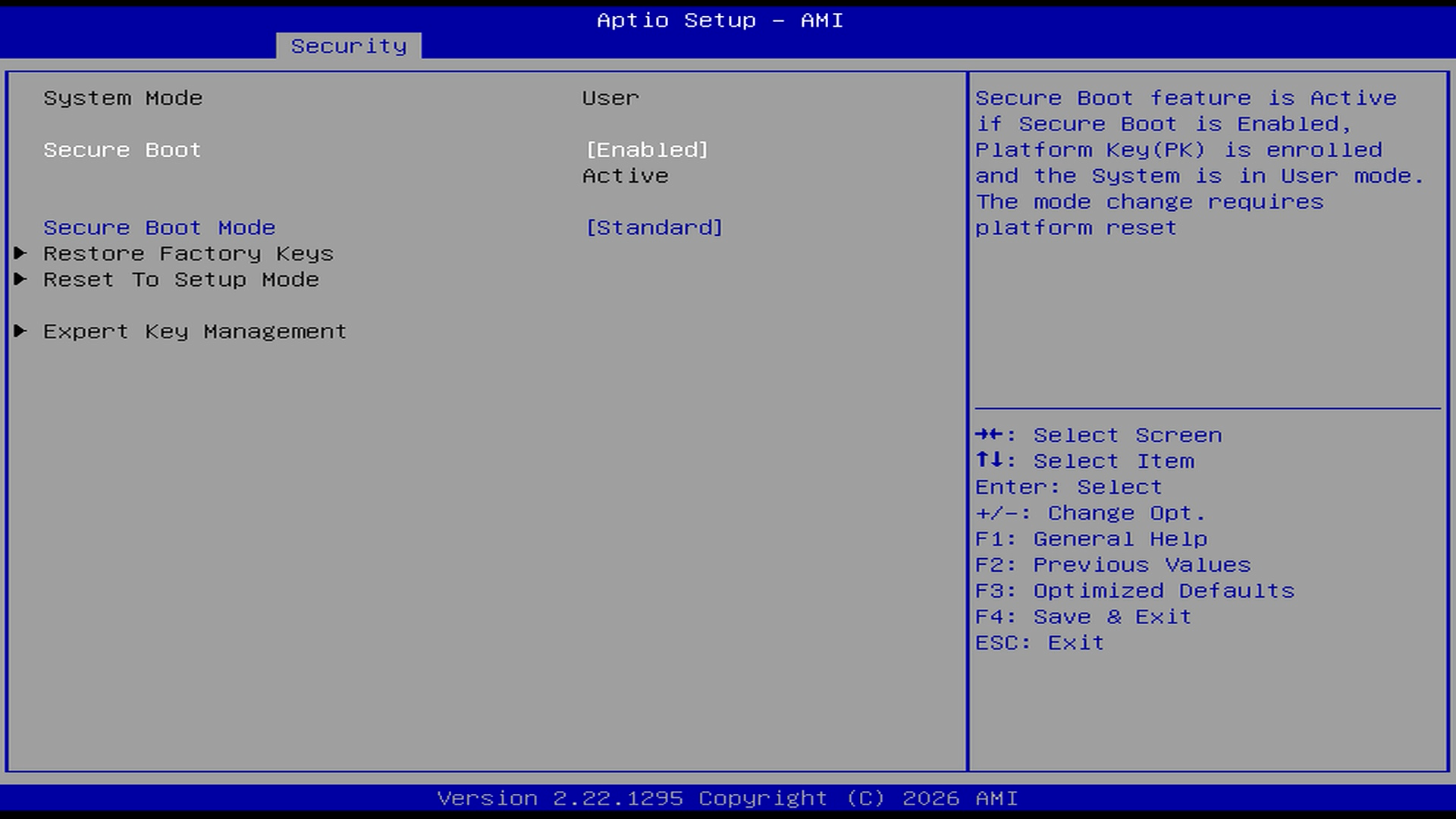

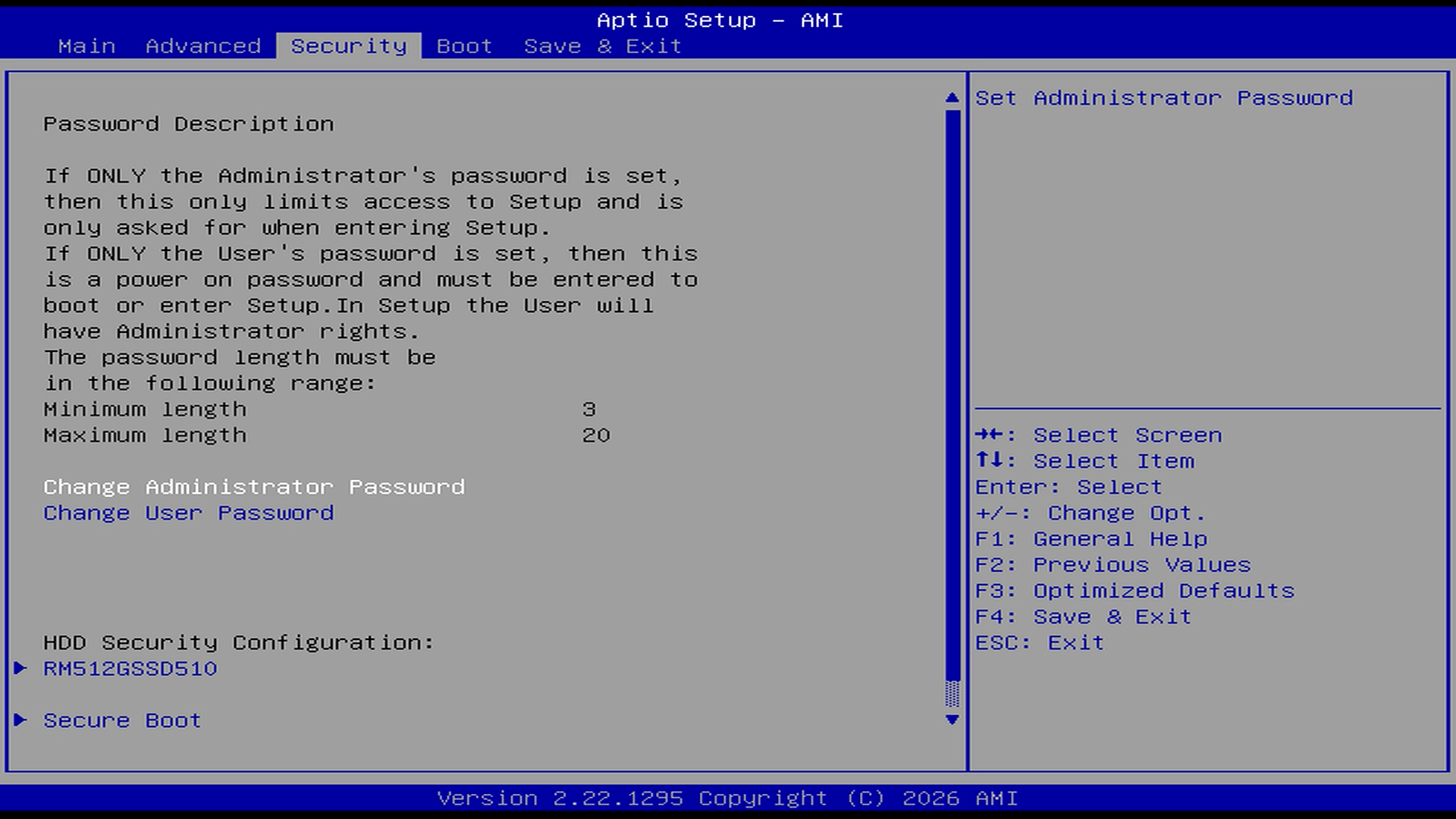

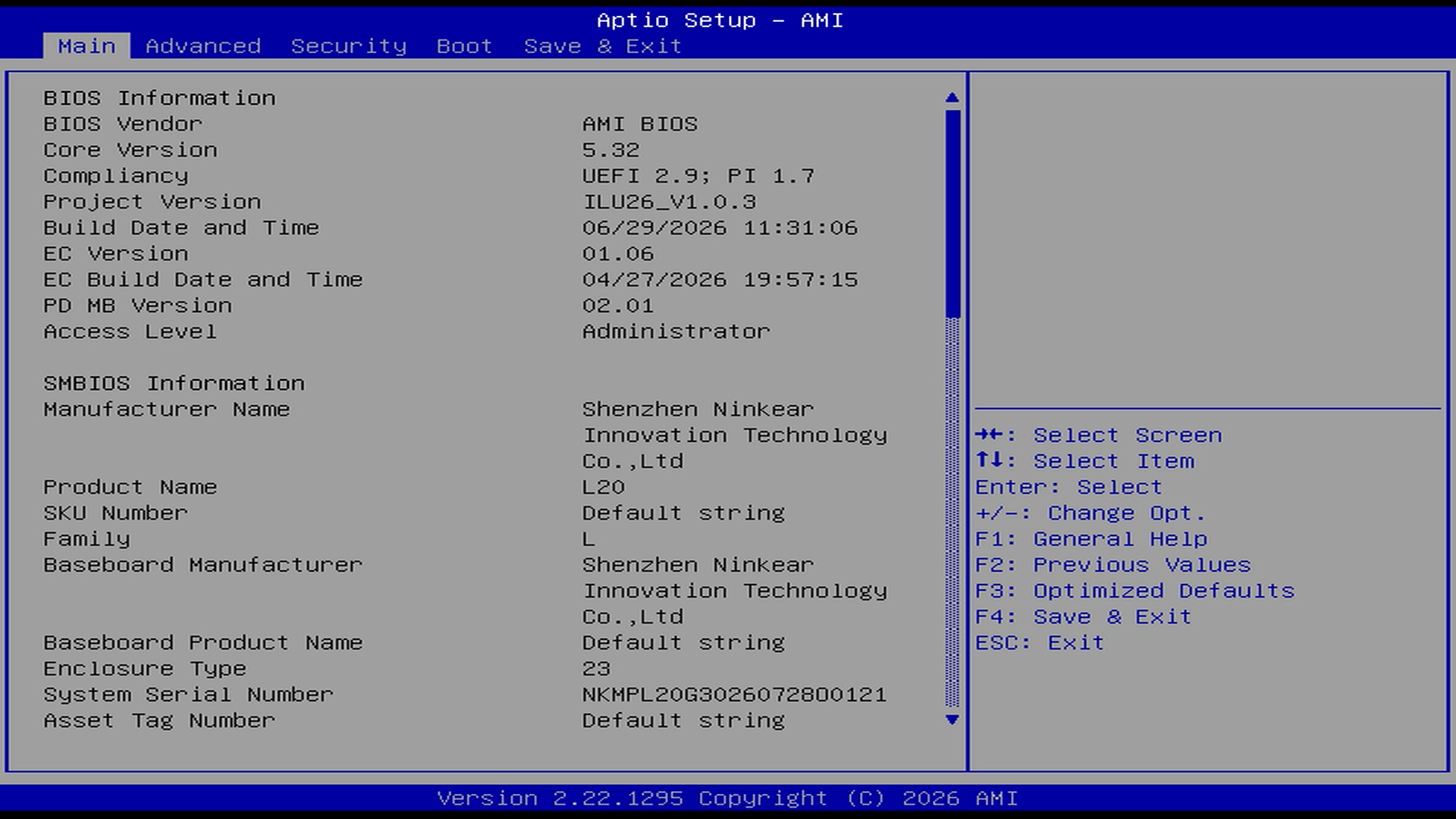

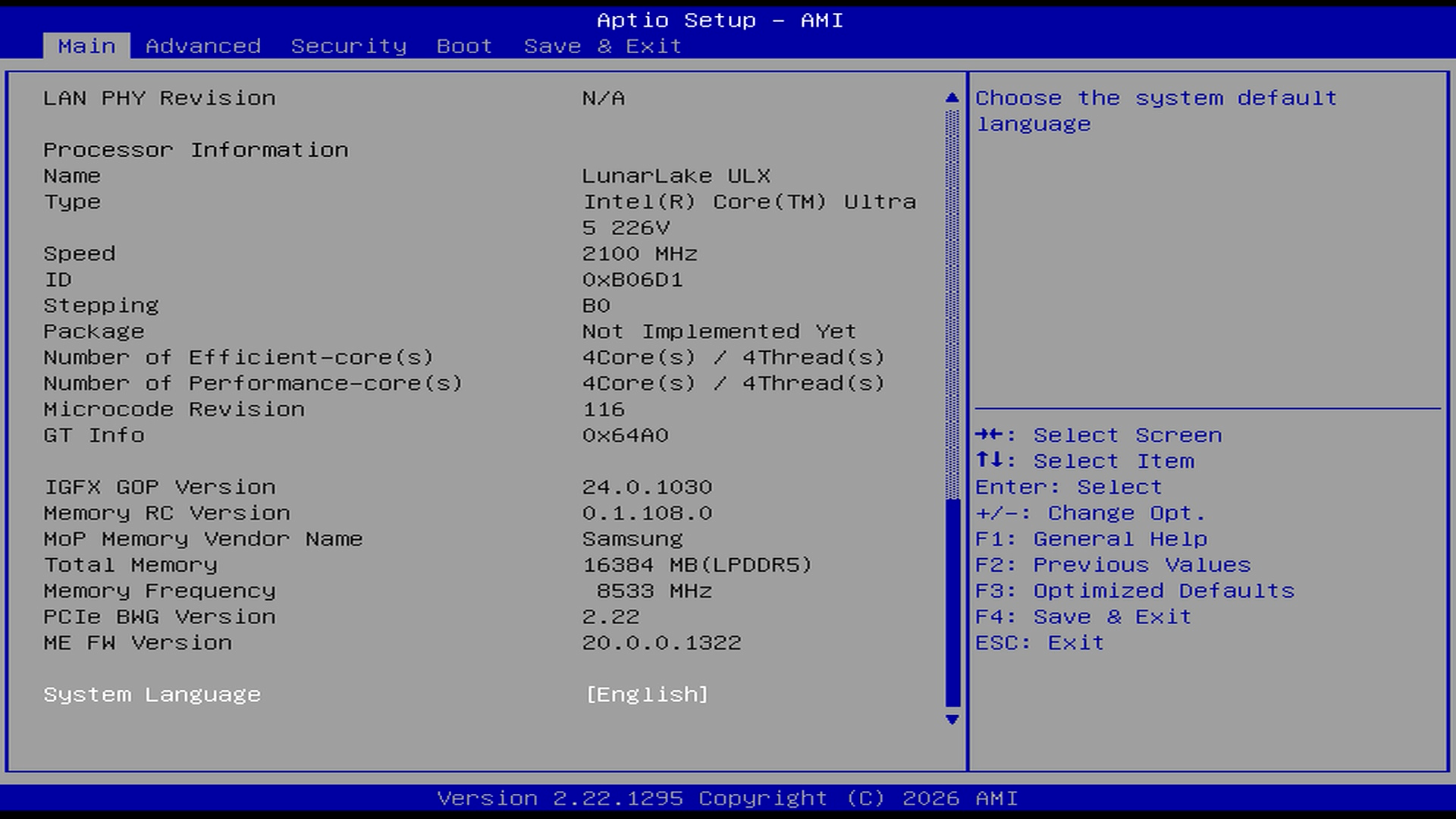

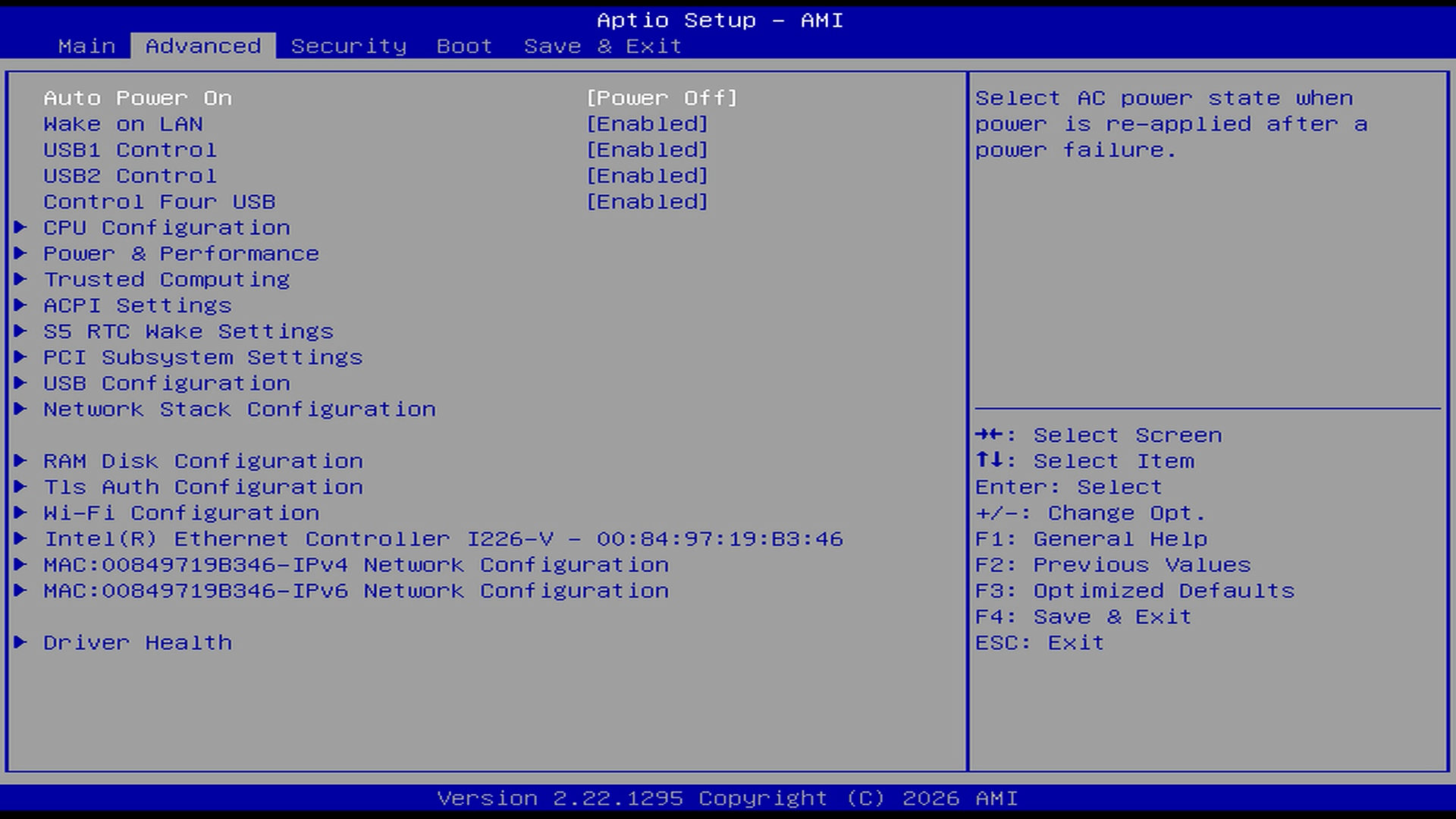

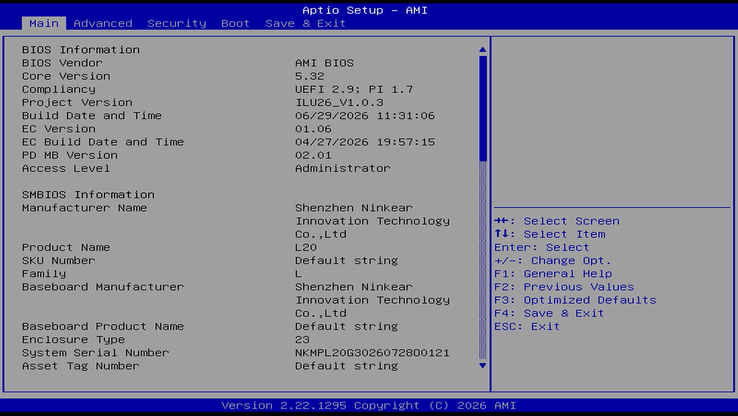

Configurações do BIOS

Processador

O Intel Core Ultra 5 226V oferece um desempenho sólido em combinação com o Ninkear L20 em aplicações de escritório típicas, bem como em multitarefa e outras tarefas do dia a dia. Mesmo as aplicações mais exigentes podem ser executadas sem problemas. Graças à plataforma eficiente, o desempenho mantém-se amplamente estável durante períodos prolongados sob carga. Nos benchmarks multithread, no entanto, o Core Ultra 5 226V não consegue acompanhar as APUs Ryzen mais potentes.

Performance rating - Percent
Minisforum M2 Pro Intel Core Ultra X7 358H	52.4 pt
Geekom IT13 Max Intel Core Ultra 9 185H	47.2 pt
Acemagic Retro X3 AMD Ryzen 7 255	47.1 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	44.4 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	42.1 pt
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	41.9 pt
GMK NucBox K17 Intel Core Ultra 5 226V	39.9 pt
Geekom A5 Pro AMD Ryzen 5 7530U	36.7 pt

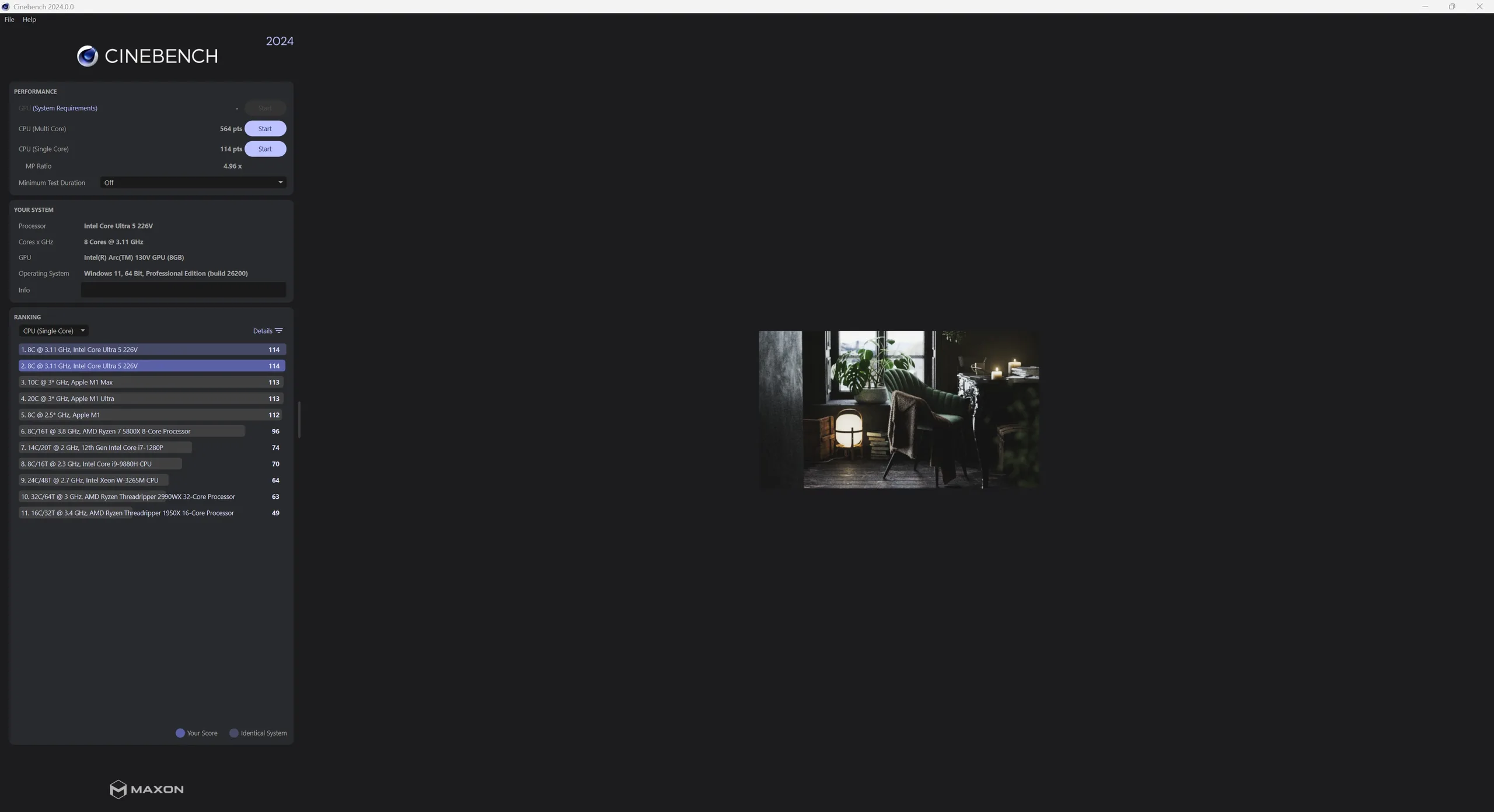

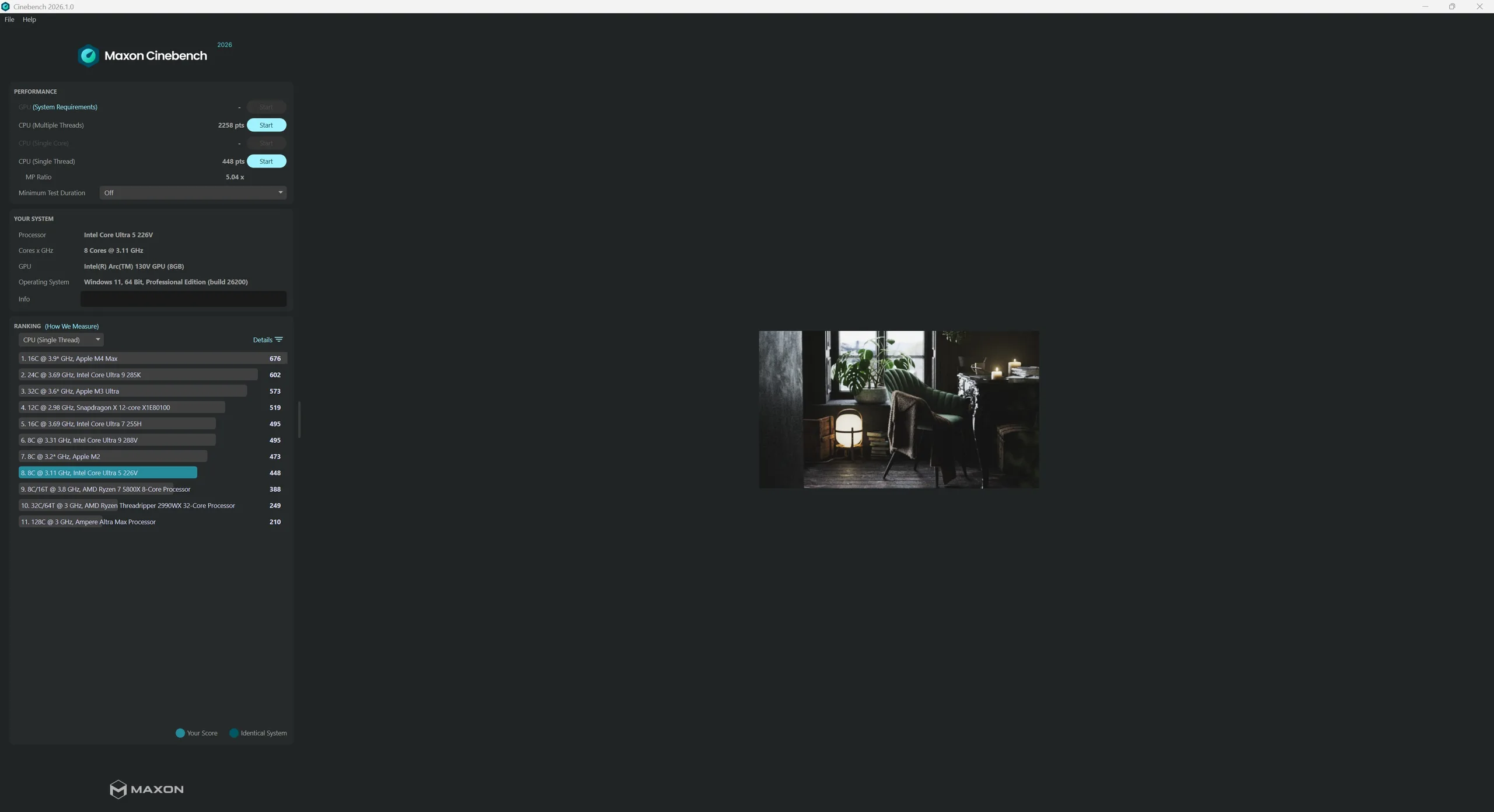

Cinebench 2024
CPU Multi Core
Minisforum M2 Pro Intel Core Ultra X7 358H	1093 Points +94%
Geekom IT13 Max Intel Core Ultra 9 185H	882 Points +56%
Acemagic Retro X3 AMD Ryzen 7 255	876 Points +55%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	722 Points +28%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	600 Points +6%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	564 Points
GMK NucBox K17 Intel Core Ultra 5 226V	523 Points -7%
Geekom A5 Pro AMD Ryzen 5 7530U	398 Points -29%
CPU Single Core
Minisforum M2 Pro Intel Core Ultra X7 358H	123 Points +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	121 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V	115 Points +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	114 Points
Geekom IT13 Max Intel Core Ultra 9 185H	106 Points -7%
Acemagic Retro X3 AMD Ryzen 7 255	99 Points -13%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	89 Points -22%
Geekom A5 Pro AMD Ryzen 5 7530U	85 Points -25%

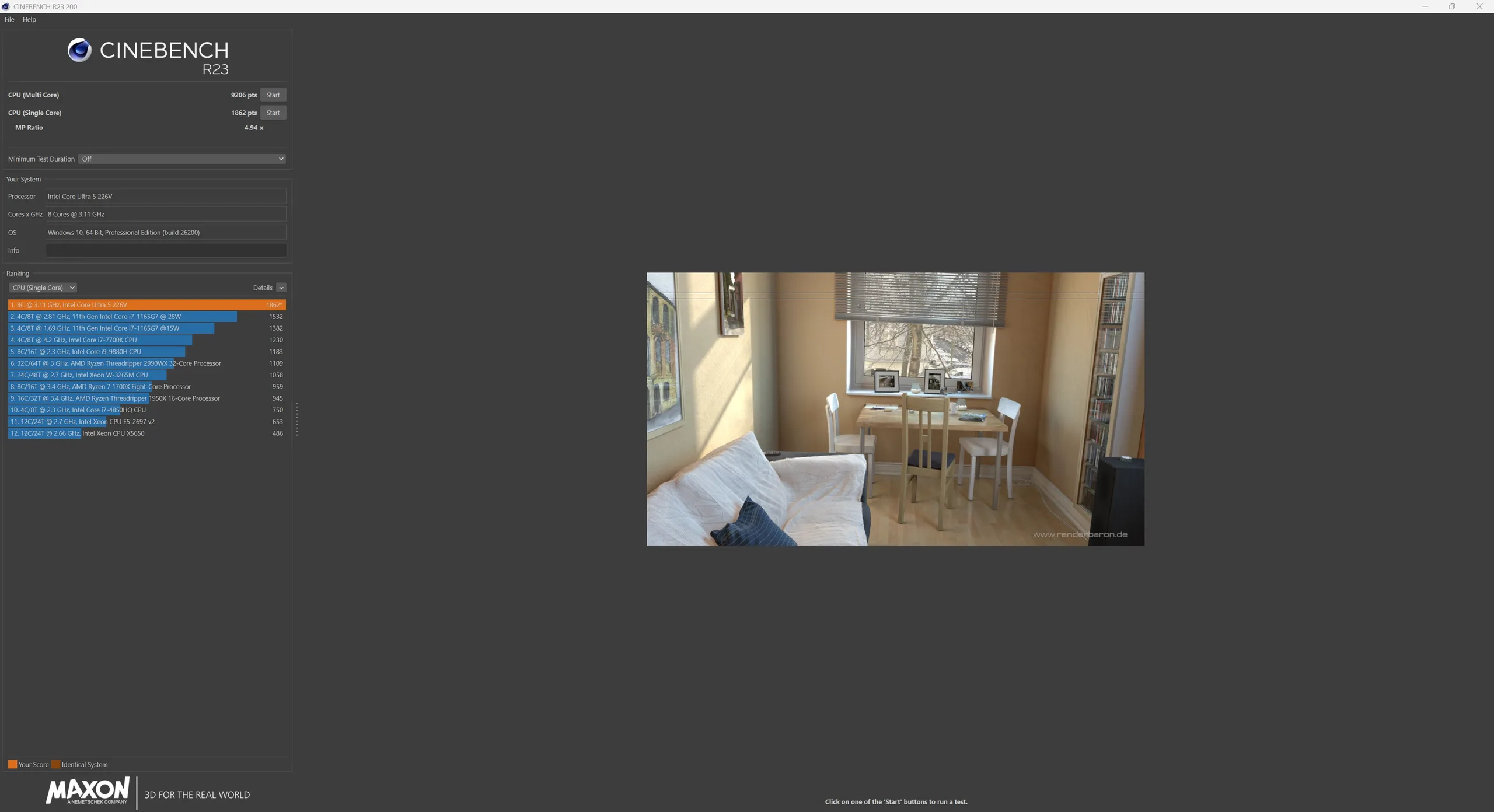

Cinebench R23
Multi Core
Minisforum M2 Pro Intel Core Ultra X7 358H	19916 Points +116%
Geekom IT13 Max Intel Core Ultra 9 185H	16775 Points +82%
Acemagic Retro X3 AMD Ryzen 7 255	16390 Points +78%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12945 Points +41%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	10878 Points +18%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	9206 Points
GMK NucBox K17 Intel Core Ultra 5 226V	8665 Points -6%
Geekom A5 Pro AMD Ryzen 5 7530U	6985 Points -24%
Single Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2045 Points +10%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1964 Points +5%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1862 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1859 Points 0%
Geekom IT13 Max Intel Core Ultra 9 185H	1857 Points 0%
Acemagic Retro X3 AMD Ryzen 7 255	1741 Points -6%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1536 Points -18%
Geekom A5 Pro AMD Ryzen 5 7530U	1435 Points -23%

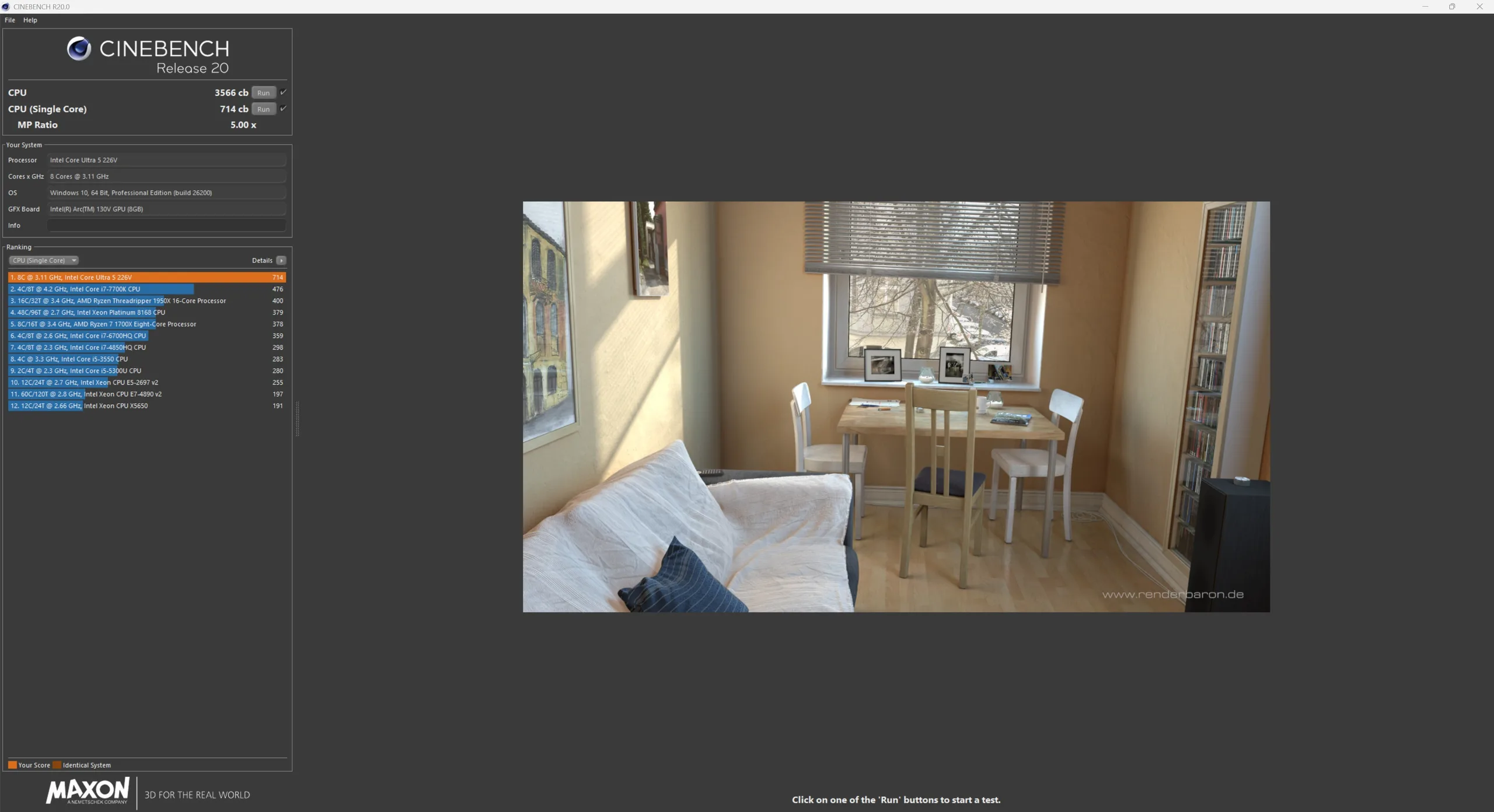

Cinebench R20
CPU (Multi Core)
Minisforum M2 Pro Intel Core Ultra X7 358H	7729 Points +117%
Geekom IT13 Max Intel Core Ultra 9 185H	6554 Points +84%
Acemagic Retro X3 AMD Ryzen 7 255	6409 Points +80%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5022 Points +41%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	4209 Points +18%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	3566 Points
GMK NucBox K17 Intel Core Ultra 5 226V	3380 Points -5%
Geekom A5 Pro AMD Ryzen 5 7530U	2780 Points -22%
CPU (Single Core)
Minisforum M2 Pro Intel Core Ultra X7 358H	770 Points +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	754 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V	714 Points 0%
Geekom IT13 Max Intel Core Ultra 9 185H	714 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	714 Points
Acemagic Retro X3 AMD Ryzen 7 255	676 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	591 Points -17%
Geekom A5 Pro AMD Ryzen 5 7530U	558 Points -22%

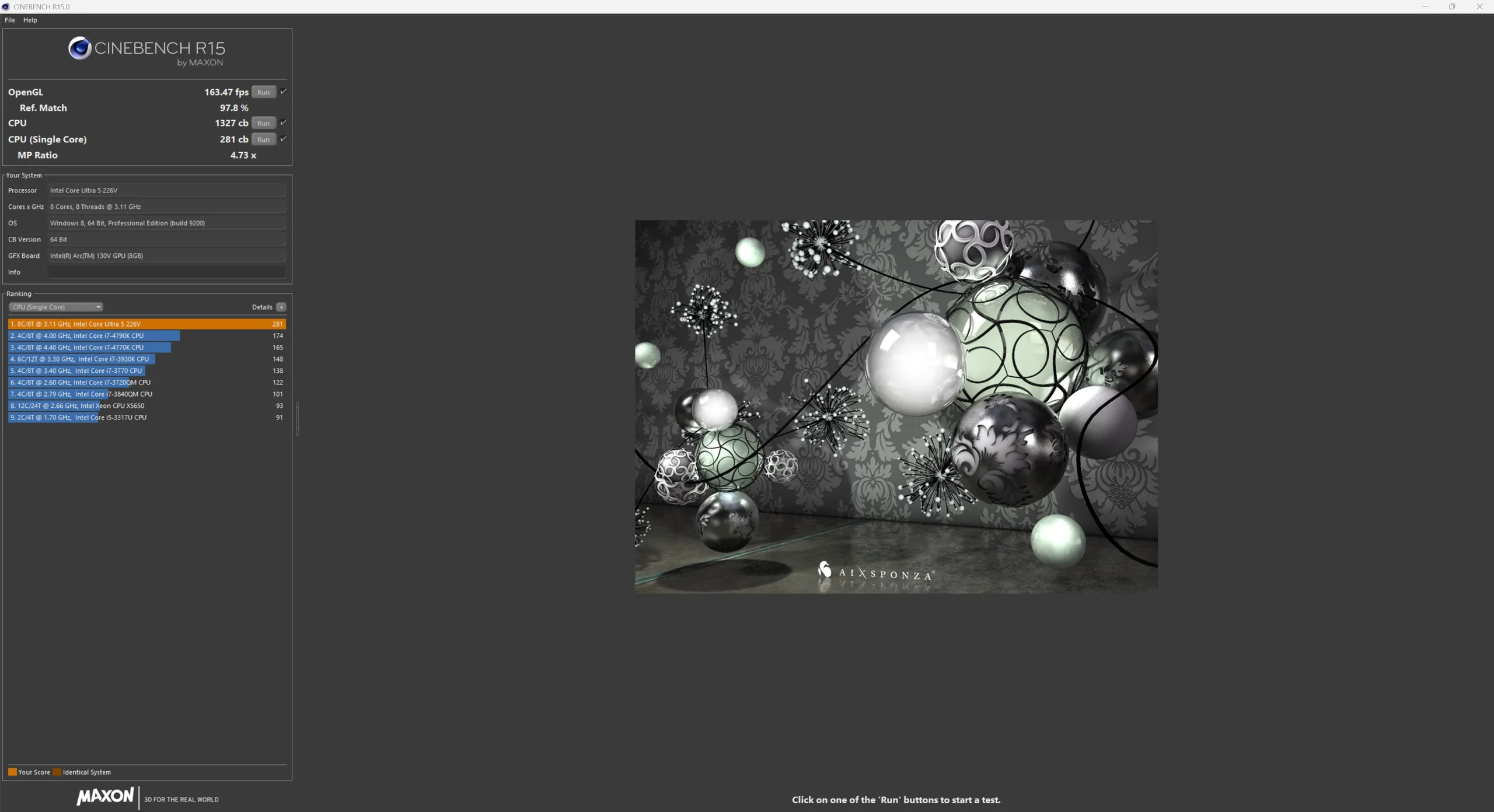

Cinebench R15
CPU Multi 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	3058 Points +130%
Geekom IT13 Max Intel Core Ultra 9 185H	2714 Points +105%
Acemagic Retro X3 AMD Ryzen 7 255	2578 Points +94%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2092 Points +58%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1639 Points +24%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1327 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -6%
Geekom A5 Pro AMD Ryzen 5 7530U	1101 Points -17%
CPU Single 64Bit
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	299 Points +6%
Minisforum M2 Pro Intel Core Ultra X7 358H	295 Points +5%
GMK NucBox K17 Intel Core Ultra 5 226V	282 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	281 Points
Acemagic Retro X3 AMD Ryzen 7 255	275 Points -2%
Geekom IT13 Max Intel Core Ultra 9 185H	266 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	244 Points -13%
Geekom A5 Pro AMD Ryzen 5 7530U	231 Points -18%

Cinebench R11.5
CPU Multi 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	37.94 Points +102%
Geekom IT13 Max Intel Core Ultra 9 185H	32.53 Points +73%
Acemagic Retro X3 AMD Ryzen 7 255	30.18 Points +61%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	24.09 Points +28%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	20.56 Points +9%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	18.8 Points
GMK NucBox K17 Intel Core Ultra 5 226V	15.79 Points -16%
Geekom A5 Pro AMD Ryzen 5 7530U	14.55 Points -23%
CPU Single 64Bit
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	3.56 Points +6%
Minisforum M2 Pro Intel Core Ultra X7 358H	3.54 Points +5%
GMK NucBox K17 Intel Core Ultra 5 226V	3.36 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	3.36 Points
Acemagic Retro X3 AMD Ryzen 7 255	3.25 Points -3%
Geekom IT13 Max Intel Core Ultra 9 185H	3.21 Points -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2.9 Points -14%
Geekom A5 Pro AMD Ryzen 5 7530U	2.75 Points -18%

Cinebench R10
Rendering Single CPUs 64Bit
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	16650 Points +8%
Minisforum M2 Pro Intel Core Ultra X7 358H	16561 Points +7%
GMK NucBox K17 Intel Core Ultra 5 226V	15701 Points +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	15472 Points
Geekom IT13 Max Intel Core Ultra 9 185H	14783 Points -4%
Acemagic Retro X3 AMD Ryzen 7 255	13907 Points -10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12061 Points -22%
Geekom A5 Pro AMD Ryzen 5 7530U	11586 Points -25%
Rendering Multiple CPUs 64Bit
Minisforum M2 Pro Intel Core Ultra X7 358H	111935 Points +67%
Geekom IT13 Max Intel Core Ultra 9 185H	87150 Points +30%
Acemagic Retro X3 AMD Ryzen 7 255	85088 Points +27%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	74728 Points +11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	68830 Points +3%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	67036 Points
GMK NucBox K17 Intel Core Ultra 5 226V	56263 Points -16%
Geekom A5 Pro AMD Ryzen 5 7530U	47058 Points -30%

Blender
v2.79 BMW27 CPU
Geekom A5 Pro AMD Ryzen 5 7530U	448 Seconds * -27%
GMK NucBox K17 Intel Core Ultra 5 226V	387 Seconds * -9%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	354 Seconds *
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	320 Seconds * +10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	241 Seconds * +32%
Geekom IT13 Max Intel Core Ultra 9 185H	199 Seconds * +44%
Acemagic Retro X3 AMD Ryzen 7 255	196 Seconds * +45%
Minisforum M2 Pro Intel Core Ultra X7 358H	181 Seconds * +49%
v3.3 Classroom CPU
Geekom A5 Pro AMD Ryzen 5 7530U	792 Seconds * -41%
GMK NucBox K17 Intel Core Ultra 5 226V	642 Seconds * -14%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	562 Seconds *
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	522 Seconds * +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	405 Seconds * +28%
Geekom IT13 Max Intel Core Ultra 9 185H	344 Seconds * +39%
Acemagic Retro X3 AMD Ryzen 7 255	316 Seconds * +44%
Minisforum M2 Pro Intel Core Ultra X7 358H	299 Seconds * +47%
v4.3 Barbershop CPU
Geekom A5 Pro AMD Ryzen 5 7530U	3879 Seconds * -32%
GMK NucBox K17 Intel Core Ultra 5 226V	3291 Seconds * -12%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2937 Seconds *
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2739 Seconds * +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2038 Seconds * +31%
Geekom IT13 Max Intel Core Ultra 9 185H	1766 Seconds * +40%
Acemagic Retro X3 AMD Ryzen 7 255	1581 Seconds * +46%
Minisforum M2 Pro Intel Core Ultra X7 358H	1491 Seconds * +49%

wPrime 2.10
32m
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	8.18 s *
GMK NucBox K17 Intel Core Ultra 5 226V	7.806 s * +5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	7.273 s * +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	6.926 s * +15%
Geekom A5 Pro AMD Ryzen 5 7530U	5.509 s * +33%
Geekom IT13 Max Intel Core Ultra 9 185H	4.07 s * +50%
Minisforum M2 Pro Intel Core Ultra X7 358H	3.45 s * +58%
Acemagic Retro X3 AMD Ryzen 7 255	2.991 s * +63%
1024m
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	357.358 s *
GMK NucBox K17 Intel Core Ultra 5 226V	336.5 s * +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	313.598 s * +12%
Minisforum M2 Pro Intel Core Ultra X7 358H	281.267 s * +21%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	184.594 s * +48%
Geekom A5 Pro AMD Ryzen 5 7530U	172.674 s * +52%
Geekom IT13 Max Intel Core Ultra 9 185H	96.87 s * +73%
Acemagic Retro X3 AMD Ryzen 7 255	70.884 s * +80%

X264 HD Benchmark 4.0
Pass 1
Minisforum M2 Pro Intel Core Ultra X7 358H	330.5 (328^min - 332^max) fps +15%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	327 (326^min - 328^max) fps +13%
Geekom IT13 Max Intel Core Ultra 9 185H	295.5 (292^min - 307^max) fps +2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	288.5 (285^min - 290^max) fps
GMK NucBox K17 Intel Core Ultra 5 226V	275.5 (274^min - 276^max) fps -5%
Acemagic Retro X3 AMD Ryzen 7 255	261 (258^min - 264^max) fps -10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	252.5 (248^min - 254^max) fps -12%
Geekom A5 Pro AMD Ryzen 5 7530U	227.5 (213^min - 237^max) fps -21%
Pass 2
Minisforum M2 Pro Intel Core Ultra X7 358H	175.85 (172.8^min - 176.6^max) fps +93%
Geekom IT13 Max Intel Core Ultra 9 185H	146.9 (145.9^min - 151.4^max) fps +61%
Acemagic Retro X3 AMD Ryzen 7 255	142.05 (141^min - 144.5^max) fps +56%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	119.75 (119.7^min - 120.1^max) fps +32%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	100.3 (94.7^min - 101.4^max) fps +10%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	91.05 (90.7^min - 91.1^max) fps
GMK NucBox K17 Intel Core Ultra 5 226V	79.1 (79^min - 79.3^max) fps -13%
Geekom A5 Pro AMD Ryzen 5 7530U	71.3 (65.3^min - 73.8^max) fps -22%

WinRAR - Result
Minisforum M2 Pro Intel Core Ultra X7 358H	7211 KB/s +52%
Geekom A5 Pro AMD Ryzen 5 7530U	6599 KB/s +39%
Geekom IT13 Max Intel Core Ultra 9 185H	6499 KB/s +37%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	6472 KB/s +36%
Acemagic Retro X3 AMD Ryzen 7 255	6140 KB/s +29%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	5189 KB/s +9%
GMK NucBox K17 Intel Core Ultra 5 226V	4880 KB/s +3%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	4756 KB/s

TrueCrypt
AES Mean 100MB
Acemagic Retro X3 AMD Ryzen 7 255	14.7 GB/s +104%
Minisforum M2 Pro Intel Core Ultra X7 358H	14.1 GB/s +96%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	11.7 GB/s +62%
Geekom IT13 Max Intel Core Ultra 9 185H	11 GB/s +53%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8 GB/s +11%
Geekom A5 Pro AMD Ryzen 5 7530U	7.5 GB/s +4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7.2 GB/s
GMK NucBox K17 Intel Core Ultra 5 226V	5.8 GB/s -19%
Twofish Mean 100MB
Minisforum M2 Pro Intel Core Ultra X7 358H	2.5 GB/s +92%
Geekom IT13 Max Intel Core Ultra 9 185H	2.1 GB/s +62%
Acemagic Retro X3 AMD Ryzen 7 255	2 GB/s +54%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1.7 GB/s +31%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1.4 GB/s +8%
GMK NucBox K17 Intel Core Ultra 5 226V	1.3 GB/s 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1.3 GB/s
Geekom A5 Pro AMD Ryzen 5 7530U	1.1 GB/s -15%
Serpent Mean 100MB
Acemagic Retro X3 AMD Ryzen 7 255	1.3 GB/s +100%
Geekom IT13 Max Intel Core Ultra 9 185H	1.2 GB/s +85%
Minisforum M2 Pro Intel Core Ultra X7 358H	1.2 GB/s +85%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1.1 GB/s +69%
Geekom A5 Pro AMD Ryzen 5 7530U	0.755 GB/s +16%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	0.713 GB/s +10%
GMK NucBox K17 Intel Core Ultra 5 226V	0.657 GB/s +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	0.649 GB/s

Geekbench AI
Quantized CPU 1.2
Minisforum M2 Pro Intel Core Ultra X7 358H	7561 Points +75%
Acemagic Retro X3 AMD Ryzen 7 255	6745 Points +56%
Geekom IT13 Max Intel Core Ultra 9 185H	6055 Points +40%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	4960 Points +15%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	4561 Points +5%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	4327 Points
GMK NucBox K17 Intel Core Ultra 5 226V	4298 Points -1%
Geekom A5 Pro AMD Ryzen 5 7530U	3353 Points -23%
Half Precision CPU 1.2
Minisforum M2 Pro Intel Core Ultra X7 358H	1818 Points +53%
Acemagic Retro X3 AMD Ryzen 7 255	1682 Points +42%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1406 Points +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1355 Points +14%
Geekom IT13 Max Intel Core Ultra 9 185H	1354 Points +14%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1187 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1184 Points 0%
Geekom A5 Pro AMD Ryzen 5 7530U	1101 Points -7%
Single Precision CPU 1.2
Minisforum M2 Pro Intel Core Ultra X7 358H	4258 Points +87%
Acemagic Retro X3 AMD Ryzen 7 255	3929 Points +72%
Geekom IT13 Max Intel Core Ultra 9 185H	3377 Points +48%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	3089 Points +36%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2629 Points +15%
Geekom A5 Pro AMD Ryzen 5 7530U	2288 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2279 Points
GMK NucBox K17 Intel Core Ultra 5 226V	2243 Points -2%
Quantized CPU 1.7
Minisforum M2 Pro Intel Core Ultra X7 358H	8543 Points +51%
Acemagic Retro X3 AMD Ryzen 7 255	8056 Points +42%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	6752 Points +19%
Geekom IT13 Max Intel Core Ultra 9 185H	6688 Points +18%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	5668 Points
GMK NucBox K17 Intel Core Ultra 5 226V	5529 Points -2%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5197 Points -8%
Geekom A5 Pro AMD Ryzen 5 7530U	3706 Points -35%
Half Precision CPU 1.7
Minisforum M2 Pro Intel Core Ultra X7 358H	2047 Points +59%
Acemagic Retro X3 AMD Ryzen 7 255	1895 Points +47%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1497 Points +16%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1465 Points +14%
Geekom IT13 Max Intel Core Ultra 9 185H	1414 Points +10%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1289 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -3%
Geekom A5 Pro AMD Ryzen 5 7530U	1167 Points -9%
Single Precision CPU 1.7
Minisforum M2 Pro Intel Core Ultra X7 358H	4631 Points +61%
Acemagic Retro X3 AMD Ryzen 7 255	4111 Points +43%
Geekom IT13 Max Intel Core Ultra 9 185H	3519 Points +23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	3319 Points +16%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	3300 Points +15%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2872 Points
GMK NucBox K17 Intel Core Ultra 5 226V	2621 Points -9%
Geekom A5 Pro AMD Ryzen 5 7530U	2381 Points -17%

Geekbench 6.7
Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2848 Points +9%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2782 Points +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2779 Points +7%
GMK NucBox K17 Intel Core Ultra 5 226V	2619 Points +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2604 Points
Acemagic Retro X3 AMD Ryzen 7 255	2505 Points -4%
Geekom IT13 Max Intel Core Ultra 9 185H	2465 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2078 Points -20%
Geekom A5 Pro AMD Ryzen 5 7530U	1991 Points -24%
Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	16338 Points +63%
Geekom IT13 Max Intel Core Ultra 9 185H	13160 Points +31%
Acemagic Retro X3 AMD Ryzen 7 255	11267 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	11106 Points +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	11010 Points +10%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	10045 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9625 Points -4%
GMK NucBox K17 Intel Core Ultra 5 226V	9100 Points -9%
Geekom A5 Pro AMD Ryzen 5 7530U	7067 Points -30%

Geekbench 6.0
Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2720 Points +9%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2653 Points +7%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	2488 Points
Geekom IT13 Max Intel Core Ultra 9 185H	2319 Points -7%
Acemagic Retro X3 AMD Ryzen 7 255	2175 Points -13%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2028 Points -18%
Geekom A5 Pro AMD Ryzen 5 7530U	1919 Points -23%
GMK NucBox K17 Intel Core Ultra 5 226V	1177 Points -53%
Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	15461 Points +63%
Geekom IT13 Max Intel Core Ultra 9 185H	12728 Points +34%
Acemagic Retro X3 AMD Ryzen 7 255	12046 Points +27%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	10584 Points +12%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	9485 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9477 Points 0%
Geekom A5 Pro AMD Ryzen 5 7530U	6800 Points -28%
GMK NucBox K17 Intel Core Ultra 5 226V	5782 Points -39%

Geekbench 5.5
Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	16305 Points +84%
Geekom IT13 Max Intel Core Ultra 9 185H	13184 Points +49%
Acemagic Retro X3 AMD Ryzen 7 255	10844 Points +23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	9632 Points +9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9241 Points +4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	8845 Points
GMK NucBox K17 Intel Core Ultra 5 226V	8063 Points -9%
Geekom A5 Pro AMD Ryzen 5 7530U	6275 Points -29%
Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2098 Points +10%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2036 Points +7%
GMK NucBox K17 Intel Core Ultra 5 226V	1914 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1906 Points
Acemagic Retro X3 AMD Ryzen 7 255	1864 Points -2%
Geekom IT13 Max Intel Core Ultra 9 185H	1822 Points -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1517 Points -20%
Geekom A5 Pro AMD Ryzen 5 7530U	1512 Points -21%

Geekbench 5.0
5.0 Multi-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	16268 Points +86%
Geekom IT13 Max Intel Core Ultra 9 185H	13171 Points +50%
Acemagic Retro X3 AMD Ryzen 7 255	10808 Points +23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	9623 Points +10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9288 Points +6%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	8764 Points
GMK NucBox K17 Intel Core Ultra 5 226V	8152 Points -7%
Geekom A5 Pro AMD Ryzen 5 7530U	6158 Points -30%
5.0 Single-Core
Minisforum M2 Pro Intel Core Ultra X7 358H	2064 Points +10%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1972 Points +6%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	1869 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1865 Points 0%
Geekom IT13 Max Intel Core Ultra 9 185H	1764 Points -6%
Acemagic Retro X3 AMD Ryzen 7 255	1729 Points -7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1476 Points -21%
Geekom A5 Pro AMD Ryzen 5 7530U	1437 Points -23%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum M2 Pro Intel Core Ultra X7 358H	57634 Points +81%
Geekom IT13 Max Intel Core Ultra 9 185H	48415 Points +52%
Acemagic Retro X3 AMD Ryzen 7 255	45332 Points +43%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	36890 Points +16%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	33140 Points +4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	31756 Points
GMK NucBox K17 Intel Core Ultra 5 226V	28864 Points -9%
Geekom A5 Pro AMD Ryzen 5 7530U	25100 Points -21%
64 Bit Single-Core Score
Minisforum M2 Pro Intel Core Ultra X7 358H	8704 Points +9%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8474 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V	8018 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7981 Points
Acemagic Retro X3 AMD Ryzen 7 255	7667 Points -4%
Geekom IT13 Max Intel Core Ultra 9 185H	7424 Points -7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	6388 Points -20%
Geekom A5 Pro AMD Ryzen 5 7530U	6193 Points -22%

3DMark 11 - 1280x720 Performance Physics
Minisforum M2 Pro Intel Core Ultra X7 358H	21585 Points +53%
Geekom IT13 Max Intel Core Ultra 9 185H	20911 Points +48%
Acemagic Retro X3 AMD Ryzen 7 255	19506 Points +38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	17073 Points +21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	15268 Points +8%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	14125 Points
GMK NucBox K17 Intel Core Ultra 5 226V	13612 Points -4%
Geekom A5 Pro AMD Ryzen 5 7530U	11575 Points -18%

7-Zip 18.03
7z b 4
Minisforum M2 Pro Intel Core Ultra X7 358H	67406 MIPS +108%
Acemagic Retro X3 AMD Ryzen 7 255	66847 MIPS +106%
Geekom IT13 Max Intel Core Ultra 9 185H	66510 MIPS +105%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	59045 MIPS +82%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	36044 MIPS +11%
Geekom A5 Pro AMD Ryzen 5 7530U	35907 MIPS +11%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	32446 MIPS
GMK NucBox K17 Intel Core Ultra 5 226V	31083 MIPS -4%
7z b 4 -mmt1
Acemagic Retro X3 AMD Ryzen 7 255	6178 MIPS +17%
Minisforum M2 Pro Intel Core Ultra X7 358H	6140 MIPS +16%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	5875 MIPS +11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5662 MIPS +7%
Geekom IT13 Max Intel Core Ultra 9 185H	5522 MIPS +4%
GMK NucBox K17 Intel Core Ultra 5 226V	5452 MIPS +3%
Geekom A5 Pro AMD Ryzen 5 7530U	5386 MIPS +2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	5298 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum M2 Pro Intel Core Ultra X7 358H	22.4 fps +76%
Acemagic Retro X3 AMD Ryzen 7 255	19.8 fps +56%
Geekom IT13 Max Intel Core Ultra 9 185H	19.7 fps +55%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	16.3 fps +28%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	13.8 fps +9%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	12.7 fps
GMK NucBox K17 Intel Core Ultra 5 226V	10.9 fps -14%
Geekom A5 Pro AMD Ryzen 5 7530U	9.07 fps -29%

R Benchmark 2.5 - Overall mean
Geekom A5 Pro AMD Ryzen 5 7530U	0.519 sec * -6%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	0.4932 sec * -1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	0.4882 sec *
GMK NucBox K17 Intel Core Ultra 5 226V	0.4746 sec * +3%
Acemagic Retro X3 AMD Ryzen 7 255	0.4675 sec * +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	0.4504 sec * +8%
Geekom IT13 Max Intel Core Ultra 9 185H	0.4501 sec * +8%
Minisforum M2 Pro Intel Core Ultra X7 358H	0.4237 sec * +13%

LibreOffice - 20 Documents To PDF
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	79.8 s *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	74 s * +7%
GMK NucBox K17 Intel Core Ultra 5 226V	62.1 s * +22%
Acemagic Retro X3 AMD Ryzen 7 255	61.1 s * +23%
Geekom A5 Pro AMD Ryzen 5 7530U	58.9 s * +26%
Geekom IT13 Max Intel Core Ultra 9 185H	51.4 s * +36%
Minisforum M2 Pro Intel Core Ultra X7 358H	50.1 s * +37%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	48.3 s * +39%

3DMark
1920x1080 Fire Strike Physics
Minisforum M2 Pro Intel Core Ultra X7 358H	28593 Points +45%
Geekom IT13 Max Intel Core Ultra 9 185H	28505 Points +45%
Acemagic Retro X3 AMD Ryzen 7 255	27148 Points +38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	23457 Points +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	22021 Points +12%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	19687 Points
GMK NucBox K17 Intel Core Ultra 5 226V	18892 Points -4%
Geekom A5 Pro AMD Ryzen 5 7530U	15232 Points -23%
2560x1440 Time Spy CPU
Minisforum M2 Pro Intel Core Ultra X7 358H	14241 Points +89%
Geekom IT13 Max Intel Core Ultra 9 185H	10487 Points +40%
Acemagic Retro X3 AMD Ryzen 7 255	9227 Points +23%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9095 Points +21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8219 Points +9%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7516 Points
GMK NucBox K17 Intel Core Ultra 5 226V	6588 Points -12%
Geekom A5 Pro AMD Ryzen 5 7530U	4860 Points -35%

Super Pi mod 1.5 XS 1M - 1M
Geekom A5 Pro AMD Ryzen 5 7530U	8.703 s * -13%
GMK NucBox K17 Intel Core Ultra 5 226V	8.517 s * -11%
Acemagic Retro X3 AMD Ryzen 7 255	8.481 s * -11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8.003 s * -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	7.859 s * -2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	7.672 s *
Minisforum M2 Pro Intel Core Ultra X7 358H	7.248 s * +6%
Geekom IT13 Max Intel Core Ultra 9 185H	6.841 s * +11%

Super Pi mod 1.5 XS 2M - 2M
Acemagic Retro X3 AMD Ryzen 7 255	20.859 s * -28%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	19.277 s * -18%
Geekom A5 Pro AMD Ryzen 5 7530U	18.825 s * -15%
GMK NucBox K17 Intel Core Ultra 5 226V	18.695 s * -14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	17.554 s * -7%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	16.336 s *
Minisforum M2 Pro Intel Core Ultra X7 358H	15.885 s * +3%
Geekom IT13 Max Intel Core Ultra 9 185H	15.115 s * +7%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum M2 Pro Intel Core Ultra X7 358H	1163 Points +100%
Geekom IT13 Max Intel Core Ultra 9 185H	868 Points +49%
Acemagic Retro X3 AMD Ryzen 7 255	774 Points +33%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	651 Points +12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	633 Points +9%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V	582 Points
GMK NucBox K17 Intel Core Ultra 5 226V	348 Points -40%
Geekom A5 Pro AMD Ryzen 5 7530U	338 Points -42%

* ... menor é melhor

Cinebench R10 Rendering Single 32Bit

9962

Cinebench R10 Shading 64Bit

15696 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

67036 Points

Cinebench R10 Rendering Single CPUs 64Bit

15472 Points

Cinebench R10 Shading 32Bit

13575

Cinebench R10 Rendering Multiple CPUs 32Bit

41397

Cinebench R11.5 CPU Single 32Bit

2.92 Points

Cinebench R11.5 CPU Multi 32Bit

16.51 Points

Cinebench R11.5 OpenGL 32Bit

97.43 fps

Cinebench R11.5 CPU Single 64Bit

3.36 Points

Cinebench R11.5 CPU Multi 64Bit

18.8 Points

Cinebench R11.5 OpenGL 64Bit

100.97 fps

Cinebench R15 CPU Single 64Bit

281 Points

Cinebench R15 CPU Multi 64Bit

1327 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

163.47 fps

Cinebench R20 CPU (Single Core)

714 Points

Cinebench R20 CPU (Multi Core)

3566 Points

Cinebench R23 Multi Core

9206 Points

Cinebench R23 Single Core

1862 Points

Cinebench 2024 CPU Single Core

114 Points

Cinebench 2024 CPU Multi Core

564 Points

Cinebench 2026 CPU Multi

2258 Points

Cinebench 2026 CPU Single Thread

448 Points

Ajuda

... comparado com

Performance rating
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	94.9 pt
Média da turma Mini PC	88 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	70.7 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	68.7 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	53.3 pt
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	49.4 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	43.6 pt

AIDA64 / FP32 Ray-Trace
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	26069 KRay/s +119%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	26023 KRay/s +118%
Média da turma Mini PC (974 - 82725, n=103, últimos 2 anos)	24216 KRay/s +103%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	14704 KRay/s +23%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	14643 KRay/s +23%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	14620 KRay/s +23%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	13192 KRay/s +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	12807 KRay/s +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	12685 KRay/s +7%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	11910 KRay/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	11902 KRay/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	9508 KRay/s -20%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	9335 KRay/s -22%

AIDA64 / FPU Julia
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	107165 Points +78%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	107056 Points +78%
Média da turma Mini PC (6115 - 363782, n=103, últimos 2 anos)	99713 Points +66%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	92957 Points +55%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	92723 Points +54%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75689 Points +26%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75046 Points +25%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	63909 Points +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	63626 Points +6%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	60122 Points
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	60024 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	48424 Points -19%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	48320 Points -20%

AIDA64 / CPU SHA3
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	4716 MB/s +84%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	4716 MB/s +84%
Média da turma Mini PC (385 - 9475, n=103, últimos 2 anos)	4268 MB/s +66%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	3909 MB/s +52%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3756 MB/s +46%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	3104 MB/s +21%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	3099 MB/s +21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2823 MB/s +10%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	2814 MB/s +10%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2564 MB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2540 MB/s -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2202 MB/s -14%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2197 MB/s -14%

AIDA64 / CPU Queen
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	117439 Points +150%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	96912 Points +107%
Média da turma Mini PC (20501 - 154404, n=80, últimos 2 anos)	89473 Points +91%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	66907 Points +43%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	49663 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	47070 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46930 Points

AIDA64 / FPU SinJulia
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	15011 Points +283%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	15008 Points +283%
Média da turma Mini PC (1116 - 31931, n=103, últimos 2 anos)	12632 Points +223%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	12571 Points +221%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	12535 Points +220%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	10118 Points +158%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	10118 Points +158%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	4433 Points +13%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	4426 Points +13%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3921 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3915 Points 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3916 Points
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3906 Points 0%

AIDA64 / FPU Mandel
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	57596 Points +81%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	57586 Points +81%
Média da turma Mini PC (3322 - 192994, n=103, últimos 2 anos)	52435 Points +65%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	51296 Points +61%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	51217 Points +61%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	39227 Points +23%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	36858 Points +16%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	32338 Points +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	32316 Points +2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	31788 Points
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	31779 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	25349 Points -20%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	25323 Points -20%

AIDA64 / CPU AES
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	87750 MB/s +158%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	87498 MB/s +157%
Média da turma Mini PC (5014 - 204742, n=102, últimos 2 anos)	78243 MB/s +130%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	77622 MB/s +128%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	77212 MB/s +127%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	60867 MB/s +79%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	60825 MB/s +79%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	40221 MB/s +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	40029 MB/s +18%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	34228 MB/s +1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34222 MB/s +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34049 MB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	33842 MB/s -1%

AIDA64 / CPU ZLib
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	1142 MB/s +101%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	1119 MB/s +97%
Média da turma Mini PC (127.2 - 2431, n=103, últimos 2 anos)	1066 MB/s +88%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	1046 MB/s +84%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	1038 MB/s +83%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	805 MB/s +42%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	802 MB/s +41%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	623 MB/s +10%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	621 MB/s +9%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	568 MB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	559 MB/s -2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	521 MB/s -8%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	516 MB/s -9%

AIDA64 / FP64 Ray-Trace
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	14090 KRay/s +113%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	13991 KRay/s +112%
Média da turma Mini PC (537 - 43587, n=103, últimos 2 anos)	12877 KRay/s +95%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	7875 KRay/s +19%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	7070 KRay/s +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	7821 KRay/s +18%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	7802 KRay/s +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	6932 KRay/s +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	6875 KRay/s +4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	6611 KRay/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	6527 KRay/s -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	5165 KRay/s -22%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	5133 KRay/s -22%

AIDA64 / CPU PhotoWorxx
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	56898 MPixel/s +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	52313 MPixel/s -4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	54555 MPixel/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	50023 MPixel/s -8%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	51770 MPixel/s -5%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46620 MPixel/s -15%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	50262 MPixel/s -8%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	48941 MPixel/s -10%
Média da turma Mini PC (8069 - 96843, n=103, últimos 2 anos)	42382 MPixel/s -22%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	30508 MPixel/s -44%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	30485 MPixel/s -44%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	27840 MPixel/s -49%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	27656 MPixel/s -49%

AIDA64 / CPU CheckMate
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	5903 MP/s +149%
Média da turma Mini PC (1743 - 19453, n=23, últimos 2 anos)	5431 MP/s +129%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3258 MP/s +38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	2829 MP/s +20%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2650 MP/s +12%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2367 MP/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2013 MP/s -15%

Teste de resistência Cinebench R15 Multi

Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1358 (1296.89-1391.79) Points

GMK NucBox K17 Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1226 (1212.75-1232.63) Points

Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Intel Core Ultra 7 256V: Ø1516 (1478.8-1599.87) Points

Geekom IT13 Max Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2415 (2345.08-2716.65) Points

Acemagic Retro X3 AMD Ryzen 7 255, AMD Ryzen 7 255: Ø2535 (2525.57-2578.48) Points

GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Ryzen 7 PRO 6850U: Ø2061 (2052.65-2070.29) Points

Desempenho do sistema

O Ninkear L20 impressiona no uso diário com um desempenho fluido do sistema e tempos de resposta rápidos. A NPU integrada no Intel Core Ultra 5 226V também permite utilizar aplicações baseadas em IA, desde que ofereçam o suporte necessário. As latências DPC medidas não apresentam anomalias, pelo que não existem limitações significativas no uso diário normal.

PCMark 10 / Score
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	8330 Points +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	7822 Points +2%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	7736 Points +1%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	7696 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	7481 Points -3%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	6311 Points -18%

PCMark 10 / Essentials
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	9779 Points +5%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	9740 Points +5%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	9521 Points +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	9462 Points +2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	9312 Points 0%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	9281 Points

PCMark 10 / Productivity
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	15629 Points +11%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	14057 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	13969 Points -1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	13840 Points -2%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	13677 Points -3%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	8510 Points -39%

WebXPRT 4 / Overall
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	280 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	273 Points -2%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	252 Points -10%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	249 Points -11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	234 Points -16%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	180.6 Points -35%

WebXPRT 3 / Overall
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	302 Points
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	297 Points -2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	292 Points -3%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	285 Points -6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	241 Points -20%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	238 Points -21%

Mozilla Kraken 1.1 / Total
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	701 ms * -40%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	555 ms * -11%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	521 ms * -4%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	499 ms *
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	494 ms * +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	475 ms * +5%

CrossMark / Overall
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1846 Points +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1636 Points +5%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1605 Points +3%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1563 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1558 Points 0%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1442 Points -8%

CrossMark / Productivity
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1724 Points +13%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1595 Points +4%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1564 Points +2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1529 Points 0%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1528 Points
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1444 Points -5%

CrossMark / Creativity
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	2074 Points +21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1856 Points +8%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1743 Points +2%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1711 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1710 Points 0%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1498 Points -12%

CrossMark / Responsiveness
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1601 Points +26%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1357 Points +6%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1282 Points +1%
Ninkear L20, Ultra 5 226V, Intel Core Ultra 5 226V Intel Arc Graphics 130V, RAYSMEM RM512GSSD510	1275 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1244 Points -2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1211 Points -5%

* ... menor é melhor

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	102915 MB/s +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	102585 MB/s +2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	102045 MB/s +1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	100830 MB/s 0%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	100903 MB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	99145 MB/s -2%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75089 MB/s -26%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	74884 MB/s -26%
Média da turma Mini PC (15933 - 163031, n=102, últimos 2 anos)	70455 MB/s -30%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	68402 MB/s -32%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	67953 MB/s -33%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	47989 MB/s -52%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	47682 MB/s -53%

AIDA64 / Memory Read
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	89687 MB/s +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	87910 MB/s +5%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	85847 MB/s +2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	84874 MB/s +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	83943 MB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	83843 MB/s 0%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	72277 MB/s -14%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	70624 MB/s -16%
Média da turma Mini PC (14143 - 123769, n=103, últimos 2 anos)	67354 MB/s -20%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	50151 MB/s -40%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	50038 MB/s -40%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	45912 MB/s -45%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	45811 MB/s -45%

AIDA64 / Memory Write
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	117875 MB/s +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	117859 MB/s +8%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	111489 MB/s +2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	111430 MB/s +2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	109511 MB/s
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	109082 MB/s 0%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	89387 MB/s -18%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	88683 MB/s -19%
Média da turma Mini PC (10630 - 216693, n=103, últimos 2 anos)	80396 MB/s -27%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75225 MB/s -31%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75208 MB/s -31%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	49155 MB/s -55%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	49101 MB/s -55%

AIDA64 / Memory Latency
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	174.6 ns * -75%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	172.1 ns * -73%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	113.3 ns * -14%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	109.1 ns * -9%
Média da turma Mini PC (88.1 - 174.6, n=103, últimos 2 anos)	101.5 ns * -2%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	99.7 ns *
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	96.4 ns * +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	96.4 ns * +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	96.3 ns * +3%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	93.5 ns * +6%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	86.1 ns * +14%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	89.5 ns * +10%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	88.2 ns * +12%

* ... menor é melhor

UL Procyon for Windows / Overall Score Integer NPU
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (OpenVINO)	1781 Points +8%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (OpenVINO)	1748 Points +6%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (OpenVINO)	1655 Points
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (OpenVINO)	634 Points -62%

UL Procyon for Windows / Overall Score Integer GPU
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (Windows ML)	89 Points +62%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (Windown ML)	57 Points +4%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V (Windows ML)	55 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (Windows ML)	54 Points -2%

Latências de DPC

Latência máxima ao abrir várias abas do navegador

Latência máxima ao reproduzir conteúdo de vídeo em 4K

Latência máxima após dez segundos de Prime95

Drivers classificados por maior tempo de execução

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	2211.4 μs * -130%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	1849 μs * -93%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	1200 μs * -25%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	960.4 μs *
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	781 μs * +19%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	503 μs * +48%

* ... menor é melhor

Dispositivos de armazenamento

Na nossa configuração de teste, o Ninkear L20 está equipado com um SSD Raysmem com uma capacidade de armazenamento de 512 GB. No entanto, o SSD M.2 está ligado apenas através de PCIe 3.0 x2, o que limita as taxas de transferência potenciais. No uso diário, as velocidades alcançadas são, ainda assim, suficientes para tempos de carregamento e resposta curtos. Está também disponível uma ranhura M.2 adicional para expansão do armazenamento.

AS SSD

DiskSpd

RAYSMEM RM512GSSD510

Sequential Read: 1495MB/s

Sequential Write: 1206MB/s

4K Read: 43.4MB/s

4K Write: 94.4MB/s

4K-64 Read: 693MB/s

4K-64 Write: 586MB/s

Access Time Read: 0.135ms

Access Time Write: 0.139ms

Copy ISO: 1306.52MB/s

Copy Program: 394.79MB/s

Copy Game: 891.85MB/s

Score Read: 886Points

Score Write: 801Points

Score Total: 2138Points

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Média da turma Mini PC	83.2 pt
Acemagic Retro X3 Faspeed P9-1TB	78.5 pt
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	70.2 pt
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	66.7 pt
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	66.4 pt
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	46.8 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	37.1 pt

DiskSpd
seq read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3437 (2671.77^min - 3436.65^max) MB/s +168%
Acemagic Retro X3 Faspeed P9-1TB	3296 (2404.8^min - 3296^max) MB/s +157%
Média da turma Mini PC (435 - 4960, n=84, últimos 2 anos)	2511 MB/s +96%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2476 (2339.58^min - 2475.9^max) MB/s +93%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2202 (2069.11^min - 2202.22^max) MB/s +72%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1282 (1208.17^min - 1282.25^max) MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	683 (671.51^min - 682.62^max) MB/s -47%
seq write
Acemagic Retro X3 Faspeed P9-1TB	3476 (3435.39^min - 3475.61^max) MB/s +209%
Média da turma Mini PC (408 - 5265, n=84, últimos 2 anos)	2981 MB/s +165%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2744 (1428.03^min - 2743.91^max) MB/s +144%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2232 (2144.24^min - 2231.52^max) MB/s +98%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1945 (1600.49^min - 1945.32^max) MB/s +73%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1126 (983.35^min - 1126.17^max) MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	737 (690.89^min - 737.36^max) MB/s -35%
seq q8 t1 read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	6829 (5502.51^min - 6829.17^max) MB/s +287%
Acemagic Retro X3 Faspeed P9-1TB	6218 (5011.82^min - 6217.57^max) MB/s +252%
Média da turma Mini PC (543 - 7117, n=84, últimos 2 anos)	4443 MB/s +152%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3945 (2995.45^min - 3945.37^max) MB/s +123%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	3193 (2896.67^min - 3192.61^max) MB/s +81%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1766 (1490.45^min - 1765.63^max) MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	890 (669.12^min - 890.45^max) MB/s -50%
seq q8 t1 write
Acemagic Retro X3 Faspeed P9-1TB	4779 (4697.87^min - 4778.87^max) MB/s +196%
Média da turma Mini PC (410 - 6497, n=84, últimos 2 anos)	3545 MB/s +119%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3082 (2929.93^min - 3081.85^max) MB/s +91%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2941 (2574.88^min - 2941.05^max) MB/s +82%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2575 (2312.31^min - 2574.67^max) MB/s +59%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1617 (1569.09^min - 1616.69^max) MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	869 (858.57^min - 868.58^max) MB/s -46%
4k q1 t1 read
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	63.8 (56.54^min - 63.82^max) MB/s
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	62.9 (60.28^min - 62.92^max) MB/s -1%
Acemagic Retro X3 Faspeed P9-1TB	62.2 (60.24^min - 62.23^max) MB/s -3%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	61.8 (59.37^min - 61.83^max) MB/s -3%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	57.9 (55.63^min - 57.91^max) MB/s -9%
Média da turma Mini PC (6.85 - 88.3, n=84, últimos 2 anos)	56 MB/s -12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	48.2 (45^min - 48.2^max) MB/s -24%
4k q1 t1 write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	201 (158.52^min - 201.45^max) MB/s +46%
Média da turma Mini PC (29.6 - 366, n=84, últimos 2 anos)	182.6 MB/s +32%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	144.6 (135.02^min - 144.55^max) MB/s +5%
Acemagic Retro X3 Faspeed P9-1TB	141.7 (140.5^min - 141.66^max) MB/s +3%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	138 (119.87^min - 137.97^max) MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	118.6 (107.95^min - 118.59^max) MB/s -14%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	103.5 (100.16^min - 103.46^max) MB/s -25%
4k q32 t16 read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1960 (1905.33^min - 1960.41^max) MB/s +44%
Média da turma Mini PC (177.7 - 4349, n=84, últimos 2 anos)	1497 MB/s +10%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1364 (1348.97^min - 1363.74^max) MB/s
Acemagic Retro X3 Faspeed P9-1TB	977 (944.6^min - 976.53^max) MB/s -28%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	946 (944.86^min - 946.43^max) MB/s -31%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	638 (615.83^min - 637.6^max) MB/s -53%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	581 (564.79^min - 581.34^max) MB/s -57%
4k q32 t16 write
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1413 (525.05^min - 1412.75^max) MB/s +67%
Média da turma Mini PC (151.8 - 4088, n=84, últimos 2 anos)	1319 MB/s +56%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	962 (435.84^min - 961.9^max) MB/s +14%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	847 (818.18^min - 846.78^max) MB/s
Acemagic Retro X3 Faspeed P9-1TB	427 (414.04^min - 427.39^max) MB/s -50%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	411 (357.67^min - 410.77^max) MB/s -51%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	245 (194.02^min - 244.8^max) MB/s -71%

AS SSD
Score Total
Média da turma Mini PC (507 - 10559, n=82, últimos 2 anos)	4841 Points +126%
Acemagic Retro X3 Faspeed P9-1TB	4266 Points +100%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3550 Points +66%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	3467 Points +62%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3171 Points +48%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	2138 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	2047 Points -4%
Score Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1833 Points +107%
Média da turma Mini PC (192 - 3834, n=82, últimos 2 anos)	1651 Points +86%
Acemagic Retro X3 Faspeed P9-1TB	1261 Points +42%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1210 Points +37%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1169 Points +32%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	886 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	782 Points -12%
Score Write
Acemagic Retro X3 Faspeed P9-1TB	2426 Points +203%
Média da turma Mini PC (210 - 5505, n=82, últimos 2 anos)	2376 Points +197%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1647 Points +106%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1494 Points +87%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	857 Points +7%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	826 Points +3%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	801 Points
Seq Read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	5056 MB/s +238%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	4110 MB/s +175%
Acemagic Retro X3 Faspeed P9-1TB	3955 MB/s +165%
Média da turma Mini PC (501 - 5440, n=82, últimos 2 anos)	3748 MB/s +151%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2954 MB/s +98%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1495 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	812 MB/s -46%
Seq Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2998 MB/s +149%
Média da turma Mini PC (437 - 5172, n=82, últimos 2 anos)	2938 MB/s +144%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	2883 MB/s +139%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2415 MB/s +100%
Acemagic Retro X3 Faspeed P9-1TB	2369 MB/s +96%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	1206 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	747 MB/s -38%
4K Read
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	65.1 MB/s +50%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	63.9 MB/s +47%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	58.9 MB/s +36%
Média da turma Mini PC (18.2 - 101.7, n=82, últimos 2 anos)	58.6 MB/s +35%
Acemagic Retro X3 Faspeed P9-1TB	55.1 MB/s +27%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	43.4 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	41.6 MB/s -4%
4K Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	184.2 MB/s +95%
Média da turma Mini PC (67.3 - 318, n=82, últimos 2 anos)	176.2 MB/s +87%
Acemagic Retro X3 Faspeed P9-1TB	169.5 MB/s +80%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	129.8 MB/s +38%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	118.3 MB/s +25%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	116.6 MB/s +24%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	94.4 MB/s
4K-64 Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1363 MB/s +97%
Média da turma Mini PC (118.5 - 3321, n=82, últimos 2 anos)	1217 MB/s +76%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	849 MB/s +23%
Acemagic Retro X3 Faspeed P9-1TB	810 MB/s +17%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	693 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	659 MB/s -5%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	599 MB/s -14%
4K-64 Write
Acemagic Retro X3 Faspeed P9-1TB	2019 MB/s +245%
Média da turma Mini PC (96.3 - 4890, n=82, últimos 2 anos)	1906 MB/s +225%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1275 MB/s +118%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1088 MB/s +86%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	666 MB/s +14%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	586 MB/s
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	342 MB/s -42%
Access Time Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.242 ms * -79%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	0.181 ms * -34%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.154 ms * -14%
Acemagic Retro X3 Faspeed P9-1TB	0.147 ms * -9%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.137 ms * -1%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	0.135 ms *
Média da turma Mini PC (0.027 - 0.242, n=82, últimos 2 anos)	0.09559 ms * +29%
Access Time Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.185 ms * -33%
Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510	0.139 ms *
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	0.109 ms * +22%
Média da turma Mini PC (0.013 - 0.706, n=82, últimos 2 anos)	0.1023 ms * +26%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.09 ms * +35%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.084 ms * +40%
Acemagic Retro X3 Faspeed P9-1TB	0.062 ms * +55%

* ... menor é melhor

Limitação de Disco: Loop de Leitura do DiskSpd, Profundidade da Fila 8

Ninkear L20, Ultra 5 226V RAYSMEM RM512GSSD510; diskspd 2.0.17 f: Ø1760 (1310.3-1770.63) MB/s

GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB; diskspd 2.0.17 f: Ø3765 (1445.94-6800.23) MB/s

Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T; diskspd 2.0.17 f: Ø887 (644.42-891.18) MB/s

Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN; diskspd 2.0.17 f: Ø2948 (2469.4-2989.49) MB/s

Acemagic Retro X3 Faspeed P9-1TB; diskspd 2.0.17 f: Ø6510 (5621.42-6619.63) MB/s

GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S; diskspd 2.0.17 f: Ø3141 (2808.34-3182.64) MB/s

iGPU e desempenho em jogos

O Intel Core Ultra 5 226V utiliza a Intel Arc Graphics 130V integrada com sete núcleos Xe2. A iGPU oferece uma margem de desempenho suficiente para tarefas multimédia quotidianas e reprodução de vídeo de alta resolução. Jogos mais antigos ou menos exigentes também podem ser executados de forma fluida com definições reduzidas. No entanto, a Arc Graphics 130V fica atrás de soluções gráficas integradas mais rápidas, como a Arc Graphics 140V e as Radeon 780M e Radeon 890M da AMD, nos testes de desempenho. Sob carga prolongada, o desempenho gráfico do Ninkear L20 mantém-se, em grande parte, consistente.

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	94.6 pt
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	83.6 pt
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	82.6 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	81.4 pt
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	79 pt
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	73.6 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	63.8 pt

3DMark 11 - 1280x720 Performance GPU
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	16539 Points +55%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	13388 Points +25%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	11434 Points +7%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10312 Points -4%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	9877 Points -8%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	9295 Points -13%

3DMark
2560x1440 Time Spy Graphics
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	3569 Points +13%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3520 Points +11%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3164 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3148 Points -1%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3048 Points -4%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2790 Points -12%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2404 Points -24%
1920x1080 Fire Strike Graphics
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	9692 Points +11%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9561 Points +10%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8699 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8463 Points -3%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8350 Points -4%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	8094 Points -7%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6823 Points -22%
Steel Nomad Score
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	782 Points +14%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	669 Points -2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	738 Points +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	715 Points +4%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	686 Points
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	684 Points 0%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	659 Points -4%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	644 Points -6%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	477 Points -30%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	474 Points -31%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	416 Points -39%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	359 Points -48%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	298 Points -57%
2560x1440 Port Royal Graphics
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2091 Points +19%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1798 Points +3%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1754 Points
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1649 Points -6%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1322 Points -25%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1284 Points -27%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1037 Points -41%
Night Raid Score
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	36214 Points +16%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	33268 Points +6%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	31335 Points
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29215 Points -7%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	29054 Points -7%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	28685 Points -8%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	25596 Points -18%
Solar Bay Score
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	16242 Points +19%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13862 Points +1%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	13705 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	13402 Points -2%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13236 Points -3%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	11287 Points -18%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10945 Points -20%

Performance rating - Percent
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	89 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	81.1 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	74.4 pt
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	73 pt
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	72.7 pt
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	71.2 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	62.2 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	48.6 fps +35%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	44.5 fps +24%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	37.3 fps +4%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	36.5 fps +1%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36 fps 0%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	36 fps
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	31.5 fps -12%
Extreme Preset DX11
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	45.9 fps +113%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	34.8 fps +61%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	34.5 fps +60%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +50%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	28 fps +30%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.3 fps +22%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	21.6 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	26.6 fps +49%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	24.8 fps +39%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	23.7 fps +32%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	23.1 fps +29%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	22.5 fps +26%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	18.9 fps +6%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	17.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	33.8 fps +12%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	30.2 fps
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	26.7 fps -12%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.7 fps -12%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	23.7 fps -22%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	19.6 fps -35%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	17.7 fps -41%

Unigine Superposition
1280x720 720p Low
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13545 Points +61%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	12989 Points +55%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	11334 Points +35%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10953 Points +31%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points +27%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10202 Points +22%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8393 Points
1920x1080 1080p High
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4518 Points +40%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	4265 Points +32%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3823 Points +18%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3751 Points +16%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	3247 Points +1%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3230 Points
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	3182 Points -1%
1920x1080 1080p Extreme
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2100 Points +59%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2052 Points +56%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1997 Points +51%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1694 Points +28%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1563 Points +18%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1321 Points 0%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1319 Points

ComputeMark v2.1
1024x600 Normal, Score
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	10562 Points +76%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	10495 Points +75%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7704 Points +28%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	6452 Points +7%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6008 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	5886 Points -2%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	5163 Points -14%
1024x600 Normal, Fluid 3DTex
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	929 Points +2%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	913 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	836 Points -8%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	563 Points -38%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	530 Points -42%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	427 Points -53%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	408 Points -55%
1024x600 Normal, Fluid 2DTexArr
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	666 Points +8%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	641 Points +4%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	619 Points
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	571 Points -8%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	479 Points -23%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	427 Points -31%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	423 Points -32%
1024x600 Normal, Mandel Vector
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2984 Points +126%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2716 Points +105%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1905 Points +44%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1428 Points +8%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1323 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1242 Points -6%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1157 Points -13%
1024x600 Normal, Mandel Scalar
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2808 Points +149%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2780 Points +147%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2005 Points +78%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1258 Points +12%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1127 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1092 Points -3%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	974 Points -14%
1024x600 Normal, QJuliaRayTrace
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3932 Points +94%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	3849 Points +90%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2785 Points +37%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2263 Points +12%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2200 Points +9%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2026 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1983 Points -2%

LuxMark v2.0 64Bit
Room GPUs-only
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1098 Samples/s +10%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1051 Samples/s +5%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1002 Samples/s
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	997 Samples/s 0%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	894 Samples/s -11%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	838 Samples/s -16%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	747 Samples/s -25%
Sala GPUs-only
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	3110 Samples/s +8%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2879 Samples/s 0%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2871 Samples/s
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2698 Samples/s -6%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1986 Samples/s -31%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1623 Samples/s -43%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1513 Samples/s -47%

Affinity Photo 2 - Combined (Single / Multi GPU)
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	7692 Points +12%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6894 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6245 Points -9%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5264 Points -24%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2822 Points -59%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1980 Points -71%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1580 Points -77%

Geekbench AI
Quantized GPU 1.7
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	6278 Points +32%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	4966 Points +4%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4773 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	4668 Points -2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	4314 Points -10%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4133 Points -13%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3491 Points -27%
Half Precision GPU 1.7
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13932 Points +8%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	12935 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	11517 Points -11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	11379 Points -12%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	9167 Points -29%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	8519 Points -34%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7806 Points -40%
Single Precision GPU 1.7
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8521 Points +23%
Ninkear L20, Ultra 5 226V Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6947 Points
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	6354 Points -9%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6296 Points -9%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6259 Points -10%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	6166 Points -11%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	4797 Points -31%

3DMark 06 Standard Score		22467 pontos
3DMark Vantage P Result		27681 pontos
3DMark 11 Performance		11015 pontos
3DMark Ice Storm Standard Score		166216 pontos
3DMark Cloud Gate Standard Score		30152 pontos
3DMark Fire Strike Score		8015 pontos
3DMark Fire Strike Extreme Score		3773 pontos
3DMark Time Spy Score		3464 pontos
3DMark Steel Nomad Score		686 pontos
Ajuda

... comparado com

Performance rating - Percent
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	99.2 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	80.7 pt
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	76.1 pt
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	75.1 pt
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	74.3 pt
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	67.9 pt
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	67.7 pt

GTA V
1024x768 Lowest Settings possible
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	175.8 (3.95^min, 111.1^P1) fps +53%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	161.2 (2.13^min, 90.9^P1) fps +40%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	148.5 (4.34^min, 100^P1) fps +29%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	147.7 (4.09^min, 100^P1) fps +28%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	145.3 (6.3^min, 90.9^P1) fps +26%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	115.9 (16.7^min, 71.4^P1) fps +1%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	115 (11.8^min, 66.7^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	81.5 (5.18^min, 52.6^P1) fps +35%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	67.8 (10.4^min, 47.6^P1) fps +12%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	60.4 (3.67^min, 41.7^P1) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	57.9 (5.01^min, 41.7^P1) fps -4%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	55.5 (5.25^min, 40^P1) fps -8%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	50.9 (4.69^min, 34.5^P1) fps -16%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	37.2 (6.45^min, 30.3^P1) fps -38%

Dota 2 Reborn
1280x720 min (0/3) fastest
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	168.1 (143^min) fps +57%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	134.4 (114.9^min) fps +25%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	131.4 (114.4^min) fps +22%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	107.4 (76.3^min) fps
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	107 (68^min) fps 0%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	106.2 (68.3^min) fps -1%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	94.5 (66.9^min) fps -12%
1920x1080 high (2/3)
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	98.7 (89^min) fps +7%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	92.3 (63.5^min) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	81.4 (72.4^min) fps -12%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	81.2 (52.7^min) fps -12%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	81.2 (68.7^min) fps -12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	68.3 (40.3^min) fps -26%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	52.3 (25.3^min) fps -43%

Cyberpunk 2077
1920x1080 Low Preset (FSR off)
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	50.4 (42.7^min, 39.1^P1) fps +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	48 (39.9^min, 37.2^P1) fps +13%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	42.3 (34.7^min, 32.7^P1) fps
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	38.7 (32.8^min, 31.7^P1) fps -9%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	36.4 (31.2^min, 29.7^P1) fps -14%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	36.2 (30.3^min, 28.8^P1) fps -14%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	34 (29.7^min, 28.4^P1) fps -20%
1920x1080 High Preset (FSR off)
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	29.8 (24.9^min, 23.7^P1) fps
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	28.9 (24.2^min, 22^P1) fps -3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	27.1 (23.4^min, 22.1^P1) fps -9%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	25 (21.1^min, 20.3^P1) fps -16%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	24.9 (21.1^min, 20.2^P1) fps -16%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	23.6 (20^min, 19.3^P1) fps -21%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	21.7 (18.4^min, 15.1^P1) fps -27%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	82.1 (49^min, 50.9^P0.1, 65.7^P1) fps +66%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	58.6 (36.1^min, 40.9^P0.1, 51.3^P1) fps +19%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	55.6 (42.4^min, 44.2^P0.1, 46.8^P1) fps +13%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	52.5 (42.6^min, 43.1^P0.1, 44.2^P1) fps +6%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	49.4 (35.6^min, 36^P0.1, 38.3^P1) fps
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	49.3 (29.8^min, 29.9^P0.1, 30^P1) fps 0%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.7 (29.8^min, 29.9^P0.1, 30^P1) fps -3%
1920x1080 High Preset AA:T
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	32.8 (23^min, 23.6^P0.1, 25.6^P1) fps +41%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	27.4 (23.4^min, 23.5^P0.1, 24.3^P1) fps +18%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	24.5 (19.6^min, 20.4^P0.1, 21.7^P1) fps +6%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	23.4 (19.4^min, 20.1^P0.1, 21.1^P1) fps +1%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	23.2 (19.5^min, 20^P0.1, 20.6^P1) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	22.9 (19.8^min, 19.8^P0.1, 20^P1) fps -1%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	22.5 (15^min, 17.8^P0.1, 20^P1) fps -3%

F1 24
1920x1080 Low Preset AA:T AF:16x
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	94 (77^min, 60^P1) fps +26%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	79.1 (54^min, 62^P1) fps +6%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	74.4 (16^min, 54^P1) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	74.3 (65^min, 55^P1) fps 0%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	71.8 (52^min, 35^P1) fps -3%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	70.1 (28^min, 53^P1) fps -6%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	62.2 (53^min, 51^P1) fps -16%
1920x1080 Medium Preset AA:T AF:16x
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	94 (77^min, 60^P1) fps +43%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	84.7 (62^min, 43^P1) fps +29%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	77.2 (45^min, 60^P1) fps +17%
Ninkear L20, Ultra 5 226V Arc 130V, Core Ultra 5 226V, RAYSMEM RM512GSSD510	65.8 (48^min, 50^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	64.3 (49^min, 47^P1) fps -2%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	64.3 (56^min, 51^P1) fps -2%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	60.6 (11^min, 46^P1) fps -8%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	57.5 (49^min, 47^P1) fps -13%

Gráfico de FPS - 30 min. Cyberpunk 2077 1920 x 1080 Predefinição Ultra (FSR desativado)

Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V: Ø18.2 (16.8-19.4) fps

GMK NucBox K17 Core Ultra 5 226V, Arc 130V: Ø16.4 (15.6-17.2) fps

Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V: Ø27.2 (22.3-28.2) fps

Geekom IT13 Max Ultra 9 185H, Arc 8-Core: Ø18 (17.2-18.5) fps

Acemagic Retro X3 Ryzen 7 255, Radeon 780M: Ø20.2 (19.1-20.6) fps

GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M: Ø14.2 (12.6-14.4) fps

	baixo	média	alto	ultra
GTA V (2015)	115	106.5	60.4	23.4
The Witcher 3 (2015)	150.5	99.4	52.5	24.1
Dota 2 Reborn (2015)	107.4	101.1	92.3	91.6
Final Fantasy XV Benchmark (2018)	79.5	42.2	30.4
X-Plane 11.11 (2018)	30.4	26.1	22.2
Strange Brigade (2018)	174.8	70.6	61	51.1
Baldur's Gate 3 (2023)	33.8	26.6	23.2	23
Cyberpunk 2077 (2023)	42.3	32.3	29.8	26.1
F1 24 (2024)	74.4	65.8	49.8	16.6

Emissões

Ruído do sistema

O Ninkear L20 é geralmente silencioso no uso diário e quase impercetível em termos acústicos. Sob carga média, o nível de ruído sobe para 41,4 dB(A), embora tenha sido medido um máximo de 45,6 dB(A) em carga máxima. No geral, os níveis de ruído mantêm-se moderados, mesmo que o mini PC seja claramente audível sob carga elevada.

Barulho

Ocioso		25.4 / 25.8 / 36.7 dB
Carga		41.4 / 45.6 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R (15 cm de distância) ruído ambiente: 24.8 dB(A)

	Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	Acemagic Retro X3 Ryzen 7 255, Radeon 780M	GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M
Noise		21%	14%	-6%	-1%	-1%
desligado / ambiente * (dB)	24.8	25.1 -1%	24.6 1%	24.6 1%	24.6 1%	24.8 -0%
Idle Minimum * (dB)	25.4	25.3 -0%	24.7 3%	25.3 -0%	25 2%	31.9 -26%
Idle Average * (dB)	25.8	25.4 2%	24.8 4%	25.6 1%	25 3%	31.9 -24%
Idle Maximum * (dB)	36.7	26.1 29%	24.9 32%	25.6 30%	25 32%	31.9 13%
Load Average * (dB)	41.4	27.4 34%	34.9 16%	53.3 -29%	43.6 -5%	41.7 -1%
Witcher 3 ultra * (dB)	41.6	28 33%	35.1 16%	47.1 -13%	49.8 -20%	37.8 9%
Cyberpunk 2077 ultra * (dB)	45.6	29.1 36%	38.9 15%	53.4 -17%	49.9 -9%	39.1 14%
Load Maximum * (dB)	45.6	28.6 37%	35.2 23%	53.5 -17%	50.2 -10%	40.8 11%

* ... menor é melhor

Temperatura

Mesmo sob carga contínua, o chassi do Ninkear L20 não apresenta problemas de temperatura significativos. As temperaturas da superfície permanecem em um nível seguro, enquanto o sistema de resfriamento compacto consegue, por pouco, manter o Intel Core Ultra 5 226V de forma confiável dentro da faixa de temperatura prevista. O consumo de energia permanece estável, sem redução de desempenho por limitação térmica. Isso também fica evidente no teste em loop multicore do Cinebench R15, no qual o desempenho permanece praticamente constante durante todo o período de teste.

Comportamento do Ninkear L20 durante o teste de estresse

Ninkear L20 durante o teste de estresse (parte superior)

Ninkear L20 durante o teste de estresse (parte inferior)

Fonte de alimentação durante o teste de estresse

Carga Máxima

Inatividade

Cyberpunk


35.4 °C	37.1 °C	34.5 °C
31.3 °C	33.6 °C	32.5 °C
30 °C	30 °C	31.6 °C

Máximo: 37.1 °C
Médio: 32.9 °C


34.8 °C	35 °C	34.2 °C
34.1 °C	34.9 °C	33.5 °C
34 °C	33.8 °C	33.3 °C

Máximo: 35 °C
Médio: 34.2 °C

alimentação elétrica 45.2 °C | Temperatura do quarto 21.9 °C | Fluke t3000FC (calibrated)

Carga Máxima

Inatividade

Cyberpunk


32.5 °C	32.6 °C	31.6 °C
31.1 °C	31.8 °C	31 °C
30.7 °C	30.4 °C	30.8 °C

Máximo: 32.6 °C
Médio: 31.4 °C


32.2 °C	32.5 °C	32.4 °C
32.2 °C	32.4 °C	31.9 °C
32 °C	31.9 °C	31.6 °C

Máximo: 32.5 °C
Médio: 32.1 °C

alimentação elétrica 36.6 °C | Temperatura do quarto 21.9 °C | Fluke t3000FC (calibrated)

Carga Máxima

Inatividade

Cyberpunk


33.6 °C	34.8 °C	32.3 °C
29.5 °C	32.3 °C	31 °C
29.2 °C	29.6 °C	30.3 °C

Máximo: 34.8 °C
Médio: 31.4 °C


32.7 °C	32.9 °C	31.7 °C
31.9 °C	32.6 °C	31.2 °C
31.5 °C	31.3 °C	30.9 °C

Máximo: 32.9 °C
Médio: 31.9 °C

alimentação elétrica 42.2 °C | Temperatura do quarto 21.9 °C | Fluke t3000FC (calibrated)

(±) A temperatura média para o lado superior sob carga máxima é 32.9 °C / 91 F, em comparação com a média de 32.1 °C / ###class_avg_f# ## F para os dispositivos da classe Mini PC.
(+) A temperatura máxima no lado superior é 37.1 °C / 99 F, em comparação com a média de 35.3 °C / 96 F , variando de 20.6 a 69.5 °C para a classe Mini PC.
(+) A parte inferior aquece até um máximo de 35 °C / 95 F, em comparação com a média de 36 °C / 97 F
(+) Em uso inativo, a temperatura média para o lado superior é 31.4 °C / 89 F, em comparação com a média do dispositivo de 32.1 °C / ### class_avg_f### F.
(+) 3: The average temperature for the upper side is 31.4 °C / 89 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.

Gestão de energia

O Ninkear L20 é geralmente eficiente em termos energéticos sob carga, embora o seu consumo de energia relativamente elevado em repouso se destaque. Sob cargas de trabalho mais intensas, o consumo de energia mantém-se, ainda assim, razoável para o desempenho oferecido. O adaptador de alimentação incluído oferece uma margem suficiente e alimenta o mini-PC de forma fiável, mesmo sob carga.

Consumo de energia

desligado	0.8 / 3.6 Watt
Ocioso	4.4 / 11.4 / 12.3 Watt
Carga	38.6 / 58.1 Watt


Key: min: , med: , max: Metrahit Energy

	Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	Acemagic Retro X3 Ryzen 7 255, Radeon 780M	GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M	Média Intel Arc Graphics 130V	Média da turma Mini PC
Power Consumption		19%	12%	-56%	-29%	-66%	19%	-44%
Idle Minimum * (Watt)	4.4	4.7 -7%	4.9 -11%	11.8 -168%	5.7 -30%	12.5 -184%	3.96 ?(2.7 - 5.3, n=11) 10%	8.27 ?(2.1 - 35.9, n=83, últimos 2 anos) -88%
Idle Average * (Watt)	11.4	6.1 46%	5.9 48%	12.2 -7%	6.9 39%	14.4 -26%	6.54 ?(4.7 - 11.4, n=11) 43%	10.3 ?(2.59 - 37.1, n=81, últimos 2 anos) 10%
Idle Maximum * (Watt)	12.3	9.6 22%	7.6 38%	16.1 -31%	8.2 33%	15.2 -24%	8.1 ?(5.4 - 12.3, n=11) 34%	12.8 ?(2.4 - 44.4, n=83, últimos 2 anos) -4%
Load Average * (Watt)	38.6	32.7 15%	37.7 2%	52.9 -37%	62.5 -62%	66.6 -73%	35.5 ?(26.2 - 42.9, n=10) 8%	60.6 ?(21.2 - 137.5, n=83, últimos 2 anos) -57%
Cyberpunk 2077 ultra external monitor * (Watt)	44.3	39.5 11%	46.8 -6%	54.4 -23%	81.9 -85%	69.9 -58%
Load Maximum * (Watt)	58.1	41.3 29%	56.1 3%	100.1 -72%	99 -70%	75.5 -30%	58.6 ?(41.3 - 64.1, n=11) -1%	105.3 ?(27.9 - 423, n=83, últimos 2 anos) -81%

* ... menor é melhor

Eficiência energética

Performance rating | Power Consumption

Performance rating - Percent
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	98.1 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	90.1 pt
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	75.3 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	74.2 pt
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	73.5 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	65.8 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	223 Points per Watt +22%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	217 Points per Watt +19%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	213 Points per Watt +17%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	207 Points per Watt +14%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	197 Points per Watt +8%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	182.3 Points per Watt
Cinebench R23 Single Power Efficiency - external Monitor
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	96.3 Points per Watt +39%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85.7 Points per Watt +23%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	69.5 Points per Watt
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	62.9 Points per Watt -9%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	48.9 Points per Watt -30%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	39.6 Points per Watt -43%
Cinebench R15 Multi Efficiency (external Monitor)
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	32 Points per Watt +31%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	31.6 Points per Watt +29%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	30.4 Points per Watt +24%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	29.9 Points per Watt +22%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	29.9 Points per Watt +22%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	24.5 Points per Watt
Cyberpunk 2077 ultra Efficiency
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	0.581 fps per Watt +41%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	0.4152 fps per Watt +1%
Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V, Arc 130V	0.4108 fps per Watt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	0.3309 fps per Watt -19%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	0.2466 fps per Watt -40%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	0.2031 fps per Watt -51%

Consumo de energia com um monitor externo

Ninkear L20, Ultra 5 226V; Idle 1min (external Monitor): Ø11.4 (4.22-13.1) Watt

Ninkear L20, Ultra 5 226V; 1280x720 Prime95 28.10 and Furmark 1.25: Ø56.8 (54.9-58.1) Watt

Ninkear L20, Ultra 5 226V; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø44.3 (40.4-56) Watt

Ninkear L20, Ultra 5 226V; 3DMark06 Return To Proxycon: Ø38.6 (35.5-42.6) Watt

Consumo de energia com um monitor externo

Ninkear L20, Ultra 5 226V; Prime95 V2810 Stress (external Monitor): Ø56 (54.2-57.7) Watt

Ninkear L20, Ultra 5 226V; Cinebench R15 Multi (external Monitor): Ø54.1 (53.1-55.1) Watt

Ninkear L20, Ultra 5 226V; Cinebench R23 Single (external Monitor): Ø26.8 (18.3-38.3) Watt

Ninkear L20, Ultra 5 226V; Cinebench R23 Multi (external Monitor): Ø50.5 (48.2-53.9) Watt

Ninkear L20, Ultra 5 226V; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø42.9 (38.8-49.2) Watt

Avaliação do Notebookcheck

Ninkear L20, Ultra 5 226V - 10/05/2026 v8
Sebastian Bade

Acabamento

83 / 98 → 85%

Conectividade

65 / 81 → 81%

Peso

81 / 10-100 → 79%

Desempenho do jogos

52 / 80 → 66%

Desempenho da aplicação

82 / 92 → 89%

AI Performance

88%

Temperatura

92%

Ruído

73%

Médio

48%

77%

Mini PC - Médio equilibrado

CO2 Emissions
No Data

Materials
0%

Packaging
0%

Power Use
65.9%

Repairability
0%

Software Updates
22.3%

Total Sustainability Score: 14.7%

De volta ao veredicto

Advertising

Intel 18A em um Mini PC de 0,36 litros - Ninkear MBOX18

Quão pequeno pode ser um PC de secretária moderno? O Ninkear MBOX18 combina o novo processador Core 3 304 da Intel, baseado na tecnologia Intel 18A, com um chassis metálico ultracompacto de 0,36 litros e pesa apenas 478 g.
Ainda assim, oferece suporte para até três ecrãs, USB4 de 40 Gbps, Wi-Fi 6 e uma montagem VESA. Isto torna-o uma opção compacta para a produtividade diária, o trabalho a partir de casa e configurações em que o espaço é limitado.

Saiba mais sobre o Ninkear MBOX18

Possíveis alternativas comparadas

Imagem	Modelo / Análises	Preço	Peso	Dimensões
1. 76.5%	Ninkear L20, Ultra 5 226V Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memória, 512 GB SSD	Preço de tabela: 699€	626 g	129 x 129 x 43 mm
2. 81.9%	GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memória, 1024 GB SSD	Preço de tabela: 569€	461 g	185 x 187 x 44.5 mm
3. 81.8%	Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 16 GB Memória, 1024 GB SSD	Amazon:	438 g	131 x 131 x 43 mm
4. 78.6%	Geekom IT13 Max Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 24 GB Memória, 500 GB SSD	Preço de tabela: 799€	833 g	132 x 136 x 50.1 mm
5. 77.2%	Acemagic Retro X3 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 16 GB Memória, SSD	Preço de tabela: 899€	528 g	128.2 x 128.2 x 44 mm
6. 75.5%	GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U ⎘ AMD Radeon 680M ⎘ 32 GB Memória, 1024 GB SSD	Amazon: Preço de tabela: 469€	637 g	125 x 132 x 58 mm

Transparência

A seleção dos dispositivos a serem analisados é feita pela nossa equipe editorial. A amostra de teste foi fornecida ao autor como empréstimo pelo fabricante ou varejista para fins desta revisão. O credor não teve influência nesta revisão, nem o fabricante recebeu uma cópia desta revisão antes da publicação. Não houve obrigação de publicar esta revisão. Como empresa de mídia independente, a Notebookcheck não está sujeita à autoridade de fabricantes, varejistas ou editores.

É assim que o Notebookcheck está testando

Todos os anos, o Notebookcheck analisa de forma independente centenas de laptops e smartphones usando procedimentos padronizados para garantir que todos os resultados sejam comparáveis. Desenvolvemos continuamente nossos métodos de teste há cerca de 20 anos e definimos padrões da indústria no processo. Em nossos laboratórios de teste, equipamentos de medição de alta qualidade são utilizados por técnicos e editores experientes. Esses testes envolvem um processo de validação em vários estágios. Nosso complexo sistema de classificação é baseado em centenas de medições e benchmarks bem fundamentados, o que mantém a objetividade.

Cinebench 2024 CPU Multi Core comparado com
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Lenovo ThinkPad T14s 2in1 Gen1 Ultra 7 255U, Graphics 4-Core iGPU (Arrow Lake)	560
Khadas Mind i7-1360P, Iris Xe G7 96EUs	560
Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	562
Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V	564
Acemagic Tank03 i9-12900H, GeForce RTX 3080 Laptop GPU	564
Lenovo ThinkBook 16 G7 IML Ultra 5 125U, Graphics 4-Core iGPU (Arrow Lake)	564
Samsung Galaxy Book4 Pro 360 Ultra 5 125H, Arc 7-Core	564
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 comparado com
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Acer Predator 15 G9-591-74ZV 6700HQ, GeForce GTX 980M	10977
Acer Aspire 5 A515-57G-53N8 i5-1240P, GeForce RTX 2050 Mobile	10988
Lenovo ThinkPad X13 G6 AMD Ryzen AI 7 PRO 350, Radeon 860M	10993
Ninkear L20, Ultra 5 226V Core Ultra 5 226V, Arc 130V	11015
Aorus X5S v5 6700HQ, GeForce GTX 980M	11055
Razer Blade Stealth Core i7 GTX 1650 Ti Max-Q 4K i7-1065G7, GeForce GTX 1650 Ti Max-Q	11070
Xiaomi Mi Gaming Laptop 7300HQ 1060 i5-7300HQ, GeForce GTX 1060 Mobile	11106
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642

Veredito - Ninkear L20 impressiona com hardware moderno em um formato mini

Pro

Contra

Preço e disponibilidade

Índice

Especificações

Estojo e conectividade

Comparação de tamanhos

Velocidade USB4 (ADATA SE920)

Acessórios

Manutenção

Sustentabilidade

Desempenho

Condições de teste

Configurações do BIOS

Processador

Teste de resistência Cinebench R15 Multi

Desempenho do sistema

Latências de DPC

Dispositivos de armazenamento

Limitação de Disco: Loop de Leitura do DiskSpd, Profundidade da Fila 8

iGPU e desempenho em jogos

Gráfico de FPS - 30 min. Cyberpunk 2077 1920 x 1080 Predefinição Ultra (FSR desativado)

Emissões

Ruído do sistema

Temperatura

Gestão de energia

Eficiência energética

Consumo de energia com um monitor externo

Consumo de energia com um monitor externo

Avaliação do Notebookcheck

Intel 18A em um Mini PC de 0,36 litros - Ninkear MBOX18

Possíveis alternativas comparadas

Transparência

Artigos Relacionados
