Análise do mini PC GMKtec NucBox M3: O Core i5-12450H consome muita energia
O NucBox M3 sucede o NucBox M2 do ano passado, trocando a CPU Intel Core H de 11ª geração Tiger Lake por opções Alder Lake de 12ª geração, juntamente com um design de chassi ligeiramente revisado. Nossa unidade de análise específica vem configurada com o Core i5-12450H, 32 GB de RAM e SSD de 1 TB por aproximadamente US$ 480, mas as opções de barebone começam em apenas US$ 370.
As alternativas ao NucBox M3 incluem outros mini PCs econômicos, como o Beelink SER5, Geekom A5ouBMAX B7.
Mais análises da GMK:
Possíveis concorrentes em comparação
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
78.7 % | 11/2023 | GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs | 440 g | 42.4 mm | x | ||
82.8 % | GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs | 396 g | 43.2 mm | x | |||
82.1 % | 11/2023 | Beelink SER5 R5 5560U, Vega 6 | 439 g | 42 mm | x | ||
73.1 % | Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N) | 335 g | 39.1 mm | x | |||
81.2 % | 10/2023 | Geekom A5 R7 5800H, Vega 8 | 555 g | 49.2 mm | x | ||
80.8 % | 04/2023 | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | 538 g | 37 mm | x |
Os Top 10
» Os Top 10 Portáteis Multimídia
» Os Top 10 Portáteis de Jogos
» Os Top 10 Portáteis Leves para Jogos
» Os Top 10 Portáteis Acessíveis de Escritório/Empresariais
» Os Top 10 Portáteis Premium de Escritório/Empresariais
» Os Top 10 dos Portáteis Workstation
» Os Top 10 Subportáteis
» Os Top 10 Ultrabooks
» Os Top 10 Conversíveis
» Os Top 10 Tablets
» Os Top 10 Smartphones
» A melhores Telas de Portáteis Analisadas Pela Notebookcheck
» Top 10 dos portáteis abaixo dos 500 Euros da Notebookcheck
» Top 10 dos Portáteis abaixo dos 300 Euros

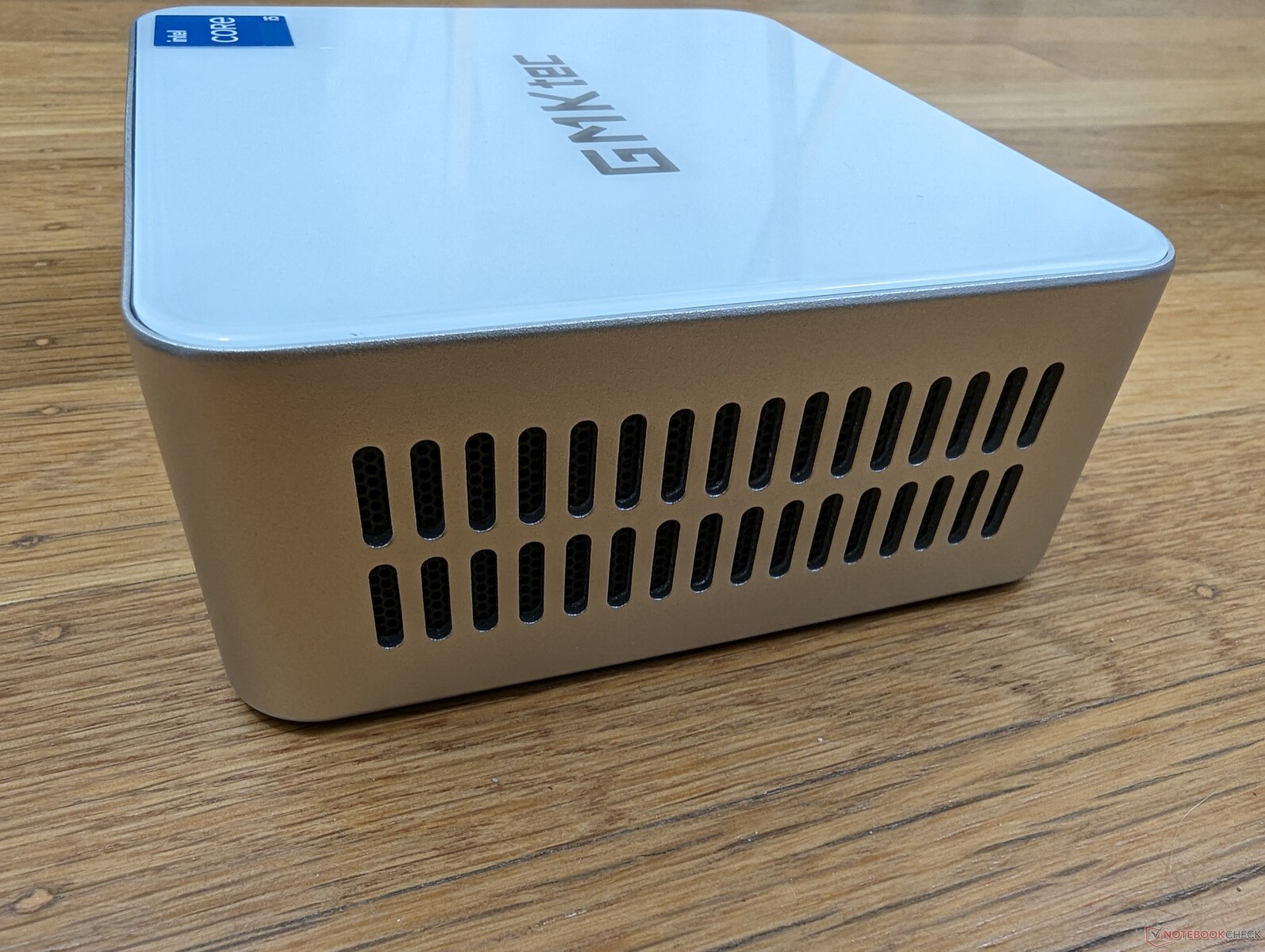

Caso

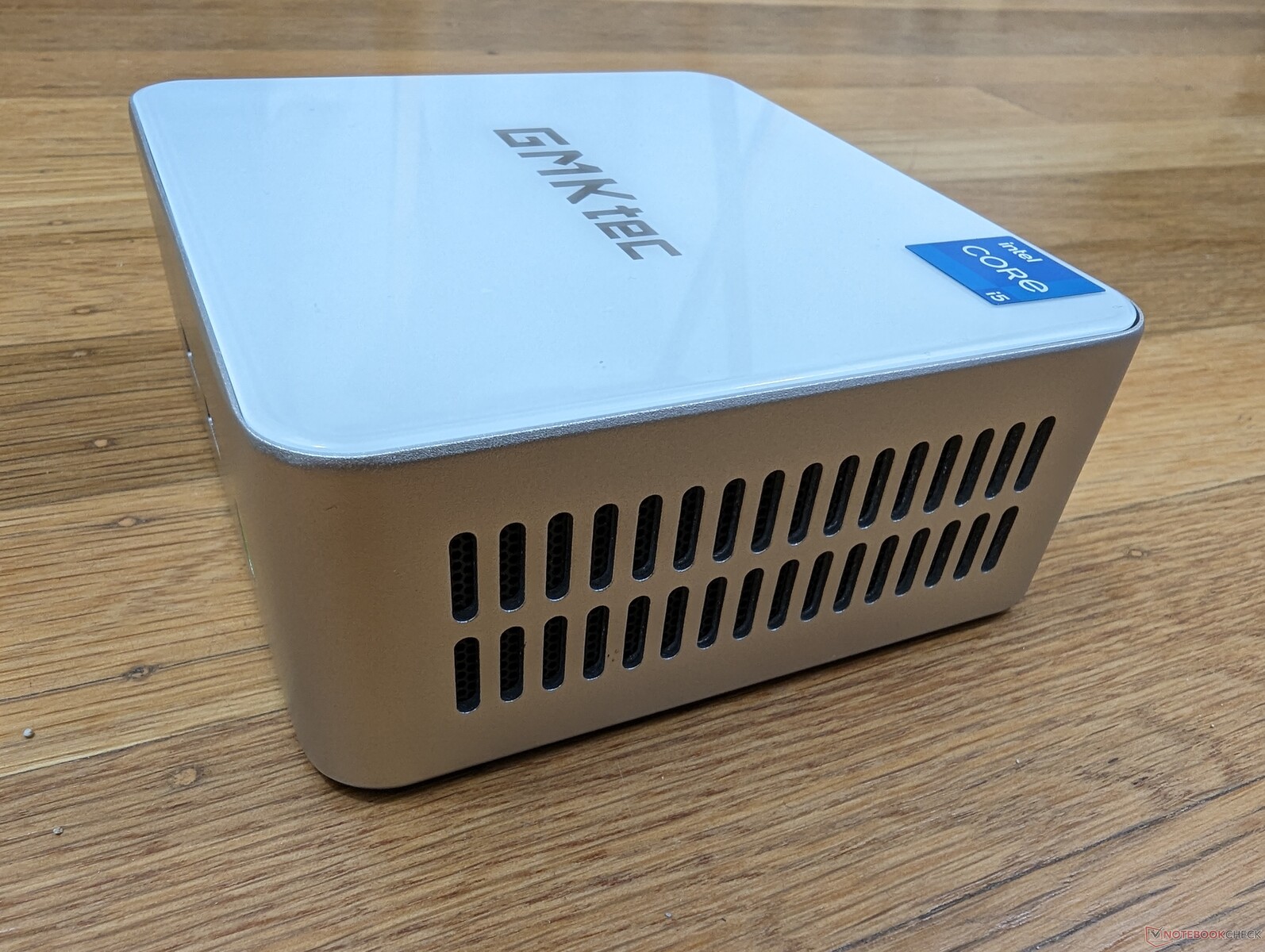

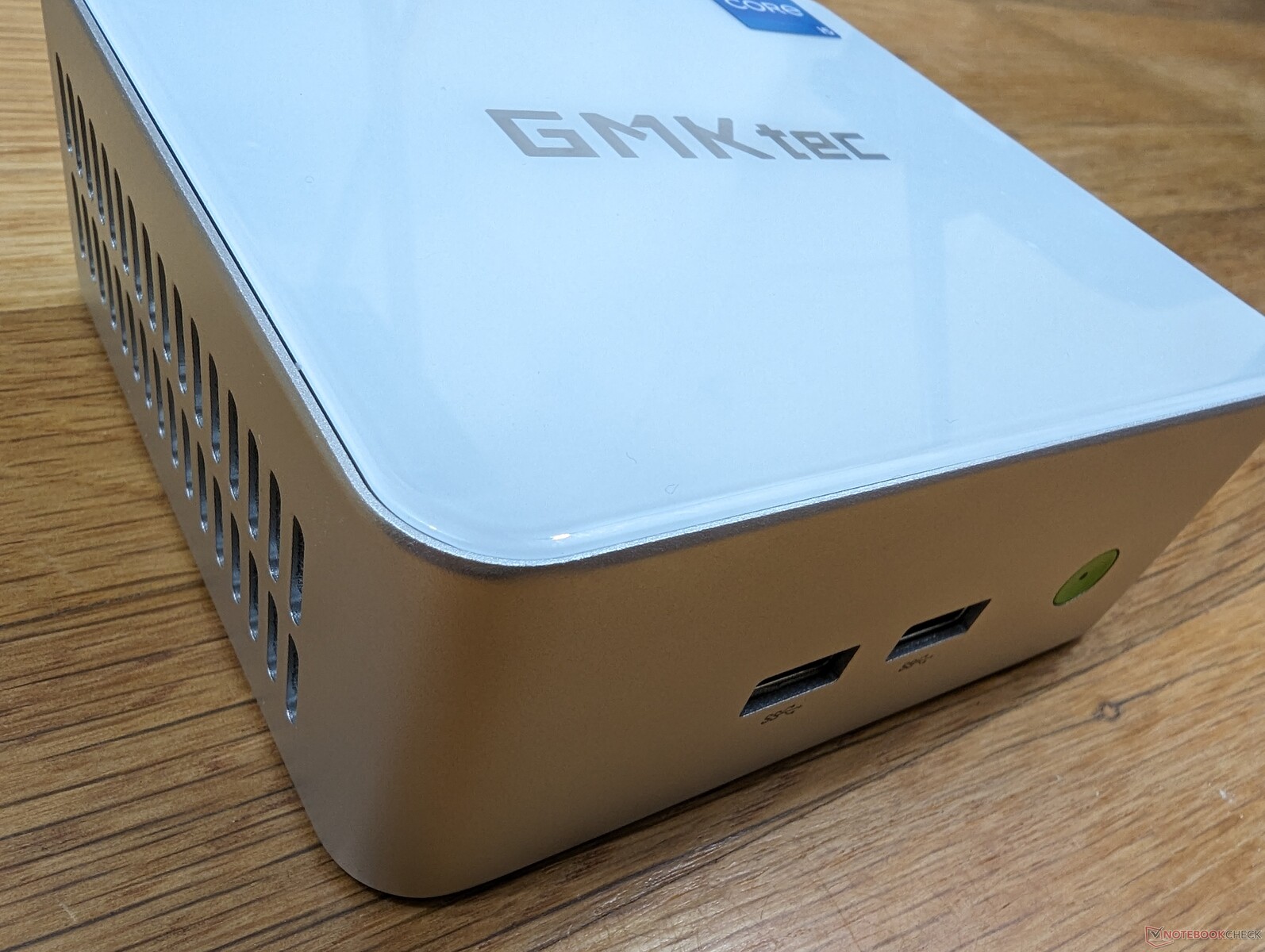

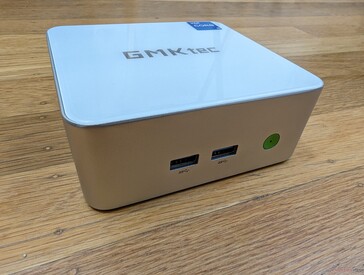

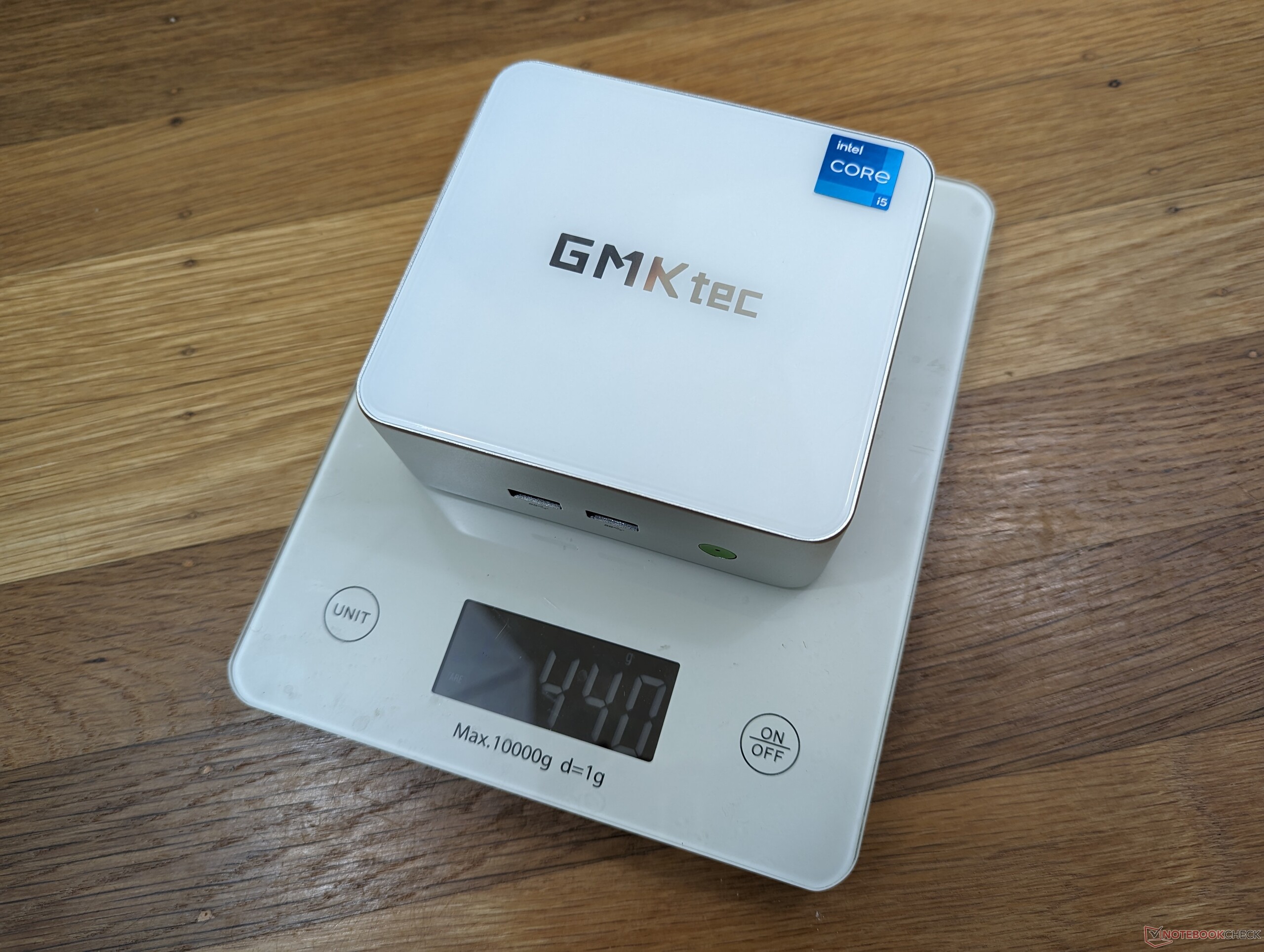

O NucBox M3 é menor do que o NucBox K3 Pro e, ao mesmo tempo, é mais pesado, proporcionando uma sensação de maior densidade. O chassi é composto de metal nas laterais e plástico na parte superior e inferior. Embora a qualidade de construção seja sólida e sem nenhum defeito perceptível em nossa unidade, a parte superior e inferior de plástico faz com que o sistema pareça barato quando comparado com a Série Intel NUC.

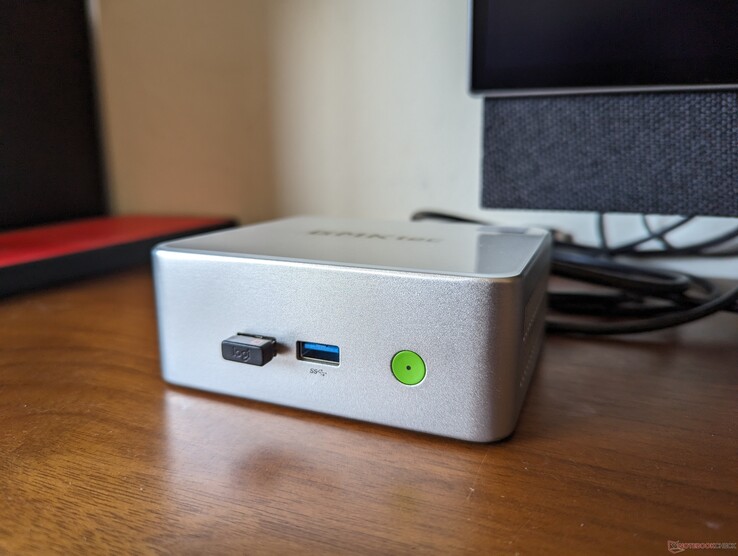

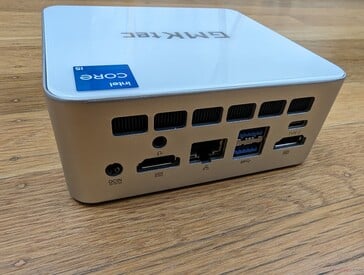

Conectividade

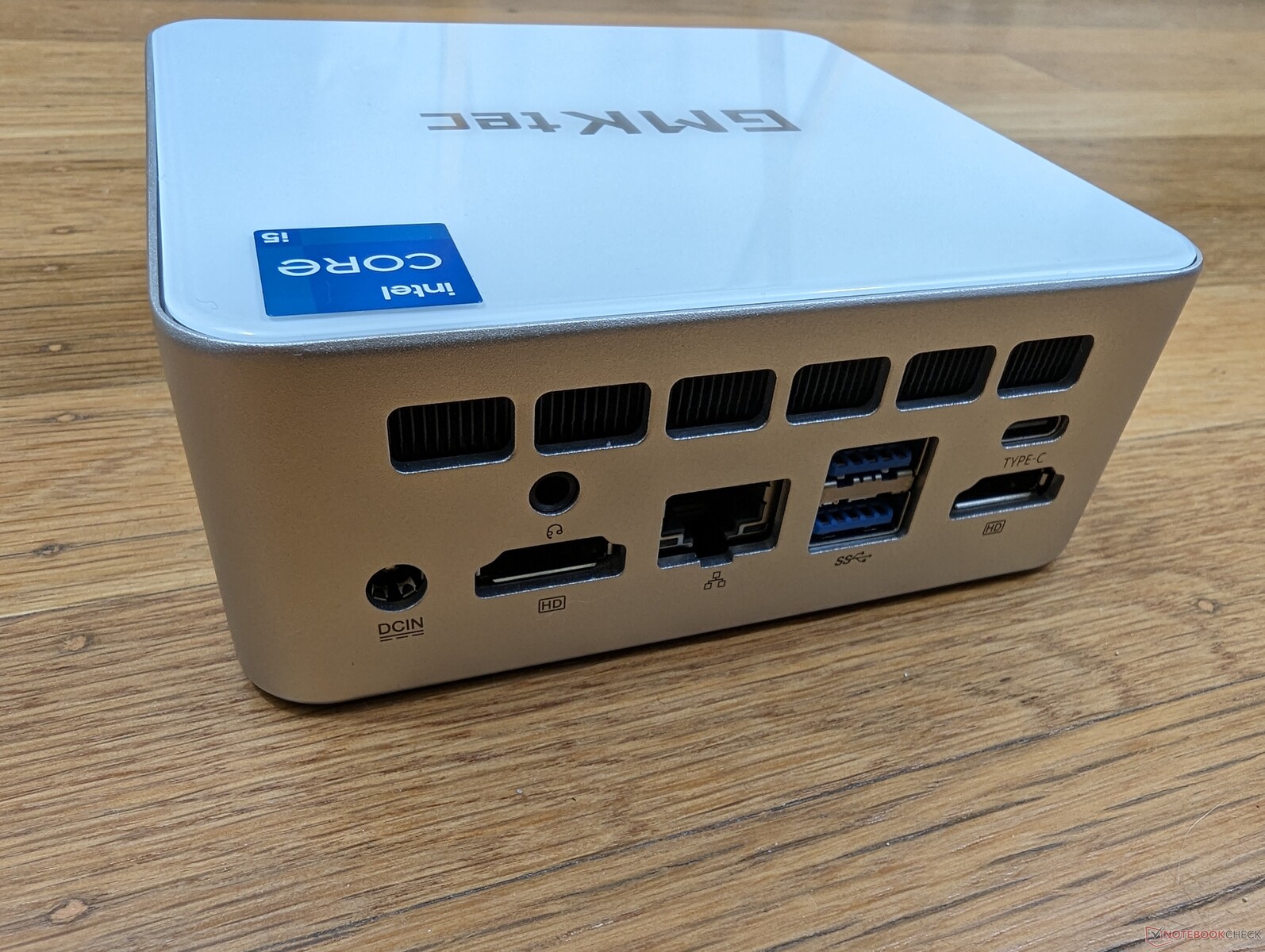

Embora as opções de porta sejam decentes, a única porta USB-C parece ter problemas com a saída de vídeo. O fabricante anuncia a compatibilidade com USB-C DisplayPort, mas nenhum dos nossos monitores externos USB-C funcionou. O Thunderbolt também não é compatível, provavelmente para economizar nos custos.
Comunicação
O modelo é fornecido sem suporte a Wi-Fi 6E, provavelmente para economizar nos custos. Por outro lado, a conectividade Wi-Fi 6 é estável e confiável.
Networking | |
iperf3 transmit AXE11000 | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink Mini S12 Pro | |
iperf3 receive AXE11000 | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
Beelink Mini S12 Pro | |
iperf3 transmit AXE11000 6GHz | |
Intel NUC 13 Pro Kit NUC13ANK | |
iperf3 receive AXE11000 6GHz | |
Intel NUC 13 Pro Kit NUC13ANK |
Manutenção

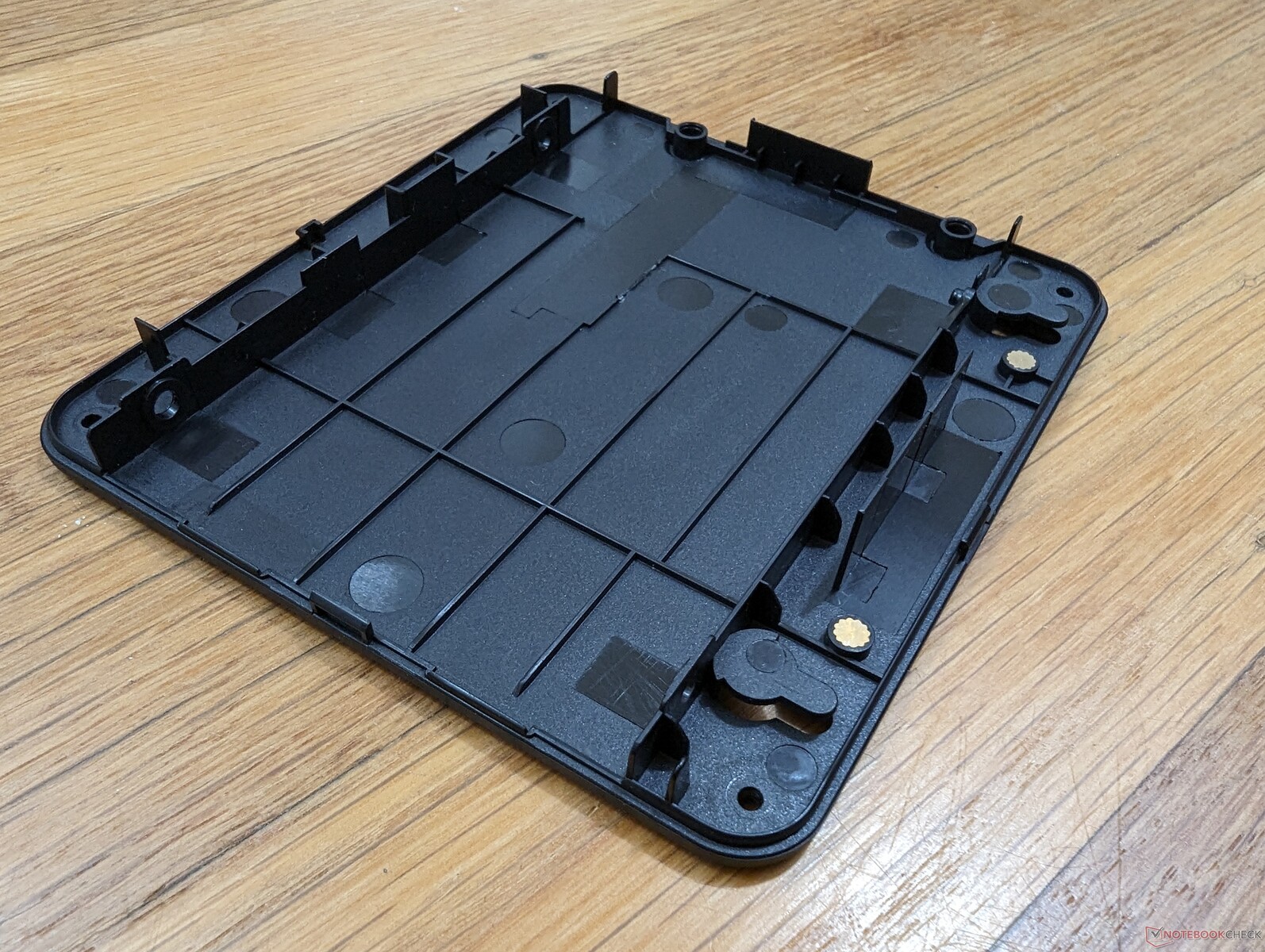

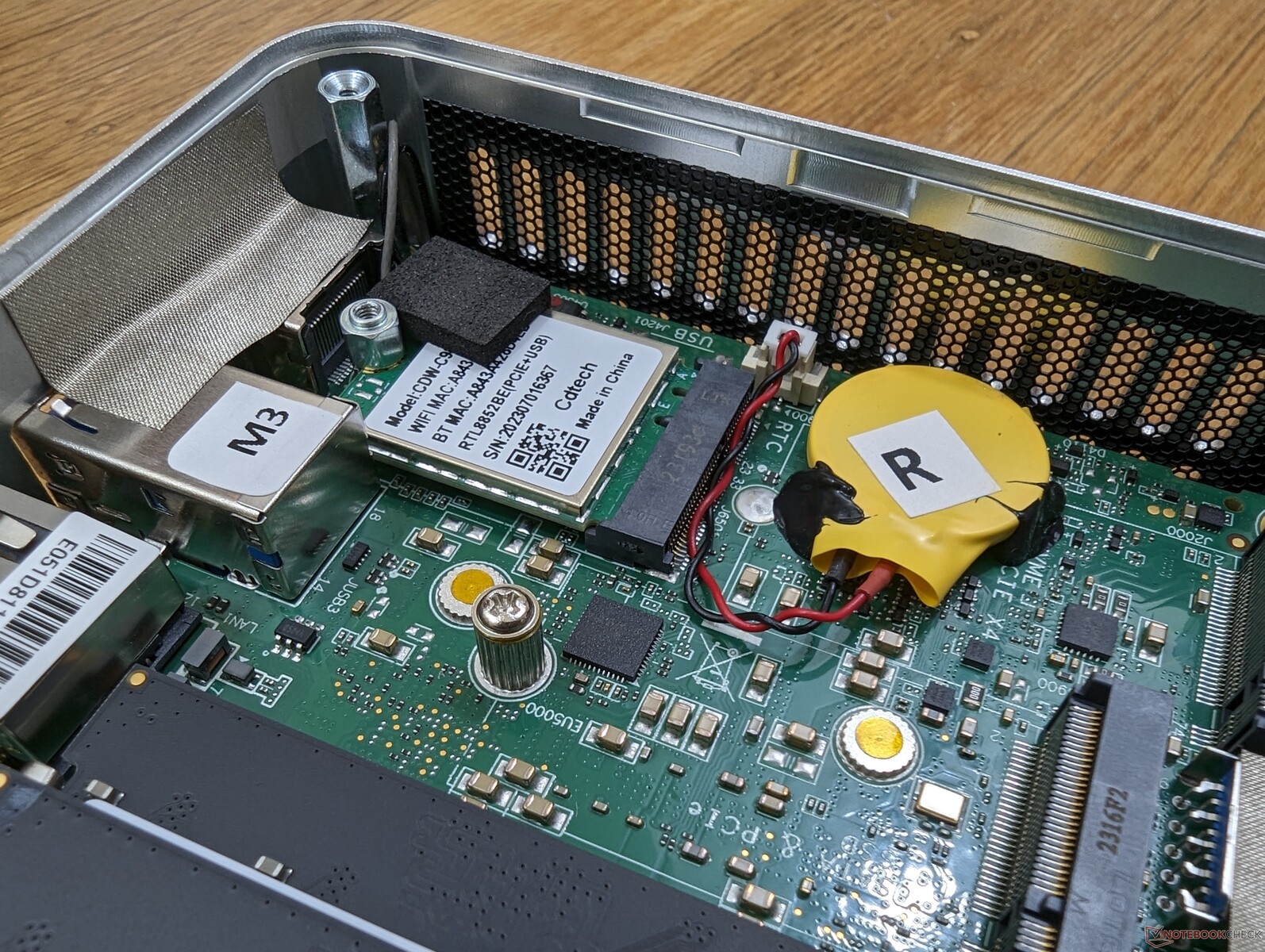

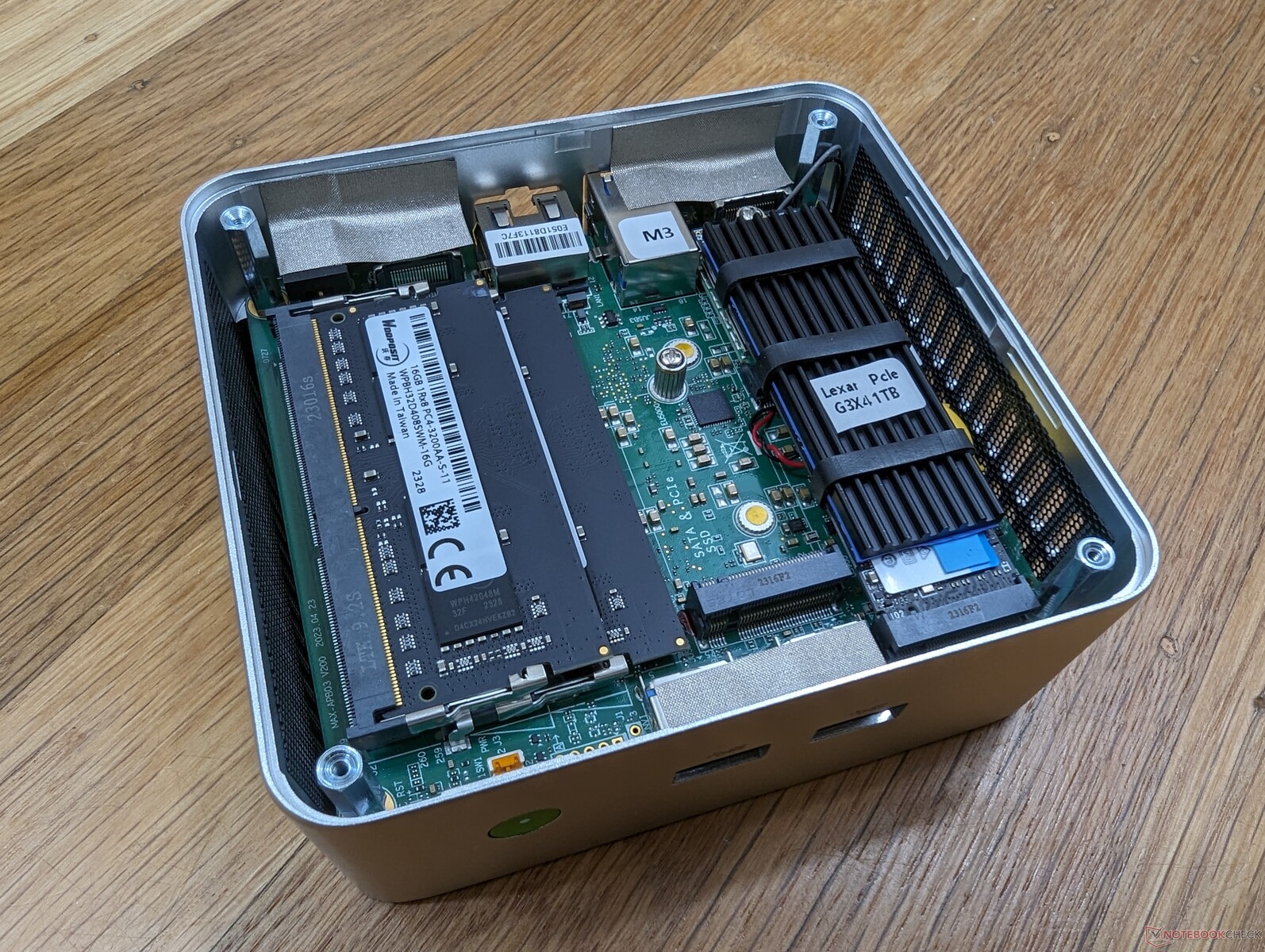

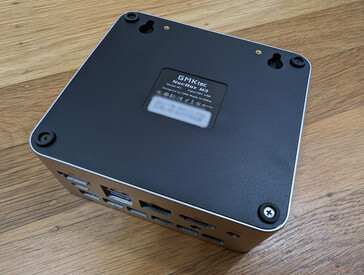

O painel inferior é fixado por quatro parafusos Phillips para facilitar a manutenção.
Acessórios e garantia
A caixa de varejo inclui um cabo HDMI, adaptador CA, papelada e suporte VESA com parafusos. A garantia limitada de um ano do fabricante se aplica se o produto for comprado nos EUA.
Desempenho
Condições de teste
Configuramos o Windows para o modo Desempenho antes de executar os benchmarks abaixo. O fabricante não instala nenhum software especializado para alternar quaisquer recursos específicos do modelo.
Processador
Desempenho multithread do nosso Core i5-12450H é cerca de 25 a 30 por cento mais lento do que o Core i7-12650H encontrado no NucBox K3 Pro. O déficit é suficiente para colocar nossa CPU em pé de igualdade com o Ryzen 5 5560U que é uma alternativa mais barata e mais eficiente em termos de energia. Em vez disso, o Core i5-12450H se destaca no desempenho de thread único, onde está a uma distância impressionante do Core i7-13700H.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Neptune Series HX77G | |
Geekom AS 6, R9 6900HX | |
GMK NucBox K3 Pro | |
Geekom AS 5 | |
Geekom A5 | |
Average Intel Core i5-12450H | |
GMK NucBox M3 | |
LG Gram 15Z90Q | |
Beelink SER5 | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
Cinebench R23 / Multi Core | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Neptune Series HX77G | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (7662 - 10610, n=5) | |
LG Gram 15Z90Q | |
Beelink SER5 | |
GMK NucBox M3 | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
Cinebench R23 / Single Core | |
Dell OptiPlex Micro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
GMK NucBox M3 | |
Average Intel Core i5-12450H (1652 - 1688, n=5) | |
Minisforum Neptune Series HX77G | |
Geekom AS 6, R9 6900HX | |
LG Gram 15Z90Q | |
Geekom AS 5 | |
BMAX B7 Power G7A2 | |
Geekom A5 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
Cinebench R20 / CPU (Multi Core) | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Neptune Series HX77G | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (2952 - 4105, n=5) | |
LG Gram 15Z90Q | |
Beelink SER5 | |
GMK NucBox M3 | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
Cinebench R20 / CPU (Single Core) | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Dell OptiPlex Micro | |
Beelink SER7 | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Average Intel Core i5-12450H (634 - 646, n=5) | |
Minisforum Neptune Series HX77G | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
LG Gram 15Z90Q | |
Geekom A5 | |
BMAX B7 Power G7A2 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
Cinebench R15 / CPU Multi 64Bit | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Minisforum Neptune Series HX77G | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
LG Gram 15Z90Q | |
Average Intel Core i5-12450H (1150 - 1591, n=5) | |
Beelink SER5 | |
GMK NucBox M3 | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
Cinebench R15 / CPU Single 64Bit | |
Beelink SER7 | |
Dell OptiPlex Micro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Minisforum Neptune Series HX77G | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
GMK NucBox M3 | |
Average Intel Core i5-12450H (227 - 239, n=5) | |
Geekom A5 | |
LG Gram 15Z90Q | |
BMAX B7 Power G7A2 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
Blender / v2.79 BMW27 CPU | |
Beelink Mini S12 Pro | |
BMAX B7 Power G7A2 | |
LG Gram 15Z90Q | |
GMK NucBox M3 | |
Beelink SER5 | |
Average Intel Core i5-12450H (335 - 429, n=6) | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom AS 5 | |
Geekom AS 6, R9 6900HX | |
Minisforum Neptune Series HX77G | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER7 | |
Dell OptiPlex Micro |
7-Zip 18.03 / 7z b 4 | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Minisforum Neptune Series HX77G | |
Geekom AS 6, R9 6900HX | |
Lenovo IdeaCentre Mini 01IRH8 | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom AS 5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Average Intel Core i5-12450H (31119 - 38415, n=6) | |
GMK NucBox M3 | |
LG Gram 15Z90Q | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Beelink SER7 | |
Dell OptiPlex Micro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Neptune Series HX77G | |
GMK NucBox K3 Pro | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
BMAX B7 Power G7A2 | |
Geekom A5 | |
GMK NucBox M3 | |
Average Intel Core i5-12450H (4914 - 5386, n=6) | |
LG Gram 15Z90Q | |
Beelink SER5 | |
Beelink Mini S12 Pro |
Geekbench 5.5 / Multi-Core | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Neptune Series HX77G | |
GMK NucBox K3 Pro | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
LG Gram 15Z90Q | |
Average Intel Core i5-12450H (6804 - 8330, n=6) | |
GMK NucBox M3 | |
Beelink SER5 | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
Geekbench 5.5 / Single-Core | |
Beelink SER7 | |
Dell OptiPlex Micro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Average Intel Core i5-12450H (1581 - 1665, n=6) | |
Minisforum Neptune Series HX77G | |
LG Gram 15Z90Q | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
BMAX B7 Power G7A2 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Dell OptiPlex Micro | |
Beelink SER7 | |
Minisforum Neptune Series HX77G | |
Lenovo IdeaCentre Mini 01IRH8 | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (8.78 - 12.3, n=5) | |
Beelink SER5 | |
GMK NucBox M3 | |
LG Gram 15Z90Q | |
BMAX B7 Power G7A2 | |
Beelink Mini S12 Pro |
LibreOffice / 20 Documents To PDF | |
Beelink Mini S12 Pro | |
Beelink SER5 | |
Geekom A5 | |
LG Gram 15Z90Q | |
BMAX B7 Power G7A2 | |
Geekom AS 5 | |
Minisforum Neptune Series HX77G | |
Geekom AS 6, R9 6900HX | |
Average Intel Core i5-12450H (41.1 - 53.2, n=6) | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Dell OptiPlex Micro |
R Benchmark 2.5 / Overall mean | |
Beelink Mini S12 Pro | |
Beelink SER5 | |
BMAX B7 Power G7A2 | |
LG Gram 15Z90Q | |
Geekom A5 | |
Average Intel Core i5-12450H (0.4949 - 0.527, n=6) | |
Geekom AS 5 | |
GMK NucBox M3 | |
Geekom AS 6, R9 6900HX | |
Minisforum Neptune Series HX77G | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER7 | |
Dell OptiPlex Micro |
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Average Intel Core i5-12450H | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / FP32 Ray-Trace | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Average Intel Core i5-12450H (7229 - 10131, n=5) | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / FPU Julia | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (37583 - 51019, n=5) | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / CPU SHA3 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (1724 - 2339, n=5) | |
Beelink SER5 | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / CPU Queen | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Average Intel Core i5-12450H (59539 - 68897, n=5) | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / FPU SinJulia | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (5007 - 6147, n=5) | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / FPU Mandel | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (18516 - 23609, n=5) | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / CPU AES | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Average Intel Core i5-12450H (48420 - 78537, n=5) | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / CPU ZLib | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (490 - 708, n=5) | |
Beelink SER5 | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / FP64 Ray-Trace | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (4025 - 5477, n=5) | |
Beelink SER5 | |
GMK NucBox M3 | |
Beelink Mini S12 Pro |
AIDA64 / CPU PhotoWorxx | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Average Intel Core i5-12450H (26397 - 28682, n=5) | |
GMK NucBox M3 | |
Geekom A5 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
Desempenho do sistema
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
Beelink Mini S12 Pro |
PCMark 10 / Essentials | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
Geekom A5 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
PCMark 10 / Productivity | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
Beelink Mini S12 Pro |
PCMark 10 / Digital Content Creation | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
Beelink Mini S12 Pro |
CrossMark / Overall | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
Geekom A5 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
CrossMark / Productivity | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
CrossMark / Creativity | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Geekom A5 | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
Beelink SER5 | |
Beelink Mini S12 Pro |
CrossMark / Responsiveness | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs () | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Beelink SER5 | |
Beelink Mini S12 Pro |

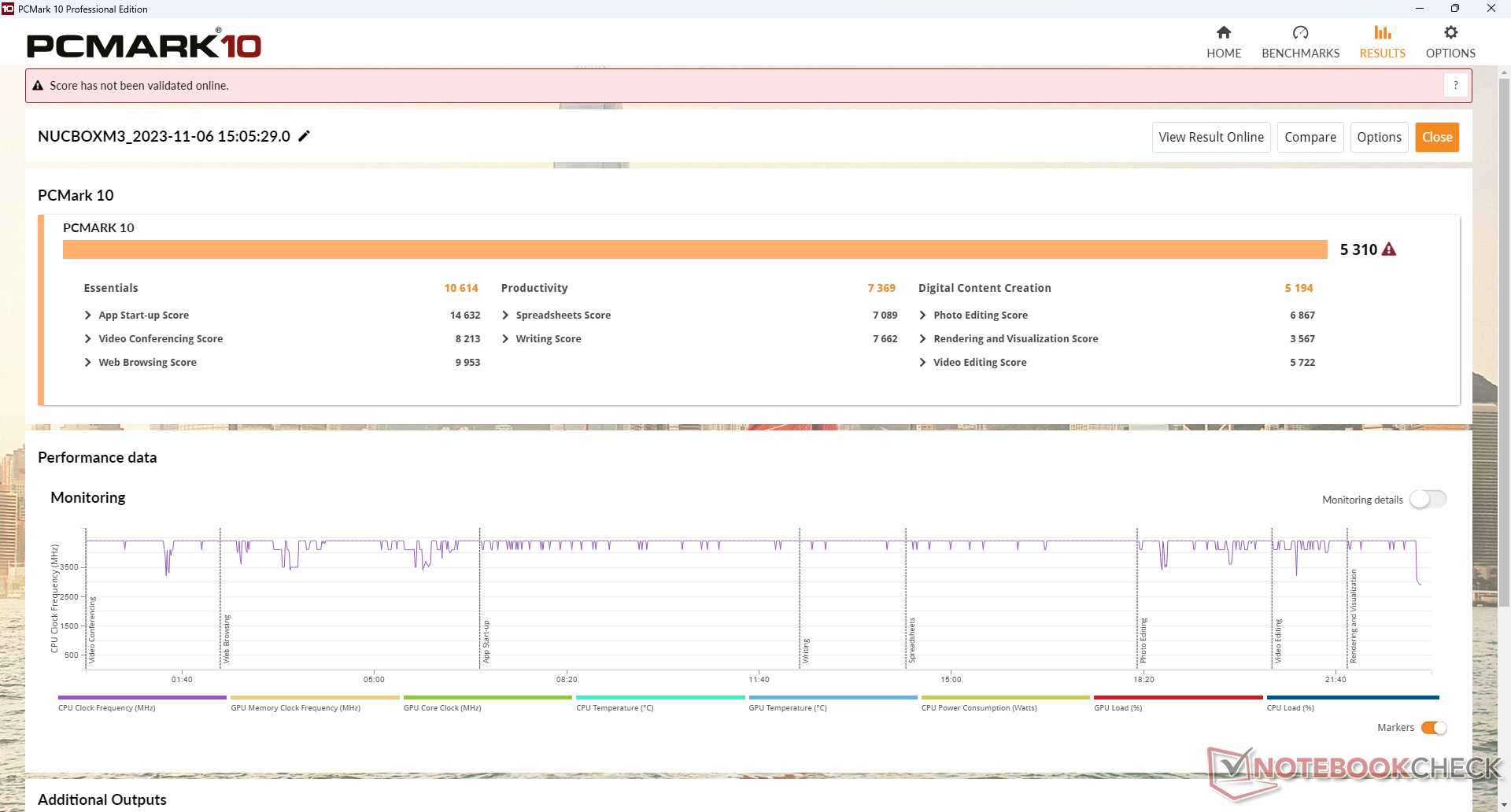

PCMark 10 Score | 5310 pontos | |
Ajuda |
AIDA64 / Memory Copy | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
Average Intel Core i5-12450H (42484 - 43918, n=5) | |
GMK NucBox M3 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
AIDA64 / Memory Read | |
GMK NucBox K3 Pro | |
Average Intel Core i5-12450H (43117 - 47555, n=5) | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
Beelink SER5 | |
Beelink Mini S12 Pro |
AIDA64 / Memory Write | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Average Intel Core i5-12450H (43709 - 46963, n=5) | |
Beelink SER5 | |
Beelink Mini S12 Pro |
AIDA64 / Memory Latency | |
Beelink Mini S12 Pro | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 | |
Average Intel Core i5-12450H (76.5 - 100.9, n=5) | |
Geekom A5 | |
GMK NucBox M3 |
* ... smaller is better
Latência DPC

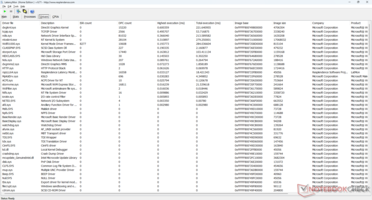

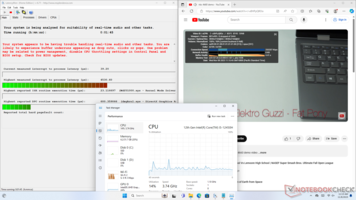

O LatencyMon revela problemas de DPC ao abrir várias guias do navegador em nossa página inicial. a reprodução de vídeo 4K a 60 FPS é perfeita e não há registro de queda de quadros.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Beelink Mini S12 Pro | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 |
* ... smaller is better
Dispositivos de armazenamento
A GMK implementa o mesmoLexar NM610 Pro PCIe3 x4 NVMe da Lexar para seus modelos NucBox M3 e NucBox K3 Pro. O sistema não é fornecido com um SSD PCIe4, provavelmente para economizar nos custos.
É possível instalar um segundo SSD, mas ele deve ter 42 mm de comprimento ou menos.
Drive Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 | |
Geekom A5 | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro |
DiskSpd | |
seq read | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 | |
Geekom A5 | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
seq write | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 | |
Geekom A5 | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
seq q8 t1 read | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
GMK NucBox M3 | |
Geekom A5 | |
Beelink Mini S12 Pro | |
seq q8 t1 write | |
Beelink SER5 | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox M3 | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
4k q1 t1 read | |
GMK NucBox M3 | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
4k q1 t1 write | |
GMK NucBox M3 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Beelink Mini S12 Pro | |
4k q32 t16 read | |
Beelink SER5 | |
Geekom A5 | |
GMK NucBox M3 | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro | |
Beelink Mini S12 Pro | |
4k q32 t16 write | |
Beelink SER5 | |
Geekom A5 | |
GMK NucBox M3 | |
Beelink Mini S12 Pro | |
Intel NUC 13 Pro Kit NUC13ANK | |
GMK NucBox K3 Pro |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Desempenho da GPU
O desempenho gráfico é mais rápido do que o de um PC médio com a mesma Iris Xe 48 EUs já que essa GPU integrada é normalmente combinada com CPUs Core série U mais lentas. Nesse caso, a CPU mais rápida da classe Core H em nosso NucBox M3 ajuda a aumentar o desempenho geral da GPU. No entanto, o sistema ainda não está nem perto de ser rápido o suficiente para executar a maioria dos jogos nativamente.
3DMark Performance Rating - Percent | |
Beelink SER7 -1! | |
Geekom AS 6, R9 6900HX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
Geekom AS 5 | |
Lenovo IdeaCentre Mini 01IRH8 -1! | |
Intel NUC 12 Pro Kit NUC12WSBi5 -1! | |
GMK NucBox K3 Pro -1! | |
Beelink SER5 | |
GMK NucBox M3 | |
BMAX B7 Power G7A2 | |
Dell OptiPlex Micro -1! | |
Average Intel UHD Graphics Xe G4 48EUs | |
Beelink Mini S12 Pro |
3DMark 11 - 1280x720 Performance GPU | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom A5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 12 Pro Kit NUC12WSBi5 | |
GMK NucBox K3 Pro | |
BMAX B7 Power G7A2 | |
Beelink SER5 | |
GMK NucBox M3 | |
Dell OptiPlex Micro | |
Average Intel UHD Graphics Xe G4 48EUs (2156 - 3906, n=11) | |
Beelink Mini S12 Pro |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Geekom AS 6, R9 6900HX | |
Geekom A5 | |
Geekom AS 5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSBi5 | |
Beelink SER5 | |
GMK NucBox M3 | |
BMAX B7 Power G7A2 | |
Average Intel UHD Graphics Xe G4 48EUs (11270 - 21778, n=11) | |
Beelink Mini S12 Pro | |
1920x1080 Fire Strike Graphics | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Geekom AS 5 | |
Intel NUC 12 Pro Kit NUC12WSBi5 | |
GMK NucBox M3 | |
Beelink SER5 | |
Dell OptiPlex Micro | |
BMAX B7 Power G7A2 | |
Average Intel UHD Graphics Xe G4 48EUs (1602 - 3131, n=11) | |
Beelink Mini S12 Pro | |
2560x1440 Time Spy Graphics | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Lenovo IdeaCentre Mini 01IRH8 | |
Geekom AS 5 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
BMAX B7 Power G7A2 | |
GMK NucBox M3 | |
Dell OptiPlex Micro | |
Average Intel UHD Graphics Xe G4 48EUs (634 - 913, n=9) | |
Beelink Mini S12 Pro |

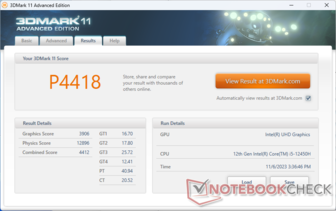

3DMark 11 Performance | 4418 pontos | |

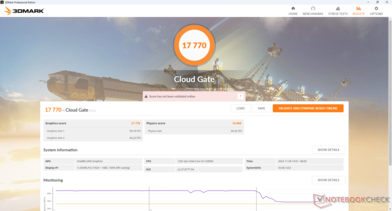

3DMark Cloud Gate Standard Score | 17770 pontos | |

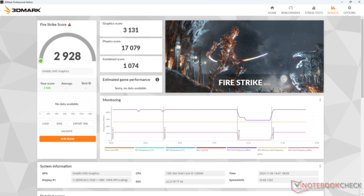

3DMark Fire Strike Score | 2928 pontos | |

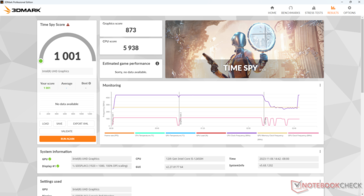

3DMark Time Spy Score | 1001 pontos | |
Ajuda |
Blender | |
v3.3 Classroom HIP/AMD | |
Beelink SER5 | |
Geekom AS 5 | |
Geekom A5 | |
Geekom AS 6, R9 6900HX | |
v3.3 Classroom CPU | |
Beelink Mini S12 Pro | |
Average Intel UHD Graphics Xe G4 48EUs (741 - 2408, n=4) | |
BMAX B7 Power G7A2 | |
GMK NucBox M3 | |
Beelink SER5 | |
Intel NUC 12 Pro Kit NUC12WSBi5 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Geekom AS 5 | |
Geekom AS 6, R9 6900HX | |
Lenovo IdeaCentre Mini 01IRH8 | |
Dell OptiPlex Micro | |
Beelink SER7 |
* ... smaller is better
Final Fantasy XV Benchmark | |
1280x720 Lite Quality | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Geekom A5 | |
Geekom AS 5 | |
GMK NucBox K3 Pro | |
Intel NUC 12 Pro Kit NUC12WSBi5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER5 | |
GMK NucBox M3 | |
Dell OptiPlex Micro | |
BMAX B7 Power G7A2 | |
Average Intel UHD Graphics Xe G4 48EUs (14.6 - 29.3, n=12) | |
Beelink Mini S12 Pro | |
1920x1080 Standard Quality | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Geekom A5 | |
Geekom AS 5 | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 12 Pro Kit NUC12WSBi5 | |
Beelink SER5 | |
GMK NucBox M3 | |
Dell OptiPlex Micro | |
Average Intel UHD Graphics Xe G4 48EUs (8.88 - 19, n=7) | |
BMAX B7 Power G7A2 | |
1920x1080 High Quality | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER5 | |
Average Intel UHD Graphics Xe G4 48EUs (3.86 - 19, n=5) | |
GMK NucBox M3 | |
Dell OptiPlex Micro | |
BMAX B7 Power G7A2 |
X-Plane 11.11 | |
1280x720 low (fps_test=1) | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
Dell OptiPlex Micro | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
BMAX B7 Power G7A2 | |
Beelink SER5 | |
GMK NucBox M3 | |
Average Intel UHD Graphics Xe G4 48EUs (21.8 - 42.5, n=11) | |
Beelink Mini S12 Pro | |
1920x1080 med (fps_test=2) | |
Geekom AS 6, R9 6900HX | |
Beelink SER7 | |
Geekom AS 5 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Lenovo IdeaCentre Mini 01IRH8 | |
Dell OptiPlex Micro | |
BMAX B7 Power G7A2 | |
Beelink SER5 | |
GMK NucBox M3 | |
Average Intel UHD Graphics Xe G4 48EUs (15.8 - 29.6, n=11) | |
Beelink Mini S12 Pro | |
1920x1080 high (fps_test=3) | |
Beelink SER7 | |
Geekom AS 6, R9 6900HX | |
Geekom AS 5 | |
Geekom A5 | |
Dell OptiPlex Micro | |
Lenovo IdeaCentre Mini 01IRH8 | |
BMAX B7 Power G7A2 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
GMK NucBox M3 | |
Average Intel UHD Graphics Xe G4 48EUs (14.1 - 26.7, n=11) | |
Beelink Mini S12 Pro |
Witcher 3 FPS Chart
baixo | média | alto | ultra | |
GTA V (2015) | 106.7 | 90.7 | 15 | 6.32 |
The Witcher 3 (2015) | 61.1 | 38.6 | 20.1 | 9.5 |
Dota 2 Reborn (2015) | 37 | 36.2 | 35.4 | 34.7 |
Final Fantasy XV Benchmark (2018) | 28.5 | 14.8 | 10.6 | |
X-Plane 11.11 (2018) | 36.3 | 23.8 | 22 | |
Far Cry 5 (2018) | 34 | 17 | 16 | 15 |
Strange Brigade (2018) | 64.4 | 25.6 | 20 | 17.7 |
Cyberpunk 2077 1.6 (2022) | 10.8 | |||
Tiny Tina's Wonderlands (2022) | 17.1 | 13.3 | ||
F1 22 (2022) | 27.9 | 24.8 | 17.5 | 13.5 |
Emissões
Ruído do sistema
O comportamento do ruído da ventoinha é provavelmente o pior aspecto do NucBox M3. A ventoinha pulsa com frequência e com muito mais frequência do que na maioria dos outros mini PCs. Por exemplo, a ventoinha atingia um breve pico de 39 dB(A) ao iniciar aplicativos ou mesmo, aparentemente sem motivo, ao navegar na Web, antes de voltar ao normal. A mudança para uma CPU da série U, em vez da série H, provavelmente teria resolvido esse problema incômodo.
Barulho
Ocioso |
| 25.7 / 25.7 / 39.1 dB |
Carga |
| 37 / 43.5 dB |
| ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 23.9 dB(A) |
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG | GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG | Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8 | Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100 | Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB | Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ | |
---|---|---|---|---|---|---|
Noise | 7% | 20% | 12% | -6% | -8% | |
off / environment * | 23.9 | 23.1 3% | 23.7 1% | 23.3 3% | 25 -5% | 29.8 -25% |
Idle Minimum * | 25.7 | 25 3% | 23.9 7% | 26.3 -2% | 28.2 -10% | 30.2 -18% |
Idle Average * | 25.7 | 25.5 1% | 23.9 7% | 26.3 -2% | 28.2 -10% | 31.1 -21% |
Idle Maximum * | 39.1 | 25.5 35% | 23.9 39% | 26.3 33% | 28.2 28% | 31.9 18% |
Load Average * | 37 | 39.9 -8% | 28 24% | 31.9 14% | 47.8 -29% | 40 -8% |
Witcher 3 ultra * | 43.5 | 39.9 8% | 27.6 37% | 33 24% | ||
Load Maximum * | 43.5 | 39.9 8% | 32.8 25% | 36.7 16% | 47.4 -9% | 40.5 7% |
* ... smaller is better

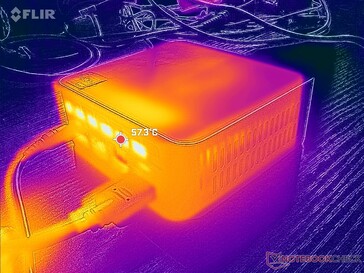

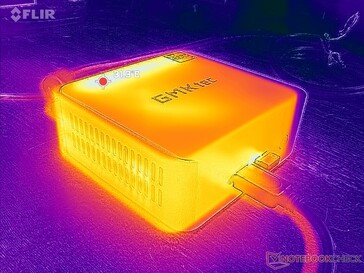

Temperatura
O ar fresco entra pelas laterais da unidade em vez de pela parte superior, ao contrário do que ocorre recentemente Beelink SER5. Portanto, é seguro colocar itens na parte superior da unidade, desde que as laterais e a parte traseira tenham amplo espaço para o fluxo de ar.

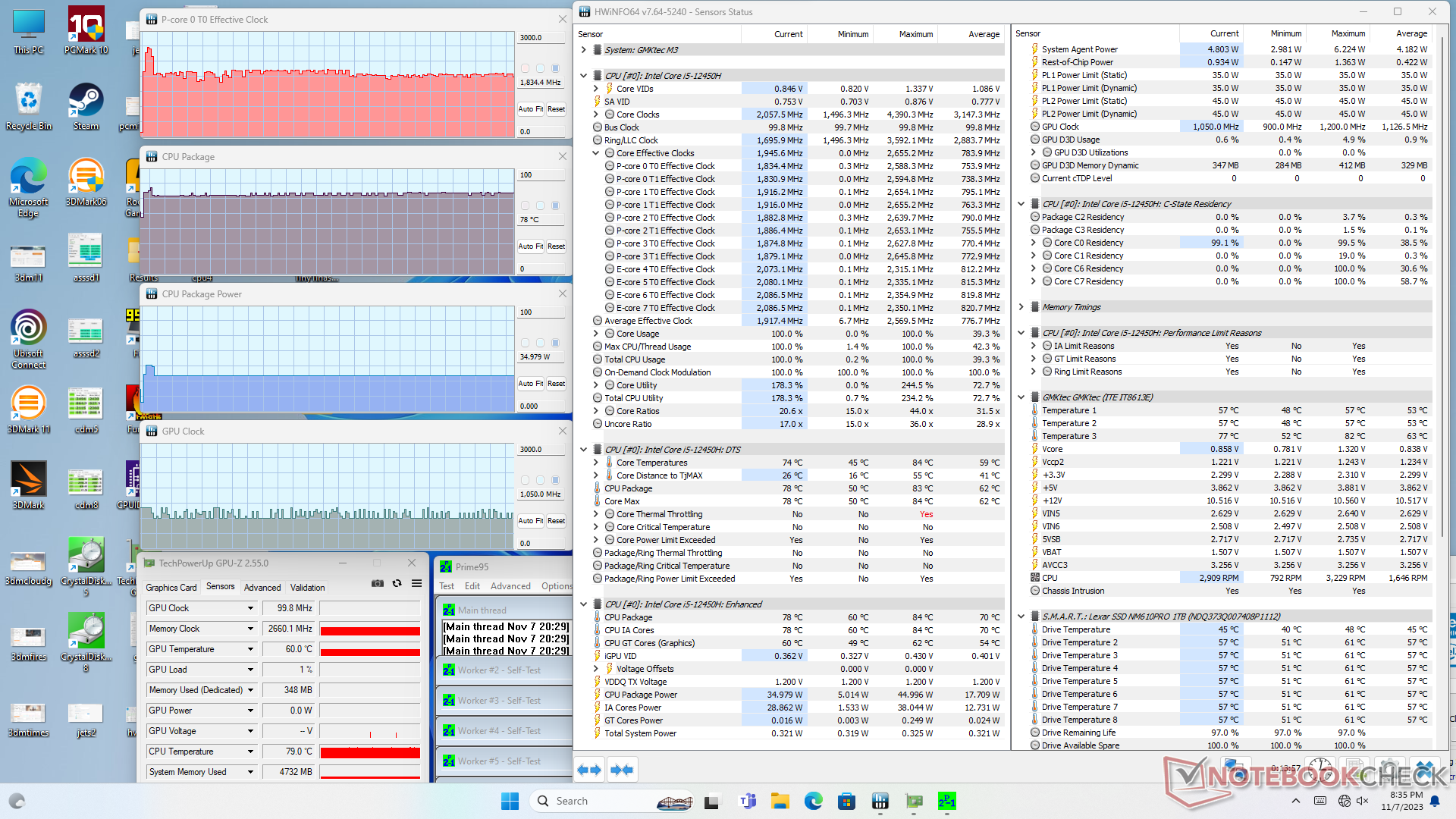

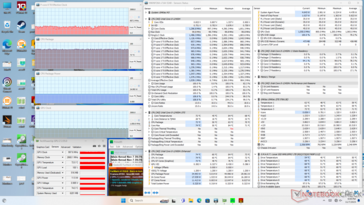

Teste de estresse
Ao executar o Prime95, a CPU aumentaria para 2,6 GHz e 45 W por apenas cerca de 10 segundos antes de cair e se estabilizar em 1,8 GHz e 35 W para manter uma temperatura central razoável de 75 C. Portanto, o potencial máximo do Turbo Boost tem vida curta no NucBox M3. Repetindo esse mesmo teste no NucBox K3 Pro com o Core i7-12650H mais rápido resultaria em taxas de clock mais altas e temperaturas de núcleo mais quentes, próximas a 84 C.
Clock da CPU (GHz) | Clock da GPU (MHz) | Temperatura média da CPU (°C) | |
Sistema ocioso | -- | -- | 54 |
Estresse doPrime95 | 1.8 | -- | 78 |
Prime95 + FurMark Stress | 0.9 | 998 | 73 |

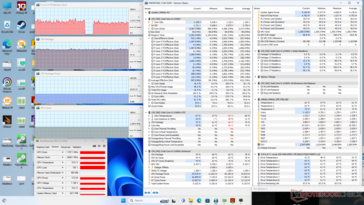

Witcher 3 Estresse | 1,4 | 1197 | 74 |
Gerenciamento de energia
Consumo de energia
Não é segredo que as CPUs de 12ª geração da Intel podem exigir muita energia, especialmente as da família Core-H. O Core i5-12450H não é diferente, pois é quase tão exigente quanto o Ryzen 7 5800H no Geekom A5 embora a CPU da AMD ofereça um desempenho multi-thread mais rápido. Pior ainda, nosso sistema conclui o CineBench R15 xT quase ao mesmo tempo que o Ryzen 5 5560U no Beelink SER5, mas consome quase 80% mais energia para fazer isso.
O consumo de energia durante a execução de aplicativos com muita GPU, como jogos, também não coloca o nosso sistema GMK em uma posição favorável. A execução do Witcher 3 o sistema GMK exigiria quase 60% mais energia do que no Beelink SER5, embora o desempenho gráfico seja semelhante entre os dois modelos.
desligado | 0.8 / 1.7 Watt |
Ocioso | 10.6 / 11.9 / 12.5 Watt |
Carga |
54.9 / 75.6 Watt |
GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x, | GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x, | Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x, | Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N), , , x, | Geekom A5 R7 5800H, Vega 8, Lexar NM620 512GB, , x, | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x, | |
---|---|---|---|---|---|---|
Power Consumption | 5% | 51% | 42% | 14% | 11% | |
Idle Minimum * | 10.6 | 7.1 33% | 4.4 58% | 8.3 22% | 6.9 35% | 5.1 52% |
Idle Average * | 11.9 | 10.1 15% | 5 58% | 8.8 26% | 7.9 34% | 5.8 51% |
Idle Maximum * | 12.5 | 18.6 -49% | 5.3 58% | 8.9 29% | 8.9 29% | 10.2 18% |
Load Average * | 54.9 | 45.3 17% | 29.8 46% | 20.1 63% | 60.8 -11% | 68.1 -24% |
Witcher 3 ultra * | 46.4 | 55.2 -19% | 28.8 38% | 21.5 54% | ||
Load Maximum * | 75.6 | 52.9 30% | 40.4 47% | 32.2 57% | 89.7 -19% | 108.3 -43% |
* ... smaller is better

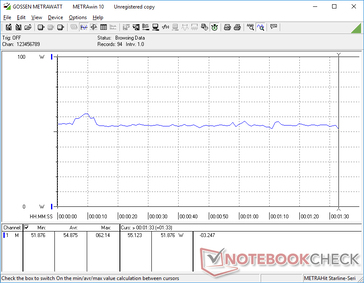

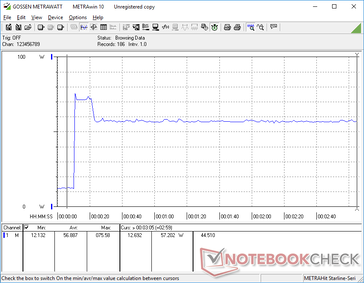

Power Consumption Witcher 3 / Stresstest
Power Consumption external Monitor
Pro
Contra
Veredicto
Um dos principais motivos para usar um mini PC baseado em Core H em vez de Core U ou Ryzen U é o desempenho mais rápido. Infelizmente, o Core i5-12450H não oferece o suficiente em relação às CPUs da série U para justificar o aumento no consumo de energia e no ruído da ventoinha. O NucBox M3 é visivelmente mais barulhento do que as alternativas da série U, como o Beelink SER5 sem oferecer nenhuma vantagem significativa em termos de desempenho multi-thread ou desempenho gráfico. Além do fato de que a maioria dos minicomputadores da série U é mais barata que o NucBox M3, fica mais difícil recomendar o modelo.
O NucBox M3 é mais barulhento e quente do que a maioria dos outros minicomputadores com CPUs da série U, sem oferecer um desempenho muito melhor para compensar.
Entre os destaques do NucBox M3 estão os componentes internos de fácil acesso e muitas opções de portas. No entanto, esses destaques são compartilhados pela maioria dos mini PCs e, portanto, não podem ser considerados grandes vantagens. O modelo precisaria fazer mais para se diferenciar melhor do oceano de alternativas, como manutenção sem ferramentas, suporte a Thunderbolt, várias portas USB-C, adaptador CA integrado ou ruído mais baixo da ventoinha.
Preço e disponibilidade
A Amazon ainda não está oferecendo o NucBox M3. Em vez disso, os usuários podem comprar o diretamente do fabricante por US$ 380, se configurado com 32 GB de RAM e SSD de 1 TB.
GMK NucBox M3
-
11/09/2023 v7
Allen Ngo
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
