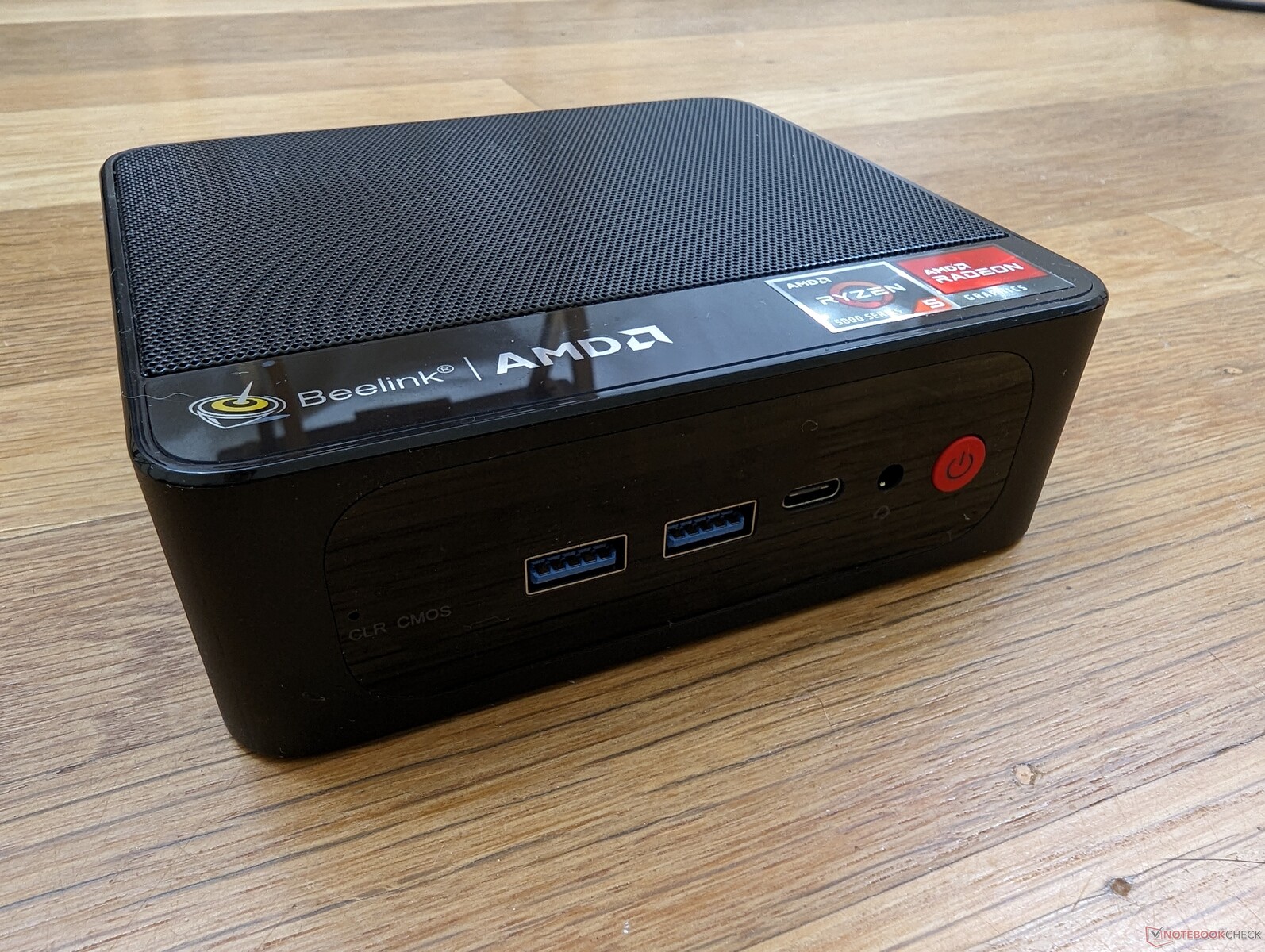

Estreia do desempenho do Ryzen 5 5560U: Análise do mini PC Beelink SER5

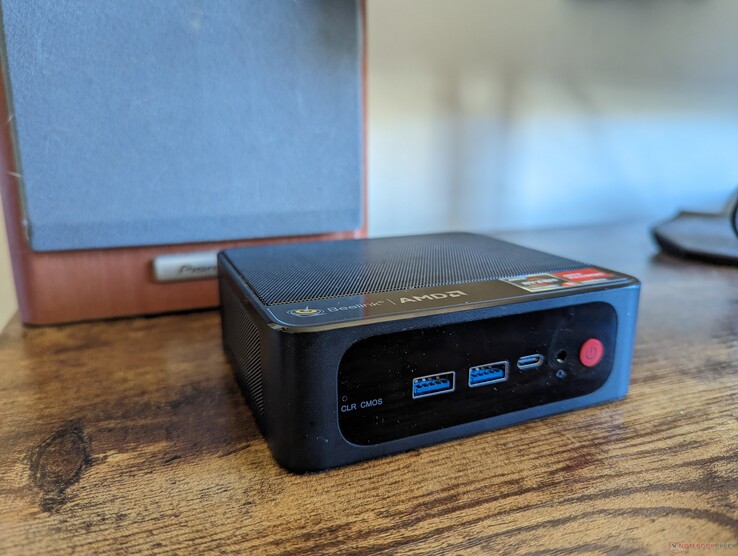

O Beelink SER5 é um minicomputador acessível, em contraste com as séries GTR ou SER Pro, mais caras, que podem vir com CPUs da série H mais rápidas. O SER5 é notável por ser um dos poucos minicomputadores a ser fornecido com o processador AMD Zen 3 Ryzen 5 5560U.
Nossa unidade de análise vem configurada com o Ryzen 5 5560U, 16 GB de RAM, SSD de 500 GB e Windows 11 por apenas US$ 230 no varejo. Ele concorre com outros mini PCs econômicos, como oGeekom A5, GMKtec NucBox seriesou o Minisforum EM680.
Mais análises da Beelink:
Possíveis concorrentes em comparação
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
82.1 % | 11/2023 | Beelink SER5 R5 5560U, Vega 6 | 439 g | 42 mm | x | ||
86.6 % | 09/2023 | Beelink SER7 R7 7840HS, Radeon 780M | 640 g | 49 mm | x | ||
12/2022 | Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs | 465 g | 42 mm | x | |||
81.2 % | 10/2023 | Geekom A5 R7 5800H, Vega 8 | 555 g | 49.2 mm | x | ||
82.8 % | GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs | 396 g | 43.2 mm | x | |||
82.5 % | 08/2023 | Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs | 558 g | 37 mm | x |
Os Top 10
» Os Top 10 Portáteis Multimídia
» Os Top 10 Portáteis de Jogos
» Os Top 10 Portáteis Leves para Jogos
» Os Top 10 Portáteis Acessíveis de Escritório/Empresariais
» Os Top 10 Portáteis Premium de Escritório/Empresariais
» Os Top 10 dos Portáteis Workstation
» Os Top 10 Subportáteis
» Os Top 10 Ultrabooks
» Os Top 10 Conversíveis
» Os Top 10 Tablets
» Os Top 10 Smartphones
» A melhores Telas de Portáteis Analisadas Pela Notebookcheck
» Top 10 dos portáteis abaixo dos 500 Euros da Notebookcheck
» Top 10 dos Portáteis abaixo dos 300 Euros

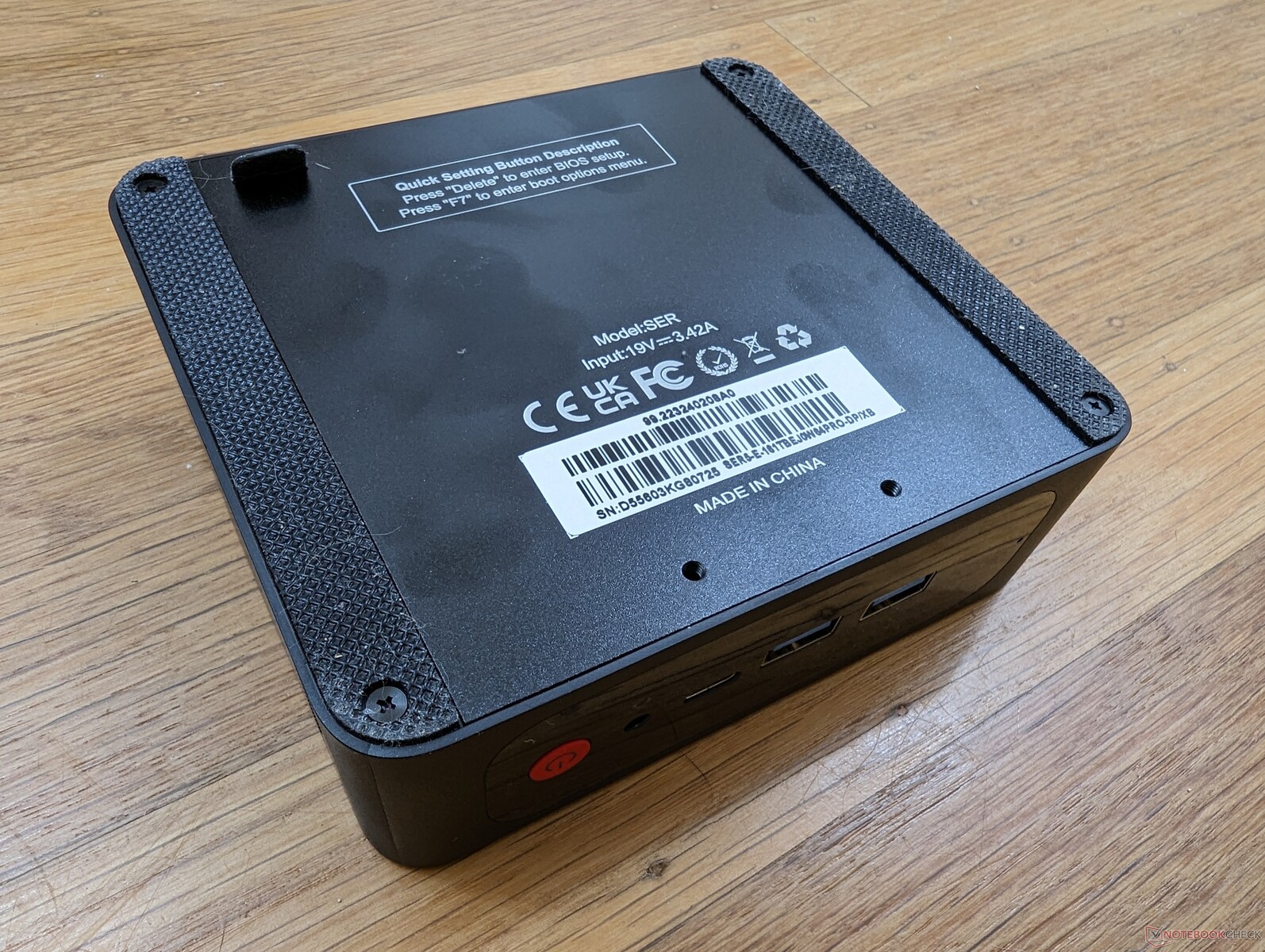

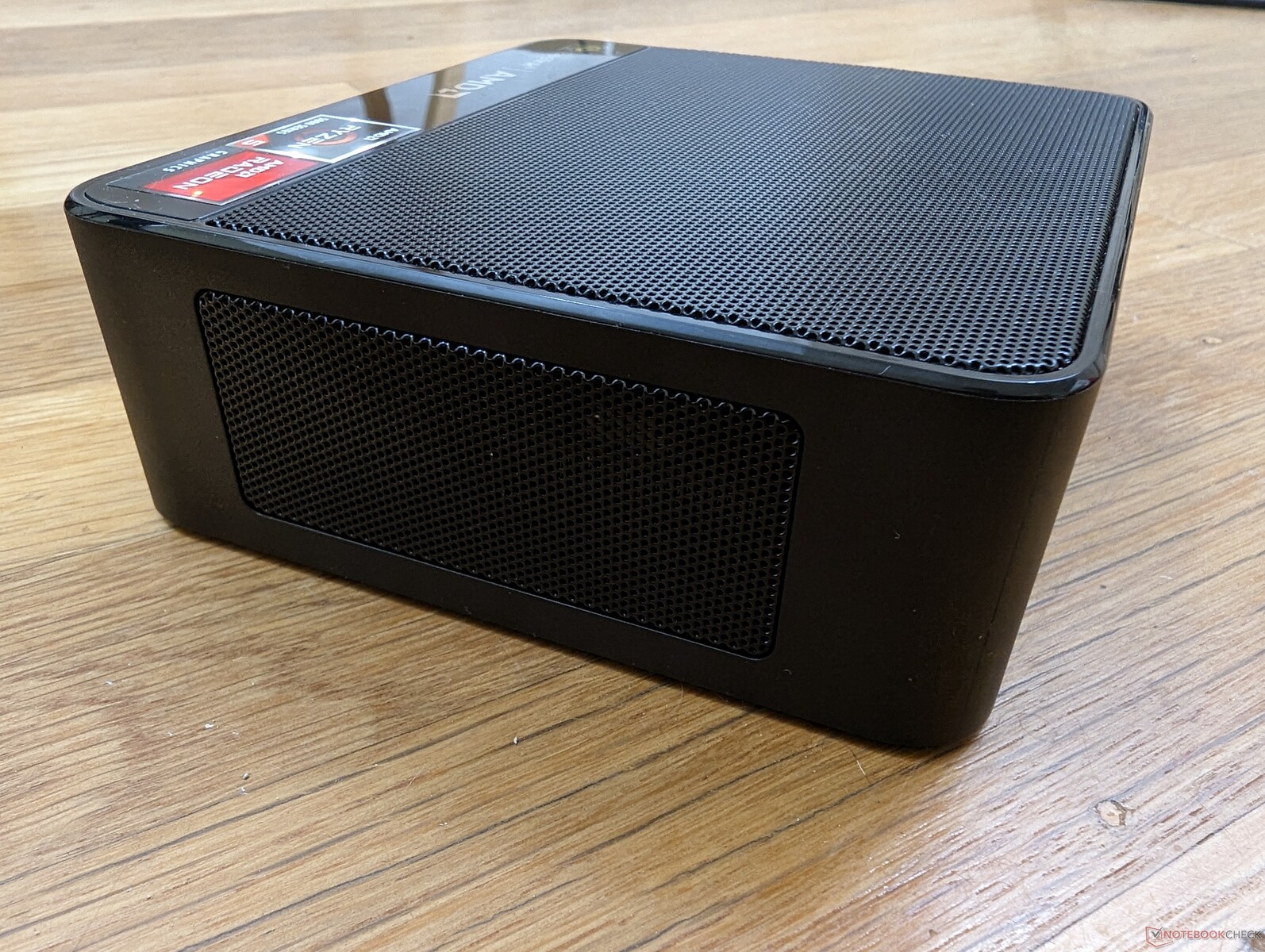

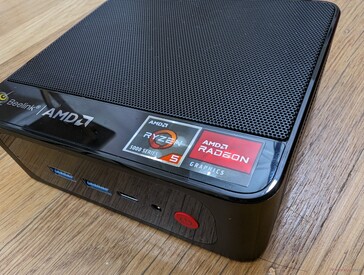

Caso
A Beelink consegue manter a maioria de seus mini PCs acessíveis utilizando o mesmo design de chassi em modelos diferentes, mas com recursos externos ligeiramente diferentes. O SER5, por exemplo, é exatamente igual ao SER6 em termos de dimensões, mas sem a tampa removível da placa superior. Ele também é muito semelhante ao SER7 que é apenas alguns milímetros mais grosso para acomodar melhor a CPU mais rápida da série HS. Os materiais de plástico e metal são os mesmos para uma primeira impressão forte que rivaliza com a série Intel NUC.
Conectividade
Infelizmente, o sistema não é compatível com USB4 ou Thunderbolt. Sua porta USB-C é compatível com DisplayPort, mas não com Power Delivery, o que significa que não é possível alimentar o mini PC com adaptadores USB-C.
Comunicação
Um Intel AX200 vem como padrão para conectividade Wi-Fi 6 e Bluetooth 5.2. Ele não é compatível com Wi-Fi 6E provavelmente para economizar nos custos
Networking | |
iperf3 transmit AXE11000 | |
Beelink SEi12 Core i5-1235U | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
iperf3 receive AXE11000 | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
iperf3 transmit AXE11000 6GHz | |
Intel NUC 13 Pro Desk Edition Kit | |
iperf3 receive AXE11000 6GHz | |
Intel NUC 13 Pro Desk Edition Kit |

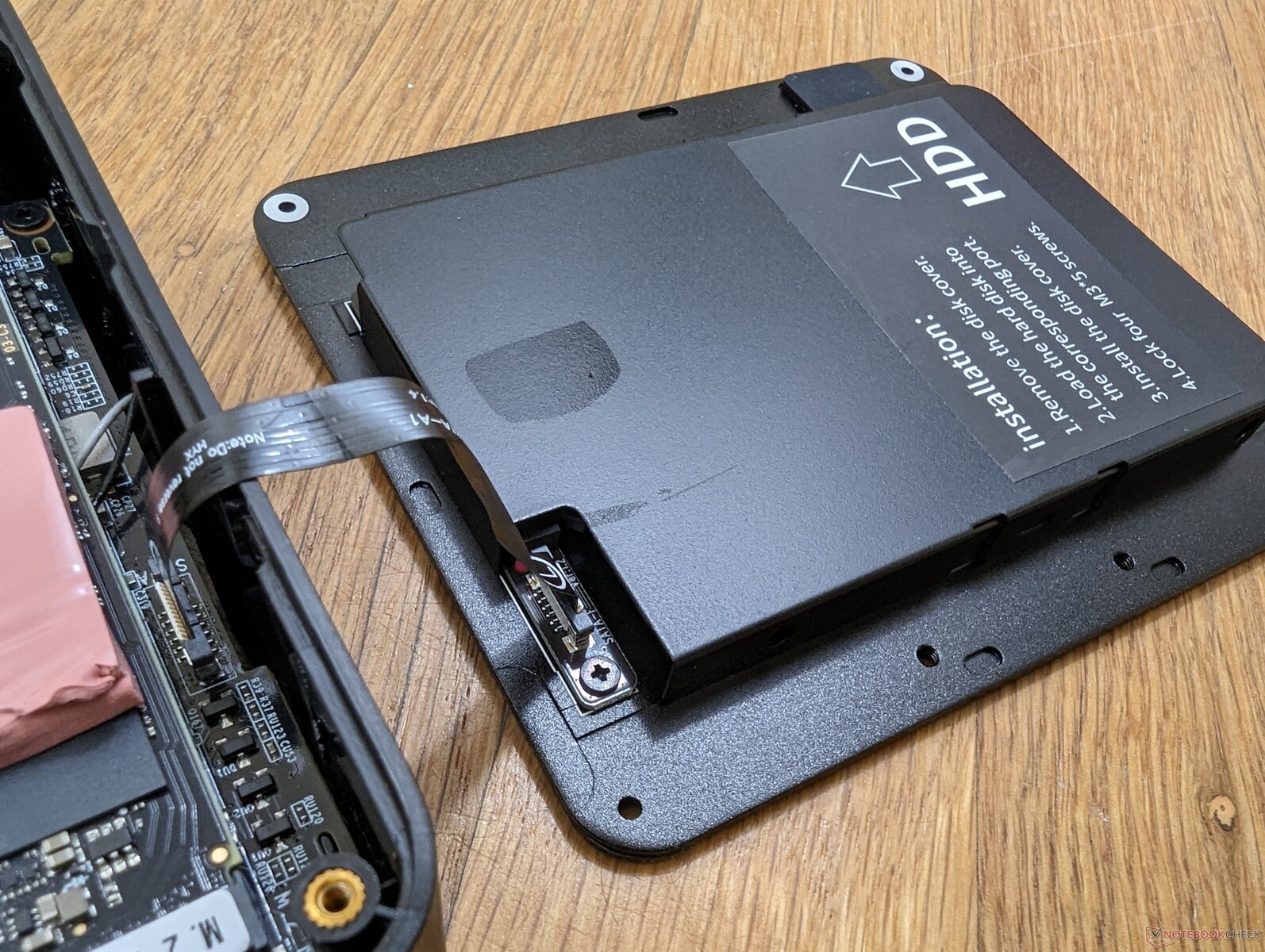

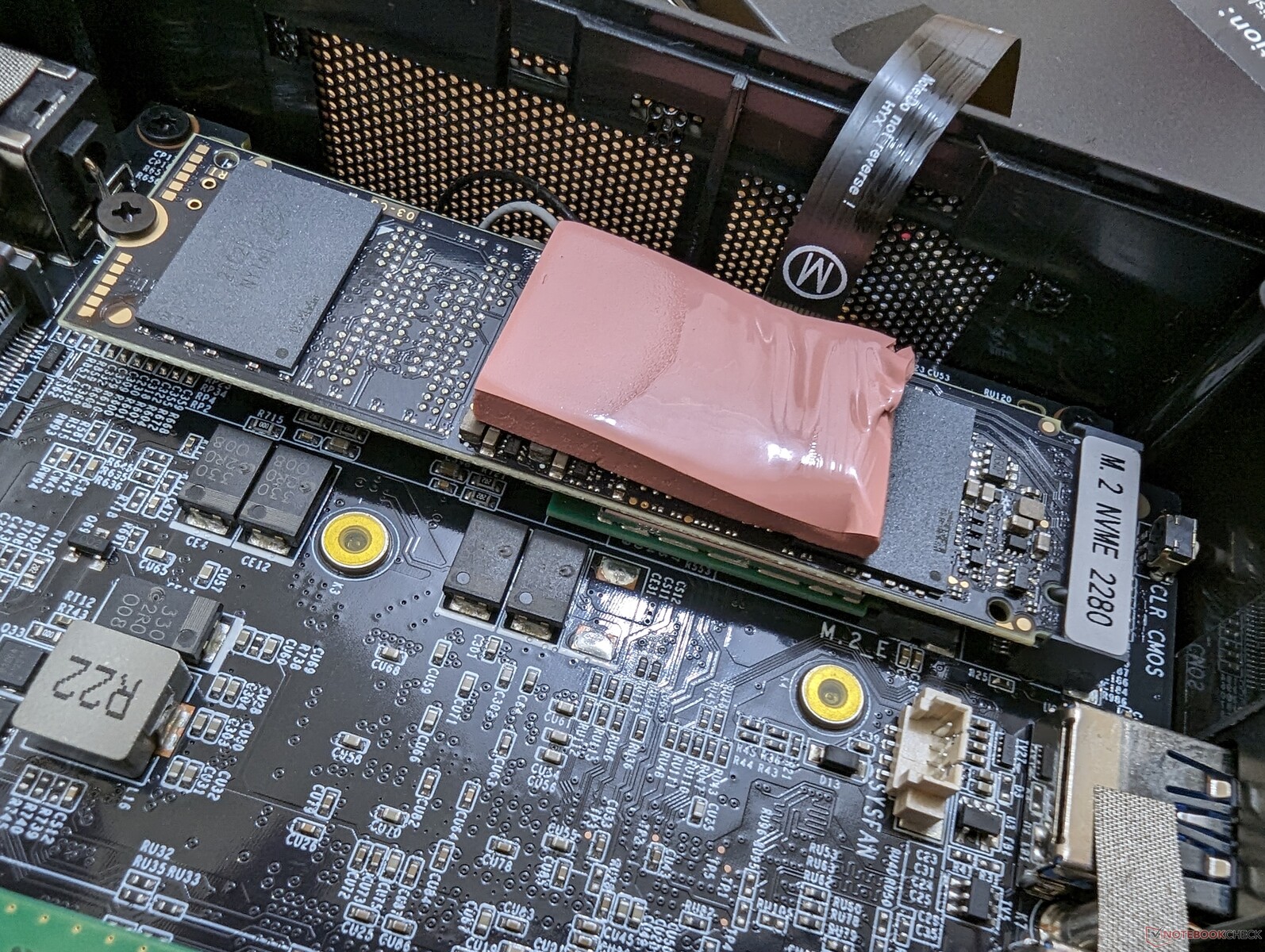

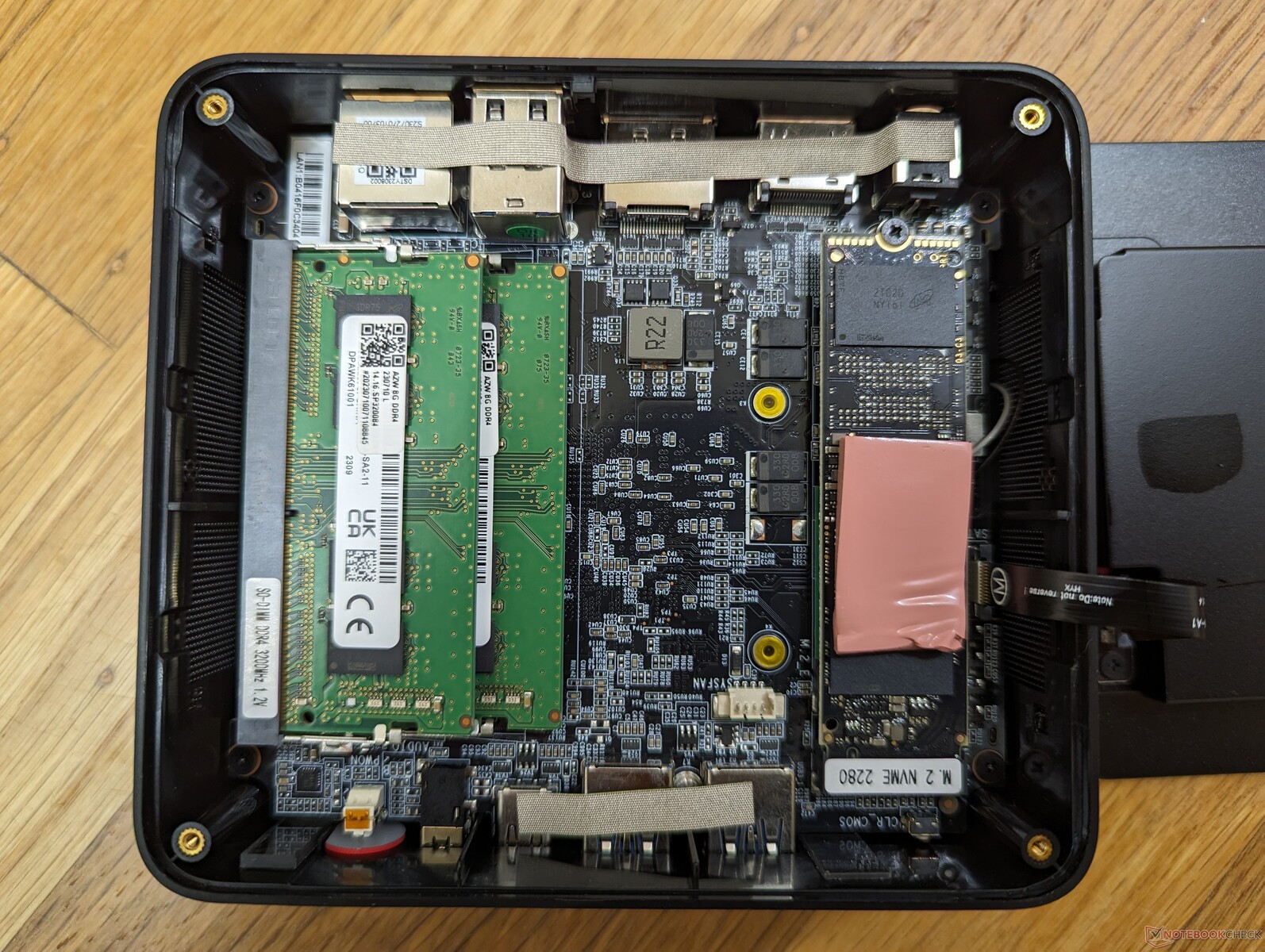

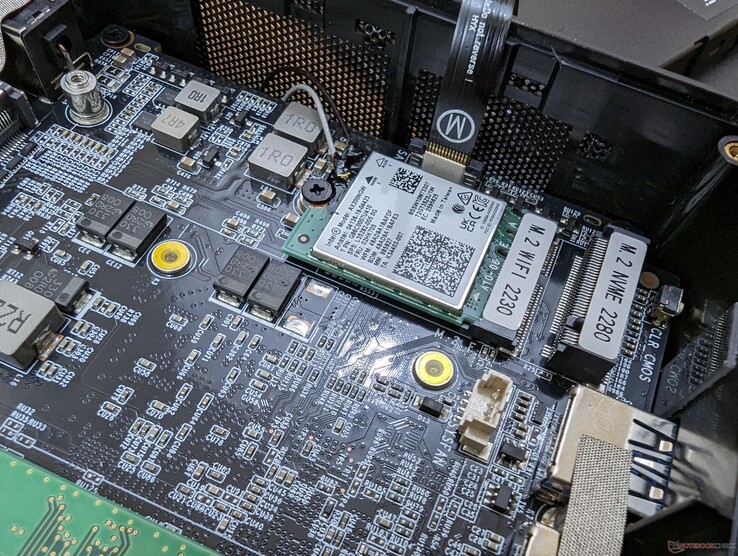

Manutenção
Acessórios e garantia

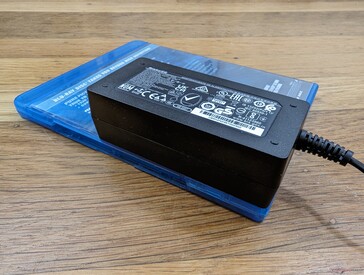

A caixa de varejo inclui dois cabos HDMI, um suporte VESA para montagem na parede, adaptador CA e manual do usuário. A garantia padrão limitada de um ano do fabricante se aplica se o produto for adquirido nos EUA.
Desempenho
Condições de teste
Colocamos o Windows no modo Desempenho antes de executar os testes abaixo. O Beelink não instala nenhum aplicativo especializado do tipo centro de controle, ao contrário da maioria dos outros fabricantes.
Processador
O Ryzen 5 5560U tem um desempenho quase idêntico ao do Ryzen 5 7530U embora com desempenho de thread único ligeiramente mais lento. Ambos são processadores hexa-core baseados na mesma arquitetura Zen 3 com metas de TDP semelhantes. O Ryzen 5 5560U é comparável ao concorrente Core i5-1235Una maioria dos casos.
Cinebench R15 Multi Loop
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Multi Core | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
GMK NucBox K2 | |
Acemagic AM20 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
HP ProBook 445 G10 | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
Cinebench R23 / Single Core | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
Acemagic AM20 | |
GMK NucBox K2 | |
Acemagic AD15 | |
HP ProBook 445 G10 | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
Cinebench R20 / CPU (Multi Core) | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
GMK NucBox K2 | |
Acemagic AM20 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Acemagic AD15 | |
Minisforum Venus Series UM560 XT | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
HP ProBook 445 G10 | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
Cinebench R20 / CPU (Single Core) | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER7 | |
GMK NucBox K3 Pro | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
Acemagic AM20 | |
GMK NucBox K2 | |
Acemagic AD15 | |
HP ProBook 445 G10 | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
Cinebench R15 / CPU Multi 64Bit | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K2 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Acemagic AM20 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
Beelink SEi12 Core i5-1235U | |
HP ProBook 445 G10 | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
NiPoGi CK10 |
Cinebench R15 / CPU Single 64Bit | |
Beelink SER7 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K3 Pro | |
Acemagic AM20 | |
GMK NucBox K2 | |
NiPoGi CK10 | |
HP ProBook 445 G10 | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
Acemagic AD15 | |
Minisforum Venus Series UM560 XT | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
Blender / v2.79 BMW27 CPU | |
NiPoGi CK10 | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
Beelink SEi12 Core i5-1235U | |
HP ProBook 445 G10 | |
GMK NucBox K3 Pro | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
Geekom A5 | |
Acemagic AM20 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K2 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER7 |
7-Zip 18.03 / 7z b 4 | |
Beelink SER7 | |
GMK NucBox K2 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Geekom A5 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Acemagic AM20 | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series UM560 XT | |
Acemagic AD15 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
HP ProBook 445 G10 | |
Beelink SEi12 Core i5-1235U | |
NiPoGi CK10 |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Beelink SER7 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K2 | |
GMK NucBox K3 Pro | |
Acemagic AD15 | |
Acemagic AM20 | |
Geekom A5 | |
HP ProBook 445 G10 | |
Minisforum Venus Series UM560 XT | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
Geekbench 5.5 / Multi-Core | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
GMK NucBox K2 | |
Geekom A5 | |
Acemagic AM20 | |
Acemagic AD15 | |
Beelink SEi12 Core i5-1235U | |
Minisforum Venus Series UM560 XT | |
NiPoGi CK10 | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
HP ProBook 445 G10 |
Geekbench 5.5 / Single-Core | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
Acemagic AD15 | |
GMK NucBox K2 | |
Acemagic AM20 | |
Geekom A5 | |
HP ProBook 445 G10 | |
Minisforum Venus Series UM560 XT | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
GMK NucBox K2 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Acemagic AM20 | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
Minisforum Venus Series UM560 XT | |
GMK NucBox K3 Pro | |
Acemagic AD15 | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
HP ProBook 445 G10 | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U |
LibreOffice / 20 Documents To PDF | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
Minisforum Venus Series UM560 XT | |
HP ProBook 445 G10 | |
Geekom A5 | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Acemagic AD15 | |
Acemagic AM20 | |
GMK NucBox K2 | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
NiPoGi CK10 | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 |
R Benchmark 2.5 / Overall mean | |
Beelink SER5 | |
Average AMD Ryzen 5 5560U () | |
Acemagic AD15 | |
Acemagic AM20 | |
HP ProBook 445 G10 | |
Minisforum Venus Series UM560 XT | |
Geekom A5 | |
NiPoGi CK10 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K2 | |
GMK NucBox K3 Pro | |
Lenovo ThinkPad T14s G4-21F8002TGE | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER7 |
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U |
AIDA64 / FP32 Ray-Trace | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U |
AIDA64 / FPU Julia | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U |
AIDA64 / CPU SHA3 | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U |
AIDA64 / CPU Queen | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U |
AIDA64 / FPU SinJulia | |
Beelink SER7 | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U |
AIDA64 / FPU Mandel | |
Beelink SER7 | |
Geekom A5 | |
Beelink SER5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U |
AIDA64 / CPU AES | |
Beelink SER7 | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / CPU ZLib | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Beelink SER5 |
AIDA64 / FP64 Ray-Trace | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U |
AIDA64 / CPU PhotoWorxx | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
Beelink SER5 |
Desempenho do sistema
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Beelink SER7 | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 |
PCMark 10 / Essentials | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Beelink SER7 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Beelink SER5 |
PCMark 10 / Productivity | |
Beelink SER7 | |
Geekom A5 | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit |
PCMark 10 / Digital Content Creation | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 |
CrossMark / Overall | |
Beelink SER7 | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Beelink SER5 |
CrossMark / Productivity | |
Beelink SEi12 Core i5-1235U | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Beelink SER5 |
CrossMark / Creativity | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
Beelink SER5 |
CrossMark / Responsiveness | |
Beelink SEi12 Core i5-1235U | |
Intel NUC 13 Pro Desk Edition Kit | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Geekom A5 | |
Beelink SER5 |
PCMark 10 Score | 5453 pontos | |
Ajuda |
AIDA64 / Memory Copy | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 |
AIDA64 / Memory Read | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 |
AIDA64 / Memory Write | |
Beelink SER7 | |
GMK NucBox K3 Pro | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 |
AIDA64 / Memory Latency | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U | |
Beelink SER7 | |
Geekom A5 |
* ... smaller is better

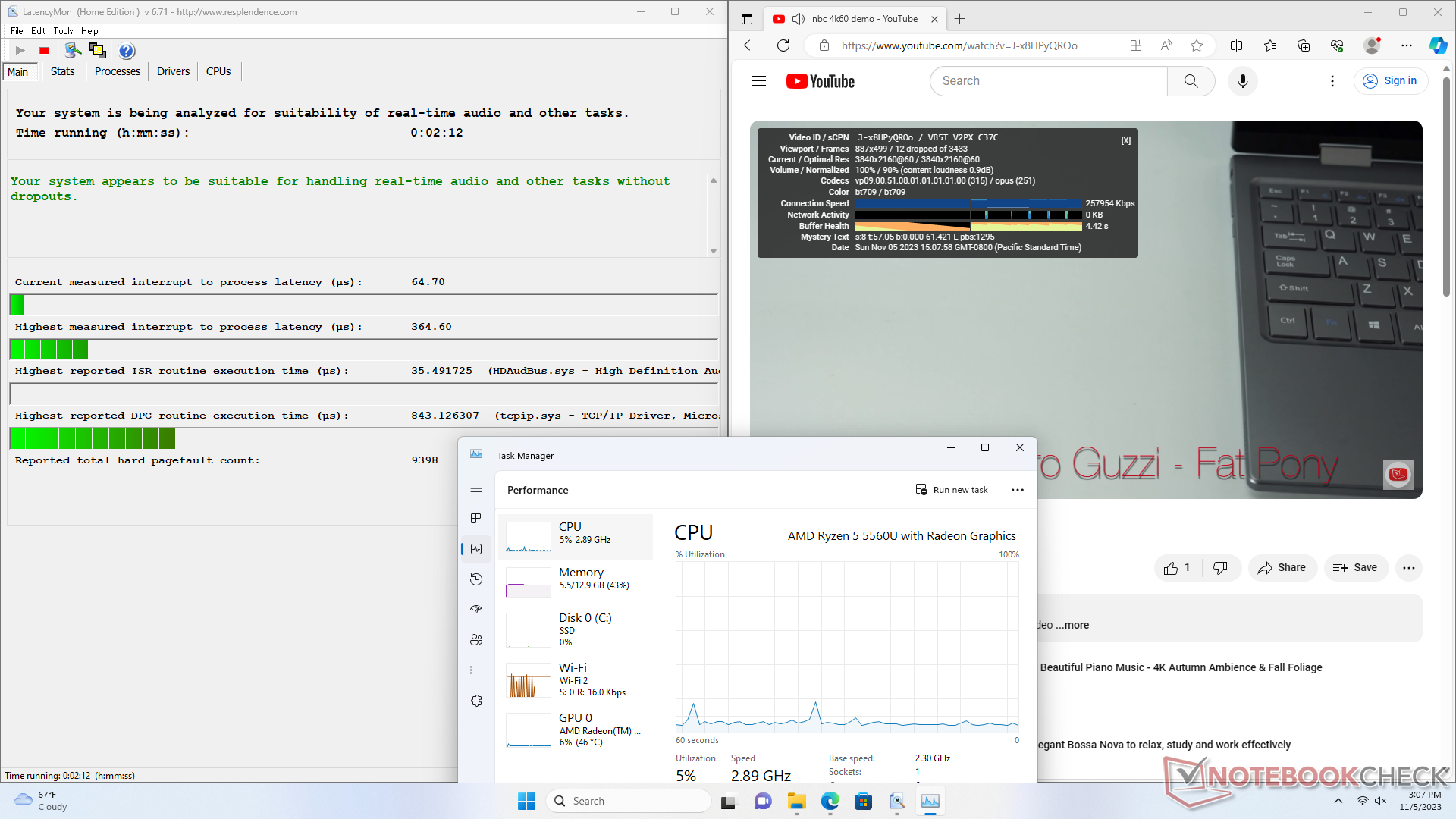

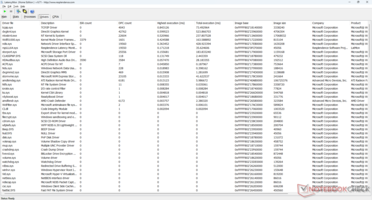

Latência DPC
O LatencyMon não revela nenhum problema grave de DPC. Infelizmente, a reprodução de vídeo 4K a 60 FPS é imperfeita, pois conseguimos registrar 12 quadros perdidos em um período de 60 segundos, mesmo após a atualização para os drivers Adrenalin mais recentes.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Beelink SER7 | |
Beelink SER5 |
* ... smaller is better
Dispositivos de armazenamento

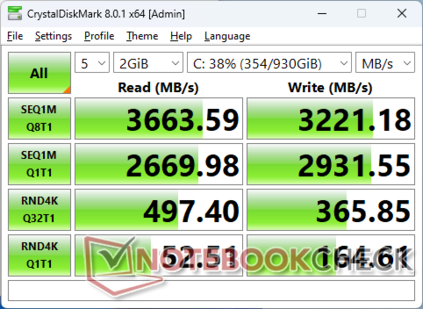

Nossa unidade é enviada com o mesmoCrucial P3 Plus CT1000P3PSSD8 encontrado no SER7 e no GTR7. As velocidades são limitadas ao PCIe3 em vez do padrão PCIe4 mais rápido.
Drive Performance Rating - Percent | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 | |
Geekom A5 | |
Beelink SER7 | |
GMK NucBox K3 Pro |
DiskSpd | |
seq read | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER7 | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
GMK NucBox K3 Pro | |
seq write | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
GMK NucBox K3 Pro | |
seq q8 t1 read | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER7 | |
Beelink SER5 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Geekom A5 | |
seq q8 t1 write | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER5 | |
Geekom A5 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
4k q1 t1 read | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SEi12 Core i5-1235U | |
Geekom A5 | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Beelink SER7 | |
4k q1 t1 write | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 | |
GMK NucBox K3 Pro | |
Geekom A5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER7 | |
4k q32 t16 read | |
Beelink SER7 | |
Beelink SER5 | |
Geekom A5 | |
Beelink SEi12 Core i5-1235U | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit | |
4k q32 t16 write | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 | |
Geekom A5 | |
Beelink SER7 | |
GMK NucBox K3 Pro | |
Intel NUC 13 Pro Desk Edition Kit |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Desempenho da GPU
O Ryzen 5 5560U usa a antigaRadeon RX Vega 6 em vez da Radeon 680M ou 780M como encontrado nos processadores mais recentes baseados no Zen 4. A RX Vega 6 é mais comparável à Iris Xe 80 EUs que podem ser encontradas na maioria dos mini PCs Core i5. Essa GPU específica foi projetada para streaming e reprodução de vídeo 4K, pois a maioria dos jogos 3D nativos não funciona bem no sistema.
3DMark Performance Rating - Percent | |
Beelink SER7 -1! | |
Acemagic AM20 | |
GMK NucBox K2 -1! | |
Intel NUC 13 Pro Desk Edition Kit | |
Geekom A5 | |
Lenovo IdeaCentre Mini 01IRH8 -1! | |
Minisforum Venus Series UM560 XT | |
GMK NucBox K3 Pro -1! | |
Dell Inspiron 14 7435 2-in-1 | |
Beelink SEi12 Core i5-1235U | |
Beelink SER5 | |
NiPoGi CK10 | |
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) | |
Acemagic AD15 |

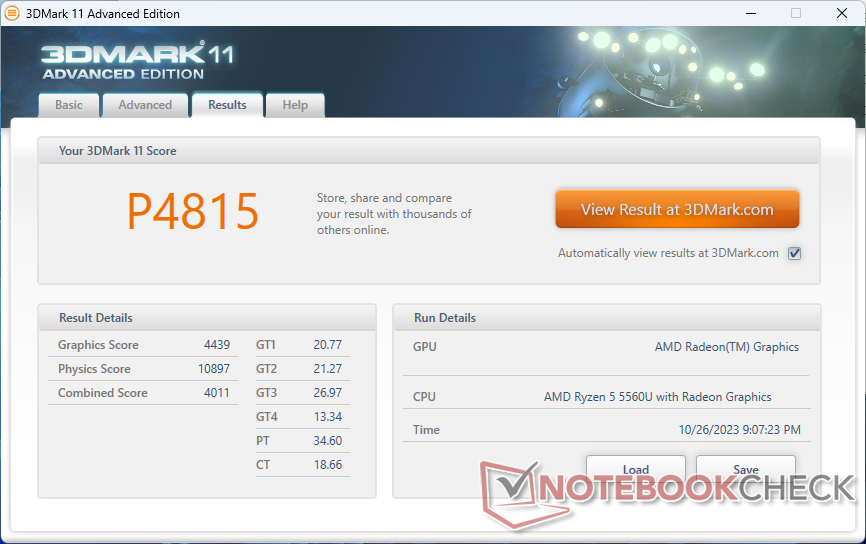

3DMark 11 Performance | 4815 pontos | |
3DMark Cloud Gate Standard Score | 18479 pontos | |
3DMark Fire Strike Score | 2855 pontos | |

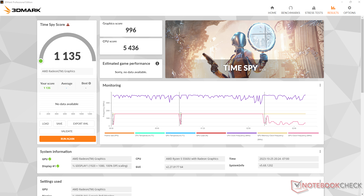

3DMark Time Spy Score | 1135 pontos | |
Ajuda |
* ... smaller is better
Witcher 3 FPS Chart
baixo | média | alto | ultra | |
GTA V (2015) | 111.2 | 97.5 | 24.6 | 11.2 |
The Witcher 3 (2015) | 58.8 | 39 | 18.8 | 11.8 |
Dota 2 Reborn (2015) | 110.7 | 90.8 | 48.7 | 45.4 |
Final Fantasy XV Benchmark (2018) | 32.2 | 16.1 | 11.5 | |
X-Plane 11.11 (2018) | 38 | 27.4 | 24.2 | |
Far Cry 5 (2018) | 46 | 21 | 19 | 18 |
Strange Brigade (2018) | 78.9 | 30.3 | 24.6 | 20.5 |
Cyberpunk 2077 1.6 (2022) | 13.8 | 10.2 | 8.3 | 7.6 |
Tiny Tina's Wonderlands (2022) | 25.6 | 19.5 | 12.1 | 8.9 |
F1 22 (2022) | 32.4 | 28.6 | 21.6 | 15.3 |
Emissões
Ruído do sistema
O ruído da ventoinha é um dos mais silenciosos que já experimentamos em qualquer mini PC. Normalmente, a ventoinha oscila entre 28 e 33 dB(A), mesmo ao executar cargas muito exigentes, como jogos ou estresse do Prime95. Em comparação, o Beelink SEi12 pode chegar a 40 dB(A).
Barulho
Ocioso |
| 23.9 / 23.9 / 23.9 dB |
Carga |
| 28 / 32.8 dB |
| ||
30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto |
||
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 23.7 dB(A) |
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8 | Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8 | Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN | Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB | GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG | Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ | |
---|---|---|---|---|---|---|
Noise | -16% | -15% | -29% | -18% | -23% | |
off / environment * | 23.7 | 24.5 -3% | 23.3 2% | 25 -5% | 23.1 3% | 25.2 -6% |
Idle Minimum * | 23.9 | 25.1 -5% | 27.8 -16% | 28.2 -18% | 25 -5% | 28.1 -18% |
Idle Average * | 23.9 | 25.1 -5% | 27.8 -16% | 28.2 -18% | 25.5 -7% | 28.2 -18% |
Idle Maximum * | 23.9 | 25.1 -5% | 27.8 -16% | 28.2 -18% | 25.5 -7% | 28.3 -18% |
Load Average * | 28 | 35.9 -28% | 32 -14% | 47.8 -71% | 39.9 -43% | 42 -50% |
Witcher 3 ultra * | 27.6 | 35.6 -29% | 34.1 -24% | 39.9 -45% | ||
Load Maximum * | 32.8 | 45.4 -38% | 39.2 -20% | 47.4 -45% | 39.9 -22% | 42.1 -28% |
* ... smaller is better

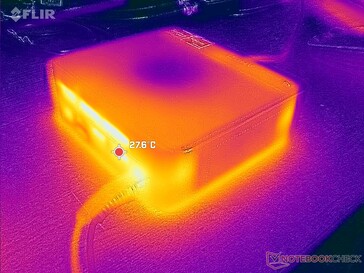

Temperatura
As temperaturas da superfície não são um problema, desde que nenhum papel ou item seja colocado em cima da unidade para preservar o fluxo de ar.

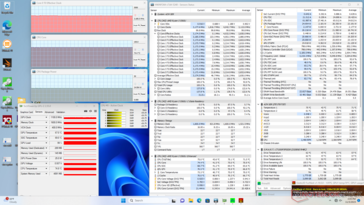

Teste de estresse

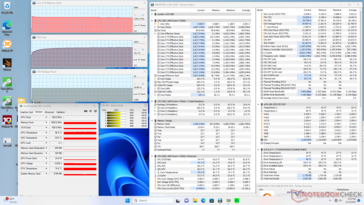

A CPU aumentaria para 3,1 GHz ao iniciar o estresse do Prime95 antes de cair ligeiramente para 2,9 GHz durante o resto da execução. O consumo de energia da placa ficou estável em 25 W, exatamente como anunciado para o Ryzen 5 5560U.
A execução Witcher 3 para representar altas cargas faria com que a GPU se estabilizasse em 1600 MHz e 64 °C, o que é um pouco mais frio do que no Beelink SEi12 com Core i5 mais barulhento.
Clock da CPU (GHz) | Clock da GPU (MHz) | Temperatura média da CPU (°C) | |
Sistema ocioso | -- | -- | 42 |
Estresse doPrime95 | 2.8 | -- | 74 |
Prime95 + FurMark Stress | 3.2 | 1100 | 75 |
Witcher 3 Estresse | ~0,5 | 1600 | 64 |
Gerenciamento de energia
Consumo de energia

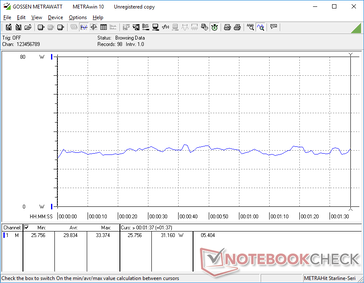

O consumo geral é muito baixo para representar um alto desempenho por watt. O SEi12 com Core i5, por exemplo, exigiria até 51 W durante a execução do Witcher 3 ou quase o dobro do nosso SER5, mesmo que o desempenho gráfico esteja no mesmo nível entre os dois modelos. A baixa demanda de energia é diretamente responsável pelos baixos níveis de ruído da ventoinha registrados acima.
desligado | 0.98 / 1.06 Watt |
Ocioso | 4.4 / 5 / 5.3 Watt |
Carga |
29.8 / 40.4 Watt |
Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x, | Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x, | Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x, | Geekom A5 R7 5800H, Vega 8, Lexar NM620 512GB, , x, | GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x, | Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x, | |
---|---|---|---|---|---|---|
Power Consumption | -105% | -178% | -82% | -98% | -92% | |
Idle Minimum * | 4.4 | 6.7 -52% | 15.8 -259% | 6.9 -57% | 7.1 -61% | 7 -59% |
Idle Average * | 5 | 7.3 -46% | 16.8 -236% | 7.9 -58% | 10.1 -102% | 9.2 -84% |
Idle Maximum * | 5.3 | 11.6 -119% | 17 -221% | 8.9 -68% | 18.6 -251% | 11.8 -123% |
Load Average * | 29.8 | 64.1 -115% | 54.4 -83% | 60.8 -104% | 45.3 -52% | 45 -51% |
Witcher 3 ultra * | 28.8 | 75.8 -163% | 50.7 -76% | 55.2 -92% | ||
Load Maximum * | 40.4 | 94.8 -135% | 119.1 -195% | 89.7 -122% | 52.9 -31% | 97.2 -141% |
* ... smaller is better

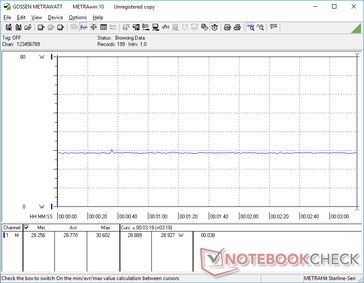

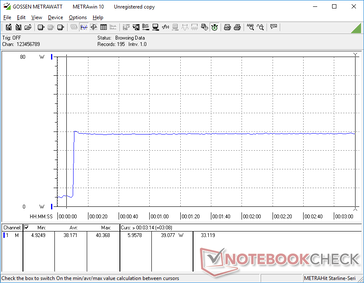

Power Consumption Witcher 3 / Stresstest

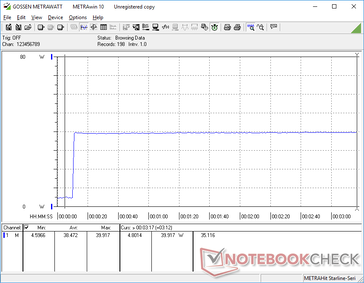

Power Consumption external Monitor
Pro
Contra
Veredicto - Desempenho incrível por dólar com baixo ruído do ventilador
Os dois aspectos mais notáveis do SER5 são o ruído silencioso da ventoinha e o alto desempenho em relação ao preço pedido. Seu concorrente direto, o Core i5-1235U, pode oferecer um desempenho single-thread ligeiramente mais rápido, mas com um desempenho visivelmente inferior por watt, o que leva a um ruído muito mais alto da ventoinha. Consequentemente, o SER5 é um dos mini PCs mais silenciosos que testamos até agora, sem recorrer a alternativas Atom ou Celeron abismalmente lentas.
O Beelink SER5 oferece um desempenho semelhante ao do Core i5 com quase nenhum ruído perceptível da ventoinha.
Os usuários que valorizam o Thunderbolt ainda vão querer considerar alternativas da Intel ou CPUs AMD mais recentes com suporte adequado a USB4, como o SER6 Pro. No entanto, essas opções também são muito mais caras, duas vezes ou mais. O SER5 é um dos melhores minicomputadores na faixa de preço de US$ 200, considerando todos os aspectos.
Preço e disponibilidade
A Amazon agora está enviando o Beelink SER5 completo com 16 GB de RAM e 500 GB de SSD por apenas US$ 229.
Beelink SER5
-
11/06/2023 v7
Allen Ngo
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
