Estréia do Celeron N5105 Jasper Lake: Revisão do mini PC Beelink U59

O mini PC de US$ 199. Beelink atualizou seu barato U59 mini PC com mais memória RAM e uma nova CPU Intel Celeron sem necessidade de aumentar o preço. Quanto de aumento de desempenho os usuários podem realmente esperar?

Allen Ngo (traduzido por DeepL / Ninh Duy), Published 09/08/2022 🇺🇸 🇸🇪 ...

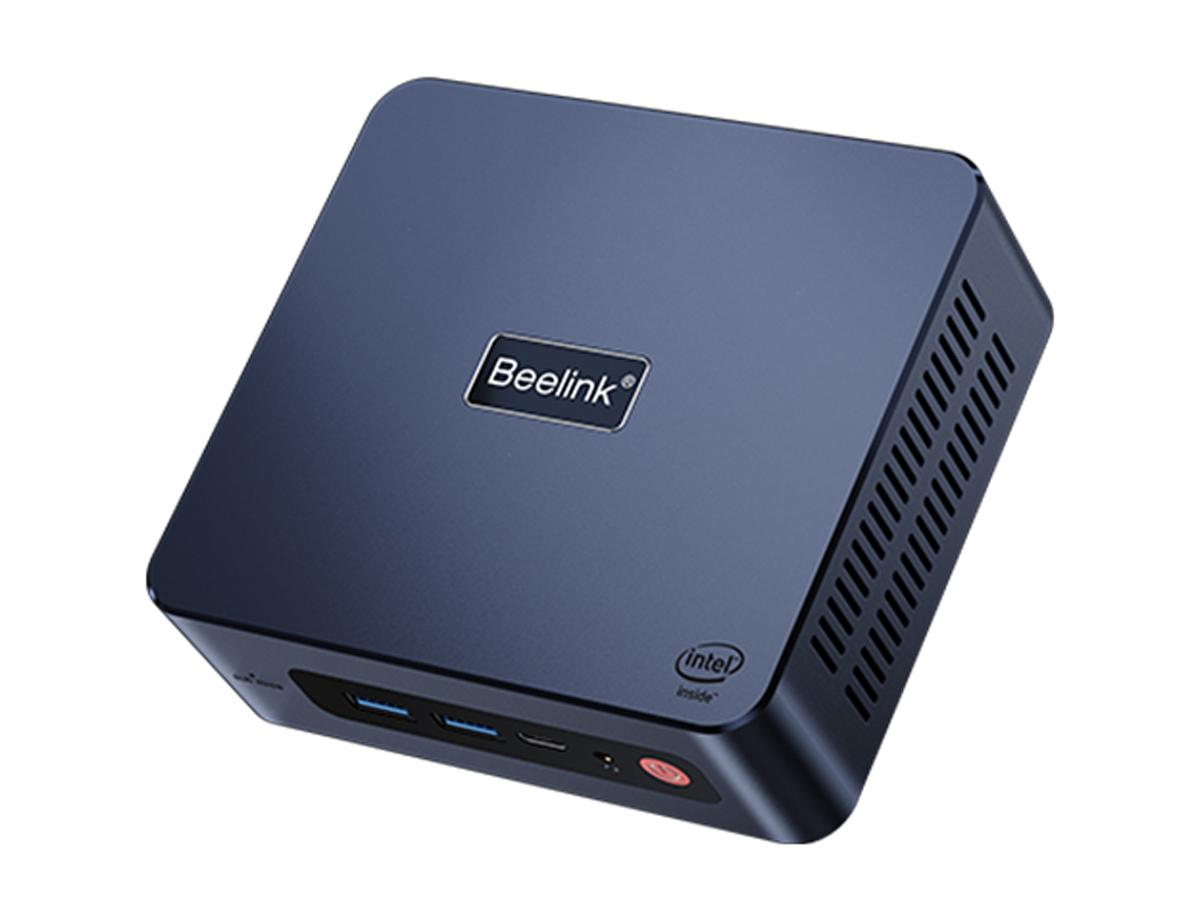

Mini PC Jasper Lake

Beelink atualizou um de seus mini PCs mais baratos com uma CPU Jasper Lake Intel Celeron N5105 mais rápida para substituir a Celeron N5095 na versão anterior Modelo U59. Embora o chassi permaneça praticamente o mesmo de antes, existem algumas diferenças importantes que observaremos na revisão abaixo

O Beelink U59 compete com outros mini PCs baratos como o Série Zotac Nano, Série GMK NucBoxou o Chuwi GBox

Mais revisões Beelink:

Beelink U59 N5105

Processador

Intel Celeron N5105 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Placa gráfica

Intel UHD Graphics (Jasper Lake 24 EU), 30.0.101.1340

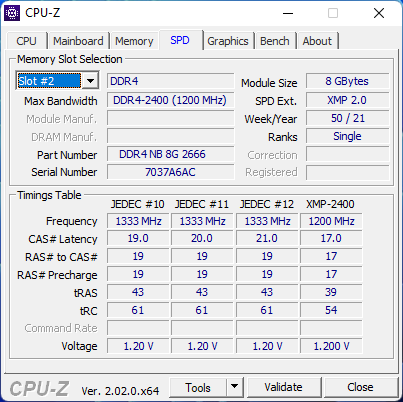

Memória

16 GB

, DDR4-2666, PC4-21300, Dual-Channel, 19-19-19-43

Disco rígido

Silicon Motion AZW 512G NV428, 512 GB

Placa de Som

Intel Jasper Lake PCH - cAVS Controller

Conexões

5 USB 3.0, 2 HDMI, 1 DisplayPort, Conexões Audio: 3.5 mm combo

Funcionamento em rede

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4

Tamanho

altura x largura x profundidade (em mm): 42 x 124 x 113

Sistema Operativo

Microsoft Windows 11 Pro

Características adicionais

2x HDMI, AC adapter, 12 Meses Garantia

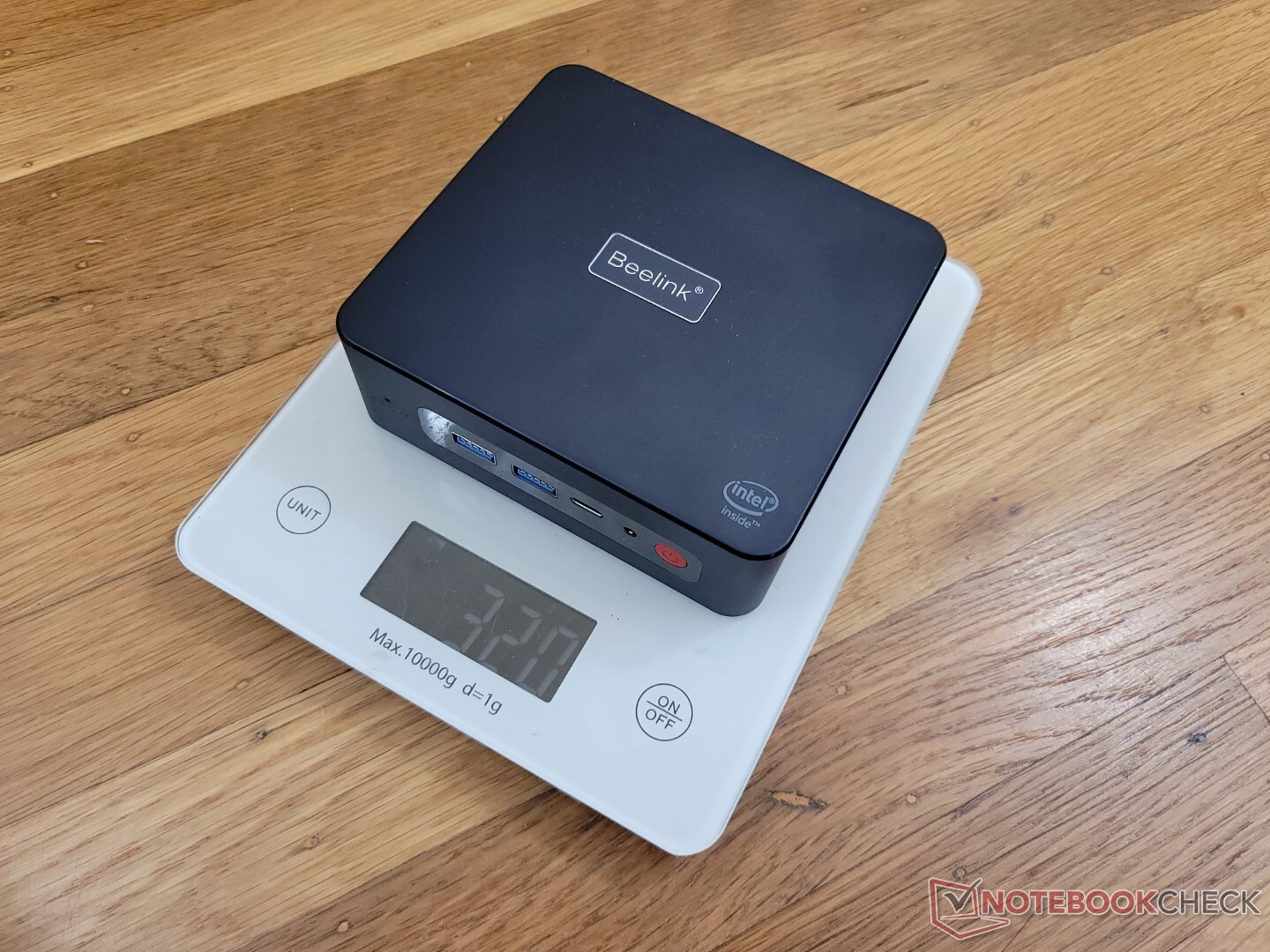

peso

320 g, Suprimento de energia: 160 g

Preço

200 USD

Links

Beelink página inicial

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Date	Model	Weight	Height	Resolution
09/2022	Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	320 g	42 mm	x
06/2022	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	279 g	41 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
11/2021	Beelink SER3 R7 3750H, Vega 10	492 g	40 mm	x
04/2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm	x
07/2022	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	293 g	20.7 mm	x

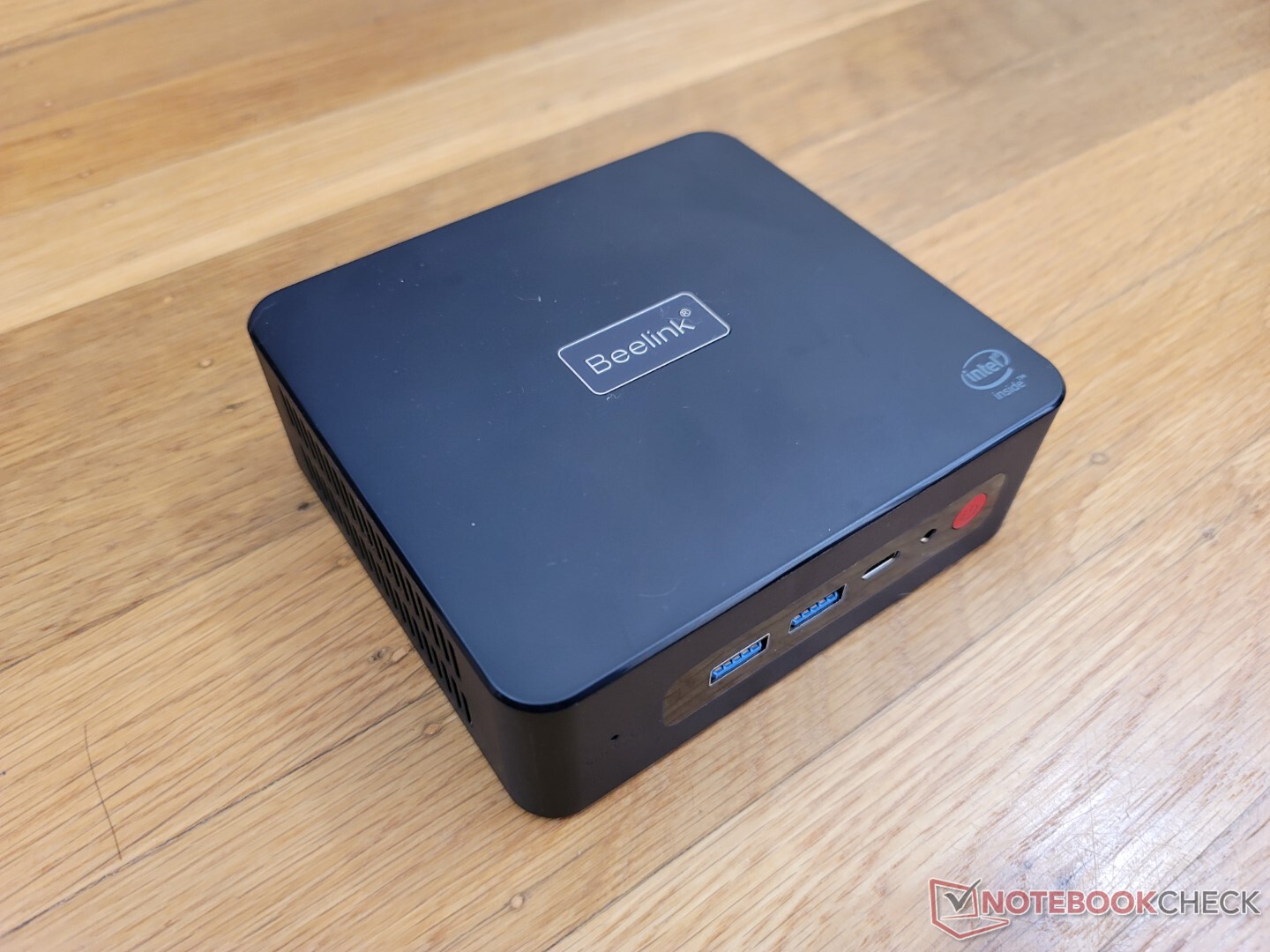

Caso

Annoyingly, Beelink oferece três diferente U59 projeta cada uma com opções de porta, desenhos e características internas ligeiramente diferentes. Suas dimensões e peso são, de outra forma, quase os mesmos entre eles. Para nosso modelo de revisão aqui, o chassi tem grelhas de ventilação maiores e uma tampa e logomarca totalmente revestidas em comparação com as grelhas menores e as tampas brilhantes dos modelos anteriores.

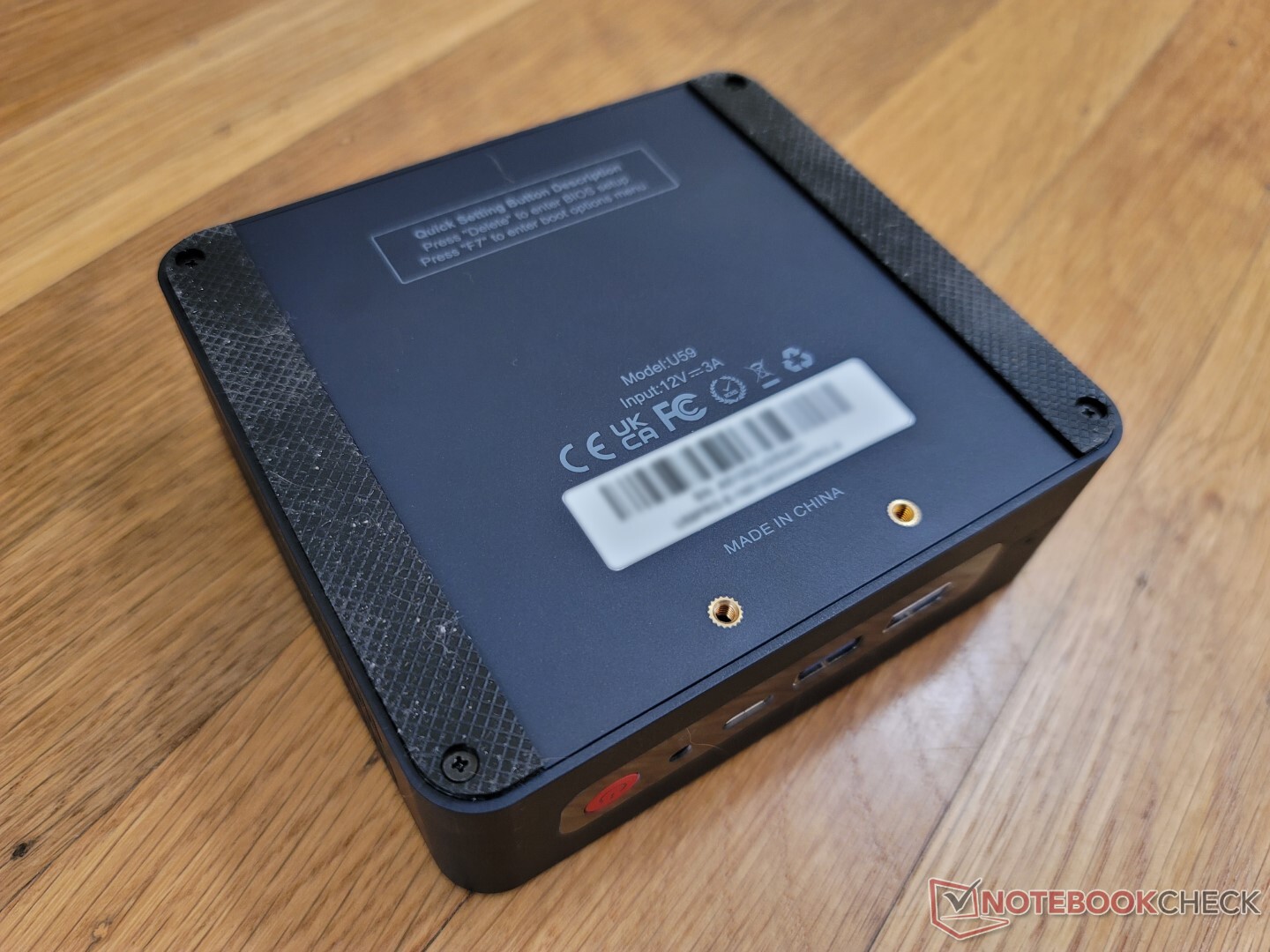

Pés de borracha e parafusos adaptadores para montagem VESA no lado inferior

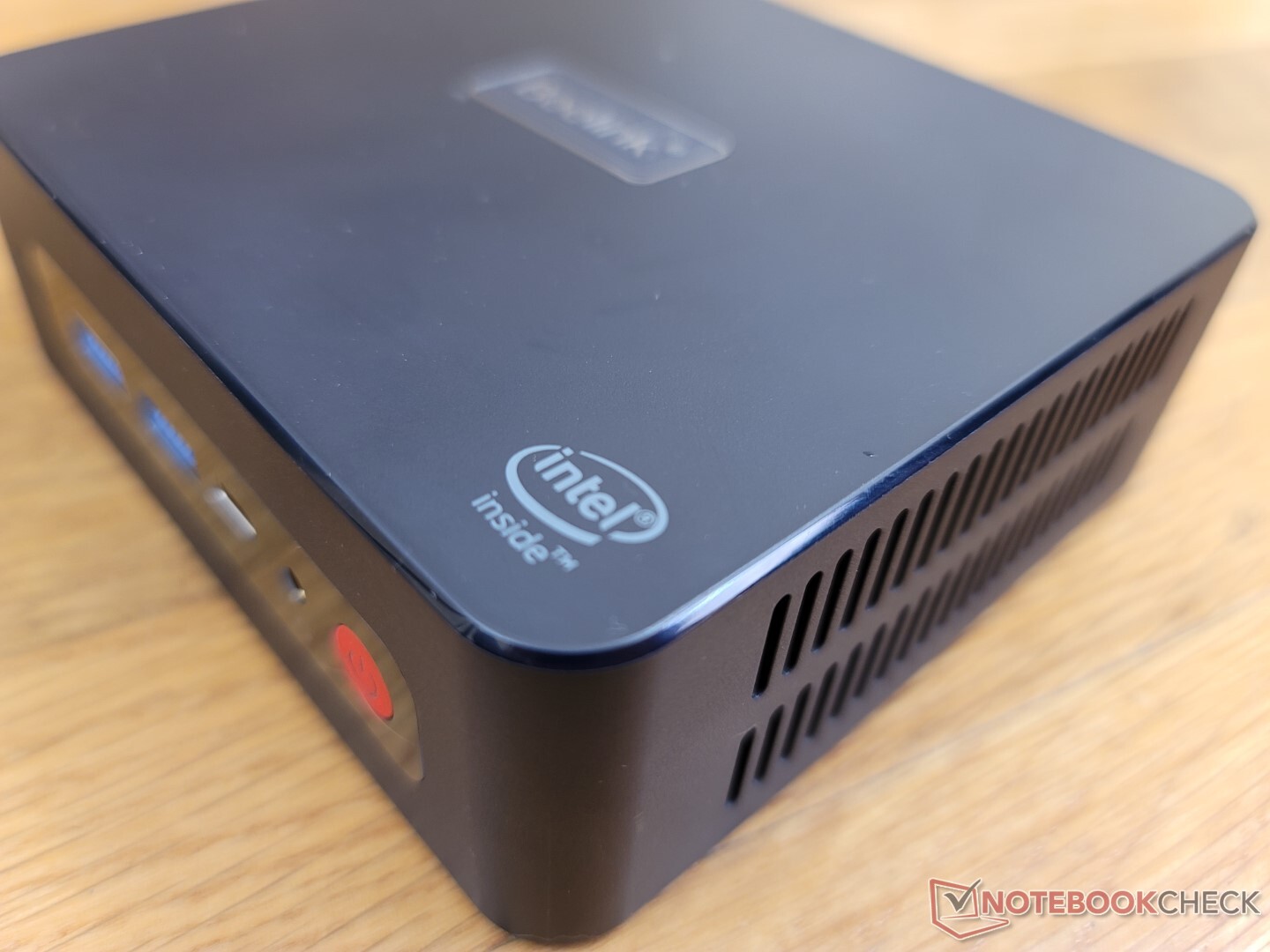

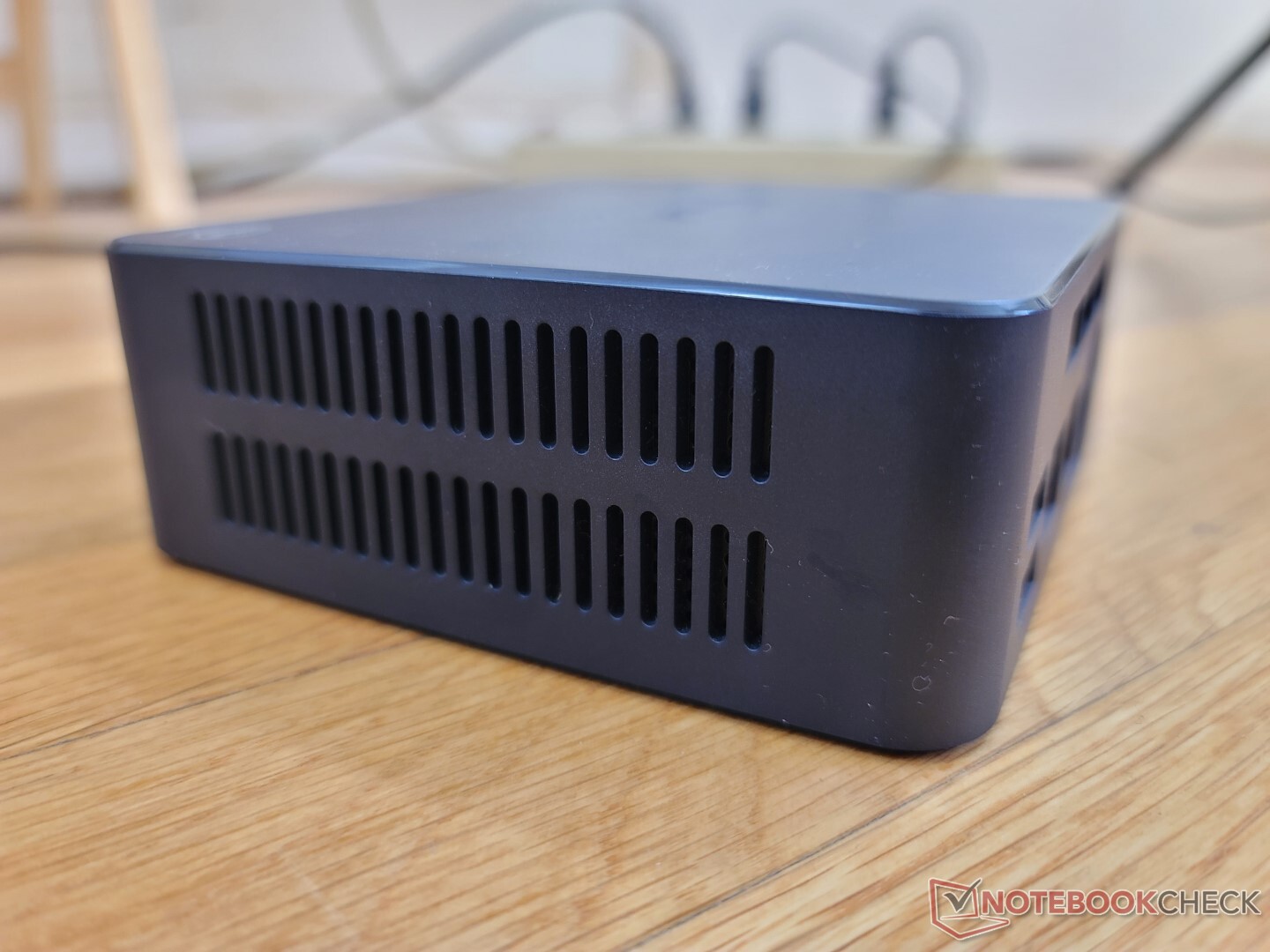

Bordas e cantos brilhantes circundam o topo fosco

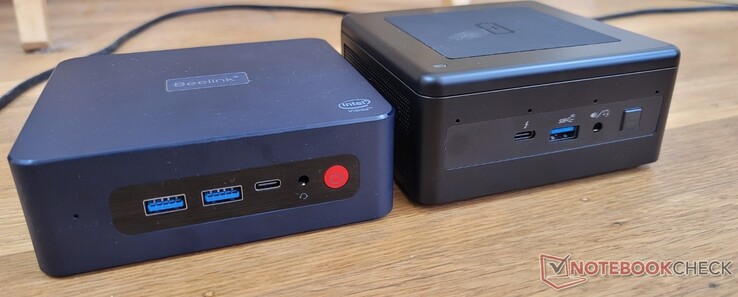

Comparação de tamanho

Conectividade

As opções de porta são em sua maioria idênticas ao U59 original, incluindo a porta USB-C e a falta de uma fechadura Kensington. Para este modelo mais novo, no entanto, o fabricante integrou uma segunda porta RJ-45 para um total de duas. Note que a porta USB-C aqui suporta DisplayPort mas não o fornecimento de energia e, portanto, o sistema depende de seu adaptador AC proprietário para energia.

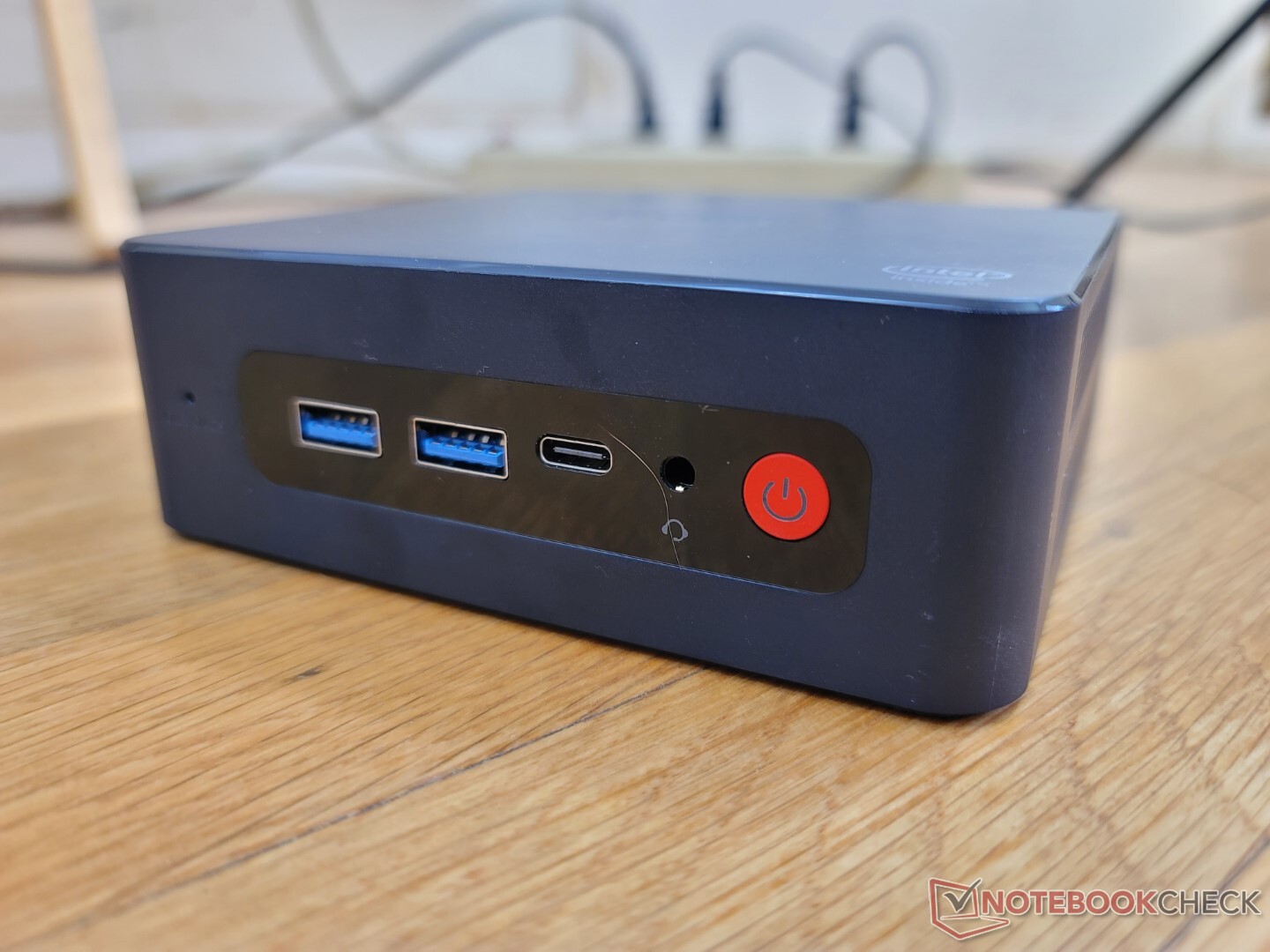

Frente: 2x USB-A 3.0, USB-C c/ DisplayPort, conector de áudio de 3,5 mm, botão de alimentação

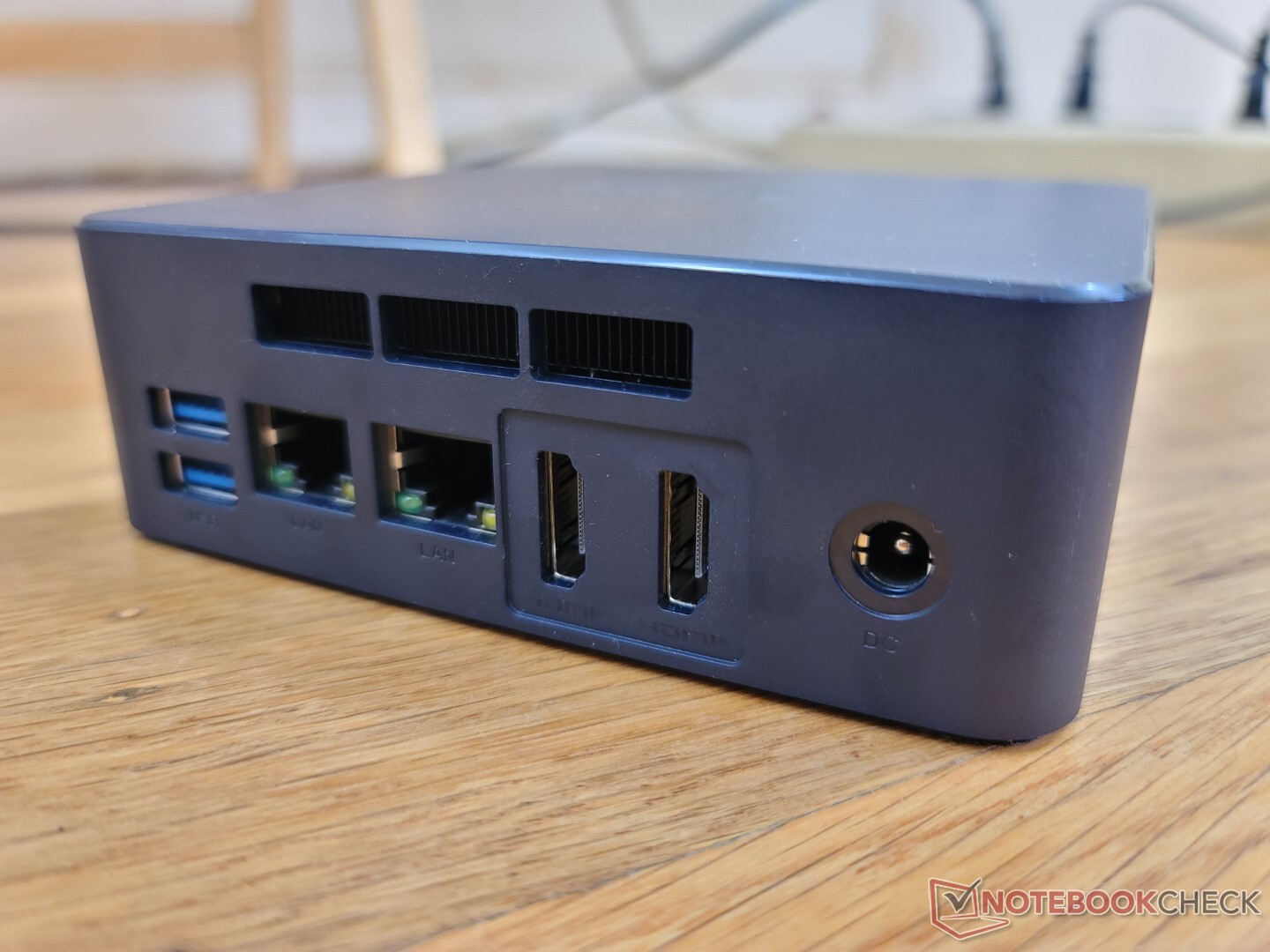

Traseira: 2x USB-A 3.0, 2x Gigabit RJ-45, 2x HDMI 2.0, adaptador AC

Comunicação

O módulo Intel 3165 WLAN é removível, ao contrário da versão U59 Mini-S. Embora lento, não tivemos problemas de conectividade ao transmitir conteúdo 4K.

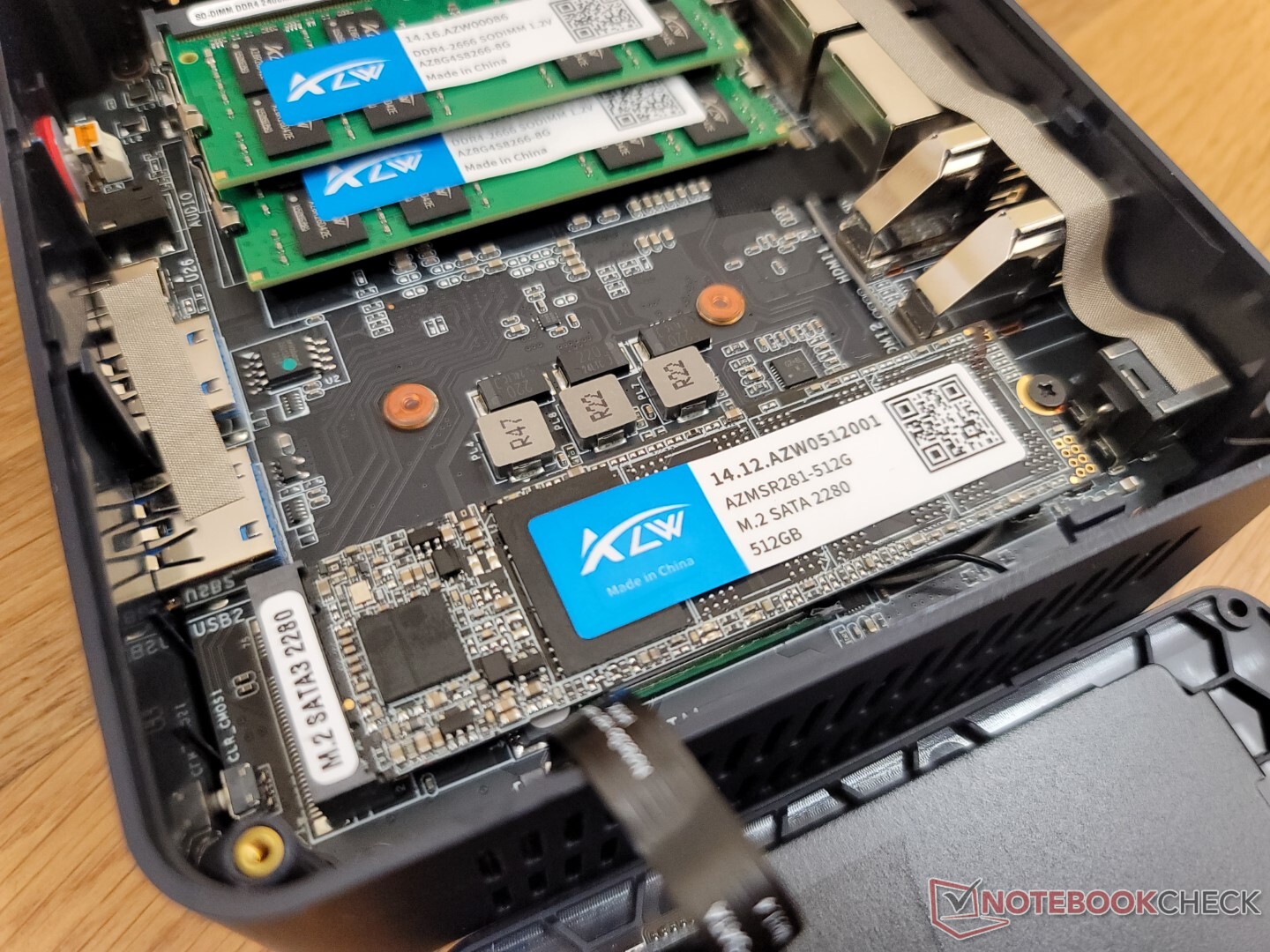

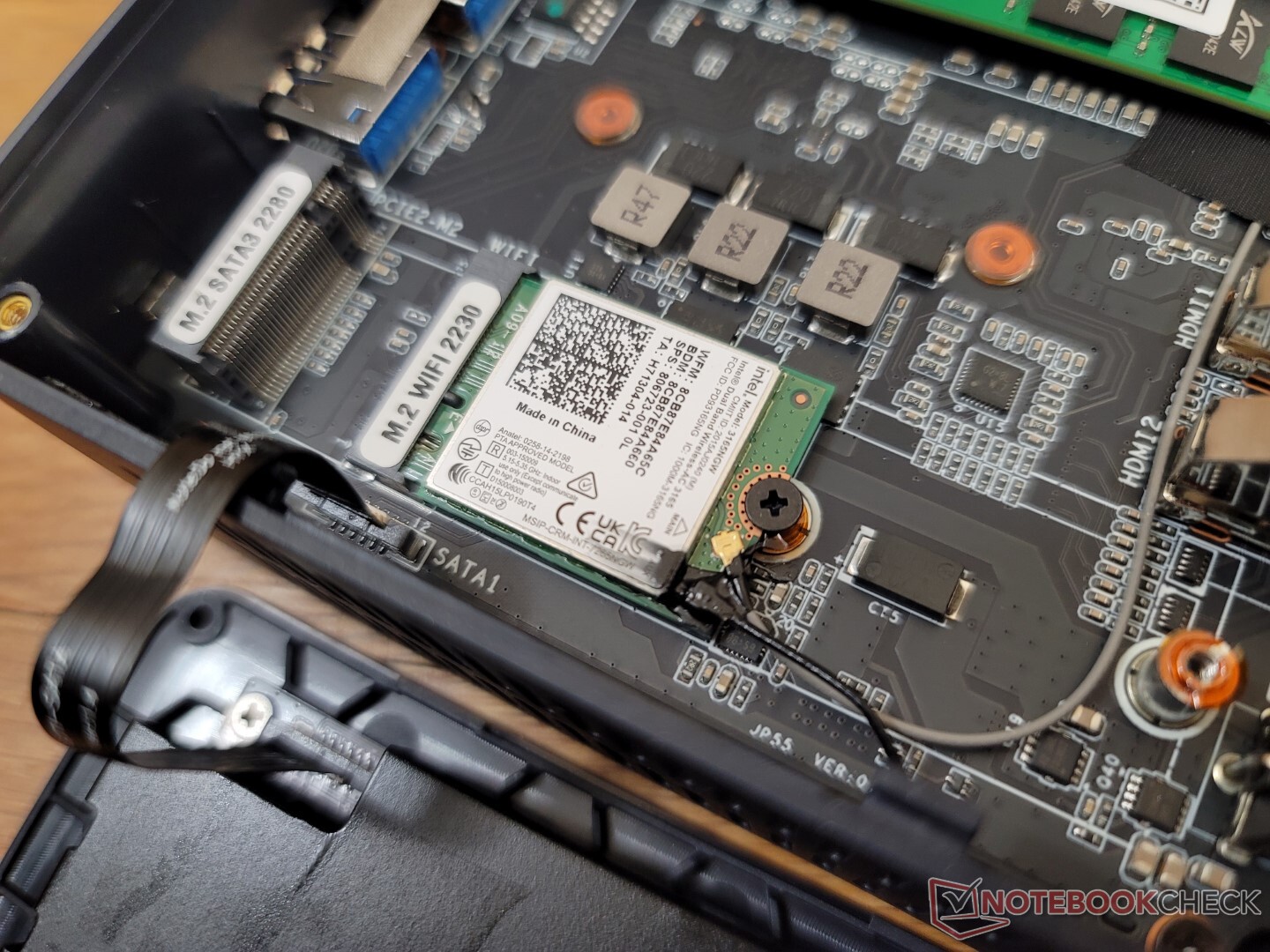

O módulo WLAN removível fica sob o SSD M.2

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Beelink SER3 Intel Dual Band Wireless-AC 7265	359 (321^min - 383^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Beelink SER3 Intel Dual Band Wireless-AC 7265	641 (594^min - 665^max) MBit/s
iperf3 receive AXE11000
Beelink U59 N5105 Intel Dual Band Wireless-AC 3165	339 (328^min - 345^max) MBit/s
Beelink U59 Mini-S Intel Dual Band Wireless-AC 3165	322 (295^min - 337^max) MBit/s -5%
iperf3 transmit AXE11000
Beelink U59 N5105 Intel Dual Band Wireless-AC 3165	206 (191^min - 224^max) MBit/s
Beelink U59 Mini-S Intel Dual Band Wireless-AC 3165	188.4 (153^min - 228^max) MBit/s -9%

Beelink U59 N5105; iperf3 transmit AXE11000; iperf 3.1.3: Ø206 (191-224)

Beelink U59 N5105; iperf3 receive AXE11000; iperf 3.1.3: Ø338 (328-345)

Manutenção

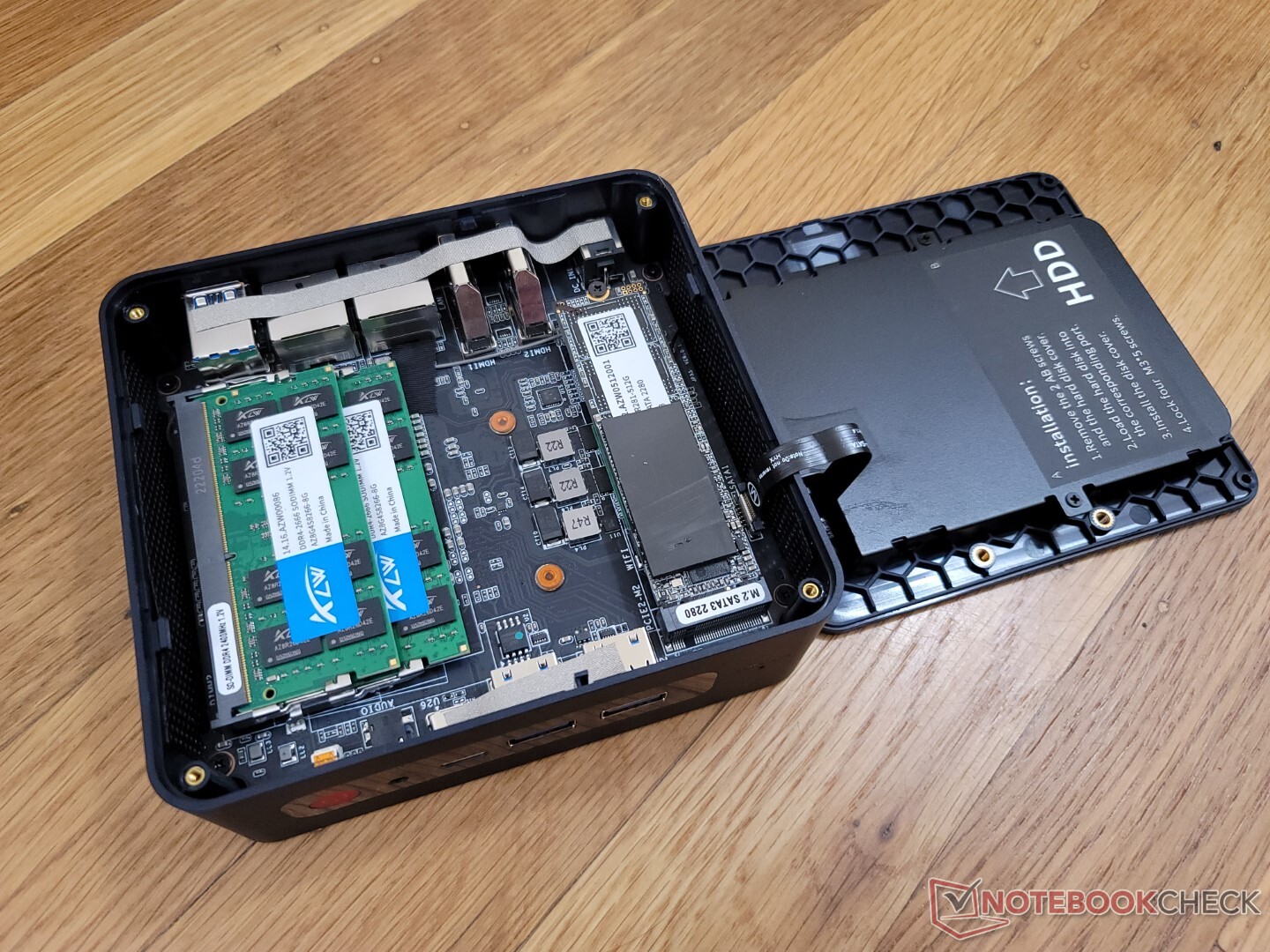

O painel inferior pode ser removido com apenas uma chave de fenda Philips para revelar 2x slots de armazenamento (M.2 SATA 2280 + SATA III de 2,5 polegadas), 2x slots SODIMM, e o módulo removível M.2 WLAN. Em comparação, o U59 Mini-S é limitado à memória de um único canal com seu único slot SODIMM.

Acessórios e Garantia

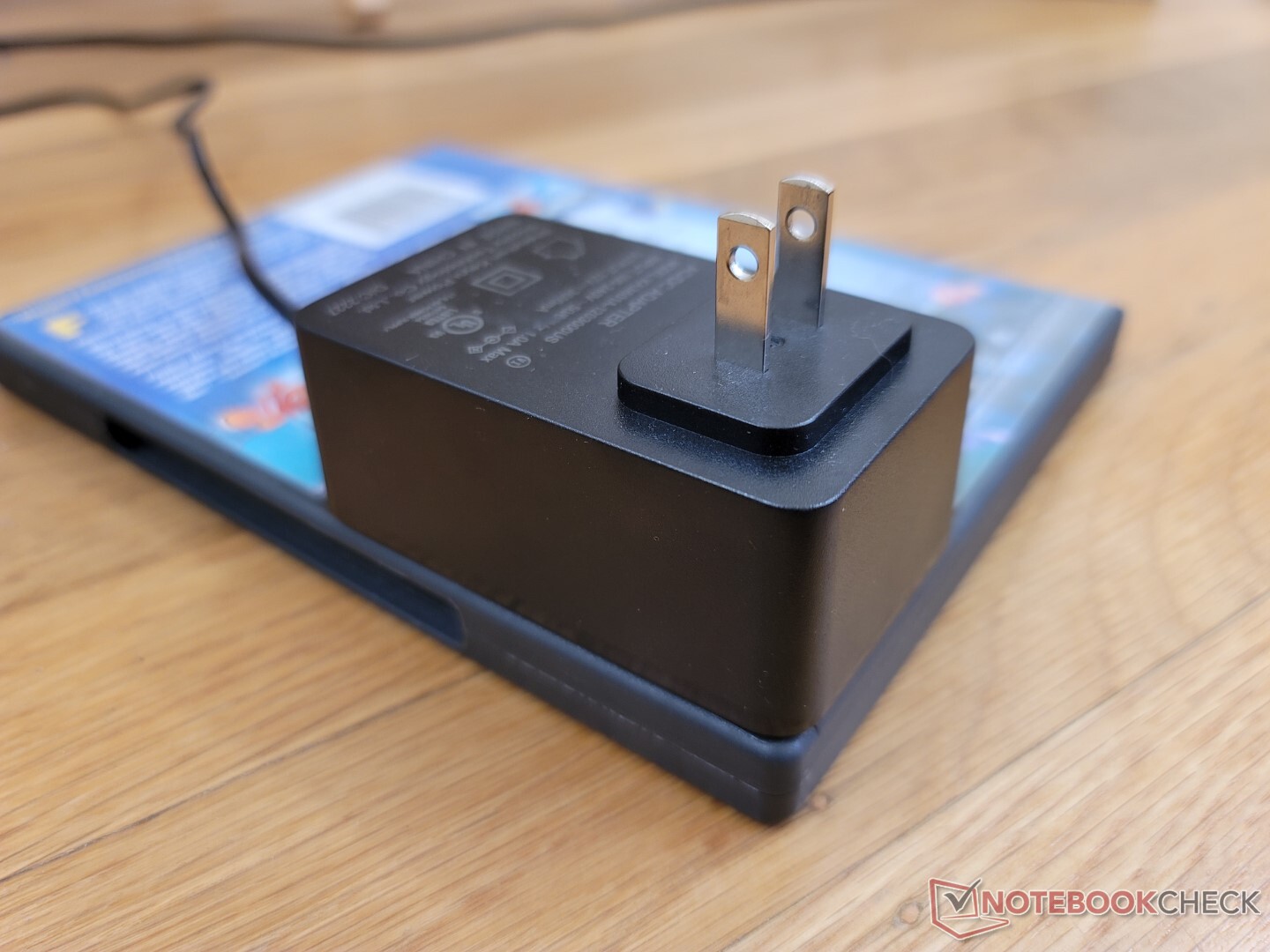

Na caixa estão incluídos dois cabos HDMI, adaptador AC, papelaria e um suporte adaptador para montagem VESA.

A garantia padrão limitada de um ano se aplica se adquirida nos EUA.

Desempenho

Condições de teste

Configuramos nossa unidade de teste para o modo Performance via Windows antes de executar quaisquer benchmarks abaixo. Não há programas específicos do fabricante ou características BIOS relacionadas com o desempenho do mini PC.

Processador

O desempenho bruto da CPU é apenas um cabelo mais rápido do que o N5095 tanto em operações simples como em operações com múltiplas roscas. A diferença de desempenho é tão pequena que os dois podem muito bem ser o mesmo processador.

Cinebench R15 Multi Loop

Beelink U59 N5105 Intel Celeron N5105: Ø362 (359.79-368.43)

Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)

GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)

Blackview AceBook 1 Intel Celeron N4120: Ø228 (225.47-233.66)

Asus BR1100FKA-BP0109RA Intel Celeron N4500: Ø125.2 (117.75-170.9)

AC6-M Mini-PC Intel Celeron J4125: Ø247 (245.01-250.05)

Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +293%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points +139%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points +83%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1071 Points +30%
Beelink U59 N5105 Intel Celeron N5105	826 Points
Average Intel Celeron N5105 ()	826 Points 0%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	820 Points -1%
Beelink U59 Mini-S Intel Celeron N5095	804 Points -3%
Beelink SEi8 Intel Core i3-8109U	772 Points -7%
HP 17-by2437ng Intel Core i3-10110U	753 Points -9%
Zotac ZBOX PI336 pico Intel Celeron N6211	285 Points -65%

Cinebench R20 / CPU (Single Core)
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	505 Points +115%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points +114%
Beelink SER4 AMD Ryzen 7 4800U	488 Points +108%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	402 Points +71%
HP 17-by2437ng Intel Core i3-10110U	400 Points +70%
Beelink SER3 AMD Ryzen 7 3750H	377 Points +60%
Beelink SEi8 Intel Core i3-8109U	351 Points +49%
Beelink U59 N5105 Intel Celeron N5105	235 Points
Average Intel Celeron N5105 ()	235 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	228 Points -3%
Zotac ZBOX PI336 pico Intel Celeron N6211	174 Points -26%

Cinebench R23 / Multi Core
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +285%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points +134%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points +79%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	2771 Points +27%
Beelink U59 N5105 Intel Celeron N5105	2175 (2157.23^min - 2174.57^max) Points
Average Intel Celeron N5105 ()	2175 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	2159 (2113.79^min - 2158.74^max) Points -1%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	2135 Points -2%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -8%
Zotac ZBOX PI336 pico Intel Celeron N6211	735 Points -66%

Cinebench R23 / Single Core
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points +122%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1319 Points +113%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points +101%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	1046 Points +69%
Beelink SER3 AMD Ryzen 7 3750H	971 Points +57%
Beelink SEi8 Intel Core i3-8109U	906 Points +47%
Beelink U59 N5105 Intel Celeron N5105	618 Points
Average Intel Celeron N5105 ()	618 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	615 Points 0%
Zotac ZBOX PI336 pico Intel Celeron N6211	439 Points -29%

Cinebench R15 / CPU Multi 64Bit
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points +283%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points +116%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points +85%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	417 Points +13%
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points
Average Intel Celeron N5105 ()	368 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	358 (350.25^min - 357.53^max) Points -3%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	346 (334.54^min - 346.03^max) Points -6%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -12%
HP 17-by2437ng Intel Core i3-10110U	321 Points -13%
Zotac ZBOX PI336 pico Intel Celeron N6211	128 Points -65%

Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points +86%
Beelink SER4 AMD Ryzen 7 4800U	187 Points +73%
HP 17-by2437ng Intel Core i3-10110U	160 Points +48%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	155 Points +43%
Beelink SER3 AMD Ryzen 7 3750H	146 Points +35%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	137 Points +27%
Beelink SEi8 Intel Core i3-8109U	124.3 Points +15%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points
Average Intel Celeron N5105 ()	108.1 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	95.4 Points -12%
Zotac ZBOX PI336 pico Intel Celeron N6211	76 Points -30%

Blender / v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211	3767 Seconds * -139%
Beelink U59 Mini-S Intel Celeron N5095	1624 Seconds * -3%
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds *
Average Intel Celeron N5105 ()	1573 Seconds * -0%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	1388 Seconds * +12%
HP 17-by2437ng Intel Core i3-10110U	1385 Seconds * +12%
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * +16%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1087 Seconds * +31%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * +57%
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * +62%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +78%

7-Zip 18.03 / 7z b 4
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +260%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS +109%
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS +53%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	12793 MIPS +15%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS
Average Intel Celeron N5105 ()	11153 MIPS 0%
Beelink U59 Mini-S Intel Celeron N5095	11013 MIPS -1%
HP 17-by2437ng Intel Core i3-10110U	9858 MIPS -12%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	9731 MIPS -13%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -15%
Zotac ZBOX PI336 pico Intel Celeron N6211	3974 MIPS -64%

7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS +52%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	4674 MIPS +50%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS +48%
HP 17-by2437ng Intel Core i3-10110U	4269 MIPS +37%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	3862 MIPS +24%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS +21%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS +21%
Beelink U59 Mini-S Intel Celeron N5095	3124 MIPS +1%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS
Average Intel Celeron N5105 ()	3108 MIPS 0%
Zotac ZBOX PI336 pico Intel Celeron N6211	2593 MIPS -17%

Geekbench 5.5 / Multi-Core
Beelink SER4 AMD Ryzen 7 4800U	6375 Points +206%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points +121%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	2802 Points +35%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	2591 Points +25%
Beelink U59 N5105 Intel Celeron N5105	2080 Points
Average Intel Celeron N5105 ()	2080 Points 0%
HP 17-by2437ng Intel Core i3-10110U	2017 Points -3%
Beelink U59 Mini-S Intel Celeron N5095	1933 Points -7%
Beelink SEi8 Intel Core i3-8109U	1880 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211	844 Points -59%

Geekbench 5.5 / Single-Core
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points +114%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	1345 Points +106%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points +83%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	1158 Points +77%
HP 17-by2437ng Intel Core i3-10110U	1017 Points +56%
Beelink SEi8 Intel Core i3-8109U	888 Points +36%
Beelink U59 N5105 Intel Celeron N5105	653 Points
Average Intel Celeron N5105 ()	653 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	644 Points -1%
Zotac ZBOX PI336 pico Intel Celeron N6211	556 Points -15%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +417%
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps +230%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps +106%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	3.6 fps +79%
Beelink SEi8 Intel Core i3-8109U	2.85 fps +42%
HP 17-by2437ng Intel Core i3-10110U	2.72 fps +35%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	2.42 fps +20%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps
Average Intel Celeron N5105 ()	2.01 fps 0%
Beelink U59 Mini-S Intel Celeron N5095	2 fps 0%
Zotac ZBOX PI336 pico Intel Celeron N6211	0.88 fps -56%

LibreOffice / 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211	144.7 s * -43%
Beelink U59 Mini-S Intel Celeron N5095	106.5 s * -5%
Beelink U59 N5105 Intel Celeron N5105	101 s *
Average Intel Celeron N5105 ()	101 s * -0%
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * +14%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	81.7 s * +19%
Beelink SEi8 Intel Core i3-8109U	79 s * +22%
HP 17-by2437ng Intel Core i3-10110U	65.4 s * +35%
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * +38%
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * +49%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	42.8 s * +58%

R Benchmark 2.5 / Overall mean
Zotac ZBOX PI336 pico Intel Celeron N6211	1.371 sec * -18%
Beelink U59 Mini-S Intel Celeron N5095	1.178 sec * -1%
Beelink U59 N5105 Intel Celeron N5105	1.162 sec *
Average Intel Celeron N5105 ()	1.162 sec * -0%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * +26%
Teclast TBOLT F15 Pro Intel Core i3-1005G1	0.762 sec * +34%
HP 17-by2437ng Intel Core i3-10110U	0.74 sec * +36%
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * +38%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4	0.643 sec * +45%
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * +46%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * +50%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

368 Points

Cinebench R15 OpenGL 64Bit

36.9 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

108.1 Points

Ajuda

... comparado com

Performance Rating
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	98.1 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	67 pt
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	41.6 pt
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	22 pt
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	20.5 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.1 pt

AIDA64 / FP32 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +711%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s +441%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	3338 KRay/s +169%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s 0%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	1239 KRay/s
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s -60%

AIDA64 / FPU Julia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +658%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points +274%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	16912 Points +127%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	7441 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points -61%

AIDA64 / CPU SHA3
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s +262%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s +259%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	897 MB/s +75%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	513 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s -1%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s -61%

AIDA64 / CPU Queen
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +254%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points +110%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	43632 Points +97%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	22167 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points -60%

AIDA64 / FPU SinJulia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +1080%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	5639 Points +464%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points +344%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points 0%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	1000 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points -60%

AIDA64 / FPU Mandel
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +637%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points +336%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	8846 Points +127%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	3889 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points -60%

AIDA64 / CPU AES
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s +245%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s +182%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	28977 MB/s +50%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	19362 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s -1%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s -60%

AIDA64 / CPU ZLib
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +216%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +99%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	313 MB/s +67%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	187.8 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s 0%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s -60%

AIDA64 / FP64 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +723%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s +437%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	1758 KRay/s +160%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	675 KRay/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s 0%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s -60%

AIDA64 / CPU PhotoWorxx
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s +127%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s +58%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	10671 MPixel/s
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	10338 MPixel/s -3%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s -52%

Desempenho do sistema

Os resultados do PCMark 10 são consistentemente superiores aos do ano passado U59 N5095, mesmo que as margens sejam pequenas

PCMark 10 / Score
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points +97%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points +69%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	3818 Points +43%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2670 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	2670 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points -11%

PCMark 10 / Essentials
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points +45%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points +42%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	7408 Points +17%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	6340 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	6340 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points -9%

PCMark 10 / Productivity
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +111%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points +65%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	6066 Points +61%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	3758 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	3758 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points -4%

PCMark 10 / Digital Content Creation
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points +150%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points +106%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	3363 Points +55%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2170 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	2170 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	1779 Points -18%

CrossMark / Overall
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	531 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	531 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points -8%

CrossMark / Productivity
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	590 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	590 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points -5%

CrossMark / Creativity
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	471 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	471 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points -8%

CrossMark / Responsiveness
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	554 Points
Average Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU) ()	554 Points 0%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points -15%

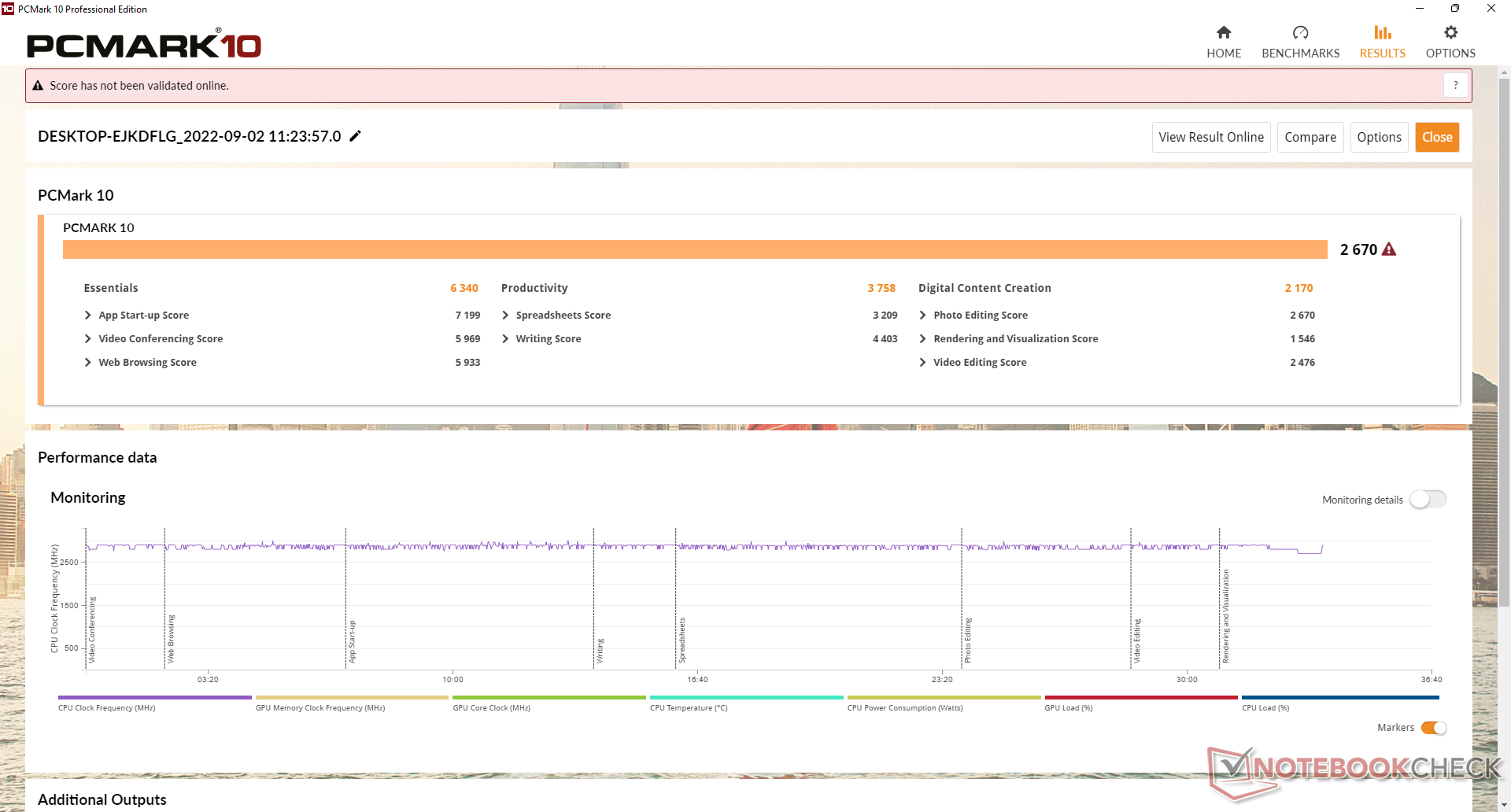

PCMark 10 Score		2670 pontos
Ajuda

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s +49%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	24807 MB/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -8%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16968 MB/s -32%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	16249 MB/s -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	15737 MB/s -37%

AIDA64 / Memory Read
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s +155%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s +42%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	18268 MB/s +4%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	17511 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16942 MB/s -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	10311 MB/s -41%

AIDA64 / Memory Write
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s +45%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	30205 MB/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19340 MB/s -36%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	18455 MB/s -39%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	17031 MB/s -44%

AIDA64 / Memory Latency
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	95.8 ns * -61%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -59%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * -46%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	76.3 ns * -28%
Beelink U59 N5105 Intel Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	59.6 ns *
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	58 ns * +3%

* ... smaller is better

Latência do DPC

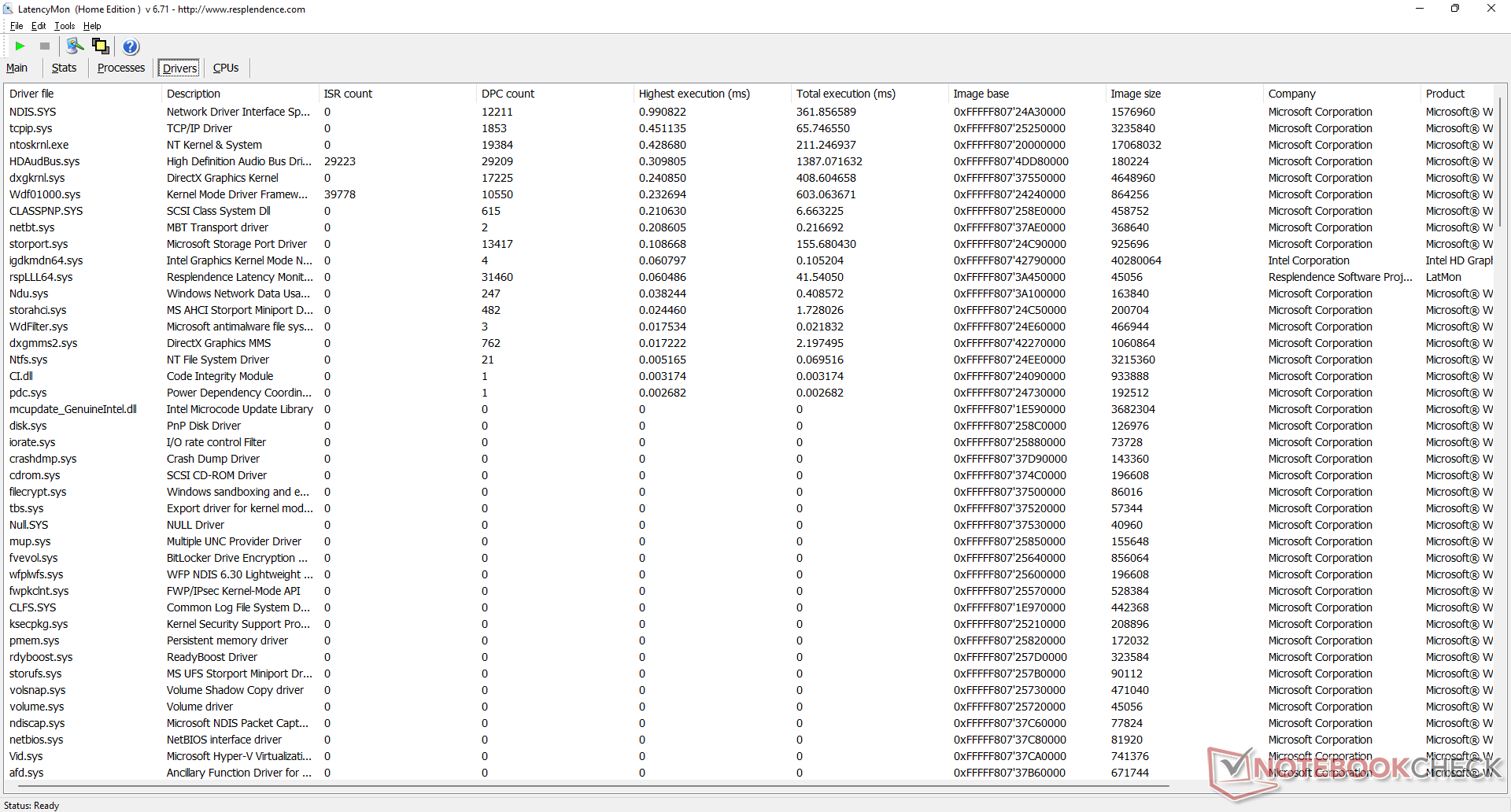

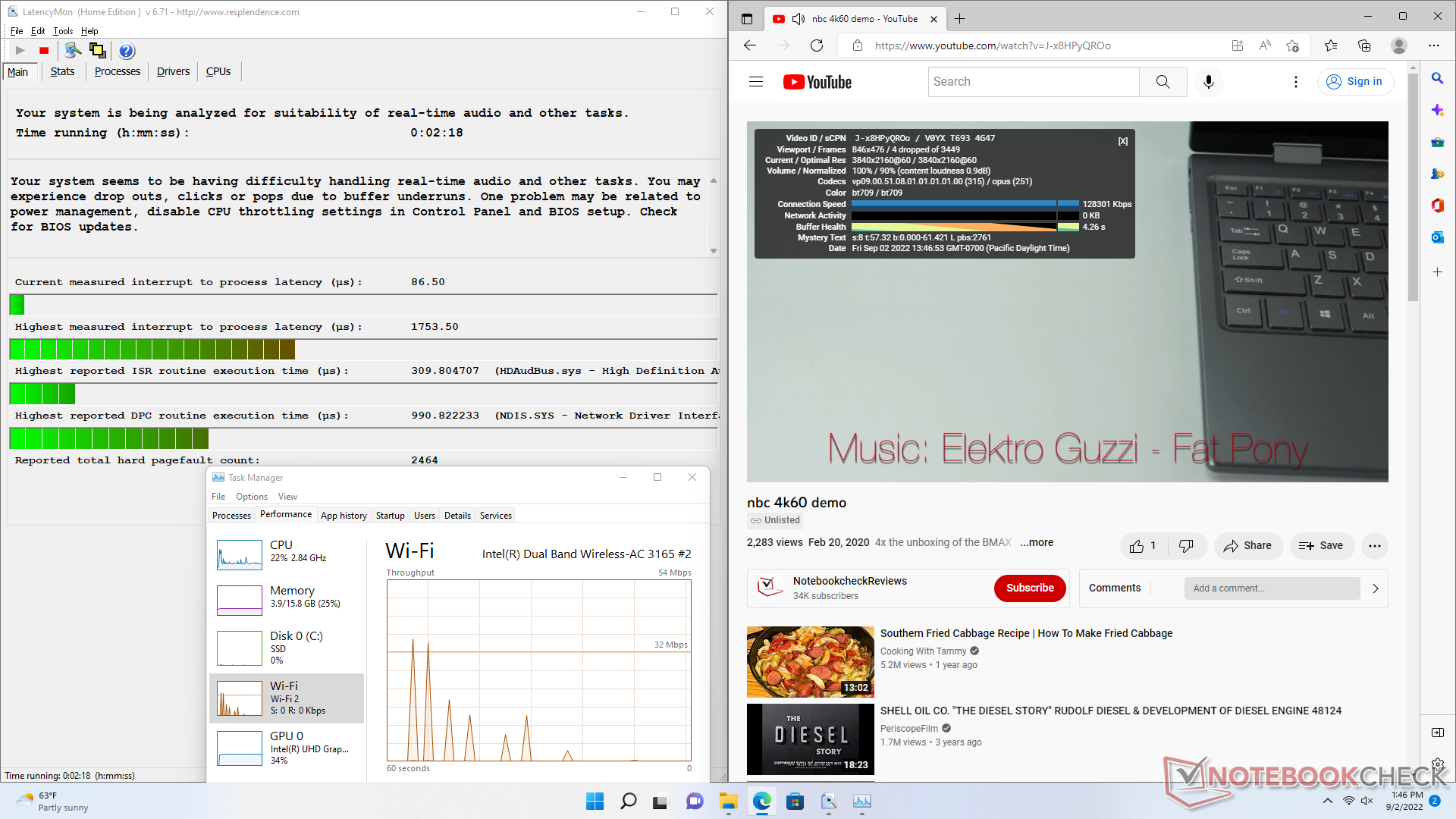

LatencyMon revela problemas de DPC ao abrir várias abas do navegador em nossa página inicial. a reprodução do vídeo de 4K a 60 FPS é quase perfeita, com apenas 4 quadros descartados durante nosso vídeo de teste de minutos.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	1753.5 μs *
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * +1%
Zotac ZBOX PI336 pico UHD Graphics (Elkhart Lake 16 EU), Celeron N6211, SanDisk DF4128	1476.3 μs * +16%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	697 μs * +60%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +70%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * +81%

* ... smaller is better

Dispositivos de armazenamento

O modelo é fornecido com uma unidade M.2 SATA III em vez de NVMe, o que provavelmente economizará custos. Considerando a CPU, no entanto, um drive SATA III é aceitável. O é aceitável.Silicon Motion AZW em nossa unidade de teste retornaria grandes taxas seqüenciais de leitura e escrita ao norte de 400 MB/s cada

Uma pequena almofada térmica para o SSD está incluída, o que é surpreendente de se ver em um mini PC de orçamento como o U59. A almofada fica entre o SSD e a caixa metálica SATA III de 2,5 polegadas que está presa ao painel inferior superior.

Os usuários podem instalar até dois acionamentos. Os drives PCIe não são suportados

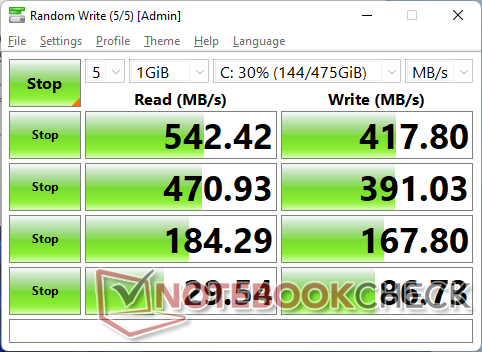

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Silicon Motion AZW 512G NV428

CDM 5/6 Read Seq Q32T1: 528.3 MB/s

CDM 5/6 Write Seq Q32T1: 359.5 MB/s

CDM 5/6 Read 4K Q32T1: 146.6 MB/s

CDM 5/6 Write 4K Q32T1: 165.1 MB/s

CDM 5 Read Seq: 477.6 MB/s

CDM 5 Write Seq: 379.8 MB/s

CDM 5/6 Read 4K: 25.9 MB/s

CDM 5/6 Write 4K: 86.45 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	83.9 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	81.9 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	36.7 pt
Beelink U59 N5105 Silicon Motion AZW 512G NV428	34.9 pt
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	30 pt
Zotac ZBOX PI336 pico SanDisk DF4128	8.3 pt

DiskSpd
seq read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s +181%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1349 (1345.08^min - 1349.49^max) MB/s +176%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s +4%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	488 (400.14^min - 488.01^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s -4%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s -49%
seq write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1366 (1342.35^min - 1366.3^max) MB/s +196%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s +111%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s +1%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	461 (274.52^min - 460.74^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s -6%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s -77%
seq q8 t1 read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1958 (1343.44^min - 1957.62^max) MB/s +290%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s +211%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s +12%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	502 (458.44^min - 501.64^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s -2%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s -49%
seq q8 t1 write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1371 (1348.89^min - 1371.13^max) MB/s +197%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s +110%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s +9%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s +6%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	462 (179.1^min - 462^max) MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s -78%
4k q1 t1 read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +168%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	40.2 (38.82^min - 40.17^max) MB/s +73%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	23.3 (21.43^min - 23.34^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s -31%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s -41%
4k q1 t1 write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s +167%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	116 (112.64^min - 116.46^max) MB/s +55%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	74.8 (70.07^min - 74.78^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s -37%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -38%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s -82%
4k q32 t16 read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	826 (823.98^min - 826.07^max) MB/s +364%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s +94%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s +60%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	178.1 (150.41^min - 178.11^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s -8%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s -85%
4k q32 t16 write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +275%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	400 (389.86^min - 399.66^max) MB/s +82%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s +50%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	220 (6.81^min - 220.26^max) MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s -5%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s -94%

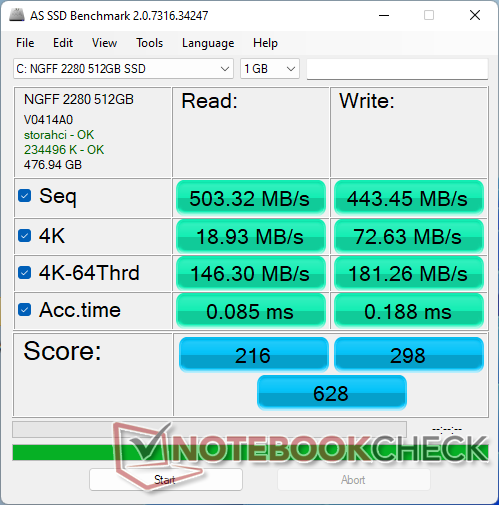

AS SSD
Score Total
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	2346 Points +274%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points +192%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points +34%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	628 Points
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points -8%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points -78%
Score Read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	974 Points +351%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points +152%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points +41%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	216 Points
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points -23%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points -70%
Score Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points +245%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	866 Points +191%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points +26%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points +9%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	298 Points
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points -87%
Seq Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s +228%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1432 MB/s +185%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s +5%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	503.32 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s -9%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s -47%
Seq Write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1433 MB/s +223%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s +96%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s +6%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	443.45 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s -1%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s -74%
4K Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +198%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	36.38 MB/s +92%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s +8%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	18.93 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s -27%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s -30%
4K Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s +125%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	118.5 MB/s +63%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	72.63 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s -32%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -41%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s -81%
4K-64 Read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	795 MB/s +443%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s +120%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s +58%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	146.3 MB/s
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s -27%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s -82%
4K-64 Write
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s +329%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	604 MB/s +233%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s +57%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s +27%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	181.26 MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s -92%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * -266%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * -127%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -46%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -0%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	0.085 ms *
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	0.07 ms * +18%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * -401%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	0.36 ms * -91%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -43%
Beelink U59 N5105 Silicon Motion AZW 512G NV428	0.188 ms *
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * +4%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * +27%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink U59 N5105: Ø490 (445.59-491.99)

Desempenho da GPU

A GPU integrada recebe uma atualização do Lago Jasper 16 EUs no Celeron N5095, do ano passado, para o Lago Jasper 24 EUs sobre o U59 N5105 deste ano. os resultados do 3DMark são 80% mais rápidos na nova GPU quando comparados aos U59 do ano passado, o que representa um aumento significativo em relação ao ano anterior. Entretanto, é importante notar que nosso U59 N5095 foi enviado com 8 GB de RAM de canal único em comparação com os 16 GB de RAM de canal duplo de nosso U59 N5105. Só a RAM de canal duplo provavelmente responde por 30 a 50 por cento dessa diferença de desempenho. No entanto, esta ainda é uma das soluções de GPU integradas mais lentas por aí e, portanto, é inadequada para a maioria dos jogos novos ou antigos.

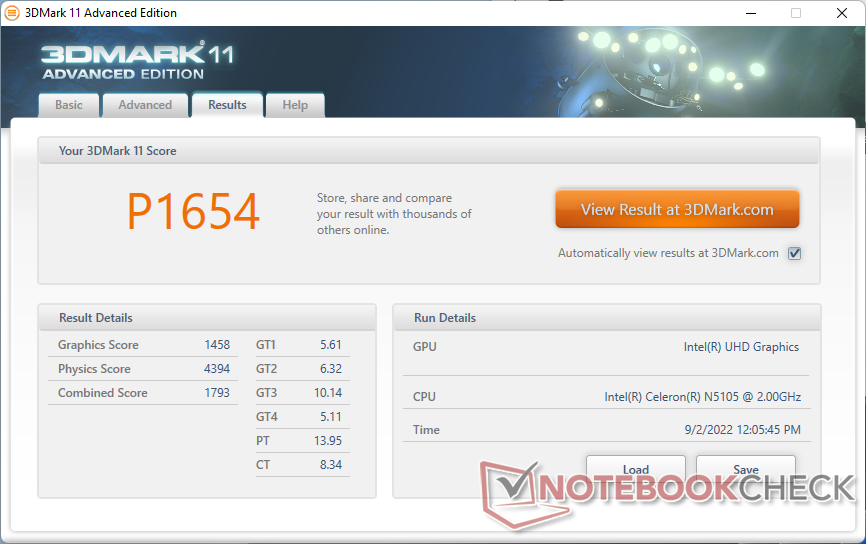

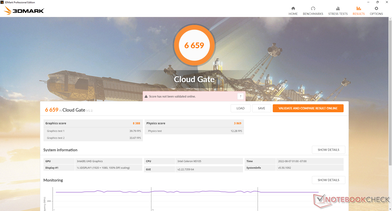

3DMark | 3DMark 11

3DMark

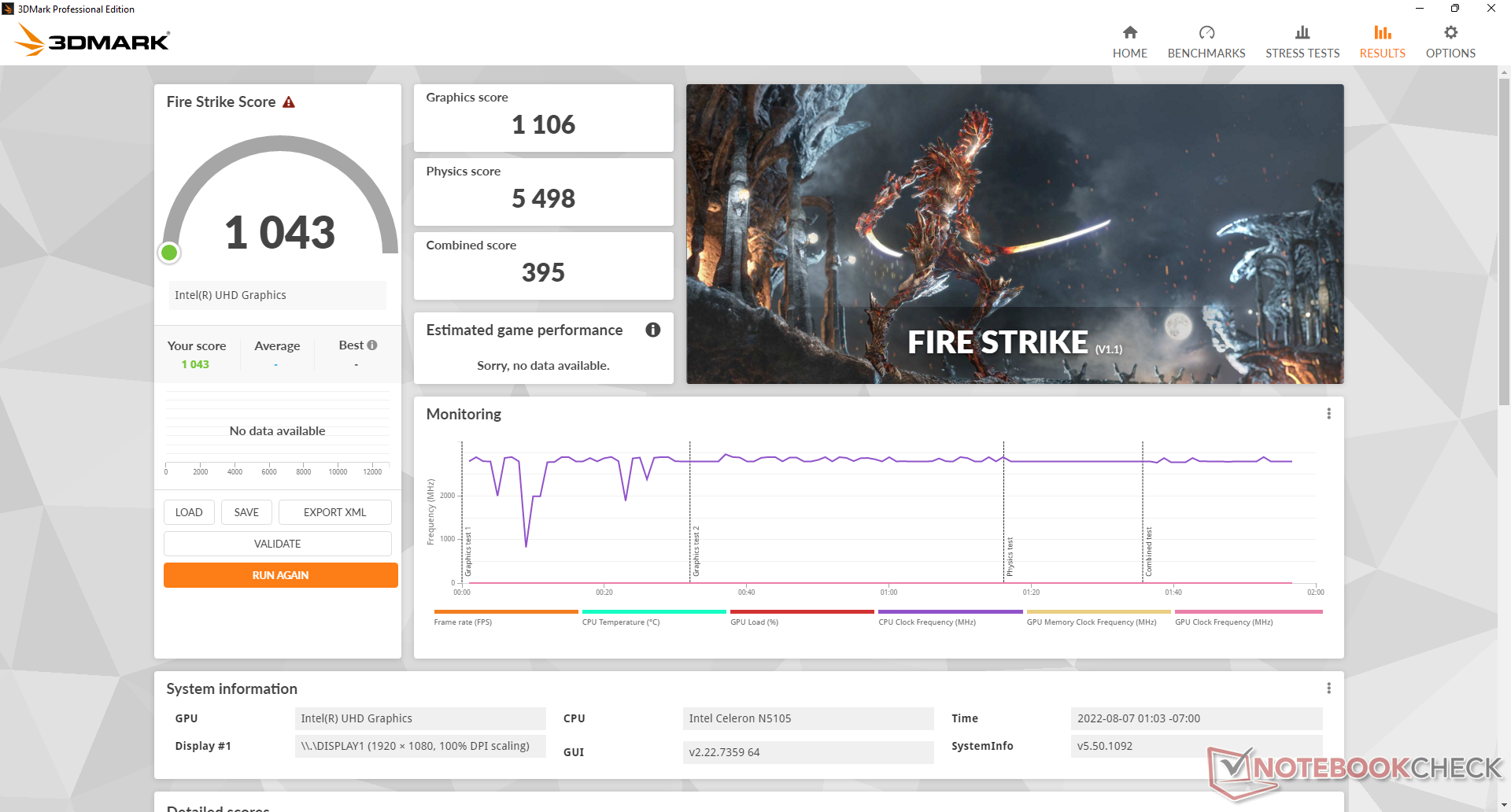

1920x1080 Fire Strike Graphics
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points +255%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points +185%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	2427 Points +119%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	2027 Points +83%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	1715 Points +55%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	1530 Points +38%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1106 Points
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	1106 Points 0%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	967 Points -13%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	605 Points -45%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points -53%

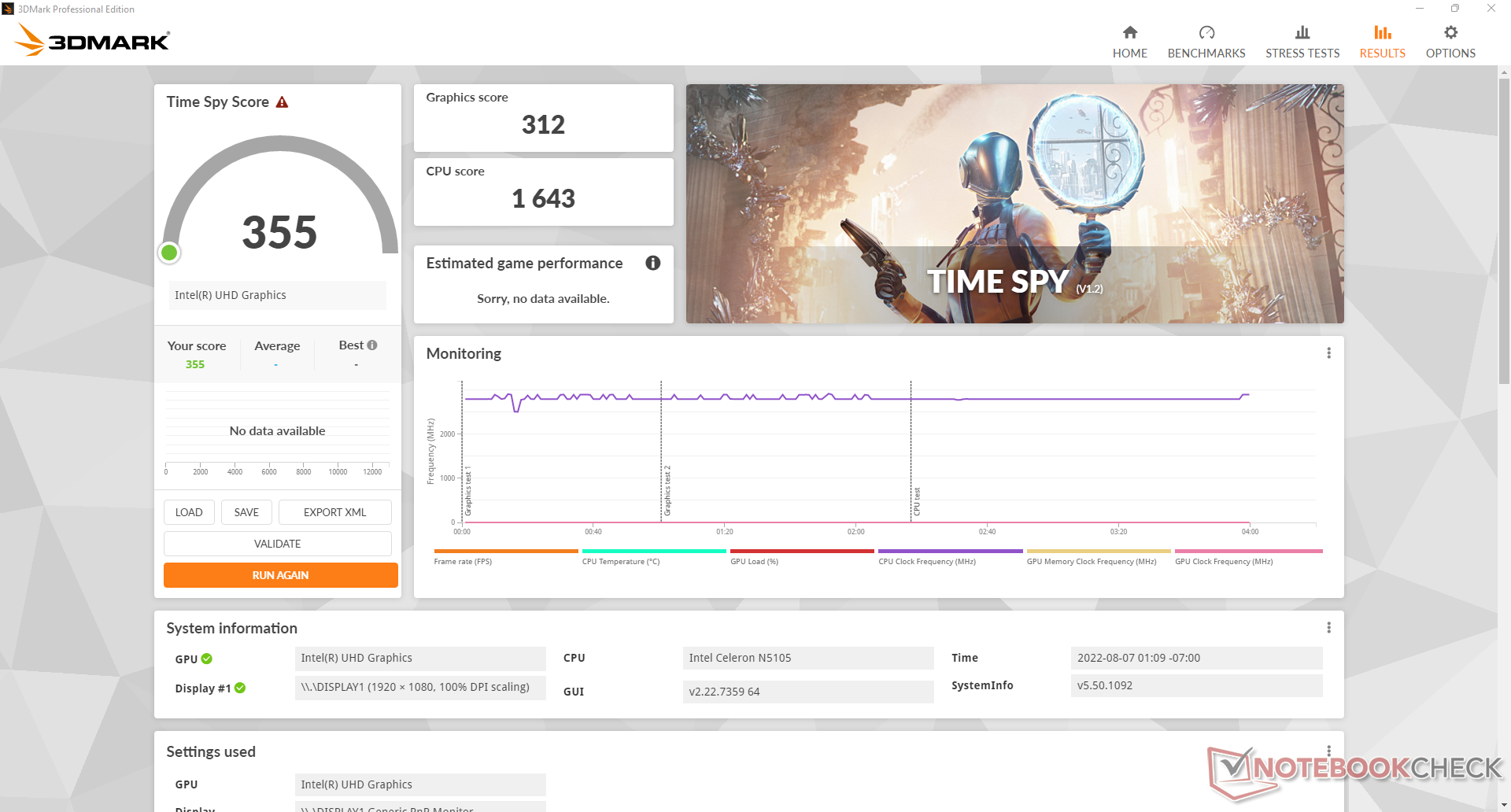

2560x1440 Time Spy Graphics
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +298%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points +230%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	798 Points +156%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	609 Points +95%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	569 Points +82%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	419 Points +34%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	317 Points +2%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	312 Points
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	312 Points 0%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	173 Points -45%
2560x1440 Time Spy Score
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points +298%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1161 Points +227%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	888 Points +150%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	690 Points +94%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	636 Points +79%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	476 Points +34%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	361 Points +2%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	355 Points
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	355 Points 0%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	199 Points -44%

3DMark 11 - 1280x720 Performance GPU
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +314%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points +258%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4	3636 Points +149%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	3245 Points +123%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	2801 Points +92%
Teclast TBOLT F15 Pro Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1	2065 Points +42%
HP 17-by2437ng Intel UHD Graphics 620, Intel Core i3-10110U	1501 Points +3%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1458 Points
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	1458 Points 0%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points -41%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points -55%

3DMark 11 Performance		1654 pontos

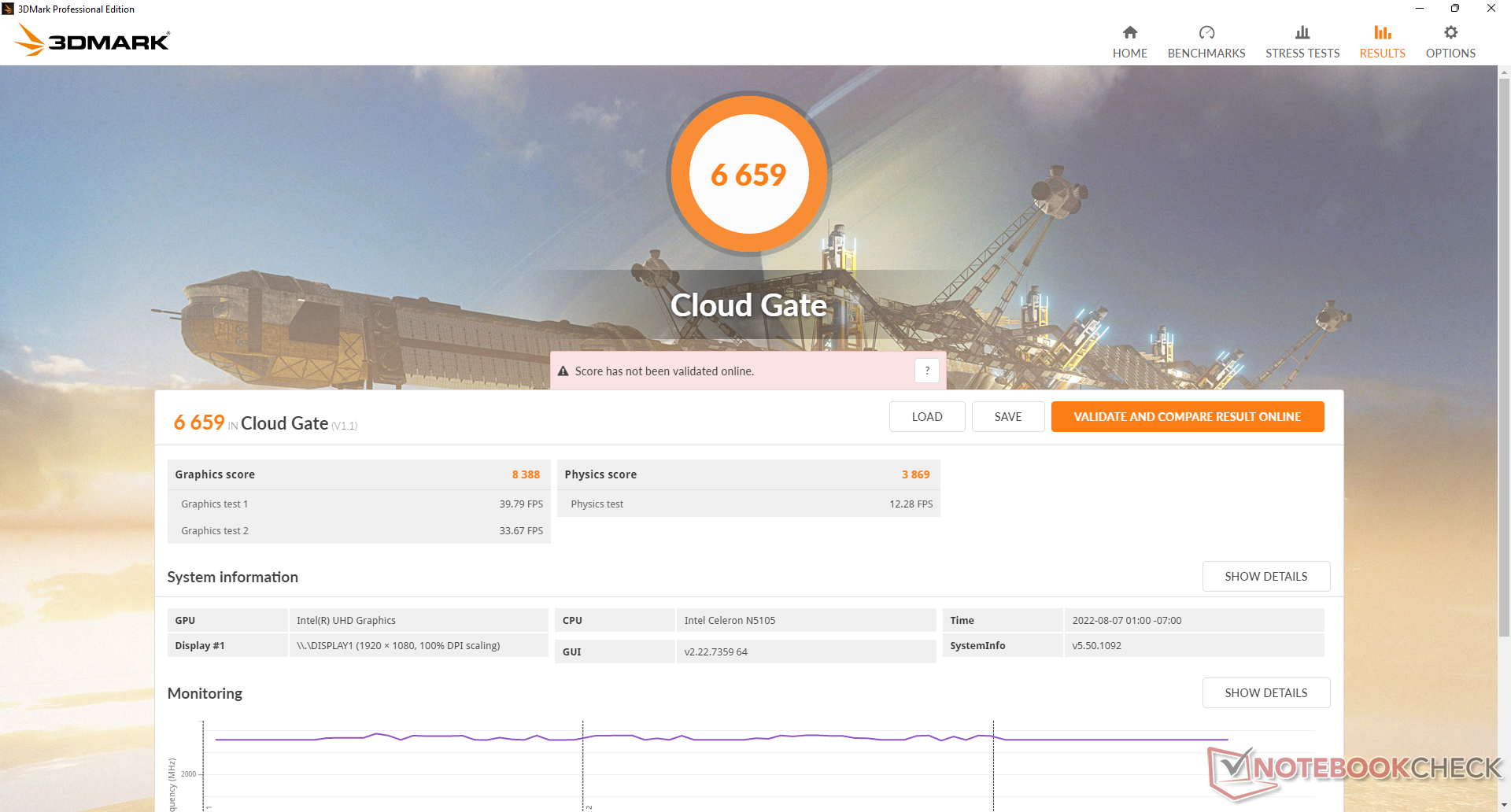

3DMark Cloud Gate Standard Score		6659 pontos
3DMark Fire Strike Score		1043 pontos
3DMark Time Spy Score		355 pontos
Ajuda

... comparado com

The Witcher 3 | X-Plane 11.11 | Final Fantasy XV Benchmark | Dota 2 Reborn

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps +197%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps +177%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	43.8 (1.672^min, 3.35^P0.1, 20.7^P1) fps +103%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	35.7 (28^min) fps +65%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	30.2 fps +40%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	21.6 fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	21.6 fps 0%
1366x768 Medium Graphics & Postprocessing
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps +214%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	30.1 (13.3^min, 14.7^P0.1, 17.3^P1) fps +109%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	22.9 (21^min) fps +59%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	19.6 fps +36%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	14.4 (11^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	14.4 fps 0%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps +190%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	15 (7.55^min, 7.88^P0.1, 9.45^P1) fps +92%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12.2 (11^min) fps +56%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	10.3 fps +32%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	7.8 (5^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	7.8 fps 0%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +267%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	8.26 (4.29^min, 4.37^P0.1, 5.33^P1) fps +112%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	8 (7^min) fps +105%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	3.9 (2^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	3.9 fps 0%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps +98%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	39.4 fps +89%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.1 fps +78%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	28.1 fps +35%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	23.8 fps +14%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.4 fps +8%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	20.8 fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	20.8 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	13.3 fps -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	7.76 fps -63%
1920x1080 med (fps_test=2)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps +150%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	27.3 fps +105%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	25.1 fps +89%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	18.5 fps +39%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	15 fps +13%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	13.7 fps +3%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.3 fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	13.3 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.54 fps -43%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	4.97 fps -63%
1920x1080 high (fps_test=3)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps +140%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps +137%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	23.2 fps +89%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	16.7 fps +36%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	12.9 fps +5%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	12.3 fps 0%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	12.3 fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	12.3 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.07 fps -43%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	4.64 fps -62%

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps +172%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26.8 fps +96%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	24.4 fps +78%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	19 fps +39%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	16.6 fps +21%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	15.4 fps +12%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.7 fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	13.7 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	6.86 fps -50%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	3.45 fps -75%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps +40%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	94.4 (75.6^min) fps +28%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	83.7 (73.3^min) fps +13%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	76.7 (66.8^min) fps +4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.8 (47.9^min) fps 0%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	73.8 (65.8^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	73.8 fps 0%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	67.4 (57.5^min) fps -9%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	58.3 (51.4^min) fps -21%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	24.3 (20.6^min) fps -67%
1366x768 med (1/3)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps +246%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56 (40.8^min) fps +132%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	52 (42.4^min) fps +116%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	36.6 (27.6^min) fps +52%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	34.6 (29.8^min) fps +44%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	31.9 (24.8^min) fps +32%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	24.1 (17.1^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	24.1 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	20.7 (13.8^min) fps -14%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	10.9 (8.1^min) fps -55%
1920x1080 high (2/3)
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +216%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.2 (20^min) fps +104%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	30.1 (27.5^min) fps +79%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	25.7 (18.5^min) fps +53%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	25.3 (19.3^min) fps +51%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	20.9 (16.9^min) fps +24%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	16.8 (12.2^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	16.8 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	11.6 (9.6^min) fps -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	5.8 (2.3^min) fps -65%
1920x1080 ultra (3/3) best looking
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +230%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps +103%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	28.3 (25.9^min) fps +83%
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs	24.5 (21.5^min) fps +58%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.7 (18.8^min) fps +46%
Teclast TBOLT F15 Pro Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	19.4 (16.2^min) fps +25%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	15.5 (10.8^min) fps
Average Intel UHD Graphics (Jasper Lake 24 EU) ()	15.5 fps 0%
Beelink U59 Mini-S Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	10.8 (8.7^min) fps -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)	5.2 (2.4^min) fps -66%

	baixo	média	alto	ultra
The Witcher 3 (2015)	21.6	14.4	7.8	3.9
Dota 2 Reborn (2015)	73.8	24.1	16.8	15.5
Final Fantasy XV Benchmark (2018)	13.7
X-Plane 11.11 (2018)	20.8	13.3	12.3

Emissões

Ruído do sistema

O ruído do ventilador é silencioso, não importa a carga, mesmo quando ajustado para o modo Performance. Só conseguimos gravar um máximo de pouco menos de 27 dB(A) contra um fundo silencioso de 21,5 dB(A) comparado com 34 dB(A) no U59 do ano passado. Este é um dos mini PCs mais silenciosos sem a opção de modelos sem ventilador como o Zotac ZBOX PI336.

Nossa unidade de teste exibiria um pequeno ruído eletrônico ou lamuriador de bobina, o que ajuda a explicar nosso barulho de 22,1 dB(A) em marcha lenta.

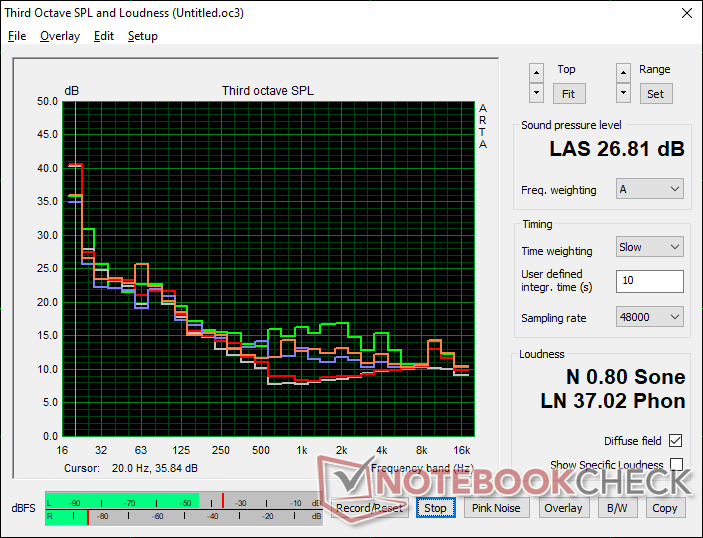

Perfil de ruído do ventilador (Branco: Fundo, Vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Prime95 stress)

Barulho

Ocioso		22.1 / 22.1 / 22.1 dB
Carga		23.9 / 26.8 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 21.5 dB(A)

	Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Noise		-12%	-48%	-31%	-55%
off / environment *	21.5	23.3 -8%	23.4 -9%	23.4 -9%	24.8 -15%
Idle Minimum *	22.1	24.2 -10%	33.2 -50%	23.4 -6%	35.6 -61%
Idle Average *	22.1	24.2 -10%	33.2 -50%	23.4 -6%	35.6 -61%
Idle Maximum *	22.1	24.2 -10%	33.2 -50%	29.4 -33%	35.6 -61%
Load Average *	23.9	25.1 -5%	38.6 -62%	35.2 -47%	36.2 -51%
Witcher 3 ultra *	24.4		39.2 -61%	37.2 -52%	38 -56%
Load Maximum *	26.8	33.9 -26%	40.8 -52%	43.3 -62%	47.6 -78%

* ... smaller is better

Temperatura

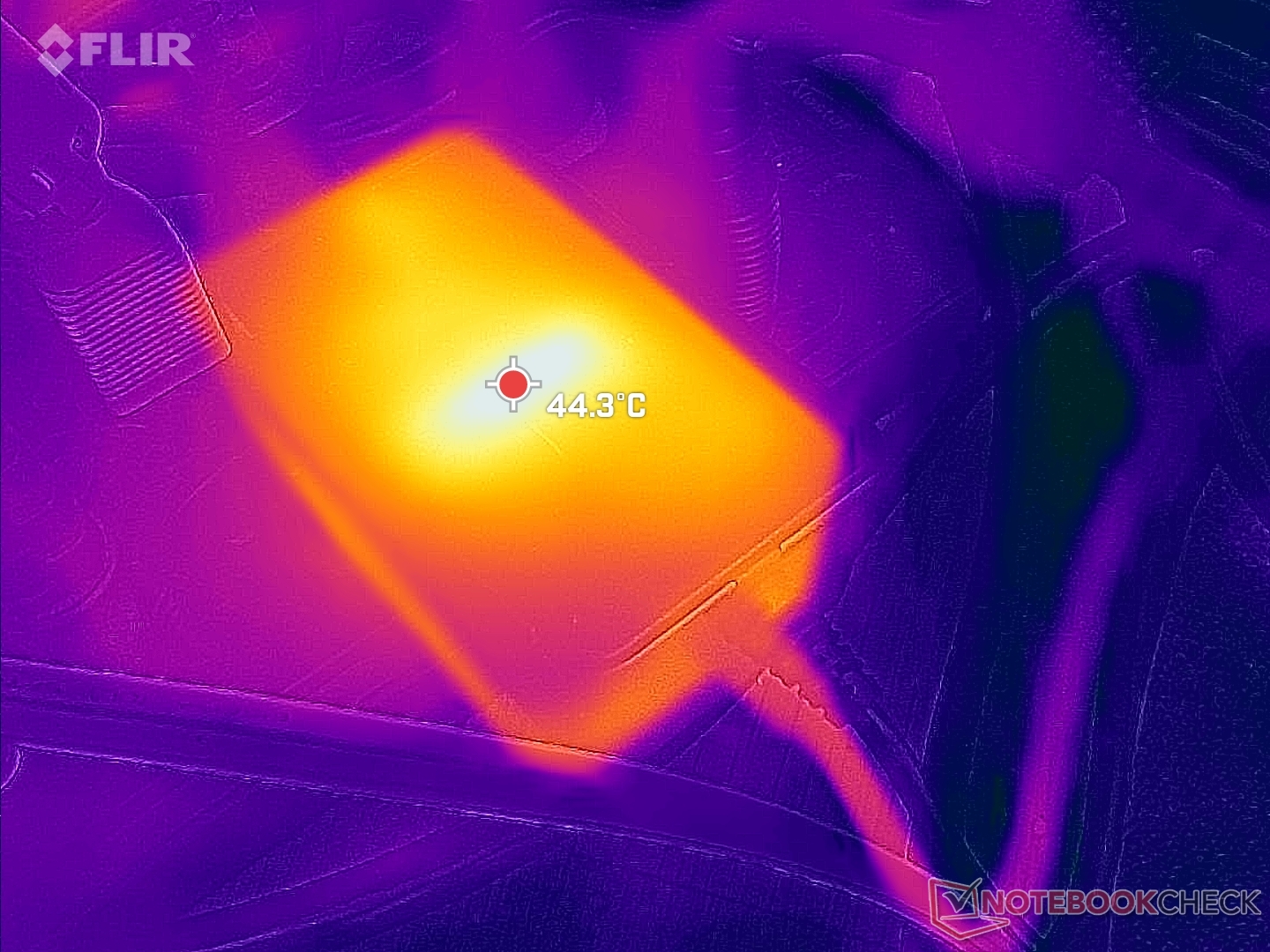

O adaptador AC alcança mais de 44 C quando a carga é muito alta por longos períodos

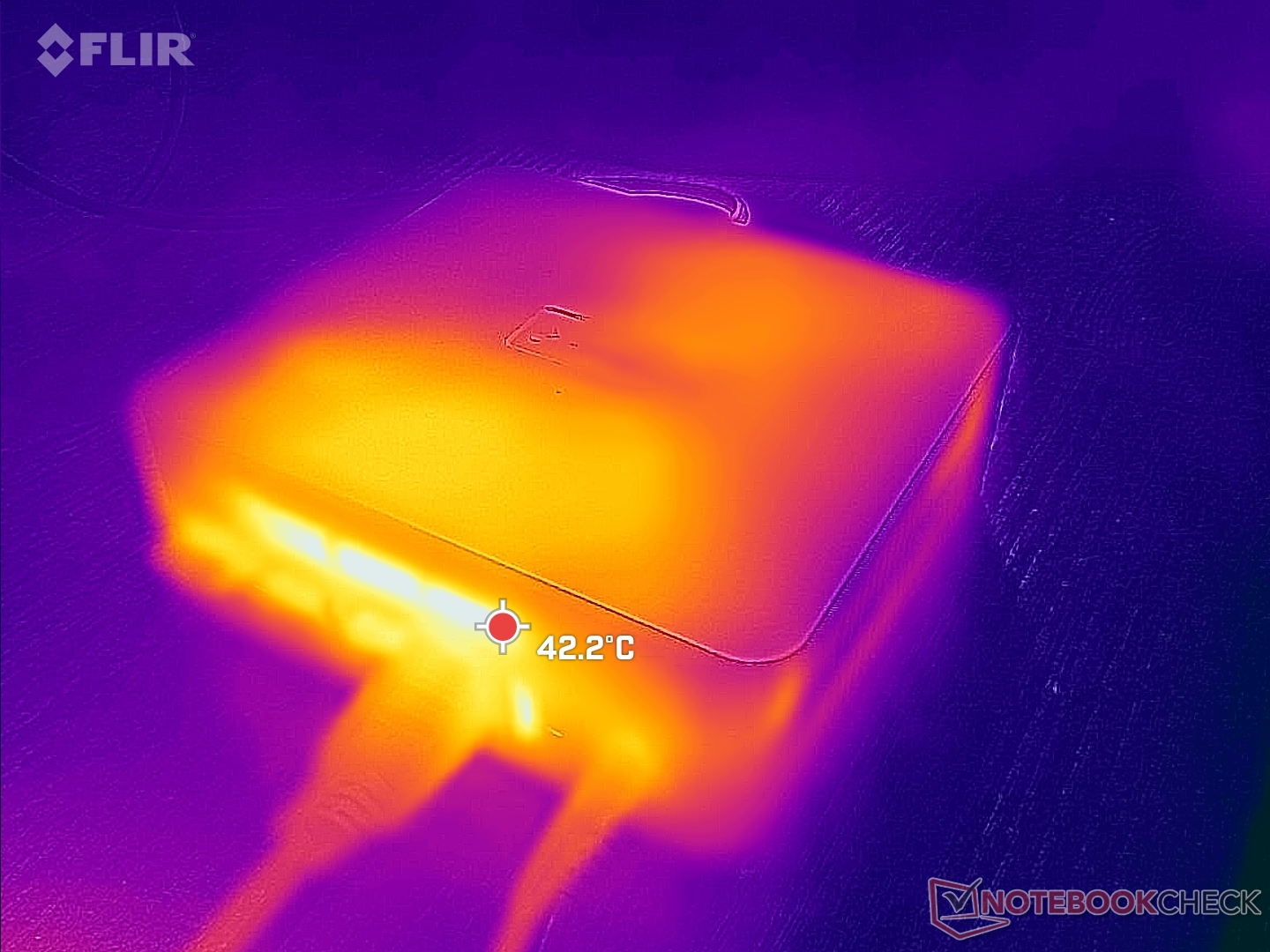

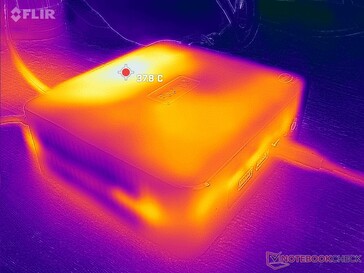

As temperaturas da superfície são quentes mesmo quando ociosas na mesa de trabalho, já que o ventilador é tão letárgico. A parte superior da unidade pode chegar a 32 C quando não estiver rodando nenhuma aplicação ou até 38 C quando estiver rodando aplicações estressantes por longos períodos. Os pontos quentes são em direção à parte traseira do chassi mais próximo das grelhas de ventilação traseiras.

Teste de estresse

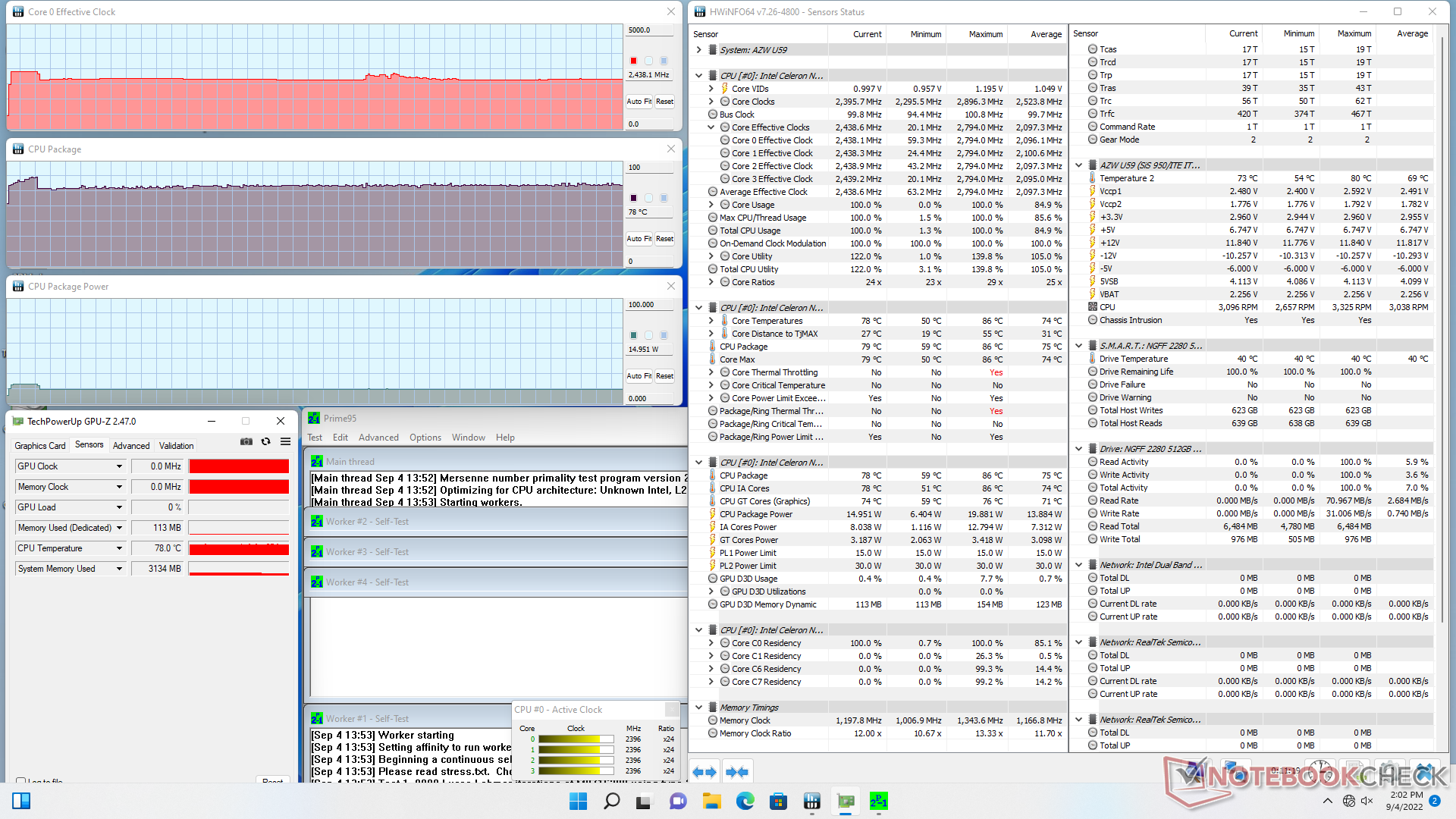

As taxas de clock da CPU, temperatura e consumo de energia da placa aumentariam para 2,8 GHz, 86 C e 20 W, respectivamente, ao iniciar a tensão Prime95. Após cerca de 20 segundos, entretanto, as taxas de clock e o consumo de energia da placa cairiam para 2,4 GHz e 15 W, respectivamente, a fim de manter uma temperatura central mais fria de 76 C, como mostra a captura de tela abaixo. Na verdade, isto é mais lento e mais frio em 200 MHz e 9 C, respectivamente, do que o que registramos no U59 do ano passado com o N5095 mais antigo.

	Relógio CPU (GHz)	Relógio GPU (MHz)	Temperatura média da CPU (°C)
System Idle	--	--	59
Prime95 Stress	2.4	--	78

Gestão de energia

Consumo de energia

O sistema é apenas ligeiramente mais exigente do que no U59 do ano passado, com o Celeron N5095 mais antigo. Os ganhos da GPU acima mencionados, no entanto, valem o par de watts a mais. O consumo total ainda é muito inferior ao dos mini PCs alimentados por CPUs Core U ou Ryzen U, como o Intel NUC11 ou Beelink SER4

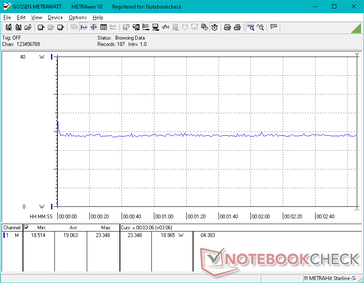

Somos capazes de registrar um draw temporário máximo de 29 W do pequeno (~7,8 x 4,6 x 3,2 cm) adaptador CA de 36 W ao executar o Prime95 stress.

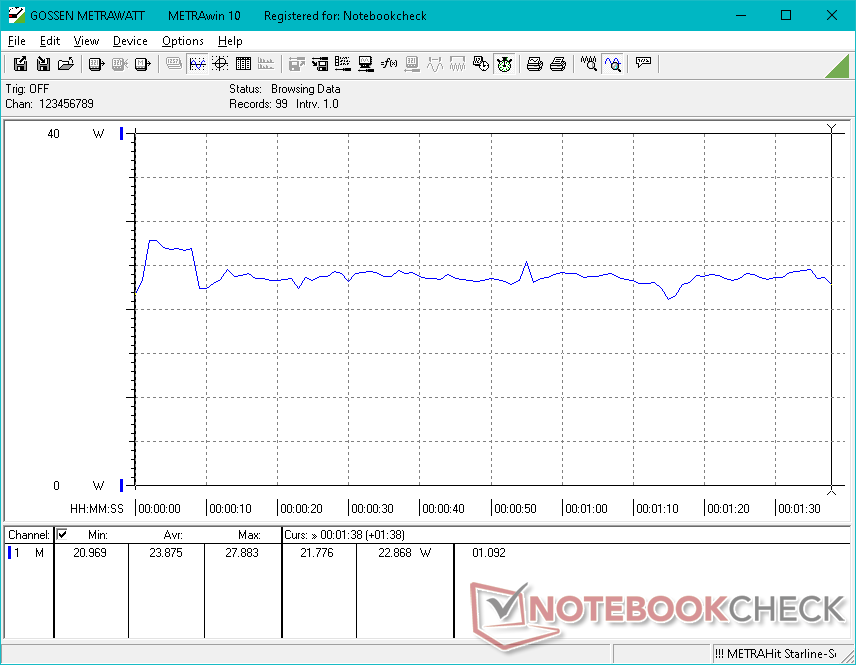

CineBench R15 xT iniciado na marca de 10s. O benchmark leva aproximadamente 1 minuto e 55 segundos para ser concluído

Prime95 tensão iniciada na marca dos 10s. O consumo aumentaria para 28,8 W durante cerca de 25 segundos antes de cair e se estabilizar em 23 W devido ao limitado potencial de Turbo Boost do sistema

Consumo de energia

desligado	1.7 / 0.83 Watt
Ocioso	6.7 / 8.1 / 11.6 Watt
Carga	23.9 / 28.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU), Silicon Motion AZW 512G NV428, , x,	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Beelink SER3 R7 3750H, Vega 10, GSemi AZW GSDFN512TS3F1OGCX, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128, , x,
Power Consumption		15%	-4%	-27%	-82%	42%
Idle Minimum *	6.7	7 -4%	4.1 39%	7 -4%	11.5 -72%	5.4 19%
Idle Average *	8.1	7 14%	4.1 49%	9.1 -12%	12.4 -53%	5.5 32%
Idle Maximum *	11.6	7.6 34%	4.6 60%	9.7 16%	12.9 -11%	6.2 47%
Load Average *	23.9	18.3 23%	35.6 -49%	29.5 -23%	40.7 -70%	11.3 53%
Witcher 3 ultra *	19.1		35.6 -86%	32.5 -70%	43.9 -130%
Load Maximum *	28.8	27.1 6%	39.9 -39%	48.7 -69%	73.5 -155%	11.8 59%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU): Ø19.1 (18.5-23.3)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU): Ø13.1 (12.6-17)

Power Consumption external Monitor

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); Prime95 V2810 Stress (external Monitor): Ø24 (22.7-28.8)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.1 (23-24.7)

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (17.2-24.9)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø20.7 (19.8-21.1)

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø19.9 (18.6-27.2)

Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø13.1 (12.7-14.8)

Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU); 1920x1080 The Witcher 3 ultra (external Monitor): Ø19.1 (18.5-23.3)

Pro

+ facilidade de manutenção; 2x SODIMM, 2x compartimentos de armazenamento

+ leve e barata

+ Suporte DisplayPort

+ ruído silencioso do ventilador

+ 2x portas RJ-45

Contra

- desempenho limitado da CPU e GPU

- conectividade lenta 1x1 Wi-Fi 5

- sem fornecimento de energia USB-C

- Questões de latência do DPC

Veredicto - A mesma CPU, GPU mais rápido

Em revisão: Beelink U59 N5105. Unidade de teste fornecida pela Beelink

Se você está indo para a velocidade de processamento, então não há quase nenhum motivo para escolher o Celeron N5105 sobre o N5095. O N5105 pode funcionar ligeiramente mais frio, mas não oferece nenhum ganho apreciável no desempenho de rosca única ou de múltiplas roscas. Seus benefícios residem na GPU integrada, que é mais rápida que a GPU integrada na N5095 por margens muito mais amplas.

Infelizmente, a GPU na N5105 ainda é lenta e, portanto, a experiência da IU do Windows ainda está atrasada ao executar mais de uma ou duas aplicações simultaneamente. Neste caso, as capacidades de streaming do U59 N5105 são essencialmente as mesmas que no U59 N5095. É recomendado encontrar SKUs com RAM de canal duplo sempre que possível para maximizar a performance da GPU integrada.

Quanto ao mini PC em si, o U59 tem uma quantidade razoável de recursos, considerando seu preço muito baixo. As configurações vêm pré-instaladas com Windows 11 e um SSD muito espaçoso de 512 GB com 16 GB de RAM por apenas cerca de US$ 200, enquanto um Intel NUC poderia facilmente custar mais de duas vezes mais sem qualquer RAM ou armazenamento. Se tudo o que você está procurando fazer é um fluxo básico de 1080p ou navegação, então este U59 fará o trabalho o suficiente. Para multitarefas mais pesadas e mais sobrecarga, porém, você vai querer investir em um mini PC com CPUs mais rápidas Core ou Ryzen como a série Bellink SEI ou SER.

Preço e Disponibilidade

O Beelink U59, conforme configurado em nossa revisão, está atualmente disponível por $200 USD se comprado diretamente do fabricante https://www.bee-link.com/catalog/product/buy?id=334. Alternativamente, Amazon tem a configuração em estoque por $240 USD e $200 para as SKUs de 16 GB e 8 GB, respectivamente.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5190 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 387270 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Estréia do Celeron N5105 Jasper Lake: Revisão do mini PC Beelink U59

Allen Ngo, 2022-09- 8 (Update: 2022-09- 8)

Estréia do Celeron N5105 Jasper Lake: Revisão do mini PC Beelink U59

Possíveis concorrentes em comparação

Caso

Comparação de tamanho

Conectividade

Comunicação

Manutenção

Acessórios e Garantia

Desempenho

Condições de teste

Processador

Cinebench R15 Multi Loop

Desempenho do sistema

Latência do DPC

Dispositivos de armazenamento

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Desempenho da GPU

Emissões

Ruído do sistema

Temperatura

Teste de estresse

Gestão de energia

Consumo de energia

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Veredicto - A mesma CPU, GPU mais rápido

Preço e Disponibilidade

More articles related to this device

Pricecompare
