Revisão do PC Beelink SER3 mini: O Ryzen 7 3750H mais antigo tem seus usos

Sem floreados HTPC. Se a Intel não é o seu negócio, então o SER3 alimentado pela AMD pode oferecer um nível de desempenho semelhante ao de uma antiga série Core-U de 8ª geração, enquanto custa um pouco menos. Ele também vem com opções de armazenamento duplo e RAM para atualizações fáceis ao longo do caminho.

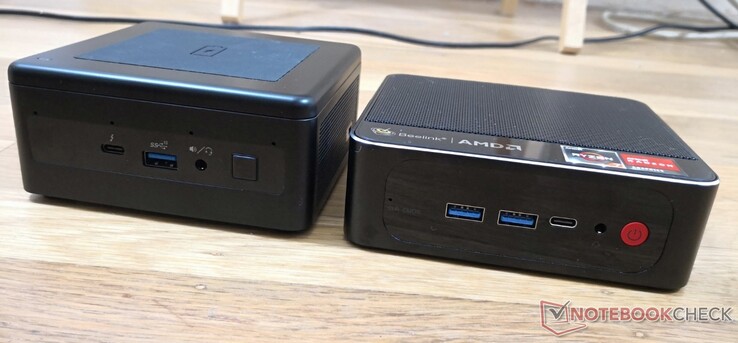

Esquerda: Intel NUC11PAQi7, Direita: Beelink SER3
Esquerda: Intel NUC11PAQi7, Direita: Beelink SER3

A Beelink transporta vários mini PCs alimentados por CPUs Intel e AMD mais antigas como alternativas mais baratas aos mais novos NUCs Intel alimentados por processadores de última geração. Quase todas as aplicações HTPC, desde navegação na web até streaming de vídeo 4K, não requerem as CPUs mais rápidas e melhores, o que significa que a maioria dos usuários pode escapar com hardware menos caro.

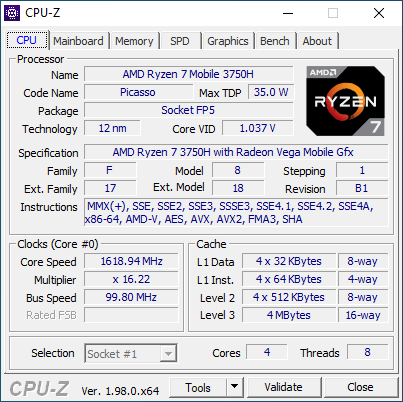

Nossa unidade de teste Beelink SER3 vem equipada com o AMD Zen+ de dois anos de idade Ryzen 7 3750H CPU que desde então foi substituída pela mais nova série Zen 2 4000H e Zen 3 5000H.

Mais análises da Beelink

No, or more than one (0) Rating for the given SpecsID 326081 found

Beelink SER3
Processador
AMD Ryzen 7 3750H 4 x 2.3 - 4 GHz, 21 W PL2 / Short Burst, 18 W PL1 / Sustained, Picasso (Zen+)
Placa gráfica
AMD Radeon RX Vega 10 - 2048 MB VRAM, Memoría: 1200 MHz, DDR4, 30.0.13025.5005

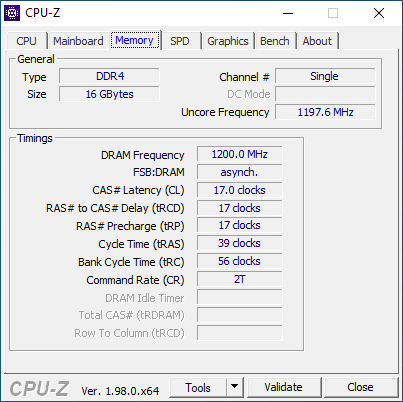

Memória
16 GB
, DDR4-3200, Crucial, 17-17-17-39, Single-Channel
placa mãe
AMD Promontory/Bixby FCH

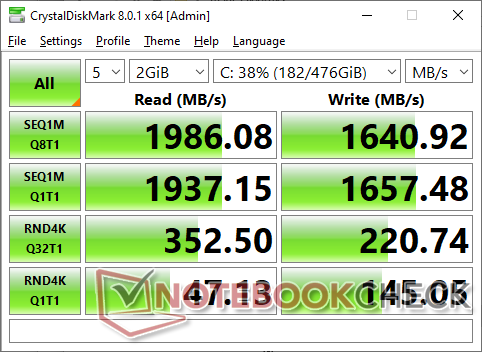

Disco rígido
GSemi AZW GSDFN512TS3F1OGCX, 512 GB
Placa de Som
AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller
Conexões
4 USB 3.0, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, Conexões Audio: 3.5 mm combo
Funcionamento em rede
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Tamanho
altura x largura x profundidade (em mm): 40 x 126 x 113
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Características adicionais
HDMI cable, wall-mounting bracket, 12 Meses Garantia
peso
492 g, Suprimento de energia: 221 g
Preço
600 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potential Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
11/2021
Beelink SER3
R7 3750H, Vega 10
492 g40 mmx
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)
350 g41 mmx
11/2018
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655
683 g51 mmx
03/2021
GMK NucBox 2
i5-8259U, Iris Plus Graphics 655
430 g50 mmx
Zotac ZBox MI643
i5-10210U, UHD Graphics 620
550 g28.5 mmx
04/2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx

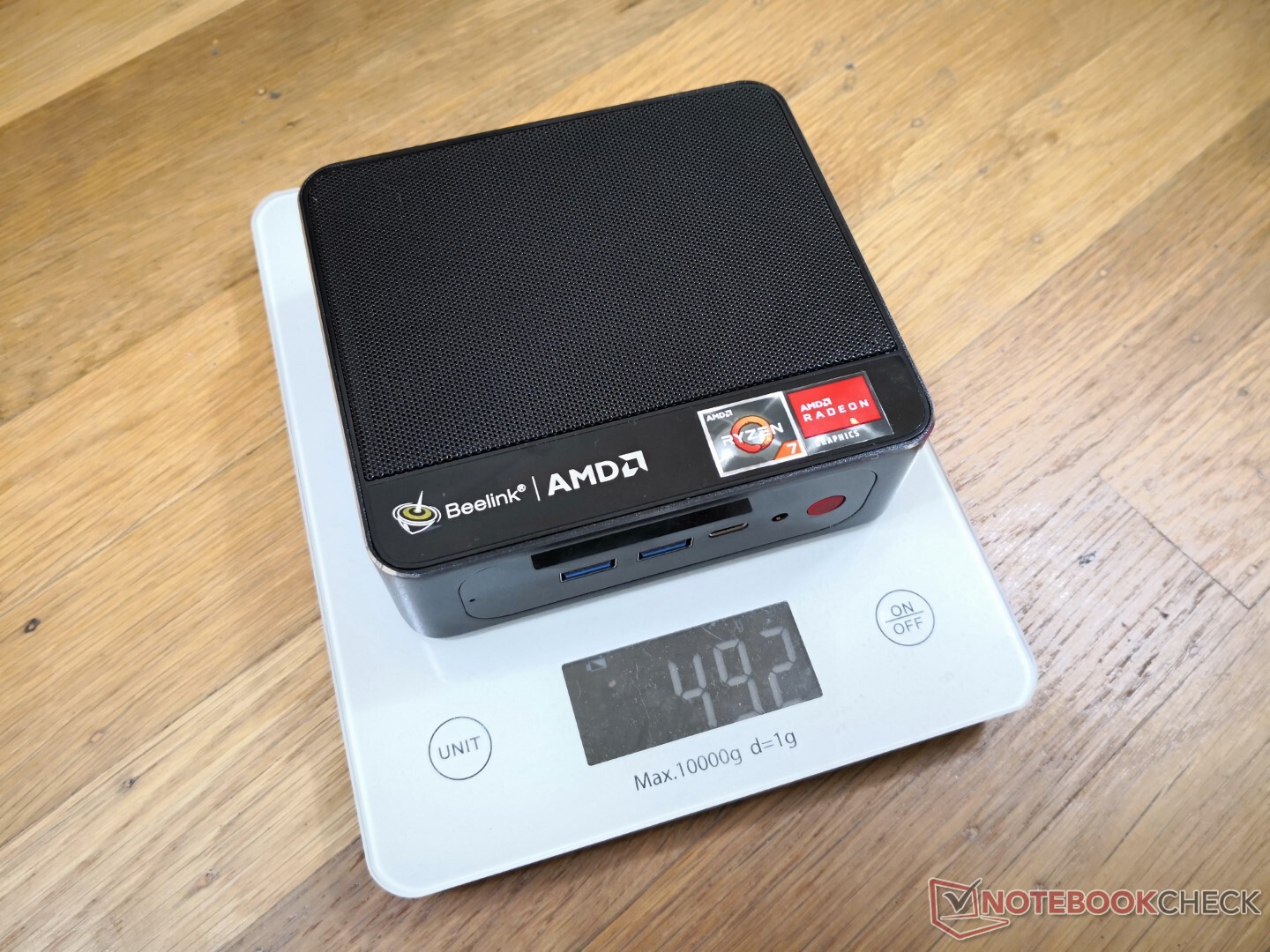

Peso leve a pouco menos de 500 g com RAM e armazenamento
Peso leve a pouco menos de 500 g com RAM e armazenamento

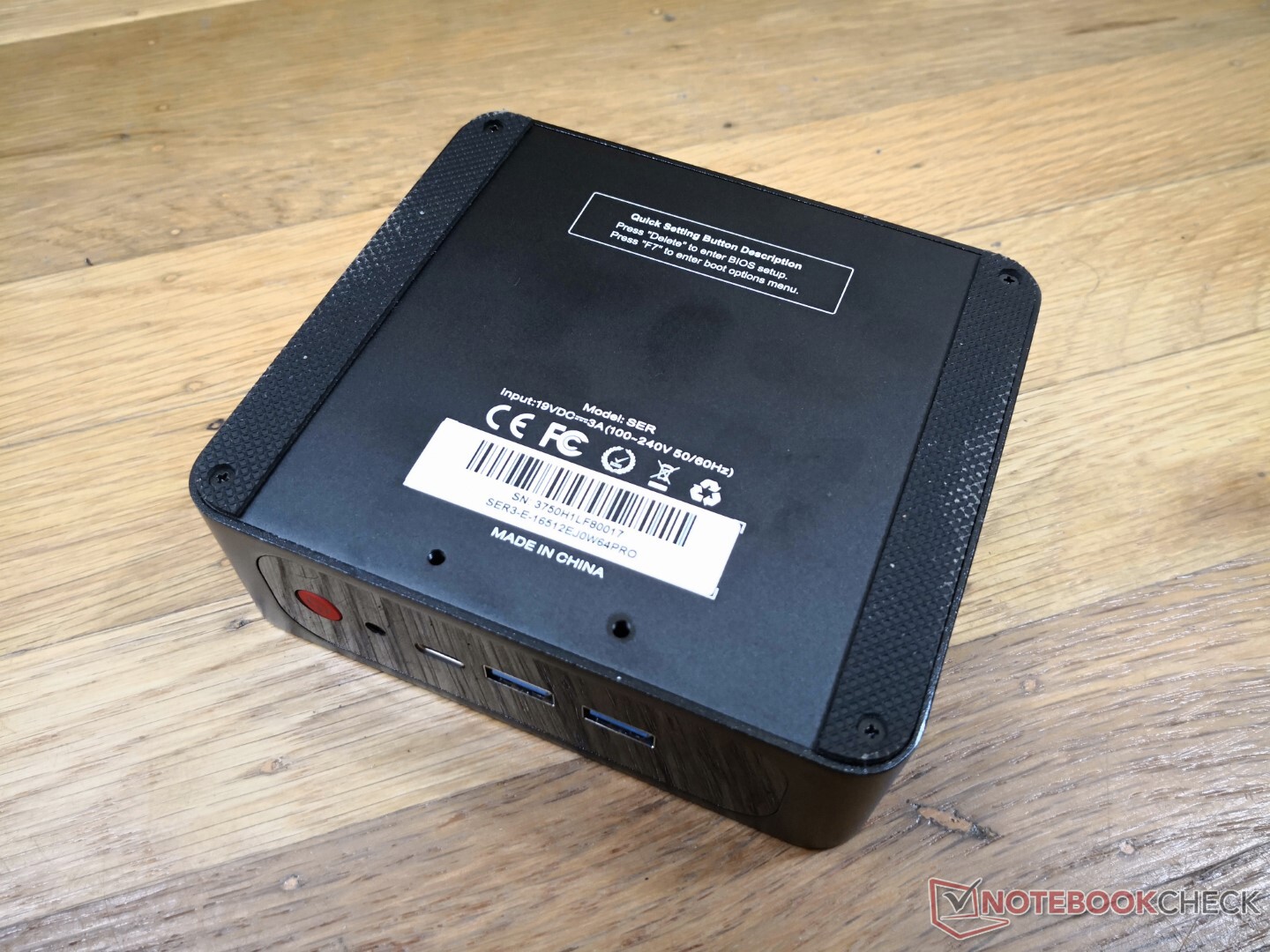

Furos na parte inferior para fixar o suporte de montagem removível
Furos na parte inferior para fixar o suporte de montagem removível

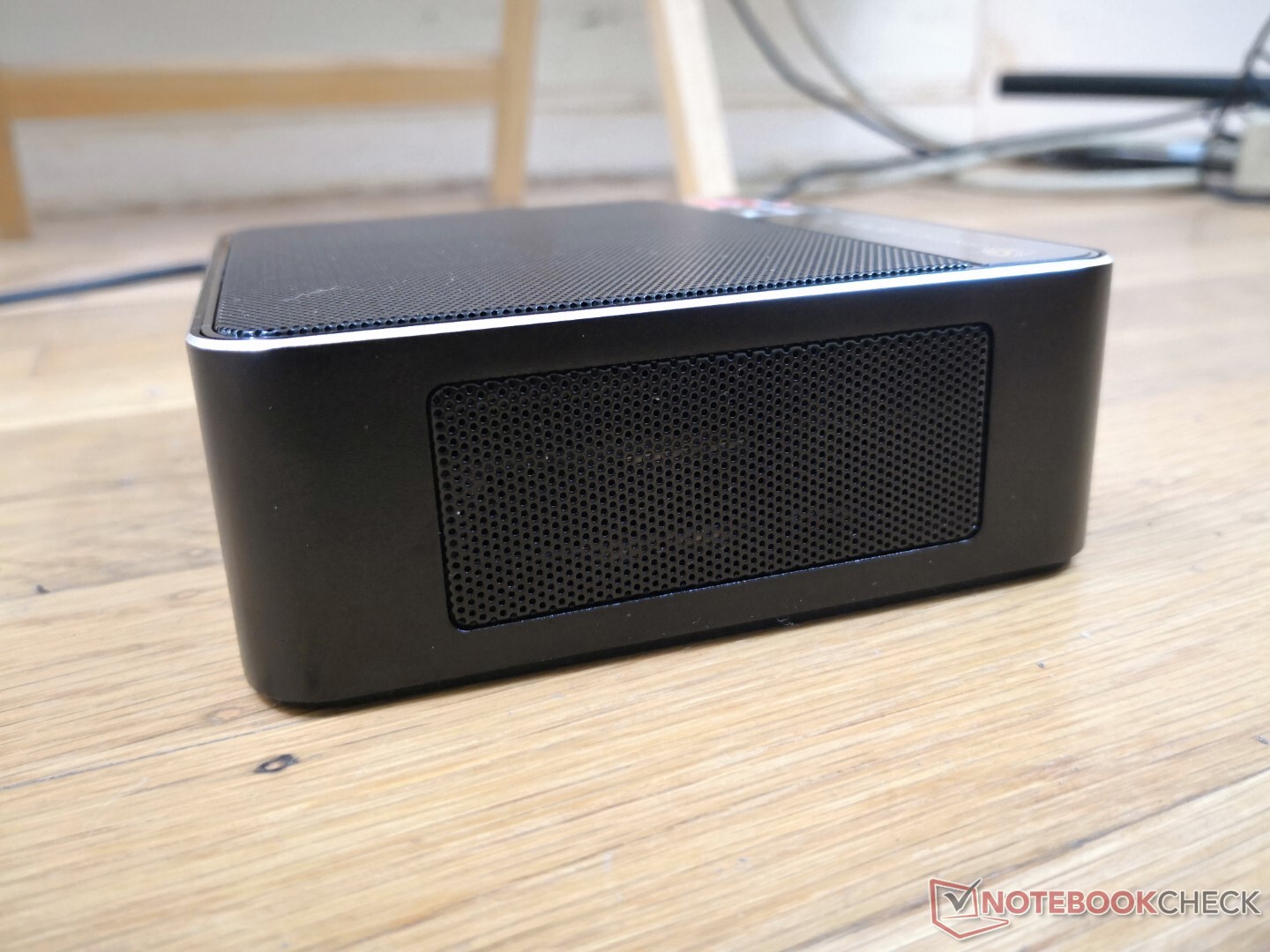

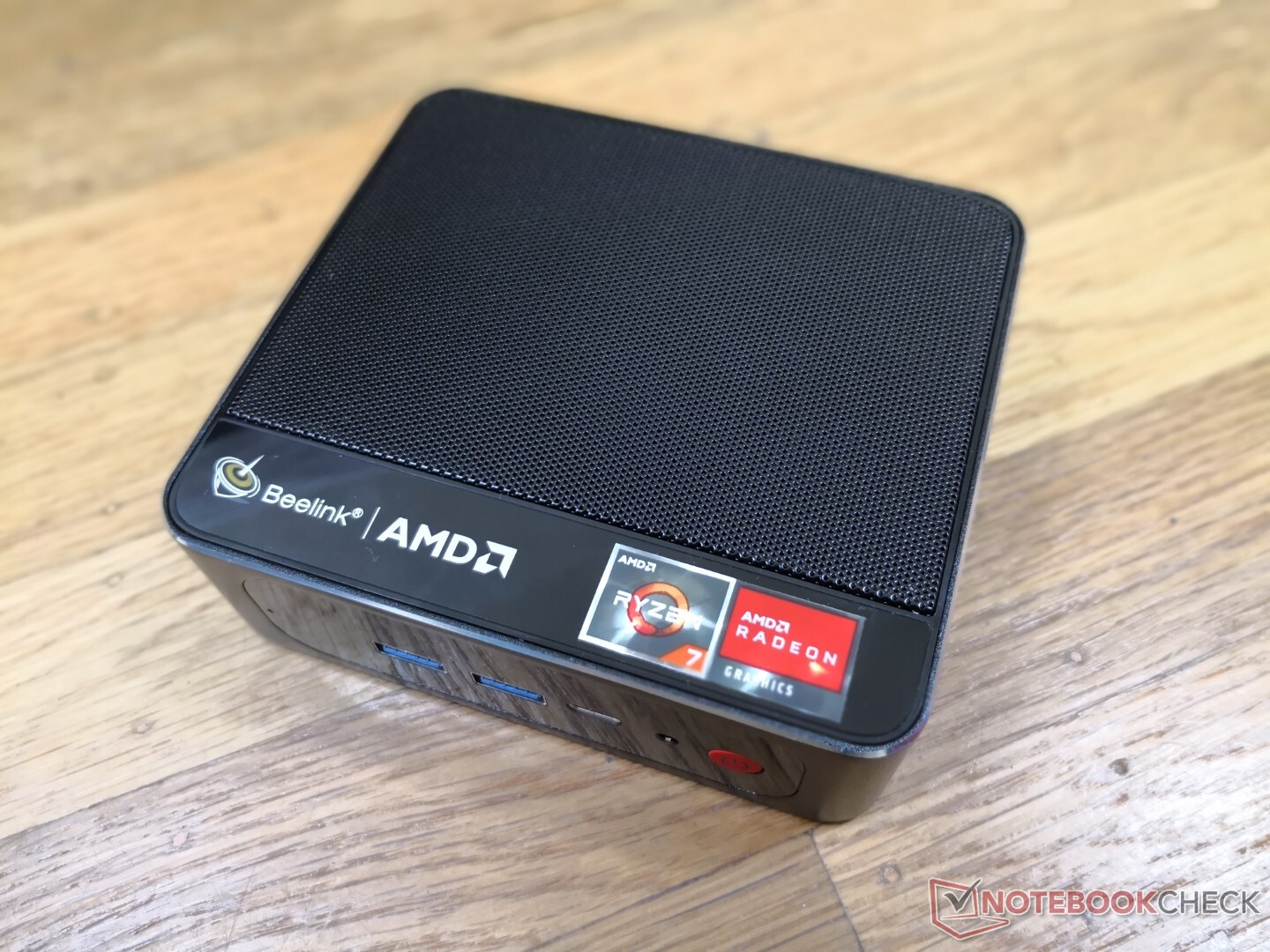

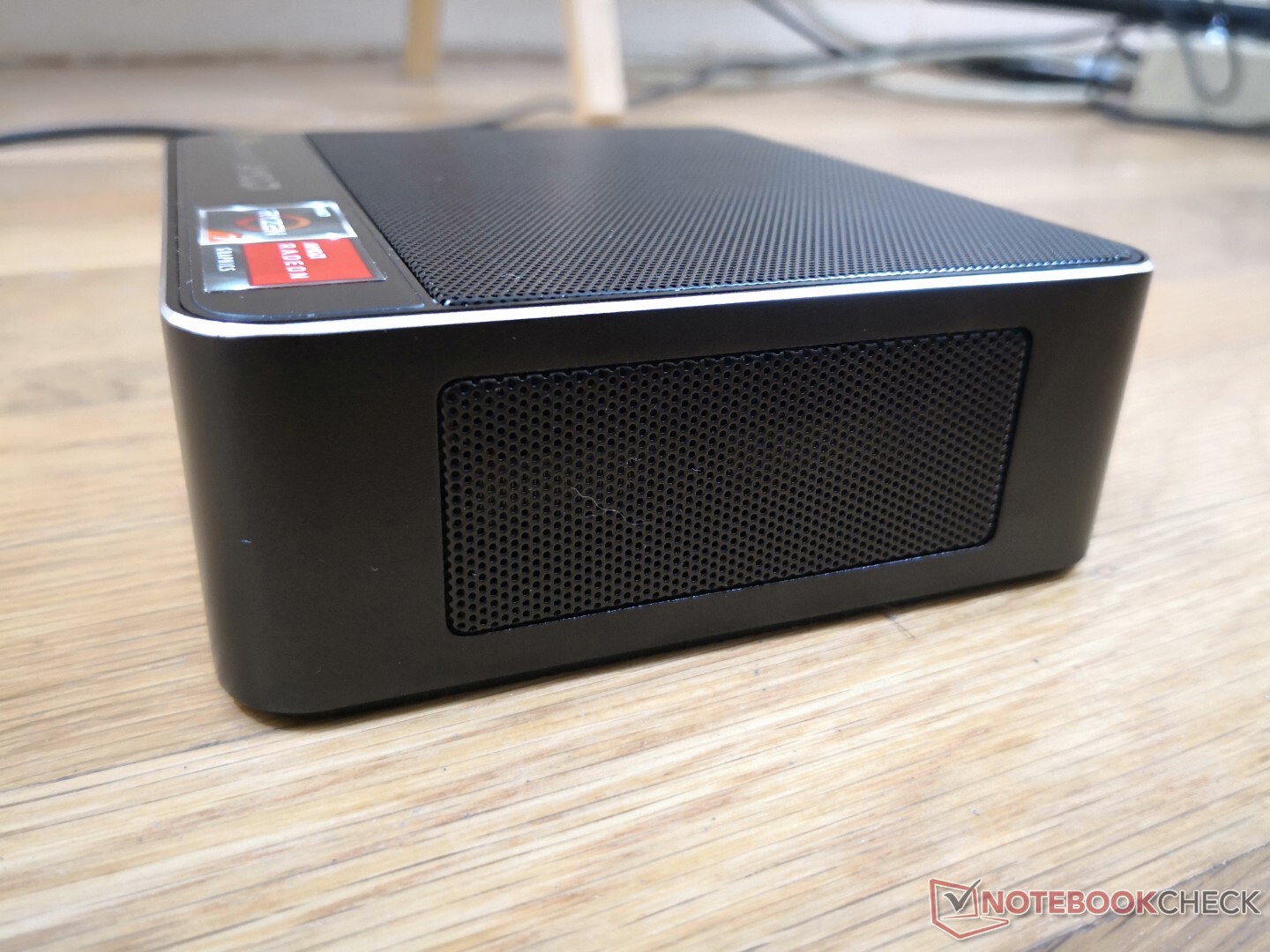

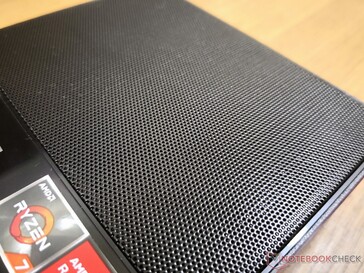

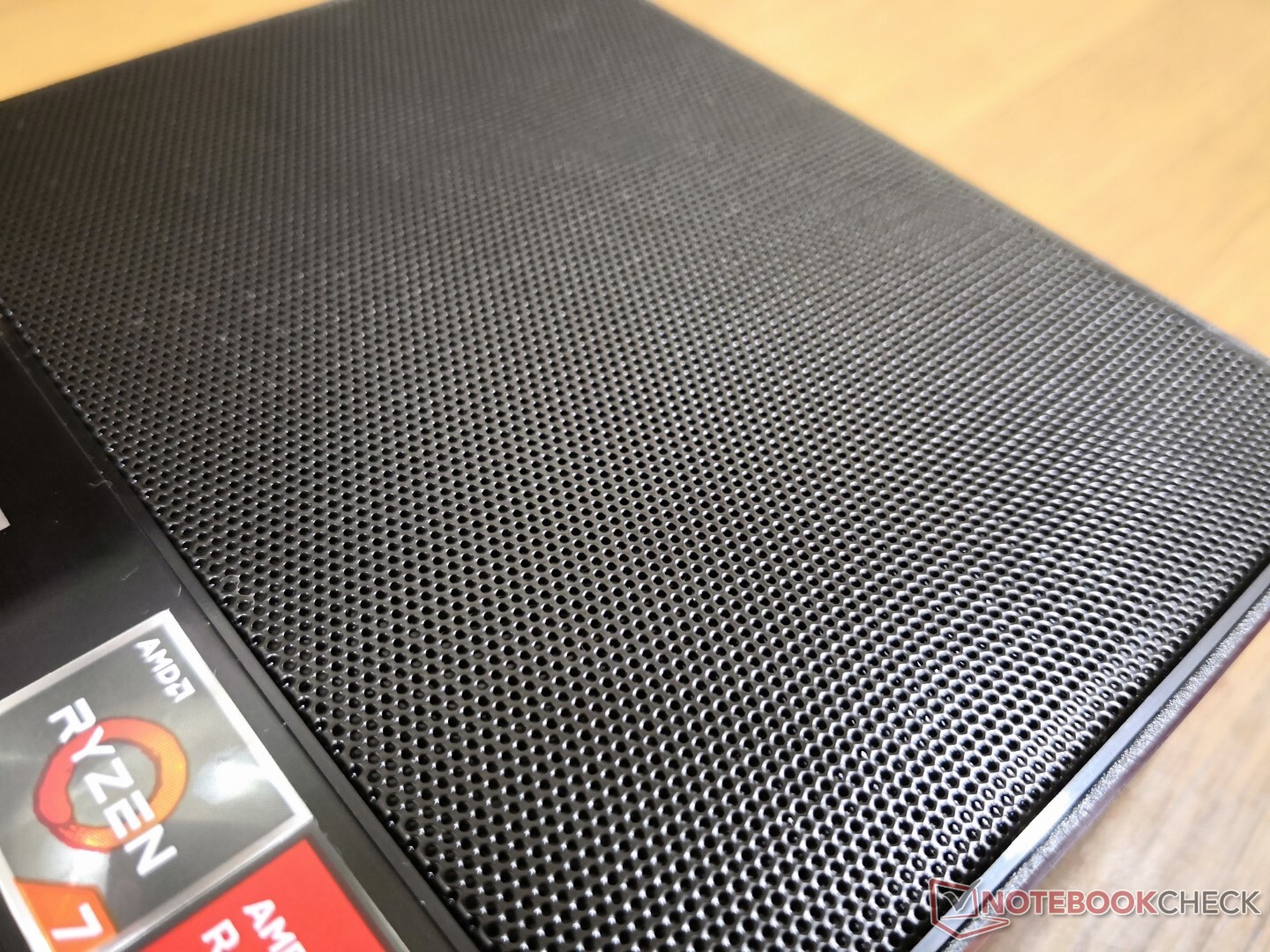

A malha metálica superior faz lembrar as grelhas dos alto-falantes
A malha metálica superior faz lembrar as grelhas dos alto-falantes

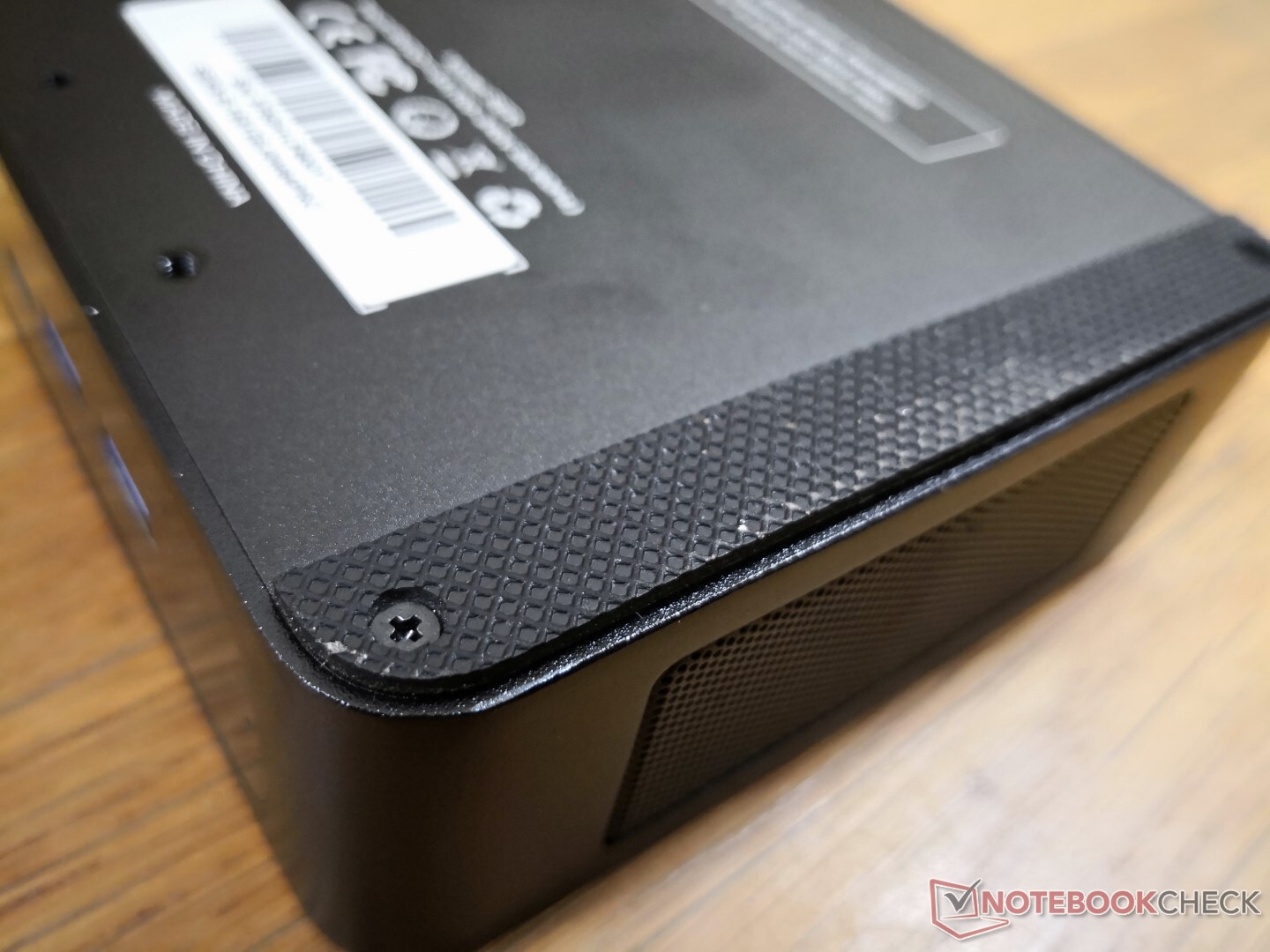

Almofadas emborrachadas no fundo para estabilidade
Almofadas emborrachadas no fundo para estabilidade

Size Comparison

149.5 mm 149.5 mm 28.5 mm 550 g125 mm 110 mm 50 mm 430 g126 mm 113 mm 40 mm 492 g115 mm 111 mm 51 mm 683 g124 mm 113 mm 41 mm 350 g117 mm 112 mm 37 mm 504 g210 mm 148 mm 1 mm 2.9 g

Conectividade

As opções de porto são exatamente as mesmas que no Beelink SEi10. Entretanto, tenha em mente que não há nenhum Thunderbolt no SER3, pois sua CPU AMD não suporta nativamente a interface

A porta USB-C suporta DisplayPort-out, mas estranhamente só funcionaria com alguns e não com todos os nossos monitores externos.

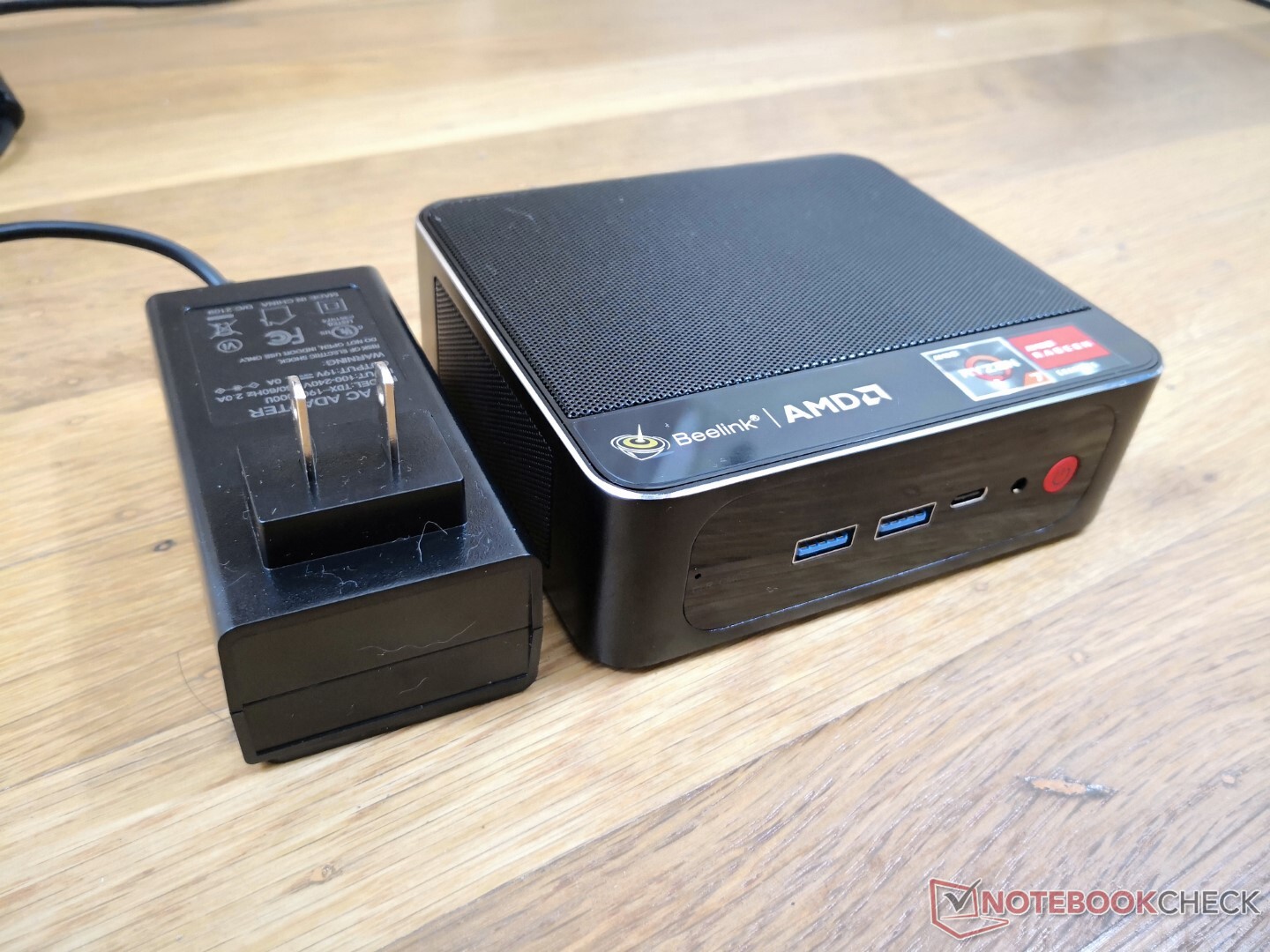

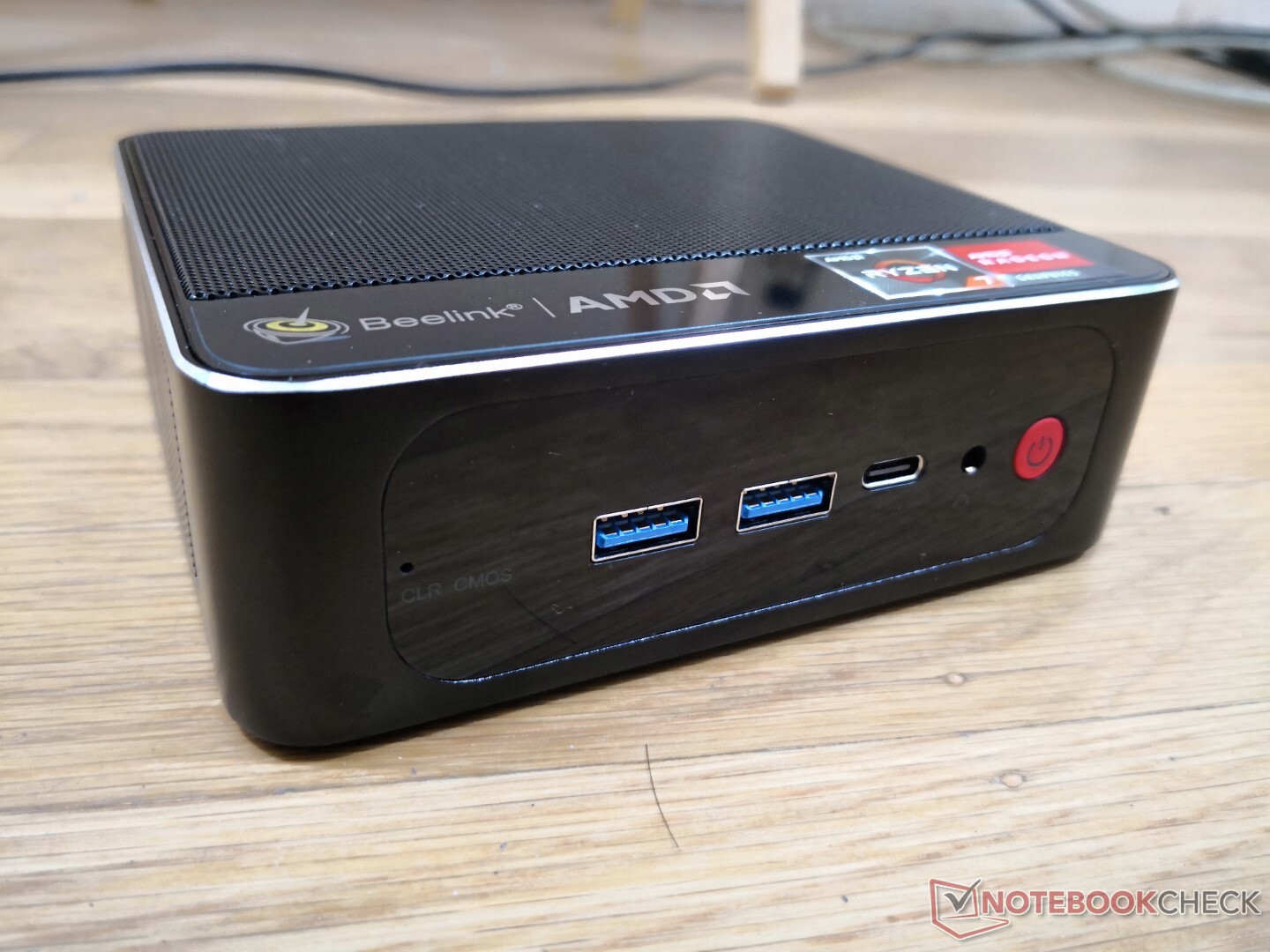

Frente: 2x USB 3.0, USB-C, áudio combinado de 3,5 mm, botão de alimentação
Frente: 2x USB 3.0, USB-C, áudio combinado de 3,5 mm, botão de alimentação

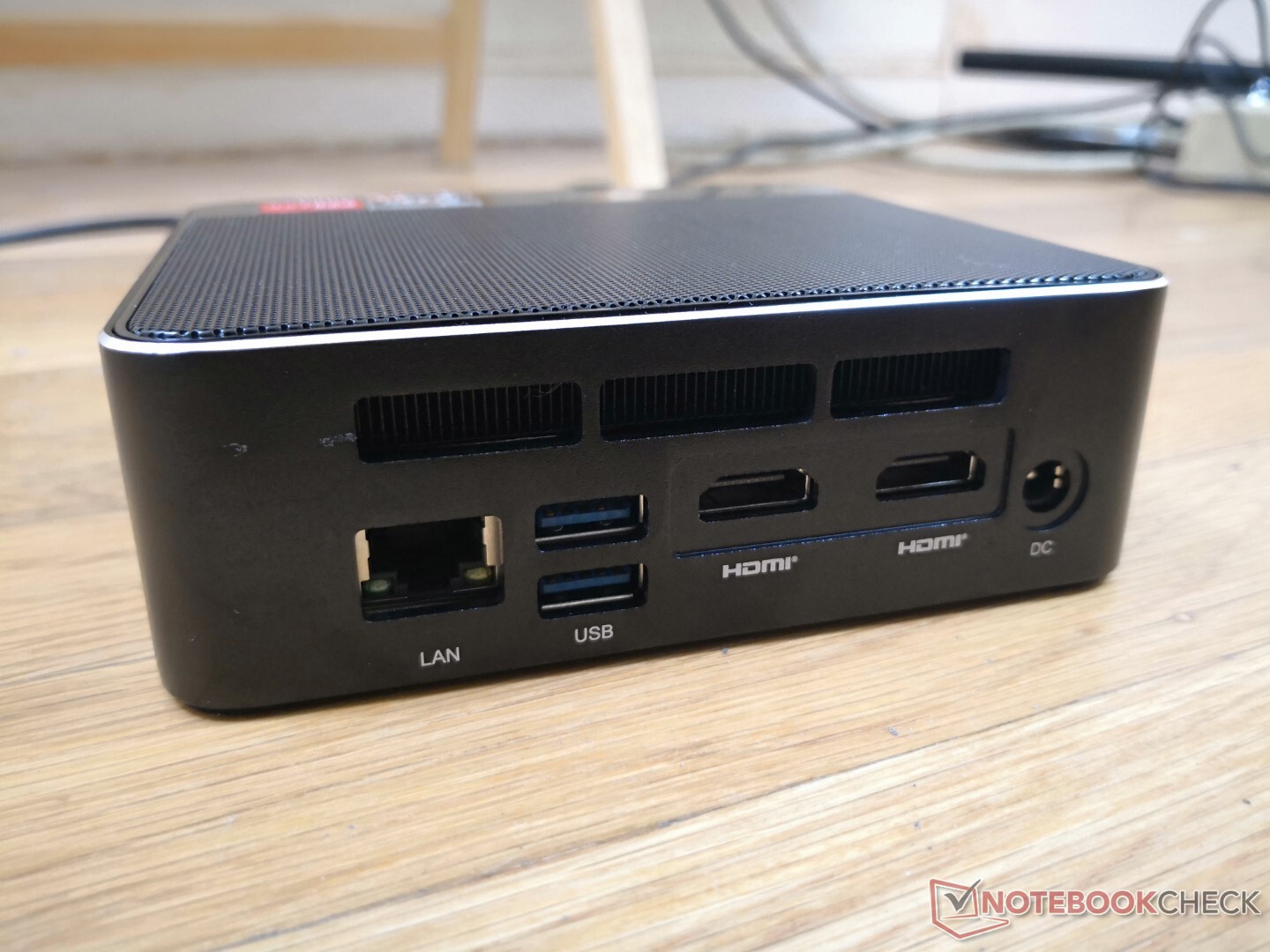

Esquerda: Gigabit RJ-45, 2x USB 3.0, 2x HDMI 2.0, adaptador AC
Esquerda: Gigabit RJ-45, 2x USB 3.0, 2x HDMI 2.0, adaptador AC
Certo: Sem portos
Certo: Sem portos
Esquerda: Sem portas
Esquerda: Sem portas

Comunicação

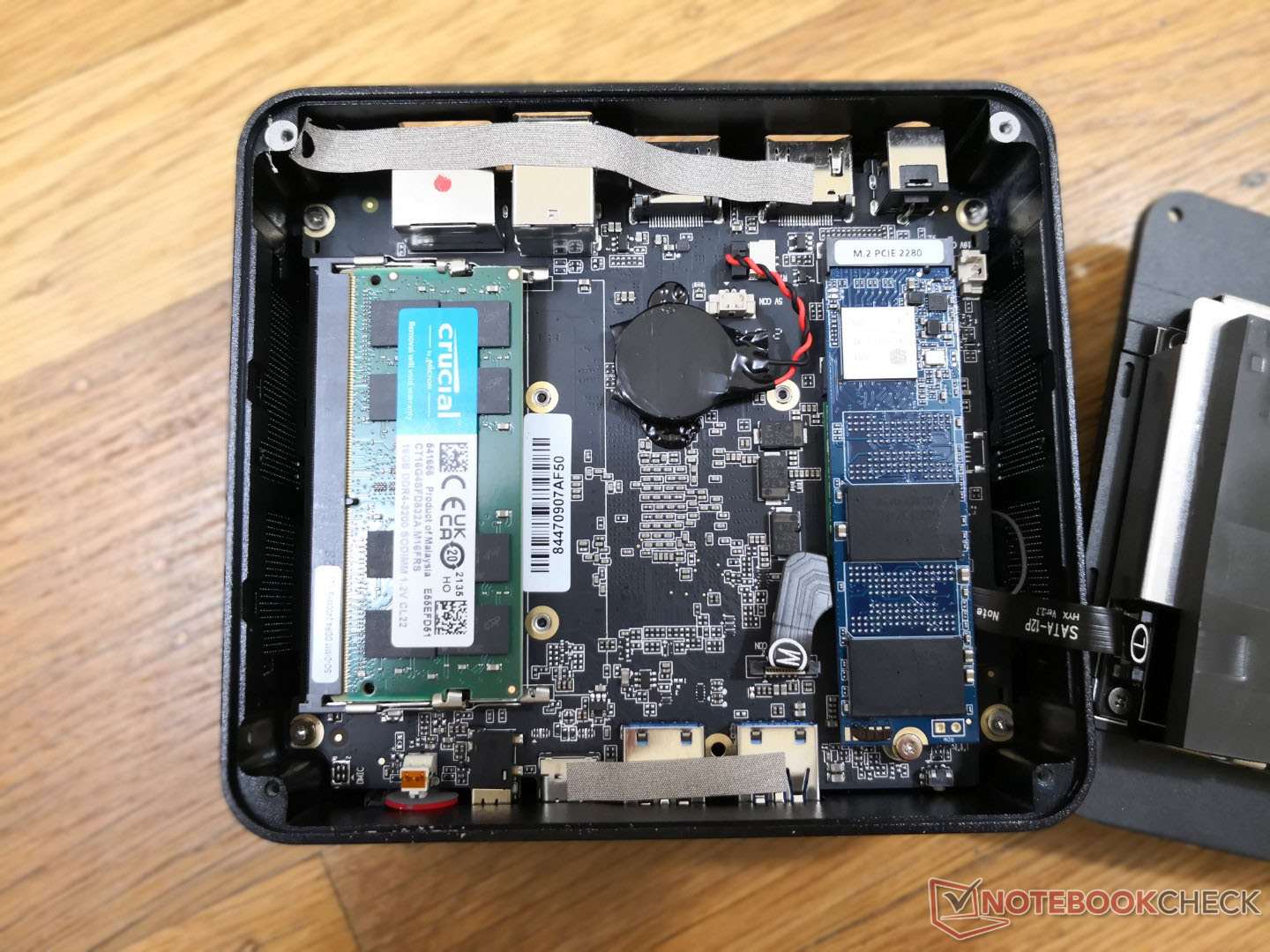

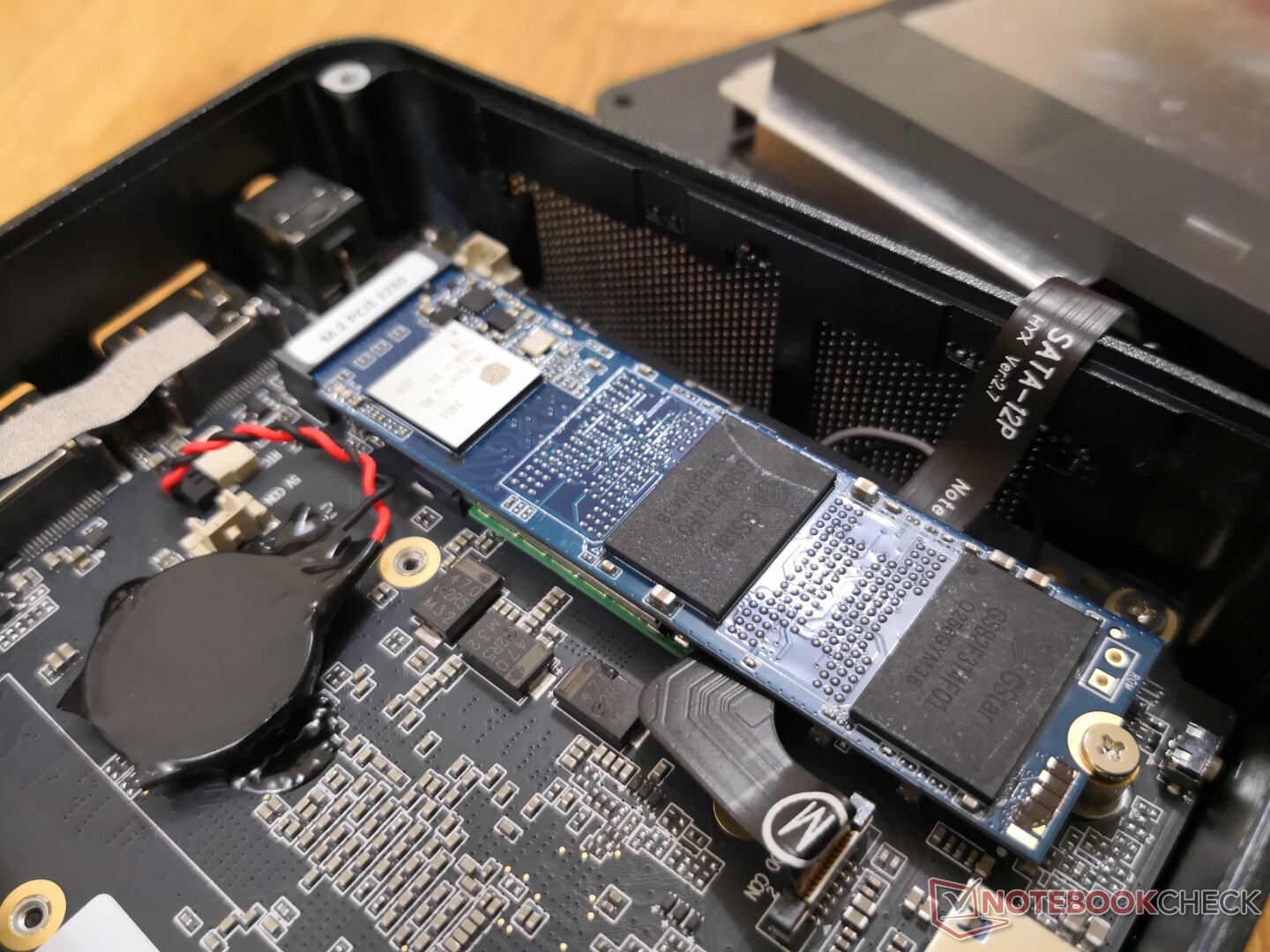

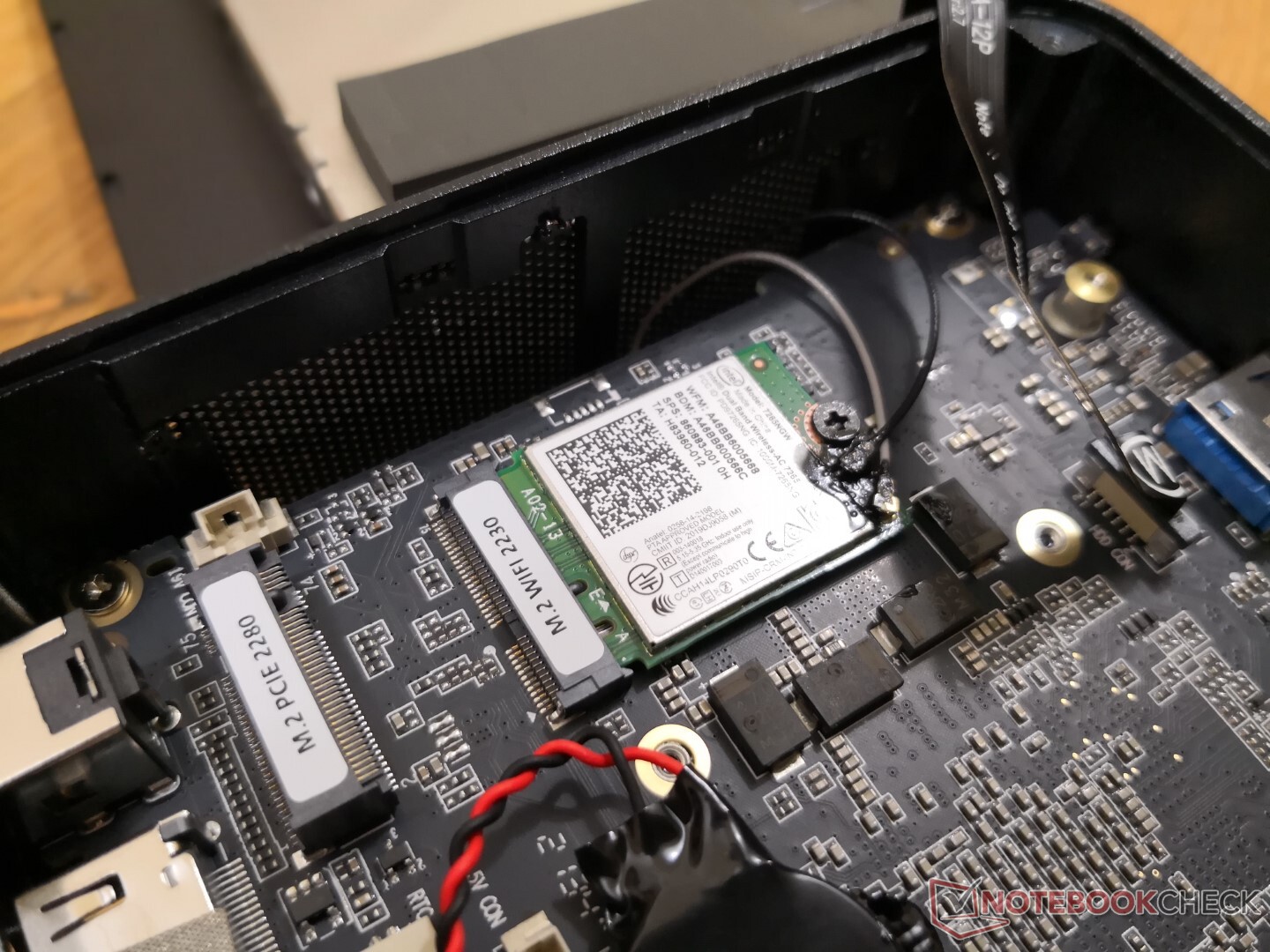

Módulo Wi-Fi 5 localizado sob o M.2 SSD. O sistema não é enviado com Wi-Fi 6, o que provavelmente economizará em custos
Módulo Wi-Fi 5 localizado sob o M.2 SSD. O sistema não é enviado com Wi-Fi 6, o que provavelmente economizará em custos
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s +353%
Beelink SEi10
Intel Wi-Fi 6 AX201
742 (470min - 902max) MBit/s +107%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s +54%
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
385 (299min - 426max) MBit/s +7%
Beelink SER3
Intel Dual Band Wireless-AC 7265
359 (321min - 383max) MBit/s
Zotac ZBox MI643
Wireless AC-9461
345 (257min - 397max) MBit/s -4%
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s +138%
Beelink SEi10
Intel Wi-Fi 6 AX201
1212 (1060min - 1309max) MBit/s +89%
Beelink SER3
Intel Dual Band Wireless-AC 7265
641 (594min - 665max) MBit/s
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
625 (346min - 678max) MBit/s -2%
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s -6%
Zotac ZBox MI643
Wireless AC-9461
360 (180min - 365max) MBit/s -44%
050100150200250300350400450500550600650Tooltip
Beelink SER3; iperf3 receive AX12; iperf 3.1.3: Ø640 (594-665)
Beelink SER3; iperf3 transmit AX12; iperf 3.1.3: Ø359 (321-383)

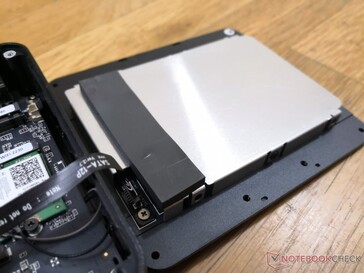

Manutenção

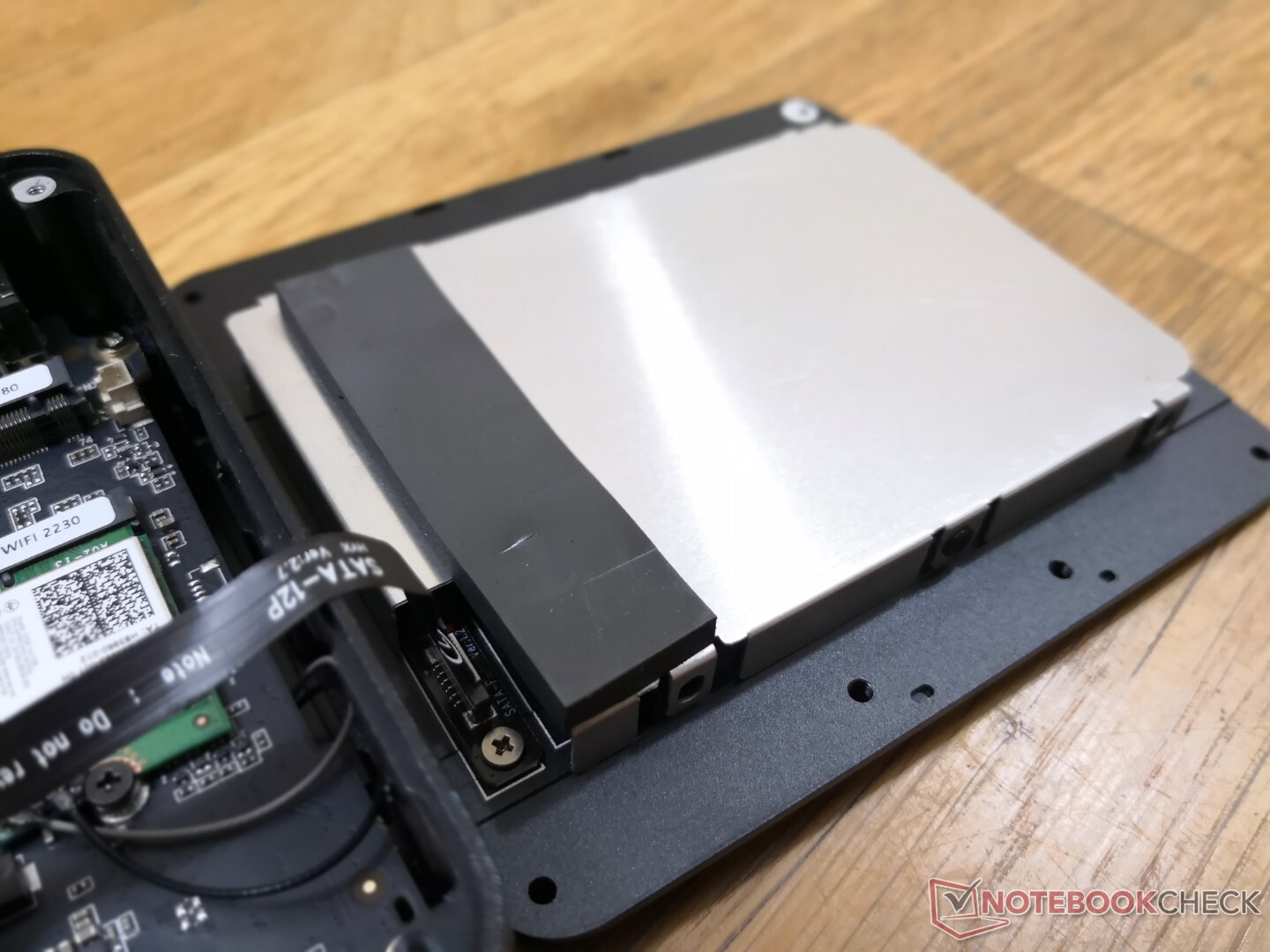

O painel inferior pode ser facilmente removido com apenas uma chave de fenda Philips para revelar um módulo WLAN removível, M.2 2280 NVMe SSD removível, e 2x slots SODIMM.

Acessórios e Garantia

A embalagem de varejo inclui dois cabos HDMI curtos, um suporte de montagem de 50 mm ou 100 mm e parafusos extras, além do manual e do adaptador AC usuais. Aplica-se uma garantia de um ano do fabricante

Desempenho



Condições de teste

Nossa unidade foi configurada para o modo Performance antes de executar quaisquer benchmarks abaixo para obter as mais altas pontuações possíveis.

Processador

O desempenho bruto da CPU é comparável ao daNúcleo i5-8259U na concorrente GMK NucBox 2. Ela não atinge o desempenho das novas CPUs Zen 2 ou Tiger Lake U-series como a Ryzen 7 5700U ou Núcleo i5-1135G7 comumente encontrado nos últimos Ultrabooks. O desempenho quando sob altas cargas por longos períodos é consistente, no entanto, sem grandes problemas de estrangulamento.

Cinebench R15 Multi Loop

04080120160200240280320360400440480520560600640680720760Tooltip
Beelink SER3 AMD Ryzen 7 3750H: Ø673 (670.93-679.66)
MSI Alpha 15 A3DDK-034 AMD Ryzen 7 3750H: Ø707 (701.57-734.14)
Dell G5 15 5500 09E2 Intel Core i5-10300H: Ø781 (767.11-794.98)
Dell Inspiron 15 5518-2X3JR Intel Core i5-11300H: Ø626 (588.39-777.54)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7
82.9 pt
Intel NUC8i7BE -3!
Intel Core i7-8559U
75.1 pt
GMK NucBox 2
Intel Core i5-8259U
61 pt
Average AMD Ryzen 7 3750H

60.5 pt
Zotac ZBox MI643 -2!
Intel Core i5-10210U
60.4 pt
Beelink SER3 -2!
AMD Ryzen 7 3750H
57 pt
Beelink SEi10 -2!
Intel Core i3-1005G1
47.5 pt
Cinebench R23 / Multi Core
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points +31%
Beelink SER3
AMD Ryzen 7 3750H
3897 (3854.8min - 3897.37max) Points
Average AMD Ryzen 7 3750H
  ()
3897 Points 0%
GMK NucBox 2
Intel Core i5-8259U
3728 (3687.99min - 3727.55max) Points -4%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points +41%
GMK NucBox 2
Intel Core i5-8259U
973 Points 0%
Beelink SER3
AMD Ryzen 7 3750H
971 Points
Average AMD Ryzen 7 3750H
  ()
971 Points 0%
Cinebench R20 / CPU (Multi Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points +30%
Intel NUC8i7BE
Intel Core i7-8559U
1691 Points +12%
Average AMD Ryzen 7 3750H
  (1514 - 1825, n=4)
1691 Points +12%
Beelink SER3
AMD Ryzen 7 3750H
1514 Points
GMK NucBox 2
Intel Core i5-8259U
1432 Points -5%
Zotac ZBox MI643
Intel Core i5-10210U
1191 Points -21%
Beelink SEi10
Intel Core i3-1005G1
848 Points -44%
Cinebench R20 / CPU (Single Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points +33%
Intel NUC8i7BE
Intel Core i7-8559U
466 Points +24%
Zotac ZBox MI643
Intel Core i5-10210U
413 Points +10%
Beelink SEi10
Intel Core i3-1005G1
403 Points +7%
GMK NucBox 2
Intel Core i5-8259U
382 Points +1%
Beelink SER3
AMD Ryzen 7 3750H
377 Points
Average AMD Ryzen 7 3750H
  (340 - 386, n=4)
364 Points -3%
Cinebench R15 / CPU Multi 64Bit
Intel NUC8i7BE
Intel Core i7-8559U
798 (671.37min - 798.44max) Points +17%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points +17%
Average AMD Ryzen 7 3750H
  (672 - 805, n=7)
743 Points +9%
Beelink SER3
AMD Ryzen 7 3750H
680 (670.93min - 679.66max) Points
GMK NucBox 2
Intel Core i5-8259U
615 (608.07min - 614.94max) Points -10%
Zotac ZBox MI643
Intel Core i5-10210U
524 (518.69min - 524.21max) Points -23%
Beelink SEi10
Intel Core i3-1005G1
406.8 (402.55min - 406.84max) Points -40%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points +38%
Intel NUC8i7BE
Intel Core i7-8559U
188 Points +29%
Zotac ZBox MI643
Intel Core i5-10210U
173 Points +18%
Beelink SEi10
Intel Core i3-1005G1
158 Points +8%
GMK NucBox 2
Intel Core i5-8259U
151 Points +3%
Beelink SER3
AMD Ryzen 7 3750H
146 Points
Average AMD Ryzen 7 3750H
  (135 - 157, n=7)
143.9 Points -1%
Blender / v2.79 BMW27 CPU
Beelink SEi10
Intel Core i3-1005G1
1126 Seconds * -68%
Zotac ZBox MI643
Intel Core i5-10210U
884 Seconds * -32%
GMK NucBox 2
Intel Core i5-8259U
755 Seconds * -12%
Intel NUC8i7BE
Intel Core i7-8559U
682 Seconds * -1%
Intel NUC8i7BE
Intel Core i7-8559U
650 Seconds * +3%
Beelink SER3
AMD Ryzen 7 3750H
672 Seconds *
Average AMD Ryzen 7 3750H
  (584 - 672, n=3)
630 Seconds * +6%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * +11%
7-Zip 18.03 / 7z b 4
Intel NUC8i7BE
Intel Core i7-8559U
30570 MIPS +79%
Intel NUC8i7BE
Intel Core i7-8559U
22033 MIPS +29%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS +36%
GMK NucBox 2
Intel Core i5-8259U
18802 MIPS +10%
Average AMD Ryzen 7 3750H
  (17077 - 19187, n=3)
18318 MIPS +7%
Beelink SER3
AMD Ryzen 7 3750H
17077 MIPS
Zotac ZBox MI643
Intel Core i5-10210U
16799 MIPS -2%
Beelink SEi10
Intel Core i3-1005G1
10536 MIPS -38%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC8i7BE
Intel Core i7-8559U
6171 MIPS +64%
Intel NUC8i7BE
Intel Core i7-8559U
4826 MIPS +29%
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS +26%
Zotac ZBox MI643
Intel Core i5-10210U
4467 MIPS +19%
Beelink SEi10
Intel Core i3-1005G1
4041 MIPS +8%
GMK NucBox 2
Intel Core i5-8259U
3951 MIPS +5%
Beelink SER3
AMD Ryzen 7 3750H
3752 MIPS
Average AMD Ryzen 7 3750H
  (3511 - 3752, n=3)
3641 MIPS -3%
Geekbench 5.5 / Multi-Core
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points
Zotac ZBox MI643
Intel Core i5-10210U
3975 Points
Intel NUC8i7BE
Intel Core i7-8559U
3660 Points
Average AMD Ryzen 7 3750H
  ()
3537 Points
GMK NucBox 2
Intel Core i5-8259U
3359 Points
Beelink SEi10
Intel Core i3-1005G1
2153 Points
Geekbench 5.5 / Single-Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points
Zotac ZBox MI643
Intel Core i5-10210U
1133 Points
Beelink SEi10
Intel Core i3-1005G1
1118 Points
GMK NucBox 2
Intel Core i5-8259U
984 Points
Average AMD Ryzen 7 3750H
  ()
874 Points
Intel NUC8i7BE
Intel Core i7-8559U
723 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps +60%
Intel NUC8i7BE
Intel Core i7-8559U
5.9 fps +43%
Intel NUC8i7BE
Intel Core i7-8559U
5.523 fps +33%
GMK NucBox 2
Intel Core i5-8259U
5.37 fps +30%
Average AMD Ryzen 7 3750H
  (4.14 - 4.4, n=3)
4.3 fps +4%
Zotac ZBox MI643
Intel Core i5-10210U
4.23 fps +2%
Beelink SER3
AMD Ryzen 7 3750H
4.14 fps
Beelink SEi10
Intel Core i3-1005G1
3.48 fps -16%
LibreOffice / 20 Documents To PDF
Beelink SER3
AMD Ryzen 7 3750H
86.5 s *
Average AMD Ryzen 7 3750H
  ()
86.5 s * -0%
GMK NucBox 2
Intel Core i5-8259U
63.6 s * +26%
Zotac ZBox MI643
Intel Core i5-10210U
57 s * +34%
Beelink SEi10
Intel Core i3-1005G1
55.8 s * +35%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * +41%
R Benchmark 2.5 / Overall mean
GMK NucBox 2
Intel Core i5-8259U
0.786 sec * -9%
Beelink SEi10
Intel Core i3-1005G1
0.763 sec * -6%
Beelink SER3
AMD Ryzen 7 3750H
0.723 sec *
Average AMD Ryzen 7 3750H
  (0.69 - 0.723, n=2)
0.707 sec * +2%
Zotac ZBox MI643
Intel Core i5-10210U
0.658 sec * +9%
Intel NUC8i7BE
Intel Core i7-8559U
0.6275 sec * +13%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * +14%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
680 Points
Cinebench R15 OpenGL 64Bit
36.1 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
146 Points
Ajuda
Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
94.5 pt
Intel NUC8i7BE -1!
Intel Core i7-8559U, Iris Plus Graphics 655
81.3 pt
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
67.4 pt
Average AMD Ryzen 7 3750H

67.2 pt
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
63.1 pt
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
61.5 pt
AIDA64 / FP32 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s +101%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
5312 KRay/s +59%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
4840 KRay/s +45%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
3717 KRay/s +11%
Average AMD Ryzen 7 3750H
  (3338 - 3668, n=2)
3503 KRay/s +5%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
3338 KRay/s
AIDA64 / FPU Julia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points +65%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
26770 Points +58%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
24481 Points +45%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
20311 Points +20%
Average AMD Ryzen 7 3750H
  (16912 - 19132, n=2)
18022 Points +7%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
16912 Points
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s +107%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
1234 MB/s +38%
Average AMD Ryzen 7 3750H
  (897 - 1001, n=2)
949 MB/s +6%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
912 MB/s +2%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
897 MB/s
AIDA64 / CPU Queen
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
50056 Points +15%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
47040 Points +8%
Average AMD Ryzen 7 3750H
  (43632 - 50328, n=2)
46980 Points +8%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points +7%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
43632 Points
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
41340 Points -5%
AIDA64 / FPU SinJulia
Average AMD Ryzen 7 3750H
  (5639 - 6478, n=2)
6059 Points +7%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
5639 Points
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
4677 Points -17%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points -21%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
4241 Points -25%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
3608 Points -36%
AIDA64 / FPU Mandel
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points +91%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
13435 Points +52%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
12377 Points +40%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
9802 Points +11%
Average AMD Ryzen 7 3750H
  (8846 - 9928, n=2)
9387 Points +6%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
8846 Points
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s +130%
Average AMD Ryzen 7 3750H
  (28977 - 32668, n=2)
30823 MB/s +6%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
28977 MB/s
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
18649 MB/s -36%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
16202 MB/s -44%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
13976 MB/s -52%
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s +19%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
366 MB/s +17%
Average AMD Ryzen 7 3750H
  (313 - 350, n=2)
332 MB/s +6%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
313 MB/s
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
285 MB/s -9%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
244 MB/s -22%
AIDA64 / FP64 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s +106%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
2870 KRay/s +63%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
2671 KRay/s +52%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
2011 KRay/s +14%
Average AMD Ryzen 7 3750H
  (1758 - 1935, n=2)
1847 KRay/s +5%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
1758 KRay/s
AIDA64 / CPU PhotoWorxx
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
21417 MPixel/s +107%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
20296 MPixel/s +96%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s +63%
Average AMD Ryzen 7 3750H
  (10338 - 18898, n=2)
14618 MPixel/s +41%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
10338 MPixel/s
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
10092 MPixel/s -2%

Desempenho do sistema

PCMark 10 / Score
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points +20%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points +18%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
4244 Points +11%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
4132 Points +8%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
3818 Points
Average AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
  ()
3818 Points 0%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
3420 Points -10%
PCMark 10 / Essentials
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
9510 Points +28%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points +21%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points +21%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
8351 Points +13%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
7766 Points +5%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
7408 Points
Average AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
  ()
7408 Points 0%
PCMark 10 / Productivity
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points +19%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
6975 Points +15%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
6348 Points +5%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points +2%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
6066 Points
Average AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
  ()
6066 Points 0%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
5353 Points -12%
PCMark 10 / Digital Content Creation
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points +33%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points +19%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
3613 Points +7%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
3363 Points
Average AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
  ()
3363 Points 0%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
3128 Points -7%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2614 Points -22%

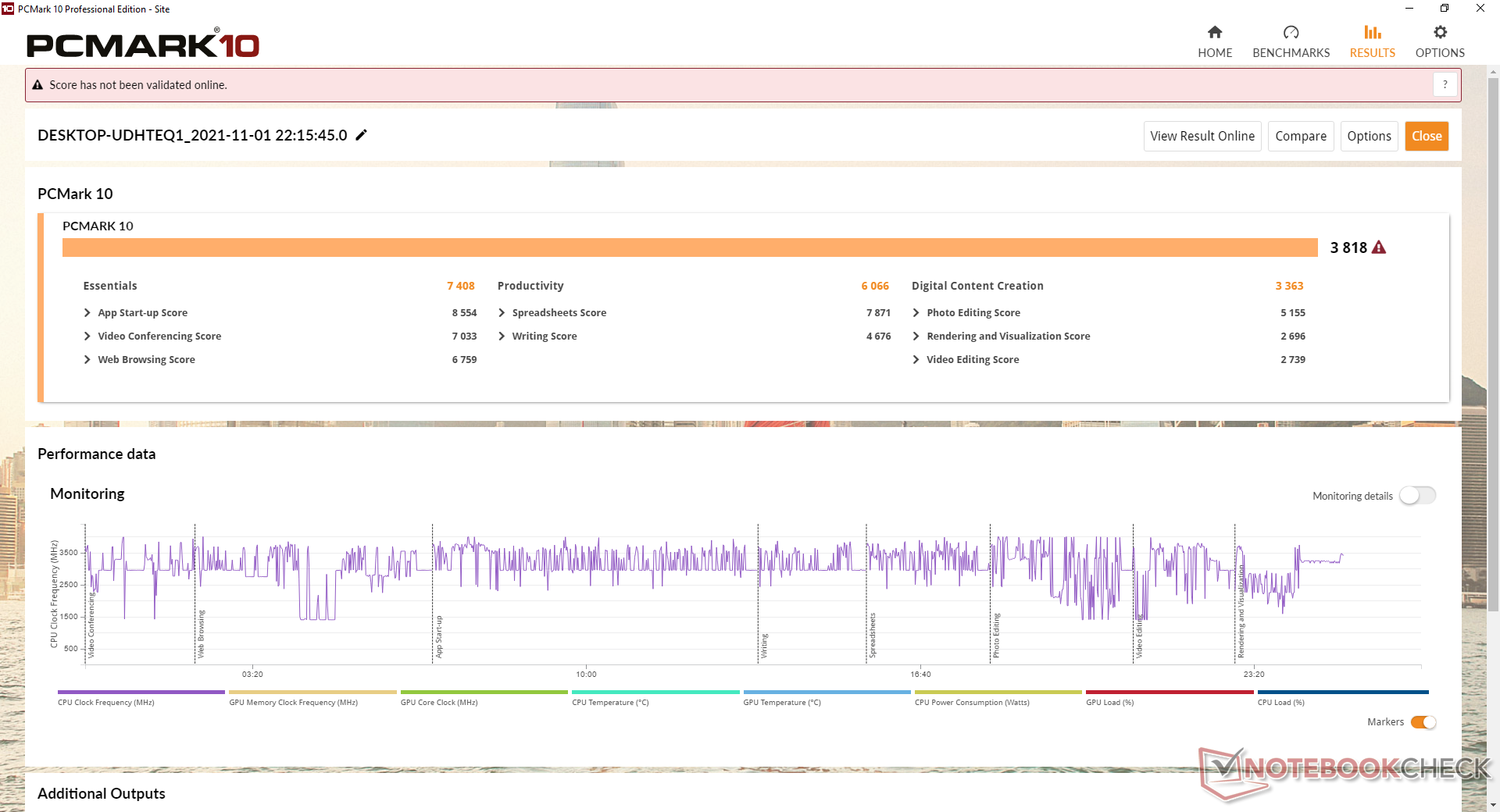

PCMark 10 Score
3818 pontos
Ajuda
AIDA64 / Memory Copy
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
65321 MB/s +302%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
48099 MB/s +196%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
32282 MB/s +99%
Average AMD Ryzen 7 3750H
  (16249 - 30963, n=2)
23606 MB/s +45%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s +41%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
16249 MB/s
AIDA64 / Memory Read
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
45290 MB/s +148%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
38017 MB/s +108%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
37650 MB/s +106%
Average AMD Ryzen 7 3750H
  (18268 - 35218, n=2)
26743 MB/s +46%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s +37%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
18268 MB/s
AIDA64 / Memory Write
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
55236 MB/s +199%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
51980 MB/s +182%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
38621 MB/s +109%
Average AMD Ryzen 7 3750H
  (18455 - 35988, n=2)
27222 MB/s +48%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s +27%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
18455 MB/s
AIDA64 / Memory Latency
Average AMD Ryzen 7 3750H
  (95.8 - 118, n=2)
106.9 ns * -12%
Beelink SER3
AMD Ryzen 7 3750H, Vega 10
95.8 ns *
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * +9%
Zotac ZBox MI643
Intel Core i5-10210U, UHD Graphics 620
60.2 ns * +37%
GMK NucBox 2
Intel Core i5-8259U, Iris Plus Graphics 655
55.6 ns * +42%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
48.9 ns * +49%

* ... smaller is better

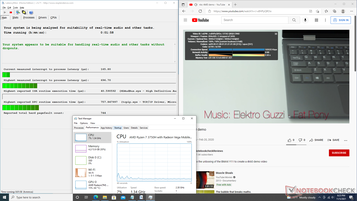

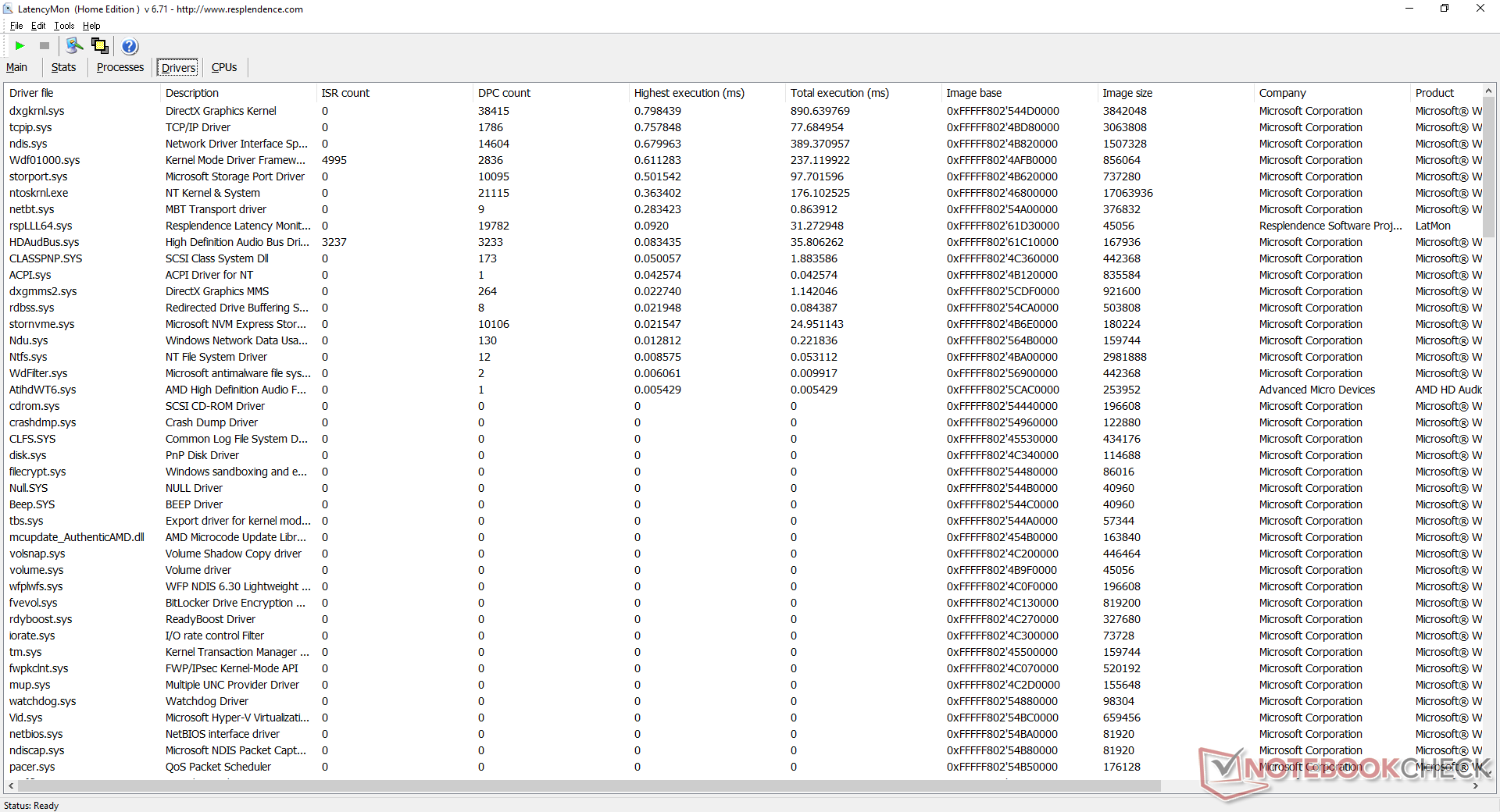

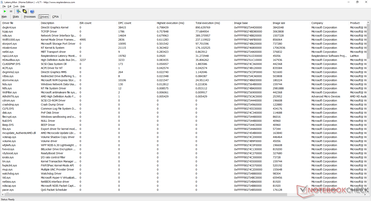

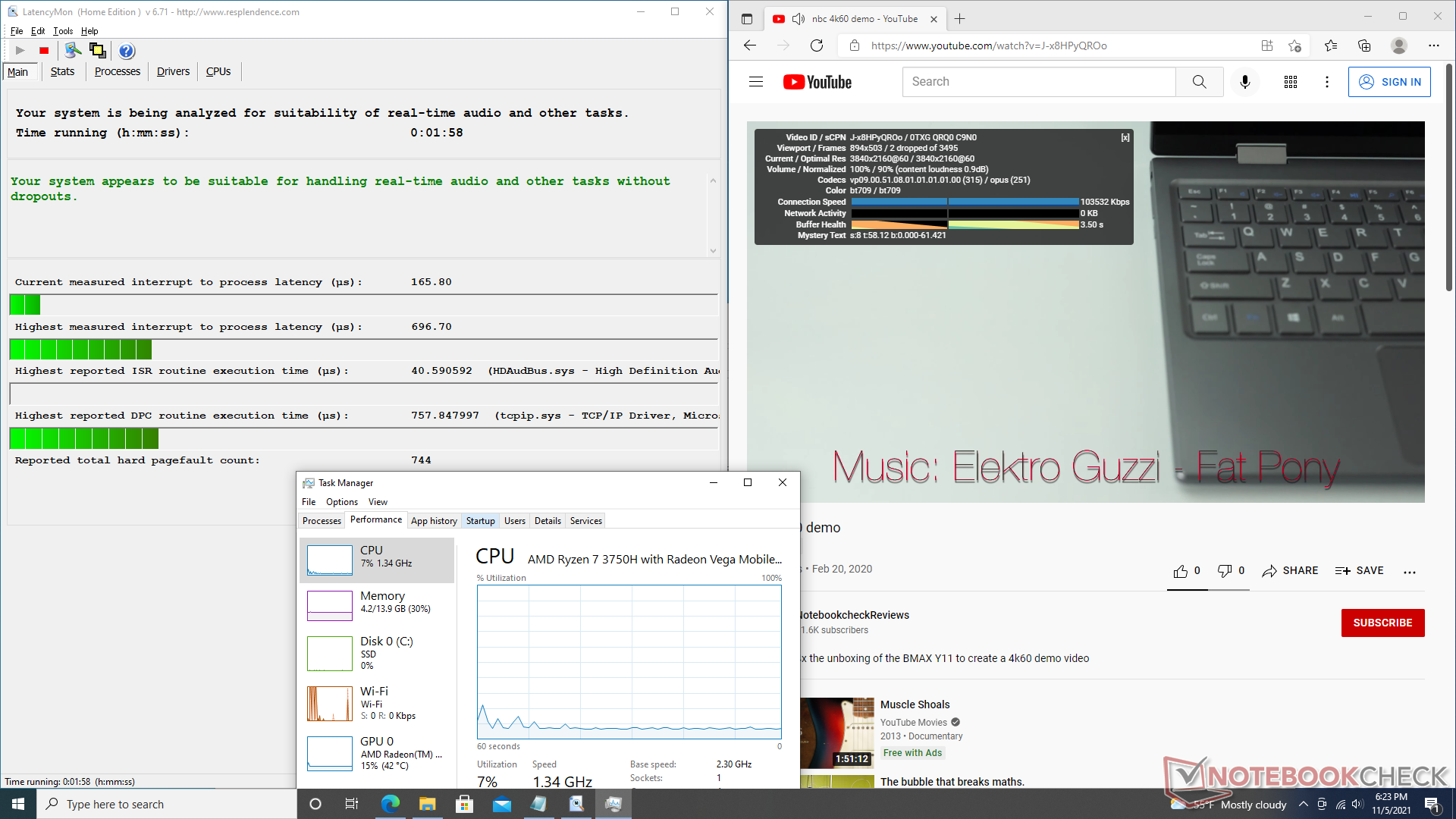

Latência do DPC

LatencyMon não mostra problemas de DPC ao abrir várias abas do navegador em nossa página inicial ou ao executar Prime95 stress. A reprodução do vídeo 4K a 60 FPS é suave e quase sem queda de quadros.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1231 μs * -77%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
786 μs * -13%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
745 μs * -7%
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
697 μs *
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * +25%

* ... smaller is better

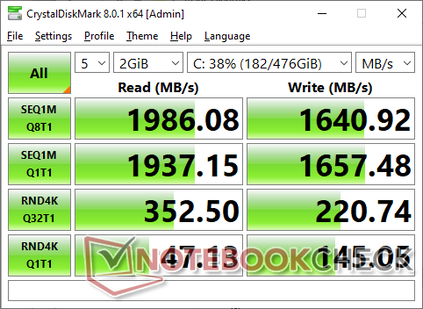

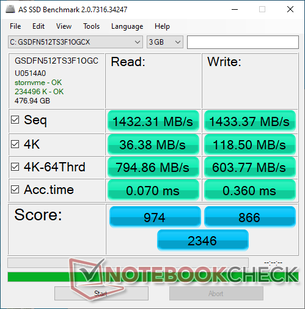

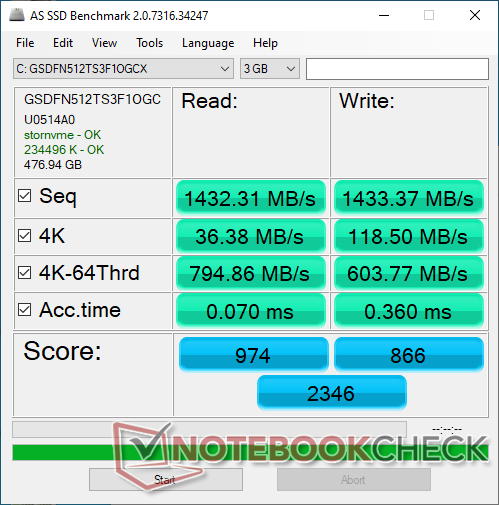

Dispositivos de armazenamento

Enquanto nosso SEi10 vem com um Silicon Motion AZW NVMe SSD de 256 GB, nosso SER3 vem com a versão de 512 GB. As taxas seqüenciais de leitura e escrita revelam que a unidade é uma oferta NVMe de médio alcance. As taxas de transferência serão mais lentas com o tempo quando estressadas de 1900 MB/s para 1400 MB/s ou mais lentas devido a limitações térmicas. Muitos NUCs da Intel integram um espalhador de calor no topo do SSD NVMe para resfriamento para evitar ou retardar a desaceleração do desempenho.

Ranhura acessível M.2 2280 PCIe3 x4. O chassi não inclui espalhador de calor para o acionamento de armazenamento
Ranhura acessível M.2 2280 PCIe3 x4. O chassi não inclui espalhador de calor para o acionamento de armazenamento
Os usuários podem adicionar um drive secundário SATA III de 2,5 polegadas. Note que o caddy pode aceitar somente drives de 7 mm e não 9,5 mm
Os usuários podem adicionar um drive secundário SATA III de 2,5 polegadas. Note que o caddy pode aceitar somente drives de 7 mm e não 9,5 mm
MDL 8
MDL 8
AS SSD
AS SSD
GSemi AZW GSDFN512TS3F1OGCX
CDM 5/6 Read Seq Q32T1: 1973 MB/s
CDM 5/6 Write Seq Q32T1: 1579 MB/s
CDM 5/6 Read 4K Q32T1: 352.4 MB/s
CDM 5/6 Write 4K Q32T1: 215 MB/s
CDM 5 Read Seq: 1932 MB/s
CDM 5 Write Seq: 1569 MB/s
CDM 5/6 Read 4K: 46.63 MB/s
CDM 5/6 Write 4K: 142.7 MB/s
Drive Performance Rating - Percent
Zotac ZBox MI643
Lexar NM610 1TB
94.1 pt
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
76.3 pt
GMK NucBox 2
Netac S930E8/256GPN
69 pt
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
51.4 pt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
31.3 pt
DiskSpd
seq read
Zotac ZBox MI643
Lexar NM610 1TB
1765 (1750.07min - 1764.79max) MB/s +31%
GMK NucBox 2
Netac S930E8/256GPN
1566 (1557.38min - 1565.96max) MB/s +16%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1349 (1345.08min - 1349.49max) MB/s
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1341 (1340.13min - 1341.17max) MB/s -1%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s -62%
seq write
Zotac ZBox MI643
Lexar NM610 1TB
1670 (1661.78min - 1670.19max) MB/s +22%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1366 (1342.35min - 1366.3max) MB/s
GMK NucBox 2
Netac S930E8/256GPN
1213 (454.38min - 1213.29max) MB/s -11%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
953 (144min - 952.51max) MB/s -30%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s -66%
seq q8 t1 read
GMK NucBox 2
Netac S930E8/256GPN
2121 (1959.37min - 2121.01max) MB/s +8%
Zotac ZBox MI643
Lexar NM610 1TB
2074 (1872.37min - 2074.34max) MB/s +6%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1958 (1343.44min - 1957.62max) MB/s
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1709 (1493.54min - 1709.12max) MB/s -13%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s -71%
seq q8 t1 write
Zotac ZBox MI643
Lexar NM610 1TB
1657 (1618.28min - 1657.42max) MB/s +21%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1371 (1348.89min - 1371.13max) MB/s
GMK NucBox 2
Netac S930E8/256GPN
1248 (414.41min - 1248.45max) MB/s -9%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
964 (326.08min - 964.44max) MB/s -30%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s -63%
4k q1 t1 read
Zotac ZBox MI643
Lexar NM610 1TB
49.1 (48.83min - 49.14max) MB/s +22%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
48.3 (47.16min - 48.29max) MB/s +20%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
40.2 (38.82min - 40.17max) MB/s
GMK NucBox 2
Netac S930E8/256GPN
29.4 (21.8min - 29.38max) MB/s -27%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s -46%
4k q1 t1 write
Zotac ZBox MI643
Lexar NM610 1TB
200 (109.52min - 200.27max) MB/s +72%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
176 (148.72min - 175.53max) MB/s +52%
GMK NucBox 2
Netac S930E8/256GPN
156 (133.05min - 156.14max) MB/s +34%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
116 (112.64min - 116.46max) MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s -60%
4k q32 t16 read
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
826 (823.98min - 826.07max) MB/s
Zotac ZBox MI643
Lexar NM610 1TB
783 (617.58min - 783.33max) MB/s -5%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
395 (393.42min - 394.82max) MB/s -52%
GMK NucBox 2
Netac S930E8/256GPN
331 (329.92min - 330.85max) MB/s -60%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s -65%
4k q32 t16 write
Zotac ZBox MI643
Lexar NM610 1TB
845 (185.31min - 844.98max) MB/s +111%
GMK NucBox 2
Netac S930E8/256GPN
739 (122.91min - 738.54max) MB/s +85%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
503 (76.08min - 503.17max) MB/s +26%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
400 (389.86min - 399.66max) MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s -17%
AS SSD
Score Total
Zotac ZBox MI643
Lexar NM610 1TB
2760 Points +18%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
2346 Points
GMK NucBox 2
Netac S930E8/256GPN
1497 Points -36%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
983 Points -58%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points -64%
Score Read
Zotac ZBox MI643
Lexar NM610 1TB
1034 Points +6%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
974 Points
GMK NucBox 2
Netac S930E8/256GPN
615 Points -37%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
501 Points -49%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points -69%
Score Write
Zotac ZBox MI643
Lexar NM610 1TB
1185 Points +37%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
866 Points
GMK NucBox 2
Netac S930E8/256GPN
598 Points -31%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points -57%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
253 Points -71%
Seq Read
GMK NucBox 2
Netac S930E8/256GPN
2069 MB/s +44%
Zotac ZBox MI643
Lexar NM610 1TB
1511 MB/s +6%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1432 MB/s
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1111 MB/s -22%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s -63%
Seq Write
Zotac ZBox MI643
Lexar NM610 1TB
1558 MB/s +9%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
1433 MB/s
GMK NucBox 2
Netac S930E8/256GPN
1203 MB/s -16%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s -67%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
323.5 MB/s -77%
4K Read
Zotac ZBox MI643
Lexar NM610 1TB
43.77 MB/s +20%
GMK NucBox 2
Netac S930E8/256GPN
41.66 MB/s +15%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
36.38 MB/s
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
33.1 MB/s -9%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s -44%
4K Write
GMK NucBox 2
Netac S930E8/256GPN
136.9 MB/s +16%
Zotac ZBox MI643
Lexar NM610 1TB
119.5 MB/s +1%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
118.5 MB/s
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
66.2 MB/s -44%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s -64%
4K-64 Read
Zotac ZBox MI643
Lexar NM610 1TB
839 MB/s +6%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
795 MB/s
GMK NucBox 2
Netac S930E8/256GPN
366.3 MB/s -54%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
357.3 MB/s -55%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s -71%
4K-64 Write
Zotac ZBox MI643
Lexar NM610 1TB
909 MB/s +50%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
604 MB/s
GMK NucBox 2
Netac S930E8/256GPN
340.5 MB/s -44%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s -53%
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
154.8 MB/s -74%
Access Time Read
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * -77%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
0.07 ms *
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
0.066 ms * +6%
GMK NucBox 2
Netac S930E8/256GPN
0.064 ms * +9%
Zotac ZBox MI643
Lexar NM610 1TB
0.032 ms * +54%
Access Time Write
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
0.616 ms * -71%
Beelink SER3
GSemi AZW GSDFN512TS3F1OGCX
0.36 ms *
GMK NucBox 2
Netac S930E8/256GPN
0.347 ms * +4%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * +25%
Zotac ZBox MI643
Lexar NM610 1TB
0.242 ms * +33%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

No graph data

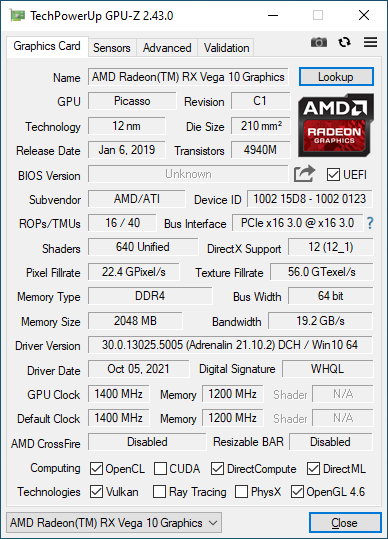

Desempenho da GPU

O desempenho gráfico é mais similar ao do Iris Plus Graphics 655. Enquanto nosso Radeon RX Vega 10 é uma atualização decente sobre o UHD Graphics 620ainda é significativamente mais lento que o mais recente Opções Iris Xe NUC da Intel. O desempenho geral é ligeiramente mais lento do que a média do RX Vega 10 em nosso banco de dados porque nossa unidade de teste SER3 vem apenas com RAM de canal único. Os usuários podem obter mais performance da GPU se configurada com RAM de canal duplo.

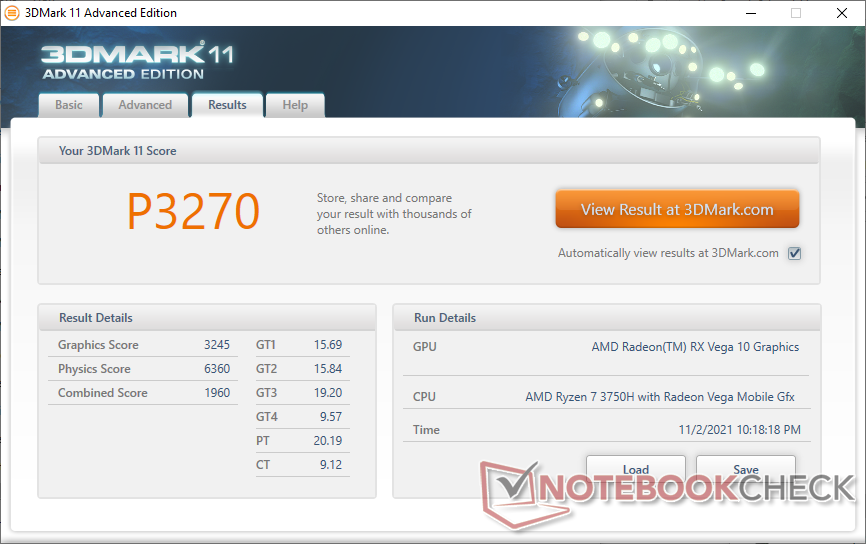

3DMark 11
3DMark 11

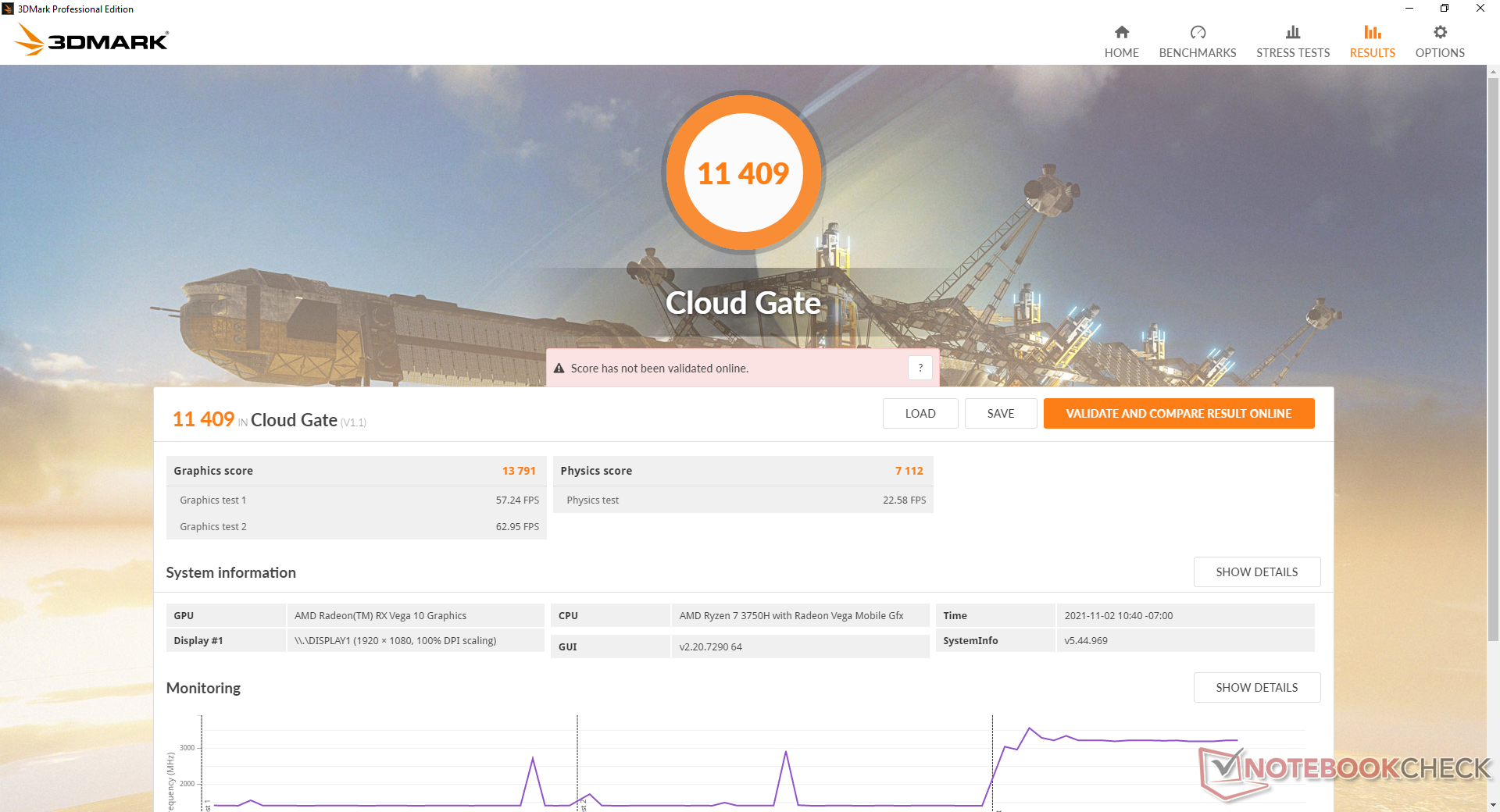

Cloud Gate
Cloud Gate

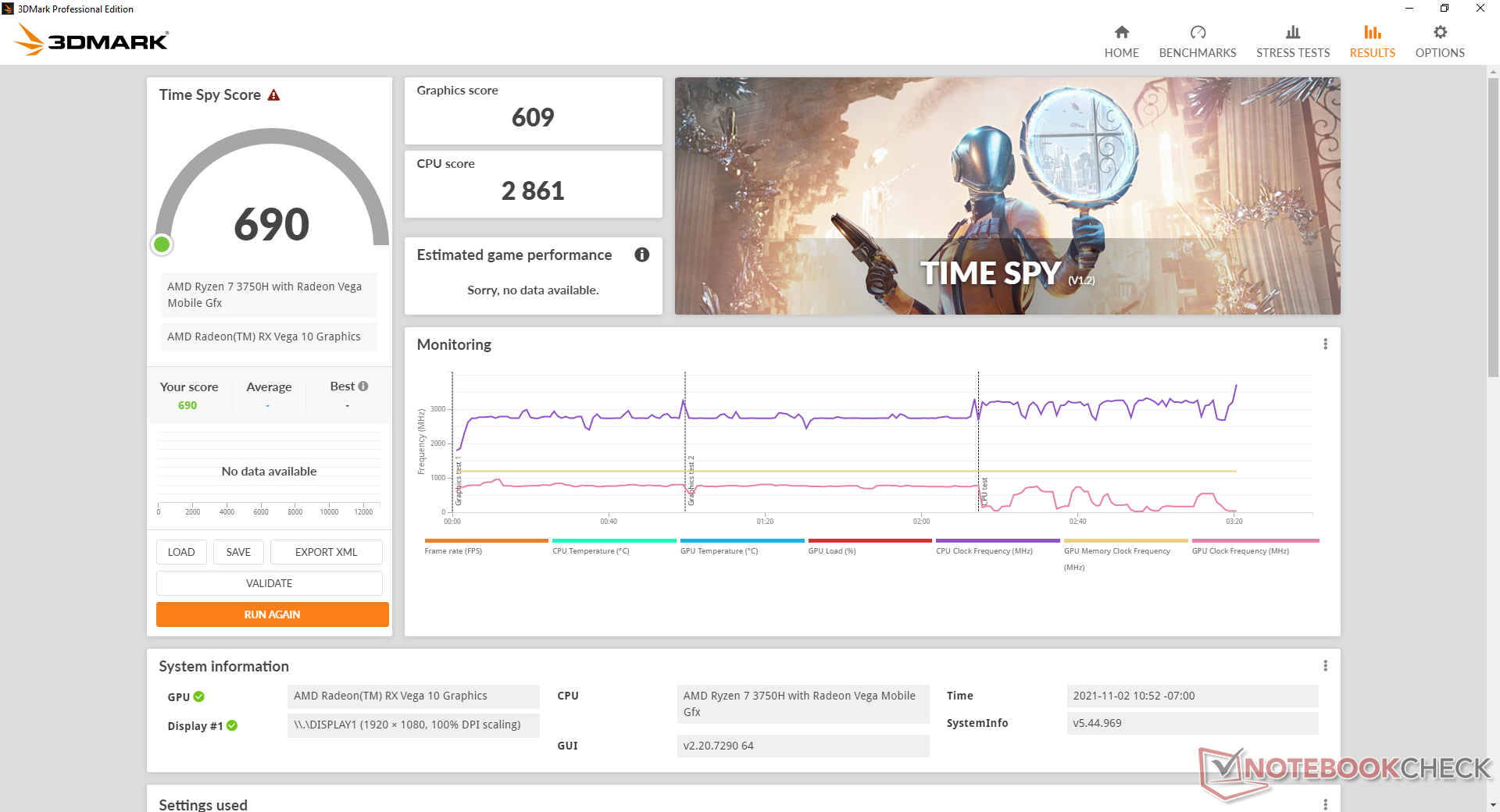

Time Spy
Time Spy

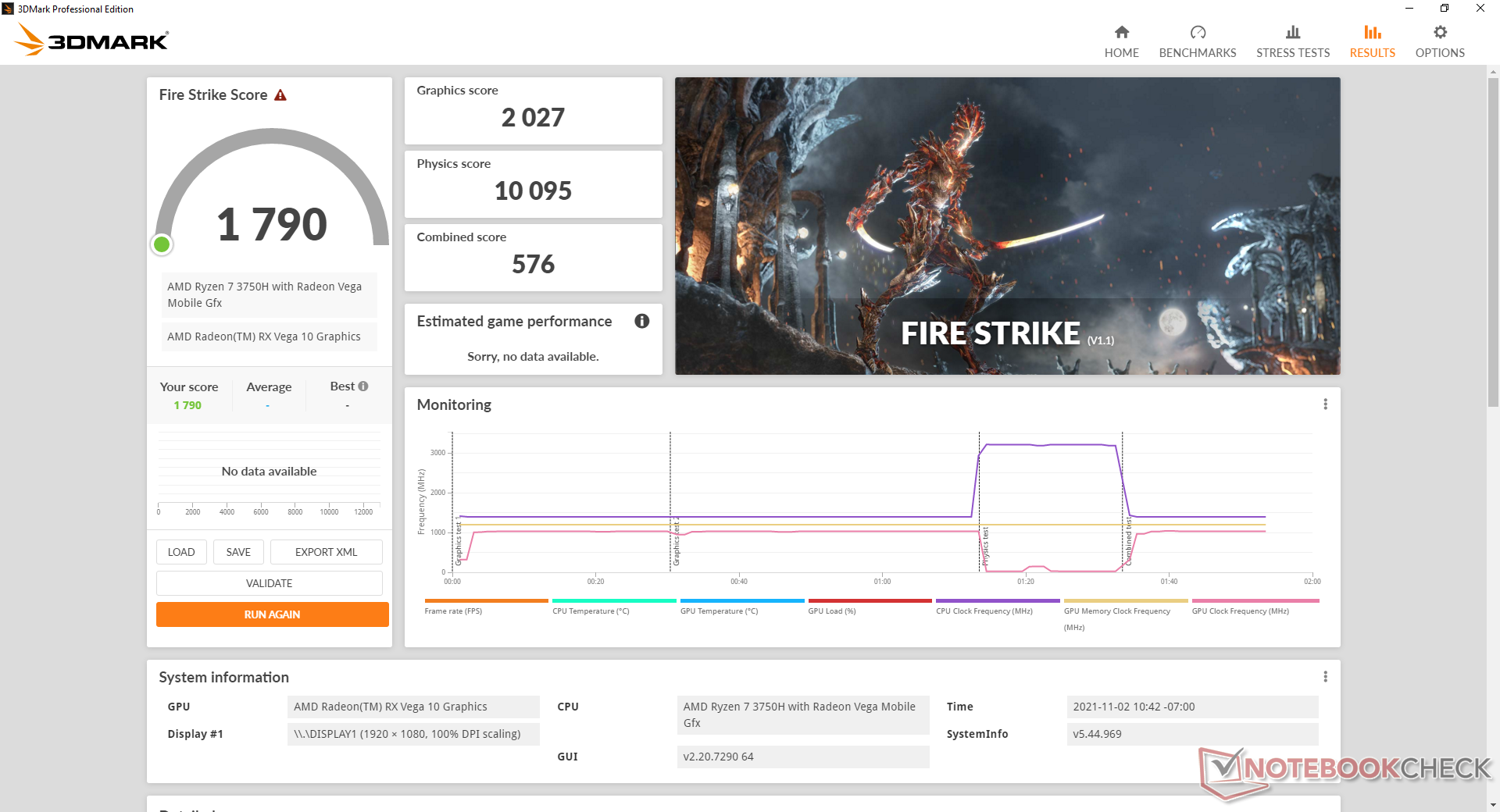

Fire Strike
Fire Strike

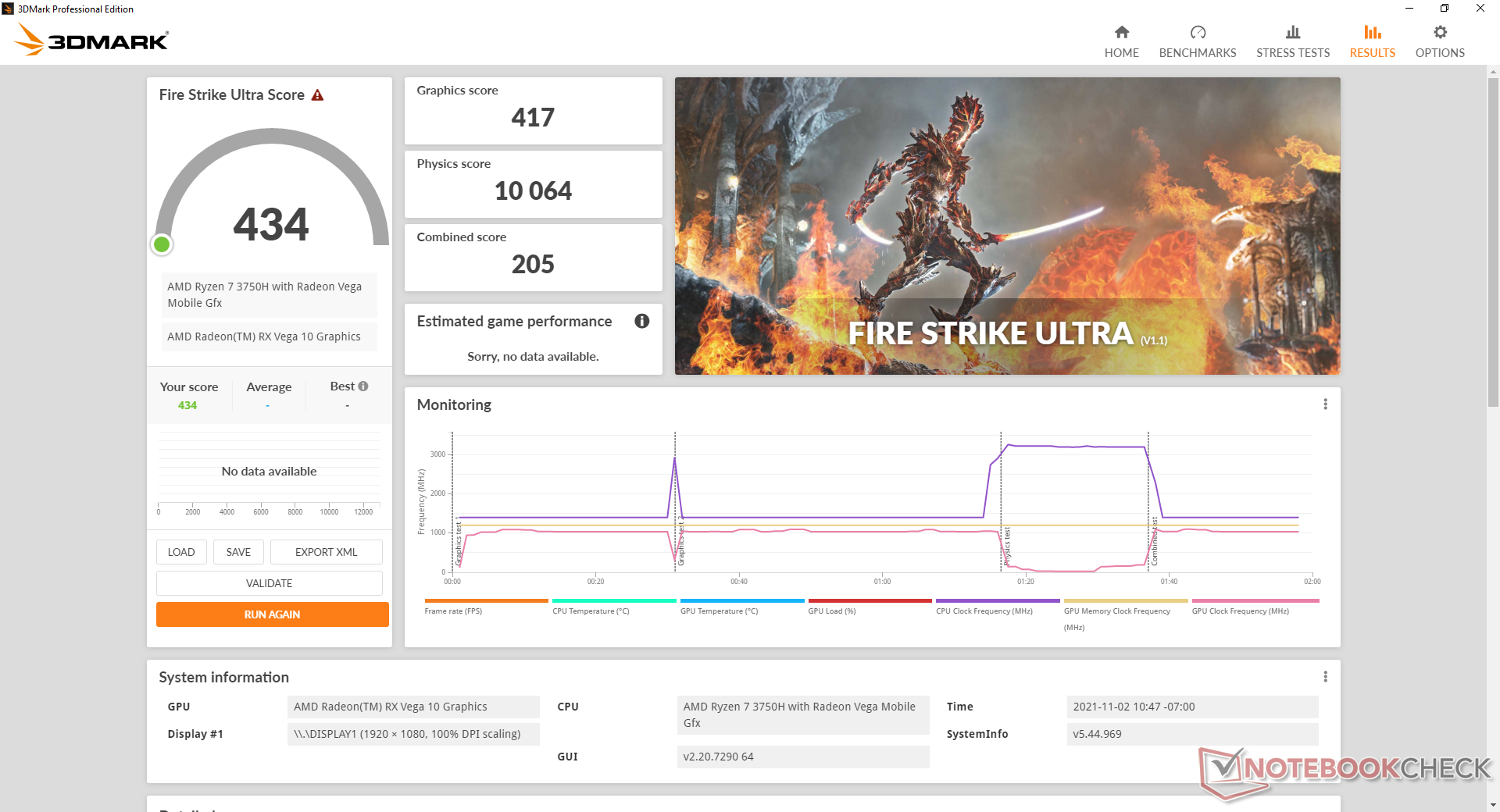

Fire Strike Ultra
Fire Strike Ultra

3DMark Performance Rating - Percent
VAIO SX14 VJS144X0111K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7
100 pt
Asus Zenbook 14X UX5400E -1!
NVIDIA GeForce MX450, Intel Core i7-1165G7
91.7 pt
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
71.8 pt
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
67.4 pt
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
65.9 pt
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
61.4 pt
Average AMD Radeon RX Vega 10

42.6 pt
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
38.8 pt
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
37.6 pt
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
35.7 pt
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
23.7 pt
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
19.3 pt
3DMark
1920x1080 Fire Strike Graphics
VAIO SX14 VJS144X0111K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7
5661 Points +179%
Asus Zenbook 14X UX5400E
NVIDIA GeForce MX450, Intel Core i7-1165G7
5274 Points +160%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
3824 Points +89%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
3734 Points +84%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
3572 Points +76%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points +56%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
2260 Points +11%
Average AMD Radeon RX Vega 10
  (1567 - 2999, n=17)
2224 Points +10%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
2027 Points
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
1914 Points -6%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1283 Points -37%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
960 Points -53%
2560x1440 Time Spy Graphics
VAIO SX14 VJS144X0111K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7
1819 Points +199%
Asus Zenbook 14X UX5400E
NVIDIA GeForce MX450, Intel Core i7-1165G7
1688 Points +177%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
1186 Points +95%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
1165 Points +91%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
1112 Points +83%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points +69%
Average AMD Radeon RX Vega 10
  (578 - 852, n=7)
724 Points +19%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
633 Points +4%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
609 Points
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
594 Points -2%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
403 Points -34%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
320 Points -47%
2560x1440 Time Spy Score
VAIO SX14 VJS144X0111K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7
2029 Points +194%
Asus Zenbook 14X UX5400E
NVIDIA GeForce MX450, Intel Core i7-1165G7
1810 Points +162%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
1357 Points +97%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
1308 Points +90%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
1263 Points +83%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points +68%
Average AMD Radeon RX Vega 10
  (647 - 955, n=8)
825 Points +20%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
722 Points +5%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
690 Points
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
676 Points -2%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
462 Points -33%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
367 Points -47%
3DMark 11 - 1280x720 Performance GPU
VAIO SX14 VJS144X0111K
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7
6860 Points +111%
Huawei MateBook 16 R7 5800H
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
6117 Points +89%
Lenovo Yoga 6 13ALC6
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
5693 Points +75%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points +61%
Dell Latitude 14 5411-WJ40N
NVIDIA GeForce MX250, Intel Core i7-10850H
4641 Points +43%
Average AMD Radeon RX Vega 10
  (2688 - 4165, n=17)
3483 Points +7%
Beelink SER3
AMD Radeon RX Vega 10, AMD Ryzen 7 3750H
3245 Points
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
3081 Points -5%
GMK NucBox 2
Intel Iris Plus Graphics 655, Intel Core i5-8259U
2947 Points -9%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1858 Points -43%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i3-1005G1
1684 Points -48%
3DMark 11 Performance
3270 pontos
3DMark Cloud Gate Standard Score
11409 pontos
3DMark Fire Strike Score
1790 pontos
3DMark Time Spy Score
690 pontos
Ajuda
Final Fantasy XV Benchmark
1280x720 Lite Quality
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
90.9 fps +378%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
54.1 fps +185%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
45.3 fps +138%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
41 fps +116%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.2 fps +96%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31.7 fps +67%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
26.8 fps +41%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
19 fps
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
17.3 fps -9%
Average AMD Radeon RX Vega 10
  (16.1 - 19, n=3)
17.1 fps -10%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
16.9 fps -11%
1920x1080 Standard Quality
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
57.7 fps +478%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
25.3 fps +154%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
24.6 fps +146%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
19 fps +90%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18.1 fps +81%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.6 fps +66%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
13.7 fps +37%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
9.98 fps
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
9.07 fps -9%
Average AMD Radeon RX Vega 10
  (8.1 - 9.98, n=3)
8.73 fps -13%
1920x1080 High Quality
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
30.8 fps +353%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
17.2 fps +153%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
13.8 fps +103%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.1 fps +78%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.2 fps +65%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
10.5 fps +54%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
6.8 fps
Average AMD Radeon RX Vega 10
  ()
6.8 fps 0%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
6.04 fps -11%
The Witcher 3
1024x768 Low Graphics & Postprocessing
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
173.6 fps +386%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
99.3 (8.73min, 25.8P0.1, 56.6P1) fps +178%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
95.8 (45min) fps +168%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
72 fps +102%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
70.7 (62min) fps +98%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.8 (53min) fps +68%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
50 fps +40%
Average AMD Radeon RX Vega 10
  (29.7 - 53.8, n=8)
37.4 fps +5%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
35.7 (28min) fps
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
27.4 (21min) fps -23%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30, Intel HD Graphics 515
7.4 fps -79%
1366x768 Medium Graphics & Postprocessing
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
129 fps +463%
Dell G5 15 5500 09E2
Intel Core i5-10300H, NVIDIA GeForce GTX 1650 Ti Mobile
126 (106min, 109.6P1) fps +450%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
57.8 (27.2min, 33.7P0.1, 39.8P1) fps +152%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
57.5 (54min) fps +151%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
36 fps +57%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.3 (21min) fps +2%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
22.9 (21min) fps
Average AMD Radeon RX Vega 10
  (20.4 - 24.2, n=5)
22.5 fps -2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
73.3 fps +501%
Dell G5 15 5500 09E2
Intel Core i5-10300H, NVIDIA GeForce GTX 1650 Ti Mobile
72.2 (61min, 65P1) fps +492%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
36.6 (33min) fps +200%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
30.7 (14.9min, 14.9P0.1, 15.6P1) fps +152%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
28.1 fps +130%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 fps +80%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
21 fps +72%
Average AMD Radeon RX Vega 10
  (8.4 - 18.8, n=8)
12.5 fps +2%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
12.2 (11min) fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
44.7 fps +459%
Dell G5 15 5500 09E2
Intel Core i5-10300H, NVIDIA GeForce GTX 1650 Ti Mobile
34.7 (8.09min, 8.67P0.1, 28.2P1) fps +334%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
22.9 fps +186%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
17.7 (12.4min, 12.7P0.1, 13.9P1) fps +121%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
17.3 (13min) fps +116%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.2 (14min) fps +90%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.6 (13min, 14P1) fps +83%
Average AMD Radeon RX Vega 10
  (6.6 - 11.5, n=8)
8.84 fps +11%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
8 (7min) fps
Far Cry 5
1280x720 Low Preset AA:T
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
60 (53min) fps +161%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
39 (33min) fps +70%
Average AMD Radeon RX Vega 10
  (20 - 33, n=5)
24.6 fps +7%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
23 (20min) fps 0%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
23 (20min) fps
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 fps -4%
1920x1080 Low Preset AA:T
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47 fps +262%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
33 (29min) fps +154%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 (18min) fps +62%
Average AMD Radeon RX Vega 10
  (13 - 19, n=2)
16 fps +23%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
13 (11min) fps 0%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
13 (11min) fps
1920x1080 Medium Preset AA:T
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
36 fps +200%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
32 (28min) fps +167%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21 fps +75%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18 (14min) fps +50%
Average AMD Radeon RX Vega 10
  (10 - 16, n=5)
12.2 fps +2%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
12 (10min) fps
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
11 (10min) fps -8%
1920x1080 High Preset AA:T
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
30 fps +173%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
30 (27min) fps +173%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20 fps +82%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17 (15min) fps +55%
Average AMD Radeon RX Vega 10
  (9 - 15, n=5)
11.2 fps +2%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
11 (10min) fps
1920x1080 Ultra Preset AA:T
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
27 fps +170%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
27 (24min) fps +170%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16 (14min) fps +60%
Average AMD Radeon RX Vega 10
  (9 - 13, n=3)
10.7 fps +7%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
10 (9min) fps
Strange Brigade
1280x720 lowest AF:1
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
106 (79.5min, 82.5P1) fps +180%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
85 fps +124%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
74.1 (52.5min, 62.9P1) fps +96%
Average AMD Radeon RX Vega 10
  (37.9 - 48.9, n=2)
43.4 fps +15%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
37.9 (30.4min, 31.9P1) fps
1920x1080 medium AA:medium AF:4
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
40.6 (27.2min, 35.5P1) fps +169%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33 fps +119%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28.9 (20.7min, 25.2P1) fps +91%
Average AMD Radeon RX Vega 10
  (15.1 - 19.6, n=2)
17.4 fps +15%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
15.1 (11.9min, 13.1P1) fps
1920x1080 high AA:high AF:8
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
44.8 fps +256%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
35.4 (29.1min, 29.9P1) fps +181%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29 fps +130%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (17min, 18.8P1) fps +93%
Average AMD Radeon RX Vega 10
  (12.6 - 16.2, n=2)
14.4 fps +14%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
12.6 (9.9min, 10.2P1) fps
1920x1080 ultra AA:ultra AF:16
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
36 fps +230%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
25 (19.2min, 20.7P1) fps +129%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 fps +129%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.7 (13.6min, 15.6P1) fps +90%
Average AMD Radeon RX Vega 10
  (10.9 - 13.8, n=2)
12.4 fps +14%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
10.9 (8.1min, 8.84P1) fps
X-Plane 11.11
1280x720 low (fps_test=1)
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
73.6 fps +209%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
68.8 fps +189%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
62.7 fps +163%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53.2 fps +124%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
43.7 fps +84%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.2 fps +61%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.1 fps +56%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
32.6 fps +37%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
25.3 fps +6%
Average AMD Radeon RX Vega 10
  (23 - 28.4, n=7)
25 fps +5%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
23.8 fps
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
22.3 fps -6%
1920x1080 med (fps_test=2)
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
57 fps +208%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
53.7 fps +190%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
51.3 fps +177%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.7 fps +125%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
38.5 fps +108%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
30.8 fps +66%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
27.3 fps +48%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
23.3 fps +26%
Average AMD Radeon RX Vega 10
  (15.6 - 22, n=7)
18.6 fps +1%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
18.5 fps
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
18 fps -3%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
14.8 fps -20%
1920x1080 high (fps_test=3)
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
52.6 fps +215%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
47 fps +181%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
41.4 fps +148%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.8 fps +120%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
34.1 fps +104%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
29.1 fps +74%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27 fps +62%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
19.8 fps +19%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
16.7 fps
Average AMD Radeon RX Vega 10
  (14.2 - 19.7, n=7)
16.6 fps -1%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
15.9 fps -5%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
13.2 fps -21%
Dota 2 Reborn
1280x720 min (0/3) fastest
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
136 (118.6min) fps +102%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
129 (114.4min) fps +91%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
124 (105min) fps +84%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
104 (92.4min) fps +54%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
98 (79.8min) fps +45%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
95 (80min) fps +41%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
93.7 (82min) fps +39%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
73.8 (65.9min) fps +9%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
73.8 (47.9min) fps +9%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
67.4 (57.5min) fps
Average AMD Radeon RX Vega 10
  (53 - 73, n=10)
63.9 fps -5%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
61.2 (55min) fps -9%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
36.1 (34.9min) fps -46%
1366x768 med (1/3)
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
109 (94.7min) fps +110%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
96.1 (80.5min) fps +85%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
95.5 (79.6min) fps +84%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
90.5 (80.6min) fps +74%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
73.7 (59.2min) fps +42%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
68 (58.9min) fps +31%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
66 (54.7min) fps +27%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
56 (40.8min) fps +8%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
52 (42.4min) fps
Average AMD Radeon RX Vega 10
  (32.6 - 63, n=10)
50.6 fps -3%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
46 (40.9min) fps -12%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
35.5 (34.2min) fps -32%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
25 (20.7min) fps -52%
1920x1080 high (2/3)
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
80.7 (71min) fps +168%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
75.5 (67.9min) fps +151%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
63.1 (54min) fps +110%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53.7 (49min) fps +78%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
45.7 (40.4min) fps +52%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
35.4 (34.2min) fps +18%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
34.7 (31.6min) fps +15%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
34.2 (20min) fps +14%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
31.9 (29.3min) fps +6%
Average AMD Radeon RX Vega 10
  (12.5 - 39.7, n=10)
30.7 fps +2%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
30.1 (27.5min) fps
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
21.5 (20min) fps -29%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
15.3 (12.4min) fps -49%
1920x1080 ultra (3/3) best looking
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
75.3 (66.7min) fps +166%
Dell Latitude 14 5411-WJ40N
Intel Core i7-10850H, NVIDIA GeForce MX250
67.5 (57.8min) fps +139%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
59.3 (52.6min) fps +110%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.8 (47.1min) fps +80%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43.4 (38.6min) fps +53%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
34.9 (33.7min) fps +23%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.4 (18.2min) fps +11%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
30.4 (27.6min) fps +7%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
28.3 (25.9min) fps
Average AMD Radeon RX Vega 10
  (11.8 - 37.2, n=10)
28.3 fps 0%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
27.7 (25.5min) fps -2%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
19.2 (18.1min) fps -32%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
14.2 (11.7min) fps -50%
GTA V
1024x768 Lowest Settings possible
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
115 (38.2min, 58.8P1) fps +122%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
113 (19.9min, 71.4P1) fps +118%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
112 (10.3min, 71.4P1) fps +116%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
88.7 (15.2min, 50P1) fps +71%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
68 (17.5min, 40P1) fps +31%
Average AMD Radeon RX Vega 10
  (51.8 - 88.1, n=3)
65.8 fps +27%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
51.8 (15.8min, 35.7P1) fps
1920x1080 Lowest Settings possible
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
93.5 (18.8min, 62.5P1) fps +209%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
83.4 (17.2min, 52.6P1) fps +175%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
56 (7.44min, 40P1) fps +85%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
48.1 (13.3min, 30.3P1) fps +59%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
30.3 (12.2min, 21.7P1) fps
Average AMD Radeon RX Vega 10
  ()
30.3 fps 0%
1366x768 Normal/Off AF:4x
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
103 (18.8min, 66.7P1) fps +122%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
99.3 (13.5min, 62.5P1) fps +114%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
95.8 (28.2min, 52.6P1) fps +107%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
62.1 (15.1min, 37P1) fps +34%
Average AMD Radeon RX Vega 10
  (46.3 - 80.9, n=3)
59.4 fps +28%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
46.3 (17min, 30.3P1) fps
1920x1080 Normal/Off AF:4x
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
81.5 (16.8min, 50P1) fps +154%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
76.6 (19.7min, 43.5P1) fps +139%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
57.4 (7.36min, 38.5P1) fps +79%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
45.5 (13min, 32.3P1) fps +42%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
32.1 (10.7min, 22.7P1) fps
Average AMD Radeon RX Vega 10
  ()
32.1 fps 0%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
53 fps +302%
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
51.8 (14.5min, 34.5P1) fps +292%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
32.7 (7.75min, 24.4P1) fps +148%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.3 (6.93min, 18.9P1) fps +99%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.5 (3.65min, 17.5P1) fps +86%
Average AMD Radeon RX Vega 10
  (13.2 - 23.3, n=3)
16.9 fps +28%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
15.8 (8.44min, 11.9P1) fps +20%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
13.2 (6.31min, 9.52P1) fps
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Dell Inspiron 15 5518-2X3JR
Intel Core i5-11300H, NVIDIA GeForce MX450
23.8 (2.56min, 15.6P1) fps +252%
Asus Zenbook 14X UX5400E
Intel Core i7-1165G7, NVIDIA GeForce MX450
23.4 fps +246%
VAIO SX14 VJS144X0111K
Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs
12.9 (4.48min, 9.8P1) fps +91%
Huawei MateBook 16 R7 5800H
AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.5 (3.52min, 7.35P1) fps +55%
Lenovo Yoga 6 13ALC6
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9.82 (2.64min, 6.8P1) fps +45%
Average AMD Radeon RX Vega 10
  (5.8 - 10.1, n=3)
7.55 fps +12%
Beelink SER3
AMD Ryzen 7 3750H, AMD Radeon RX Vega 10
6.76 (1.83min, 3.56P1) fps
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
6.22 (3.37min, 4.2P1) fps -8%

Witcher 3 FPS Chart

05101520253035Tooltip
Beelink SER3 R7 3750H, Vega 10: Ø34.8 (31-36)
baixo média alto ultra
GTA V (2015) 51.8 46.3 13.2 6.76
The Witcher 3 (2015) 35.7 22.9 12.2 8
Dota 2 Reborn (2015) 67.4 52 30.1 28.3
Final Fantasy XV Benchmark (2018) 19 9.98 6.8
X-Plane 11.11 (2018) 23.8 18.5 16.7
Far Cry 5 (2018) 23 12 11 10
Strange Brigade (2018) 37.9 15.1 12.6 10.9

Emissões

Ruído do sistema

O ventilador pulsa freqüentemente ao executar cargas típicas de HTPC como navegação ou streaming de vídeo. A pulsação não é extrema em apenas até 29,4 dB(A) contra um fundo silencioso de 23,4 dB(A), mas é perceptível em um ambiente silencioso de escritório. Felizmente, não é suficientemente alto para distrair durante a reprodução de música ou vídeo mais alto.

Correr com cargas mais altas como jogos pode induzir um ruído do ventilador de até 37 a 43 dB(A), não muito diferente de muitos Ultrabooks da série U ou dos mais antigosIntel NUC8i7BE.

Perfil de ruído do ventilador (Branco: Fundo, Vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Prime95 stress)
Perfil de ruído do ventilador (Branco: Fundo, Vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Prime95 stress)

Barulho

Ocioso
23.4 / 23.4 / 29.4 dB
Carga
35.2 / 43.3 dB
  red to green bar


30 dB
silencioso
40 dB(A)
audível
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distância)   environment noise: 23.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.630.43535.6342524.12629.623.328.63124.723.228.123274025.729.228.322.231.35025.73128.721.630.16323.52724.92129.68023.92422.421.425.910020.821.219.717.723.912521.120.320.418.123.316026.524.121.814.625.320025.22221.114.125.225021.921.219.114.225.831523.621.320.21726.840023.422.521.815.327.950024.623.418.813.627.863025.223.719.411.529.180026.525.920.410.129.8100030.628.418.49.933.712502724.917.49.734.5160027.825.316.39.834.2200028.125.31510.534.7250024.5221310.433.831502219.31210.730.5400018.316.511.71127.8500016.514.811.911.725.8630014.313.312.511.821800015.815.815.711.618.71000020.820.320.311.621.31250026.325.625.611.426.41600015.114.714.610.415.4SPL37.235.229.423.443.3N2.521.10.54median 23.6median 22median 18.8median 11.6median 26.8Delta3.53.931.93.5hearing rangehide median Fan NoiseBeelink SER3
Beelink SER3
Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Noise
-23%
-13%
1%
-4%
-21%
off / environment *
23.4
27.5
-18%
28.7
-23%
25.6
-9%
26.1
-12%
24.8
-6%
Idle Minimum *
23.4
30.9
-32%
28.7
-23%
25.7
-10%
27.5
-18%
35.6
-52%
Idle Average *
23.4
33.5
-43%
29.3
-25%
25.7
-10%
27.5
-18%
35.6
-52%
Idle Maximum *
29.4
33.5
-14%
31.8
-8%
25.7
13%
27.5
6%
35.6
-21%
Load Average *
35.2
38.5
-9%
39
-11%
35.3
-0%
28.9
18%
36.2
-3%
Witcher 3 ultra *
37.2
39
-5%
38
-2%
Load Maximum *
43.3
51.6
-19%
41.4
4%
35.1
19%
42
3%
47.6
-10%

* ... smaller is better

Temperatura

Adaptador AC após uma hora de jogo
Adaptador AC após uma hora de jogo

As temperaturas superficiais não são um problema para o SER3. O ar quente sai pela traseira enquanto o ar frio entra pelo topo e por isso não recomendamos empilhar nenhum livro ou papel no mini PC

O adaptador AC pode ficar mais quente do que o próprio mini PC quando se opera com altas cargas, como mostrado por nossos mapas de temperatura.

Sistema ocioso (frente)
Sistema ocioso (frente)
Sistema ocioso (atrás)
Sistema ocioso (atrás)
Estresse no jogo (frente)
Estresse no jogo (frente)
Estresse no jogo (Voltar)
Estresse no jogo (Voltar)

Teste de estresse

Ao rodar prime95, as taxas de relógio da CPU aumentariam para 3,3 GHz durante o primeiro minuto ou mais até atingir uma temperatura central de 78 C. As taxas de relógio cairiam então para 3,0 GHz a fim de manter uma temperatura central mais fria de 72 C.

A temperatura central é relativamente fria a apenas 56 C quando em funcionamento Witcher 3 em comparação com 62 C no Intel NUC11TNKi5 Pro.

Sistema ocioso
Sistema ocioso
Witcher 3 stress
Witcher 3 stress
Tensão Prime95
Tensão Prime95
Prime95+FurMark stress
Prime95+FurMark stress
RelógioCPU (GHz) RelógioGPU (MHz) Média datemperatura da CPU Tctl/Tdie (°C)
System Idle -- --43
Prime95 Stress 3.0 --74
Prime95 + FurMark Stress 2.7 749 73
Witcher 3 Stress 0.3 - 0.8 ~873 56

Gestão de energia

Consumo de energia

O consumo de energia quando ocioso no desktop é ligeiramente maior do que a maioria dos outros mini PCs rodando em CPUs Core série U, uma vez que nosso SER3 utiliza um processador H-series mais exigente. No entanto, o consumo de energia ao rodar cargas mais altas é menor do que o esperado, em média, de apenas 30 W a 40 W

Somos capazes de registrar um máximo de pouco menos de 49 W a partir do adaptador AC de tamanho médio (~10 x 5 x 6 cm, incluindo os dentes) 57 W quando a 100% de utilização da CPU. Esta taxa cai após cerca de um minuto devido a limitações térmicas.

Witcher 3 stress
Witcher 3 stress
3DMark 06 stress
3DMark 06 stress
Prime95 estresse faz com que a CPU suba para 49 W durante cerca de 50 segundos antes de cair ligeiramente para se estabilizar em 42 W
Prime95 estresse faz com que a CPU suba para 49 W durante cerca de 50 segundos antes de cair ligeiramente para se estabilizar em 42 W
Prime95+FurMark stress. O consumo aumentaria para 40 W
Prime95+FurMark stress. O consumo aumentaria para 40 W
Consumo de energia
desligadodarklight 0.87 / 2.3 Watt
Ociosodarkmidlight 7 / 9.1 / 9.7 Watt
Carga midlight 29.5 / 48.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Beelink SER3
R7 3750H, Vega 10, GSemi AZW GSDFN512TS3F1OGCX, , x,
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), Silicon Motion AZW 256G M.228 NVMe 4X 200725 D, , x,
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655, , , x,
GMK NucBox 2
i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,
Zotac ZBox MI643
i5-10210U, UHD Graphics 620, Lexar NM610 1TB, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Power Consumption
17%
-8%
0%
-10%
-43%
Idle Minimum *
7
6.3
10%
2.7
61%
6.1
13%
7.5
-7%
11.5
-64%
Idle Average *
9.1
6.6
27%
3.1
66%
6.8
25%
9.2
-1%
12.4
-36%
Idle Maximum *
9.7
6.7
31%
6.3
35%
7.3
25%
9.6
1%
12.9
-33%
Load Average *
29.5
25.9
12%
59.7
-102%
46.3
-57%
34.4
-17%
40.7
-38%
Witcher 3 ultra *
32.5
47.2
-45%
43.9
-35%
Load Maximum *
48.7
46.7
4%
78
-60%
50.7
-4%
60.6
-24%
73.5
-51%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

05101520253035Tooltip
Beelink SER3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø39.1 (37.8-40)

Pro

+ m.2 SSD, WLAN e 2x SODIMM atualizáveis
+ ótimo desempenho do HTPC
+ portas dual HDMI
+ leve

Contra

- sem leitor SD, receptor IR, fechadura Kensington, ou DisplayPort-over-USB-C
- adaptador AC externo grande e grosso
- cPU e gráficos de geração mais antiga
- pulsos dos ventiladores freqüentemente
- relativamente caro

Veredicto

Em revisão: Beelink SER3. Unidade de teste fornecida pela Beelink
Em revisão: Beelink SER3. Unidade de teste fornecida pela Beelink

Por menos de US$ 500, os usuários estão adquirindo um mini PC HTPC com um nível de desempenho semelhante ao do Núcleo i5-8259U em alguns NUCs da Intel. O sistema está a várias etapas de outros mini PCs baratos rodando em CPUs Atom ou Celeron como o Chuwi LarkBox ou GBox que são notoriamente lentas mesmo quando executando aplicações pouco exigentes. Apreciamos que a Beelink está oferecendo o SER3 como PCs prontos para uso completos com RAM e armazenamento, enquanto os NUCs da Intel são quase sempre vendidos como SKUs de barebone.

O Beelink SER3 é um HTPC discreto e fácil de usar com opções de atualização acessíveis. Esteja preparado para um pouco de ruído do ventilador, especialmente quando estiver executando aplicações muito exigentes.

Os compradores devem estar cientes de que o SER3 omite um punhado de recursos auxiliares capazes de manter os custos baixos. Não há trava Kensington, leitor SD, receptor IR ou suporte Thunderbolt enquanto DP-over-USB-C pode não ser confiável. O ventilador pulsa com freqüência e o adaptador AC de verruga de parede é tanto grosso quanto curto. O SSD NVMe incluído, embora decentemente rápido, irá acelerar o desempenho quando estressado devido à falta de um espalhador de calor embutido.

Preço e Disponibilidade

O Beelink SER3 pode ser encontrado em na Amazon por $479 USD com 8 GB de RAM e 256 GB de SSD ou $559 USD com o dobro da RAM e armazenamento.

No, or more than one (0) Rating for the given SpecsID 326081 found

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > Análises > Análises > Revisão do PC Beelink SER3 mini: O Ryzen 7 3750H mais antigo tem seus usos
Allen Ngo, 2021-11- 8 (Update: 2021-11- 8)
