Breve Análise do Mini PC Lenovo Legion C530 Cube (i5-8300, GTX 1050 Ti)

Ready to go. A Lenovo está facilitando para os jogadores mais experientes que querem apenas um PC de jogos acessível, sem muita confusão. Os construtores iniciantes vão gostar muito do Legion C530 mesmo se faltarem alguns recursos comuns.

Allen Ngo, 👁 Allen Ngo (traduzido por Ricardo Soto), Published 11/19/2018 🇺🇸 🇫🇷 ...

Desktop Coffee Lake

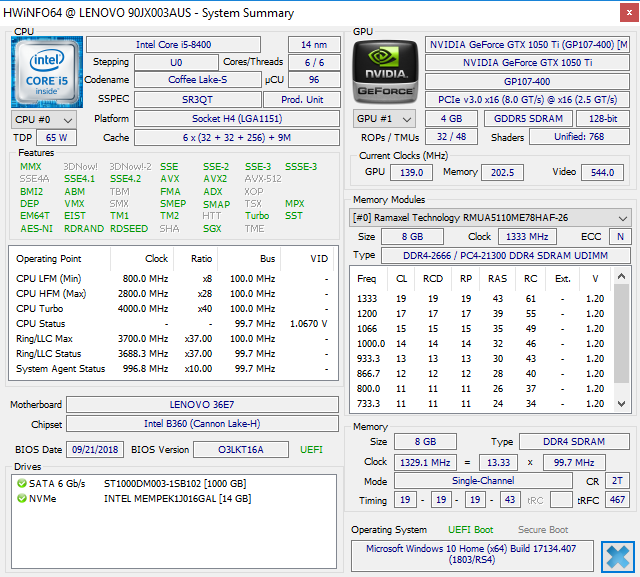

Lenovo Legion C530-90JX003AUS

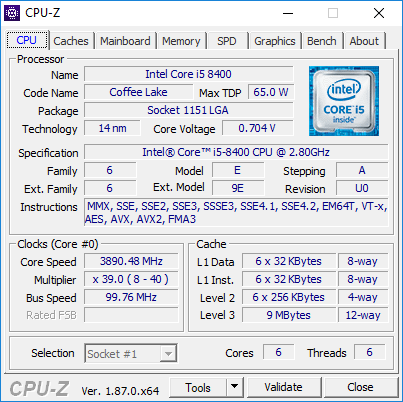

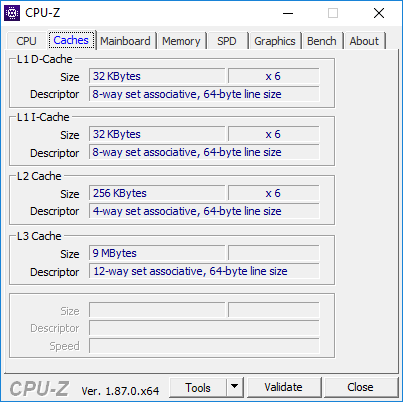

Processador

Intel Core i5-8400 6 x 2.8 - 4 GHz, Coffee Lake-S

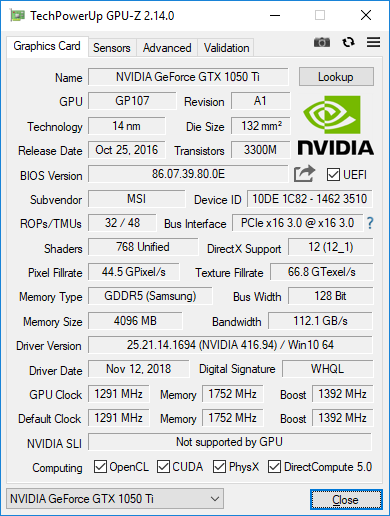

Placa gráfica

NVIDIA GeForce GTX 1050 Ti (Desktop) - 4 GB VRAM, Análises do: 1290 MHz, Memoría: 7008 MHz, GDDR5, 416.94

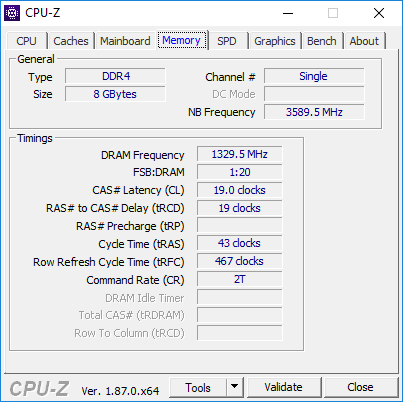

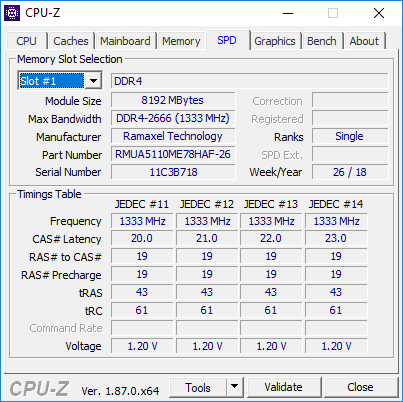

Memória

8 GB

, DDR4, PC4-21300, 19-19-19-32, Single-Channel

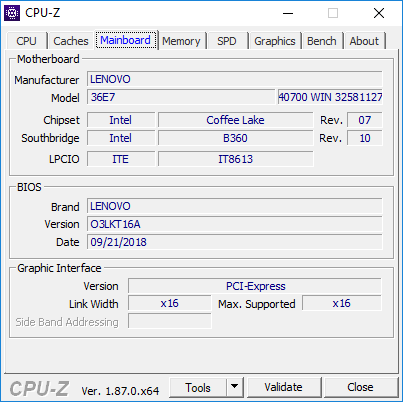

placa mãe

Intel B360 (Cannon Lake-H)

Disco rígido

Seagate Desktop HDD 1TB ST1000DM003, 1024 GB

, 7200 rpm

Placa de Som

Nvidia GP107 - High Definition Audio Controller

Funcionamento em rede

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)

Tamanho

altura x largura x profundidade (em mm): 231 x 332 x 242

Sistema Operativo

Microsoft Windows 10 Home 64 Bit

Características adicionais

12 Meses Garantia

peso

8.9 kg

Links

Lenovo página inicial
Lenovo Seção de notebook

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo Legion C530-90JX003AUS Zotac ZBOX Magnus EK71080 Intel Hades Canyon NUC8i7HVK DIN A4 ❌

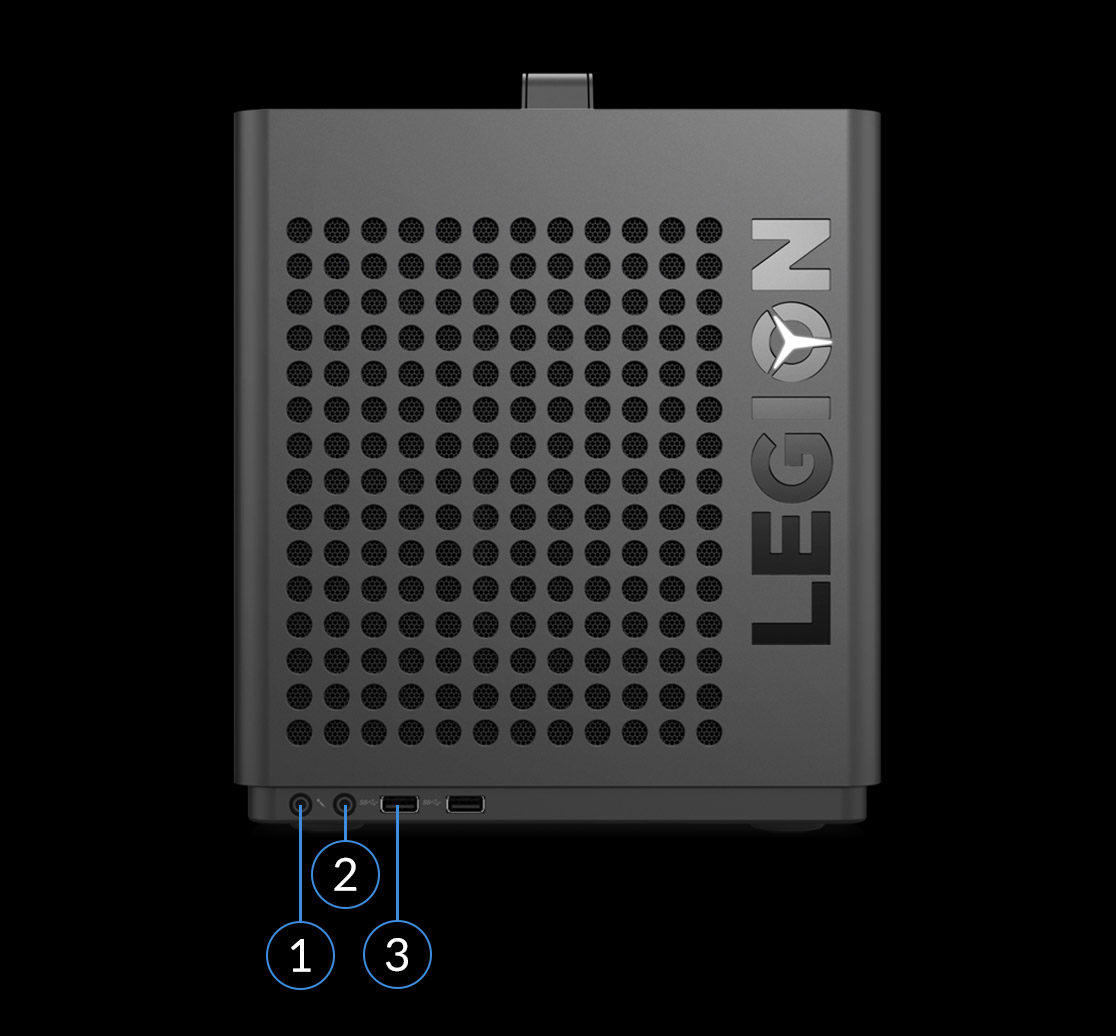

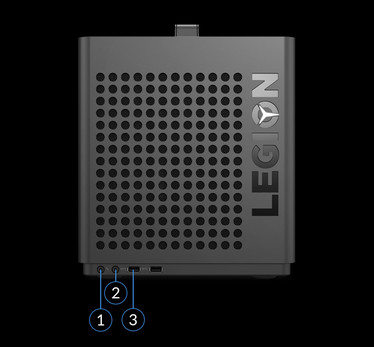

Front: 3.5 mm mic-in, headphone-in, 2x USB 3.0

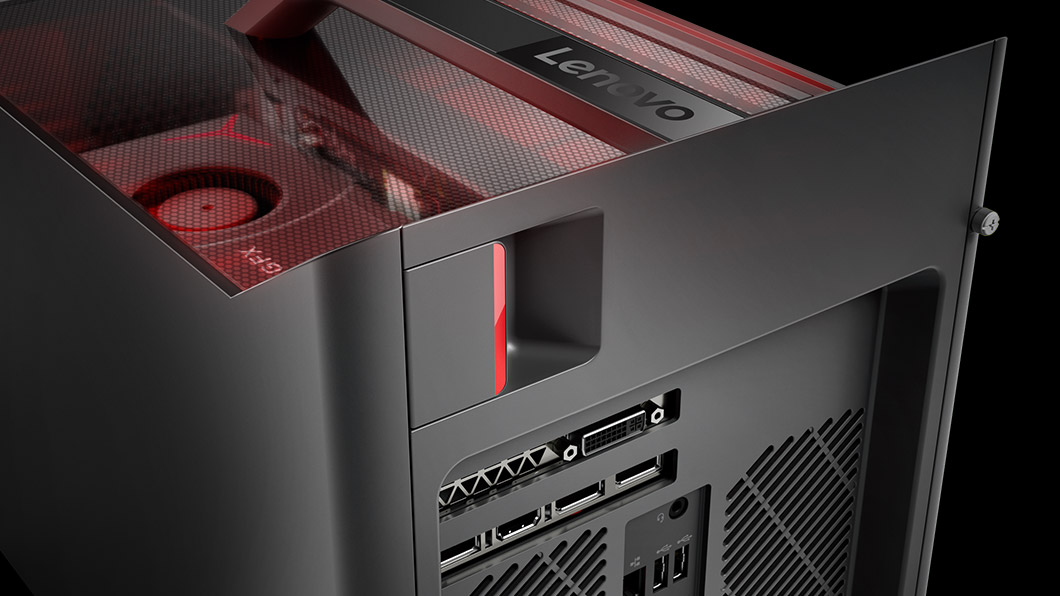

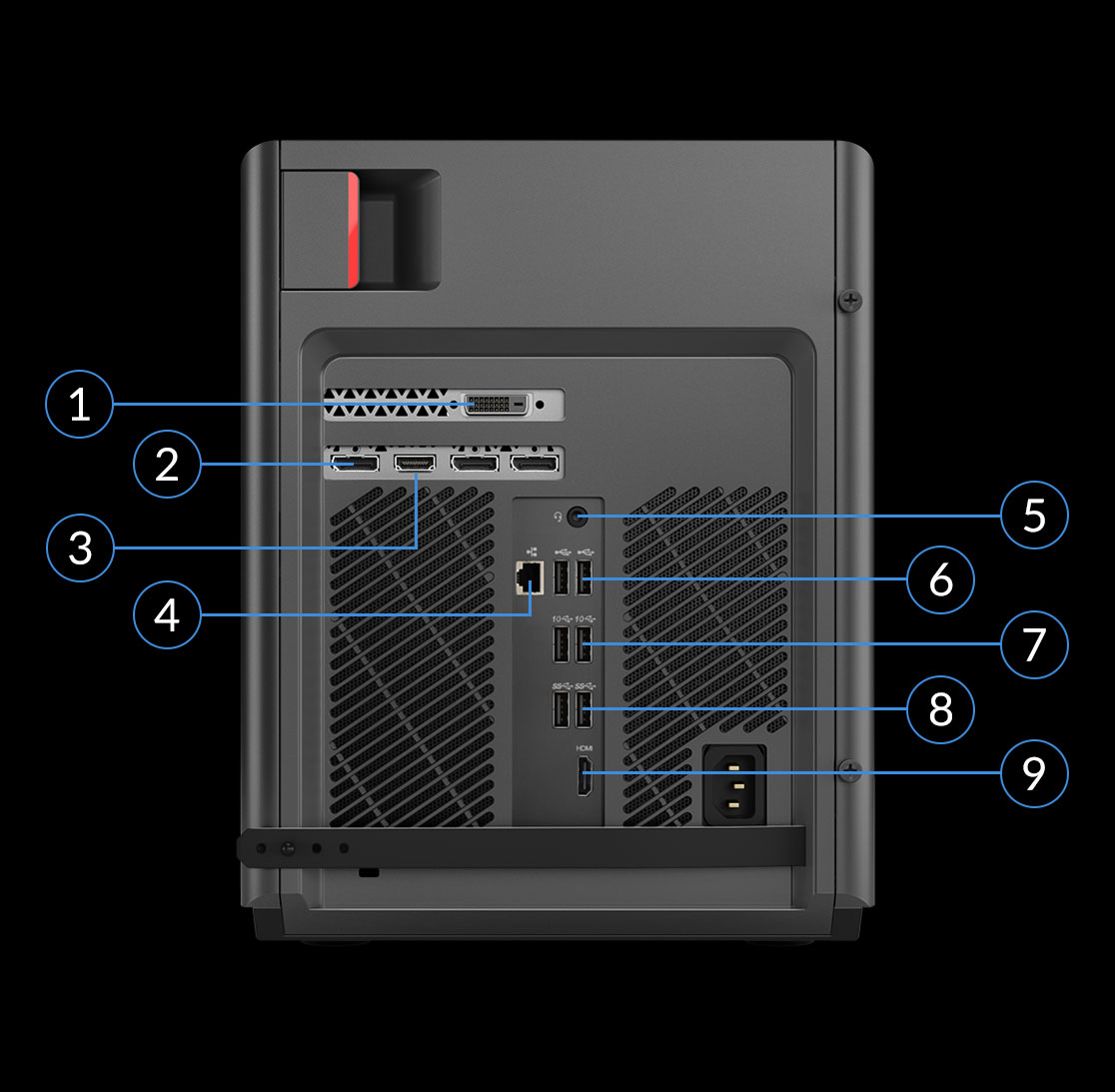

Rear: DVI, DisplayPort, HDMI, 3.5 mm audio out, RJ-45, 2x USB 2.0, 2 x USB 3.1 Gen. 2, 2 x USB 3.1 Gen. 1, AC cable

Networking
iperf3 transmit AX12
Asus ROG Strix GL702ZC-GC204T Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	670 MBit/s +3%
Lenovo Legion C530-90JX003AUS Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	651 MBit/s
Intel NUC8i7BE Intel Wireless-AC 9560	553 MBit/s -15%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s -42%
iperf3 receive AX12
Asus ROG Strix GL702ZC-GC204T Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	632 MBit/s +9%
Intel NUC8i7BE Intel Wireless-AC 9560	602 MBit/s +4%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s +2%
Lenovo Legion C530-90JX003AUS Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	580 MBit/s

Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003; CPU Multi 64Bit: Ø929 (917.45-937.25)

Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G; CPU Multi 64Bit: Ø817 (804.93-829.48)

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

Cinebench R15
CPU Single 64Bit
Eurocom Sky X4C Intel Core i7-8700K	192 Points +12%
SCHENKER XMG Ultra 17 Intel Core i7-8700	190 Points +10%
Intel NUC8i7BE Intel Core i7-8559U	188 Points +9%
Aorus X9 DT Intel Core i9-8950HK	185 Points +8%
SCHENKER XMG Ultra 15 Intel Core i5-8600K	181 Points +5%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points +3%
Lenovo Legion Y730-17ICH, i7-8750H Intel Core i7-8750H	173 Points +1%
Lenovo Legion C530-90JX003AUS Intel Core i5-8400	172 Points
Lenovo Legion Y530-15ICH Intel Core i5-8300H	171 Points -1%
MSI Prestige PS42 8RB-059 Intel Core i7-8550U	162 Points -6%
Lenovo Lenovo Legion Y720 80VR002XGE Intel Core i7-7700HQ	160 Points -7%
Lenovo Legion Y520-15IKBM 80YY001APB Intel Core i5-7300HQ	149 Points -13%
CPU Multi 64Bit
Aorus X9 DT Intel Core i9-8950HK	1391 Points +48%
Eurocom Sky X4C Intel Core i7-8700K	1359 Points +45%
Lenovo Legion Y730-17ICH, i7-8750H Intel Core i7-8750H	1230 Points +31%
SCHENKER XMG Ultra 17 Intel Core i7-8700	1167 Points +24%
SCHENKER XMG Ultra 15 Intel Core i5-8600K	991 Points +6%
Lenovo Legion C530-90JX003AUS Intel Core i5-8400	939 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -8%
Lenovo Legion Y530-15ICH Intel Core i5-8300H	830 Points -12%
Intel NUC8i7BE Intel Core i7-8559U	798 (671.37^min - 798.44^max) Points -15%
Lenovo Lenovo Legion Y720 80VR002XGE Intel Core i7-7700HQ	737 Points -22%
Lenovo Legion Y520-15IKBM 80YY001APB Intel Core i5-7300HQ	517 Points -45%
MSI Prestige PS42 8RB-059 Intel Core i7-8550U	503 Points -46%

Cinebench R11.5
CPU Single 64Bit
SCHENKER XMG Ultra 17 Intel Core i7-8700	2.18 Points
Intel NUC8i7BE Intel Core i7-8559U	2.17 Points
Eurocom Sky X4C Intel Core i7-8700K	2.16 Points
Aorus X9 DT Intel Core i9-8950HK	2.1 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	2.07 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	1.99 Points
CPU Multi 64Bit
Aorus X9 DT Intel Core i9-8950HK	15.13 Points
Eurocom Sky X4C Intel Core i7-8700K	14.98 Points
SCHENKER XMG Ultra 17 Intel Core i7-8700	12.9 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	10.76 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	9.41 Points
Intel NUC8i7BE Intel Core i7-8559U	7.32 Points

Cinebench R10
Rendering Multiple CPUs 32Bit
Aorus X9 DT Intel Core i9-8950HK	39380 Points
Eurocom Sky X4C Intel Core i7-8700K	38810 Points
SCHENKER XMG Ultra 17 Intel Core i7-8700	34532 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	32863 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	25809 Points
Intel NUC8i7BE Intel Core i7-8559U	23215 Points
Rendering Single 32Bit
Intel NUC8i7BE Intel Core i7-8559U	7249 Points
Eurocom Sky X4C Intel Core i7-8700K	7243 Points
SCHENKER XMG Ultra 17 Intel Core i7-8700	7171 Points
Aorus X9 DT Intel Core i9-8950HK	6978 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	6875 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	6668 Points

wPrime 2.10 - 1024m
Lenovo Legion Y520-15IKBM 80YY001APB Intel Core i5-7300HQ	348.1 s *
Intel NUC8i7BE Intel Core i7-8559U	234.6 s *
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	186.7 s *
Eurocom Sky X4C Intel Core i7-8700K	120.9 s *

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

* ... smaller is better

Cinebench R15 CPU Single 64Bit

172 Points

Cinebench R15 CPU Multi 64Bit

939 Points

Cinebench R15 OpenGL 64Bit

134.7 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Ajuda

... comparado com

PCMark 10 | PCMark 8

PCMark 10
Score
Average of class Desktop (2317 - 10153, n=21, last 2 years)	6395 Points +45%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points +20%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	4982 Points +13%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	4812 Points +9%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4580 Points +4%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	4411 Points
Essentials
Average of class Desktop (5425 - 12421, n=20, last 2 years)	9786 Points +41%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points +32%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	8994 Points +30%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	8989 Points +30%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	8418 Points +21%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	6931 Points
Productivity
Average of class Desktop (3454 - 12564, n=20, last 2 years)	8443 Points +36%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +28%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	7246 Points +17%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	7236 Points +17%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	7057 Points +14%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	6192 Points
Digital Content Creation
Average of class Desktop (1633 - 20009, n=20, last 2 years)	9271 Points +71%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points +3%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	5430 Points
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	5290 Points -3%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	4959 Points -9%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4007 Points -26%

PCMark 8 - Home Score Accelerated v2
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	4939 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	4833 Points -2%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4674 Points -5%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	4148 Points -16%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	4129 Points -16%

PCMark 8 Home Score Accelerated v2		4939 pontos
PCMark 10 Score		4411 pontos
Ajuda

	Lenovo Legion C530-90JX003AUS Seagate Desktop HDD 1TB ST1000DM003	Panasonic Toughbook CF-54G2999VM Seagate BarraCuda Compute 1TB ST1000LM048	Lenovo IdeaPad 330-15ARR-81D2005JGE Seagate Mobile HDD 1TB ST1000LM035	HP 15-db0500ng Seagate Mobile HDD 1TB ST1000LM035	MSI GF63 8RC Seagate BarraCuda Pro Compute 1TB ST1000LM049	Asus VivoBook 15 F510UF-ES71 Seagate Mobile HDD 1TB ST1000LM035
CrystalDiskMark 5.2 / 6		-6%	-44%	-32%	2%	3%
Write 4K	0.942	1.145 22%	0.217 -77%	0.727 -23%	1.244 32%	1.283 36%
Read 4K	0.472	0.453 -4%	0.367 -22%	0.379 -20%	0.544 15%	0.493 4%
Write Seq	128.3	52.2 -59%	98.8 -23%	85.1 -34%	97.1 -24%	79.3 -38%
Read Seq	183.7	122.7 -33%	131.1 -29%	95.6 -48%	162.1 -12%	136.7 -26%
Write 4K Q32T1	1.061	2.428 129%	0.222 -79%	0.99 -7%	1.674 58%	2.266 114%
Read 4K Q32T1	1.192	1.063 -11%	0.781 -34%	0.869 -27%	0.998 -16%	1.068 -10%
Write Seq Q32T1	177.6	73.7 -59%	97 -45%	92.2 -48%	134.8 -24%	108.7 -39%
Read Seq Q32T1	174.1	120.4 -31%	93.3 -46%	91.8 -47%	154.8 -11%	143.7 -17%

HD Tune

CrystalDiskMark 5.2 / 6

Seagate Desktop HDD 1TB ST1000DM003

Velocidade de Transferência Mínima: 96.4 MB/s

Velocidade de Transferência Máxima: 212.2 MB/s

Velocidade de Transferência Média: 162 MB/s

Tempo de Acesso: 14.3 ms

Índice de Explosão: 124.7 MB/s

Uso da CPU: 4.2 %

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance GPU
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	17401 Points +89%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	14302 Points +55%
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	13388 Points +45%
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	13168 Points +43%
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	9909 Points +8%
Lenovo Legion C530-90JX003AUS NVIDIA GeForce GTX 1050 Ti (Desktop), i5-8400	9212 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	9032 Points -2%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	4751 Points -48%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	4686 Points -49%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	3081 Points -67%
1280x720 Performance Combined
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	11160 Points +26%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10391 Points +17%
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	9842 Points +11%
Lenovo Legion C530-90JX003AUS NVIDIA GeForce GTX 1050 Ti (Desktop), i5-8400	8854 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	8450 Points -5%
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	7363 Points -17%
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	6212 Points -30%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	4378 Points -51%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	4354 Points -51%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	2583 Points -71%

3DMark
1280x720 Cloud Gate Standard Graphics
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	80879 Points
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	67779 Points
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	59162 Points
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	57208 Points
Lenovo Legion Y730-17ICH, i7-8750H NVIDIA GeForce GTX 1050 Ti Mobile, i7-8750H	50732 Points
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	50387 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	42202 Points
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	22171 Points
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	21586 Points
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	16698 Points
1920x1080 Fire Strike Graphics
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	12984 Points +73%
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	10338 Points +38%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10248 Points +37%
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	9888 Points +32%
Lenovo Legion Y730-17ICH, i7-8750H NVIDIA GeForce GTX 1050 Ti Mobile, i7-8750H	7860 Points +5%
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	7740 Points +3%
Lenovo Legion C530-90JX003AUS NVIDIA GeForce GTX 1050 Ti (Desktop), i5-8400	7485 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	7374 Points -1%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	3712 Points -50%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	3585 Points -52%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	2260 Points -70%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	282345 Points
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	215674 Points
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	100969 Points
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	71289 Points
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	2908 Points
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	1088 Points
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	633 Points

3DMark 11 Performance		9151 pontos
3DMark Fire Strike Score		6644 pontos
Ajuda

... comparado com

Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003; FPS: Ø24 (21-27)

	baixo	média	alto	ultra
BioShock Infinite (2013)	303.5			77.2
The Witcher 3 (2015)				24
Ashes of the Singularity (2016)		43.9	39.1

Barulho

Ocioso		41.4 / 41.5 / 41.7 dB
Carga		42 / 43.3 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Audix TM1, Arta (15 cm de distância) environment noise: 28.3 dB(A)

	Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	Zotac ZBOX Magnus EK71080 GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U
Noise		1%	13%	15%	14%
off / environment *	28.3	29.9 -6%	28.7 -1%	28 1%	28.7 -1%
Idle Minimum *	41.4	38.6 7%	29 30%	28 32%	28.7 31%
Idle Average *	41.5	38.6 7%	29 30%	28 33%	29.3 29%
Idle Maximum *	41.7	39 6%	29 30%	31.3 25%	31.8 24%
Load Average *	42	40.6 3%	36 14%	33.4 20%	39 7%
Witcher 3 ultra *	42	41.7 1%	42 -0%	42.8 -2%	39 7%
Load Maximum *	43.3	47 -9%	49.4 -14%	46.2 -7%	41.4 4%

* ... smaller is better

Consumo de energia

desligado	0.43 / 1.01 Watt
Ocioso	29.9 / 30.4 / 30.8 Watt
Carga	94.3 / 167.6 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo Legion C530-90JX003AUS i5-8400, GeForce GTX 1050 Ti (Desktop), Seagate Desktop HDD 1TB ST1000DM003, , x,	Intel NUC8i7BE i7-8559U, Iris Plus Graphics 655, , , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,	Lenovo Legion Y730-17ICH, i7-8750H i7-8750H, GeForce GTX 1050 Ti Mobile, Toshiba KBG30ZMT128G, IPS, 1920x1080, 17.30	Asus GL704GM-DH74 i7-8750H, GeForce GTX 1060 Mobile, WDC PC SN520 SDAPNUW-256G, IPS, 1920x1080, 17.30
Power Consumption		67%	21%	38%	6%
Idle Minimum *	29.9	2.7 91%	15.5 48%	6.3 79%	15.2 49%
Idle Average *	30.4	3.1 90%	16.2 47%	11 64%	20.4 33%
Idle Maximum *	30.8	6.3 80%	16.5 46%	11.5 63%	27.3 11%
Load Average *	94.3	59.7 37%	83.4 12%	89.8 5%	92.9 1%
Witcher 3 ultra *	99.5	47.2 53%	121.7 -22%	102 -3%	143 -44%
Load Maximum *	167.6	78 53%	173.5 -4%	130.7 22%	190.6 -14%

* ... smaller is better

Pro

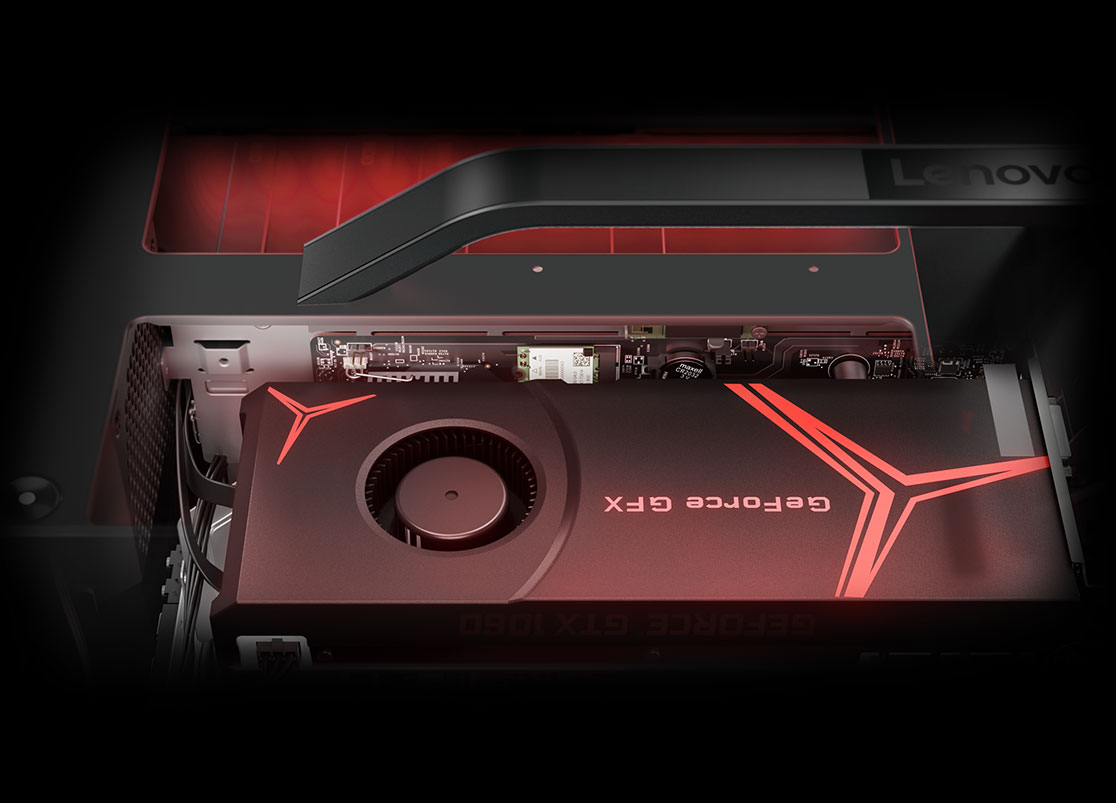

+ Suporte para placas gráficas de tamanho completo e largura dupla

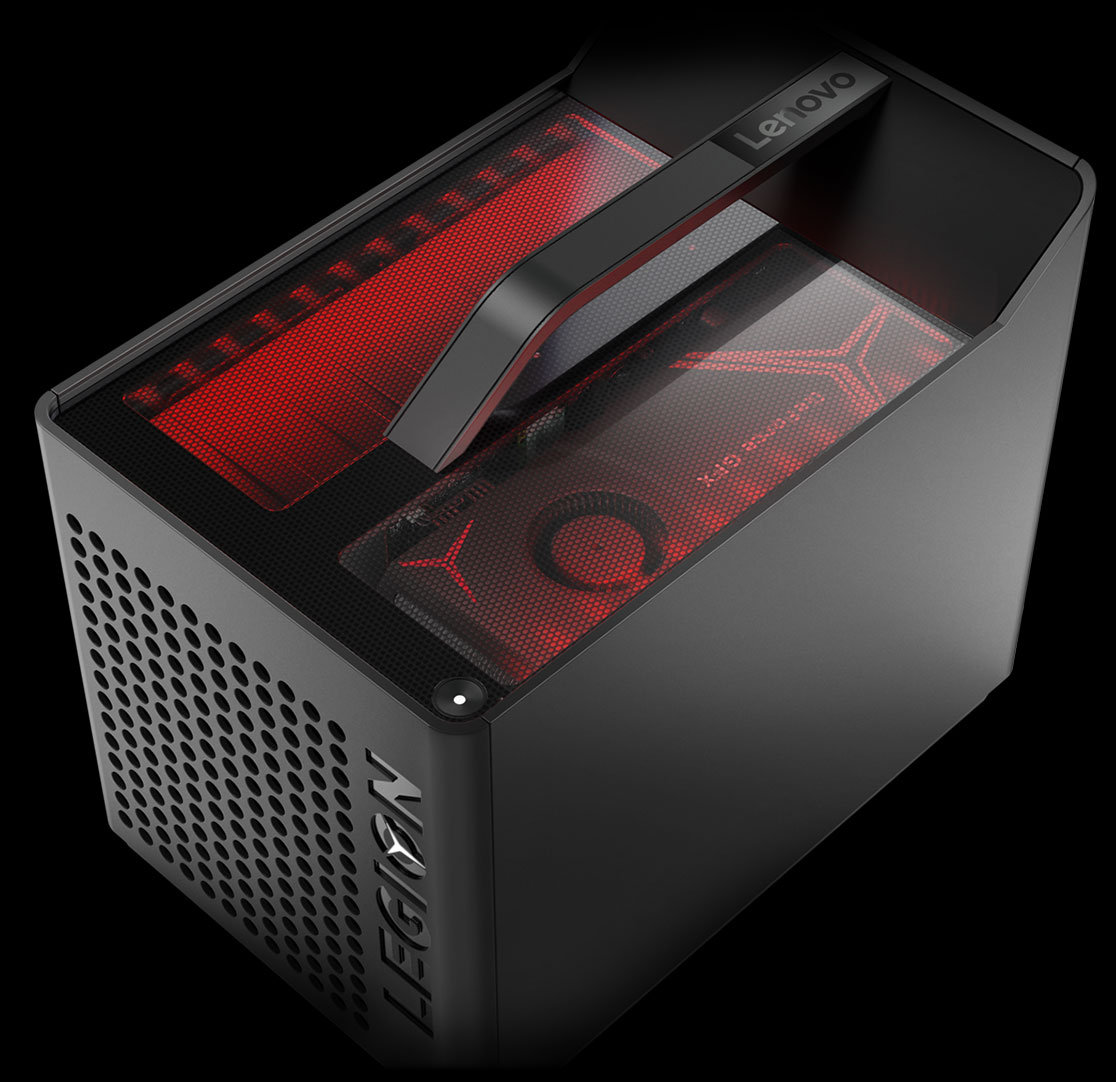

+ Design prático e alça para transporte

+ Sem afogamentos do desempenho sob uso intenso

+ 4 slots de armazenamento e 2 slots DDR4

+ Compatível com Intel Optane

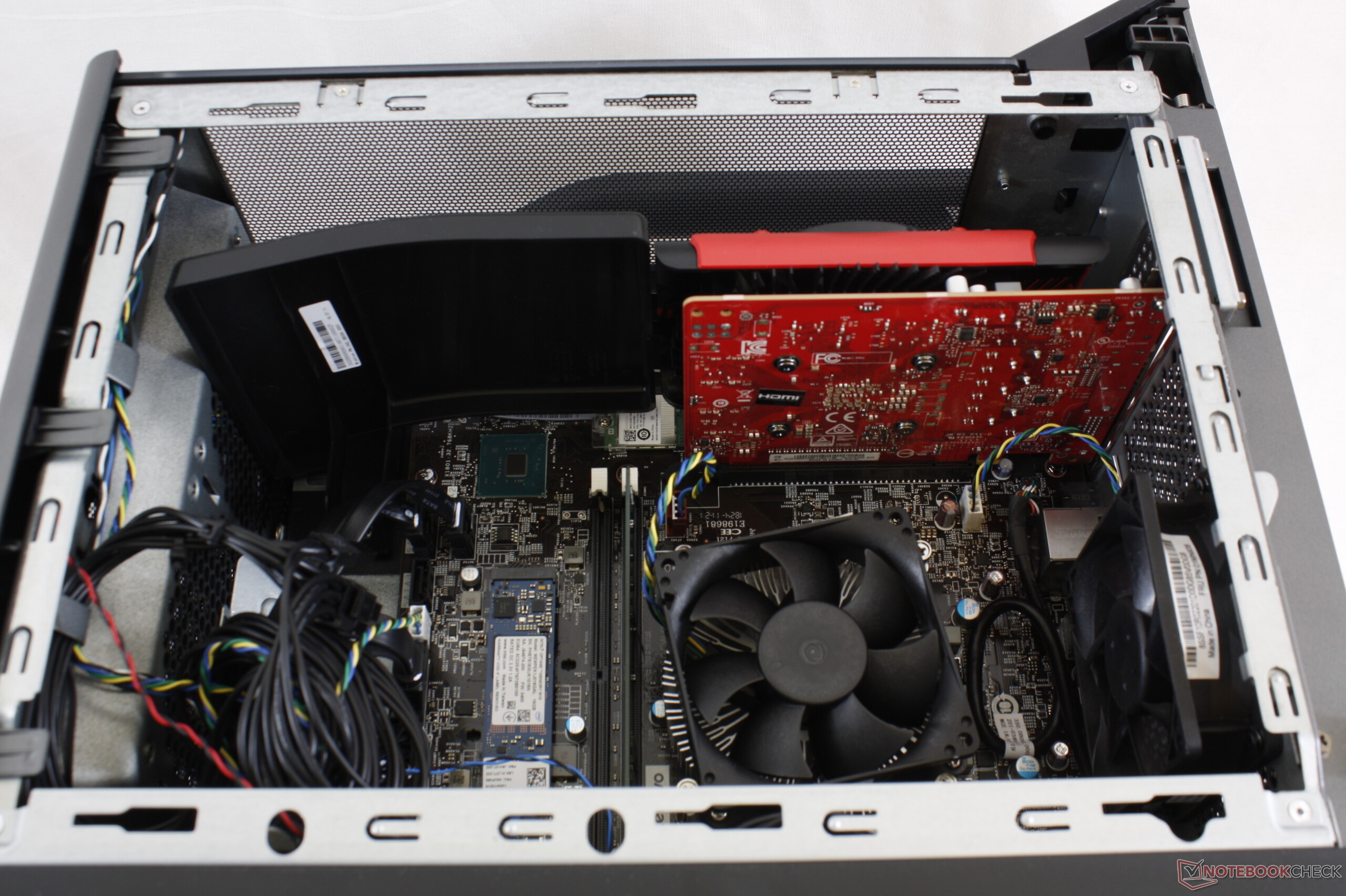

+ Manutenção ou atualização fácil

+ Preço inicial acessível

+ Ruído baixo da ventoinha

+ Opções RAID

Contra

- Sem montagem SATA de 2,5 a 3,5 polegadas incluída

- O design quadrado pode ser muito simples para alguns

- A alça de transporte não desmontável

- Todos os SKUs limitados a um PSU de 450 W

- Sem leitor de SD ou USB Type-C

- Sem slot PCIe x1/x4 livre

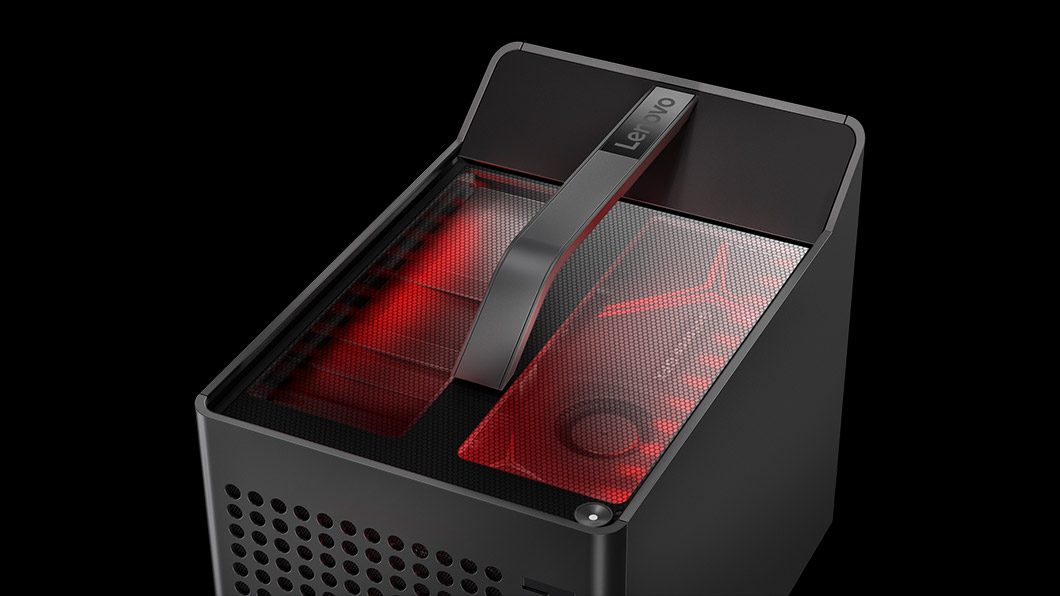

In review: Lenovo Legion C530 Cube. Test model provided by Lenovo US

Os melhores PCs para jogos acessíveis são aqueles com amplas oportunidades de upgrade para pernas mais longas. Os usuários poderiam simplesmente comprar uma configuração básica e lentamente atualizá-la ao longo do tempo sem invalidar a garantia original. A este respeito, o compacto Legion C530 verifica todas as caixas de verificação corretas para ser um PC pré-fabricado de longa duração, especialmente quando comparado com opções menores, como o MSI Trident 3, Intel Hades Canyon NUC, ou Zotac ZBox Magnus cuja manutenção é mais difícil.

Algumas omissões por corte de custos impedem que o Legion C530 seja o chassi de jogo "perfeito" para iniciantes. O sistema não possui o Thunderbolt 3, um segundo slot PCIe, Ethernet de 10 Gbit, um leitor de cartões, drive ótico e um menu BIOS especializado que a maioria dos PCs para jogos agora carrega. A PSU ATX12V / BTX também é um pouco mais difícil de trocar do que os componentes principais da placa-mãe. Teríamos preferido um simples SSD SATA III M.2, em vez do forçado Intel Optane para a configuração de gama mais baixa.

Um forte ponto de partida para montadores de PC iniciantes. O Lenovo Legion C530 oferece ampla capacidade de desempenho e oportunidades de upgrade para ser uma opção de desktop acessível a longo prazo.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Breve Análise do Mini PC Lenovo Legion C530 Cube (i5-8300, GTX 1050 Ti)

Allen Ngo, 2018-11-19 (Update: 2018-11-24)
