Análise do Framework Laptop 13.5 Ryzen 7 7840U: Muito melhor do que a versão Intel

Name: Framework Laptop 13.5 Ryzen 7 7840U
Brand: Framework

O AMD Zen 4 faz sua mágica. A plataforma AMD Zen 4 série U faz com que o Intel Core série P pareça obsoleto. A não ser que você valorize um ou dois recursos muito específicos da Intel, a nova estrutura da AMD não deve ser um problema para a maioria dos usuários.

Allen Ngo, 👁 Allen Ngo (traduzido por DeepL / Ninh Duy), Published 10/03/2023 🇺🇸 🇸🇪 ...

AMD Laptop / Notebook Zen 4 Ultrabook Ryzen (Zen)

Os usuários têm clamado por uma versão da AMD do Framework Laptop, ideal para quem faz bricolagem, desde seu lançamento em 2021. Com as CPUs Ryzen se tornando cada vez mais competitivas em relação à Intel a cada ano, agora seria um bom momento para lançar o primeiro AMD Framework Laptop.

Nossa unidade de análise é uma configuração superior com o Ryzen 7 7840U por pouco menos de US$ 1.500, enquanto as opções inferiores estão disponíveis com o Ryzen 5 7640U. O Framework Laptop 13.5 é um dos primeiros no mercado a ser fornecido com o Ryzen 7 7840U.

Recomendamos dar uma olhada em nossas análises existentes e vídeos sobre o Framework Laptop para obter mais detalhes sobre seus recursos físicos, já que o design permanece inalterado.

Os concorrentes do Framework Laptop 13.5 incluem outros subnotebooks emblemáticos, como oLenovo ThinkPad X1 Nano Gen 3, HP Dragonfly G4,Dell XPS 13 Plus 9320ou o Asus ZenBook S13.

Mais análises da estrutura:

Test device courtesy of Framework

Download your licensed rating image as PNG / SVG

Framework Laptop 13.5 Ryzen 7 7840U (Laptop Serie)

Processador

AMD Ryzen 7 7840U 8 x 3.3 - 5.1 GHz, 51 W PL2 / Short Burst, 35 W PL1 / Sustained, Phoenix-U (Zen 4)

Placa gráfica

AMD Radeon 780M - 512 MB VRAM, Análises do: 2800 MHz, DDR5, 31.0.22011.4008

Memória

16 GB

, ADATA DDR5-5600, 46-45-45-90, Dual-Channel

Pantalha

13.50 polegadas 3:2, 2256 x 1504 pixel 201 PPI, BOE CQ NE135FBM-N41, IPS, BOE0BCA, 60 Hz

placa mãe

AMD Promontory/Bixby FCH

Disco rígido

WD PC SN740 512GB SDDPNQD-512G, 512 GB

Placa de Som

AMD Zen - Audio Processor - HD Audio Controller

Conexões

4 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 3 DisplayPort, Conexões Audio: 3.5 mm combo, Card Reader: MicroSD

Funcionamento em rede

MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Tamanho

altura x largura x profundidade (em mm): 15.85 x 296.63 x 228.98

Bateria

61 Wh Lítio-Polímero

Sistema Operativo

Microsoft Windows 11 Home

Camera

Webcam: 1080p30
Primary Camera: 2.1 MPix

Características adicionais

Teclado: Chiclet, Iluminação do Teclado: sim, 12 Meses Garantia

peso

1.334 kg, Suprimento de energia: 313 g

Preço

1500 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Possíveis concorrentes em comparação

Rating	Date	Model	Weight	Height	Size	Resolution
87.5 %	10/2023	Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M	1.3 kg	15.85 mm	13.50"	2256x1504
85.4 %	07/2021	Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs	1.3 kg	15.85 mm	13.50"	2256x1504
89.5 %	08/2023	Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs	989 g	14.8 mm	13.00"	2160x1350
91.9 %	07/2023	HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs	1.1 kg	16.3 mm	13.50"	1920x1280
87.4 %	07/2023	Dell XPS 13 Plus 9320 Core i7-1360P i7-1360P, Iris Xe G7 96EUs	1.3 kg	15.3 mm	13.40"	3456x2160
85.4 %	05/2023	Asus ZenBook S13 OLED UX5304 i7-1355U, Iris Xe G7 96EUs	1 kg	11.8 mm	13.30"	2880x1800

Caso

Comparação de tamanho

HP Dragonfly G4 Framework Laptop 13.5 Ryzen 7 7840U Framework Laptop 13.5 Dell XPS 13 Plus 9320 Core i7-1360P Lenovo ThinkPad X1 Nano Gen 3 Asus ZenBook S13 OLED UX5304 DIN A4 ❌

Conectividade

Embora todas as quatro portas USB-C ainda estejam presentes, os detalhes são complicados, pois o suporte a Thunderbolt é mais nebuloso entre os PCs AMD. Apenas as duas portas traseiras suportam USB4, enquanto a porta inferior esquerda é apenas USB-C 3.2 e a porta inferior direita é USB-C 3.2 com DisplayPort. Nós mesmos podemos confirmar isso, pois nosso monitor externo funcionaria em apenas três das quatro portas USB-C. O carregamento pode ser feito em qualquer uma das quatro portas.

Os dispositivos Thunderbolt são compatíveis com as duas portas USB-C traseiras.

Comunicação

O modelo da AMD vem com um MediaTek RZ616 para suporte a Wi-Fi 6E e Bluetooth 5.2, em vez do Intel AX210 ou AX211 comum. Mesmo assim, as taxas de transferência são excelentes, mas poderiam ser um pouco mais estáveis.

Networking
iperf3 transmit AX12
Framework Laptop 13.5 Intel Wi-Fi 6E AX210	956 (902^min - 1037^max) MBit/s
iperf3 receive AX12
Framework Laptop 13.5 Intel Wi-Fi 6E AX210	914 (734^min - 1050^max) MBit/s
iperf3 transmit AXE11000
Asus ZenBook S13 OLED UX5304 Intel Wi-Fi 6E AX211	1555 (1319^min - 1613^max) MBit/s +14%
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1364 (1196^min - 1508^max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1232 (966^min - 1415^max) MBit/s -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1118 (1064^min - 1183^max) MBit/s -18%
HP Dragonfly G4 Intel Wi-Fi 6E AX211	973 (879^min - 1016^max) MBit/s -29%
iperf3 receive AXE11000
Asus ZenBook S13 OLED UX5304 Intel Wi-Fi 6E AX211	1439 (1353^min - 1469^max) MBit/s +3%
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1403 (1292^min - 1492^max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1299 (1181^min - 1400^max) MBit/s -7%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1266 (928^min - 1336^max) MBit/s -10%
HP Dragonfly G4 Intel Wi-Fi 6E AX211	1200 (1059^min - 1247^max) MBit/s -14%
iperf3 transmit AXE11000 6GHz
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1514 (1238^min - 1724^max) MBit/s
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1418 (937^min - 1499^max) MBit/s -6%
HP Dragonfly G4 Intel Wi-Fi 6E AX211	1243 (776^min - 1326^max) MBit/s -18%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1094 (570^min - 1214^max) MBit/s -28%
iperf3 receive AXE11000 6GHz
Lenovo ThinkPad X1 Nano Gen 3 Intel Wi-Fi 6E AX211	1302 (1171^min - 1381^max) MBit/s +4%
Framework Laptop 13.5 Ryzen 7 7840U MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1246 (1020^min - 1386^max) MBit/s
HP Dragonfly G4 Intel Wi-Fi 6E AX211	1234 (1042^min - 1336^max) MBit/s -1%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Wi-Fi 6E AX211	1173 (982^min - 1272^max) MBit/s -6%

Framework Laptop 13.5 Ryzen 7 7840U; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1514 (1238-1724)

Framework Laptop 13.5 Ryzen 7 7840U; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1245 (1020-1386)

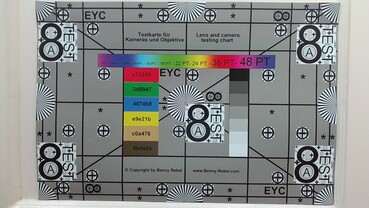

Webcam

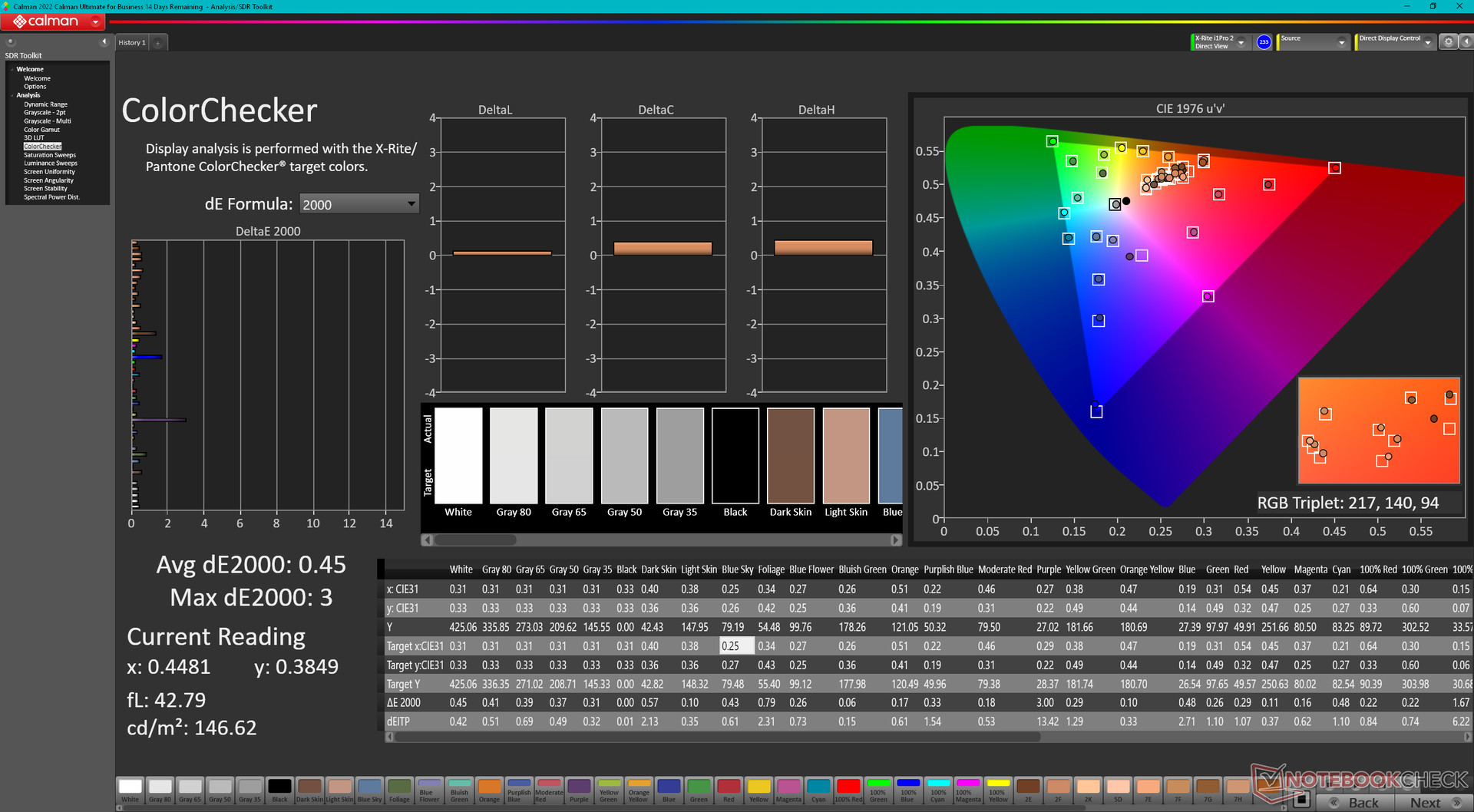

ColorChecker Framework Laptop 13.5 Ryzen 7 7840U: 7.09 ∆E min: 2.2 - max: 14.15 ∆E

Manutenção

A estrutura é muito fácil de usar quando se trata de reparos e atualizações, conforme detalhado em nossa análise existente.

Acessórios e garantia

A versão AMD utiliza as mesmas placas de expansão de porta da versão Intel, incluindo as placas HDMI e DP revisadas. Observe que nenhuma placa de expansão está incluída gratuitamente e é altamente recomendável ter pelo menos uma ou duas em cada compra de laptop.

A garantia limitada padrão de um ano se aplica se a compra for feita nos EUA.

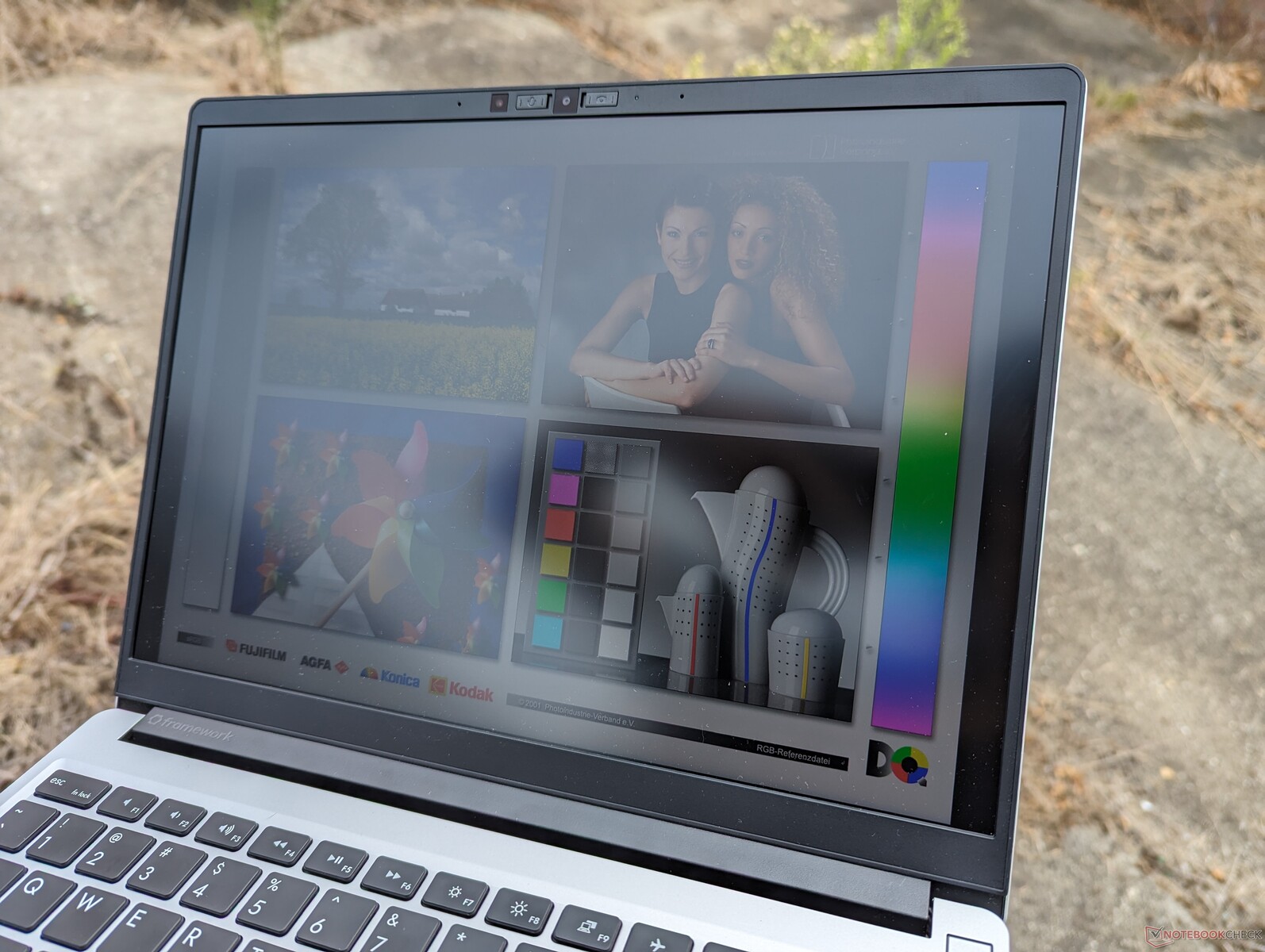

Tela

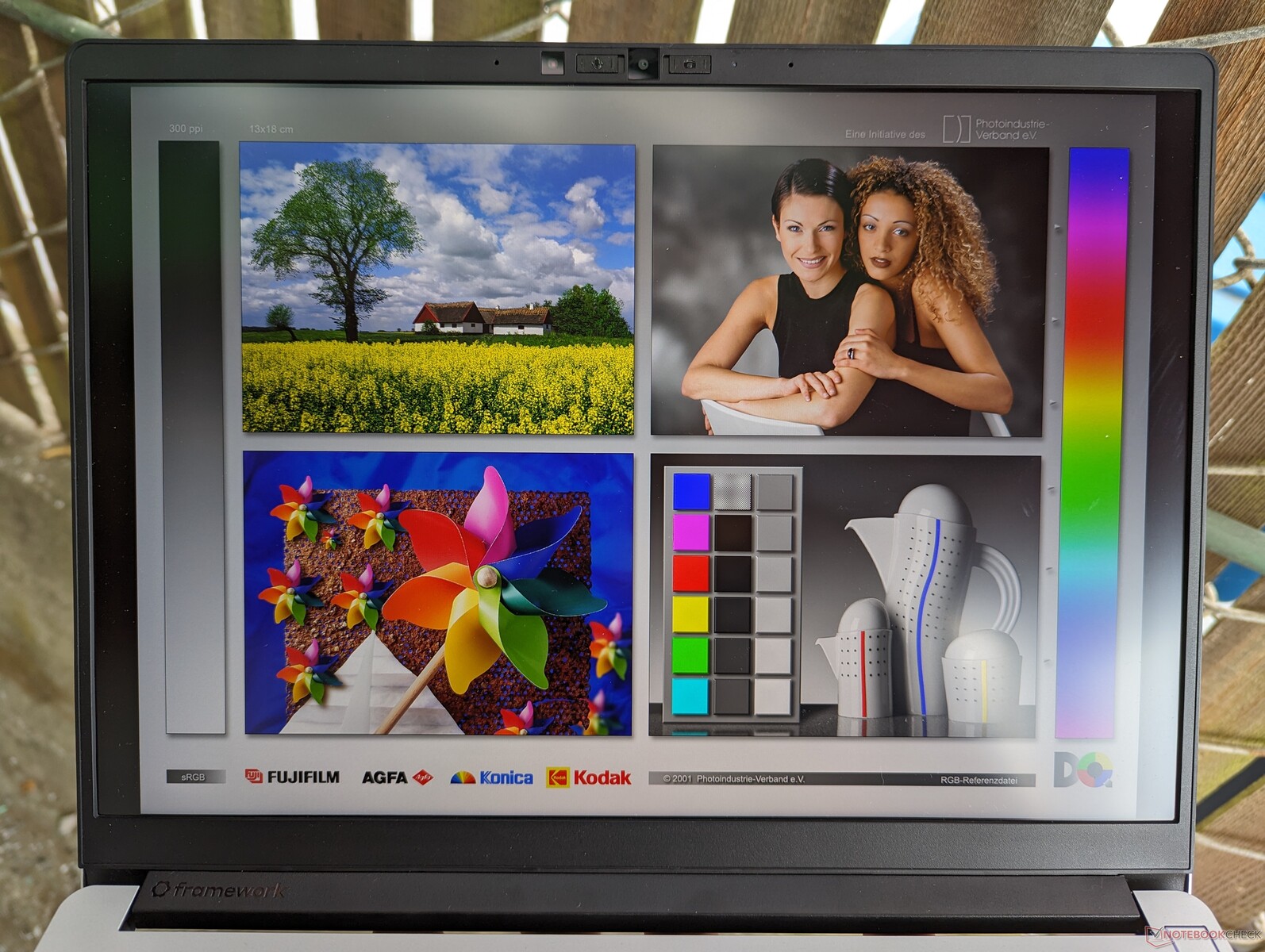

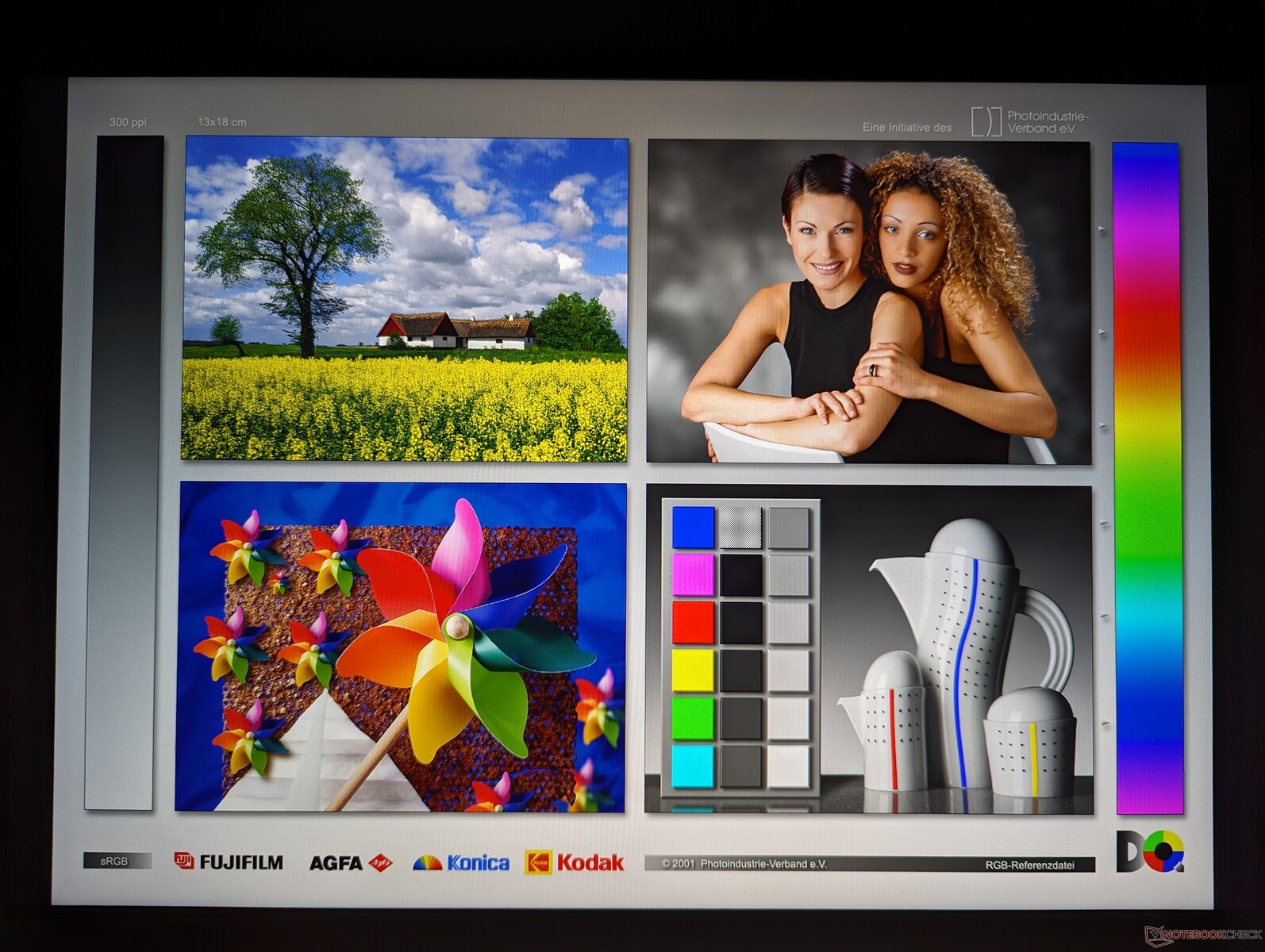

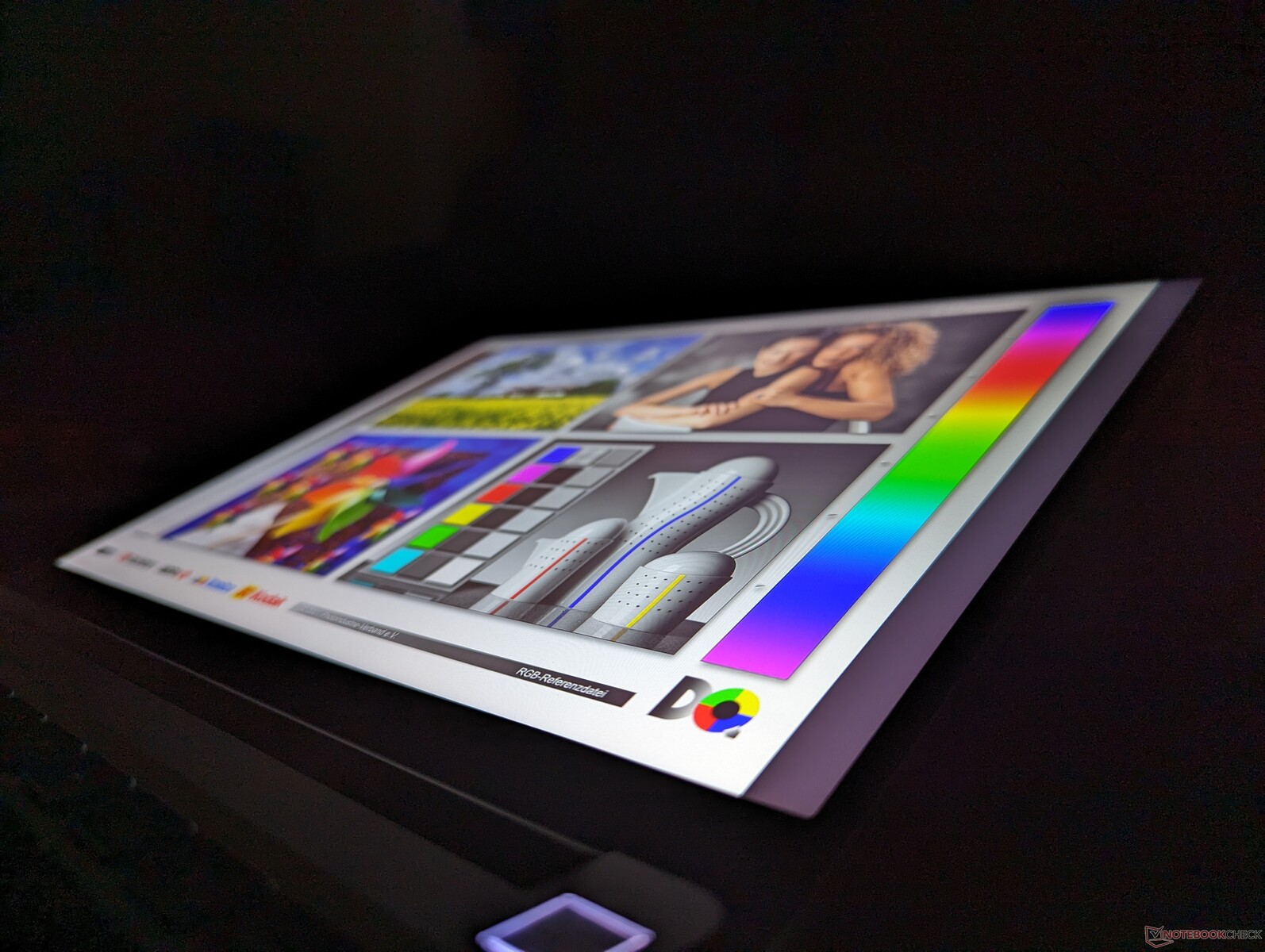

A tela IPS de 2256 x 1504 BOE CQ NE135FBM-N41 não mudou desde o laptop Framework 2021 original. A Framework ainda não ofereceu outras opções de tela com tecnologias mais novas ou melhores, como OLED, mini-LED, taxas de atualização >60 Hz ou tempos de resposta mais rápidos.

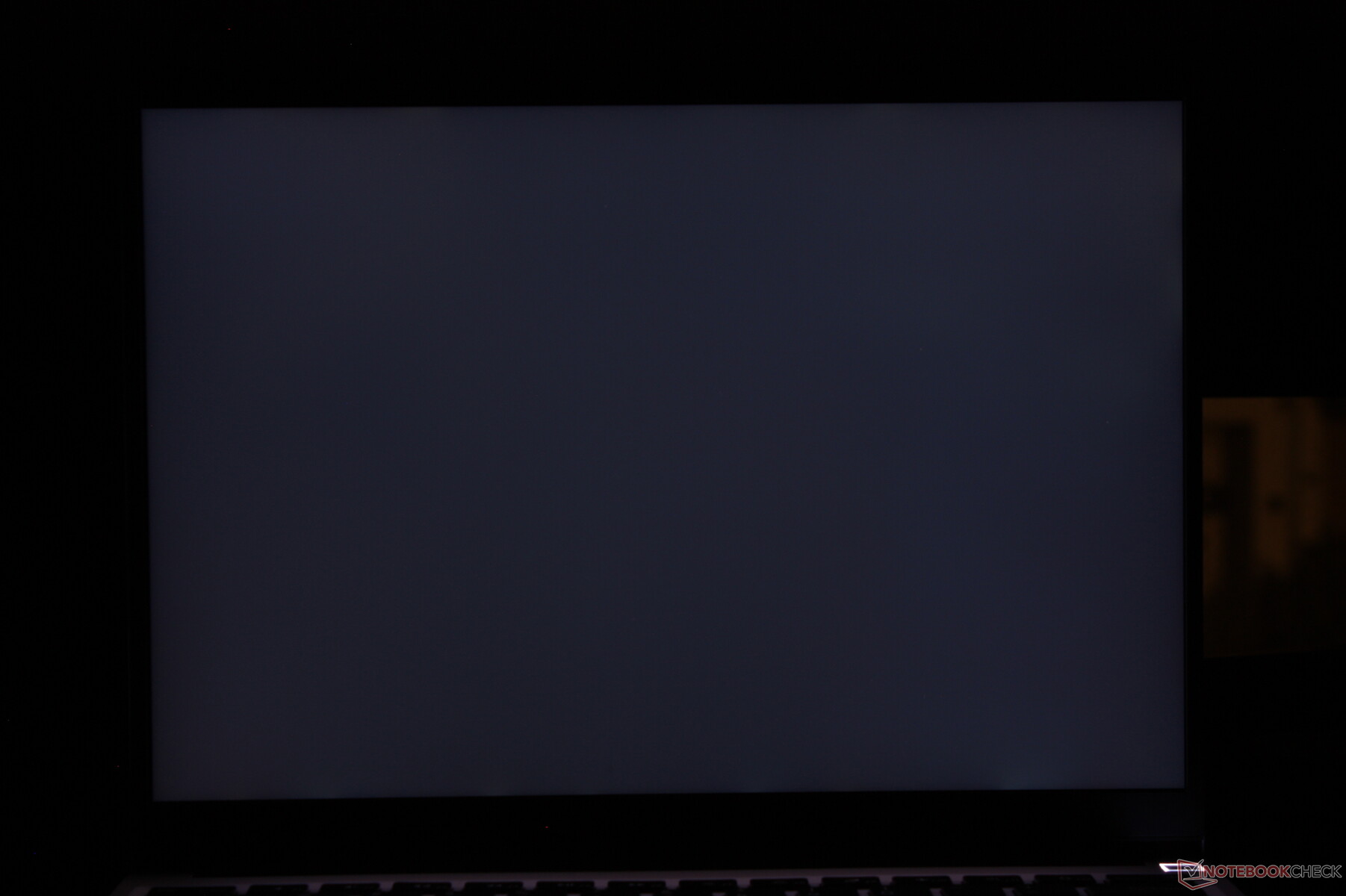

Sangramento mínimo e irregular da luz de fundo


427 cd/m²	439.9 cd/m²	438.2 cd/m²
400.3 cd/m²	436 cd/m²	409.4 cd/m²
390.7 cd/m²	393.1 cd/m²	409 cd/m²

Distribuição do brilho

BOE CQ NE135FBM-N41 tested with X-Rite i1Pro 2

Máximo: 439.9 cd/m² (Nits) Médio: 416 cd/m² Minimum: 20.9 cd/m²
iluminação: 89 %
iluminação com acumulador: 436 cd/m²
Contraste: 1211:1 (Preto: 0.36 cd/m²)
ΔE Color 1.81 | 0.5-29.43 Ø5, calibrated: 0.45

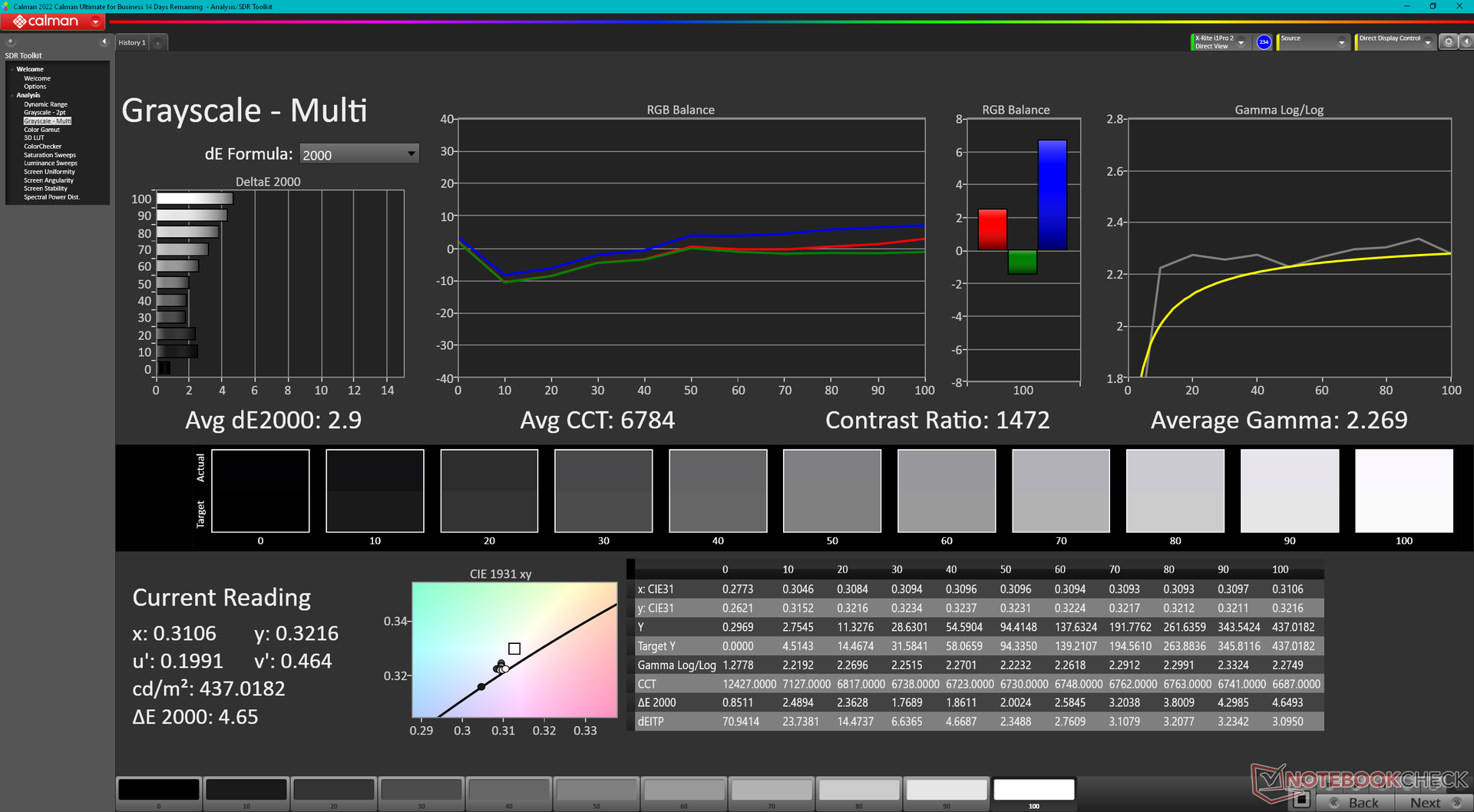

ΔE Greyscale 2.9 | 0.57-98 Ø5.3
71.1% AdobeRGB 1998 (Argyll 2.2.0 3D)

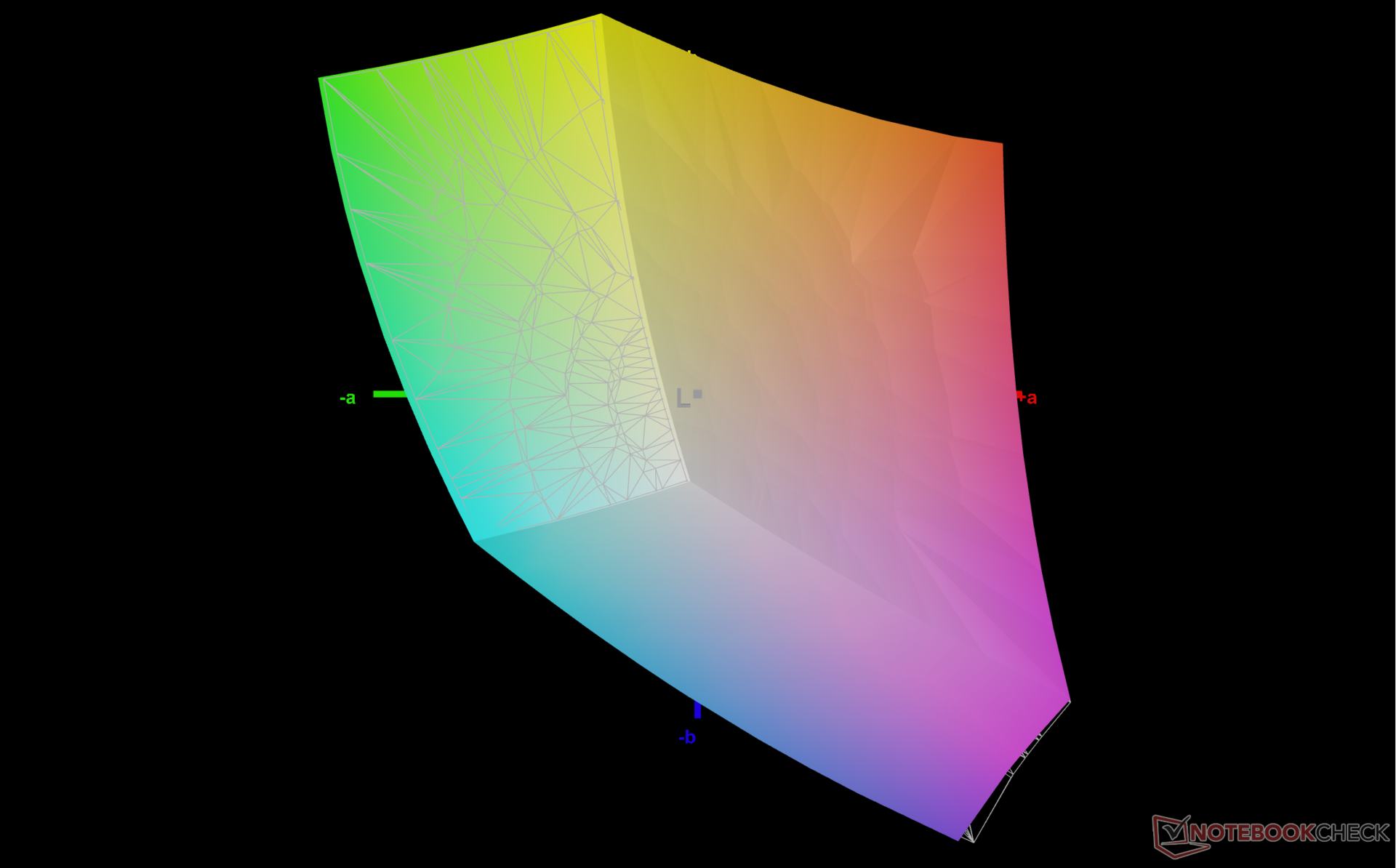

99.1% sRGB (Argyll 2.2.0 3D)
69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

Download Arquivo ICC (X-Rite i1Pro 2)

	Framework Laptop 13.5 Ryzen 7 7840U BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50	Framework Laptop 13.5 13th Gen Intel BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50	Framework Laptop 13.5 12th Gen Intel BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50	Framework Laptop 13.5 BOE CQ NE135FBM-N41, IPS, 2256x1504, 13.50	Lenovo ThinkPad X1 Nano Gen 3 MND007ZA1-3, IPS, 2160x1350, 13.00	HP Dragonfly G4 Chi Mei CMN13C0, IPS, 1920x1280, 13.50
Display		-1%	0%	-0%	-1%	-1%
Display P3 Coverage	69	68.9 0%	69.9 1%	69 0%	68.5 -1%	68.4 -1%
sRGB Coverage	99.1	97.5 -2%	99.4 0%	99.3 0%	99.5 0%	98.3 -1%
AdobeRGB 1998 Coverage	71.1	71.1 0%	71.1 0%	70.3 -1%	69.7 -2%	70.4 -1%
Response Times		-8%	22%	-12%	20%	2%
Response Time Grey 50% / Grey 80% *	50.4 ?(23.8, 26.6)	54.9 ?(24.2, 30.7) -9%	34.7 ?(17.7, 17) 31%	55.6 ?(27.2, 28.4) -10%	39.9 ?(18.7, 21.2) 21%	48.8 ?(22.9, 25.9) 3%
Response Time Black / White *	31.5 ?(17.7, 13.8)	33.5 ?(18.2, 15.3) -6%	27.5 ?(14.8, 12.7) 13%	36 ?(21.2, 14.8) -14%	25.8 ?(11.8, 14) 18%	31.3 ?(16.3, 15) 1%
PWM Frequency
Screen		-37%	-21%	-28%	13%	0%
Brightness middle	436	503 15%	449.6 3%	449 3%	461.2 6%	408.8 -6%
Brightness	416	472 13%	431 4%	435 5%	428 3%	399 -4%
Brightness Distribution	89	87 -2%	90 1%	93 4%	86 -3%	90 1%
Black Level *	0.36	0.36 -0%	0.31 14%	0.39 -8%	0.29 19%	0.32 11%
Contrast	1211	1397 15%	1450 20%	1151 -5%	1590 31%	1278 6%
Colorchecker dE 2000 *	1.81	3.38 -87%	2.76 -52%	2.34 -29%	1.79 1%	2.02 -12%
Colorchecker dE 2000 max. *	4.73	7.08 -50%	7.96 -68%	7.07 -49%	3.3 30%	3.84 19%
Colorchecker dE 2000 calibrated *	0.45	1.21 -169%	0.58 -29%	0.96 -113%	0.47 -4%	0.61 -36%
Greyscale dE 2000 *	2.9	4.8 -66%	5.2 -79%	4.7 -62%	1.8 38%	2.3 21%
Gamma	2.27 ^97%	2.13 ^103%	2.23 ^99%	2.29 ^96%	2.24 ^98%	2.2 ^100%
CCT	6784 ^96%	6235 ^104%	6475 ^100%	6760 ^96%	6588 ^99%	6203 ^105%
Total Average (Program / Settings)		-15% / -25%	0% / -10%	-13% / -20%	11% / 11%	0% / 0%

* ... smaller is better

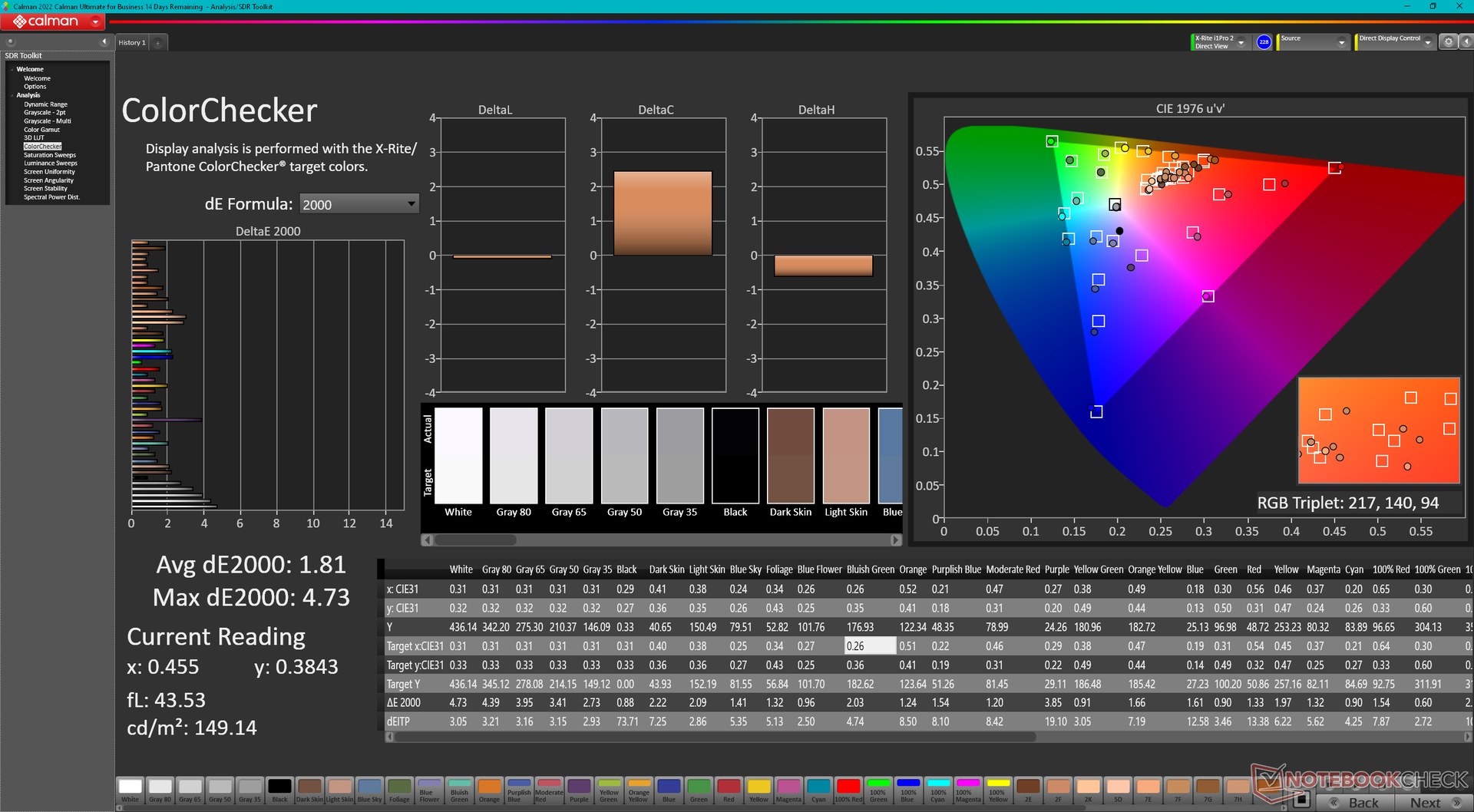

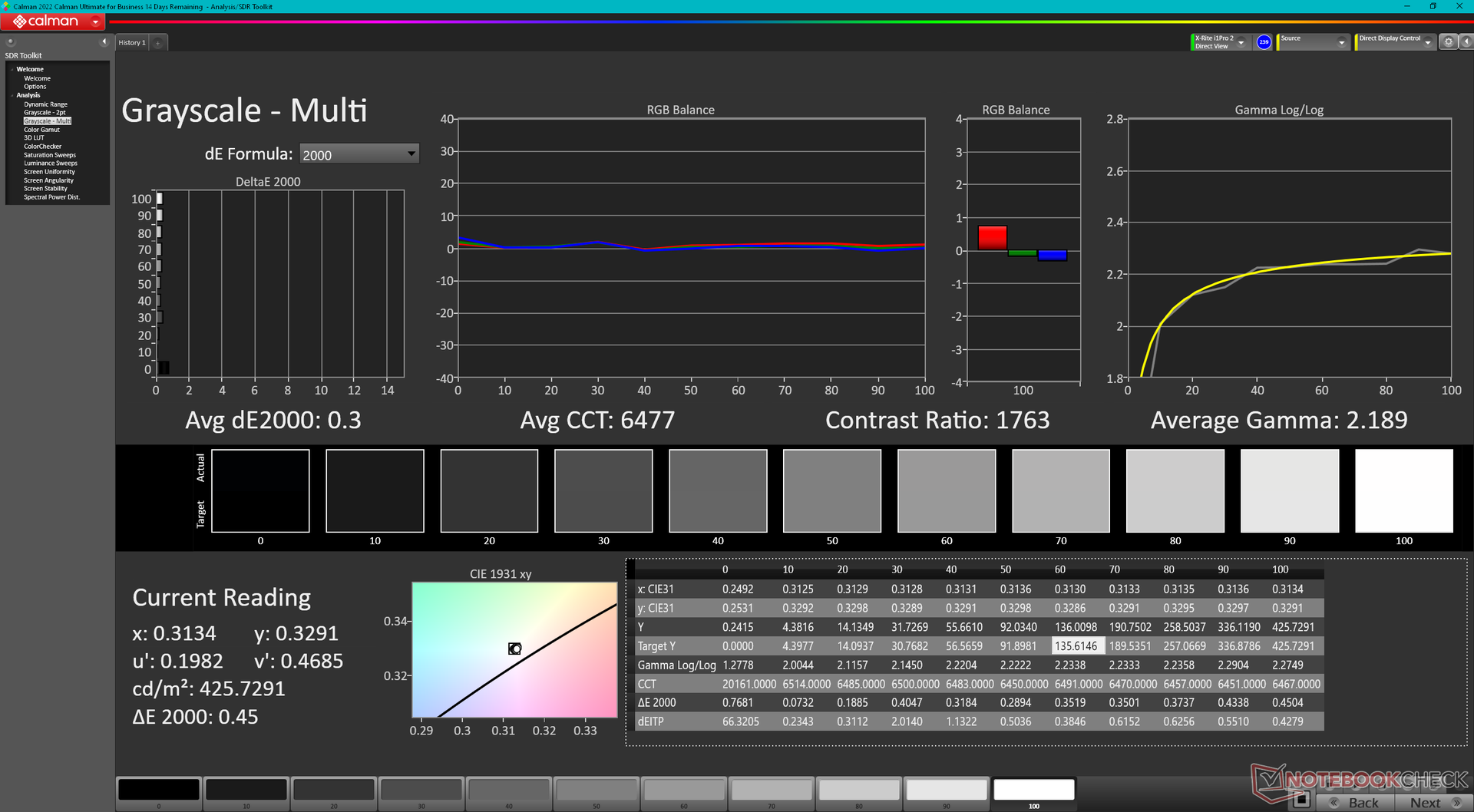

Varreduras de saturação antes da calibração

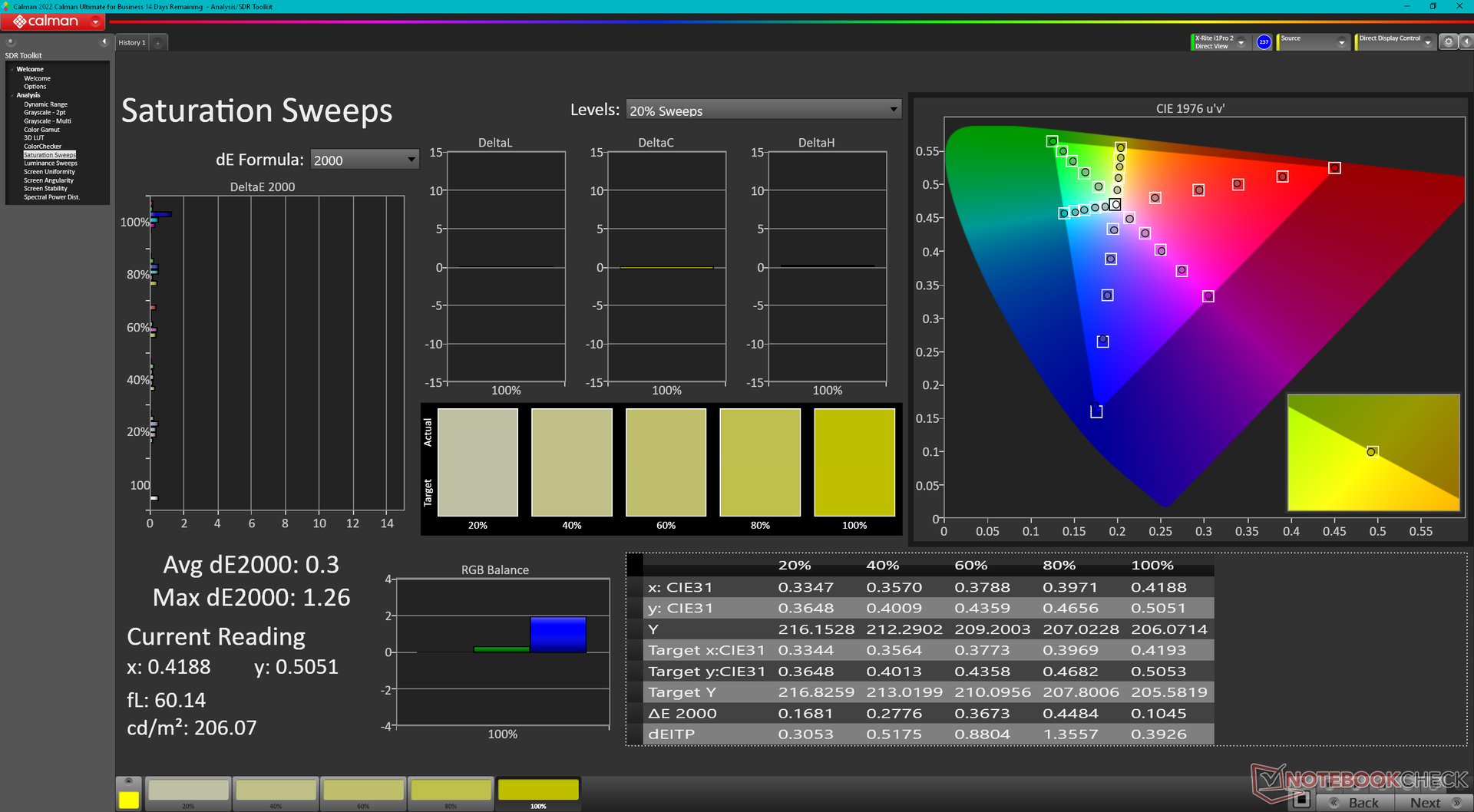

Varreduras de saturação após a calibração

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

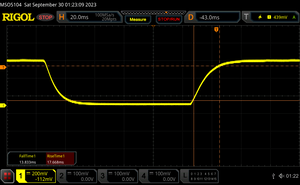

↔ Response Time Black to White
31.5 ms ... rise ↗ and fall ↘ combined	↗ 17.7 ms rise
31.5 ms ... rise ↗ and fall ↘ combined	↘ 13.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 83 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

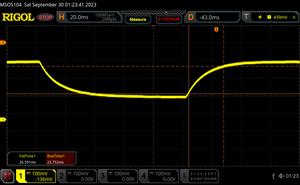

↔ Response Time 50% Grey to 80% Grey
50.4 ms ... rise ↗ and fall ↘ combined	↗ 23.8 ms rise
50.4 ms ... rise ↗ and fall ↘ combined	↘ 26.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 85 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.7 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

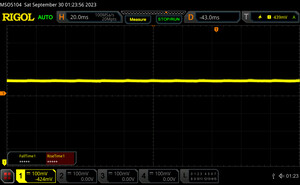

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17903 (minimum: 5 - maximum: 3846000) Hz was measured.

Desempenho

Condições de teste

Definimos o Windows para o modo Desempenho antes de executar os benchmarks abaixo. A estrutura não inclui nenhum software pré-instalado do tipo centro de controle para ajustar quaisquer recursos especializados, mas recomendamos a instalação do AMD Adrenalin para melhor controle sobre a GPU integrada.

Processador

Após o decepcionante Zen 3 Ryzen 7 7730Ufinalmente estamos começando a ver mais notebooks com o Zen 4 Ryzen 7 7840U se tornarem disponíveis. Essa CPU da série U, há muito esperada, está em pé de igualdade com a série H Core i7-12700H exigindo apenas uma fração da potência. Ela também supera marginalmente o desempenho da 13ª geração do Core i7-1370P encontrado no Framework Laptop baseado em Intel em cargas de trabalho multithread.

No entanto, o desempenho de thread único é cerca de 15% mais lento do que o Core i7-1370P para ficar mais alinhado com uma CPU Intel de 12ª geração, como o Core i7-1260P. Esse déficit não deve ser uma grande surpresa, já que as CPUs da AMD geralmente ficam um pouco atrás nesse quesito.

Ainda não testamos um laptop Ryzen 5 7640U internamente e, portanto, não podemos dizer com certeza quanto de perda de desempenho é esperada ao fazer o downgrade do nosso Ryzen 7 7840U para o Ryzen 5 7640U até o momento.

Cinebench R15 Multi Loop

Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U: Ø2158 (2124.16-2204.83)

Framework Laptop 13.5 Intel Core i7-1165G7: Ø845 (812.27-850.43)

Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P: Ø1109 (808.08-1572.33)

HP Dragonfly G4 Intel Core i7-1365U: Ø1060 (1014.74-1347.89)

Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P: Ø1507 (1397.72-1950.55)

Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U: Ø1024 (989.63-1358.19)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	84.3 pt
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	81.3 pt
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	80.6 pt
SCHENKER Vision 14 2023 Intel Core i7-13700H	78.1 pt
Average AMD Ryzen 7 7840U	74.8 pt
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	74.1 pt
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	69.8 pt
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	69.7 pt
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	63.7 pt
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	63.4 pt
HP Dragonfly G4 Intel Core i7-1365U	62.9 pt
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	57.9 pt
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	46.9 pt
Framework Laptop 13.5 ^-2! Intel Core i7-1165G7	46.1 pt
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	44 pt
Dell XPS 13 9310 Core i7 FHD ^-2! Intel Core i7-1165G7	43.5 pt

Cinebench R23 / Multi Core
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	13981 (12822.5^min - 13981.2^max) Points
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	13572 Points -3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	13159 (11903.7^min - 13158.6^max) Points -6%
Average AMD Ryzen 7 7840U (11739 - 15074, n=10)	12884 Points -8%
SCHENKER Vision 14 2023 Intel Core i7-13700H	12275 Points -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	11992 Points -14%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	11503 (9427.43^min - 11502.9^max) Points -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	10405 (10008.9^min - 10404.6^max) Points -26%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	10325 Points -26%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	9392 Points -33%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	8198 (6706.67^min - 8197.58^max) Points -41%
HP Dragonfly G4 Intel Core i7-1365U	7532 (5307.67^min - 7531.78^max) Points -46%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	5504 (5281.5^min - 5504.22^max) Points -61%
Framework Laptop 13.5 Intel Core i7-1165G7	5477 (5385.09^min - 5477.06^max) Points -61%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	5186 Points -63%

Cinebench R23 / Single Core
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	1995 Points +21%
SCHENKER Vision 14 2023 Intel Core i7-13700H	1912 Points +16%
HP Dragonfly G4 Intel Core i7-1365U	1891 Points +15%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	1848 Points +12%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	1704 Points +3%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	1701 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	1647 Points
Average AMD Ryzen 7 7840U (1373 - 1742, n=10)	1646 Points 0%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1640 Points 0%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	1621 Points -2%
Framework Laptop 13.5 Intel Core i7-1165G7	1507 Points -9%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	1466 Points -11%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	1457 Points -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	1455 Points -12%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	1218 Points -26%

Cinebench R20 / CPU (Multi Core)
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	5425 Points
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	5247 Points -3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	5079 Points -6%
Average AMD Ryzen 7 7840U (4469 - 5917, n=10)	5039 Points -7%
SCHENKER Vision 14 2023 Intel Core i7-13700H	4870 Points -10%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	4634 Points -15%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	4424 Points -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	4033 Points -26%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	3985 Points -27%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	3526 Points -35%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	3424 Points -37%
HP Dragonfly G4 Intel Core i7-1365U	2902 Points -47%
Framework Laptop 13.5 Intel Core i7-1165G7	2119 Points -61%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	2101 Points -61%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	1982 Points -63%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	1913 Points -65%

Cinebench R20 / CPU (Single Core)
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	764 Points +17%
SCHENKER Vision 14 2023 Intel Core i7-13700H	734 Points +13%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	707 Points +9%
HP Dragonfly G4 Intel Core i7-1365U	703 Points +8%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	690 Points +6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	672 Points +3%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	668 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	651 Points
Average AMD Ryzen 7 7840U (533 - 678, n=10)	644 Points -1%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	616 Points -5%
Framework Laptop 13.5 Intel Core i7-1165G7	580 Points -11%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	573 Points -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	570 Points -12%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	559 Points -14%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	557 Points -14%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	431 Points -34%

Cinebench R15 / CPU Multi 64Bit
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	2492 (1843.32^min - 2492.21^max) Points +13%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	2333 (2007.13^min - 2332.91^max) Points +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	2205 (2124.16^min - 2204.83^max) Points
SCHENKER Vision 14 2023 Intel Core i7-13700H	2000 (1907.49^min - 1999.5^max) Points -9%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	1987 (1933.96^min - 1986.89^max) Points -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	1951 (1397.72^min - 1950.55^max) Points -12%
Average AMD Ryzen 7 7840U (1025 - 2439, n=12)	1946 Points -12%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	1718.58 (1668.54^min - 1718.58^max) Points -22%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1623 (1546.61^min - 1622.59^max) Points -26%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	1592 Points -28%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	1572 (808.08^min - 1572.33^max) Points -29%
HP Dragonfly G4 Intel Core i7-1365U	1348 (1014.74^min - 1347.89^max) Points -39%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	970 (913.26^min - 969.84^max) Points -56%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	961 Points -56%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	918 Points -58%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	852 (828.74^min - 851.79^max) Points -61%
Framework Laptop 13.5 Intel Core i7-1165G7	850 (812.27^min - 850.43^max) Points -61%

Cinebench R15 / CPU Single 64Bit
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	284 Points +14%
SCHENKER Vision 14 2023 Intel Core i7-13700H	276 Points +11%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	263 Points +6%
HP Dragonfly G4 Intel Core i7-1365U	261 Points +5%
Average AMD Ryzen 7 7840U (217 - 272, n=10)	256 Points +3%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	252 Points +1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	249 Points
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	245 Points -2%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	239 Points -4%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	234 Points -6%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	233 Points -6%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	226 Points -9%
Framework Laptop 13.5 Intel Core i7-1165G7	224 Points -10%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	218 Points -12%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	217 Points -13%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	208 Points -16%

Blender / v2.79 BMW27 CPU
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	632 Seconds * -175%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	554 Seconds * -141%
Framework Laptop 13.5 Intel Core i7-1165G7	551 Seconds * -140%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	509 Seconds * -121%
HP Dragonfly G4 Intel Core i7-1365U	430 Seconds * -87%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	381 Seconds * -66%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	369 Seconds * -60%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	301 Seconds * -31%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	296 Seconds * -29%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	279 Seconds * -21%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	258 Seconds * -12%
Average AMD Ryzen 7 7840U (208 - 270, n=10)	251 Seconds * -9%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	246 Seconds * -7%
SCHENKER Vision 14 2023 Intel Core i7-13700H	238 Seconds * -3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	230 Seconds *
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	225 Seconds * +2%

7-Zip 18.03 / 7z b 4
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	61902 MIPS
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	60030 MIPS -3%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	56170 MIPS -9%
Average AMD Ryzen 7 7840U (50087 - 62156, n=10)	55687 MIPS -10%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	55049 MIPS -11%
SCHENKER Vision 14 2023 Intel Core i7-13700H	54766 MIPS -12%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	47737 MIPS -23%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	47733 MIPS -23%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	44426 MIPS -28%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	40777 MIPS -34%
HP Dragonfly G4 Intel Core i7-1365U	33476 MIPS -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	33022 MIPS -47%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	26001 MIPS -58%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	25319 MIPS -59%
Framework Laptop 13.5 Intel Core i7-1165G7	24436 MIPS -61%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	20843 MIPS -66%

7-Zip 18.03 / 7z b 4 -mmt1
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	6687 MIPS +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	6408 MIPS
SCHENKER Vision 14 2023 Intel Core i7-13700H	6229 MIPS -3%
HP Dragonfly G4 Intel Core i7-1365U	5835 MIPS -9%
Average AMD Ryzen 7 7840U (4657 - 6408, n=10)	5816 MIPS -9%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	5767 MIPS -10%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	5756 MIPS -10%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	5661 MIPS -12%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	5526 MIPS -14%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	5495 MIPS -14%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	5426 MIPS -15%
Framework Laptop 13.5 Intel Core i7-1165G7	5405 MIPS -16%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	5283 MIPS -18%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	5208 MIPS -19%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	4851 MIPS -24%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	4791 MIPS -25%

Geekbench 5.5 / Multi-Core
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	12843 Points +22%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	11744 Points +11%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	10817 Points +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	10558 Points
SCHENKER Vision 14 2023 Intel Core i7-13700H	10515 Points 0%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	9687 Points -8%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	9678 Points -8%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	9298 Points -12%
Average AMD Ryzen 7 7840U (7399 - 10558, n=10)	9113 Points -14%
HP Dragonfly G4 Intel Core i7-1365U	8778 Points -17%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	6747 Points -36%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	5682 Points -46%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	5583 Points -47%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	5402 Points -49%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	4286 Points -59%

Geekbench 5.5 / Single-Core
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	1974 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	1912 Points
HP Dragonfly G4 Intel Core i7-1365U	1902 Points -1%
SCHENKER Vision 14 2023 Intel Core i7-13700H	1830 Points -4%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	1825 Points -5%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	1804 Points -6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	1762 Points -8%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	1759 Points -8%
Average AMD Ryzen 7 7840U (1355 - 1933, n=10)	1705 Points -11%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	1588 Points -17%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	1547 Points -19%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	1498 Points -22%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	1492 Points -22%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	1490 Points -22%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	1430 Points -25%

HWBOT x265 Benchmark v2.2 / 4k Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	17.4 fps
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	16.7 fps -4%
Average AMD Ryzen 7 7840U (14.4 - 18.6, n=10)	15.7 fps -10%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	15.1 fps -13%
SCHENKER Vision 14 2023 Intel Core i7-13700H	14.7 fps -16%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	14.5 fps -17%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	13.2 fps -24%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	12.2 fps -30%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	11.8 fps -32%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	11.5 fps -34%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	10.1 fps -42%
HP Dragonfly G4 Intel Core i7-1365U	8.61 fps -51%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	7.55 fps -57%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	7.06 fps -59%
Framework Laptop 13.5 Intel Core i7-1165G7	7.05 fps -59%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	5.84 fps -66%

LibreOffice / 20 Documents To PDF
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	61.8 s * -40%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	55 s * -25%
SCHENKER Vision 14 2023 Intel Core i7-13700H	52.8 s * -20%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	51.1 s * -16%
Average AMD Ryzen 7 7840U (43.4 - 67.1, n=10)	50.1 s * -14%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	49.6 s * -12%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	49.1 s * -11%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	46.7 s * -6%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	46.5 s * -5%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	46.5 s * -5%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	46.2 s * -5%
HP Dragonfly G4 Intel Core i7-1365U	45.3 s * -3%
Framework Laptop 13.5 Intel Core i7-1165G7	45.1 s * -2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	44.1 s *
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	42.9 s * +3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	39.6 s * +10%

R Benchmark 2.5 / Overall mean
Huawei MateBook 13s i5 11300H Intel Core i5-11300H	0.624 sec * -37%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7	0.587 sec * -29%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7	0.586 sec * -29%
Framework Laptop 13.5 Intel Core i7-1165G7	0.566 sec * -24%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P	0.524 sec * -15%
Lenovo ThinkPad E16 G1-21JUS08X00 AMD Ryzen 7 7730U	0.515 sec * -13%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS	0.512 sec * -12%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P	0.4834 sec * -6%
Average AMD Ryzen 7 7840U (0.4559 - 0.581, n=10)	0.4812 sec * -6%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P	0.4675 sec * -3%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H	0.4669 sec * -2%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P	0.4634 sec * -2%
HP Dragonfly G4 Intel Core i7-1365U	0.4586 sec * -1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U	0.456 sec *
SCHENKER Vision 14 2023 Intel Core i7-13700H	0.4409 sec * +3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P	0.4244 sec * +7%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2205 Points

Cinebench R15 OpenGL 64Bit

191.7 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

249 Points

Ajuda

... comparado com

Performance Rating
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	96.4 pt
Average AMD Ryzen 7 7840U	87.3 pt
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	77.7 pt
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	73.2 pt
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	67 pt
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	64.7 pt
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	59.5 pt
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	47.7 pt
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	44.1 pt
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	44 pt
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	42.5 pt
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	42.3 pt
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	42.1 pt
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	37.6 pt

AIDA64 / FP32 Ray-Trace
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	22071 KRay/s
Average AMD Ryzen 7 7840U (17924 - 25901, n=9)	20518 KRay/s -7%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	13498 KRay/s -39%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	13411 KRay/s -39%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	12603 KRay/s -43%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	11995 KRay/s -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	10385 KRay/s -53%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	8273 KRay/s -63%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	7483 KRay/s -66%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	7006 KRay/s -68%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	6926 KRay/s -69%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	6720 KRay/s -70%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	5648 KRay/s -74%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	5469 KRay/s -75%

AIDA64 / FPU Julia
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	93684 Points
Average AMD Ryzen 7 7840U (78360 - 109745, n=9)	86913 Points -7%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	86254 Points -8%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	67282 Points -28%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	62873 Points -33%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	60283 Points -36%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	51798 Points -45%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	38303 Points -59%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	33979 Points -64%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	33777 Points -64%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	29808 Points -68%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	28738 Points -69%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	26279 Points -72%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	24102 Points -74%

AIDA64 / CPU SHA3
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	4256 MB/s
Average AMD Ryzen 7 7840U (3519 - 4847, n=9)	3990 MB/s -6%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	3161 MB/s -26%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	2953 MB/s -31%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	2872 MB/s -33%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	2799 MB/s -34%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	2507 MB/s -41%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	2286 MB/s -46%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	1988 MB/s -53%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	1941 MB/s -54%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	1919 MB/s -55%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	1818 MB/s -57%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	1754 MB/s -59%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	1750 MB/s -59%

AIDA64 / CPU Queen
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	107879 Points
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	104796 Points -3%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	101744 Points -6%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	100537 Points -7%
Average AMD Ryzen 7 7840U (83206 - 113343, n=9)	97831 Points -9%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	84106 Points -22%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	83978 Points -22%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	74983 Points -30%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	73454 Points -32%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	73159 Points -32%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	69991 Points -35%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	52815 Points -51%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	50212 Points -53%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	49312 Points -54%

AIDA64 / FPU SinJulia
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	13499 Points
Average AMD Ryzen 7 7840U (11969 - 14822, n=9)	12883 Points -5%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	12044 Points -11%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	8525 Points -37%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	8407 Points -38%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	7167 Points -47%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	6658 Points -51%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	6386 Points -53%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	5839 Points -57%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	5361 Points -60%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	4836 Points -64%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	4790 Points -65%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	4677 Points -65%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	4589 Points -66%

AIDA64 / FPU Mandel
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	50190 Points
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	47307 Points -6%
Average AMD Ryzen 7 7840U (40720 - 58482, n=9)	46233 Points -8%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	32763 Points -35%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	31388 Points -37%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	29631 Points -41%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	25424 Points -49%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	20202 Points -60%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	18819 Points -63%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	18008 Points -64%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	17453 Points -65%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	16808 Points -67%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	15417 Points -69%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	15013 Points -70%

AIDA64 / CPU AES
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	147611 MB/s
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	120077 MB/s -19%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	107331 MB/s -27%
Average AMD Ryzen 7 7840U (53018 - 166333, n=9)	98485 MB/s -33%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	71494 MB/s -52%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	67684 MB/s -54%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	67623 MB/s -54%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	64120 MB/s -57%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	62266 MB/s -58%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	56935 MB/s -61%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	49725 MB/s -66%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	38652 MB/s -74%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	37413 MB/s -75%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	34968 MB/s -76%

AIDA64 / CPU ZLib
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	915 MB/s
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	888 MB/s -3%
Average AMD Ryzen 7 7840U (801 - 1047, n=9)	867 MB/s -5%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	819 MB/s -10%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	808 MB/s -12%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	760 MB/s -17%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	735 MB/s -20%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	682 MB/s -25%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	635 MB/s -31%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	553 MB/s -40%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	519 MB/s -43%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	398 MB/s -57%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	384 MB/s -58%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	356 MB/s -61%

AIDA64 / FP64 Ray-Trace
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	11834 KRay/s
Average AMD Ryzen 7 7840U (9347 - 13846, n=9)	10815 KRay/s -9%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	7382 KRay/s -38%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	7183 KRay/s -39%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	6899 KRay/s -42%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	6372 KRay/s -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	5569 KRay/s -53%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	4454 KRay/s -62%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	3994 KRay/s -66%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	3760 KRay/s -68%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	3759 KRay/s -68%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	3513 KRay/s -70%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	3235 KRay/s -73%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	3096 KRay/s -74%

AIDA64 / CPU PhotoWorxx
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, GeForce RTX 3050 4GB Laptop GPU	52207 MPixel/s +56%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	49328 MPixel/s +47%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Iris Xe G7 96EUs	44356 MPixel/s +32%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	44286 MPixel/s +32%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Iris Xe G7 96EUs	40421 MPixel/s +20%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	37846 MPixel/s +13%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Iris Xe G7 80EUs	36770 MPixel/s +10%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	33560 MPixel/s
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Iris Xe G7 80EUs	33424 MPixel/s 0%
Average AMD Ryzen 7 7840U (26622 - 38173, n=9)	32334 MPixel/s -4%
Asus ROG Zephyrus G14 GA402RJ AMD Ryzen 7 6800HS, Radeon RX 6700S	27474 MPixel/s -18%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Iris Xe G7 96EUs	27048 MPixel/s -19%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Iris Xe G7 96EUs	26054 MPixel/s -22%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	14295 MPixel/s -57%

Desempenho do sistema

PCMark 10 / Score
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	7157 Points
Average AMD Ryzen 7 7840U, AMD Radeon 780M (5866 - 7157, n=9)	6470 Points -10%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6026 Points -16%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	5796 Points -19%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	5690 Points -20%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	5576 Points -22%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	4768 Points -33%

PCMark 10 / Essentials
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11144 Points +1%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	11081 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	10853 Points -2%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	10611 Points -4%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	10605 Points -4%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	10260 Points -7%
Average AMD Ryzen 7 7840U, AMD Radeon 780M (9068 - 11081, n=9)	9993 Points -10%

PCMark 10 / Productivity
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	9989 Points
Average AMD Ryzen 7 7840U, AMD Radeon 780M (7323 - 10099, n=9)	9011 Points -10%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	7430 Points -26%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7263 Points -27%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	7206 Points -28%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	7182 Points -28%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	5570 Points -44%

PCMark 10 / Digital Content Creation
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	8987 Points
Average AMD Ryzen 7 7840U, AMD Radeon 780M (7204 - 8987, n=9)	8191 Points -9%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7338 Points -18%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	6702 Points -25%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	6392 Points -29%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	6177 Points -31%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	5146 Points -43%

CrossMark / Overall
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1773 Points +5%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1748 Points +4%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1682 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1628 Points -3%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1592 Points -5%
Average AMD Ryzen 7 7840U, AMD Radeon 780M (1256 - 1804, n=9)	1513 Points -10%

CrossMark / Productivity
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1666 Points +2%
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1661 Points +2%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1627 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1620 Points 0%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1566 Points -4%
Average AMD Ryzen 7 7840U, AMD Radeon 780M (1261 - 1798, n=9)	1499 Points -8%

CrossMark / Creativity
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2003 Points +9%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1951 Points +6%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1835 Points
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1731 Points -6%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1696 Points -8%
Average AMD Ryzen 7 7840U, AMD Radeon 780M (1251 - 1835, n=9)	1604 Points -13%

CrossMark / Responsiveness
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1493 Points +4%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1450 Points +1%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1429 Points
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1386 Points -3%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1373 Points -4%
Average AMD Ryzen 7 7840U, AMD Radeon 780M (1082 - 1775, n=9)	1318 Points -8%

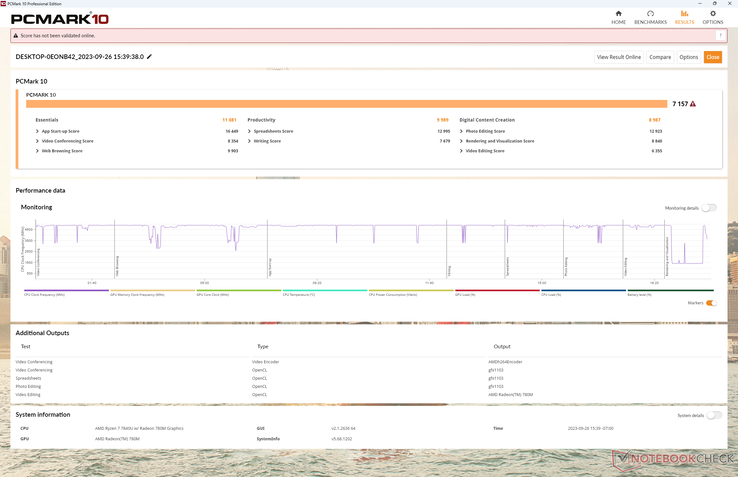

PCMark 10 Score		7157 pontos
Ajuda

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	72748 MB/s +16%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	71500 MB/s +14%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	62540 MB/s
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	59942 MB/s -4%
Average AMD Ryzen 7 7840U (43255 - 70532, n=10)	59679 MB/s -5%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	58331 MB/s -7%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	24957 MB/s -60%

AIDA64 / Memory Read
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	68945 MB/s +12%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	65355 MB/s +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	61602 MB/s
Average AMD Ryzen 7 7840U (37399 - 61602, n=9)	49792 MB/s -19%
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	49758 MB/s -19%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	49203 MB/s -20%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	25785 MB/s -58%

AIDA64 / Memory Write
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	93331 MB/s +20%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	89865 MB/s +15%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	77965 MB/s
Average AMD Ryzen 7 7840U (49426 - 92289, n=11)	73347 MB/s -6%
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	72418 MB/s -7%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	70434 MB/s -10%
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	23454 MB/s -70%

AIDA64 / Memory Latency
Average AMD Ryzen 7 7840U (90 - 137.2, n=10)	120 ns * -33%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Iris Xe G7 96EUs	98.1 ns * -9%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Iris Xe G7 96EUs	93.2 ns * -4%
HP Dragonfly G4 Intel Core i7-1365U, Iris Xe G7 96EUs	90.2 ns * -0%
Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Iris Xe G7 96EUs	90.1 ns * -0%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, Radeon 780M	90 ns *
Framework Laptop 13.5 Intel Core i7-1165G7, Iris Xe G7 96EUs	74.2 ns * +18%

* ... smaller is better

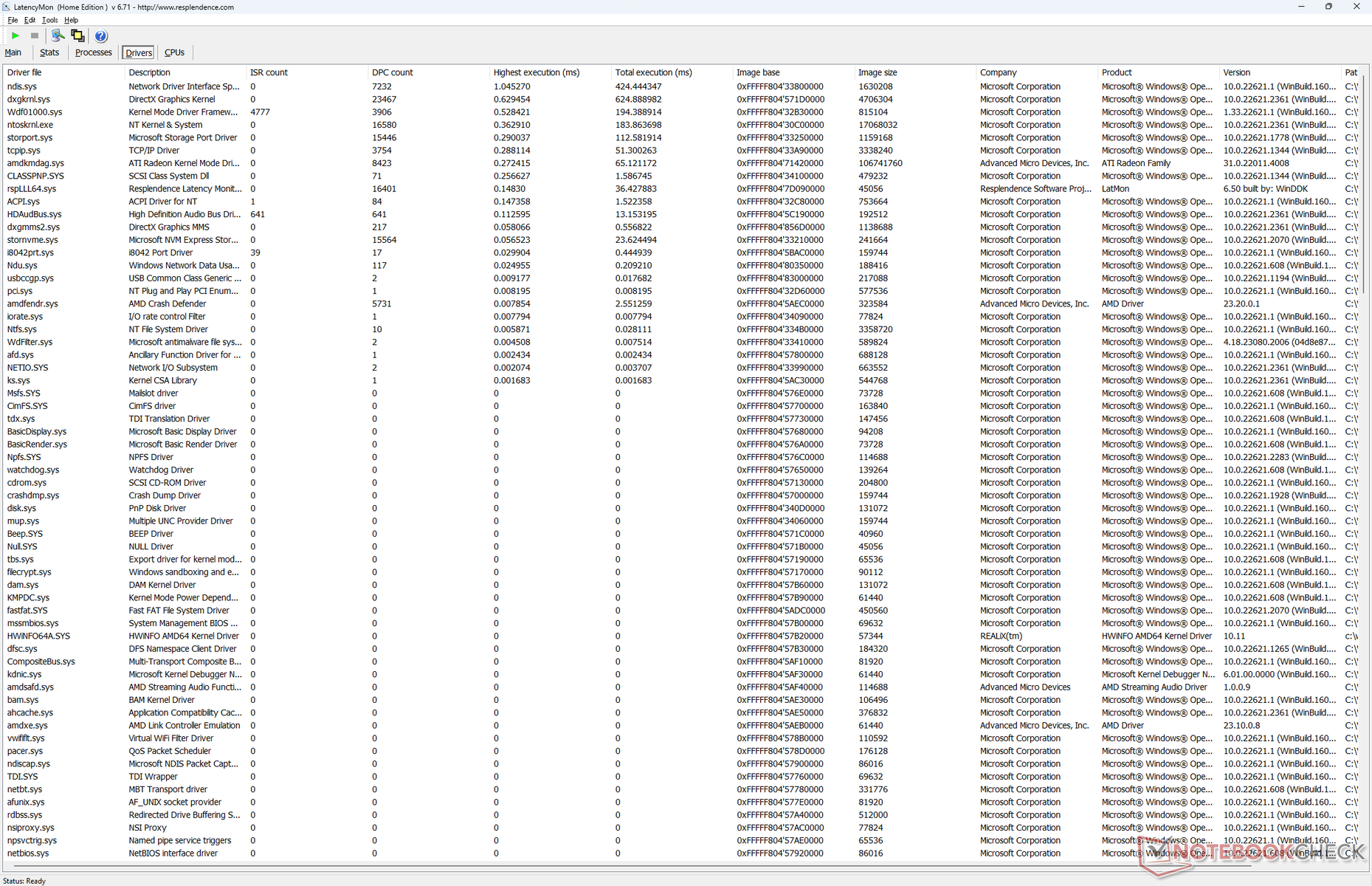

Latência DPC

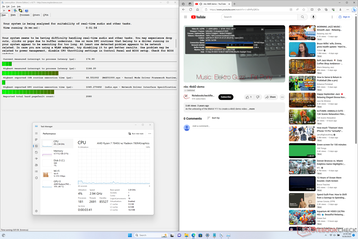

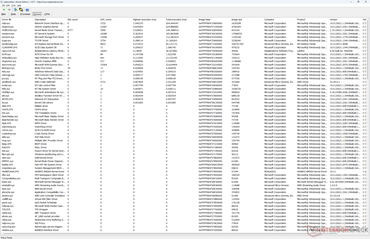

O LatencyMon revela apenas pequenos problemas de DPC ao abrir várias guias de nossa página inicial. a reprodução de vídeo 4K a 60 FPS é imperfeita, com 6 quadros perdidos registrados durante o período de um minuto. Os sistemas AMD, como o Legion Slim 5 14 ou o Aokzoe A1, parecem estar apresentando mais problemas relacionados a quedas de quadros do que a Intel ultimamente.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16813.1 μs * -1369%
Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2122.6 μs * -86%
Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	1918 μs * -68%
Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR	1321.9 μs * -16%
HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	1181 μs * -3%
Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	1144.2 μs *

* ... smaller is better

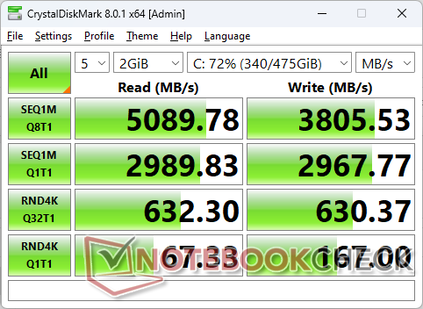

Dispositivos de armazenamento

A estrutura oferece apenas Unidades da Western Digital provavelmente devido a um acordo de exclusividade com o fabricante de SSDs. Obviamente, os usuários podem instalar facilmente suas próprias unidades em vez das desejadas.

DiskSpd

WD PC SN740 512GB SDDPNQD-512G

DiskSpd seq_q8t1_read: 5098MB/s

DiskSpd seq_q8t1_write: 3759MB/s

DiskSpd seq_read: 3184MB/s

DiskSpd seq_write: 3249MB/s

DiskSpd 4k_q32t16_read: 1505MB/s

DiskSpd 4k_q32t16_write: 627MB/s

DiskSpd 4k_q1t1_read: 62.7MB/s

DiskSpd 4k_q1t1_write: 164.7MB/s

DiskSpd Loop seq_q8t1_read: 5070MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	96.3 pt
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	68.4 pt
Average WD PC SN740 512GB SDDPNQD-512G	63.3 pt
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	61.8 pt
Framework Laptop 13.5 Ryzen 7 7840U ^-11! WD PC SN740 512GB SDDPNQD-512G	61 pt
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	48.3 pt
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	46 pt

DiskSpd
seq read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	4346 (4237.84^min - 4346.35^max) MB/s +36%
Average WD PC SN740 512GB SDDPNQD-512G (3184 - 3659, n=2)	3422 MB/s +7%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	3312 (3304.27^min - 3312.03^max) MB/s +4%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	3184 (3108.05^min - 3184.11^max) MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	2921 (1627.39^min - 2920.7^max) MB/s -8%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2370 (2363.8^min - 2369.99^max) MB/s -26%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1717 (1644.8^min - 1716.65^max) MB/s -46%
seq write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	4947 (4825.12^min - 4946.55^max) MB/s +52%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	3401 (3154.55^min - 3400.53^max) MB/s +5%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	3342 (3270.72^min - 3341.6^max) MB/s +3%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	3249 (2938.52^min - 3248.91^max) MB/s
Average WD PC SN740 512GB SDDPNQD-512G (3000 - 3249, n=2)	3125 MB/s -4%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2508 (2487.22^min - 2508^max) MB/s -23%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2153 (2100.93^min - 2152.94^max) MB/s -34%
seq q8 t1 read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	6952 (6547.73^min - 6952.06^max) MB/s +36%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	6628 (6115.78^min - 6627.63^max) MB/s +30%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5598 (3950.89^min - 5597.72^max) MB/s +10%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	5098 (4619.39^min - 5098.39^max) MB/s
Average WD PC SN740 512GB SDDPNQD-512G (5080 - 5098, n=2)	5089 MB/s 0%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3662 (2760.48^min - 3662.26^max) MB/s -28%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	3426 (2707.21^min - 3425.7^max) MB/s -33%
seq q8 t1 write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	5160 (5028.55^min - 5159.62^max) MB/s +37%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5063 (5035.69^min - 5062.94^max) MB/s +35%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	3965 (3820.5^min - 3965.05^max) MB/s +5%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	3759 (3254.99^min - 3759.39^max) MB/s
Average WD PC SN740 512GB SDDPNQD-512G (3743 - 3759, n=2)	3751 MB/s 0%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3350 (3300.4^min - 3349.78^max) MB/s -11%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2711 (1214.13^min - 2710.57^max) MB/s -28%
4k q1 t1 read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	88.5 (86.28^min - 88.45^max) MB/s +41%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	82.5 (80.71^min - 82.54^max) MB/s +32%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	67.2 (66.32^min - 67.16^max) MB/s +7%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	64 (61.48^min - 64.01^max) MB/s +2%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	62.7 (61.75^min - 62.74^max) MB/s
Average WD PC SN740 512GB SDDPNQD-512G (57 - 62.7, n=2)	59.9 MB/s -4%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	50.7 (49.53^min - 50.73^max) MB/s -19%
4k q1 t1 write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	310 (307.53^min - 309.65^max) MB/s +88%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	167.5 (166.11^min - 167.53^max) MB/s +2%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	164.7 (159.96^min - 164.74^max) MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	146.4 (142.83^min - 146.41^max) MB/s -11%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	145.9 (143.58^min - 145.9^max) MB/s -11%
Average WD PC SN740 512GB SDDPNQD-512G (119 - 164.7, n=2)	141.9 MB/s -14%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	138.9 (137.35^min - 138.92^max) MB/s -16%
4k q32 t16 read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2946 (2796.46^min - 2946.05^max) MB/s +96%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	1505 (1389.3^min - 1505^max) MB/s
Average WD PC SN740 512GB SDDPNQD-512G (1025 - 1505, n=2)	1265 MB/s -16%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1067 (1040.91^min - 1067.32^max) MB/s -29%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	752 (569.42^min - 752^max) MB/s -50%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	690 (550.07^min - 689.62^max) MB/s -54%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	590 (557.57^min - 589.84^max) MB/s -61%
4k q32 t16 write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2253 (1847.93^min - 2253.22^max) MB/s +259%
Framework Laptop 13.5 Ryzen 7 7840U WD PC SN740 512GB SDDPNQD-512G	627 (616.63^min - 627.37^max) MB/s
Average WD PC SN740 512GB SDDPNQD-512G (445 - 627, n=2)	536 MB/s -15%
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	459 (401.81^min - 458.57^max) MB/s -27%
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	448 (440.57^min - 447.7^max) MB/s -29%
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	392 (315.08^min - 391.78^max) MB/s -37%
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	389 (345.44^min - 388.55^max) MB/s -38%

AS SSD
Score Total
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	7098 Points
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5004 Points
Average WD PC SN740 512GB SDDPNQD-512G ()	4744 Points
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	4171 Points
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3582 Points
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	3199 Points
Score Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2864 Points
Average WD PC SN740 512GB SDDPNQD-512G ()	1380 Points
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	1360 Points
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1329 Points
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	1169 Points
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1034 Points
Score Write
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	3047 Points
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2797 Points
Average WD PC SN740 512GB SDDPNQD-512G ()	2725 Points
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	2506 Points
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2042 Points
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1249 Points
Seq Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	5613 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	5094.12 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	4510.61 MB/s
Average WD PC SN740 512GB SDDPNQD-512G ()	3965 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	3043.79 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	2816.58 MB/s
Seq Write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	4909 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	2698.36 MB/s
Average WD PC SN740 512GB SDDPNQD-512G ()	2420 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	2285.6 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	2127.08 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	1457.27 MB/s
4K Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	80.6 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	74.72 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	61.53 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	55.28 MB/s
Average WD PC SN740 512GB SDDPNQD-512G ()	52.2 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	50.91 MB/s
4K Write
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	256.6 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	212.99 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	197.06 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	195.48 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	185.58 MB/s
Average WD PC SN740 512GB SDDPNQD-512G ()	142.6 MB/s
4K-64 Read
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2222 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	996.29 MB/s
Average WD PC SN740 512GB SDDPNQD-512G ()	932 MB/s
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	775.4 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	674.06 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	656.17 MB/s
4K-64 Write
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	2582.13 MB/s
Average WD PC SN740 512GB SDDPNQD-512G ()	2340 MB/s
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	2107.89 MB/s
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	2050 MB/s
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	1616.01 MB/s
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	889.88 MB/s
Access Time Read
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	0.111 ms *
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	0.066 ms *
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	0.055 ms *
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	0.051 ms *
Average WD PC SN740 512GB SDDPNQD-512G ()	0.038 ms *
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	0.032 ms *
Access Time Write
Lenovo ThinkPad X1 Nano Gen 3 Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	0.352 ms *
HP Dragonfly G4 Micron 3400 MTFDKBA512TFH 512GB	0.067 ms *
Dell XPS 13 Plus 9320 Core i7-1360P Samsung PM9A1 MZVL2512HCJQ	0.061 ms *
Framework Laptop 13.5 12th Gen Intel WDC PC SN730 SDBPNTY-512G	0.056 ms *
Framework Laptop 13.5 Western Digital WD_BLACK SN850 WDS100T1X0E	0.044 ms *
Average WD PC SN740 512GB SDDPNQD-512G ()	0.027 ms *

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Framework Laptop 13.5 Ryzen 7 7840U: Ø5070 (4617.73-5084.34)

Desempenho da GPU

No ano passado, a Radeon 680M já era mais rápida do que qualquer solução integrada da Intel e a Radeon 780M cimenta ainda mais a liderança da AMD. O desempenho gráfico bruto é de 30 a 50% mais rápido do que o da Iris Xe 96 EUs na recente versão Intel de 13ª geração do Framework Laptop 13.5. As vantagens de desempenho tornam-se mais pronunciadas para aplicativos habilitados para DX12.

Perfil de potência	Pontuação de gráficos	Pontuação de física	Pontuação combinada
Modo de desempenho	7455	24735	2646
Modo equilibrado	7426 (-0%)	24403 (-1%)	2646 (-0%)
Energia da bateria	6591 (-12%)	24183 (-2%)	2223 (-16%)

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	100 pt
Average AMD Radeon 780M	66.3 pt
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	64.2 pt
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	55 pt
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	45.1 pt
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	44.4 pt
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	43.7 pt
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	41.5 pt
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	41.3 pt
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	39.5 pt
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	34.1 pt
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	33.6 pt
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	33.4 pt
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	31 pt
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	30.2 pt
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	30.1 pt

3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	15712 Points +34%
Average AMD Radeon 780M (7868 - 13932, n=35)	12196 Points +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	11695 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	9095 Points -22%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	7273 Points -38%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	7202 Points -38%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6983 Points -40%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6815 Points -42%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6779 Points -42%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6698 Points -43%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6568 Points -44%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	6440 Points -45%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	5873 Points -50%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	5758 Points -51%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5702 Points -51%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5104 Points -56%

3DMark
1920x1080 Fire Strike Graphics
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	11356 Points +52%
Average AMD Radeon 780M (4550 - 8538, n=34)	7595 Points +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	7455 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	6683 Points -10%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5981 Points -20%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	5978 Points -20%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	5705 Points -23%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	5577 Points -25%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	5200 Points -30%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	5175 Points -31%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	4189 Points -44%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4170 Points -44%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	4136 Points -45%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4086 Points -45%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3709 Points -50%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	3506 Points -53%
2560x1440 Time Spy Graphics
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	4454 Points +73%
Average AMD Radeon 780M (1496 - 3027, n=34)	2667 Points +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	2575 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	2287 Points -11%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1797 Points -30%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1791 Points -30%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	1714 Points -33%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1675 Points -35%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1607 Points -38%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	1579 Points -39%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	1342 Points -48%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1276 Points -50%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1216 Points -53%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1209 Points -53%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1146 Points -55%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	1134 Points -56%
2560x1440 Time Spy Score
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	4903 Points +70%
Average AMD Radeon 780M (1707 - 3380, n=33)	2977 Points +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	2891 Points
Asus Zenbook S 13 OLED AMD Radeon 680M, AMD Ryzen 7 6800U	2548 Points -12%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	2047 Points -29%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2021 Points -30%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	1951 Points -33%
Framework Laptop 13.5 12th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1896 Points -34%
MSI Summit E13 Flip Evo A11MT Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1783 Points -38%
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	1768 Points -39%
Huawei MateBook 13s i5 11300H Intel Iris Xe Graphics G7 80EUs, Intel Core i5-11300H	1512 Points -48%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1441 Points -50%
Framework Laptop 13.5 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1361 Points -53%
Dell XPS 13 9310 Core i7 FHD Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1333 Points -54%
Lenovo ThinkPad E14 G5-21JSS05C00 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 7730U	1308 Points -55%
Dell XPS 13 Plus 9320 i5-1240p Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	1290 Points -55%

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark 11 Performance		11531 pontos
3DMark Fire Strike Score		6922 pontos
3DMark Time Spy Score		2891 pontos
Ajuda

... comparado com

Blender
v3.3 Classroom OPTIX/RTX
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	58 Seconds *
v3.3 Classroom CUDA
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	111 Seconds *
v3.3 Classroom CPU
HP Dragonfly G4 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U	796 Seconds * -115%
Lenovo ThinkPad X1 Nano Gen 3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	732 Seconds * -97%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	531 Seconds * -43%
Framework Laptop 13.5 13th Gen Intel Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1370P	444 Seconds * -20%
SCHENKER Vision 14 2023 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	426 Seconds * -15%
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE NVIDIA GeForce RTX 3050 4GB Laptop GPU, Intel Core i7-12700H	388 Seconds * -5%
Average AMD Radeon 780M (305 - 503, n=33)	376 Seconds * -1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Radeon 780M, AMD Ryzen 7 7840U	371 Seconds *

* ... smaller is better

Desempenho em jogos

O Framework Laptop 13.5 não é uma máquina para jogos, mas a CPU Zen 4 é capaz de executar a maioria dos jogos razoavelmente bem em 1080p, incluindo até mesmo o Cyberpunk 2077. Dito isso, tivemos travamentos ao executar alguns títulos, incluindo F1 22 e Ratchet and Clank Rift Apart.

Far Cry 5
1280x720 Low Preset AA:T
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	74 (63^min) fps
Average AMD Radeon 780M (42 - 87, n=27)	70.6 fps -5%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	61 fps -18%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	55 fps -26%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	53 fps -28%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 (29^min) fps -45%
1920x1080 Medium Preset AA:T
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	75 fps +92%
Average AMD Radeon 780M (22 - 51, n=29)	41.9 fps +7%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	39 (21^min) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	30 fps -23%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	28 fps -28%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	25 fps -36%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (17^min) fps -38%
1920x1080 High Preset AA:T
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	70 fps +89%
Average AMD Radeon 780M (21 - 47, n=29)	38.9 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	37 (33^min) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28 fps -24%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	23 fps -38%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	22 (15^min) fps -41%
1920x1080 Ultra Preset AA:T
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	62 fps +77%
Average AMD Radeon 780M (21 - 45, n=29)	36.9 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	35 (29^min) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26 fps -26%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	22 fps -37%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	22 (16^min) fps -37%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	136.2 (99^min) fps
Average AMD Radeon 780M (74 - 160, n=27)	134 fps -2%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	107.2 (95^min) fps -21%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	99.9 (93^min) fps -27%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	97.7 (89^min) fps -28%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	97.5 (41^min) fps -28%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	94 fps -31%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	90.7 (65^min) fps -33%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.7 (48^min) fps -36%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	84 fps -38%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	78.9 (50^min) fps -42%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	75.9 (68^min) fps -44%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	75.5 fps -45%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	53.5 fps +17%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	45.9 (41^min) fps
Average AMD Radeon 780M (21.3 - 50.9, n=31)	43.9 fps -4%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36 fps -22%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	35.4 (30^min) fps -23%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.9 (31^min) fps -26%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 (29^min) fps -29%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.4 (29^min) fps -29%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.3 (27^min) fps -30%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31.9 fps -31%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	31 (29^min) fps -32%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	31 (28^min) fps -32%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	28 fps -39%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	22.1 (17^min) fps -52%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	42.8 fps +49%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	28.7 (25^min) fps
Average AMD Radeon 780M (14.3 - 33.9, n=33)	27.7 fps -3%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min) fps -43%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.4 (14^min) fps -46%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.1 (13^min) fps -47%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.8 (13^min, 14^P1) fps -48%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	14.7 (14^min) fps -49%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	14.7 (13^min) fps -49%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	14.3 (12^min) fps -50%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	13.1 fps -54%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.6 (9^min) fps -56%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min, 11^P1) fps -57%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12 (10^min) fps -58%

Dota 2 Reborn
1280x720 min (0/3) fastest
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	162.4 (144.9^min) fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	154.1 (129.7^min) fps
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	134.4 (81.4^min) fps -13%
Average AMD Radeon 780M (103.7 - 163.1, n=34)	132.4 fps -14%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	131.8 (102.5^min) fps -14%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	125.6 (99.1^min) fps -18%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	121.7 (97.1^min) fps -21%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	119 (105.9^min) fps -23%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	109 (95.8^min) fps -29%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	103.2 (80.3^min) fps -33%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	101.4 (80.9^min) fps -34%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	96 (75.1^min) fps -38%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	82.6 (45.4^min) fps -46%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	77.5 (42.7^min) fps -50%
1366x768 med (1/3)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	143.8 (127.3^min) fps +21%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	119.5 (103.4^min) fps 0%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	119.3 (97.9^min) fps
Average AMD Radeon 780M (87.5 - 130.1, n=34)	106.6 fps -11%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	97.7 (75.8^min) fps -18%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	92.4 (71.2^min) fps -23%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.3 (73.5^min) fps -24%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	89.9 (76.5^min) fps -25%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	76.3 (60.7^min) fps -36%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	72.3 (55.8^min) fps -39%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	69.6 (45.6^min) fps -42%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.1 (49.6^min) fps -45%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	65.1 (48.1^min) fps -45%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	54.3 (36.6^min) fps -54%
1920x1080 high (2/3)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	131.8 (114.7^min) fps +73%
Average AMD Radeon 780M (54.9 - 97.5, n=34)	78.8 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	76.2 (63.3^min) fps
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	70.9 (59.6^min) fps -7%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	69 (61.2^min) fps -9%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	68.7 (58.6^min) fps -10%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	63.1 (51.5^min) fps -17%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.6 (57.1^min) fps -18%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	60.2 (49.5^min) fps -21%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	59 (38.9^min) fps -23%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	57.2 (46.9^min) fps -25%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	48.5 (33.9^min) fps -36%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	41.2 (36.8^min) fps -46%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.5 (28.7^min) fps -47%
1920x1080 ultra (3/3) best looking
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	121.6 (101.3^min) fps +71%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	71.2 (59.4^min) fps
Average AMD Radeon 780M (51.3 - 91.2, n=34)	71.1 fps 0%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	66.1 (49.7^min) fps -7%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	62.7 (55.5^min) fps -12%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (52.9^min) fps -13%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	57.7 (51.4^min) fps -19%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.2 (47^min) fps -21%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	53.3 (44.9^min) fps -25%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	52.6 (46^min) fps -26%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.2 (32.1^min) fps -34%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.7 (37.9^min) fps -36%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.5 (24.8^min) fps -40%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	38.2 (33.7^min) fps -46%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Average AMD Radeon 780M (41.1 - 81.9, n=31)	69.7 fps +5%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	66.6 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	45.1 fps -32%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	44.7 fps -33%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.5 fps -33%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	44 fps -34%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.5 fps -36%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	40.9 fps -39%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	40.4 fps -39%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	36.3 fps -45%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.2 fps -47%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	33.7 fps -49%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	29.4 fps -56%
1920x1080 Standard Quality
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	62.2 fps +81%
Average AMD Radeon 780M (21 - 39.3, n=32)	34.9 fps +1%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	34.4 fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.1 fps -24%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 fps -27%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -29%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.1 fps -30%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.3 fps -32%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	23.2 fps -33%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	22.1 fps -36%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.6 fps -40%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	19.7 fps -43%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	19.6 fps -43%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.7 fps -54%
1920x1080 High Quality
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	45 fps +75%
Average AMD Radeon 780M (15.9 - 29.4, n=33)	26.1 fps +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	25.7 fps
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23.3 fps -9%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.2 fps -29%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	18.2 fps -29%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	18 fps -30%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.5 fps -32%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	16.4 fps -36%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	15.7 fps -39%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.4 fps -40%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	14.6 fps -43%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.1 fps -53%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	11.7 fps -54%

X-Plane 11.11
1280x720 low (fps_test=1)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	124.3 fps +107%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.6 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	60 fps
Average AMD Radeon 780M (39 - 69.6, n=36)	51.6 fps -14%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	50.5 fps -16%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	48 fps -20%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	47.8 fps -20%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	42.7 fps -29%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	41.3 fps -31%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	41.3 fps -31%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	40.1 fps -33%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	37.6 fps -37%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	28.5 fps -52%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	26.7 fps -55%
1920x1080 med (fps_test=2)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	102.4 fps +131%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	45.9 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	44.4 fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.4 fps -11%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.7 fps -15%
Average AMD Radeon 780M (26.2 - 48.2, n=36)	37.7 fps -15%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.3 fps -16%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	36.9 fps -17%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	36.5 fps -18%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	36.2 fps -18%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	33.8 fps -24%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.6 fps -27%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	31.8 fps -28%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	23.7 fps -47%
1920x1080 high (fps_test=3)
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	84.8 fps +126%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.3 fps +10%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	37.5 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	36.5 fps -3%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	35.5 fps -5%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.2 fps -11%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	33.1 fps -12%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.5 fps -13%
Average AMD Radeon 780M (24.5 - 40.7, n=35)	31.7 fps -15%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	30.9 fps -18%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	30.2 fps -19%
Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	29.5 fps -21%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	29.1 fps -22%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	28.8 fps -23%

Strange Brigade
1280x720 lowest AF:1
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	246 (59.7^min, 186.4^P1) fps +76%
Average AMD Radeon 780M (77.8 - 170.5, n=31)	148.8 fps +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	139.8 (37.5^min, 114.3^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	99.7 (17.7^min, 35.6^P1) fps -29%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	97.4 (18.1^min, 32^P1) fps -30%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	94.4 (16.2^min, 33.1^P1) fps -32%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (20.3^min, 37.7^P1) fps -33%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.2 (20.4^min, 32.1^P1) fps -35%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	88.8 (19.5^min, 29.6^P1) fps -36%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84.9 (19.4^min, 29.8^P1) fps -39%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	81.9 (18.4^min, 27.8^P1) fps -41%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	78.5 (16.5^min, 28.6^P1) fps -44%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	67.7 (15.5^min, 23.7^P1) fps -52%
1920x1080 medium AA:medium AF:4
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	118.4 (90.4^min, 101.1^P1) fps +98%
Average AMD Radeon 780M (31.7 - 68.2, n=31)	61.3 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	59.7 (18.3^min, 51.4^P1) fps
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.8 (15.4^min, 25.5^P1) fps -27%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	42.4 (14.9^min, 23.7^P1) fps -29%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	41.9 (14.8^min, 25.4^P1) fps -30%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.6 (14.6^min, 21.7^P1) fps -34%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	39.1 (8^min, 10.2^P1) fps -35%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	38.5 (8.5^min, 10^P1) fps -36%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	38.4 (17.6^min, 22.1^P1) fps -36%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.1 (13^min, 19.7^P1) fps -41%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	34.5 (12.2^min, 19.7^P1) fps -42%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	30.7 (10.4^min, 16.6^P1) fps -49%
1920x1080 high AA:high AF:8
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	94.7 (40.6^min, 71.6^P1) fps +88%
Average AMD Radeon 780M (27.3 - 58.1, n=31)	51.9 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	50.5 (17.2^min, 27.8^P1) fps
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 (5.4^min, 17.4^P1) fps -30%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	34.1 (9.3^min, 16.5^P1) fps -32%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	33.6 (9.7^min, 23.4^P1) fps -33%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.6 (16.7^min, 18.3^P1) fps -35%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.8 (6.3^min, 7.96^P1) fps -39%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 7.97^P1) fps -40%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	30.4 (8.5^min, 15.4^P1) fps -40%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	27.5 (9.1^min, 14.1^P1) fps -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27.3 (7.6^min, 10.4^P1) fps -46%
Dell XPS 13 Plus 9320 i5-1240p Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	24.4 (8.4^min, 13.2^P1) fps -52%
1920x1080 ultra AA:ultra AF:16
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	82.1 (35.6^min, 62.9^P1) fps +91%
Average AMD Radeon 780M (23.5 - 49.6, n=32)	44.3 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	43 (13.6^min, 21.3^P1) fps
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.7 (5.7^min, 9.98^P1) fps -36%
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	27.6 (5.5^min, 7.63^P1) fps -36%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27.5 (5.6^min, 7.31^P1) fps -36%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	26.2 (8.5^min, 9.77^P1) fps -39%
MSI Summit E13 Flip Evo A11MT Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	25.1 (5^min, 6.26^P1) fps -42%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	24.7 (5.3^min, 6.86^P1) fps -43%
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	24 (5^min, 5.93^P1) fps -44%
Huawei MateBook 13s i5 11300H Intel Core i5-11300H, Intel Iris Xe Graphics G7 80EUs	22.3 (5^min, 6.49^P1) fps -48%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	21 (5^min, 5^P1) fps -51%

Cyberpunk 2077 1.6
1280x720 Low Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	65.5 (15.5^min) fps
Average AMD Radeon 780M (43 - 88.6, n=7)	63.3 fps -3%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	37.3 (24^min) fps -43%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.4 (18.6^min) fps -51%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	32.3 (6.7^min) fps -51%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	21 (9.7^min) fps -68%
1920x1080 Low Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	39.5 (16.2^min) fps
Average AMD Radeon 780M (22 - 53.3, n=12)	37 fps -6%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	21.9 (15.6^min) fps -45%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.8 (13.6^min) fps -47%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	19.7 (13.9^min) fps -50%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13 (8.1^min) fps -67%
1920x1080 Medium Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	30.9 (6.8^min) fps
Average AMD Radeon 780M (16 - 42, n=12)	29.3 fps -5%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	18.5 (13.9^min) fps -40%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.3 (12.5^min) fps -44%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	16.3 (12.2^min) fps -47%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	10.8 (7^min) fps -65%
1920x1080 High Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	24.6 (8.6^min) fps
Average AMD Radeon 780M (12 - 30.5, n=12)	22.7 fps -8%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	13.7 (10.6^min) fps -44%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.6 (9.8^min) fps -45%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	12.7 (9.7^min) fps -48%
1920x1080 Ultra Preset
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	23 (9.5^min) fps
Average AMD Radeon 780M (14.2 - 26, n=8)	21.8 fps -5%
Framework Laptop 13.5 12th Gen Intel Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	11.2 (8^min) fps -51%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	11 (7.5^min) fps -52%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	9.3 (5^min) fps -60%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Average AMD Radeon 780M (62.6 - 151.2, n=14)	118.5 fps +6%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	111.8 fps
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	53.5 fps -52%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	53.2 fps -52%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	40.7 fps -64%
1920x1080 Low Preset (DX12)
Average AMD Radeon 780M (34.3 - 74.9, n=14)	61.7 fps +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	60.4 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	32.5 fps -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29.6 fps -51%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	25.9 fps -57%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23.1 fps -62%
1920x1080 Medium Preset (DX12)
Average AMD Radeon 780M (28.4 - 54.7, n=14)	45 fps 0%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	44.8 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	26.4 fps -41%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23.7 fps -47%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	21.2 fps -53%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	18.3 fps -59%
1920x1080 High Preset (DX12)
Average AMD Radeon 780M (18.6 - 38.8, n=14)	31.5 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	30.4 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	16.4 fps -46%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.2 fps -50%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	14.1 fps -54%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	11.9 fps -61%
1920x1080 Badass Preset (DX12)
Average AMD Radeon 780M (16.5 - 31.3, n=14)	25.8 fps +2%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	25.2 fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	14.1 fps -44%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.2 fps -52%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	11.1 fps -56%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.9 fps -65%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	188.9 (136^min, 119^P1) fps +42%
Average AMD Radeon 780M (85.4 - 172.5, n=18)	143.6 fps +8%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	133.2 (110^min, 87^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	84.7 (68^min, 68^P1) fps -36%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	81.5 (61^min, 60^P1) fps -39%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	75.8 (55^min, 56^P1) fps -43%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	72.1 (54^min, 54^P1) fps -46%
1920x1080 Low Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	133.9 (113^min, 88^P1) fps +66%
Average AMD Radeon 780M (47 - 99.8, n=23)	84.1 fps +4%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	80.6 (70^min, 55^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	49.8 (43^min, 41^P1) fps -38%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.5 (40^min, 37^P1) fps -41%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45.7 (38^min, 36^P1) fps -43%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	43.6 (34^min, 31^P1) fps -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41.2 (28^min, 27^P1) fps -49%
1920x1080 Medium Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	121.6 (63^min, 82^P1) fps +68%
Average AMD Radeon 780M (41.5 - 89.8, n=23)	74.5 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	72.5 (58^min, 45^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	45.3 (38^min, 37^P1) fps -38%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	42.8 (37^min, 36^P1) fps -41%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	41.3 (34^min, 32^P1) fps -43%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	39.4 (33^min, 30^P1) fps -46%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	36.6 (25^min, 25^P1) fps -50%
1920x1080 High Preset AA:T AF:16x
Lenovo Yoga Slim 7 Pro X 14IAH7 82TK006CGE Intel Core i7-12700H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	85 (71^min, 64^P1) fps +57%
Average AMD Radeon 780M (31.7 - 66.7, n=23)	55.6 fps +3%
Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	54.2 (44^min, 35^P1) fps
Framework Laptop 13.5 13th Gen Intel Intel Core i7-1370P, Intel Iris Xe Graphics G7 96EUs	33 (28^min, 27^P1) fps -39%
Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.9 (24^min, 26^P1) fps -41%
SCHENKER Vision 14 2023 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	30.4 (25^min, 24^P1) fps -44%
HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	27.4 (22^min, 22^P1) fps -49%
Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27.1 (17^min, 17^P1) fps -50%

Witcher 3 FPS Chart

Framework Laptop 13.5 Ryzen 7 7840U: Ø43.5 (39-46)

	baixo	média	alto	ultra
The Witcher 3 (2015)	136.2		45.9	28.7
Dota 2 Reborn (2015)	154.1	119.3	76.2	71.2
Final Fantasy XV Benchmark (2018)	66.6	34.4	25.7
X-Plane 11.11 (2018)	60	44.4	37.5
Far Cry 5 (2018)	74	39	37	35
Strange Brigade (2018)	139.8	59.7	50.5	43
Cyberpunk 2077 1.6 (2022)	39.5	30.9	24.6	23
Tiny Tina's Wonderlands (2022)	60.4	44.8	30.4	25.2
F1 22 (2022)	80.6	72.5	54.2

Emissões

Ruído do sistema

O ruído do ventilador ao executar cargas exigentes é praticamente o mesmo que registramos na configuração do Intel Core-P. O Framework continua a ser um dos subnotebooks mais barulhentos quando está na faixa de 46 a 49 dB(A), em comparação com a faixa baixa de 40 dB(A) da maioria dos outros subnotebooks. Também notamos uma pulsação mais frequente da ventoinha.

Para crédito da Framework, o tempo de aumento do ruído da ventoinha é relativamente lento e estável na configuração da AMD, o que significa que o sistema pode permanecer relativamente silencioso ao executar cargas menos exigentes, como navegação ou streaming de vídeo.

Perfil de ruído do ventilador (Branco: Fundo, vermelho: Sistema ocioso, Azul: 3DMark 06, Laranja: Witcher 3, Verde: Estresse do Prime95)

Barulho

Ocioso		22.6 / 22.6 / 24.2 dB
Carga		35.8 / 48.9 dB

	30 dB silencioso 40 dB(A) audível 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distância) environment noise: 22.6 dB(A)

	Framework Laptop 13.5 Ryzen 7 7840U Radeon 780M, R7 7840U, WD PC SN740 512GB SDDPNQD-512G	Framework Laptop 13.5 Iris Xe G7 96EUs, i7-1165G7, Western Digital WD_BLACK SN850 WDS100T1X0E	Lenovo ThinkPad X1 Nano Gen 3 Iris Xe G7 96EUs, i7-1360P, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ	HP Dragonfly G4 Iris Xe G7 96EUs, i7-1365U, Micron 3400 MTFDKBA512TFH 512GB	Dell XPS 13 Plus 9320 Core i7-1360P Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Asus ZenBook S13 OLED UX5304 Iris Xe G7 96EUs, i7-1355U, Samsung PM9A1 MZVL21T0HCLR
Noise		-6%	8%	9%	0%	3%
off / environment *	22.6	23.9 -6%	22.9 -1%	23.3 -3%	23.7 -5%	23.3 -3%
Idle Minimum *	22.6	23.9 -6%	23 -2%	23.5 -4%	24 -6%	23.3 -3%
Idle Average *	22.6	23.9 -6%	23 -2%	23.5 -4%	24 -6%	23.3 -3%
Idle Maximum *	24.2	23.9 1%	23 5%	26.8 -11%	24.4 -1%	23.3 4%
Load Average *	35.8	45.6 -27%	32.8 8%	27.2 24%	37 -3%	37.7 -5%
Witcher 3 ultra *	46.5	47.1 -1%	36.9 21%	32.7 30%	42.1 9%	40.1 14%
Load Maximum *	48.9	47.9 2%	36.9 25%	35 28%	42 14%	40.1 18%

* ... smaller is better

Temperatura

As temperaturas de superfície não são mais frias do que a versão Intel e podem até ser mais quentes. As temperaturas médias em nosso sistema AMD seriam alguns graus C mais quentes nos lados superior e inferior, mas as diferenças na temperatura de fundo nunca podem ser totalmente descartadas. Alternativas com CPUs mais lentas, como oHP Spectre x360 13.5 funcionam mais friamente.

O adaptador CA atinge mais de 44 °C ao executar cargas exigentes

Carga Máxima

Inatividade


39 °C	42 °C	40.2 °C
31 °C	40.6 °C	38.8 °C
26.4 °C	27.8 °C	27.6 °C

Máximo: 42 °C
Médio: 34.8 °C


40.2 °C	47.4 °C	42.6 °C
34.8 °C	39.4 °C	37.4 °C
31 °C	31.4 °C	31 °C

Máximo: 47.4 °C
Médio: 37.2 °C

alimentação elétrica 45 °C | Temperatura do quarto 20 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 34.8 °C / 95 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 47.4 °C / 117 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.5 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.1 °C / -0.1 F).

Estresse do Prime95+FurMark (parte superior)

Estresse do Prime95+FurMark (parte inferior)

	Framework Laptop 13.5 Ryzen 7 7840U AMD Ryzen 7 7840U, AMD Radeon 780M	Framework Laptop 13.5 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad X1 Nano Gen 3 Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	HP Dragonfly G4 Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs	Dell XPS 13 Plus 9320 Core i7-1360P Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	Asus ZenBook S13 OLED UX5304 Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
Heat		6%	7%	7%	9%	3%
Maximum Upper Side *	42	47.2 -12%	44 -5%	38.6 8%	43.8 -4%	43.1 -3%
Maximum Bottom *	47.4	39.4 17%	43.2 9%	40.4 15%	44.4 6%	45 5%
Idle Upper Side *	28.8	25.2 12%	25.6 11%	28.2 2%	24 17%	27.3 5%
Idle Bottom *	29.6	27.8 6%	25.6 14%	29 2%	25.2 15%	27.8 6%

* ... smaller is better

Teste de estresse

As taxas de clock da CPU e o consumo de energia da placa atingiriam 4 GHz e 51 W, respectivamente, durando apenas alguns segundos, no máximo, antes de se estabilizarem em 3,2 GHz, 35 W e 85 C. Repetir esse teste na versão Intel do Core i7 resultaria em temperaturas de núcleo semelhantes, mas com um consumo de energia de 30 W um pouco menor.

Ao executar Witcher 3 para representar cargas gráficas exigentes, a temperatura do núcleo se estabilizaria em apenas 71 °C em comparação com 93 °C na Intel, apesar de a Radeon 780M ser muito mais rápida que a Iris Xe.

	Clock da CPU (GHz)	Clock da GPU (MHz)	Temperatura média da CPU (°C)
Sistema ocioso	--	--	46
Estresse doPrime95	3.2	--	85
EstressePrime95 + FurMark	3.0	1534	74
Witcher 3 Estresse	~0,3	2176	71

Alto-falantes

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Framework Laptop 13.5 Ryzen 7 7840U audio analysis

(+) | speakers can play relatively loud (82.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.7% lower than median
(±) | linearity of bass is average (9.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.7% higher than median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (3.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.9% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 3% similar, 91% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 13% of all tested devices were better, 3% similar, 84% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Gerenciamento de energia

Consumo de energia

O consumo de energia é consistentemente menor do que o registrado na configuração do Core i7-1370P em toda a linha. Isso se soma ao fato de que nosso Ryzen 7 7840U pode superar o desempenho da CPU Intel na maioria dos aplicativos. Ocioso no desktop exigiria apenas 4 W a 7 W, em comparação com 3 W a 10 W na versão Intel.

A execução do site Witcher 3 para representar cargas típicas de jogos consumiria cerca de 8% menos energia do que na configuração do Core i7-1370P para um aumento de 30% a 50% no desempenho gráfico bruto. Portanto, a Radeon 780M não é apenas mais rápida do que a Iris Xe 96 EUs, mas também exige menos energia para um desempenho mais alto por watt.

O pequeno carregador CA GaN USB-C de 60 W (~5,8 x 5,8 x 2,6 cm) é o mesmo em todas as configurações, independentemente da opção de CPU.

O consumo aumentaria para 55 W sem grandes quedas ao iniciar o estresse do Prime95, o que sugere um excelente desempenho do Boost

Estresse de Prime95+FurMark iniciado aos 10s

Consumo de energia

desligado	0.41 / 0.81 Watt
Ocioso	4 / 6.5 / 6.8 Watt
Carga	48 / 55.2 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M, WD PC SN740 512GB SDDPNQD-512G, IPS, 2256x1504, 13.50	Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs, WD PC SN740 SDDPNQD-1T00, IPS, 2256x1504, 13.50	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs, WDC PC SN730 SDBPNTY-512G, IPS, 2256x1504, 13.50	Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs, Western Digital WD_BLACK SN850 WDS100T1X0E, IPS, 2256x1504, 13.50	Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs, Lenovo UMIS AM6A0 RPJTJ512MKP1QDQ, IPS, 2160x1350, 13.00	HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, Micron 3400 MTFDKBA512TFH 512GB, IPS, 1920x1280, 13.50
Power Consumption		-9%	-25%	-8%	9%	-1%
Idle Minimum *	4	2.9 27%	5.3 -33%	4.3 -8%	3.3 17%	4.1 -3%
Idle Average *	6.5	6.3 3%	8.4 -29%	8.2 -26%	6.5 -0%	7.5 -15%
Idle Maximum *	6.8	9.9 -46%	11.2 -65%	8.7 -28%	7.1 -4%	8.2 -21%
Load Average *	48	56.2 -17%	57.4 -20%	43.5 9%	40.7 15%	35.5 26%
Witcher 3 ultra *	52.3	56.6 -8%	46.7 11%	43.5 17%	37 29%	37.5 28%
Load Maximum *	55.2	60.8 -10%	61.2 -11%	61.8 -12%	58.6 -6%	66.5 -20%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Witcher 3 ultra: Ø52.3 (51.2-53.8)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Witcher 3 ultra: Ø56.6 (52.4-60.8)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø55 (54.5-55.2)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59.6 (59.1-60.8)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Idle 150cd/m2: Ø4.74 (4.28-8.77)

Power Consumption external Monitor

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø54.7 (54.3-55)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø60.3 (59.1-60.9)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø50.4 (40.1-54.8)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø60.6 (58.7-60.8)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.9 (29.4-54)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø52.3 (49-57.4)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø51.2 (50.7-52.2)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø54.7 (54.1-55.2)

Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M; Idle 1min (external Monitor): Ø4.05 (3.56-6.57)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø4.06 (3.33-6.47)

Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø3.23 (2.59-4.76)

Duração da bateria

Os tempos de execução são maiores do que os das configurações baseadas em Intel por margens significativas devido aos níveis mais baixos de consumo de energia mencionados acima. Conseguimos navegar na Web por mais de 3 horas a mais em nosso modelo AMD em comparação com o modelo Core i7-1370P quando ambos estão configurados no modo balanceado e com brilho de 150 nit. Isso não quer dizer que a duração da bateria seja ruim quando configurada com a Intel, mas a AMD tem uma clara vantagem nesse aspecto.

Observe que a configuração básica do Ryzen 5 só vem com uma bateria de 55 Wh, em comparação com a bateria de 61 Wh da nossa configuração do Ryzen 7 7840U.

Tempo de Execução da Bateria


WiFi Websurfing		12h 06min

	Framework Laptop 13.5 Ryzen 7 7840U R7 7840U, Radeon 780M, 61 Wh	Framework Laptop 13.5 13th Gen Intel i7-1370P, Iris Xe G7 96EUs, 61 Wh	Framework Laptop 13.5 12th Gen Intel i7-1260P, Iris Xe G7 96EUs, 55 Wh	Framework Laptop 13.5 i7-1165G7, Iris Xe G7 96EUs, 55 Wh	Lenovo ThinkPad X1 Nano Gen 3 i7-1360P, Iris Xe G7 96EUs, 49.5 Wh	HP Dragonfly G4 i7-1365U, Iris Xe G7 96EUs, 68 Wh
Battery Runtime		-27%	-38%	-34%	-36%	31%
WiFi v1.3	726	527 -27%	447 -38%	478 -34%	465 -36%	954 31%
Reader / Idle						2550
Load						192

Pro

+ excelente desempenho da CPU e da GPU

+ alto desempenho por watt

+ bateria de longa duração

+ Suporte a USB4

Contra

- as quatro portas USB-C não são criadas da mesma forma

- o desempenho de thread único poderia ser melhor

- a ventoinha é barulhenta e tende a pulsar

- ainda não há novas opções de tela

Veredicto - Desempenho gráfico duas vezes mais rápido do que o da Intel

Em análise: Framework Laptop 13.5 Ryzen 7. Unidade de teste fornecida pela Framework

Se você valoriza o desempenho multi-thread e os gráficos, a configuração da AMD é, sem dúvida, a melhor opção em relação à Intel. O Ryzen 7 7840U e a Radeon 780M são mais rápidos do que qualquer processador Intel Core-U ou Core-P de 13ª geração, especialmente quando se trata de desempenho por watt e duração da bateria. O fato de as configurações do Ryzen 7 e do Core i7 custarem aproximadamente o mesmo, US$ 1.500 cada, só torna a versão da AMD mais atraente.

A menos que você precise absolutamente do Ryzen PRO ou do Intel vPro, o Framework Laptop 13.5 baseado em AMD é mais rápido e muito mais fácil de recomendar do que o Intel, especialmente porque custam praticamente o mesmo.

No momento, ainda há alguns motivos para escolher a Intel. Em primeiro lugar, as CPUs Zen 4 Ryzen PRO ainda não estão disponíveis no Framework, deixando o Intel vPro como a única opção. Em segundo lugar, a série Core-P ainda tem uma ligeira vantagem sobre a AMD quando se trata de desempenho de thread único. E, por fim, as portas USB-C no modelo Intel são uniformes em termos de recursos e compatibilidade. Dessas três diferenças, a primeira é indiscutivelmente a mais valiosa, especialmente para empresas ou usuários que precisam de uma camada extra de segurança de hardware. Caso contrário, é difícil deixar passar a maior duração da bateria e o dobro do desempenho gráfico pelo mesmo preço.

Preço e disponibilidade

O fabricante agora está enviando sua versão AMD do Framework Laptop 13.5 a partir de US$ 1.050 para a configuração básica do Ryzen 5 até mais de US$ 1.600 se totalmente configurado com o Ryzen 7 7840U.

Framework Laptop 13.5 Ryzen 7 7840U - 2023-10-02 10/02/2023 v7
Allen Ngo

Acabamento

78 / 98 → 79%

Teclado

87%

Mouse

83%

Conectividade

67 / 80 → 84%

Peso

71 / 20-75 → 93%

Bateria

89%

Pantalha

91%

Desempenho do jogos

78 / 78 → 100%

Desempenho da aplicação

97 / 95 → 100%

Temperatura

90%

Ruído

89%

Audio

85%

Camera

38 / 85 → 45%

Médio

80%

88%

Office - Médio equilibrado

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5193 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Análises e revisões de portáteis e celulares > Análises > Análises > Análise do Framework Laptop 13.5 Ryzen 7 7840U: Muito melhor do que a versão Intel

Allen Ngo, 2023-10- 3 (Update: 2023-10- 3)

Análise do Framework Laptop 13.5 Ryzen 7 7840U: Muito melhor do que a versão Intel

Possíveis concorrentes em comparação

Caso

Comparação de tamanho

Conectividade

Comunicação

Webcam

Manutenção

Acessórios e garantia

Tela

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

Desempenho

Condições de teste

Processador

Cinebench R15 Multi Loop

Desempenho do sistema

Latência DPC

Dispositivos de armazenamento

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Desempenho da GPU

Desempenho em jogos

Witcher 3 FPS Chart

Emissões

Ruído do sistema

Temperatura

Teste de estresse

Alto-falantes

Framework Laptop 13.5 Ryzen 7 7840U audio analysis

Apple MacBook Pro 16 2021 M1 Pro audio analysis

Gerenciamento de energia

Consumo de energia

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Duração da bateria

Pro

Contra

Veredicto - Desempenho gráfico duas vezes mais rápido do que o da Intel

Preço e disponibilidade

More articles related to this device

Transparency

Pricecompare
