ATI Mobility Radeon HD 2600 vs AMD Radeon HD 6870

ATI Mobility Radeon HD 2600

► remove from comparison ATI Mobility Radeon HD 2600

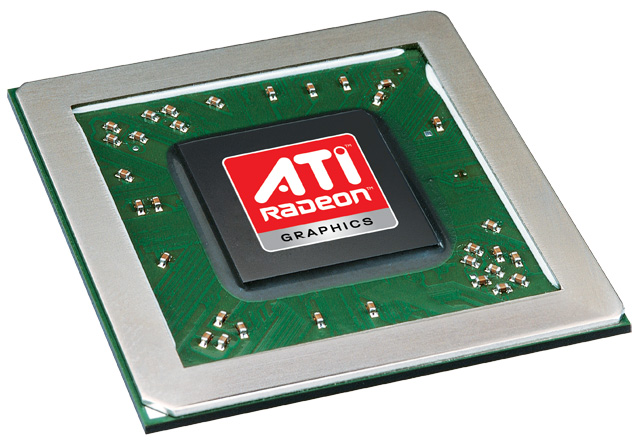

ATI Mobility Radeon HD 2600 é uma placa de video DirectX 10 da ATI e concorrente direto da placa de vídeo NVIDIA GeForce 8600M GS para notebooks. Isto significaria que a placa é capaz de representar todos os jogos modernos em alta resoluções medias e sem Antialiasing sem interrupções de movimento.

Devido ao Avivo HD videoengine o chip acelera HD Video como HD DVD, Blu-ray (Decodificador para vídeo para H.264/AVC, VC-1, MPEG-1, MPEG-2, MPEG-4/Div X Video Codecs). Além disto, PowerPlay 7.0 oferece runtimes de bateria mais longos. Mais, além disso, ATI Mobility Radeon HD 2600  está certificado para Windows Vista (para a interfase Aero user).

Tecnicamente, o chip tem 120 processadores stream que são capazes de gerenciar operações vertex, geométricas ou pixelshader.  Pelo tanto DirectX 10.0 e Shader Model 4.0 são suportados.  Para fazer menção está também o 256 bit bit wide ringbus.

AMD Radeon HD 6870

► remove from comparison

Die AMD Radeon HD 6870 ist eine Desktop Grafikkarte aus 2010. Sie basiert auf den Barts bzw RV940 Grafikprozessor und wurde in 40nm gefertigt. Sie bietet 224 5D Shader bei 900 MHz Taktrate (Referenz). Der GDDR5 Grafikspeicher wird über 256 Bit angebunden und läuft mit effektiven 2100 MHz. Verglichen mit Notebookgrafikkarten ist die 6870 mit der AMD Radeon HD 6990M verwandt, die ebenfalls 1120 Shader und einen 256 Bit Speicherbus bietet, jedoch mit 715 MHz Kern- und 1800 MHz Speichertakt geringer getaktet wird.

ATI Mobility Radeon HD 2600AMD Radeon HD 6870
fabricanteATIAMD
Mobility Radeon HD 2600 Serie
Mobility Radeon HD 2600 XT 120 @ 700 MHz128 Bit @ 750 MHz
Mobility Radeon HD 2600 120 @ 500 MHz128 Bit @ 600 MHz
CódigoM76RV940 Barts
ArquiteturaRV6xxTerascale 2
Pipelines120 - unificado1120 - unificado
Velocidade do núcleo500 MHz900 MHz
Velocidade da memória600 MHz1050 MHz
Largura do Bus de Memória128 Bit256 Bit
Modelo de memóriaDDR2, GDDR3GDDR5
Max. quantidade de memória256+ MB1024 MB
Memória compartilhadanãonão
DirectXDirectX 10, Shader 4.0DirectX 11, Shader 5.0
Contagem de transistores390 Milhão1700 Milhão
tecnología65 nm40 nm
CaracterísticasAvivo HD Video, PowerPlay 7.0, Tesselation Unit programable (para Direct X 10.1)
Tamanho do Portátilpequeno/pequena e leve
Data do anúncio14.05.2007 22.10.2010
Informação65 nm Fertigung
Link à página do FabricanteATI Mobility Radeon HD 2600 é uma placa...

Benchmarks

3DMark - Cloud Gate Standard Score 1280x720
15589 Points (23%)
3DMark - Cloud Gate Standard Graphics 1280x720
26437 Points (14%)
3DMark - Fire Strike Score 1920x1080
3002 Points (10%)
3DMark - Fire Strike Graphics 1920x1080
3141 Points (8%)
3DMark - Ice Storm Standard Graphics 1280x720
176248 Points (23%)
3DMark 11 - Performance 1280x720
min: 4413     avg: 4548     median: 4547.5 (12%)     max: 4682 points
3DMark 11 - Performance GPU 1280x720
min: 4057     avg: 4218     median: 4218 (8%)     max: 4379 points
3DMark Vantage
P Result 1280x1024 + AMD Radeon HD 6870
P GPU no PhysX 1280x1024 + AMD Radeon HD 6870
3DMark 2001SE - Standard 1024x768
min: 13003     avg: 15772     median: 15324 (16%)     max: 18500 Points
min: 60449     avg: 60815     median: 60815 (63%)     max: 61181 Points
3DMark 03 - Standard 1024x768
min: 6825     avg: 7940     median: 7951.5 (4%)     max: 8817 Points
min: 77238     avg: 77275     median: 77275 (40%)     max: 77312 Points
3DMark 05 - Standard 1024x768
min: 5112     avg: 5997     median: 5982 (11%)     max: 6766 Points
min: 30068     avg: 30166     median: 30166 (57%)     max: 30264 Points
3DMark 06 Score + ATI Mobility Radeon HD 2600
Standard 1280x1024 + AMD Radeon HD 6870
Unigine Heaven 2.1 - high, Tesselation (normal), DirectX11 1280x1024
min: 63     avg: 67.7     median: 64.6 (12%)     max: 75.5 fps
SPECviewperf 11
Siemens NX 1920x1080 + AMD Radeon HD 6870
Tcvis 1920x1080 + AMD Radeon HD 6870
SolidWorks 1920x1080 + AMD Radeon HD 6870
Pro/ENGINEER 1920x1080 + AMD Radeon HD 6870
Maya 1920x1080 + AMD Radeon HD 6870
Lightwave 1920x1080 + AMD Radeon HD 6870
Ensight 1920x1080 + AMD Radeon HD 6870
Catia 1920x1080 + AMD Radeon HD 6870
Cinebench R10 Shading 32Bit + ATI Mobility Radeon HD 2600
Shading 32Bit + AMD Radeon HD 6870
Cinebench R11.5 OpenGL 64Bit + AMD Radeon HD 6870

Average Benchmarks ATI Mobility Radeon HD 2600 → 100% n=5

Average Benchmarks AMD Radeon HD 6870 → 616% n=5

- Gama de valores benchmark para essa solução gráfica
- Média de valores benchmark para essa solução gráfica
* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation

Benchmarks de jogos

Os seguintes benchmarks têm origem em nossos benchmarks de portáteis de análise O desempenho depende da memória gráfica utilizada, frequência, processador, configurações do sistema, controladores, e sistemas operacionais. Assim os resultados não tem que representantes para todos os portáteis com esta GPU. Para informações detalhadas sobre os resultados de benchmark, clique no número de fps.

Evolve

Evolve

2015
baixo 1024x768
Radeon HD 6870:
60  fps
média 1366x768
Radeon HD 6870:
52  fps
alto 1920x1080
Radeon HD 6870:
29.2  fps
ultra 1920x1080
Radeon HD 6870:
25.7  fps
alto 1920x1080
Radeon HD 6870:
40.7  fps
ultra 1920x1080
Radeon HD 6870:
32  fps
baixo 1024x768
Radeon HD 6870:
69  fps
média 1366x768
Radeon HD 6870:
35.7  fps
alto 1366x768
Radeon HD 6870:
18.4  fps
ultra 1920x1080
Radeon HD 6870:
14.3  fps
baixo 1024x768
Radeon HD 6870:
51  fps
média 1366x768
Radeon HD 6870:
47.3  fps
alto 1366x768
Radeon HD 6870:
29.2  fps
ultra 1920x1080
Radeon HD 6870:
12.3  fps
baixo 1024x768
Radeon HD 6870:
353  fps
média 1366x768
Radeon HD 6870:
170  fps
alto 1366x768
Radeon HD 6870:
135  fps
ultra 1920x1080
Radeon HD 6870:
85  fps
alto 1366x768
Radeon HD 6870:
72  fps
ultra 1920x1080
Radeon HD 6870:
30  fps
baixo 1024x768
Radeon HD 6870:
77  fps
alto 1366x768
Radeon HD 6870:
49  fps
ultra 1920x1080
Radeon HD 6870:
42  fps
ultra 1920x1080
Radeon HD 6870:
189  fps
ultra 1920x1080
Radeon HD 6870:
81  fps
baixo 1024x768
Radeon HD 6870:
164  fps
média 1366x768
Radeon HD 6870:
121.3  fps
alto 1366x768
Radeon HD 6870:
71.6  fps
ultra 1920x1080
Radeon HD 6870:
23.1  fps
alto 1366x768
Radeon HD 6870:
64  fps
ultra 1920x1080
Radeon HD 6870:
21  fps
ultra 1920x1080
Radeon HD 6870:
36  fps
ultra 1920x1080
Radeon HD 6870:
42  fps
baixo 1024x768
Radeon HD 6870:
280  fps
média 1366x768
Radeon HD 6870:
227  fps
alto 1366x768
Radeon HD 6870:
201  fps
ultra 1920x1080
Radeon HD 6870:
127  fps
ultra 1920x1080
Radeon HD 6870:
35  fps
ultra 1920x1080
Radeon HD 6870:
59.7  fps
Anno 2070

Anno 2070

2011
ultra 1920x1080
Radeon HD 6870:
44  fps
baixo 1280x720
Radeon HD 6870:
71  fps
média 1366x768
Radeon HD 6870:
66  fps
alto 1366x768
Radeon HD 6870:
53  fps
ultra 1920x1080
Radeon HD 6870:
43  fps
ultra 1920x1080
Radeon HD 6870:
90  fps
baixo 1024x768
Radeon HD 6870:
103 110 ~ 107 fps
média 1366x768
Radeon HD 6870:
80  fps
alto 1366x768
Radeon HD 6870:
68  fps
ultra 1920x1080
Radeon HD 6870:
28  fps
alto 1366x768
Radeon HD 6870:
110  fps
ultra 1920x1080
Radeon HD 6870:
57  fps
Fifa 12

Fifa 12

2011
alto 1360x768
Radeon HD 6870:
262  fps
ultra 1920x1080
Radeon HD 6870:
189 193 209 ~ 197 fps
F1 2011

F1 2011

2011
alto 1366x768
Radeon HD 6870:
83 86 ~ 85 fps
ultra 1920x1080
Radeon HD 6870:
54 60 ~ 57 fps
alto 1366x768
Radeon HD 6870:
88  fps
ultra 1920x1080
Radeon HD 6870:
64  fps
Dirt 3

Dirt 3

2011
baixo 800x600
Radeon HD 6870:
273.9 341 ~ 307 fps
média 1024x768
Radeon HD 6870:
167.3 170.7 ~ 169 fps
alto 1360x768
Radeon HD 6870:
122.6 128 ~ 125 fps
ultra 1920x1080
Radeon HD 6870:
51.5 55.3 ~ 53 fps
alto 1600x900
Radeon HD 6870:
44  fps
ultra 1920x1080
Radeon HD 6870:
14  fps
Crysis 2

Crysis 2

2011
alto 1366x768
Radeon HD 6870:
121  fps
ultra 1920x1080
Radeon HD 6870:
41 42 ~ 42 fps
Total War: Shogun 2

Total War: Shogun 2

2011
baixo 1024x768
Radeon HD 6870:
349  fps
média 1280x720
Radeon HD 6870:
105.4 105.5 ~ 105 fps
ultra 1920x1080
Radeon HD 6870:
40.6 41.1 ~ 41 fps
ultra 1920x1080
Radeon HD 6870:
87  fps
Fifa 11

Fifa 11

2010
ultra 1920x1080
Radeon HD 6870:
219  fps
Civilization 5

Civilization 5

2010
ultra 1920x1080
Radeon HD 6870:
41.5  fps
Mafia 2

Mafia 2

2010
baixo 800x600
100%
Mobility Radeon HD 2600:
20.9  fps
média 1024x768
100%
Mobility Radeon HD 2600:
15.3  fps
ultra 1920x1080
Radeon HD 6870:
74.1 75 ~ 75 fps
ultra 1920x1080
Radeon HD 6870:
77 83 ~ 80 fps
Just Cause 2

Just Cause 2

2010
ultra 1920x1080
Radeon HD 6870:
40.4  fps
alto 1600x900
Radeon HD 6870:
70  fps
ultra 1920x1080
Radeon HD 6870:
23  fps
alto 1366x768
Radeon HD 6870:
90  fps
ultra 1920x1080
Radeon HD 6870:
76.4  fps
ultra 1920x1080
Radeon HD 6870:
67 70 ~ 69 fps
Stalker: Call of Pripyat

Stalker: Call of Pripyat

2010
ultra 1920x1200
Radeon HD 6870:
39  fps
ultra 1920x1080
Radeon HD 6870:
95  fps
Risen

Risen

2009
ultra 1920x1080
Radeon HD 6870:
58  fps
Resident Evil 5

Resident Evil 5

2009
ultra 1920x1080
Radeon HD 6870:
105.1  fps
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
ultra 1920x1080
Radeon HD 6870:
77.3  fps
ArmA 2

ArmA 2

2009
ultra 1920x1080
Radeon HD 6870:
38 (!)  fps
F.E.A.R. 2

F.E.A.R. 2

2009
ultra 1920x1080
Radeon HD 6870:
129  fps
GTA IV - Grand Theft Auto

GTA IV - Grand Theft Auto

2008
alto 1280x1024
Radeon HD 6870:
62.8 63 ~ 63 fps
Far Cry 2

Far Cry 2

2008
ultra 1920x1080
Radeon HD 6870:
90.6  fps
Crysis Warhead

Crysis Warhead

2008
ultra 1024x768
Radeon HD 6870:
38.3  fps
Trackmania Nations Forever

Trackmania Nations Forever

2008
ultra 1920x1080
Radeon HD 6870:
73.3  fps
Supreme Commander - FA Bench

Supreme Commander - FA Bench

2007
ultra 1920x1080
Radeon HD 6870:
54.6 55.2 ~ 55 fps
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
baixo 1024x768
100%
Mobility Radeon HD 2600:
20.5  fps
média 1024x768
100%
Mobility Radeon HD 2600:
10 10.6 10.7 ~ 10 fps
alto 1024x768
100%
Mobility Radeon HD 2600:
6.1  fps
1613%
Radeon HD 6870:
98.4  fps
ultra 1920x1080
Radeon HD 6870:
36.6  fps
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
baixo 1024x768
100%
Mobility Radeon HD 2600:
16 23.2 ~ 20 fps
média 1024x768
100%
Mobility Radeon HD 2600:
9.6 12.4 ~ 11 fps
alto 1024x768
100%
Mobility Radeon HD 2600:
6 5.9 ~ 6 fps
ultra 1920x1080
Radeon HD 6870:
38.5  fps
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
média 1024x768
100%
Mobility Radeon HD 2600:
18  fps
alto 1024x768
100%
Mobility Radeon HD 2600:
5  fps
ultra 1920x1080
Radeon HD 6870:
59  fps
F.E.A.R.

F.E.A.R.

2005
baixo 640x480
100%
Mobility Radeon HD 2600:
90 164 173 202 ~ 157 fps
média 800x600
100%
Mobility Radeon HD 2600:
14 51 73 73 ~ 53 fps
alto 1024x768
100%
Mobility Radeon HD 2600:
10 18 19 24 ~ 18 fps
World of Warcraft

World of Warcraft

2005
alto 1280x1024
Radeon HD 6870:
94  fps
Doom 3

Doom 3

2004
baixo 640x480
100%
Mobility Radeon HD 2600:
83.3  fps
média 640x480
100%
Mobility Radeon HD 2600:
85.7  fps
alto 800x600
100%
Mobility Radeon HD 2600:
83.4  fps
ultra 1024x768
100%
Mobility Radeon HD 2600:
67.6  fps
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
alto 1024x768
100%
Mobility Radeon HD 2600:
244.1 246.2 258 318 ~ 267 fps

Average Gaming ATI Mobility Radeon HD 2600 → 100%

Average Gaming AMD Radeon HD 6870 → 1613%

Para mais jogos compatíveis e uma lista de todos os jogos e soluções gráficas visite nosso Lista de jogos

v1.14

Class 1

Quadro RTX 5000 Max-Q *
GeForce RTX 2080 Super Mobile *
GeForce RTX 2080 Super Max-Q *
GeForce RTX 2070 Super Mobile *
Quadro RTX 4000 (Laptop) *
Quadro RTX 4000 Max-Q *
GeForce RTX 2070 Super Max-Q *
Quadro RTX 3000 Max-Q *
Quadro P5200

Class 2

Quadro P4200
Quadro P5000 Max-Q *
Quadro P4000
GeForce GTX 1650 Ti Mobile *
Quadro P4000 Max-Q
Quadro P3200
Radeon RX 580X (Laptop) *
Radeon RX 580 (Laptop)
Radeon Pro 5300M
Radeon RX 5300M
Quadro P3000 Max-Q *
Radeon Pro WX 7100 *
Radeon RX 570X (Laptop) *
Radeon RX 570 (Laptop) *
Radeon RX 470 (Laptop) *
Quadro T1000 Max-Q *
GeForce MX450 N18S-G5 *
Vega M GH
GeForce GTX 1050 Ti Mobile
Quadro P2000
Quadro P2000 Max-Q
Quadro M4000M
Radeon R9 M395X
GeForce GTX 1050 Ti Max-Q *
WX Vega M GL
Radeon Pro Vega 16 *
Radeon R9 M485X
Quadro M3000M
Xe DG1
FirePro W7170M
GeForce GTX 1050 Max-Q *
Quadro P1000
Radeon Pro WX 4150 *
Radeon RX 560X (Laptop)
Radeon RX 560 (Laptop)
Radeon Pro 560X
Radeon Pro 560
Radeon Pro 460
Radeon Pro WX 4130 *
Quadro P620 *
Radeon RX 550X (Laptop)
Radeon Pro WX 3200 *
Radeon Pro 555X
Radeon Pro 555
Tiger Lake-U Xe G7 *
Radeon Pro 455
Quadro P600
GeForce MX330 *
Tiger Lake-U Xe G4 *
Radeon RX 540X *
Radeon Pro WX 2100 *
Radeon Pro WX 3100 *
Radeon Pro 450
Radeon 630
Radeon 540X *
Radeon R9 M385X
Quadro P520
Quadro P500 *
Iris Plus Graphics G7 (Ice Lake 64 EU) *
Vega 10 *
Iris Pro Graphics 580
FirePro W5170M *
Vega 9
FirePro W5130M
Tiger Lake-U Xe G1 *

Class 3

Radeon R7 M465
FirePro W4170M
Vega 8
Vega 7 *
Iris Plus Graphics G4 (Ice Lake 48 EU) *
GeForce 930MX
Quadro M600M
FirePro W4190M
Radeon R9 M375
Radeon R7 M445
Iris Plus Graphics 650
Vega 6 *
Iris Plus Graphics 640
GeForce 920MX
Radeon R7 (Carrizo)
Radeon R7 M360
Radeon R7 M340
Radeon 610
Vega 6 *
Vega 5 *
UHD Graphics G1 (Ice Lake 32 EU) *
UHD Graphics G7 (Lakefield GT2 64 EU)
HD Graphics P530
Radeon R5 (Bristol Ridge)
HD Graphics 620
Radeon R6 (Carrizo)
Adreno 685 *
Adreno 680 *
Radeon R6 M255DX
Radeon R5 M330
GeForce 910M
UHD Graphics G4 (Lakefield GT1 48 EU) *

Class 4

Radeon R5 M320 *
Radeon R5 M315 *
Radeon R5 M420 *
Vega 2 *
UHD Graphics 617
UHD Graphics 615
Radeon R5 (Carrizo) *
UHD Graphics 610
UHD Graphics 605
Radeon R4 (Stoney Ridge)
Radeon R4 (Kaveri)
Radeon R2 (Stoney Ridge)
HD Graphics (Broadwell)
UHD Graphics 600

Class 5

Posição aproximada do adaptador gráfico

Please share our article, every link counts!
> Análises e revisões de portáteis e celulares > FAQ/Técnica > Comparação de Placas de Vídeo > ATI > ATI Mobility Radeon HD 2600
Klaus Hinum, 2007-07- 7 (Update: 2012-05-18)
